V. Mainieri^1,2,3 - P. Rosati² - P. Tozzi⁴ - J. Bergeron⁵ - R. Gilli⁶ - G. Hasinger¹ - M. Nonino⁴ - I. Lehmann¹ - D. M. Alexander⁷ - R. Idzi⁸ - A. M. Koekemoer⁸ - C. Norman⁹ - G. Szokoly¹ - W. Zheng⁹

1 - Max-Planck-Institut für extraterrestrische Physik, Giessenbachstrasse PF 1312, 85748 Garching bei Muenchen, Germany
2 - European Southern Observatory, Karl-Schwarzschild-Strasse 2, 85748 Garching, Germany
3 - Dip. di Fisica, Università degli Studi Roma Tre, Via della Vasca Navale 84, 00146 Roma, Italy
4 - INAF, Osservatorio Astronomico di Trieste, via G.B. Tiepolo 11, 34131 Trieste, Italy
5 - Institut d'Astrophysique de Paris, 98bis boulevard, 75014 Paris, France
6 - INAF, Osservatorio Astrofisico di Arcetri, Largo E. Fermi 5, 50125, Firenze, Italy
7 - Institute of Astronomy, Madingley Road, Cambridge CB3 0HA, UK
8 - Space Telescope Science Institute, 3700 San Martin Drive, Baltimore, MD 21218, USA
9 - Center for Astrophysical Sciences, Department of Physics and Astronomy, The Johns Hopkins University, Baltimore, MD 21218, USA

Abstract
We provide important new constraints on the nature and redshift distribution of optically faint ( $R\ge 25$ ) X-ray sources in the Chandra Deep Field South Survey. We use a large multi-wavelength data set, including the GOODS/ACS survey, the recently released Hubble Ultra Deep Field (UDF) data, and the new public VLT/ISAAC imaging. We show that we can derive accurate photometric redshifts for the spectroscopically unidentified sources thus maximizing the redshift completeness for the whole X-ray sample. Our new redshift distribution for the X-ray source population is in better agreement with that predicted by X-ray background synthesis models; however, we still find an overdensity of low redshift (z< 1) sources. The optically faint sources are mainly X-ray absorbed AGN, as determined from direct X-ray spectral analysis and other diagnostics.
Many of these optically faint sources have high (>10) X-ray-to-optical flux ratios. We also find that $\sim$ 71% of them are well fitted with the SED of an early-type galaxy with $\langle z_{\rm phot}\rangle \sim 1.9$ and the remaining 29% with irregular or starburst galaxies mainly at $z_{\rm phot}>3$ . We estimate that $15 \%$ of the optically faint sources are X-ray absorbed QSOs. The overall population of X-ray absorbed QSOs contributes a $\sim$ $11 \%$ fraction of the [2-10] keV X-ray Background (XRB) whereas current XRB synthesis models predict a $\sim$ $38 \%$ contribution.

Key words: surveys - galaxies: active - galaxies: quasars: general - cosmology: diffuse radiation - X-ray: galaxies - X-rays: general

1 Introduction

Recent Chandra and XMM-Newton (Brandt et al. 2001; Rosati et al. 2002; Hasinger et al. 2001) deep surveys have almost resolved the entire 2-10keV X-ray background (XRB), forty years after its discovery (Giacconi et al. 1962). A large optical follow-up program of hundreds of X-ray sources in these fields has lead to the identification of a mixture of obscured and unobscured AGN, with an increasing fraction of obscured AGN at faint X-ray fluxes (Barger et al. 2003; Szokoly et al. 2004). The optical counterparts of a significant fraction of the X-ray sources are too faint ( $R\geq25$ ) for optical spectroscopy, even for $\approx$ 5-6 h exposures with 8-10 m class telescopes. In this work, we focus on this subsample of X-ray sources with $R\ge 25$ , which will be referred to as Optically Faint Sources (OFS). This criterion simply reflects an observational limit beyond which we need to rely on accurate photometric measurements and X-ray spectral information to estimate their redshift and to establish their physical nature. We note that OFS represent a quarter of the entire X-ray sample, therefore they have a significant impact on statistical studies, such as the X-ray luminosity function, the evolution of the type I/type II ratio and the overall $N_{\rm H}$ distribution. Moreover, many OFS are relatively bright in the X-ray band, due to powerful AGN activity (Alexander et al. 2001; Mignoli et al. 2004). It is possible that a sizeble fraction of these sources belong to the long-sought class of high-redshift, high luminosity, heavily obscured active galactic nuclei (type II QSOs).

The first detailed study of OFS has been done by Alexander et al. (2001) in the Chandra Deep Field North (CDF-N).

Here we extend that work by estimating photometric redshifts for a large fraction of the OFS population, providing direct constraints on their intrinsic absorption and on their spectral energy distribution.

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{1212fig1.ps} \end{figure}$	Figure 1: Adaptively smoothed Chandra image of the CDF-S in the [0.5-7] keV band. The circles show the position of OFS. The big dashed rectangle is the area of the GOODS survey ( "GOODS area''); the polygon indicates the region of the deep public VLT/ISAAC observations currently available and the small square indicates the area of the Hubble Ultra Deep Field (UDF).
Open with DEXTER

The outline of the paper is as follows: in Sect. 2 we describe the X-ray sample. In Sect. 3 we compare the X-ray properties of the optically bright (R<25) and faint ( $R\ge 25$ ) X-ray sources. In Sect. 4 we derive photometric redshifts. In Sect. 5 we discuss the few OFS with known spectroscopic redshifts. In Sect. 6 we use the X-ray to optical flux ratios as a diagnostic tool. In Sect. 7 we perform an X-ray spectral analysis and in Sect. 8 we derive the fraction of OFS that are likely to be X-ray detected type-2 QSOs. We study in detail the OFS inside the recently released Hubble Ultra Deep Field in Sect. 9. Finally in Sect. 10 we summarize and discuss the results. Throughout this paper we use Vega magnitudes (if not otherwise stated) and assume $\Omega_{\rm M}=0.3$ , $\Omega_\Lambda=0.7$ and H₀=70 km s^-1 Mpc^-1.

2 The sample

The X-ray sample is obtained from the 1 Ms Chandra observation of the Chandra Deep Field South (CDF-S; Giacconi et al. 2002; Rosati et al. 2002). We refer to Table 2 in Giacconi et al. 2002 for the X-ray quantities and relative errors (e.g., X-ray fluxes, counts). In Fig. 1 we show a smoothed 0.5-7 keV image of the CDF-S field on which we have highlighted the OFS. The distribution of R band magnitudes for the X-ray sources is reported in Fig. 2. From the entire X-ray sample of 346 sources, 92 are OFS ( $\sim$ $27\%$ ), of which 46 ( $\sim$ $13\%$ of the total sample) do not have a R band counterpart (down to R=26.1-26.7). In the CDF-N, the fraction of optically faint sources ( $I\ge 24$ ) is slightly larger ( $\approx$ $33 \%$ ; Alexander et al. 2001); however, this study was performed in the most sensitive region of the CDF-N field, while here we are considering the whole of the CDF-S field.

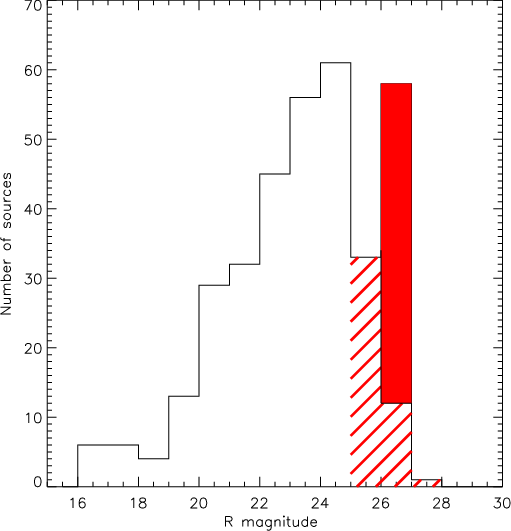

$\begin{figure} \par\includegraphics[width=7.2cm,clip]{1212fig2.ps} \end{figure}$	Figure 2: The R-band magnitude distribution for the optical counterparts of the X-ray sample. The hatched box are the OFS, while the shaded part refers to the sources without a R band counterparts (down to R=26.7).
Open with DEXTER

At present only six ( $\sim$ $6\%$ ) of the OFS have been spectroscopically identified, as compared to 151 ( $\sim$ $60\%$ ) of the optically bright (R<25) X-ray sources (Szokoly et al. 2004). We will discuss in detail the properties of these six OFS in Sect. 5. For the remaining OFS it will be challenging to obtain a spectroscopic redshift with 8-10 m telescopes, with the exception of those sources with strong emission lines. In order to obtain information on their redshift distribution we have determined photometric redshifts (see Sect. 4).

3 Comparison of the optically bright and optically faint X-ray source samples

Before we investigate in detail the nature of the optically faint X-ray source population, we will compare their general X-ray properties with those of the well-studied optically bright X-ray source population (see also Sect. 4 of Alexander et al. 2001).

3.1 X-ray fluxes

In Fig. 3 we compare the X-ray flux distributions of the optically bright and faint sources in the 0.5-2 keV (left panel) and 2-10 keV bands (right panel). According to a Kolmogorov-Smirnov test the probability that the distributions are drawn from the same population is extremely small ( $\sim$ $0.02 \%$ in the 0.5-2 keV band and $\sim$ $0.001 \%$ in the 2-10 keV band). According to Fig. 3, almost all the bright X-ray sources are part of the optically bright sample.

The total flux in the 2-10 keV band of the OFS is $\sim$ $1.6 \times 10^{-12}$ erg cm^-2 s^-1 deg^-2 after correcting for the sky coverage in the CDF-S (see Fig. 5 of Giacconi et al. 2002). This accounts for a $\sim$ $7{-}10 \%$ fraction of the [2-10] keV XRB; the estimated error range corresponds to the uncertainty in the measurement of the XRB flux (HEAO-1, Marshall et al. 1980 and Revnivtsev et al. 2004; SAX, Vecchi et al. 1999; XMM-Newton, De Luca & Molendi 2004).

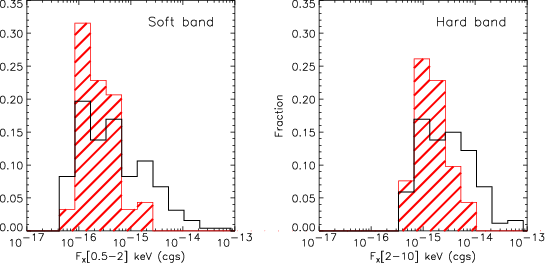

$\begin{figure} \par\includegraphics[width=7.8cm,clip]{1212fig3.ps} \end{figure}$	Figure 3: The distributions of X-ray fluxes in the 0.5-2 keV ( left panel) and 2-10 keV band ( right panel) for the OFS (hatched histogram) and optically bright sources (open histogram).
Open with DEXTER

3.2 Hardness ratios distibution

The hardness ratio (HR) is a useful tool to characterize the spectral shape of the AGN X-ray continuum. We adopt the definition HR $\equiv$ (H-S)/(H+S), where H and S are the net count rates in the 2-7 keV and 0.5-2 keV band, respectively. We have recomputed the HR values over those given in Giacconi et al. (2002) by performing aperture photometry for each source in both the 0.5-2 keV and 2-10 keV bands regardless of whether the source is detected in either of these bands. Therefore, several values previously set to +1 or -1 (Giacconi et al. 2002) have a different value, still consistent with the old one within 1 $\sigma$ error. When $\rm HR=\pm1$ , we plot the 1 $\sigma$ upper/lower limits. Other minor differences come from the new reduction of the CDF-S data performed after the release of CALDB 2.26 and CIAO3.1. In particular, we applied the correction for the degraded effective area of ACIS-I chips due to material accumulated on the ACIS optical blocking filter at the epoch of the observation using the recently released time-dependent gain correction (see http://asc.harvard.edu/ciao/threads/acistimegain/).

We have corrected the HR values for the off-axis angle of the source, normalizing the soft and hard counts to refer to an on-axis source falling on the aimpoint (chip3). To do that, we have used the soft and hard exposure maps computed for the monochromatic energies of 1.5 and 4.5 keV respectively.

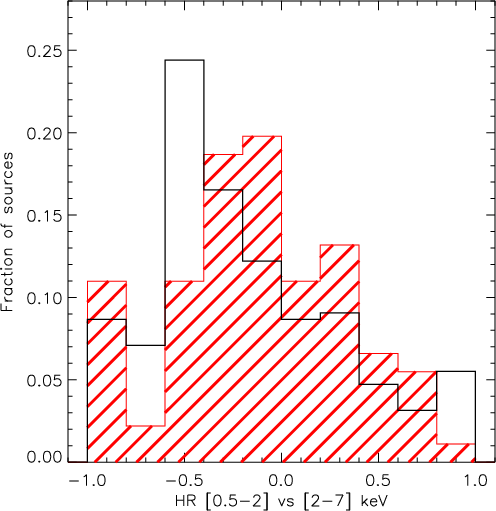

$\begin{figure} \par\includegraphics[width=7.cm,clip]{1212fig4.ps} \end{figure}$	Figure 4: The distribution of hardness ratios (HR) for the optically faint sample (hatched histogram) and the optically bright sample (open histogram).
Open with DEXTER

In Fig. 4 we show the hardness ratio distributions. A larger fraction of OFS show a high HR, typical of intrinsically absorbed AGN emission, than found in the optically bright sample. The two HR distributions are distinguishable according to the Kolmogorov-Smirnov test at the $98 \%$ significance level; a similar result has been obtained by Alexander et al. (2001) in the CDF-N. These findings are also in agreement with the general trend toward flatter X-ray spectral slopes at fainter X-ray fluxes (i.e. Tozzi et al. 2001). It has been shown that this flattening is due to the fainter X-ray sources having more absorbed X-ray spectra (see e.g. Mainieri et al. 2002; Kim et al. 2004).

We conclude that there is a larger fraction of OFS with flat X-ray spectral slopes. To confirm that this flattening is due to high intrinsic absorption we fit the X-ray spectra of each source. We discuss this in more detail in Sect. 7.

4 Photometric redshift technique applied to an X-ray selected sample

Given the optical faintness of the OFS, the only viable way to determine their redshifts is to use photometric redshift techniques. In recent years, these techniques have achieved good accuracy, particularly when high quality multiwavelength imaging data is available; e.g. $\sigma _{z} = 0.06(1+{z})$ for the Hubble Deep Field North (Fernández-Soto et al. 1999; Benitez 2000; Furusawa et al. 2000). These procedures rely on detecting the passage of continuum features within the spectral energy distribution (SED) of sources across a series of photometric passbands (e.g., the ${\rm 4000~ \AA}$ break).

Recently these techniques have also been applied to the optical counterparts of X-ray sources. For these sources the contribution to the optical/near-IR emission from the AGN nucleus can be significant. Gonzalez & Maccarone (2002) studied a sample of 65 sources detected by Chandra in the Hubble Deep Field North and flanking fields. By using a set of galaxy templates, and excluding objects dominated by the emission from the QSO, they were able to obtain photometric redshifts to an accuracy similar to that achieved for non-active galaxies. Mobasher et al. (2004) used the wide multiwavelength photometry from the Great Observatories Origins Deep Survey (GOODS) to derive photometric redshifts for a sample of 19 AGN with spectroscopic identification. They found an rms scatter of $\approx$ 0.13, good enough to be useful for many science applications. Finally, Zheng et al. (2004), using the GOODS photometry, estimated photometric redshifts for the full sample of 346 X-ray sources detected in the CDF-S (Giacconi et al. 2002). By comparison with known spectroscopic redshifts (137 sources from Szokoly et al. 2004) we derived an average dispersion $\Delta z/(1+z) \approx 0.08$ .

In Zheng et al. (2004), we presented photometric redshifts for the full sample of X-ray sources in the CDF-S. In this work, we fully describe our methodology developed to produce the best results for the OFS. By determining likelihood contours in the redshift vs. template plane, our approach clearly elucidate degeneracies/dependencies between redshift and SED/reddening which often affect the photometric redshift determination.

4.1 Multicolour catalogue

A key ingredient for deriving reliable photometric redshifts is broad, multi-wavelength coverage and accurate photometry. An area of $\approx$ 160 arcmin² of GOODS/CDF-S has been imaged with the Advance Camera for Surveys (ACS) on board of the Hubble Space Telescope (HST) in the F435W, F606W, F775W and F850LP bands (Giavalisco et al. 2004). A large program with the VLT is under way to image the GOODS area in the $J,H,K_{\rm s}$ bands, using some 32 ISAAC fields to mosaic a 150 arcmin² region (Vandame et al. in preparation); in addition, an extensive spectroscopic campaign has been completed with FORS2 at ESO (Vanzella et al. 2004) and additional spectroscopy with VIMOS is planned in 2005. The CDF-S has also been selected as one of the target fields in the Spitzer legacy program GOODS (Dickinson et al. 2002). For an overview of the available data in this field we refer the reader to Giavalisco et al. (2004).

We will restrict our photometric redshifts estimation only to the region of the CDF-S covered by deep HST/ACS imaging (see Fig. 1) and we will refer to it as the "GOODS area''. In this region there are 192 X-ray sources, 112 of which have a spectroscopic redshift (Szokoly et al. 2004). For this sample we have built a multicolour catalogue in B₄₃₅, V₆₀₆, i₇₇₅, z₈₅₀, J, H, $K_{\rm s}$ bands. For the four optical bands we refer to the publicly available GOODS catalogue, while in the near-IR we use the deep VLT/ISAAC observations (Vandame et al. in preparation), when available, or the shallower NTT/SOFI imaging (Vandame et al. 2001).

We used SExtractor (Bertin & Arnouts 1996) for source detection in each band. To obtain reliable source colours the spread in seeing conditions for images in different wavebands has been taken into account. We obtained PSF-matched magnitudes as follows: 1) we computed aperture magnitudes in each waveband using the available images ("original'' images); 2) we degraded the point spread function (PSF) of each image to match the worst condition ("degraded'' images); 3) we recomputed the aperture magnitudes using the "degraded'' images; 4) we derived corrections for the different seeing conditions by comparing the magnitudes of "bright'' stars in the "original'' and in the "degraded'' images. These corrections ( $\la$ 0.1 mag) are applied to the "original'' magnitudes. We checked that those corrections are constant over a large magnitude range. We also corrected for Galactic extinction: the values in the different filters have been obtained from the NASA/IPAC Extragalactic Database which are taken from Schlegel et al. (1998). The corrections in the CDF-S region are small (from $\sim$ 0.03 mag in the B band to $\sim$ 0.003 mag in the $K_{\rm s}$ band).

In the following, we adopt an X-ray based classification as suggested by Szokoly et al. (2004), but using unabsorbed luminosities and intrinsic absorption as opposed to uncorrected luminosities and hardness ratio (see Tozzi et al. 2005). We introduce the following classes: X-ray unabsorbed QSO: $L_{\rm X} [0.5{-}10] \ge 10^{44}$ erg/s and $N_{\rm H} < 10^{22}$ cm^-2; X-ray unabsorbed AGN: $10^{42} \le {L_{\rm X} [0.5{-}10]} < 10^{44}$ erg/s and $N_{\rm H} < 10^{22}$ cm^-2; X-ray absorbed QSO: $L_{\rm X} [0.5{-}10] \ge 10^{44}$ erg/s and $N_{\rm H} \ge 10^{22}$ cm^-2; X-ray absorbed AGN: $10^{42} \le {L_{\rm X} [0.5{-}10]} < 10^{44}$ erg/s and $N_{\rm H} \ge 10^{22}$ cm^-2; galaxy: $L_{\rm X} [0.5{-}10] < 10^{42}$ erg/s and $N_{\rm H} < 10^{22}$ cm^-2.

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{1212fig5.ps}\par\vspace*{2... ...\par\vspace*{2mm} \includegraphics[width=8.8cm,clip]{1212fig7.ps} \end{figure}$

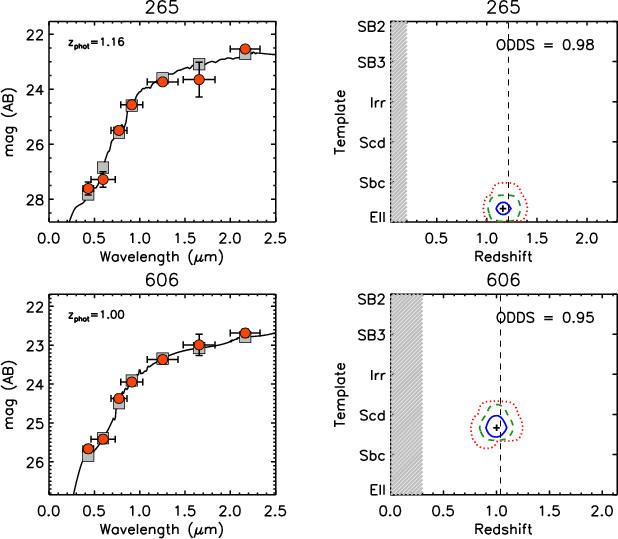

Figure 5: Comparison of the photometric and spectroscopic redshifts of the spectroscopically identified OFS in the "GOODS area''. Left side: best fit template (continuum line) with the observed photometry (filled circles with error bars) and the best fit model photometry (filled squares) overplotted. Right side: confidence contours ( $1 \sigma$ , $2 \sigma$ and $3 \sigma$ ) for the photometric redshift determination in the SED template vs. redshift plane. The dashed line indicates the spectroscopic redshift and the cross shows the best fit solution. The shaded area refers to a low-probability region in the solution space (see Sect. 4.2). XID are from Giacconi et al. (2002).

Open with DEXTER

4.2 Photometric redshifts

Using the extraordinarily deep and wide photometric coverage in the "GOODS area'', we have computed photometric redshifts for the OFS. This allows us to estimate the redshift distribution of OFS to a greater precision than has been performed before. For example, Alexander et al. (2001) assumed that most OFS reside in $\sim$ $L^{\star}$ host galaxies to infer that the majority of the population is in the redshift range of $z\approx 1{-}3$ .

We used the publicly available code BPZ (Benitez 2000). This code combines $\chi^2$ minimization and Bayesian marginalization, using prior probabilities to include a priori knowledge of the distribution of galaxy magnitudes and spectral types with redshift. We used the default library of spectral templates in BPZ: four (E, Sbc, Scd, Irr) are spectral energy distributions from Coleman et al. (1980) and two are derived from spectra of starburst galaxies in Kinney at al. (1996). We allowed the code to calculate two interpolated SEDs between each pair of these templates.

BPZ provides the "odds'' parameter to characterize the accuracy of the redshift estimation. This parameter is defined as the integral of the redshift probability distribution within the interval $\vert z-z_{\rm b}\vert< 2 \times \sigma (z)$ , where $z_{\rm b}$ is the value which maximizes the probability distribution and $\sigma (z)$ the observed rms. A low value (<0.6) of the odds parameter is a warning that the probability distribution is spread over a large redshift range or is double-peaked.

The reliability of the OFS photometric redshifts was estimated using the five spectroscopically identified OFS in the "GOODS area'': CDF-S/XID 45, 117, 263, 265 and 606 (see Table 3 and Figs. 5-6). In the left column the best fit template is plotted together with the observed photometry. On the right column, likelihood contours ( $1 \sigma$ , $2 \sigma$ , $3 \sigma$ ) are reported in the SED template vs. redshift plane. In all of the five cases the agreement between the photometric and spectroscopic redshift is extremely good, even for source CDF-S/XID 117 for which we do not have reliable near-IR photometry. Therefore we are confident that we can apply this procedure to the whole OFS class. In Tables 1 and 2 we report the derived photometric redshifts and the 1 $\sigma$ confidence range. Best fits and confidence contours for each source are shown in Fig. 7.

We have also used X-ray information to set a posteriori constraints in the redshift solution space. In a plot of the Hardness Ratio versus the X-ray luminosity of the sources in the CDF-S (see Fig. 10 of Szokoly et al. 2004) almost all of the sources spectroscopically identified as AGN have: $\rm HR>-0.6$ and $L_{\rm X}[0.5{-}10 ~ {\rm keV}]> 10^{41.5}$ erg s^-1. Consequently for all the objects with $\rm HR>-0.6$ we have imposed a minimum X-ray luminosity limit ( $L^{\rm min}_{\rm X}[0.5{-}10 ~ {\rm keV}]= 10^{41.5}$ erg s^-1) that converts to a minimum redshift for each source ( $z_{\rm min}$ ). In the confidence contour plots the shaded area corresponds to $z<{z_{\rm min}}$ , where the probability to have the correct solution is low (see Figs. 5 and 7).

We compare in Fig. 9 the redshift distribution of optically bright sources and OFS. We use the spectroscopic redshift, if known, or the derived photometric redshift, if the source is still unidentified. The solid histogram shows the redshift distribution of the OFS, the hatched histogram shows the distribution of optically bright sources, and the open histogram shows the distribution of the whole X-ray sample. We have excluded sources belonging to the two large scale structures at z = 0.67 and 0.73 discovered by Gilli et al. (2003) in the CDF-S. The uncertainties in the photometric redshifts are too large to determine whether a source belongs to these structures. Since $82 \%$ of the spectroscopically identified sources with $0.6 \leq z_{\rm spec} \leq 0.8$ belong to the redshift spikes, we assumed that a similar fraction of sources with $0.6 \leq z_{\rm phot} \leq 0.8$ are part of the same structures.

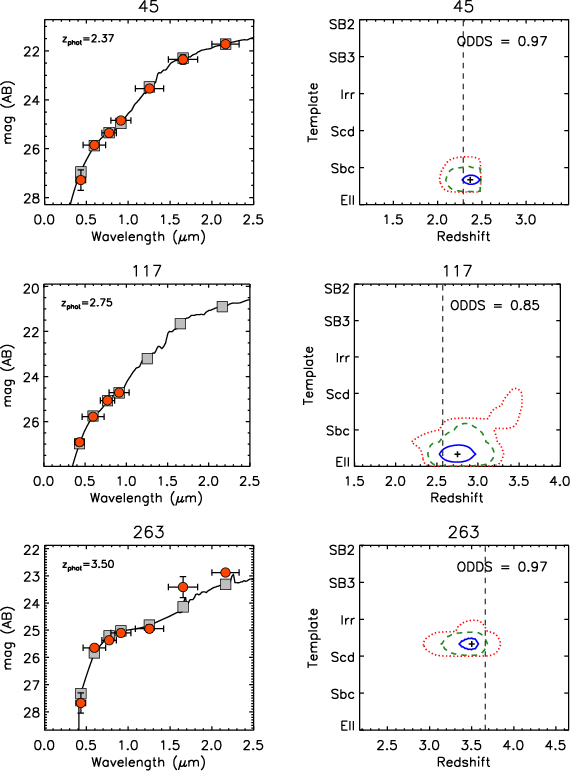

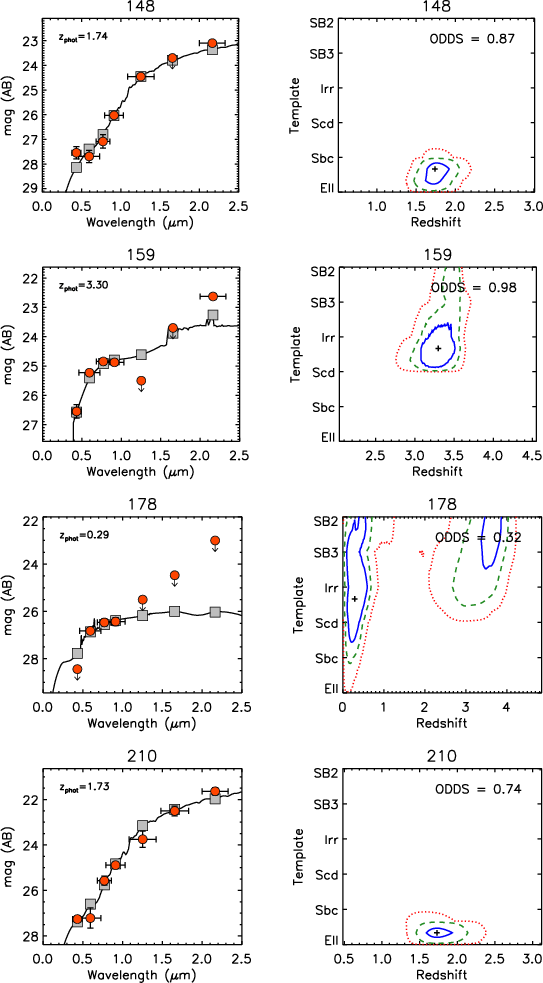

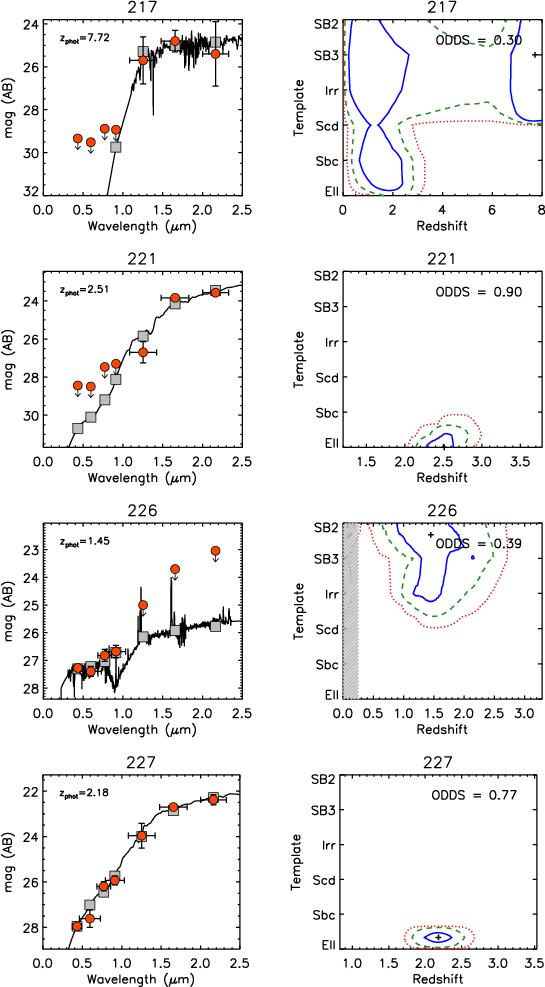

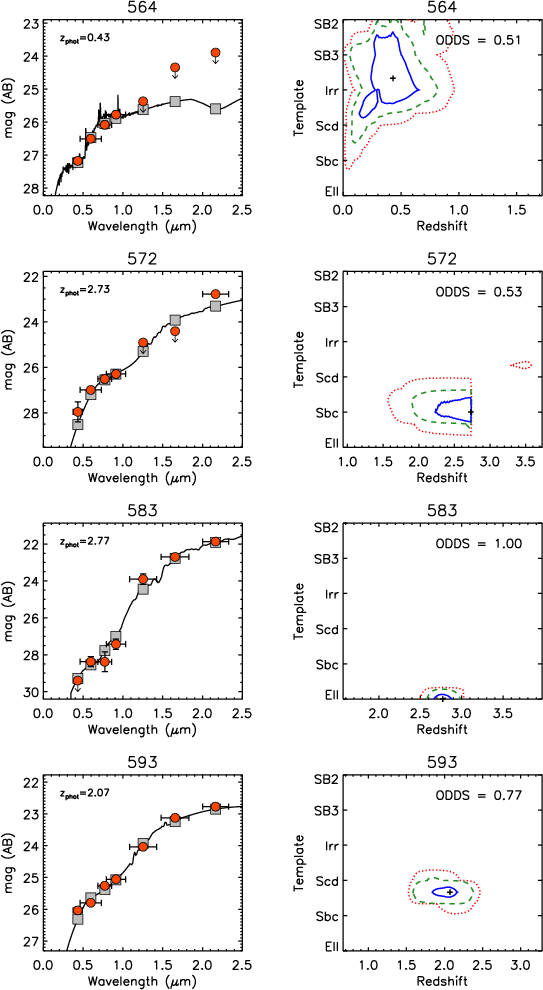

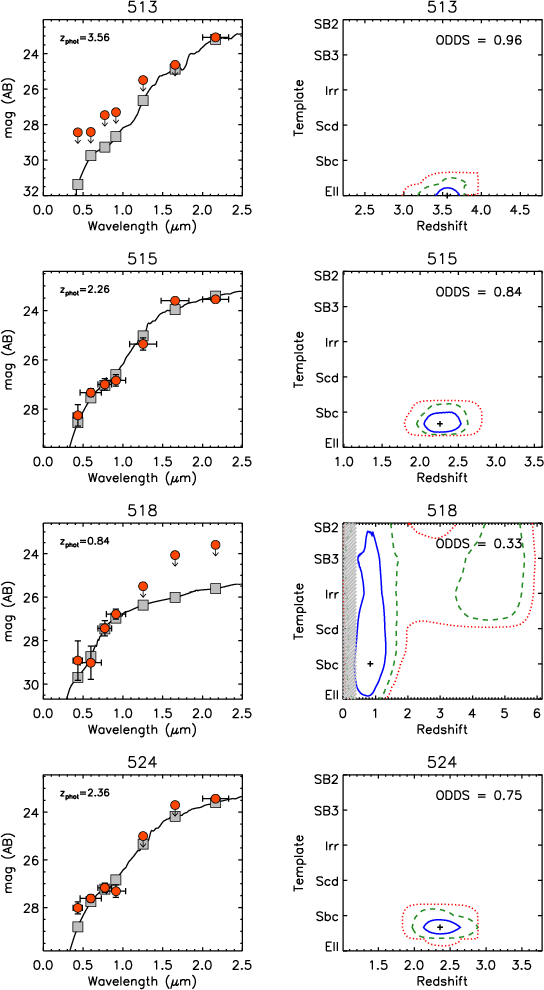

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{1212fig10.ps}\par\vspace*{... ...}\par\vspace*{2mm} \includegraphics[width=8.8cm,clip]{1212fig13.ps} \end{figure}$

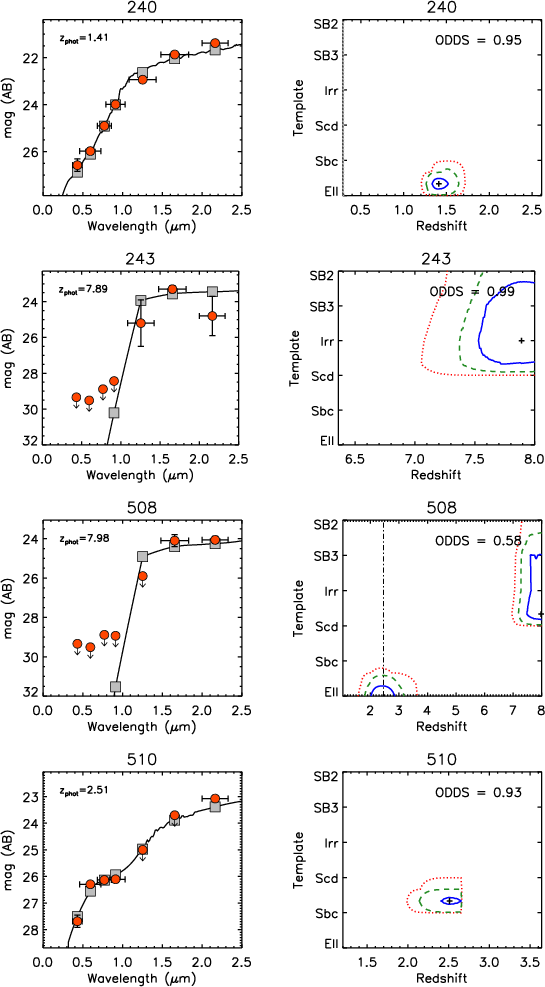

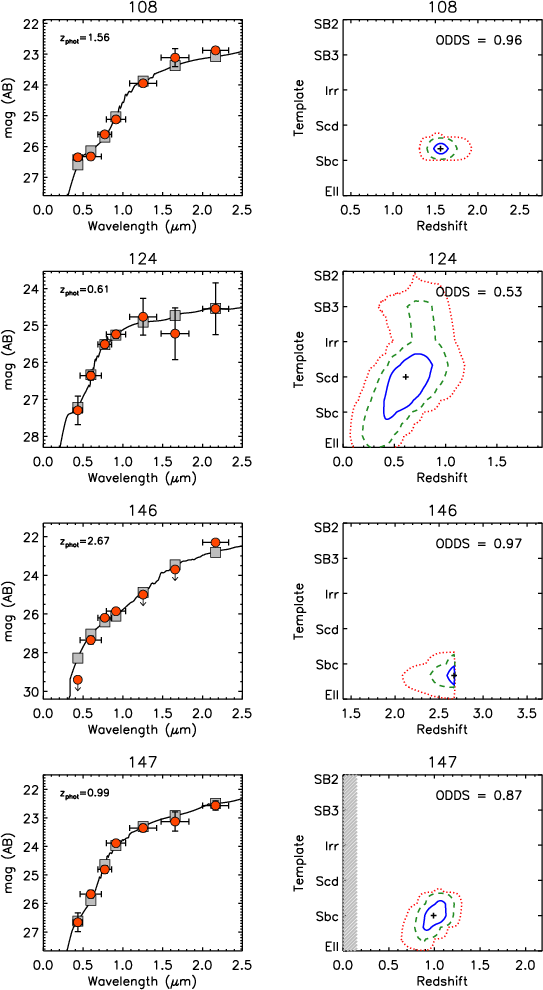

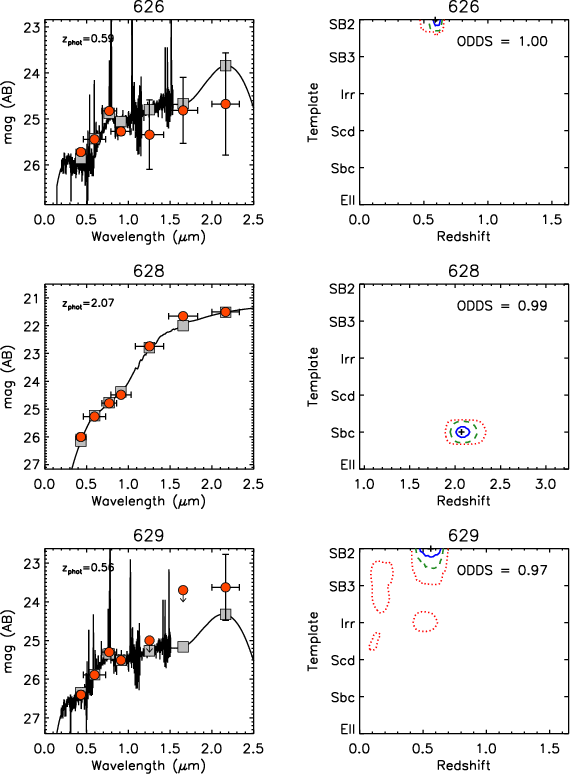

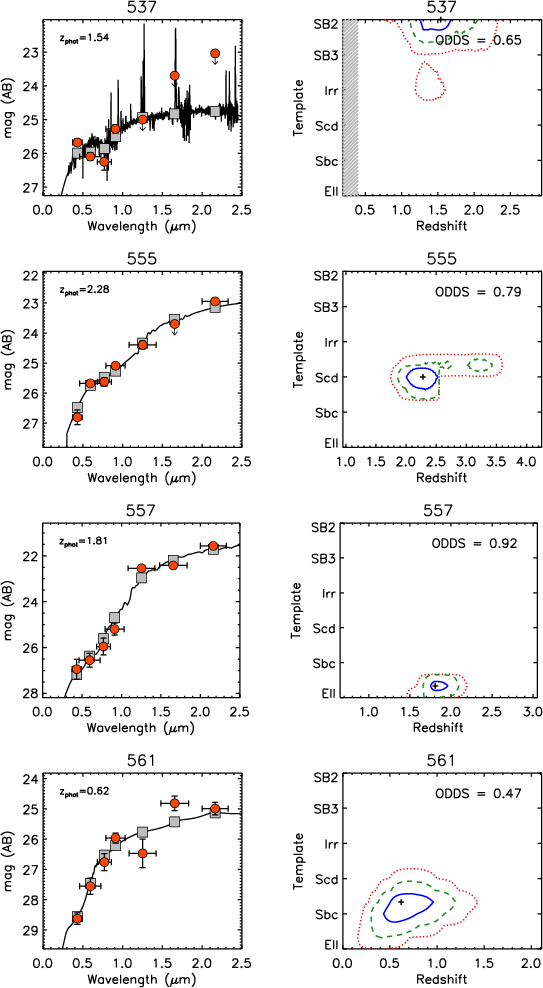

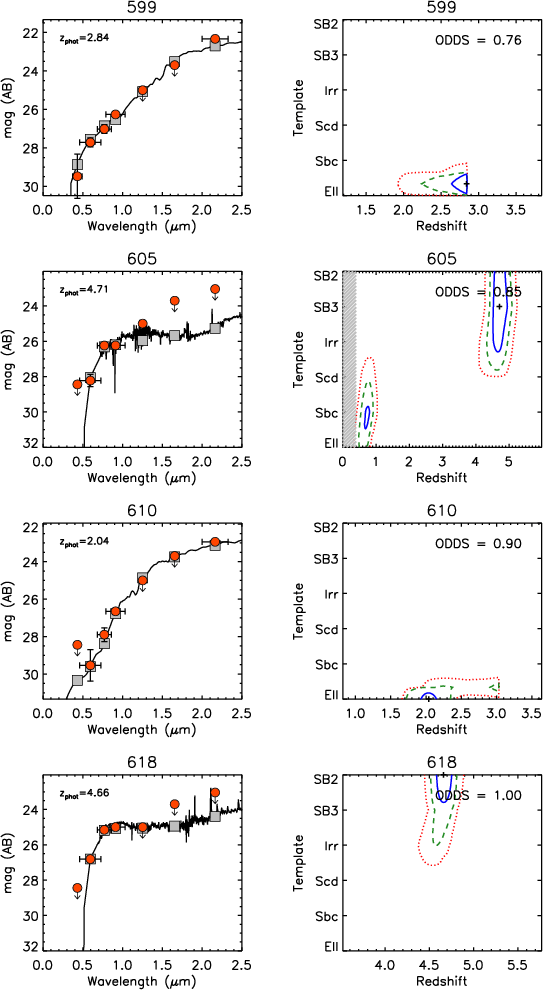

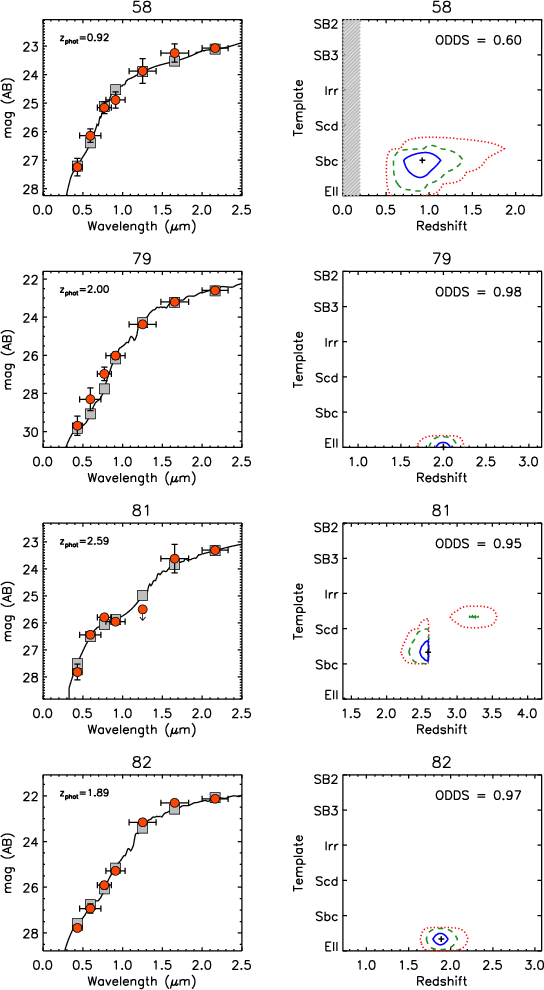

Figure 7: Photometric redshifts for OFS in the "GOODS area'' with $\rm odds\ge 0.3$ . Left side: best fit galaxy template (solid line) with overplotted the observed photometry (filled circles with error bars), and the best fit model photometry (filled squares). Right side: confidence contours ( $1 \sigma$ , $2 \sigma$ and $3 \sigma$ ) for the photometric redshift determination in the SED template vs. redshift plane. The cross indicates the best-fit solution. The shaded area refers to a low-probability region in the solution space (see text). XIDs are from Giacconi et al. (2002).

Open with DEXTER

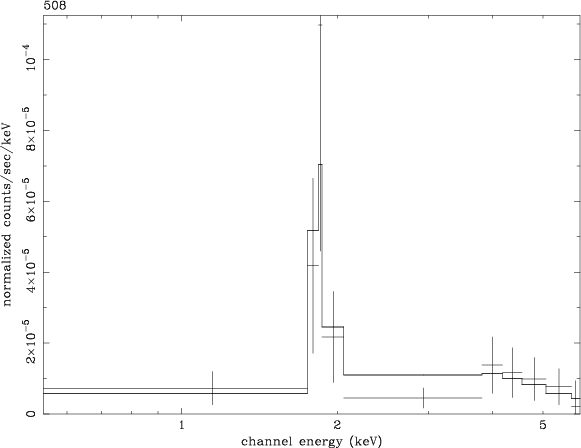

$\begin{figure} \par\includegraphics[angle=-90,width=8.2cm,clip]{1212fig49.ps} \end{figure}$	Figure 8: X-ray spectrum of source CDF-S/508 with a significant feature that we identify with the Fe line at rest-frame 6.4 keV.
Open with DEXTER

In Fig. 9, we have overplotted for comparison the prediction of a synthesis model for the XRB (model B from Gilli et al. 2001).

The majority of the OFS lie at z=1-3, with a small fraction at z>3, as previously predicted by Alexander et al. (2001). Perhaps surprisingly, a small fraction of OFS lie at z<1. We note that a larger fraction ( $76\%$ ) of OFS are at z>1 than found for the optically bright sources ( $49\%$ ). According to a K-S test the probability that these two distributions are drawn from the same population is extremely small ( $\sim$ $0.00002 \%$ ). These have to be taken into account when comparing the redshift distributions of recent deep Chandra and XMM-Newton surveys with XRB synthesis models predictions. Almost all of the spectroscopically identified sources in the two deepest Chandra pointings are optically bright: $\sim$ $97 \%$ both in the CDF-S and CDF-N. It has been noted (Hasinger 2002; Gilli 2004) that the redshift distribution of these new surveys is in disagreement with XRB models predictions based on the ROSAT X-ray luminosity function. These models predict that the distribution peaks at $z\sim 1.3{-} 1.5$ , whereas the observed N(z) of the sources identified to date peaks at $z\la 1$ . Since OFS appear to have a N(z) peaking at $z\sim 1.7$ (Fig. 9) and they make up the majority of still unidentified sources, the disagreement with the models predictions is attenuated. Nevertheless, a significant discrepancy with the models remains even with the addition of photometric redshifts (Fig. 9). A solution for this problem requires a new determination of the X-ray luminosity function of AGN (one of the main input parameters of XRB synthesis models), particularly exploring the X-ray fainter regime not covered by previous surveys (Gilli 2004). A similar result has been recently found by Fiore et al. (2003) using a different approach to derive the redshift information for unidentified sources in the HELLAS2XMM 1dF sample.

$\begin{figure} \par\includegraphics[width=8cm,clip]{1212fig50.ps} \end{figure}$

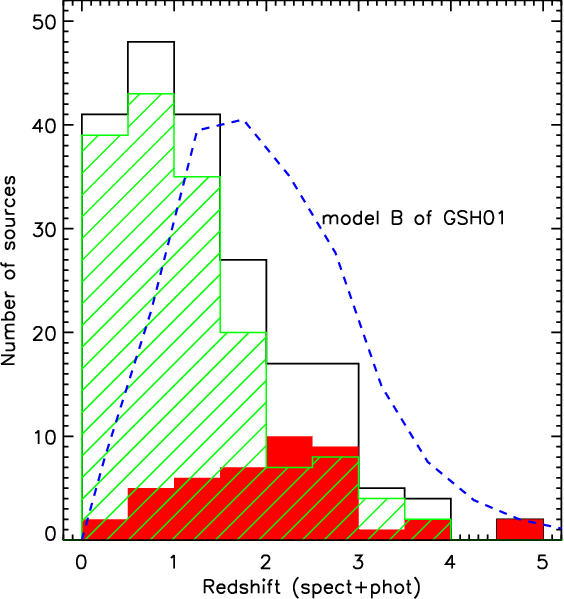

Figure 9: Distribution of redshifts (spectroscopic and photometric) for the OFS (shaded histogram), optically bright sources (hatched histogram) and the total X-ray sample (open histogram). Sources belonging to the large scale structures in the CDF-S have been excluded (see text). The dashed line is the redshift distribution predicted by the model B of Gilli et al. (2001) normalized to the total number of sources in the "GOODS area'' for which we have either a spectroscopic or photometric redshift.

Open with DEXTER

$\begin{figure} \par\includegraphics[width=7.5cm,clip]{1212fig51.ps} \end{figure}$

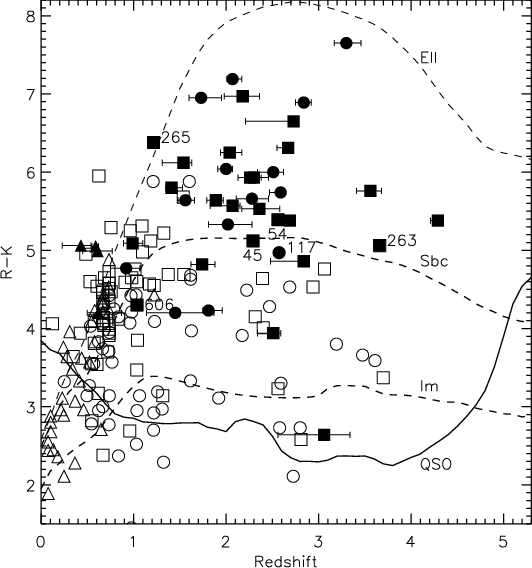

Figure 10: R-K colour versus redshift. Following the X-ray classification (Szokoly et al. 2004) described in Sect. 4.1: circles are X-ray unabsorbed AGN/QSOs, squares X-ray absorbed AGN/QSOs, triangles galaxies. Filled symbols refer to OFS, empty symbols to optically bright sources. The numbers are the XIDs of OFS spectroscopically identified in the CDF-S (see Table 3). The four evolutionary tracks correspond to an unreddened QSO (solid line; Vanden Berk et al. 2001), and to unreddened elliptical, Sbc and irregular galaxies from the Coleman et al. (1980) template library (dashed lines). The bars indicate 1 $\sigma$ errors in the photometric redshift estimates.

Open with DEXTER

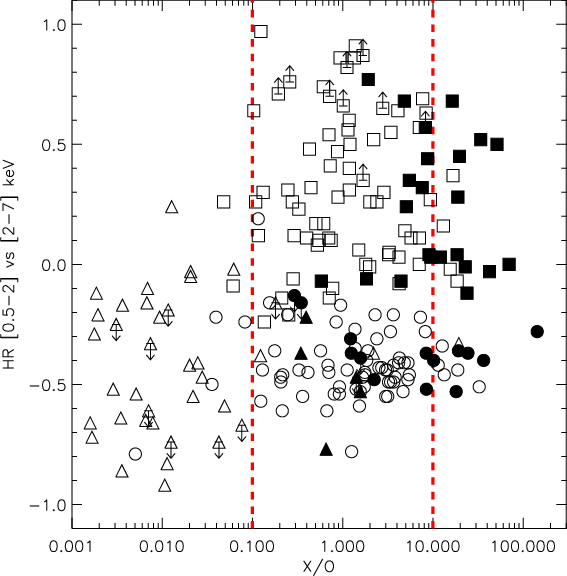

$\begin{figure} \par\includegraphics[width=8cm,clip]{1212fig52.ps} \end{figure}$	Figure 11: The Hardness ratios (HR) versus X-ray-to-optical flux ratios (X/O). Open symbols indicate optically bright (R<25) sources and filled symbols indicate OFS. Symbols are as in Fig. 10. For clarity, we have omitted optically bright objects that are spectroscopically unidientified. Vertical lines are for $\rm X/O=0.1$ and $\rm X/O=10$ respectively.
Open with DEXTER

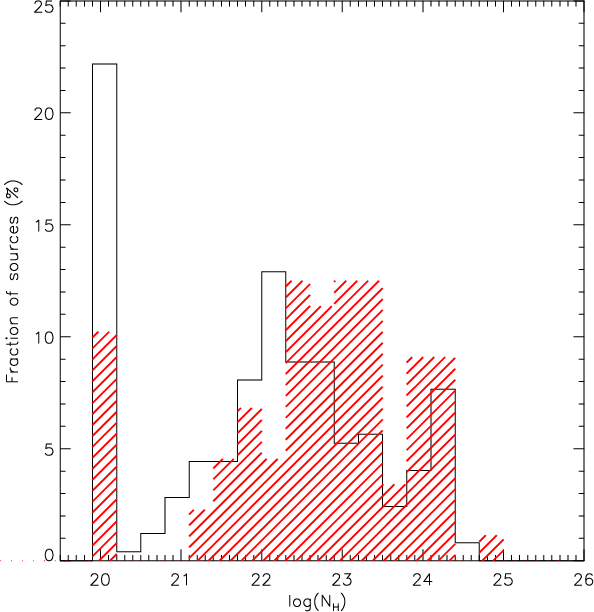

$\begin{figure} \par\includegraphics[width=8.4cm,clip]{1212fig53.ps} \end{figure}$	Figure 12: Intrinsic $N_{\rm H}$ distributions for the OFS (hatched histogram) and optically bright sources (open histogram).
Open with DEXTER

Finally, a significant fraction (46 out of 346, $\sim$ $13\%$ ) of the X-ray sources in the 1 Ms Chandra exposure (Giacconi et al. 2002), are not detected in deep VLT optical images down to $R\la 26.1 {-} 26.7$ . Yan et al. (2003) identified in the near-IR six of these objects using the first release of deep VLT/ISAAC ${\it JHK}_{\rm s}$ data, which covered an area 2.5 times smaller than the new extended ISAAC imaging shown in Fig. 2. Using optical/near-IR color-color diagrams the authors concluded that they were likely to be E/S0 galaxies at $0 \leq z \leq 3.5$ . Taking advantage of the deep optical ACS photometry we can now set tighter constraints on the redshift of these six sources: CDF-S/XID 201 has a spectroscopic redshift of z=0.679 (Szokoly et al. 2004); the best fit SED of CDF-S/XID 79 and CDF-S/XID 221 is an unreddened early-type galaxy with redshift 1.82_1.76^1.86 and $\rm 2.51_{2.34}^{2.62}$ respectively and the remaining three sources (XID/CDFS 515,561,593) are best fitted with the template of a spiral galaxy and have photometric redshifts of $\rm 2.30_{2.24}^{2.38}$ , $\rm0.62_{0.50}^{0.87}$ and $\rm 2.07_{1.83}^{2.15}$ respectively.

4.3 EXOs

The objects with extreme X-ray-to-optical ratios (EXOs) studied by Koekemoer et al. (2004) are also included in our sample. These sources were selected to be undetected in the ACS z band of the GOODS survey. In this work, by supplementing the HST imaging with new deep VLT/ISAAC data in J, H and $K_{\rm s}$ bands we can improve the photometric redshift accuracy. Since in several bands we have only upper limits, the confidence contours for these sources are generally large and the low value of the odds parameter reflects the uncertainty in the redshift determination. However, in three cases we have odds $\ga$ 0.6. The first, CDF-S/XID 243 has a single solution at high redshift ( $z_{\rm phot}\sim 7.9$ , which gives an absorbed $L_{\rm X} [0.5{-}10]=2.0 \times 10^{45}$ erg s^-1, see Fig. 7) and is best fitted with the SED of an irregular galaxy. Instead CDF-S/XID 508 has a double solution, with the peak of the redshift distribution corresponding at $z\sim 8.0$ (absorbed $L_{\rm X} [0.5 {-}10]=9.6 \times 10^{44}$ erg s^-1) but with a secondary peak at lower redshift ( $\sim$ 2.4, absorbed $L_{\rm X} [0.5{-}10]=5.6 \times 10^{43}$ erg s^-1). We have inspected the X-ray spectrum of this source, and have detected a clear feature which, if identified with the Fe line at rest-frame 6.4 keV, would indicate a redshift of $z\simeq 2.5$ . We therefore suspect that the lower redshift solution is correct. Finally, CDF-S/XID 583 is detected in the v, i and z ACS bands and this favours a low redshift solution ( $z \sim 2.7$ , absorbed $L_{\rm X} [0.5{-}10]=9.4 \times 10^{42}$ erg s^-1). These results do not exclude the high-redshift (z=6-7) AGN scenario proposed by Koekemoer et al. (2004) for a small fraction of the EXOs population. We conclude that using the best multiwavelength imaging data set available to date, we have found a candidate at $z\ge 7$ ; the other two EXOs are most likely at lower redshifts ( $z\sim2.5$ ). Forthcoming Spitzer observations of this field shall determine more accurate photometric redshifts for the EXO population.

5 The properties of OFS with spectroscopic redshifts

For the few OFS with known redshifts, we can study their X-ray spectral properties. In the CDF-S, there are six of these objects and we report in Table 3 their main X-ray and optical properties. The depth of the 1 Ms CDF-S data enables us to perform an X-ray spectral analysis of these sources. We adopt a power-law model plus an absorption component. The fit yields the power-law photon index $\Gamma$ , the intrinsic column density $N_{\rm H}$ , and the X-ray luminosity in the [0.5-10] keV rest-frame band corrected for absorption. We give the results of these fits in Table 4. Adopting the X-ray classification presented in Sect. 4.1, the sample comprises three X-ray absorbed QSOs, and three X-ray absorbed AGNs.

The identified OFS show a variety of optical classes in Table 3. Following the optical classification introduced by Szokoly et al. (2004), there are: three objects showing high excitation narrow lines (C IV $\lambda$ 1549) together with narrow Ly $\alpha$ emission (HEX), CDF-S/XID 54,117,263, and three objects showing only low excitation lines (LEX) either Ly $\alpha$ , CDF-S/XID 45, or [O II] $\lambda$ 3727, CDF-S/XID 265,606. For the sources in the LEX class, the presence of an AGN is only revealed by their high X-ray luminosities.

In strongly absorbed X-ray sources, the host galaxy dominates the optical and near-IR emission. The R-K versus zdiagram can be used to contrain the nature of the X-ray sources. We present this diagram in Fig. 10 for all of the CDF-S sources with spectroscopic redshifts, highlighting the OFS. For comparison, we also plot the evolutionary tracks expected for classical type-1 QSOs and galaxies of various morphological types. The optically faint X-ray population has on average redder colours than the optically bright population. For the 92 OFS of our sample, we find that 60 ( $\sim$ $65\%$ ) of them are Extremely Red Objects (EROs), $R-K\ge5$ , as compared to only 28 ( $\sim$ $11 \%$ ) for the optically bright population (see also Alexander et al. 2001 and 2002). The OFS with spectroscopic identification cover a wide redshift range (z=1-4).

In Fig. 10, we plot also the OFS for which we have determined a photometric redshift. Almost all of them have colours dominated by the host galaxy (elliptical or spiral) and, except for a few candidates at high redshift, the bulk of them lie in the redshift range of $1.5 \la z \la 2.5$ , filling in a region that is poorly sampled by spectroscopically identified X-ray sources.

6 X-ray-to-optical flux ratios

X-ray-to-optical flux ratios (X/O) can yield important information on the nature of X-ray sources (Maccacaro et al. 1988). A value of $0.1< {\rm X/O} <10$ is a clear sign of AGN activity since normal galaxies and stars usually have lower X-ray-to-optical flux ratios. In Fig. 11, we show the hardness ratios (HR) versus X/O for the X-ray sources in the CDF-S area. The majority of X-ray unabsorbed and X-ray absorbed AGN/QSOs are inside the well defined locus of active galactic nuclei ( $0.1< {\rm X/O} <10$ ), while "normal'' galaxies, for which the contribution to the X-ray flux is mainly due to star-formation activity, have $\rm X/O< 0.1$ . The OFS have ratios characteristic of AGN and $\sim$ $49\%$ of them show intriguingly high values ( $\rm X/O > 10$ ). In the spectroscopic follow-up of the CDF-S, three of the OFS with high X/O have been identified (Szokoly et al. 2004; Vanzella et al. 2004): CDF-S/XID 45,54 and 265 have redshifts of z=2.291, 2.561 and 1.215, respectively. Two of them are classified as X-ray absorbed QSOs and one as X-ray absorbed AGN (see Table 3). Recently, Mignoli et al. (2004) have studied a sample of eleven hard X-ray selected sources with $\rm X/O > 10$ using deep near-IR observations with ISAAC. All but one of the sources have been detected in the $K_{\rm S}$ band with very red colors ( $R-K_{\rm S} > 5$ ). They were able to provide a morphological classification and the sample is dominated by elliptical profiles (7/10). Using the morphological information and the R-K colour the authors determined a minimum redshift for the sources in the range $z_{\rm min}=0.80{-}1.45$ . In the OFS inside the "GOODS area'' there are 20 objects with such high X/O values and we have determined photometric redshifts for them. Three sources (CDF-S/XID 133,523,614) have extremely low value of the odds parameter and we will exclude them in the following analysis. Two different classes of objects are present. Twelve ( $\sim$ $71 \%$ ) have a best fitting SED of an elliptical galaxy, the average column density is $\sim$ $1.0 \times 10^{23}$ cm^-2 and their predicted redshift range is $0.9<{z_{\rm phot}}<2.7$ (with a mean redshift of $\sim$ 1.9). The remaining sources have a best fitting SED of either an irregular or starburst galaxy, with a mean redshift of $z\sim 4$ and X-ray spectra indicating a low value of absorption ( $\langle {N_{\rm H}}\rangle \sim 1 \times 10^{22}$ cm^-2). One of these sources is the z>7 candidate (CDF-S/XID 243).

Summarizing, $\sim$ $71 \%$ of the OFS with $\rm X/O > 10$ are X-ray absorbed AGN and their photometry is well reproduced by an unreddened early-type template at 0.9<z<2.7. The other $29 \%$ of the sources do not show strong X-ray absorption, they have bluer colours and among them there are some high redshift X-ray unabsorbed/absorbed QSOs. Finally, a significant fraction ( $\sim$ $24 \%$ ) of the sources with high X/O are X-ray absorbed QSOs.

7 X-ray spectroscopy

To further investigate the characteristics of the OFS we have performed an X-ray spectral analysis of our sample. We use the X-ray data accumulated in the 1 Ms Chandra exposure and XSPEC (v11.1) for the fitting procedure. The spectral model adopted is a power-law with an intrinsic absorber at the source redshift. An additional photoelectric absorption component is fixed to the Galactic column density in the CDF-S region of the sky ( $\sim$ $8 \times 10^{19}$ cm^-2). For sources with less than 100 net counts in the [0.5-10] keV band, we fix the photon index $\Gamma$ at 1.8 and derive the column density $N_{\rm H}$ (see Tozzi et al. 2005). To estimate the intrinsic absorption that is affecting the X-ray source, its redshift is needed: we use the spectroscopic redshift if known otherwise we adopt the photometric redshift (Table 1). Thus, we are able to estimate the $N_{\rm H}$ value for 336 ( $\sim$ $69 \%$ ) of the 346 X-ray sources in the CDF-S. We show in Fig. 12 the derived $N_{\rm H}$ distribution. The open histogram is the distribution for optically bright sources while the hatched histogram refers to OFS. A K-S test of the two distributions gives a probability of $\sim$ $0.004 \%$ that they are draw from the same population. We have already deduced from other diagnostics (X/O, hardness ratios, optical/near-IR colours) that a large fraction of these faint sources are absorbed. Figure 12 confirms and reinforces this picture since, in this case, we are measuring directly the absorption from the X-ray spectrum. Of the OFS $\sim$ $73 \%$ have a column density larger than 10²² cm^-2; for comparison the fraction of bright sources with such high $N_{\rm H}$ value is $\sim$ $55 \%$ . X-ray unabsorbed sources (the first bin in Fig. 12) are approximately three times more numerous among the optically bright than the optically faint sources.

8 X-ray absorbed QSOs

As mentioned in Sect. 5, a fraction of OFS could be made of X-ray absorbed QSOs. We find that 11 ( $\sim$ $23 \%$ ) of the OFS for which we have computed photometric redshifts have an X-ray luminosity in the [0.5-10] keV band larger than 10⁴⁴ erg s^-1 and a $N_{\rm H} > 10^{22}$ cm^-2, and consequently X-ray absorbed QSOs according to our definition in Sect. 4.1.

Several synthesis models of the XRB require a large population of obscured QSOs. To compare our results with the Gilli, Salvati & Hasinger (2001) and Ueda et al. (2003) models, we need to use the following definition of a X-ray absorbed QSO: rest-frame $L_{\rm X}[2{-}10$ keV ] > 10⁴⁴ erg s^-1 and $N_{\rm H} > 10^{22}$ cm^-2. We find that 44 sources of the 336 X-ray sources (optically bright and faint) for which we were able to determine $N_{\rm H}$ , satisfy these criteria. These X-ray absorbed QSOs contribute to the [2-10] keV XRB for a fraction of $\sim$ $15 \%$ (if we adopt the HEAO-1 measure of the total flux of the XRB in the [2-10] keV band). Model B of Gilli et al. (2001) predicts a $38 \%$ contribution from type II QSOs to the hard XRB, while the recent model by Ueda et al. (2003) requires a lower contribution from these sources ( $\sim$ $16 \%$ ) in good agreement with what we have found.

9 Ultra deep field

The Hubble Ultra Deep Field (UDF) is a 400-orbit program to image one single field inside the "GOODS area'' with the ACS camera on board of HST (see Fig. 1). Images have been taken in the same four filters that were used for the GOODS survey: F435W ( b), F606W (v), F775W (i) and F850LP (z). The data have been recently released and go 1.0 and 1.2 mag deeper than GOODS in the b and z band, respectively.

Inside the UDF area there are sixteen X-ray sources in the Giacconi et al. (2002) catalogue and three of them are OFS: CDFS/XID 79,515,605. We have extracted cutouts for these faint sources in the four UDF bands and show them in Fig. 13. The unprecedented depth and resolution of these images allows us to observe the optical properties of OFS with sub-arcsecond resolution. We indicate in the cutouts the 3 $\sigma$ positional error circle obtained in Giacconi et al. (2002), which takes into account the strong effect of off-axis angle in the X-ray PSF and centroid. For CDFS/XID 79 two different counterparts are clearly present. We name these sources 79A and 79B (see Fig. 13). They have different colours: 79A is undetected in the b band and is brighter than 79B in the i and z bands. In the cutouts of CDFS/XID 515 there is only one optical counterpart inside the Chandra error circle. Finally, for CDFS/XID 605 we find three optical counterparts (A, B, C) of which two are extremely faint in all four bands (B and C). We have selected from the publicly available catalogue of the UDF (h_udf_wfc_V1_cat.txt) source magnitudes in the four bands for each of the optical counterparts. The magnitudes available from this catalogue where computed using the i band isophotes of each source, thereby producing isophotally matched magnitudes that are suitable to compute colours. Combining these colours with our near-IR photometry, we estimated photometric redshifts as decribed in Sect. 4.2 (Fig. 14). We provide individual notes on each source below.

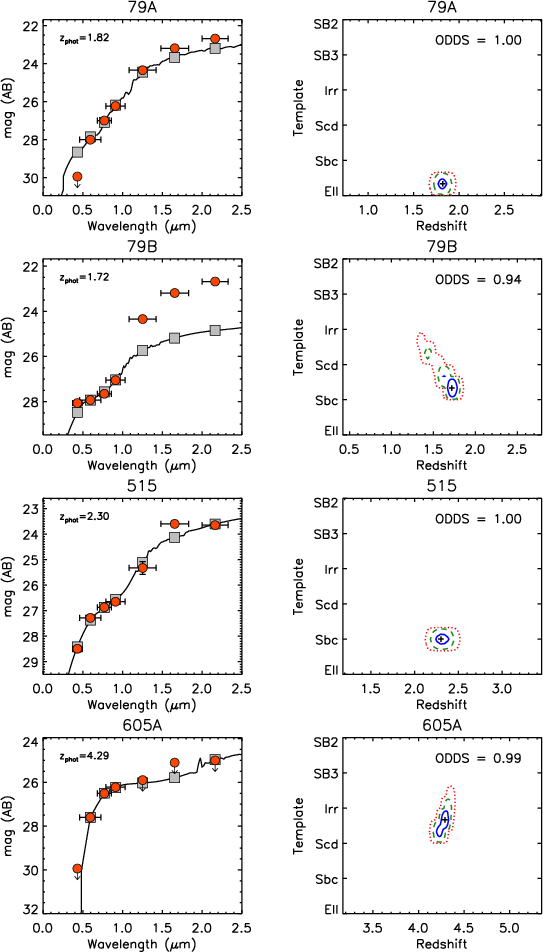

Source CDFS/XID 79: the A counterpart is well fitted with an early-type SED at redshift $z_{\rm phot} \sim 1.8$ , similar to that obtained using the GOODS photometry (see Fig. 7). However, we could not obtain a reasonable fit to source 79B, probably because the near-IR photometry (which does not resolve the two counterparts) is dominated by 79A.

Source CDFS/XID 515: we obtain $z_{\rm phot} \sim 2.3$ and the confidence contours are in good agreement with the value found with the GOODS photometry (see Fig. 7).

Source CDFS/XID 605: in this case the depth of the UDF data is really a step forward for the redshift determination. With the GOODS photometry we obtained a "double'' solution with a peak in the probability distribution at low ( $z_{\rm phot} \sim 0.8$ ) and high ( $z_{\rm phot} \sim 4.7$ ) redshift (see Fig. 7). With the UDF data we have smaller errors on the photometry and can put a more stringent upper limit in the b band where CDFS/XID 605 is undetected: this source is now a strong candidate at high redshift with $z_{\rm phot} \sim 4.29$ , with a small uncertainty ( 4.21-4.32).

Table 4: X-ray spectral parameters of OFS with a spectroscopic redshift in the CDF-S.

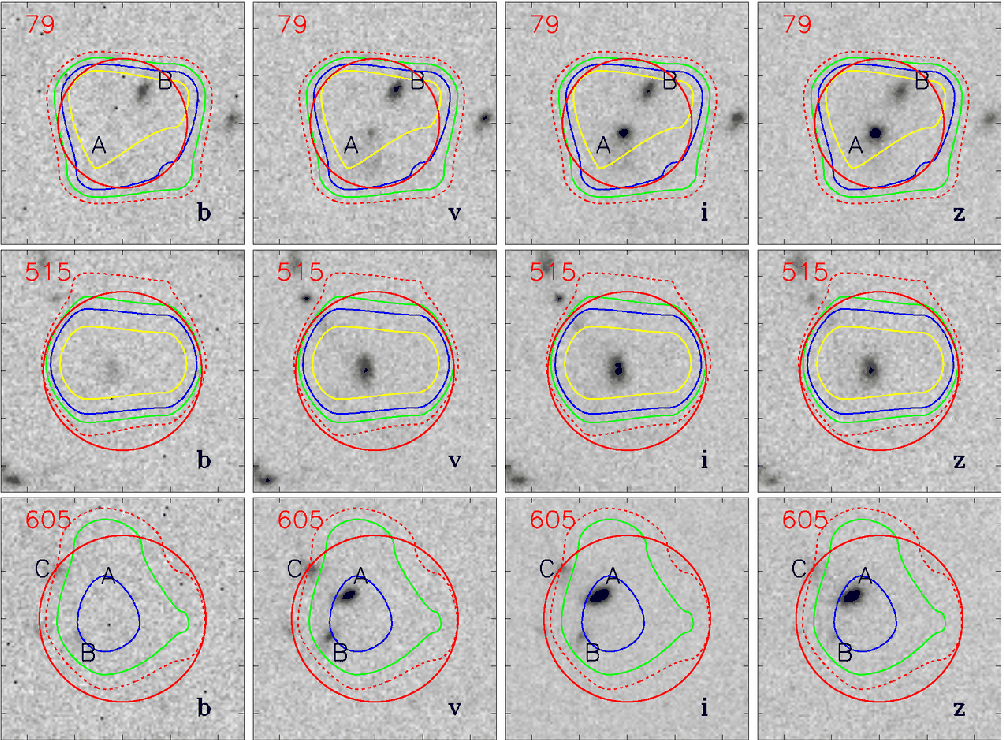

$\begin{figure} \par\includegraphics[width=17.8cm,clip]{1212fig54.ps}\par\include... ...{1212fig55.ps}\par\includegraphics[width=17.8cm,clip]{1212fig56.ps} \end{figure}$	Figure 13: Cutouts in the four UDF filters ( F435W, F606W, F775W, F850LP) with X-ray contours of the three OFS inside this area. Images are 3 $^{\prime \prime }$ across. The $3 \sigma$ Chandra positional error is indicated by the solid circle.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{1212fig57.ps}\par\includeg... ...]{1212fig59.ps}\par\includegraphics[width=8.8cm,clip]{1212fig60.ps} \end{figure}$	Figure 14: Photometric redshifts for the counterparts of OFS in the UDF area. Left side: best fit template (solid line), the observed photometry (filled circles with error bars), and the best fit model photometry (filled squares). Right side: confidence contours ( $1 \sigma$ , $2 \sigma$ and $3 \sigma$ ) for the photometric redshift determination in the SED template vs. redshift plane.
Open with DEXTER

10 Conclusions

In this paper, we have taken advantage of the unique multi-wavelength coverage of the GOODS survey in the Chandra Deep Field South to constrain the nature and redshift distribution of optically faint X-ray sources ( $R\geq25$ ). It is important to study their properties since they are a significant fraction ( $\sim$ $27\%$ ) of the whole X-ray sample.

Our study extends the earlier analysis by Alexandet et al. (2001) by determining photometric redshifts for the optically faint sources without spectroscopic redshifts. The reliability of these photometric redshifts has been tested against the spectroscopic redshifts available for the optically faint fources (see Fig. 5). We find that a larger fraction of the optically faint ( $76\%$ ) sources are at redshift z> 1 compared to the optically bright sample ( $49\%$ ). This finding reduces the disagreement between the observed redshift distribution in Chandra deep fields (Barger et al. 2003; Szokoly et al. 2004) and that predicted by XRB models based on the ROSAT X-ray luminosity function, as the majority of the still unidentified X-ray sources in these deep fields are optically faint. However, the redshift distribution that we obtain including our best photometric redshifts still peaks at $z\la 1$ , while the current XRB models predict $z\sim 1.3{-} 1.5$ . One solution would involve implementing a new X-ray luminosity function for AGN in the XRB synthesis models, by combining Deep Chandra and XMM-Newton fields with shallower surveys (Gilli et al. 2004; Fiore et al. 2003). This new X-ray luminosity function will be able to reproduce better the evolution with redshift of Seyfert-like objects which make a large fraction of the observed peak at $z\la 1$ .

Several diagnostics indicate that the majority of the optically faint sources are absorbed. Their hardness ratio distribution is harder ( $98 \%$ significance level) than that of the optically bright sample indicating a large fraction of optically faint fources with a flat X-ray spectrum which implies intrinsic absorption. Their optical/near-IR photometry is dominated by the emission of the host galaxies and their colours are in average redder that the optically bright sources ( $65\%$ are EROs, ( $R-K\ge5$ ) as compared to $11 \%$ of the optically bright sources). We have performed an X-ray spectral analysis and the distribution of $N_{\rm H}$ values shows that $\sim$ $73 \%$ of OFS have column densities larger than 10²² cm^-2(for optically bright sources the fraction is of $55 \%$ ).

We find that $\sim$ $23 \%$ of the optically faint X-ray sources are X-ray absorbed QSOs ( $L_{\rm X}[0.5{-}10 ~{\rm keV}]>10^{44}$ erg s^-1 and $N_{\rm H} > 10^{22}$ cm^-2). Synthesis models of the XRB include a significant contribution from X-ray absorbed QSOs to the hard XRB (i.e. $38 \%$ for model B of Gilli et al. 2001). From the CDF-S survey we find a much lower contribution from obscured QSOs, $\sim$ $15 \%$ . This difference can not be ascribed to the remaining fraction of the as yet unresolved XRB: both the model and observational values are derived assuming the HEAO-1 measure of the total flux of the XRB in the [2-10] keV band and the hard XRB has been resolved (using the HEAO-1 value) to the depth of the CDF-S (Rosati et al. 2002).

Our value is in good agreement with the prediction ( $\sim$ $16 \%$ ) based on the recent model by Ueda et al. (2003).

Approximatly $50 \%$ of the OFS have high X-ray-to-optical ratios ( $\rm X/O > 10$ ). $71 \%$ of them are strongly X-ray absorbed ( $\langle N_{\rm H} > ~\approx 1.0 \times 10^{23}$ cm^-2) and their photometry is well reproduced by the SED of an early-type galaxy with $0.9<{z_{\rm phot}}<2.7$ . The remaining $29 \%$ is on average less absorbed ( $\langle N_{\rm H} >~ \approx 1 \times 10^{22}$ cm^-2) and has bluer colours reproduced by irregular or starburst galaxies with a mean redshift of $\sim$ 4. Among this second group we find a candidate at redshift $z\ga 7$ . Finally, $\sim$ $24 \%$ of the sources with high X-ray-to-optical ratios are X-ray absorbed QSOs.
