$\begin{figure} \par\includegraphics[width=8cm,clip]{1596fig1.eps} \end{figure}$ Figure 1: The geometry used for the inclination, $\chi$ , and the arc angle, $\theta$ . Refer to Eq. (8) for how these parameters can be applied to coronal loop code.
Open with DEXTER

In the text

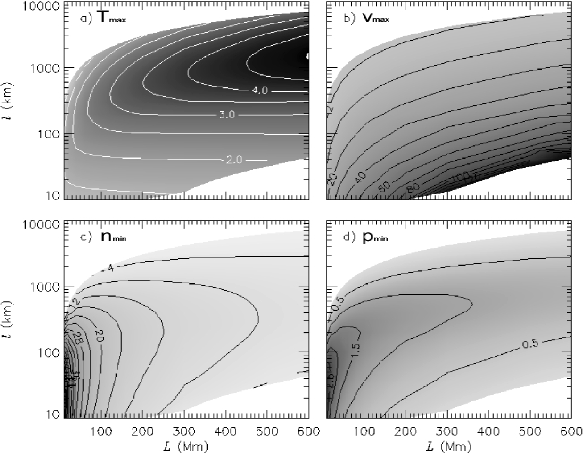

$\begin{figure} \par\includegraphics[height=6.4cm,width=8.3cm,clip]{1596fig2.eps} \end{figure}$ Figure 2: $\xi =10$ km s^-1; a) Maximum proton temperature (MK); b) maximum proton velocity (km s^-1), c) minimum proton density ( ${\times }10^{8}$ cm^-3); d) minimum pressure (dyne cm^-2).
Open with DEXTER

In the text

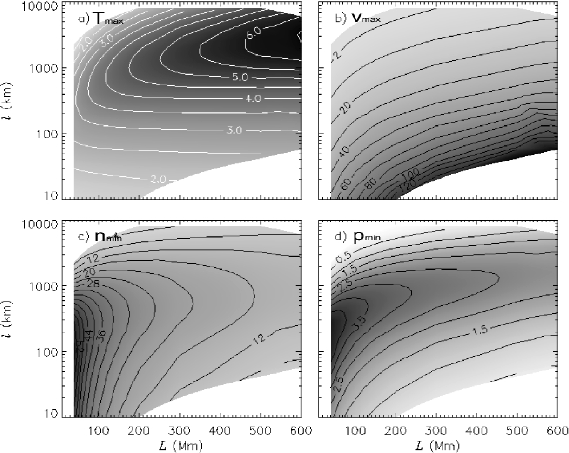

$\begin{figure} \par\includegraphics[height=6.4cm,width=8.1cm,clip]{1596fig3.eps} \end{figure}$ Figure 3: $\xi =14$ km s^-1. a) Maximum proton temperature (MK), b) maximum proton velocity (km s^-1); c) minimum proton density ( ${\times }10^{8}$ cm^-3); d) minimum pressure (dyne cm^-2).
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{1596fig4.eps} \end{figure}$ Figure 4: The regions of loop heating (based on Fig. 2).
Open with DEXTER

In the text

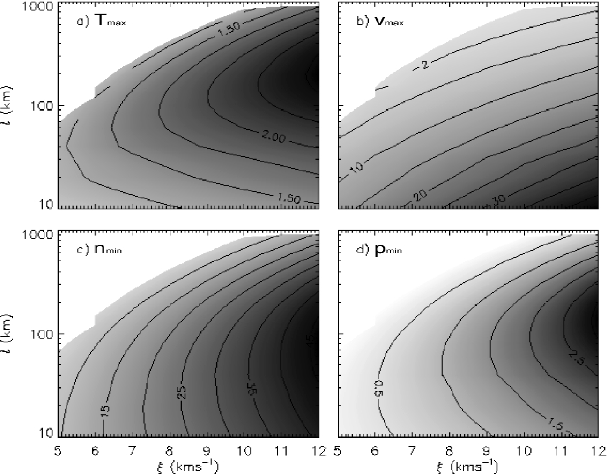

$\begin{figure} \par\includegraphics[height=6.7cm,width=8.6cm,clip]{1596fig5.eps} \end{figure}$ Figure 5: L=40 Mm. a) Maximum proton temperature (MK); b) maximum proton velocity (km s^-1); c) minimum proton density ( ${\times }10^{8}$ cm^-3); d) minimum pressure (dyne cm^-2). No data is plotted in the top left hand corner of each plot as these would be hydrostatic solutions and cannot be evaluated by our dynamic code.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=7.8cm,clip]{1596fig6.eps} \end{figure}$ Figure 6: L=10 Mm, "cool'' coronal loop heated by Alfvénic turbulence. Top left: proton (solid line) and electron (dashed line) temperature along the loop semi-circular length; top right: proton velocity (solid), is near-zero and wave amplitude (dashed) appears to remain constant (i.e. little dissipation); bottom left: electron density; bottom right: wave pressure (top plot) and combined electron and proton pressure (bottom plot). In this simulation, wave amplitude $\xi =10$ km s^-1, and turbulent driving scale l=280 km.
Open with DEXTER

In the text

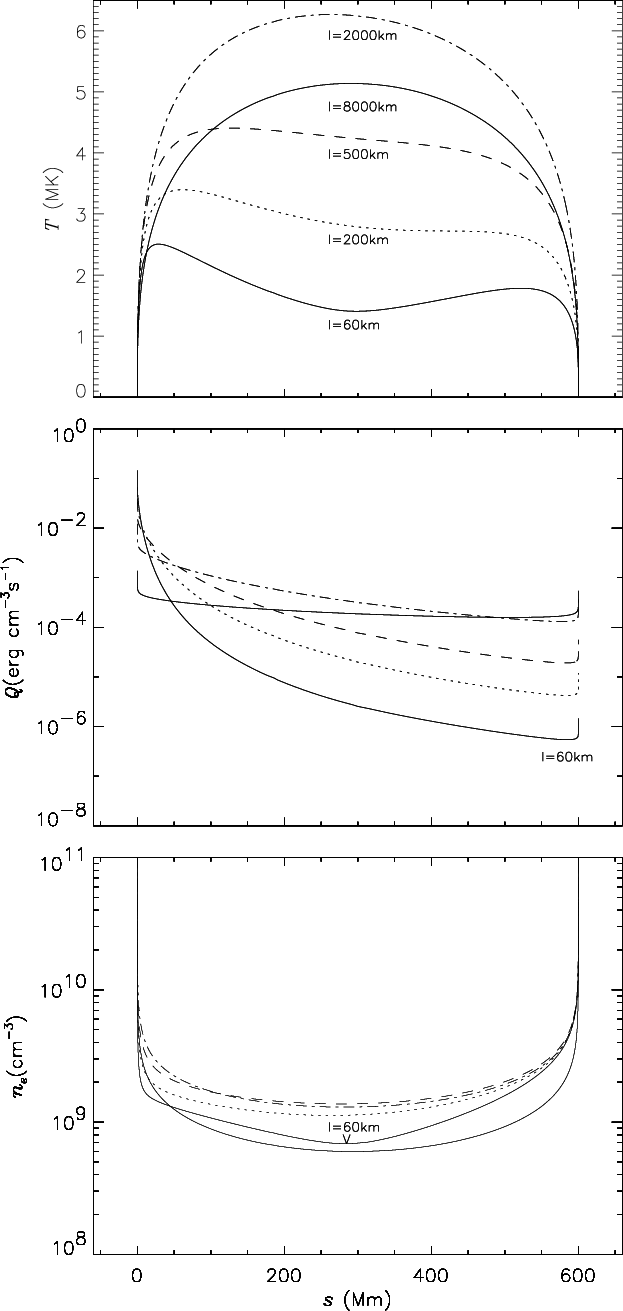

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{1596fig7.eps} \end{figure}$ Figure 7: The temperature ( top), heating rate ( middle) and density ( bottom) progression of a L=600 Mm loop through the driving scales of l=60 (solid line), 200 (dotted), 500 (dashed), 2000 (dot-dash) and 8000 km (triple-dot-dash). The solid line represents the start of the simulation. Temperature inversion, footpoint, non-uniform, maximum temperature and quasi-uniform heating profiles are all evident.
Open with DEXTER

In the text

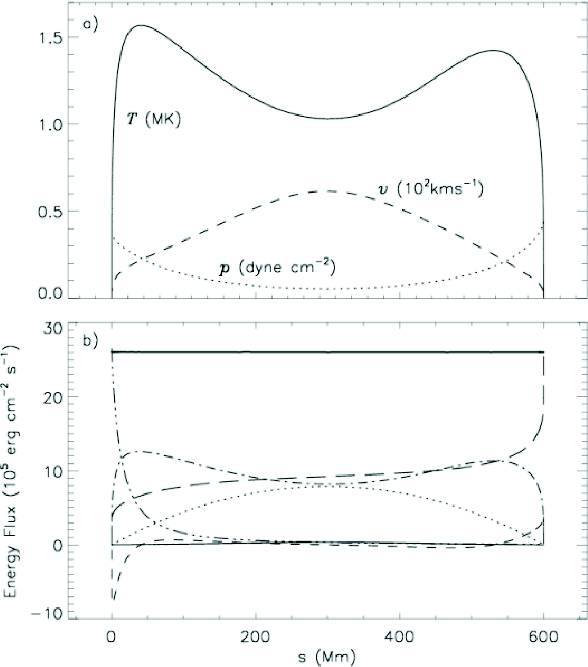

$\begin{figure} \par\includegraphics[width=8.4cm,clip]{1596fig8.eps} \end{figure}$ Figure 8: a) Temperature, velocity and pressure profiles for a 600 Mm (long) loop. $\xi =6$ km s^-1 and l=40 km. b) Corresponding energy fluxes can be directly compared with the profiles in the top frame. Kinetic energy flux (thin solid line), gravitational flux (dotted), radiative flux (long-dash), conductive flux (short-dash), enthalpy flux (dot-dash) and wave flux (triple-dot-dash) from Eq. (9) will all contribute toward the total flux (thick solid line). The total flux must remain constant to confirm steady state.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=8cm,clip]{1596fig1.eps} \end{figure}$	Figure 1: The geometry used for the inclination, $\chi$ , and the arc angle, $\theta$ . Refer to Eq. (8) for how these parameters can be applied to coronal loop code.
Open with DEXTER

$\begin{figure} \par\includegraphics[height=6.4cm,width=8.3cm,clip]{1596fig2.eps} \end{figure}$	Figure 2: $\xi =10$ km s^-1; a) Maximum proton temperature (MK); b) maximum proton velocity (km s^-1), c) minimum proton density ( ${\times }10^{8}$ cm^-3); d) minimum pressure (dyne cm^-2).
Open with DEXTER

$\begin{figure} \par\includegraphics[height=6.4cm,width=8.1cm,clip]{1596fig3.eps} \end{figure}$	Figure 3: $\xi =14$ km s^-1. a) Maximum proton temperature (MK), b) maximum proton velocity (km s^-1); c) minimum proton density ( ${\times }10^{8}$ cm^-3); d) minimum pressure (dyne cm^-2).
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{1596fig4.eps} \end{figure}$	Figure 4: The regions of loop heating (based on Fig. 2).
Open with DEXTER

$\begin{figure} \par\includegraphics[height=6.7cm,width=8.6cm,clip]{1596fig5.eps} \end{figure}$	Figure 5: L=40 Mm. a) Maximum proton temperature (MK); b) maximum proton velocity (km s^-1); c) minimum proton density ( ${\times }10^{8}$ cm^-3); d) minimum pressure (dyne cm^-2). No data is plotted in the top left hand corner of each plot as these would be hydrostatic solutions and cannot be evaluated by our dynamic code.
Open with DEXTER
