A&A 435, L13-L16 (2005)
DOI: 10.1051/0004-6361:200500104

Evidence for a co-moving sub-stellar companion of GQ Lup

R. Neuhäuser ¹ - E. W. Guenther ² - G. Wuchterl ¹ - M. Mugrauer ¹ - A. Bedalov ¹ - P. H. Hauschildt³

1 - Astrophysikalisches Institut, Universität Jena, Schillergäßchen 2-3, 07745 Jena, Germany
2 - Thüringer Landessternwarte Tautenburg, Sternwarte 5, 07778 Tautenburg, Germany
3 - Hamburger Sternwarte, Gojenbergsweg 112, 21029 Hamburg, Germany

Received 6 October 2004 / Accepted 27 March 2005

Abstract
We present a companion of the $\le$2 Myr young classical T Tauri star GQ Lup in the Lupus star forming region at $140 \pm 50$ pc from imaging, astrometry, and spectroscopy. With direct K-band imaging using VLT/NACO, we detected an object 6 mag fainter than GQ Lup located $0.7^{\prime \prime}$ west of it. Compared to images obtained 2 to 5 years earlier with Subaru/CIAO and HST/PC, this object shares the proper motion of GQ Lup by 5 and $7\sigma$, respectively, hence it is a co-moving companion. Its K-L' color is consistent with a spectral type early to mid L. Our NACO K-band spectrum yields spectral type M9-L4 with H₂O and CO absorption, consistent with the new GAIA-Dusty template spectrum for $\log~g \simeq 2$ to 3 and $T_{\rm eff} \simeq 2000$ K with $\sim$2  $R_{\rm jup}$ radius at $\sim$140 pc, hence few Jupiter masses. Using the theoretical models from Wuchterl & Tscharnuter (2003), Burrows et al. (1997), and Baraffe et al. (2002), the mass lies between 1 and 42 Jupiter masses.

Key words: low-mass stars - substellar companions - brown dwarfs - extra-solar planets - GQ Lup

1 Introduction: Direct detection of planets

Direct detection of sub-stellar companions is difficult because of the large dynamic range between the faint companion and the close-by, much brighter star. Due to contraction, Myr young sub-stellar objects are brighter than Gyr older ones. Hence, young nearby stars would be the best targets for the direct detection of sub-stellar companions. The mass of a detected sub-stellar companion can be estimated from the observed companion magnitude and the assumed or known age and distance of the primary star, using theoretical model calculations. Chauvin et al. (2004) reported the detection of a faint object near the brown dwarf 2M1207, a potential member of TWA at $\sim$8 Myr, whose infrared (IR) color and H-band spectrum are consistent with an L dwarf, hence $\sim$5  $M_{\rm jup}$ (Baraffe et al. 2002 models), if bound (astrometry missing).

Here, we present evidence for a sub-stellar companion around GQ Lup located in the Lupus I cloud (Tachihara et al. 1996), a young K7eV-type classical T Tauri star with low extinction, but with mid- and far-IR excess (Hughes et al. 1994), i.e. a disk, and also both soft and hard X-ray emission (Krautter et al. 1997), rare for classical T Tauri stars (Neuhäuser et al. 1995), so that we included this star in our planet search programs by radial velocity and direct imaging since March 1999. As distance towards GQ Lup in the Lupus I cloud, we use $140 \pm 50$ pc (Wichmann et al. 1998; Neuhäuser & Brandner 1998; Knude & Hog 1998), the age of GQ Lup is $\sim$0.1 to 2 Myr, depending on the set of models used (we work with $1 \pm 1$ Myr).

2 Direct observations of a wide companion

2.1 AO imaging detection and photometry

We observed GQ Lup with Yepun (ESO-VLT-UT4) on Cerro Paranal, Chile, using the Adaptive Optics (AO) instrument NACO (Naos-Conica, Rousset et al. 2003) on 25 June 2004 in visitor mode using the S13 camera ( $14^{\prime \prime} \times 14^{\prime \prime}$ field) in the $K_{\rm s}$-band. We took 200 co-adds $\times 0.347\rm s \times 27$ jitter positions. Data reduction was done with eclipse: dark subtraction, flat devision, shift+add. A companion candidate is found $0.7^{\prime \prime}$ west of GQ Lup (Fig. 1). By comparison with the primary ( $K=7.096 \pm 0.020$ mag, 2MASS), we got $K_{\rm s} = 13.1 \pm 0.1$ mag for the companion candidate with aperture photometry after subtracting the primary.

	Figure 1: VLT-NACO $K_{\rm s}$-band image of GQ Lup and its 6 mag fainter companion candidate $0.7325 \pm 0.0034^{\prime \prime }$ west.
Open with DEXTER

K- and L'-band images of GQ Lup were obtained with the Subaru Coronagraphic Imager with Adaptive Optics (CIAO, Murakawa et al. 2004), in program o02312, retrieved by us from the public Subaru archive SMOKA. We reduced the data in the above way. The candidate is detected in both K (as with NACO) and L', where we obtain $L'=11.7 \pm 0.3$ mag by comparing the companion candidate with the primary. The primary has $A_{V} = 0.4 \pm 0.2$ mag (Batalha et al. 2001), hence $A_{K} = 0.04 \pm 0.02$ and $A_{L'} \simeq 0.02 \pm 0.01$ mag (Rieke & Lebofsky 1985). Applying this extinction to the companion, we derive $(K-L')_{0} \simeq 1.4 \pm 0.3$ mag, consistent with L2-7 (Stephens et al. 2001; Golimowski et al. 2004). At $\sim$140 pc, both the primary and the companion candidate are by $\sim$3 mag brighter than main-sequence K7V stars and Gyr old (main-sequence) early to mid L-dwarfs as far as the absolute magnitudes are concerned, consistent with both being young.

GQ Lup and its companion candidate are also detected in archived images obtained with the Hubble Space Telescope (HST) Wide Field Planetary Camera No. 2 (WFPC2) in program SNAP 7387 (retrieved by us from the public MAST archive at STScI) in the filters F606W and F814W. Data reduction was performed for the HST data as in Neuhäuser et al. (2002). Since the companion candidate is detected only marginally, we cannot obtain reliable optical colors.

2.2 Astrometry

To study whether primary and companion candidate form a common proper motion pair, we compare separations and position angles PA at the different epochs. We use $21.33 \pm 0.02$ mas/pixel as CIAO pixel scale (Fukagawa et al. 2003, 2004) and $45.545 \pm 0.005$ mas/pixel for HST/PC (Holtzman et al. 1995). The positions of primary and companion are determined by Gaussian centering, after primary PSF subtraction as far as the companion is concerned, and the errors given include the pixel scale error. The separations measured are given in Table 1 ($1\sigma$ errors) including the aquisition images for the spectroscopy, obtained with the NACO S27 camera with $27.07 \pm 0.11$ mas/pixel. The astrometric precision is best in our own deep NACO image (June 2004) obtained with the S13 camera with $13.23 \pm 0.05$ mas/pixel. Scale and orientation of S13 and S27 were obtained by us using $\sigma$ Ori AD (Hipparcos: $12.980^{\prime \prime}$ at $84.2 ^{\circ}$) and GJ 852 AB taking into account the orbital motion within them. The position angle of the detector was tilted by $0.14 \pm 0.25 ^{\circ}$ to the east.

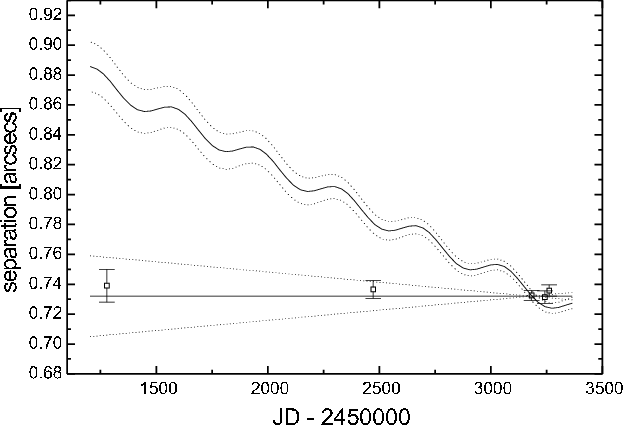

Figure 2: Observed separation between primary star GQ Lup A and companion candidate with HST/PC ( left), Subaru/CIAO ( middle) and VLT/NACO ( right, first the June 2004 image, then the Aug. and Sep. 2004 aquisition images, all consistent within $1\sigma$) compared to the expectation when bound (no change in separation as straight full line $\pm$5 mas/yr for orbital motion as straight dotted lines) or when background (motion of GQ Lup A alone to the SW due to its proper motion $\pm$ its error with wobble due to expected parallactic motion of 7.1 mas). We can reject the background hypothesis by 4.9$\sigma$ (NACO-CIAO) plus 7.2$\sigma$ (NACO-HST).

Open with DEXTER

Table 1: Observing log, FWHM, and separations.

If the faint object would be a background object, it would have negligible proper motion and we would see a change in separation due to the proper and parallactic motion of GQ Lup A (Fig. 2). Its proper motion is $\mu _{\alpha} = -27 \pm 3$ mas/yr and $\mu _{\delta} = -14 \pm 3$ mas/yr (Teixeira et al. 2000, Camargo et al. 2003) at $140 \pm 50$ pc distance. The background hypothesis can be rejected by 4.9 and 7.2$\sigma$ by comparing NACO with CIAO and HST, respectively. The PA of the companion is $275.45 \pm 0.30 ^{\circ}$ in the NACO image in June 2004 (detector orientation calibrated); if the candidate would be a non-moving background object, the PA should have been $269.89 \pm 1.03 ^{\circ}$ at the time of the HST epoch, but we observe $275.62 \pm 0.86 ^{\circ}$ (detector orientation from fits file header, known to be stable and precise), i.e. $4.3 \sigma$ deviant from the background hypothesis. Hence, the faint object is co-moving with GQ Lup A. The probability to find by chance a fore- or background M or L dwarf with the same proper motion near GQ Lup A is negligible.

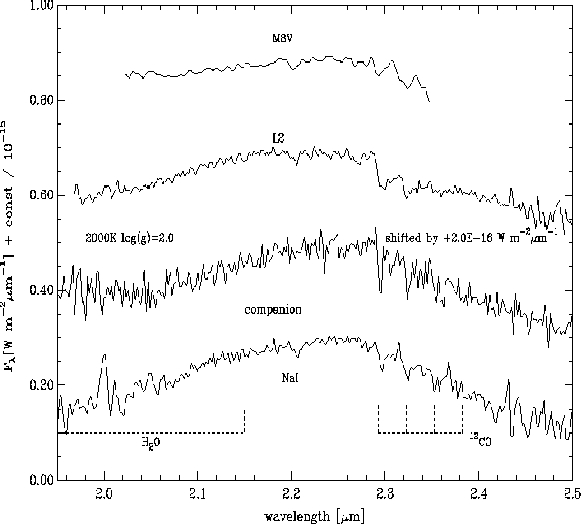

	Figure 3: Our flux-calibrated K-band NACO spectrum of the companion of GQ Lup ( bottom) compared to the young M8 brown dwarfs in Cha I ( top) from Comerón et al. (2000), L2 (2MASSW J0829066+145622, 2nd from top) from Reid et al. (2001), and a GAIA-Dusty template spectrum for 2000 K and $\log~g=2$, which compares well with the companion.
Open with DEXTER

2.3 Spectroscopy of the companion

To check whether the companion is indeed cool, we obtained a K-band spectrum with VLT/NACO using the S54-4-SK mode from 1.79 to $2.57~\mu$m with resolution 700 and nodding along the 172 mas slit. Two spectra were obtained on 25 Aug. and 14 Sep. 2004 with 20 and 40 spectra, respectively, exposed for 30 s each and reduced in the normal way: dark subtraction, flat devision, shift+add, and wavelength calibration (Fig. 3).

We confirmed that the faint object was positioned well in the center of the slit in every individual spectrum. Wavelength dependant refraction and Strehl-ratios through the narrow slit can change the slope of the spectrum: The light-loss due to refraction, following Schubert & Walterscheid (2000) with the given airmasses, parallactic and positional angle, is 1.5 and $1.6 \%$ at the 1.9 and $2.5~ \mu$m, respectively, compared to the flux at $2.35~ \mu$m. Given the seeing and slit-width, the slit efficiency is $76.4 \%$ at $1.67 ~\mu$m and $79.0 \%$ at $2.18~ \mu$m, so that the flux in the blue is reduced by $2.5 \%$. In total, $2.0 \%$ of the flux is missing in the blue compared to the middle of the spectrum and only $0.8 \%$ in the red. The slit-loss is partly compensated by higher Strehl-ratio, because the companion flux peaks in the middle of the K-band.

The flux of the companion is calibrated once with the spectrum of the K7eV primary star GQ Lup A observed simultaneous and once with the telluric standard HD 159402 (B3III), observed in the same night. The large telluric absorption features below 2.06 $\mu$m and above 2.42 $\mu$m nevertheless cause a considerable amount of noise in this part of the spectrum. The Reid et al. (2001) K1 spectral index is 0.13 to 0.39 giving M9-L3. The McLean et al. (2003) H₂O-D ratio is 0.67 to 0.89 indicating L2-7 (cf. Cushing et al. 2005). The NaI doublet has $W_{\lambda}=4.0 \pm 0.5$ Å for the primary, but $\le$2 Å for the companion (possibly partly telluric), which implies a spectral type $\sim$M9 or later (Cushing et al. 2005; Comerón et al. 2000) or $\sim$L2 or later (Gorlova et al. 2003); even for strongly reddened M stars, the NaI line should still be strong (Greene & Lada 1996). The CO band head at $2.295~ \mu$m is also present in M-dwarfs, increases slightly in strength for early L, but weakens again in later types. This band head is clearly visible with CO-index $\sim$0.86, i.e. M6 to L0 (Gorlova et al. 2003). The average of all the above estimates is L $1.5 \pm 2.5$, or M9 to L4. This is consistent with the dereddened K-L' color; hence no evidence for additional extinction due to, e.g., a disk around the companion.

3 Mass determination and discussion

Our companion, bound to a $1 \pm 1$ Myr young star, may be the youngest and lowest-mass companion ever imaged. Hence, it is difficult to compare it to field (old) L-dwarfs. From the K-band CO-index being $0.862\pm0.035$we obtain the gravity $\log~g = 2.52 \pm 0.77$, a slight extrapolation from late-M to early-L (Gorlova et al. 2003), hence uncertain. Since neither spectral type nor gravity are well constrained, the temperature $T_{\rm eff}$ is only weakly constrained to $\sim$1600 to 2500 K (or $2050 \pm 450$ K) from Gorlova et al. (2003) and references therein as well as Reid et al. (1999), Stephens et al. (2001), Burgasser et al. (2002), Nakajima et al. (2004), and Golimowski et al. (2004).

We compared our observed spectrum with the theoretical template spectra from the GAIA-Dusty model (Brott & Hauschildt, in prep.), updated from Allard et al. (2001), with improved molecular dissociation constants, more dust species with opacities, spherical symmetry, and a mixing length parameter $1.5 \cdot H_{\rm p}$; we tried $T_{\rm eff} = 2000$ and 2900 K and $\log~g=0, 2$, and 4. A good fit is obtained only for 2000 K and $\log~g=2$ (Fig. 3). Because the fit for $\log~g=0$ is much worse than for $\log~g=4$, where the continuum at 2.22 to $2.3~\mu$m and the depth of the CO lines are not reproduced, and because of the $\log~g$ from the CO-index (see above), we conclude $\log~g \simeq 2$ to 3. The observed flux can be reproduced for an object with $\sim$2  $R_{\rm jup}$ radius at 140 pc.

With B.C. $_{\rm K}=3.3 \pm 0.1$ mag for M9-L4 and $K-L'\simeq 1.4 \pm 0.3$ (Golimowski et al. 2004), $K_{\rm s}=13.1 \pm 0.2$ mag for the companion, and $140 \pm 50$ pc distance, the luminosity is $\log (L/L_{\odot}) = -2.37 \pm 0.41$ for the companion. We can now plot it into an H-R diagram to compare with models. From Burrows et al. (1997) Fig. 7, the companion has $\sim$12 to 32  $M_{\rm jup}$ (from L and age), but only $\sim$3 to 9  $M_{\rm jup}$ from Figs. 9 and 10 (from T and age). It is similar in Baraffe et al. (2002) Fig. 2: the companion has $\sim$3 to 16  $M_{\rm jup}$ from T and age, but $\sim$11 to 42  $M_{\rm jup}$ from L and age; $\sim$12 to 42  $M_{\rm jup}$ from $M_{\rm K}$ and age (see also perso.ens-lyon.fr/isabelle.baraffe). Burrows et al. and Baraffe et al. start with an assumed internal structure without collapse, so that their models are uncertain up to a few Myrs (Baraffe et al. 2002).

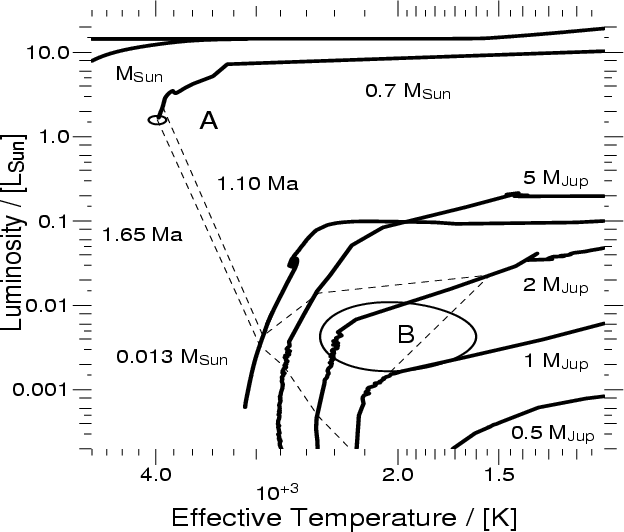

	Figure 4: H-R diagram with tracks from Wuchterl & Tscharnuter (2003) plus more tracks calculated by us ( from top to bottom) for 1 and $0.7~M_{\odot}$ as well as 13, 5, 2, 1, and 0.5  $M_{\rm jup}$. The isochrones (dashed) for 1.10 and 1.65 Myr connect the end of the $0.7~M_{\odot}$ track (star A) with the planetary tracks. Components A and B (1$\sigma$ errors) are co-eval at $\sim$1.1 Ma.
Open with DEXTER

Wuchterl & Tscharnuter (2003) include the initial collapse (Fig. 4): tracks for masses of 1 to $0.013~M_{\odot}$ are radiation fluid-dynamical calculations of the collapse of initially marginally unstable Bonnor-Ebert-spheres; planetary tracks are models in the framework of the nucleated instability hypothesis (Wuchterl et al. 2000; Wuchterl, in preparation). All ages are counted from first photosphere formation. The age-offset visible on the 1.10 Myr isochrone, at the transition from the 0.013 $M_{\odot}$ brown dwarf collapse to the 5  $M_{\rm jup}$ planetary track is due to the time-offset caused by the planetary core formation ( ${\le} 10^{5}$ yr). The companion has a mass of $\sim$1 to 2  $M_{\rm jup}$ (1$\sigma$) and is co-eval with the star ($\sim$1.1 Myr). From this model (Fig. 4), we expect $\log~g \simeq 2.4$and $\sim$1.8  $R_{\rm jup}$ radius, consistent with our spectrum and the best fitting GAIA-Dusty model spectrum (Fig. 3).

The most critical point in the mass determination of the companion (candidates) of GQ Lup and 2M1207 are the models, which may be off by an unknown factor for low ages (few Myr); they need to be calibrated, before the mass of such companions can be determined confidently.

Acknowledgements

We thank N. Reid for his IR spectra of L-dwarfs, an anonymous referee for very good suggestions, and the ESO USG and Paranal teams for perfect support. R.N. would like to thank D.L.N. for long-term support.
