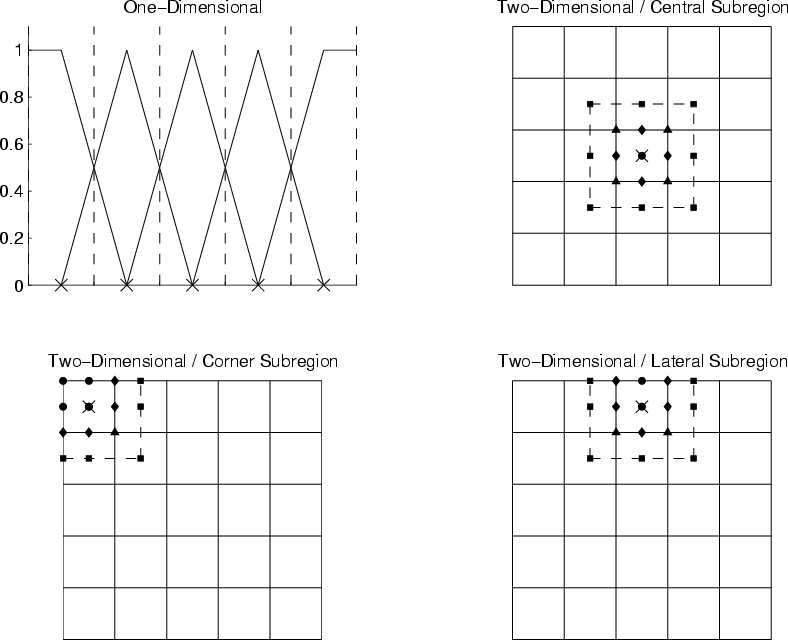

Figure 1:
One- and two-dimensional bases for the computation of the masks
using the linear interpolation approach. In the one-dimensional case the
dashed line indicates the limits of each subregion, whereas in the
two-dimensional case they indicate the limits of the masks.
Symbols ![]() ![]() ![]() ![]() ![]() |
Open with DEXTER |
![]() |

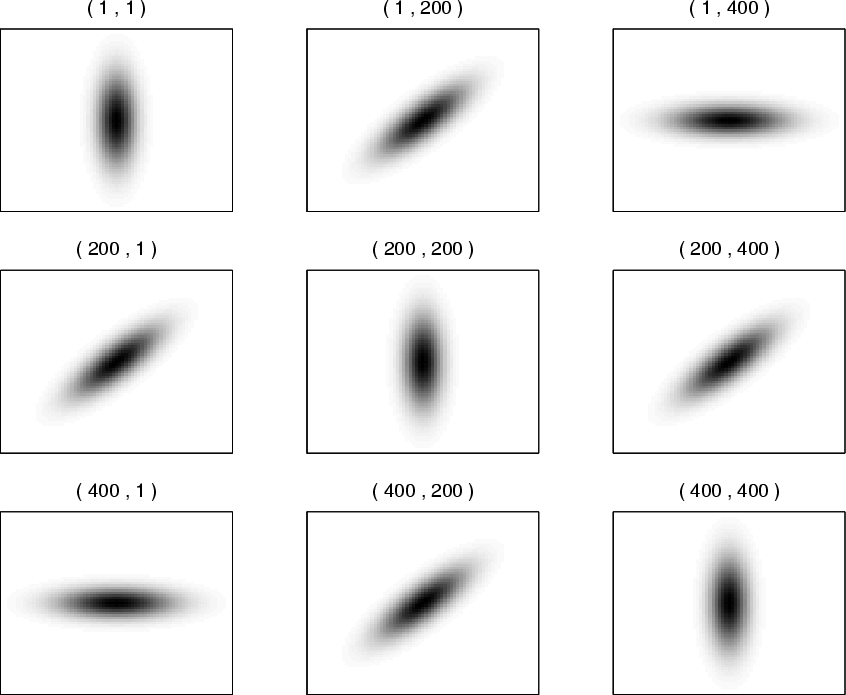

Figure 2: Spatial variation of the PSF across the first image of the set used in the numerical experiments (see text). The pair of numbers in the header of each panel indicates the coordinates of the pixels to which the displayed PSF corresponds. In the intermediate pixels the PSFs are obtained through a linear interpolation of the displayed ones. Each PSF is given by a two-dimensional Gaussian function with a dispersion of 12 pixels along the major axis and 4 pixels along the minor axis. |
Open with DEXTER |
![]() |

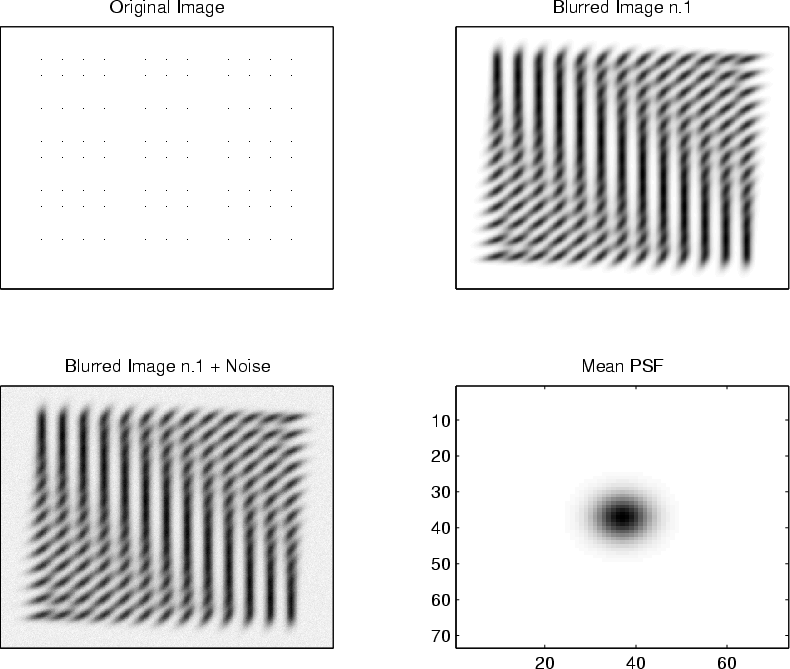

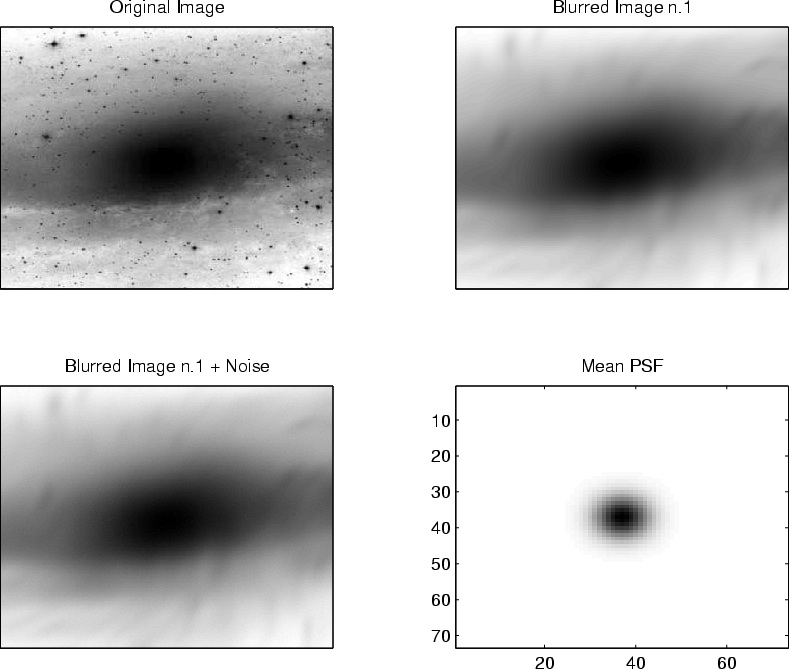

Figure 3:
Original image, blurred version and
blurred + noise version of the first image of the set (see text), and corresponding mean PSF. The
images are
![]() |
Open with DEXTER |
![]() |

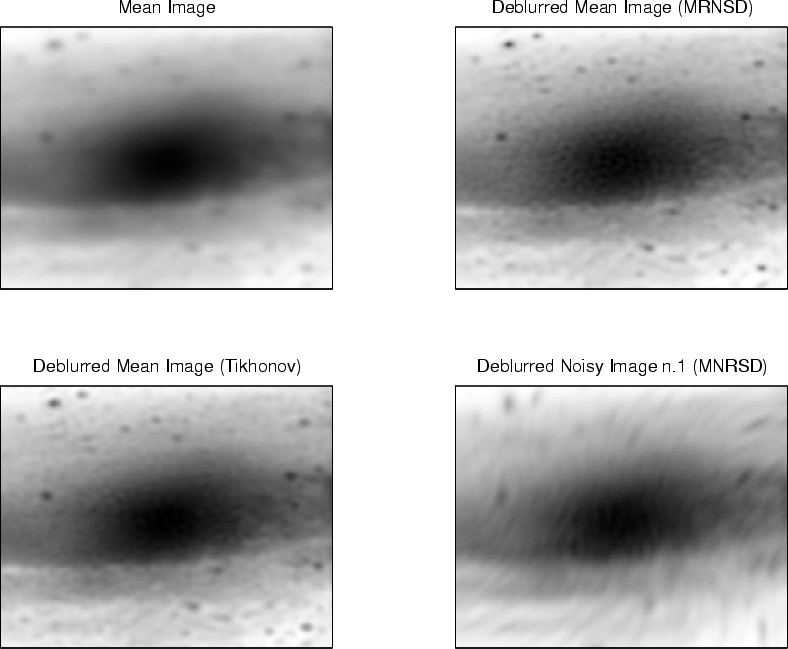

Figure 4:
Mean image
![]() ![]() |
Open with DEXTER |
![]() |

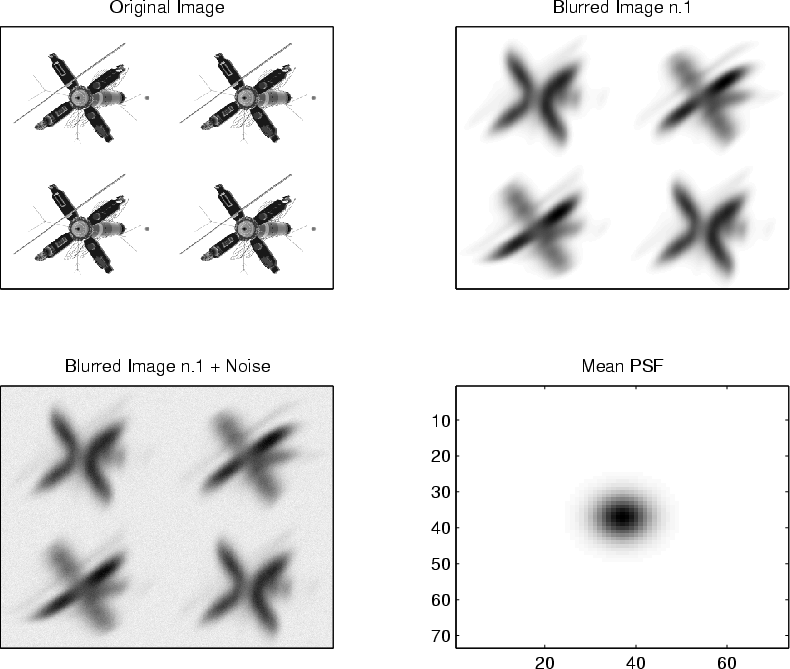

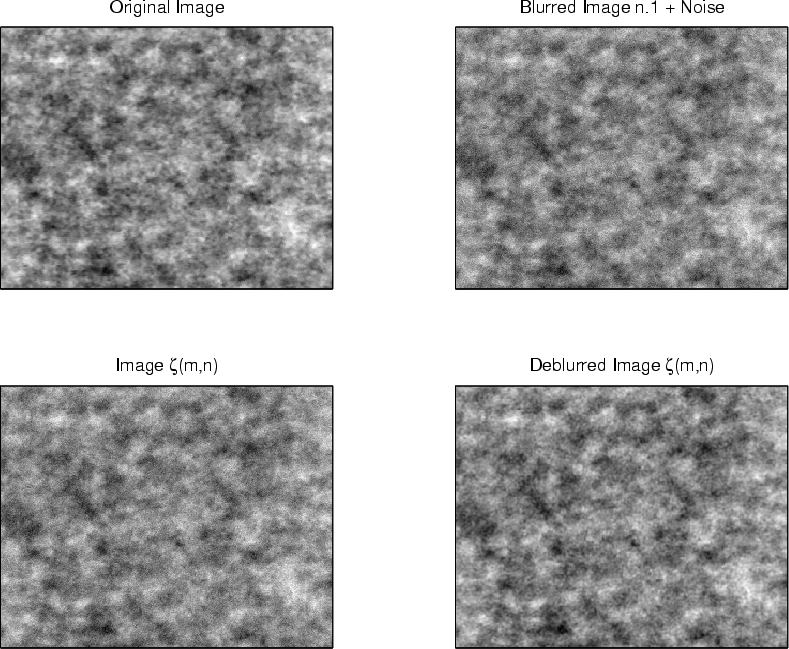

Figure 5:
Original image, blurred version and
blurred + noise version of the first image of the set (see text), and corresponding mean PSF. The
images are
![]() |
Open with DEXTER |
![]() |

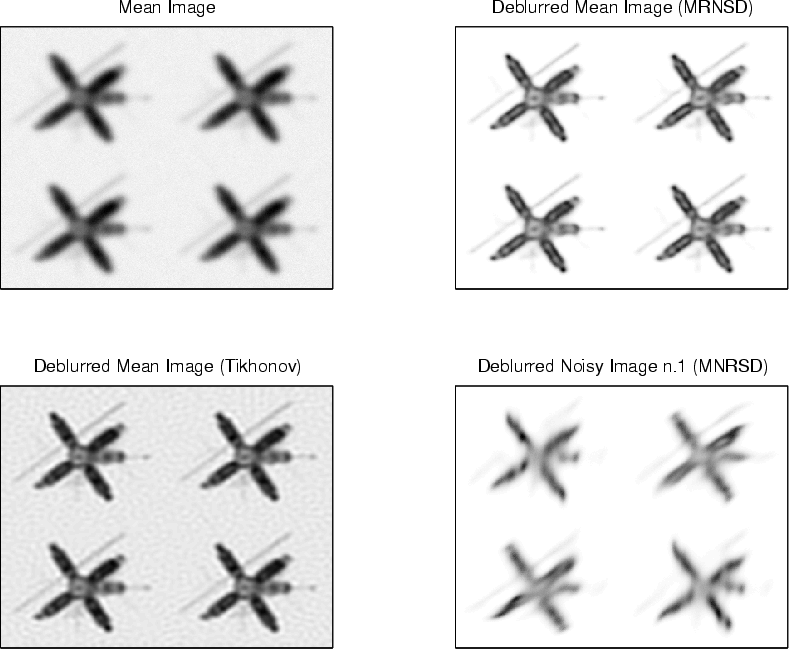

Figure 6:
Mean image
![]() ![]() |
Open with DEXTER |
![]() |

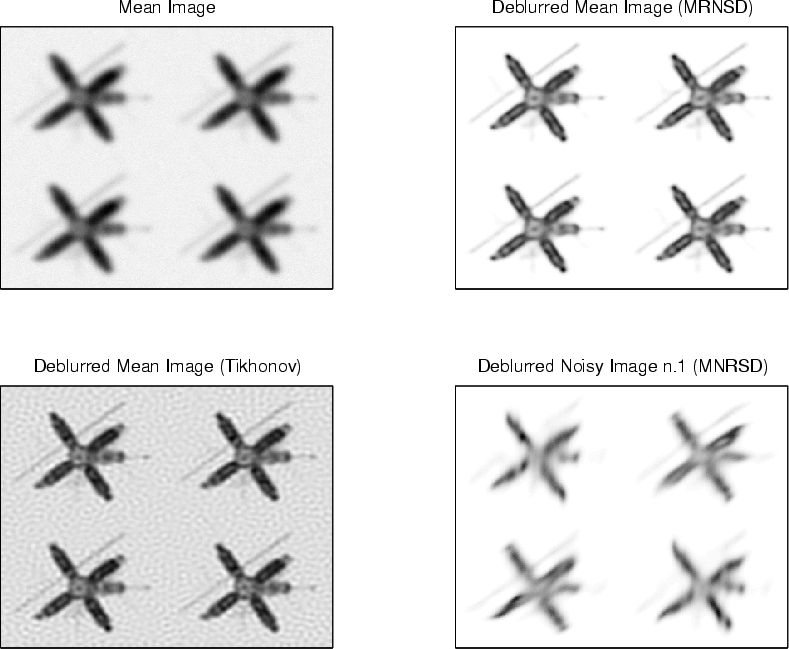

Figure 7:
Mean image
![]() ![]() |
Open with DEXTER |
![]() |
Figure 8:
Original image, blurred version and
blurred + noise version of the first image of the set (see text), and corresponding mean PSF. The
images are
![]() ![]() |
Open with DEXTER |
![]() |

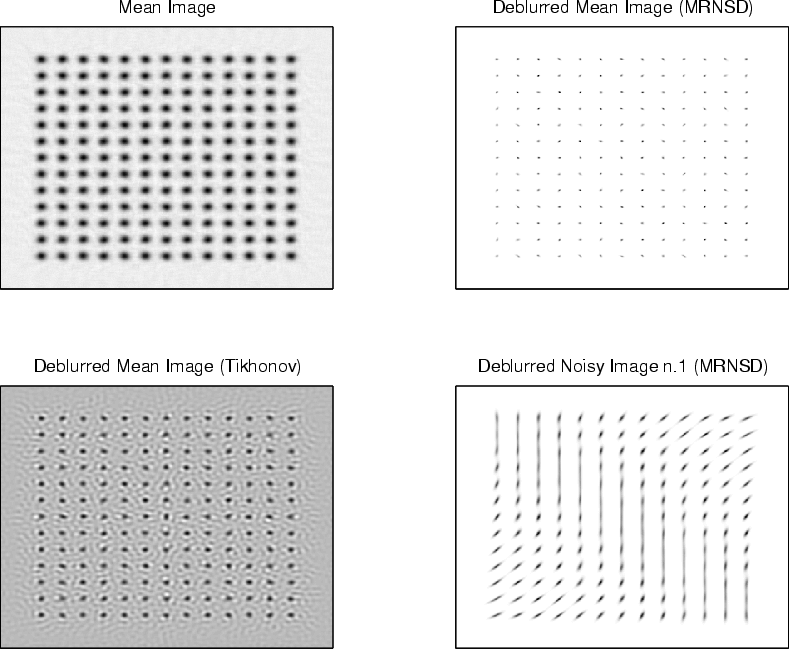

Figure 9:
Mean image
![]() ![]() |
Open with DEXTER |
![]() |

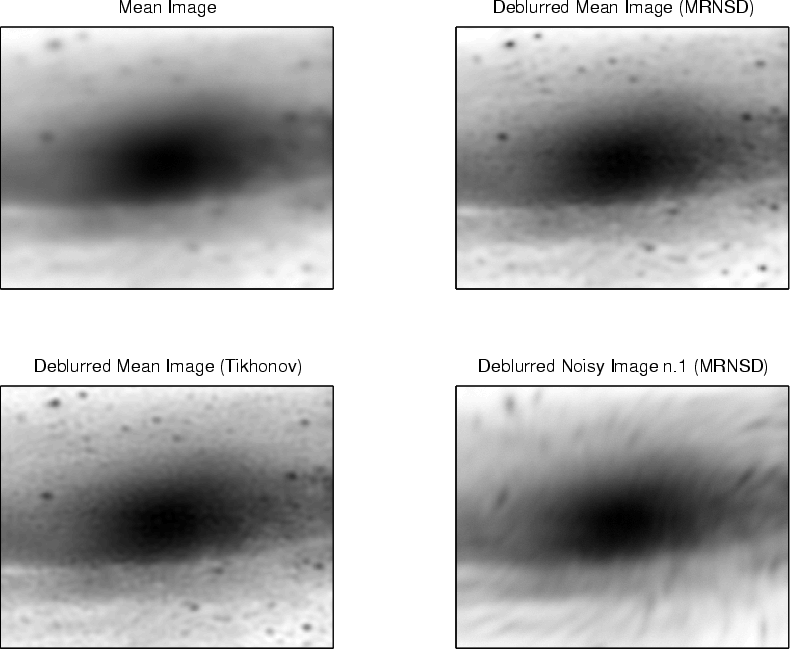

Figure 10:
Mean image
![]() ![]() ![]() |
Open with DEXTER |
![]() |
Figure 11:
Mean image
![]() ![]() ![]() |
Open with DEXTER |
![]() |
Figure 12:
Original image, observed image at
![]() ![]() ![]() |
Open with DEXTER |
