A&A 434, 553-568 (2005)
DOI: 10.1051/0004-6361:20040540

Massive elliptical galaxies in X-rays: The role of late gas accretion

A. Pipino1,2 - D. Kawata2 - B. K. Gibson2 - F. Matteucci1


1 - Dipartimento di Astronomia, Università di Trieste, via GB Tiepolo 11, 34127 Trieste, Italy
2 - Centre for Astrophysics and Supercomputing, Swinburne University of Technology, Hawthorn VIC 3122, Australia

Received 29 March 2004 / Accepted 24 December 2004

Abstract
We present a new chemical evolution model meant to be a first step in the self-consistent study of both optical and X-ray properties of elliptical galaxies. Detailed cooling and heating processes in the interstellar medium (ISM) are taken into account using a mono-phase one-zone treatment which allows a more reliable modelling of the galactic wind regime with respect to previous work. The model successfully reproduces simultaneously the mass-metallicity, the colour-magnitude, the $L_{\rm X} - L_B$ and the $L_{\rm X} - T$ relations, as well as the observed trend of the [Mg/Fe] ratio as a function of $\sigma$, by adopting the prescriptions of Pipino & Matteucci (#!Pipino04!#) for the gas infall and star formation timescales. We found that a late secondary accretion of gas from the environment plays a fundamental role in driving the $L_{\rm X} - L_B$ and $L_{\rm X} - T$ relations and can explain their large observational scatter. The iron discrepancy, namely the too high predicted iron abundance in X-ray haloes of ellipticals compared to observations, still persists. On the other hand, we predict [O/Fe] in the ISM which is in good agreement with the most recent observations. We suggest possible mechanisms acting on a galactic scale which may solve the iron discrepancy. In particular, mixing of gas driven by AGNs may preserve the gas mass (and thus the X-ray luminosity) while diluting the iron abundance. New predictions for the amounts of iron, oxygen and energy ejected into the intracluster medium (ICM) are presented and we conclude that type Ia supernovae (SNe Ia) play a fundamental role in the ICM enrichment. SNe Ia activity, in fact, may power a galactic wind lasting for a considerable amount of the galactic lifetime, even in the case for which the efficiency of energy transfer into the ISM per SN Ia event is less than unity.

Key words: galaxies: elliptical and lenticular, cD - galaxies: abundances - galaxies: evolution - X-rays: ISM

1 Introduction

The most direct evidence for the presence of a non-negligible interstellar medium (ISM) in elliptical galaxies comes from X-ray observations. The presence of ${\sim} 10^{8} {-}10^{10}~ M_{\odot}$ of gas in a hot ( ${\sim} 10^7$ K) X-ray emitting ( $L_{\rm X} \sim 10^{39} {-}10^{42}~ \rm erg~ s^{-1}$) phase was first discovered by the Einstein satellite (e.g. Forman et al. 1979) for ellipticals with a wide range of optical luminosities. A correlation between X-ray ($L_{\rm X}$) and optical (LB) luminosities is observed with roughly $L_{\rm X} \propto L_B^2$(e.g. O'Sullivan et al. 2001a), although the scatter is quite large. Such a trend can be explained by the fact that optically brighter galaxies are also more gravitationally bound (Ciotti et al. 1991). On the other hand, the X-ray emission from faint galaxies is dominated by discrete sources which have stellar origin (Brown & Bregman 2001) and the above correlation becomes approximately $L_{\rm X} \propto L_B$ (Canizares et al. 1987; O'Sullivan et al. 2001a). In what follows, we focus on massive systems which follow the $L_{\rm X} \propto L_B^2$ trend and whose X-ray data tell us something about their ISM properties. Concerning the scatter of the $L_{\rm X} - L_B$ relation, it is still not clear whether its origin can be traced to galactic environments (see e.g. the recent review by Mathews & Brighenti 2003, and references therein). However, ellipticals located in denser regions do seem to exhibit higher $L_{\rm X}$ at a given LB with respect to their counterparts in low density environments (Helsdon et al. 2001; Matsushita 2001; but see Matsumoto et al. 1997; and O'Sullivan et al. 2001a).

As for clusters of galaxies, the X-ray properties of individual ellipticals follow an $L_{\rm X}-T_{\rm X}$ relation, although it is not a mere extrapolation from the relation observed on the intergalactic scale (Matsushita et al. 2000), because the so-called "entropy floor'' seems to be more active on a galactic scale. This fact can be easily understood in terms of the stellar feedback still ongoing due to type Ia supernovae (SNe Ia) and low mass stars as well as other gas-dynamical processes (Matsumoto et al. 1997). A detailed study of these topics can be found in Kawata & Gibson (2003b), who found that radiative cooling is an important driver of this relation, although it does lead to late star formation (SF) and thus to galactic colours which are too blue with respect to observations. The additional energy feedback provided by AGN may rectify this problem (e.g. Kawata & Gibson 2004).

X-ray spectra also carry information pertaining to the chemical composition of the interstellar gas. The ASCA satellite provided the first reliable measure of the iron abundance in the hot ISM of ellipticals (e.g. Awaki et al. 1994; Matsumoto et al. 1997). These observations led to the so-called iron discrepancy (Arimoto et al. 1997), the fact that the inferred iron abundance was much lower than the solar value, at odds not only with theoretical models for elliptical galaxies (Arimoto & Yoshii 1987; Matteucci & Tornambé 1987), which predicted that their ISM should exhibit $\rm [Fe/H]>0$, but also with the mean metallicity of the stellar component inferred from optical spectra. Arimoto et al. (1997) analysed different possible sources of this discrepancy such as dilution by the intracluster medium (ICM), different binary populations (and thus SNe Ia rates) with respect to spirals, the presence of dust, and the uncertainties involved in the modelling of the Fe L lines. In fact, Matsushita et al. (1997) showed that by taking into account systematic errors in ASCA data, the iron abundance can possibly reach the solar value. This issue has been partly resolved because central iron abundances determined with ASCA did not take into account temperature gradients (Buote & Fabian 1998; Buote 1999), due to its limited spatial resolution. When a multi-temperature plasma model is adopted, the iron abundance in the hot ISM seems to increase from ${\sim} 0.2{-}0.4~ \rm Fe_{\odot}$at large radii, to solar (or slightly higher) inside a radius of ${\sim} 50$ kpc (see Mathews & Brighenti 2003).

Moreover, thanks to XMM and Chandra satellites, it is now possible not only to obtain a more reliable measure of the iron abundance in the ISM, but also to observe other chemical species like O, Mg, Si, N, S, C (e.g Buote et al. 2003; Sakelliou et al. 2002; Gastaldello & Molendi 2002; Xu et al. 2002; Matsushita et al. 2003).

Elliptical galaxies have well-studied optical photo-chemical properties; it is natural to consider whether the theoretical interpretations of these observables can simultaneously provide a satisfactory explanation for their X-ray properties. The X-ray spectra provide unique tools to study these reservoirs of gas in which the evidence of the role played by recent SNe Ia activity and mass loss, due to stellar winds, can be found.

Models for the chemical evolution of elliptical galaxies (e.g. Larson 1974; Matteucci $\&$ Tornambé 1987; Arimoto $\&$ Yoshii 1987) can successfully explain the mass-metallicity (e.g. Carollo et al. 1993; Gonzalez 1993; Davies et al. 1993; Trager et al. 1998, 2000a,b) and the colour-magnitude (CMR: e.g. Bower et al. 1992a) relations, as well as the observed radial gradients in the line-strength indices and colours (e.g. Carollo et al. 1993; Peletier et al. 1990). Under the assumption that the SF efficiency increases with the galactic mass (Tinsley & Larson 1979; Matteucci 1994), and that the accretion timescale is lower in higher mass systems, Pipino & Matteucci (2004, PM04 hereafter) were able to match simultaneously the relations presented above and the magnesium overabundance with respect to iron in the stellar component, which is observed to increase with galactic mass (e.g. Faber et al. 1992; Carollo et al. 1993; Davies et al. 1993; Worthey et al. 1992).

The aim of this paper is to improve the detailed photo-chemical evolution code of PM04 with a new treatment of the hot ISM, in order to present, for the first time, a model able to predict in a self-consistent manner the properties of both stellar (i.e. optical) and hot gas (i.e. X-ray) components of the flux emitted by elliptical galaxies. We have modified the equations of chemical evolution presented by PM04, by introducing a secondary gas inflow phase and explicitly taking into account the mass flow during the galactic wind. We next updated the energetics by implementing the radiative cooling of the ISM following Kawata & Gibson (2003a) and adopting the procedure described by Kawata & Gibson (2003b) to generate an X-ray spectrum of the model galaxies. In particular, we will show how the $L_{\rm X} - L_B$ relation depends critically on the interplay between the gas mass flow during the wind phase and the small secondary accretion episode. The chemical code will be presented in Sect. 2, with particular emphasis on the novelties related to this new energetic formulation, as well as the method adopted in order to derive consistent X-ray properties. The models and the results will be shown and discussed in Sects. 3-6 and our conclusions will be summarized in Sect. 7.

Table 1: Model parameters.

2 The model

2.1 The chemical evolution code

The adopted chemical evolution model is based on that presented by PM04. In this particular case, however, we consider our model galaxies as a single zone extending out to 10 $~R_{\rm eff}$, where $R_{\rm eff}$ is the effective radius (see Table 1), with instantaneous mixing of gas. Moreover we take explicitly into account a possible mass flow due to the galactic wind and a possible secondary episode of gas accretion. Therefore, the equation of chemical evolution for a single element i takes the following form:


                                            $\displaystyle {{\rm d} G_i (t) \over {\rm d} t} = -\psi (t) X_i (t)~$
    $\displaystyle \qquad+\int_{M_L}^{M_{B_m}} \psi (t-\tau_m) Q_{\rm mi}(t-\tau_m) \phi (m) {\rm d}m~$
    $\displaystyle \qquad+ A\int_{M_{B_m}}^{M_{B_M}} \phi (m) \left [ \int_{\rm\mu_{... ...rm mi}(t-\tau_{\rm m_2}) \psi (t-\tau_{\rm m_2}) {\rm d}\mu \right ] {\rm d}m ~$
    $\displaystyle \qquad +(1-A)~ \int_{\rm M_{\rm B_m}}^{M_{\rm B_M}} \psi (t-\tau_m) Q_{\rm mi}(t-\tau_m) \phi (m) {\rm d}m~$
    $\displaystyle \qquad +\int_{\rm M_{\rm B_M}}^{M_U} \psi (t-\tau_m) Q_{\rm mi}(t-\tau_m) \phi (m) {\rm d}m~$
    $\displaystyle \qquad+\left({{\rm d} G_i (t) \over {\rm d} t}\right)_{\rm infall}-W(t)X_i (t) +\left({{\rm d} G_i (t) \over {\rm d} t}\right)_{\rm acc} ,$ (1)

where Gi (t) is the normalized mass density of the element i at the time t in the ISM. Xi (t) is defined as the abundance by mass of the element i (see also Matteucci $\&$ Greggio 1986; Gibson 1997, and PM04 for a comprehensive discussion of this equation). The initial mass function (IMF) has the usual form $\phi (m)\propto m^{-(1+1.35)}$, (Salpeter 1955), and it is normalized to unity in the mass interval $0.1 {-}100~ M_{\odot}$. By means of this equation we can calculate the evolution of 21 elemental species. The total ISM normalized gas mass density at each timestep is then simply $G(t)=\Sigma_{i=1}^{21} G_i (t)$. The term $ -\psi (t) X_i (t)$ gives the rate at which the element i is subtracted from the ISM owing to the SF process (see Sect. 2.5 for details on the SF rate $\psi$), whereas the integrals in the right-hand side of the equation give the rate at which the element i is restored into the interstellar medium as unprocessed or newly-synthesized element by low- and intermediate-mass stars, and/or SNe Ia and type II supernovae (SNe II). In fact, one of the fundamental points upon which our model is based is the detailed calculation of the SN rates as well as the use of finite stellar lifetimes and detailed stellar nucleosynthesis prescriptions (see Sect. 2.6). For the type Ia SNe rate, we assume a progenitor model made of a C-O white dwarf plus a red giant and the formalism of Greggio $\&$ Renzini (1983) and Matteucci $\&$ Greggio (1986):

\begin{displaymath}R_{\rm SNIa}=A\int^{M_{BM}}_{M_{Bm}}{\phi(M_B) \int^{0.5}_{\mu_m}{f(\mu) \psi(t- \tau_{M_{2}}){\rm d} \mu ~ {\rm d}M_{B}}} , \end{displaymath} (2)

where $M_{\rm B}$ is the total mass of the binary system, $M_{Bm}=3 ~M_{\odot}$ and $M_{BM}=16 ~M_{\odot}$ are the minimum and maximum masses allowed for the adopted progenitor systems, respectively. $\mu=M_2/M_{\rm B}$ is the mass fraction of the secondary, which is assumed to follow the distribution law:

\begin{displaymath}f(\mu)=2^{1+\gamma}(1+\gamma)\mu^\gamma . \end{displaymath} (3)

Finally, $\mu_{m}$ is its minimum value and $\gamma=2$. The predicted type Ia SN explosion rate is constrained to reproduce the present day observed value (Cappellaro et al. 1999), by fixing the parameter A in Eq. (2). In particular, A represents the fraction of binary systems in the IMF which are able to give rise to SN Ia explosions. In the following we adopt A=0.09.

On the other hand, the type II SN rate is:

$\displaystyle R_{\rm SNII}$ = $\displaystyle (1-A)\int^{16}_{8}{\psi(t-\tau_m) \phi(m){\rm d}m}$ $\displaystyle + \int^{M_U}_{16}{\psi(t-\tau_m) \phi(m){\rm d}m} ,$ (4)

where the first integral accounts for the single stars in the range 8-16 $M_{\odot}$, and MU is the upper mass limit in the IMF. The stellar lifetimes $\tau_m$ are taken from Padovani & Matteucci (1993). The knowledge of the stellar lifetimes and the star formation history allow us to calculate the evolution of the stellar mass as given by:

\begin{displaymath}{{\rm d} M_* (t) \over {\rm d} t} = \psi (t) - \int_{m(t)}^{M_{U}} \psi (t-\tau_m) (m-m_{\rm rem}) \phi (m) {\rm d}m , \end{displaymath}

where m(t) is the smallest mass dying at the time t and $m_{\rm rem}$ is the mass of the remnant of a star of initial mass m. Therefore we can easily evaluate the number of stars still alive, their distribution in mass as well as their distribution as a function of the metallicity. In fact, for each simple stellar population (SSP) created, we store information on the chemical composition of the gas out of which this SSP has formed.

The initial galactic infall phase enters the equation via the term:

\begin{displaymath}\left({{\rm d} G_i (t) \over {\rm d} t}\right)_{\rm infall}= X_{i,{\rm infall}} C {\rm e}^{-{t \over \tau}} , \end{displaymath} (5)

where $X_{i,{\rm infall}}$ describes the chemical composition of the accreted gas, assumed to be primordial. C is the normalisation constant of the infall law, obtained by integrating this law over time and requiring that $M_{\rm lum}$ has been accreted at $t_{\rm gw}$ (see PM04). After PM04, the initial collapse becomes faster as the galactic mass increases.

At variance with previous semi-analytical works (PM04; Pipino et al. 2002, P02 hereafter, but see also Arimoto 1989; Gibson & Matteucci 1997), in which all the gas present at the time of the galactic wind is ejected into the IGM/ICM, in this model we take into account the possibility that only a fraction of the gas is able to escape the potential well. In order to do that we introduce the mass flow rate W(t) in the chemical evolution equation. The functional form of W(t) as well as its dependence on the energy content are given in Sect. 2.3.

Finally, in order to explore the possible interaction between the pristine gas of the IGM/ICM and the hot ISM of the galactic models, we introduced an additional accretion episode, by means of the term $({{\rm d} G_i (t)/ {\rm d} t})_{\rm acc}$ (see Sect. 2.4).

The detailed photometric evolution for our model elliptical galaxies is obtained by applying the spectro-photometric code by Jimenez et al. (1998, see also PM04) to our SSPs.

2.2 Energy evolution

The chemical code presented in this paper features a new self-consistent energetic treatment which supersedes the previous one adopted by PM04. In particular, calling $u_{\rm th}$ the thermal energy per unit mass, the equation governing the energy evolution of the gas is:

 \begin{displaymath}{{\rm d} u_{\rm th}\over {\rm d}t}={\Gamma_{\rm SN}\over M_{\... ...{{\rm d} M_w \over {\rm d} t}\cdot(u_{\rm vir} - u_{\rm th}) , \end{displaymath} (6)

where the first term on the right-hand side is the heating rate per unit mass (Sect. 2.2.2), while the second is the cooling rate per unit mass (Sect. 2.2.1). The last term represents the variation in the energy content due to the stellar mass loss (injected into the ISM and being at the virial temperature of the system, see Eq. (9)). This is a clearly simplified case with respect to those presented in other works (e.g. Ciotti et al. 1991; Loewenstein & Matthews 1987; Hattori et al. 1987). Nevertheless, because we cannot treat gas dynamics, we believe that Eq. (6) is a good starting point for a detailed inclusion of stellar feedback in a chemical evolution model. The temperature of the ISM is related to the energy per unit mass by means of:

\begin{displaymath}u_{\rm th}={3\over 2\mu m_{\rm p}}kT. \end{displaymath} (7)

Equation (6) has the form:

\begin{displaymath}{{\rm d} u_{\rm th}\over {\rm d}t}=f(u_{\rm th}) . \end{displaymath} (8)

Therefore, in order to solve Eq. (6) for each time-step, we employ an iterative process. In particular, we implemented a routine based on Brent's Method (see Press et al. 1986) in the chemical code.

This treatment is needed in order to study the evolution of the thermal budget of the ISM itself. The previous formalism, based on the thermal energy of the supernova remnant (SNR), is now part of the new procedure, so that we can distinguish between the energy content of the gas and the energy trapped in the hot bubble of the SNR. The latter is eventually restored to the ISM when the SNR merges with the surrounding medium. Moreover, the inclusion of a consistent calculation of the cooling functions allows us to compute the X-ray flux emitted by the model galaxies (see Sect. 2.7).

Equation (6) relies on the assumption that each gas particle shares the same energy, whether it is gas being used to form stars or gas escaping in the galactic wind. This limitation is due to the single-phase nature adopted for the ISM. A more sophisticated treatment would require a two-phase model in which mass exchange is allowed by evaporation (cold phase $\;\rightarrow\;$hot phase) and cooling (hot $\;\rightarrow\;$cold) (Harfst et al. 2003). The model presented in this paper, however, is the first step in modeling both the X-ray and optical properties in a self-consistent manner.

The relation:

 \begin{displaymath}kT_{\rm vir}= {\mu m_{\rm p} \over 2}{G M_{\rm vir}\over R_{\rm vir} } , \end{displaymath} (9)

(e.g. Romano et al. 2002) gives us the initial value for the energy per unit mass; $R_{\rm vir}$ is the virial radius for a spherical system of mass $M_{\rm vir}$, namely the mass of luminous and dark matter inside 10 $~R_{\rm eff}$.

In the case of secondary accretion, we take into account that the infalling gas has a mean energy assumed to be equal to the virial temperature (according to Eq. (9)), therefore influencing the final ISM temperature. This can be easily done by adding the term ${1 \over M_{\rm gas}}{{\rm d} M_{\rm acc} \over {\rm d} t}\cdot (u_{\rm vir}-u_{\rm th})$in the right-hand side of Eq. (6).

We limit our calculation to temperatures above T=104 K, since the cooling functions become more complex at lower temperatures (e.g. Omukai 2000). This condition, however, did not affect the final results, since in all the runs completed the gas temperature was always higher than this minimum value.

2.2.1 The cooling term

After Kawata & Gibson (2003a, where we address the reader for a more detailed description), we evaluate the cooling rate $\Lambda(Z,T)$as a function of gas density and metallicity by means of the cooling curves computed by MAPPINGS III (Sutherland & Dopita 1993). In particular, we used a bi-linear interpolation in [Fe/H] and T in the range [-3,0.5] in metallicity and [104 K, 109 K] in temperature. Since our models span a wider range in [Fe/H] during their evolution, we assumed that the cooling rate of the gas with metallicity $\rm [Fe/H]<-3$ was the same as for gas with $\rm [Fe/H]=-3$ in order to avoid uncertainties due to extrapolation. A similar assumption has been made for gas with metallicity $\rm [Fe/H]>0.5$.

2.2.2 The heating term

The term describing the heating of the gas in Eq. (6) is defined as:

\begin{displaymath}\Gamma_{\rm SN}= \epsilon_{\rm SN Ia}E_0 R_{\rm SN Ia} + \epsilon_{\rm SN II}E_0 R_{\rm SN II} , \end{displaymath} (10)

where E0=1051 erg is the assumed initial energy budget for the SNR, $\epsilon_{\rm SNIa}$ ( $\epsilon_{\rm SNII}$) and $R_{\rm SN Ia}$ ( $R_{\rm SN II}$) are the efficiency of energy transfer and the explosion rate for SNe Ia (SNe II), respectively (see Eqs. (2) and (4)).

At variance with previous works (P02; PM04), here we adopt a parametric value for both $\epsilon_{\rm SNIa}$ and $\epsilon_{\rm SNII}$. This allows a more flexible treatment of the heating term in order to test different scenarios. In particular, before the galactic wind, we focus on three different cases, namely $\epsilon_{\rm SN Ia}=\epsilon_{\rm SN II}=0.01$, $\epsilon_{\rm SN Ia}=\epsilon_{\rm SN II}=0.1$ and $\epsilon_{\rm SN Ia}=\epsilon_{\rm SN II}=1$. We note in passing that our fiducial case ( $\epsilon_{\rm SN Ia}=\epsilon_{\rm SN II}=0.1$) is in good agreement with the results of Thornton et al. (1998), who modelled SNR evolution within a range of different environments finding that the fiducial value adopted here can be considered as typical. In the following, the fiducial case has been adopted unless otherwise noted. Furthermore, we have done preliminary calculations for typical values of metallicity, density and temperature relevant to our models, based on the Cioffi et al. (1988) formalism (see also Gibson 1997). In particular, considering that a SNR merges with the ISM (and hence eventually shares its energy with the surrounding medium) when its expansion velocity equals the gas sound speed, we found that the typical fraction of the initial energy budget available for the ISM is only a few percent, again in agreement with our fiducial case.

After the galactic wind has developed, the gas content of the galaxy decreases quite sharply, whereas the temperature is almost constant or increases. When we take into account these new conditions in the Cioffi et al. (1988) equations, we have an increase in $\epsilon_{\rm SNIa}$up to values as high as 0.5-0.7 (see Table 1). This is the most natural way to inject energy and drive a wind in our model, but, in a more general treatment (part of) this energy could be also provided by an AGN.

A more detailed and self-consistent treatment of the SNR evolution as a function of gas metallicity and temperature will be included in a forthcoming paper. A more general form for the heating term would request the inclusion of the energy input from stellar winds (see e.g. Loewenstein & Mathews 1987). Its typical value for massive stars is ${\sim} 1\%$ of the assumed SNII energy budget (Mathews & Baker 1971). Therefore the inclusion of stellar winds as a heating source has a negligible impact on the final results (Bradamante et al. 1998; Gibson 1996).

2.2.3 The development of the galactic wind

We define the gas binding energy $E_{\rm Bin}$ (see PM04 for its analytic definition) as the work required to carry a gas particle out to 10  $R_{\rm eff}$. According to PM04, we assume that the dark matter (DM) is distributed in a diffuse halo ten times more massive than the baryonic component of the galaxy with a scale radius $R_{\rm dark}= 10~ R_{\rm eff}$. The DM profile is taken from Bertin et al. (1992).

In this paper we define the time when the galactic wind onsets ( $t_{\rm gw}$) as the solution of the following equation:

\begin{displaymath}E_{\rm th}(t_{\rm gw}) = E_{\rm Bin}(t_{\rm gw}) , \end{displaymath} (11)

here the thermal energy of the gas is simply described by

\begin{displaymath}E_{\rm th}=u_{\rm th}M_{\rm gas} . \end{displaymath} (12)

For every time-step in which the thermal energy is greater than the binding energy, we set the energy loss in the wind as the value given by $\Delta E = E_{\rm th}-E_{\rm Bin}$, whereas in previous works (P02; PM04) all the thermal energy was allowed to escape.

Before introducing the modelling of the SF history and the possible exchanges of matter with the surrounding medium at $t> t_{\rm gw}$, we discuss the differences between this new treatment for the energy evolution and our previous works. Since the heating term is not dramatically different from the energy source powering the winds in P02 and PM04 models, which featured an average SN efficiency of ${\sim} 20\%$, the most relevant difference is the cooling of the ISM. This results in a lower effective contribution by a single SN to the energetic budget and, thus, delayed galactic winds with respect to previous models. Moreover, owing to the one-zone nature of this model, the adopted galactic radius R becomes an important parameter in determining the cooling term, because the latter scales as $\rho_{\rm gas}^2$ (and thus as R-6). The influence of the adopted radius on the ISM X-ray properties will be discussed in Sect. 5.2. The detailed energetic treatment will provide us with the tools to evaluate the amount of gas which has enough energy to escape from the galactic potential well and to control whether the conditions for the SF hold during the different stages of the galactic evolution.

2.3 The mass flow rate

The mass flow rate in the right-hand side of Eq. (1) is defined as:

\begin{displaymath}W(t)={\Delta M \over\Delta t }{1\over M_{\rm lum}} \cdot \end{displaymath} (13)

Given the assumptions leading to Eq. (6) and the fact that the amount of energy which can drive the wind is $\Delta E$, the mass of gas which can blow away from the galactic potential well at each time-step is given by:

\begin{displaymath}{\Delta M \over M_{\rm gas}}={\Delta E \over E_{\rm th}} \cdot \end{displaymath} (14)

Therefore, the energy feedback enters in the equation of the chemical evolution by means of Eq. (13).

2.4 Second infall episode

Theoretical models based on the Cold Dark Matter paradigm predict that massive halos keep accreting either dark or baryonic matter all their life (e.g. Voit et al. 2003). Since our aim is to reproduce the properties of very bright ellipticals, we further modified our chemical evolution code by adding the possibility of a late time accretion of gas. In this way we partly relaxed the somewhat rough approximation that the infall suddenly stops at the occurrence of the galactic wind. It is likely, in fact, that even in the wind phase, small amounts of gas can flow inward, e.g. in the presence of an inhomogeneous ISM. On the other hand, the optical properties of elliptical galaxies require that the main accretion episode must have been very fast compared to the galactic lifetime and that most of the galaxy has to be assembled during this stage (e.g. PM04; Ferreras & Silk 2003). Therefore, in the following we shall refer only to the main accreting episode as the infall. In order to handle easily the parameters governing the secondary inflow, we chose to model independently these two accretion episodes and we adopted the following expression for the second one:

\begin{displaymath}\left({{\rm d} G_i (t) \over {\rm d} t}\right)_{\rm acc}= X_{\rm i,acc} {M_{\rm acc} \over M_{\rm\rm lum} t_0} , \end{displaymath} (15)

namely we assume that the model galaxy accretes a gas mass  $M_{\rm acc}$ in a uniform way all along its lifetime (t0). This choice can be motivated by the fact that the secondary accretion is completely different from the fast initial infall. Equation (15), in fact, models in a simple way interactions with the environment or random accretions of a singular gas cloud occurring on long timescales, within a one-zone chemical model with instantaneous mixing. Also, in this case the accreted gas is assumed to be primordial and its temperature is given by Eq. (9). In Sect. 5 we show the importance of this secondary accretion episode, in governing the late time behaviour of the galaxies.

2.5 Star formation history

The SF rate (SFR) is assumed to be proportional to the gas density, according to:

\begin{displaymath}\psi (t)= \nu\cdot \rho_{\rm gas} (t)/\rho_{\rm gas,0} . \end{displaymath} (16)

The SF efficiency $\nu$ is taken to be an increasing function of the galactic mass following the prescriptions of the PM04 best model.

An improvement of this model with respect to PM04 is that we can keep the gas temperature and its cooling time under control. These quantities allow us to check in a self-consistent manner whether the SF process might continue or not. In particular, the SF takes place if the condition $t_{\rm cool}\le t_{\rm ff}$ is satisfied by the ISM gas. The cooling timescale is defined as:

\begin{displaymath}t_{\rm cool}= {E_{\rm th}\over {{\rm d}E_{\rm th}\over {\rm d... ...\over 2~\mu m_{\rm p}}{kT\over n_{\rm H}^2 \Lambda(Z,T)} \cdot \end{displaymath} (17)

While the free-fall time is:

\begin{displaymath}t_{\rm ff}= \left({3\pi \over 32 G \rho_{\rm gas}}\right)^{0.5} \cdot \end{displaymath} (18)

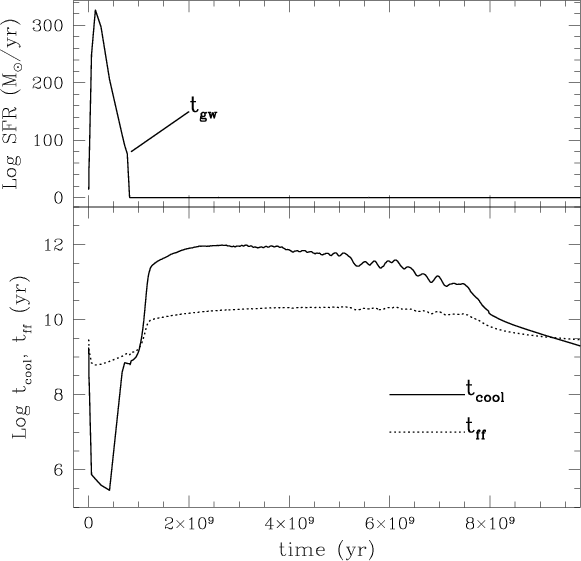

As it can be seen from Fig. 1, the condition is satisfied at the beginning of the SF process. Since then, because elliptical galaxies cannot stop or regulate the SF process (Elmegreen 1999), the model galaxies undergo a rapid and very efficient conversion of gas into stars until the galactic wind occurs. On the other hand, after the galactic wind the gas is so hot and rarefied that the $t_{\rm cool}\le t_{\rm ff}$ condition cannot hold anymore, therefore leading to a sudden stop in the SF, in agreement with previous works (PM04).

Finally, when the galactic wind stops, late SF episodes are still inhibited by the high temperature and very low density of the ISM, which imply $t_{\rm cool}> t_{\rm ff}$. It is worth noting, however, that the chemical evolution equation presented here holds even in the case in which wind and SF are present at the same time.


  \begin{figure} \par\includegraphics[width=8.2cm,clip]{0540fig1.eps}\end{figure} Figure 1: Star formation rate ( upper panel), $t_{\rm cool},~t_{\rm ff}$( lower panel) versus time for model La1 (see text and Table 1 for details).
Open with DEXTER

2.6 Stellar yields

In order to follow the evolution of the chemical elements, we utilize the following nucleosynthesis prescriptions.

1.
Yields of van den Hoek $\&$ Groenewegen (1997, as a function of metallicity) for single low and intermediate mass stars ( $0.8 \le M/M_{\odot} \le 8$).
2.
Yields by Nomoto et al. (1997) for SNe Ia.
3.
Yields of Thielemann et al. (1996), which refer to the solar chemical composition, for massive stars ( $M >8~ M_{\odot}$).

2.7 X-ray properties

In order to study the X-ray emission from model galaxies in a detailed manner, taking into account the line emissions and the energy range of the actual observed spectra, we applied the procedure described by Kawata & Gibson (2003b) to our chemical code, which we briefly outline here. In particular, using the elemental abundances in the ISM and the gas temperature and density as provided by the chemical code, we create a spectrum in the energy range 0.1-20 keV, with 1800 bins, by means of the vmekal plasma model (Mewe et al. 1985, 1986; Kaastra 1992; Liedahl et al. 1995). Then we generate a fake observed spectrum by convolving the spectrum with the epn_ff20_sY9_thin.rmf response function for the EPN detector on-board the XMM-Newton satellite in XSPEC ver.11.1.0 environment. The exposure time is 40 ks and neither absorption component nor background were taken into account. The spectrum is rebinned in order to have at least 25 counts per bin, and, finally, fitted with XSPEC vmekal model in the same energy range of the different observations. We stress that the abundance obtained as free parameters in the fitting procedure, are in good agreement with the output of the chemical code.

A detailed analysis of this procedure, as well as a comparison with other works in which the X-ray emission is modelled as simply proportional to $\rho^2 T^{1/2}$, can be found in Kawata & Gibson (2003b). At variance with that paper, however, because we are presenting a one-zone model, we will not take into account aperture effects.

3 Galactic models

We run models for elliptical galaxies with baryonic mass $M_{\rm lum}=10^{11}$ (models labelled as L) and $M_{\rm lum}=10^{12}~M_{\odot}$ (models labelled as H). $M_{\rm lum}$ is the "nominal'' mass of the object, i.e. the mass of gas accreted and possibly turned into stars during its active evolution (recall that we stop the infall when $t\sim t_{\rm gw}$). Furthermore, we name the models "0'', "a1'' or "a10'' if they have no secondary accretion, accrete 1 per cent or 10 per cent of  $M_{\rm lum}$, i.e. $M_{\rm acc}=0$, 0.01  $M_{\rm lum}$ and 0.1  $M_{\rm lum}$, during their whole evolution, respectively. Models called HSN1 and HSN100 are similar to model Ha1, except for the SN efficiency (1 and 100 per cent, respectively). Since the secondary accretion episode implies a very mild accretion rate, the SF history, and hence the photochemical properties are not affected by it; only the late behaviour of the ISM properties depends strongly on the secondary accretion, therefore affecting the X-ray luminosity and temperature. A summary of the input parameters are shown in Table 1, where model name (Col. 1), mass (Col. 2), effective radius (Col. 3), SF efficiency (Col. 4), infall timescale (Col. 5), SNe efficiency (Cols. 6-8), accreted mass in the secondary episode (Col. 10) as well as the times at which the galactic wind starts and stops (Cols. 9 and 11, respectively) are given.

Table 2: Predicted optical properties of the model galaxies.

4 The stellar component - photochemical properties of the models

As it can be seen from Table 1, in this paper we follow the prescriptions given by PM04 in order to reproduce the majority of photochemical observables for elliptical galaxies, namely that the SF efficiency has to increase with the galactic mass, whereas the infall timescale must decrease with luminosity. It is worth noting that the values for $\nu$ and $\tau$ are very close to those presented by PM04. Therefore we expect that our model succeeds in reproducing the mass-metallicity and the [Mg/Fe] - $\sigma$ relations as well as the CMRs. We recall here that the observations of the increase of line-strength indices (such as Mg2 and $\langle$Fe$\rangle$) with galactic velocity dispersion (e.g. Carollo et al. 1993; Gonzalez 1993; Davies et al. 1993; Trager et al. 1998, 2000) is generally interpreted as a metallicity sequence in which the stars of more massive galaxies are richer in metals with respect to the stellar component of less massive objects. This metallicity sequence also explains the slope and tightness of the observed CMR (e.g. Kodama & Arimoto 1997). On the other hand, the observed increase in the mean stellar [Mg/Fe] in the central region for ellipticals with galactic velocity dispersion (e.g. Faber et al. 1992; Carollo et al. 1993; Davies et al. 1993; Worthey et al. 1992, but see Proctor et al. 2004), tells us that the most massive galaxies must have formed in a shorter timescale compared to the less massive ones (time-delay model, see Matteucci 2001). We address the reader interested in a detailed discussion on the topic and in the role played by $\nu$ and $\tau$ in reproducing the above relations to Matteucci (1994) and PM04 (see also Thomas et al. 2002; Ferreras & Silk 2003).


  \begin{figure} \par\includegraphics[width=8.3cm,clip]{0540fig2.eps}\end{figure} Figure 2: Predicted mass-metallicity relation for the central zones of our models. The curves are obtained by correcting the average properties of the whole galaxy with the theoretical metallicity gradients by PM04 (see text for details). Results for $\alpha $-enhanced calibration (solid line) and not $\alpha $-enhanced calibration (dashed line) are shown versus a collection of data from Kuntschner (2000) and Kuntschner et al. (2001).
Open with DEXTER


  \begin{figure} \par\includegraphics[width=8.4cm,clip]{0540fig3.eps}\end{figure} Figure 3: Predicted CMRs for our models and different redshift of formation compared with the fit to the Bower et al. (2002b) data (solid line). A measure of the observational scatter is given by dashed lines.
Open with DEXTER

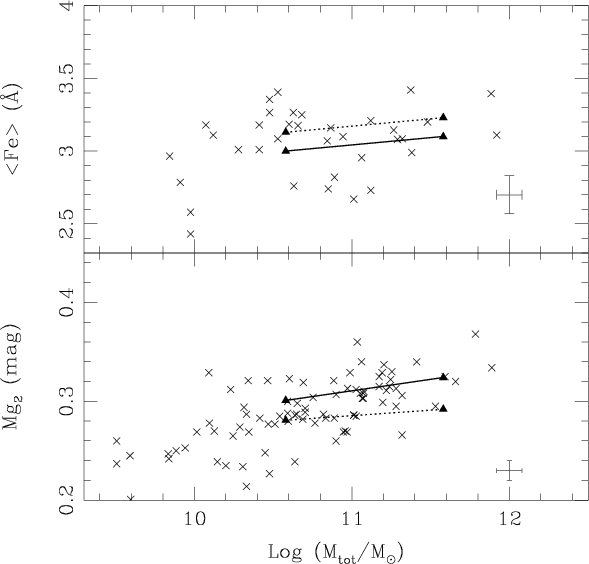

Our model predictions for the photochemical properties related to the optical part of the spectrum are summarized in Table 2 and compared with observation in Figs. 2 and 3. In this section, however, we simply refer to model L (which represents models L0, La1, La10) and model H (which represents models H0, Ha1, Ha10), since the optical properties are not influenced by $M_{\rm acc}$. In particular, in Table 2 we show the predicted line-strength indices (see below) in Cols. 2-5, the [$\langle$Mg/Fe$\rangle$] in Col. 6 and the luminosities of the whole galaxies in the K and L-band in Cols. 7 and 8, respectively. The predicted indices are evaluated by calculating the mean [Mg/H], [Fe/H] and [Mg/Fe] in the stellar component of the galaxies, and then converted into Mg2 and $\langle$Fe$\rangle$ by means of a suitable calibration. In particular, the indices obtained by Matteucci et al. (1998) with the Tantalo et al. (1998) $\alpha $-enhanced SSPs are labelled with T, whereas W refers to the Worthey (1994) SSPs (see PM04). For a detailed discussion on the adopted procedure and a comparison between the two sets of calibration see PM04.

Table 3: Predicted X-ray properties of the model galaxies.

Before discussing the agreement with the observed mass-metallicity relation, we stress that the observed ones refer to the central (i.e. ${\sim} 0.1~ R_{\rm eff}$) galactic region, whereas we are presenting the results for a one-zone model extending out to $10 ~R_{\rm eff}$. We also recall that the strength of the metallic lines is different on these two scales, being weaker at larger radii (e.g. Carollo et al. 1993). Therefore, in order to compare our predictions with observations in Fig. 2, we must convert our average results for the whole galaxy (entries of Table 2) into a precise estimate for its central region. In particular, we derived the line-strength indices for the central zone as $Index_0 = Index(1~R_{\rm eff}) + \Delta Index$, where $\Delta Index$ is the absolute value of the theoretical gradients predicted by PM04 best model within 1  $R_{\rm eff}$. In order to do that, we assume that $Index(1~R_{\rm eff})\sim Index(10~R_{\rm eff})$, namely that the mean stellar metallicity, either measured or predicted, at ${\sim} R_{\rm eff}$ is representative of the whole galaxy (e.g. Arimoto et al. 1997). It is worth noticing that when considering line-strength indices derived by $\alpha $-enhanced tracks (solid curves in Fig. 2), the negative gradient in [Fe/H] is balanced by a positive radial gradient in [Mg/Fe] (see PM04), so the values for Mg2 and $\langle$Fe$\rangle$predicted by the one-zone model not only preserve the slope, but also lie very close to the average observed ones.

Our fiducial models can reproduce reasonably well also the [Mg/Fe] - $\sigma$ relation, once the entries in Table 2 are corrected for the radial gradient. In particular, we assume the values given by PM04 for their case IIb, namely $\Delta$ [Mg/Fe] = 0.326 for model L and $\Delta$ [Mg/Fe] = 0.169 for model H, leading to the predicted central values [Mg/Fe] = 0.180 (L) and [Mg/Fe] = 0.392 (H), which are in good agreement with the observations.

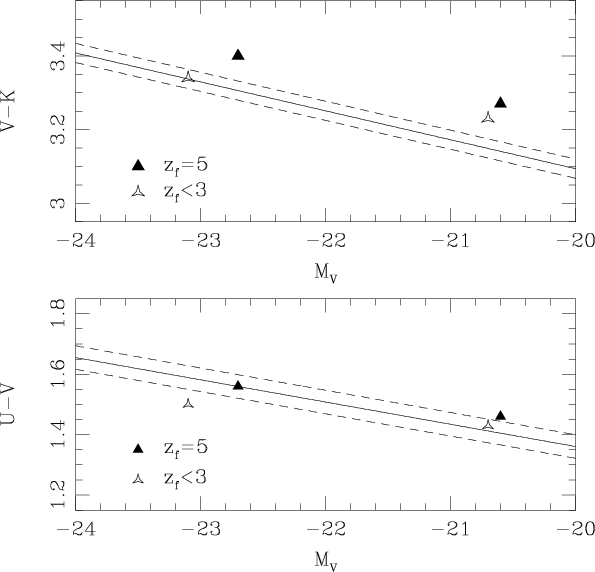

We show the predicted V-K versus MV and U-V versus MV relations in Fig. 3 for two different ages for the galactic models (the fiducial case with $\epsilon_{\rm SN}=0.1$) compared with the data of Bower et al. (2002b). In order to satisfy the condition given by the CMRs, we assume that the galaxy in model H forms at redshift 3 (age of 11.3 Gyr) while in model L it forms at redshift 2.6 (age of 11 Gyr) in an $\Omega_{\rm m}=0.3$, $\Omega_{\rm\Lambda}=0.7$, $H_0=70 \rm ~km~ s^{-1}~ Mpc^{-1}$ cosmology. The fact that the less massive galaxies might be also the youngest, has been recently suggested by several authors from the analysis of their observed line-strength indices (e.g. Thomas et al. 2002).

In order to show how the choice of the age can affect the predicted CMRs (age-metallicity degeneracy, e.g. O'Connel 1976), we show a case in which the galaxies in both models L and H form at redshift 5 (i.e. they have an age of 12.3 Gyr for the assumed cosmology), with full triangles in Fig. 3.

Either models with a very low (HSN1) or maximum (HSN100) SN efficiency fail to reproduce the above relations (Figs. 1 and 2). As expected, model HSN1 hardly develops a wind, thus allowing SF to take place until the present time. SNe II explosion rate inconsistent with observations (Cappellaro et al. 1999), too blue colours and, at the same time, a too high stellar metallicity with respect to model H (and hence to the observed values) are natural consequences of this particular SF history.

Model HSN100, on the contrary, undergoes a galactic wind too early, thus not allowing for the necessary enrichment of the stellar component up to $\langle Z\rangle\sim 0.02$. As it can be clearly seen from the entries of Table 2, in this case the line-strength indices are too weak, and the galaxies exhibit very low luminosities. For these reasons, model HSN1 and HSN100 will not be analysed in further detail in the remainder of the paper.

5 The gaseous halo - X-ray properties of the models

5.1 The energy evolution of the ISM

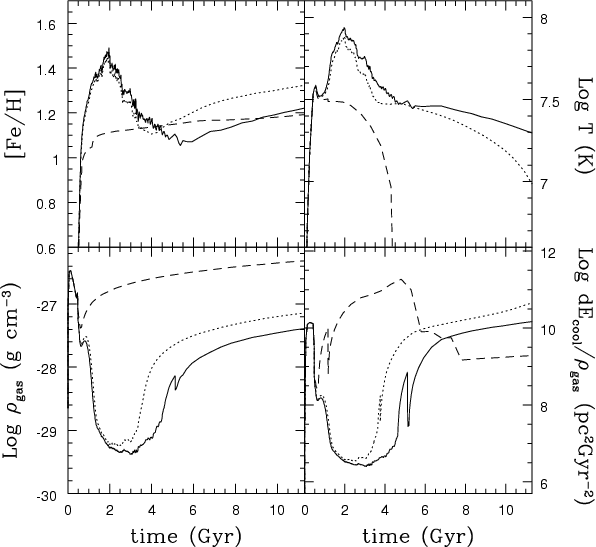

Once we have tested our models in their photochemical properties, showing that the new energetic formulation preserves the results achieved by PM04, we dedicate this section and the following one to our new results. In particular, we first concentrate on the temporal behaviour of cooling, gas density and temperature of the ISM, in order to understand what determines the $L_{\rm X} - L_B$ and $L_{\rm X}-T_{\rm X}$ relations. Then we shall analyse the chemical composition of the predicted X-ray haloes. A summary of the predicted properties for the ISM of the model galaxies is shown in Table 3. For each model we shall show the role played by secondary accretion in determining the final hot gas mass (Col. 2), chemical abundances (Cols. 3 and 4), X-ray luminosity (Col. 5) and, finally, temperature (Col. 6).


  \begin{figure} \par\includegraphics[width=8.4cm,clip]{0540fig4.eps}\end{figure} Figure 4: Temporal behaviour of the ISM iron abundance, temperature, gas density and cooling term predicted for models H0 (solid lines), Ha1 (dotted) and Ha10 (dashed).
Open with DEXTER

As it can be clearly seen from the entries of Table 3, models which accrete ${\sim} 0.1 ~M_{\rm lum}$ or more during their entire lifetime undergo strong cooling and exhibit too low temperatures to emit in the X-ray. A variation in $M_{\rm acc}$of a few percent can dramatically change the late time evolution of the galaxies. This finding can be explained by means of Fig. 4, using model H as an example. The three models show no relevant differences in the heating source, because at late times only SNe Ia are exploding and their rate is a function of the SF history (which is the same, since the secondary accretion affects neither the SFR nor the galactic wind occurrence). Model H0 undergoes galactic wind for a longer period. At every time-step the condition $E_{\rm th}>E_{\rm Bin}$ is satisfied and this implies $\Delta E>0$ and $\Delta M>0$, which, in turn, leads to an increase in the heating per unit mass and a decrease in the cooling (due to the decreasing density). This mechanism leads to slightly higher temperatures (>2 keV) and devoids the galaxy of most of its gas. The opposite behaviour is showed by model Ha10, where the condition $E_{\rm th}>E_{\rm Bin}$cannot hold for a long time interval, owing to the higher mass accretion rate and faster cooling with respect to model H0. In models Ha10 and La10, the accretion rate at $t> t_{\rm gw}$ exceeds the mass loss rate by a factor of 2, although $M_{\rm acc}$ is much lower than ${\rm d}M_w /{\rm d}t$ integrated over the entire galactic lifetime. This is due to the fact that, ${\sim} 100$ Myr after $t_{\rm gw}$, only low mass stars (i.e. mass $< 3 ~M_{\odot}$) are still alive in the galaxy, and their contribution to the returned mass is quite low. When the galactic wind stops, all the gas either ejected by stars or accreted from the ICM is retained and leads to an even stronger cooling. The galaxy eventually exhibits a cold ISM.

Models with $M_{\rm acc}\sim 0.01 ~M_{\rm lum}$ (i.e. La1 and Ha1), on the contrary, show a reasonable behaviour of the gas temperature, with a good balance between heating sources and cooling terms, given the fact that the accreted gas has the virial temperature of the galaxy. Similar conclusions were reached in previous works (e.g. Ciotti et al. 1991; Lowenstein & Mathews 1987; Ferreras et al. 2002). Ciotti et al. (1991), pointed out the importance of a late time inflow phase in order to explain the high X-ray luminosities of the most massive objects, although the gas accretion they considered was limited only to the innermost regions of the galaxies and the inflowing gas had a stellar origin. From these results, in the following we focus on models La1 and Ha1.


  \begin{figure} \par\includegraphics[width=8.3cm,clip]{0540fig5.ps} % \end{figure} Figure 5: Predicted X-ray spectrum for model Ha1. For the adoptedprocedure see Sect. 2.7.
Open with DEXTER

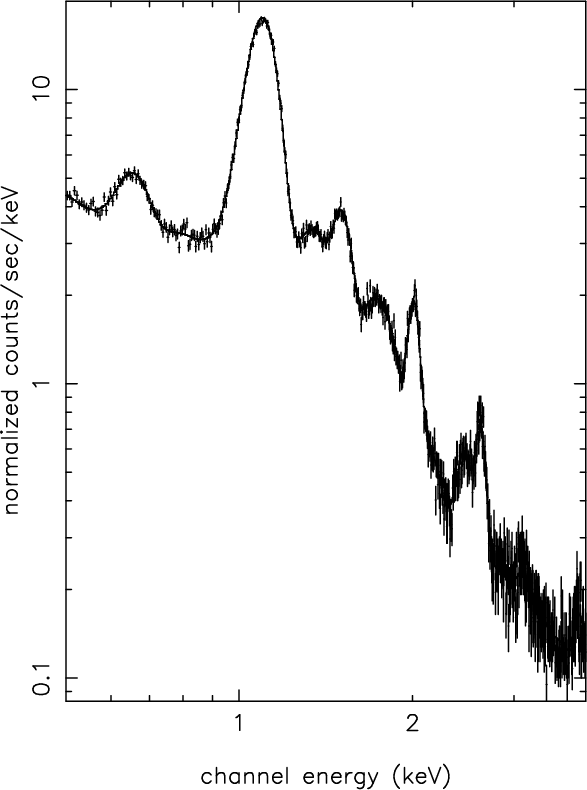

In Fig. 5 we show the spectrum predicted for model Ha1 following the procedure described in Sect. 2.7. It is in good qualitative agreement with the observed spectra (see e.g. Gastaldello & Molendi 2002), and we notice a strong feature, centered at 1 keV, due to the very high Fe abundance predicted by our models. Among the metal lines, in fact, the Fe L shell gives the highest contribution, owing to the fact that the ISM of the model galaxies is rich in iron. In order to have more quantitative constraints for our model (with particular emphasis on models La1 and Ha1), we extract information about $L_{\rm X}$, $T_{\rm X}$ and [Fe/H] from the artificial spectra and compare them to observations.


  \begin{figure} \par\includegraphics[width=8.5cm,clip]{0540fig6.eps}\end{figure} Figure 6: Prediction for the $L_B-L_{\rm X}$ relation for our model galaxies compared to the best fit of O'Sullivan et al.'s (2001a, solid line) data, excluding bright cluster and group ellipticals as well as galaxies hosting an AGN. The dotted lines give a measure of the scatter. Filled triangles: La1, Ha1. Open triangles: La1, Ha1 in which we fix [Fe/H] = 0. Stars: Models L and H with $M_{\rm acc}=0.007~M_{\rm lum}$. Filled squares: Models L and H with $M_{\rm acc}=0.005~M_{\rm lum}$. Open squares: H0 and L0. Hexagon: Ha1 with $R=8~R_{\rm eff}$.
Open with DEXTER

5.2 The LB-LX relation

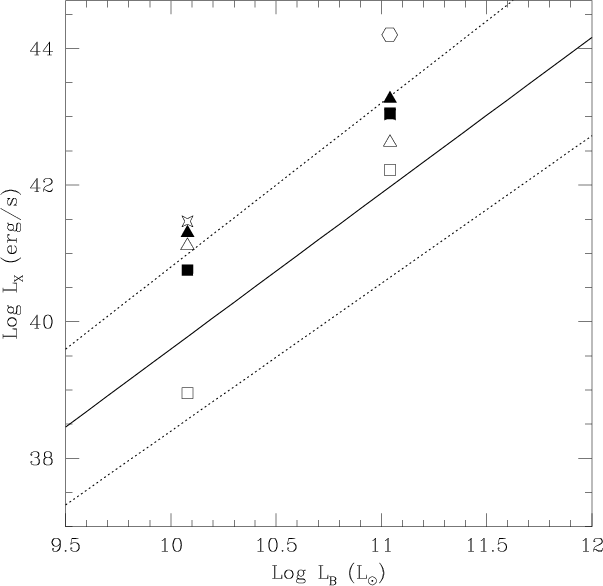

First, we show how our models can match the $L_B-L_{\rm X}$ relation, which is the best determined link between the optical and the X-ray part of the spectrum (either theoretically or observationally, see Sect. 1). In Fig. 6 we show our predictions for model La1 and Ha1 (filled triangles), compared with the mean relation derived from the large sample of O'Sullivan et al. (2001a, solid line). Our points lie well within the observed region (a measure of a $1 \sigma$ deviation is given by the dotted lines), although the predicted slope seems to be slightly flatter with respect to the fitted relations.

An interesting result is that the scatter in the observed $L_B-L_{\rm X}$ relation can be totally explained either by small differences in the accretion history or variations in density (as we explain later in this section, see also Ciotti et al. 1991). In order to show this, we plot in Fig. 6 models with $M_{\rm acc}=0.005~M_{\rm lum}$ and $M_{\rm acc}=0.007~M_{\rm lum}$ (filled squares and stars, respectively) as well as models L0 and H0 (empty squares). The difference in the predicted $L_{\rm X}$ at a given LB for the accretion models and the cases without secondary inflow spans the same region that is between the fit to the observed data (solid line in Fig. 8) and the 1$\sigma$ boundary (dotted line) in the case of the high mass model. For the low mass one, instead, the range in the predicted values covers a much larger region. This fact is a consequence of the adopted formalism for the energetics. In fact, with the exception of the very beginning of the galactic wind, when $E_{\rm th}\gg E_{\rm Bin}$, the condition on the mass flow presented in Eq. (14) coupled with a mild accretion of slightly colder external gas, implies that $E_{\rm th}\geq E_{\rm Bin}$ at each time step. In these cases, the mass accretion rate is 0.2-0.5 times the value of the mass loss rate. Therefore it gives a non-negligible contribution to the building-up of the X-ray emitting ISM. Even small changes in the accretion rate can cause differences in the predicted properties. The higher density of the low mass model with respect to model H amplifies this effect. In this case, galaxies with relatively large optical luminosities but very low $L_{\rm X}$ (e.g. the recent detection by O'Sullivan & Ponman 2004) can be explained as objects still in the process of assembling the X-ray emitting ISM. Observations (e.g. O'Sullivan et al. 2001b; Samsom et al. 2000) showing a correlation linking the age of the galaxies to their $L_{\rm X}$, in the sense that younger systems exhibit lower luminosities, give further support to this view.

On the other hand, we cannot present more quantitative results, because of the number of parameters involved. The assumed radius, in fact, can play an important role as well, because the change of the dimension of the system leads to a change in the mean density and, thus, strongly affects the cooling (see Sect. 2.2.3). In Fig. 6, the prediction for model Ha1 with $R=8~R_{\rm eff}$is plotted (empty hexagon). This galaxy exhibits a very high $L_{\rm X}$, when compared with other models at nearly the same LB, owing to its stronger cooling which allows more gas retention. When smaller radii (e.g. $R=3~R_{\rm eff}$) are assumed, however, the cooling becomes so strong that the galactic wind is delayed and lasts for a shorter time than in model Ha1. Therefore, the models undergo a late time behaviour similar to model Ha10, namely an ISM gas mass of ${\sim} 0.1{-}0.2~M_{\rm lum}$, very low temperatures ( ${\sim} 10^4$ keV), and $\rm [Fe/H]>1.2$, clearly at variance with observations. Since these models were run keeping all the other parameters fixed only for comparative purposes, they are not meant to match the optical properties and will not be discussed further.

The natural conclusion is that the late accretion can play a role in the present-day $L_B-L_{\rm X}$ relation, its scatter being possibly related to the differences in the gas reservoir from which a galaxy can form and possible different histories and efficiencies governing the secondary accretion.

We anticipate from Sect. 5.4 that our model exhibits [Fe/H] higher than solar, at odds with observations. Therefore, in order to check whether a possible strong contribution from iron line emission can alter our results, we modelled two additional spectra by forcing [Fe/H] = 0 in the ISM of both galaxies La1 and Ha1. The luminosities obtained from these spectra (shown by empty triangles in Fig. 6) are lower than those emitted by La1 and Ha1, and the differences are of the same order as those produced by a change in the accreted mass.

In order to test the assumption of primordial composition for the second accretion flow, we run models Ha1 in which the accreted gas has $Z=Z_{\odot}$ and $Z=0.3~ Z_{\odot}$, but always solar abundance ratios. From the entries in Table 3 it is clear that our results are robust against changes in the composition of the accreted gas. We did not comment on cases with a $Z=0.3{-}1\ Z_{\odot}$ metallicity and a higher accretion rate because the model predictions still show too cold galaxies to emit X-rays.

5.3 The LX-TX relation

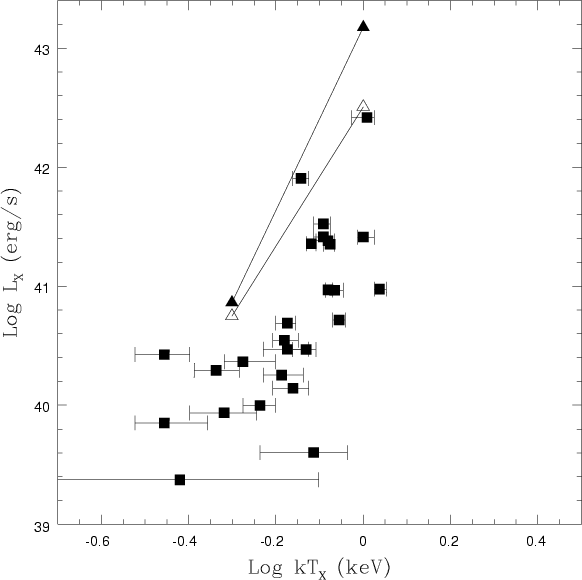

In Fig. 7 we compare our predictions in the $L_{\rm X}-T_{\rm X}$ plane with the data by Matsushita et al. (2000). In this particular case we show $L_{\rm X}$ in the passband 0.5-10 keV, in order to be consistent with the observed energy range. The agreement is good for the La1 and Ha1 models, whereas the ones without accretion exhibit a slightly higher temperature. A factor of two in the temperature can be partly explained by variations in gas density and accretion history, but also might be related to the adopted one-zone formalism. Ferreras et al. (2002) presented a similar model for feedback and found a good agreement for the $L_B-L_{\rm X}$ relation, even though their low mass model exhibits a temperature of a few keV. They did not model any interaction with the environment, and thus any secondary accretion; moreover the fraction of gas allowed to escape was chosen a priori. This last point may represent another way to regulate the temperature in the ISM, without requiring secondary accretion. In fact, if we do not link the mass flow to the energetic budget and we have a situation in which $\Delta M/ M_{\rm gas}<\Delta E/ E_{\rm th}$, the result is that the galactic wind removes the gas inhabiting the high energy tail of the temperature distribution function, thus allowing the galaxy to retain more gas and eject more energy with respect to the case with no accretion. Therefore, the heating term cannot increase without limits even in the presence of a continuous wind.

We did not further explore this route, since it introduces an additional parameter to our formalism, but we stress that it might represent a natural solution in a more detailed modelling (e.g. two-phase ISM).

A better agreement is achieved when we consider the models La1 and Ha1 in which a [Fe/H] = 0 ISM abundance ratio is forced (empty triangles in Fig. 7).


  \begin{figure} \par\includegraphics[width=8.2cm,clip]{0540fig7.eps}\end{figure} Figure 7: Prediction for $L_{\rm X}-T_{\rm X}$ relation for our model galaxies La1 and Ha1 (filled triangles) compared to the data of Matsushita et al. (2000, squares with error bars). For comparison we show the models La1 and Ha1 in which we fix [Fe/H] = 0 (open triangles).
Open with DEXTER

5.4 The chemistry of the ISM

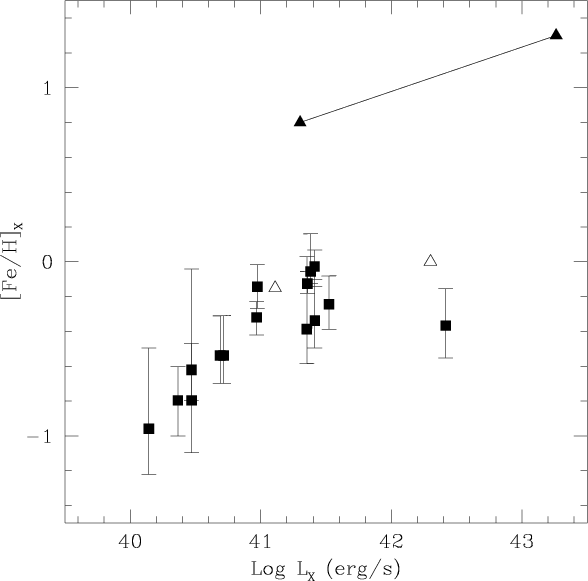

Concerning the study of the chemical composition of the ISM, we first analyse the iron abundance, which is the best determined among all the metals. Predictions for the $L_{\rm X}-{\rm [Fe/H]}_{\rm X}$ relation for our model galaxies La1 and Ha1 compared to Matsushita et al. (2000, squares) data are shown in Fig. 8 with filled triangles. As expected from the analysis of the artificial spectrum, our models predict a very high iron abundance, even if we compare our results with recent iron abundance determination, going from the typical ${\sim} 1{-}2~ {\rm Fe_{\odot}}$ in the central region of giant elliptical galaxies (e.g. Xu et al. 2002; Buote 2002) up to the ${\sim} 3{-}4~ {\rm Fe_{\odot}}$ in the case of NGC 507 (Kim & Fabbiano 2004). In the latter case, however, our model predictions are only within a factor of 2 of the observations.

This high abundance is a clear consequence of our model, since all the iron produced, after the wind has stopped, is retained by the galaxies. In other words, the iron discrepancy seems to be still persisting.


  \begin{figure} \par\includegraphics[width=8.3cm,clip]{0540fig8.eps}\end{figure} Figure 8: Prediction for $L_{\rm X}-{\rm [Fe/H]}_{\rm X}$ relation for our model galaxies La1 and Ha1 compared to the data of Matsushita et al. (2000). The symbols are the same as in Fig. 7. Empty triangles refer to models Ha1 and La1 with the same $L_{\rm X}$, but with $\rm [Fe/H]\sim 0$.
Open with DEXTER

Among the possible physical mechanisms often invoked to solve this discrepancy (see Arimoto et al. 1997 for a comprehensive analysis), we recall: (i) differential winds powered by SNe Ia; and (ii) iron hidden in a colder phase. According to the former explanation, although our models stop the global wind phase, SNe Ia ejecta might be still able to escape the galactic potential well, thus lowering the iron abundance in the ISM (e.g. Recchi et al. 2001). In order to preserve the observed $L_{\rm X} - L_B$ and $L_{\rm X}-T_{\rm X}$ relations, this could be obtained by e.g. requiring that $\Delta M \sim M_{\rm Fe}^{\rm ISM}$ holds at each time-step, namely only the iron can escape, whereas the bulk of the gas is retained. This, in turn, implies that $\Delta M/ M_{\rm gas}<\Delta E/ E_{\rm th}$.

Table 4: Chemical abundances in ellipticals from their X-ray spectra.

The latter possibility, on the other hand, explains the low observed [Fe/H] by means of condensation in a colder phase (e.g. Fujita et al. 1996, 1997) or in dust grains. Recent observations, in fact, claim that the dust mass in ellipticals could be ${\sim} 10^{6-7}~M_{\odot}$, a factor of ten higher than previous estimates (Temi et al. 2004). If confirmed, this result will be at variance with the classical argument that the dust lifetime is short owing to the interaction with the hot ISM, and therefore it might represent a viable solution to hide huge amounts of iron for a long period (Arimoto et al. 1997).

However, recent observations (e.g. Bohringer et al. 1993; Finoguenov & Jones 2001; McNamara et al. 2000; Allen et al. 2001; Heintz et al. 2002) show that both the X-ray haloes and the region of the ICM very close to the central galaxy, are not uniform and that the presence of X-ray cavities, bubbles with relativistic gas that pushes away the "thermal'' gas, could be related to the AGN activity (Churazov et al. 2001). Central emission and the creation of radio lobes can drive a mixing between the ICM and the ISM in such a way that part of the Fe is removed from the central galactic region. If we allow for the excess mass of iron to be replaced by primordial gas, our models do not change their ISM gas mass, thus roughly preserving their $L_{\rm X}$, whereas the iron abundance is reduced to the observed values (empty triangles in Fig. 8). For example, in the simplistic case in which the metallicity is composed only of iron, if we assume that an AGN engine causes mixing to take place from the time at which the galactic wind stopped until the present day, and we want to remove the iron mass in excess ( ${\sim} M_{\rm Fe}^{\rm ISM}$) in order to end up with $\rm [Fe/H]=0$ in the ISM, the rate of mass exchange is only ${\sim} M_{\rm Fe}^{\rm ISM}/ 5 ~{\rm Gyr} \sim 0.5~ M_{\odot}~\rm yr^{-1}$. In the case of mixing involving non-primordial gas (e.g. $\rm [Fe/H]\sim-0.5$ in the ICM), instead, it should be either more extended in time or require a slightly higher rate of mass exchange. Moreover, an additional source of heating (such as an AGN) might balance the strong cooling in model Ha10, thus allowing the galaxy to maintain a longer wind phase. This, in turn, implies that more iron could be injected into the ICM and that the iron still present in the halo is diluted by a higher amount of gas with respect to our fiducial case (model Ha1). At the same time the galaxy could exhibit the right temperature and gas mass in order to match the $L_{\rm X} - L_B$relation. Moreover, the presence of an AGN could supply the amount of energy needed to mantain the galactic wind, in a scenario in which we consider $\epsilon_{\rm SN Ia}=0.1$fixed for the whole galactic lifetime. In concluding, we note that evidence of the non-stellar origin of either a part of or all the ISM are given by the observation of subsolar iron abundance in galaxies which lie well below the average relation in the $L_{\rm X} - L_B$ plane (e.g. O'Sullivan & Ponman 2003), although the poor statistics might bias the observations (Matsushita et al. 2000). Further aspects of this issue will be investigated in the future.

Another possible solution can be a variation either with time or metallicity of the fraction of binary systems (e.g. De Donder & Vanbeveren 2002). This can be implemented in our code by assuming that the parameter A in the definition of SNe Ia rate (Matteucci & Greggio 1986) is not constant in time. We tested a model in which A scales linearly from 0 to the assumed value of 0.09 with the gas metallicity, until the solar value (Z=0.02) is reached, and we did not find any significant reduction in the SNe Ia rate and the late time iron production. This is due to the very intense SF history experienced by ellipticals, which leads to a very fast increase of Z to the solar value in the first $\sim$100 Myr of evolution.

Concerning other chemical species, they represent a weaker constraint to our modelling than Fe, owing to the large observational uncertainties still affecting their determinations. A sample of recent observations is shown in Table 4. The galaxy identity is given in Col. 1. Chemical abundances are presented in Cols. 2-9. In particular, subscript c means values measured in the core of the galaxy, whose radius is given in Col. 10, whereas subscript o is related to properties of the outskirts. Finally, Cols. 11 and 12 show the adopted solar composition and the references.

As it can be noticed from Table 4, there is a lot of confusion created by different adopted solar compositions. In the following we present our results adopting the solar meteoritic values of Anders $\&$ Grevesse (1989). Even though the presence of radial gradients in the [$\alpha $/Fe] abundance ratios is still debated (e.g. Gastaledello & Molendi 2002; Matsushita et al. 1997), the observations show subsolar ratios, especially in the cases of [O/Fe] and [Mg/Fe]. In our predictions, [Mg/Fe] traces very well [O/Fe], being both ${\sim}{-}0.6$ dex, whereas Si and Ca show a milder depletion ( ${\sim}{-}0.3$ dex) with respect to the solar level. These predictions are ${\sim}{-}0.2$ dex lower than the measured values in the central (i.e. ${\sim} 50$ kpc) regions of X-ray haloes, although still within their quoted ${\sim} 1{-}2\sigma$.

On the other hand, the predictions from models undergoing a continuous wind (L0 see Table 3) are in better agreement with the observations presented in Table 4. It is worth noticing that these predictions reflect the high [$\alpha $/Fe] ratios typical of the ejecta of low mass stars formed at the beginning of the galactic evolution and dying after 10 Gyr. This implies that, in order to reconcile our predictions with observations, a mechanism capable of ejecting iron in a more efficient way with respect to other elements might be better than a simple dilution by primordial gas, which preserves the abundance ratios.

We stress that the disagreement can be partly alleviated (at least at larger radii) by means of a multi-zone formulation, which takes into account the fact that at radii $>1~R_{\rm eff}$the SF lasts for a much shorter timescale with respect to the galactic core, thus reducing the iron production and exhibiting much higher [$\alpha $/Fe] ratios in the ejecta of low mass stars dying in the late stages of the galactic evolution. Therefore, more detailed modelling is required to assess this issue and to check whether the observed gradients can be reproduced.

The observed ratios and the different behaviours shown by $\alpha $-elements (and similar abundance patterns observed in the ICM, see next section) were used in recent works (Finoguenov et al. 2002; Gastaldello & Molendi 2002) in order to infer information on a possible change in the SNe II/SNe Ia ratio as well as on different explosion mechanisms as a function of galactic radius. Our opinion is that this kind of diagnostic is still premature, given the uncertainties in the models used to fit the spectra (Mathews & Brighenti 2003; Gastaldello & Molendi 2002). Moreover, we stress that it is incorrect to draw firm conclusions from observed abundance patterns just by relating abundance ratios to stellar yields and thus implicitly assuming the instantaneous recycling approximation.

6 The ICM

Before concluding, we dedicate a section to the chemical enrichment of the ICM, since the improved chemical formalism presented in this paper allows us to follow the development of the galactic wind in a more detailed way with respect to previous works (e.g. Matteucci & Gibson 1995; Martinelli et al. 2000; P02). In Fig. 9 we show, taking model La1 as an example, the temporal behaviour of both mass and energy flow rate. After a very short period in which they exhibit quite high values, most of the wind phase is governed by their slow decrease as a consequence of the secondary gas accretion and the secular decline of SNe Ia. The mass flow rate has the same order of magnitude (in general within a factor of 2) of the value taken by the SFR just before the galactic wind, and this result is in agreement with the indications coming from the observations of starburst galaxies (e.g. Heckman 2002). On the other hand, the luminosity of the wind, after the very first intense blowout, is ${\sim} 10^{41}\rm ~ erg ~s^{-1}$, giving a wind speed $v\sim (2~ {\rm d}E/{\rm d}M)^{1/2}\simeq 200\ {\rm km\ s^{-1}}$, again in agreement with the the typical estimates for starbursts (Heckman 2002). It has been claimed (Moretti et al. 2003) that, in the case of a Salpeter (1955) IMF, the SNe Ia-driven winds can last for a long period, in order to inject into the ICM a suitable amount of iron, only in the case of very high SN thermalization efficiency (i.e. $\epsilon_{\rm SN Ia}=1$, P02). This is not evident, since in this paper we show that the wind phase is about 1/3 of the galactic lifetime, being fully supported by SNe Ia activity, even if $\epsilon_{\rm SN Ia}\ll \epsilon_{\rm SN Ia,P02}=1$ for most of the galactic evolution.

Assuming that the metals observed in the ICM come from elliptical (and perhaps S0) galaxies (Arnaud et al. 1992) and following the same procedure as described by P02, we found no significant changes in the predicted amounts of gas, iron, oxygen and energy ejected into the ICM by the model galaxies, with respect to the old model. In particular, the total amount of oxygen ejected into the ICM, $0.43\times 10^9~M_{\odot}$ ( $0.44~\times~ 10^{10}~M_{\odot}$) by model La1 (Ha1), is very similar to the entries of P02 Table 1, whereas the new models lose $0.28\times10^9~M_{\odot}$ ( $0.23\times10^{10}~M_{\odot}$) of iron, which is a factor of 2 higher with respect to P02 model I (but in agreement with their estimate for model II), owing to the more extended SF history which has increased the amount of iron released promptly at the beginning of the wind. Therefore, even though the new models predict ellipticals slightly younger than those in previous works, the amount of iron in the ICM can still be explained by means of the galactic winds, and we can recover the typical ${\sim} 0.3~ \rm Fe_{\odot}$ (e.g. recent review by Renzini 2003; White 2000) by assuming that most of the gas in the ICM has a primordial origin (Matteucci & Vettolani 1988; David et al. 1991; Renzini et al. 1993, P02). Moreover, the bulk of iron is ejected before at z > 1, in agreement with recent observations on high redshift galaxy clusters (Tozzi et al. 2003). The amount of energy ejected by our model galaxies into the ICM, is simply the integral of the curve in the lower panel of Fig. 9. The results are very close to those derived by P02 for their Model I, therefore still not sufficient to provide the required ${\sim} 1$ keV in order to break the cluster self-similarity (e.g. Tozzi & Norman 2001; Loewenstein 2001; Bialek et al. 2001; Borgani et al. 2001).


  \begin{figure} \par\includegraphics[width=7.9cm,clip]{0540fig9.eps}\end{figure} Figure 9: Mass and energy flow rate versus time during the galactic wind for a La1 model galaxy.
Open with DEXTER

Concerning the oxygen and other $\alpha $-elements, new data appeared in the last few years (see the recent review by Loewenstein 2003) and a more consistent picture seems to be emerging from those measurements. In particular, more accurate [O/Fe] ratios are observed for a larger sample of galaxy cluster (Peterson et al. 2003) and, added to previous detections (e.g. Tamura et al. 2001), seem to point toward generally subsolar values. The typical values lie around $\rm [O/Fe]\sim - 0.2$ (e.g. Peterson et al. 2003), but the dispersion is quite high, so that our predictions ( $\rm [O/Fe]\sim - 0.6$) are within ${\sim} 2\sigma$ (given the typical uncertainty quoted by Peterson et al. 2003). Therefore, we stress that the new observations allowed by XMM and Chandra satellites seem to converge toward a better agreement with our predictions. On the other hand, other $\alpha $-elements exhibit different degrees of enhancement with respect to iron (Baumgartner et al. 2004), although the uncertainties associated with their observations are still very high. In particular, our predictions for Ca ( $\rm [Ca/Fe]\sim - 0.4$) agree with the values measured by Baumgartner et al. (2004), whereas we find $\rm [Mg/Fe]\sim -0.7$, which is at variance with the typical $\rm [Mg/Fe]\sim 0$ (e.g. Ishimaru & Arimoto 1997; Peterson et al. 2003, but note that their $1 \sigma$ error is $\sim$0.4 dex). A larger sample of clusters is required before drawing strong conclusions on $\alpha $-elements. Furthermore, a new kind of theoretical modelling should be developed, since in many cases the abundance ratios as well as the temperatures of the X-ray haloes of bright central galaxies seem to vary with radius until they reach the typical values of the ICM. For example Peterson et al. (2003) explicitly noticed that their results resemble those of Xu et al. (2002) for NGC 4636. At the same time, the galaxies located at the center of galaxy clusters show properties that seem to correlate with the excess of iron measured in the center of cold core clusters and the ICM temperature (De Grandi et al. 2004).

Finally, we stress that if the mechanisms invoked to solve the Fe discrepancy in the ISM were at work, our conclusions on the ICM would not have changed. For istance, the Fe excess in the ISM which should be removed from the halo in order to achieve a solar abundance in the X-ray spectrum is $0.29\times 10^9~M_{\odot}$ for model Ha1. Therefore the mass of Fe expelled in this way is only 10% of the total mass of Fe already ejected into the ICM during the galactic wind, and also the effects on the predicted ICM abundance ratios will be negligible. Among the suggested mechanisms the presence of dust could be relevant and since different scenarios could be at work together, we believe that the real effect of Fe removal from the ISM to the ICM will be even lower.

7 Conclusions

The model presented in this paper is a first step in the self-consistent study of both optical and X-ray properties of elliptical galaxies by means of a chemical evolution code. In order to do that we updated previous chemical evolution codes (PM04) by implementing a new energetic treatment which takes into account for the first time cooling and heating processes occurring in the ISM. Adopting the procedure described by Kawata & Gibson (2003b) we are able to predict the X-ray spectrum of our model galaxies taking into account the presence of line emission and the actual energy range used in the observations. Here we present a summary of our main conclusions:

It is important to stress that we achieved these results in the assumption of a one-zone formalism with a single gas phase in which the model galaxy is treated like an object with uniform density. Future developments of this kind of model should include the gas density profile, the possible presence of an AGN and a multi-phase approach. In this way we will obtain a more reliable estimate of the ISM temperature and X-ray luminosity, which are strongly related to the gas profile, and we might be able to model the gradient in the abundance ratios observed in both the ISM and the region of the ICM close to the brightest cluster galaxies.

Acknowledgements

A.P. warmly thanks the Centre for Astrophysics and Supercomputing of the Swinburne University of Technology for the kind hospitality in the period during which this work has been developed. The work was supported by Australian Research Council under the Linkage International Award and Discovery Project schemes and by MIUR under COFIN03 prot. 2003028039. We thank the referee M. Loewenstein for his suggestions, which improved the quality of the paper. Useful discussions with S. Borgani, L. Ciotti, D. Forbes, R. Proctor, P. Tozzi are acknowledged. We thank T. Connors for his helpful advice during the completion of this manuscript. Finally A.P. thanks S. Recchi for many fruitful and enlightening comments.
