1 - Astronomy Dept., Faculty of science, Al-Azhar University, Naser City, Cairo, Egypt
2 - School of Physics and Astronomy, University of Manchester, PO Box 88, Manchester, M60 1QD, UK
3 - University of Manchester, Jodrell Bank Observatory, Macclesfield, Cheshire SK11 9DL, UK

Abstract
We present MERLIN observations of OH, water and methanol masers towards the young high mass stellar object IRAS 20126+4104. Emission from the 1665-MHz OH, 22-GHz H₂O and 6.7-GHz CH₃OH masers is detected and all originates very close to the central source. The OH and methanol masers appear to trace part of a circumstellar disk around the central source. The positions and velocities of the OH and CH₃OH masers are consistent with Keplerian rotation around a central mass of $\sim$ 5 $M_\odot$ . The water masers are offset from the OH and CH₃OH masers and have significantly changed since they were last observed, but still appear to be associated to the outflow from the source. All the OH masers components are circularly polarised, in some cases reaching 100 percent while some OH components also have linear polarisation. We identify one Zeeman pair of OH masers and the splitting of this pair indicates a magnetic field of strength $\sim$ 11 mG within $\sim$ 0.5'' (850 AU) of the central source. The OH and CH₃OH maser emission suggest that the disk material is dense, n>10⁶ cm^-3, and warm, T>125 K and the high abundance of CH₃OH required by the maser emission is consistent with the evaporation of the mantles on dust grains in the disk as a result of heating or shocking of the disk material.

Key words: stars: formation - masers - ISM: individual objects: IRAS 20126+4104

The extreme brightness and compact size of masers make them valuable probes of regions of high mass star formation. However it is not clear how, or indeed if, the different types of maser, H₂O, OH and CH₃OH, are related to each other towards typical high mass protostars. Studies of H₂O and CH₃OH masers towards a number of sources have failed to find a coherent view of their relationship (e.g. Beuther et al. 2002), however statistical studies of OH and CH₃OH masers suggest that their associations can tell us about the evolutionary sequence of star formation (e.g. Caswell 1997; Szymczak & Gerard 2004).

While the presence of particular types of maser towards a source may trace the evolutionary stage of the source, many sources show emission from multiple types of masers. Since the different masers can require different excitation conditions, these multiple species can be used as high resolution probes of different components of the circumstellar environment. Theoretical models suggest that the spatial coincidence of different maser transitions or maser species can be used to infer the properties of the emitting material. For example, Cragg et al. (2002) found that gas phase molecular abundance is the key determinant of observable maser activity for both OH and CH₃OH molecules. Detailed modelling of high resolution observations towards particular sources can also provide value insights on the structure of the circumstellar material. For example, models have shown that the complexity of observed magnetic field structure in W75N can be explained by the maser emission originating from different depths within the protostellar disk (Gray et al. 2003).

With these possibilities in mind, we present here the results of a study of the H₂O, OH and CH₃OH masers associated with the well studied high mass young source IRAS 20126+4104. This source is located in the Cygnus X region at an estimated distance of 1.7 kpc (Wilking et al. 1989). It has a luminosity of 10⁴ $L_\odot$ and is perhaps the best studied example of massive protostar associated with a Keplerian disk and a jet/outflow system. The molecular outflow has been mapped by Cesaroni et al. (1997; C97) and observations at centimetre wavelengths have shown that the outflow is fed by a jet (Hofner et al. 1999). On the other hand, CH₃CN (5-4) observations (C97) have revealed a molecular disk almost perpendicular to the jet axis and rotating around the embedded young stellar object (YSO) at the origin of the outflow/jet. Subsequent observations in the CH₃CN (12-11) (Cesaroni et al. 1999; C99) and NH3 (1,1) lines (Zhang et al. 1998) have found evidence for Keplerian rotation, implying a central disk plus stellar mass of 24 $M_\odot$ .

The source is associated with OH, H₂O and CH₃OH masers. Two features of OH masers were detected in the 1665-MHz line by Cohen et al. (1988) and more recent unpublished VLA data (Cohen, priv. comm.). Observations of the water masers using the VLA with angular resolution of 0.1'' identified three emission regions (Tofani et al. 1995). Moscadelli et al. (2000; hereafter MCR) resolved two of these into 26 unresolved spots using the VLBA. The velocity and spatial structure of these spots were well fitted by a model with the spots arising at the interface between a jet and the surrounding molecular gas. Maser emission from the 6.7-GHz line of CH₃OH has recently been observed by Minier et al. (2001). Using the EVN, they found two maser clumps separated by 100 AU and 0.8'' to the north of the central source, a region relatively remote from the central source and with no other known indication of activity related to star formation.

To determine how these three types of masers are related to the circumstellar disk and/or the jet and investigate the connection between them, we have observed IRAS 20126+4104 at high angular resolution using MERLIN. The details of the observations and reduction are given in Sect. 2 and the results presented in Sect. 3. In Sect. 4 we discuss the interpretation while conclusions are drawn in Sect. 5.

Table 1: Observing and calibration parameters for the MERLIN spectral-line observations of IRAS 20126+4104.

2 Observations and data reduction

Table 1 gives the parameters for the MERLIN observations. All measurements used the same phase calibrator source 2005+403 to retrieve the absolute position of the maser spots and therefore compare their locations from one line to another with high accuracy. A bandpass calibrator was observed to calibrate the variation of instrumental gain and phase across the spectral bandpass. For OH, observations of 3C 286 were also made during the observing run, with the same correlator configuration and bandwidth, to calibrate the polarisation characteristics. The data were reduced in Jodrell Bank observatory using the MERLIN d-programs and the AIPS software package.

2.1 OH masers

IRAS 20126+4104 was observed in the 1665- and 1667-MHz OH maser transitions in January 2002 using six telescopes of the MERLIN network. During the observations, the frequency was cycled between the two OH line frequencies, to provide data on both transitions spread over the whole observing track. The velocity resolution was 0.42 km s^-1 for a total of 1 MHz spectrum bandwidth corresponding to 180 km s^-1 velocity range. The left- and right-hand circular (LHC and RHC) polarisation data for each baseline were simultaneously correlated in order to obtain all the Stokes parameters. Using the d-programs (see Diamond et al. 2003), the data were edited and corrected for gain-elevation effects. The flux density of the amplitude calibrator 3C 84, was determined by comparing the visibility amplitudes on the shortest baselines with those of 3C 286. Using flux densities of 13.6 Jy at 1665 MHz and 1667 MHz for 3C 286 (Baars et al. 1977), the flux density of 3C 84 at the time of the observation was determined to be $23.2\pm0.6$ Jy.

In AIPS the data were calibrated for all remaining instrumental and atmospheric effects. Starting from a point source model, the phase calibrator source was mapped, with a total of three rounds of phase self-calibration and the resulting corrections applied to the source data. The polarisation leakage for each antenna was determined using 3C 84 and the polarisation position angle correction was performed using 3C 286. The AIPS task IMAGR was used to map the whole data set in Stokes I, Q, U and V in order to retrieve the polarisation information. The rms noise, after CLEANing, was typically 14 mJy/beam and the FWHM of the restoring beam is $174 \times 137$ mas at a position angle of $-41^\circ$ .

The positions of the maser components were determined by fitting two-dimensional Gaussian components to the brightest peaks in each channel map. Components were considered as spectral features if they occurred in three or more consecutive channels. Using flux weighted means over those channels of each group, the positions and velocities of spectrum features were obtained. The uncertainties in relative positions are typically 10 mas.

2.2 Water masers

The H₂O maser line at 22 GHz was observed using 4C 39.25 as bandpass and flux calibrator. The flux density of 4C 39.25 at this frequency was taken to be 7.8 Jy (Terasranta priv. comm.). The phase calibrator was mapped with a total of two rounds of phase self-calibration and the resulting corrections applied to the IRAS 20126+4104 data. The spectral bandwidth was 4 MHz corresponding to 54 km s^-1 velocity range with channel separation of 0.25 km s^-1. Maps of all the spectral channels were generated and de-convolved using the AIPS task IMAGR. The restoring data beam had a FWHM of $40 \times 8$ mas at a position angle of $-37^\circ$ . The rms noise was typically 11 mJy/beam but up to 40 mJy/beam in the spectral channels with the brightest emission.

2.3 CH₃OH masers

The 6.7-GHz methanol line was observed with just the two antennas in the MERLIN array equipped with the appropriate receivers at the time of the observations. The correlator was configured to give a velocity resolution of 0.21 km s^-1 for a total of 2 MHz spectrum bandwidth corresponding to 90 km s^-1 velocity range. 3C 84 was used as the bandpass and amplitude calibrator. Its amplitude at the time of the observations was estimated to be $16.5\pm1.6$ Jy (Richards, private communication). The phase calibrator was used to calibrate both the amplitude and phase. Again IMAGR was used to make the images and CLEAN them. The resulting FWHM of the beam is $26 \times 24$ mas at a position angle of $39^\circ$ .

2.4 Positional uncertainties

The accuracy of the absolute masers position measured in the paper is limited by four factors: (1) the position accuracy of the phase calibrator; (2) the accuracy of the telescope positions; (3) the relative position error depending on the beamsize and signal-to-noise ratio; and (4) finally the atmospheric variability that plays an important role especially at 22 GHz depending on the angular separation between the calibrator (2005+403) and the target. The first two factors are frequency independent and were estimated to be 5 mas (given by the MERLIN calibrator catalogue) and 10 mas respectively (Diamond et al. 2003). The other two factors are frequency dependent. The relative position error, given approximately by the beamsize/signal-to-noise ratio, leads to uncertainties in the position of 17, 4 and 2.5 mas at OH, H₂O and CH₃OH maser lines respectively. Factor (4) is inferred from the quality of the phase of the calibrator. With a separation of $2^\circ$ between the phase calibrator and the target this factor adds an uncertainties in the absolute position of 5 to 20 mas at the 1665-MHz OH maser line for the typical and worst phase rate respectively. For the H₂O and 6.7-GHz CH₃OH maser lines, it adds errors of 10 and 2 mas respectively, taking into account the worst phase rate for each observation. All these uncertainties combine quadratically to give absolute position errors of 25, 15 and 12 mas in the 1665-MHz OH, 22-GHz H₂O and 6.7-GHz CH₃OH component positions respectively.

Table 2: The absolute positions and velocities of the brightest maser spots for the three maser types. The leading terms of the positions are $\alpha (\rm J2000)= 20^{\rm h}$ 14 $^{\rm m}$ and $\delta (\rm J2000)= 41^{\circ }$ 13'.

$\begin{figure} \par\includegraphics[angle=0,width=8cm]{1872fi1a.eps}\vspace*{2mm} \includegraphics[angle=-90,width=8cm]{1872fi1b.eps}\end{figure}$

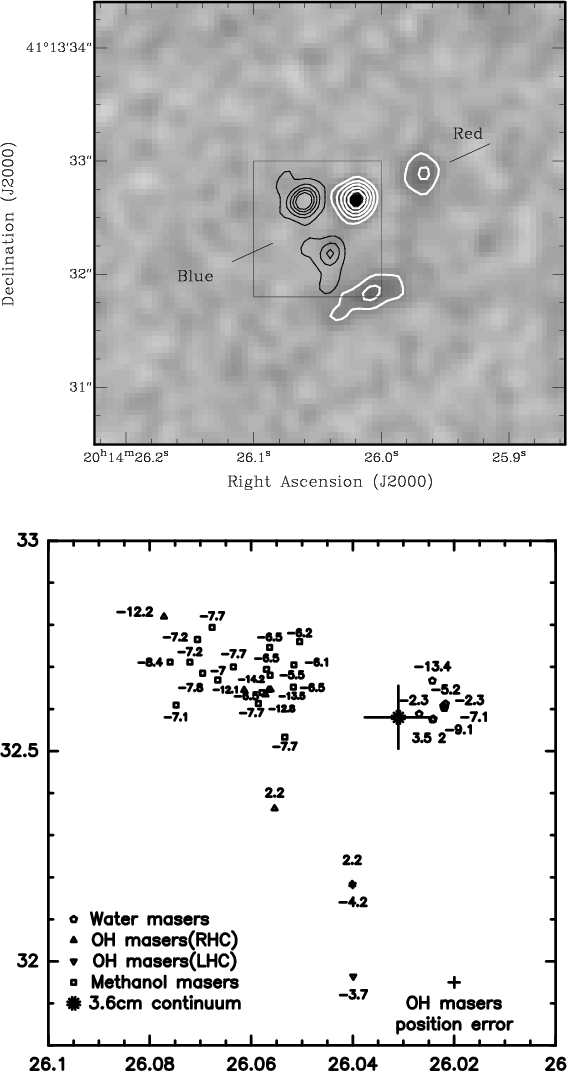

Figure 1: Top panel: OH maser emission from IRAS 20126+4104 (black contours) superimposed on an image of the 3.6-cm continuum emission (greyscale and white contours) from Hofner et al. (2004), aligned in J2000 coordinates. The OH masers peak flux is 13.3 Jy/beam and the contour levels of the map are 1, 3, 5, 7 and 9 Jy/beam. The straight lines refer to the jet/outflow directions (C99), while the box shows the location of the bottom panel. Bottom panel: positions and velocities of the OH, H₂O and methanol maser components and the position of the 3.6 cm peak with accuracy bar (Hofner priv. comm.). The cross bars in the bottom right corner show OH masers position uncertainty. Note the close association of the three masers species and particularly between the OH and methanol masers.

Open with DEXTER

3 Results

The 1665-MHz OH line, water and 6.7-GHz methanol masers were detected with MERLIN. Table 2 gives the absolute positions and velocities of the brightest maser spot for each maser type. Radial velocities, here and elsewhere, are given relative to the Local Standard of Rest (LSR). All three types of maser are located close to the central source. The details of the emission in each maser type are discussed below. The 1667-MHz OH maser line was not detected down to a noise level of 20 mJy/beam.

Table 3: The parameters of the left and right hand circular polarisation components of 1665-MHz OH masers detected towards IRAS 20126+4104. The label Z marks a Zeeman pair. The leading terms of the positions are $\alpha (\rm J2000)= 20^{\rm h}$ 14 $^{\rm m}$ and $\delta (\rm J2000)= 41^{\circ }$ 13'.

Table 4: The Stokes and polarisation parameters of the 1665-MHz OH masers components detected towards IRAS 20126+4104.

3.1 Hydroxyl masers

A total of 9 (7 RHC and 2 LHC) 1665-MHz OH maser spots were detected towards IRAS 20126+4104. Table 3 presents the parameters of the OH maser components detected, namely the peak intensities, velocities and positions for each hand of circular polarisation. The label Z marks a left-hand and right-hand polarised pair of components which originate at the same location and are identified as a Zeeman pair with a splitting of 6.3 km s^-1. Figure 1 shows the distribution of the OH maser spots. They are distributed in an elongated region perpendicular to the axis inferred for the radio continuum jet (C99, Hofner et al. 1999) and about 0.3''south-east from the 3.6 cm continuum centre. The OH maser spots are spread over a region of $\sim$ 1.2'' corresponding to 2000 AU (or $\sim$ 0.01 pc) at a distance 1.7 kpc. The distribution of OH masers is approximately symmetrical about a line of NE-SW direction at position angle 29 $^{\circ }$ , parallel to axis of the radio jet. Figure 1 also shows the spatial distribution of the velocities of the maser components. For the OH masers the velocities are mainly negative to the north and positive to the south.

Table 4 present the Stokes parameters I, Q, U and V, the polarisation position angle ( $\chi$ ) (angles are measured from N towards E), the linearly polarised flux P, the percentage of linear polarisation $m_{\rm L}$ , the percentage of circular polarisation $m_{\rm C}$ and the total percentage of polarisation $m_{\rm T}$ of each feature. The OH masers have a total polarisation around 80% ranging from 55% to 100%. The Stokes intensities are shown as zero in this table if their flux is below the noise level. All 1665-MHz features are circularly polarised and three features (3, 5 and 6) are elliptically polarised. Feature 3 is the most elliptically polarised (36.4%) and feature 7 is 100% circularly polarised. Polarisation position angles can only be measured for features 3 and 5.

3.2 Water masers

$\begin{figure} \par\includegraphics[angle=0,width=5.7cm]{1872fig2.eps}\end{figure}$

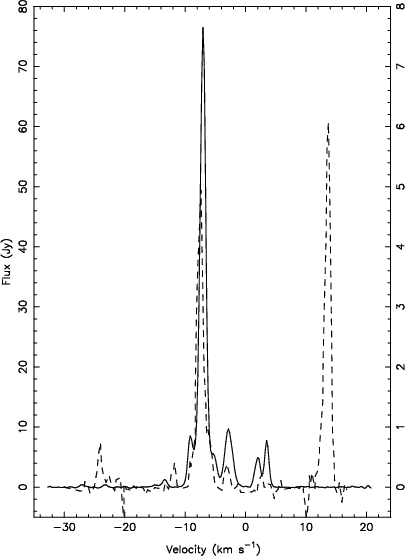

Figure 2: H₂O masers spectra towards IRAS 20126+4104 from the MERLIN observations in March 2002 (solid line) compared with that of Medicina single dish observations in Nov. 1997 (dashed line) from MCR. MERLIN detected no emission between velocities 10 to 16 km s^-1 while the component centred at -7.1 km s^-1 became very bright. The axis on the left side shows the MERLIN intensity and the axis on the right side shows the Medicina intensity

Open with DEXTER

Table 5: The parameters of the eight H₂O maser components detected towards IRAS 20126+4104. The position errors are $0\hbox{$.\!\!^{\rm s}$ }0003$ for $\alpha$ and $0\hbox{$.\!\!^{\prime\prime}$ }004$ for $\delta$ . The leading terms of the positions are $\alpha (\rm J2000)= 20^{\rm h}$ 14 $^{\rm m}$ and $\delta (\rm J2000)= 41^{\circ }$ 13'.

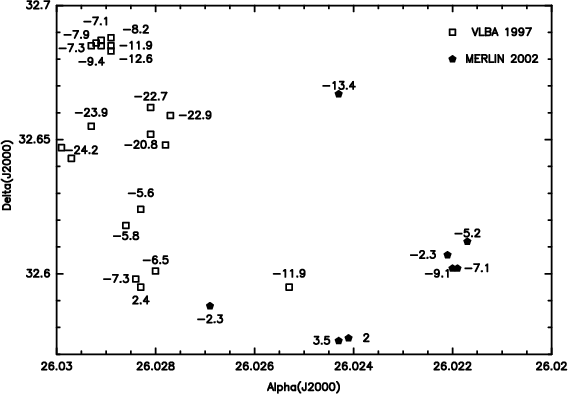

$\begin{figure} \par\includegraphics[angle=270,width=8cm]{1872fig3.eps}\end{figure}$	Figure 3: Comparison between the water masers positions from our MERLIN and the VLBA observations towards IRAS 20126+4104. Between these observations the masers spots have either changed almost completely or perhaps have moved to the south west. MCR maser spots located very far from the MERLIN spots are not shown.
Open with DEXTER

The water masers towards IRAS 20126+4104 were detected in a single cluster of $\sim$ 0.15'' (255 AU at 1.7 kpc) in size close to the central source and the OH (and methanol, Sect. 3.3) masers. This cluster is close to the C2 group of spots identified by Tofani et al. (1995). However the positions and fluxes have varied strongly, the brightest emission being 20 times greater than seen by Tofani et al. Also, neither of the clusters C1 and C3 identified by Tofani et al. was detected with MERLIN, implying that they have decreased in brightness by factors of more than 10 and 100 respectively.

Figure 2 shows that the spectrum of the water masers detected with MERLIN is considerably different from that observed by MCR. The strongest component detected by MCR centred at $V_{\rm LSR}$ $\sim$ 12 km s^-1 is not detected with MERLIN nor are the highest velocity components centred between -30 km s^-1 and 20 km s^-1. On the other hand, MERLIN detected components between 0 km s^-1 and +5 km s^-1 which were previously not detected with the VLBA. At the same time, the component centred in the velocity range -5.0 km s^-1 and 0 km s^-1 has increased in strength and the component centred at $\sim$ -7 km s^-1 dominates both spectra, although as Fig. 3 shows, the location of the emission at this velocity is significantly different between the two observations.

3.3 Methanol masers

Table 6: The parameters of the components detected in CH₃OH masers towards IRAS 20126+4104. The leading terms of the positions are $\alpha$ (J2000)= 20 $^{\rm h}$ 14 $^{\rm m}$ and $\delta$ (J2000)= 41 $^{\circ }$ 13'.

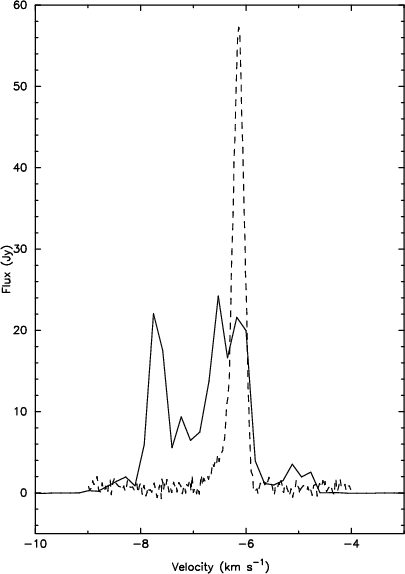

$\begin{figure} \par\includegraphics[angle=0,width=5.7cm]{1872fig4.eps}\end{figure}$	Figure 4: CH₃OH maser spectrum towards IRAS 20126+4104 from MERLIN (solid line) compared with spectrum of Onsala-Effelsberg baseline (dashed line) from Minier et al. (2001).
Open with DEXTER

Ten methanol maser features were detected, all very close to the northern group of OH masers. Table 6 presents the parameters of the components and Fig. 4 shows the methanol masers spectrum compared with that detected by Minier et al. (2001). The methanol spectrum has changed significantly since the observations of Minier et al. (2001), as has also been shown recently by Galt (2004). However the MERLIN observations show the maser emission originates much closer to the central source than the EVN map of Minier et al. (2001), so it is possible that the masers detected here are completely separate from those detected by Minier et al.

4 Discussion

The exact location of the central driving source in IRAS 20126+4104is uncertain. It is unclear whether the double radio continuum source detected by Hofner et al. (1999) represents the outflow on either side of the source, or whether the brighter, south eastern component is coincident with the driving source as suggested by a model for the H₂O maser emission developed by MCR. The observations of the dust continuum emission do not provide any definitive support for either interpretation as the absolute positional uncertainty of the 1.3 mm and 3 mm observations, $\sim$ 0.9'', is too large to distinguish between these two possibilities. However, it is clear from our MERLIN observations that all three types of maser originate in the inner circumstellar region, within $\sim$ 0.5'' (850 AU) of the central source.

4.1 The disk

As discussed above, the OH masers are confined to an elongated region, while the CH₃OH masers are closely associated with the north western end of this region. The axis of the elongated distribution of maser spots is perpendicular to the axis of the jet from the central source (C99). The same orientation has been inferred for a circumstellar disk around the central source from observations of CH₃CN, H¹³CO⁺ (C97, C99), NH₃ (Zhang et al. 1998) and C³⁴S (Cesaroni et al. 2004). These molecular line observations all identify a velocity gradient along the proposed disk, and the CH₃OH and OH maser velocities appear generally consistent with these velocity gradients. The northern OH masers, all right-hand circularly polarised, and have velocities ranging from -14 km s^-1 to -12 km s^-1, while the southern right-hand polarised components have velocities of 2.1 km s^-1. The remaining two maser spots, both associated with the southern clump, have velocities of $\sim$ -4 km s^-1, although it should be noted that one of these spots is clearly a component of a Zeeman pair with one of the right-hand spots.

$\begin{figure} \par\includegraphics[angle=0,width=6cm]{1872fig5}\end{figure}$

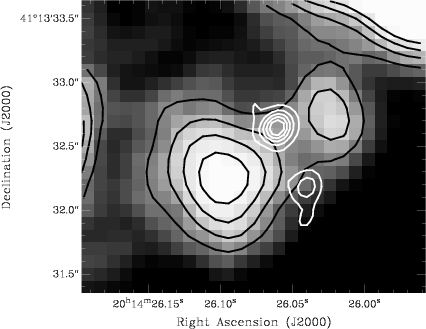

Figure 5: The integrated OH maser emission (white contours) superimposed on the K (2.2- $\mu$ m) image of the source (inverted greyscale and black contours), from Sridharan et al. (2004). The OH masers clearly arise from the material giving rise to the dark extinction lane between the two lobes of the nebula. The extinction lane is due to the material in a circumstellar disk around the central source. The positional uncertainty in the IR image is estimated to be 0.1''.

Open with DEXTER

The suggestion that the OH masers arise from material in a circumstellar disk around the source is also supported by comparing the OH masers with a recent high resolution infrared image of this source. Figure 5 shows the integrated OH emission overlaid on a 2.2 $\mu$ m K band image of the central region of the source (Sridharan et al. 2004). The image shows a small bipolar K nebula with the emission lobes separated by a dark extinction lane. This structure is identical to the kinds of bipolar infrared nebulae seen around young low mass stars where the K emission is due to scattering off the walls of the cavity cleared by the outflow from the central star and the extinction is tracing the location of a circumstellar disk around the source. Clearly the OH masers are associated with the material responsible for the extinction, the material in a putative circumstellar disk.

$\begin{figure} \par\includegraphics[angle=270,width=8.8cm]{1872fig6.ps}\end{figure}$

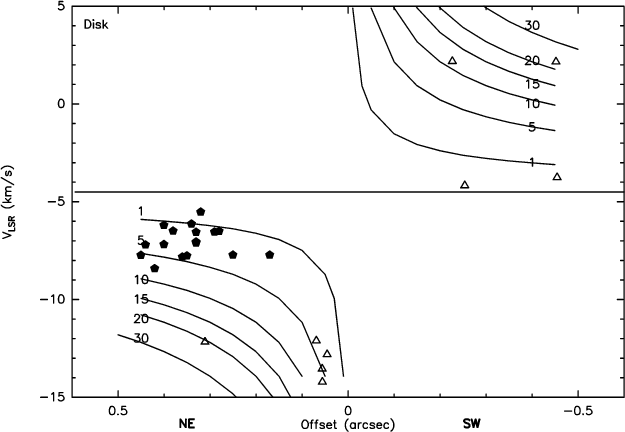

Figure 6: The OH (open symbols) and methanol (filled symbols) maser velocities against the corresponding offset from the direction of the jet axis. The offset is computed with respect to the position of the centre of the OH masers cluster. The curves represent the velocities for Keplerian motion around a central mass of 1, 5, 10, 15 20 and 30 $M_\odot$ as indicated. The systemic velocity is taken to be -4.5 km s^-1 (Cesaroni, priv. comm.).

Open with DEXTER

A position velocity diagram along the disk axis is shown in Fig. 6. As indicated on the diagram, most of the OH and CH₃OH maser velocities are all consistent with a Keplerian velocity gradient about a central source of mass $\sim$ 5 $M_\odot$ , although some spots suggest higher masses up to $\sim$ 20 $M_\odot$ . The lower mass suggested by the majority of the spots is similar to the 7 $M_\odot$ recently measured by Cesaroni et al. (2004). It therefore appears that both the spatial distribution and velocity of the masers suggest that these masers are arising on or, in the surface of a circumstellar disk around this massive young star.

The presence of a OH Zeeman pair provides a measurement of the magnetic field in this disk. The 6.3 km s^-1 splitting of this pair implies a magnetic field strength of 10.7 mG (Elitzur 1996), pointing away from the observer. This is relatively high for typical magnetic field strengths towards OH masers in star forming regions (e.g. Garcia-Barreto et al. 1988; Hutawarakorn et al. 2002, 2003; Fish et al. 2002).

The spatial association of the OH and 6.7-GHz methanol masers confirms the close association of the OH and class II methanol masers proposed by Caswell (1996) and modelled by Cragg et al. (2002). The flux ratio of these masers, S(6668)/S(1665)= 20.3/2.7 = 7.5, places IRAS 20126+4104 in OH-favoured sources. Note that although the OH and CH₃OH masers are closely associated, there is a clear difference in position, amounting to 0.1 arcsec (170 AU), suggesting that the OH and CH₃OH masers are not co-propagating.

Nevertheless the models of Cragg et al. (2002) can be used to place some constraints on the physical conditions in the regions where the masers are observed. The presence of 1665 MHz maser emission from OH, but the absence of 1667 MHz maser emission suggests that the material has a relatively high gas temperatures, $T_{\rm gas} > 30$ K and relatively high H₂ gas densities, n>10⁶ cm^-3, unless the dust temperature is $\ga$ 300 K (Cragg et al. 2002), which at the location of the OH masers is possible, but unlikely. This also agrees with the Gray et al. (1991) model which predicted the absence of 1667 masers at high densities. To obtain maser emission in both OH and methanol, the Cragg et al. model requires a ratio of methanol to OH column densities in the range 0.1 to 1000, reducing to a range from 1 to 100 if the lines are both saturated, with a ratio of 10 being typical. Since maser emission from methanol requires methanol abundances of greater than 10^-6, this suggests an OH abundance of $\ga$ 10^-7(Cragg et al. 2002). For a source such as 20126+4104 the Cragg et al. (2002) models suggest the gas has a density in the range 10^6.5 cm^-3 to 10⁸ cm^-3 and a gas temperature >125 K with dust at a temperature between 130 K and 230 K, a range of parameters consistent with the absence of 1667 MHz OH masers. The gas temperature is also consistent with the 150-260 K inferred by C97 from observations of CH₃CN.

The high abundance of methanol suggested by the presence of the methanol masers could result from the liberation of methanol from grains mantles as the dust is heated or shocked. This would also increase the OH abundance as a result of injection of H₂O followed by protonation and dissociative recombination. The "hot core'' chemistry which results when grain mantles are evaporated has recently be modelled by Nomura & Millar (2004). This model also shows that the gas phase abundance of CH₃CN is also significantly enhanced when grain mantles are evaporated, a result also consistent with the observations IRAS 20126+4104 (C97; C99).

4.2 The jet/outflow

The water masers arise from a region spatially distinct from the OH and CH₃OH masers. As suggested by MCR, the location of the H₂O emission appears to associate these masers with the outflow from the source. Figure 3 plots the location (and velocities) of our water maser observations compared with those detected by MCR. This figure shows that the spatial and velocity distribution of the maser spots has changed significantly between the two sets of observations. Indeed, it is difficult to identify any common maser spots.

MCR proposed a detailed model for the water masers distribution assuming that the masers lie on the surface of a conical bipolar jet, at the interaction zone between the ionised jet and the surrounding neutral medium, and moving with constant velocity away from the vertex of the cone (assumed to coincide with the embedded YSO). This model provides a prediction of the maser velocities at any given position, and so we can compare the measured velocities of the maser spots detected with MERLIN with the model predictions. Doing this, we find that the model predicts velocities which vary between 0.2 and 12 km s^-1 different from than those observed by MERLIN. However these values must be treated with some caution as the uncertainty in the absolute positions of the masers, 15 mas for the MERLIN observations and 30 mas for the MCR observations, has a large effect on the predicted velocities.

If we assume that the H₂O masers trace a moving shock front then it has travelled a distance of $\sim$ 0.1'' over the 1587 days between our MERLIN observations and the VLBA observations of MCR. This corresponds to a velocity of $\sim$ 190 km s^-1. This velocity is consistent with the range of velocities inferred for the SiO by C99.

IRAS 20126+4104 has two different outflow directions: a NW-SE flow on an angular scale of $\sim$ 10'', seen in HCO⁺ and H₂ emission (C97) with an SiO jet (C99), and a large-scale CO outflow on a 2' angular scale, that is almost N-S, at position angle 171 degrees (Shepherd et al. 2000). Shepherd et al. attribute the difference in position angles to precession of the jet. Our MERLIN measurements of the magnetic field direction show position angles of $-5^{\circ}\pm2^{\circ}$ and $-11^{\circ}\pm4^{\circ}$ that agree with the position angle of the large-scale CO outflow. (We assume that we are seeing $\sigma$ -components.) The MERLIN measurements also agree in position angle with the magnetic field determination by Vallée & Bastien (2000), who found a position angle of $+4^{\circ}\pm29^{\circ}$ based on 760- $\mu$ m continuum measurements at 14'' resolution.

4.3 Comparison with other sources

The observations presented here show that IRAS 20126+4104 joins a small group of luminous ( $\sim$ 10⁴ $L_\odot$ ) young sources where the OH masers originate from within $\sim$ 1000 AU of the central star and often have a spatial (and in some cases kinematic) morphology consistent the masers being located in, or on the surface of, a circumstellar disk around the source. The other such objects are G35.2-0.74N (Hutawarakorn & Cohen 1999), W75N (Hutawarakorn et al. 2002) and IRS1, 9 and 11 in NGC 7538 (Hutawarakorn & Cohen 2003). The OH masers towards W3(OH) have also recently been interpreted as originating from a circumstellar disk (Wright et al. 2004). Although the OH masers towards 21026+4104 are among the weaker in this group, the 11 mG magnetic field strength measured is the highest among the sample, and is also higher than any of the 100 field values for OH masers studied by Fish et al. (2002).

Caswell (1996, 1998) has suggested that OH 1665 MHz maser flux compared to CH₃OH flux may be an indicator of the evolutionary stage of a source, increasing as a source evolves. This would suggest that IRAS 20126+4104 is amongst the younger of the sources with OH originating close to the central star. This could be consistent with the presence of 1667 MHz maser emission towards the sources with stronger 1665 MHz emission (Hutawarakorn et al. 1999, 2002, 2003) suggesting the OH emission arises from lower density material than towards IRAS 20126+4104 (Cragg et al. 2002).

5 Conclusions

We have used MERLIN to study the immediate vicinity of IRAS 20126+4104 at high angular resolution and have shown that the 1665 MHz OH, H₂O and CH₃OH masers towards this source all originate within $\sim$ 0.5'' (850 AU) of the central source. The OH masers have an elongated distribution, tracing part of a disk of material around the source which is orthogonal to the axis of the jet from the soure. We could identify one Zeeman pair of OH masers which indicates a magnetic field of strength $\sim$ 11 mG in this disk. The velocity structure of the OH masers is consistent with Keplerian motion around a central source of $\sim$ 5 $M_\odot$ . The methanol masers are intermingled with the north-western part of the OH maser distribution and are at velocities intermediate between the north-western OH masers and those to the south-east. Our observations confirm the close association of OH and methanol masers. We suggest that the high methanol (and OH) column densities necessary for the maser emission may result from the release of mantles from the dust grains in the surface layers of a circumstellar disk as the disk material has been heated by the central young star or as the stellar wind has shocked the disk material.

The H₂O masers have significantly varied since they were last observed at high angular resolution. We detect only one of the three clusters previously seen. Although the H₂O masers detected are close to the location central source, as was seen in the previous observation, the maser spots have a considerably different spatial and kinematic structure to those previously measured.

These observations show that, at least for this source, the three common types of maser associated with young high mass stars probe different components of the circumstellar environment allowing a coherent view of the circumstellar regions to be constructed. The OH masers provide a measurement of the magnetic field in a circumstellar disk within $\sim$ 850 AU of a young high mass star.
