A&A 433, 151-171 (2005)
DOI: 10.1051/0004-6361:20041847

Identification of a complete sample of northern ROSAT All-Sky Survey X-ray sources

VIII. The late-type stellar component^,

F.-J. Zickgraf ¹ - J. Krautter ² - S. Reffert ³ - J. M. Alcalá ⁴ - R. Mujica ⁵ - E. Covino⁴ - M. F. Sterzik ⁶

1 - Hamburger Sternwarte, Gojenbergsweg 112, 21029 Hamburg, Germany
2 - Landessternwarte Königstuhl, 69117 Heidelberg, Germany
3 - Sterrewacht Leiden, PO Box 9513, 2300 RA Leiden, The Netherlands
4 - Osservatorio Astronomico di Capodimonte, via Moiariello 16, 80131 Napoli, Italy
5 - Instituto Nacional de Astrofisica, Optica y Electronica, A. Postal 51 y 216 Z.P., 72000 Puebla, Mexico
6 - European Southern Observatory, Alonso de Cordova 3107, Santiago 19, Chile

Received 16 August 2004 / Accepted 3 December 2004

Abstract
We present results of an investigation of the X-ray properties, age distribution, and kinematical characteristics of a high-galactic latitude sample of late-type field stars selected from the ROSAT All-Sky Survey (RASS). The sample comprises 254 RASS sources with optical counterparts of spectral types F to M distributed over six study areas located at $\vert b\vert \ga 20\hbox{$^\circ$ }$, and ${\rm Dec} \ge -9\hbox{$^\circ$ }$. A detailed study was carried out for the subsample of $\sim$200 G, K, and M stars. Lithium abundances were determined for 179 G-M stars. Radial velocities were measured for most of the 141 G and K type stars of the sample. Combined with proper motions these data were used to study the age distribution and the kinematical properties of the sample. Based on the lithium abundances half of the G-K stars were found to be younger than the Hyades (660 Myr). About 25% are comparable in age to the Pleiades (100 Myr). A small subsample of 10 stars is younger than the Pleiades. They are therefore most likely pre-main sequence stars. Kinematically the PMS and Pleiades-type stars appear to form a group with space velocities close to the Castor moving group but clearly distinct from the Local Association.

Key words: surveys - X-rays: stars - stars: late-type - stars: pre-main sequence - stars: kinematics - solar neighbourhood


1 Introduction

In a series of previous papers we reported about the results of a large programme on the optical identification of a complete count-rate limited sample of northern high-galactic latitude X-ray sources from the ROSAT All-Sky Survey (RASS) (Zickgraf et al. 1997a,b, 1998; Appenzeller et al. 1998, 2000a; Krautter et al. 1999). The sample was selected for the purpose of the investigation of the statistical composition of the high-galactic latitude part of the RASS in the northern hemisphere. As described in detail by Zickgraf et al. (1997a) (hereafter Paper II) the selection criteria for the X-ray sources were X-ray count-rate and location in the sky. The sample is distributed in six study areas located at galactic latitudes $\vert b\vert \ge 20\hbox{$^\circ$ }$ and north of declination $-9\hbox{$^\circ$ }$. The optical identification was based on multi-object spectroscopy and direct CCD imaging. For more information on the identification process cf. Paper II. The catalogue of optical identifications and the statistical analysis of the sample were presented in Appenzeller et al. (1998) and Krautter et al. (1999) (hereafter Papers III and IV, respectively). We found that about 60% of the selected X-ray sources are extragalactic objects, i.e. AGN, clusters of galaxies, and individual galaxies. About 40% are stellar sources. Most of these (257 out of 274 objects) are F-M type coronal emitters. The rest are cataclysmic variables and white dwarfs. Follow-up investigations on the properties of subsamples formed by certain object classes were carried out for AGN (Appenzeller et al. 2000a) and galaxy clusters (Appenzeller et al. 2000b). A paper on the BL Lac objects in the sample is in preparation (Mujica et al.). The paper presented here is dedicated to the characteristics of the coronal stellar component.

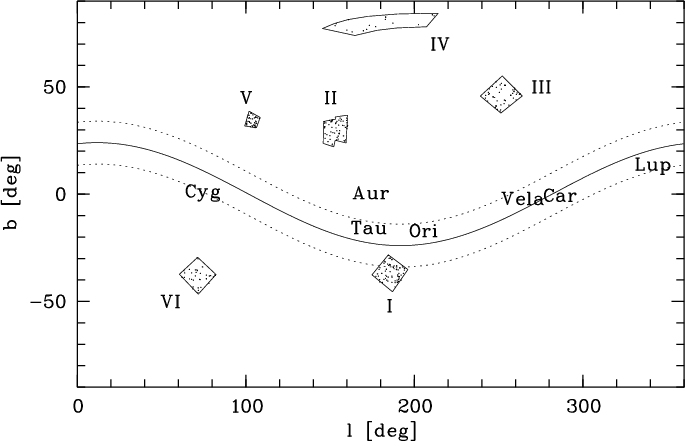

	Figure 1: Location of the six study areas in galactic coordinates. The dots show the positions of the RASS X-ray sources with stellar counterparts in the respective area. The solid and dashed curves denote the position and width, respectively, of the Gould Belt according to Guillout et al. (1998). In addition positions of several associations are shown.
Open with DEXTER

A first discussion of the properties of the late-type stellar component was given by Zickgraf et al. (1998) (Paper VI). A subsample of stars in study area I located some  $20\hbox{$^\circ$ }$ south of the Taurus-Auriga star forming region (SFR) was found to contain a large fraction of very young, presumably pre-main sequence stars. In order to investigate the age distribution of the complete sample of coronal X-ray emitters we obtained further low, medium and/or high resolution spectroscopic observations for most G-M stars in our sample. The goals were to carry out a lithium survey in order to identify lithium-rich high-galactic latitude G-M type stars and to determine precise radial velocities. In solar-like stars the lithium abundance can be used as an age estimator. Its knowledge therefore allows to study the age distribution of the X-ray active stellar sample. Combining the age information with proper motions and radial velocities would thus allow to investigate a possible age dependence of the kinematical properties of the stellar RASS sample.

This paper is structured as follows. The sample is presented in Sect. 2. Observations and data reduction are described in Sect. 3. Observational results are presented in Sect. 4. Based on these results the sample properties are analysed and discussed in Sect. 5. Finally, conclusions are given in Sect. 6.

Table 1: Journal of observations.


2 The sample

2.1 Sample selection

Paper III presents a catalogue of optical identifications for 685 RASS sources contained in six study areas. The location of the study areas is plotted in Fig. 1 in galactic coordinates. The catalogue contains 254 X-ray sources which have been identified as coronal emitters of spectral types F to M. The contribution of the different spectral types is given in Table 2. One X-ray source, E020 = RX J1627.8+7042, was dropped from the stellar subsample. The star assigned as counterpart to this RASS source is too far from the X-ray position to be a plausible identification (d = 1.5 arcmin). This source is more likely an optically faint AGN.

For the spectroscopic follow-up investigation we selected the 200 X-ray sources from the catalogue with stellar counterparts of spectral types G to M. F stars were not included in the spectroscopic follow-up observations because for these stars the lithium abundance is not a good age estimator. In 19 cases two stars have been assigned as counterpart to the X-ray source in Paper III. Several of these secondary counterparts were also observed. As in Paper IV we will however only use the primary identifications for statistical purposes. The entire "coronal'' sample including the F type stars comprises 253 X-ray sources. The known RS CVn star HR 1099 (=V 711 Tau) which is X-ray source A031 in Paper III was excluded from the coronal sample discussed in the following. The sample finally selected for spectroscopic follow-up observations thus comprised 199 of the 200 X-ray sources with optical counterparts of spectral type G to M as listed in Paper III.

2.2 Photometry

Paper III gives visual magnitudes based mainly on photographic photometry from the Automated Plate Measuring (APM) machine (Irwin & McMahon 1992) except for stars with photometry listed in SIMBAD. Because the APM magnitudes lack a proper calibration their accuracy is rather low. We therefore obtained improved V magnitudes by using photometry from other sources. Bright stars are contained in the Tycho-2 catalogue (Hog et al. 2000). For fainter stars not found in Tycho-2 magnitudes were taken either from the Hubble Guide Star Catalogue GSC-I (Lasker et al. 1990) or for stars fainter than the limit of GSC-I from the GSC-II catalogue (The Guide Star Catalogue, Version 2.2.01). In a few cases no photometry is available because of blending with nearby neighbours. The Tycho-2 V_T magnitudes were transformed to Johnson V according to Mamajek et al. (2002). GSC-I magnitudes were transformed to Johnson V using the colour coefficients given in Russell et al. (1990) and B-V colours of main sequence stars for the corresponding spectral type taken from Schmidt-Kaler (1982). These colours were also used to calculate Johnson V magnitudes from the GSC-II B magnitudes. The improved V magnitudes were then used to recalculate the ratio of X-ray-to-optical flux, $f_{\rm x}/f_V$, which is given in the Appendix in Table A.2 together with other basic parameters of the sample stars.

Infrared photometry in J, H, and K was taken from the Two Micron All Sky Survey (2MASS) catalogue. From this data base infrared sources within 10 $^{\prime\prime}$ around the optical position of the counterpart were extracted. A total of 267 2MASS sources was found of which 90% were located within 2 $^{\prime\prime}$ from the optical counterparts (including the 19 double identifications, see above). We considered the 258 matches within 4 $^{\prime\prime}$, i.e. within $3\sigma$ as reliable identifications. Matches between 4 $^{\prime\prime}$ and 10 $^{\prime\prime}$ were individually checked and all found to be also correct. This means that for all but 5 RASS sources (A035, A045, A065, D022, and D114) 2MASS measurements are available.

Table 2: Revised and original statistics of the distribution of spectral type among the RASS sources with stellar counterparts of spectral types F to M.


3 Spectroscopic observations

The stellar sample of G to M above was observed spectroscopically during several observing runs. The journal of observations is given in Table 1. Low-resolution spectra were obtained with CAFOS, high-resolution spectra were observed with FOCES, both attached to the 2.2 m telescope at Calar Alto observatory (CA), Spain. Further high- and medium-resolution observations were obtained at the Observatoire de Haute Provence (OHP), France, with the spectrographs AURELIE and CARELEC at the 1.52 m and 1.93 m telescopes, respectively. A few supplementary high- and low-resolution observations were obtained at European Southern Observatory, La Silla, Chile (ESO), with CASPEC at the ESO 3.6 m telescope and DFOSC at the Danish 1.54 m telescope, respectively. A further observing run of 5 nights at Calar Alto observatory in February 2001 was lost due to bad weather conditions.

The spectra were reduced with the standard routines of the ESO-MIDAS software package. The low- and medium-resolution spectra and the high-resolution spectra observed with AURELIE were reduced with the Longslit package. For the FOCES and CASPEC data the routines of the Echelle package were applied.

Spectra could be secured for the counterpart of 172 out of 199 RASS sources with spectral types between G and M. High resolution observations were obtained for 118 of the 141 G and K stars of the selected sample (originally 143 G-K stars minus A031 and E020). Lithium equivalent widths and radial velocities for six of the stars not observed by us with high resolution were adopted from high-resolution spectroscopic studies by Wichmann et al. (2001) (5 stars: A154, B049, B194, C062, C197) and Neuhäuser et al. (1995) (1 star: A058). Ten G-K stars fainter than 12th magnitude were observed only with low resolution. Thus for 134 of the 141 G-K stars spectroscopic follow-up observations exist. For the remaining 7 stars no observations could be obtained. Further high resolution data were found for the secondary counterpart of A098 in Favata et al. (1997). With a few exceptions M stars were observed with low resolution only. Due to bad weather conditions during the OHP observing campaign the M stars in area V could not be observed. In total 38 M stars were observed with low resolution and 7 with high resolution. For 13 M stars no observations could be obtained.

In the following we give more technical details of the spectroscopic observations.

3.1 Low-resolution spectroscopy

For the low-resolution observations the focal reducer camera CAFOS attached to the 2.2 m telescope at Calar Alto observatory, Spain, was used during three observing runs. In 1996 and 1997 the instrument was equipped with a LORAL-80 $2048~\times~2048$ pixel CCD chip with a pixel size of 15 $\mu$m. In 1998 a SITe1d $2048~\times~2048$ pixel CCD chip with 24 $\mu$m pixel size was used. Spectra in the wavelength range 4800-7450 Å were obtained (grism green-100) with a linear dispersion of 1.3 Å px^-1 and 2.1 Å px^-1 with the LORAL and the SITe1d CCD chip, respectively. With the LORAL chip the measured spectral resolution achieved with a 0.7 $^{\prime\prime}$ slit was 3.2 Å (FWHM). The SITe1d chip and a 1 $^{\prime\prime}$ slit yielded a spectral resolution of 4.2 Å. Several stars were additionally observed in the blue wavelength region between 3850 Å and 5400 Å with the grism b-100 and a 1 $^{\prime\prime}$ slit yielding similar spectral resolution as in the red wavelength range. Wavelength calibration was obtained using He and HgRb lamps. For flat-field correction spectra of the dome illuminated with a halogen lamp were recorded.

A few stars were observed in May 1998 with the focal reducer camera DFOSC attached to the Danish 1.54 m telescope at ESO, La Silla. The spectra were obtained with grism No. 7 and a slit width of 1 $^{\prime\prime}$. The wavelength range covered by the spectra was 3840-6845 Å. As detector the LORAL/LESSER CCD# C1W7 with a pixel size of 15 $\mu$m was used. The resulting spectral resolving power was 1300.

3.2 Medium-resolution spectroscopy

In May 1998 medium-resolution spectra were obtained with the spectrograph CARELEC (Lemaître et al. 1990) attached to the Cassegrain focus of the 1.93 m telescope at OHP. For the observations in the wavelength range from 6420 Å to 6875 Å grating No. 2 with 1200 lines mm^-1 was used in 1st order with a TEK CCD chip (pixel size 27 $\mu$m). The linear dispersion was 33 Å mm^-1. The spectral resolution achieved was about 4600.

3.3 High-resolution spectroscopy

The largest part of the high-resolution observations were obtained during four observing campaigns with the echelle spectrograph FOCES (cf. Pfeiffer et al. 1998) at the 2.2 m telescope of Calar Alto Observatory. The spectrograph was coupled to the telescope with the red fibre. The detector was a 1024 $\times$ 1024 pixel Tektronix CCD chip with 24 $\mu$m pixel size. With a diaphragm diameter of 200 $\mu$m and an entrance slit width of 180 $\mu$m a spectral resolution of 34 000 was achieved. Wavelength calibration was obtained with a ThAr lamp. The nominal spectral coverage is from 3880 Å to 6850 Å. However, due to the wavelength dependence of the transmission curve of the red fiber and the continuum energy distribution of the stars the useful spectral range of the spectra is typically from $\sim$5000 Å to 6850 Å. At shorter wavelength the S/N ratio decreases.

In October 1998 high-resolution spectra were obtained with the spectrograph AURELIE at the 1.52 m telescope of the OHP. A description of the spectrograph can be found in Gillet et al. (1994). The spectra were observed with grating No. 2 with 1200 lines mm^-1 giving a reciprocal linear dispersion of 8 Å mm^-1. The detector was a double-barrette Thomson TH7832 (2048 pixel with 13 $\mu$m pixel size). The spectra cover the wavelength interval from 6540 Å to 6740 Å. The resolution of the spectra is 20 000. Wavelength calibration was obtained with Neon and Argon lamps.

High-resolution spectra of 3 objects were obtained with the Cassegrain Echelle Spectrograph (CASPEC) at the ESO 3.6 m telescope on La Silla in February 1998. Wavelength calibration was obtained with a ThAr lamp. The CASPEC spectra cover the spectral range from 5350 to 7720 Å with a nominal resolving power of 22 000 (Sterzik et al. 1999).

During each high-resolution observing campaign radial and rotational velocity standard stars were observed in addition to the science targets.


4 Observational results


4.1 Spectral classification

In Paper III spectral types were given based largely on low-resolution classification spectra obtained with LFOSC (cf. Paper II). For a smaller number of stars spectral types were adopted from the literature. Our high-resolution spectra not only allowed us to refine the classification but, even more importantly, enabled us to derive luminosity classes and hence spectroscopic parallaxes.

During the observing runs a small set of spectroscopic standard stars, mainly of luminosity class V, had been observed together with the science targets. The coverage of the spectral type - luminosity class plane, however, was insufficient for a detailed two-dimensional classification. We therefore extended the spectroscopic data base for the standard stars by making use of the spectra available in the stellar library of Prugniel & Soubiran (2001) which is part of the HYPERCAT data base. We used the data set with a spectral resolution of 10 000. In order to match this resolution our FOCES, AURELIE, and CASPEC spectra were smoothed accordingly with an appropriate Gaussian filter. In this way the signal-to-noise ratio improved while the necessary spectral resolution for the classification was preserved. Spectral types and luminosity classes (LCs) of MK standard stars contained in the stellar library were adopted from Yamashita et al. (1976), Keenan & McNeil (1989), Garcia (1989), Keenan & Barnbaum (1999), and Gray et al. (2001). In a few cases we adopted the spectral classification given in Prugniel & Soubiran (2001). The grid of spectroscopic standard stars is listed in Table 3.

In a pilot study for the work presented here Ziegler (1993) studied the spectral types of F, G and K-type stars from the RASS using spectra observed in the red spectral region ( $\lambda\lambda$6200-6750 Å). He found various line ratios useful for classification purposes. For the F- and G-type stars the ratios Fe  I $\lambda$6394/Si  II $\lambda$ 6346, Fe  II$\lambda$6456/Ca  I $\lambda$6450 and Fe  II$\lambda$6456/ Fe  I $\lambda$6394 were found to be good indicators for the spectral type. In K stars the ratios TiO $\lambda$6240 / V  I $\lambda$6296 and Fe  I $\lambda$ 6250/Ca  I $\lambda$6450 were useful classification criteria.

Table 3: Spectroscopic MK standard stars. The spectral types are listed in column "sp. type''. References for the spectral types are given in column "ref.'': 1 = Yamashita et al. (1976), 2 = Gray et al. (2001), 3 = Keenan & Barnbaum (1999), 4 = Garcia (1989), 5 = Keenan & McNeil (1989), 6 = Prugniel & Soubiran (2001).

We used these ratios for the refinement of the spectral types given in Paper III. Figure 2 shows the histogram of the differences between the revised and original spectral types. The narrow peak shows that with few exceptions the overall agreement is good. We found a small mean difference of -0.5 subclass between the high- and low-resolution spectral types with a standard deviation of 2.2 subclasses. The original and the revised statistics of spectral types are listed in Table 2. In nine cases the difference of the spectral types was larger than $\pm$3 subclasses. The largest differences were found for B174 and E256 (-6 subclasses), B185 (7 subclasses), D018 (9 subclasses), and E022 and E067 (-9 subclasses). The LFOSC spectrum of E256 was actually classified as K4, but erroneously entered in Paper III as M0. For D018 which is a very bright star the original LFOSC spectrum classified as G2V could suffer from saturation. In SIMBAD this star is listed as K0III (Schild 1973). The classification based on the FOCES spectrum is K1III, which is in good agreement with the literature. We adopt this spectral class in the following. For the remaining stars with large deviations no LFOSC classification spectra were obtained. The spectral classes were adopted from SIMBAD. In the following we use the improved FOCES classifications.

Following Gahm & Hultqvist (1972) and Ziegler (1993) luminosity classes (LC) were obtained using the strength of the lines of Ba  II  $\lambda\lambda$5854 Å, 6497 Å, Sc  II $\lambda$6605 Å, and La  II $\lambda$6390 Å. We added the Y  II $\lambda$6614 Å line which also shows a clear luminosity dependence. The ratio of Sc  II $\lambda$6605 Å and Y  II $\lambda$6614 Å is a good luminosity indicator for spectral types earlier than about K5-7. For spectral types later than K0 the strength of La  II  was additionally useful to discriminate luminosity classes III and higher from LC V and IV. For G stars LC III and higher could also be discriminated from LC IV by the use of this line. Comparing in this way the line strengths and ratios in the MK standards with the sample stars LCs could be assigned to most stars. For a few stars the stellar absorption lines were strongly broadened by rapid rotation (see below). In these cases it was not possible to determine the luminosity class due to the limited S/N of the spectra and to line blending. The limit was reached around $v\sin i \ga 30$ km s^-1. For the rapid rotators we adopted LC V. As discussed in Sect. 5.1.1 we used the luminosity classes to derive spectroscopic parallaxes.

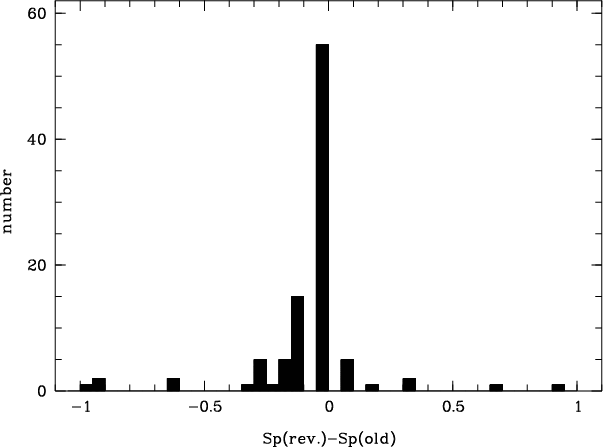

	Figure 2: Comparison of the spectral types derived from the classification spectra used in Paper III (Sp(old)) and from the new high resolution spectra (Sp(rev.)). The abscissa is the difference (in spectral classes) between the revised and the original spectral types.
Open with DEXTER

4.2 Radial and rotational velocities

During each observing run for high-resolution spectroscopy a set of radial and rotational velocity standards had been observed together with the RASS counterparts. Heliocentric radial velocities were measured by means of a cross-correlation method (Simkin 1974). The continuum was subtracted from the normalized spectra which were then rebinned on a logarithmic wavelength scale. The shift relative to the radial velocity standards was measured and transformed into the radial velocity of the target by taking into account the radial velocity of the standard stars. The individual radial velocities obtained for each standard star were averaged to give the final result. The standard deviation gives a measure for the error. With few exceptions (spectra with low S/N and/or high rotational velocity) the errors were in the range 1-4 km s^-1 with a typical error of about 2-3 km s^-1. Heliocentric radial velocities (and errors) are listed in Table A.3.

The width of the cross-correlation function is a measure for the rotational velocity $v~\sin i$. We therefore calculated the cross-correlation function as before but for rotational velocity standards. Standard stars with low $v~\sin i$ and spectral type as close as possible to that of the objects were used for the cross-correlation analysis as well as to calibrate the FWHM vs. $v~\sin i$ relation. From the FWHM of the cross-correlation function $v~\sin i$ was then determined following the method described in Covino et al. (1997). Observations of rotational standard stars yielded a detection limit of $v~\sin i$ of about 5 km s^-1. From the statistics of the differences between measured rotational velocities of rotational standard stars and $v~\sin i$ from the literature an uncertainty of $v~\sin i$ of 3 km s^-1 could be estimated. For rotational velocities above $\sim$40 km s^-1 the shape of the peak of the correlation function deviates increasingly from a Gaussian leading to larger errors of 5-10 km s^-1. Figure 3 shows the histogram of the rotational velocities which are listed in Table A.2.

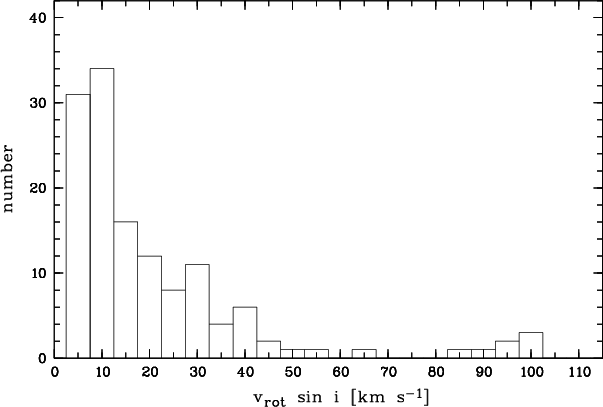

	Figure 3: Distribution of rotational velocities of the G and K stars.
Open with DEXTER


4.3 Lithium equivalent widths

Equivalent widths (EWs) of the lithium absorption line Li  I  $\lambda 6708$, W(Li  I ) were determined from the low-, medium- and high-resolution spectra. The measurement of the EW in the low- and medium resolution spectra was performed as described in detail in Paper VI. Essentially, the method takes the line blending with neighboring Fe  I  lines into account by fitting Gaussian profiles at the wavelengths of the Fe  I  lines at 6703, 6705, and 6710 Å simultaneously with the lithium line at 6708 Å. In Paper VI the error of W(Li  I ) determined from the CAFOS spectra was estimated to be about 60 mÅ. For the DFOSC spectra the uncertainty is similar. The fitting procedure was also applied to the medium-resolution CARELEC spectra. The uncertainty of the EW for these spectra is about 40 mÅ.

In the high-resolution spectra the equivalent widths were measured directly by integrating the flux in the normalized spectra. The contribution of the neutral iron line Fe  I  $\lambda6707.441$ Å was corrected according to the procedure described by Soderblom et al. (1993b). For stars with rotational velocities larger than $\sim$30 km s^-1 the contribution of the Fe  I  lines near Li  I  $\lambda 6708$ was corrected in the following way. From the stellar library of Prugniel & Soubiran a spectroscopic standard star with a spectral type as close as possible to the target was selected. It was folded with the appropriate rotational velocity to match the broadened lines of the target spectrum. Then the EW of the Fe  I  absorption features was measured in the same wavelength interval as used to determine the Li  I  EW in the target spectrum. Finally the corrected lithium EW was obtained by subtracting the contribution of the Fe  I  lines from the measured lithium EW of the target spectrum. Errors of the high-resolution EWs are typically 5-15 mÅ, depending on the signal-to-noise ratio and on the rotational velocity. The EWs are listed in Table A.4.

In Fig. 4 the EWs obtained from the low- and the high-resolution spectra are compared. In the low-resolution spectra the EWs W(Li  I ) are obviously slightly underestimated by about 40 mÅ. However, the overall agreement is good and the differences are only of the order the uncertainty of the low-resolution measurements. This demonstrates that the fitting method applied to the low-resolution spectra works remarkably well. In particular, W(Li  I ) is not overestimated as it would be the case if the EWs would be determined directly by flux integration without taking the contribution of the Fe  I  lines into account.

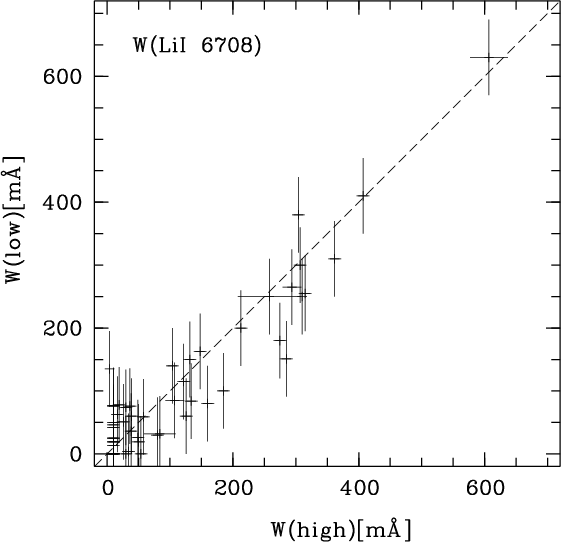

	Figure 4: Comparison of the equivalent widths of Li  I  determined from the low- and the high-resolution spectra. The dashed line denotes a ratio of 1 of the two measurements.
Open with DEXTER

4.4 Binaries

Spectroscopic binaries were detected by means of the shape of the cross-correlation function obtained for the radial velocity determination. Among the 125 G-K stars with high-resolution spectroscopy either obtained by us or taken from the literature 32 binary systems and 1 triple system were found. The triple system is B160. The fraction of multiple systems in our sample of G-K type stars with high-resolution observations thus is 26% with a lower limit of 23% for the full sample of G-K stars.

In a few binaries lithium lines could be identified in one or both components. In order to disentangle the lines of the individual components and to identify a possible Li  I  line spectra from the Prugniel & Soubiran sample with the appropriate spectral types were folded with the rotational profile for the measured $v~\sin i$ and shifted with respect to the measured radial velocities. Then the spectra were superimposed by using appropriate values for the relative flux contributions. Finally the resulting artificial binary spectrum was compared with the observed spectrum. Correction factors for the measured lithium equivalent widths were estimated from the artifical spectrum. In most cases the spectra suggest a flux ratio of 1 to 2 for the individual components at 6708 Å. Exceptions are e.g. A001 and A071. In A001 the primary component is a fast rotator ( $v~\sin i \approx 100$ km s^-1) whose broad lines dominate the spectrum. Of the secondary component only the strongest lines of a mid to late type K star are detectable. For this binary system we adopted a flux ratio of 5:1 for the continuum contributions of the primary and secondary component at 6708 Å. In A071 both components are fast rotators with very broad lines. In this case it was not possible to determine a lithium EW for each component. The total EW was therefore assigned in equal shares to the individual components and the lithium equivalent widths were corrected by assuming equal flux contributions. The triple system B160 is even more complicated. It consists of 3 early to mid G-type stars with spectral types between $\sim$G2 and $\sim$G5. Two of the three components exhibit a lithium absorption line.

It is clear that the equivalent widths of the binaries and the triple system are less reliable than those of the single stars due to the uncertainty of the continuum correction. In Table A.4 the lithium EW of the strongest component is given.


5 Data analysis and discussion

In the following we will first discuss the basic parameters of the coronal sample and then investigate the age distribution using lithium abundances, and the kinematics as derived from radial velocities and proper motions.

5.1 Basic properties


5.1.1 Distances

The distance is clearly one of the most important parameters. For 58 of the 252 F-M type counterparts a Hipparcos parallax with $\pi_{\rm H}/\sigma_{\rm H} \ge 3$ exists. The 58 stars with Hipparcos parallax comprise 28 F stars, 17 G stars, 9 K stars and 4 M stars. Further trigonometric parallaxes of 7 M stars were found in Gliese & Jahreiss (1991).

For 74 stars a spectroscopic parallax could be derived from the high-resolution spectra by adopting the absolute V magnitudes, as appropriate for the spectroscopically determined luminosity class, from Schmidt-Kaler (1982). For the bulk of M stars we used infrared JHK measurements from the 2MASS catalogue to derive a photometric distance. The two-colour diagram of J-H and H-K is displayed in Fig. 5. It shows that the M stars are distributed around the locus of main-sequence stars (solid line in Fig. 5). For the further analysis distances of M stars were therefore estimated by adopting M_V for LC V from Schmidt-Kaler (except for the 11 stars with trigonometric parallaxes). This adds 43 more RASS sources with a distance estimate. Thus total distances are available for 100 G-K and 54 M stars. For the remaining stars without a distance measurement we derived a lower limit for the distance by assuming that they are main-sequence objects with LC V.

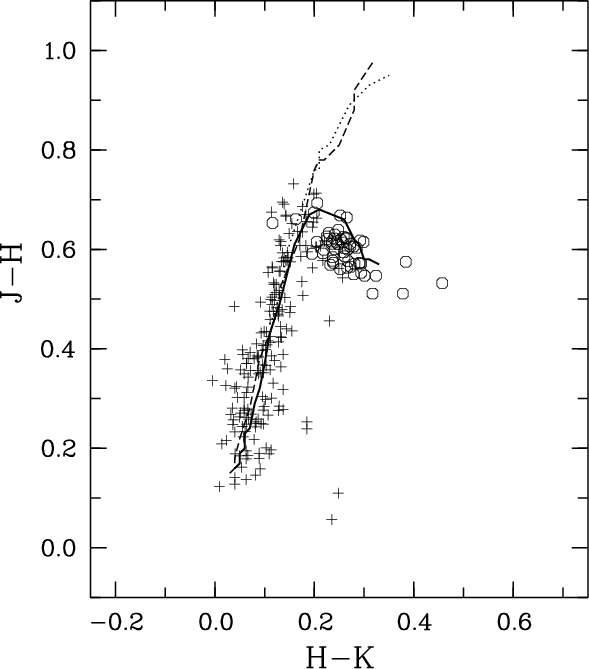

	Figure 5: Two-colour diagram for the infrared magnitudes from 2MASS. Circles denote M stars, crosses stars with spectral types F to K. The solid, dotted, and dashed lines denote the loci of main sequence stars, giants, and supergiants, respectively.
Open with DEXTER

An estimate of the error of the spectroscopic and photometric distances, $\sigma_{\rm d}$, may be obtained from the following considerations. The error is due to the uncertainties of the absolute visual magnitude, M_V, and of V. For the latter we conservatively adopted the error of the photographic GSC magnitudes $\sigma_V = 0.3^{\rm m}$ for all stars. The dominating source of uncertainty is the error of M_V. For G-K stars of LC V and IV and correspondingly for LC III and II we used half of the difference of M_V of these luminosity classes as estimate for $\sigma_{M_V}$. This leads to an estimate for $\sigma_{\rm d}/d$ of 30-50%. In the case of M stars the main source of error of M_V is due to the uncertainty of the spectral class. This also leads in total to $\sigma_{\rm d}/d \sim50$% if an uncertainty of 1-2 spectral subclasses is assumed. We finally adopted 50% as relative error for spectroscopic and photometric distances.

For the derivation of the distances interstellar extinction was not taken into account. Given the high galactic latitude of our sample it is actually expected to be small. With the relation $N_{\rm H} = 5.9\times 10^{21} \times E(B-V)$ given by Spitzer (1978) with the column density of neutral hydrogen, $N_{\rm H}$, and colour excess E(B-V) upper limits of the extinction can be estimated. We expect extinction values, $A_{\rm V}$, of less than 0.2-0.3 in all study areas except area I. This region could have a higher extinction of up to 0.6 magnitudes for the most distant stars. For these estimates the $N_{\rm H}$ values given in Paper II were used.

For 20 stars in our sample both spectroscopic and Hipparcos parallaxes, $\pi_{\rm H}$, exist. They are compared in Fig. 6. The agreement of the two distance measurements for this subsample is good. The mean ratio of both parallaxes is $1.06~\pm~0.35$. For the further analysis we adopted the spectroscopic parallaxes if no Hipparcos parallax with $\pi_{\rm H}/\sigma_{\pi} > 3$ or other trigonometric parallax was available. The adopted distances are listed in Table A.2.

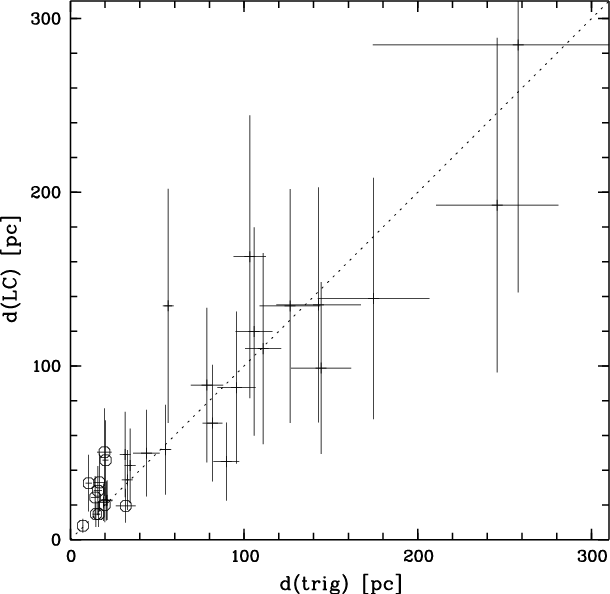

	Figure 6: Comparison of the distances $d({\rm LC})$ derived from spectroscopic or photometric parallaxes and from trigonometric parallaxes, $d({\rm trig})$. The dashed line denotes equal distance values. M stars with distance estimates from the 2MASS IR photometry are plotted as circles.
Open with DEXTER

Figure 7 shows the number distribution of the distances for the 184 F-, G-, and M stars. Also shown is the distribution including the stars with minimum distances estimated by adopting LC V. The number distribution of the total sample has a maximum around 50 pc with a tail extending up to several 100 pc. Most stars are nearer than 200 pc, 33 stars have distances above 300 pc (including 16 stars with minimum distances), and in 4 cases (not shown in Fig. 7) we derived a distance above 1 kpc (including 3 stars with minimum distances). The identifications of the very distant RASS counterparts may be questionable.

For the stars with trigonometric parallaxes the absolute magnitude, M_V, was calculated from the distance and visual magnitude given in Table A.2. A luminosity class was then assigned according to Schmidt-Kaler (1982). Likewise, bolometric corrections were taken from the same reference to determine the bolometric magnitudes for all stars with known distances.

As expected the majority of stars with a luminosity class determination, $\sim$90%, have luminosity class V or IV. A small number of 17 stars was classified as giants (LC III-IV, III, and II), 12 of these based on Hipparcos parallaxes. In Fig. 8 the H-R diagram is shown for all stars with a spectroscopic or trigonometric parallax. M stars are shown only if a trigonometric parallax was available.

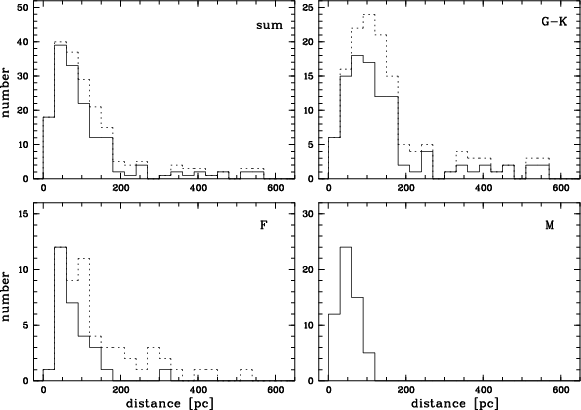

	Figure 7: Histogram of the distance distribution. The solid lines represent the distribution of trigonometric, spectroscopic, and photometric parallaxes. The dashed lines include distance estimates derived from assuming absolute visual magnitude of main-sequence stars for the remaining stars without other distance estimate.
Open with DEXTER

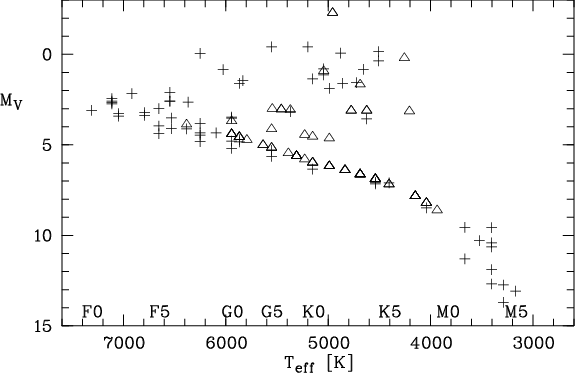

	Figure 8: H-R-diagram for single stars with either a trigonometric parallax from Hipparcos or other sources (+ sign) or with a spectroscopic parallax (triangles).
Open with DEXTER

5.1.2 X-ray properties

In Paper II we discussed the X-ray flux limits in the ROSAT 0.1-2.4 keV energy band for the various classes of X-ray emitters in our sample. For coronal emitters it is $2\times 10^{-13}$ erg cm^-2 s^-1. An exception is study area V which due to the deeper RASS exposure near the north ecliptic pole has a lower flux limit of $0.6\times 10^{-13}$ erg cm^-2 s^-1. X-ray luminosities, $L_{\rm X}$, were derived from the fluxes given in Paper III and the distances derived here. In Fig. 9 $L_{\rm X}$ is plotted vs. the distance. Also shown are the two flux limits. As expected for a flux-limited sample this plot shows a correlation between distance and luminosity because at increasingly larger distances only the more luminous objects are detected.

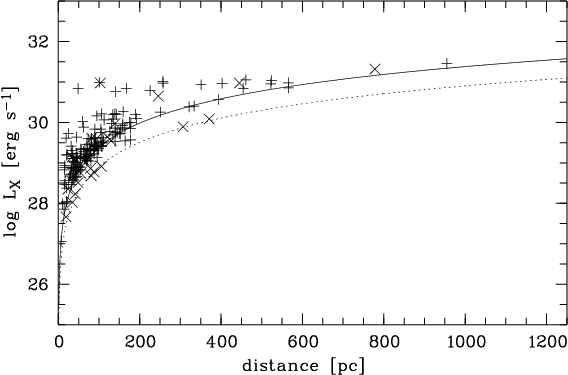

	Figure 9: X-ray luminosity for single stars vs. distance. + signs mark stars in study areas I, II, III, IV, and VI, $\times$ signs represent stars in area V. The solid and dotted lines mark the flux limits for the two groups of study areas.
Open with DEXTER

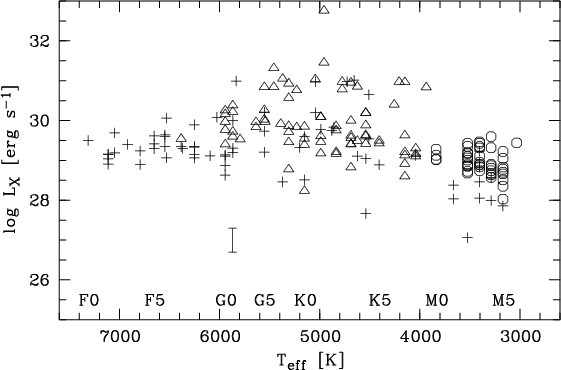

	Figure 10: X-ray luminosity for single stars as a function of effective temperature, $T_{\rm eff}$. Different symbols identify stars with trigonometric (+ sign), spectroscopic (triangles), or IR photometric parallaxes (circles). The variability range of solar X-ray emission in the ROSAT-PSPC pass band is marked by the vertical bar.
Open with DEXTER

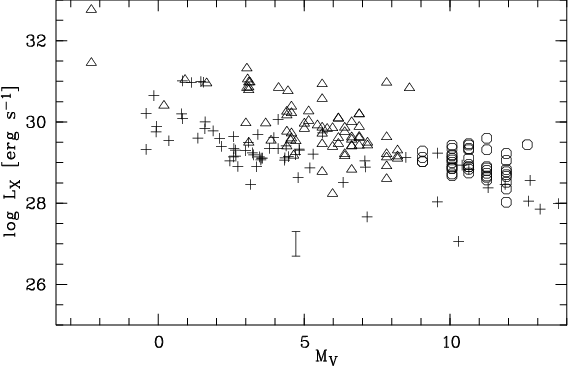

	Figure 11: X-ray luminosity for all single stars with trigonometric (+ sign), spectroscopic (triangles), or IR photometric parallaxes (circles) as a function of absolute visual magnitude, MV. The variability range of solar X-ray emission is marked by the vertical bar.
Open with DEXTER

In Fig. 10 $L_{\rm X}$ is plotted versus the effective temperature and Fig. 11 shows $L_{\rm X}$ as function of the absolute visual magnitude, M_V. A weak trend of $L_{\rm X}$ increasing with increasing  $T_{\rm eff}$ is visible. The $L_{\rm X}$-M_V diagram shows a clear correlation with $L_{\rm X}$ decreasing for decreasing optical luminosity. This reflects the fact that $L_{\rm X}$ depends on the emitting surface. The width of the $L_{\rm X}$-M_V distribution at a given M_V tells that the X-ray surface flux density of the stars in our sample spans a range of a factor of $\sim$1000. Around M_V = 5 the lower limit of the X-ray luminosities of the sample stars is about a factor of 10 above the solar soft X-ray variability range ( $5\times 10^{26}{-}2\times 10^{27}$ erg s^-1, Schmitt 1997). The upper limit of $L_{\rm X}$ in our sample is about a factor of 10-30 higher than in the volume-limited sample of Schmitt (1997).

The ratio of $L_{\rm X}$ and bolometric luminosity, $L_{\rm bol}$, is plotted in Fig. 12 as function of  $M_{\rm bol}$. A clear correlation is visible with the low luminosity stars with later spectral types having the highest ratio of $L_{\rm X}/L_{\rm bol}$. This is in agreement with the results of Fleming et al. (1995) who studied the coronal X-ray activity of low-mass stars in a volume limited sample. They found the highest ratios of $L_{\rm X}/L_{\rm bol}$ for dMe stars. As discussed in Paper IV, most M stars in our sample are actually dMe stars, that is of the 58 M stars listed originally in Paper III 53 exhibit H$\alpha$ emission lines. Note, however, that selection effects inherent in our flux-limited sample may also play a role.

The X-ray surface flux density is displayed as a function of M_V in Fig. 13 and as a function of  $T_{\rm eff}$ in Fig. 14. Our sample contains mainly stars with a high surface flux density which is on the average 1 to 2 orders of magnitude above the solar flux level. This can be understood in view of the result discussed below in Sect. 5.2.2 that our sample contains a large fraction of young and hence very X-ray active stars. Old solar-like stars are obviously not present in our sample. The maximum value of the surface flux density of our sample stars is around 10⁸ erg s^-1 cm^-2. This value is consistent with the result obtained by Schmitt (1997) who found a maximum around 10⁷-10⁸ erg s^-1 cm^-2 in his volume-limited sample of solar-like stars.

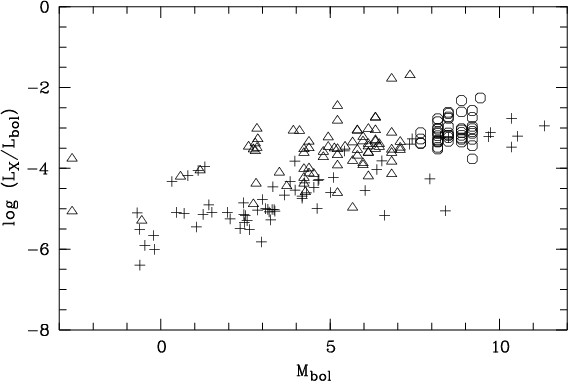

	Figure 12: Ratio of X-ray and bolometric luminosity for all single stars with trigonometric (+ sign), spectroscopic (triangles), or IR photometric parallaxes (circles) as a function of bolometric magnitude, $M_{\rm bol}$.
Open with DEXTER

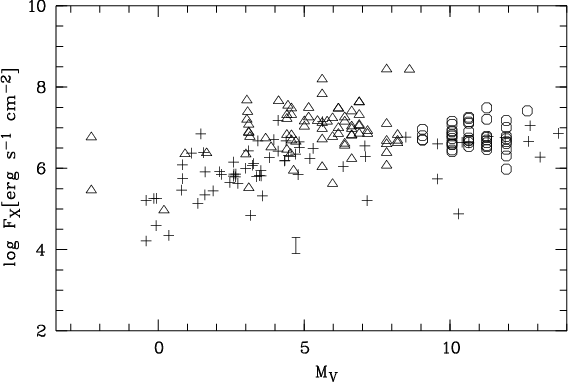

	Figure 13: X-ray surface flux density for all single stars with trigonometric (+ sign), spectroscopic (triangles), or IR photometric parallaxes (circles) as a function of absolute visual magnitude, MV. The vertical bar marks the typical flux level of solar coronal holes in the ROSAT-PSPC pass band.
Open with DEXTER

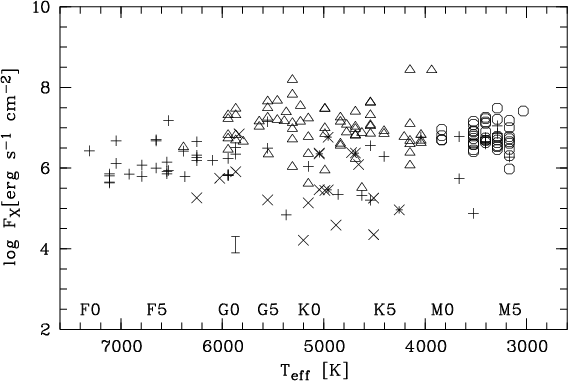

	Figure 14: X-ray surface flux density for all single stars as a function of effective temperature, $T_{\rm eff}$. The meaning of the symbols is the same as in Fig. 10. The vertical bar marks the typical flux level of solar coronal holes in the ROSAT-PSPC pass band.
Open with DEXTER

Finally, in Fig. 15 the ratio $\log L_{\rm X}/L_{\rm bol}$ is displayed as function of projected rotational velocity, $v~\sin~i$. No clear correlation can be seen, except that small ratios of $\log L_{\rm X}/L_{\rm bol}$ are only found for small $v~\sin~i$, whereas fast rotators exhibit high $\log L_{\rm X}/L_{\rm bol}$ ratios.

	Figure 15: $\log L_{\rm X}/L_{\rm bol}$ as a function of $v~\sin i$.
Open with DEXTER

5.2 Lithium abundances and age distribution

5.2.1 Lithium abundances

The spectroscopic survey resulted in the detection of significant Li  I  absorption lines in a large fraction of the G and K stars in our sample. In 51 G-K stars lithium absorption lines with an EW larger than 60 Å were found. The number of lithium-rich M-type stars is very small. We found significant Li  I  absorption lines in only 2 out of 47 observed M stars. In Fig. 16 the EWs of Li  I  $\lambda 6708$ Å are plotted versus $T_{\rm eff}$ for the entire sample. In Fig. A.1 in the Appendix the same plots are shown for the individual study areas.

The lithium equivalent widths were converted to abundances, N(Li), by using the curves of growth of Soderblom et al. (1993b) for stars with $T_{\rm eff}> 4000$ K and of Pavlenko & Magazzù (1996) and Pavlenko et al. (1995) for cooler stars. As in Paper VI effective temperatures were derived from the spectral types using the temperature calibrations of de Jager & Nieuwenhuijzen (1987). The uncertainty of  $T_{\rm eff}$ is typically 200 K. This leads to errors of the estimated Li abundances of about 0.3 dex. Lithium abundances are shown in Fig. 17 as function of effective temperature with $v~\sin~i$ indicated by the symbol size.

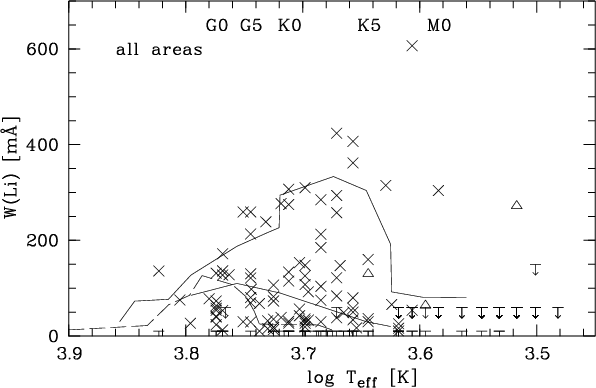

Figure 16: Equivalent widths of Li  I  $\lambda 6708$ as a function of $T_{\rm eff}$ for all stars in the six study areas. Crosses and triangles are high and low resolution measurements, respectively. The solid lines represent the upper and lower envelope of the lithium equivalent widths in the Pleiades adopted from Soderblom et al. (1993b). The dashed line shows the upper envelope for the Hyades cluster taken from Thorburn et al. (1993).

Open with DEXTER

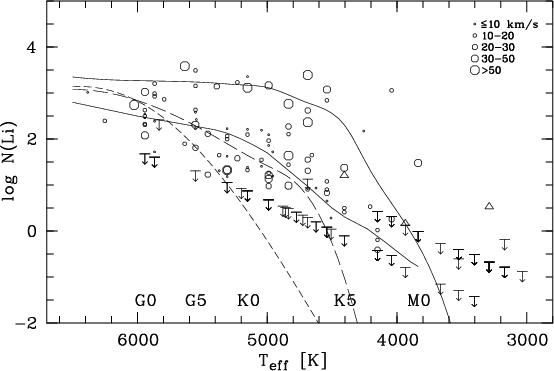

Figure 17: Lithium abundances versus effective temperature for the complete sample. Upper limits are plotted as downward arrows. Circles denote high-resolution measurements with the symbol size depending on $v~\sin i$. Low and medium resolution data are plotted as triangles. The solid lines are the upper and lower limit of $\log N$(Li  I ) in the Pleiades; the long dashed and short dashed lines show the upper $\log N$(Li  I ) limits for the UMaG and the Hyades, respectively.

Open with DEXTER


5.2.2 Classification of age groups

In order to obtain information about the age distribution of the sample stars we compared our lithium measurements with the corresponding measurements of stars in clusters with various ages: IC 2602 (30 Myr), the Pleiades (100 Myr), M 34 (200 Myr), the Ursa Major group (UMaG, 300 Myr), and the Hyades (660 Myr). Ages are from Lang (1992) except for IC 2602 for which we adopted the age given by Stauffer et al. (1997). The lithium data were taken from Randich et al. (1997) for IC 2602, Soderblom et al. (1993b) for the Pleiades, Jones et al. (1997) for M 34, Soderblom et al. (1993a) for UMaG, and Thorburn et al. (1993) for the Hyades. Note that these investigations all use the same curves of growth by Soderblom et al. (1993b) for the conversion of equivalent widths to lithium abundances. Upper envelopes of the lithium abundances were adopted from the cited lithium data. For the Pleiades we also adopted the lower envelope.

In Fig. 16 the upper and lower envelopes of the $T_{\rm eff}- W$(Li  I ) distributions for stars in the Pleiades and the upper envelope for the Hyades are shown. Likewise, Fig. 17 includes the upper envelopes of the lithium abundances of stars in the Pleiades, the UMaG, and the Hyades, and in addition the lower envelope for the Pleiades.

Using the lithium abundance data for the mentioned clusters and moving groups we finally defined four age groups. The age group "PMS'' consists of stars above the Pleiades upper envelope and is thus younger than the Pleiades, i.e. younger than 100 Myr. The group of stars between the upper and lower Pleiades envelopes can be assumed to have an age similar to the Pleiades. In the Pleiades the G and K stars are supposed to have reached the ZAMS. This group with an age of $\sim$100 Myr is therefore designated "Pl_ZAMS''. The age group "UMa'' comprises stars between the lower Pleiades and the upper Hyades envelope. The age of the stars of this group is between $\sim$100 and $\sim$600 Myr, i.e. on the average $\sim$300 Myr, which is the age of the UMaG. The age group "Hya+'' comprises G-K stars with either a lithium abundance below the upper Hyades envelope or with an upper limit for the lithium abundance only. The latter means that this group also contains stars for which the upper limit is above the Hyades line. Evolved stars more luminous than LC IV are included in the age group "Hya+'' if not stated otherwise in the following. It should be noted, however, that due to the well-known scatter of the lithium abundances in clusters stars below the upper envelope for the corresponding age group are not necessarily older than the respective group. Therefore, the "Hya+'' group might actually also contain some younger stars although it certainly is dominated by truly old stars.

In M stars older than several 10⁶ yr lithium has been destroyed already (e.g. D'Antona & Mazzitelli 1994). With the exception of two stars we could not detect lithium in the M stars of our sample. This means that the M stars are typically older than $\sim$10 Myr. We thus only defined a group "M stars'' without assigning an age. This group does not contain the two lithium rich M stars (see below). We will return to the M stars in Sect. 5.3.1 where we use the kinematical properties to estimate their age.

Figure 17 shows that a small but significant group of 12 stars exists above the Pleiades upper limit. These objects appear thus to be younger than $\sim$100 Myr and may be even younger than or comparable to the age of IC 2602, i.e. $\sim$30 Myr. Two of these stars, B002 and F0140, are however giants (LC III) and are therefore not pre-main sequence (PMS) but evolved objects. This leaves a group of 10 stars which appears to consist of PMS objects, i.e. true members of the age group "PMS''. Actually, 8 of these 10 stars are found in area I which is located south of the Tau-Aur SFR. They represent the young stellar population in this region discussed in Paper VI. The remaining two stars are located in area II. The subsample of the lithium-rich stars including the giants is listed in Table 5. Their high-resolution spectra are shown in Fig. 18 except for A058. The spectrum of this star can be found in Neuhäuser et al. (1995). For its low-resolution spectrum see Paper VI. The spectrum of the M4 star B026 is displayed separately in Fig. 19.

The rotational velocities of the Li-rich stars are high on the average. Only the giants have $v\sin i$ below 10 km s^-1. Six of the ten PMS stars have $v\sin i \ge 20$ km s^-1. Table 4 lists the median $v\sin i$ for each age group. It shows that $v\sin i$ decreases on the average with increasing age.

Table 4: Median $v\sin i$ (in km s^-1) for the different age groups. Giants were not included in group Hya+.

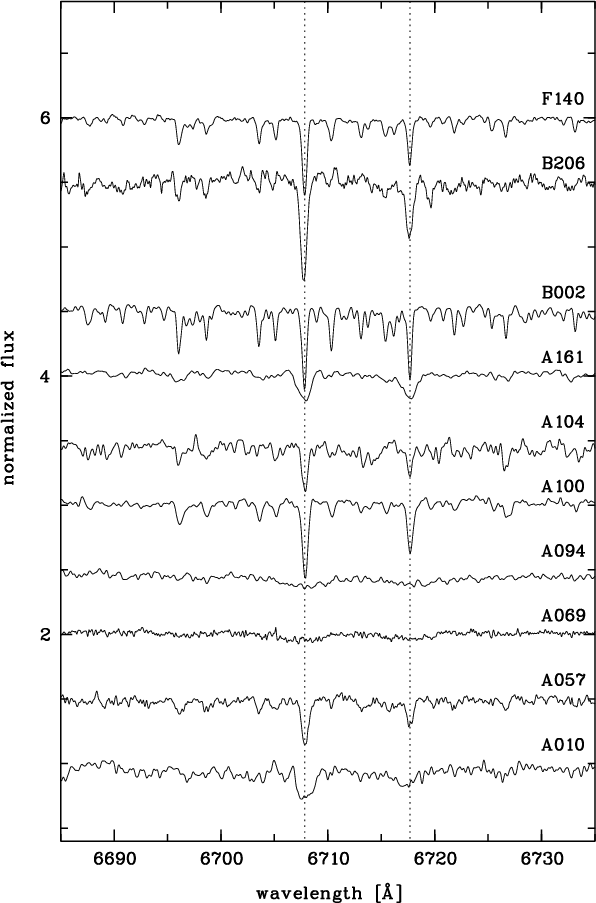

	Figure 18: Spectra of the lithium-rich sample listed in Table 5. The wavelengths of Li  I  $\lambda 6708$ Å and Ca  I  $\lambda 6718$ Å are indicated by the dashed lines.
Open with DEXTER

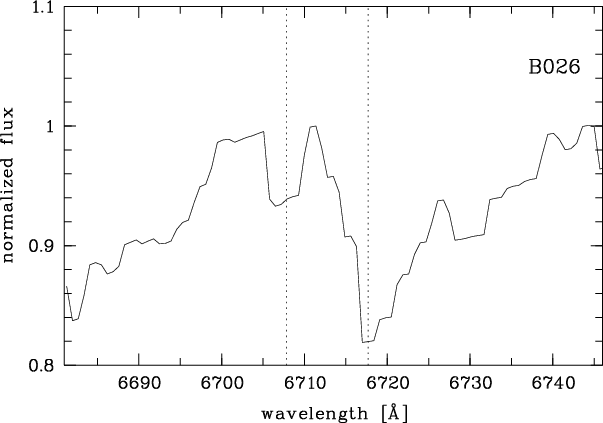

	Figure 19: Low-resolution spectrum of the M4 star B026. The dashed lines indicate Li  I  $\lambda 6708$ Å and Ca  I  $\lambda 6718$ Å.
Open with DEXTER

Table 5: Spectral types, lithium equivalent widths, EW(Li), logarithmic abundances, $\log N$(Li), and projected rotational velocities for the subsample of stars with lithium abundance above the Pleiades upper envelope. ("PMS'' sample). Evolved lithium-rich stars not belonging to the PMS sample are marked by the "${\ast }$'' symbol.

Table 6: Spectral types, lithium equivalent widths, EW(Li), logarithmic abundances, $\log N$(Li), and projected rotational velocities for the subsample of stars with lithium abundance between the Pleiades lower and upper envelope ("Pl_ZAMS'' sample). Lithium-rich evolved stars not belonging to the Pl_ZAMS sample are marked by "${\ast }$''.

The majority of stars has EWs and lithium abundances below the Pleiades upper limits of EW and $\log N$(Li), respectively. In the region between the upper and lower envelope of the Pleiades 43 G-K stars are found. This group is listed in Table 6. Three of these stars are giants with LC IV-III, III, and II. The 40 non-giants appear to constitute a population with an age similar to the Pleiades, i.e. $\sim$100 Myr. The region between the Hyades upper and the Pleiades lower envelope contains 23 stars of which 4 are evolved objects. The UMa age group with an age of $\sim$300 Myr thus consists of 19 stars. Below the upper limit of the Hyades 57 non-giant stars are found and are thus assigned an age of older than $\sim$600-700 Myr. Adding the 17 evolved G-K stars which are certainly also older than $\sim$1 Gyr results in a total of 74 stars for age group "Hya+''. Thus lithium abundances and luminosity classification suggest that 47% of all G-K stars in the sample have an age of less than about 600-700 Myr. Restricting these statistical considerations to the later spectral types increases the fraction of stars younger than the Hyades. Of the 114 G5-K9 stars 55, i.e. $\sim$50%, have a lithium abundance higher than the Hyades. With the above mentioned ambiguity of the age group definition this means that at least half of the G5-K9 stars are younger than the Hyades. Some statistics of the age distribution of our sample stars for these age groups is summarized in Table 7.

5.2.3 Spatial distribution of the age groups

The spatial distribution of the G and K stars of the various age groups is summarized in Table 8. Variations of the surface density of the various age groups with location are indicated.

As expected area IV located near the north galactic pole has the lowest surface density of stars younger than the Hyades. In this area only 2 stars younger than 600-700 Myr are found in 72 deg². This corresponds to a surface density of $0.028\pm0.020$ deg^-2 at a RASS count-rate limit of 0.03 cts s^-1. In the other 5 areas (613.2 deg²) a total of 60 stars (including 5 stars in area V above 0.03 cts s^-1) yields a surface density of $0.0978\pm0.013$ deg^-2. Counting stars of all age groups area IV has a surface density of $0.097\pm0.037$ deg^-2 compared to $0.204\pm0.018$ deg^-2in the other areas at the same count-rate limit. A t-test shows that these differences are significant.

The very young stars of the PMS sample are apparently more abundant in area I than in any other area: 80% of these stars are found in area I. Adding up the numbers of stars younger than the Hyades in areas II, III, and VI leads to an average surface density $0.077\pm0.013$ deg^-2. This is less than half of the value in area I which is $0.167\pm0.034$ deg^-2 . Although indicative for a higher concentration of young stars in area I the difference is not significant.

Table 7: Statistics of the age distribution of the sample of G-K stars. "PMS'' denotes stars younger than 100 Myr, "Pl_ZAMS'' stars as old as the Pleiades, "UMa'' stars with an age of $\sim 300$ Myr, and "Hya+'' older than the Hyades. The latter age group also contains 17 evolved stars (LC IV-III, III, and II). The total number of G-K stars is 141.

Table 8: Statistics of the spatial distribution of the various age groups in the sample. For each age group the total number of stars and the number per square degree is given. The numbers are for a RASS count-rate limit of 0.03 cts s^-1except for area V which has a count-rate limit of 0.01 cts s^-1.

5.2.4 Age dependent $\protect{\log ~N{-}\!\log~ S}$ distribution

We compared the observed cumulative number distribution, $\log N(>\!\!S) - \log S$, of our sample with model predictions by Guillout et al. (1996). The median latitude for the combined areas I, II, III, V, and VI, which are distributed between galactic latitudes of 20 $\hbox{$^\circ$ }$ and 50 $\hbox{$^\circ$ }$, is actually $30\hbox{$^\circ$ }$, thus matching this model parameter well. The models of Guillout et al. (1996) give cumulative surface densities, $N(>\!\!\!S)$, as a function of ROSAT-PSPC count rate, S, for three age bins: age younger then 150 Myr, age between 150 Myr and 1 Gyr, and older than 1 Gyr. We restricted the comparison to the youngest model age bin and to the sum of all model age bins because of the difficulty to separate observationally stars with ages of several 100 Myr to $\sim$1 Gyr and older. We further considered the combined sample of G and K stars. M stars were not included because of the lack of an observational age determination for stars of this spectral type in our sample. The uncertainty of the ages derived observationally from lithium was taken into account by forming two observational age samples matching as closely as possible the youngest age bin of the models: a) a sample comprising the sum of G-K stars from the PMS and Pl_ZAMS age group, and b) a sample containing in addition the corresponding UMa stars. The true sample of stars younger than 150 Myr is expected to lie between these limits.

The result of the comparison of $\log N(>\!\!S) - \log S$ is depicted in Fig. 20 for three RASS X-ray count rates of 0.1, 0.3 and 0.01 cts s^-1. The predicted numbers of G-K are in good agreement with our sample in the 5 study areas located around  $30\hbox{$^\circ$ }$ in galactic latitude. This holds for both the sum of all age groups and stars younger than $\sim$150 Myr obtained as described above and represented in the figure by the filled symbols. Likewise, the predicted flattening of $\log N(>\!S) - \log S$ at lower count rates is also found in our data for area V which has the lowest count rate limit of 0.01 cts s^-1.

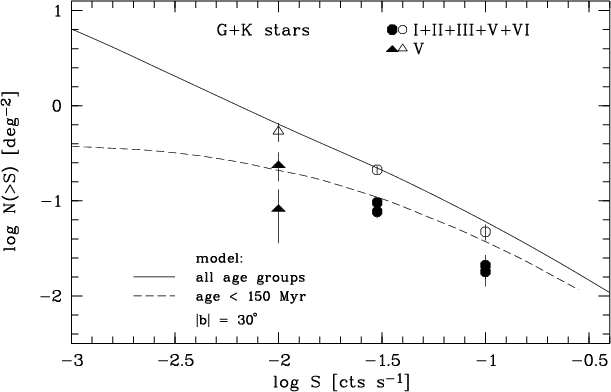

	Figure 20: Comparison of observed co-added number densities of G and K stars, $N(>\!S)$, for three RASS count rates S with models of Guillout et al. (1996) for $\vert b\vert = 30\hbox {$^\circ $ }$. Open symbols denote the sum of all age groups. Lower and upper filled symbols represent the sum of age groups "PMS'' and "Pl_ZAMS'', and of "PMS'', "Pl_ZAMS'', and UMa, respectively.
Open with DEXTER

5.3 Kinematics


5.3.1 Proper motions

	Figure 21: Proper motions for the six study areas. The different symbols denote the different age groups: filled circles = PMS, filled triangles = Pl_ZAMS, open circles = UMa, open triangles = Hya+, ${\ast }$ = giants, + = M stars without Li detection.
Open with DEXTER

We searched for proper motions in a variety of different catalogs: the Hipparcos Catalog (ESA 1987), the Positions and Proper Motions Catalog (PPM) (Röser & Bastian 1988), the ACT Reference Catalog (Urban et al. 1997), the Tycho Reference Catalogue (TRC) (Hog et al. 1998), the Tycho-2 catalog (Hog et al. 2000), the STARNET catalog (Röser 1996), and the Second US Naval Observatory CCD Astrograph Catalog (UCAC2) (Zacharias et al. 2003). The PPM and the STARNET catalogs were locally transformed to the Hipparcos reference system before identification. For many stars we found entries in more than one catalog, and in these cases the proper motions were compared and the one which had consistent solutions across several catalogs was usually chosen. If all proper motions were consistent, the most precise one was adopted; this was usually the Hipparcos or the UCAC2 proper motion (the Hipparcos catalog has a high weight in the solution for the UCAC2 proper motion), or the Tycho-2 proper motion for those regions not covered yet by the UCAC2 catalog. However, in many cases the proper motion in Hipparcos differed from the entries in other catalogs, which is likely due to the fact that the Hipparcos proper motions reflect the "instantaneous'' motion during the Hipparcos mission, which is often affected by orbital motion, whereas most of the proper motions in the other catalogs are based on observations stretched out over a longer baseline and thus better reflect the real motion of the center of mass through space which is of interest here.

Altogether, we were able to assign proper motions to the counterparts of 129 RASS sources with spectral types G to M. In detail we found 55 of 56 G stars, 61 of 86 K stars and 13 of 56 M stars in the mentioned catalogs. In addition we also found 54 F stars. An equal number of proper motions comes from Tycho-2 and UCAC2, while only two proper motions each were taken from Hipparcos and TRC, and only one each from PPM and STARNET, while the ACT was not used in the end at all.

These proper motion data were supplemented for the optically faint stars (mainly of spectral type K and M) by data from other catalogs: 53 stars from USNO-B1.0 (Monet et al. 2003, 36 M stars, 16 K stars, and 1 G star), 1 M star from Carlsberg Meridian Catalogs (1999), and 1 M star from the NPM1 Catalog of the Lick Northern Proper Motion Program (Klemola et al. 1987). Note that the USNO-B1.0 proper motions are not absolute, but relative to the Yellow Sky Catalog YS4.0 in the sense that the mean motion of objects common to USNO-B1.0 and YS4.0 was set to zero in USNO-B1.0. According to Monet et al. (2003) the difference between these relative proper motions and the true absolute ones should, however, be small.

Thus in total proper motion data are available for all G stars, for 77 of 86 K stars, and for 51 of 56 M stars.

The proper motions are shown in Fig. 21 for the individual study areas. The diagram displays proper motions for six groups of stars, i.e. the "PMS'' "Pl_ZAMS'', "UMa'' and "Hya+'' age groups, evolved stars (giants) and the M stars without lithium detection.

Of particular interest are the proper motions of the stars of the youngest age groups in area I, i.e. the "Pl_ZAMS'' and "PMS'' samples with ages of 100 Myr and less, This study area is located near the Tau-Aur SFR and near the Gould Belt (see Fig. 1) and has, probably due to its location, the highest surface density of young stars. Proper motions exist for all eight young stars of area I listed in Table 5. They are plotted in the upper left panel of Fig. 21. Four of the stars of age group PMS in area I were already identified as pre-main sequence objects by Neuhäuser et al. (1995) (A058, A069, A090, and A104). They assigned an age of 35 Myr to these stars. Likewise, one star of the Pl_ZAMS sample, A120, was assigned an age of 100 Myr by Neuhäuser et al. These stars were part of a sample investigated kinematically for membership to the Taurus-Auriga SFR by Frink et al. (1997). They studied stars in the central region of Tau-Aur and in a region south of Tau-Aur which partially overlaps at the southern edge with our area I. The sample studied by these authors contains three further stars of our sample, A007, A107, and A122, for which Neuhäuser et al. assigned an age of older than 100 Myr. This is in agreement with our age estimate of older than 660 Myr for A007 and A107, and of $\sim$300 Myr for A122.

In Table 9 the mean proper motions and their dispersions are summarized for the PMS, Pl_ZAMS, UMa, and Hya+ age groups, and for M stars without Li  I  detection. Obviously, the 8 "PMS'' stars show a smaller spread in proper motions than the older stars. They cluster around ( $\mu_{\alpha}\cdot \cos\delta$, $\mu_{\delta}$) of (+16, -8) mas yr^-1 with a scatter of $\sim$15 mas yr^-1 in each direction. Frink (1999) transformed the proper motions given by Frink et al. (1997) from the FK5 to the Hipparcos system and determined mean values of ( +8.7,-11.2) mas yr^-1 for the southern sample of Frink et al. (1997). For the central region of Tau-Aur Frink (1999) derived mean proper motions of ( +4.5,-19.7) mas yr^-1. The comparison of our results with the findings of Frink (1999) reveals an interesting trend in the mean proper motions relative to the core region of Tau-Aur. The southern sample of Frink et al. moves away from the centre of Tau-Aur with a mean proper motion of (+4.2, +8.5) mas yr^-1. The PMS stars in area I are located even more to the south of the centre and their relative mean proper motion is actually even larger, (+12, +12) mas yr^-1. Thus we find that the stars in area I move in approximately the same direction as the southern stars of Frink et al., but with an even higher proper motion.

Inspection of Fig. 2 in Frink et al. (1997) allows to estimate a dispersion of about 15 to 20 mas yr^-1 for both subsamples which again is compatible with the 15 mas yr^-1 derived for our PMS subsample. The Pl_ZAMS stars exhibit a dispersion of the proper motion which is larger by a factor of 2 to 3. On the other hand, the UMa sample though being older shows more coherent proper motions with a dispersion equal to the PMS stars. The old stars of the Hya+ group and the M stars exhibit the largest dispersions. Similar results are found for the other study areas.

Table 9: Mean proper motions and dispersions in area I for stars of age groups PMS, Pl_ZAMS, UMa, and M stars without lithium detection (in mas yr^-1).

So far we have considered the proper motions which depend on the distance and contain a contribution due to the solar motion. We therefore calculated tangential velocity components, v_l and v_b, in galactic coordinates, l and b, by using the distance estimates discussed above and the relations $v_l = 4.74~\times~\mu_l~\cos~b~\times~ d$ km s^-1 and $v_b = 4.74~\times~\mu_b~\times~ d$ km s^-1, with $\mu_l~\cos~b$ and $\mu_b$ being proper motions in galactic coordinates given in arcsec yr^-1 and the distance d in pc. A table summarizing the resulting velocities and their dispersions for the individual study areas can be found in the Appendix (Table A.1).

The direction-dependent part of the tangential velocities due to the solar reflex motion can finally be removed by transforming these velocities to the local standard of rest (LSR). This is achieved by adding the corresponding solar velocity components. We used the solar motion vector of Dehnen & Binney (1998), ($U_{\odot}$, $V_{\odot}$, $W_{\odot}$) = (+10.0, +5.25, +7.17) km s^-1 (see below for the definition of the space velocities) to determine the solar reflex motion:

$$v_{l,\odot} = -U_{\odot}\sin l + V_{\odot}\cos l$$ (1)

$$v_{b,\odot} = U_{\odot}\cos l \sin b - V_{\odot}\sin l \sin b + W_{\odot} \cos b.$$ (2)

In contrast to the observed proper motions the tangential velocity components of the different object groups exhibit a similar scatter around the mean of the respective sample. This is particularly evident for the M stars which have on average the smallest distances and hence have the largest proper motions. Generally, the dispersions of their tangential velocities are of the same order of magnitude as for the other object groups, although there are some differences between the individual study areas. From the kinematical point of view the M stars in area I appear to be young, $\sim$100 Myr, as they resemble the Pl_ZAMS group with regard to both the mean velocity and the velocity dispersion. This also holds for area III and VI where the M stars kinematically appear somewhat older, $\sim$300 Myr, with velocity dispersions between the Pl_ZAMS and the Hya+ group. In area II, IV, and V, on the other hand, the M stars show kinematical resemblance to the Hya+ age group suggesting an age of $\ga$600 Myr.

In Table 10 mean proper motions in galactic coordinates with respect to the LSR, $\langle \mu_l \cos b \rangle_{\rm LSR}$ and $\langle \mu_ b \rangle_{\rm LSR}$, and the corresponding tangential velocities, $\langle v_l \rangle_{\rm LSR}$ and $\langle v_b \rangle_{\rm LSR}$ are listed for the different age groups. As discussed before the M stars exhibit the largest dispersion of the proper motions. Taking the distance effect into account the dispersions of the respective tangential velocities are reduced to values similar to those obtained for the Pl_ZAMS and UMa age groups. This again leads to the conclusion that the M stars have on the average an age of $\sim$100-600 Myr. The largest velocity dispersions are found for the Hya+ age group.

Table 10: Mean proper motions (in mas s^-1), and mean tangential velocities (in km s^-1) in galactic coordinates, both with dispersions, reduced to the LSR. The values are listed for stars of the age groups PMS, Pl_ZAMS, UMa and Hya+ (split into dwarfs and giants), and M stars without lithium detection.

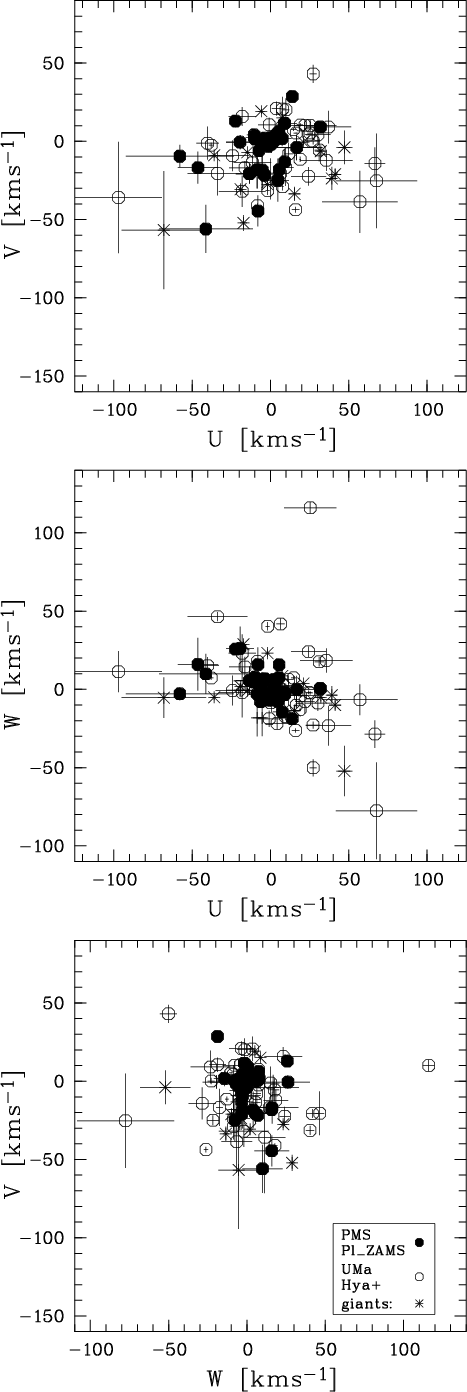

	Figure 22: Space velocities U, V, and W in the LSR frame. Stars of age groups "PMS'' and "Pl_ZAMS'' are plotted as filled circles. Open circles denote stars of the UMa and "Hya+'' age group. Giants are plotted as asterisks.
Open with DEXTER

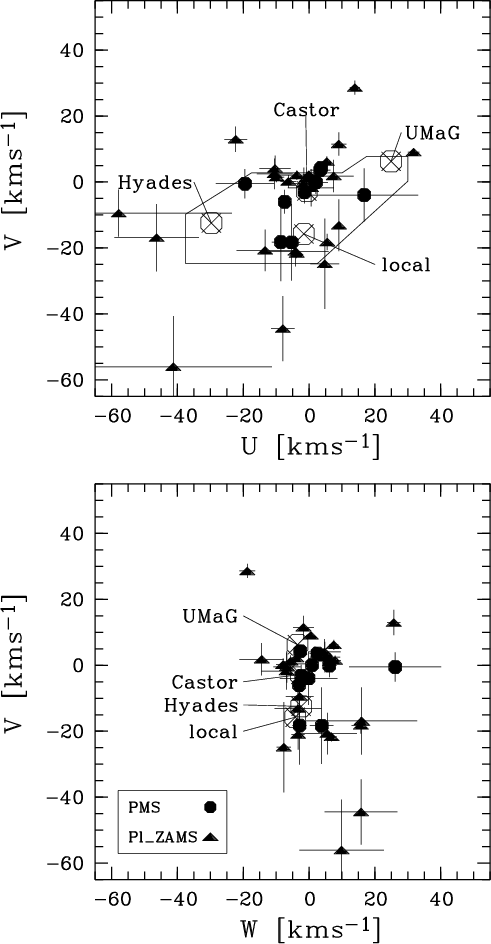

Figure 23: Upper panel: U-V velocity diagram for the youngest age groups "PMS'' (circles) and "Pl_ZAMS'' (triangles). The solid line encircles the region defined by Eggen (1984, 1989) to contain the young disk population. Also shown as large crossed circles are the U and V velocities of the Hyades supercluster, the Local Association (designated "local''), the Castor MG, and the UMa MG. Lower panel: W-V diagram for the same sample of stars. All velocities are in the LSR reference frame.

Open with DEXTER


5.3.2 Space velocities

For stars with a distance estimate from trigonometric, spectroscopic or IR photometric parallax radial velocities and proper motions were combined in order to determine the galactic space velocity components U, V, and W. A right-handed coordinate system was used with the U axis pointing towards the galactic centre, the V axis in the direction of galactic rotation, and the W axis towards the north galactic pole. The transformation to the LSR was performed by using the solar motion vector of Dehnen & Binney (1998) given above. The required data, RVs, proper motions, and distances, were available for 44 of 56 G stars, 46 of 85 K stars, and 7 of 56 M stars. The space velocity components and related errors were calculated using the formulae given by Johnson & Soderblom (1987). For the calculation of the errors an uncertainty of 50% was adopted for the distance for stars with a spectroscopic or photometric parallax. The resulting velocity components are listed in Table A.3.

The space velocities components are plotted in Fig. 22. The plot contains stars of all age groups and also includes the evolved stars (giants). Figure 23 shows in an enlarged scale the V-U, and V-W diagrams for the two youngest stellar age groups only, i.e. PMS and Pl_ZAMS stars.

As can be seen in Fig. 22 the filled symbols representing the youngest age groups, PMS and Pl_ZAMS, are more concentrated than the open symbols and the asterisks denoting the older age groups and giants, respectively. This can be tested by various statistical methods. First, we combined on one hand the PMS and Pl_ZAMS samples and on the other hand the older stars and giants in order to create distributions of the space velocity $v_{\rm LSR} = \sqrt{U^2+V^2+W^2}$ for the young and the old stars, respectively. A one-dimensional two-sample Kolmogorov-Smirnov (K-S) test on these distributions yields a probability of < $1.6\times 10^{-5}$ that they are drawn from the same parent distribution. Likewise, the K-S test on the PMS and the complementary non-PMS sample yields a probability of only $5\times 10^{-4}$ for having the same distribution. Therefore, PMS and non-PMS stars also have different space velocity distributions. Contrary to this, with a probability of 0.31 PMS and Pl_ZAMS stars have the same distribution. An F-test on the individual velocity components U, V, and W of the combined PMS-Pl_ZAMS and the older age groups shows that with a very low probability P their distributions are drawn from the same parent distribution, namely P_U = 0.006, P_V= 0.02, and $P_W = 4\times 10^{-6}$. In particular, the velocity component perpendicular to the galactic plane, W, is significantly different in the young and the old age groups (see below).

In the following we will discuss mean velocities and velocity dispersions of the different age groups. These were calculated as maximum-likelihood (M-L) estimate which takes into account that the measurement errors are different for each star. Following Pryor & Meylan (1993) M-L estimates of the mean velocity components $\langle v \rangle$ and dispersions $\sigma_v$ of U, V and W were obtained together with errors by assuming that the velocities are drawn from a normal distribution

$$f(v_i) = \frac{1}{\sqrt{2~\pi (\sigma_{v}^2+ \sigma_i^2})}\e... ...{(v_i - \langle v \rangle)^2}{(\sigma_v^2+ \sigma_i^2)}\right)$$ (3)

with the individual velocity measurements v_i and associated errors $\sigma_i$ of U, V,, and, W, respectively. With the likelihood function $\cal L$ defined as

$${\cal L} = \prod_{i=1}^{n} f(v_i)$$ (4)

the minimization of the test statistic $S = -2~\ln {\cal L}$ then allows to derive the M-L estimates of $\langle v \rangle$ and $\sigma_v$. Errors were calculated following Pryor & Meylan.

In Table 11 the mean space velocities and velocity dispersions of the different age groups are summarized. Clearly the PMS sample has the smallest velocity dispersions. For stars with weak or no lithium detection the dispersions are the largest. The "Hya+'' subsample contains a significant fraction of older disk stars. This is particularly evident for the velocity component perpendicular to the galactic plane, W. Its dispersion increases from $\sim$2 km s^-1 for the PMS sample to $\sim$30 km s^-1 for the old lithium weak sample. The increasing velocity dispersion with increasing age reflects the effect of disk heating in the galaxy.

The PMS subsample in particular exhibits M-L mean space velocity components $(\langle U\rangle, \langle V \rangle, \langle W \rangle) = (-1.9\pm2.6, +0.2\pm2.2, +0.0\pm1.7)$ km s^-1 and velocity dispersions of ( $\sigma_U, \sigma_V, \sigma_W) = (4.2\pm3.1, 2.9\pm2.5, 2.4\pm2.1$) km s^-1. This suggests that the PMS stars are kinematically related and may even form a kinematical group, but of course, the sample is small and the indicated relation should be considered more as a working hypothesis to be tested with extended samples. At this point it should be noted that the PMS star B206 in area II interestingly has space velocity components similar to the stars in area I. Unfortunately, no high resolution RV measurement is available for the second PMS star in area II, the M4Ve dwarf B026. In order to obtain at least an estimate of its space velocity components we measured the radial velocity using the low-resolution CAFOS spectra and the emission lines of H$\alpha$, H$\beta$, H$\gamma$, and Ca  II K. This yielded $v_{\rm hel} = -12$ km s^-1 with an error of about 20 km s^-1. The resulting space velocity components are $U = +20\pm17$ km s^-1, $V = +1\pm8$ km s^-1, and $W = +2\pm9$ km s^-1. Within the errors the velocities of B026 are consistent with the mean velocities of the PMS sample. But clearly, a more accurate RV measurement is needed for B026 to confirm that both Li-rich stars in area II belong to the same kinematical group as the corresponding stars in area I as indicated by the presently available data. Note also from Fig. A.1 that in areas I and II the numbers of Li-rich stars are higher than in the other areas.

Enlarged sections of the U-V and W-V diagram are shown in Fig. 23 for the 35 stars of the two youngest age groups with measured space velocities. The U-V diagram in the upper panel includes the limits of the region occupied by the young disk stars as defined by Eggen (1984, 1989). Indeed, as expected for a young stellar sample many, albeit not all, stars have (U,V) velocities inside Eggen's box. Also indicated are the (U,V) velocities of several young stellar kinematical groups: the Hyades supercluster, the Ursa Major moving group (UMa MG), the Local Association (Pleiades MG), and the Castor moving group (Castor MG) (for references see e.g. Montes et al. 2001).

Table 11: Mean (M-L) space velocity components, $\langle U\rangle, \langle V\rangle, \langle W\rangle$, and velocity dispersions, $\sigma _U$, $\sigma _V$, $\sigma _W$, of the different age groups in km s^-1.

Figure 23 suggests the existence of a kinematical subgroup in the combined PMS and Pl_ZAMS sample, which contains 35 stars with measured U, V, and W velocities. The group is concentrated near the velocity of the Castor MG at the upper V limit of Eggen's disk stars with 17 of the 35 stars found within a radius of 10 km s^-1 around the velocity of the Castor MG. Six of these belong to the age group PMS and the rest to the Pl_ZAMS group. The M-L mean velocities of the subgroup are $(U, V) = (-1.4\pm1.7, +2.3\pm0.9)$ km s^-1, and the velocity dispersions are $(\sigma_U, \sigma_V) = (4.3\pm1.0, 1.2\pm0.6)$ km s^-1. In V the group of 17 stars is somewhat off the Castor MG for which Palous & Piskunov (1985) give ( $U,V) = (-0.7\pm3.5, -2.8\pm2.4)$ km s^-1. Given the relatively small number of data points we may ask whether this concentration is due to a chance coincidence in an actually random distribution. We tested this possibility for the null hypothesis that the true underlying distribution of velocities in the U-V plane is random within a given circle around the origin. In a Monte Carlo simulation we calculated a large number of random velocity vectors in the U-V plane and counted the number of cases in which we found 17 stars within 10 km s^-1 around the Castor MG velocity. For a random velocity distribution within a radius of 35 km s^-1 containing 90% of the 35 stars, i.e. 31 stars, these simulations showed that we can reject the null hypothesis on a high significance level of >99.8%. The test radius of 35 km s^-1 may be too small because it excludes 10% of the stars. Increasing the radius leads however to even higher significance levels. Decreasing the radius only leads to significance levels of <99% if the random distribution is calculated for radii smaller than $\sim$20 km s^-1 which contains $\le$65% of the PMS-Pl_ZAMS stars. Therefore we are lead to the conclusion that with a very high probability the concentration of velocities vectors in the U-V plane is not a chance coincidence.

An interesting feature is the accumulation of the 6 "PMS'' stars around a mean velocity of ( $U,V) = (+0.0\pm2.9, +1.2\pm2.8)$ km s^-1. This is not far from the velocity of the Castor MG (see above), but clearly distinct from the Local Association which has ( U,V) = (-1.6, -15.8) km s^-1 (Montes et al. 2001). The velocity dispersions of this subgroup of PMS stars are $(\sigma_U, \sigma_V) = (3.5\pm1.7, 2.5\pm2.1)$ km s^-1. Two of the remaining PMS stars are found near the velocity of the Local Association together with a loose accumulation of some 5 or 6 further stars from the Pl_ZAMS age group. A relation of these stars with the Local Association may exist, but the errors and the scatter of the velocity vectors are quite large.

The W-V diagram displayed in the lower panel of Fig. 23 shows a similar trend in the distribution of the velocity vectors as in the U-V diagram, that is most PMS stars and many Pl_ZAMS stars are kinematically distinct from the Local Association.


6 Conclusions

We have investigated the characteristics of an X-ray selected sample from the RASS of high-galactic latitude field stars comprising 56 G, 86 K, and 56 M type stars. Spectroscopic low/medium and high resolution follow-up observations were obtained for 95% of the G-K stars and for 77% of the M stars.

Spectroscopic luminosity classification of the G-K stars based on the high resolution spectroscopy showed that 88% of the G-K stars are main-sequence stars or subgiants of luminosity classes V and IV, respectively. From IR photometric classification we concluded that all M stars are dwarf stars.

Significant lithium absorption lines were detected in a large fraction of stars with equivalent widths and abundances, respectively, above the level of the Hyades in about 50% of the stars. For the age distribution of the high-galactic latitude coronal sample this means that about half of the G-K stars are younger than the Hyades. About 25% of the G-K stars have an age comparable to that of the Pleiades, i.e. $\sim$100 Myr. A small fraction of less than 10% of the G-K stars is younger than the Pleiades. Most PMS stars, i.e. 8 out of 10, are located in area I. Only two PMS stars are found in area II and none in the remaining areas. This suggests a possible relation of the high-|b| PMS stars to the Gould Belt indicated in Fig. 1. However, the subsample formed by combining the stellar age groups PMS and Pl_ZAMS is spatially distributed in all directions covered by our study areas. At the same time half of its members show similar kinematical parameters independent of spatial location. This questions the relation to the Gould Belt. Rather, the space velocities suggest that these stars are members of a loose moving group with a mean velocity close to that of the Castor MG. For the Castor MG an age of $200\pm100$ Myr has been derived by Barrado y Navascués (1998). This would still be consistent with the Pl_ZAMS group. If some of the PMS stars are indeed kinematically related to the Castor MG this would indicate a large age spread in this moving group as they appear to be younger than 100 Myr, maybe even as young as $\sim$30 Myr.

Acknowledgements

We would like to thank the Deutsche Forschungsgemeinschaft for granting travel funds (Zi 420/3-1, 5-1, 6-1, 7-1). We further thank the staff at the German-Spanish Astronomical Centre, Calar Alto, in particular Santos Petraz, for carrying out part of the observing programme in service mode. This publication makes use of data products from the Two Micron All Sky Survey, which is a joint project of the University of Massachusetts and the Infrared Processing and Analysis Center/California Institute of Technology, funded by the National Aeronautics and Space Administration and the National Science Foundation. This research has made use of the SIMBAD and VIZIER databases, operated at CDS, Strasbourg, France.


Appendix A: Parameters of the sample and results

Figure A.1 displays the measured lithium equivalent widths for each study area separately.

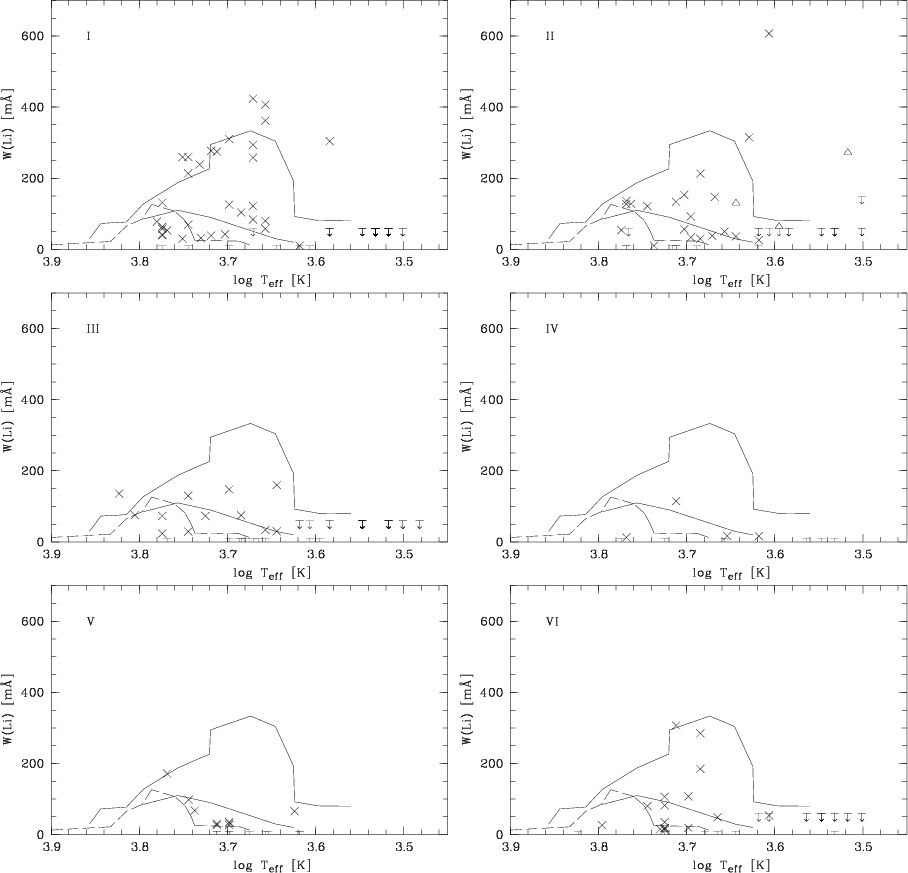

Figure A.1: Equivalent widths of Li  I  $\lambda 6708$ as a function of $T_{\rm eff}$ plotted for each study area individually. The solid and dashed lines have the same meaning as in Fig. 16.

Table A.1 summarizes for the individual study areas the mean tangential velocities in galactic coordinates, v_l and v_b, and their dispersions as calculated in Sect. 5.3.1. The mean solar velocity components, $\langle v_{l,\odot} \rangle$ and $\langle v_{b,\odot} \rangle$, are also given for each study area. Furthermore, for each age group mean distances $\langle d \rangle$ are given.

Table A.1: Mean tangential velocities and dispersions (in km s^-1) in galactic coordinates for stars of age groups PMS, Pl_ZAMS, UMa, Hya+ (split into dwarfs and giants), and M stars without lithium detection for the individual study areas. The first two lines give the average solar velocity for each study area. The mean distance $\langle d \rangle$ and its scatter are given in pc. The number of stars used for the calculation of the mean values are given in parentheses.

In Table A.2 the basic parameters of the stellar sample are listed. The field and RASS names were taken from Paper III. Coordinates RA (2000) and Dec. (2000) of the optical counterparts are in succession either from Tycho-2, GSC-I, or GSC-II, whatever the source is for the V magnitude listed in column "V''. In column "Sp.type'' the revised spectral types with luminosity class are given for objects with new high resolution observations. Otherwise, spectral types from Paper III are given. Spectroscopic binaries are flagged by "SB2''. B160 is a triple system (SB3). The flux ratio $\log f_{\rm x}/f_V$ is given for the revised V magnitudes and the RASS fluxes from Paper III. X-ray luminosities $L_{\rm x}$ were calculated using the distances listed in column "dist''. The distances are flagged by "S'', "H'', "T'' or "I'', depending on whether they were derived from spectroscopy, Hipparcos, trigonometric parallaxes, or from the infrared colours, respectively. Distance estimates obtained by assuming luminosity class V are flagged by "M''. They should be considered as lower limits only.

Table A.3 lists the kinematical parameters. Heliocentric radial velocities and errors for single stars and for the primary component of spectroscopic binaries are given in columns $v_{\rm hel,1}$ and $\sigma_1$, respectively. For binaries columns $v_{\rm hel,2}$ and $\sigma_2$ contain the heliocentric radial velocity and error of the secondary component, respectively. Proper motions and associated errors are listed in columns $\mu_{\alpha}~\cos\delta$ and $\sigma_{\mu_{\alpha}}$ for right ascension, and $\mu_{\delta}$ and $\sigma_{\mu_{\delta}}$ for declination, respectively. The source catalog of the proper motions is denoted by respective flags: TY = Tycho-2, HI = Hipparcos, UC = UCAC2, US = USNO-B1.0, PP = PPM, ST = STARNET, TR = TRC, NL = NLPM1, CA = Carlsberg Meridian Catalogs. Also given are the galactic velocity components U, V, and W in the LSR frame with errors $\sigma_U, \sigma_V,$ and $\sigma _W$, respectively. If the errors were larger than 30 km s^-1 the space velocity components were omitted.

Table A.4 lists lithium data and rotational velocities. Equivalent widths of Li  I   $\lambda 6708$ are listed in column W(Li  I ). Flags "h'', "l''or "m'' denote high-, low- or medium resolution measurements, respectively. Lithium abundances derived from W(Li  I ) for the effective temperatures given in column $T_{\rm eff}$ are listed in column $\log N$(Li). The last two columns list the rotational velocities, $v_{\rm rot_{1}}$ for single stars or primary components of binaries, and in the latter case $v_{\rm rot_{2}}$ for the secondary component.

References

• Appenzeller, I., Thiering, I., Zickgraf, F.-J., et al. 1998, ApJS, 117, 319 [NASA ADS] [CrossRef] (Paper III) (In the text)
• Appenzeller, I., Zickgraf, F.-J., Krautter, J., et al. 2000a, A&A, 364, 443 [NASA ADS] (In the text)
• Appenzeller, I., Kneer, R., Zickgraf, F.-J., Krautter, J., & Thiering, I. 2000b, in From Extrasolar Planets to Cosmology, Proc. ESO VLT Opening Symposium, ed. J. Bergeron, & A. Renzini (Springer), 164 (In the text)
• Barrado y Navascués, D. 1998, A&A, 339, 831 [NASA ADS] (In the text)
• Covino, E., Alcalá, J. M., Allain, S., et al. 1997, A&A, 328, 187 [NASA ADS] (In the text)
• Carlsberg Meridian Catalogs Number 1-11, 1999, Copenhagen University Obs., Royal Greenwich Obs., and Real Instituto y Observatorio de la Armada en San Fernando (In the text)
• D'Antona, F., & Mazzitelli, I. 1994, ApJS, 90, 467 [NASA ADS] [CrossRef] (In the text)
• Dehnen, W., & Binney, J. J. 1998, MNRAS, 298, 387 [NASA ADS] [CrossRef] (In the text)
• de Jager, C., & Nieuwenhuijzen, H. 1987, A&A, 177, 217 [NASA ADS] (In the text)
• Eggen, O. J. 1984, ApJS, 55, 597 [NASA ADS] [CrossRef] (In the text)
• Eggen, O. J. 1989, PASP, 101, 366 [NASA ADS] [CrossRef] (In the text)
• ESA 1997, The Hipparcos Catalogue, ESA SP-1200 (In the text)
• Favata, F., Micela, G., & Sciortino, S. 1997, A&A, 322, 131 [NASA ADS] (In the text)
• Fleming, T. A., Schmitt, J. H. M. M., & Giampapa, M. S. 1995, ApJ, 450, 401 [NASA ADS] [CrossRef] (In the text)
• Frink, S., Röser, S., Neuhäuser, R., & Sterzik, M. F. 1997, A&A, 325, 613 [NASA ADS] (In the text)
• Frink, S. 1999, Ph.D. Thesis, University of Heidelberg (In the text)
• Gahm, G. F., & Hultqvist, L. 1972, A&A, 16, 329 [NASA ADS] (In the text)
• Garcia, B. 1989, Bull. Inf. CDS, 36, 27 [NASA ADS] (In the text)
• Gillet, D., Burnage, R., & Kohler, D. 1994, A&AS, 108,181 (In the text)
• Gliese, W., & Jahreiss, H. 1991, Nearby Stars, Preliminary 3rd Version, Astron. Rechen-Institut, Heidelberg (In the text)
• Gray, R. O., Napier, M. G., & Winkler, L. I. 2001, AJ, 121, 2148 [NASA ADS] [CrossRef] (In the text)
• Guillout, P., Haywood, M., Motch, C., & Robin, A. C 1996, A&A, 316, 89 [NASA ADS] (In the text)
• Guillout, P., Sterzik, M. F, Schmitt, J. H. M. M., et al. 1998, A&A, 334, 540 [NASA ADS] (In the text)
• Hog, E., Kuzmin, A., Bastian, U., et al. 1998, A&A, 335, L65 [NASA ADS] (In the text)
• Hog, E., Fabricius, C., Makarov, V. V., et al. 2000, A&A, 355, L27 [NASA ADS] (In the text)
• Irwin, M., & McMahon, R. 1992, Newsletter of the Royal Greenwich Obs. No. 37 (In the text)
• Johnson, D. R. H., & Soderblom, D. R. 1987, AJ, 93, 864 [NASA ADS] [CrossRef] (In the text)
• Jones, B. F., Fischer, D., Shetrone, M., & Soderblom, D. R. 1997, AJ, 114, 352 [NASA ADS] [CrossRef] (In the text)
• Keenan, P. C., & McNeil, R. C. 1989, ApJS, 71, 245 [NASA ADS] [CrossRef] (In the text)
• Keenan, P. C., & Barnbaum, C. 1999, ApJ, 518, 859 [NASA ADS] [CrossRef] (In the text)
• Klemola, A. R., Hanson, R. B., & Jones, B. F. 1987, AJ, 94, 501 [NASA ADS] [CrossRef] (In the text)
• Koornneef, J. 1983, A&A, 128, 84 [NASA ADS]
• Krautter, J., Zickgraf, F.-J., Thiering, I., et al. 1999, A&A, 350, 743 [NASA ADS] (Paper IV) (In the text)
• Lasker, B. M., Sturch, C. R., McLean, B. J., et al. 1990, AJ, 99, 2019 [NASA ADS] [CrossRef] (In the text)
• Lang, K. R. 1992, Astrophysical Data: Planets and Stars (New York: Springer) (In the text)
• Lemaître, G., Kohler, D., Lacroix, D., Meunier, J.-P., & Vin., A. 1990, A&A, 228, 546 [NASA ADS] (In the text)
• Mamajek, E. E., Meyer, M. R., & Liebert, J. 2002, AJ, 124, 1670 [NASA ADS] [CrossRef] (In the text)
• Montes, D., López-Santiago, J., Gálvez, M. C., et al. 2001, MNRAS, 328, 45 [NASA ADS] [CrossRef] (In the text)
• Monet, D. G., Levine, S. E., Casian, B., et al. 2003, AJ, 125, 984 [NASA ADS] [CrossRef] (In the text)
• Neuhäuser, R., Sterzik, M. F., Torres, G., & Martin, E. L. 1995, A&A, 299, L13 [NASA ADS] (In the text)
• Neuhäuser, R., Torres, G., Sterzik, M. F., & Randich, S. 1997, A&A, 325, 647 [NASA ADS] (In the text)
• Pavlenko, Y. V., Rebolo, R., Martín, E. L., & García López, R. J. 1995, A&A, 303, 807 [NASA ADS] (In the text)
• Pavlenko, Y. V., & Magazzù, A. 1996, A&A, 311, 961 [NASA ADS] (In the text)
• Pfeiffer, M. J., Frank, C., Baumüller, D., Fuhrmann, K., & Gehren, T. 1998, A&AS, 130, 381 [NASA ADS] (In the text)
• Palous, J., & Piskunov, A. E. 1985, A&A, 143, 102 [NASA ADS] (In the text)
• Prugniel, Ph., & Soubiran, C. 2001, A&A, 369, 1048 [EDP Sciences] [NASA ADS] [CrossRef] (In the text)
• Pryor, C., & Meylan, G. 1993, in Structure and Dynamics of Globular Clusters, ed. S. G. Djorgovski, & G. Meylan, ASP Conf. Ser., 50, 357 (In the text)
• Randich, S., Aharpour, N., Pallavicini, R., Prosser, C. F., & Stauffer, J. R. 1997, A&A, 323, 86 [NASA ADS] (In the text)
• Röser, S. 1996, IAU Symp., 172, 481 [NASA ADS] (In the text)
• Röser, S., & Bastian, U. 1988, A&AS, 74, 449 [NASA ADS] (In the text)
• Russell, J. L., Lasker, B. M., McLean, B. J., Sturch, C. R., & Jenkner, H. 1990, AJ, 99, 2059 [NASA ADS] [CrossRef] (In the text)
• Schild, R. E. 1973, AJ, 78, 37 [NASA ADS] [CrossRef] (In the text)
• Schmidt-Kaler, Th. 1982, in Landolt Börnstein, New Series, Group IV, Vol. 2b, ed. K. Schaifers, & H. H. Voigt (Berlin, Heidelberg, New York: Springer) (In the text)
• Schmitt, J. H. M. M. 1997, A&A, 318, 215 [NASA ADS] (In the text)
• Simkin, S. M. 1974, A&A, 31, 129 [NASA ADS] (In the text)
• Soderblom, D. R., Pilachowski, C. A., Fedele, S. B., & Jones, B. F. 1993a, AJ, 105, 2299 [NASA ADS] [CrossRef] (In the text)
• Soderblom, D. R., Jones, B. F., Balachandran, S., et al. 1993b, AJ, 106, 1059 [NASA ADS] [CrossRef] (In the text)
• Spitzer, L. 1978, Physical Processes in the Interstellar Medium (Wiley-Interscience: New York) (In the text)
• Stauffer, J. R., Hartmann, L. W., Prosser, C. F., et al. 1997, ApJ, 479, 776 [NASA ADS] [CrossRef] (In the text)
• Sterzik, M. F., Alcalá, J. M., Covino, E., & Petr, M. G. 1999, A&A, 346, L41 [NASA ADS] (In the text)
• Thorburn, J. A., Hobbs, L. M., Deliyannis, C. P., & Pinsonneault, M. H. 1993, ApJ, 415, 150 [NASA ADS] [CrossRef] (In the text)
• Urban, S. E., Corbin, T. E., & Wycoff, G. L. 1997, The ACT Reference Catalog, US Naval Observatory, Washington D.C. (In the text)
• Wichmann, R., Schmitt, J. H. M. M., & Hubrig, S. 2001, A&A, 399, 983 [EDP Sciences] [NASA ADS] (In the text)
• Yamashita, Y., Nariai, K., & Norimoto, Y. 1976, in An Atlas of representative stellar spectra (Tokyo: University of Tokyo Press) (In the text)
• Zacharias, N., Urban, S. E., Zacharias, M. I., et al. 2003, AJ, in preparation (In the text)
• Zickgraf, F.-J., Thiering, I., Krautter, J., et al. 1997a, A&AS, 123, 103 [NASA ADS] (Paper II) (In the text)
• Zickgraf, F.-J., Voges, W., Krautter, J., et al. 1997b, A&A, 323, L21 [NASA ADS]
• Zickgraf, F.-J., Alcalá, J. M., Krautter, J., et al. 1998, A&A, 339, 457 [NASA ADS] (Paper VI) (In the text)
• Ziegler, B. 1993, diploma thesis, University of Heidelberg (In the text)




Online Material

Table A.2: Basic optical and X-ray parameters of the sample of G-, K-, and M-type stars.

Table A.3: Kinematical parameters.

Table A.4: Lithium abundances and rotational velocities.
