A&A 432, L43-L48 (2005)
DOI: 10.1051/0004-6361:200500019
T. R. Bedding1 - H. Kjeldsen2 - F. Bouchy3 - H. Bruntt2,4 - R. P. Butler5 - D. L. Buzasi4 - J. Christensen-Dalsgaard2 - S. Frandsen2 - J.-C. Lebrun6 - M. Martic6 - J. Schou7
1 - School of Physics, University of Sydney 2006, Australia
2 -
Department of Physics and Astronomy, University of Aarhus, 8000 Aarhus C,
Denmark
3 -
Laboratoire d'Astrophysique de Marseille, Traverse du Siphon BP8, 13376
Marseille Cedex 12, France
4 -
Department of Physics, US Air Force Academy, 2354 Fairchild Drive, CO
80840, USA
5 -
Carnegie Institution of Washington, Department of Terrestrial Magnetism,
Washington, DC 20015-1305, USA
6 -
Service d'Aéronomie du CNRS, BP 3, 91371 Verrières le Buisson,
France
7 -
W.W. Hansen Experimental Physics Laboratory, Stanford University, 445 Via
Palou, Stanford, CA 94305-4085, USA
Received 6 August 2004 / Accepted 28 January 2005
Abstract
We argue that the non-detection of oscillations in Procyon by the
MOST satellite reported by Matthews et al. (2004) is fully consistent with
published ground-based velocity observations of this star. We also examine
the claims that the MOST observations represent the best photometric
precision so far reported in the literature by about an order of magnitude
and are the most sensitive data set for asteroseismology available for any
star other than the Sun. These statements are not correct, with the most
notable exceptions being observations of oscillations in Cen A that are
far superior. We further disagree that the hump of excess power seen
repeatedly from velocity observations of Procyon can be explained as an
artefact caused by gaps in the data. The MOST observations failed to
reveal oscillations clearly because their noise level is too high, possibly
from scattered Earthlight in the instrument. We did find an excess of
strong peaks in the MOST amplitude spectrum that is inconsistent with a
simple noise source such as granulation, and may perhaps indicate
oscillations at roughly the expected level.
Key words: stars: oscillations - stars: individual: Procyon - Sun: oscillations
The MOST satellite (Microvariability and Oscillations of Stars; Walker et al. 2003) comprises a 15-cm telescope and CCD detector designed to perform high-precision photometry on bright stars. Matthews et al. (2004, hereafter M04) reported observations of the F5 star Procyon A made almost continuously over 32 days. The Fourier amplitude spectrum showed no evidence for oscillations and M04 concluded that if there are p-modes in Procyon, they must have lifetimes less than 2-3 days and/or peak amplitudes <15 parts per million. We agree completely with this conclusion but we do not agree with some of the other statements in that paper, as outlined in the following sections. For other discussion of the issues raised in M04, see also Elsworth & Thompson (2004).
We have measured the noise level in the MOST amplitude spectrum from the data plotted in Fig. 3 of M04, which was provided to us in digital form by the MOST team. We find that the noise is about 2 ppm (parts per million) at frequencies above 2 mHz and 2.5 to 4.0 ppm between 2.0 and 0.5 mHz, in agreement with the analysis by the MOST team (J. Matthews, priv. comm.).
M04 described the MOST result as "the best photometric precision so far
reported in the literature (Retter et al. 2004; Gilliland et al. 1993; Kurtz et al. 1997) by about an order
of magnitude''. This statement is not correct. The work
by Gilliland et al. (1993) was a ground-based photometric campaign to monitor several
stars in the open cluster M 67, most of which had spectral types similar to
Procyon. Table 11 of that paper gives the final noise levels in the
amplitude spectra in the frequency range 2.5-4.5 mHz (Col. 4). Values
for the best ten stars (excluding Star 12, which is a red giant) are
6.4-9.7 ppm. These noise levels, obtained after one week, are certainly
higher than the 2 ppm reported for the 32-day MOST observations, but
only by factors of 3-5 and not an order of magnitude. We also note
that the noise level for a given observing time is very similar for the two
data sets.
The observations by Kurtz et al. (1997) and Retter et al. (2004) cited by M04
targetted Ap stars and were indeed much less precise than the MOST data.
However, the Retter et al. observations were made from space using
the star tracker on the WIRE satellite, and the same instrument achieved
far better precision (and good evidence for oscillations) on the solar-type
star Cen A (Schou & Buzasi 2001). Indeed, the noise level from those
observations was substantially below 1 ppm and therefore considerably
better than that from the MOST observations of Procyon.
M04 also stated that the duty cycle of 99% for 32 days makes the MOST data the most sensitive data set for asteroseismology available for any star other than the Sun. While the duty cycle is certainly tremendously good, one must also take the precision into account and such a grand claim is certainly not justified. The noise at high frequencies (about 2 ppm above 2 mHz) is about half the peak solar signal. Many ground-based velocity campaigns over more than a decade have achieved equivalent noise levels well below this on Procyon (e.g., 8 cm s-1 by Martic et al. 2004, which is a third of the peak solar signal) and other stars (for recent reviews, see Bedding & Kjeldsen 2003; Bouchy & Carrier 2003).
Recent ground-based velocity observations of the Cen binary system are
particularly noteworthy. Noise levels have reached 4.3 cm s-1 in
Cen A
(Bouchy & Carrier 2002), 3.8 cm s-1 in
Cen B (Carrier & Bourban 2003) and, most
recently, 2.0 cm s-1 in
Cen A (Butler et al. 2004). The latter
value is a mere tenth of the peak solar oscillation amplitude, and all
three campaigns produced data sets that are much more sensitive for
asteroseismology than the MOST Procyon data. This is reflected in the
fact that they actually succeeded in detecting oscillations in stars whose
amplitudes are substantially lower than Procyon's.
Several radial-velocity studies of Procyon have detected an excess of power around 0.5-1.5 mHz (Martic et al. 2004; Brown et al. 1991; Eggenberger et al. 2004; Kambe et al. 2003; Martic et al. 1999; Bouchy et al. 2002). The reported peak amplitudes of 50-70 cm s-1 (not 1 m s-1, as quoted by M04) are lower than predicted by theoretical models of oscillations (Houdek et al. 1999; Christensen-Dalsgaard & Frandsen 1983). Even before most of these observations were made, Kjeldsen & Bedding (1995) concluded that F-type stars, namely Procyon and several members of M 67, must oscillate with amplitudes less than has generally been assumed. This point has been raised several times since then (Bedding & Kjeldsen 2003; Samadi & Houdek 2000; Martic et al. 2004,1999). The knowledge that Procyon oscillates with an amplitude only 2-3 times solar, rather than the theoretically predicted value of at least 4-5 times solar, has therefore been in the literature for many years. The MOST upper limit of 15 ppm (four times solar - see Sect. 4) is consistent with this and is therefore hardly a surprise.
It should also be noted that the theoretical predictions are based on our clearly incomplete understanding of stellar convection. Indeed, Christensen-Dalsgaard & Frandsen (1983) noted that mixing-length theory overestimates the convective flux in relatively hot stars and that predictions of oscillation amplitudes may have to be reduced. Interestingly, hydrodynamical simulations of convection for a variety of stellar parameters by Stein et al. (2004) also showed a substantial increase in the energy input from convection to the modes with increasing effective temperature. However, Stein et al. did not estimate the damping rate of the oscillations and hence could not provide estimates of the resulting amplitudes.
Although several independent detections of excess power in Procyon have
been made from velocity measurements, it has been difficult to obtain a
power spectrum that shows a clear p-mode structure. There is consensus
that the so-called large frequency separation is about 55 Hz
(Martic et al. 2004; Eggenberger et al. 2004; Mosser et al. 1998; Martic et al. 1999), which agrees well with theoretical models
(Provost et al. 2002; Di Mauro & Christensen-Dalsgaard 2001; Kervella et al. 2004; Barban et al. 1999; Chaboyer et al. 1999), but there is not yet
agreement on the actual frequencies. This is presumably due either to
insufficient high-quality data (i.e., confusion from aliases in the
spectral window) or to intrinsic properties of the star (i.e., short mode
lifetimes and/or modes shifted from the asymptotic relation by avoided
crossings).
For reference in the following discussion, we note that the strongest
oscillation modes in the Sun have velocity amplitudes of 20-25 cm s-1 and
intensity amplitudes in the blue-visual part of the spectrum of
4.5-5.0 ppm. Of course, these peak heights decrease when the observing
time becomes significantly longer than the typical lifetime of the
modes. Note that M04 quoted mode lifetimes for the Sun of days to weeks,
referring to Toutain & Fröhlich (1992). However, the reciprocal linewidths given in
Table 6 of Toutain & Fröhlich (1992) must be divided by
to convert to mode
lifetimes, as discussed in Sect. 4 of that paper. The dominant modes in
the Sun have lifetimes of 2-4 days (see also Chaplin et al. 1997).
We must also keep in mind that intensity variations are a consequence of
temperature variations and, while the two are proportional, the constant of
proportionality depends on the effective temperature of the star
(see Kjeldsen & Bedding 1995, Eq. (5)). In a star with the same physical oscillation
amplitude as the Sun (as measured in velocity) but with the effective
temperature of Procyon (
K), we would observe an
intensity amplitude at these wavelengths that is
times the intensity amplitude we observe in the Sun. Thus, the
upper limit of 15 ppm in Procyon reported by M04 corresponds to a
"physical'' oscillation amplitude of 4 times solar, which translates to a
velocity amplitude of just below 1 m s-1. A velocity amplitude of 60 cm s-1,
as reported from ground-based Doppler measurements, corresponds to an
intensity amplitude of 9.5 ppm, which is below the limit set by M04.
![]() |

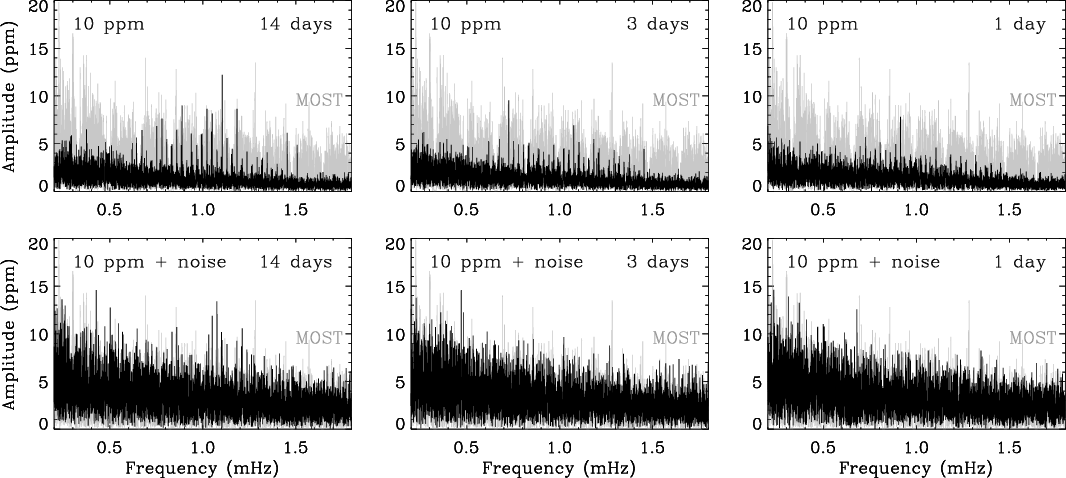

Figure 1: The amplitude spectrum of Procyon observed by MOST (grey), compared with simulations (black) that included oscillations and granulation at the expected levels. The simulations were made for three different mode lifetimes, both with and without instrumental noise. |
Open with DEXTER |
To illustrate some of these points, Fig. 1 compares the MOST results with simulations. In each panel, the amplitude spectrum in grey is the spectrum published by M04 (the notches correspond to harmonics of the satellite orbital frequency, where they filtered to removed power from stray light artifacts). The amplitude spectra shown in black are simulations of the signal expected from Procyon if the p-mode oscillations have peak amplitudes of 10 ppm, which matches the level inferred from ground-based velocity observations. We show simulations for three different values of the mode lifetime (14, 3 and 1 d), made using the method described by Stello et al. (2004) and Bedding et al. (2004).
The simulations also included granulation noise at 1.5 times the solar level (see below), which is responsible for the noise floor that rises towards lower frequencies in the upper three panels. In those panels, no photon or instrumental noise was included in the simulation. In the lower three panels, on the other hand, we added sufficient noise to bring the total power up to the level observed by MOST. As expected, we see that shortening the mode lifetimes has the effect of lowering the peak heights, making the oscillations even harder to detect, as also found by M04 (Supplemental Material). It is apparent that if Procyon has oscillations with the amplitudes suggested by velocity measurements, we would not expect to see them clearly in the MOST spectrum unless the mode lifetimes were much longer than in the Sun.
M04 suggested that the increase in noise towards low frequencies that is seen in their amplitude spectrum could be caused by light variations due to stellar granulation. We would expect granulation to be much easier to detect in intensity than velocity, but the level of non-white noise in the MOST data seems too high for this.
![]() |

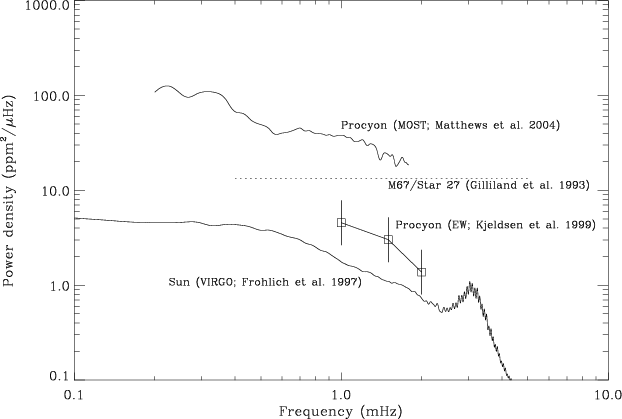

Figure 2:
Smoothed power density spectra from photometry of Procyon ( MOST), the Sun ( VIRGO, green channel), and an F-type star in the cluster M 67 (ground-based telescopes). Also shown are Balmer-line equivalent-width measurements of Procyon (EW, with 2-![]() |
Open with DEXTER |
We illustrate this in Fig. 2, which shows smoothed
power density spectra (power per frequency resolution bin). Power density
is the appropriate way to compare noise sources, whether the noise arises
from granulation, photon statistics or instrumental effects, because it is
independent of the length of the observations (see, e.g., Appendix A.1 of Kjeldsen & Bedding 1995). The data for the Sun are full-disk intensity measurements from the green channel of the VIRGO three-channel sunphotometer on the SOHO spacecraft (Pallé et al. 1999; Fröhlich et al. 1997). The figure
shows that the power density of the MOST noise is about 16 times higher
than the solar granulation power (4 times in amplitude). This seems
implausibly large, especially as Balmer-line equivalent width measurements
of Procyon by Kjeldsen et al. (1999) produced an upper limit on granulation - and a
tentative detection - of about twice solar in power (1.4 in amplitude).
Those points are also shown in Fig. 2, after
conversion from equivalent-width to intensity (see Sect. 5 of that paper).
We also see that the noise level in the MOST spectrum of Procyon is
higher than the noise level measured from photometry of F-type stars in M 67
by Gilliland et al. (1993).
Given these comparisons, it seems unlikely that the noise in the MOST spectrum is due to granulation in Procyon. We suggest that the most likely origin of the large amount of non-white noise in the MOST data is instrumental, possibly from variations in the amount of scattered Earthlight reaching the detector (see M04).
M04 suggested the possibility that apparent p-mode power identified by ground-based observers may be an artefact of insufficient gapped sampling of granulation variations. Is it possible that the hump of excess power at 0.5-1.5 mHz that has been seen repeatedly in the velocity data is an artefact? This was in fact suggested by Kjeldsen & Bedding (1995) as a likely cause for the power excess found by Brown et al. (1991), on the basis that the observations were high-pass filtered. Such a filter, when applied to a Fourier spectrum dominated by non-white noise from instrumental effects, will indeed produce a hump. However, subsequent repeated independent confirmations of the power hump, most of which were high-pass filtered much less strongly (or not at all), led Bedding & Kjeldsen (2003) to acknowledge that this excess has a stellar origin.
We also note that in discussing Fig. 7 from Martic et al. (1999), M04 have chosen
a figure showing only a subset of the data discussed in that paper, which
was deliberately cut to allow comparison with observations of another star
( Cas). On the other hand, Figs. 4 and 8 from Martic et al. (1999) were not
high-pass filtered at all and clearly show the excess power.
The suggestion by M04 is that non-white noise from stellar granulation
could have produced a hump of power because the ground-based observations
have daily gaps. While gaps in the observing window certainly introduce
false peaks (aliases), these are always symmetrical about the original peak
and are very close to it (small multiples of 11.6
Hz). It is not
possible using this mechanism to turn a monotonically varying power
spectrum (as produced by granulation or, indeed, by most instrumental
effects) into a hump of excess power, as we have verified using
simulations. We therefore disagree strongly that the excess power seen by
ground-based observers can be explained as an artefact introduced by gaps
in the observations.
Finally, we note that in response to M04, Bouchy et al. (2004) have published a short sequence of very high-precision velocity measurements of Procyon obtained with the HARPS spectrograph. These show clear periodicities with typical periods of 18 min and an excess of power in the Fourier spectrum around 1 mHz, in perfect agreement with the previous velocity measurements. Recent evidence for the power excess has also been presented by Claudi et al. (2005) on the basis of observations with a longer timespan but lower precision.
We have examined the MOST amplitude spectrum for evidence of oscillations. Based on the ground-based observations, oscillations could be present at low signal-to-noise. Indeed, inspection of Fig. 3 in M04 shows a few peaks that are well above the surrounding noise and it is possible that some of these are due to oscillations.
![]() |

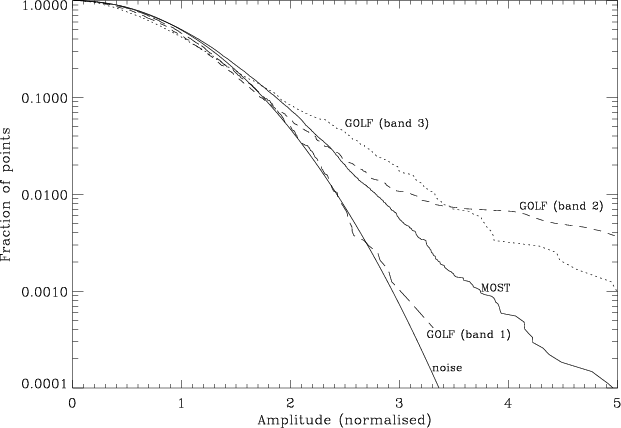

Figure 3: Distribution of peaks heights in the MOST amplitude spectrum of Procyon, compared with pure noise and also with three frequency bands in the GOLF solar spectrum (see text). |
Open with DEXTER |
Comparison with simulations shows that there are many more strong peaks in the amplitude spectrum than would be expected from noise. To quantify this, we examined the cumulative distribution of peak heights, a method that has previously been applied in both helioseismology (e.g., Delache & Scherrer 1983) and asteroseismology (e.g., Brown et al. 1991). We first removed the overall slope by dividing by a smoothed version of the spectrum. This flattens the spectrum and allows us to make meaningful counts of the number of points above a given amplitude. The resulting distribution is shown in Fig. 3, where the horizontal axis is amplitude divided by the mean amplitude.
On the same graph we show the distribution resulting from noise, which we
measured by averaging a large number of simulations. It is clear that the
MOST spectrum has an excess of strong peaks. For example, there are
more than ten times as many peaks with height 3.5 times the mean than
expected from noise.
Also shown in Fig. 3 are distributions of peak heights for the Sun, based on a 30-day series of full-disk velocity observations taken by the GOLF instrument on the SOHO spacecraft (Ulrich et al. 2000). We show results for three frequency bands in the solar amplitude spectrum. Band 1 (0.4-1.4 mHz) is at frequencies below the solar oscillations and contains only noise from granulation. We see that this distribution closely matches our noise simulations. Band 2 (1.4-2.4 mHz) contains granulation noise plus the weak low-frequency solar p-modes. Those modes have long lifetimes compared to the length of the time series and so the distribution contains unresolved high peaks. Band 3 (3.8-4.8 mHz) contains the weak highest-frequency solar p-modes, which have short lifetimes. Thus, this band has many resolved modes, which produces a broader distribution of peaks.
Comparing the different curves in Fig. 3, we conclude that the distribution of peak heights in the MOST amplitude spectrum is not consistent with being solely due to noise from granulation or similar sources. Rather, there is evidence for an excess of strong peaks that is consistent with the presence of oscillations at approximately the level expected. However, the unusual peak distribution could arise from other causes (as turned out to be the case for the solar measurements analysed by Delache & Scherrer 1983). In particular, the filtering by M04 to remove power at the harmonics of the satellite's orbital frequency may have distorted the peak-height distribution and further analysis of the original time series is needed to help decide this question.
Our main conclusions are as follows:
Acknowledgements
We thank the MOST team for providing the amplitude spectrum in digital form. This work has been supported by the Australian Research Council and the Danish Natural Science Research Council.
