All Figures

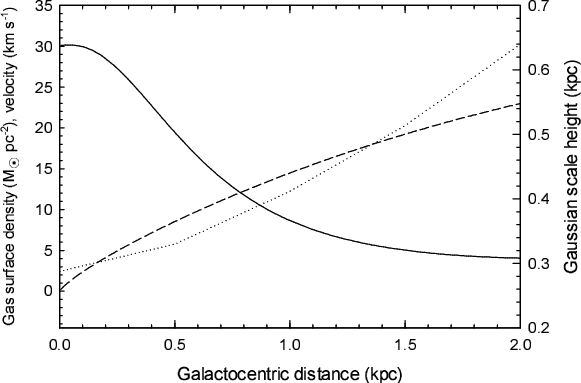

$\begin{figure} \par\includegraphics[width=8.2cm,clip]{1324fig1.eps} \end{figure}$ Figure 1: The equilibrium radial distribution of gas surface density (the solid line), the initial rotation curve (the dashed line), and the Gaussian vertical scale height of gas distribution (the dotted line).
Open with DEXTER

In the text

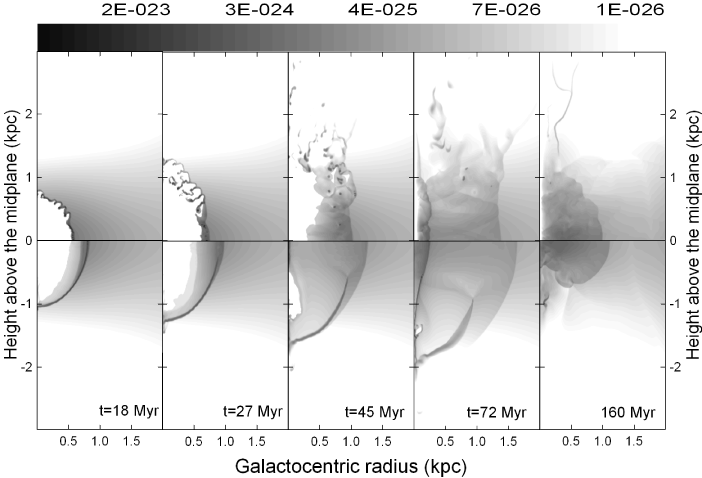

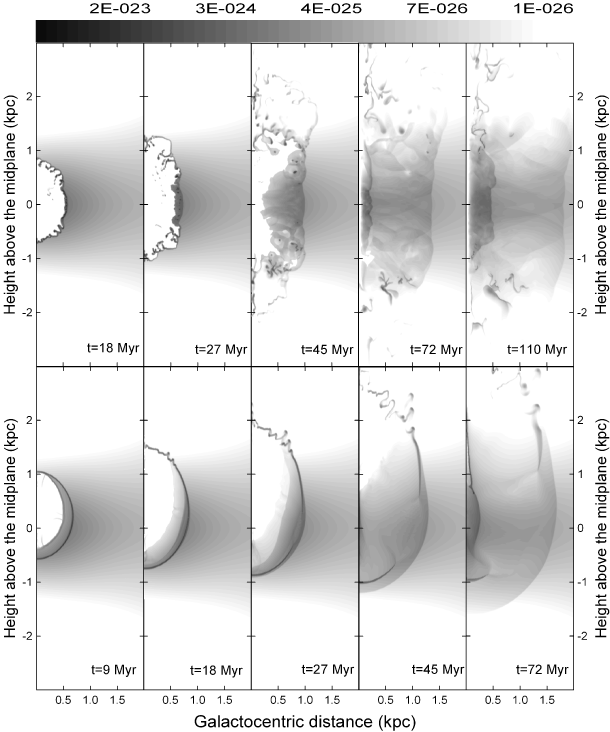

$\begin{figure} \par\includegraphics[width=8.5cm,clip]{1324fig2.eps} \end{figure}$ Figure 2: Temporal evolution of the gas volume density distribution after the release of $2\times 10^{53}$ erg of thermal energy at z=0,r=0 pc. The upper panels correspond to 200 consecutive SN explosions over 30 Myr, while the lower panels show the impact of a single hypernova of the same total energy of $2.0\times 10^{53}$ erg. The scale bar is in gm cm^-3.
Open with DEXTER

In the text

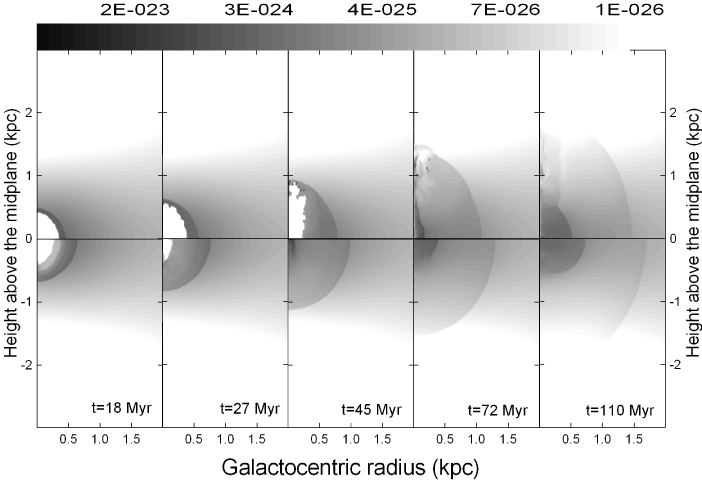

$\begin{figure} \par\includegraphics[width=8.6cm,clip]{1324fig3.eps} \end{figure}$ Figure 3: The same as Fig. 2, but for the energy input of $5\times 10^{53}$ erg.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=8.5cm,clip]{1324fig4.eps} \end{figure}$ Figure 4: The same as Fig. 2, but for the energy input of 10⁵⁴ erg.
Open with DEXTER

In the text

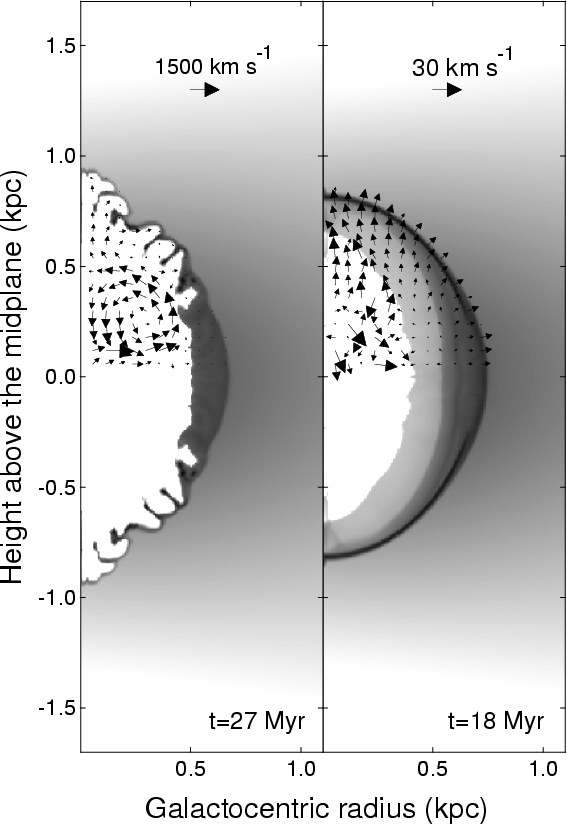

$\begin{figure} \par\includegraphics[width=8cm,clip]{1324fig5.eps} \end{figure}$ Figure 5: The vertical cut through the distribution of the gas volume density produced by 500 consecutive SNe at t=27 Myr ( the left panel) and single hypernova of the same total energy of $5.0\times 10^{53}$ erg ( the right panel). The gas velocity field is shown by the arrows.
Open with DEXTER

In the text

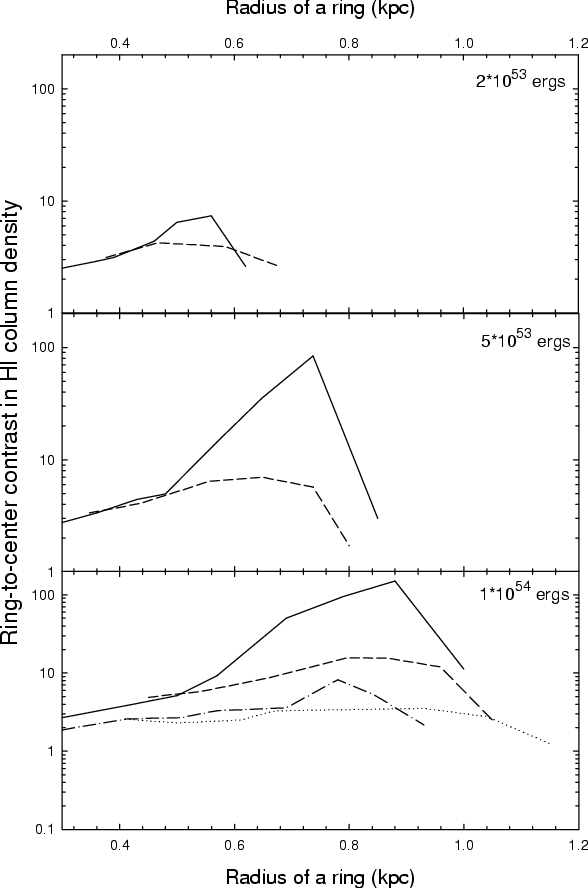

$\begin{figure} \par\includegraphics[width=8.3cm,clip]{1324fig6.eps} \end{figure}$ Figure 6: The contrast in the HI column density between the ring and the central depression ${\cal K}=N_{\rm r}({\rm HI})/N_{\rm c}\rm (HI)$ as a function of the ring radius. The solid lines show the contrast $\cal K$ produced by multiple SNe, whereas the dashed lines show that produced by a single hypernova of the same total energy. An inclination angle of $5^\circ$ is assumed. The energy input is indicated in the right upper corner of each panel. The dashed-dotted and dotted lines in the lower panel give the contrast $\cal K$ for an inclination angle of $45^\circ$ .
Open with DEXTER

In the text

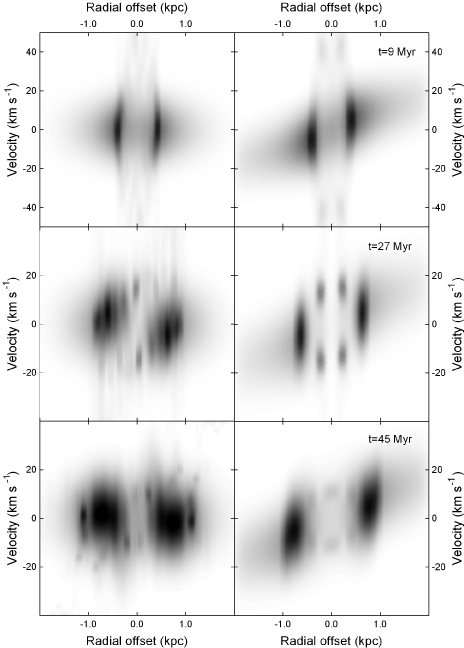

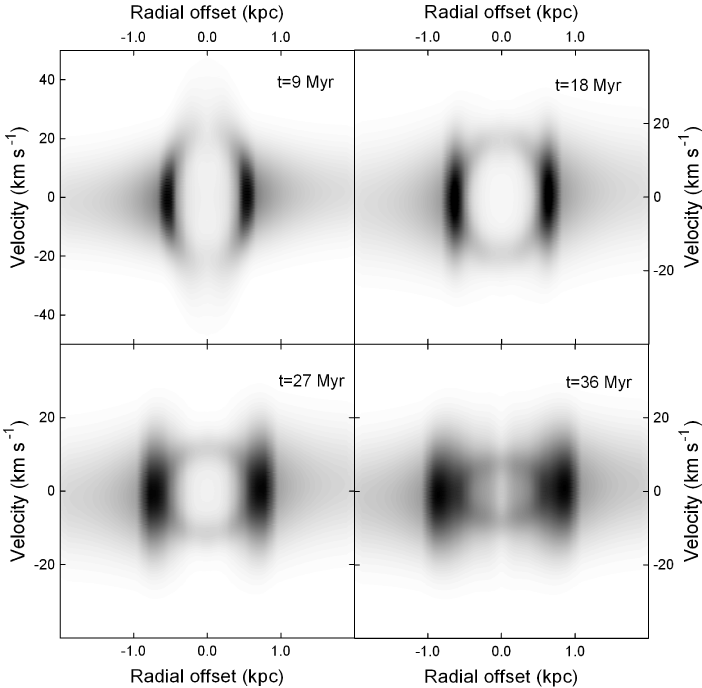

$\begin{figure} \par\includegraphics[width=8.6cm,clip]{1324fig7.eps} \end{figure}$ Figure 7: The pV-diagrams of the shell created by 500 consecutive SNe. The pV-cuts are taken along the major axis of the model galaxy viewed at an angle of $5^\circ$ . The evolutionary time of the shell is indicated in the right upper corner. The quantity $S_{\rm HI}$ is plotted in all model pV-diagrams.
Open with DEXTER

In the text

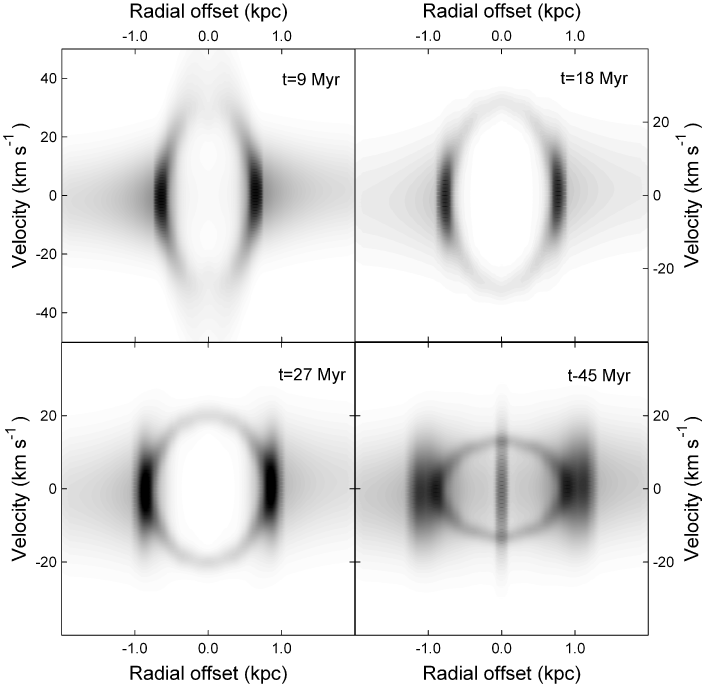

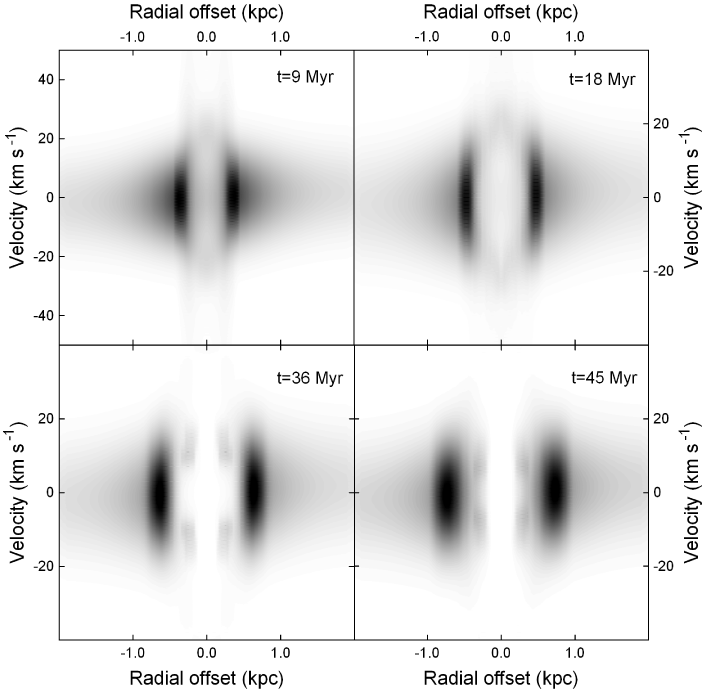

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{1324fig8.eps} \end{figure}$ Figure 8: The pV-diagrams of the shell produced by a single hypernova of the total energy of $5.0\times 10^{53}$ erg. The pV-cuts are taken along the major axis of the model galaxy viewed at an inclination angle of $5^\circ$ .
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{1324fig9.eps} \end{figure}$ Figure 9: The same as Fig. 8, but for a single hypernova of the total energy of 10⁵⁴ erg.
Open with DEXTER

In the text

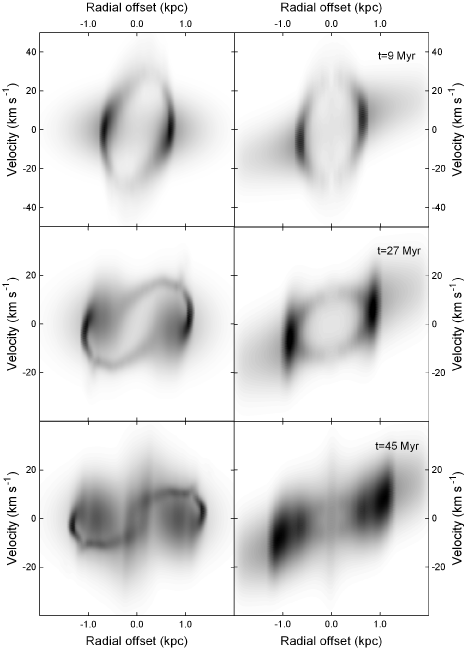

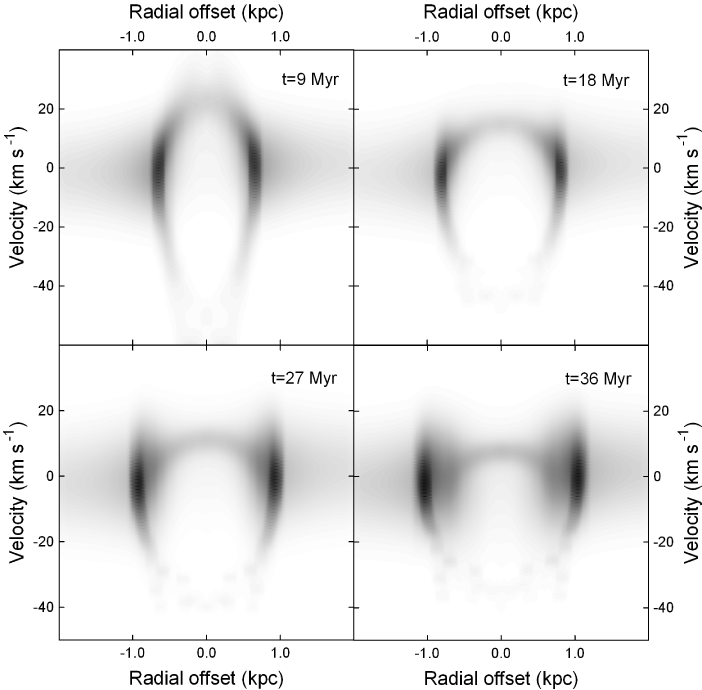

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{1324fg10.eps} \end{figure}$ Figure 10: The pV-diagrams of the shell created by 1000 consecutive SNe. The pV-cuts are taken along the minor ( the left panels) and the major ( the right panels) axis of the model galaxy viewed at an angle of $45^\circ$ .
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=8.6cm,clip]{1324fg11.eps} \end{figure}$ Figure 11: The same as in Fig. 10, but for a single hypernova of the same total energy of 10⁵⁴ erg. The pV-cuts taken along the minor axis of the hypernova-driven shell show the characteristic S-shaped structure due to an expansion in the vertical direction.
Open with DEXTER

In the text

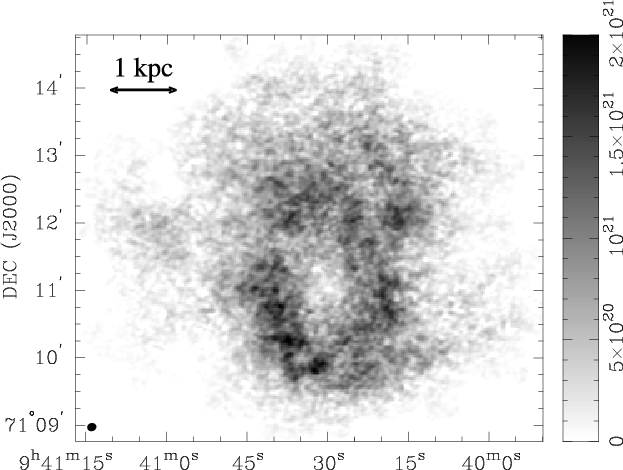

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{1324fg12.eps} \end{figure}$ Figure 12: Integrated HI emission of Ho I. In the bottom left corner we show the half-power beam (8 $.\!\!^{\prime\prime}$ 2 $\times$ 7.0 $.\!\!^{\prime\prime}$ ). The grayscale represents the HI column density. The data have been obtained from the Very Large Array observations (Ott et al. 2001).
Open with DEXTER

In the text

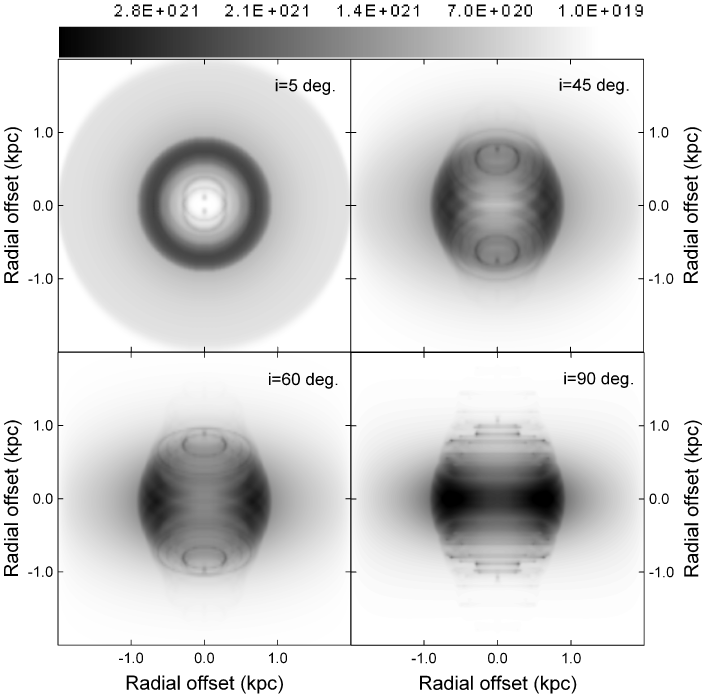

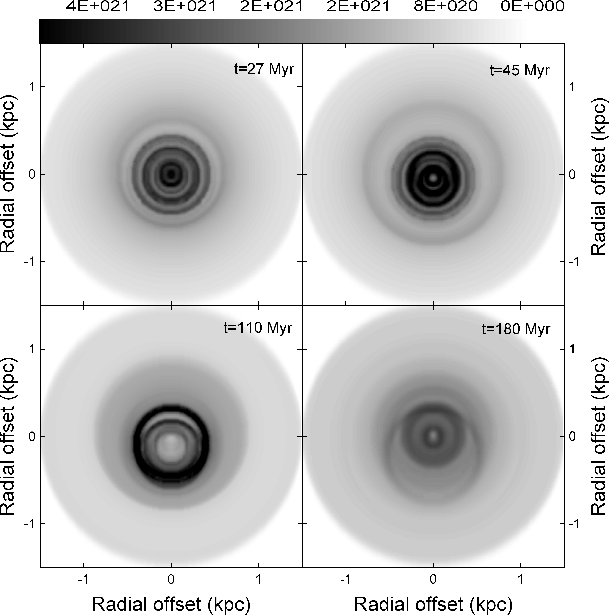

$\begin{figure} \par\includegraphics[width=8cm,clip]{1324fg13.eps} \end{figure}$ Figure 13: The integrated HI image of the ring produced by 500 consecutive SNe. The inclination angle is indicated in the right upper corner. The scale bar is in cm^-2. The origin of narrow rings is an assumption of axisymmetry in our numerical simulations.
Open with DEXTER

In the text

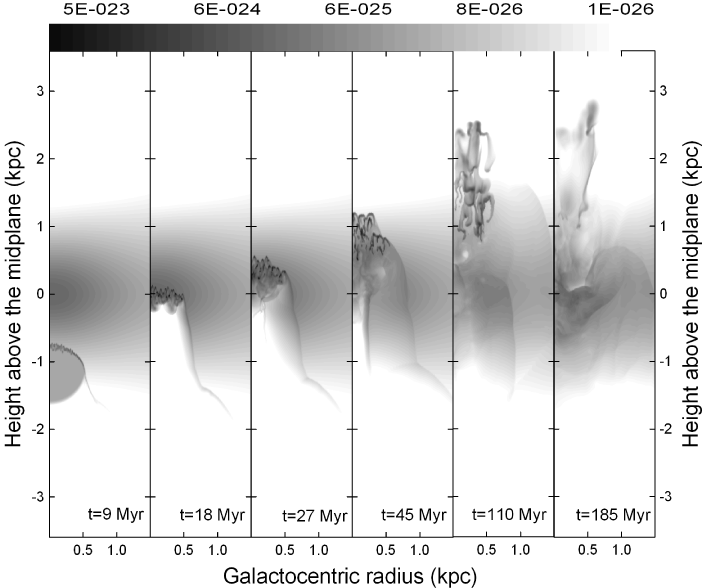

$\begin{figure} \par\includegraphics[width=8cm,clip]{1324fg14.eps} \end{figure}$ Figure 14: Off-plane explosions. Temporal evolution of the gas volume density distribution after the release of $1.0\times 10^{54}$ erg of thermal energy at r=0,z=100 pc. The upper panels correspond to 1000 consecutive SN explosions over 30 Myr, while the lower panels show the impact of a single hypernova of the same total energy of 10⁵⁴ erg. The scale bar is in gm cm^-3.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=8.6cm,clip]{1324fg15.eps} \end{figure}$ Figure 15: Off-plane explosion. The pV-diagrams of the shell created by a single hypernova of the total energy of 10⁵⁴ erg. The pV-cuts are taken along the major axis of the model galaxy viewed at an inclination angle of $5^\circ$ .
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=8.6cm,clip]{1324fg16.eps} \end{figure}$ Figure 16: The distribution of the gas volume density created by the collision of a cloud of $M_{\rm\scriptstyle HVC} = 2.5 \times 10^6~M_\odot$ and $v_{\rm\scriptstyle HVC}=200$ km s^-1 with the galactic gas disk.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=8.6cm,clip]{1324fg17.eps} \end{figure}$ Figure 17: The integrated HI image of the gas volume density distribution shown in Fig. 16. An inclination angle of $5^\circ$ is adopted. The scale bar is in cm^-2.
Open with DEXTER

In the text

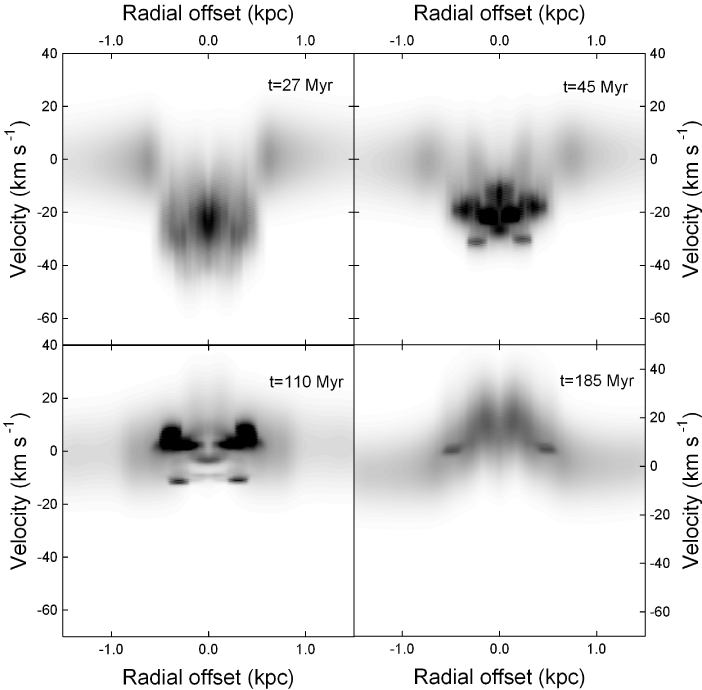

$\begin{figure} \par\includegraphics[width=8.7cm,clip]{1324fg18.eps} \end{figure}$ Figure 18: The pV-diagrams of the gas volume density distribution shown in Fig. 16. The pV-cuts are taken along the major axis of the projected galaxy. An inclination angle of $5^\circ$ is assumed.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=8.2cm,clip]{1324fig1.eps} \end{figure}$	Figure 1: The equilibrium radial distribution of gas surface density (the solid line), the initial rotation curve (the dashed line), and the Gaussian vertical scale height of gas distribution (the dotted line).
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8.5cm,clip]{1324fig2.eps} \end{figure}$	Figure 2: Temporal evolution of the gas volume density distribution after the release of $2\times 10^{53}$ erg of thermal energy at z=0,r=0 pc. The upper panels correspond to 200 consecutive SN explosions over 30 Myr, while the lower panels show the impact of a single hypernova of the same total energy of $2.0\times 10^{53}$ erg. The scale bar is in gm cm^-3.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8.6cm,clip]{1324fig3.eps} \end{figure}$	Figure 3: The same as Fig. 2, but for the energy input of $5\times 10^{53}$ erg.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8.5cm,clip]{1324fig4.eps} \end{figure}$	Figure 4: The same as Fig. 2, but for the energy input of 10⁵⁴ erg.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8cm,clip]{1324fig5.eps} \end{figure}$	Figure 5: The vertical cut through the distribution of the gas volume density produced by 500 consecutive SNe at t=27 Myr ( the left panel) and single hypernova of the same total energy of $5.0\times 10^{53}$ erg ( the right panel). The gas velocity field is shown by the arrows.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8.6cm,clip]{1324fig7.eps} \end{figure}$	Figure 7: The pV-diagrams of the shell created by 500 consecutive SNe. The pV-cuts are taken along the major axis of the model galaxy viewed at an angle of $5^\circ$ . The evolutionary time of the shell is indicated in the right upper corner. The quantity $S_{\rm HI}$ is plotted in all model pV-diagrams.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{1324fig8.eps} \end{figure}$	Figure 8: The pV-diagrams of the shell produced by a single hypernova of the total energy of $5.0\times 10^{53}$ erg. The pV-cuts are taken along the major axis of the model galaxy viewed at an inclination angle of $5^\circ$ .
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{1324fig9.eps} \end{figure}$	Figure 9: The same as Fig. 8, but for a single hypernova of the total energy of 10⁵⁴ erg.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{1324fg10.eps} \end{figure}$	Figure 10: The pV-diagrams of the shell created by 1000 consecutive SNe. The pV-cuts are taken along the minor ( the left panels) and the major ( the right panels) axis of the model galaxy viewed at an angle of $45^\circ$ .
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8.6cm,clip]{1324fg11.eps} \end{figure}$	Figure 11: The same as in Fig. 10, but for a single hypernova of the same total energy of 10⁵⁴ erg. The pV-cuts taken along the minor axis of the hypernova-driven shell show the characteristic S-shaped structure due to an expansion in the vertical direction.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{1324fg12.eps} \end{figure}$	Figure 12: Integrated HI emission of Ho I. In the bottom left corner we show the half-power beam (8 $.\!\!^{\prime\prime}$ 2 $\times$ 7.0 $.\!\!^{\prime\prime}$ ). The grayscale represents the HI column density. The data have been obtained from the Very Large Array observations (Ott et al. 2001).
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8cm,clip]{1324fg13.eps} \end{figure}$	Figure 13: The integrated HI image of the ring produced by 500 consecutive SNe. The inclination angle is indicated in the right upper corner. The scale bar is in cm^-2. The origin of narrow rings is an assumption of axisymmetry in our numerical simulations.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8cm,clip]{1324fg14.eps} \end{figure}$	Figure 14: Off-plane explosions. Temporal evolution of the gas volume density distribution after the release of $1.0\times 10^{54}$ erg of thermal energy at r=0,z=100 pc. The upper panels correspond to 1000 consecutive SN explosions over 30 Myr, while the lower panels show the impact of a single hypernova of the same total energy of 10⁵⁴ erg. The scale bar is in gm cm^-3.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8.6cm,clip]{1324fg15.eps} \end{figure}$	Figure 15: Off-plane explosion. The pV-diagrams of the shell created by a single hypernova of the total energy of 10⁵⁴ erg. The pV-cuts are taken along the major axis of the model galaxy viewed at an inclination angle of $5^\circ$ .
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8.6cm,clip]{1324fg16.eps} \end{figure}$	Figure 16: The distribution of the gas volume density created by the collision of a cloud of $M_{\rm\scriptstyle HVC} = 2.5 \times 10^6~M_\odot$ and $v_{\rm\scriptstyle HVC}=200$ km s^-1 with the galactic gas disk.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8.6cm,clip]{1324fg17.eps} \end{figure}$	Figure 17: The integrated HI image of the gas volume density distribution shown in Fig. 16. An inclination angle of $5^\circ$ is adopted. The scale bar is in cm^-2.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8.7cm,clip]{1324fg18.eps} \end{figure}$	Figure 18: The pV-diagrams of the gas volume density distribution shown in Fig. 16. The pV-cuts are taken along the major axis of the projected galaxy. An inclination angle of $5^\circ$ is assumed.
