Abstract
We used the Plateau de Bure Interferometer to observe $\lambda$ 3 mm J=1-0 absorption lines of HCO⁺, HCN and CO toward the core of the nearby elliptical, megamaser-host galaxy NGC 1052. The lines are relatively weak, with peak optical depths 0.03 for HCO⁺ and HCN and 0.1 for CO. Nonetheless the inferred column density of molecular gas 2N(H₂) $\simeq$ 5 $\times$ $10^{21}~{\rm cm}^{-2}$ is consistent with the degree of reddening inferred toward the nucleus from observations of the Balmer series of hydrogen. Mm-wave absorption line profiles are somewhat broader than those of H I and OH, perhaps because lower free-free opacity at mm-wavelengths exposes higher-velocity material nearer the nucleus. Overall, the OH/HCO⁺ ratio in NGC 1052 is as expected from the strong relationship established in local diffuse clouds but the optical depth ratio varies strongly over the line profiles. Similar variations are also seen toward Cen A, which has very different line ratios among H I, OH and HCO⁺ for very nearly the same amount of OH absorption.

Key words: galaxies: ISM - ISM: molecules - galaxies: elliptical and lenticular, cD

$\begin{figure} \par\includegraphics[height=13cm,width=8cm,clip]{1650fig1.eps}\end{figure}$

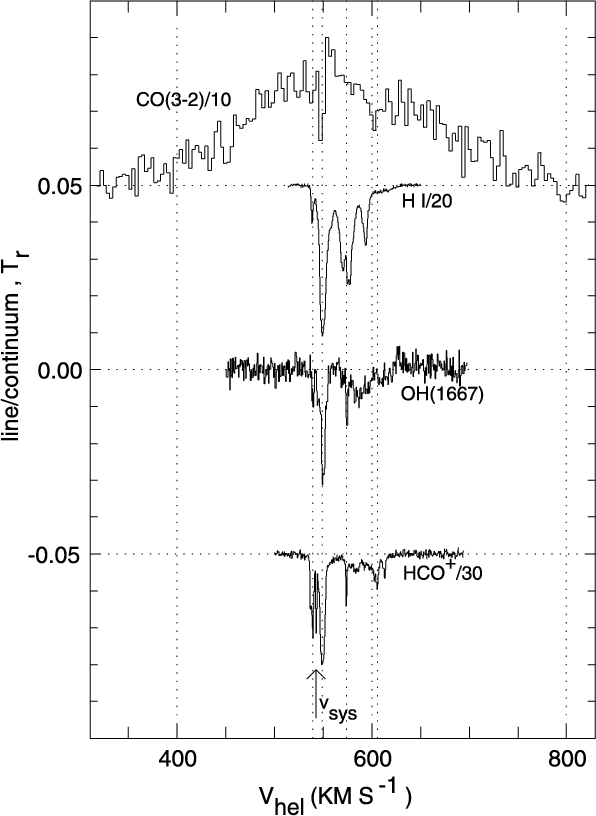

Figure 1: Absorption profiles toward NGC 1052. The data are presented as scaled, offset, line/continuum ratios. The H I and OH profiles at top are the "total'' VLB profiles from Vermeulen et al. (2003) representing spatially-resolved data averaged over some 15-20 mas or 1.5-2.0 pc at one epoch. Profiles of the J=1-0 transitions of HCN, HCO⁺ and CO from the Plateau de Bure represent data taken at multiple epochs against the vastly-unresolved mm-wave continuum, whose spatial distribution is compact and probably similar to that at lower frequencies, but with a larger contribution from regions at smaller radii (see Sect. 3.1 of the text).

Open with DEXTER

Weak absorption against the nuclear continuum complicates interpretation of the H I emission over the optical disk of the galaxy but the column densities seen in 21 cm emission at relatively low resolution (1 $^\prime$ $\approx$ 6 kpc) are moderate, of order N(H) $\simeq 10^{20}~{\rm cm}^{-2}$ (Fig. 5 of van Gorkom et al. 1986). The hydrogen column densities inferred from the presence of OH are larger than those derived from the H I emission, consistent with obvious optical obscuration and the inference of nuclear reddening (albeit with substantial uncertainty) $\mbox{$E_{B-V}$ }=0.42$ $\pm$ 0.2 mag. by Gabel et al. (2000), implying N(H) $\simeq 2.5$ $\times$ $10^{21}~{\rm cm}^{-2}$ for conditions like those seen locally in the disk of the Milky Way.

In the Milky Way, the detection of cm-wave OH absorption is a sure indicator of the presence of other trace molecules, especially HCO⁺ (Liszt & Lucas 1996; Lucas & Liszt 1996), CO (Liszt & Lucas 1998), C₂H (Lucas & Liszt 2000a), and (somewhat more occasionally) CN and HCN (Liszt & Lucas 2001), even in diffuse clouds. Given this, we sought and found mm-wave absorption from HCO⁺, HCN and CO toward the nucleus of NGC 1052. The implications of these observations, and a comparison with Cen A (NGC 5128; the only other elliptical where the same absorption lines have been observed) are the subject of this work. Section 2 describes the observations and a discussion is given in Sect. 3.

2 Mm-wave observations of HCO⁺, HCN and CO

The J=1-0 transitions of HCN (88.631 GHz), HCO⁺ (89.188 GHz) and CO (115.271 GHz) were observed at the Plateau de Bure Interferometer at various times during the year 2001. The new spectra discussed here, shown in Fig. 1, were taken with 2.5 MHz wide correlator channels corresponding to 8.46, 8.50 and 6.5 km s^-1 for HCN, HCO⁺ and CO respectively. The passbands were much wider than the excerpts shown here. Reduction of such data, where a strong unresolved background source is also the calibrator, is basically a matter of accumulating line/continuum ratios. The continuum level, approximately 0.6 Jy, was not precisely determined, however. Spectral baselines in the data were determined from the feature-free regions alongside the spectra.

The column density in the lowest (J=0) level of a simple linear molecule is related to the integrated optical depth of the J=1-0 transition as

$\begin{displaymath}% N_0 = {{8.0\times10^{12}~{\rm cm}^{-2}\int\tau_{10} {\rm d}... ...u^2 \left(1-\exp{\left(-h\nu_{10}/k\Tsub exc\right)}\right)}} \end{displaymath}$

(1)

Below we also consider the column density of OH determined from observation of the 1667 MHz line, which for LTE conditions is written N(OH) = 2.24 $\times$ $10^{14}~{\rm cm}^{-2}~\Tsub exc~\int\tau {\rm d}v$ . For diffuse clouds locally this is believed to be a good approximation, and the excitation is found to be quite weak, exc-cmb $\simeq$ 1 K (Liszt & Lucas 1996; Felenbok & Roueff 1996).

2.1 Dense or diffuse/translucent gas?

The present work discusses the observations in terms of diffuse/translucent gas of low true optical depth and a fully-covered continuum, which seems reasonable given the small size of the latter - at most 2 pc and perhaps much less if the core is exposed at/above 90 GHz; see Sect. 3. This provides a consistent and rather compact interpretation with a minimum of argument and uncertainty. However, nothing in the presently-available data absolutely refutes the alternative that the gas is dense and has higher optical depth and low covering factor, at least in part. For instance, the excitation temperature of the CO 1-0 transition overall could be 100 K, rather than 6 K, if the expected amount of gas phase carbon is to be put in dense, rather than diffuse, gas (see Sect. 3). Observations of higher-lying mm-wave transitions might help to settle this issue, though the rapid evolution of the continuum with epoch and observing frequency will complicate matters.

2.2 Borrowed and previously-published spectra

We are indebted to several authors for providing copies of their previously-published data. For reference, they are: toward NGC 1052, H I and OH absorption profiles from Vermeulen et al. (2003), and toward Cen A, H I from Sarma et al. (2002), OH from van Langevelde et al. (1995) and HCO⁺ from Wiklind & Combes (1997). A datacube of OH absorption profiles seen in the Milky Way near Sgr A $^\ast$ originally taken by Killeen et al. (1992) is referenced in Sect. 3. The CO J= 3-2 emission profile toward Cen A in Fig. 2 is from Liszt (2001) and was taken at the JCMT with $\simeq$ 14 $^{\prime\prime}$ resolution.

3 MM-wave absorption toward NGC 1052

The new mm-wave absorption data are summarized in Table 1 and shown in Fig. 1. Several strong and distinct features seen in OH and H I are not apparent at mm-wavelengths. The CO and HCN profiles seem to resemble each other more closely than the HCO⁺. The latter, which has by far the lowest noise in our dataset, is somewhat broader than the OH, which is in turn noticeably more extensive than H I. As discussed in Sect. 3.2 (see Fig. 2), the various species seen toward Cen A exhibit quite similar behaviour.

The differences between H I and OH which occur in the two ellipticals are quite typical of what is seen locally along rather random directions toward extragalactic point radio continuum sources (Liszt & Lucas 1996), reflecting the localization and/or segregation of cool and diffuse molecular gas in the nearby ISM. As such, they do not necessarily signal differences between nuclear and off-nuclear or dense and diffuse gas toward NGC 1052. Similarly, sharp differences between the absorption profiles of HCO⁺ and species like HCN (Liszt & Lucas 2001) or CO (Liszt & Lucas 1998) arise along local lines of sight because of differing stages of chemical maturity in the various diffuse clouds. However, differences between HCO⁺ and OH absorption profiles generally do not occur in the local ISM and this issue is addressed separately in Sects. 3.1 and 3.3.

The HCO⁺ profile integral converted to column density in the low-excitation limit yields N(HCO⁺) = 5.5 $\times$ $10^{12}~{\rm cm}^{-2}$ , implying 2N(H₂) = 3.6-5.6 $\times$ $10^{21}~{\rm cm}^{-2}$ for HCO⁺/H₂ ratios X(HCO⁺) = 2-3 $\times$ 10^-9 typical of galactic diffuse and translucent gas. Locally, such a gas column would imply a reddening of E_B-V = 0.6-1.0 mag which is consistent with the inference of Gabel et al. (2000) that E_B-V = 0.42 $\pm$ 0.2 mag. The same exercise may be repeated with OH, which in diffuse and translucent gas has a relatively stable relative abundance X(OH) = 10^-7 (Liszt & Lucas 2002,1996). For an excitation temperature of 4 K, N(OH) = 3.27 $\times$ $10^{14}~{\rm cm}^{-2}$ implying 2N(H₂) = 6.5 $\times$ $10^{21}~{\rm cm}^{-2}$ . The consistency of these estimates implies that the mean OH/HCO⁺ opacity ratio is similar to that seen in the Milky Way as well (see Sect. 3.2).

The column density ratio N(HCN)/N(HCO⁺) = 2.1 is entirely typical of local gas (Liszt & Lucas 2001); this ratio is relatively unaffected by assumptions about the overall excitation, although HCO⁺ is somewhat more easily excited in diffuse gas. By contrast, carbon monoxide is unlikely to remain as cold rotationally as the HCO⁺. The CO column density is 1.4 < N(CO) < 8.1 $\times$ $10^{16}~{\rm cm}^{-2}$ for 2.73 K < exc < 10 K. CO/HCO⁺ ratios as large as that implied by the upper limit CO column density are rather high for diffuse gas (Liszt & Lucas 1998). Even so, the CO/H ratio N(CO)/2N(H₂) $\la 8.1$ $\times$ $10^{16}~{\rm cm}^{-2}/ 5\times 10^{21}~{\rm cm}^{-2}\simeq 10^{-5}$ is still about one order of magnitude too small to account for the bulk of the free gas-phase carbon expected for material having Solar metallicity and carbon depletion onto grains like that seen locally, where [C]/[H] = $1.4 \times 10^{-4}$ (Savage & Sembach 1996).

The absence of most of the expected carbon from CO suggests either low metallicity or diffuse molecular gas, see Liszt & Lucas (1998) or Fig. 9 of Liszt & Lucas (2000). However, assuming a gas of lower metallicity would probably still not account for all the gas phase carbon, because the OH/H₂ and HCO⁺/H₂ ratios used to derive N(H₂) would presumably be smaller in a gas of lower metallicity, thereby increasing the inferred N(H₂). Nonetheless, there is a somewhat indirect suggestion of sub-solar metallicity, found in another context. Gabel et al. (2000) noted (see their Sect. 5) that some anomalies in their photoionization models would be alleviated if the 220 nm bump were not present in the uv extinction curve. This is typical of SMC-like extinction curves (Pei et al. 1991).

The observed CO J=1-0 optical depth, if it arises in a gas with exc = 10 K, would produce an emission line with a brightness temperature 0.5 K and an integrated profile brightness 40 K km s^-1. Combined with a galactic CO/H₂ conversion factor, such an integrated brightness would imply 2 N(H₂) $\simeq 40 \times 4\times 10^{20}~{\rm cm}^{-2}$ . This is a factor 2-3 above the estimates of 2N(H₂) from HCO⁺ and OH. However, the brightness of any CO J=1-0 emission from NGC 1052 is not as large as 0.02 K (Wiklind et al. 1995) over a 25 $^{\prime\prime}$ beam.

From these arguments we draw several conclusions. The excitation temperature of the CO is probably smaller than 10 K; taking exc = 6 K, implying N(CO) = 3.5 $\times$ $10^{16}~{\rm cm}^{-2}$ would lower the integrated brightness by a factor two with respect to the estimate in the preceding paragraph, reconciling the estimates of N(H₂) from the various trace molecules. Secondly, the CO gas producing the observed absorption cannot fill more than a small fraction of the 10 $^{\prime\prime}$ -60 $^{\prime\prime}$ singledish telescope beams which have been used to search for CO emission; crudely, at most of order 0.02 K/0.25 K. However, at this level, the line emission flux into a singledish beam may not be large compared to the continuum flux which is being absorbed out by the gas we have detected. That is, 10% absorption of an 0.6 Jy continuum, observed by a telescope with 6 Jy/K gain, produces a negative signal of $0.1\times0.6/6 = 0.01$ K. Thus, searches for CO emission have probably been compromised somewhat by the same confusion between emission and absorption which afflicted the H I synthesis of van Gorkom et al. (1986). Off-nuclear searches for CO emission in the optical dust lane would avoid this problem.

The inferred molecular column densities are much higher than those of H I seen in emission about the optical disk of NGC 1052, N(H I) $\simeq 10^{20}~{\rm cm}^{-2}$ (van Gorkom et al. 1986). However, the H I absorption column density implied by the integrated optical depth, N(H I) = $5.3 \times 10^{20}$ sp/100 K, is also quite likely to be much larger than that seen in the low-resolution emission data. In the absence of much higher resolution H I emission data, very little can be said about the actual spin temperature in the atomic gas, except to note that the amount of H I absorption which is seen is substantially higher than would be produced by extra-nuclear foreground gas having N(H I) $= 10^{20}~{\rm cm}^{-2}$ at a typical sp = 100 K, implying that the H I absorption does in fact arise nearer the nucleus. Conversely, the H I absorption column density is still too small to account for the observed reddening unless the spin temperature is extraordinarily high. It seems more likely that the gas associated with the bulk of the occulting column density is that sampled by the trace molecules.

3.1 Kinematics

If the HCO⁺ profile is wider and generally different in shape than the OH, such differences are not expected to arise chemically - as when comparing OH or HCO⁺ with H I - but may occur for any of several other reasons. The optical depth of the 1667 MHz OH line is subject to excitation effects which produce rather spectactular results at higher OH column densities between $10^{14}{-} 10^{15}~{\rm cm}^{-2}$ (van Langevelde et al. 1995) but OH exists in phases of lower and higher excitation even in diffuse gas (Liszt & Lucas 1996). The OH-HCO⁺ comparison is of particular importance and is discussed separately in Sect. 3.3.

Another effect which may be important in NGC 1052 is the frequency dependence of the free-free opacity about the nucleus. Kameno et al. (2001) have modelled an asymmetric electron distribution having a peak free-free opacity of 300 toward the core at 15.4 GHz. Scaling as $\nu^{-2.1}$ , the peak opacity at 89-115 GHz would be only 4-7. Thus the innermost parts of the jets could become visible in mm-wave absorption (there is a pronounced gap in VLB maps up to 43 GHz, see Vermeulen et al. 2003), perhaps exposing higher-velocity foreground material to illumination by background continuum.

Another possibility for creating differences is the secular evolution of the blobby knot structure within the VLB jet; the few years which elapsed between the observations of Vermeulen et al. (2003) and our own (from 1997 and 1998 to 2001) most likely witnessed substantial evolution in the jet structure. Spectral index variations over the jet structure will also result in different weighting of absorption from foreground gas seen at widely differing frequencies.

The kinematics of the inner regions are rather poorly understood. Redshifted gas appears on both sides of the nucleus, to the West in the H₂O maser spots seen against the counterjet and to the East and West in H I absorption (Claussen et al. 1998; Vermeulen et al. 2003). The H $\alpha$ line (Plana & Boulesteix 1996) shows complementary prograde and retrograde rotating disks on scales of 1-2 kpc (10 $^{\prime\prime}$ -20 $^{\prime\prime}$ ) but the velocities of neither structure (relative to the systemic) approach those seen in the masers or radiofrequency absorption lines. This is analogous to Cen A, where the nuclear disk seen in CO emission (Liszt 2001) has no presence whatsoever in H $\alpha$ (Bland et al. 1987). The differences between CO and H $\alpha$ in the nucleus of Cen A stand in sharp contrast to what is seen over the larger dust lane, where they behave essentially identically within the various limitations of the observational data. However, the circumnuclear disk in Cen A is well-described as purely rotating (Liszt 2001), which cannot account for the redshifted absorption features.

3.2 Comparison with Cen A

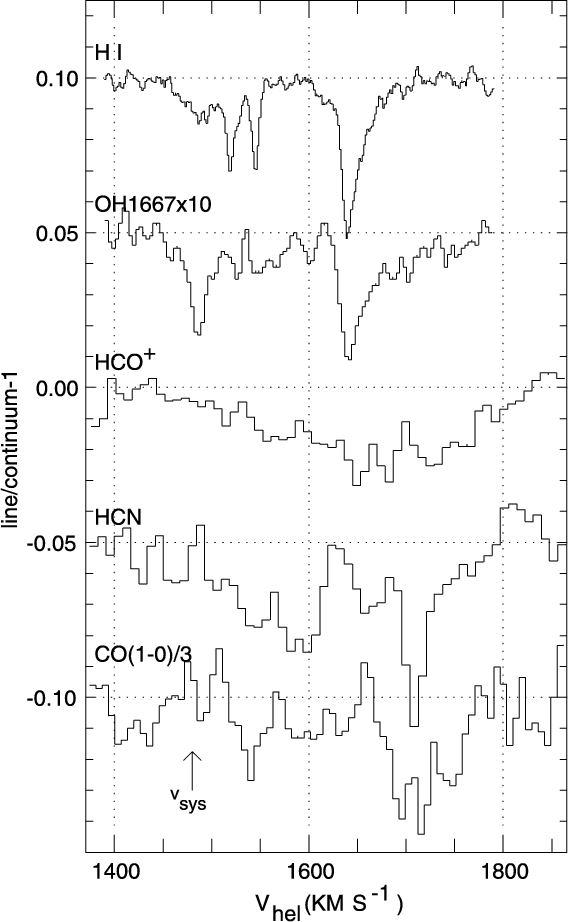

Shown in Fig. 2 are profiles toward Cen A like those shown in Fig. 1 for NGC 1052. As toward NGC 1052, the absorption is red-shifted with respect to the systemic velocity, the most extreme velocities (relative to the systemic velocity) are more prominent in molecular gas, and several very prominent, discrete H I features have no counter part in molecular absorption. The somewhat eccentric placement of the various narrow OH and HCO⁺ components with respect to H I are entirely typical of local lines of sight through the Milky Way (Liszt & Lucas 1996; Lucas & Liszt 1996).

Until recently it appeared that H I absorption was considerably less extended in velocity, but the broad, faint wing above 600 km s^-1 discovered by Sarma et al. (2002) corrects this misimpression. Despite its substantial width, all of the absorption toward Cen A is much narrower than even the redshifted portion of the CO emission profile, which represents contributions from both the dust lane and inner circumnuclear disk (Liszt 2001).

3.3 OH and HCO⁺ in NGC 1052, Cen A and the Milky Way

Figure 3 shows the HCO⁺ and OH optical depths which have been observed in NGC 1052 and Cen A, along with the sample of local diffuse clouds of Liszt & Lucas (1996) and Lucas & Liszt (2000b). As is clearly the case in Fig. 3, OH and HCO⁺ absorption are extremely well correlated at low-to-moderate column densities. For reference, note that the OH column density toward $\zeta$ Oph, N(OH) $= 5 \times10^{13}~{\rm cm}^{-2}$ , corresponds to an integrated opacity of approximately 0.05 km s^-1. Thus the low-velocity profile integral toward NGC 1052 corresponds to little more than the amount of molecular material in a single local diffuse cloud.

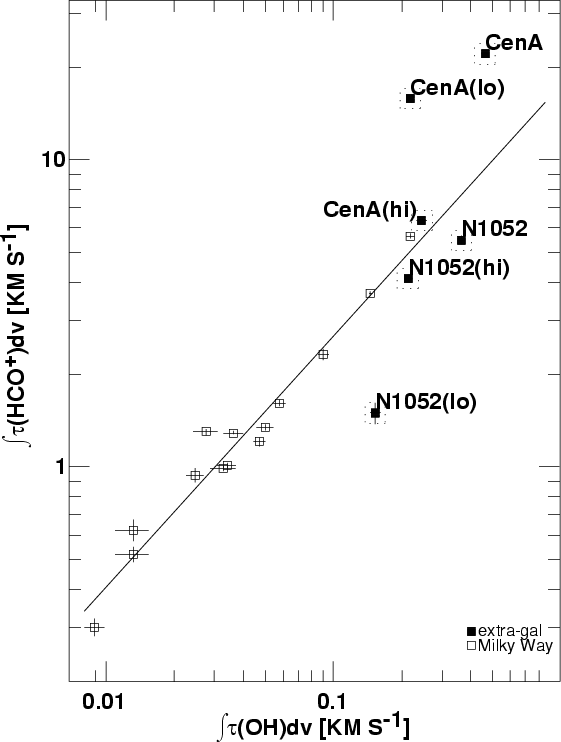

$\begin{figure} \par\includegraphics[height=10.5cm,width=7.9cm,clip]{1650fig3.eps}\end{figure}$	Figure 3: OH and HCO⁺ optical depths for galactic diffuse and translucent clouds, and elliptical galaxy lines of sight. The qualifications "lo'' and "hi'' in NGC 1052 and Cen A refer to the velocity ranges defined in Tables 1-2.
Open with DEXTER

The correlation between OH and HCO⁺ column densities implied by our data was shown by Kanekar & Chengalur (2002) to extend in rather spectactular fashion to four sources observed at redshifts up to about unity. By contrast, the OH/HCO⁺ integrated optical depth ratios seen in NGC 1052 and Cen A vary substantially from source to source and across the profile of either source individually. The profile integrals for lower and higher velocity gas (as defined in the footnotes to Tables 1 and 2) are shown in Fig. 3 along with the ratio of total integrals. In this plot we see that both galaxies have very similar amounts of OH absorption, but their HCO⁺ integrals differ by a factor of 4. The HCO⁺/OH ratios vary by similar factors of 4-5 across the profile in both systems, but the overall ratio in NGC 1052 is close to that seen in diffuse gas locally while that in Cen A is much larger. Not plotted, but as given in Tables 1-2, the OH/H I optical depth ratios actually vary little across the profile in either source, yet the OH/H I ratio overall varies by a factor of 6 between the two systems, even more than for OH/HCO⁺. For nearly the same amount of OH absorption, NGC 1052 has much smaller H I and HCO⁺ profile integrals.

For comparison we further note that the galactic OH absorption seen toward Sgr A $^\ast$ in the VLA synthesis of Killeen et al. (1992) (at v > -70 km s^-1, which omits some weak absorption arising in the -135 km s^-1 expanding molecular ring feature) has an integrated optical depth 14.6 km s^-1. This is 30-40 times higher than toward either elliptical. However the Milky Way CO emission toward Sgr A $^\ast$ has a profile integral of 1000 K in the J=3-2 line (Liszt & Burton 1995), despite being heavily absorbed by intervening gas (the J=1-0 profile integral from the 12 m telescope is 1400 K km s^-1). Thus the CO emission/OH absorption ratio in the Milky Way, 1000 K km s^-1/14 km s^-1 $\simeq$ 70 K across the entire profile, is actually quite similar to that in Cen A, 66 K km s^-1/0.463 km s^-1 = 143 K.

4 Summary

The Plateau de Bure's detection of mm-wave absorption from HCO⁺, HCN and CO toward the center of the elliptical galaxy, LINER- and H₂O megamaser-host NGC 1052 provides new opportunities to probe the material which obscures and reddens the optical nucleus. OH and HCO⁺ yield consistent estimates of the hydrogen column density in molecular gas 2N(H₂) $\simeq 5\times10^{21}~{\rm cm}^{-2}$ , assuming conditions like those seen locally in the Milky Way. These estimates are quite consistent with the amount of reddening observed toward the nucleus (0.42 mag).

Our HCO⁺ profile is somewhat broader than either H I or OH. Although chemical differences between OH and HCO⁺ are not expected, a wide range of other influences may be called up on account for differences in linewidths and line ratio variations across the profile. These include excitation effects, secular evolution of the background between epoochs of observation, and frequency-dependence of both the jet structure and the free-free opacity obscuring the background radio source.

CO emission has been unsuccessfuly sought (by others) toward NGC 1052 at fairly low levels. The absence of CO emission from gas having an optical depth of 0.1, as observed, and a molecular column density as inferred, indicates that the molecular gas distribution is small with respect to the singledish radiotelescope beams which have been employed. Current limits on CO emission brightness correspond to received flux levels which are not large compared to the amount of continuum flux which is being absorbed. As for H I, attempts to observe CO emission toward the nucleus of NGC 1052 are seriously compromised by contamination from absorption of comparable strength.

The OH/HCO⁺ ratio in NGC 1052 overall is quite close to the value established for local diffuse clouds; the gas in NGC 1052 is likely diffuse with a large fraction of molecular hydrogen but very incomplete conversion of carbon into CO. The Galactic OH/HCO⁺ ratio has also been found in several sources at redshift up to about 1. Yet, the OH/HCO⁺ ratio is markedly larger over the lower-velocity portion of the NGC 1052 absorption line profile. A comparison with observations of the other elliptical showing a similar wealth of molecular absorption lines, Cen A (NGC 5128), shows that the OH/HCO⁺ ratio also varies widely across the Cen A profile. Overall, Cen A has much more H I and HCO⁺ absorption than does NGC 1052, for very nearly the same OH absorption. The OH profile integral observed in the Milky Way toward Sgr A $^\ast$ is 30-40 times larger than that observed toward either NGC 1052 or NGC 5128. The reddening observed toward NGC 1052 is smaller by a similar factor (40) than that inferred toward Sgr A $^\ast$ .

Clarification of the distribution and kinematics of the molecular gas in the nucleus would be aided by VLB maps at frequencies comparable to (or above) those of the mm-wave absorption lines we have detected, and by searches for CO emission in regions of the dust lane seen away from the nuclear radiocontinuum.

Mm-wave HCO⁺, HCN and CO absorption toward NGC 1052
