All Figures

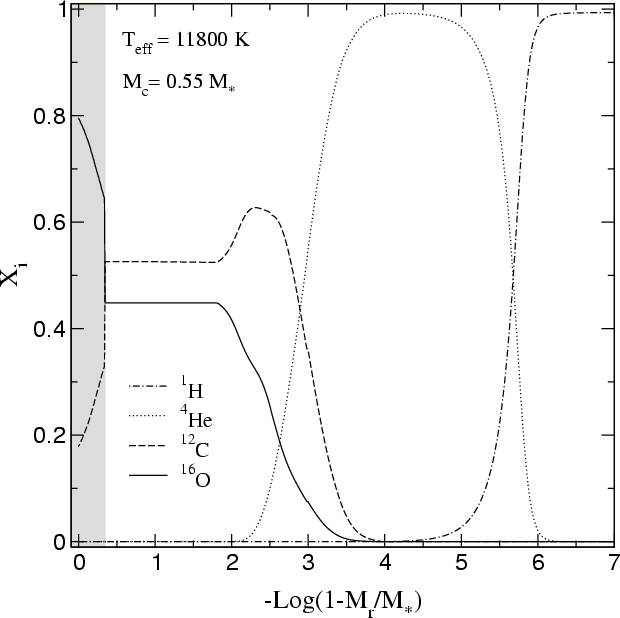

$\begin{figure} \par\includegraphics[clip,width=8.8cm]{0416fig1.eps}\end{figure}$ Figure 1: The internal chemical profile corresponding to a $1.06 ~ M_\odot$ CO model in which chemical rehomogenization induced by crystallization has been neglected. The gray area marks the domain of crystallization. $M_{\rm c}$ means the crystallized mass of the model.
Open with DEXTER

In the text

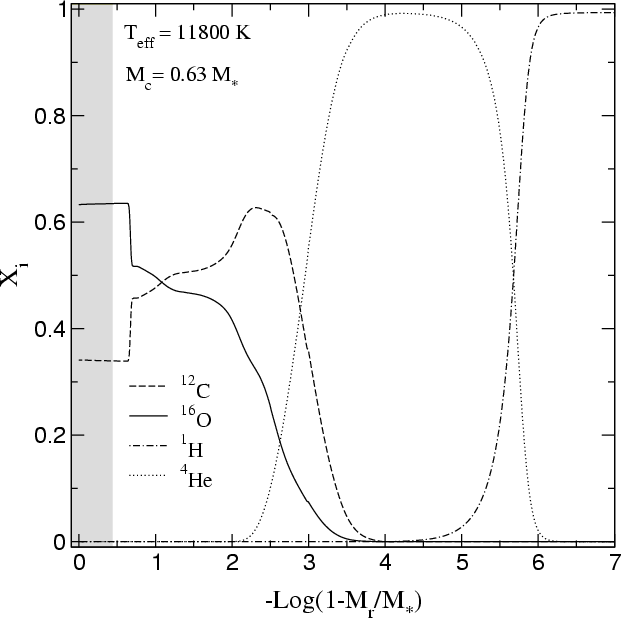

$\begin{figure} \par\includegraphics[clip,width=8.8cm,clip]{0416fig2.eps}\end{figure}$ Figure 2: Same as Fig. 1, but in the case in which chemical rehomogenization induced by crystallization has been taken into account.
Open with DEXTER

In the text

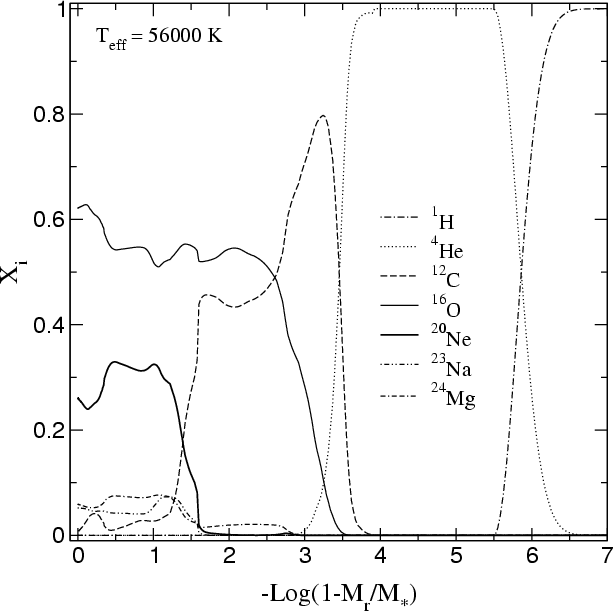

$\begin{figure} \par\includegraphics[clip,width=8.7cm]{0416fig3.eps}\end{figure}$ Figure 3: The internal chemical profile corresponding to our initial ONe white dwarf model in terms of the outer mass fraction.
Open with DEXTER

In the text

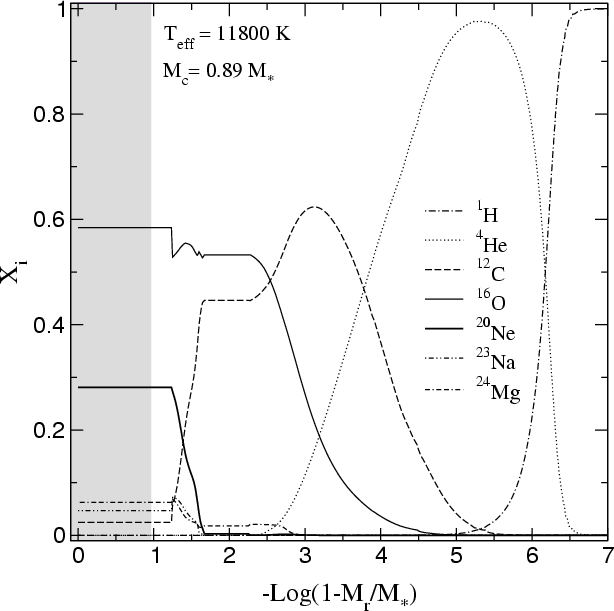

$\begin{figure} \par\includegraphics[clip,width=8.7cm]{0416fig4.eps}\end{figure}$ Figure 4: Same as Fig. 3, but for an ONe white dwarf model in the ZZ Ceti instability strip. The crystallized region is displayed as a gray area.
Open with DEXTER

In the text

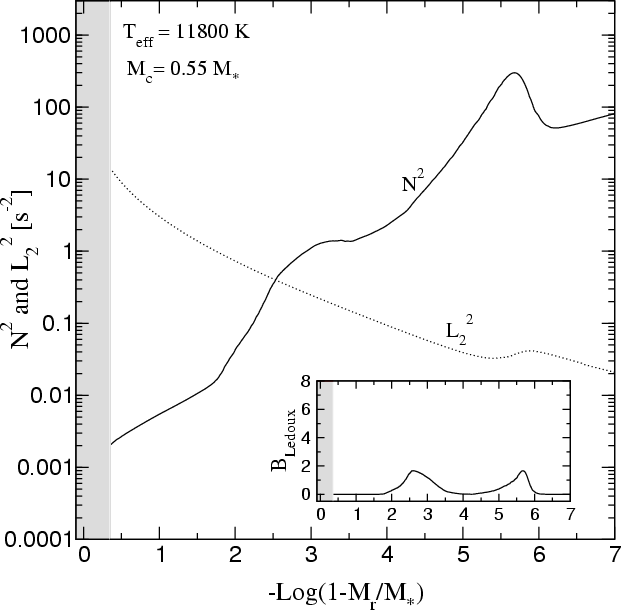

$\begin{figure} \par\includegraphics[clip,width=8.8cm]{0416fig5.eps}\end{figure}$ Figure 5: The squared Brunt-Väisälä frequency (N²) - solid line - in terms of the outer mass fraction, corresponding to the same CO white dwarf model shown in Fig. 1. Inset: the Ledoux term B. For the sake of completeness, we also show using a dotted line the acoustic (Lamb) frequency corresponding to $\ell = 2$ . The gray area marks the domain of the crystallized core. Here, because of the hard-sphere approximation, the detailed shape of the Brunt-Väisälä frequency is irrelevant to pulsations and hence it is not shown.
Open with DEXTER

In the text

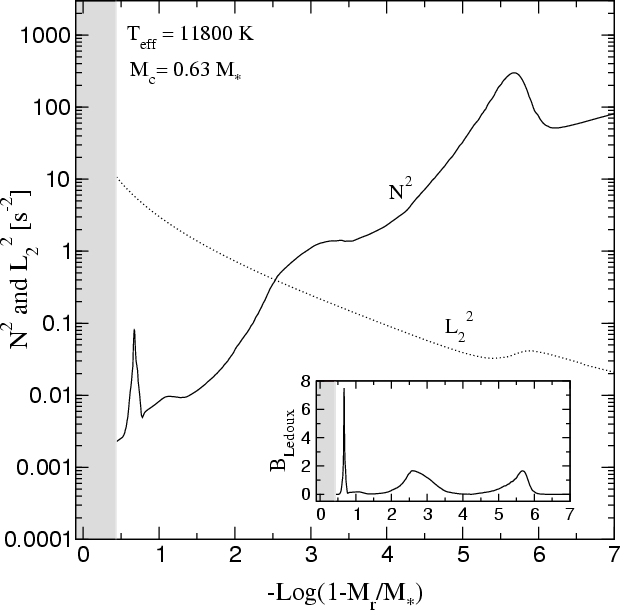

$\begin{figure} \par\includegraphics[clip,width=8.8cm,clip]{0416fig6.eps}\end{figure}$ Figure 6: Same as in Fig. 5, but for the CO white dwarf model analyzed in Fig. 2.
Open with DEXTER

In the text

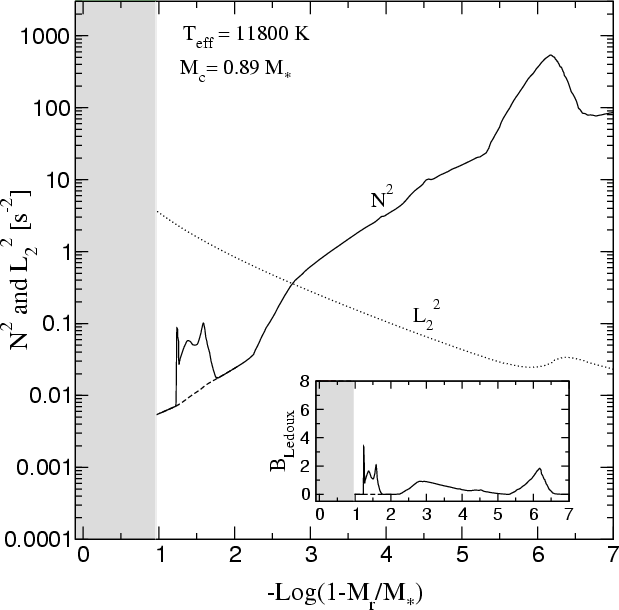

$\begin{figure} \par\includegraphics[clip,width=250pt]{0416fig7.eps}\end{figure}$ Figure 7: Same as Fig. 6, but for the ONe white dwarf model analyzed in Fig. 4. Dashed lines correspond to the case in which the Ledoux term B is neglected in the region $-2 \protect\la\log~ (1-M_{\rm r}/M_*) \protect\la -1$ (see Sect. 3.2 for additional details).
Open with DEXTER

In the text

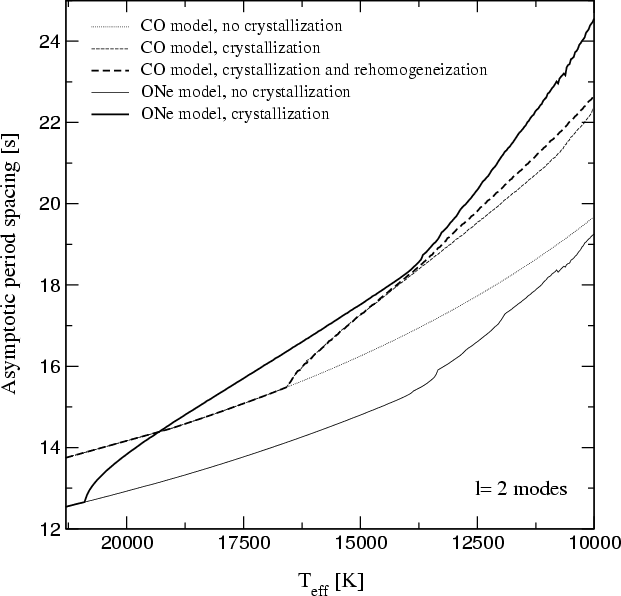

$\begin{figure} \par\includegraphics[clip,width=8.8cm]{0416fig8.eps}\end{figure}$ Figure 8: Asymptotic period spacing, $\Delta P_{(\ell =2)}$ , as a function of the effective temperature, for the CO and ONe evolutionary cooling sequences (thick and thin curves, respectively). See text for details.
Open with DEXTER

In the text

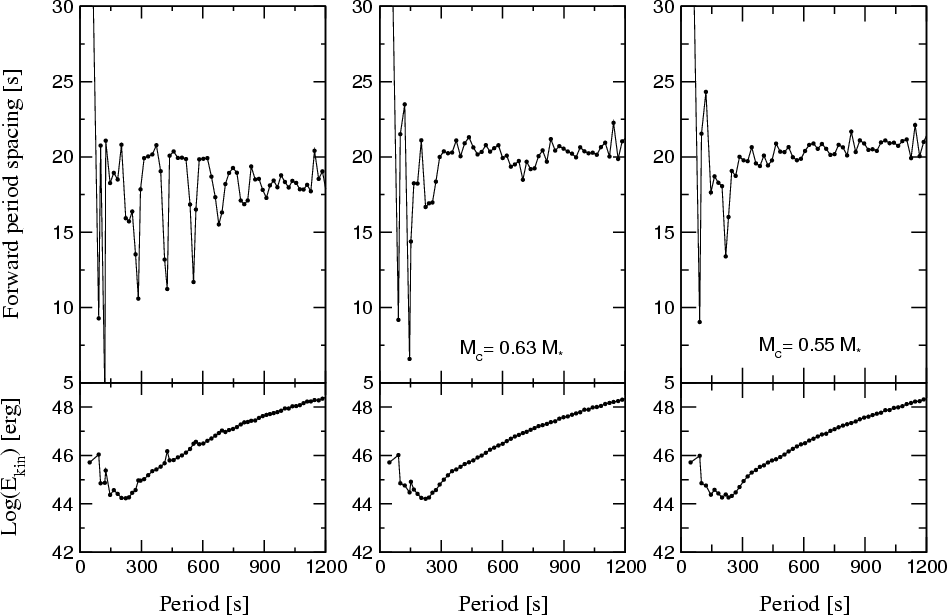

$\begin{figure} \par\includegraphics[clip,width=16cm]{0416fig9.eps}\end{figure}$ Figure 9: The forward period spacing ( upper panels) and the kinetic energy ( lower panels) in terms of the periods of $\ell = 2$ pulsation modes. The left panels correspond to a CO white dwarf model in which crystallization has not been taken into account. The central panels show the same quantities for a model at the same $T_{\rm eff}$ in which crystallization has been considered but phase separation has not. Finally, the right panels show the case in which both crystallization and phase separation have been taken into account.
Open with DEXTER

In the text

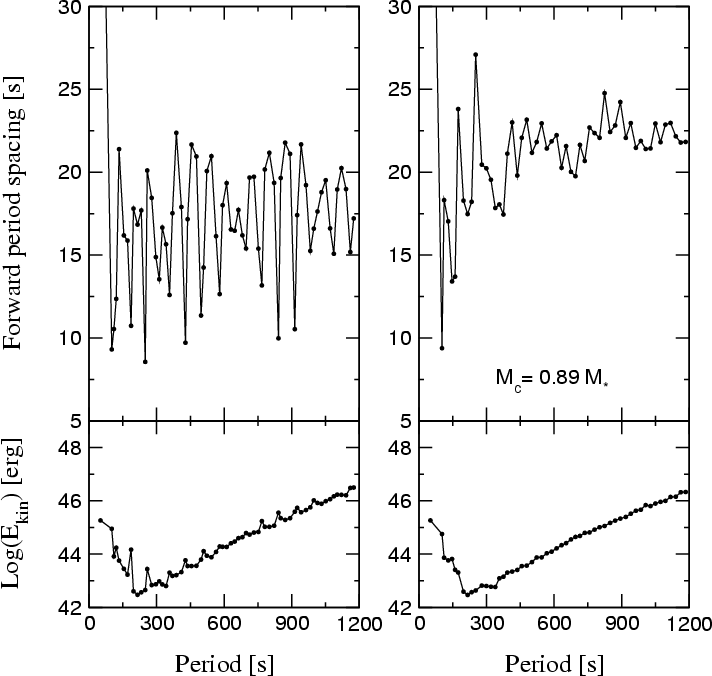

$\begin{figure} \par\includegraphics[clip,width=11.5cm]{0416fi10.eps}\end{figure}$ Figure 10: Same as Fig. 9, but for the case of an ONe white dwarf.
Open with DEXTER

In the text

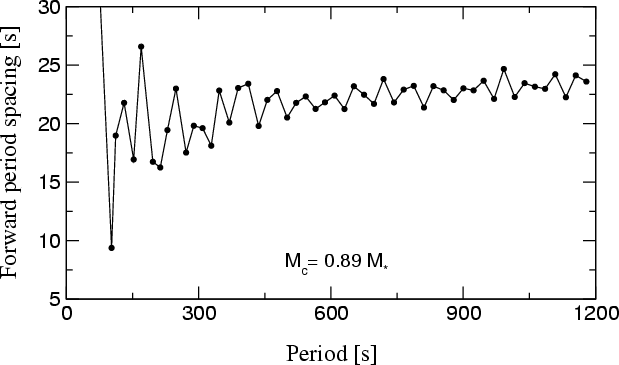

$\begin{figure} \par\includegraphics[clip,width=250pt]{0416fi11.eps}\end{figure}$ Figure 11: Same as the upper-right panel of Fig. 10, but for the case in which the effect of the strong step in the chemical profile at $-2 \protect\la\log~ (1-M_{\rm r}/M_*) \protect\la -1$ (see Fig. 4) on the shape of the Brunt-Väisälä frequency has been neglected by setting B= 0 in that region (see Fig. 7).
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[clip,width=8.8cm]{0416fig1.eps}\end{figure}$	Figure 1: The internal chemical profile corresponding to a $1.06 ~ M_\odot$ CO model in which chemical rehomogenization induced by crystallization has been neglected. The gray area marks the domain of crystallization. $M_{\rm c}$ means the crystallized mass of the model.
Open with DEXTER

$\begin{figure} \par\includegraphics[clip,width=8.8cm,clip]{0416fig2.eps}\end{figure}$	Figure 2: Same as Fig. 1, but in the case in which chemical rehomogenization induced by crystallization has been taken into account.
Open with DEXTER

$\begin{figure} \par\includegraphics[clip,width=8.7cm]{0416fig3.eps}\end{figure}$	Figure 3: The internal chemical profile corresponding to our initial ONe white dwarf model in terms of the outer mass fraction.
Open with DEXTER

$\begin{figure} \par\includegraphics[clip,width=8.7cm]{0416fig4.eps}\end{figure}$	Figure 4: Same as Fig. 3, but for an ONe white dwarf model in the ZZ Ceti instability strip. The crystallized region is displayed as a gray area.
Open with DEXTER

$\begin{figure} \par\includegraphics[clip,width=8.8cm,clip]{0416fig6.eps}\end{figure}$	Figure 6: Same as in Fig. 5, but for the CO white dwarf model analyzed in Fig. 2.
Open with DEXTER

$\begin{figure} \par\includegraphics[clip,width=250pt]{0416fig7.eps}\end{figure}$	Figure 7: Same as Fig. 6, but for the ONe white dwarf model analyzed in Fig. 4. Dashed lines correspond to the case in which the Ledoux term B is neglected in the region $-2 \protect\la\log~ (1-M_{\rm r}/M_*) \protect\la -1$ (see Sect. 3.2 for additional details).
Open with DEXTER

$\begin{figure} \par\includegraphics[clip,width=8.8cm]{0416fig8.eps}\end{figure}$	Figure 8: Asymptotic period spacing, $\Delta P_{(\ell =2)}$ , as a function of the effective temperature, for the CO and ONe evolutionary cooling sequences (thick and thin curves, respectively). See text for details.
Open with DEXTER

$\begin{figure} \par\includegraphics[clip,width=11.5cm]{0416fi10.eps}\end{figure}$	Figure 10: Same as Fig. 9, but for the case of an ONe white dwarf.
Open with DEXTER

$\begin{figure} \par\includegraphics[clip,width=250pt]{0416fi11.eps}\end{figure}$	Figure 11: Same as the upper-right panel of Fig. 10, but for the case in which the effect of the strong step in the chemical profile at $-2 \protect\la\log~ (1-M_{\rm r}/M_*) \protect\la -1$ (see Fig. 4) on the shape of the Brunt-Väisälä frequency has been neglected by setting B= 0 in that region (see Fig. 7).
Open with DEXTER
