A&A 426, 797-808 (2004)
S. Collin - T. Kawaguchi
LUTH, Observatoire de Paris, Section de Meudon, 92195 Meudon Cedex, France
Received 26 March 2004 / Accepted 5 July 2004
We use the BH masses deduced from the empirical relation of Kaspi et al. (2000) between the size of the Broad Line Region (BLR) of Active Galactic Nuclei (AGN) and the optical luminosity, to compute their accretion rates in four samples of AGN, assuming that the optical luminosity is provided by the accretion disc. We show that Narrow Line Seyfert Galaxies 1 (NLS1s) accrete at super-Eddington rates, while their luminosity stays of the order of the Eddington limit. We take into account the possibility of a non-viscous energy release inversely proportional to the square of the distance in the gravitationally unstable region of the disc emitting a fraction of the optical luminosity. It leads to a smaller accretion rate and to a redder continuum than a standard disc, which agrees better with the observations. The observed bolometric luminosities appear to saturate at a few times the Eddington luminosity for super-Eddington accretion rates, as predicted by slim disc models. They favor a Kerr BH rather than a Schwarzschild one. Even when the accretion rate is super-Eddington, it stays always of the order of a few /yr, irrespective of the BH mass, indicating that the growing of the BH is mass-supply-limited and therefore regulated by an exterior mechanism, and not Eddington-limited. The mass of the BH increases by one order of magnitude in a few 107 years, a time smaller than that necessary for changing the bulge mass. This is in agreement with recent claims that the BHs of NLS1s do not follow the same black hole - bulge relation as other galaxies. Since they represent about 10 of AGN up to a redshift of 0.5, these "super-active'' phases should play an important role in shaping the mass function of local BHs. We finally discuss the possibility that the masses could be systematically underestimated due to an inclination effect, and we conclude that this could indeed be the case, and that the accretion rates could thus be strongly overestimated in a small fraction of objects, possibly explaining the existence of apparently extremely high accretors.
Key words: galaxies: quasars: general - accretion, accretion disks - galaxies: active - galaxies: Seyfert
The evolution of massive black holes (BHs) in relation with their host galaxy is presently intensively debated. Massive black holes seem present in all galactic nuclei, independently of their level of activity. In about 40 inactive nearby galaxies, their mass was found proportional to the luminosity of the bulge of the host galaxy (Magorrian et al. 1998). Ferrarese & Merritt (2000) and Gebhardt et al. (2000a) showed that a tight relation exists between the mass of the BH, M, and the dispersion velocity of the bulge. The slope of the relation is still debated, and the recent work of Tremaine et al. (2002) gives a value close to 4. Several mechanisms accounting for this relation have been proposed (Silk & Rees 1998; Umemura 2001; King 2003). When is expressed in terms of the bulge mass, it leads to . It is thus clear that the growth of the BH and the evolution of the host galaxy are related, so it is generally assumed that their co-evolution is mainly the result of merger events within the hierarchical scenario of large structure formation (Haehnelt et al. 1998; Kaufman & Heahnelt 2000; Menou et al. 2001; Hatziminaoglou et al. 2003).
However this scenario is beginning to be questioned seriously. It is indeed difficult to explain how smaller BHs grow at lower redshifts and more massive ones at higher redshift. So Marconi et al. (2004) propose that local BHs grow mainly during Active Galactic Nuclei (AGN) phases. This raises immediately the question whether BHs in local AGN and in quasars follow the same BH/bulge relationship as in other galaxies.
The BH masses in AGN are not determined like in inactive galaxies by the study of the stellar rotation curve close to the center. In about 40 AGN, they are determined directly through reverberation mapping (Wandel et al. 1999a; Kaspi et al. 2000), which yields an empirical relation between the luminosity and the size of the Broad Emission Line Region (BLR), and then to the BH mass, using the Full Width at Half Maximum FWHM of the broad lines as a surrogate of their dispersion velocity and assuming that the BLR is gravitationally bound to the BH, an assumption confirmed by detailed studies (Peterson & Wandel 1999, 2000). In the other AGN the BH masses are determined indirectly assuming that the same relations hold. Wandel (1999a) showed that Seyfert galaxies have lower BH to bulge mass ratios than inactive galaxies, but the revision of the Magorrian relation leads the final conclusion that it is not the case (Laor 2001; Wandel 2002; Gebhardt et al. 2000b).
However, the status of Narrow Line Seyfert 1 galaxies (NLS1s) is not well established in this context. NLS1s constitute about 10 of Seyfert nuclei and quasars up to a redshift of 0.5 (Williams et al. 2002). Though they have been known for a long time (Osterbrock & Pogge 1985), their nature is still not well understood. Beside the "narrowness'' of their broad lines, these galaxies share common properties, such as strong FeII permitted lines and weak forbidden [OIII] lines, a strong X-ray variability and a big soft X-ray hump (see several reviews in Boller et al. 2000). Mathur et al. (2001) suggested that the BH/bulge mass ratio is smaller in NLS1s, and Wandel (2002) found that to 10-4 , a smaller value than for broad line AGN (BLS1s). Both papers are based on a very limited sample, and are subject to statistical uncertainties. Moreover, in NLS1s the bulge mass is generally not deduced from the stellar dispersion velocity but from the width of the [OIII]5009 line assumed to be proportional to it, following a suggestion of Nelson & Whittle (1996) for Seyfert 1 galaxies (actually Wandel 2002, used direct measurements of the bulge luminosity). Wang & Lu (2001) argued that the [OIII] width is not accurately determined in NLS1s, owing to the weakness of the line and to the presence of a blue wing, both effects leading to an overestimate of ([OIII]) and therefore of the bulge mass. However Grupe & Mathur (2004) confirmed the previous result of Mathur et al. (2001) with a complete X-ray selected sample of NLS1s, even when taking into account the presence of the blue wing of the [OIII] line, and they claim that NLS1s occupy distinct regions in the BH/bulge mass relation. Botte et al. (2004) do not confirm this result, and from a study of the photometric properties of the host galaxies they find that the NLS1 galaxies seem to have the same BH/bulge mass relation as ordinary Seyfert, and simply occupy the lower ranges of the plane. Bian & Zhao (2003) came to the opposite conclusion, based also on the bulge luminosity (we recall that the relation deduced from the bulge luminosity and the host properties has a larger scatter than that deduced from the dispersion velocity), but found that NLS1s do not follow the ordinary relation when the [OIII] line is used as an indicator of the dispersion velocity (Bian & Zhao 2004). Finally Botte et al. (2004) show that there is a smooth relation between the BH mass and the bulge luminosity for different classes of AGN, while there is a jump between the BH mass and the [O III] width. The latter finding is consistent with what was claimed by Grupe & Mathur (2004) and by Bian & Zhao (2004).
One sees that the problem of the BH/bulge mass relation in NLS1s is presently highly controversial. It has important cosmological consequences. If BHs in NLS1s are undermassive with respect to their host bulge, it would imply that these galaxies are "young'', in the sense that they are still in the process of building their BH. This would mean that BHs and galaxies do not evolve concomitantly (Mathur 2000; Grupe & Mathur 2004). We will show here that there is a strong reason to believe this is true, because NLS1s seem to be accreting at super-Eddington rates and therefore the time scale for the growing of their central black holes could be extremely short.
It is now widely admitted that NLS1s are radiating close to the Eddington luminosity . This result is simply obtained from the mass-luminosity-FWHM relations mentioned above. A few objects might even have super-Eddington bolometric luminosities, depending on the conversion factor used to transform the optical-UV luminosity into a bolometric one and on the adopted Hubble constant, but these never exceeds a few . From this result many people, assuming that the efficiency factor for conversion of mass into energy is constant and of the order of 0.1, deduce that these objects are also accreting close to their Eddington limit.
But why would it have to be so? Super-Eddington accretion is indeed theoretically allowed. Near the BH, the gas forms an accretion disc, which is supposed to emit the "Big Blue Bump'' (BBB). The accretion rate and the BH mass determine the spectral distribution and the flux of the BBB. It is thus possible to determine the accretion rate when the mass is known. This was done by Collin et al. (2002, hereafter referred as C02), using the sample of Kaspi et al. (2000) for which the BH masses are deduced from reverberation mapping, and assuming that the optical luminosity is provided by a standard accretion disc (once the luminosity of the underlying galaxy has been subtracted). They found that a fraction of objects is accreting at super-Eddington rates, while their optical luminosity stays lower than or of the order of the Eddington luminosity. Actually, when the accretion rate is close to, or larger than the Eddington limit, accretion close to the BH does not proceed through a "thin'', but a "slim'' disc whose cooling time is larger than the viscous time, so energy is advected towards the BH before being radiated. The mass-energy conversion efficiency thus decreases as the accretion rate increases, and the luminosity increases only logarithmically with the accretion rate (Abramowicz et al. 1988; Wang et al. 1999; Fukue 2000; Mineshige et al. 2000; Wang & Netzer 2003; Kawaguchi 2003). The emission of such a disc is characterized by a soft X-ray bump like those observed in NLS1s. Kawaguchi (2003), and Kawaguchi et al. (2004, hereafter called KPH) have confirmed that the overall Spectral Energy Distribution (SED) of the two most super-Eddington accretors are well fitted by the emission of a slim disc. Finally, Wang (2003) noted that super-Eddington accretion should lead to a limit relation between the BH mass and the FWHM of the lines, and he found several objects satisfying this relation, indicating that they radiate close to their Eddington luminosity, but accrete above the Eddington limit.
There were only a few NLS1s in the Kaspi et al. sample studied in C02. Moreover the sample is not statistically complete since half of the objects are nearby Seyfert nuclei chosen mainly for their high degree of variability. The recent release of several complete samples including a large number of NLS1s, and the renewed interest in these objects since a few years, motivated us to conduct the same study on these new samples. While only standard discs were assumed in C02, here we take into account the deviation from the standard disc due to the disc self-gravity, which is particularly important in super-Eddington objects (cf. KPH). We also use the slim disc model to compute the bolometric luminosity as a function of the accretion rate. We finally discuss some observational consequences not envisioned in C02. The model can account for the fact that the optical-UV continuum of NLS1s is redder than that of ordinary Seyferts (Constantin & Shields 2003). The variation of the bolometric luminosity with the accretion rate agrees with the slim disc model. It explains why the FWHMs of the broad lines are larger than 700 km s-1.
In this paper, we only want to show some general trends and draw qualitative conclusions concerning the accretion rates of NLS1s, using rough theoretical models of accretion discs and applying them to entire samples.
Finally we stress that throughout this paper we accept the commonly admitted statement that the narrowness of the lines of NLS1s is not due to an inclination effect, i.e. that NLS1s do not constitute a sample of normal Seyfert 1 nuclei whose broad line region is a rotating disc seen almost face-on. In this case, it is clear that the masses derived from the reverberation mapping formulae would be strongly underestimated, and consequently their luminosities (in terms of Eddington luminosity) overestimated.
In the following section, we recall first how BH masses are determined and we present the samples. We incidentally discuss the explanation of the empirical relation between the luminosity and the size of the BLR. In Sect. 3 we summarize the theoretical model. Section 4 is devoted to a discussion of the results, and in the last section we discuss the alternative possibility that the masses of NLS1s could be underestimated and the accretion rates overestimated.
Reverberation mapping studies made it possible to determine the sizes of
the BLR in about 40 objects. It led to the discovery of a
correlation between the radius of the region emitting the H
which we will call
and the monochromatic luminosity at 5100 Å,
(Kaspi et al. 2000):
It is now
well demonstrated that the broad H
emitting region is
gravitationally bound to the BH (Peterson & Wandel 2000).
This gives another relation,
where G is the gravitational constant.
V is generally taken equal to
corresponding to BLR clouds in random
orbital motion. The relation becomes, using Eq. (1):
These relations have important consequences. If one assumes
a canonical value for the quasar
continuum (cf. Elvis 1994; Laor et al. 1997), one gets from Eqs. (1)
There are several possible explanations for this relation. Line emission can be suppressed by dust beyond the radius of sublimation, which corresponds to a given heating flux (Netzer & Laor 1993). But this constraint provides only an outer boundary of the BLR. Nicastro (2000) proposed that clouds are formed in a wind above the disc, close to the transition region between the gas and the radiation pressure dominated zones of the disc. However the size of the BLR depends both on the BH mass and on the luminosity, while the observations give only a luminosity dependence. The striking similarity of AGN spectra led also to the idea that the "ionization parameter'' (i.e. the radiation pressure to gas pressure ratio or the photon density to gas density ratio, , n being the electron number density) is constant among all objects. Actually the size-luminosity relation rather implies that the product of the density with the ionization parameter is constant. This is consistent with the so-called "LOC'' model.
In 1995, Baldwin et al. proposed that the observed spectrum of AGN is simply a consequence of the ability of a photoionized medium to reprocess the underlying continuum "as long as there are enough clouds at the correct radius and with the correct gas density to efficiently form a given line''. In this "Locally Optimally Emitting Clouds'' (or LOC) model, each line is emitted preferentially at an appropriate ionizing flux corresponding to a given distance from the source. According to the grid of photoionized models published by Korista et al. (1997) the "optimal'' ionizing flux for the H line is almost independent of the density and of the spectral distribution of the ionizing continuum. It is of the order of 108 erg s-1 cm-2. This means that as long as there are clouds in a large range of radius with the appropriate density (i.e. between 109 and 1014 cm-3) the ionizing continuum will be reprocessed in the H line with a maximum efficiency at an optimal distance cm, where is the ionizing luminosity. From the Gru03 sample, one gets L(5100) (precisely L(5100) and L(5100)1.13, with a correlation factor of 0.9). Thus the observed relation transforms into cm, which is similar to the relation expected for the LOC model (the ionizing luminosity being slightly smaller than the bolometric luminosity).
So the only necessary condition for the observed relationship is the existence of clouds within a broad range of densities at a radius smaller than the typical distance of the BLR, say 10 . Collin & Huré (2001) suggested that such clouds form above the gravitationally unstable region of the disc. Since the disc becomes gravitationally unstable at small radii compared with the size of the BLR (cf. later), this condition is satisfied. The BLR clouds would thus constitute simply the outer part of the region emitting the optical continuum. Laor (2003) objected to this idea that "since all accretion discs must become gravitationally unstable far enough from the center, this mechanism does not provide a natural explanation for the apparent absence of a BLR in some Agn''. But there are actually several possible explanations for the absence of BLR. For instance, in low luminosity objects, it can be due to the suppression of the ionizing radiation in an Advection Dominated Accretion Flow (ADAF). It can also simply be caused by the absence of adequate physical conditions in the gravitationally unstable disc, like a too high or to low density.
We use two complete samples including both NLS1s and BLS1s.
The recent data release of the Sloan Digital Sky Survey (SDSS) allowed Boroson to build a homogeneous sample of 107 low-redshift radio-quiet QSOs and Seyfert 1 galaxies (Boroson 2003). It is aimed at comparing the BH masses determined from the empirical relations with those deduced from the dispersion velocity of the [OIII] line, used as a surrogate of the stellar velocity dispersion. About one third of objects in this sample are NLS1s. It makes it possible to study a large range of masses and luminosities. For each object the redshift, the FWHM(H) and the BH mass are given, and we deduce the optical luminosity at emission from Eqs. (1) and (2). We call this sample Bor03.
The second one is a complete sample of X-ray selected AGN (Grupe et al. 2004). According to the selection procedure, about half of the objects are NLS1s. L(5100) is given, but for an empty universe, so we made the conversion to q0=0.5. We call this sample Gru03. It is particularly interesting for us as it gives an estimate of the bolometric luminosity of the objects based on the observed spectral energy distributions, which we will be able to compare with our models.
We also use two other heterogeneous samples. Wang & Lu (2001) deduced L(5100) from the B-magnitude using the Véron-Cetty et al. (#Vé<#423) sample, which contains 59 NLS1s, and they estimated the BH masses using the previous empirical relations. After rejection of a few objects for which the FWHM are controversial, the sample was reduced to 54 NLS1s. We call it the VVG sample. We also used a heterogeneous sample of soft X-ray selected AGN (Grupe et al. 1998, 1999), which has the advantage of giving optical indices useful for checking our models. We also made the conversion from q0=0 to q0=0.5. We call it Gru99. Note that a few objects are also in Gru03.
The samples have not been corrected for the stellar contribution of the host galaxy to the optical luminosity. It is certainly important for low luminosity AGN, but not when the optical luminosity is larger than a few 1043 erg/s. In the following we will distinguish or suppress all weak objects from the samples, so we can be fairly confident that the results will not be contaminated by the host galaxy.

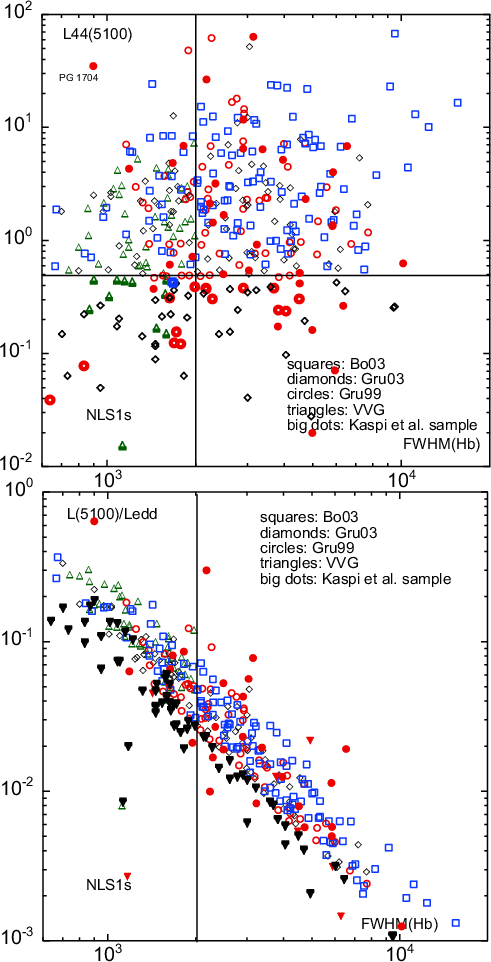

|Figure 1: L(5100) (top) and L(5100)/ ( bottom) versus the FWHM for all samples. The black (resp. red) triangles indicate the objects with L(5100) erg/s for all samples (resp. the Kaspi et al. sample). The object lying much below the others is NGC 4051.
|Open with DEXTER
Figure 1 displays respectively L(5100) (top) and L(5100)/ (bottom) versus the FWHM for all samples. We note immediately the strong difference between these two graphs. While the first one shows a very loose correlation, corresponding to the absence of low luminosity objects with large FWHMs and of high luminosity objects with small FWHMs, the second one shows a tight correlation with a slope equal to -2, which is expected according to the first line of Eq. (3). The black triangles indicate the objects with L(5100) erg/s: note that these low luminosity objects have the same relation as the others.
For comparison, we have added on these figures the objects where the BH masses have been determined directly by reverberation mapping (we call these objects the "Kaspi et al. sample'', though half of them were not observed by Kaspi et al. 2000). They span the same range of luminosities as the other samples. But first, they show a looser correlation between L(5100)/ and the FWHMs; this is expected as the determination of the mass in the other objects makes use of an exact relation L-R(BLR), not taking into account its errors. And second, the relation should be extrapolated to values of the mass and of the Eddington ratio smaller by a factor of 5. This should be kept in mind in the following analysis. Note that the values of the luminosities used in this figure are for H0=75 km s-1 Mpc-1, while C02 assumed H0=50 km s-1 Mpc-1.
For more than fifteen years it has been widely admitted that the "infrared bump'' at a few microns and the "Big Blue Bump'' observed in radio quiet quasars and Seyfert nuclei are both due to thermal emission, respectively by hot dust heated by the UV-X continuum, and by the accretion disc (Sanders et al. 1989). In this picture, the observed "dip'' at 5000 Å in the log versus log curve corresponds to the junction between these two processes, the hot dust close to the sublimation temperature (1700 K) being unable to radiate appreciably below 1 m. In particular the idea of an underlying non-thermal power law continuum which was invoked in the past and used to model the infrared to UV emission of AGN has been completely left. So the emission at 5000 Å should be due entirely to the accretion disc, unless another medium can give rise to a smooth featureless optical continuum. The problem was discussed in C02, and they showed that it would require the existence of a very dense, optically thick and relatively cold medium. It is difficult to find another location for such a medium than an optically thick accretion disc.
For a "standard'' thin Keplerian disc where
gravitational energy is released locally through turbulent viscosity,
distance R from a BH of mass M is:
Each spectral band is emitted near a given radius, and the optical band
corresponds to a large distance from the black hole, typically 10
being the gravitational radius GM/c2). At such large
radii, the disc is dense, relatively cold and optically thick, and
its local emission spectrum is close to a black body
at the temperature
(cf. Collin 2001; note that this is
not the case
at smaller radii, i.e. in the EUV band). Integrating the
Planck law with
over the disc, one
finds for the luminosity at a frequency :
So it is possible, using Eqs. (4) and (5), to deduce the accretion rate when the mass is known. One sees also from these equations that L(5100) is approximately proportional to . This is not true for very large masses and small accretion rates, where ) is of the order of , or for truncated discs.
For super-Eddington accretion rates this picture is changed. The radiative efficiency per unit mass accretion is expected to decrease due to the onset of photon trapping (Begelman 1978). As a result, the emergent luminosity from an accretion flow starts to saturate at a few times (Abramowicz 1988). Self-similar solutions with super-Eddington accretion rates (Fukue 2000; Wang & Netzer 2003) are only valid inside the photon trapping radius, where soft X-ray photons are emitted. However, full integration of differential equations from far outside the photon trapping radius to the vicinity of the central BH (Shimura & Manmoto 2003; Kawaguchi 2003) is necessary in order to discuss the broad-band spectra of NLS1s. We use the slim disc model for a Schwarzschild BH computed as in Kawaguchi (2003), which is based on the code developed by Matsumoto et al. (1984). The effects of electron scattering (both in opacity and Comptonization) and relativistic correction are included. We take the viscosity parameter equal to 0.1. Note that the slim disc is used here only to compute the bolometric luminosity.
Even if the accretion rate is very high (in Eddington value) the optical luminosity is still emitted at a large radius where the accretion flow is not influenced by advection and photon trapping, except in the case of very high accretion rates ( , cf. KPH), and the standard disc model is valid. The only deviation to the local blackbody in the optical region is due to electron scattering (as modified blackbody, see Czerny & Elvis 1987), which distorts the spectrum for super-Eddington accretion rates. It is negligible as long as viscosity is small ( ) and the BH mass is small ( M), so the distortion is not very important for NLS1s (cf. KPH), and we will neglect it in this paper.
However, one important fact should not be forgotten, which acts also for modest accretion rates but is very important for super-Eddington accretion rates.
At about the distance
of the optical emitting region,
the disc becomes
self-gravitating, i.e. the vertical component of the BH gravity
becomes smaller than the disc's own gravity. This occurs
beyond a critical radius
corresponding to a density:
Koratkar & Blaes (1999) stressed that the standard disc model leads to a continuum bluer than the average AGN continuum, which has a mean spectral index of 0.3 to 0.5 (we define the spectral as ). Actually this is a problem only for small BH masses and large accretion rates. In the case of large BH masses and small accretion rates, the optical spectrum-UV spectrum is emitted by the Wien part of the Planck function, and is redder than .
Several sources of heating can overcome the gravitational viscous release beyond the self-gravitational radius. The disc can be irradiated by the central source of UV-X continuum if it is "flaring'' (i.e. if its thickness varies more rapidly than the radius). It can be heated by gravitational instabilities (Lodato & Bertin 2003), by the collisions of clumps (Krolik & Begelman 1988), or by embedded stars (Collin & Zahn 1999). In all cases, will decrease less rapidly with increasing R than in a "standard'' disc, and the observed continuum will be redder. For instance Soria & Puchnarewicz (2002) fit the spectrum of the NLS1 1 RE J1034+396 (this object is included in the following computations) by an irradiated accretion disc for which the ratio H/R of the scale height to the radius increases rapidly with R, being thus proportional to R-1/2. C02 have shown that in this case, to get a smooth optical continuum without an intense Balmer discontinuity the density and the optical thickness of the irradiated medium should be very large. This is impossible with a strongly flaring disc; a warped thin disc would be a more appropriate solution. As we explained previously, such a disc would be gravitationally unstable at the distance of the region emitting the optical luminosity, and most likely very different from a standard one. In the case of heating by embedded stars, a very large number of massive stars would be necessary to account for the whole optical luminosity (Collin & Zahn 1999).
Since the status of the unstable part of the disc is not known, we parametrize these effects by assuming that the energy release is proportional to , with smaller than 3 in the self-gravitating region. In this paper we will assume the extreme case : it corresponds to , with . In the following computations this value is used into Eq. (5) instead of Eq. (4) for , with the continuity of the energy release at . Doing this we obtain an optical spectral index between -0.3 (corresponding to the standard disc) and +0.5, depending on the fraction of the disc which is self-gravitating. It is closer to the observed AGN continuum. The effect on the bolometric luminosity of this additional energy release is negligible, but it increases the computed emission in the optical and near-infrared spectral bands, and therefore decreases the accretion rate necessary to account for a given optical luminosity. is small for small values of . We have thus chosen a relatively small value of the viscosity parameter (0.01) in order to underestimate , and therefore to underestimate also the accretion rate with respect to a standard disc.
However, we have to take into account the fact that the accretion disc cannot extend too much in the self-gravitating region, unless a mechanism can act to limit the disc density at exactly the marginal instability. Since we will see below that the self-gravitation radius is always smaller than 104 , we have decided in the following to cut off the radius of the accretion disc at a value of 105 . It is an arbitrary value, but we have no way to estimate the real extension of the accretion disc. Note that the dimension of the BLR is at most of this order in NLS1s, and it is difficult to accept the idea that the disc extends much further out. Note also that for such a radius, the gravity of the galaxy does not dominate the BH.
If the disk is not self-gravitating and extends further out, it does not influence the optical emission. Indeed in this case one finds that m, which ensures that the optical emission is entirely produced inside . On the contrary, if the disk extends only up to 103 or 104 , the computed optical emission would be smaller than for , and the accretion rate would therefore be larger.
As an accretion disc with a super-Eddington accretion rate behaves
standard disc outside the photon trapping radius (KPH), we compute
with the same
analytical approximation as KPH, which gives expressions similar to
detailed computations of Huré (1998):
Let us now discuss the consequences of
these relations in an approximate way. As we shall see later, none of the free
parameters has a strong influence on the computed accretion rate,
the main quantity that we want to determine. We have seen
that for a standard disc, L(5100)
Using this relation, and Eqs.
(1) and (2), we get:
We first draw the attention to a fact that is sometimes forgotten.
Generally it is not the fluxes at Earth but the
luminosities that are published in
the literature, and they are computed assuming isotropic
The monochromatic luminosity
is thus equal to:

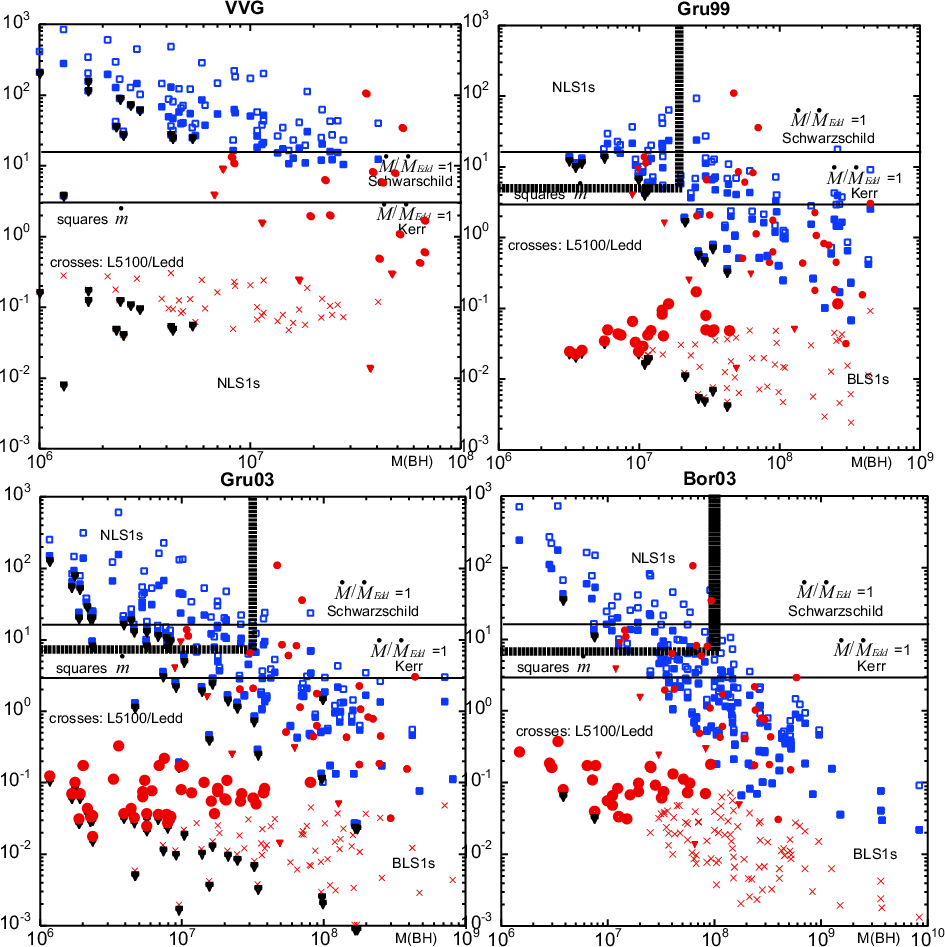

|Figure 2: as a function of the BH masses for the four samples. The squares give computed according both to the standard disc model (open squares), and to the self-gravitating disc model with a viscosity parameter (filled squares). The crosses give L(5100)/ , and the crosses with open circles mark the NLS1s. The two thick solid lines delineate the position of for the NLS1s. The two horizontal lines correspond to , where , in the case of a Schwarzschild BH and of a Kerr BH. The black (resp. red) triangles indicate the objects with L(5100) erg/s (resp. for the Kaspi et al. sample). Note that the VVG sample consists only of NLS1s, thus circle symbols are not shown.
|Open with DEXTER
We see that the self-gravitation correction can decrease by about a factor of three for large values of , but has no influence on small . For larger values of and of , the difference between the standard and the self-gravitating disc would be smaller. So we can consider that the two models here correspond to a kind of "error bar'' on , for given BH mass and L(5100). Figure 2 also shows the "observed'' ratio L(5100)/ . We have noted the NLS1s, and the thick dotted lines delineate the position of for NLS1s. NLS1s always have BH masses smaller than 108 , and they are located in the higher range of L(5100)/ and . It is interesting to note that the four samples do not differ except for the range of masses and luminosities, though they have been selected quite differently.
Again we added for comparison to these figures the results for the Kaspi et al. sample, computed using only the standard disc emission (we recall that the results differ from C02 because we use here H0=75 instead of 50). As expected, the extrapolation by a factor 5 in mass range of the empirical relationship translates in an extrapolation of by about a factor 30, as .
Several other results appear in these figures.
First, increases as the BH mass decreases. On the contrary, the ratio L(5100)/ is always smaller than 0.3, and seems about constant for the NLS1s. When applying a standard correction , one concludes that saturates at about the Eddington luminosity, whatever the BH mass. This excludes the existence of the large super-Eddington ratios proposed by Begelman (2002) due to the photon bubble instability. Thus, according to Eq. (3), there should be a lower limit to the FWHMs of the order of 1000 M70.15 km s-1 unless the empirical relations do not apply to these objects. And indeed FWHMs of the order of 100-500 km s-1 which would imply Eddington ratios larger than 10 have never been observed in Seyfert 1 nuclei.
Second, the two horizontal lines correspond to , where , in the case of a Schwarschild BH ( ) and of an extremely rotating Kerr BH (). We see that the accretion rates of NLS1s are always larger than the Eddington rate for Kerr BHs, and mostly larger for Schwarzschild BHs.
There are several causes of uncertainties in the results (cf. Krolik
2001 and C02), which might introduce
errors on the BH masses as large as one order of magnitude,
because one should not forget that even the masses determined directly
with reverberation mapping are known with an
uncertainty of a factor 3.
It seems however implausible
that all the uncertainties would systematically act towards an
underestimation of the
mass and an overestimation of the luminosity,
avoiding the conclusion of super-Eddington accretion rates.
Only the uncertainty in the correcting factor of the FWHM due to the
geometry and kinematics of the BLR could lead
to a systematic underestimation of the mass, if the BLR
is a rotating flat
structure. It can be large when the objects are seen almost face-on.
We shall discuss this point in the last

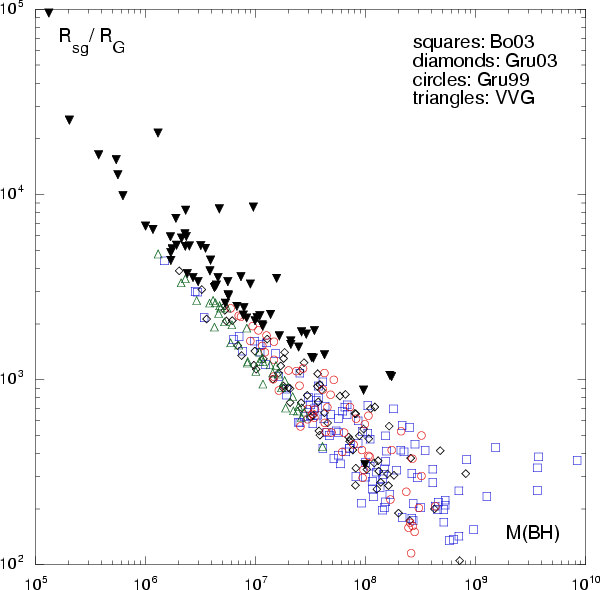

|Figure 3: versus M for all samples, for a self-gravitating disc with . The black triangles indicate the objects with L(5100) erg/s for all samples.
|Open with DEXTER
Figure 3 displays versus M for all samples, for the self gravitating disc with . We note that it is always quite small (in particular smaller than , which has typical values oh 103 for high BH masses and 105 for NLS1s), justifying our previous claim that the BLR is always located in, or above, the unstable part of the disc. As expected decreases with the BH mass, except at the high mass limit, and there is a strong correlation between the two parameters.

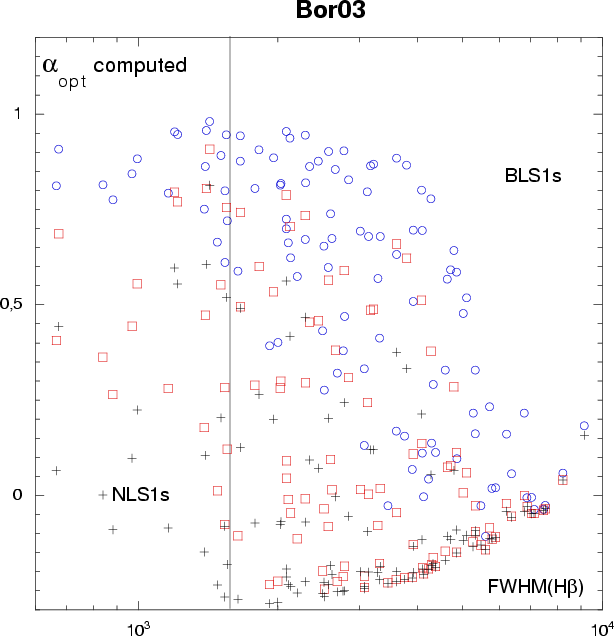

|Figure 4: The computed optical spectral index between 4400 and 7000 Å(rest frame), for the Bor03 sample, excluding the objects with L(5100) erg/s. is computed with the self-gravitating correction, for equal respectively to 0.01 (blue circles), 0.1 (red squares), and 0.3 (black crosses). We recall that for a standard disc.
|Open with DEXTER
|Figure 5: Comparison between the observed and computed optical spectral index , for the Gru99 sample, excluding the objects with L(5100) erg/s. The black filled circles are the observed values, the open symbols are computed with the self-gravitating correction, for equal respectively to 0.01 (blue circles) and 0.1 (red squares). We recall that for a standard disc.
|Open with DEXTER
Figure 5 shows a comparison between the observed and computed spectral indices for the Gru99 sample, excluding the objects with L(5100) erg/s. According to Grupe et al. (1999), the observed values of are given with an uncertainty of . With , many of the computed indices are close to the value of the standard disc, while the objects of the samples are particularly red, with an average index of 0.8. The agreement is much better for the smallest viscosity parameter . The very red spectra observed in a fraction of objects might be due to intrinsic reddening having not been taken into account in the computed values. If this is the case, it would imply that the observed L(5100) is underestimated in these objects, but again it is not important for the determination of . Note that in this sample NLS1s do not seem to have redder continua than BLR1s.
It is therefore impossible from this comparison to decide which are
the best values of
to choose for the disc. Our model is clearly
oversimplified, and would require a more sophisticated
parametrization. The only conclusion which can be drawn is that a
non-standard disc with an additional release of energy in its external
region gives a better fit to the average optical
continuum of AGN than a standard disc. However, this problem does not question
the existence of super-Eddington accretion
rates for NLS1s.

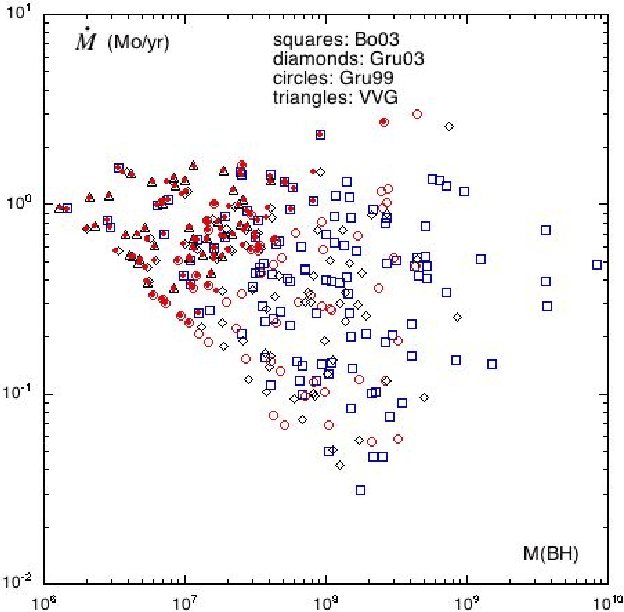

|Figure 6: Accretion rates in /yr for the four samples as a function of the BH masses, excluding the objects with L(5100) erg/s, and computed according to the self-gravitating disc model with a viscosity parameter . NLS1s are indicated as red dots.
|Open with DEXTER
Finally, Fig. 6 displays the accretion rates in /yr for the four samples, excluding the objects with L(5100) erg/s, and computed according to the self-gravitating disc model with a viscosity parameter . Note that the imposed limit on L(5100) creates the sharp limitation on the left side, as is proportional to M-2/3 (for a fixed ). The limitation on the right side is due to a limitation of at about 0.03 (perhaps due to the fact that the accretion disc changes into an ADAF below this value). NLS1s are indicated as red dots. Despite the large values of of NLS1s, we see that the maximum accretion rate is of the order of one M/yr whatever the BH mass. This is a strong indication of an exterior regulation of the accretion, rather than self-regulation of the disc. Note that it is a modest value when compared to the rate of star formation in a starburst nucleus.
It is interesting to compare the observed SED of
super-Eddington objects with the slim disc model. As we
mentioned in the introduction, this was done in detail for the two
objects (Kawaguchi 2003; KPH; Kawaguchi, Matsumoto,
Leighly in preparation; see Kawaguchi 2004).
and it will be performed for the objects of the samples in a
future paper. Here we simply compute
the bolometric luminosity,
and we compare it with the observed values.

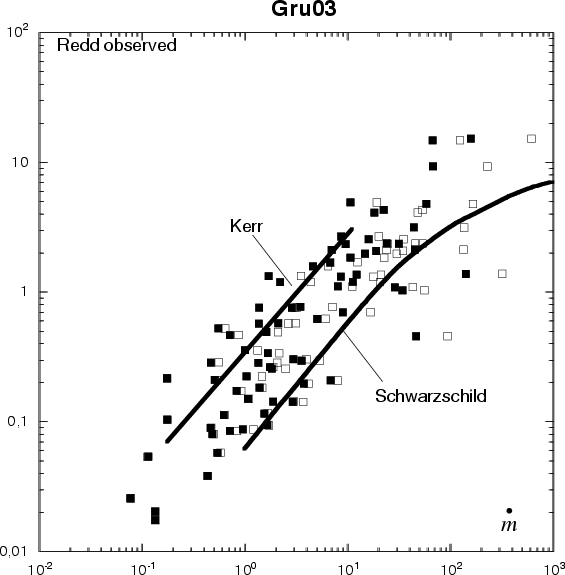

|Figure 7: The Eddington ratio as a function of for the Gru03 sample, computed with the standard disc (open squares) and the self-gravitating disc, (filled squares). The objects with erg/s have been suppressed. The two curves correspond to the slim disc model, , and respectively a Schwarzshild and a Kerr BH.
|Open with DEXTER
In all mass determinations, the FWHM is used instead of the dispersion velocity. It makes the implicit assumption that the velocities are distributed at random in the BLR. However, if the BLR is a flat structure dominated by rotation, the FWHM is proportional to sin , where i is the angle between the normal and the line of sight (the inclination). It is clear that a small inclination can lead to a large underestimation of and therefore of the mass.
However the BLR cannot be a geometrically thin disc with an exactly Keplerian velocity. Unfortunately its dynamics and its structure are still not well determined from detailed reverberation mappings, but we know that it should be at least a "thick disc'', with an aspect ratio larger than, say, (H being the disc thickness at the radius R), since it needs to have a large coverage factor of the central source. Such a disc must be sustained vertically by a turbulent pressure corresponding to a turbulent velocity of the order of . The FWHM is then proportional to , and the ratio G between the real mass and the "observed'' mass, is:

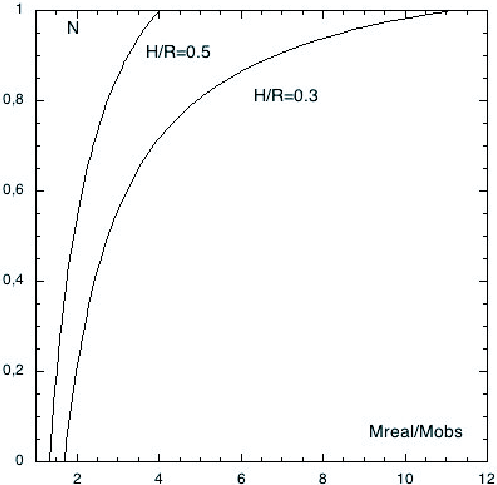

|Figure 8: Cumulative number of objects (normalized to unity) for which the mass is underestimated by a factor smaller than , in the conditions explained in the text.
|Open with DEXTER
It is important to realize that in this case not only nearly face-on objects, but all Seyfert 1 will have their BH mass underestimated. This would raise a problem concerning the BH-bulge mass relationship.
Should we then modify our conclusions? For H/R=0.3, half of the NLS1s could have their masses underestimated by factors of 3 to 10, leading to underestimations of the accretion rates (in terms of Eddington) by factors 10 to 100. This is clearly very important, but still a large proportion of objects would be accreting above the Eddington limit, however at a smaller rate. On the other hand, it is quite possible that the few extremely high accretors are actually "face-on'' objects, and that their mass is indeed underestimated by about one order of magnitude.
We used the BH masses deduced from the size-luminosity relationship to compute their accretion rates in four samples of AGN, assuming that the optical luminosity is provided by the accretion disc. Thus the empirical relation must be extrapolated in a range of masses almost one order of magnitude smaller than the Kaspi et al. sample. We used a simplified disc model, with a parametrization of the energy release in the self-gravitating region to get the accretion rate, and the slim disc model in the inner regions to get the bolometric luminosity. In spite of the crudeness of the treatment, this study leads to several fairly certain conclusions.
Though we have tried to determine a lower limit of the accretion rate, two effects can intervene to still reduce it. They were both discussed in C02.
We are grateful to Amri Wandel for useful comments which have contributed to improve substantially the paper.
