A&A 415, 1123-1132 (2004)
DOI: 10.1051/0004-6361:20034624

First observation of a solar X-class flare in the submillimeter range with KOSMA

T. Lüthi ¹ - A. Magun ¹ - M. Miller ²

1 - Institute of Applied Physics, University of Bern, Sidlerstrasse 5, 3012 Bern, Switzerland
2 - I. Physikalisches Institut, Universität zu Köln, Zülpicher Strasse 77, 50937 Köln, Germany

Received 24 April 2003 / Accepted 20 October 2003

Abstract
We present the first solar flare observations with the KOSMA submillimeter telescope at 230 and 345 GHz. The GOES X2.0 flare on April 12, 2001 was also observed at millimeter and centimeter wavelengths, as well as in soft and hard X-rays. It exhibits both an impulsive phase of nonthermal gyrosynchrotron radiation and an extended phase of strong thermal free-free emission in the millimeter and submillimeter range. As in previous observations, a mismatch between the electron energy spectral indices, inferred from the millimeter and hard X-ray data, exists and is interpreted as a flattening of the energy spectrum above a break energy of several hundred keV. The observed thermal emission closely follows the shape of the mm/submm flux density time profile predicted from soft X-ray observations. As the observed absolute flux densities exceed the predicted ones by a factor of $\sim$1.5-3.4, both the mm/submm emission and the soft X-rays must be thermal bremsstrahlung with a common energy source, but from locations with different plasma parameters. KOSMA observations allowed an estimate of source locations and sizes for the nonthermal and thermal sources. All of them coincide within 0.2 arcmin and with those seen in soft and hard X-rays. Surprisingly, the thermal submillimeter source diameters at 230 and 345 GHz (42 and 70 arcsec respectively) increase with frequency.

Key words: Sun: activity - Sun: flares - Sun: radio radiation - Sun: X-rays, gamma rays

1 Introduction

Millimeter and submillimeter observations of solar flares are important tools to diagnose the acceleration process of electrons at relativistic energies and the hot solar flare plasma. The main radiation mechanisms are gyrosynchrotron radiation and thermal bremsstrahlung (Kundu et al. 1990). The magnetic field in the solar corona usually does not exceed 2000 G (White et al. 1991), corresponding to an electron gyrofrequency $\nu_{\rm B}$ of $\sim$6 GHz. A particle with Lorentz factor $\gamma$ typically emits at a harmonic number of $\gamma^3$, thus short millimeter waves are produced by $\gtrsim$0.5 MeV electrons (Kundu et al. 1994; White & Kundu 1992), the same electrons producing also the $\gamma$-ray continuum (Kawabata et al. 1982). Due to the limited sensitivity of $\gamma$-ray detectors, $\gamma$-ray observations have only been obtained for flares with large numbers of high energy electrons. Optically thin gyrosynchrotron emission in the mm/submm range, however, depends not only on the number of electrons, but also increases with the magnetic field strength. Therefore mm/submm emission can often be observed even when the number of high energy electrons is too small to generate a detectable hard X-ray/$\gamma$-ray signature. Thus, radio observations at mm/submm wavelengths are an attractive diagnostic tool for high energy electrons in solar flares (Trottet et al. 2000,1998).

Nevertheless, the literature on solar flares at millimeter and submillimeter wavelengths is sparse. There are several reasons for the lack of observations: Besides the former inavailability of low-noise receivers at high frequencies, most flares exhibit a radio spectrum falling with increasing frequency. The thermal flux density of the quiet sun however is rising as $\nu^2$. This large background level is then modulated by the increasingly variable atmospheric attenuation, thus severely limiting the sensitivity of detection of solar millimeter and submillimeter flares (Nakajima et al. 1985; White & Kundu 1992). Since 1984 regular patrol observations at 80 GHz are available from a nulling interferometer at Nobeyama Solar Radio Observatory (Nakajima et al. 1985). A similar instrument at 89.4 GHz is operated by the University of Bern since autumn 1999 (Lüthi 1999). These instruments cancel the quiet sun component, thus greatly improving the sensitivity for solar flare observations over the whole disk.

There are several reports of solar flare observations at short millimeter wavelengths during the 1969 solar maximum: Croom (1970) observed seven bursts at 71 GHz in two and a half years of observations, including a very large event with a spectrum still rising at 71 GHz (Croom & Powell 1969). Shimabukuro (1970,1972) reported several gradual flares at 90 GHz with flat spectra at high frequencies and a good temporal correlation with soft X-ray observations. He explained the mm-emission as thermal bremsstrahlung. Other events seem to exhibit steeply rising spectra in the millimeter range, e.g. Akabane et al. (1973) and Kaufmann et al. (1985) at 73 and 90 GHz. Chertok et al. (1995) analysed several solar radio burst spectra in the range from 3 to 80 GHz. They focused on strong events at frequencies above 30 GHz and found an extended group of events with increasing or flat spectra up to 80 GHz.

Kundu et al. (1990) reported the first spatially highly resolved interferometric observations of mostly weak solar flares at 86 GHz with the Berkely-Illinois-Maryland Array (BIMA) in 1989. When compared to hard X-ray observations, many of the flares observed with BIMA indicate a flattening of the electron energy spectrum towards higher energies (e.g. Kundu et al. 1994; Lim et al. 1992; Silva et al. 1996; Raulin et al. 1999). A similar change of the spectral slope has been reported for combined observations of hard X-rays and microwaves (Marsh et al. 1981), whereas hard X-ray/$\gamma$-ray spectroscopy in the energy range of 30 keV-70 MeV allowed the direct observation of broken energy spectra (e.g. Vestrand 1988; Rieger et al. 1998; Vilmer et al. 1999). Trottet et al. (2000,1998) reported two events where the cm/mm waves and the $\gamma$-rays above the break energy were produced by electron populations of the same spectral hardness. In 1999, a new solar dedicated millimeter and submillimeter telescope operating at 212 and 405 GHz was installed in the Argentinean Andes (Kaufmann et al. 1999; Kämpfer et al. 1997). Trottet et al. (2002) reported a solar flare observed at 212 GHz, exhibiting both an impulsive phase of nonthermal gyrosynchrotron radiation and an extended phase of thermal emission. Unfortunately, these observations suffered from low sensitivity and lack of spectral information between 15 and 200 GHz.

Our solar observations at the Köln Observatory for Submillimeter and Millimeter Astronomy (KOSMA) began in late 2000. The 3 m telescope's dual-channel SIS-receiver is tunable from 210-270 and 330-365 GHz, with receiver noise temperatures of only 150 and 100 K respectively. Thus the instrument offers a significantly higher radiometric sensitivity than smaller telescopes with conventional uncooled Schottky-receivers ($\sim$2900 K at 212 GHz, see Kaufmann et al. 1999). KOSMA observations are complemented by our patrol observations, providing an unprecedented coverage of the radio spectrum between 8.4 and 345 GHz.

In this paper we present the first solar flare observations with KOSMA at 230 and 345 GHz combined with the corresponding microwave and X-ray data. The instrumentation and calibration of the submillimeter data is described in Sect. 2. In Sect. 3 we analyse and discuss the nonthermal radio and hard X-ray emission during the impulsive phase of the event and the time-extended strong thermal emission. The last section presents our conclusions.

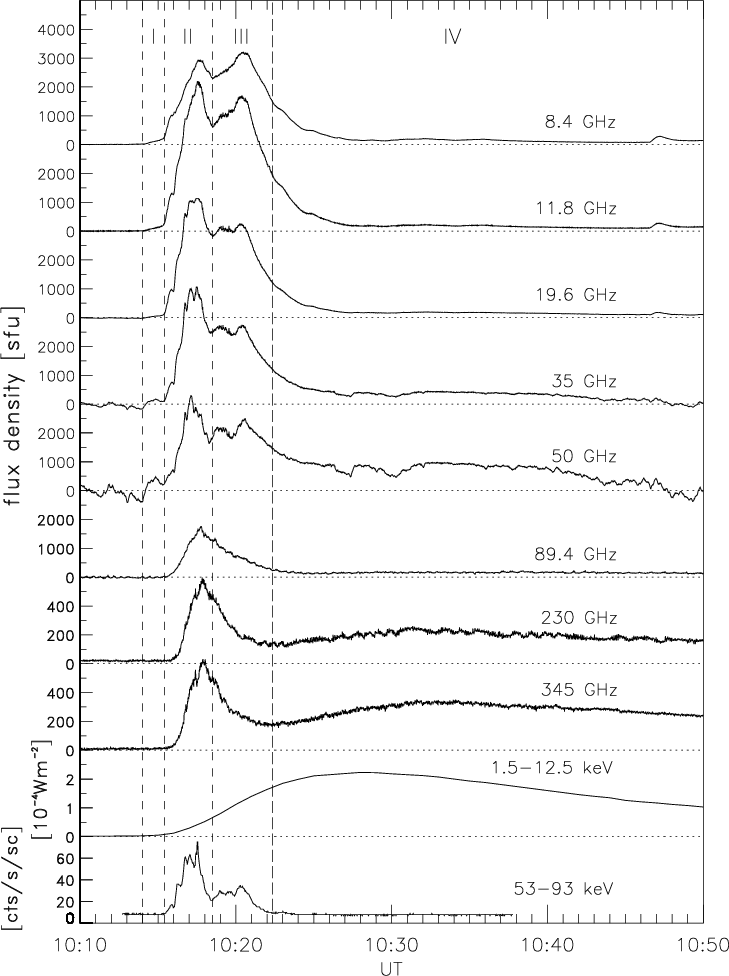

	Figure 1: Flux density time profiles at 8.4-50 GHz (Bumishus observatory), 89.4 GHz (nulling interferometer), 230 and 345 GHz (KOSMA), soft X-rays (GOES 10) and hard X-rays (Yohkoh HXT). The dashed vertical lines mark different episodes of the event. Yohkoh hard X-ray data ends with the beginning of satellite night at 10:39.
Open with DEXTER

2 Observations

The flare under investigation occurred on April 12, 2001 at $\sim$10:17 UT (in the following all times are given in UT). The major event (GOES class X2.0) was located in the active region NOAA 9415 and was observed over a wide spectrum from hard X-rays down to radio wavelengths. The emission discussed in this paper covered the upper microwave spectrum with 8 frequencies from 8.4 to 345 GHz as well as soft and hard X-rays observed with instruments aboard the GOES and Yohkoh spacecrafts (Fig. 1).

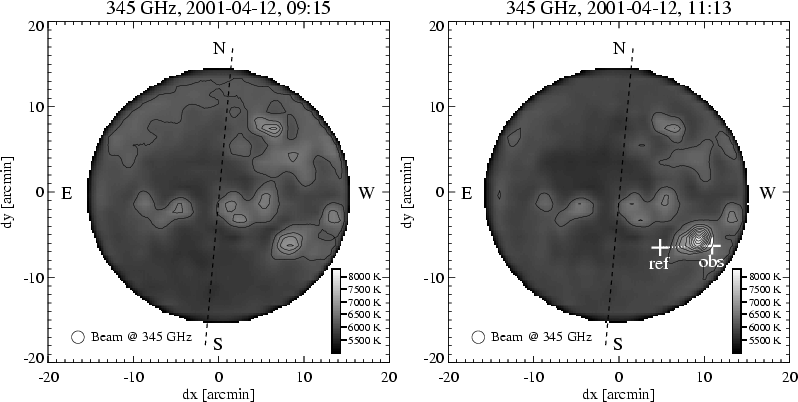

Figure 2: Maps of the sun at 345 GHz roughly 1 hour before and after flare start. At 11:13 thermal emission with a maximum measured brightness temperature of $\sim$8300 K was still visible. Contour levels begin at 6200 K with 300 K steps. Maps at 230 GHz show the same features with lower resolution. The crosses on the right map are the end points of the subreflector scan from the observation ("obs'') to the reference ("ref'') position during maximum submm emission (10:17:54); the dashed lines show the rotation axis of the sun.

Open with DEXTER

Microwave emission below 35 GHz was first detected as a slow rise in intensity at $\sim$10:14 (phase I in Fig. 1), followed by significant emission with large spectral changes. Two phases with multiple injections become evident through two distinctive groups of peaks at $\sim$10:17:40 and $\sim$10:20:25 (phases II and III). After the impulsive phase an extended strong thermal emission (phase IV) reached its maximum at $\sim$10:33 and lasted at least until 12:45. From 10:58 to 11:40 flux density observations at 230 and 345 GHz were interrupted in order to obtain solar maps (Fig. 2) of the thermal component, showing an observed maximum brightness temperature of $\sim$8300 K at both frequencies. Additional maps were taken at 9:15 well before the flare start. They serve as a quiet sun reference.

Instrumentation

Soft X-ray data was obtained by the dual-channel detectors (1.5-12.5 keV and 3-25 keV, corresponding to a wavelength of 1-8 Å and 0.5-4 Å respectively) on the Geostationary Operational Environmental Satellites (GOES) with a time resolution of 3 s. The flare was also seen with the soft X-Ray telescope (SXT) on the Yohkoh spacecraft, an imaging instrument in the 0.25-4.0 keV range. Yohkoh flare mode observations cover the time interval from 10:13 to 10:39 and are continued on the next orbit after 11:47.

Hard X-ray emission was observed by the hard X-ray telescope (HXT) and the hard X-ray spectrometer (HXS) on Yohkoh. The former is an imager with four energy bands between 14 and 93 keV and the latter a 32-channel spectrometer covering the energy range from 24 to 830 keV, operating with time resolutions of 2 and 4 s respectively.

The total flux at cm- and lower mm-wavelengths (8.4-50 GHz) was recorded with the patrol telescopes at Bumishus (Switzerland) with half-power beamwidths of $\sim$1 degree and an integration time of 100 milliseconds. They (as well as all other radio telescopes used for this event) operate in total-power mode and use the quiet sun as a reference. Quiet sun flux densities from 8.4 to 19.6 GHz were interpolated from RSTN measurements, and at higher frequencies calculated with the model of Croom (1979).

One of the difficulties with solar mm/submm observations is the variability of atmospheric attenuation that increases strongly towards millimeter and submillimeter wavelengths. Therefore, and due to the large solar brightness temperature, the sensitivity for the detection of weak solar flares is severely limited. For the event under discussion this effect already becomes visible at 35 and 50 GHz where observations suffered from bad weather (Fig. 1), resulting in non-solar flux fluctuations of 5 and 7% (rms) respectively. Because of this effect, measurements at 89.4 GHz are made by a nulling two-element interferometer, set up to cancel the emission of the extended quiet sun. The flux of a solar flare, which in comparison to the solar disk can be regarded as a point source, however is fully measured (Lüthi 1999; Nakajima et al. 1985). Our nulling-interferometer provides a half-power beamwidth of 53 arcmin and an integration time of 31 milliseconds. The resulting sensitivity is $\sim$35 sfu under usual weather conditions, which is approximately one order of magnitude better than that of a single-dish radiometer with the same beamwidth.

The millimeter and submillimeter emission at 230 and 345 GHz was observed with the KOSMA telescope on the Gornergrat in the Swiss Alps (Kramer et al. 1998). Low atmospheric attenuation at this high-altitude mountain site (3135 m a.s.l.) and the use of low-noise SIS-receivers make this instrument well suited for astronomical observations in the upper mm/submm-range. The SIS-mixers, as well as the large bandwidth (1 GHz) of the receivers, result in a typical radiometric sensitivity of $\sim$2 and $\sim$3 solar flux units at 230 and 345 GHz respectively, these values also including atmospheric effects. The integration time used was 2.3 milliseconds. The pointing accuracy of KOSMA is typically better than $\sim$10 arcsec. Half-power beamwidths of the 3 m-telescope are 117 arcsec and 88 arcsec at 230 and 345 GHz respectively. Thus, the antenna beams cover a typical active region.

The active region NOAA 9415 was selected before tracking was started, as it showed the highest brightness temperature in our solar maps (Fig. 2, 09:15) and, from space weather predictions (Space Environment Center - online data), provided the greatest chance of flaring. A tiltable subreflector periodically deflected the antenna beams in cross-elevation by 6 arcmin from the target to a quiet reference region on the sun. The "1 s on / 0.1 s off'' observation cycle allowed the compensation of atmospheric attenuation changes with time scales above 1 s. The absolute flux density calibration was obtained from hourly observations of the cold sky. Atmospheric conditions at Gornergrat were very stable (attenuation fluctuations <1%) with a zenith opacity of 0.18 and 0.48 at 230 and 345 GHz respectively.

Unfortunately the flare occurred approximately 1.8 arcmin away from the initial observation region which became obvious only after the solar map at 11:13 had been analysed (Fig. 2). A retargeting of the telescope on the flare after 11:40 and the data from the solar maps allowed us to estimate absolute flux values (see below).

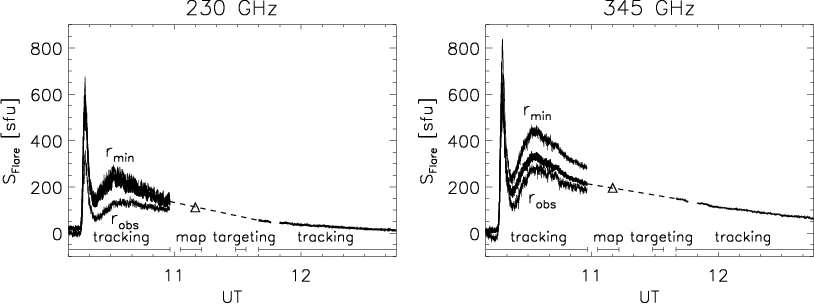

Figure 3: Flux density time profiles from 10:10 to 10:58 for the observing position ( $r_{{\rm obs}}$) and at minimum distance ( $r_{{\rm min}}$) to the source. The time profile in between represents the corrected flux density obtained by scaling $S_{{\rm det}}(r_{{\rm min}})$ to fit the directly measured and deconvolved flux densities from the solar maps at 11:13 (triangles) and the re-targeted observation after 11:40.

Open with DEXTER

Flux calibration at 230 and 345 GHz

Solar maps during the thermal phase ($\sim$11:13) were used to derive deconvolved source diameters and total flux values which are summarised in Table 1. Note that the source size increases with frequency. The source positions coincide within 0.2 arcmin and are in good agreement with those of the associated H$\alpha$ and hard and soft X-ray emission (Fig. 4). The antenna beamwidths used for the deconvolution were determined from beam measurements on the solar limb.

Table 1: Source widths (half intensity) and flux density of the flare emission at $\sim$11:10 UT (extended phase). Note the significantly larger diameter at the higher frequency.

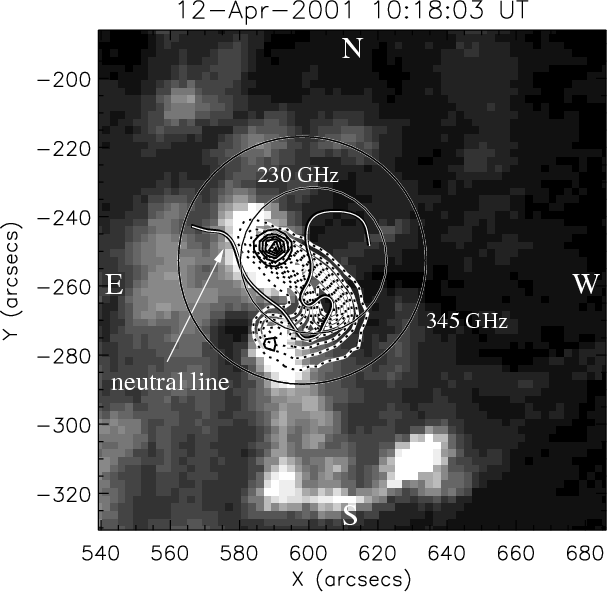

Figure 4: Flare emission at 10:18:03 in H$\alpha$ (background, provided by Kanzelhöhe observatory in Austria), Yohkoh SXT (dotted) and HXT 53-93 keV (solid contours). Also indicated are the half-power sources at 230 and 345 GHz as seen in the solar maps at 11:13 (solar-rotated to 10:18). The pointing accuracy is $\sim$25 arcsec. There are several H$\alpha$ kernels, two of which are connected by the soft X-ray loop across the magnetic neutral line (MDI/SOHO). The HPBW of the telescope is 117 and 88 arcsec at 230 and 345 GHz respectively.

Open with DEXTER

In order to compensate atmospheric attenuation changes the antenna beams were moved periodically from the target ("obs'' in Fig. 2) to a reference region ("ref''). However, when tracking the flare between 10:10 and 10:58 the antenna was pointed approximately one half-power beamwidth away from the emission region which reduced the observed flux. Thus, the measured flux density time profiles $S_{\rm det}$ are too low and had to be corrected. Assuming symmetrical Gaussian profiles for the brightness temperature distribution and the antenna beam patterns, the flux density $S_{\rm Flare}$ of the flare is given by

$$S_{{\rm Flare}} = S_{{\rm det}}\frac{\rho_{{\rm ant}}^2+\rh... ...}^{r^2/\left(\rho_{{\rm ant}}^2+\rho_{{\rm source}}^2\right)},$$ (1)

where r are the angular separation of antenna beams and flare source, $\rho_{{\rm ant}}$ and $\rho_{{\rm source}}$ the 1/e-widths of the antenna pattern and the source respectively. Yohkoh SXT images showed no significant movement of the flaring loop throughout the event, thus a constant source position as seen in the solar maps at 11:13 was assumed. The angular distance r between source and antenna beam centres changed during a subreflector scan from $r_{{\rm obs}}\approx 1.8$ to a minimum of $r_{{\rm min}}\approx$ 0.6 arcmin, resulting in a peak in the observed flux density scan profiles. Thus, two measured time profiles of the flare can be extracted from the data: $S_{{\rm det}}(r_{\rm obs})$ for the observation region "obs'' and $S_{{\rm det}}(r_{{\rm min}})$ for the minimum distance $r_{{\rm min}}$. The constant position of the peak in the subreflector scan profiles also indicated a constant source position throughout the event. Its (deconvolved) half-power width along the scan direction remained constant at $\leq$30 and $70\pm15$ arcsec at 230 and 345 GHz respectively. These values are consistent with the (thermal) source sizes seen in the solar maps. Therefore the latter were also used for the flux calibration during the impulsive phase. Corrections following Eq. (1) were then applied to both measured flux density time profiles. The corrected flux density $S_{\rm Flare}(r_{\rm min})$ reached $2 S_{\rm Flare}(r_{{\rm obs}})$ (Fig. 3) due to uncertainties of the source and antenna beam positions. The mismatch between the observations before 10:58 and the actual flux densities obtained from solar maps at 11:13 is also related to this. As the mm/submm flux densities calculated from GOES soft X-ray observations indicate a smooth decline after $\sim$10:35 (see below), the flux densities at 11:10 and 11:40 were linearly extrapolated to 10:58. The flux density $S_{{\rm det}}(r_{{\rm min}})$ from 10:10 to 10:58 was then scaled to match the extrapolated value at 10:58. The resulting time profiles at 230 and 345 GHz are shown in Fig. 1.

It should be noted that Yohkoh images clearly show two hard X-ray sources at the footpoints of the soft X-ray loop (Fig. 4). Thus, the assumption of a single Gaussian radio source is only approximative. However, as the separation of the hard X-ray sources of $\sim$25 arcsec is small compared to the antenna half-power beamwidths, the corrected flux densities do not depend strongly on the actual source brightness distribution. The source diameter also turned out to be uncritical. Taking into account all uncertainties mentioned above, the resulting flux errors are estimated to ⁺²⁰_-30% and ⁺³⁰_-40% at 230 and 345 GHz respectively.

3 Analysis and interpretation

The event under discussion can be divided into four phases (Fig. 1):

During phase I (10:14-10:15:25) emission was first detected at 10:14 as a slow rise in intensity at microwaves and hard X-rays below 35 GHz and 53 keV, respectively. The radio spectrum has a flat maximum, with the peak frequency rising from $\sim$10 to $\sim$20 GHz.

Phase II (10:15:25-10:18:30) is characterised by a fast emission increase at microwaves, extending into the submillimeter range. It is accompanied by hard X-rays up to $\sim$200 keV. The centimeter and hard X-ray emission reached their maxima at $\sim$10:17:30, while the mm/submm emission peaked later at $\sim$10:17:54. The radio spectrum is clearly non-thermal with a flat peak between 11.8 and 35 GHz (Fig. 6).

Phase III (10:18:30-10:22:15) shows a second strong increase of emission below 89.4 GHz and at hard X-rays. Its maximum occurred at $\sim$10:20:25 and coincided with the maximum of the GOES time derivative. Above 50 GHz we mainly observe the decay of electrons injected during phase II and only weak emission from the newly injected electrons.

Phase IV (10:22:15-12:45) is of thermal origin. After 10:22:15 the flux densities at 230 and 345 GHz rose again and reached their maxima at $\sim$10:33. At this time the radio spectrum was nearly flat (Fig. 8). This emission lasted at least until 12:45 and became continuously harder. During the whole phase a strong soft X-ray emission evolved.

3.1 X-ray emission

Soft X-rays

The temporal evolution of the GOES 1.5-12.5 keV count rate is represented in Fig. 1. Its maximum was reached at $\sim$10:28:30 ($\sim$10:25:00 for the 3-25 keV channel), well after the impulsive phase of the event. The time derivatives of both count rates peak at the time of maximum cm-emission in phase III. Assuming an isothermal source, the effective temperature $T_{{\rm e}}$ and emission measure $EM_{{\rm X}}$ of the hot flare plasma can be estimated from the two GOES energy bands using the procedure developed by Thomas et al. (1985). At 10:18:18, near the end of the first radio peak, $T_{{\rm e}}$ reached a maximum of ${\sim}25\times10^6$ K with $EM_{{\rm X}}$ ${\sim}2.8\times10^{49}$ cm^-3. The latter reached its maximum of ${\sim}2.0\times10^{50}$ cm^-3 at 10:32:03 when $T_{{\rm e}}$ was ${\sim}17\times10^6$ K and coincides with the maximum of the extended post-burst emission at 230 and 345 GHz.

The SXT-images show a single flaring loop across the magnetic neutral line seen in SOHO/MDI-images (Fig. 4). Its position and size remained almost constant throughout the observed time period (ending at satellite night). Depending on the SXT filter, the observed source area reached 180-260 arcsec² at 10:33. At the beginning of the impulsive phase the main emission originated near the northern footpoint from an area of 40-60 arcsec² and shifted towards the loop-top late in phase II. Unfortunately, no images, coincident in time with the solar maps at 230 and 345 GHz, are available. The first images after the satellite night show that the loop had approximately doubled in size ($\sim$11:47).

Hard X-rays

The hard X-ray time profile at 53-93 keV is in good agreement with the flux profiles observed at 19.6, 35 and 50 GHz (Fig. 1) as can be seen from the two distinctive groups of emission peaks during phases II and III and also from the common substructures. Using the sharp increase of emission at 10:16:00 as a marker, the delay between microwaves and hard X-rays is less than 2 s (time resolution of the HXT-instrument).

Figure 5: HXS photon energy spectra at the times of peak 1 and 2 (10 s average) with horizontal bars indicating the energy range of each HXS-channel and vertical bars the photon flux errors. Due to its poor energy resolution the lowest energy channel is not used for the fit. For clarity the spectrum at 10:20:25 has been multiplied with a factor of 0.1. There are no significant counts above $\sim$200 keV.

Open with DEXTER

The 53-93 keV HXT-images show two sources which can be identified as footpoints of the soft X-ray loop (Fig. 4). They are also co-located with two H$\alpha$ kernels in regions of opposite magnetic polarity. The northern hard X-ray source shows a 6 times stronger emission than the southern one which is hardly visible. This is consistent with the brightening of the northern part of the soft X-ray loop during phase II. There is no significant difference between the hard X-ray images during the first and second peak (phases II and III). The half-power source size during the impulsive phase of the event is $\sim$40 arcsec², corresponding to a source diameter of $\sim$7 arcsec. After $\sim$10:21 the count rate becomes too low for image reconstruction. At lower photon energies additionally emission from the loop-top can be seen, until the 14-23 keV image nearly corresponds to the SXT-image.

The hard X-ray spectrum can be determined from the HXS-data, shown in Fig. 5. We assume that the energy spectrum of the hard X-ray photons follows a simple power-law of the form

$$I(E)=I_0\left(\frac{E}{E_0}\right)^{-\gamma},$$ (2)

where I is the count rate (photons s^-1 cm^-2 keV^-1), E the photon energy, I₀ the count rate at the energy E₀ and $\gamma$ the photon spectral index. For E₀ = 1 keV the parameters I₀ and $\gamma$ were estimated using the HXS_FSP-program of the SSWIDL-package. Due to its poor energy resolution, the lowest energy channel is not used for the fit. At the time of maximum submm emission (10:17:54) we find I₀ = 1.0 $\times10^{7}$ photons s^-1 cm^-2 keV^-1 and $\gamma$ = 3.9 (Table 2). There is no indication for a break in the photon spectrum.

In order to compare the hard X-ray and mm/submm emission, we use a single loop model where electrons with a power-law energy spectrum are injected in the coronal part of a magnetic loop and precipitate towards its low-lying footpoints. The mm/submm radiation is gyrosynchrotron emission of relativistic electrons in the loop. Hard X-rays and $\gamma$-rays are produced by thin- or thick-target interactions, depending on the density of the medium and the time of the electrons spent in the loop (Brown 1971; Nitta et al. 1991). As the HXT-images clearly show footpoints, perfect trapping can be excluded. Thus, the spectral index of the electron population in the coronal loop is $\delta_{\rm X} \approx \gamma+1.5$ for free propagating electrons up to a few 100 keV and $\delta_{\rm X} \approx \gamma+1$ at higher energies and for turbulently trapped electrons (e.g. Trottet et al. 1998, and references therein). The resulting electron energy spectral index at the time of maximum submm emission is therefore $\delta_{\rm X} = 4.9{-}5.4$. During the second maximum of the microwave and hard X-ray emission (phase III) the HXS-spectrum is marginally softer with $I_0=2.7\times10^{7}$ photons s^-1 cm^-2 keV^-1 and $\gamma$ = 4.1, leading to $\delta_{\rm X}$ = 5.1-5.6.

Table 2: Power-law parameters of the fitted hard X-ray spectra during phases II and III. The spectral indices deduced from gyrosynchrotron modelling are also given.

3.2 Radio emission

Figure 1 shows that the microwave emission exhibits three distinctive components. An impulsive burst, visible up to submm wavelengths, was followed by a second peak of emission that was only observed at centimeter and longer millimeter wavelengths. Finally a long-lasting emission in the millimeter and submillimeter range was left.

While the microwave and hard X-ray emission during phase II starts and peaks simultaneously, the mm/submm emission above 50 GHz is clearly delayed (Fig. 7). To quantify this effect and to smooth out noise, running means over 10 s were directly compared. We find that the 89.4 GHz onset and peak is delayed by $\sim$10 s with respect to the hard X-rays and microwaves, while emission at 230 and 345 GHz is delayed by another 10 s. Onset delays of the millimeter emission of several seconds relative to centimeter emission have been reported (Kundu et al. 1994; Lim et al. 1992; Trottet et al. 2002). They have been interpreted either as evidence that relativistic electrons producing millimeter and submillimeter emission are accelerated later than the microwave and hard X-ray-producing, lower energy electrons (Lim et al. 1992) or explained by a radio burst consisting of various successive injections of different spectral hardness of which only the hardest ones produce detectable high-frequency emission (Trottet et al. 2002).

Figure 6: Instantaneous radio spectra (10 s average) during the impulsive phase at 10:17:54 and 10:20:25 (dots and diamonds, respectively), including the 3.0 GHz data point measured by the RT3 instrument at Ondrejov observatory (Czech Republic). The thermal emission component has been subtracted. The calculated model spectra for B = 500 G that provide the best fit to the measured spectra above 35 GHz are also shown (thin lines).

Open with DEXTER

Radio spectra during the impulsive phase

GOES observations already indicate a substantial thermal emission component during the impulsive phase of the event (Fig. 9). They were used to estimate the thermal bremsstrahlung fluxes that amount to $\sim$5% of the 345 GHz flux density at the maximum of the first and $\sim$40% at the maximum of the second group of peaks (using the scaled fluxes, see Fig. 8). These thermal components have been subtracted prior to further spectral analysis. The resulting radio spectrum during the impulsive phase of the flare clearly shows non-thermal signatures (Fig. 6). A nearly flat spectrum between 11.8 and 35 GHz indicates the presence of source inhomogeneities (Klein & Trottet 1984). This interpretation is further supported by the spectral index below the spectral maximum ($\sim$1) which can only be explained by source inhomogeneities (Klein et al. 1986; Dulk 1985).

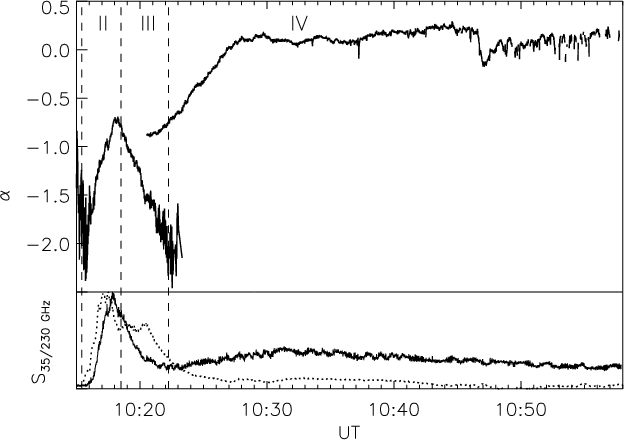

Figure 7: Temporal evolution of the radio spectral index $\alpha$. During the impulsive phase (II and III), $\alpha$ was determined from the slope of the optically thin spectrum between 50 and 345 GHz, after subtraction of the thermal emission component. During the extended phase (IV), all frequencies were taken into account except 35 and 50 GHz that were increasingly affected by bad weather. The sudden break between $\sim$10:46 and 10:56 is due to a smaller burst visible only below 35 GHz (cf. Fig. 1). For better orientation the normalised flux densities at 35 and 230 GHz are included (dotted and solid lines, respectively). They also clearly show the delay of the high-frequency emission.

Open with DEXTER

From the flux-densities between 50 and 345 GHz we can determine the slope $\alpha$ of the optically thin radio spectrum. Its temporal evolution is shown in Fig. 7. During phase II, it increased from $-2.0\pm0.3$ at the onset to $-0.7\pm0.1$ at the maximum of mm/submm emission. This is consistent with the observation that the emission above 50 GHz was delayed (by $\sim$10-20 s) in respect to hard X-rays and microwaves. During phase III, $\alpha$ decreased again to $-2.1\pm0.4$ due to the lack of strong emission above 50 GHz. As the slope of the optically thin flux-density spectrum is almost independent of the magnetic field B (Dulk 1985), the electron energy spectral index  $\delta_{{\rm r}}$ can be estimated even though the radio source is inhomogeneous. Using the gyrosynchrotron codes developed by Ramaty (1969), we have calculated the gyrosynchrotron spectra for a cubical homogeneous source. The calculations were carried out for a power-law electron spectrum ( $N(E)=KE^{\delta_{\rm r}}$) in the energy range of 0.025-500 MeV and for a viewing angle $\theta$ of 45 degrees, as suggested by the location of the event. For different values of B in the range of 300-1500 G, $\delta_{{\rm r}}$ has been estimated for the best fit to the measured spectra above 50 GHz. For the two spectra shown in Fig. 6 we obtain $\delta_{{\rm r}}$ = $2.3\pm0.1$ and $3.5\pm0.2$ (at 10:17:54 and 10:20:25, respectively). Thus, the energy spectrum of the electrons injected during phase III is significantly softer than during phase II, and/or the high energy cut-off of the radiating electrons is lower during phase III than during phase II (Ramaty et al. 1994).

The electron energy spectrum deduced from radio observations ( $\delta_{{\rm r}}$ = 2.3 and 3.5) is significantly harder than that derived from the hard X-ray photon spectrum ( $\delta_{\rm X}$ = 4.9-5.4 and 5.1-5.6, see Table 2). This has been observed before in many flares (e.g. Kundu et al. 1994; Lim et al. 1992) and is explained by spectral hardening above a break in the energy spectrum: Most of the hard X-rays with photon energy E$_{\gamma}$ are emitted by electrons with energies between E$_{\gamma}$ and $3\times\rm E_{\gamma}$ (Kosugi et al. 1988). Thus, the observed hard X-ray emission (below $\sim$200 keV) stems mainly from lower energy electrons ($\la$600 keV), whereas the millimeter and submillimeter radiation is emitted by electrons at higher energies ($\ga$0.5 MeV) (Kundu et al. 1994; Trottet et al. 2000,1998). For the event under discussion the break energy must be well above several hundred keV, the hard X-ray/$\gamma$-ray flux of the high energy electrons being too weak to produce any detectable response above $\sim$200 keV (Fig. 5). The characteristic energy of electrons radiating synchrotron emission at 345 GHz however is 7-16 MeV for magnetic fields in the 300-1500 G range and a viewing angle of 45 degrees (Dulk 1985).

Radio spectrum during the extended phase

After the impulsive phase, the flux density at 230 and 345 GHz rose again, reaching a maximum at $\sim$10:33 (phase IV). The radio spectrum became rapidly flat ( $\alpha \approx 0$ at 10:27, Figs. 7 and 8), and afterwards, during the extended phase, slowly increased to 0.2 (10:58). This suggests that the emission is due to optically thin thermal bremsstrahlung. Using the temperature $T_{{\rm e}}$ and emission measure $EM_{{\rm X}}$ derived from GOES measurements, the expected radio flux density at the frequency $\nu$ becomes

$$S_{\nu} = 1.32 \times 10^{-46} \left[24.5 + \ln\left(T_{\rm... ...ght) - \ln\left(\nu\right)\right] T_{\rm e}^{-1/2} EM_{\rm X},$$ (3)

where $S_{\nu}$ is expressed in sfu, $T_{{\rm e}}$ in K and $\nu$ in Hz (Pohjolainen et al. 1996a).

	Figure 8: Nearly flat ( $\alpha \approx +0.1$) spectrum at the time of maximum thermal submm emission (10:33, dots) and the slightly harder ( $\alpha \approx +0.3$) spectrum at the time of the solar maps (11:10, diamonds).
Open with DEXTER

The qualitative comparison of the predicted flux densities $S_{\nu}$ with the observed values shows good agreement (Fig. 9). Both reach their maximum at $\sim$10:33. The magnitudes of the measured flux densities, however, are higher than the predicted ones: At frequencies up to 89.4 GHz the observed flux densities are higher by a factor of $\sim$1.5, at 230 and 345 GHz by a factor of $\sim$2.4 and $\sim$3.4 respectively (Fig. 8). At 345 GHz this discrepancy becomes even more pronounced later in the event. Pohjolainen et al. (1996b) analysed a large sample of gradual type bursts and found comparable excesses of the observed 37 GHz emission in $\sim$20% of the cases. Even larger differences between expected and observed thermal flux densities were reported by Shimabukuro (1970) at 90 GHz (0.13 vs. 36 sfu) and Trottet et al. (2002) at 212 GHz (20 vs. 190 sfu).

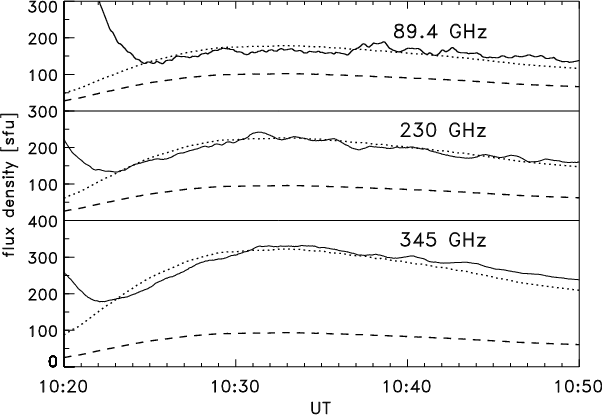

	Figure 9: Extended millimeter and submillimeter thermal emission during phase IV (1 minute average). The solid lines indicate the observed flux density and the dashed ones the flux density predicted from the GOES data. Although the magnitude of the latter is lower the time profiles themselves fit well when scaled by a constant factor (dotted lines).
Open with DEXTER

The estimate of the radio flux density from GOES-observations assumes a single-temperature plasma. However, this is almost certainly incorrect for the flare plasma in the solar corona. The soft X-ray emission increases with rising plasma temperature $T_{{\rm e}}$ whereas the radio emission decreases (Eq. (3)). Thus, radio observations are more sensitive to cool material than soft X-ray observations. Any significant amount of lower temperature plasma could easily produce a stronger emission in the mm/submm-range than predicted by the GOES-observations (White & Kundu 1992). It appears that both the mm/submm emission and the soft X-rays are thermal and have a common energy source (resulting in an identical shape of expected and measured time profiles, Fig. 9), but they do not arise from the same thermal electron populations (Shimabukuro 1970; Chertok et al. 1995). The spatial distribution of the lower-temperature plasma may well be different from the one of the soft X-ray emitting plasma: The last SXT-images before the satellite night (10:39) show a loop of ${\sim}15\times25$ arcsec² (half-power area), while the solar maps at 11:13 yield source diameters of 42 and 70 arcsec at 230 and 345 GHz respectively. The position of the thermal mm/submm source however is in good agreement with the soft X-ray loop. Thus the differences between soft X-rays and mm/submm waves can be reconciled if it is assumed that the soft X-rays originate from a hot central core, whereas the mm/submm emission arises from cooler plasma in a larger region surrounding the soft X-ray source (Shimabukuro 1972).

The solar maps at 11:13 allow the deconvolution of the size of the thermal source. Assuming Gaussian brightness temperature profiles, the deconvolved source sizes are $42\pm20$ and $70\pm6$ arcsec at 230 and 345 GHz respectively (Table 1), generally in agreement with previous observations: Shimabukuro (1972) reported source diameters of up to 2.8 arcmin for gradual bursts at 90 GHz. Remarkably, the source at 230 GHz is smaller than at 345 GHz. The increase in source size with frequency is also found from subreflector scans during the impulsive phase ($\leq$30 and $70\pm15$ arcsec at 230 and 345 GHz respectively). So far there is no satisfactory explanation: Source asymmetries and inhomogeneities cannot account for the increase of the source size with frequency. Speculatively assuming a low-lying source partially occulted by cool and dense material, we can reasonably account for the observed source sizes and slightly improve the agreement between the observed and modelled spectra. However, there is no confirmation by complementary observations (e.g. H$\alpha$ filaments). It thus remains to be seen if the observed increase of the source size with frequency is confirmed by future observations or if it is a peculiar feature of the studied flare.

4 Conclusions

In this paper we have reported and analysed observations at millimeter and submillimeter wavelengths of a major (GOES class X2.0) solar flare that occurred on April 12, 2001. The observations at 230 and 345 GHz were obtained with the KOSMA telescope and are complemented by our patrol observations, providing an unprecedented spectral coverage from 8.4 to 345 GHz.

The event exhibits an impulsive phase with two groups of peaks at $\sim$10:17:54 and $\sim$10:20:25 (phases II and III, Fig. 1) and an extended phase lasting at least until 12:45 (phase IV). Emission during the impulsive phase is gyrosynchrotron radiation by nonthermal electrons with a spectral index $\delta_{{\rm r}}$ of $2.3\pm0.1$ and $3.5\pm0.2$ (phases II and III respectively). This is considerably harder than the spectral index $\delta_{\rm X}$ deduced from the corresponding hard X-ray observations (4.9-5.4 and 5.1-5.6), and thus indicates a flattening of the electron energy spectrum above a break energy of several hundred keV. This event clearly demonstrates the value of mm/submm observations as a diagnostic tool for high energy electrons ($\sim$10 MeV for synchrotron emission at 345 GHz), especially as there is no detectable hard X-ray/$\gamma$-ray signature above 200 keV.

The time-extended component during phase IV represents thermal bremsstrahlung: It exhibits a flat radio spectrum and smooth time profiles, their shape closely following the radio emission predicted from the recorded soft X-rays. The observed absolute flux densities however exceed the computed ones by a factor of $\sim$1.5-3.4. It appears that both the observed radio emission and the soft X-rays have a common energy source, but are produced at locations with different plasma parameters.

Solar maps and subreflector scans allow us to locate source positions and to estimate for the first time source sizes at 230 and 345 GHz during the thermal phase of a flare. Source positions coincide within 0.2 arcmin and are centred on the hard and soft X-ray sources. However, the observed source diameters reveal an unexpected result as an increase from 230 to 345 GHz was found. The solar maps during the thermal phase yield deconvolved source diameters of $42\pm20$ and $70\pm$ 6 arcsec at 230 and 345 GHz respectively. This effect is also seen in the subreflector scans during the impulsive phase, when the 230 GHz source has a diameter of $\leq$30 arcsec, whereas the 345 GHz source diameter is $70\pm15$ arcsec. No satisfactory explanation for the increase of the source size with frequency has been found so far. Millimeter/submillimeter observations provide a unique diagnostic tool to examine the energy transport in the corona and lower solar atmosphere during the extended phase of flares. A comprehensive and quantitative analysis including other data such as EUV and optical observations is beyond the scope of this paper, but could shed light on the mechanisms involved.
