A&A 415, 803-811 (2004)
DOI: 10.1051/0004-6361:20034627
H. M. Tovmassian
1 -
H. Tiersch
2,
-
S. G. Navarro
3 -
V. H. Chavushyan
1 -
G. H. Tovmassian
4 -
S. Neizvestny
5
1 - Instituto Nacional de Astrofísica Optica y Electrónica, AP
51 y 216, CP 72000, Puebla, Pue., México
2 -
Sternwarte Königsleiten, 81477, München, Leimbachstr. 1a,
Germany
3 -
IAC, Tenerife, Spain
4 -
OAN, UNAM, Ensenada, BC, México
5 -
Special Astrophysical Observatory, RAS, Nizhny Arkhyz, Russia
Received 31 March 2003 / Accepted 21 October 2003
Abstract
In 1995 we commenced a detailed spectral and photometric study of
Shakhbazian compact groups. In this paper the results on groups ShCG 181, ShCG 344, ShCG 361, and ShCG 362 are presented. The redshifts of member
galaxies in groups and the radial velocity dispersions, the results of the
surface photometry in BVR, the profiles of the surface brightness versus
semi-major axis a (or a1/4) and the twisting position angle versus
semi-major axis of galaxies, virial masses, luminosities and
mass-to-luminosity ratios, and the crossing times of groups are given. It is
shown that some members of groups are in the process of interaction. On
the basis of the results obtained in this and previous works, the general
properties of thirteen ShCGs are discussed.
Key words: galaxies: clusters: general - galaxies: interactions - galaxies: kinematics and dynamics - galaxies: photometry
In 1995 we commenced a study of Shakhbazian compact groups (ShCGs). ShCGs are more rich and more dense formations than the well-known HCGs (Hickson 1982; Hickson et al. 1989). The complete list of ShCGs contains 377 groups (Shakhbazian 1973; Shakhbazian & Petrosian 1974; Baier et al. 1974; Baier & Tiersch 1975, 1976a, 1976b, 1978, 1979; Petrosian 1974, 1978). These groups generally consist of 5-15 members; the distances between galaxies are typically 3-5 times the diameter of the galaxies; most of them have a very high density of about 104-105 galaxies per Mpc3. The groups have a "cigar''-like, prolate spheroid configuration (Oleak et al. 1995, 1998). At such densities and configurations the processes of interaction and merging should be common in these groups, in spite of the suggested regular movement of member galaxies and of the members of loose groups (LGs) (Tovmassian & Tiersch 2001) around the gravitational centers of the groups.
The results of the study of 13 ShCGs are presented in Tiersch et al. (2002, Paper I), and in Tovmassian et al. (2003a, Paper II, 2003b). In this paper we present the results of the study of ShCG 181, ShCG 344, ShCG 361, and ShCG 362. We obtained spectra of most galaxies in these groups, and measured their redshifts. We also obtained images of these groups in BVR, and determined morphological types and magnitudes of member galaxies in the corresponding bands. The study of the brightness distribution of galaxies allowed us to reveal processes of interaction between some of them.
The coordinates of the centers of the studied groups taken from Stoll et al. (1997a, 1997b) and the extinctions QB, (Schlegel et al. 1998), are given in Table 1.
![]() |

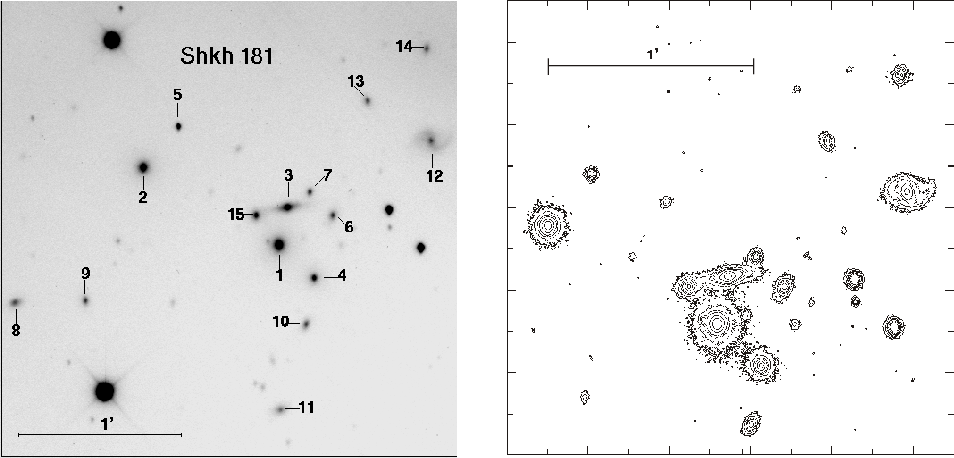

Figure 1: The image of ShCG 181 in R (left) and the isophotal contour plot (right). |
Open with DEXTER |
Table 1: Positions of groups ShCG 181, ShCG 344, ShCG 361, and ShCG 362, and the extinction, QB.
Spectroscopic observations of 29 objects in the fields of ShCG 181, ShCG 344, ShCG 361, and ShCG 362 have been carried out with different telescopes. Table 2 lists the telescopes, the sites and dates of observations. We found that one object, No. 10 in ShCG 362, is a star.
Details of spectral observations and reduction are described in Papers I and II. The redshifts were determined using the MIDAS (standard reduction -
long and standard reduction - spec with programs therein) or IRAF
packages. Absorption lines of H,
MgIb and NaD were identified in the
spectra of almost all galaxies. In the spectra of some galaxies the KH and G
bands were also used. The profile of each observed line was fitted by a
Gaussian. The sky lines were removed beforehand. The radial velocities (
)
were measured with an accuracy of about 40-60 km s-1. In the case of
very faint galaxies the uncertainties may reach
100 km s-1. The
results of spectral observations are summarized in Table 3 in which the
galaxy number in the corresponding group and the measured
is given. The
s have been corrected for solar motion according to
km s-1.
Photometric observations in BVR of ShCG 344 were made with the Danish 1.5 m
telescope of ESO at La Silla, Chile, in March 1995. ShCG 181, ShCG 361 and
ShCG 362 were observed with the 1.5 m telescope of the Observatorio
Astronómico Nacional de San Pedro Mártir (OAN SPM), México, in November
1996 and October 1997. Observations were made at seeing better than
.
The TEK 24 CCD detector installed on the 1.5 m telescope at La Silla had a
/pxl scale, and a
sky
coverage. The TEK CCD detector used in observations at the OAN & has a
array of
m pixels. With a
/pxl telescope scale it covers a sky area of
about 4.3 square arcmin. The twilight images of blank sky areas (Christian et al. 1985) were normally taken after sunset or at dawn to correct
images for flat fields.
The images of the four studied groups in R are presented in the left panels
of Figs. 1, 4, 7, and 10 (north is up, and east is left).
The galaxy identification numbers are from Stoll et al.
(1997a, 1997b). The reduction of observational data is
described in detail in Papers I and II. The BVR magnitudes were calibrated
in the Kron-Cousins photometric system. The star cluster M 67 served as a
standard. The instrumental magnitudes were transformed to standard BVR
magnitudes using relations:
In all three observed bands a limit of the surface brightness generally lower
than
/arcsec2 is reached, if images of galaxies are
isolated. The isophotes of the observed galaxies in arbitrary units are
presented in the right panels of Figs. 1, 4, 7, and 10. The BVR magnitudes
of galaxies are estimated generally within the
/arcsec2
contour. Using the MIDAS program, the overlapping halos of images of galaxies
were separated by extrapolation of fitted ellipses in the undisturbed part
down to the surface brightness
/arcsec2. Such a procedure
may give somewhat dubious results when the whole galaxy is embedded in the
halo of a larger galaxy.
The measured magnitudes in B are corrected for the extinction, QB, within
our Galaxy according to Schlegel et al. (1998). The
corrections in V and R are calculated using the color excesses
EB-V =
0.238 QB and
EV-R = 0.590 QB, respectively (Strayzis & Sviderskiene
1972). Extinction within spiral galaxies are estimated according to
)
(de Vaucouleurs et al.
1976). The K correction is neglected because the observed groups are
relatively nearby. The estimated accuracy of magnitudes is about
,
and could be worse for galaxies with overlapping halos.
Table 3: Radial velocities of member galaxies in groups ShCG 181, ShCG 344, ShCG 361, and ShCG 362.
![]() |

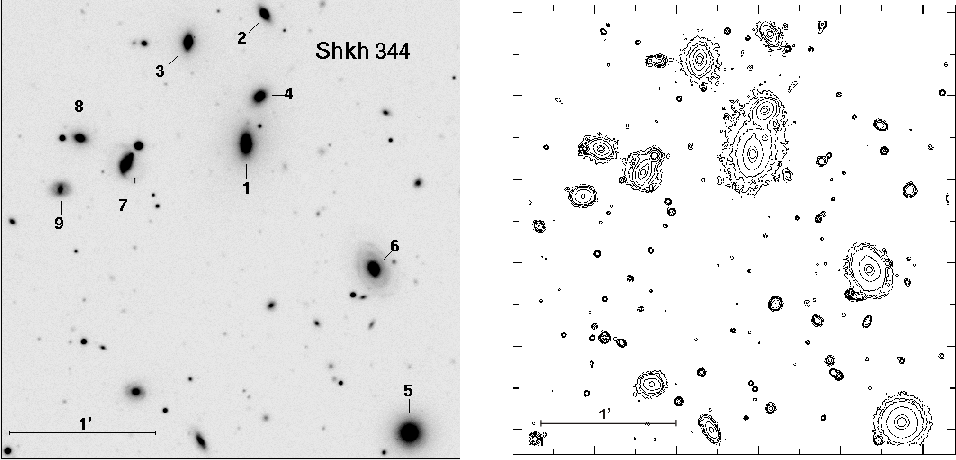

Figure 4: The image of ShCG 344 in R (left) and the isophotal contour plot (right). |
Open with DEXTER |
For a determination of the morphological types of galaxies we constructed
first the surface brightness,
in R, versus a1/4 profiles, where
a is the semi-major axis a. It is known that elliptical galaxies follow
the de Vaucouleurs (1948) a1/4 law. Hence, if the
profile is straight, we classify the galaxy as elliptical. If this
profile deviates from a straight line, we constructed the
versus a
graph. In the case of S0 and spiral galaxies the
curve may be
decomposed into bulge and disc components (Kent 1985; Schombert &
Bothun 1987). Kent (1985) showed that the bulge in spirals is
relatively smaller and the profile is steeper than those of lenticulars.
Thus, depending on the relative size of the bulge and the steepness of the
profile of the bulge, the galaxy was classified as S0 or spiral. However, as
Kent (1985) mentioned, not all galaxies can be fitted by these simple
functions. Deviations from ellipticity in both the core and envelope, as well
as deviations from concentric ellipses, are sometimes observed (Pildis
et al. 1995). Such deviations may imply that a galaxy
has undergone an interaction, but not in every case is this true. Therefore,

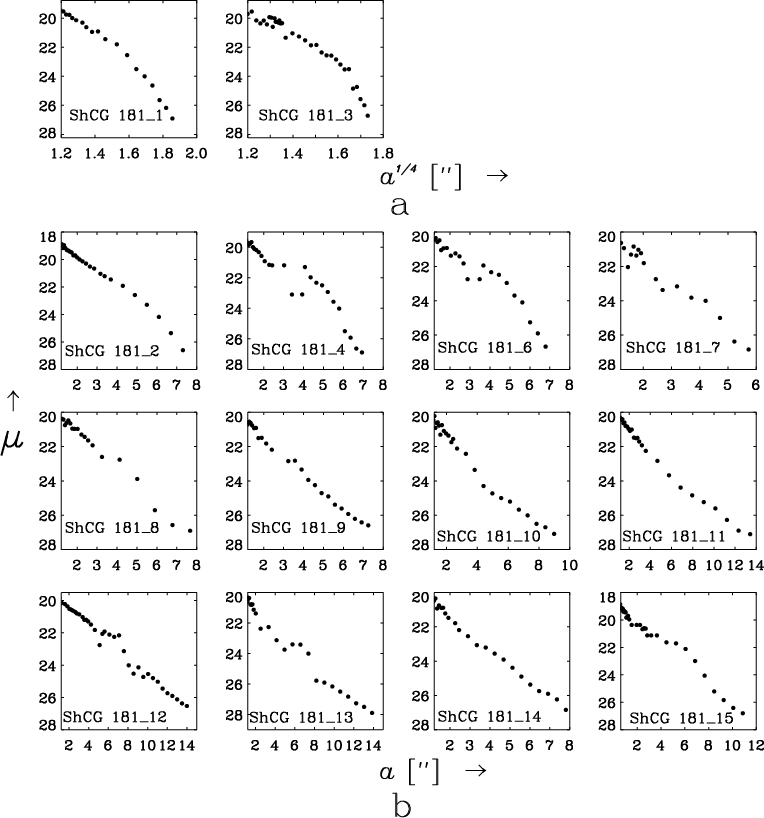

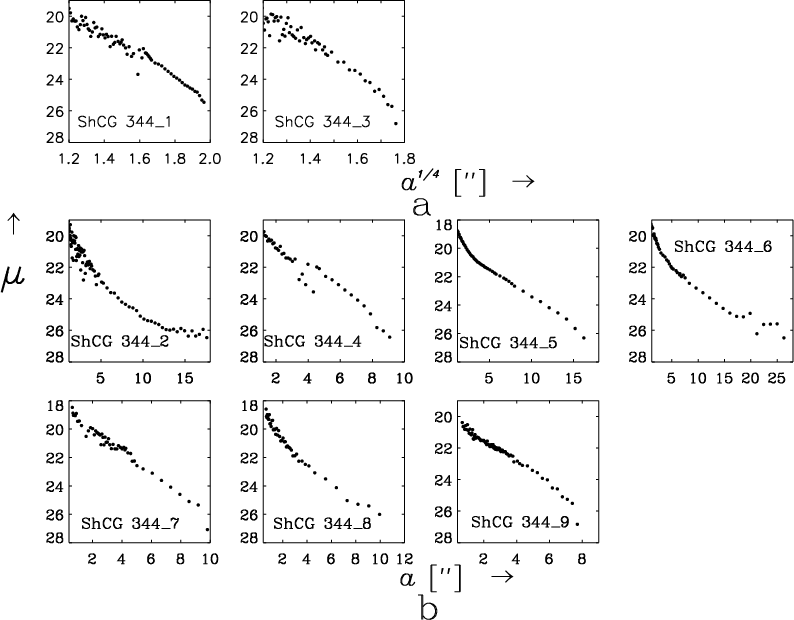

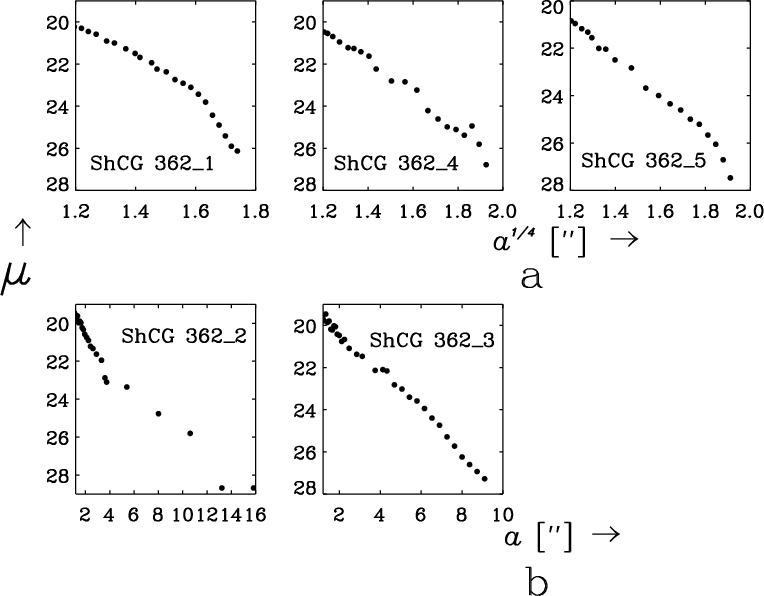

the deviations must be interpreted with restraint. The profiles
and/or
for galaxies in ShCG 181, ShCG 344, ShCG 361 and ShCG 362 are
presented in Figs. 2, 5, 8 and 11 respectively.
![]() |

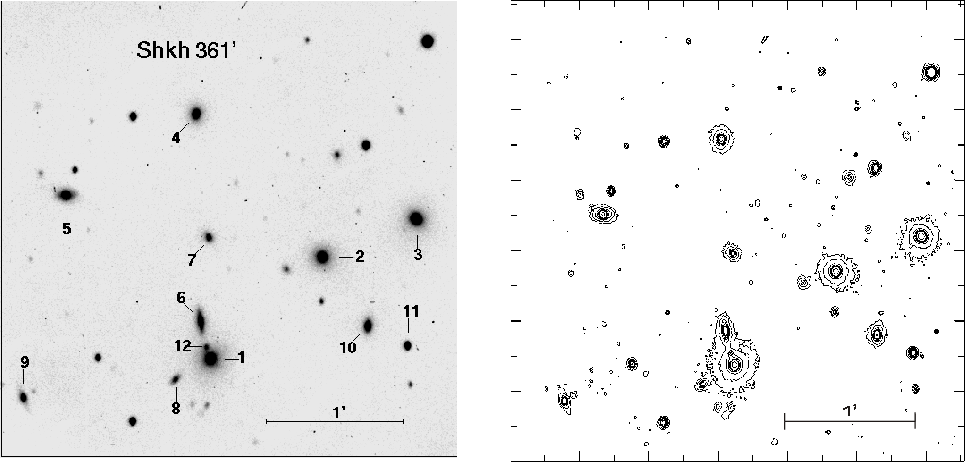

Figure 7: The image of ShCG 361 in R (left) and the isophotal contour plot (right). |
Open with DEXTER |
![]() |

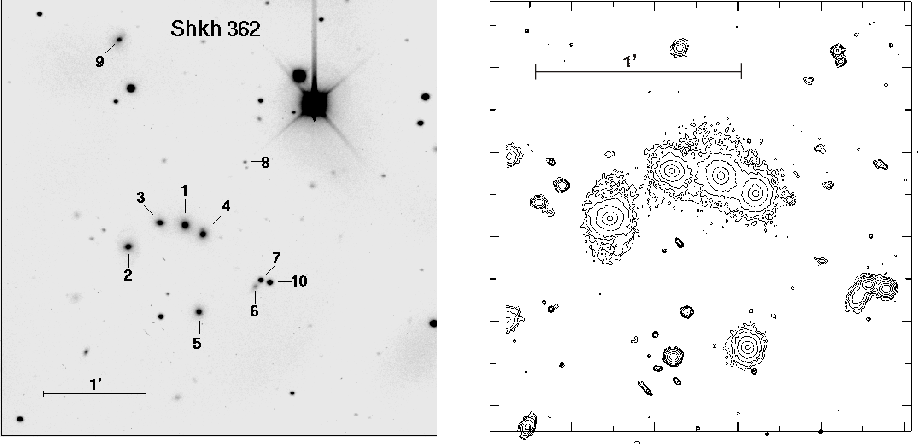

Figure 10: The image of ShCG 362 in R (left) and the isophotal contour plot (right). |
Open with DEXTER |

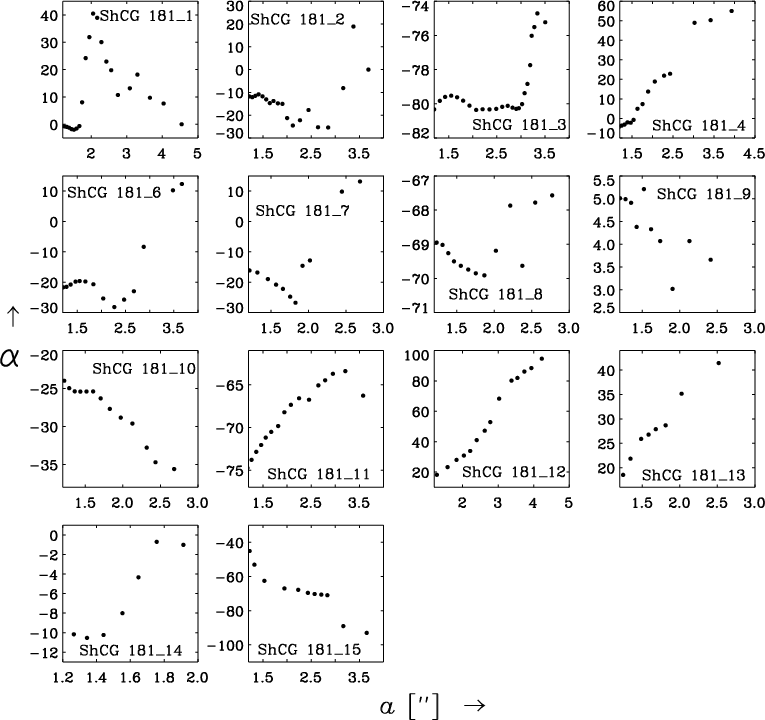

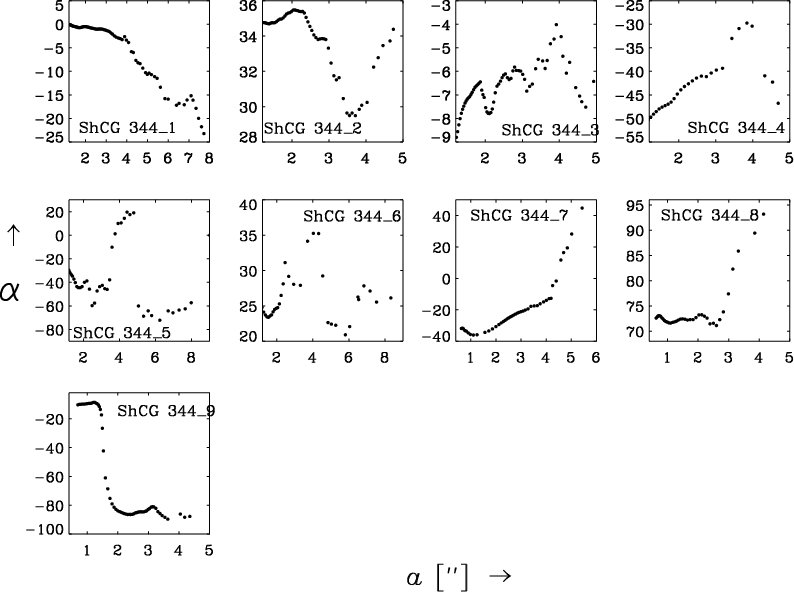

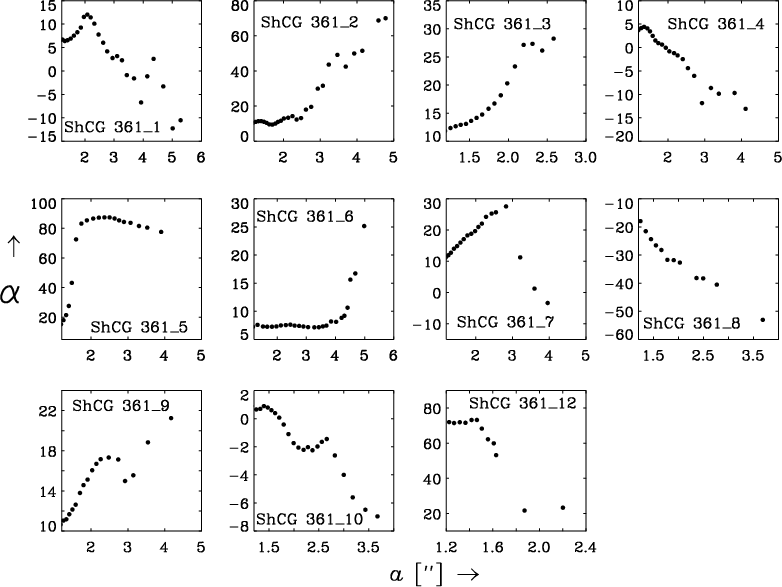

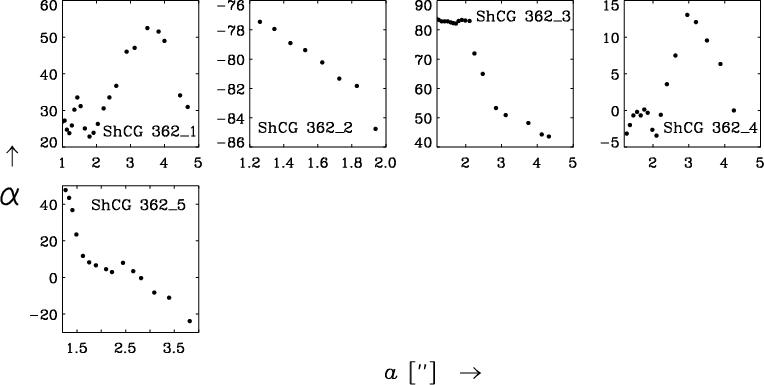

The curves of isophotal twisting of galaxies in the four studied ShCGs are plotted in Figs. 3, 6, 9 and 12. The twisting of the isophotes is considered as a sign of mutual tidal perturbations or galaxy collisions (Kormendy 1982; di Tullio 1979). The boxiness, which is not strictly correlated with interaction and merging (Lima Neto & Combes 1995; Bettoni & Fasano 1993, 1995; Fasano & Bettoni 1994) was not determined.
Table 4: Photometric parameters of galaxies in ShCG 181.
Table 5: Photometric parameters of galaxies in ShCG 344.
The diameter of a galaxy in B, V, and R bands was estimated by using the
outermost fitted ellipse corresponding to the surface brightness
/arcsec2. In the case of overlapping halos the diameter of the
galaxy was estimated from the fitted ellipse (see above). If a smaller galaxy
is embedded in the halo of a nearby bright galaxy, we used for the diameter
the last ellipse of the surface brightness profile down to the halo of the
brighter galaxy. In such cases the diameter is apparently underestimated. We
estimated also the axial ratios b/a, position angles and inclinations i,
generally using the
/arcsec2 contour.
The results of the photometry of member galaxies in ShCG 181, ShCG 344, ShCG 361, and ShCG 362 are presented in Tables 4-7 respectively in which the
following information is given: Col. l - the galaxy identification number,
Col. 2 - the magnitude in B26.5, Col. 3 - the axial ratio b/a in B,
Col. 4 - the diameter of the galaxy out to the surface brightness of
/arcsec2 in B; Cols. 5-7 - the latter three parameters in V;
Cols. 8-10 - the same three parameters in R; Col. 11 - the position angle
determined in R, Col. 12 - the inclination i in R, Col. 13 - the
morphological type; Col. 14 - the colour B-V; Col. 15 - the colour V-R.
We measured s of 28 galaxies in the four ShCGs studied. Two of them, galaxy
5 in ShCG 344 and galaxy 7 in ShCG 361, turned out to be foreground objects
projected over the corresponding group. Their
s differ by more than 1000
km s-1 from the mean
of the corresponding groups, which is accepted
as a limiting difference for being a member of a group (Hickson et al.
1992). All the other observed galaxies have accordant redshifts in
the corresponding groups.
Interaction between galaxies, which is very probable in dense environments of ShCGs, causes formation of bridges and filaments between them. However, one has to be cautious, since bright galaxies in ShCGs are often very close to each other in projection on the sky, and overlapping emission of their halos may create an impression of bridges. Interaction between galaxies may cause also formation of extended optical halos around galaxies, as demonstrated in Paper I.
Below we discuss in detail each of the studied groups.
ShCG 181. s of the eight brightest galaxies out of the listed 15
galaxies of the group were measured. The differences of
s of all of
them from the mean value are less than 1000 km s-1. Hence, this is a
real group. Redshifts of six galaxies, (6, 8, 10, 11, 13, 14) located around
the central concentration are not known. They also may be members of the
group. The image and the contour plot of object 5 (Fig. 1) show that it is
certainly a star.
Two of the central galaxies, 1 and 4, seem to be interacting, since their outermost brightness isophotes are enlarged (Fig. 1), which is a sign of thermal heating (Paper I). Moreover, galaxy 4 has radio emission (Tovmassian et al. 1999). Halos of galaxies 15, 3 and 7 located close to the brightest galaxy 1 seem to overlap the halo of the latter, and also each other. The extension of contour plots between galaxies 3 and 7 is due to a very faint galaxy there. The twisting profiles of these galaxies are normal.
The group ShCG 181 was earlier studied by Bettoni & Fasano (1995) in
the red band. There are some differences between our and their morphological
classification. Bettoni & Fasano classified galaxies 6-12 as spirals. Figure 2b shows, however, that
curves of these galaxies, except 9, are less
peaked and more shallow than those of spirals (Kent 1985), therefore
we conclude that these galaxies are rather lenticulars. Most of them
are unusually red for spirals. Direct B images of these galaxies do not
demonstrate the presence of spiral arms.
Table 6: Photometric parameters of galaxies in ShCG 361.
Table 7: Photometric parameters of galaxies in ShCG 362.
Figure 1 shows that the group is elongated in the north-west - south-east direction. Such a configuration fits well with the interpretation given by Tovmassian & Tiersch (2001) that ShCGs are elongated poor clusters of galaxies, the brightest members of which happen to be close to each other during assumed rotation around the gravitational center of the group. The presence of spirals is atypical for Shakhbazian groups. The space density of ShCG 181 (assuming that it consists of 15 galaxies) is about 500 Mpc-3, and also is not characteristic for ShCGs which generally have a much higher spatial density.
ShCG 344. Spectra of five galaxies, 1, 3, 4, 5, and 6, of this group of
eight galaxies were obtained. Four of them have accordant redshifts. The
brightest galaxy 5 with a much smaller
is a foreground galaxy, projected
over the outskirts of the group.
Consideration of the contour plots (right panel of Fig. 4) shows that two
galaxies in this group, the brightest galaxy 1 and galaxy 4, are possibly
interacting, since the halo of galaxy 1 is apparently enlarged in comparison
with halos of the other galaxies. The FIR emission at 60 m and 100
m identified with galaxies 1 and/or 4 (Tovmassian et al. 1998)
may also be considered as evidence of interaction. Moreover, in the halo
of galaxy 1 there are a few relatively bright knots. The brightness
concentration of the latter is smaller than those of a large number of faint
objects in the area (right panel of Fig. 4). Therefore, the former are less
likely to be objects projected over the halo of galaxy 1. The mentioned knots
may be dwarf galaxies formed as a result of interaction with galaxy 4 (e.g.
Barnes & Hernquist 1992; Elmegreen et al. 1993; Hunsberger
et al. 1996).
The radio source NVSS J233236+192215 was identified with galaxy 7 or with its close faint neighbour (Tovmassian et al. 1999). The spiral arms of galaxy 7 are undisturbed (Fig. 4). Thus, it is not interacting with the very compact and faint neighbour. Most probably this faint object is projected over galaxy 7, and is the radio emitter. The radial velocity of this faint object is unknown. Its knowledge would clarify the situation.
There are two spiral galaxies in this group, 6 and 7. The morphological type of galaxy 8 is uncertain. It also may be a spiral.
ShCG 361. Nine galaxies have accordant s. Galaxy 7 has a discordant
redshift and, thus, is projected over the central region of this group.
Contour plots of galaxies (right panel of Fig. 7) show that halos of the
brightest galaxies 1, 2 and 3 are apparently enlarged. The unusual

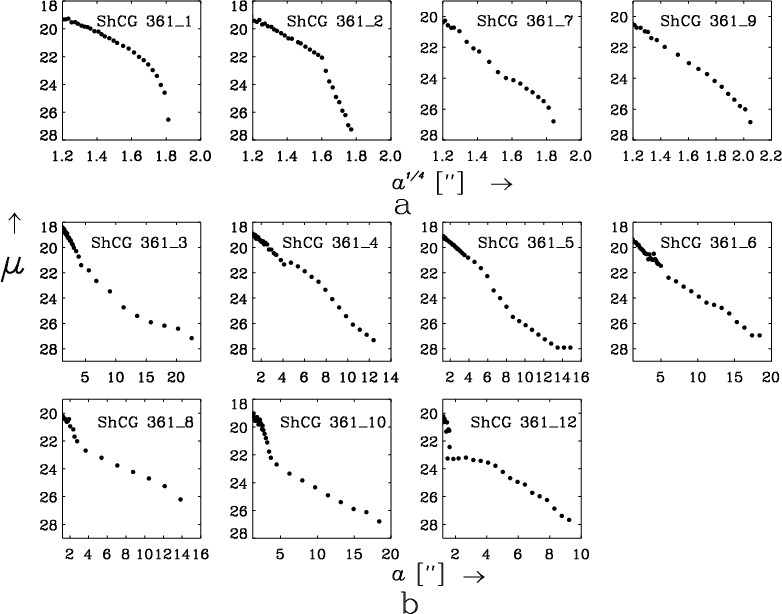

profile of galaxy 2 (Fig. 8) also shows an enlarged halo. These
three galaxies may be interacting. This suggestion becomes more convincing
when one compares the halos of galaxies 2 and 3 with R magnitudes of
and
respectively, with the halo of the obviously
isolated galaxy 4 with about the same R magnitude,
.
It is
remarkable that the halo of galaxy 3 is slightly extended towards galaxy 1.
Also the twisting profiles of these three galaxies (Fig. 10) are not smooth. The projected distance between galaxies 1 and 3 is
relatively small, only
200 kpc. At the same time, the difference
between
s of these three galaxies is
1400 km s-1. The
difference between space velocities may be higher. In such conditions
galaxies may shed gas and dust by thermal heating. Galaxy 12 appears to be
located very close to galaxy 1 and, if confirmed as a group member, is
possibly strongly affected by interaction, having completely lost its
halo (Fig. 7). It looks somewhat similar to the ultra compact dwarf galaxies
found by Drinkwater et al. (2000) and Phillipps et al. (2001)
in the Fornax cluster, but it is larger; its diameter is 5 kpc. The halo of
galaxy 6 is undisturbed. Its twisting angle is practically unchanged (Fig. 9). Most probably, this galaxy is just projected near galaxy 1.
ShCG 362. We obtained spectra of all five members of the group
listed in Baier & Tiersch (1979). They all have accordant s with a
small dispersion of
280 km s-1. The spectrum shows that object 10
is a star. The contour-plot shows that objects 7 and 8 are also stars. A
faint galaxy 6 is nearby. However, its membership of the group of five
brighter galaxies is not confirmed spectroscopically. The spiral galaxy 9 is
relatively far from the central concentration. Its redshift is also unknown.
It is remarkable that in the area of the group (within about 4.5 square
arcmin) there are about a dozen sufficiently faint galaxies distributed along
the north-west south-east direction.
The contour plots of galaxies (right panel of Fig. 10) shows that galaxies 1, 3, 4 and probably also galaxy 2 seem to be interacting. The outer isophotes of galaxies 1, 3 and 4 are sufficiently enlarged in comparison to that of the apparently isolated galaxy 5, which has the same magnitude as galaxy 3. The large extent of galaxy 2 in the north-south direction is due to its spirals, but the central body of this galaxy shows extended isophotes. The enlargement of isophotes may be due to thermal heating. Twisting profiles of galaxies 1 and 4 (Fig. 12) also show that interaction is indeed taking place.
Table 8: Physical parameters of the studied ShCGs.
The physical parameters of ShCGs. The results of the photometry of
member galaxies in the observed cores of the studied groups and knowledge of
distances of groups allowed us to deduce, as in Paper I, the physical
parameters of groups presented in Table 8, in which the the following
information is given: line 1 - the redshift z (weighted by masses of
member galaxies); line 2 - the projected diameter D of the group
(H=55 km s-1 Mpc-1); line 3 - the RVD (weighted by the masses of
galaxies); line 4 - the virial radius,
,
of the group (weighted by
the masses of galaxies); line 5 - the virial mass; line 6 - the luminosity of
the group, L, in solar units; line 7 - the mass-to-luminosity ratio
in solar units; and line 8 - the crossing time,
.
Below we discuss the physical parameters of all thirteen ShCGs, including those presented in Papers I, II and in Tovmassian et al. (2003b).
The RVD of the thirteen groups studied is much smaller than the typical value
of 1000 km s-1 for rich galaxy clusters (Zabludoff et al.
1990). The highest RVD is that of the group ShCG 43, 284 km s-1.
The derived virial masses of groups reach
.
The smallest mass of
deduced
for the group ShCG 344 may in reality be twice as high, since it was deduced
onthe basis of four members (galaxies 1, 3, 4, and 6). The other four possible
members (galaxies 2, 7, 8, and 9) of comparable luminosities are not taken
into account, since their redshifts are not measured. For the unknown
projection effect, the derived mass of an individual group with fewer members
has, however, some uncertainty. The obtained values are typical for galaxy
groups. Taking into account that ShCGs are larger systems with a number of
fainter members (Tovmassian & Tiersch 2001), their real masses could
be higher.
The mean value of mass-to-luminosity ratios for thirteen of the studied groups
is ,
and is much smaller than the mean value for HCGs,
30(Hickson et al. 1992). ShCG 43 has the highest value,
.
The mass-to-luminosity ratios for these thirteen ShCGs are
somewhat smallerthan the dynamical mass-to-light ratio for ellipticals,
8 (Karachentsev 1987). This is possibly due to the
uncertainty of the estimated virial mass.
The crossing time,
,
of nine out of the thirteen ShCGs is smaller
than the mean
of HCGs,
years (Hickson et al. 1992). The mean
of these nine groups is
years. The very high value,
years, of
deduced for the group ShCG 344 may not be reliable,
since we have spectra of only four galaxies of this group, and the RVD is
very small, only
38 km s-1. One has to take into account that
the real crossing times of groups in both samples (HCGs and ShCGs) may in
reality differ from the deduced values. It was shown that ShCGs and HCGs are,
most probably, the cores of larger elongated systems (Tovmassian et al. 2001; Tovmassian & Tiersch 2001; Tovmassian
2001, 2002). We observe such a system as a CG if its
orientation is close to the line of sight, or otherwise if its bright members
happen to be close to each other during supposed rotation around the common
gravitational center of the whole system. This means that the deduced
of the groups oriented end-on, and seen as round, will be smaller
than the real values, since their sizes will be underestimated. On the other
hand, the deduced
will be overestimated for the elongated
chain-like groups, since their deduced RVDs would be smaller than the real
values.
Due to processes of interaction which may be frequent in the central areas of
the considered groups, the spirals should be converted to S0/E types. This
explains the low rate of the former in ShCGs,
on average. Two
groups, ShCG 344 and ShCG 376, are exceptions. Six out of eight members of
ShCG 344 and all nine members of ShCG 376 are spirals. Elliptical galaxies in
all studied ShCGs are very red, the B-V of many of them are of about 1 or
more. Such colour have the reddest ellipticals in the sample studied by Buta
et al. (1995). In agreement with the finding of Zepf et al. (1991) we
have not detected a population of bright blue elliptical galaxies predicted
by the environment-dominated models of evolution of galaxies, according to
which the frequency of blue ellipticals in CGs should be higher.
We investigated spectroscopically 28 galaxies in the regions of four Shakhbazian groups, ShCG 181, ShCG 344, ShCG 361, and ShCG 362. Thirty nine galaxies of these groups were observed in BVR. Important physical parameters of these groups are deduced (Table 8). The results of the detailed study of these four groups and another nine groups presented in Papers I and II and in Tovmassian et al. (2003b) can be summarized as follows:
1. In the thirteen studied ShCGs we obtained spectra of 88 objects. Three of them turned out to be stars. One more star was revealed by the detailed photometry of 121 supposed members. Hence, the overwhelming majority of objects in the selected groups are, indeed, galaxies, although ShCGs have been selected by eye from the POSS prints as compact groups of compact, red galaxies, and it could not be excluded that some of the objects included in the groups may in reality be stars.
2. The measured s of galaxies in the thirteen groups prove they are real
physical entities and not a chance projection of field galaxies. Out of 66
spectroscopically observed objects, only three or possibly four (galaxy 6 in
ShCG 376) turned out to be foreground galaxies.
3. The redshifts of the thirteen ShCGs are in the range from 0.0396 to 0.1868, i.e., they all are located well beyond the Local Supercluster.
4. The majority of galaxies in ShCGs are E and S0 galaxies. Of 120 member galaxies observed in BVR only 18 or 30 are spirals (if all dubious S/S0 classifications are spirals) i.e. at most 25%. The low relative number of spirals could be due to the loss of interstellar gas by galaxies caused by tidal forces and/or ram pressure due to the expected frequent processes of interaction between member galaxies. Detailed photometry showed that in almost each group there are interacting galaxies.
5. The mass-weighted RVDs of most of the studied ShCGs are between 40 km s-1 and 280 km s-1, comparable to that of HCGs and LGs.
6. The virial radii are small enough; they do not exceed 160 kpc.
7. The derived virial masses of the groups range from
to
.
These values
are typical for galaxy groups. However, one has to take, into account that
the real masses may be higher, since, as it was shown by Tovmassian &
Tiersch (2001), ShCGs are the cores of larger, elongated systems.
8. The mass-to-luminosity ratio
of eleven of the studied ShCGs
is within
0.5-10, with an average value
.
These ratios are smaller than the mean value,
30, for HCGs (Hickson et al. 1992), and are comparable to those of individual galaxies. This
means that these compact groups, except ShCG 43 for which
,
have nearly no dark matter.
9. The crossing time for eleven out of twelve ShCGs ranges from
to
years. It is generally shorter than
the Hubble age. The high value of
for the group ShCG 344,
,
may be due to the very small value of RVD (38 km s-1) deduced by using
s of only four out of, at least, eight
galaxies.
Acknowledgements
The authors are grateful to the referee, Dr. S. Temporin for a careful reading of our paper and very valuable comments which significantly improved the paper. HT is grateful to the Government of the Land Brandenburg for the support of this work (Az 24-19/003; 2000), to the DFG for the grants TI 215/1-1, TI 215/2-1, TI 215/3-1, TI 215/4-1, and to Mr. O. Beck for private financial support. HMT acknowledges the 1997 DAAD grant, the DFG for the project 444Mex 112/2/98, as well as the Königsleiten Observatory for the partial financial support (accommodation) during June-August 2001 and June 2003. SN thanks the DFG for the projects 436 RUS 17/56/95 and 436 RUS 17/64/94. The authors are indebted to P. Papaqui for help in the evaluation of some figures.
Table 2: Spectroscopic observations of ShCG 181, ShCG 344, ShCG 361, and ShCG 362.
![]() |
Figure 2:
Isophotal surface brightness, ![]() |
Open with DEXTER |
![]() |
Figure 3:
Position angle ![]() |
Open with DEXTER |
![]() |
Figure 5:
Isophotal surface brightness, ![]() |
Open with DEXTER |
![]() |
Figure 6:
Position angle ![]() |
Open with DEXTER |
![]() |
Figure 8:
Isophotal surface brightness, ![]() |
Open with DEXTER |
![]() |
Figure 9:
Position angle ![]() |
Open with DEXTER |
![]() |
Figure 11:
Isophotal surface brightness, ![]() |
Open with DEXTER |
![]() |
Figure 12:
Position angle ![]() |
Open with DEXTER |
