A&A 411, L415-L419 (2003)
DOI: 10.1051/0004-6361:20031444

First INTEGRAL observations of GRS 1915+105

D. C. Hannikainen ¹ - O. Vilhu^1,2 - J. Rodriguez^3,2 - S. Brandt⁴ - N. J. Westergaard⁴ - N. Lund⁴ - I. Mocur³ - Ph. Durouchoux³ - T. Belloni⁵ - A. Castro-Tirado⁶ - P. A. Charles ⁷ - A. J. Dean⁷ - R. P. Fender⁸ -  M. Feroci⁹ - P. Hakala¹ - R. W. Hunstead¹⁰ - C. R. Kaiser⁷ - A. King¹¹ - I. F. Mirabel³ - G. G. Pooley¹² - J. Poutanen¹³ - K. Wu¹⁴ - A. A. Zdziarski¹⁵

1 - Observatory, PO Box 14, 00014, University of Helsinki, Finland
2 - INTEGRAL Science Data Center, Chemin d'Écogia 16, 1290 Versoix, Switzerland
3 - Centre d'Études de Saclay, DAPNIA/Service d'Astrophysique (CNRS FRE 2591), Bât. 709, Orme des Merisiers, 91191 Gif-sur-Yvette Cedex, France
4 - Danish Space Research Institute, Juliane Maries Vej 30, 2100 Copenhagen Ø, Denmark
5 - INAF - Osservatorio Astronomico di Brera, via E. Bianchi 46, 23807 Merate (LC), Italy
6 - Instituto de Astrofísica de Andalucía (IAA-CSIC), PO Box 03004, 18080 Granada, Spain
7 - Dept. of Physics and Astronomy, University of Southampton, Southampton SO17 1BJ, UK
8 - Astronomical Institute, "Anton Pannekoek'', University of Amsterdam, Kruislaan 403, 1098 SJ Amsterdam, The Netherlands
9 - Istituto Astrofisica Spaziale e Fisica Cosmica, Sezione di Roma, CNR, via Fosso del Cavaliere, 00133 Roma, Italy
10 - School of Physics, University of Sydney, NSW 2006, Australia
11 - Theoretical Astrophysics Group, University of Leicester, Leicester LE1 7RH, UK
12 - Astrophysics Group, Cavendish Laboratory, University of Cambridge, Madingley Road, Cambridge CB3 0HE, UK
13 - Astronomy Division, PO Box 3000, 90014 University of Oulu, Finland
14 - MSSL, University College London, Holmbury St. Mary, Surrey RH5 6NT, UK
15 - Nicolaus Copernicus Astronomical Center, Bartycka 18, 00-716 Warszawa, Poland

Received 7 July 2003 / Accepted 16 September 2003

Abstract
We present data from the first of six monitoring Open Time observations of GRS 1915+105 undertaken with the orbiting INTEGRAL satellite. The source was clearly detected with all three X-ray and gamma-ray instruments on board. GRS 1915+105 was in a highly variable state, as demonstrated by the JEM X-2 and ISGRI lightcurves. These and simultaneous RXTE/PCA lightcurves point to a novel type of variability pattern in the source. In addition, we fit the combined JEM X-2 and ISGRI spectrum between 3-300 keV with a disk blackbody + powerlaw model leading to typical parameter values found earlier at similar luminosity levels. A new transient, IGR J19140+098, was discovered during the present observation.

Key words: X-rays: binaries - X-rays: GRS 1915+105

1 Introduction

GRS 1915+105 has been extensively observed at all wavelengths ever since its discovery. It was originally detected as a hard X-ray source with the WATCH all-sky monitor on the GRANAT satellite (Castro-Tirado et al. 1992) with a flux of 0.35 Crab in the 6-15 keV range (Castro-Tirado et al. 1994). Subsequent monitoring with BATSE on CGRO showed it to be the most luminous hard X-ray source in the Galaxy (Paciesas et al. 1996), with  $L_{\rm 20-100~keV}\sim3{-}6\times10^{38}$ erg s^-1 (for a distance of 12.5 kpc). Apparent superluminal ejections have been observed from GRS 1915+105 on at least two occasions: the first time in 1994 with the VLA (Mirabel & Rodríguez 1994) and the second time in 1997 with MERLIN (Fender et al. 1999). Both times the true ejection velocity was calculated to be >0.9c. Following the ejections of 1997, Fender et al. (1999) give an upper limit for the distance to the source of 11.2 $\pm$ 0.8 kpc. High optical absorption ($\geq$33 mag) towards GRS 1915+105 prevented the identification of the non-degenerate companion until recently. However, using the VLT, Greiner et al. (2001) identified the mass-donating star to be of spectral type K-M III and hence deduced the mass of the black hole to be 14 $\pm$ $4~M_{\hbox{$\odot$ }}$. The Rossi X-ray Timing Explorer (RXTE) has observed GRS 1915+105 since its launch in late 1995 and has shown the source to be highly variable (see e.g. Belloni et al. 2000). The source was detected up to $\sim$700 keV during OSSE observations (Zdziarski et al. 2001).

GRS 1915+105 is being observed extensively with the European Space Agency's International Gamma-Ray Astrophysical Laboratory (INTEGRAL, Winkler et al. 2003) as part of the Core Program and also within the framework of an Open Time monitoring campaign. Here we present the results of the first observation of the Open Time monitoring campaign which took place on 2003 Mar. 6. We show the lightcurves and the spectra from ISGRI and JEM-X, in addition to a SPI image. We also show that the source underwent a new type of variability during this observation, which is seen in the JEM X-2 lightcurve and confirmed by simultaneous RXTE observations.

2 Observations

As part of a monitoring program which consists of six 100 ks observations separated by approximately one month, INTEGRAL observed GRS 1915+105 for the first time for this campaign on 2003 Mar. 6 beginning at 03:22:33 UT. Simultaneously with the INTEGRAL observations, we obtained pointed RXTE observations (Rodriguez et al., in preparation), in addition to radio data from the Molonglo Observatory Synthesis Telescope, the Ryle Telescope and RATAN. These latter data will be dealt with in detail in a forthcoming paper which will cover all the observations (Hannikainen et al., in preparation). Figure 1 shows the RXTE/ASM 1.2-12 keV lightcurve beginning with INTEGRAL's launch on 2002 Oct. 17. The dashed line indicates the date of the 100 ks INTEGRAL observation. As 75 ASM ct/s corresponds to 1 Crab, our observation was undertaken while the source had a luminosity of $\sim$560 mCrab (in the 1.2-12 keV ASM range), which is close to the average luminosity of the source.

	Figure 1: The RXTE/ASM 1.2-12 keV single dwell lightcurve. The starting date in the figure is 2002 Oct. 17, INTEGRAL's launch date. The dashed line shows 2003 March 6, i.e. the date of our first observation. 75 ASM ct/s corresponds to 1 Crab.
Open with DEXTER

The INTEGRAL observations were undertaken using the hexagonal dither pattern (Courvoisier et al. 2003): this consists of a hexagonal pattern around the nominal target location (1 source on-axis pointing, 6 off-source pointings, each 2 degrees apart and each science window of 2200 s duration). This means that GRS 1915+105 was always in the field-of-view of all three X-ray (JEM X-2) and gamma-ray (IBIS and SPI) instruments throughout the whole observation. The source was clearly detected by all three X-ray and gamma-ray instruments as shown below (Figs. 2, 4, 5 and 7). (Due to high extinction towards the source, the target was not visible in the optical monitor.) The properties of the INTEGRAL instruments are described in detail elsewhere in this journal and so we give only a brief introduction. In this section we present the results of the INTEGRAL observation of 2003 Mar. 6.

All data reductions were performed using standard software explained elsewhere in the present issue, using instrument responses available in June 2003.

2.1 ISGRI

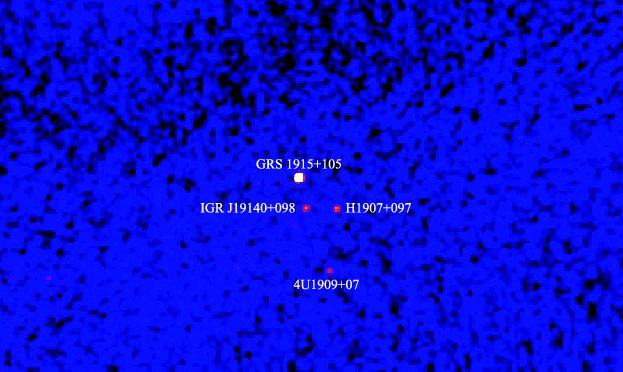

	Figure 2: The IBIS/ISGRI 20-40 keV ($\sim$ $22^{\circ }$ width and $\sim$ $12^{\circ }$ height) image, showing the location of GRS 1915+105 and three other bright sources in the field, including the new transient IGR J19140+098 discovered during this observation. North is up and East is to the left.
Open with DEXTER

The Imager on Board the INTEGRAL Spacecraft (IBIS, Ubertini et al. 2003) is a coded mask instrument designed for high angular resolution (12 arcmin, but source location down to 1 arcmin) imaging in the energy range from $\sim$20 keV to $\sim$10 MeV. Its total field of view is $\sim$ $30\times30$ degrees for zero response with a uniform sensitivity within the central $\sim$ $10\times10$ degrees. It has $19\times19$ degrees FWHM, i.e. up to 50% response of the instrument. The INTEGRAL Soft Gamma-Ray Imager (ISGRI, Lebrun et al. 2003) is the top layer of the IBIS detection plane, which consists of an array of 128 $\times$ 128 cadmium telluride (CdTe) square pixels (4 mm $\times$ 4 mm each) and covers the energy range from 20 keV to a few hundred keV. Data reduction has been performed following the standard method described in Goldwurm et al. (2003) extracting from each 2200 s pointing the source positions and count rates. Then a mosaic was produced from the summation of all pointings.

Figure 2 shows the IBIS/ISGRI 20-40 keV ($\sim$ $22^{\circ} \times 12^{\circ}$) mosaicked image of the field of GRS 1915+105, with an exposure time of 98 300 s. A preliminary instrumental background correction has been performed (Terrier et al. 2003). Two other known sources, H1907+097 and 4U 1909+07, are visible in the field.

In addition, a new transient, IGR J19140+098 (SIMBAD corrected name IGR J19140+0951) was discovered during the observation of 2003 Mar 6 (Hannikainen et al. 2003).

Figure 3 (top) shows the 20-40 keV and (bottom) the 40-80 keV ISGRI lightcurves. The horizontal line indicates the 50 mCrab level in the given energy ranges. As can be inferred, the luminosity of the source varies between $\sim$30-100 mCrab in the 20-40 keV range and between $\sim$24-50 mCrab in the 40-80 keV range.

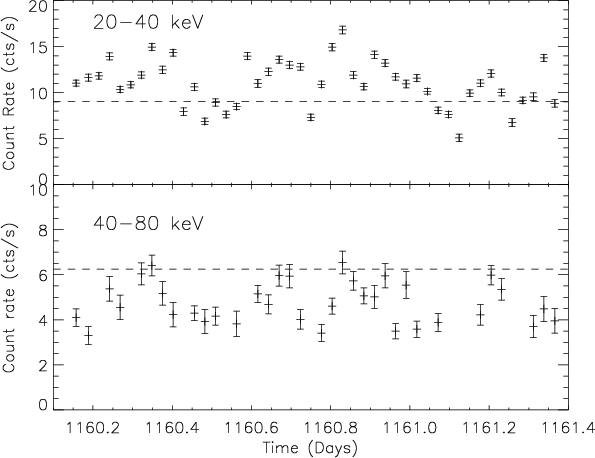

Figure 3: The ISGRI 20-40 keV ( top) and 40-80 keV ( bottom) lightcurves. The dashed horizontal lines indicate the 50 mCrab level in the given energy ranges showing, in particular how much steeper the source spectrum is compared to the Crab. The bin size is 2200 s. The time of the observation is given in IJD, or "ISDC Julian Date'', and is defined as the fractional number of days since 2000 Jan. 1 (in other words IJD = JD-2 451 544.5).

Open with DEXTER

2.2 SPI

The Spectrometer on INTEGRAL (SPI, Vedrenne et al. 2003) is a coded mask instrument designed for high energy resolution (2 keV at 1 MeV) spectroscopy of gamma-ray sources in the 20 keV to 8 MeV range. It consists of an array of 19 hexagonal high-purity Germanium detectors. The field of view is 16$^{\circ}$ in diameter with an angular resolution of 2$^{\circ}$. The resulting 100-200 keV SPI image is shown in Fig. 4. GRS 1915+105 is clearly detected up to 200 keV.

One point which must be noted is that the new transient, IGR J19140+098, lies only 1.13$^{\circ}$ away from GRS 1915+105 thus rendering the spectral extraction highly uncertain (due to source confusion) at this early stage of the mission.

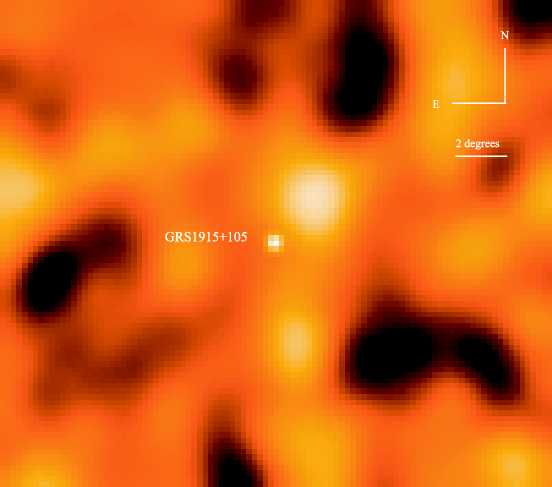

	Figure 4: A SPI 100-200 keV image of GRS 1915+105. GRS 1915+105 is clearly visible at the center of the image (marked). The three other sources seen in Fig. 2 are much fainter in this energy range and not visible.
Open with DEXTER

2.3 JEM X-2

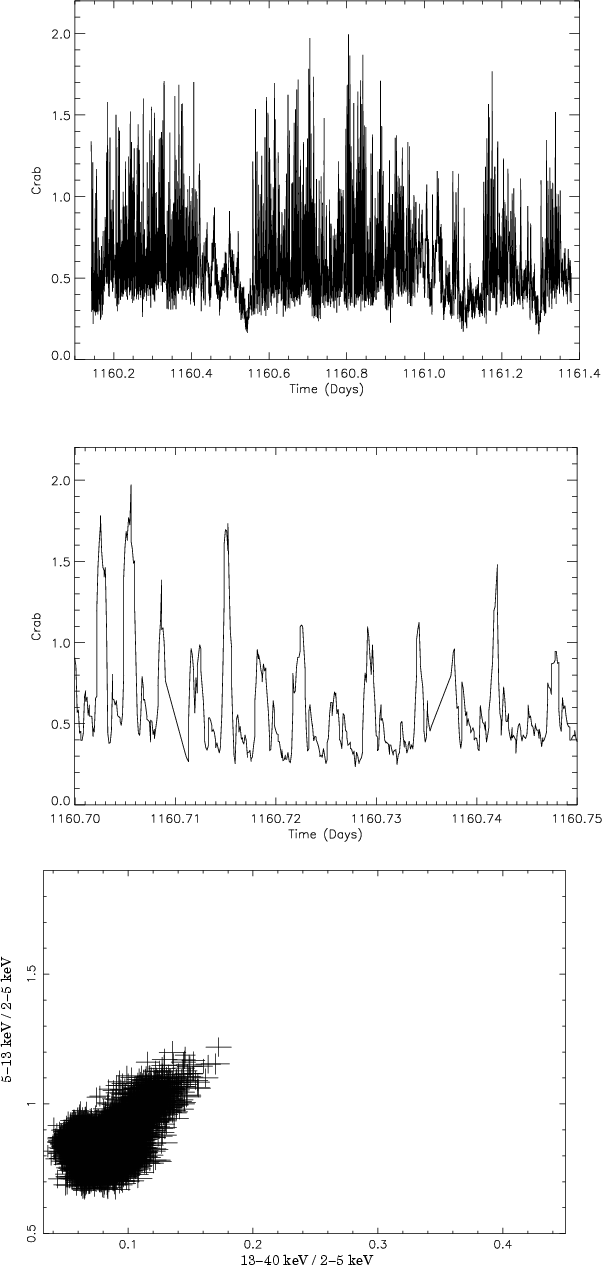

	Figure 5: The JEM X-2 lightcurves. Top: the whole 100 ks observation showing strong variability. Middle: a zoom covering 1.2 hours. The bin size is 8 s. Bottom: RXTE/PCA color-color diagram. The time bin is 1 s. The scale allows for a direct comparison with Figs. 2a and 2b in Belloni et al. (2000).
Open with DEXTER

The Joint European X-ray monitor, JEM-X (Lund et al. 2003), consists of two identical coded mask instruments designed for X-ray imaging in the range of 3-35 keV with an angular resolution of 3 arcmin and a timing accuracy of 122 $\mu$s. At present, only JEM X-2 is operational, so all results shown here are from that instrument. The top left-hand side of Fig. 5 shows the JEM X-2 lightcurve from the whole 100 ks observation. As can be seen, the source was in a very variable state, with the flux varying between 0.25 to 2 Crab with a mean of $\sim$0.5 Crab. The other panel shows a zoom of the lightcurve, which shows particularly striking rapid oscillations. Of particular interest are the main peaks separated by $\sim$5 min. Although this kind of variability resembles the $\rho$-heartbeat, $\nu$ and $\phi$ oscillations (variability classes of Belloni et al. 2000), these are more uniform and occur on shorter timescales. Our RXTE observations did not cover the entire 100 ks INTEGRAL data but were simultaneous. They confirm the variability seen by JEM X-2. We produced a color-color (CC) diagram for the RXTE data in the same manner as in Belloni et al. (2000) (note that the energy-channel conversion for PCA corresponds to epoch 5). The resultant plot is shown in Fig. 5. This CC-diagram and the JEM X-2 lightcurve seem to indicate a new type of variability not seen in the 12 classes by Belloni et al. (2000). The JEM X-2 lightcurves were also built in four energy bands and a CC-diagram ((6-15 keV)/(3-6 keV) vs. (15-35 keV)/(3-6 keV)) constructed for the mean pulse profile of the 5-min oscillations. The resulting CC-diagram was very similar to that of RXTE shown in Fig. 5. The "ups'' were harder than the "downs'' - this behavior is opposite to that seen in the $\rho$, $\nu$ and $\phi$ oscillations.

In order to have a first overview of the JEM X-2 capability in timing analysis, we produced a simple Fourier Transform of the whole JEM X-2 lightcurve (Fig. 6). After removing artefacts due to some gaps in the data, we can identify a Quasi-Periodic Oscillation (QPO) at a frequency $3.32\times10^{-3}$ Hz ( $\sigma=3.6\times10^{-4}$ Hz). At the current stage, the exact power of the feature cannot be known exactly since it requires a precise background estimate. The observation of such a low QPO with JEM X-2 is, however, of prime importance since it opens the studies of low frequencies (difficult to access with RXTE due to its 90-min orbit, and usually shorter observations) through the long, continuous INTEGRAL observations. The frequency of this QPO is in agreement with the 5-min timescale of the main peaks in the lightcurve. The fact that such a feature is detected from the Fourier transform of the whole 100 ks JEM X-2 lightcurve indicates that this class of variability is dominated by the 5-min oscillations. A deeper analysis of the variability is in progress and will be published elsewhere.

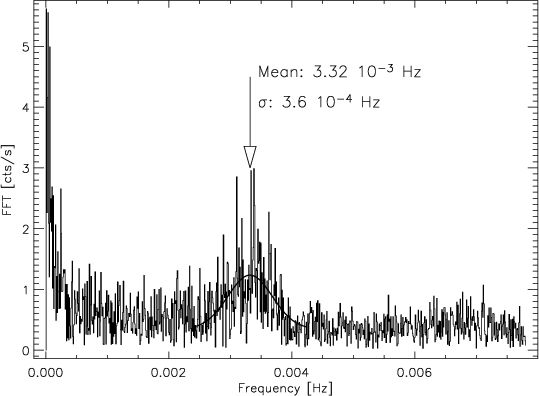

	Figure 6: The JEM X-2 power spectrum.
Open with DEXTER

2.4 Preliminary spectral analysis

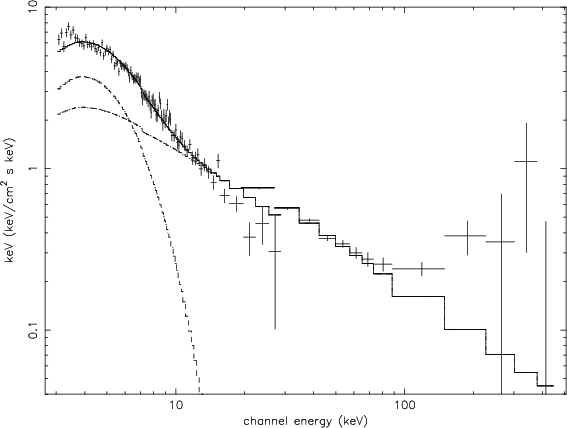

Figure 7: The JEM X-2 (3-20 keV) and ISGRI (20-450 keV) spectrum. The JEM X-2 spectrum is a mean from $\sim$37 min, while the ISGRI spectrum is accumulated over the whole observation of 100 ks. The residuals seen above $\sim$300 keV are probably due to the background. No systematics have been included, and the RMF and ARF in the case of ISGRI are preliminary matrices. Calibration is still in progress.

Open with DEXTER

ISGRI spectra were extracted with a pre-flight 128 channels redistribution matrix file (rmf) and despite source variability, all spectra from all pointings were averaged. Figure 7 shows the ISGRI spectrum accumulated over the whole observation of $\sim$100 ks. Note that we used an ancillary response file (arf) preliminarily corrected compared to the pre-flight matrix (P. Laurent, private communication). JEM X-2 spectra from science window 26, i.e. the interval covering (Fig. 5) IJD = 1160.79063 to 1160.81615, were extracted. Data above 450 keV in the case of ISGRI and above 30 keV in the case of JEM X-2 were ignored, and some bins above 100 keV were co-added.

The XSPEC package v11.2.0 was used for the fitting. The resulting co-added spectrum and model is shown in Fig. 7. The model used was photoelectric absorption, plus a disk blackbody and powerlaw. $N_{\rm H}$ was frozen to  $5\times10^{22}$ (Lee et al. 2002). The fit yielded an inner temperature of the disk of 1.1 $\pm$ 0.17 keV and a photon index 2.97 $\pm$ 0.3. This photon index is what is expected for the medium luminosity level (see Fig. 1) during which the present observations were performed (e.g. Muno et al. 1999; Vilhu et al. 2001). The normalizations for both ISGRI and JEM X-2 were left free. The best fit led to a normalization of $13 \pm 1$ photons/keV/cm²/s at 1 keV for JEM X-2, and 16 $\pm$ 2 photons/keV/cm²/s for ISGRI. The 2-20 keV unabsorbed flux was $\sim$ $2\times10^{-8}$ erg cm^-2 s^-1. The blackbody component accounts for 51%, of the 2-20 keV unabsorbed flux.

The flux in the 20-450 keV range is $1.39\times10^{-9}$ erg cm^-2 s^-1, which corresponds to a luminosity of $\sim$ $2.1\times10^{37}$ erg s^-1 for a distance of 11.5 kpc. However, it must be noted that the source was in a very variable state and is known to vary on all timescales, so the resulting spectrum is in fact an average over the variability.

3 Summary

Although major analysis of the Open Time observations of GRS 1915+105 is being undertaken and the results will be presented elsewhere, here we want to stress the following:

$\bullet$ GRS 1915+105 was clearly detected by all three of INTEGRAL's X-ray and gamma-ray instruments;

$\bullet$ the source was highly variable as demonstrated by both the JEM X-2 3-35 keV and ISGRI 20-40 and 40-80 keV lightcurves. This class of variability seems to be new in comparison with previous studies;

$\bullet$ the source brightness varied from 0.25 to 2 Crab in the JEM X-2 energy range and between $\sim$30-100 mCrab ($\sim$24-50 mCrab) in the 20-40 keV (40-80 keV) ISGRI ranges;

$\bullet$ assuming a distance of 11.2 kpc, GRS 1915+105 had an averaged 20-450 keV luminosity $\sim$ $2.1\times10^{37}$ erg s^-1.
