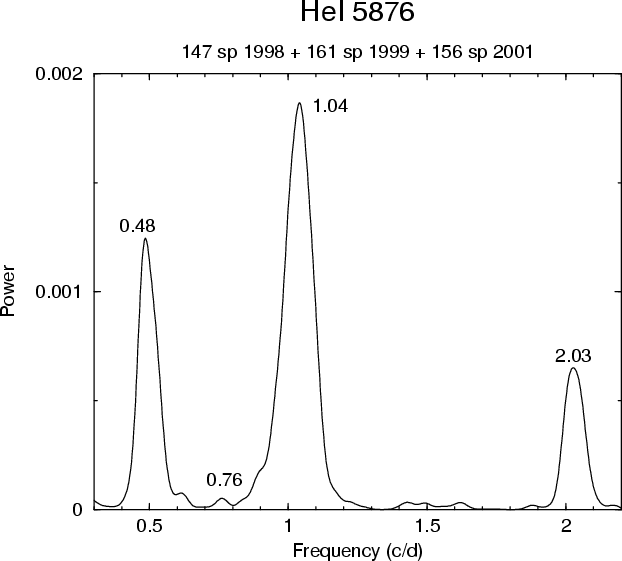

Figure 1: Example of power spectrum obtained for the He I 5876 line with the three datasets. |
Open with DEXTER |
![]() |
Figure 2:

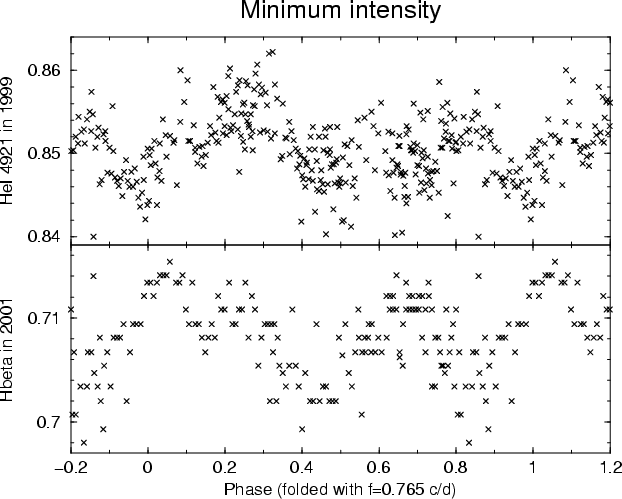

Variations of the minimum intensity of the He I 4921 line
observed in 1999 and the H![]() |
Open with DEXTER |
![]() |

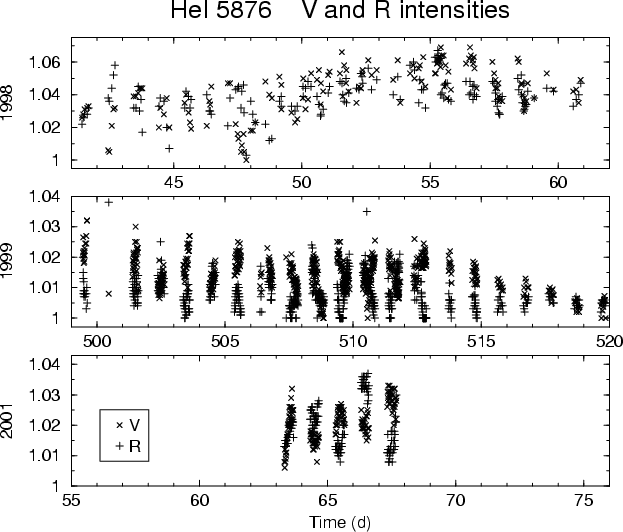

Figure 3: Variations of the intensity of the V and R components of the He I 5876 line during the three observing runs. The data obtained in 2001 (in HJD minus 2 452 200) are plotted on the same time scale as the data obtained in 1998 (in HJD minus 2 451 100) and 1999 (in HJD minus 2 451 000) to make the comparison easier. |
Open with DEXTER |
![]() |
Figure 4:

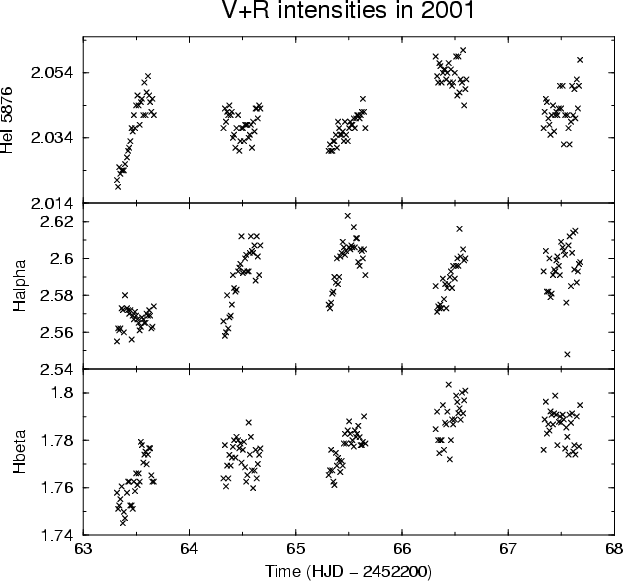

Variations of the intensity of the V plus R components of the
He I 5876, H![]() ![]() |
Open with DEXTER |
![]() |
Figure 5:

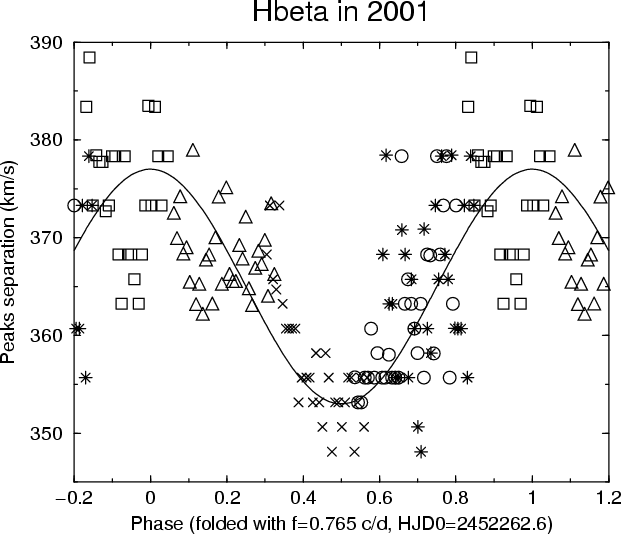

Variations of the separation between the V and R peaks in the
H![]() |
Open with DEXTER |
![]() |

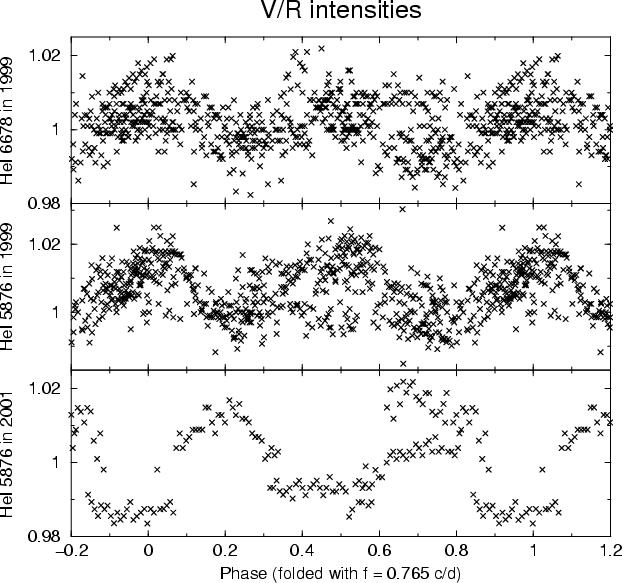

Figure 6: Variations of the intensity of the V/R components of the He I 6678 line observed in 1999 and of the He I 5876 line during the observations taken in 1999 and 2001. The plots are folded in phase with f = 0.765 c d-1 and with HJD 0 = 2 451 499 and 2 452 262.6 respectively. |
Open with DEXTER |
![]() |
Figure 7:

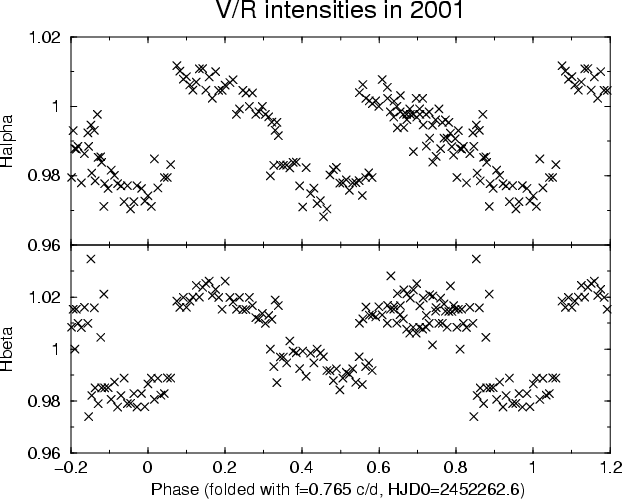

Variations of the intensity of the V/R components of the H![]() ![]() |
Open with DEXTER |
![]() |

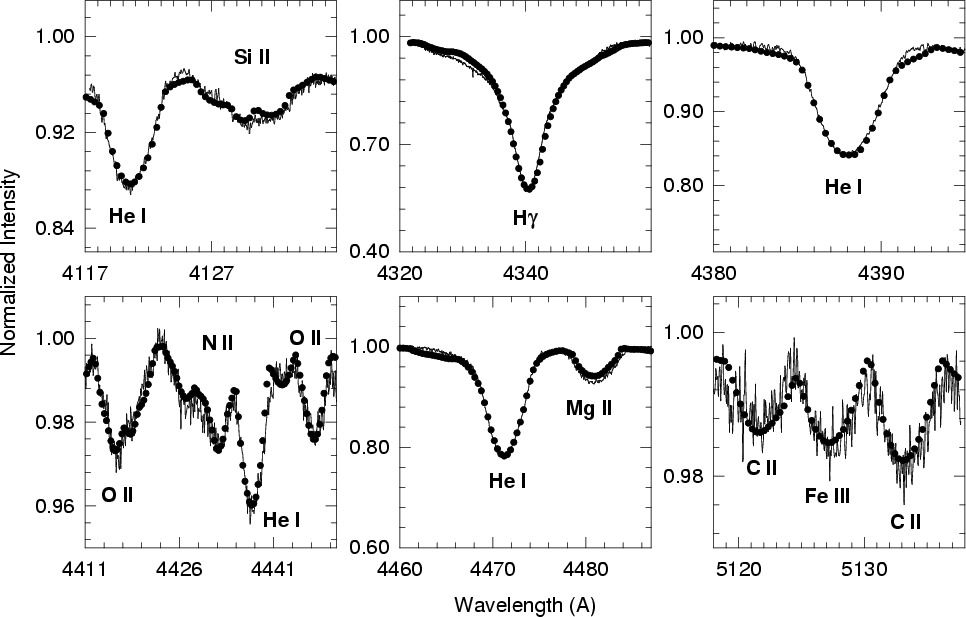

Figure 8: Theoretical spectra (dots) compared to observations (solid line) from the Coralie spectrograph in the fitted spectral regions. |
Open with DEXTER |
![]() |

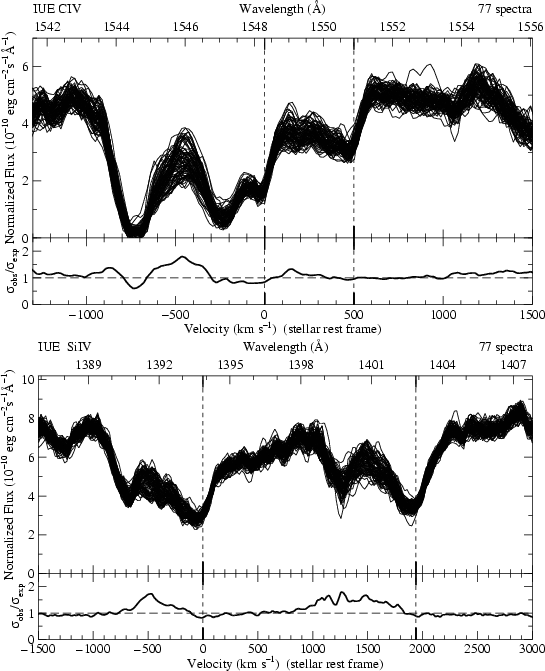

Figure 9: Top panels: variation in the wind profiles of the UV C IV and Si IV lines; the fluxes are normalised to the mean spectrum. Bottom panels: variability signature, measuring the ratio of the observed variance (due to variability) to the expected variance (due to noise). |
Open with DEXTER |
![]() |

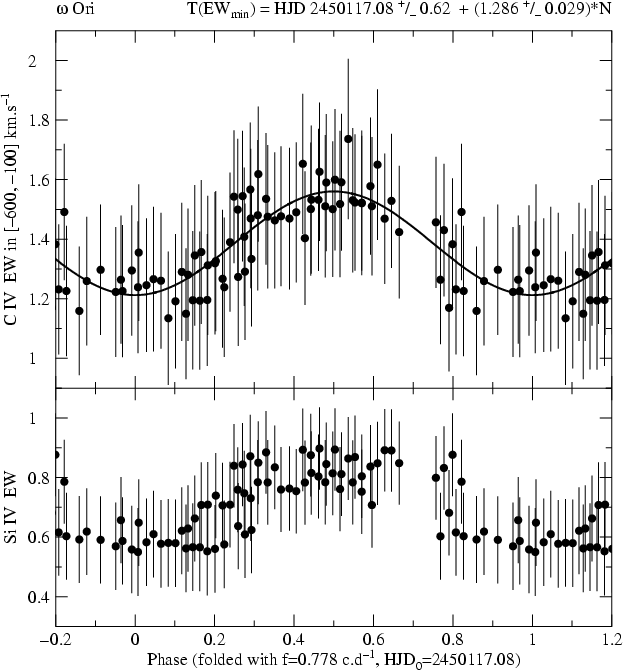

Figure 10: Equivalent width variations (in Å) of the UV C IV and Si IV lines, folded in phase with the rotational period P = 1.286 d. The best fit is overplotted. |
Open with DEXTER |
![]() |

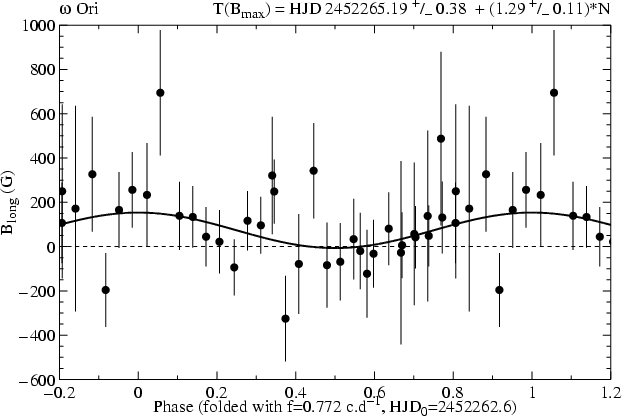

Figure 11: Variations of the longitudinal component of the magnetic field, folded in phase with the period P = 1.29 d. |
Open with DEXTER |
![]() |
Figure 12:

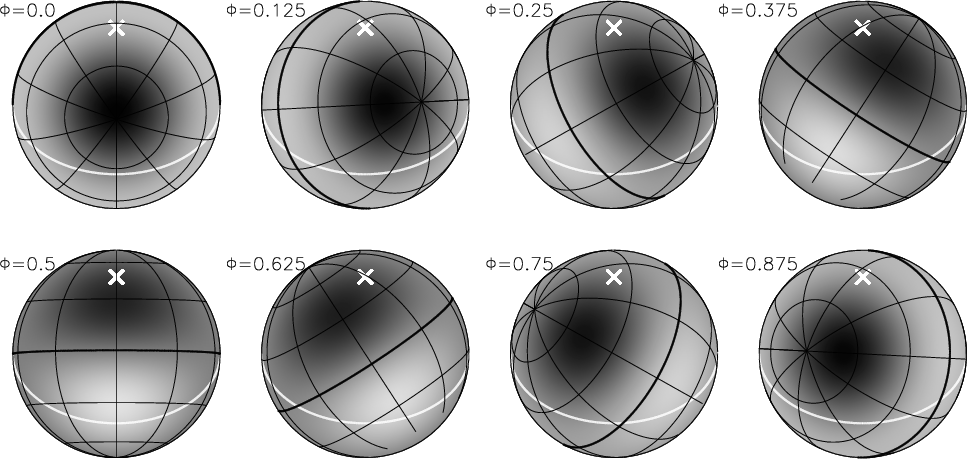

Greyscale representation of the relative contribution of the magnetic
dipole to the integrated longitudinal magnetic field on the visible
hemisphere of ![]() ![]() |
Open with DEXTER |
![]() |
Figure 13:

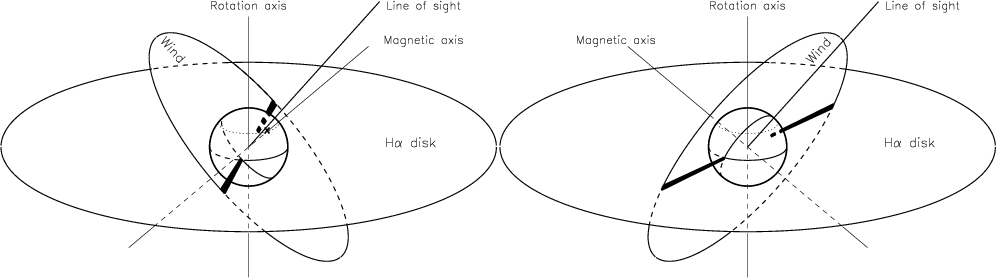

Sketch of ![]() ![]() |
Open with DEXTER |
