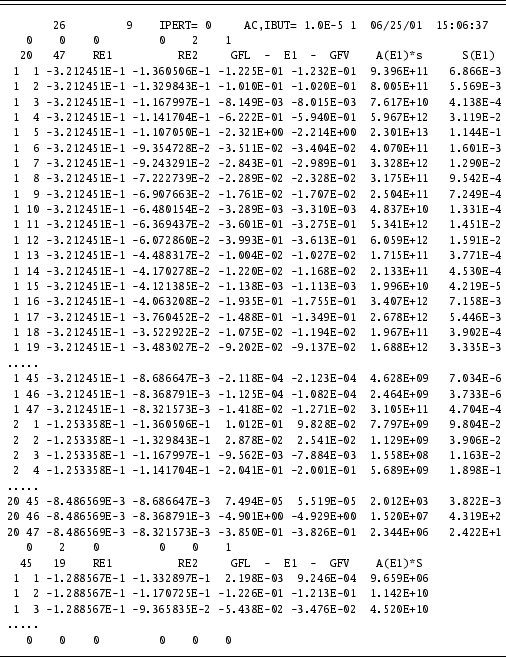

Table 3a:
Truncated STGBB output " FVALUE'':
gf-values and Einstein coefficients A for [ 0 0 0 0 2 1]
transitions of Fe XVII [ Z=26, core-Nel=9],
as function of bound state energies RE(
)
and Re(
)
in units of z2 Ry, z = 26-9.
The line strength column S(E1) has been added by hand
(see Eqs. (7), (8)) for the first transition array.
![\begin{table}\par\rule{12.8cm}{0.1mm}\\ [-3mm]
\rule{12.8cm}{0.1mm}
\vbox{\beg...
...d{verbatim}\end{tex2html_preform}}\\ [-4mm]
\rule{12.8cm}{0.1mm}
\par\end{table}](/articles/aa/full/2003/35/aa3648/img127.gif)
transitions of Fe XVII [ Z=26, core-Nel=9],
as function of bound state energies RE(
)
and Re(
)
in units of z2 Ry, z = 26-9.
The line strength column S(E1) has been added by hand
(see Eqs. (7), (8)) for the first transition array.
