A&A 406, 213-219 (2003)
DOI: 10.1051/0004-6361:20030787

1RXS J062518.2+733433: A new intermediate polar

S. Araujo-Betancor1,[*] - B. T. Gänsicke1,[*] - H.-J. Hagen2 - P. Rodriguez-Gil1 - D. Engels2

1 - Department of Physics and Astronomy, University of Southampton, Southampton SO17 1BJ, UK
2 - Hamburger Sternwarte, Universität Hamburg, Gojenbergsweg 112, 21029 Hamburg, Germany

Received 1 April 2003 / Accepted 30 April 2003

We report the identification of the cataclysmic variable 1RXS J062518.2+733433 as an intermediate polar. The orbital period of the system is determined to be $283.0\pm0.2$ min from the radial velocity variation of ${\rm H\alpha }$, measured in an extensive set of time-resolved spectra. Differential optical photometry obtained over a base line of three weeks reveals the presence of coherent variability with a period of $19.788\pm0.002$ min, which we suggest to be the white dwarf spin period. The power spectrum of our photometry also contains a strong signal near the spectroscopically-determined orbital period. The emission lines in 1RXS J062518.2+733433 display a complex multicomponent structure. In the trailed spectrogram of He  I $\lambda $ 6678 we detect a narrow component with a radial velocity semi-amplitude of $\simeq$140 kms, consistent with a possible origin on the irradiated face of the secondary. The absence of eclipses gives an upper limit on the binary inclination of $i\la60^\circ$.

Key words: stars: binaries: close - stars: individual: 1RXS J062518.2+733433 - stars: novae, cataclysmic variables

1 Introduction

Over the past few years it has become increasingly clear that our understanding of the evolution of cataclysmic variables (CVs) is a rather unsettled matter. A number of the predictions made by the standard theory of CV evolution (disrupted magnetic braking, King 1988) are in direct conflict with observations. Whereas a number of additions/alternatives to the standard model have been recently proposed (King & Schenker 2002; Andronov et al. 2003; Schenker & King 2002; Schenker et al. 2002), it is apparent that the disturbing disagreements between theory and observations have a common denominator: the possible impact of selection effects on the currently known population of galactic CVs. In order to quantitatively test any theory of CV evolution it is mandatory to establish a statistically complete sample of this class of binary stars.

There are currently a number of large-scale surveys for CVs underway that pursue this aim (e.g. Marsh et al. 2002; Szkody et al. 2002). Among these projects, our selection of CVs based on their spectroscopic properties in the Hamburg Quasar Survey (HQS; Hagen et al. 1995) has been especially prolific, resulting in the discovery of more than 50 new bright CVs (e.g. Nogami et al. 2001; Gänsicke et al. 2002a,b,2000).

In this paper, we report follow-up observations of 1RXS J062518.2+733433, henceforth RX J0625, an object originally identified as a CV on the basis of its X-ray emission and optical spectrum (Wei et al. 1999). We have independently selected RX J0625 as a CV candidate because of the noticeable Balmer emission in its HQS data. The strong He  II $\lambda $ 4686 emission detected in the identification spectrum of RX J0625, along with coherent optical variability observed on a time scale of $\sim$20 min, immediately reveal the intermediate polar nature of this CV. In Sect. 2 we describe the observational data and its reduction. We then derive the orbital period from the radial velocity variation of the emission lines and the spin period from differential photometry in Sect. 3. Finally, in Sect. 4 we discuss the behaviour of the strongest emission lines in detail and summarise our findings in Sect. 5.

2 Observations and data reduction

2.1 Spectroscopy

On April 29 2001 we obtained a single identification spectrum of RX J0625 at the Calar Alto 2.2 m telescope with the CAFOS focal reductor spectrograph, using the standard SITe CCD (Table 1). We used the B-200 grism and a slit width of  $2\hbox{$^{\prime\prime}$ }$, resulting in a useful wavelength range of 3500-7000 Å and a spectral resolution of 4.7 Å (Fig. 1). A flux standard (BD+75$^\circ$ 325) was observed with the same set-up in order to correct for the instrumental response. The identification spectrum contains noticeable Balmer, He  I and He  II and N/C Bowen emission lines. The strength of He  II $\lambda $ 4686 is comparable to  ${\rm H\beta }$, indicating the presence of a strong source of ionising photons in RX J0625, typical of either magnetic CVs or novalike variables. In order to determine the orbital period of RX J0625, we obtained 45 higher resolution spectra, again with CAFOS at the Calar Alto 2.2 m telescope (Table 1). This time the G-100 grism was used in conjuction with a $1.2\hbox{$^{\prime\prime}$ }$ slit which gave a wavelength range of 4240-8300 Å and a spectral resolution of 2.1 Å. The higher resolution spectra were obtained over a period of 3 weeks, optimising the sampling for an efficient period determination.

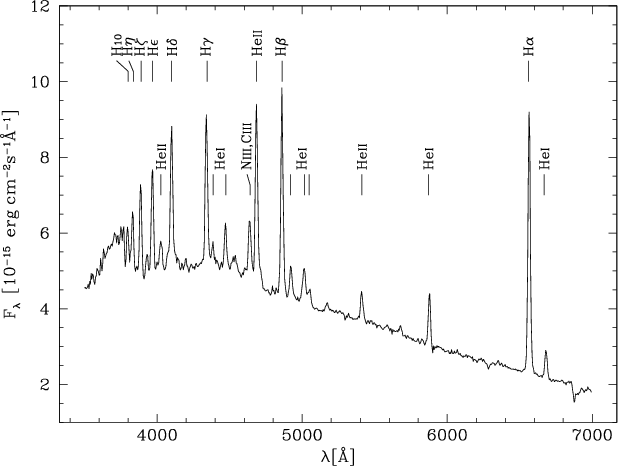

\end{figure} Figure 1: Identification spectrum of RX J0625 obtained on 2001 April 29.


Table 1: Log of observations.

UT Time Data Exp.(s) Num. Obs

2001 Apr. 29 20:37 - 20:47 B-200 600 1
2002 Dec. 09 01:09 - 01:21 G-100 600 2
2002 Dec. 13 04:05 - 05:44 G-100 600 9
2002 Dec. 14 23:20 - 00:08 G-100 600 5
2002 Dec. 15 03:00 - 03:45 G-100 600 5
2002 Dec. 15 05:23 - 06:07 G-100 600 5
2002 Dec. 15 22:47 - 23:32 G-100 600 5
2002 Dec. 16 01:39 - 02:24 G-100 600 5
2002 Dec. 28 23:04 - 23:26 G-100 600 3
2002 Dec. 29 01:12 - 01:34 G-100 600 3
2002 Dec. 29 03:58 - 04:20 G-100 600 3
2002 Dec. 09 01:29 - 06:23 V 30 386
2002 Dec. 15 00:57 - 02:14 Clear 30 100
2002 Dec. 15 02:33 - 02:39 Clear 30 10
2002 Dec. 16 00:00 - 01:15 Clear 30 100
2002 Dec. 28 21:07 - 22:23 V 30 100
2002 Dec. 28 23:43 - 00:51 V 30 98
2002 Dec. 29 01:48 - 03:41 V 30 270
2002 Dec. 29 23:55 - 03:36 V 30 23
2002 Dec. 30 03:55 - 04:48 V 30 293
2002 Dec. 31 04:11 - 06:00 V 30 136


Table 2: Equivalent widths and line widths (corrected for the instrumental resolution) of the strongest emission lines measured from the average of the 45 spectra obtained in December 2002.


${\rm H\gamma}$
$13.7\pm0.2$ $14.3\pm1.0$
He  II $\lambda $ 4686 $14.2\pm0.3$ $15.0\pm2.0$
${\rm H\beta }$ $14.2\pm0.2$ $22.0\pm2.0$
He  I $\lambda $ 5876 $14.0\pm0.3$ $ 9.6\pm0.5$
${\rm H\alpha }$ $15.8\pm0.2$ $64.0\pm2.0$
He  I $\lambda $ 6678 $17.3\pm0.2$ $ 7.5\pm0.5$

All spectra were reduced in a standard manner using the Figaro package within the Starlink software collection. The frames were corrected for the bias level by subtracting the mean of a series of bias images taken at the start and end of each observing night. Dome flat-fields were used to remove pixel to pixel variations of the chip. The spectra were then optimally extracted (Horne 1986) and sky line subtracted using Tom Marsh's Pamela package. Especial care was taken to account for the tilt of the spectra in order to maximise the signal-to-noise ratio. The wavelength calibration was performed using mercury-cadmium, helium-argon and rubidium arcs. Uncertainties on every data point calculated from photon statistics are rigorously propagated through every stage of the data reduction. We did not attempt to flux-calibrate the higher resolution spectra as it was not required for the radial velocity analysis described below.

Table 2 gives the equivalent widths and line widths of the main emission lines detected in the average of the 45 high resolution spectra.

2.2 Photometry

We obtained differential V-band and filter-less photometry of RX J0625 during 6 nights in December 2002 with the CAFOS SITe CCD camera on the Calar Alto 2.2m telescope (Table 1). In order to achieve a high time resolution ($\sim$30 s), only a small window of the chip ($\sim$ $3\hbox{$^\prime$ }\times 2\hbox{$^\prime$ }$) was read out. The data were bias-subtracted and flat-fielded in a standard fashion using the ESO-MIDAS package, and aperture magnitudes were extracted with the sextractor (Bertin & Arnouts 1996). The V magnitudes of RX J0625 were derived relative to the HST Guide Star GSC 0437000234 ( $V=13.4\pm0.4$), located $1\hbox{$^\prime$ }50\hbox{$^{\prime\prime}$ }$ southwards of RX J0625. This comparison star was saturated in a number of the filter-less CCD images obtained on December 14/15, and, hence, we used GSC 0437000998 ( $V=14.9\pm0.4$), located $1\hbox{$^\prime$ }10\hbox{$^{\prime\prime}$ }$northwards of RX J0625 for the reduction of these images. RX J0625 was found at an average magnitude of $14.80\pm0.05$ throughout the nights in which we used the V band filter. The light curves of RX J0625 clearly reveal the presence of variability with a period of $\sim$20 min and an amplitude of $\sim$$\pm0.2$ mag throughout all nights (Fig. 2). In addition to this short-term variation the light curve of RX J0625 displays a modulation on time scales of several hours.

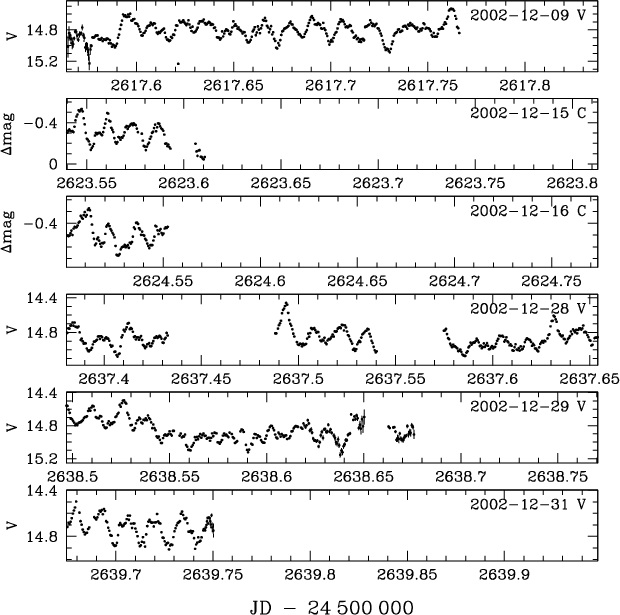

\end{figure} Figure 2: Differential CCD V-band (V) and filter-less (C) photometry obtained at the Calar Alto 2.2 m observatory. Note the different scales of the filter-less and V band data.

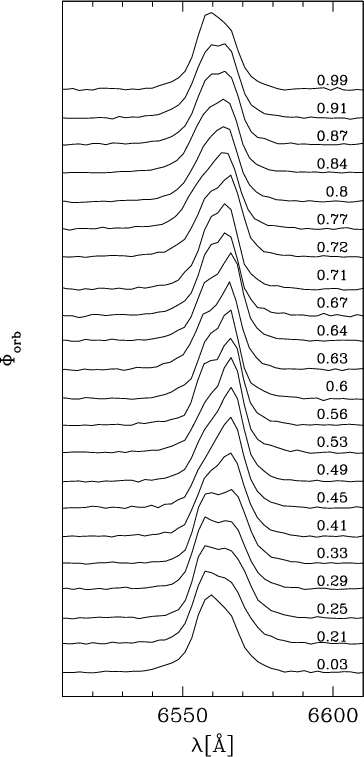

\end{figure} Figure 3: Continuum-subtracted and normalised ${\rm H\alpha }$ profile sample sorted by orbital phases computed from Eq. (2).

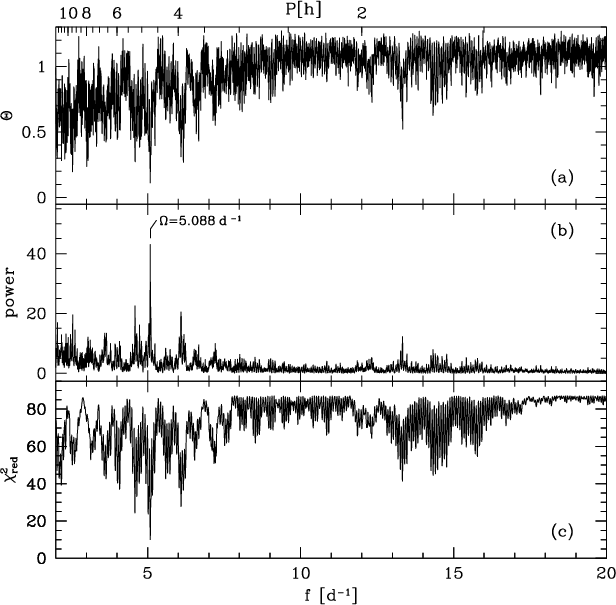

\end{figure} Figure 4: Period analysis of the radial velocities measured from a Gauss-fit to the ${\rm H\alpha }$ emission line profiles. a) Phase dispersion method periodogram. b) Analysis of variance periodogram. c) $\chi ^2$ sine fit.

3 Analysis

3.1 Spectroscopy

The primary aim of our time-resolved spectroscopy of RX J0625 is to measure its orbital period from the radial velocity variations of the emission lines. The line profiles clearly display a complicated multicomponent structure (Fig. 3). In a first attempt, we used a single Gaussian least square fitting procedure to determine the radial velocity variations of ${\rm H\alpha }$, ${\rm H\beta }$ and He  II $\lambda $ 4686. The radial velocity data were then subjected to the following period analysis methods: (a) the phase dispersion method (Stellingwerf 1978), (b) the analysis of variance (Schwarzenberg-Czerny 1989, as implemented in the MIDAS context TSA), (c) and a sine wave $\chi ^2$fitting procedure, using chisq in the Starlink package period. The resulting periodograms for ${\rm H\alpha }$ are shown in Fig. 4. The orbital frequency (period) is inferred from the three independent techniques in a consistent way to be $\Omega=5.088\pm0.003$  ${\rm d^{-1}}$ ( $\mbox{$P_{\rm orb}$ }=283.0\pm0.2$ min), where the error is computed from the $\chi ^2$ sine wave fitting ($2\sigma$, 4 interesting parameter). A slightly more conservative error estimate based on the results obtained from all three methods gives $\mbox{$P_{\rm orb}$ }=283.0\pm0.3$ min. The analysis of ${\rm H\beta }$ and He  II $\lambda $ 4686 provides consistent results for $P_{\rm orb}$, but with significantly larger errors. The robustness of our period determination is shown in Fig. 5 were we folded the ${\rm H\alpha }$ radial velocities over the orbital period. The radial velocity measurements from this fit are provided in Table 3.

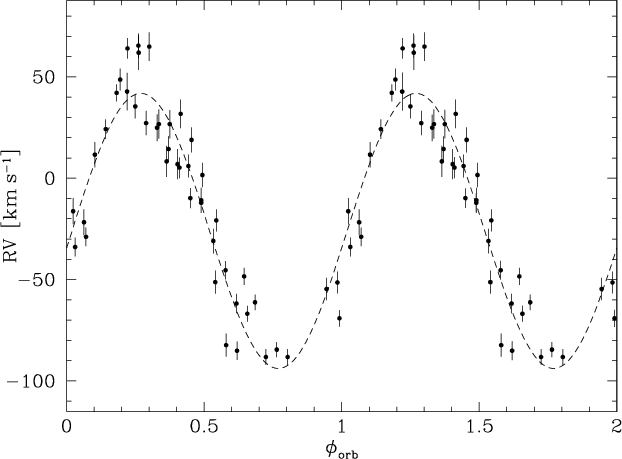

\end{figure} Figure 5: Radial velocities measured from a Gauss-fit to the ${\rm H\alpha }$ emission line profiles, folded with the orbital period $\mbox{$P_{\rm orb}$ }=283.0$ min, using Eq. (2). The dashed curve is the best sine fit to the radial velocities.

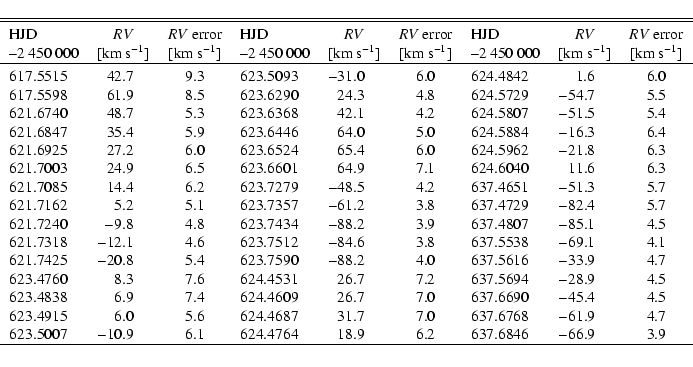

Table 3: Radial velocities of the ${\rm H\alpha }$ emission line determined from a single-Gaussian fit to the line profile (corrected for the heliocentric velocity).
...6 & $-$66&9 & 3.9 \\
\hline\noalign{\smallskip }

For comparison purposes we measured the radial velocities of ${\rm H\alpha }$ cross-correlating the observed line profile with a single Gaussian of fixed width of 300  ${\rm km~s^{-1}}$ (Schneider & Young 1980). The resulting orbital period is identical to that derived from the single Gaussian fit to the ${\rm H\alpha }$ profiles, but the radial velocity variation displays an amplitude larger by a factor of $\sim$2.

Finally, we attempted to fit the ${\rm H\alpha }$ emission with a blend of a narrow and a broad Gaussian component to model more accurately the complex structure of the observed profiles. Unfortunately, this procedure did not provide unambiguous results because of the limited spectral resolution of our data. Due to the multicomponent structure of the lines profile (see Fig. 3) it is difficult to interpret the radial velocity variation obtained from either the single Gaussian fit (Fig. 5) or the Gauss correlation to ${\rm H\alpha }$. The behaviour of the most important emission lines is discussed in more detail in Sect. 4 on the basis of trailed spectrograms.

3.2 Photometry

In order to analyse the periodicities observed in the light curve of RX J0625 (Fig. 2), we have computed from the entire photometric data set both a Scargle (1982) periodogram (as implemented in the MIDAS context TSA) as well as a periodogram using the Phase Dispersion Method (PDM) of Stellingwerf (1978). Because the lengths of our individual photometric observations are of the order of or shorter than the orbital period, subtracting the nightly mean from the data would introduce erroneous signals in the low-frequency range of the periodograms. Considering that RX J0625 does not exhibit noticeable night-to-night variability, we decided to subtract from the V filter and white light data the mean of all measurements obtained in the corresponding band prior to the computation of the periodograms. The resulting periodograms (Figs. 6 and 7) contain strong signals concentrated in the frequency ranges $f\la10~\mbox{${\rm d^{-1}}$ }$ and $f\simeq60-70~\mbox{${\rm d^{-1}}$ }$. The nature of the signals detected in these two separate frequency regimes is discussed below.

High-frequency signal.
Figure 7 shows an enlargement around the peak signal contained in the high-frequency range of the periodogram shown in Fig. 6. Both period analysis methods consistently detect the maximum power at $72.772\pm0.008~\mbox{${\rm d^{-1}}$ }$, corresponding to a period of $19.788\pm0.002$ min, whose error is given by $1\sigma$ width of the Gaussian fit to the frequency peak. In order to test the significance of this signal, we have created a faked data set from a sine wave with a period of 19.788 min, a similar amplitude to the observed short-period variability, and sampled exactly in the same way as the observed data. In addition, we added a 10% error to these synthetic data. The periodograms for this faked data set are plotted in gray in Fig. 7, and reproduce very well the entire structure of aliases contained in the periodograms of the observed data. We conclude from this comparison that the frequency of the maximum signal detected in the periodograms is indeed the true period underlying the short-term variability observed in RX J0625.

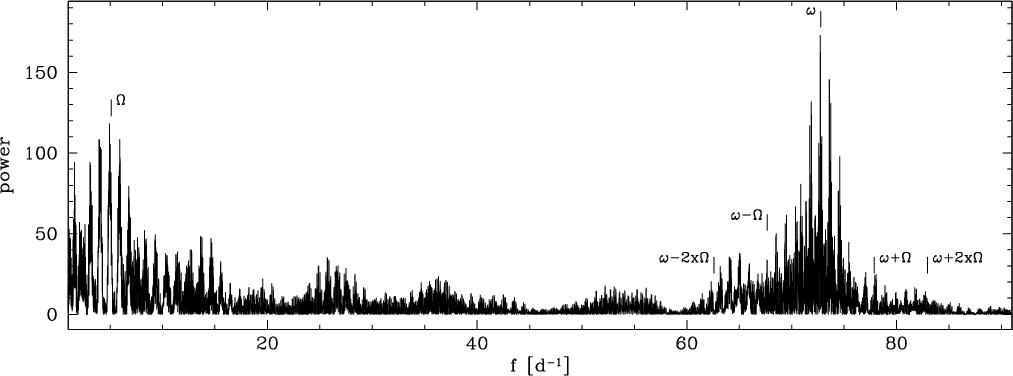

\end{figure} Figure 6: Scargle periodogram of the differential CCD photometry shown in Fig. 2. $\omega $ and $\Omega $are the white dwarf spin and orbital frequency, respectively.

\end{figure} Figure 7: Period analysis near the presumed white dwarf spin. Top panel: Scargle periodogram. Bottom panel: phase dispersion periodogram. The black lines are computed from the observed data. The gray lines are computed from a sinusoid assuming a period of $1/\omega =19.788$ min and identical sampling as in the observed data.

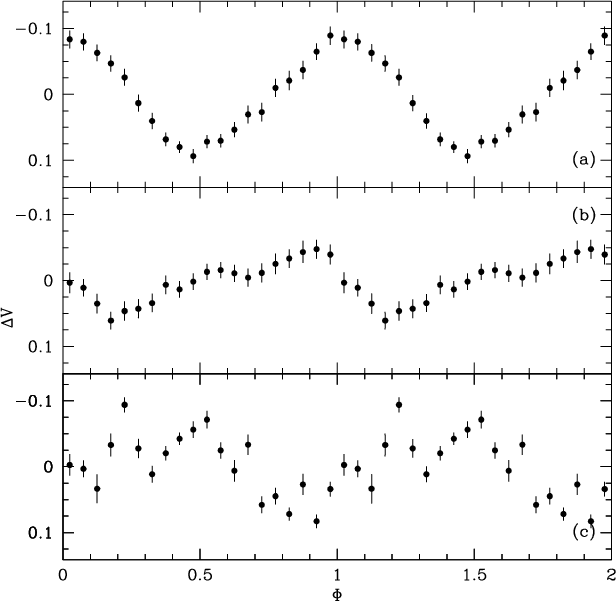

\end{figure} Figure 8: The photometric data points from Fig. 2 mean-subtracted and folded over: a) The spin period of 19.788 min, using Eq. (1). b) The beat period of 21.275 min. c) The orbital period of 283.0 min, using Eq. (2).

Coherent variability on time scales of a several minutes to several tens of minutes has been detected in the optical light curves of a number of intermediate polars (e.g. Patterson 1994), and is interpreted as the spin period of the accreting magnetic white dwarf. We conclude from the spectral appearance of RX J0625 and from the detected coherent optical variability that RX J0625 is indeed a new member of the small class of intermediate polars. We suggest that the detected frequency (period) of 72.772  ${\rm d^{-1}}$ (19.788 min) is the white dwarf spin frequency $\omega $ (period $\mbox{$P_{\rm spin}$ }=1/\omega$). From the combined V band and filter-less photometry, we derive the following spin ephemeris:

\phi_0^{\rm spin} = {\rm HJD}~2452617.0645(4) + 0.013742(3)\times E
\end{displaymath} (1)

where $\phi^{\rm spin}=0$ is defined as the spin pulse maximum. Errors in the last digit are given in brackets. Figure 8a shows our photometric data folded with this ephemeris. The quasi-sinusoidal shape of this light curve, which is typical for the spin light curve of intermediate polars (see, e.g., the spin light curve of FO Aqr by de Martino et al. 1994), lends support to our hypothesis that the 72.772  ${\rm d^{-1}}$ frequency detected in the power spectrum of RX J0625 is indeed the spin frequency of the white dwarf.

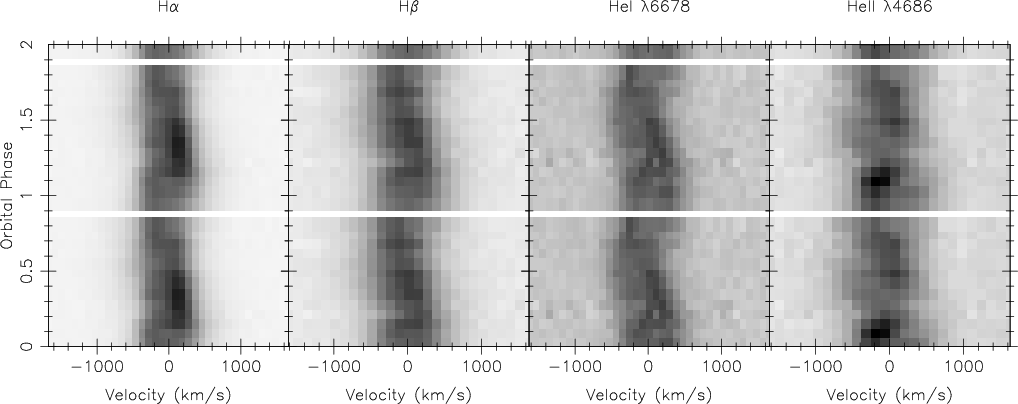

\end{figure} Figure 9: Trailed spectrograms of ${\rm H\alpha }$, ${\rm H\beta }$, He  I $\lambda $ 6678, He  II $\lambda $ 4686, computed from the 45 spectra obtained in December 2002 (Table 1). Orbital phases have been computed using Eq. (2).

Another hallmark of intermediate polars is the detection of beat frequencies between the white dwarf spin frequency $\omega $ and the orbital frequency $\Omega $, which arise from the reprocession of X-rays emitted from close to white dwarf surface on, e.g., the secondary star. Such sideband signals have been detected in different systems at $\omega-2\Omega$, $\omega-\Omega$, $\omega+\Omega$, $\omega+2\Omega$ (see Warner 1986 for an interpretation of these frequencies). In RX J0625, the only unambiguous detection of a sideband signal is $\omega-\Omega$ (see Fig. 6). The photometric data folded over this beat period of 21.275 min are shown in Fig. 8b. While we are confident that our identifications of the spin and beat period are correct we mention as a note of caution that time-resolved X-ray and/or polarimetric data are necessary to unambigously confirm this interpretation.

Low-frequency signal.
The strongest signal in the low-frequency range does not coincide with the orbital frequency derived in Sect. 3.1 from the radial velocity variation of ${\rm H\alpha }$, but is found at 4.944  ${\rm d^{-1}}$, corresponding to a period of 291.3 min. This period is $\simeq$3% longer than the orbital period. Considering the sampling of our photometric time series, especially the fact that none of our data sets covers significantly more than one binary orbit, the most likely hypothesis is that the detected low-frequency signal is related to the orbital motion of the binary. Further observations would be useful to test in detail whether the low-frequency photometric frequency is indeed identical to the orbital frequency $\Omega $.

4 Discussion

As already mentioned in Sect. 3.1, the line profiles clearly display a multicomponent structure (Fig. 3), which makes the interpretation of the determined radial velocity variations rather ambiguous (Fig. 5). To explore the behaviour of the emission lines in more detail, we constructed trailed spectra of ${\rm H\alpha }$, ${\rm H\beta }$, He  I $\lambda $ 6678, and He  II $\lambda $ 4686, which are shown in Fig. 9. These diagrams were computed from the continuum-normalised spectra after binning into 15 phase intervals. The He  I $\lambda $ 6678 line clearly shows two emission components: a narrow one with a radial velocity semi-amplitude of $\approx$140  ${\rm km~s^{-1}}$ and a wider one with velocity reaching $\sim$$\pm 500$  ${\rm km~s^{-1}}$. Both components are not in phase, the phase offset being $\sim$0.15. The trailed spectra shown in Fig. 9 were phased according to the following orbital ephemeris

\phi_0^{\rm orb} = {\rm HJD}~2452617.508(5) + 0.1965(1)\times E
\end{displaymath} (2)

where the instant of zero phase was derived as the time of blue-to-red crossing of the narrow component of He  I $\lambda $ 6678.

In analogy to the narrow emission lines observed in many magnetic CVs, this narrow emission line component may have its origin on the irradiated face of the secondary star. In order to test this hypothesis, we performed the following simple calculation. The secondary mass was estimated from the mass-period relation derived by Smith & Dhillon (1998), which gives a value of $M_2 \approx
0.48$ $M_{\odot}$. For the primary mass we adopted M1=0.8 $M_{\odot}$ (the average white dwarf mass in long-period CVs determined by Smith & Dhillon 1998), resulting in a mass ratio $q=M_2/M_1 \approx
0.6$. Assuming a disc radius of $0.8~R_{\rm L_1}$, the lack of eclipses in the optical light curve of RX J0625 sets an upper limit on the orbital inclination of $i \la 60^{\rm o}$. The projected velocity of the secondary is given by:

\begin{displaymath}K_2=\frac{2 \pi a \sin i}{P_{\rm orb} (1+q)}~,
\end{displaymath} (3)

where a is the binary separation. With the above assumptions, the radial velocity variation of the secondary star can be as large as $K_2 \approx 130$  ${\rm km~s^{-1}}$, which is comparable to the value obtained from the trailed spectrogram of the narrow He  I $\lambda $ 6678 line. The predicted K1 velocity is then $\approx$80  ${\rm km~s^{-1}}$, somewhat larger than the semi-amplitude of the radial velocity curve of the broad component of ${\rm H\alpha }$ (Fig. 9, see also Fig. 5), but not inconsistent.

Taken at face value, the behaviour of the narrow emission line components detected in our (admittedly rather low resolution) phase-resolved spectroscopy are consistent with an origin on the irradiated face of the secondary.

As we mentioned above, the broad component of the He  I $\lambda $ 6678 line displays a phase offset of $\sim$0.15 with respect to the narrow one, reaching a velocity of $\sim$-500  ${\rm km~s^{-1}}$ at its maximum excursion to the blue. The phasing with respect to the narrow component (and assuming that our above interpretation of the origin of the narrow component is correct) indicates that the broad emission is not coming from an axisymmetric structure around the white dwarf. Nevertheless, the high velocity dispersion observed in the broad component clearly points towards an origin close to the white dwarf. The maximum velocity to the blue is reached at phase $\sim$0.4-0.5. A similar high-velocity S-wave has been observed in the intermediate polars EX Hya (Hellier et al. 1989) and V1025 Cen (Hellier et al. 2002). The same components are also characteristic of the SW Sextantis stars, which have been recently proposed to be magnetic systems (Rodríguez-Gil et al. 2001). In all these systems, it is believed that these high-velocity S-waves form in the vicinity of the primary's magnetosphere.

The trailed spectra of He  II $\lambda $ 4686 seem to exhibit the same two emission components, with the narrow one also dominating and the same velocity amplitudes as in He  I $\lambda $ 6678. Also the trailed spectra of ${\rm H\alpha }$ and ${\rm H\beta }$ clearly show a multicomponent structure, even though their narrow components are less obvious than in He  I $\lambda $ 6678. In order to securely identify the different line components with physical emission sites in the binary, it will be necessary to obtain time-resolved spectroscopy spanning several consecutive binary orbits with better spectral resolution.

5 Conclusions

We have observed RX J0625 as part of our ongoing search for new CVs selected on the basis of their spectroscopic properties from the Hamburg Quasar Survey. From the radial velocity variations measured in ${\rm H\alpha }$, we determined an orbital period of $283.0\pm0.2$ min. The detection of coherent optical variations clearly classifies RX J0625 as a member of the small class of intermediate polars. The period of these variations is $19.788\pm0.002$ min which is most likely the spin period of the white dwarf. In terms of its orbital and spin period, RX J0625 is very similar to FO Aqr ( $\mbox{$P_{\rm orb}$ }=291$ min, and $\mbox{$P_{\rm spin}$ }=21$ min). Our phase-resolved spectroscopy clearly shows that the emission lines are multicomponent, and we identify a narrow component with a radial velocity semi-amplitude of $\simeq$140 kms, which might originate from the irradiated face of the secondary. Extensive photometric monitoring, phase-resolved high-resolution spectroscopy and pointed X-ray observations of RX J0625 are strongly encouraged.

${Note\ added\ in\ proof}$: After submission of this paper, we became aware of an independent photometric study of RX J0625 by Staude et al. (2003) that confirms the likely white dwarf spin period and shows that the low-frequency photometric signal detected in RX J0625 is consistent with our spectroscopic orbital period within the errors of the measurements. Furthermore, the referee drew our attention to the fact that an orbital period for RX J0625 was included on December 13 2002 in the online catalogue of Downes et al. (2001), which is consistent with our value.

SAB thanks PPARC for a studentship. BTG was supported by a PPARC Advanced Fellowship, the HQS was supported by the Deutsche Forschungsgemeinschaft through grants Re 353/11 and Re 353/22. We thank Ana Guijarro for obtaining part of the Calar Alto observations. We are grateful to Christian Knigge for suggesting the use of chisq in the Starlink period package for the analysis of the radial velocity data - and for pointing out that the latest version of period does not work properly. Tom Marsh is thanked for providing his reduction and analysis packages. Patrick Woudt is acknowldedged for his prompt referee report and for a number of useful suggestions.
