A&A 405, 851-857 (2003)
DOI: 10.1051/0004-6361:20030667
S. Calchi Novati1 - Ph. Jetzer1 - G. Scarpetta2 - Y. Giraud-Héraud3 - J. Kaplan3 - S. Paulin-Henriksson3 - A. Gould4
1 - Institute of Theoretical Physics, University of Zürich, Winterthurestrasse 190, 8057 Zürich, Switzerland
2 -
Dipartimento di Fisica "E.R. Caianiello'', Università di Salerno, via S. Allende, 84081 Baronissi (Sa),
and INFN Sez. di Napoli, Gruppo Collegato di Salerno, Italy
3 -
Physique Corpusculaire et Cosmologie, Collège de France, 11 place M. Berthelot, 75231 Paris, France
4 -
Department of Astronomy, Ohio State University, Columbus, OH 43210, USA
Received 11 March 2003 / Accepted 18 April 2003
Abstract
We report the final analysis of a search for
microlensing events in the direction of the Andromeda galaxy,
which aimed to probe the MACHO composition of the M 31 halo
using data collected during the 1998-1999 observational campaign at the MDM observatory.
In a previous paper, we discussed the results from a first set of observations.
Here, we deal with the complete data set, and we take
advantage of some INT observations in the 1999-2000 seasons.
This merging of data sets taken by different instruments turns
out to be very useful, the study of the longer baseline available
allowing us to test the uniqueness that is characteristic
of microlensing events. As a result, all the candidate
microlensing events previously reported turn out to be
variable stars. We further discuss a selection based on different criteria,
aimed at the detection of short-duration events. We find three candidates
whose positions are consistent with self-lensing events,
although the available data do not allow us to conclude
unambiguously that they are due to microlensing.
Key words: methods: observational - methods: data analysis - cosmology: dark matter - cosmology: gravitational lensing - cosmology: observations - galaxies: individual: M 31
A survey of M 31, nearby and similar to our own Galaxy, can supply several insights into this problem. Briefly, it tests a different line of sight in our Galaxy, it allows one to probe M 31's own halo globally and finally, the inclination of the M 31 disk should give an unmistakable signature of microlensing events (Crotts 1992; Baillon et al. 1993; Jetzer 1994).
Several collaborations have undertaken a search for microlensing events towards M 31 in the past years: AGAPE (Ansari et al. 1999); MEGA (Crotts et al. 2000); POINT-AGAPE (Aurière et al. 2001); WeCapp (Riffeser et al. 2001). In this same framework we have already reported on the analysis of a partial set of the MDM data in Calchi Novati et al. (2002, hereafter Paper I). Furthermore, the POINT-AGAPE collaboration has given evidence of 4 short high S/N ratio microlensing candidates (Paulin-Henriksson et al. 2002, 2003).
In the present paper we conclude the analysis of the MDM data started in Paper I. We complement the MDM data with INT observations taken by the POINT-AGAPE collaboration. Furthermore, we discuss the issue of selection criteria for microlensing events, especially with respect to the background of variable stars, and we present results from an analysis based on different criteria. In Sect. 2 we summarize the observational setup and give some details of the data analysis, dealing in particular with some improvements in the selection procedure; in Sect. 3 we introduce the INT data and discuss how we use the longer baseline they give us to construct a strong supplementary selection criterion; Sect. 4 is devoted to the results of the analysis; in Sect. 5 we present our conclusions.
We analyse data collected on the 1.3 m McGraw-Hill
Telescope, at the MDM observatory, Kitt Peak (USA),
towards the two sides of M 31 including the bulge.
Two fields are observed, located in
,
(J2000) ("Target'', whose data have been the object
of the analysis presented in Paper I) and
,
(J2000) ("Control'').
The Target field is centred on the far side of M 31 while
the Control field is centred on the near side.
Throughout the observations a
pixel
CCD camera, with a field of view of
,
has been used.
Two filters, similar to standard R and I Cousins, have been used in order to test achromaticity. This colour information gives us the chance of having a better check on red variable stars, which can contaminate the search for microlensing events.
We analyse data taken starting from October 1998 to the end of
December 1999. While the baseline of the Control field is the same as that of the Target field,
the Control field has only about 20 nights of observations for both filters,
which is only about half as much data as the Target field.
The average value of the seeing is
.
The photometric calibration is done with respect to a sample of reference secondaries identified in our frame (Magnier et al. 1992). As the photometric conditions for the reference images in the two fields are similar, the zero point calibrations reported in Paper I still hold.
The reduction procedure and the candidate selection were discussed in detail in Paper I. Here we just recall the basic points and discuss in more detail some aspects that have since been improved.
Due to the distance of the target, the potential sources of microlensing events
are not resolved stars. We use the pixel lensing technique developed
by the AGAPE group to detect flux variations of unresolved sources
(Ansari et al. 1997).
In order to cope with photometric and seeing variations, we first choose
for each filter a reference image (the R reference image is also the geometric reference
for both filters) and then calibrate the flux
of all other images with respect to the reference image by means of a linear correction.
Our seeing correction is empirical
and does not require the evaluation of the PSF of the image (Paper I).
Following Paper I, we look for bumps (in R band) by a statistical analysis
of the light curve. To this end we construct the two estimators
for the significance of a variation L and Q. We define
![]() |
(2.2) |
In Paper I we carried out the analysis to detect clusters
of variable light curves using L.
We eventually retained from the sample of selected light curves
(the ones with the highest value of L in a given cluster)
only those characterized by
.
Here we follow a somewhat different approach
in that we select clusters related to flux variations
by demanding
.
Compared to the selection based on L, we are biased
in favor of monobump-shape variations.
Moreover, we exclude all those light curves
showing spurious variations for which a high value of L
can happen to be induced, e.g.,
by an underestimation of the baseline level.
To conclude with the bump detection, we evaluate for all the pixels in each cluster L, and we then proceed as in Paper I. This is a better approach because L is based on an evaluation of the baseline more appropriate to this purpose, that is, to selecting the light curve showing the maximum flux deviation from the baseline.
For microlensing events the flux variation must be unique, it must follow (in the point-like and uniform-motion approximations) the symmetric Paczynski shape, and it must be achromatic.
The flux as a function of time for an event with amplification A(t)and an unlensed source
can be written as
The achromatic shape analysis is carried out as in Paper I.
We perform a 7-parameter Paczynski fit to the two bands simultaneously (background level
,
source flux without amplification
,
and the parameters of the amplification:
time of maximum amplification t0, Einstein time
,
and the impact parameter
).
In the absence of direct knowledge of the source flux from e.g., a
Hubble Space Telescope (HST) image (e.g., Aurière et al. 2001) or an
indirect measurement of it from a high signal-to-noise ratio lightcurve
(e.g. Paulin-Henriksson et al. 2003), there is a degeneracy among
the three parameters
,
,
and
(Gould 1996).
For these cases we retain two "effective parameters'', the time width
and the excess at maximum with respect to the background
(from which we evaluate the "magnitude at maximum''
and the colour at maximum
).
For an event to be achromatic we have to test whether, along the bump,
the ratio of the deviation of the flux from the background
in the two bands remains
constant in time (
constant)
.
Furthermore, we carry out the Durbin-Watson test (Durbin & Watson 1951),
which is sensitive to time correlation among consecutive residuals.
In effect, it is able to check whether
consecutive points lie, for instance, all above
or below the best Paczynski fit shape, such behaviour
being characteristic of variable stars
(and for which the test can say little).
The test is based upon the evaluation of a
Durbin-Watson coefficient, dw, which must lie in an interval that depends on the number of points
along the light curve, e.g. for 20 points it must be
at the 10% (2%) level of significance.
A main problem in the search for microlensing events is the estimate of the background noise given by variable sources. This is particularly serious in the case of pixel lensing for two main reasons. First, the class of stars to which we are in principle most sensitive are the red giants, for which a large fraction are variable stars (regular or irregular). Second, as we look for pixel flux variations, it is always possible to collect (in the same pixel) light from more than one source whose flux is varying.
Thus, in the analysis we are faced with two problems: large-amplitude variable sources whose signal can mimic a microlensing signal, and variable sources of smaller amplitude whose signal can give rise to non-Gaussian fluctuations superimposed on the background or on other physical variations.
In Paper I we followed a sufficiently conservative approach to minimize
the impact of these problems. We adopted severe criteria
in the shape analysis with respect to the Paczynski fit
(stringent cut for both the
and the Durbin-Watson test)
and, furthermore, we eliminated candidates with both a long timescale
(
t1/2>40 days) and a red colour (
), since these most likely
originate from variable stars.
As we had already noted, this analysis suffered from the intrinsic limitation of an insufficient baseline, so that the variable-source issue could not be conclusively tested.
Here we take advantage of the opportunity afforded by access to reduced INT data to extend our selected light curves. As we show, this will be a key element of our analysis.
The INT fields almost completely cover the MDM fields (except for a sizable fraction
of the Control field far from the M 31 bulge and a narrow band in the Target field).
The good sampling during the two INT seasons 1999-2000
of data acquired in Sloan r' and i' bands, together with their high quality,
allows a straightforward and quantitative analysis.
As a first step we have calculated the astrometric transformations
between the different fields (data from 4 different INT CCDs are needed to cover
the two MDM fields). We found that a global transformation
over one entire field led to systematic errors as large as 5''. Hence, we
use our large samples of 1194 and 845 references stars in the Target and
Control field, respectively, to make a linear (i.e., 6-parameter) local transformation
for each selected pixel. We demand a minimum of 24 reference stars, which
are usually found within a square of
2'-3' about the selected pixel.
We thereby reach an average astrometric precision of
.
To this we add the error in locating the center
of the variation, so that on average we get
.
As a second step we have determined from the cross-analysis of about 30 selected resolved stars in each field, a "colour equation'' that allows us to align the MDM (R and I) and INT (r' and i') instrumental magnitudes closely enough to permit a quantitative comparison of the relative flux variations in each light curve.
The uniqueness condition for a given variation requires that the extension of the light curve into the INT data should remain flat. However, the analysis of the PA-N1 event (Aurière et al. 2001) has shown that a microlensing light curve may be contaminated by a neighbouring variable star. Therefore, care must be taken before rejecting a microlensing event because of a second bump, and it is essential to test the following issues: the relative astrometric position of the two bumps and the similarity of the shape of the two deviations.
Given a candidate microlensing light curve in the MDM data,
we locate the corresponding INT light curve,
and then calculate the estimator L in a square of pixels
around the central pixel to check whether
there is a variation, and where it is located. If
we detect a variation in the INT data,
we calculate its amplitude and width with a Paczynski fit in order to
compare quantitatively the two variations.
As a criterion of rejection for a given
MDM candidate microlensing event for which
we find a variation on its extension into
the INT data, i.e., a likely variable star,
we demand that the position of the INT variation be compatible
with the corresponding MDM variation
within
and that the relative widths and deviations of flux
lie within
as evaluated from the two independent
Paczynski fits
.
![]() |

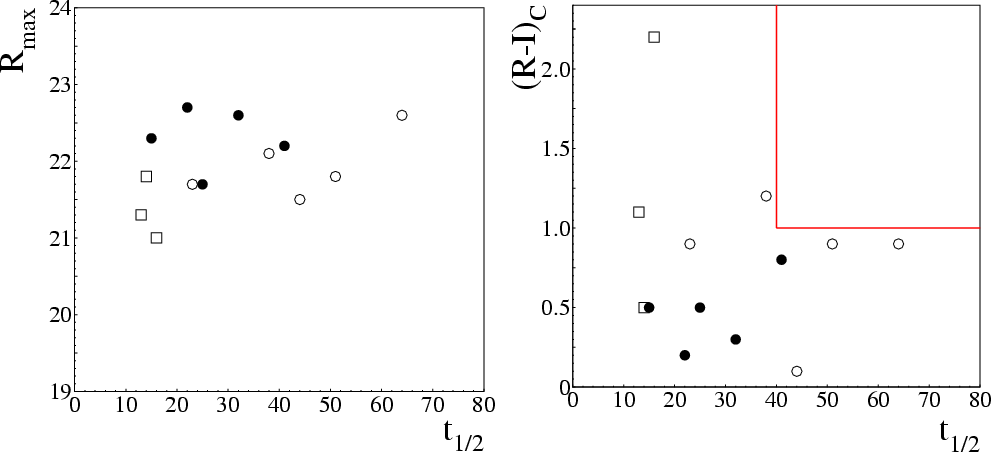

Figure 1:
Physical characteristics for the selected light curves in Sect. 4.1 (circles).
Filled symbols represent candidates previously reported in Target field. Squares represent
the result of the analysis presented in Sect. 4.2. In the right panel,
the lines at
t1/2=40 days and
![]() |
Open with DEXTER |
Table 1: Results of the stability analysis on the INT data extension of the selected MDM microlensing candidates. For each MDM light curve (T and C stand respectively for Target, where we use the same numeration used in Paper I, and Control) for which we find an astrometrically compatible INT bump, we report the number of standard deviation within which the position and the bump parameters (duration and flux deviation in both bands as calculated from independent Paczynski fits on each of the MDM and INT light curves), of the two variations are compatible.
We now present the results in both MDM fields, Target and Control, of an analysis complemented where possible by the stability test using the INT data.
The threshold value for the estimators
of the significance of the bump are fixed as in Paper I
(Q>100 and L1>100, but now we proceed
as explained in Sect. 2.2.2).
The selection criteria are the same as in Paper I:
the selected light curves must have enough points along the bump (at least 4 points
on both sides of the maximum, and 3 inside the interval
);
for the Paczynski fit we require that
and that the Durbin-Watson
test be satisfied at the 10% level; we require that either
t1/2<40 days or
.
![]() |

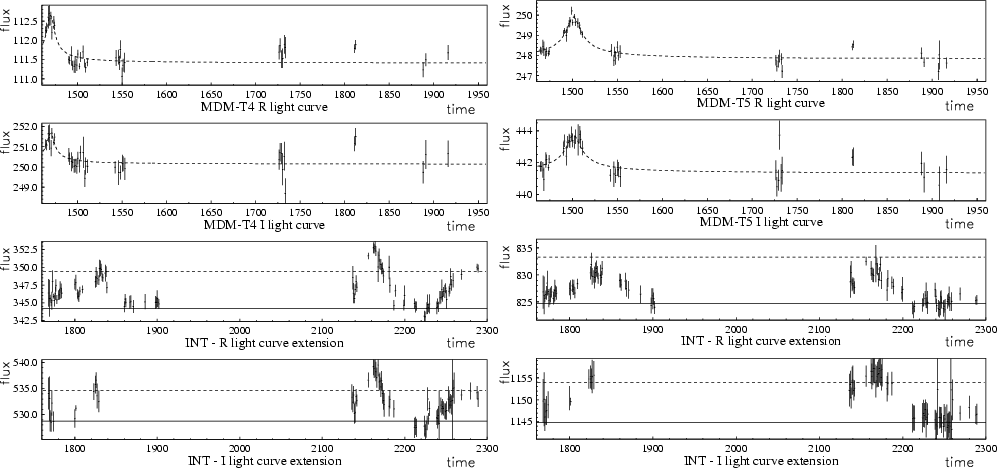

Figure 2: MDM T4 (left) and T5 light curves together with their extensions into the INT data. On the y axis, flux is in ADU/s; on the x axis, time is in days, with the origin in J-2 449 624.5 (both data sets). For the MDM light curves the dashed line represent the result of the Paczynski fit. For the INT light curves, shown together with the solid line representing the baseline is a dashed line representing the level of the maximum deviation of flux found on the corresponding MDM light curve. |
Open with DEXTER |
Due to the different approach we follow in bump detection, in the Target field we find 1 more light curve in addition to the 5 we already reported in Paper I. In the Control field we find 4 light curves compatible with microlensing.
We summarize the main physical characteristics of these 10 events in Fig. 1, which shows
vs. t1/2 and
vs. t1/2.
As can be noted, with respect to the selected light curves in Paper I, we tend to lack short timescale candidates among the new events and, moreover, 3 of the 5 candidates lie at the boundary we have fixed for the colour-timescale compatibility with a microlensing signal.
The INT data allow us to check the stability of all 5 Target light curves and 2 of the 4 Control light curves. In Table 1 we summarize the results of this comparative analysis, relative astrometry and relative shape analysis.
As can be seen all 8 MDM events show compatible variations
on their INT extensions. (In particular, we note that the positions of the two bumps
are always compatible at level).
As a result, all the checked light curves
are rejected as possible microlensing candidates.
As an example, we show MDM light curves T4 and T5 (respectively,
the shortest and the brightest flux variations detected) together with their INT extensions (Fig. 2).
This analysis shows how the sample of microlensing candidates
derived from this selection is strongly contaminated by variable stars.
The two additional Control light curves for which there are no INT extensions
have parameters:
,
days and
,
i.e., they are relatively long candidates. It then follows that,
without INT vetting, it is no longer reasonable to look at them
as viable microlensing candidates. Since, also looking at the results
of the previous analysis, we suspect them
to be red variable stars but cannot prove this without an extended
baseline, we must exclude, when searching for such long variations,
the non-INT portions of the MDM fields from the analysis.
The analysis carried out in the previous section shows that variable sources can mimic the Paczynski shape quite well, even with data available in two bands. It seems therefore appropriate in the search for viable microlensing candidates to relax the criteria introduced to characterize the shape of the variation and, on the other hand, to restrict the allowed space of physical parameters. We remark that the longer baseline now available make this approach viable. This search is also motivated by the lack of self-lensing events, which we would expect to find.
We then proceed to a new selection with the same threshold values
for L and Q. For the temporal sampling, we require at least 3 points
inside the interval
,
with at least one
on each side of t0. We then impose the following conditions:
Table 2: Main characteristics of the three selected short-event light curves; d is the projected distance from the centre of M 31.
MDM-C3: An INT variation is detected only in the i' light curve.
Its position is compatible within
to that
of the MDM variation. We note that the observed i' variation is significantly smaller
than that observed on the MDM I light curve
and, as mentioned, the r' light curve is flat.
Moreover, the time width
of the MDM variation is actually quite short.
This analysis indicates that, although sitting
in the same position, the two variations may be
due to different sources. At the same time
we are aware that the INT data do not allow us
to fully characterize the shape of the bump.
We thus consider the stability test
for this candidate to be inconclusive.
MDM-C4: We detect a variation on the INT data
that we localize within
from the corresponding MDM variation.
We evaluate the variations of flux in r' and i'as being compatible within 3 and
respectively with the corresponding variations
on the MDM light curve. However, the observed
time width of the INT variation,
days,
is significantly larger than the evaluated
time width of the MDM variation,
days.
As is the case for C3, the shape analysis may indicate
that we are observing on the same light curve
a variable star (a likely long period red variable)
and a microlensing event.
Our data are, however, insufficient to confirm
or to reject this hypothesis.
In this case too we then consider the stability test
for this candidate to be inconclusive.
In Table 2 we report the main characteristics of these
light curves, position and physical parameters
as evaluated from the Paczynski fit. We note that,
lacking any information from other sources (e.g. HST images)
to measure the flux of the unamplified source,
and since, on the basis of the fit alone, the
data do not allow us to break the parameter degeneracy,
we have no way to get any reliable
information on the physical parameter ,
so that also no reliable estimate of the mass of the lens is possible.
![]() |

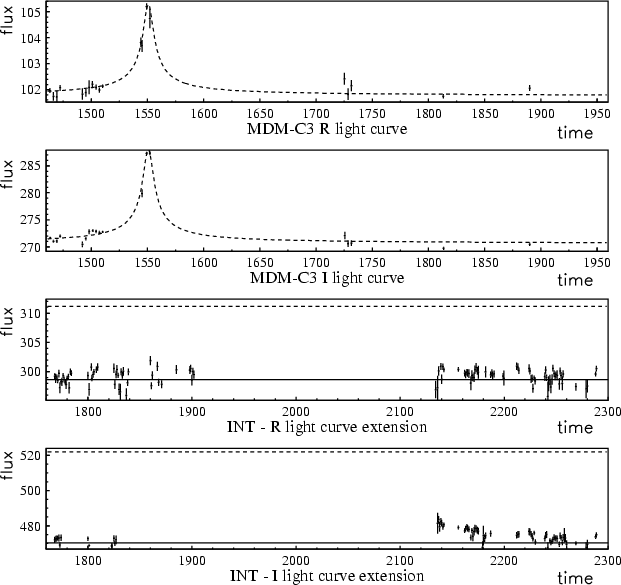

Figure 3: The MDM-C3 light curve (top) and its corresponding INT extension. Notation is the same as in Fig. 2. |
Open with DEXTER |
![]() |

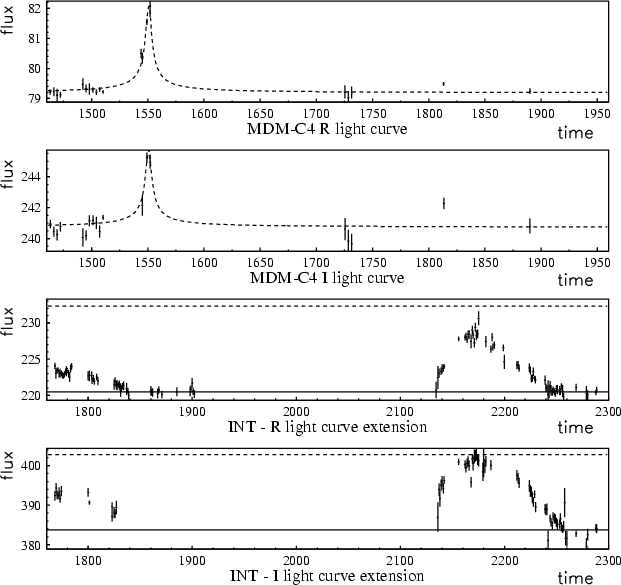

Figure 4: The MDM-C4 light curve (top) and its corresponding INT extension. Notation is the same as in Fig. 2. |
Open with DEXTER |
![]() |

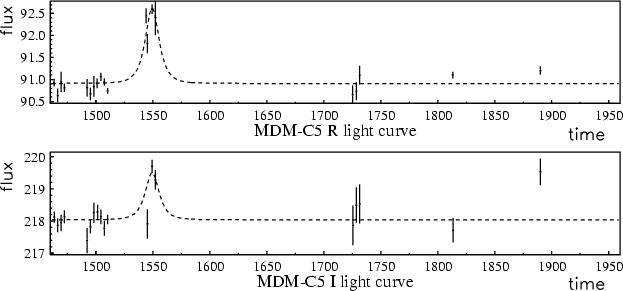

Figure 5: The MDM-C5 light curve, for which no extension on INT data is available. Notation is the same as in Fig. 2. |
Open with DEXTER |
As can be noted by looking at the light curves (Figs. 3-5),
the sampling does not allow
us to test conclusively the symmetry of the bump.
Regarding the achromaticity, the ratio of R and I deviations
from the baseline for the points belonging
to the bump is about constant, as expected for microlensing events.
We note that the MDM-C3 light curve,
whose variation is quite short and very red, occupies
a peculiar position in the
-t1/2 parameter space
(Fig. 1, upper left of right panel).
Even if the available data do not allow us to draw firm conclusions on the nature of the selected flux variations, their projected distance from the centre of M 31 (see Table 2) make them marginally consistent with the self-lensing events that we expect according to the Monte Carlo simulations discussed in Paper I.
In the framework of microlensing searches towards M 31,
the most promising results have been so far reported
by the POINT-AGAPE collaboration. In particular,
they have identified 4 high S/N (likely to be microlensing)
light curves with high flux variation,
,
and short timescale (
t1/2<25 days, with 3 that are as small as
days),
two of which lie quite near the M 31 bulge,
where, however, data still do not allow one to answer unambiguously the question of whether
they are due to self-lensing effects or to MACHOs (Paulin-Henriksson et al. 2003).
We note that we lack, in the MDM data, such short duration
and highly amplified events. We conjecture that this apparent discrepancy
can plausibly be explained by the relative quality of the data sets.
In particular, relative to the MDM data set,
the INT data cover a much (>3 times) larger portion of the sky
around the M 31 bulge, with more than the double the nights of observation.
In particular, in the MDM Control field, with at best one point every
3 nights, we can obviously not characterize events of such short duration.
On the other hand, we point out that while the POINT-AGAPE analysis
has been carried out with a threshold on the magnitude at maximum
of the detected variations (
), in the analysis
presented here we do not adopt such a threshold
(we recall, see Paper I, that we are sensitive to variations
down to around
).
We have reported on the status of the analysis of the MDM data carried out in the framework of a search for microlensing events towards M 31. As a result of a full analysis of 2 years of data, in which we have also taken advantage of the longer baseline made available by the use of some INT data, we have first excluded as viable all the microlensing candidates previously reported in Paper I. Second, we have reported the selection of three more candidates compatible with a Paczynski light curve, which may possibly be due to self lensing. On examining their extensions into the INT data, we find a second variation in both cases for which such data are available. However, these variations are strikingly different from and much longer than the short-duration events seen in the MDM data. Hence, it is plausible that each of these second variations is due to an unrelated variable star superimposed on a true microlensing signal. The available data do not permit us to resolve this question.
We have discussed the issue of variable-star contamination of the signal: we note that this is a significantly more serious problem than in the cases of the search for microlensing events towards the Magellanic clouds and the Galactic bulge in which one monitors the flux variations of resolved sources of known type.
The analysis reported in this paper shows once again the crucial role played by a frequent sampling of the data and the total baseline length, both of which are essential in getting meaningful results when extracting microlensing signals from the background of variable sources. In this light, the forthcoming full analysis of the detection efficiency, together with results from the new sets of data acquired in the 2001 and 2002 seasons at both 1.3 m and 2.4 m MDM telescopes with a new 8K-CCD array (as well as the prospective 2003 campaign at the TT1 telescope in the south of Italy, Bozza et al. 1999), should eventually give us the opportunity to draw firmer conclusions on the issue of the MACHO fraction in the halo of M 31 galaxy.
Acknowledgements
We thank the referee for useful comments and suggestions. We are grateful to the POINT-AGAPE collaboration for allowing us the access to their data set. SCN was supported by the Swiss National Science Foundation and by the Tomalla Foundation. AG was supported by grant 02-01266 from the US NSF.
