A&A 402, 87-111 (2003)
DOI: 10.1051/0004-6361:20030110

The ISO view of Palomar-Green quasars

M. Haas¹ - U. Klaas¹ - S. A. H. Müller² - F. Bertoldi ³ - M. Camenzind ⁴ - R. Chini² - O. Krause¹ - D. Lemke¹ - K. Meisenheimer¹ - P. J. Richards⁵ - B. J. Wilkes⁶

1 - Max-Planck-Institut für Astronomie (MPIA), Königstuhl 17, 69117 Heidelberg, Germany
2 - Astronomisches Institut, Ruhr-Universität Bochum, 44780 Bochum, Germany
3 - Max-Planck-Institut für Radioastronomie, Auf dem Hügel 69, 53121 Bonn, Germany
4 - Landessternwarte Heidelberg, Königstuhl, 69117 Heidelberg, Germany
5 - CLRC, Rutherford Appleton Laboratory, Chilton, Didcot, OX11 0QX, UK
6 - Harvard-Smithsonian Center for Astrophysics, 60 Garden Street, Cambridge MA 02138, USA

Received 2 September 2002 / Accepted 24 January 2003

Abstract
Mining the ISO data archive we provide the complete ISO view of PG quasars containing 64 infrared spectral energy distributions between 5 and 200 $\mu$m. About half of the sample was supplemented by MAMBO and SCUBA (sub-)millimetre data. Since the PG quasars were selected optically, the high infrared detection rate of more than 80% suggests that every quasar possesses luminous to hyperluminous dust emission with dust masses comparable to Seyferts and ultraluminous IR galaxies (ULIRGs). The gas-to-dust mass ratio (of those sources where CO measurements are available in the literature) is consistent with the galactic value providing further evidence for the thermal nature of the IR emission of radio quiet quasars. The SEDs represent templates of unprecedented detail and sensitivity. The power-law like near- to mid-IR SEDs ( $F_{\nu} \propto \nu^{\rm\alpha}$) are smooth up to far-infrared wavelengths, favouring dust heating by the central AGN, and we conclude that, in particular for our hyperluminous quasars at z=1, starbursts play only a minor role for powering the dust emission, even in the FIR. The IR spectral slopes $\alpha$ $_{\rm 1-10~ \mu m}$ range from -0.9 to -2.2 with a mean of $\rm -1.3~\pm~0.3$. They neither correlate with the optical spectral slope $\alpha$ $_{\rm0.3-1~ \mu m}$, nor with the IR luminosity, nor with the FIR/MIR luminosity ratio, nor with inclination-dependent extinction effects in the picture of a dusty torus. We suggest that the diversity of the SEDs reflects largely the evolution of the dust distribution, and we propose a classification of the SED shapes as well as an evolutionary scheme in which this variety can be understood. During the evolution the surrounding dust redistributes, settling more and more into a torus/disk like configuration, while the SEDs show an initial FIR bump, then an increasing MIR emission and a steeper near- to mid-infrared slope, both of which finally also decrease. Strikingly, based on the sensitive ISO data now we do not only see the coarse IR differences between ULIRGs and quasars, but also the details and a possible evolution of the dust distribution and emission even among the optically selected PG sample. Regarding cosmic evolution, our hyperluminous quasars in the "local'' universe at z=1 do not show the hyperluminous ( $L_{\rm FIR}$ $\ga$ 10$^{\rm 13}$ $L_{\odot}$) starburst activity inferred for z=4 quasars detected in several (sub-)millimetre surveys. In view of several caveats this difference should be established further, but it already suggests that in the early dense universe stronger merger events led to more powerful starbursts accompanying the quasar phenomenon, while at later cosmic epochs any coeval starbursts obviously do not reach that high power and are outshone by the AGN.

Key words: galaxies: fundamental parameters - galaxies: photometry - galaxies: quasars: general - infrared: galaxies

1 Introduction

The Palomar-Green catalog (Schmidt $\&$ Green 1983) provides an optically selected sample of 114 quasars, about 30% of which were detected by IRAS in the representative mid-infrared 25 $\mu$m and far-infrared 60 $\mu$m bands (cf. Neugebauer et al. 1986; Sanders et al. 1989). Sanders et al. (1988a,b) proposed that quasars are preceeded by a dusty ULIRG phase. Barvainis (1990) and Elvis et al. (1994) emphasized the dispersion of IR SEDs. Rowan-Robinson (1995) proposed that, in addition to the AGN which heats the NIR and MIR emission, starbursts are required to power the FIR emission. On the basis of a few ISO observations Haas et al. (1998) demonstrated that the IR emission of quasars is a mixture of thermal and synchrotron radiation, dominated by thermal emission in radio-quiet quasars and synchrotron emission in flat spectrum radio-loud ones.

In Haas et al. (2000, henceforth Paper I) we reported on 17 PG quasars observed by ISO and the IRAM 30-m telescope as part of the ISOPHOT guaranteed time. The detection rate was about 70%, providing evidence for luminous to hyperluminous dust emission in these optically selected sources. The variety of SED shapes and the correlation between mid-and far-infrared luminosities was discussed in light of a possible AGN-starburst connection. The data support the picture that the MIR emission is mainly powered by the AGN, while - with respect to the available AGN dust torus models - starbursts may be required to provide the high FIR luminosity. There is a marginal trend that the hyperluminous quasars have a higher MIR/FIR luminosity ratio, indicating differences between them and the low luminosity quasars.

In order to put the results drawn from the small sample of 17 sources onto a broader statistical basis, we here present the mostly unpublished SEDs of the remaining 47 PG quasars in the ISO archive. We discuss the statistical properties of the complete data base of all 64 PG quasars observed by ISO and propose an evolutionary sequence to interpret the diversity of the infrared properties. Since no selection criteria except visibility to the satellite were applied, this sample provides a representative selection from the 114 quasars in the PG catalog, with a redshift range from nearby to distant ($z\la2$) objects. Throughout this paper we use H₀ = 75 km s^-1 Mpc^-1 and $q_{\rm0}$ = 0, and blackbodies modified with a dust emissivity index of $\beta$ = 2.



Table 1: Measured flux densities in mJy as a function of wavelength in $\mu$m. Bold numbers are detections above the 3-$\sigma$ level, the errors are 10-30%. The thin numbers represent 3-$\sigma$ upper limits. The apertures typically used for each filter are listed below the wavelength; for 120-200 $\mu$m the apertures were 90'' in the case of maps and 180'' in the case of chopped photometry, the latter case always leading to upper limits only.

PG	3.6	4.8	6.7$^{\rm *}$	7.3	9.6	12.0	14.3$^{\rm *}$	16	20	25	60	80	90	100	120	150	170	180	200	450	850	1200
	5''	23''	21''	52''	21''	52''	21''	52''	52''	52''	45''	45''	45''	45''						8''	15''	11''
0003+199			141		179$^{\rm *}$			351		391
0007+106						62$^{\rm *}$					171			221		<288			271
0157+001		27		45		134				570	2210			2000		1050			650
0804+761a		51		76		130				218	188			121		<60			<48			<5.4g
0838+770										85	167			180		150			92
1001+054		16		29		63				109	140			146		<285			<255
1008+133		5		12		34				108	<132			<246		<462			<660			<6.9
1100+772b		9		14		18				40	60			40		<90			<90
1114+445		26		47		87				146	<237			200		<300			<324			<9.3
1116+215		44		73		152				187	<219			<285		<351			<396			<9.9
1149-110		20		46		120				272	368			314		<390			<627			<5.1
1211+143		60		100		160				300	518	392		<279		<309	<306		<408
1216+069b		16		28		62				95	<132			<129		<288			<705			7.3
1226+023c			194				294				1124	1291		1348	1546	1113	1292	1056	1091
1229+204		26		38		<69				158	241			317		<288			<435
1244+026		15		37		86				206	368			362		<279			<633			<4.6
1248+401									<45
1309+355		18		30		60				102	<162			<192		<207			<261			<8.1
1322+659				18		34				54	90			100		<93			<75			<5.3
1338+416					10s				41
1351+640		<36		55		135				550	719			526
1352+183b											197	187		<180
1354+213b				8		17				34	<264	<186		<165		<150			<204
1402+261				38		69				120	209			213		139			<132		<7.2	<6.6
1404+226d				11		26				62	<144	152		123		<114	<114		<126
1407+265		<9		17						78	171			<200		<507			<528			<6.6
1415+451				27		44				71	110			147		136			92			<5.7
1416-129		13		25		55				105	<129			<132		<351			<741			<8.1
1425+267						19$^{\rm *}$																<4.8
1426+015		49		81		136				271		350		350		312			202
1427+480				10		17				48	82			92		61			<60			<5.7
1435-067b				20		50				<126	304	<504		<333		<387	<369		<318
1440+356a		40		54		127				211	597			780		627			314	<37.7	<5.2
1444+407				21		59				107	125			80		<60			<60			<5.1
1501+106			69		122$^{\rm *}$			277		464	750		635
1512+370		9		<18		36				50	65			<84		<120			<96		<8.3	<6.0
1519+226b				40		59				80	<141	<183		<195		<480	<360		<1080
1543+489b		12		23		50				126	300			280		150			<189
1545+210e		11		16		25				43	45		33				<57
1626+554		9		20		38				50	<156			70		<150			<123			<3.7
1630+377f			5				9										<30
1700+518		31		50		96				250	348			374		277			142		<10.8
1704+608e		18		31		50				112	201		168	151		103	73		43
1715+535f			6				12									<42
1718+481b		11		19		30			45	52	72			58		<63			<81			32.0g
2130+099		75		114		185				333	480			485		384			242
2308+098b	<9	<12		<15		20				56	<180	180		<165		<570	<531		<1095			8.5

^* With ISOCAM.
^a See also Wilkes et al. (2000).
^b Consistent with Polletta et al. (2000), see also Wilkes et al. (1999).
^c PG 1226+023 = 3C 273, FIR values taken from Meisenheimer et al. (2001).
^d Consistent with Polletta $\&$ Courvoisier (1999).
^e PG 1545+210 = 3C 323.1, PG 1704+608 = 3C 351, see also van Bemmel et al. (2000).
^f Consistent with Oyabu et al. (2001).
^g At 1300 $\mu$m.
^s Continuum at 9.6 $\mu$m from ISOPHOT-S.

2 The data

The ISO Data Archive contains photometric observations with ISOPHOT and ISOCAM for 64 PG quasars. For some of these we found complementary submm photometry in the JCMT-SCUBA archive, and performed additional mm observations with the Max-Planck millimeter bolometer array MAMBO at the IRAM 30-m telescope.

2.1 ISOPHOT and ISOCAM

The ISOPHOT data of the new 47 PG quasars were observed and evaluated along the same lines as those 17 sources described in Paper I.

The observations were performed with ISOPHOT (Lemke et al. 1996), the photometer on board ISO (Kessler et al. 1996). The observing modes (Laureijs et al. 2002) comprise chopped measurements (including those with the spectrometer ISOPHOT-S) and small maps.

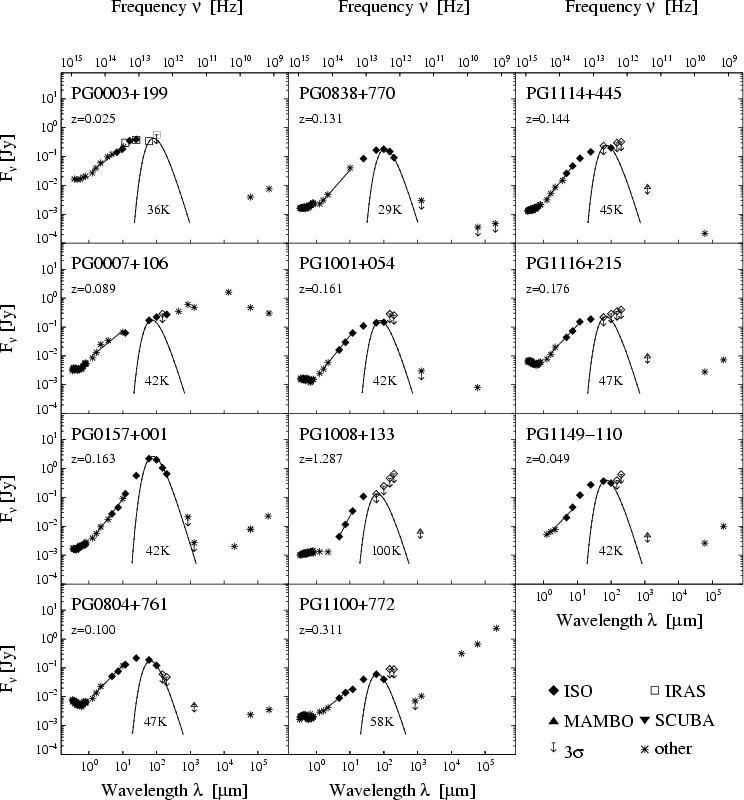

Figure 1: Spectral energy distributions of 47 PG quasars (not including those of Paper I). The wavelength and frequency ranges are as observed and not corrected to the rest frame of the objects. Several modified blackbodies with dust emissivity proportional to $\lambda ^{\rm -2}$ are interactively fitted to the data and only the coolest component is plotted. The temperatures listed are corrected for redshift. Data from the literature (asterisks) are taken from Neugebauer et al. (1987) and de Vaucouleurs et al. (1991) at optical and NIR wavelengths, from Chini et al. (1989a, b) at mm wavelengths, and Kellermann et al. (1989) and the NVSS archive at radio wavelengths. Where ISO data coverage is sparse (e.g. for PG 0003+199 beyond 25 $\mu$m) or the source is variable (PG1226+023), IRAS flux values from Sanders et al. (1989) are shown. The line between 1 and 10 $\mu$m (in the quasar's restframe) shows the power law slope $\alpha$$_{\rm IR}$ as listed in Table 2.

Open with DEXTER

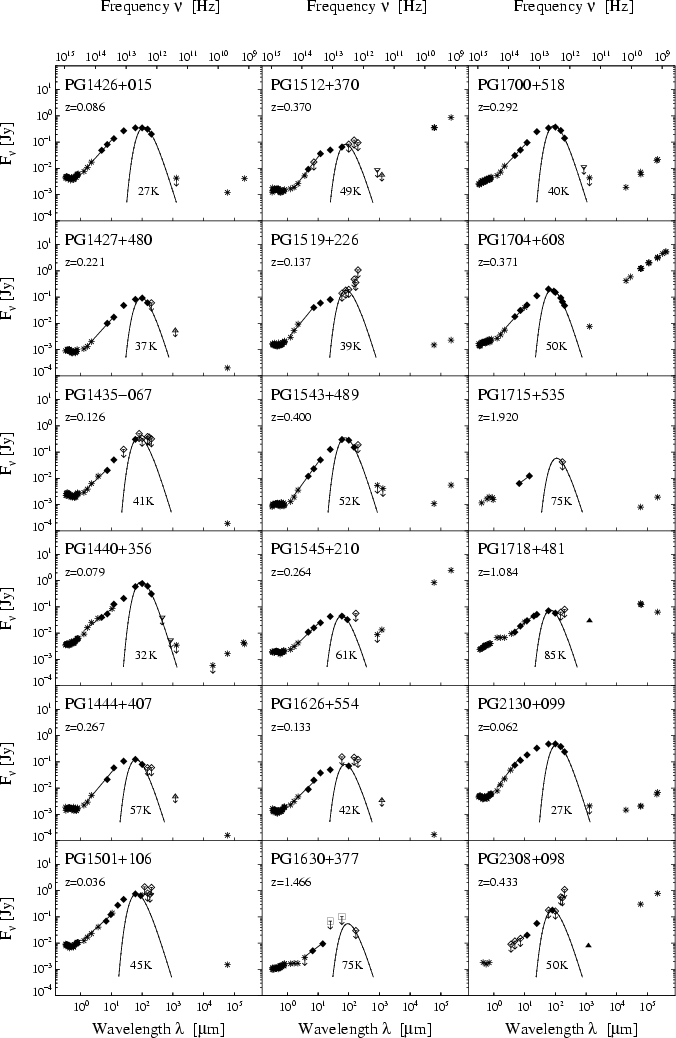

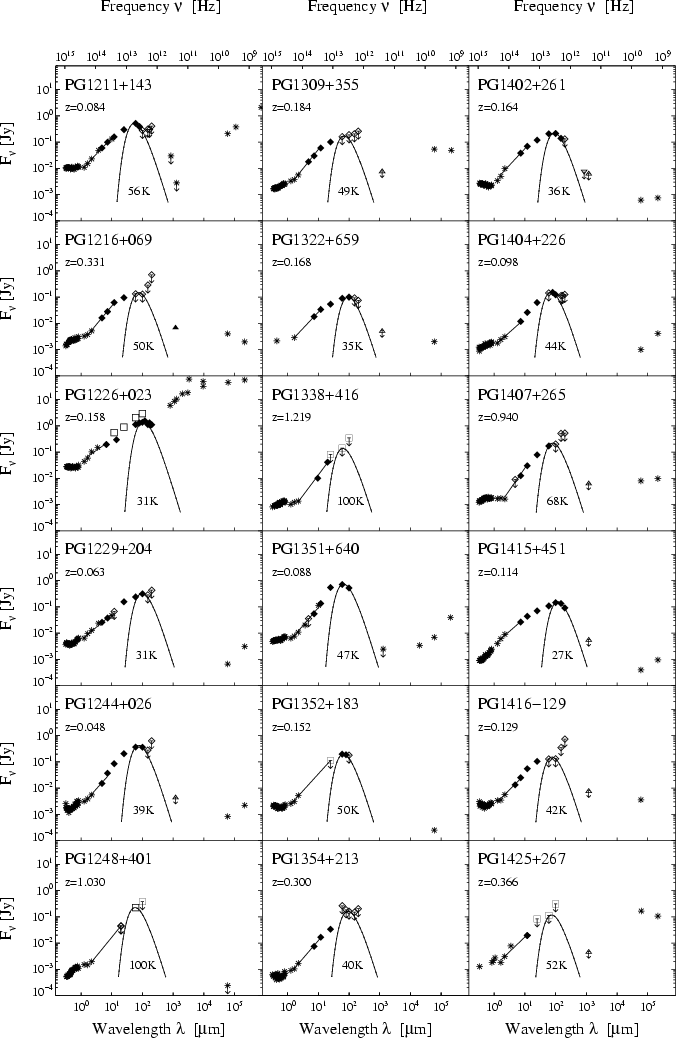

	Figure 1: continued.
Open with DEXTER

	Figure 1: continued.
Open with DEXTER

The data were reduced using the ISOPHOT Interactive Analysis tool (PIA V9.1 and V10), together with the calibration data set V7.0. Using the latest versions of the data reduction tools, there are no systematic photometric offsets with regard to PIA V7.0 used for the 17 sources in Paper I. The accuracy of the absolute photometric calibration depends mainly on systematic errors as described in Laureijs $\&$ Klaas (1999), and it is currently known to be better than 30% for faint sources, and the relative filter-to-filter calibration is better than 15% (Klaas et al. 2002).

Some sources were observed in the MIR at 6.7, 9.6, 12 and 14.3 $\mu$m with ISOCAM (Cesarsky et al. 1996). The images were retrieved from the ISO data archive (Kessler et al. 2000) and cleaned from residual glitches. Photometry was derived using 21 $\hbox{$^{\prime\prime}$ }$ square apertures. The photometric accuracy is currently known to be better than 30% (Cesarsky $\&$ Blommaert 2001).

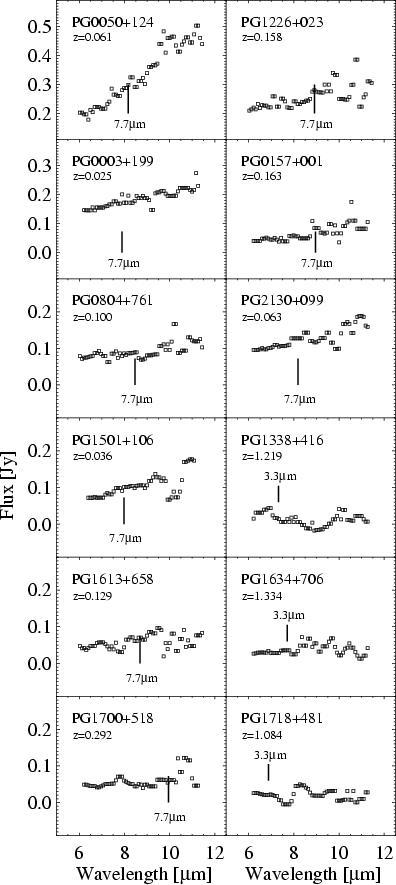

In addition, for 17 of the 64 PG quasars the ISO Data archive contains MIR spectra, 12 taken with ISOPHOT-S (6-12 $\mu$m) and 7 with ISOCAM-CVF (10-16 $\mu$m). At the faint flux level the uncertainty is about 30-50%. Therefore the spectral features are considered with some reservation, but the continuum estimates are consistent with the photometic data, and upper limits for the PAH features are derived.

2.2 JCMT-SCUBA and IRAM-MAMBO

Yet unpublished submm continuum data obtained with SCUBA in 1998 were retrieved from the JCMT archive. The observations were performed in photometry mode and reduced with the SCUBA User Reduction Facility (SURF) including identification of noisy bolometer pixels and removal of sky noise. The atmospheric transmission was determined from skydips and water radiometer data at the CSO. IRC +10206 and HL Tau served as standard calibrators. The integration time per source was 12-15 min. Due to very good atmospheric transmission ($\tau$ $_{\rm CSO}$ = 0.016) during the observation of PG1440+356, we also included 450 $\mu$m data for this source. The photometric accuracy at 450 $\mu$m and 850 $\mu$m is around 30%.

The 1.2-mm continuum observations were carried out with the Max-Planck millimeter bolometer array MAMBO (Kreysa et al. 1998) at the IRAM 30-m telescope on Pico Veleta during dedicated backup time between 2002 March 22 and May 21. All objects were observed at least twice, on different days. The integration time per source varied between 2.5 and 12 min. The data were reduced using the MOPSI software package. The atmospheric transmission was intermediate with $\tau$(1.2 mm) between 0.15 and 0.5; the absolute calibration was established by observations of Mars and Uranus. The uncertainty of the 1.2-mm fluxes is estimated to be around 20%.

3 Results

The IR and mm fluxes are listed in Table 1 (where we do not repeat the values of the 17 sources of Paper I). ISO achieved about 95% and 80% detections in the MIR ($\le$25 $\mu$m) and FIR ($\ge$60 $\mu$m), respectively. Even at the long wavelengths between 120 and 200 $\mu$m the detection rate is about 30%. The fluxes of the five brightest sources detected also by IRAS (PG0157+001, PG1351+640, PG1440+356, PG1700+518, PG2130+099) agree within 15%. 12 sources listed as marginal detections in the IRAS Faint Source catalog are now clearly confirmed by ISO, and 30 new detections were achieved. Note that three sources (PG1001+054, PG1211+143, PG1351+640) are located in cirrus regions, such that the chopped observations failed in the FIR, in particular longwards of 100 $\mu$m, but with the help of the maps the quasar could be discerned from the local foreground. Some discrepancies between our results and those listed in Sanders et al. (1989) find a natural explanation by the cirrus which even for the IRAS pointed observations could not be resolved sufficiently due to the large IRAS beam of about 3 $\hbox{$^\prime$ }$.

Twenty sources were observed with MAMBO at 1.2 mm, of which three were detected, and 3-$\sigma$ upper flux limits are provided for the others. Upper 850 $\mu$m flux limits were derived for four sources from data in the SCUBA archive (and one of them also at 450 $\mu$m).

Supplementing our data with further measurements found in the literature, in Fig. 1 we display the observed (uncorrected for redshift!) spectral energy distributions (SEDs) of the 47 quasars. Note that the SED curves run smoothly and the photometric uncertainties represented by the size of the symbols in Fig. 1 are small, compared to the range in wavelength and flux, which span typically more than two orders of magnitude. The most remarkable feature of the SEDs is the steady increase in flux density from near- to far-IR wavelengths with a peak at typically 25-60 $\mu$m, followed by a steep drop in most cases. The FIR-submm spectral index is well constrained for PG 0157+001, PG 1440+356 and PG 2130+099 with $\alpha$ $_{\rm 200-850~\mu m}$ $\ga$ 2.4, 2.9 and 2.6, respectively. (Note that $\alpha$ $_{\rm 200-850~\mu m}$ is also steep ($\ga$2.6) for the 4 sources of Paper I where it is measured.) Since this seems to be too steep for standard models of synchrotron emission ($\alpha$ $_{\rm 200-850~\mu m}$ $\la$ 2), we suggest a thermal nature of the FIR emission for these and most of the other sources, which may show a less extreme spectral drop, but an obvious drop in flux density between FIR and radio wavelengths.

Figure 2: FIR flux ratios and temperatures: The variation for a modified blackbody is shown by the solid line, the dotted lines indicate the range $T\pm 15\%$. The symbols show the temperature of the coolest dust component fitted as shown in Fig. 1, but with T values in the observers frame ($\bullet$ = based on detections, $\circ$ = based on upper limits). For the detections the $F_{\rm 100}/F_{\rm 150}$ points and most of the $F_{\rm 60}/F_{\rm 100}$ data lie close to the drawn line, demonstrating the essential equivalence of both methods. Some sources exhibit a higher $F_{\rm 60}/F_{\rm 100}$ ratio due to additional warm dust which provides the $F_{\rm 60}$ excess (e.g. PG 0838+770).

Open with DEXTER

In order to discuss the SEDs in the framework of thermal emission, we have modelled the 3-1000 $\mu$m IR SED of each quasar by a superposition of several blackbodies with dust emissivity index $\beta$ = 2, indicating the presence of a wide variety of temperatures from hot (1000 K) to cool (30 K) dust in these objects. Since automatic multiple blackbody fits are neither unique nor stable, we have used an interactively supervised fit of several (3-8) components. For the purpose of lucidity we have plotted only the coolest component in Fig. 1. Its temperature (corrected for redshift) lies between 30 and 100 K. This method of describing the cold FIR-submm end of the thermal spectrum is, in principle, equivalent to the use of FIR colours (e.g. $F_{\rm 100}/F_{\rm 150}$), as illustrated in Fig. 2. While the simple flux ratio cannot account for the redshift effects, which are essential, our redshift corrected temperatures have the advantage to homogenize the sample. Despite the ambiguity involved in the multiple Planckian fits, we therefore prefered the lowest possible temperature fit over the simple $F_{\rm 100}/F_{\rm 150}$ method. The fits are well constrained, if the decline of the FIR or submm fluxes is clear (for example in PG 0157+001 and PG 0838+770); in this case the uncertainty of T is about 15...30%, i.e. 5...10 K. The cold end of the thermal spectrum is less constrained, if the SED peaks in the MIR with a somewhat shallow decline to the FIR (for example in PG 0804+761). For the 16 cases of high FIR/submm upper limits, the coolest component is chosen so that both its temperature and the SED shape resembles that of the well measured sources; nevertheless the uncertainty of T could reach up to 50%, i.e. T=50 K instead of an estimated value of $T\approx100$ K. For example, PG 1001+054 or PG 1008+133 could contain a colder component than that shown, but then an unusually constant FIR flux plateau would be required. The effect of the upper limits is discussed in Sect. 4.1.

As an alternative to the superposition of several hot and warm blackbodies, the rise of the SEDs between 1 and 10 $\mu$m can be fitted by a power law $F_{\nu }$ $\propto$ $\nu$ $^{\rm\alpha}$ as shown by the straight lines in Fig. 1. The actual SEDs, however, deviate from this idealised description by small bumps and curvatures. For the entire sample of 64 sources, the fitted spectral index $\alpha$ ranges from -0.9 ("flat'') to -2.2 ("steep''), with a mean of $-1.3\pm 0.3$. For comparison, the near- to mid-infrared SEDs of the four warm ULIRGs IRAS 05189-2524, Mrk 231, Mrk 463 and IRAS 19254-7245 (Klaas et al. 2001) can also be fitted by a power law with a mean $\alpha = -1.6\pm 0.05$, which lies at the steep end of the slope distribution for the PG quasars.

For all 64 sources Table 2 lists the derived parameters like luminosities, dust temperatures and masses, and the values of $\alpha$ used in the discussion of the entire sample.



Table 2: Luminosities, spectral slopes, dust temperatures and masses, host morphologies and SED classes of the PG quasars discussed in this paper, including the sources of Paper I listed below the horizontal line. The soft X-ray 0.1-2.4 keV luminosity $L_{\rm X}$ is derived from the ROSAT archive using the standard conversion of 10 $^{\rm -11}$ erg / cm$^{\rm 2}$ per ROSAT PSPC count, and $2.42\times 10^{\rm -6}$ erg / cm$^{\rm 2}$ s keV (priv. comm. by G. Hasinger); the resulting $L_{\rm X}$ are within 50% of those listed by Laor et al. (1997) for 18 sources in common. In the restframe of the quasar the X-ray window shifts according to z. The absolute blue luminosity $L_{\rm B}$ in the restframe of the quasar is taken from Véron-Cetty $\&$ Véron (1998). The infrared luminosities $L_{\rm NIR}$ (3-10$~\mu$m), $L_{\rm MIR}$ (10-40$~\mu$m), $L_{\rm FIR}$ (40-150$~\mu$m) and $L_{\rm submm}$ (150-1000$~\mu$m) are computed for the restframe of the quasars. Note that $L_{\rm submm}$ is mostly an extrapolation derived from the Rayleigh-Jeans tail of the cold blackbody shown in Fig. 1. $L_{\rm 1.4~GHz}$ is retrieved from the NVSS archive. The spectral index $\alpha$$_{\rm X}$ has been determined from ASCA by George et al. (2000). $\alpha$ $_{\rm opt}$ and $\alpha$$_{\rm IR}$ refer to $F_{\nu }$ = $\nu$$^{\alpha }$ fitted in the restframe of the quasar (with an uncertainty of about $\pm$0.2); a "?'' marks uncertain fits. $T_{\rm dust}$ refers to the coldest dust component shown in Fig. 1, the uncertainty is 5-10 K and can raise up to 50% in cases of poor FIR upper limits. The dust mass $M_{\rm dust}$ is estimated according to Formula 6 in Stickel et al. (2000) following Hildebrand (1983), with uncertainties up to an order of magnitude. For the columns $T_{\rm dust}$ and $M_{\rm dust}$ a "$\sim$'' marks uncertain values due to upper limits of the flux densities. Two types of host morphology are adopted; disturbed (1) and undisturbed (0) as listed in Clements (2000) and derived from Surace et al. (2001). The SED classes assigned refer to Fig. 12.

PG	z	$D_{\rm L}$	$L_{\rm X}$	$L_{\rm B}$	$L_{\rm NIR}$	$L_{\rm MIR}$	$L_{\rm FIR}$	$L_{\rm submm}$	$L_{\rm 1.4~GHz}$	$\alpha$$_{\rm X}$	$\alpha$ $_{\rm opt}$	$\alpha$$_{\rm IR}$	$T_{\rm dust}$	$M_{\rm dust}$	host	SED
		Mpc	10$^{\rm 9}$ $L_{\odot}$	10$^{\rm 9}$ $L_{\odot}$	10$^{\rm 9}$ $L_{\odot}$	10$^{\rm 9}$ $L_{\odot}$	10$^{\rm 9}$ $L_{\odot}$	10$^{\rm 9}$ $L_{\odot}$	log $L_{\odot}$	2-10 keV	0.3-1 $\mu$m	1-10 $\mu$m	K	10$^{\rm 5}$ $M_{\odot}$	morph	class
0003+199	0.025	104	20	29	27	22	<6	<0.34	10.58	1.94	-0.65	-0.90	$\sim$36	$\sim$9		3c
0007+106	0.089	371	28	42	124	70	<29	<1.05	12.78		-0.23	-0.95	$\sim$42	$\sim$18	1
0157+001	0.163	704	62	343	392	1270	1395	53.78	12.78		-0.50	-1.51	42	943	1	2
0804+761	0.100	419	120	146	230	180	39	0.95	11.44	2.18	0.43	-1.20	47	13	0	3c
0838+770	0.131	557	55	79	94	133	73	6.11	10.83		-0.26	-1.35	29	266	0	3a
1001+054	0.161	695	2*	111	233	251	92	3.31	11.63+		0.03	-1.46	42	59	0	3a
1008+133	1.287	8454		10 088	21 115	23 784	<2317	<11.74			0.09	-2.24	$\sim$100	$\sim$47		3b
1100+772	0.311	1439	260	724	388	360	114	1.71	15.33		0.21	-0.96	58	16	0	3c
1114+445	0.144	617	24	278	245	283	108	3.31	10.96+	1.51	-0.56	-1.45	45	53	1	3a
1116+215	0.176	767	460	529	585	563	<151	<4.03	12.27	2.06	-0.05	-1.27	$\sim$47	$\sim$57		3c
1149-110	0.049	200	17	23	23	54	20	0.76	11.27			-1.21	42	14
1211+143	0.084	353	130	160	186	179	73	1.24	11.44	2.00	-0.11	-1.22	56	13	1	3c
1216+069	0.331	1543	500	1009	991	1073	<339	<7.73	12.71	1.76	-0.50	-1.41	$\sim$50	$\sim$99		3a
1226+023	0.158	681	2000	2753	2080	1355	767	60.72	16.06		-0.22	?-0.94	31	2303	0	3c
1229+204	0.063	259	29	84	42	46	26	2.33	10.96		-0.50	-0.98	31	88	0	3c
1244+026	0.048	196	34	12	15	39	20	0.92	10.57	2.46	-0.58	-1.31	39	19		3a
1248+401	1.030	6237	1200	4404	7224	<15 319	<2440	<12.38			-0.40	?-1.43a	$\sim$100	$\sim$50
1309+355	0.184	803	55	278	275	334	<121	<2.95	13.14		-0.56	-1.40	$\sim$49	$\sim$40	0	3a
1322+659	0.168	727	220	175	126	139	63	3.65	11.06+	1.63		-1.24	35	100	0	3a
1338+416	1.219	7842		8391	8779	15 803	<2111	<10.96			-0.08	-1.56	$\sim$100	$\sim$44		3b
1351+640	0.088	368		20	119	273	119	3.36	12.32		-0.35	-1.36	47	49	0	2
1352+183	0.152	653	88	211	162	<205	93	2.17	11.07+		-0.22	?-1.28b	$\sim$50	$\sim$28	0	3c
1354+213	0.300	1379	140	440	215	332	<295	<13.33			-0.32	-1.36	$\sim$40	$\sim$269	0	3a
1402+261	0.164	709	200	253	314	289	134	6.97	11.22		0.15	-1.31	36	180	1	3c
1404+226	0.098	410	50	70	18	26	29	0.99	11.48	1.75	-0.59	-1.04	44	16	0	4
1407+265	0.940	5523	1900	6365	6595	11 174	<3504	<37.60	14.11	2.05	-0.11	-1.68	$\sim$68	$\sim$274		3b
1415+451	0.114	481	74	160	100	84	40	4.85	10.99		-0.90	-1.03	27	274	0	3a
1416-129	0.129	549	59	64	115	161	<54	<2.03	12.07+	1.79	0.69	-1.17	$\sim$42	$\sim$37	0	3c
1425+267	0.366	1730		1202	613	932	<322	<6.67	14.15			-1.12	$\sim$52	$\sim$79
1426+015	0.086	360	86	106	136	158	66	6.41	11.37		0.14	-1.22	27	351	1	3a
1427+480	0.221	981	110	77	122	199	100	5.20	10.32+		-0.13	-1.27	37	129		3a
1435-067	0.126	535	31	92	102	168	119	4.96	10.77+		0.32	-1.12	$\sim$41	$\sim$96	0	3a
1440+356	0.079	328	410	88	105	119	105	8.69	11.39	2.06	-0.64	-0.92	32	292	1	4
1444+407	0.267	1211	280	765	517	678	170	2.76	11.41+	2.21	-0.24	-1.40	57	27		3a
1501+106	0.036	147	12	18	25	44	21	0.66	10.55+	1.70	0.10	-1.03	45	10		3c
1512+370	0.370	1756	410	937	817	698	233	5.87	15.13		-0.01	-1.51	$\sim$49	$\sim$79		3a
1519+226	0.137	585	44	58	209	151	<70	<3.18	11.54		-0.46	-1.08	$\sim$39	$\sim$68	0	3a
1543+489	0.400	1918	200	529	1408	2180	1136	23.56	12.95	2.80	-0.07	-1.62	52	276		3a
1545+210	0.264	1196	250	432	314	281	57	0.81	15.00		0.07	-1.12	61	7		3c
1626+554	0.133	566	120	121	87	86	29	1.11	10.78+		-0.30	-1.15	42	20	0	3c
1630+377	1.466	10155		11 062	7899	6163	<2072	<17.79			-0.16	-0.88	$\sim$75	$\sim$110		3c
1700+518	0.292	1337		839	1322	1857	778	32.54	13.24		-0.65	-1.24	40	657	1	4
1704+608	0.371	1758		1000	1373	1525	569	12.49	15.62		-0.46	-1.31	50	159		3a
1715+535	1.920	15042		23 111	19 694	19 185	<4109	<35.32	14.27			-0.87	$\sim$75	$\sim$218
1718+481	1.084	6681	1800	33 406	12 162	8296	1248	8.22	15.10		-0.45	-0.92	85	42		3c
2130+099	0.062	259	53	78	125	106	45	4.31	11.31		0.09	-1.52	27	239	1	3a
2308+098	0.433	2107	460	1127	1013	1278	<736	<16.01	15.18		?-0.71	?-0.63	$\sim$50	$\sim$201



Table 2: continued.

PG	z	$D_{\rm L}$	$L_{\rm X}$	$L_{\rm B}$	$L_{\rm NIR}$	$L_{\rm MIR}$	$L_{\rm FIR}$	$L_{\rm submm}$	$L_{\rm 1.4GHz}$	$\alpha$$_{\rm X}$	$\alpha$ $_{\rm opt}$	$\alpha$$_{\rm IR}$	$T_{\rm dust}$	$M_{\rm dust}$	host	SED
		Mpc	10$^{\rm 9}$ $L_{\odot}$	10$^{\rm 9}$ $L_{\odot}$	10$^{\rm 9}$ $L_{\odot}$	10$^{\rm 9}$ $L_{\odot}$	10$^{\rm 9}$ $L_{\odot}$	10$^{\rm 9}$ $L_{\odot}$	log $L_{\odot}$	2-10 keV	0.3-1 $\mu$m	1-10 $\mu$m	K	10$^{\rm 5}$ $M_{\odot}$	morph	class
0003+158	0.450	2203	812	765	<2149	<2072	<499	<15.80	15.24		-0.08	? -1.60	$\sim$44	$\sim$268
0026+129	0.142	608	108	160	<124	<74	<53	<3.85	12.08		-0.19	? -0.74	34	111	0
0043+039	0.385	1835	<364	1009	<538	<596	<339	<13.13			-0.12	? -1.16	$\sim$42	$\sim$245
0044+030	0.623	3266	282	1753	1462	1681	1067	46.27	14.91		-0.12	-1.25	41	897		3c
0050+124	0.061	251	35	92	221	339	207	21.25	11.42	2.25	-0.41	-1.21	29	983	1	3a
0052+251	0.155	668	149	253	215	154	66	8.11	11.56+		-0.19	-1.05	$\sim$27	$\sim$465	1	3c
1206+459	1.158	7309	<3703	14 582	11 200	24 526	8891	96.44	12.85+		-0.41	-2.02	67	723		3b
1241+176	1.273	8327	<4563	11062	25 543	46 870	5084	22.50	16.08		-0.71	? -1.83	111	77		3b
1247+267	2.038	16448	5978	58052	64 160	98 915	6349	23.31	14.47+	2.07	-0.24	-2.01	131	65		3b
1254+047	1.024	6189	<2831	6979	12 454	21 024	4857	32.56	13.05+		-0.11	-1.93	85	167		3b
1259+593	0.478	2367	<567	1599	<2210	<1962	<494	<4.32	11.26+		-0.08	? -1.46	$\sim$74	$\sim$28		3a
1302-102	0.278	1266	318	1106	431	714	621	16.78	14.71		-0.07	-0.94	47	239	1	3c
1307+085	0.155	668	169	278	124	141	105	2.52	11.23+		-0.19	-0.81	50	32	0	3c
1411+442	0.090	376	3*	121	144	111	29	1.07	11.18	-0.42	-0.54	-1.19	41	20	1	3b
1613+658	0.129	549	164	101	181	304	299	37.27	11.81		-1.02	-1.13	27	2013	1	4
1634+706	1.334	8889	1411	52 944	36 093	42 572	12 913	137.06	14.02	2.03	-0.17	-1.35	68	1002	0	3b
2112+059	0.466	2297	15	1213	<2425	<1448	<1141	<93.98	12.91		+0.02	-1.06	$\sim$32	$\sim$3177		3c

^* Value low due to steep $\alpha$ $_{0.3-2~\rm keV}$ (Laor et al. 1997); ⁺ extrapolated from 5 GHz using F (1.4 GHZ) $\approx$ 2.5 $\times$ F (5 GHZ); ^a between 1 and 15 $\mu$m; ^b between 1 and 25 $\mu$m.


4 Discussion

The results of the full sample confirm the former findings for the 17 sources reported in Paper I. Therefore, we do not repeat here the discussion in Paper I, but rather concentrate on a few topics, on which the higher quality and better statistics of the larger sample has an impact.

	Figure 3: Infrared luminosity (from 3 to 1000 $\mu$m in the object restframe) against redshift. The symbols are: $\bullet$ = based on detections, $\circ$ = based on upper limits.
Open with DEXTER

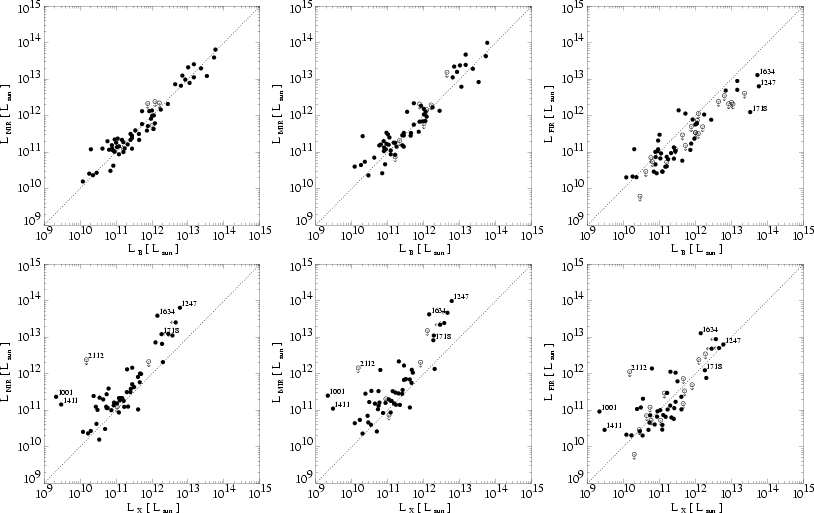

	Figure 4: Infrared versus blue and soft X-ray luminosities. The infrared is separated into the NIR (3-10 $\mu$m), MIR (10-40 $\mu$m) and FIR (40-150 $\mu$m) ranges. The symbols are: $\bullet$ = based on detections, $\circ$ = based on upper limits. The dotted diagonal lines indicate unity.
Open with DEXTER


4.1 Luminous dust emission

The spectra shown in Fig. 1 provide an impressive confirmation of the fact that the SED of an optically selected quasar contains a mid-far infrared bump due to thermal emission by dust. The thermal infrared luminosities of our sample span three orders of magnitude, from luminous 10$^{\rm 11}$ $L_{\odot}$, to ultraluminous 10$^{\rm 12}$ $L_{\odot}$, to hyperluminous 10$^{\rm 13}$-10$^{\rm 14}$ $L_{\odot}$ objects (Table 2). The most luminous objects lie at the highest redshift (Fig. 3), which is typical for flux limited samples (like the PG catalog). For those quasars for which we could establish only upper limits the possible far-infrared dust emission exceeds 10$^{\rm 11}$ $L_{\odot}$, except for the low luminosity quasar PG 0003+199 (Mrk 335). As indicated in Fig. 1, a luminous dust component could also be placed underneath the SED of the flat spectrum radio-loud source PG 0007+106 which does not show any thermal bump. Since the PG quasars were selected optically, the high IR detection rate suggests that every quasar, irrespective of being optically visible or dust obscured, has a high inherent dust luminosity.

We have decomposed the IR emission into the NIR (3-10 $\mu$m), MIR (10-40$~\mu$m), FIR (40-150$~\mu$m) and submm (150-1000$~\mu$m) regimes (Table 2). Figure 4 shows that for each of these regimes the IR luminosity is correlated with the blue luminosity (Table 2). While the correlation is of similar quality for the NIR and MIR ranges and also for the FIR (Table 4), the larger scatter for the submm regime (Table 4) might also be due to the lack of enough data points to constrain $L_{\rm submm}$ well, which therefore in most cases is just the blackbody extrapolation from the FIR. Also of interest is, that the soft X-ray luminosity correlates to some extent with the NIR, MIR and FIR luminosity (Fig. 4, Table 4), whereby the scatter is partly caused by some extinguished sources with steep $\alpha$ $_{\rm0.3-2~keV}$ (e.g. PG 1001+054, PG 1411+442, PG 2112+059, Laor et al. 1997; Wang et al. 2000; Gallagher et al. 2001), and in the restframe of the quasar the X-ray window shifts according to z (for the high redshift sources like PG 1247+267, PG 1634+706, PG 1718+481). An analysis of 2-10 keV ASCA spectra (George et al. 2000) indicates that the relative decline of X-ray (to optical) luminosity with z is probably due to both intrinsic properties of the sources (as favoured by Bechtold et al. 1994; Wilkes et al. 1994) and observational effects (proposed by Yuan et al. 1998). Because of the observational X-ray window limitation and in view of several other effects, we do not investigate the correlations in more detail. For the scope of our discussion we conclude, that the IR luminosities are correlated over four orders of magnitude with both the blue and the soft X-ray luminosity, which provide the primary measure of the AGN strength. But these correlations show also a considerable scatter with a factor of about three and five for $L_{\rm blue}$ and $L_{\rm X}$, respectively.





Table 3: Correlation coefficients (Pearson's r) for luminosities shown in Fig. 4 and listed in Table 2. The correlations are derived for the logarithms of the luminosities.

	$L_{\rm X}$	$L_{\rm B}$	$L_{\rm NIR}$	$L_{\rm MIR}$	$L_{\rm FIR}$
$L_{\rm B}$	0.83
$L_{\rm NIR}$	0.80	0.97
$L_{\rm MIR}$	0.79	0.94	0.98
$L_{\rm FIR}$	0.79	0.89	0.93	0.96
$L_{\rm submm}$	0.60	0.66	0.71	0.74	0.87

The dust masses derived from the blackbodies shown in Fig. 1 lie between 10$^{\rm 6}$ and $2\times10^{\rm 8}$ $M_{\odot}$ (Table 2), i.e. are comparable to those in Seyfert 1 galaxies (from the 12 $\mu$m AGN sample of Spinoglio et al. 2002) and ULIRGs (from Klaas et al. 2001). Figure 5 illustrates the distribution of FIR luminosities and dust masses. We used a dust emissivity $\beta = 2$ throughout. If in the hyperluminous quasars due to the higher dust temperature $\beta$ changed, e.g. $\beta = 1$, then their dust mass would be lower by a factor of about 2. But this has no significant impact on the observed dust mass range. Rather the dust mass depends essentially on the temperature of the coldest component. This is uncertain in the case of upper limits for the FIR fluxes, so that the dust mass could be lower or - if the dust temperature is much colder - also higher (by up to an order of magnitude) than the estimates listed in Table 2.

Figure 5: Dust mass against FIR luminosity. The symbols are: $\bullet$ = based on detections, $\circ$ = based on upper limits. Note, that in case of FIR flux upper limits the dust mass does not necessarily drop, because the temperature could be lower than assumed; therefore no arrows are plotted. Also other samples are shown for comparison (with dust mass recalculated exactly as for the PG quasars): $\ast$ = ULIRGs from Klaas et al. (2001), + = Seyfert 1s from Spinoglio et al. (2002), $\triangle$ = HyLIGs from Verma et al. (2002, based on upper limits).

Open with DEXTER

For those sources with flux density upper limits at $\lambda$ > 60 $\mu$m, it is not only of interest, how well the FIR luminosity and the temperature of the cold dust component are constrained, but also how well it is actually approximated. Therefore we consider firstly the cases with good detections in at least 8 ISO filters (e.g. PG 0157+001, PG 1426+015, PG 1700+518, PG 1704+608, PG 2130+099): a visual inspection of the SED shapes shows that they run smoothly without any abrupt bents, suggesting that this is a general feature of a quasar SED. Now we consider both the height of the upper limits around the peak wavelength and how far the cold component could become even colder. If in the case of upper limits the sources at low/intermediate redshift (z<0.4) possess SED shapes similar to the sources with FIR detections, then a visual inspection indicates that the measured 60-100 $\mu$m upper limits are not far above the expectations (pictured by the cold blackbody in Fig. 1). For example, comparing the pairs PG 0804+761 - PG 1116+215 (at $z\approx0.1$) or PG 1444+407 - PG 1512+370 (at $z\approx0.3$), suggests that the peak of the flux density lies at a wavelength of about 60-80 $\mu$m and reaches a value close to the upper limits measured. Otherwise, the SEDs of PG 1116+215 or PG 1512+370 would exhibit an abrupt decline longwards of 25 $\mu$m or a broad FIR flux plateau, which would also be unusual, because it is not seen in (other brighter) sources with detections. Hence, we suggest that the FIR luminosity is in fact approximated within a factor of about 2 or better, i.e. the "<'' sign in column $L_{\rm FIR}$ of Table 2 can actually be replaced by a "$\approx$'' sign.

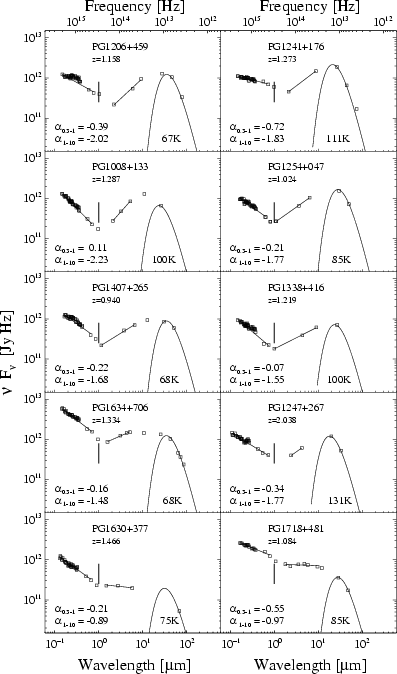

At high redshift (0.9<z<2.0) the complete ISO PG sample contains 12 sources, out of which 6 (PG 1718+481 and 5 sources in Paper I) show a clear SED maximum at about 60-80 $\mu$m in the observer's frame. Among the remaining 6 sources 2 SEDs are poorly constrained and omitted from the discussion (PG 1248+401 and PG 1338+416). For 2 sources (PG 1008+133 and PG 1407+265) the SED flattens, suggesting actually a maximum around 60 $\mu$m (in the observers frame). And for 2 sources (PG 1630+377 and PG 1715+535) the 170 $\mu$m upper limit restricts the range of the cold dust component: If it is warmer than the 75 K component shown in Fig. 1, e.g. 100 K, then the MIR/FIR luminosity ratio becomes unusually high (as discussed below in Sect. 4.2.2); if it is colder, e.g. 50 K, resulting in a peak around 170 $\mu$m, then the MIR luminosity declines, but (due to the 170 $\mu$m upper limit) the FIR luminosity remarkably remains about the same as for a 75 K component. Again, as for the low/intermediate redshifted sources, we conclude that the FIR luminosity might be approximated by a factor of about 2 or better. The uncertainty in the temperature of the cold dust component of the z>0.9 sources is certainly higher.

Molecular gas masses (or upper limits) have been published by Barvainis et al. (1989), Solomon et al. (1997), Barvainis et al. (1998), Evans et al. (2001) from CO observations for some of our quasars. They are listed in Table 5. Comparing, for the good CO detections, the gas and dust masses yields a mean (median) gas-to-dust mass ratio of about $250\pm120$ (270). Since for the gas mass determination these authors used a CO-to-H$_{\rm 2}$ conversion factor of about 4 $M_{\odot}$ (K km s$^{\rm -1}$ pc$^{\rm 2}$)$^{\rm -1}$, i.e. about a factor of 2 higher than the average galactic value, the mean (median) gas-to-dust mass ratio of the quasars can be considered as consistent with the canonical value of about 150 for normal spiral galaxies (e.g. Stickel et al. 2000). Note that this argues also in favour of the thermal nature of the IR emission and against a synchrotron origin. If we adopt this canonical value in general, then good upper limits of the gas mass could, in principle, also constrain the dust mass (and the temperature of the cold component). However, the available CO limits are not yet stringent enough. Concerning the mass and luminosity estimates for the cases of upper FIR flux limits, we conclude that the true FIR luminosities are approximated by a factor of about 2, while the dust mass estimates in Table 2 may be less constrained up to an order of magnitude.


4.2 On the AGN-starburst connection

The power-law rise of the IR SEDs indicates a well ordered dependence between the dust components at different temperatures. It suggests that the dust is heated by the central AGN (and not by sources which have an extended irregular spatial distribution), resulting in a smooth temperature gradient from inside to outside. While there is broad consensus that the strong MIR emission of PG quasars is due to the AGN, the debate is still on whether the FIR emission is mainly powered by the AGN, or whether starbursts are required as an additional energy source. Decisive arguments implying starbursts as the main FIR power source are still searched for. We shall first consider, how far our data might strengthen the starburst case, and then see how they compare with the most actual AGN dust models.





Table 4: Gas and dust masses (left panel), and PAH luminosity upper limits (right panel). The gas masses are from Barvainis et al. (1989), Solomon et al. (1997), Barvainis et al. (1998), Evans et al. (2001). The upper limits of the PAH 7.7 $\mu$m feature are determined from the ISOPHOT-S spectra (Fig. 6).

PG	$M_{\rm dust}$	M (H$_{\rm 2}$)	M (H$_{\rm 2}$) /		PG	$F_{\rm 7.7~\mu m}$	$L_{\rm PAH}$ /
	10$^{\rm 5}$ $M_{\odot}$	10$^{\rm 7}$ $M_{\odot}$	$M_{\rm dust}$			[mJy]	$L_{\rm FIR}$
0007+106	18	<350	<1940		0003+199	<25	<0.55
0050+124	983	1400	142		0050+124	<30	<0.88
0157+001	943	4000	424		0157+001	<50	<0.08
0838+770	266	840	316		0804+761	<12	<0.24
1206+459	723	<4500	<622		1226+023	<24	<0.18
1241+176	77	<2800	<3640		1501+106	<30	<0.38
1247+267	65	<4500	<6920		1613+658	<10	<0.13
1254+047	167	<4500	<2690		1700+518	<20	<0.55
1351+640	>49	520	<1060		1704+608	<25	<1.66
1402+261	180	<490	<272		2130+099	<18	<0.33
1415+451	274	610	223
1440+356	292	800	274
1613+658	2013	2000	99
1634+706	1002	<2200	<220


4.2.1 On the starburst tracers

4.2.1.1. Cool dust and starburst knots

Since the large amount of dust must have been produced by stars, quasars are accompanied or preceeded by starbursts. Coeval starburst activity in quasars appears in some cases plausible from the detection of large amounts of molecular gas via CO observations (Table 5), since the vast dense gas reservoirs might be expected to be definitely converted into stars. For the luminous and ultraluminous quasars (but not for the hyperluminous ones discussed in Sect. 4.2.2) the temperature of the coolest dust component lies at about 30-50 K, which is also the range found for nearby ultraluminous starburst galaxies (Klaas et al. 2001). Furthermore, some hosts of the - low luminosity - quasars show knotty morphological distortions (e.g. Surace et al. 2001) which are attributed to starbursts acting in the cooler or outer regions of these quasars.

Figure 6: MIR spectra of the 12 PG quasars observed with ISOPHOT-S. The x-axes give the wavelength as observed, the vertical bar denotes the z-dependent predicted position of the PAH features at 7.7 and 3.3 $\mu$m, respectively. At the low flux level the unfiltered spectra are quite noisy, and possible features (like a silicate 9.7 $\mu$m absorption in PG 1501+106 or a hot 4 $\mu$m bump in PG 1718+481) in the Hanning smoothed plots have to be interpreted with caution. (The ISOCAM-CVF spectra between 10 and 16 $\mu$m do not show any PAH features.)

Open with DEXTER

4.2.1.2. Constraints from PAHs?

There is general agreement that PAHs (Polycyclic Aromatic Hydrocarbonates, review by Léger & Puget 1989), are distributed thoughout the galaxies and mixed with their ISM and dust (e.g. Haas et al. 2002 and references therein), and that they are destroyed (or transformed) in the hard radiation field of an AGN.

If the FIR (and submm) emission of quasars is mainly powered by starbursts, then a large fraction of the dusty volume is not effectively hit by the hard AGN radiation field. Then the PAH carriers mixed with the FIR emitting dust clouds should not be destroyed, hence this FIR emission should be accompanied by PAH emission to an extent typical for starburst galaxies.

Therefore, we searched for PAH signatures in the MIR spectra of PG quasars taken with ISOPHOT-S and ISOCAM-CVF. The MIR spectra are dominated by the strong continuum of hot dust. Although the spectra show small bumps at some of the predicted positions (Fig. 6), the flux levels below 100 mJy are too low to allow for a reliable detection. Thus, only upper limits for the PAH 7.7 $\mu$m feature are derived (at the order of at least 10% of the continuum level). These upper limits, however, are still quite high, resulting in $L_{\rm PAH 7.7~ \mu m~peak}$ /  $L_{\rm FIR}$ ratios between 0.1 and 1 (Table 5). This is clearly above the typical ratios of about 0.05-0.1 we find for ULIRGs and normal spiral galaxies (using the PAH 7.7 $\mu$m peak fluxes and the FIR fluxes listed in Klaas et al. 2001).

In conclusion, the current high upper limits allow for PAH emission in PG quasars the strength of which is consistent to that of starburst galaxies. In order to find (via the PAHs) decisive arguments in favour of or against starbursts, more stringent detections or limits have to be provided, hence more sensitive MIR spectra with an accuracy of better than 1% are required.

	Figure 7: Comparison of IR and Radio luminosities. Filled and open symbols refer to detections and upper limits, respectively. Circles and squares denote sources with 1.4 GHz fluxes measured and extrapolated from 5 GHz, respectively. The dotted lines indicate the FIR-radio correlation for starburst galaxies from Condon (1992).
Open with DEXTER

4.2.1.3. Constraints from the radio-FIR correlation

In starburst galaxies the FIR and radio luminosities are proportional to each other over many orders of magnitude (Condon 1992). A natural explanation for this correlation is that the radio emission is mostly due to supernovae. Its rate is proportional to the massive star formation rate, and thereby also to the FIR luminosity, provided that much of the radiation from massive stars is absorbed and reradiated by dust.

Figure 7 (top) shows the relation between the FIR and radio luminosities for the PG quasars. Strikingly, the radio-quiet quasars in our sample (50%) lie close to the relation for starburst galaxies. The other half shows a clear radio excess, being obviously radio-intermediate or radio-loud. This radio-loudness is attributed to AGN and jet activity. The radio loudness in our sample varies over six orders of magnitude, with no apparent correlation with the infrared or optical luminosity. Although the range of the radio luminosities is large, the Condon relation appears to present a lower limit to the radio flux. Such a limit could not be understood, if the radio emission arose exclusively from AGN jets, whose activity has no obvious relation to the cold dust component. The fact that the Condon relation forms a lower limit may be a fortuitous coincidence unrelated to star formation, though we cannot imagine a natural explanation for such a limit for AGN without starbursts. This suggests that in the low FIR luminosity range of about 10$^{\rm 11}$ $L_{\odot}$ starbursts of that power accompany the quasar phenomenon. However, for objects with high FIR luminosities above 10$^{\rm 12}$ $L_{\odot}$ the SEDs typically peak in the MIR so that the far-infrared luminosity could just be the Rayleigh-Jeans tail contribution of the warm AGN heated dust (as discussed in more detail in Sect. 4.2.2). In this case the actual starburst contribution to $L_{\rm FIR}$ may be only 10% and if we relate this FIR luminosity stemming from starbursts ( $L_{\rm SB}$ $\sim$ 0.1 $\cdot$  $L_{\rm FIR}$) with the radio supernova luminosity, in Fig. 7 (top) the high $L_{\rm FIR}$ end would move down by a factor of about ten, leading effectively to a deviation from the Condon relation.

Next we probe the following assumptions: (1) If starburst activity were important in quasars, then one would expect those quasars with a high $L_{\rm FIR}$ /  $L_{\rm MIR}$ ratio (i.e. a relatively strong starburst component) to concentrate in a regime of the $L_{\rm radio}$ /  $L_{\rm FIR}$ ratio similar to that of starburst galaxies. (2) If, on the other hand, in the radio-loud quasars with a high $L_{\rm radio}$ /  $L_{\rm FIR}$ ratio the AGN and jet activity traced a later state of evolution (with less starbursts), then they should show a lower $L_{\rm FIR}$ /  $L_{\rm MIR}$ ratio than the radio-quiet quasars (unless jet triggered starbursts become important). As a test for these possibilities, Fig. 7 (bottom) shows the distribution of $L_{\rm FIR}$ /  $L_{\rm MIR}$ versus $L_{\rm radio}$ /  $L_{\rm FIR}$. The lack of any trend, however, does not allow to argue simply against the importance of starbursts, rather it means that one or both of the "if'' conditions above are not fulfilled. Most likely the radio emission of radio-loud quasars is independent of the dust emission properties, since $L_{\rm radio}$ /  $L_{\rm FIR}$ is not correlated with $\alpha$$_{\rm IR}$ (Fig. 11 discussed in Sect. 4.3.2).


4.2.2 AGN dominance and limited starbursts in the hyperluminous $\mathsfsl{z}$ = 1 PG quasars

As shown in Fig. 8 (top) the hyperluminous sources have a higher MIR/FIR luminosity ratio than the bulk of the PG quasars. This ratio even is increased for the cases of FIR upper limits. For many hyperluminous sources $L_{\rm FIR}$ reaches only one third or less of $L_{\rm MIR}$, suggesting that the AGN dominates even at FIR wavelengths.

Figure 8: Top: FIR/MIR luminosity ratio against IR luminosity. Bottom: FIR luminosity per dust mass against MIR luminosity. The symbols are: $\bullet$ = based on detections, $\circ$ = based on upper limits. For comparison also: $\ast$ = ULIRGs from Klaas et al. (2001), + = Seyfert 1s from Spinoglio et al. (2002), $\triangle$ = HyLIGs from Verma et al. (2002, based on upper limits, and $M_{\rm dust}$ is recalculated exactly as for the PG quasars).

Open with DEXTER

This issue was investigated for IR and optically selected hyperluminous IR galaxies by Rowan-Robinson (2000) on the basis of AGN torus and starburst models. Remarkably, the used models show little evidence for dominant starbursts in all hyperluminous quasars of Paper I. Assuming that the FIR luminosity traces the starburst power, the starbursts are at most ultraluminous, $L_{\rm FIR}$ $\la$ 10$^{\rm 12}$ $L_{\odot}$. This conservative estimate will be lower considering further arguments below.

In order to be independent of dust models, we proof the AGN dominance by a statistical comparison of our full quasar sample with properties of other galaxy classes:

Figure 8 shows also the nearby Seyfert 1s (from the 12 $\mu$m AGN sample of Spinoglio et al. 2002), the nearby (z<0.3) ULIRGs (from Klaas et al. 2001) and four IR selected hyperluminous IR galaxies (HyLIGs) at $z\approx1$ (from Verma et al. 2002). Both classes, the Seyfert 1s and the ULIRGs, have (despite some scatter) on average a lower MIR/FIR luminosity ratio than the PG quasars, indicating a relatively low AGN and a high starburst contribution to the IR luminosity. The faintest one of the four HyLIGs actually seems to be similar to the nearby ULIRGs, but three HyLIGs lie close to the hyperluminous PG quasars. The PG quasars of more moderate luminosity lie just between the low luminosity Seyfert 1s and the hyperluminous quasars. This is consistent with the picture, that as a general trend the role of the AGN increases with total luminosity. This fact is well known for lower luminosity ranges (Fig. 4 in Miley et al. 1985; Fig. 8 in the review by Soifer et al. 1987), but here it is established observationally also for the hyperluminous range.

The trend of a $L_{\rm MIR}$ /  $L_{\rm FIR}$ ratio increase with total IR luminosity shows up also via the higher cut-off temperature of the thermal spectrum in the hyperluminous sources (Fig. 1, Table 2). For temperatures of 70-130 K, the far-infrared luminosity could just be the Rayleigh-Jeans tail of the warm dust, the emission of which peaks in the MIR. For example, the SED of a modified blackbody with emissivity $\propto$$\lambda$$^{\rm -2}$ and T=100 K peaks at $\lambda$ $\approx$ 30 $\mu$m, resulting in $L_{\rm FIR}$ /  $L_{\rm MIR}$ $\approx$ 0.1. Even if a colder $T\approx40$ K dust component is present, the FIR+submm luminosity cannot raise significantly, say by at most 25%, leaving $L_{\rm FIR}$ /  $L_{\rm MIR}$ clearly below 0.5 (Table 2). Hence, even if cold dust mass has escaped our detection, any starburst luminosity will be less than $\sim$10$^{\rm 12}$ $L_{\odot}$ estimated above.

Next, we consider the heating efficiency, i.e. the FIR luminosity normalised by dust mass. For a single blackbody $L_{\rm FIR}$ /  $M_{\rm dust}$ is related to its temperature. But for a real mixture of several dust components the bulk of the dust mass is determined by the coldest component, while the bulk of the luminosity comes from a relatively small amount of the warm active dust (as long as it radiates in the FIR wavelength regime). Despite some possibly missed cold dust mass, the heating efficiency may provide clues to recognise AGN and starburst contributions: Certainly, for starbursts $L_{\rm FIR}$ /  $M_{\rm dust}$ is expected to lie below a maximum threshold, since increasing the starburst power would require also more dust, i.e. interstellar matter out of which the stars are formed. On the other hand, energy production via a black hole is less restricted. The dust mass is comparable for all classes (Fig. 5), even if different dust properties are assumed as mentioned in Sect. 4.1. If the AGN had only little impact on the FIR luminosity in hyperluminous quasars, then $L_{\rm FIR}$ /  $M_{\rm dust}$ should be similar to that of ULIRGs (and perhaps some less luminous quasars) where the FIR luminosity is starburst dominated. Figure 8 (bottom) shows the $L_{\rm FIR}$ /  $M_{\rm dust}$ distribution against the MIR luminosity (as tracer for the AGN strength). The hyperluminous quasars clearly lie around and outside the high end of the distribution of all three comparison classes, (1) the Seyfert 1s, (2) the ULIRGs and (3) the luminous and ultraluminous PG quasars. This trend would be amplified, if the dust emissivity changed from $\beta$ = 2 to $\beta$ = 1 at the higher dust temperatures.

To conclude, the MIR/FIR luminosity ratio - and with some reservation also the $L_{\rm FIR}$ /  $M_{\rm dust}$ distribution - argue in favour of a strongly dominating AGN contribution to the FIR emission of our z=1 hyperluminous quasars. For most of them the temperature of the cold end of the thermal spectrum seems to be higher than 70 K. In these sources the starburst power is likely to be less than 10$^{\rm 12}$ $L_{\odot}$, i.e. it is clearly not hyperluminous.


4.2.3 Progress of the AGN dust models

The low optical extinction of the quasars indicates that the dust is distributed in a disk/torus geometry seen face-on or moderately inclined. The MIR and FIR as well as the blue luminosities are correlated over three to four orders of magnitude (Fig. 4). Since the total UV to optical luminosity is about ten times $L_{\rm B}$, we get $L_{\rm UV-opt}$ >  $L_{\rm IR}$, hence the hot AGN core, in principle, can provide by far sufficient energy to heat all the dust. Also striking is the correlation between soft X-ray and FIR luminosity (Fig. 4, Table 4). But the problem is to find a scenario in which the central luminosity can efficiently be transported to reradiate from cooler outer regions. Most of the former AGN dust models (for example the torus study by Pier & Krolik 1992, 1993), ran into difficulties, when trying to explain (1) the broad range of dust temperatures between about 1000 K and a few tens of Kelvin, and (2) a FIR/MIR luminosity ratio $\ga$ 0.3 found for many quasars (at z<0.4).

Recently, interesting progress has been achieved in modelling AGN heated IR SEDs: basically the models use a clumpy torus as proposed by Krolik & Begelman (1988). All these findings complement each other in an ideal way for a pure AGN heating scenario:

Firstly, a promising physical model was presented by Zier $\&$ Biermann (2001, 2002), where merging binary black holes create the dusty torus which, in addition, is patchy with gaps blown by strong stellar winds. Since a patchy torus tends to smear out after some time resulting in a homogeneous dust torus, a mechanism (namely stellar winds) is provided to explain, how to maintain the clumpiness.

Secondly, Nenkova et al. (2002) approximated a clumpy torus by a toroidal distribution of dense dusty clouds which are illuminated from one side by an AGN. Under reasonable assumptions their 1D-calculations (with the DUSTY code) yield SEDs with a broad temperature range, which also peak between 60 and 100 $\mu$m, similar to those observed (e.g. for 3C405 = Cyg A from Haas et al. 1998). Despite the simplification this investigation strongly suggests that starbursts are not required to provide the bulk of the FIR luminosity.

Thirdly, Thiele $\&$ Camenzind (2002) developed a 3D-code for calculating the radiative transfer for a proper dust model of silicates and graphites. They show that the temperature range can be broad even for exclusive AGN heating, if the total AGN power is not too high.


4.2.4 Conclusions on the AGN-SB connection

While in the past the FIR luminosity of quasars had challenged AGN models as well as the observational search for starburst tracers, now a somehow converse situation has been entered: the progress of the AGN dust torus models suggests that starbursts are not required as additional energy sources for the FIR emission of quasars, but the observations seem to provide more and more evidence for their presence in many quasars of our PG sample. That the starburst power is on average related to the AGN power could be understood, if both were caused by the supply of gas during the process of galaxy merging. However, the strength of the starbursts relative to that of the AGN decreases with increasing total IR luminosity. While for some of our PG quasars at the lower end of the IR luminosity distribution the dust power of the starburst (measured as $L_{\rm FIR}$) may reach that of the AGN, our data leave no doubt, that, at least for the hyperluminous PG quasars at z=1, the AGN is the main power source for the dust emission also at FIR wavelengths. The physical reason for this trend could be that in our PG quasar sample

1. the starbursts can obviously reach only a FIR power of about 10$^{\rm 10}$...10 $^{\rm 12}~L_{\odot}$, but they cannot exceed this value,

2. while the AGN powered IR emission is less restricted and can reach 10$^{\rm 10}$...10 $^{\rm 14}~L_{\odot}$.

Therefore, and for the sake of lucidity, we adopt in the following discussion that starbursts play rather a minor role for powering the dust emission of the PG quasars.


4.3 Evolution of the dust emission of quasars

In the picture of AGN heated dust the IR emission depends on the power supplied by the AGN as well as on the amount and spatial distribution of the reprocessing dust around the illuminating AGN. In this section we consider the variety of the observed SED shapes, which turns out to be essentially inherent to the quasars, i.e. cannot entirely be explained by observational effects like inclination dependent extinction. We find that the SED shapes can be sorted so that they fit expectations about evolution of the quasars' dust emission, providing a natural understanding of the SED variety.

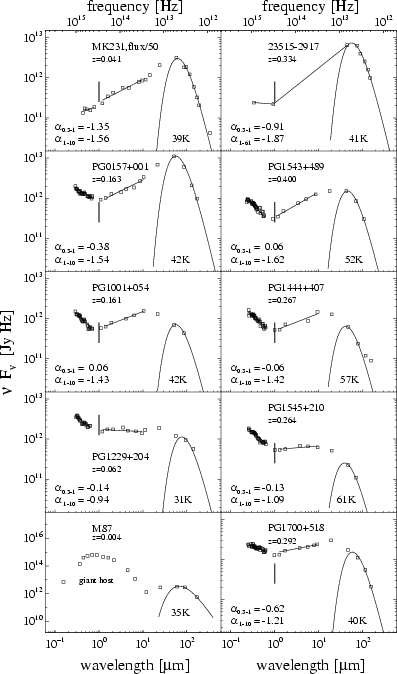

Figure 9: Observed $\nu$ $F_{\nu }$ for 10 selected quasars (frequency shifted to the quasar's restframe). The left and right columns contain sources at low and medium redshifts (z<0.4), respectively. Data as in Fig. 1, upper limits are excluded, if not meaningful. The sources are sorted along the criteria proposed in Sect. 4.3.4: For comparison the first row contains two warm ULIRGs MK 231 and IRAS 23515-2917 (from Klaas et al. 2000). The IR slopes are steep for the FIR loud objects in the third row and then flatten in the fourth row. The fifth row shows the giant elliptical M 87 (for comparison from Haas et al.2003, in prep.). The optical slope is blue from the second to the fourth row, but is redder in the fifth row. The vertical bar indicates the position of the 1 $\mu$m dip.

Open with DEXTER

Figure 10: Observed $\nu$ $F_{\nu }$ for those 10 quasars of high redshift z>0.9 (frequency shifted to the quasar's restframe) for which sufficient optical and IR data are available. Data as in Fig. 1, upper limits are excluded, if not meaningful. The vertical bar at 1 $\mu$m indicates where the dip is expected. This dip is shifted towards longer wavelengths for the quasars PG 1206+459 and PG 1241+176 (in row 1), both having also a slightly reddened optical slope. The other sources are sorted along IR slope being steep in rows 2, 3 and 4, and flat in row 5. The optical slope of these hyperluminous objects is generally blue in rows 2, 3 and 4, but is redder for the objects in row 5; for details see Sect. 4.3.4.

Open with DEXTER


4.3.1 The variety of optical and infrared SEDs

Firstly, we consider some SED examples: Figs. 9 and 10 show the SEDs in $\nu$ $F_{\nu }$ representation in which the optical to MIR wavelengths are best exposed. The 1 $\mu$m dip between optical and IR wavelengths is clearly visible. We include here the optical wavelength range as a rough tracer for AGN properties. We fitted the optical and the near- to mid-infrared SEDs by power-laws, as indicated by the lines. The SEDs exhibit a diversity which may be described by the following characteristics:

1. The spectral slope $\alpha$ $_{\rm IR}=\alpha$ $_{\rm 1-10~ \mu m}$ (Definition in Table 2). Examples for sources with steep slopes are PG 0157+001, PG 1543+210 and PG 1008+133 (at low, medium and high redshifts). Examples for sources with flat slopes are PG 1229+204, PG 1545+210 and PG 1718+481 (at low, medium and high redshifts of $z\approx0.1$, 0.3 and 1 respectively).

2. The wavelength of the location of the $\nu$ $F_{\nu }$ peak in the MIR at $\lambda$ $\approx$ 10 $\mu$m or FIR at $\lambda$ $\ga$ 40 $\mu$m. Examples for "MIR peakers'' are PG 1001+054, PG 1444+407 and PG 1008+133 (at low, medium and high redshifts). Examples for "FIR peakers'' are PG 0157+001, PG 1543+489 (peaking at 30-40 $\mu$m) and (to some extent) PG 1206+459 (at low, medium and high redshifts).

3. The temperature of the coldest dust component ranges from about 30 K in PG 1229+204 to about 60 K in PG 1545+210 (at low and medium redshifts). At high redshifts (1<z<2) it is less constrained (e.g. PG 1338+416), but seems to lie above 60 K (e.g. PG 1634+706, PG 1247+267). (In order to argue independently of the Planck function fit and more closely to the data, one could also use the drop of the SEDs at the cold side. Although the drop is not in all cases very sharp, the wavelength of this drop exhibits a considerable dispersion among our sample.)

4. The spectral slope $\alpha$ $_{\rm opt} = \alpha$ $_{\rm0.3-1~ \mu m}$(Definition in Table 2). Examples for sources with blue slopes are PG 1001+054, PG 1545+210, and PG 1008+133 (at low, medium and high redshifts). Examples for sources with red slopes are PG 1404+226 (Table 2), PG 1700+518 and PG 1206+459 (at low, medium and high redshifts).

All possible combinations of these characteristics can be found: red (blue) optical and steep (flat) infrared SEDs, flat and steep SEDs which peak in the MIR, as well as flat and steep SEDs which peak in the FIR. A weak trend is that most of the FIR peakers are located a low redshift (z<0.2). The sources at higher redshift are more luminous (Fig. 3), and the $L_{\rm FIR}$ /  $L_{\rm MIR}$ ratio decreases with luminosity, as mentioned in Sect. 4.2.2.

Furthermore, the few radio-loud sources in our sample do not show any preference for steep or flat slopes, etc. Examples can be seen in Fig. 1 and taken from Table 2: PG 1545+210 and PG 1704+608 have blue and red optical slopes, respectively; PG 1100+772 has a quite flat IR slope, and PG 1718+481 has a red optical and flat IR slope. They are all at intermediate and high redshifts, and "MIR peakers'', too. (PG 0007+106 and PG 1226+023 are not considered, since they have a quite flat radio spectrum, and PG 2308+098 which has only a sparse optical filter coverage.)


4.3.2 Search for statistical relations of $\mathsf{\alpha_{\mathsf IR}}$

Before we will consider physical explanations for the SED variety in the next sections, we will have a look at statistical properties of our sample. In the past the various IR data were noisier with sparse wavelength sampling which allowed only for crudely investigating $L_{\rm MIR}$ and $L_{\rm FIR}$. Now the ISO data provide templates of sufficient quality to allow, for the first time, the study of $\alpha$$_{\rm IR}$ for a statistically meaningful quasar sample. Figure 11 illustrates relations between the IR slope and other quantities:

1. Left column, top and bottom: The slopes $\alpha$$_{\rm IR}$ and $\alpha$ $_{\rm opt}$ are randomly distributed, hence independent. Similarly, the distribution of $\alpha$$_{\rm IR}$ and $\alpha$$_{\rm X}$ looks random. $\alpha$$_{\rm X}$ has been determined for a small PG subsample in common with ours from ASCA observations in the soft to hard 2-10 keV X-ray range by George et al. (2000). Note that $\alpha$$_{\rm X}$ does not show any trend with $\alpha$ $_{\rm opt}$. Neither does the spectral index from the optical to the soft X-ray regime $\alpha$$_{\rm ox}$ (Laor et al. 1997) show any correlation with $\alpha$$_{\rm IR}$ for their sample in common with ours. Hence, if central extinction inside the quasars dominated the variation of $\alpha$ $_{\rm opt}$, this should show up in $\alpha$$_{\rm X}$ or $\alpha$$_{\rm ox}$, too, contrary to what is observed.

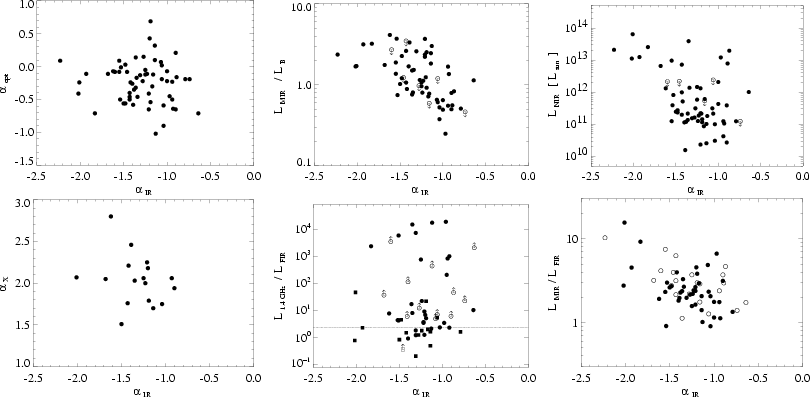

Figure 11: Statistical relations of the spectral slope $\alpha$$_{\rm IR}$ = $\alpha$ $_{\rm 1-10~ \mu m}$ with other observables from Table 2. The uncertainty in the slopes is about $\pm$0.2. ($\alpha$ $_{\rm opt}$ = $\alpha$ $_{\rm0.3-1~ \mu m}$, $\alpha$$_{\rm X}$ = $\alpha$ $_{\rm 2-10~keV}$.) The symbols are: $\bullet$ = based on detections, $\circ$ = based on upper limits (squares are as in Fig. 7).

Open with DEXTER

2. Middle column, top: $\alpha$$_{\rm IR}$ shows a considerable dispersion, but also a marginal trend with the ratio of MIR-to-blue luminosity. A high MIR 10-40 $\mu$m luminosity (with respect to $L_{\rm B}$) requires, that between 1 and 10 $\mu$m the IR flux grows, and this is exactly what is represented by $\alpha$$_{\rm IR}$. Therefore, the marginal correlation between $\alpha$$_{\rm IR}$ and $L_{\rm MIR}$ / $L_{\rm B}$ is expected.

3. Middle column, bottom: $\alpha$$_{\rm IR}$ and the radio/FIR luminosity ratio are randomly distributed, hence independent. The width of the $\alpha$$_{\rm IR}$ distribution is similar for the radio-loud and the radio-quiet quasars, the latter lying close to Condon's relation (dotted horizontal line).

4. Right column, top: For similar reasons as for (2), $\alpha$$_{\rm IR}$ also shows (despite a considerable dispersion) a marginal trend with the NIR luminosity. This trend just means: if there is much warm and hot dust showing up as high $L_{\rm NIR}$, then naturally the SED must grow from the 1 $\mu$m dip up to the 10 $\mu$m MIR wavelength range. The distribution, however, appears completely random, if we exclude the 5 hyperluminous sources with $L_{\rm NIR}$ $\ga$ 10$^{\rm 13}$ $L_{\odot}$ and $\alpha$ $_{\rm IR}<-1.8$.

5. Right column, bottom: $L_{\rm MIR}$ /  $L_{\rm FIR}$ seems to be largly independent of $\alpha$$_{\rm IR}$. A marginal trend may be caused by the hyperluminous quasars, which lie towards the left and upper half of the diagram. Note that $L_{\rm MIR}$ /  $L_{\rm FIR}$ can also be interpreted as a kind of infrared spectral index, $\alpha$ $_{\rm MFIR}$ ranging between say 20 and 100 $\mu$m, but we maintain the terminology $L_{\rm MIR}$ /  $L_{\rm FIR}$, because between the MIR and FIR the emission does not generally follow a power-law, as is found for the NIR-to-MIR or optical wavelengths.

To conclude, the search for statistical trends between the spectral slope $\alpha$$_{\rm IR}$ and other quantities essentially confirmed the diversity and independence of the SED components, i.e. the hard and soft X-rays and the optical wavelengths tracing the AGN, the radio properties associated with a jet, and the near-, mid- and far-infrared emission tracing the dust around it.


4.3.3 Possible reasons for the SED variety

In this section we consider reddening of the optical AGN continuum and contributions from the host galaxy, and what can we learn from our IR data.

The optical photometry as presented by Neugebauer et al. (1987) includes correction for galactic foreground reddening according to Burstein & Heiles (1982) as listed in Elvis et al. (1994). We have also considered the data as dereddened by Elvis et al. and, in addition, we performed a dereddening according to the most actual COBE/DIRBE data by Schlegel et al. (1998, with values listed in the NED) and the extinction curves by Cardelli et al. (1989). In general, the A_V values are small (<0.3) and occasional differences between the Burstein & Heiles and the Schlegel et al. reddening are small, too. Consequently, the choice between foreground reddening values has only a minor impact on $\alpha$ $_{\rm opt}$, also if one considers the uncertainty due to fitting. For comparison, choosing an A_V value which is erroneous by 0.1 results in a fitted slope $\alpha$ $_{\rm opt}$ modified by 0.1. Thus the dereddening differences are within the uncertainties of the slopes of about 0.2. Therefore, we conclude that the variety of optical slopes (ranging between 0.6 and -1.0) cannot be attributed to an improper correction of galactic foreground reddening.

Stellar light from the host galaxies could affect the slopes and the correlations of Sect. 4.3.2. But this effect is probably small, in particular for high luminosities, as was already suggested by Neugebauer et al. (1987) on the basis of their random distributions in optical and NIR properties. Furthermore, on high resolution images of 15 nearby PG quasars Surace et al. (2001, their Table 3) find a B-, I- and H-band nuclear luminosity fraction of 80 $\pm$ 10%, 67 $\pm$ 15%, and 60 $\pm$ 15% respectively. Assuming that the host galaxy is represented by a blackbody of T=4000 K, then even a host contribution of 30% at 1 $\mu$m to the observed SEDs does not significantly change the SED shapes in the log-log plots of Figs. 9 and 10. If for the 12 sources of Surace, Sanders & Evans in common with our sample, which are all low luminosity quasars, we use the non-nuclear fraction as a measure for the relative host contribution and subtract a T=4000 K host from the observed SEDs, on average the optical and IR slopes can change by +0.23 and -0.1, respectively. For some low luminosity quasars like PG 0838+770 or PG 1415+451, which show also a curvature in their optical spectra (being redder at longer wavelength), the 1 $\mu$m dip becomes more pronounced after such a host subtraction. Nevertheless, the impact of the host galaxy turns out to be too small to explain the dispersion of the SED shapes as well as the wide distribution of $\alpha$ $_{\rm opt}$ and, in particular, $\alpha$$_{\rm IR}$. Also, any shift of the 1 $\mu$m dip due to the contribution of a cool host galaxy might be small, in particular for the hyperluminous hot quasars.

The diversity of $\alpha$ $_{\rm opt}$ has long been recognized (Neugebauer et al. 1987), and is still puzzling, together with the diversity of X-ray properties (e.g. Laor et al. 1997; George et al. 2000). Standard models predict $\alpha$ $_{\rm opt}$ $\approx$ 0.3 for the thermal optical/UV continuum of a centrally irradiated accretion disk (review by Koratkar & Blaes 1999). Consequently, the observed range between 0.5 and -1.0 for $\alpha$ $_{\rm opt}$ may partly be explained by super-Eddington accretion rates, but also extinction of the central region could play a role. As reviewed e.g. by Mac Alpine (1985) the determination of reddening towards an AGN either from line ratios or from continuum properties is far from being trivial. Since the quasars were optically identified via their blue colours (UV excess), one would expect, if at all, only moderate intrinsic extinction ( $A_{V} \la 0.3$). For most of the quasars such low extinction is indicated by the current observational status, unless blue light from the AGN is scattered into the line of sight (review by Koratkar & Blaes 1999).

The shape of the optical and IR SEDs could be influenced by our viewing angle of the system. In the picture of the dust torus, an inclination of the torus axis with respect to the line of sight, so that the torus edge is grazed, will hide the hottest central regions. Then the NIR emission will be suppressed, resulting in

1. a shift of the 1 $\mu$m dip towards longer wavelengths,

2. steepening of $\alpha$$_{\rm IR}$, and

3. $\alpha$ $_{\rm opt}$ will be reddened, unless scattering plays a role.

However, only two of our quasars (PG 1206+459 and PG 1241+176, with observed $\alpha$ $_{\rm opt}$ $\approx$ -0.4 and -0.7, respectively) show such signatures of reddening (Fig. 10). It could correspond to $A_{V} \approx 0.7$...1.0, if the intrinsic slope is $\alpha$ $_{\rm opt}$ = 0.3 (adopting A_V=0.1 corresponds to a change in $\alpha$ $_{\rm opt}$ by -0.1). Also PG 1718+481 could be inclined, since it shows a quite red optical slope, and the 1 $\mu$m dip is shifted, but $\alpha$$_{\rm IR}$ is flat. Noteworthy, these three sources all are hyperluminous quasars, where the IR emission is clearly dominated by the hot and warm dust. In this case the absorbing and emitting dust may be "coupled'', i.e. the dust may be distributed in a relatively simple geometry like a dense torus with a sharp edge, so that (beside the optical reddening) the suppression of the hottest central regions may become observable in our near- to mid-infrared spectra. The majority of our quasars do not show such signatures of reddening. The lack of correlations (e.g. between $\alpha$ $_{\rm opt}$ and $\alpha$$_{\rm IR}$) in Fig. 11 argues against extinction by a simple dust torus seen inclined. If the dust geometry is less regular without any sharp torus edge, then the emission of the entire dust surrounding the AGN is manifold as may be indicated in the ISO data, and it is "decoupled'' from the dust column along our line of sight towards the nuclear optical emission. In this case our IR spectra cannot exclude that the observed range of $\alpha$ $_{\rm opt}$ is partly caused by dust extinction, with a possible minor contribution of scattered light. However, it is difficult to imagine, that dust extinction is the only reason for the variety of the optical slopes. Also concerning the variety of the IR slopes, the discussion here shows that it cannot simply be explained by extinction effects or host galaxy contributions. Rather we suggest that for most of our quasars the status of the central accretion disk mainly controls the optical emission, while the amount and distribution of the absorbing and reemitting dust may be more complex.


4.3.4 Evolutionary sequence for PG quasars

The variety of the optical and IR SEDs could just be the consequence of evolution among the PG quasars. In this picture the dust emission acts as a tracer for the evolutionary history of the quasars. The starting point of this scenario assumes that quasars are preceeded by a dusty ULIRG phase as proposed by Sanders et al. (1988a,b). If quasars contain dust, preferentially during their earliest phases, then this dust might not disappear at once, rather its signatures should tell us about dedicated stages during the quasars' evolution. While former IR data did not allow the recognition of definite detailed signatures (due to limited sensitivity, wavelength coverage or sample size), we suggest that the sensitive ISO data identifies such signatures for the first time in our large PG quasar sample. Therefore we worked out, what would be expected for the evolution of the dust distribution and emission, and compared it with the observations.

Firstly, we consider the physical processes acting on an initially irregular dust distribution. Dissipative cloud collisions and angular momentum constraints lead to the organisation of dust clouds into a torus/disk like configuration. On the other hand, injection of kinetic energy via supernova explosions or radiative pressure and jets from the AGN tend to increase the turbulence and to destroy any organised structures. As a net result, however, they will only delay the settling of the irregular dust distribution into the dusty torus/disk. The time scale for the whole sequence may roughly be estimated from the extent of the initial dust distribution (in the order of kpc) and the typical sound speed of clouds (in the order of 100 km s^-1), leading to 10$^{\rm 8}$ years, consistent with the time scale derived from merger simulations (e.g. Mihos & Hernquist 1996; Naab & Burkert 2001). Thus, the time scale of dedicated quasar phases (identified below) might be in the order of 10$^{\rm 7}$ years.

With regard to the emission, the dust which is initially heated by starbursts will be powered more and more by the AGN, until the black hole (BH) begins to starve. Since the PG quasars are practically not extinguished, for the discussion here we will not consider extinction effects due to the aspect angle, i.e. within the unified schemes we assume a nearly face-on view onto the quasar. During the evolution both the optical and the IR luminosity will grow and finally decline, although not necessarily simultaneously. The large luminosity dispersion in our flux limited sample could be just due to the existence of powerful "big'' and less powerful "small'' quasars, hence it does not permit an interpretation of the increase in luminosity as a pure consequence of evolution: an old big quasar and a small young quasar in an active phase could both show the same luminosity. Important is, that the relative contribution of the warm and cool dust components change during the evolution, and that this is expected to show up in the shapes of the observed SEDs.

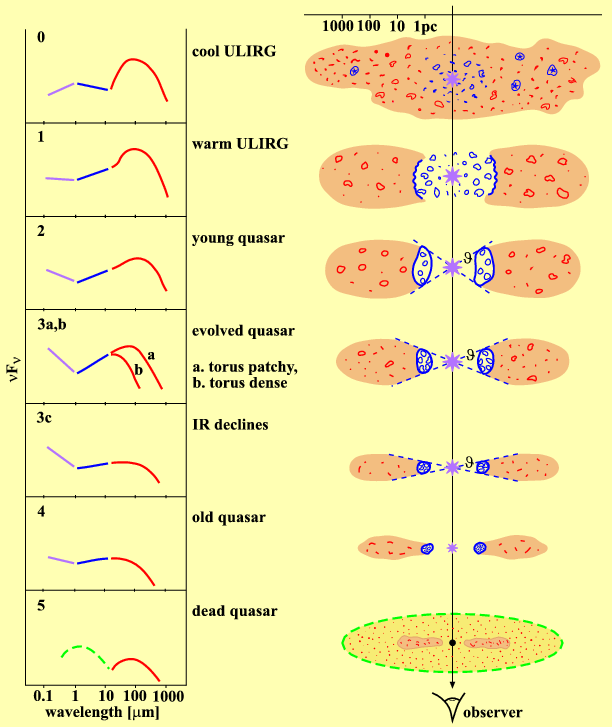

Figure 12: Scheme of quasar evolution for the dust distribution surrounding the AGN, with corresponding SEDs. During the evolution (from top to bottom) the dust distribution rearranges, settling more and more into a torus/disk like configuration. The corresponding SEDs show an initial FIR bump, then an increase in MIR emission and a steepening of the infrared slope, both of which finally also decrease. The AGN strength grows, then stays high and finally declines, as is marked by the size of the $\star$ and shows up in the SEDs by the optical slope.

Open with DEXTER



Table 5: Scheme of optical and infrared parameters during the quasar evolution shown in Fig. 12. The examples refer to Figs. 9 and 10.

class	0	1	2	3 a,b		3 c	4	5
	ULIRG	ULIRG	QSO	QSO		QSO	QSO	QSO / radio galaxy
	cool	warm	young	evolved	inclined	evolved-old	old	dead, BH starved
$\alpha$ $_{\rm opt}$	red	medium	blue	blue		blue	medium	red host galaxy
$\alpha$$_{\rm IR}$	flat	steep	steep	medium		flat	flat	dto
1 $\mu$m dip	not seen	shallow	medium	deep	>2 $\mu$m	medium	shallow	-
covering angle	sphere	large	medium	medium/low		medium/low	low	-
$L_{\rm FIR}$ /  $L_{\rm MIR}$	high	medium	medium	low		low	medium	medium/high
T (cold) [K]	20-40	20-40	30-50	$\ga$50		$\ga$30	$\ga$30	20-40
examples
low z ($\approx$ 0.1)	17208-0014*	MK 231*	PG 0157+001	PG 1001+054		PG 1229+204		M 87
medium z ($\approx$ 0.3)		23515-2917*	PG 1543+489x	PG 1444+407		PG 1545+210	PG 1700+518
high z ($\approx$ 1)				PG 1008+133	PG 1206+459	PG 1630+377
				PG 1247+267	PG 1241+176	PG 1718+481+
				PG 1254+047
				PG 1338+416
				PG 1407+265
				PG 1634+706

^* From Klaas et al. (2001).
^x Could also belong to class 3 a.
⁺ $\alpha$ $_{\rm opt}$ appears red and 1 $\mu$m dip shallow, but if it is shifted towards 2 $\mu$m, then PG 1718+481 could also be inclined.

We have arranged the expected dust geometries and SEDs for such an evolution in a graphical scheme of idealised observational classes as illustrated in Fig. 12, with their properties summarized in Table 6. These classes are

0. cool ULIRGs: The dust is distributed irregularly over the sphere, and cool FIR emission heated by starbursts is prominent. The AGN is not yet formed properly or it is still deeply embedded, $\alpha$ $_{\rm opt}$ and $\alpha$$_{\rm IR}$ are red and flat, respectively.

1. warm ULIRGs: Due to dissipative cloud collisions and guided by angular momentum balance, the dust concentrates in the central region. The AGN is already powerful, but still dust enshrouded, so that $\alpha$ $_{\rm opt}$ may become slightly bluer, but is still quite red. The contribution of warm dust increases resulting in a higher $L_{\rm MIR}$ /  $L_{\rm FIR}$ ratio and $\alpha$$_{\rm IR}$ steepens.

2. young quasars: The dust has settled into the torus/disk-like configuration. The pole-on view towards the AGN becomes less extinguished, so that $\alpha$ $_{\rm opt}$ gets blue. The 1 $\mu$m dip becomes prominent. The IR slope is controlled by the covering angle and the density of the dust distribution. A decline of covering angle or density will make $\alpha$$_{\rm IR}$ flatter. Since we cannot decide which of both processes dominates, we sketched only the case of a declining covering angle in Fig. 12. Starbursts are becoming outshone by the AGN.

3. evolved quasars: The torus is stabilised and the dust density grows. The torus may still be patchy (case a), so that the AGN can heat the dust also at larger distances. $L_{\rm MIR}$ /  $L_{\rm FIR}$ may still increase further. $\alpha$$_{\rm IR}$ is steep (cases a and b), but could also become flat, depending on the amount of dust illuminated by the AGN (case c). $\alpha$ $_{\rm opt}$ is clearly blue. This phase comprises the most luminous objects.

4. old quasars: The central black hole activity (feeding) declines, $\alpha$ $_{\rm opt}$ gets red again. The relative contribution of AGN heated warm dust declines, as does the $L_{\rm MIR}$ /  $L_{\rm FIR}$ ratio, and $\alpha$$_{\rm IR}$ gets flat.

5. dead starved quasars: The central black hole does not get enough fuel to provide significant radiation in the hot optical-UV regime. The optical and NIR emission is dominated by the bright host galaxy, while the mid- and far-infrared emission reflects the cool dust residuals. The optical and IR spectra are not of power-law shape.

This sequence of classes is of course an idealised scheme, but it provides a natural understanding of the variety of the SED shapes. In order to facilitate the intuitive perception of this scheme, we have also included the ULIRGs as classes 0 and 1, although all our PG quasars belong to the classes 2 to 4, which are stages in the evolutionary scheme identified here for the first time. Next we compare the scheme with the observations: in Figs. 9 and 10 we have arranged the observed SED shapes so, that from top to bottom they actually fit the above scheme. At low and intermediate redshifts (Fig. 9), the classes range from warm ULIRGs to old quasars. At $z\approx1$ (Fig. 10) all of the examples might belong to evolved quasars (class 3), consistent with the fact that they are hyperluminous. The first row contains inclined ones with some signatures of extinction; the three middle rows of Fig. 10 contain evolved quasars of type 3 b (having $T_{\rm cold} \ga 70$ K), while the last row shows two quasars resembling type 3 c (with some possible extinction for PG 1718+481). The proposed class assignments for all examples shown in Figs. 9 and 10 are listed in Table 6, and for the entire PG sample (where possible) they are listed in Table 2. In this evolutionary scheme, our PG quasars populate the classes 2 and 3, and some even the late phase 4, whereby we choose the terminology young - evolved - old with respect to the dust signatures. The radio galaxy M 87 (=3C 274, IR SED from Haas et al. in prep.), which we assign class 5, illustrates further a "dead quasar'' with a starved black hole with a faint jet, and giant elliptical host and a faint dust emission.

The interpretation of the SED classes as part of an evolutionary sequence provides a new issue and it will have to be investigated, how far every quasar of class 2 needs to evolve along all the steps of the sequence. Nevertheless, going the other way round and considering a quasar of a given SED class, a quasar of say class 3b does not exist ad hoc, rather when asking "what was the precursor of this object type?'', a plausible candidate is one like class 3a in the proposed scheme. Moreover, in the picture of quasars as merger remnants, the amount and distribution of dust could also depend on the parent galaxies or distortions of an evolved quasar by a second merger event with a dust-rich galaxy, leading to deviations from simple straight forward expectations like in the proposed scheme. Larger data samples in the future may find further clues to this topic.

In principle, stellar light from bright host galaxies could also affect the SED shapes. As discussed in Sect. 4.3.3 host effects could be present to some extent in the optical wavelength range, but it is negligible in the IR range, in particular longwards of 5 $\mu$m. Furthermore, it is worth to note that in the IR guided sequence shown in Fig. 12, as well as indicated in the observational data in Figs. 9 and 10, the optical slope appears red at the beginning (class 0 and 1), then becomes blue during the phase of a clear view towards the AGN (class 2 and 3), and finally seems to become redder again - at least for some quasars in class 4. Whether this IR guided sequence reflects also a sequence of AGN/black hole activity is beyond the scope of this paper and is left to future studies. (We do not consider, how big the BHs are at the beginning; just worth mentioning is that the typical growth rate of the BH mass with time, $M(t)=M_{\rm o}\times {\rm e}^{t/t_{\rm edd}}$ with initial BH mass $M_{\rm o}$ $\sim$ 10$^{\rm 7}$ $M_{\odot}$ and Eddington time $t_{\rm edd}=4\times 10^{\rm 7}$ years, in principle, would provide a quasar-like BH of 10 $^{\rm 8}~M_{\odot}$ during 10$^{\rm 8}$ years without difficulty.)

So far the classification of the SED shapes was based on visual inspection, guided by the features FIR bump, MIR bump, steepness of the NMIR slope and - to a lesser degree - also the value of $T_{\rm cold}$ and the steepness of the optical slope. It is desirable to provide also quantitative measures for the sorting procedure. As an attempt for such an approach, Fig. 13 shows the distribution of our classes in the parameter space of $L_{\rm MIR}$ /  $L_{\rm FIR}$, $\alpha$$_{\rm IR}$ and $\alpha$ $_{\rm opt}$. The classes, in fact, concentrate on different regions in the three diagrams, although they are not clearly disjoint. For example in the diagram $L_{\rm MIR}$ /  $L_{\rm FIR}$ versus $\alpha$$_{\rm IR}$: class 3a lies in the middle of the diagram, class 3b extends towards the upper left, while class 3c lies more toward the righthand side. In view of the complexity of the objects, it would be overdone to expect a clear separation of the classes with only three parameters. One reason for the overlaps may be that during the anticipated evolution the parameters move "up'' and then "down'', for example $L_{\rm MIR}$ /  $L_{\rm FIR}$ grows and finally declines. Nevertheless, the trends found in the diagrams (Fig. 13) indicate that our eyeball SED classifications basically match these formal quantities. Future studies may be able to refine the classification, perhaps considering also the total luminosity (which is yet indefinite as mentioned above). As a vision, they may find evolutionary tracks for quasars in such diagrams - in analogy to those for the pre-main-sequence stellar birthlines and the giants' branches in the Hertzsprung-Russel diagram.

The coarse difference between the SEDs of ULIRGs and quasars, combined with the high bolometric luminosities, led Sanders et al. (1988a,b) to propose the general evolutionary link between these two galaxy types. The diversity of the quasar IR SEDs was already noticed for IRAS samples with sparse wavelength coverage and limited sensitivity (e.g. Barvainis 1990; Elvis et al. 1994) or for the small ISO sample of 17 sources in Paper I, but without allowing stringent interpretations like evolution among PG quasars. The sensitive ISO data of a sufficiently large sample of 64 PG quasars allow for the first time to establish the details of the SED variety and to classify them. Combining now the SED diversity with the idea of sorting along evolutionary expectations, provides the main new result here, which may stimulate future studies.

To conclude, the observed variety of SEDs can be associated with and sorted into physically meaningful classes, which reflect the amount and distribution of the reprocessing dust around the AGN. These classes can naturally be understood as a consequence of evolution of the quasars' dust distribution and heating.


4.3.5 Trends of IR emission with host morphology?

If quasars are merger remnants in a post-ULIRG phase, then one would expect that - compared with older relaxed and more evolved quasars - the younger quasars are those which show both (1) more ULIRG-like cool dust and (2) more distortions in the (optical or NIR) morphology of their host galaxy.

In order to test this prediction, we collected host galaxy information for 34 of our 64 PG quasars in the literature. Table 2 lists a compilation of several data sets compiled by Clements (2000) and observed by Surace et al. (2001). As in Clements (2000), we distinguish simply between distorted and undistorted hosts. Figure 14 shows the distribution of the $L_{\rm FIR}$ /  $L_{\rm MIR}$ ratio and the FIR luminosity for these 34 PG quasars. They are indistinguishable for those with and without host distortions, respectively. Also, the distributions of $\alpha$$_{\rm IR}$ or the histograms of SED classes (2, ... 4) look indistinguishable for disturbed and regular hosts. Furthermore, no trend of predominant spiral or elliptical hosts with the IR properties can be found. Notably, we cannot confirm the claim by Clements (2000), that those PG quasars, which are luminous in the IRAS 60 $\mu$m band, are more distorted than the faint ones, a result which might be an artefact produced by the numerous IRAS upper limits. Also, the youth of a quasar may be better identified by the $L_{\rm FIR}$ /  $L_{\rm MIR}$ ratio than by the absolute 60 $\mu$m luminosity.

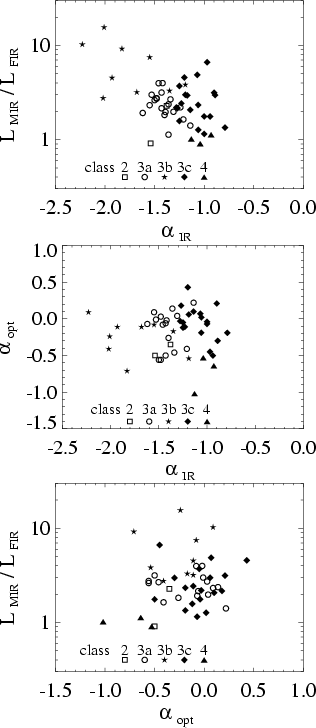

	Figure 13: Locus of the SED classes in the $L_{\rm MIR}$ /  $L_{\rm FIR}$ - $\alpha$$_{\rm IR}$ - $\alpha$ $_{\rm opt}$ parameter space. Although the SED classes were visually determined, they concentrate at distinct regions in the three diagrams. (The data are as in Fig. 11.)
Open with DEXTER

Our result, however, does not conflict with the evolutionary scheme proposed in Fig. 12, since (1) any cold dust clouds and starbursts of the warm ULIRG phase may be predominantly confined to the nuclear region, hence are very compact and not resolvable even on HST images, and (2) any extended starbursts, which are not deeply dust enshrouded and could show up also via a knotty optical/NIR morphology, likely play only a minor role in the PG quasars. An evolutionary trend of a declining IR emission with relaxed host morphology may exist among the PG quasars, but the available data do not yet allow this to be established.

	Figure 14: $L_{\rm MIR}$ /  $L_{\rm FIR}$ ratio versus $L_{\rm FIR}$ for PG quasars with undisturbed ($\bullet$) and disturbed ($\circ$) host morphology. The arrows indicate upper limits for $L_{\rm FIR}$.
Open with DEXTER


4.4 Hyperluminous quasars and cosmic evolution

Here we will not discuss cosmological effects within our PG quasar sample, although it is striking that - as already known from many optical investigations - at low redshift (z<0.4) no hyperluminous quasars are present (Fig. 3). Different redshift bins of our flux limited PG sample contain sources of different luminosities, hence the bins probably do not contain representatives of comparable luminosity or type which are seen just at different cosmic epochs. Also, any physical evolution from a hyperluminous z=1 quasar into a less luminous one at z<0.4 would just be speculative.

Of special interest, however, is to compare sources of similar luminosity, but from different cosmic epochs. Very high redshift (z=4) quasars have been discovered in the Digitized Palomar Sky Survey (PSS quasar catalog, e.g. Kennefick et al. 1995) and from the Sloan Digital Sky Survey (SDSS quasar samples, e.g. Fan et al. 2000). These quasars have $M_{\rm B}$ estimates between -26 and -29 mag, comparable to our hyperluminous PG quasars at z=1 with $M_{\rm B} \la -27$ mag and $L_{\rm IR} \ga 10^{\rm 13}$ $L_{\odot}$. Due to the K-correction the z=4 quasars are sufficiently bright to be detected also in (sub-)millimetre surveys. In this section we compare our z=1 PG quasars with z=4 quasars from the PSS and SDSS, in order to study the influence of cosmic epoch on the amount of dust and its heating sources.


4.4.1 Observational differences

For such a comparison between our "local'' z=1 hyperluminous quasars and those at very high redshifts, the influence of two observational differences has to be checked:

Firstly, the optical selection of the local PG quasars is based on the intrinsic UV-blue continuum, while the z=4 quasars are identified via the Lyman break using two-colour diagrams. Actually, the two-colour criteria seem to be so strict, that only sources with a strong Ly$_{\alpha}$ line and low extinction are selected. Nevertheless, while the PG quasars definitely contain objects with a blue continuum, the high z quasar samples could, in principle, contain also objects, which exhibit a red intrinsic continuum, hence would be different from the PG quasars. Such a difference, however, is not supported by the current observational status of the z=4 quasars: The mean restframe UV slope of the SDSS z=4 quasars lies in the range around -0.67 and -0.79 (Fan et al. 2000, 2001), and the mean restframe optical slope lies around -0.5 (determined from J, H, K photometry by Pentericci et al. 2002, in preparation, private communication by H.W. Rix & L. Pentericci). These values are similar to that of the PG sample (mean $\alpha$ $_{\rm opt}$ $\approx$ -0.5, Fig. 11). Therefore, with respect to the z=1 PG quasars, we do not expect a bias in favor of or against cool dust emission from (presumably reddened) hyperluminous starbursts in the PSS and SDSS z=4 quasars.

Secondly, the part of the rest frame dust emission, which is well constrained, differs: for the local sources it is the mid- and far-infrared range (i.e. the warm side of the dust emission) and for the distant ones it is the (sub-)millimetre range, i.e. the cold end of the thermal spectrum. While the warm side provides conclusions about the AGN-starburst relation from energy considerations (like the MIR/FIR luminosity ratio adopting it as indicator for $L_{\rm AGN}$ /  $L_{\rm SB}$), the cold side provides constraints from temperature and mass of the coldest dust in these sources.


4.4.2 On hyperluminous starbursts in $\mathsfsl{z}$ = 4 quasars

Several millimetre and sub-millimetre surveys with MAMBO and SCUBA detected dust emission from about 30% of the PSS and SDSS z=4 quasars observed (e.g. Omont et al. 2001; Carilli et al. 2001a,b; Bertoldi & Cox 2002). The FIR to mm luminosity of the z=4 quasars is suggested to be starburst driven, and not AGN-powered. Remarkably, the inferred starbursts are hyperluminous ( $L_{\rm FIR-mm} \ga 10^{\rm 13}$ $L_{\odot}$). Before we accept these hyperluminous starbursts for the cosmological comparison (in Sect. 4.4.3), we address some caveats:

1. Although the PSS and SDSS quasars contain a huge amount of dust, the central AGN of these quasars is very little extinguished with typical A_V<0.3 (Fan et al. 2001). The optical selection from a total population of very luminous dusty objects could pick out just those "exotic'' objects, which - perhaps by chance - provide optical paths of low extinction towards the center. Since it is hard to believe that a chaotic dusty system can provide such a path, the dust distribution should follow a disk-like geometry seen face-on. However, hyperluminous starbursts - in particular if they are produced by a merging galaxy group - may be expected to disturb any somehow ordered disk-like dust distribution. This complication could be lessened, if the dusty starbursts were more moderate.

2. The conclusions about the starburst dominance in the z=4 quasars are essentially based on the dust temperature of about 50 K adopted for most of the sources. This average temperature is determined only for few sources with several measured SED points, e.g. by Benford et al. (1999) and Priddey & Mc Mahon (2001). It could be biased towards rather low values, since it is derived exclusively from those sources detected at mm wavelengths, while warmer ($T\ga70$ K) sources of a given MIR-FIR luminosity would provide mainly upper limits at 1.2 mm (Fig. 2 in Omont et al. 2001), hence no definite temperature estimate. Actually, dust temperatures of about 80 K have been found for some $z\approx4$ quasars (Chini & Krügel 1994), and $T\approx90$ K for IRAS F10214+4724, the lensed z=2.2 AGN-SB HyLIG (Manning & Spinrad 2001). This temperature range is more similar to that of hyperluminous PG quasars at z=1. One of our PG quasars (PG 1247+267) at z=2 has the highest temperature of more than 120 K (Fig. 10), whereby the data allow for an additional cooler ($T\la70$ K), but by far less luminous dust component. Therefore the hyperluminous z=4 quasars likely exhibit a range of dust temperatures between say 50 and 120 K, certainly not unexpected in view of the variety of dust emission properties discussed in Sect. 4.3.

3. The fit of the FIR to mm SEDs by a modified blackbody is not unique. Instead of a single component with T=50 K and emissivity index $\beta=1.5$ used for the z=4 quasars, two temperature components of emissivity index $\beta = 2$ could be a better physical description of the dust content in complex interacting galaxy systems, as was shown by Klaas et al. (2001) for the detailed IR-to-mm SEDs of nearby ULIRGs. The current SED sampling of the z=4 quasars is too sparse to establish such a two component decomposition, but the one component fit yielding an "effective'' $\beta=1.5$ already indicates that two $\beta = 2$ components could be present, say a warm hyperluminous AGN dominated one of $T \approx 70$ K and a clearly less luminous cool starburst component of $T \approx 30$ K.

4. Some z=4 quasars show also huge H$_{\rm 2}$ gas masses ($\sim$10$^{\rm 11}$ $M_{\odot}$) derived from CO detections (e.g. Cox et al. 2002; Carilli et al. 2002). The gas-to-dust mass ratio appears consistent with that for nearby galaxies and ULIRGs, supporting the correctness of the dust mass estimates. However, the determination of a high dust mass consistent with the H$_{\rm 2}$ gas mass is not unique; it could be achieved via the adopted dust temperature of 50 K using $\beta=1.5$, or two $\beta = 2$ dust components as mentioned above.

5. The use of a single blackbody with T =50 K leads to a hyperluminous object with $L_{\rm FIR-mm}$ of some 10$^{\rm 13}$ $L_{\odot}$ which is completely ascribed to starbursts. The derived radio/FIR luminosity ratio seems to be consistent with that of starburst galaxies (e.g. Carilli et al. 2001b). However, the MIR luminosity is not known, so that any Rayleigh-Jeans-tail contribution from an AGN dust component to the FIR-mm luminosity is ignored. Here, a decomposition into a two temperature component model could provide a more realistic picture.

6. Some of the caveats on hyperluminous starbursts inferred from a 50 K dust component could be alleviated, if the z=4 quasars were gravitationally lensed, certainly not an unexpected possibility in view of the huge distance. For example, a z=4 quasar lensed by a factor of about 5 would intrinsically be more similar to the normal luminous to ultraluminous PG quasars which typically show a cold thermal end of about 50 K. However, for a few examined cases the evidence for lensing is low, and in view of the high detection rate of about 30% the probability that most of the (sub-)millimetre detected quasars are strongly lens-amplified is low, too. Further clues to these puzzles have to be left to future investigations.

To conclude, about 30% of the z=4 PSS and SDSS quasars observed show (sub-)millimetre signatures which could be due to hyperluminous starbursts. However, these signatures have to be considered with caution. The main uncertainty lies in the dust temperature and the unknown AGN contribution to the FIR luminosity.


4.4.3 AGN-SB difference with cosmic epoch

The comparison of hyperluminous quasars from the PG sample at z=1 with those from PSS and SDSS at very high redshift (z=4) yields:

The selection criteria for the z=4 PSS and SDSS quasars and their restframe UV slopes measured so far (compared with those of the PG quasars) do not suggest a bias in favor of or against dust emission from hyperluminous starbursts.

At early cosmic epochs (z=4) quasars appear accompanied by starbursts which in some cases may reach hyperluminous strength. At later epoch (z=1) in the local universe the starbursts which accompany quasars obviously do not reach that high power and are clearly outshone by the AGN.

If the low and high incidence of hyperluminous starbursts at z=1 and z=4, respectively, can be further established, then the reason for this difference could be a much denser early universe with stronger and more frequent merger events. This supports the hypothesis of coeval formation of massive black holes and galaxy spheroids via merging galaxies at high redshifts, in order to explain the relation between black hole mass and velocity dispersion of the galaxy bulge (e.g. Gebhardt et al. 2000).

5 Summary

The IR to mm SEDs of 64 PG quasars obtained with ISO, about half of which were supplemented by MAMBO and SCUBA, represent excellent templates providing evidence for luminous to hyperluminous dust emission in quasars. The power-law shape and the smoothness of the IR spectra suggest that the central AGN is the main heating source, and that starbursts play only a minor role, even at FIR wavelengths. The SEDs show a diversity which we suggest to trace the physical evolution of the quasars' dust distribution and heating, and a classification of the SEDs as well as an evolutionary scheme is proposed. Signatures of cosmic evolution are identified for the hyperluminous quasars at z=1, which do not show the hyperluminous starbursts suggested to exist in (sub-)millimetre detected quasars in the denser early universe at z=4.

Acknowledgements

We wish to thank the anonymous referee for constructive suggestions. The ISOPHOT Data Centre at MPIA is supported by Deutsches Zentrum für Luft- und Raumfahrt e.V. (DLR) with funds of Bundesministerium für Bildung und Forschung, grant No. 50 QI 0201. IRAM is supported by INSU/CNRS (France), MPG (Germany) and IGN (Spain). This research is essentially based on the Data Archives of ISO, SCUBA, ROSAT and the NVSS. For literature and photometry search NED and SIMBAD were used. It is a pleasure to thank IRAM for discretionary observing time with the 30-m telescope at Pico Veleta.

References


• Barvainis, R. 1990, ApJ, 353, 419 In the text NASA ADS
• Barvainis, R., Alloin, D., & Antonucci, R. 1989, ApJ, 337, L69 In the text NASA ADS
• Barvainis, R., Alloin, D., Guilloteau, S., & Antonucci, R. 1998, ApJ, 492, L13 In the text NASA ADS
• Bechtold, J., Elvis, M., Fiore, F., et al. 1994, AJ, 108, 374 In the text NASA ADS
• Benford, D. J., Cox, P., Omont, A., Phillips, T. G., & McMahon, R. G. 1999, ApJ, 518, L65 In the text NASA ADS
• Bertoldi, F., & Cox, P. 2002, A&A, 384, L11 In the text NASA ADS
• Burstein, D., & Heiles, C. 1982, AJ, 87, 1165 In the text NASA ADS
• Cardelli, J. A., Clayton, G. C., & Mathis, J. S. 1989, ApJ, 345, 245 In the text NASA ADS
• Carilli, C. L., Bertoldi, F., Omont, A., et al. 2001a, ApJ, 555, 625 In the text NASA ADS
• Carilli, C. L., Bertoldi, F., Rupen, M. P., et al. 2001b, AJ, 122, 1679 In the text NASA ADS
• Carilli, C. L., Cox, P., Bertoldi, F., et al. 2002, ApJ, 575, 145 In the text NASA ADS
• Cesarsky, C., Abergel, A., Agnese, P., et al. 1996, A&A, 315, L32 In the text NASA ADS
• Cesarsky, D., & Blommaert, J. 2001, ISOCAM calibration accuracies (ESA publications) In the text
• Chini, R., Kreysa, E., & Biermann, P. L. 1989a, A&A, 219, 87 In the text NASA ADS
• Chini, R., Biermann, P. L., Kreysa, E., & Gemünd, H.-P. 1989b, A&A, 221, L3 NASA ADS
• Chini, R., & Krügel, E. 1994, A&A, 288, L33 In the text NASA ADS
• Clements, D. L. 2000, MNRAS, 311, 833 In the text NASA ADS
• Condon, J. J. 1992, ARA&A, 30, 575 In the text NASA ADS
• Cox, P., Omont, A., Djorgovski, S. G., et al. 2002, A&A, 387, 406 In the text NASA ADS
• de Vaucouleurs, G., de Vaucouleurs, A., Corwin, Jr. H. G., et al. 1991, Third reference catalog of bright galaxies, Version 3.9 (Berlin: Springer-Verlag) In the text
• Elvis, M., Wilkes, B. J., McDowell, J. C., et al. 1994, ApJS, 95, 1 In the text NASA ADS
• Engels, D., Hagen, H.-J., Cordis, L., et al. 1998, A&AS, 128, 507 NASA ADS
• Evans, A. S., Frayer, D. T., Surace, J. A., & Sanders, D. B. 2001, AJ, 121, 3286 In the text NASA ADS
• Falcke, H., Bower, G. C., Lobanov, A. P., et al. 1999, ApJ, 514, L17 NASA ADS
• Fan, X., Strauss, M. A., Schneider, D. P., et al. 2000, AJ, 119, 1 In the text NASA ADS
• Fan, X., Strauss, M. A., Schneider, D. P., et al. 2001, AJ, 121, 54 In the text NASA ADS
• Gallagher, S. C., Brandt, W. N., Laor, A., et al. 2001, ApJ, 546, 795 In the text NASA ADS
• Gebhardt, K., Bender, R., Bower, G., et al. 2000, ApJ, 539, L13 In the text NASA ADS
• George, I. M., Turner, T. J., Yaqoob, T., et al. 2000, ApJ, 531, 52 In the text NASA ADS
• Haas, M., Chini, R., Meisenheimer, K., et al. 1998, ApJ, 503, L109 In the text NASA ADS
• Haas, M., Müller, S. A. H., Chini, R., et al. 2000, A&A, 354, 453 (Paper I) In the text NASA ADS
• Haas, M., Klaas, U., & Bianchi, S. 2002, A&A, 385, L23 In the text NASA ADS
• Hagen, H.-J., Engels, D., & Reimers, D. 1999, A&AS, 134, 483 NASA ADS
• Hildebrand, R. H. 1983, QJRAS, 24, 267 In the text NASA ADS
• Kellermann, K. I., Sramek, R., Schmidt, M., et al. 1989, AJ, 98, 1195 In the text NASA ADS
• Kennefick, J. D., de Carvalho, R. R., Djorgovski, S. G., et al. 1995, AJ, 110, 78 In the text NASA ADS
• Kessler, M. F., Steinz, J. A., Anderegg, M. E., et al. 1996, A&A, 315, L27 In the text NASA ADS
• Kessler, M. F., Müller, T. G., Arviset, C., García-Lario, P., & Prusti, T. 2000, The ISO Handbook vol. 1, SAI/2000-035/Dc (ESA publ.) In the text
• Klaas, U., Laureijs, R., Radovich, M., Schulz, B., & Wilke, K. 2002, ISOPHOT calibration accuracies, V5.0 (adapted to OLP10) ISO Explanatory Library Doc. SAI/1998-092/Dc (ESA publications) In the text
• Klaas, U., Haas, M., Müller, S. A. H., et al. 2001, A&A, 379, 823 In the text NASA ADS
• Koratkar, A., & Blaes, O. 1999, PASP, 111, 1 In the text NASA ADS
• Kreysa, E., Gemünd, H.-P., Gromke, J., et al. 1998, SPIE, 3357, 319 In the text NASA ADS
• Krolik, J. H., & Begelman, M. C. 1988, ApJ, 329, 702 In the text NASA ADS
• Laor, A., Fiore, F., Elvis, M., Wilkes, B. J., & McDowell, J. C. 1997, ApJ, 477, 93 In the text NASA ADS
• Laureijs, R., & Klaas, U. 1999, ISOPHOT Error Budgets V1.0, ISO Explanatory Library Doc. SAI/98-091/dc (ESA publications) In the text
• Laureijs, R., Klaas, U., Richards, P. J., Schulz, B., & Abraham, P. 2002, The ISO Handbook, vol. IV: PHT - the Imaging Photo-Polarimeter, Version 2.0, SAI/99-069/dc (ESA publications) In the text
• Léger, A., & Puget, J.-L. 1989, ARA&A, 27, 161 In the text
• Lemke, D., Klaas, U., Abolins, et al. 1996, A&A, 315, L64 In the text NASA ADS
• Manning, C., & Spinrad, H. 2001, AJ, 122, 113 In the text NASA ADS
• McAlpine, G. M. 1985, in Astrophysics of active galaxies and quasi-stellar objects, ed. J. S. Miller (University Science Books), 259
• Meisenheimer, K., Haas, M., Müller, S. A. H., et al. 2001, A&A, 372, 719 In the text NASA ADS
• Mihos, J. C., & Hernquist, L. 1996, ApJ, 464, 641 In the text NASA ADS
• Miley, G., Neugebauer, G., & Soifer, B. T. 1985, ApJ, 293, L11 In the text NASA ADS
• Naab, T., & Burkert, A. 2001, in The Central Kiloparsec of Starbursts and AGN, ed. J. H. Knapen, J. E. Beckman, I. Shlosman, & T. J. Mahoney, ASP Conf. Proc., 249, 735 In the text
• Nenkova, M., Ivezic, Z., & Elitzur, M. 2002, ApJ, 570, L9 In the text NASA ADS
• Neugebauer, G., Miley, G. K., Soifer, B. T., & Clegg, P. E. 1986, ApJ, 308, 815 In the text NASA ADS
• Neugebauer, G., Green, R. F., Matthews, K., et al. 1987, ApJS, 63, 615 In the text NASA ADS
• Omont, A., Cox, P., Bertoldi, F., et al. 2001, A&A, 374, 371 In the text NASA ADS
• Oyabu, S., Kawara, K., Tsuzuki, Y., et al. 2001, A&A, 365, 409 In the text NASA ADS
• Pier, E. A., & Krolik, J. H. 1992, ApJ, 401, 99 In the text NASA ADS
• Pier, E. A., & Krolik, J. H. 1993, ApJ, 418, 673 In the text NASA ADS
• Polletta, M., & Courvoisier, Th. 1999, A&A, 350, 765 In the text NASA ADS
• Polletta, M., Courvoisier, Th., Hooper, E. J., & Wilkes, B. J. 2000, A&A, 362, 75 In the text NASA ADS
• Priddey, R. S., & McMahon, R. G. 2001, MNRAS, 324, L17 In the text NASA ADS
• Rowan-Robinson, M. 1995, MNRAS, 272, 737 In the text NASA ADS
• Rowan-Robinson, M. 2000, MNRAS, 316, 885 In the text NASA ADS
• Sanders, D. B., Soifer, B. T., Elias, J. H., et al. 1988a, ApJ, 325, 74 In the text NASA ADS
• Sanders, D. B., Soifer, B. T., Elias, J. H., et al. 1988b, ApJ, 328, L35 NASA ADS
• Sanders, D. B., Phinney, E. S., Neugebauer, G., et al. 1989, ApJ, 347, 29 In the text NASA ADS
• Schlegel, D. J., Finkbeiner, D. P., & Davis, M. 1998, ApJ, 500, 525 In the text NASA ADS
• Schmidt, M., & Green, R. F. 1983, ApJ, 269, 352 In the text NASA ADS
• Soifer, B. T., Houck, J. R., & Neugebauer, G. 1987, ARA&A, 25, 187 In the text NASA ADS
• Solomon, P. M., Downes, D., Radford, S. J. E., & Barrett, J. W. 1997, ApJ, 478, 144 In the text NASA ADS
• Spinoglio, L., Andreani, P., & Malkan, M. A. 2002, ApJ, 572, 105 In the text NASA ADS
• Stickel, M., Lemke, D., Klaas, U., et al. 2000, A&A, 359, 865 In the text NASA ADS
• Surace, J. A., Sanders, D. B., & Evans, A. S. 2001, AJ, 122, 2791 In the text NASA ADS
• Thiele, M., & Camenzind, M. 2003, A&A, submitted
• Véron-Cetty, M. P., & Véron, P. 1998, ESO Scientific Report: A Catalogue of Quasars and Active Nuclei 8th ed. (Garching: ESO) In the text
• Verma, A., Rowan-Robinson, M., McMahon, R., & Efstathiou, A. 2002, MNRAS, 335, 574 In the text NASA ADS
• Wang, T. G., Brinkmann, W., Yuan, W., et al. 2000, ApJ, 545, 77 In the text NASA ADS
• Wilkes, B. J., Tananbaum, H., Worrall, D. M., et al. 1994, ApJS, 92, 53 In the text NASA ADS
• Wilkes, B. J., Hooper, E. J., Mc Leod, K., et al. 1999, ESA-SP, 427, 845 In the text
• Wilkes, B. J., Hooper, E. J., Mc Leod, K., et al. 2000, in ISO Surveys of a Dusty Universe, ed. D. Lemke, M. Stickel, & K. Wilke, Lecture Notes in Physics, 548, 177 In the text
• Yuan, W., Siebert, J., & Brinkmann, W. 1998, A&A, 334, 498 In the text NASA ADS
• Zier, C., & Biermann, P. L. 2001, A&A, 337, 27 In the text
• Zier, C., & Biermann, P. L. 2002, A&A, 396, 91 In the text NASA ADS
