C. Jäger¹ - D. Fabian¹ - F. Schrempel² - J. Dorschner¹ - Th. Henning¹ - W. Wesch²

1 - Friedrich-Schiller-Universität Jena, Astrophysikalisches Institut and Universitäts-Sternwarte (AIU), Schillergäßchen 2-3, 07745 Jena, Germany
2 - Friedrich-Schiller-Universität Jena, Institut für Festkörperphysik, Max-Wien-Platz 1, 07743 Jena, Germany

Abstract
During their lifetime, cosmic dust silicates suffer from a continuous processing by annealing, cosmic ray and UV irradiation, destruction and possibly also interstellar recondensation. Since the discovery that a significant proportion of stardust silicates leaves their star in crystalline form, the question arose as to why the interstellar silicate dust component does not show any indication of crystallinity. Amorphization due to ion irradiation is one possible explanation for the effect. In this paper, the results of irradiation experiments of submicrometre-sized clinoenstatite (MgSiO₃) particles with 400 keV Ar⁺ and 50 keV He⁺ ions are presented. The irradiation doses have been varied between 1 $\times$ 10¹⁶ and 1 $\times$ 10¹⁸ ions/cm² for He⁺ ions and 1 $\times$ 10¹⁴ up to 5 $\times$ 10¹⁴ ions/cm² for Ar⁺ ions. These doses are comparable to those values that an interstellar silicate grain should be exposed to during its average life-time of 4 $\times$ 10⁸ years. Threshold values for amorphization have been amounted to 1 $\times$ 10¹⁷ and 3 $\times$ 10¹⁴ ions/cm² for 50 keV He⁺ and 400 keV Ar⁺ ions. Besides the structural changes in the microcrystallites morphological modifications in the grains, but no change of the chemical composition are found. Conclusions of potential astrophysical relevance have been drawn.

Refractory cosmic dust grains are formed in the outflows of evolved stars. It is generally accepted that silicate grains condense in an amorphous state (Nuth III et al. 1999). When the first ISO SWS (Infrared Space Observatory Short-Wavelength Spectrometer) spectra became available, one of the most surprising discoveries was the finding of clear evidence of the widespread presence of crystalline silicates in envelopes around evolved stars (Waters et al. 1996) and also in Herbig Ae/Be stars (Waelkens et al. 1996; Bouwman et al. 2001). It can be assumed that a portion of the freshly condensed amorphous silicate particles (about 10-15%) are converted into the crystalline phase by thermal annealing within the circumstellar shell (Molster et al. 1999; Hallenbeck et al. 1998; Fabian et al. 2000). Since the band positions of crystalline pyroxene and olivine are sensitive to the Mg/Fe ratio (Cameron & Papike 1982), the comparison between the spectral signature of synthetic and natural pyroxenes and olivines proves the presence of crystalline Mg-rich silicates that are responsible for the observed sharp MIR and FIR bands in the ISO spectra of circumstellar envelopes (Jäger et al. 1998; Molster et al. 2002a,b).

In contrast, spectra of the interstellar medium (ISM) along the line of sight toward the Galactic Centre show a very broad extinction band at 9.7 $\mu$ m (Lutz et al. 1996; Chiar et al. 2000). This absorption feature is characteristic of completely amorphous silicates. We have made some simple estimates by superposition of the opacities of amorphous and crystalline silicates, which lead to the result that even 2-3% of crystalline dust should be noticed in the interstellar silicate absorption spectra. Our estimations have been supported by Li & Draine (2001) who claimed an upper limit for the content of crystalline silicate grains of any size of less than 5% on the base of the absence of fine structure in the broad 10 $\mu$ m absorption band. Similarly, the absorption spectra of very young massive stars which are formed by gravitational collapse of molecular cloud cores do not show evidence for the presence of crystalline silicates (Demyk et al. 1999). However, indications for crystalline silicates have been found in young planetary systems of $\beta$ Pictoris type (for review see Dorschner & Henning 1995; Dorschner 2001).

The absence of crystalline silicates in the diffuse ISM could be the result of very different amorphizing effects: 1. Amorphization accompanying the shattering processes due to grain-grain collisions, as discussed in the context of life-time and grain-size distributions (Tielens et al. 1987; Jones et al. 1996; Jones 1997). Fast heating and pressure increase within grains can lead to melting and quenching of parts of the dust grains. This fact is experimentally confirmed by the presence of veins or glass droplets in meteorites (Scott et al. 1989) or lunar rocks (Papike et al. 1998). 2. Formation of amorphous silicate particles by recondensation in the diffuse ISM in order to avoid the discrepancy between stardust supply and interstellar destruction rates (Jones et al. 1996). 3. Amorphization by heating and quenching processes of dust in the ISM. 4. Amorphization of crystalline silicates by ion irradiation irrespective if the ions come from the low-energy tail of the cosmic rays or from other origins. In this paper we will focus on case 4.

Cosmic rays comprise H⁺, He⁺, (CNO)⁺, and other positive ions with an abundance ratio of about 1: 10^-1: 10^-3: 10^-4, respectively, and energies between a few eV and the GeV range.

Supernova shocks are generally accepted to be the dominant accelerator of cosmic rays up to an energy of about 10⁵ GeV (Biermann et al. 2001). However the source of these ions remains unclear (Lingenfelter et al. 1998). Compared to solar photosphere abundance the cosmic rays are enriched in refractory elements relative to the volatile ones (Meyer et al. 1997). The relatively large abundances of ¹⁶O, ¹²C and ²²Ne have been expected to stem from Wolf-Rayet H-burning materials suggesting the acceleration of these grains in supernova remnant shocks having velocities between 30 and 6000 km s^-1(Maeder 1983; Prantzos et al. 1987; Reynolds 1988; Mewaldt et al. 1996). The directly accelerated dust grains are able to inject these refractory ions by collisions with interstellar gas-phase ions resulting in sputtering and subsequent reacceleration to high energy (Ellison et al. 1997; Lingenfelter et al. 1998).

Ion-irradiation induced modification of solids in space is dominated by protons and helium ions whose intensity is strongest in the low MeV range. In this paper the term "low-energy'' cosmic rays is used for ions with energies $\leq$ 10 MeV.

The total dose of this low-energy cosmic rays irradiating interstellar silicate dust grains during their life time of about 4 $\times$ 10⁸ years is extremely uncertain. The screening effect of the heliosphere and the interaction between solar ions make direct measurements of low-energy cosmic rays impossible, which are representative for the fluxes influencing interstellar dust grains. At energies below 100 MeV/nucleon extrapolation (demodulation) of the measured low-energy flux is model-dependent and consequently measurement errors and demodulation procedure leads to a variation by a factor of about 5 for the proton flux even at relatively high energy of about 1 GeV. The uncertainty is rapidly rising (about two orders of magnitude) at a cosmic ray energy of 0.1 GeV (Fields et al. 2001; Mori 1997).

Low energy cosmic ray fluences are very rare in the literature. Since ionization in dense clouds is caused by low-energy cosmic ray irradiation (Farquhar et al. 1994) the dose of low-energy MeV protons can be estimated from the hydrogen atom ionization rate. First calculations on the base of the photon production rate due to ionization of hydrogen have been performed by Hayakawa et al. (1961) and were continued in order to account for the heating and ionization of the interstellar gas and grains by Spitzer & Tomasko (1968) and deJong & Kamijo (1973). The adopted mono-energetic MeV proton fluxes were between 1 and 9 H⁺ cm^-2 s^-1 corresponding to 10¹⁷ to 10¹⁸ ions/cm² assuming a grain life time of 4 $\times$ 10⁸ years. Fowler et al. (1970) predicted an upper limit of 2 $\times$ 10¹⁸ protons cm^-2 in an energy range between 5 and 30 MeV in order to account for the meteoritic boron isotopic ratio. Morfill et al. (1976) deduced a proton flux between 0.02 and 1 GeV of 1 ion cm^-2 s^-1 st^-1 ( $\sim$ 2 $\times$ 10¹⁷ ions/cm²). Calculations of light isotopes and gamma-ray line production by low-energy cosmic rays predict a total energy, required to produce the Galactic light isotopes, of 10⁵⁸ ergs (Ramaty et al. 1996). Farquhar et al. (1994) predicted a considerably higher cosmic ray flux in the starburst galaxy M 82 compared to our own Galaxy based on a 700 times higher ionization rate suggesting that indeed supernovae are the major source of cosmic rays. It demonstrates that cosmic ray fluxes can considerably differ dependent on the cosmic environment. One has also to take into account that in the environment of young stars or flare stars the amount of low-energy cosmic rays can be enhanced. Recent direct measurements of proton and helium spectra with different instruments normally starts at energies not much less than 1 GeV (Moskalenko et al. 2002) and provide different results. Assuming an average flux of protons between 20 and 120 GeV a complete flux of about 3 $\times$ 10¹⁷ ions cm^-2 GeV^-1 can be assumed in the life time of a dust grain.

Interaction between the solid particles and ions may be expected in an energy range of a few eV up to a few MeV. When such an ion penetrates a solid, collisional and scattering processes at the nuclei and the electronic shells lead to an energy loss and a slowing down of the ion, until it will be eventually stopped. However, the alteration of the silicate structure is not well understood so far. Laboratory experiments are necessary to improve the understanding of these processes.

In the astrophysical context, first irradiation experiments of crystalline olivine with MeV protons and heavy ions were performed by Day (1977) and Krätschmer & Huffman (1979), respectively. Day (1977) exposed the two minerals olivine and enstatite to protons carrying energies from 1.5 to 2.0 MeV and fluences ranging from 5 $\times$ 10¹⁵ to 7 $\times$ 10¹⁷ ions/cm². The author did not measure a change in the infrared spectrum of both minerals indicating that irradiation damage did not occur. Krätschmer & Huffman (1979) produced a surface layer of highly disordered olivine by exposure of the polished natural mineral to a fluence of 5 $\times$ 10¹⁶ ions/cm² of 1.5 MeV Ne⁺ ions.

Amorphization studies of forsterite and five further members of the olivine series had already been performed by Wang & Ewing (1992) and Wang et al. (1994) for 1.5 MeV krypton ions. The authors demonstrated that the critical amorphization dose increases rapidly with increasing Mg/Fe ratio. The differences in the amorphization behavior are probably related to the melting temperature and the bond ionicity in the different olivines. The authors did not report changes in the Mg/Si ratio. Bradley (1994) investigated the amorphization process of olivines with 20 keV H⁺, whereas Dukes (1999) simulated a solar wind bombardment of olivines with 1 keV H⁺ and 4 keV He⁺ ions. The latter author described chemical changes due to reduction processes of the Fe²⁺ and a small amount of Si⁴⁺ ions to the neutral elements, but no changes of the olivine stoichiometry. In contrast, Bradley (1994) had described the selective sputtering of Mg and Si relative to oxygen under an irradiation with 20 keV H⁺ ions. Recent investigations of the amorphization process of the mineral olivine by 4 and 10 keV He⁺ ions were conducted by Demyk et al. (2001). They found a depletion of MgO resulting in the formation of a silicate with a stoichiometry near enstatite even under high fluences. Amorphization studies of enstatite using 1.5 MeV Xe⁺ ions had been performed (Wang et al. 1998). The authors did not observe a change in the chemical composition and determined the displacements per atom (dpa values) necessary for amorphization with 0.3.

In this paper, we present new results of irradiation experiments of crystalline, iron-free clinoenstatite, which was found to represent one of the major components of crystalline silicates in evolved stars. It is about four times more abundant than forsterite (Molster et al. 2002a,b). Section 2 describes the experimental procedure, whereas the results of the study are presented in Sect. 3. Section 4 contains a discussion of the astrophysical relevance of the cosmic ray irradiation.

2 Experimental

Completely iron-free Mg silicate minerals are very sparse in nature. Therefore, we synthesized the pure iron-free, crystalline end member MgSiO₃ (enstatite) in the laboratory by melting of a mixture of SiO₂ and MgCO₃ in the corresponding stoichiometric ratio. The melt was held for one hour at 1700 $^{\rm o}$ C and then slowly cooled down (10² K/h) to room temperature. It crystallized very rapidly, so that a micro- and nanocrystalline solid was formed. The purity and homogeneity of the produced enstatite was proven by scanning electron microscopy and transmission electron microscopy combined with energy dispersive X-ray (EDX) analysis (Link Oxford) on the nanometer and micrometer scale. Furthermore, the phase purity of the macroscopic amount of the material was confirmed by X-ray diffraction measurements. The synthetic MgSiO₃ belongs to the monoclinic crystal system. In the following we use the mineralogical term clinoenstatite. The slight structural differences between the monoclinic and orthorhombic enstatite do not influence the irradiation results. Both materials show the same density, bonding lengths between the metal and oxygen atoms and chain-like structure. The difference between ortho- and clinoenstatite is the existence of two symmetrically distinct tetrahedral chains whereby the differences are only very small (Cameron & Papike 1982). The similarity of both materials has been confirmed by the high coincidence of their IR spectra (Jäger et al. 1998; Koike et al. 2000).

The synthesized sample consisted of nanometer- up to micrometer-sized clinoenstatite particles with irregular shapes. The material was ground in a planetary mill. The particles were dispersed on a TEM grid supported by a lacey carbon film which was directly used for irradiation experiments in a 400 kV implanter, which is able to deliver nearly all elements of the periodic table in an energy range between 20 and 400 keV. High energy irradiation experiments were performed at the 3 MV Tandetron accelerator at the Institute of Solid-State Physics in Jena.

He⁺ and Ar⁺ ions with different energies were used for the investigation of the crystalline-to-amorphous transition. The number of displacements per incident ion and unit length $N_{{\rm displ}}$ , the ratio between the nuclear ( $S_{\rm N}$ ) and electronic energy loss ( $S_{\rm E}$ ) as well as the mean projected range $R_{\rm P}$ were calculated by SRIM 2000 (see Table 1, Ziegler 1996). The target temperature (70-300 K) and the irradiation doses (1 $\times$ 10¹⁴-1 $\times$ 10¹⁸ ions/cm²) were varied in a wide range. In order to compare our results with those of other irradiation experiments, the employed ion fluences $N_{\rm I}$ were converted into displacements per atom (dpa) according to the equation

Table 1: Summary of the results of SRIM (Stopping and Range of Ions in Matter) calculations for the Ar⁺ and He⁺ ions used in the irradiation experiments. Additionally, the results of 1.5 MeV Xe⁺ ions are given for the sake of comparison. The values of the nuclear and electronic energy deposition, $S_{\rm N}$ and $S_{\rm E}$ , respectively, correspond to the maximum of the distribution of the nuclear energy deposition.
Ion E $R_{\rm P}$ $S_{\rm N}$ $S_{\rm E}$ $S_{\rm N}$ / $S_{\rm E}$ $N_{{\rm Displ}}$

[keV] [nm] [ $\frac{{\rm eV}}{{\rm nm}}$ ] [ $\frac{{\rm eV}}{{\rm nm}}$ ] [ $\frac{{\rm atoms}}{{\rm ion \cdot nm}}$ ]

Xe 1500 380 2900 2580 1.12 34.5

Ar 400 311 657 810 0.81 10.5

He 50 361 26 58 0.45 0.57

He 400 1314 22 60 0.37 0.48

He 1000 2530 21 72 0.29 0.47

**Table 1:** Summary of the results of SRIM (Stopping and Range of Ions in Matter) calculations for the Ar⁺ and He⁺ ions used in the irradiation experiments. Additionally, the results of 1.5 MeV Xe⁺ ions are given for the sake of comparison. The values of the nuclear and electronic energy deposition, $S_{\rm N}$ and $S_{\rm E}$ , respectively, correspond to the maximum of the distribution of the nuclear energy deposition.
Ion	E	$R_{\rm P}$	$S_{\rm N}$	$S_{\rm E}$	$S_{\rm N}$ / $S_{\rm E}$	$N_{{\rm Displ}}$
	[keV]	[nm]	[ $\frac{{\rm eV}}{{\rm nm}}$ ]	[ $\frac{{\rm eV}}{{\rm nm}}$ ]		[ $\frac{{\rm atoms}}{{\rm ion \cdot nm}}$ ]
Xe	1500	380	2900	2580	1.12	34.5
Ar	400	311	657	810	0.81	10.5
He	50	361	26	58	0.45	0.57
He	400	1314	22	60	0.37	0.48
He	1000	2530	21	72	0.29	0.47

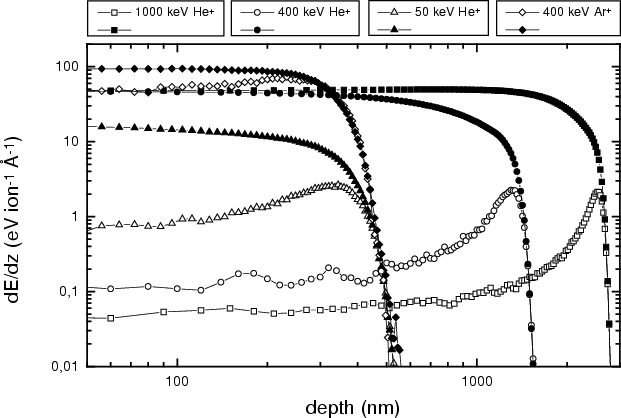

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{1857fig1.eps}\end{figure}$	Figure 1: Comparison of the ratio of the incorporated nuclear and electronic energy loss into the crystalline MgSiO₃target. The solid and open symbols represent the electronic and the nuclear energy deposition, respectively.
Open with DEXTER

The amorphization process was checked by employing transmission electron microscopes (Philips CM120 and the JEOL 3010) in combination with electron diffraction (see Fig. 2). The thresholds of complete amorphization were determined at completely amorphized grains which means that no remains of diffraction patterns were detectable in a range lower than the implantation maximum.

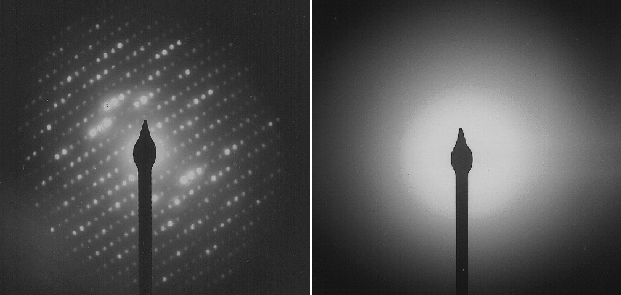

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{1857fig2.eps}\end{figure}$	Figure 2: Electron diffraction image of an enstatite grain before irradiation (left panel) and after complete amorphization (right panel).
Open with DEXTER

The composition of the grains before and after irradiation was measured by EDX analysis which is attached to the high resolution TEM JEOL 3010. A series of particles with different sizes was selected and electron diffraction patterns before and after the ion irradiation were used for monitoring the conversion of the structural state.

IR transmission measurements, directly performed at a particle ensemble on the loaded TEM grids before and after irradiation, were recorded with the microscope A590 which is an accessory of the Infrared Fourier Transform Spectrometer IFS 113v. The microscope detector needs to be cooled with liquid nitrogen. Microscope measurements are possible in a wavelength range between 2 and 16 $\mu$ m.

3 Results

Previous amorphization investigations of enstatite with 1.5 MeV Xe⁺ ions performed by Wang et al. (1998) resulted in an amorphization fluence of $N_{{\rm I,A}}$ = 8.55 $\times$ 10¹³ ions/cm²for a temperature of 100 K. Table 1 provides the summary of irradiation parameters determined by SRIM calculations for our performed irradiation experiments. We started the amorphization experiments with highly accelerated He⁺ ions (1 MeV and 400 keV) which are closer to the energy distribution of cosmic rays expected in the interstellar medium. Although a similar nuclear energy density (dpa) as in the case of the Xe irradiation was deposited by the 1 MeV He⁺ ions, an amorphization process could not be observed. The examination of the electron diffraction pattern did not provide any hint of partial damage to the crystalline structure.

Table 2: Summary of irradiation experiments performed on crystalline clinoenstatite. The term "iA'' in the last column means incomplete amorphization, whereas "A'' stands for complete amorphization. The target density used for the calculation of the dpa was 3.259 g/cm³ corresponding to an atomic density of 9.774 $\times$ 10²² cm^-3.
Dose Target Displacem. Struct.

[Ions/cm²] temp. per atom changes

N_I [K] dpa

1 MeV He⁺ 1 $\times$ 10¹⁴ 300 0.005 no

5 $\times$ 10¹⁴ 300 0.024 no

5 $\times$ 10¹⁵ 70 0.240 no

400 keV He⁺ 5 $\times$ 10¹⁵ 15 0.240 no

2 $\times$ 10¹⁶ 15 0.962 no

1 $\times$ 10¹⁷ 300 4.808 no

50 keV He⁺ 1 $\times$ 10¹⁶ 70 0.583 no

5 $\times$ 10¹⁶ 70 2.91 no

8 $\times$ 10¹⁶ 70 4.67 iA

9 $\times$ 10¹⁶ 70 5.24 iA

1 $\times$ 10¹⁷ 70 5.83 A

5 $\times$ 10¹⁷ 70 29.16 A

1 $\times$ 10¹⁸ 70 58.31 A

400 keV Ar⁺ 1 $\times$ 10¹⁴ 70 0.101 no

2 $\times$ 10¹⁴ 70 0.215 no

2.5 $\times$ 10¹⁴ 70 0.268 iA

3 $\times$ 10¹⁴ 70 0.322 iA

3.5 $\times$ 10¹⁴ 70 0.375 iA

4 $\times$ 10¹⁴ 70 0.429 A

5 $\times$ 10¹⁴ 300 0.537 A

**Table 2:** Summary of irradiation experiments performed on crystalline clinoenstatite. The term "iA'' in the last column means incomplete amorphization, whereas "A'' stands for complete amorphization. The target density used for the calculation of the dpa was 3.259 g/cm³ corresponding to an atomic density of 9.774 $\times$ 10²² cm^-3.
	Dose	Target	Displacem.	Struct.
	[Ions/cm²]	temp.	per atom	changes
	N_I	[K]	dpa
1 MeV He⁺	1 $\times$ 10¹⁴	300	0.005	no
	5 $\times$ 10¹⁴	300	0.024	no
	5 $\times$ 10¹⁵	70	0.240	no
400 keV He⁺	5 $\times$ 10¹⁵	15	0.240	no
	2 $\times$ 10¹⁶	15	0.962	no
	1 $\times$ 10¹⁷	300	4.808	no
50 keV He⁺	1 $\times$ 10¹⁶	70	0.583	no
	5 $\times$ 10¹⁶	70	2.91	no
	8 $\times$ 10¹⁶	70	4.67	iA
	9 $\times$ 10¹⁶	70	5.24	iA
	1 $\times$ 10¹⁷	70	5.83	A
	5 $\times$ 10¹⁷	70	29.16	A
	1 $\times$ 10¹⁸	70	58.31	A
400 keV Ar⁺	1 $\times$ 10¹⁴	70	0.101	no
	2 $\times$ 10¹⁴	70	0.215	no
	2.5 $\times$ 10¹⁴	70	0.268	iA
	3 $\times$ 10¹⁴	70	0.322	iA
	3.5 $\times$ 10¹⁴	70	0.375	iA
	4 $\times$ 10¹⁴	70	0.429	A
	5 $\times$ 10¹⁴	300	0.537	A

Amorphization of the clinoenstatite particles was not observed until the He ion energy was reduced to 50 keV, but the resulting dpa threshold value necessary for amorphization ( $N_{{\rm I,A}}$ = 9 $\times$ 10¹⁶ ions/cm², 5.24 dpa) is much higher than that of 1.5 MeV Xe⁺ ions (0.3 dpa). The considered particles have a thickness from about 70-300 nm which is less than the penetration depth of the ions. We always found complete amorphization of the irradiated particles.

In contrast, the amorphization fluence for 400 keV Ar⁺ ions was determined to be about 3 $\times$ 10¹⁴ ions/cm², which corresponds to a threshold value of 0.32 dpa. The ratio between nuclear and electronic energy loss is much lower for He than for Ar ions and the ratio decreases with higher acceleration energy (see Fig. 1).

Complete amorphization of the crystalline MgSiO₃ grains is not only restricted to the region of maximum ion implantation but started at the surface and eventually ends at the opposite surface. The electron diffraction images, taken at threshold doses, did not show any remains of diffraction patterns. Only in very thick grains, with grain thicknesses larger than the maximum penetration depth, the remaining part of the grain was beyond the implantation range of the ions and therefore not irradiated and not amorphized. However these thick grains were not considered in our experiments.

Of course the determined dpa values calculated by the given equation are based on the numbers of displacements in the maximum of the implantation profiles but taking into account the displacements at about half of the penetration depth the dpa value decrease. Exact values determined are 2.5 dpa and 0.13 dpa for 50 keV He⁺ and 400 keV Ar⁺ ions, respectively, which is about half of the value determined in the maximum. However, the use of the dpa values determined in the maximum of ion penetration (defined calculation procedure within the community of ion irradiation physics) enables us to compare with results of former experiments for example with the results by Wang et al. (1998).

Only ions with a ratio between nuclear and electronic energy deposition ( $S_{\rm N}$ / $S_{\rm E}$ ) close to 0.4 or more, as in the case of 400 keV Ar⁺ and 1.5 MeV Xe⁺ ions, respectively, are able to amorphize efficiently. A lower ratio of $S_{\rm N}$ / $S_{\rm E}$ , calculated for low-mass ions like He, requires a rise of the number of displacements, necessary to amorphize clinoenstatite, indicating an in-situ annealing process due to the enhanced ratio between electronic and nuclear energy deposition. This result had been previously confirmed for olivines by Wang & Ewing (1992), who could not trigger an amorphization process by 400 keV He⁺ ions.

However, there is a range of transition into the amorphous state for both, the He⁺ and Ar⁺ ion irradiations, rather than a sharp cut. In the case of Ar⁺ ions the transformation range with incomplete amorphization was found to be between 2.5 $\times$ 10¹⁴ and 3.5 $\times$ 10¹⁴ ions/cm². Figure 3 shows two HRTEM images of incomplete amorphization. Remaining lattice fringes of the (011) and (221) planes can be observed. In contrast, remains of lattice fringes of the (001) plane (theory d= 0.49 nm) were not found in the high-resolution images. Therefore, the exact value of the critical amorphization dose depends on the orientation of the crystals. Irradiation perpendicular or acute-angled to the (001) surface, which means perpendicular or acute-angled to the SiO₄ chains, is more efficient than irradiation of other surfaces. This result is based on the assumption that the susceptibility of pure covalent bonds to amorphization is higher than in the case of higher ionicity in the bond (Naguib & Kelly 1975). Irradiation, completely parallel to the (001) surface may also lead to channeling effects.

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{1857fig3.eps}\end{figure}$

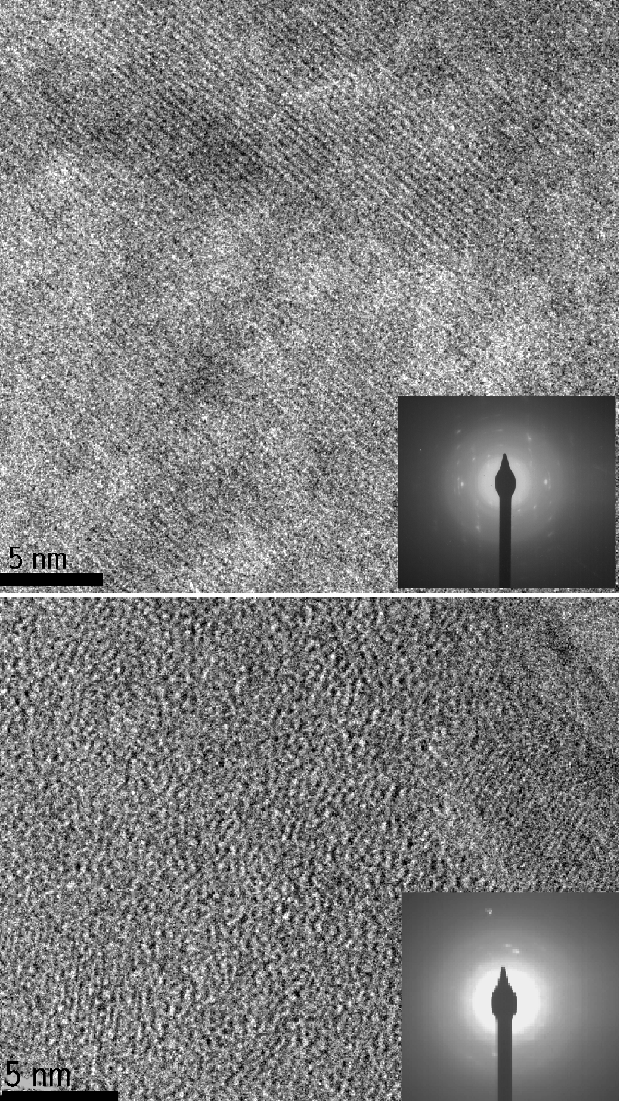

Figure 3: HRTEM images of two examples of incomplete amorphization. The upper panel shows a larger region of a partly destroyed structure showing the remains of the lattice fringes of the (011) plane with d= 0.44 nm. The lower panel shows two nanocrystals of an average size of 5-8 nm embedded in an amorphous matrix showing the lattice fringes of the (221) plane (d= 0.305 nm). This kind of incomplete amorphization was found to occur in the clinoenstatite sample irradiated with 400 keV Ar⁺ ions at a fluence of 2.5 $\times$ 10¹⁴ ions/cm².

Open with DEXTER

Bradley (1994) reported a significant change in the chemical composition of olivine and enstatite grains after an irradiation with 20 keV protons (total dose: 1.3 $\times$ 10¹⁸ ions/cm²). Similar results had been found by Demyk et al. (2001) under irradiation of the mineral olivine with 4 and 10 keV He⁺ ions. The authors described a selective sputtering and erosion of the exposed surfaces.

Our experiments with 50 keV He⁺ ions do not lead to a remarkable sputtering of the grain surface or a change of chemical composition due to a selective sputtering of Mg, even in the case of high fluences, carefully quantified before and after the irradiation by EDX measurements. This is also proven by transmission spectra of the grains measured before and after irradiation in a wavelength range between 7 and 16 $\mu$ m (see Fig. 4). The transmission measurements have been performed on an ensemble of grains at wavelengths between 8 and 16 $\mu$ m by means of the IR microscope.

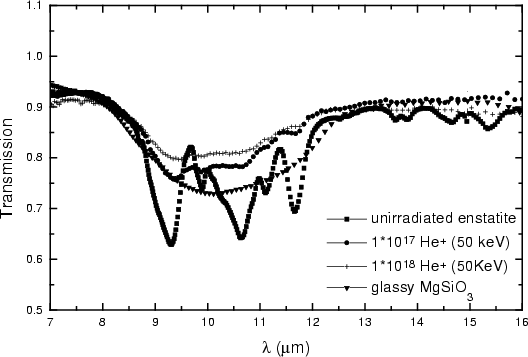

$\begin{figure} \par\includegraphics[width=7.5cm,clip]{1857fig4.eps}\end{figure}$	Figure 4: Transmission spectra of irradiated and unirradiated clinoenstatite compared to a glassy MgSiO₃produced by melting and quenching.
Open with DEXTER

Crystalline enstatite shows a series of strong bands between 9 and 12 $\mu$ m (see Fig. 4, unirradiated sample). The 10 $\mu$ m band in the irradiated spectra does not shift its center of gravity, which means that the degree of polymerization does not change during irradiation. The spectra simply show the decrease or the loss of the typical enstatite bands. Some remaining signature results from thick grains within the particle ensemble which were not completely amorphized due to the limited penetration depth of the used ions. The degree of polymerization of SiO₄ tetrahedra is correlated to the composition of the silicates. A higher content of SiO₂ in amorphous Mg silicate compared to pyroxenes leads to the increase of bridging oxygen and a higher level of polymerization of the SiO₄ tetrahedra, which is related to a shift of the 10 $\mu$ m band to shorter wavelengths. Conversely, the reduction of the SiO₂ content results in a decrease of bridging oxygen and a shift of the band to longer wavelengths (Mysen et al. 1982). Therefore, the center of the 10 $\mu$ m band provides additional information on the composition of the silicate materials.

In contrast to the composition, the morphology of the grains can change depending on the ion fluence. Figure 5 shows a clinoenstatite grain before and after irradiation with 5 $\times$ 10¹⁶ ions/cm² 50 keV He⁺ ions. Even before the critical amorphization dose was reached a loss of surface structure and a chamfering of edges and corners of the grains can be observed. This effect becomes stronger with higher ion fluences. Figure 6 demonstrates the morphological change of a group of grains after an irradiation with 1 $\times$ 10¹⁸ ions/cm² 50 keV He⁺ ions. The morphological modifications are much more dramatic for fluences higher than the threshold value, and they are accompanied by the formation of bubbles or vacuoles in the grains, which had already been found by other authors (see Demyk et al. 2001). The introduced porosity increases with increasing fluence and the size of the pores ranges between 20 and 300 nm. The sizes of the pores are related to the fluence and of course to the grain size. The mean pore sizes in particles ranging from 100 to 200 nm are between 20 and 40 nm. Extremely large pore sizes as can be seen in Fig. 6 are only formed in larger grains (note that the grains in the given example have an average diameter of 500 nm but a lesser thickness). At a fluence of 1 $\times$ 10¹⁸ ions/cm² the degree of porosity is about 50-60%. The formation of bubbles seems to be related to a short, local heating of parts of the grains above the glass transition temperature within the collision cascades. In this temperature range the solubility of gases previously dissolved in the enstatite grains decreases and gases can be released. By sufficient cooling of the material the formed porous structure cannot relax and remains conserved, whereas a part of the released gas can redissolve again into the structure or leave the material through open pores. The formation of He bubbles can be excluded since the calculated penetration depth is in the range of 360 nm and the formation of bubbles was also observed in very thin grains ( $\leq$ 150 nm), where He had passed the grains completely.

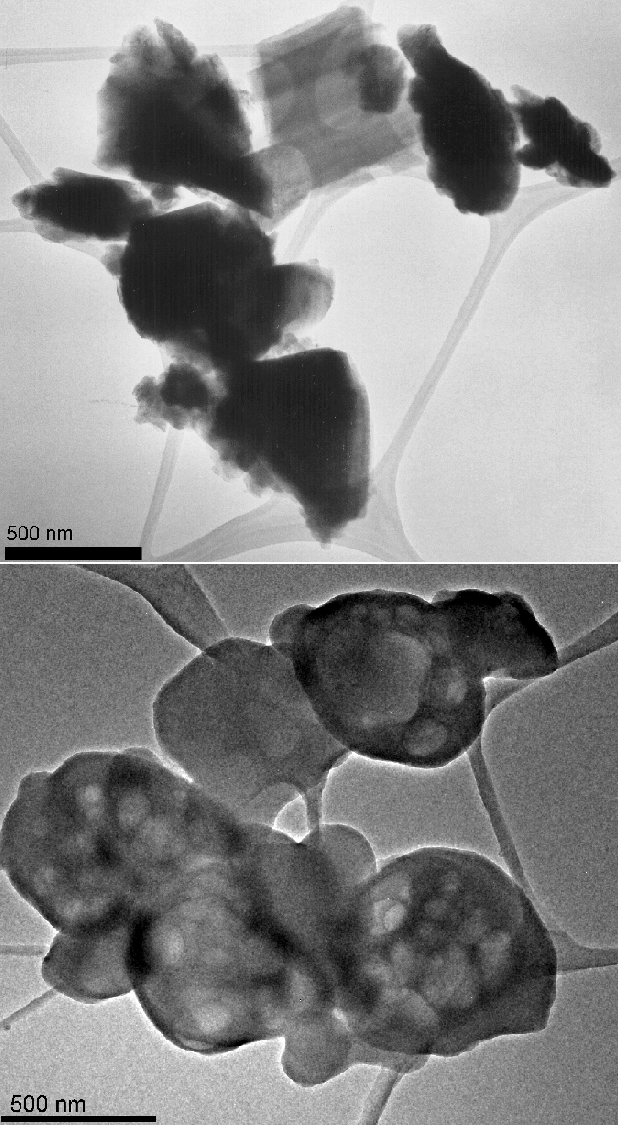

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{1857fig5.eps}\end{figure}$	Figure 5: TEM image of an enstatite grain before and after irradiation with 5 $\times$ 10¹⁶ ions/cm² 50 keV He⁺ ions. It demonstrates the loss of surface structure and the rounding of edges and corners of the grains even before the critical amorphization dose was reached.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{1857fig6.eps}\end{figure}$	Figure 6: TEM image of a group of grains before (upper panel) and after an irradiation with 1 $\times$ 10¹⁸ ions/cm² 50 keV He⁺ ions (lower panel, rotated counter-clockwise by about 45 $^\circ$ ). Please note the dramatic morphological transformation of the grains.
Open with DEXTER

4 Conclusions of astrophysical relevance

While high-energetic cosmic rays ( $E\gg$ 1 MeV) pass the interstellar dust grains without substantially changing the internal material structure, our experiments with He⁺ ions of 50 keV and Ar⁺ ions of 400 keV confirm that ions of this energy range can effectively amorphize the interstellar low-temperature silicate grains. For our experiments, we used synthetical clinoenstatite grains of about the same size (in the order of 0.1 $\mu$ m) as the silicate grains in interstellar space. This monoclinic variety of enstatite was also used as laboratory analog (Jäger et al. 1998) for the identification of crystalline silicates in ISO-SWS spectra of evolved stars. In these sources, enstatite (MgSiO₃) was more abundant than forsterite by a factor 3-4 (Jäger et al. 1998; Molster et al. 2002a,b).

According to our experiments, the irradiation doses necessary for total amorphization of submicrometre-sized grains amounted to 1 $\times$ 10¹⁷ cm^-2 for He⁺ ions and 3 $\times$ 10¹⁴ cm^-2 for Ar⁺ ions. Since the light ions are much more abundant than heavier ones, we consider our results with He⁺ ions rather representative for the interstellar amorphization problem than those of the Ar⁺ ions. However, one has to keep in mind that the less abundant heavier ions are much more effective in amorphization.

Demyk et al. (2001) have shown that effective amorphization of crystalline olivine can already be triggered by He⁺ ions accelerated in shock waves with velocities from 400 to 700 km s^-1 corresponding to energies 4-10 keV. However, this amorphization is accompanied by selective sputtering processes. Our experiments indicate that He⁺ ions at 50 keV coming either from the low-energy cosmic rays or from fast shock waves with velocities of about 1500 km s^-1 do amorphize the grains without sputtering. Since the fluences and the energy distribution of both ion sources are still uncertain we are not able to quantitatively charge up their effectiveness.

Since the sizes and the composition of our experimental particles are comparable to those of the interstellar silicate particles we think that our results can give a first orientation on the interstellar amorphization process if the total irradiation dose irrespective of their origin and acceleration mechanism in the interstellar environment during the mean life-time of an average silicate particle (4 $\times$ 10⁸ years, Jones et al. 1996) is in the same order than our experimental dose.

Ion irradiation experiments simulating the dust processing and sputtering in different astronomical environments (Strazzulla et al. 1983; Strazzulla & Baratta 1982; Léger et al. 1985; Foti 1991; Jenniskens et al. 1993; Mennella et al. 1997; Duley 2000) are based on the assumption that the astrophysical relevant dose of low-energy ions is between 3 and 10 ions cm^-2s^-1 corresponding to fluences of 1 $\times$ 10¹⁷ cm^-2 to 1 $\times$ 10¹⁸ cm^-2, which is quite similar to our experimental doses for He⁺.

Certainly, the relevance of dust amorphization by ion irradiation depends on the possibility of dust annealing processes which could trigger a recrystallization process. Stochastic annealing of the interstellar dust grains by starlight absorption, cosmic ray heating or heating by shock waves can be accounted for direct competition to the amorphization process caused by ion irradiation.

Steady-state temperatures of silicate dust grains in the interstellar medium subjected to grain size and shape have been determined to amount between 12 and 15 K (Voshchinikov et al. 1999).

Heating of dust in shock waves has been discussed by Dwek & Werner (1981), Itoh (1988) and Dwek et al. (1996). The large relative motion between the dust and gas can lead to an increase of temperature by ion impact. The grain heating depends on the shock wave velocity, grain size and density and was amounted to a maximum value of 150 K for a preschock density of $n_{\rm o}$ = 1 cm^-3 and a gas temperature of 10⁶ K. An increase of the density to 100 cm^-3 leads to a maximum temperature of about 350 K.

Draine & Li (2001) have calculated the grain heating by starlight for differently sized and composed grains which was found to be most efficient for ultrasmall grains. For example, a silicate grain of a few tenth of nm reaches an upper temperature limit of 700 K whereas grains of about 1.5 nm attain temperatures less than 100 K even at absorption of UV light. Radiative cooling times are, of course, size-dependent and were amounted to 0.1 and about 5 s, respectively. The lack of a 10 $\mu$ m emission band and the run of the UV curve at about 6.5 $\mu$ m^-1 set an upper limit of less than 10% of grains smaller than 1.5 nm (Li & Draine 2001).

Cosmic ray heating of grains, a relevant process in dense molecular clouds, has been investigated by different authors (Léger et al. 1985; Hasegawa & Herbst 1993). Following Léger et al. (1985) and Hasegawa & Herbst (1993) a peak temperature of 70 K can be achieved.

However, annealing experiments of our amorphized enstatite samples up to 880 K have demonstrated that spontaneous recrystallization of the amorphous grains does not occur. Therefore we can conclude that the discussed annealing processes are not efficient enough to trigger recrystallization but may have repercussions on processing or evaporation of ice mantles around the grains.

Wang & Ewing (1992) had proven that the critical dose necessary for amorphization of olivines rapidly increases with increasing magnesium content. The critical amorphization dose for fayalite is less than 1/4 of the critical dose of (Mg_0.88Fe_0.12)₂SiO₄ for 1.5 MeV Kr⁺ ions at room temperature. Wang et al. (1994) could demonstrate that the dpa value necessary for amorphization of forsterite increases exponentially beyond temperatures of about 650 K. These results could account for the fact that iron-containing silicates in evolved stars, protoplanetary nebulae and young stellar objects are found to exist in the amorphous state (Molster et al. 2002a,b). A continuous irradiation of the silicates by ions at elevated temperature of the respective solar or galactic origin could avoid the crystallization of this material.

A second result of astrophysical relevance is that we did not find any indications in our experiments that in the energy range of the ions the composition of the target particles was changed. This result finds support by earlier experiments (Wang et al. 1998; Wang & Ewing 1992; Dukes et al. 1999). Apparently, such chemical changes are very sensitive to the energy range, as the experiments by Demyk et al. (2001) and Bradley (1994) show, who found chemical effects by their experiments with ions of an energy range between 4 and 10 keV. The process of selective sputtering is strongly depending on the energy of the ions but, probably, also on the experimental conditions (Dukes et al. 1999). A compositional processing of enstatite by interaction of interstellar cosmic rays should only occur at very low energies. Sputtering rates for magnesium silicates have been published by different authors (Wickramasinghe 1972; Falk & Scalo 1975; Johnson 1994). For magnesium silicate targets maximum sputter yields of 0.01 have been measured for 1 keV He⁺ ions. A complete conversion of olivine in enstatite can only be expected from He⁺ ions in an energy range between 1-10 keV. Recent observational results point rather to the maintenance of the chemical composition of silicates in their life cycle (Vriend 2000; Kemper et al. 2001; Bouwman et al. 2001).

Another finding of the present experiments is the formation of pores that confirms analogous results by Demyk et al. (2001). Porous materials have already been formerly proposed in interstellar dust models (Mathis & Whiffen 1989; Mathis 1996; Demyk et al. 1999), but the porosity was explained mostly by the aggregation of different grain species. We point to other possible mechanisms that could form bubbles in amorphous silicates, e.g. if the grains are formed by vitrification after grain collisions.

The interstellar silicate absorption spectra do not allow any doubts that almost all silicate particles in the diffuse interstellar medium are completely amorphous. This is also true for the silicate cores in the dust grains of the molecular clouds, as the silicate absorption bands in the spectra of deeply embedded massive young stars and protostars (Demyk et al. 1999) show. Obviously, this is not the case in protostellar disks and $\beta$ -Pictoris objects, where clear indications for crystalline silicates exist (for review see Dorschner & Henning 1995; Dorschner 2001).

However, this does not justify the assumption that all interstellar dust materials are completely amorphized. This is confirmed by the presolar grains isolated from primitive meteorites. These crystalline stardust species can be identified with the corresponding well-known minerals diamond, graphite, titanium carbide, silicon carbide, corund, spinel, and hibonite. Laboratory experiments show, that MgO, spinel and corund particles are strongly radiation resistant (Hobbs et al. 1994; Wang et al. 1998) and find therefore their application in fusion reactors and as dosimeter materials.

We do not know how long these stardust species were actually exposed to the diffuse ISM conditions. Concerning SiC, Whittet et al. (1990) have supposed that the lacking spectral evidence of the strong SiC band, e.g. in the IR spectrum of Galactic Center sources, could be explained by a destruction of these grains in the oxidizing interstellar environment. That means, the crystalline SiC grains, isolated from meteorites, should have been younger than 4 $\times$ 10⁸ years, when they were incorporated in the interplanetary solids of the arising sun. Ott & Begemann (2000) argued the validity of former published presolar ages (10-130 $\times$ 10⁶ a) of Murchison SiC grains. Experiments on the retention of spallogenic ²¹Ne points to much lower ages. Here, we are apparently confronted with a selection effect. Vapor-phase condensation experiments have shown that in contrast to silicates SiC grains inherently condense in the crystalline state (Clément 2002). Furthermore, SiC as a semiconducting material can easily recrystallize from the amorphous structure by combination of ion irradiation and annealing (Heera et al. 1995, 1999) leading to a recrystallization of 3C-SiC grains (cubic modification).

We hope that this paper will stimulate further experimental studies devoted to those effects that could amorphize silicates in interstellar space.

Structural processing of enstatite by ion bombardment

1 Introduction

2 Experimental

3 Results

4 Conclusions of astrophysical relevance
