A&A 400, 671-678 (2003)
DOI: 10.1051/0004-6361:20021899

Chandra-LETGS X-ray observation of $\alpha $ Centauri: A nearby (G2V + K1V) binary system

A. J. J. Raassen1,2 - J.-U. Ness3 - R. Mewe1 - R. L. J. van der Meer1 - V. Burwitz4 - J. S. Kaastra1

1 - SRON National Institute for Space Research, Sorbonnelaan 2, 3584 CA Utrecht, The Netherlands
2 - Astronomical Institute "Anton Pannekoek'', Kruislaan 403, 1098 SJ Amsterdam, The Netherlands
3 - Universität Hamburg, Gojenbergsweg 112, 21029 Hamburg, Germany
4 - Max-Planck-Institut für extraterrestrische Physik, Postfach 1312, 85741 Garching, Germany

Received 7 October 2002 / Accepted 23 December 2002

A Chandra LETGS X-ray observation of $\alpha $ Centauri with an exposure time of 81.5 ks is presented with the two components (K1V and G2V) spectrally resolved for the first time. We use the emission lines from the individual spectra to determine plasma temperatures and find similar temperatures as for the Sun with higher temperatures for the K1V star than for the G2V star. Global fitting techniques are used in order to construct an emission measure distribution for each star and we find emission measure distributions consistent with what is found from the line ratios. A two-temperature model is used in order to derive abundances normalized to iron and relative to solar photosheric values. For both stars we find a FIP effect with a slight but not significant tendency of a stronger FIP effect for the K1V component.

Key words: stars: individual: $\alpha $ Centauri - stars: coronae - stars: late-type - stars: activity - X-rays: stars

1 Introduction and observation

Late-type F-M stars with photospheric temperatures between 4000 and 7000 K show hot outer atmospheres (coronae) (Schmitt 1997) with temperatures around 1-10 MK. Due to the high temperature these plasmas emit X-ray radiation. This steep rise of the temperature above the stellar surface by 3 orders of magnitude is - after decades of investigations - still a puzzling problem and not well understood. The solar corona shows rich details on structures, mass motions, abundance patterns, loops and flares. These phenomena are driven by magnetic activity.

From studies by, e.g., Güdel et al. (1997a,b) of a series of solar-type stars of different ages with ROSAT, EUVE, and ASCA, it is established that the relatively old, non-flaring Sun has a rather inactive corona with temperatures in the range 1-3 MK, while the more active (and younger) G dwarfs like EK Dra have coronae with both $\sim$5 and $\mathrel{\hbox{\rlap{\hbox{\lower4pt\hbox{$\sim$ }}}\hbox{$>$ }}}$10 MK plasmas. The latter temperature is reached in the solar corona only during short flares.

However, many of the stellar objects, regularly observed by X-ray satellites belong to the more abundant low-mass stars (M and K dwarfs) with high X-ray luminosities and flares and therefore very high magnetic activity. This magnetic activity has been found to be correlated with the rotational velocity on the stellar surface (e.g., Pallavicini et al. 1981; Güdel et al. 1997b) and a dynamo process is the most plausible source of magnetic field generation in these stars.

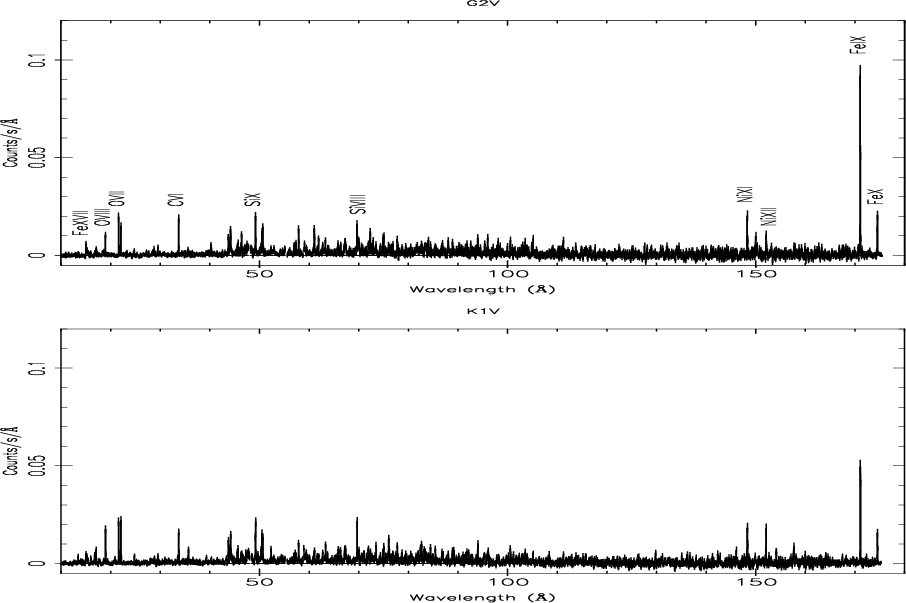

\end{figure} Figure 1: The spectra of the binary system $\alpha $ Centauri in the range from 10 to 180 Å, obtained by LETGS. On top G2V star, below K1V.
Open with DEXTER

The components A and B of the binary $\alpha $ Centauri (HD 128620;1) are slightly older than the Sun and are therefore expected to have a coronal activity comparable to the solar corona (cf. e.g., Güdel et al. 1997b). The binary system $\alpha $ Centauri is the nearest stellar system at a distance of 1.34 pc. It consists of a 1.1 $M_\odot$ G2V star with a radius of 1.24 $R_\odot$ and a 0.9 $M_\odot$ K1V star with a radius of 0.84 $R_\odot$ (e.g., Flannery & Ayres 1978). The orbit of the binary system is wide (semi-major axis 23.5 AU = 17.5 $^{\prime\prime}$), with a period of 80.1 years (Flannery & Ayres 1978). The rotational periods of A and B are 29 and 42 days (Hallam et al. 1991; Saar & Osten 1997) and the corresponding rotational velocities $2.7\pm 0.9$ and $1.1\pm 0.8$ km s-1, respectively (Saar & Osten 1997). According to the X-ray luminosity-velocity relations given by Pallavicini et al. (1981) and Güdel et al. (1997b) the velocities characterize the corona $\alpha $ Cen as rather inactive (like the solar corona).
The system has been studied in X-rays in the past, e.g, by Einstein (Golub et al. 1982), EUVE (Drake et al. 1997, Mewe et al. 1995b), ASCA (Mewe et al. 1998a), BeppoSAX (Mewe et al. 1998b), and ROSAT (Schmitt 1997 and 1998). Though the ROSAT and Einstein HRI detectors have separated the two components to measure fluxes, spectra of the two individual stars could never be obtained separately.

After the launch of Chandra and XMM-Newton the $\alpha $ Centauri binary system can be studied in more detail in the X-ray region. The spectra of the G2V and K1V star were obtained (on December 25 1999) with an exposure time of 81.5 ks by the Low Energy Transmission Grating ( LETG) in combination with the High Resolution Camera ( HRC-S) on board Chandra. During that observation the two stars were separated by 16 $^{\prime\prime}$ on the sky. The dispersion axis was positioned nearly perpendicular to the axis of the binary, resulting in two separated spectra. This offers the possibility to study the differences and similarities between the two stars in detail. To obtain the spectra from the Chandra data we used the standard CXC pipeline products, later updated with the standard CIAO reduction: CIAO 2.2 with the science threads for LETG/HRC-S observations. We then used our own software based on FTOOLS routines to separate the two spectra. We used the standard 'bow-tie-shaped' extraction box for the spectrum of each star. The width of the extration box at the longest wavelength is less than 10 $^{\prime\prime}$. Since the spectra had a separation of 16 $^{\prime\prime}$, the extraction boxes do not overlap. To avoid having the spectrum of the other star in the background, we used a background box of 30 $^{\prime\prime}$ on only one side of the star (opposite of the other component). This lowers the statistics of the background, but the background box is still sufficiently large.

For the analysis the spectra of the +1 and -1 order were summed. The spectra are background-subtracted. For the effective area we have used the values as calibrated in flight at SRON (van der Meer et al. 2003), which agree within about 5-10% with the values, as given in the Chandra LETGS Calibration Review of 31 Oct. 2001[*].

Figure 1 shows the spectra of $\alpha $ Cen G2V (top) and K1V (bottom) obtained by LETGS in the range from 10 to 180 Å. The effective area calibration at long wavelength is based on the spectra of HZ43 and Sirius B. The error on the effective area at 170-175 Å is about 10-15%.

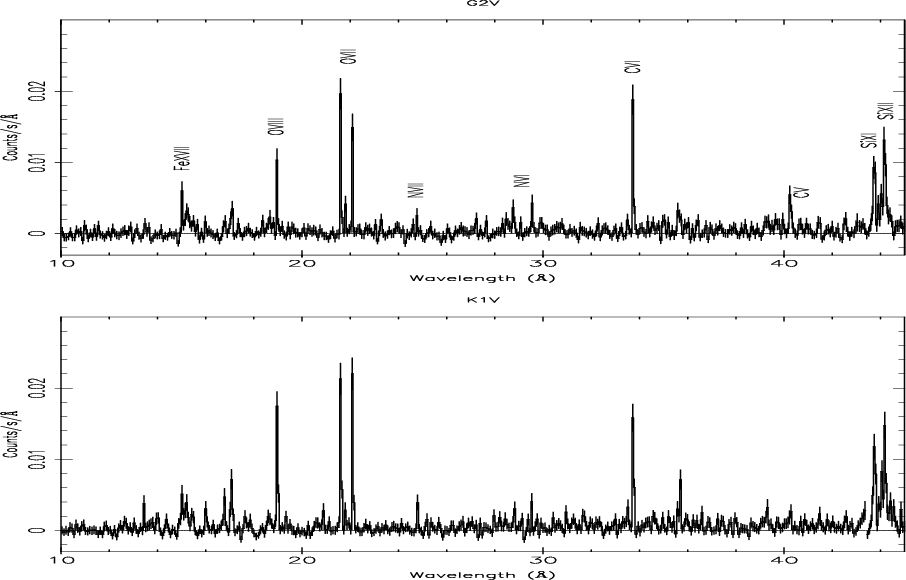

\end{figure} Figure 2: Spectra of $\alpha $ Centauri G2V and K1V in the wavelength range from 10 to 45 Å.
Open with DEXTER

2 Analysis

2.1 Individual lines and individual line fitting

The lines in the spectrum have been modeled locally using a narrow Gaussian line profile, which was folded with the instrumental Line-Spread-Function (LSF), together with a constant representing the background and (pseudo)continuum. The average instrumental FWHM of the lines is about 0.06 Å. The fluxes have been obtained after correction for the effective area. The statistical errors in the line fluxes include background errors. Table A.1 shows the measured wavelengths and line fluxes (not corrected for interstellar absorption), together with identifications obtained from Kelly (1987).

Table 1: Line flux ratios between lines of the G2V and K1V star for different ions in order of increasing peak formation temperature $T_{\rm m}$.
ion $\lambda$(Å) G2V/K1V $T_{\rm m}$(MK)
Fe IX 171.075 1.54 0.71
Fe X 174.534 1.04 0.95
Fe XI 89.185 0.43 1.3
Fe XI 86.772 0.55 1.3
C V(r) 40.268 1.71 0.93
C VI(r) 33.736 0.99 1.4
N VI(r) 28.787 1.04 1.4
N VII(r) 24.781 0.50 2.1
O VII(r) 21.602 0.77 2.1
O VIII(r) 18.969 0.51 3.3

Table 2: Temperature and electron density dependent line ratios in C, N, and O, together with the derived temperature.
 $\alpha $ Cen (G2V) $\alpha $ Cen (K1V)
$T_{\rm rad}$(K)a4700 4100
O VII(i+f)/O VII(r)1.00(0.17) 1.5(0.5)1.07(0.16) 1.5(0.5)
O VII(r)/O VIII(r)3.11(0.68) 1.8(0.1)2.06(0.34) 2.0(0.1)
N VI(r)/N VII(r)2.40(1.13) 1.3(0.2)1.15(0.46) 1.5(0.2)
C V(r)/C VI(r)0.64(0.12) 1.1(0.1)0.37(0.09) 1.3(0.1)
O VII(f/i)3.7(1.1)<10106.8(2.4)-
N VI(f/i)4.0(2.0)< $8\times 10^9$2.9(2.3)< $4\times 10^{10}$
C V(f/i)2.7(1.0)<2 $\times 10^9$3.8(1.7) $0.5{-}3\times 10^9$
a From Ness et al. (2002).
b From Porquet et al. (2001) and in units of cm-3.

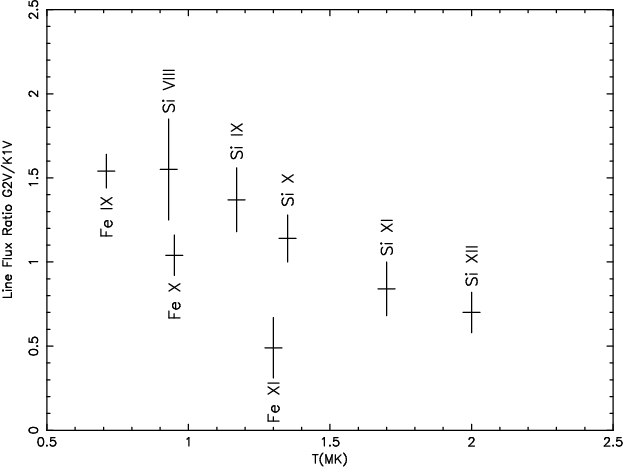

\end{figure} Figure 3: The ratio between the line fluxes of the G2V star and the K1V star compared to the temperature of optimal line formation for five silicon ions and three iron ions.
Open with DEXTER

In Fig. 1 we recognize the dominant Fe  IX and Fe  X lines between 170 and 175 Å (which are even more prominent when corrections for the relatively low effective area are made) and strong H-like and He-like lines of C, N, and O in the wavelength region below 40 Å. The latter are better seen in Fig. 2 covering the wavelength range from 10 to 45 Å. From Fig. 1 we notice that the intensity of the "cool'' Fe  IX line relative to the "hot'' O  VIII line at 18.969 Å is higher for the G2V star (top panel) than for the K1V star. A similar temperature behaviour is seen from Fig. 2 with respect to the "cool'' C  V and C  VI lines which are higher relative to the "hotter'' O  VII and O  VIII lines in the spectrum of the G2V star than in the spectrum of the K1V star. This trend is shown in Table 1. In that table we give the calculated line flux ratios between G2V and K1V, together with the optimal line formation temperature. In the lower temperature regime the lines are stronger in the spectrum of the G2V star than in the spectrum of the K1V star, while for "hotter'' lines the lines in the G2V star have lower fluxes than those in the K1V star. This trend is illustrated in Fig. 3 in which the line flux ratios (G2V/K1V) of a number of Si-ions and Fe-ions are shown relative to the temperature of optimum line formation. It is seen that the line flux ratio between the G2V and the K1V star is decreasing with the temperature. The shift between the silicon and iron ratios reflects the abundance difference between the two stars (see also Table 3). Table 1 shows that flux ratios from other elements (C, N, O) are in line with the Si-ratios.

A second temperature indication for the two stars is obtained from line flux ratios between the "cooler'' He-like lines of C  V, N  VI, and O  VII and the "hotter'' H-like resonance lines of C  VI, N  VII, and O  VIII.

In addition, the three O VII lines themselves are density- and temperature-dependent. The "triplet'' consists of the $\rm 1s^2~^1S_0$- $\rm 1s2p~^1P_1$ resonance line (r), the $\rm 1s^2~^1S_0$- $\rm 1s2p~^3P_1$ intercombination line (i), and the $\rm 1s^2~^1S_0 {-} 1s2s~^3S_1$ forbidden line (f). The $\rm 1s2s~^3S_1$ level is metastable and can only decay to the ground by means of a forbidden magnetic dipole transition. However, the level will be depopulated by electron collisions at higher densities in favour of the $\rm 1s2p~^3P_1$ level. This results in a decrease of the forbidden line and an increase of the intercombination line. Therefore the value R = f/i is an adequate diagnostic tool to constrain the density. The sum of the intercombination line and the forbidden line relative to the resonance line, G = (i+f)/r is a temperature indicator. Results of this comparison of the temperatures of the G2V and the K1V star are given in Table 2, showing higher ratios for the "cooler'' (He-like) ions in the G2V star. For completeness the density-sensitive He-like (f/i) lines ratios have been inserted in Table 2. The values agree with Ness et al. (2002). For density diagnostics we refer to that paper.

The analysis of the individual line fluxes of the two stars leads to the conclusion that the corona of the K1V star is hotter than that of the G2V star.

Table 3: Multi-temperature fitting and DEM modeling for the K1V and G2V stars. Elemental abundances for the three instruments are given normalized to iron and relative to solar photospheric values given by Anders & Grevesse (1989), except for Fea. 1$\sigma $ uncertainties are given in brackets.
  Multi-T fitting
Parameter K1V G2V
log $N_{\rm H}$ [cm-2]b 17.95 17.95
T1 [MK] 1.17(2) 1.10(2)
T2 [MK] 2.19(3) 2.00(5)
EM1 [1049 cm-3] 1.01(11) 1.08(10)
EM2 [1049 cm-3] 1.87(17) 1.11(8)
$EM_{\rm tot}$ [1049 cm-3] 2.88(19) 2.09(13)
Lx [1027 ergs](0.07-2.5 keV) 2.4(3) 2.3(3)
Lx [1027 ergs](0.1-2.4 keV) 1.9 1.6
Lx [1027 ergs](0.15-4 keV) 1.6 0.87
C/Fe 11.26 eV 0.44(9) 0.58(9)
N/Fe 14.53 eV 0.30(12) 0.46(11)
O/Fe 13.62 eVc 0.23(4) 0.30(5)
Ne/Fe 21.56 eVc 0.38(13) 0.37(13)
Mg/Fe 7.65e Vc 1.12(14) 1.01(21)
Si/Fe 8.15 eVc 0.86(12) 1.18(16)
Fe/Fe 7.87 eV 1 1
Ni/Fe 7.64 eV 1.67(26) 1.55(20)
Fe/Hc 1.43(9) 1.36(16)
$\chi^2_{\rm red}$/dof 6130/4484 5887/4453
a In logarithmic units, with $\log_{10}H=12.00$; $\rm C=8.56$; $\rm N=8.05$; $\rm O=8.93$; $\rm Ne=8.09$; $\rm Mg=7.58$;
$\rm Si=7.55$; $\rm S=7.21$; $\rm Ar=6.56$; $\rm Ca=6.36$; $\rm Fe=7.51$ (see text); $\rm Ni=6.25$.
b From Mewe et al. (1995b).
c Corrected abundance ratios from ASCA obs. (Mewe et al. 1998): $\rm O/Fe=0.3$(1), $\rm Ne/Fe=0.7$(2),
$\rm Mg/Fe=3.0$(7), $\rm Si/Fe=4$(3), $\rm Fe/H=1.1$(4).

2.2 Global fitting

In addition to the analysis based on the individual line fluxes we characterize the thermal structure and the elemental composition of both coronae (K1V and G2V) by means of global fitting to the spectra as a whole. To this end, we fitted multi-T models using SPEX (Kaastra et al. 1996a) in combination with the MEKAL database (Mewe et al. 1985; Mewe et al. 1995a) of which an extended line list can be found on the web[*]. For the electron density $n_{\rm e}$ we assumed the values given in Table 2 and the interstellar column density $N_{\rm H}$ is taken equal to the value in Table 3. For both coronal plasmas the calculations require two dominant temperature components. The reduced $\chi^2$ is relatively high (1.4) for the fits. This is due to a lack of lines in the code in some wavelength ranges and to the high spectral resolution of the instrument. Small wavelength deviations (about 1-2 bins, i.e., 0.02-0.04 Å) between lines in the spectrum and in the model are often present. In Table 3 results for temperatures T (in MK), emission measures EM and abundances of the K1V and G2V star are given, together with the ionization potential of the neutral ion of each element (the First Ionization Potential). The emission measure is defined as $EM = n_{\rm e}n_{\rm H}V$, where V is the volume contributing to the emission and for solar abundances the hydrogen density $n_{\rm H} \simeq 0.85 n_{\rm e}$. The abundances are compared to the iron abundance and relative to solar photospheric values (Anders & Grevesse 1989) except for Fe. For that element we use log  $A_{\rm Fe}$ = 7.50 (see Grevesse & Sauval 1998, 1999) instead of 7.67. Though a determination of the Fe abundance in the photosphere in $\alpha $ Cen may yield a value of about 7.70 (Smith et al. 1986) we prefer in view of the uncertainties (e.g., Drake et al. 1997) to use the recent solar value of Grevesse & Sauval. For the other elements the abundances of Anders & Grevesse are within the errors consistent with those from Grevesse & Sauval (but see the discussion on the oxygen abundance in the next paragraph). Statistic 1 $\sigma $ uncertainties are given in parentheses. The two temperatures and emission measures of both spectra are between 1 and 2.5 MK. This is comparable to the average value of 2.1 MK obtained by Golub et al. (1982) with the Einstein IPC detector. But the K1V star has a higher value for the EM at higher temperature. Due to the strong correlation between the absolute abundance values and the emission measure, abundance values are given relative to the iron abundance value.

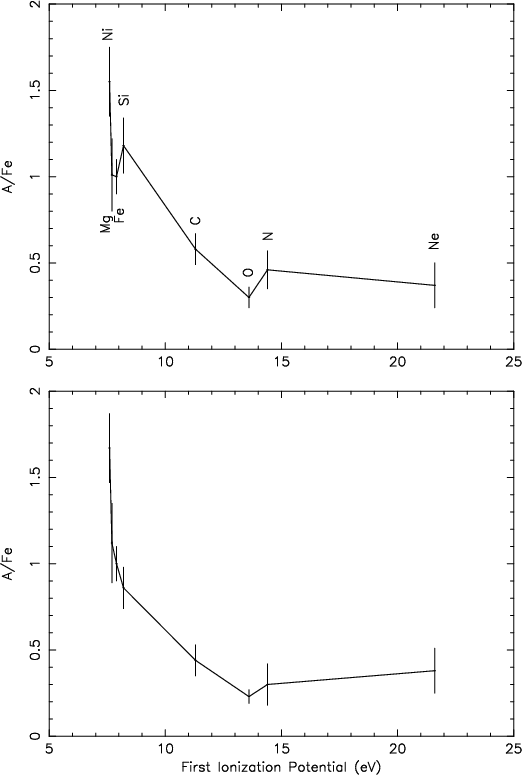

\end{figure} Figure 4: Abundances relative to iron for the G2V star (top) and K1V star (bottom) of $\alpha $ Centauri.
Open with DEXTER

From Table 3 and Fig. 4 we notice the relatively high abundances for the elements with a low First Ionization Potential, indicating a FIP effect. This FIP effect was first observed in the solar corona (e.g., Feldman et al. 1992). For hot active stars also an inverse FIP effect is observed (Güdel et al. 2003). This confirms the work by Drake et al. (1997), based on EUVE observations of the $\alpha $ Cen ensemble. The low value of oxygen also appears in Fig. 7 of Drake et al. (1997) and might be due to deficiences of the used solar oxygen abundance. Allende Prieto & Lambert (2001) have found a lower solar photospheric oxygen abundance value of $\log A_{\rm O} = 8.69$ (instead of $\log A_{\rm O} = 8.93$) bringing the oxygen value in line with nitrogen and carbon. The abundance ratios from ASCA observations (Mewe et al. 1998), reduced by a factor 1.48 because they use $\log A_{\rm Fe} = 7.67$ (instead of 7.51), are within the statistical errors comparable to our values (cf. Table 3). Comparing the abundance values in Table 3 (especially those of Ne (high FIP) and Mg and Ni (low FIP)) some indication is found for a stronger FIP effect in the K1V star than in the G2V star. However, this indication is not very significant in view of the uncertainties.

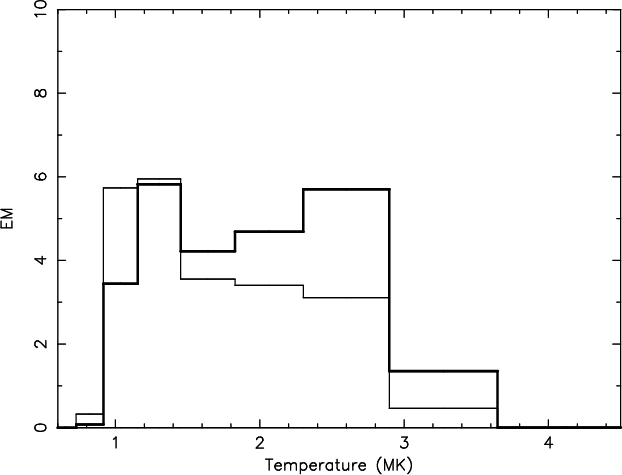

\end{figure} Figure 5: DEM modeling of the G2V star (thin line) and the K1V star (thick line) of $\alpha $ Centauri. $EM = n_{\rm e}n_{\rm H}V$ in units 1048 cm-3 and per logarithmic temperature bin.
Open with DEXTER

To show the connectivity of the different temperature components obtained in the multi-temperature fitting, we applied a differential emission measure (DEM) model of the coronae of the K1V and the G2V stars of $\alpha $ Cen, using the various inversion techniques offered by SPEX (see Kaastra et al. 1996b). We applied the abundances obtained in the multi-temperature fit of Table 3. Figure 5 shows the EM based on the polynomial method of order 10. The temperatures range from 0.9 up to 3.5 MK for the G2V and the K1V star. From this figure it is clear that the G2V star (thin line) has a lower emission measure volume at the higher coronal temperature than the K1V star (thick line).

In Table A.2 the measured line fluxes of a number of selected lines have been compared with the model fluxes obtained from the DEM-modeling and abundances given in Table 3. Taking into account the uncertainties in the atomic data (20-50%) the flux values are in good agreement with each other. From this table we notice that the modeled fluxes for the H-like ions (C  VI, N  VII and O  VIII) are higher than the measured line fluxes, while those for the He-like ions (C  V, N  VI, and O  VII) are lower. This might indicate a systematic error in atomic data or the wrong assumption that the elemental abundances has to be coupled for all temperature bins. The latter might imply that the He-like lines are formed in inactive regions of the corona and the H-like lines in active regions, resulting in higher abundances for He-like ions compared to H-like ions.

3 Conclusions

The coronal spectra of the two components of $\alpha $ Centauri (K1V and G2V) are analyzed separately for the first time. Both LETGS spectra are full with emission lines, but no significant continuum emission can be measured. We use the strongest emission lines in order to derive temperatures and to constrain densities for each component. In addition we construct self-consistent emission measure distributions for the stars in order to derive elemental abundances. This is done using global fitting of multi-T models with a combination of SPEX and MEKAL databases.

We use the He-like f/i ratio of oxygen, nitrogen, and carbon in order to constrain the plasma densities. For the G2V star we find low density limits with all the ions. They are all consistent the low density limit found for carbon, indicating the density below $2\times 10^9$ cm-3. For the K1V star the intercombination line of oxygen is not detected and the low density limit is measured with nitrogen, which is, again, consistent with the measurement of carbon, indicating a density range of $0.5{-}3\times 10^9$ cm-3. We point out the the carbon f/i ratio measures at the lowest densities, but has the highest low density value of f/i of all the ions. Therefore the intercombination line is very weak and very long exposure times are necessary in order to better constrain the densities measured with the carbon f/i ratio.

Plasma temperatures are measured using line flux ratios of H-like and He-like lines of oxygen, nitrogen, and carbon. We find temperatures between 1 and 2 MK with a slight but not significant tendency that the K1V star is hotter than the G2V star (Table 2). However, this tendency is much clearer when comparing line flux ratios of the same lines for the two stars. We find that the lines formed at lower temperatures (Fe  IX, Fe  X, C  V, N  VI, Si  VIII, Si  IX, and Si  X) are stronger in the G2V star, while the "hotter'' lines of Fe  XI, N  VII, O  VII, O  VIII, Si  XI, and Si  XII are stronger in the K1V star. From these measurements we conclude that in the G2V star the emission measure distribution peaks at lower temperatures than in the K1V star. The emission measure distributions derived from the DEM modeling are consistent with this trend and we conclude that they can be used for further analysis expecting results consistent with our analysis from individual lines. We calculated the abundances relative to iron for the two stars and find a FIP effect for both stars. Some indication for a stronger FIP effect in the corona of the K1V star than in the G2V star may be present. However, the errors for these measurements are dominated by systematic effects such as misplacements in wavelength or a lack of lines in the databases, so that the given statistical errors are not fully representative.

The National Institute for Space Research (SRON) is financially supported by NWO. We are grateful to the Chandra team, that is responsible for the on board calibration of the LETGS. We like to thank the referee for useful comments.

Appendix A:

Table A.1: Wavelengths and fluxes (1 $\sigma $ error in parentheses) from LETGS for the $\alpha $ Cen K1V and G2V star.
$\alpha $ Cen (K1V) $\alpha $ Cen (G2V) Line IDa
13.439 (18)0.09 (4)13.462 (11)0.06 (3)13.447Ne IX
--13.658 (11)0.02 (3)13.700Ne IX
15.011 (17)0.14 (5)15.027 (12)0.15 (4)15.013Fe XVII
15.220 (15)0.12 (4)15.243 (13)0.10 (4)15.260Fe XVII
15.991 (27)0.08 (3)15.991 (12)0.05 (3)16.007O VIII
16.780 (56)0.13 (4)16.781 (11)0.08 (4)16.775Fe XVII
17.040 (14)0.12 (3)17.075 (9)0.11 (4)17.051Fe XVII
17.093 (14)0.19 (4)17.115 (9)0.06 (3)17.100Fe XVII
18.630 (10)0.10 (4)18.638 (12)0.10 (4)18.627O VII
18.974 (5)0.53 (7)18.968 (5)0.27 (5)18.969O VIII
20.875 (11)0.14 (5)--20.910N VII
21.606 (4)1.09 (11)21.601 (4)0.84 (10)21.602O VII
21.808 (9)0.15 (5)21.812 (9)0.18 (5)21.804O VII
22.098 (4)1.02 (11)22.095 (5)0.66 (9)22.101O VII
24.787 (9)0.20 (6)24.795 (11)0.10 (4)24.781N VII
28.444 (18)0.11 (4)28.482 (10)0.10 (4)28.466C VI
28.799 (51)0.23 (6)28.782 (9)0.24 (6)28.787N VI
29.101 (12)0.07 (4)29.085 (11)0.07 (3)29.084N VI
29.533 (9)0.20 (6)29.539 (10)0.28 (7)29.534N VI
33.520 (12)0.21 (6)33.520 (10)0.13 (5)33.515Si XI
33.739 (5)1.22 (11)33.742 (4)1.21 (11)33.736C VI
--35.000 (9)0.18 (6)34.973C V
35.600 (9)0.25 (7)35.587 (8)0.21 (6)35.576Ca XI
35.697 (7)0.38 (8)35.660 (12)0.18 (6)35.665S XIII
40.264 (11)0.45 (10)40.244 (8)0.77 (12)40.268C V
--40.414 (13)0.08 (4)-
--40.634 (12)0.15 (6)-
40.704(15)0.13 (5)40.749 (15)0.25 (8)40.731C V
40.872 (11)0.37 (11)---
41.456 (48)0.49 (11)41.461 (12)0.68 (11)41.472C V
43.668 (11)0.18 (5)---
43.760 (5)0.51 (7)43.748 (7)0.43 (6)43.763Si XI
43.915 (8)0.14 (5)43.900 (10)0.13 (4)-
44.046 (8)0.31 (6)44.042 (10)0.19 (5)44.050Mg X
    44.020Si XII
44.164 (6)0.52 (7)44.155 (6)0.41 (5)44.165Si XII
44.244 (12)0.20 (5)44.211 (6)0.26 (5)44.215Si IX
45.511 (8)0.19 (5)45.518 (9)0.16 (4)45.519Si XII
45.691 (9)0.27 (5)45.692 (8)0.21 (5)45.692Si XII
46.278 (12)0.19(5)46.287 (9)0.21 (5)46.300Si XI
46.401 (8)0.22 (5)46.393 (8)0.40 (7)46.401Si XI
47.238 (10)0.15 (4)--47.231Mg X
47.640 (15)0.18 (5)47.645 (11)0.16 (4)47.655S X
47.802 (12)0.20 (5)47.837 (10)0.13 (4)47.791S X
47.931 (12)0.14 (4)--47.905S X
49.201 (5)0.94 (8)49.204 (6)0.80 (8)49.222Si XI
49.691 (11)0.13 (4)--49.701Si X
50.324 (7)0.37 (8)50.321 (9)0.31 (6)50.333Si X
50.513 (6)0.89 (12)50.515 (6)0.99 (10)50.524Si X
50.682 (5)0.78 (10)50.679 (6)0.91 (11)50.691Si X
52.314 (6)0.68 (11)52.331 (11)0.34 (7)52.296Si XI
52.876 (10)0.27 (8)52.915 (10)0.34 (7)52.911Fe XV
54.723 (9)0.35 (8)--54.728Fe XVI
--55.091 (19)0.32 (7)55.096Si X
    55.060Mg IX
a Line identification from KELLY (1987).
b Observed flux at Earth in 10-4 photons cm-2 s-1.

Table A.1. continued.

$\alpha $ Cen (K1V) $\alpha $ Cen (G2V) Line IDa
55.331 (7)0.55(10)55.301 (8)0.80 (11)55.305Si IX
55.393 (7)0.90 (12)55.380 (8)1.22 (14)55.356Si IX
----55.401Si IX
56.920 (12)0.28 (7)56.949 (9)0.46 (8)-
57.202 (8)0.43 (9)57.182 (9)0.38 (7)-
57.365 (10)0.32 (7)57.359 (9)0.42 (7)-
57.869 (7)0.65 (9)57.873 (6)0.85 (9)57.876Mg X
58.891 (11)0.17 (5)58.876 (11)0.24 (6)-
58.956 (12)0.37 (7)58.928 (11)0.32 (7)58.963Fe XIV
59.121 (10)0.23 (6)59.160(11)0.21(5)59.153Mg VIII
59.391 (7)0.46 (9)59.394 (9)0.29 (6)-
59.596 (10)0.16 (5)59.596 (12)0.15 (4)-
60.800 (12)0.33 (8)---
60.981 (11)0.39 (10)61.011(11)0.88(11)61.019Si VIII
61.069 (7)0.85 (12)61.067(11)1.04(12)61.070Si VIII
61.638 (10)0.59 (12)61.686 (11)0.57 (11)61.649Si IX
61.925 (28)0.54 (11)61.918 (10)0.93 (13)61.914Si VIII
63.163 (11)0.19 (5)63.1290.2463.152Mg X
63.294 (6)0.97 (11)63.280 (8)0.85 (12)63.295Mg X
--63.894(12)0.43(10)63.903Si VIII
65.667 (12)0.39 (8)65.675 (10)0.38 (9)65.672Mg X
65.812 (13)0.15 (6)65.826 (9)0.53(9)65.822Ne VIII
65.867 (12)0.59 (9)  65.847Mg X
67.166 (11)0.40 (6)67.156 (12)0.29 (6)67.135Mg IX
67.245 (10)0.46 (7)67.246 (10)0.57 (9)67.239Mg IX
67.347 (10)0.50 (7)67.365 (9)0.34 (6)67.382Ne VIII
69.672 (5)1.45 (12)69.661 (7)1.46 (11)69.632Si VIII
70.039 (9)0.55 (8)70.036 (9)0.44 (7)70.054Fe XV
71.924 (7)0.68 (10)71.918 (29)0.51 (7)71.901Mg IX
72.041 (10)0.30 (6)72.029 (25)0.39 (7)72.027Mg IX
72.318 (28)0.55 (9)72.322(20)0.71(10)72.312Mg IX
73.481 (7)0.71 (11)73.479 (12)0.37 (6)73.470Ne VIII
--74.379 (11)0.35 (6)-
74.865 (7)0.55 (10)74.878 (7)0.76 (10)74.858Mg VIII
75.060 (6)0.69 (11)75.050 (6)1.13 (12)75.034Mg VIII
75.905 (14)0.36 (8)---
76.033 (6)1.01 (11)76.042 (10)0.40 (7)76.022Fe XIV
76.143 (10)0.68 (11)76.158 (11)0.30 (6)76.152Fe XIV
    76.117Fe XIII
76.688 (12)0.32 (8)---
76.877 (7)0.69 (11)76.877 (9)0.44 (7)-
76.991 (10)0.35 (8)---
77.373 (11)0.29 (7)--77.393Ni XI
77.518 (10)0.30 (7)---
77.756 (7)0.66 (10)77.751 (9)0.66 (9)77.737Mg IX
--77.872 (14)0.44 (8)77.865Fe X
78.738 (9)0.40 (8)78.762 (10)0.38 (7)78.744Ni XI
79.482 (9)0.50 (9)79.479 (10)0.36 (7)79.488Fe XII
82.430 (8)0.57 (9)82.423 (12)0.32 (7)82.430Fe IX
82.660 (7)0.83 (11)82.665 (30)0.62 (9)82.598Mg VIII
--82.804 (30)0.37 (7)82.822Mg VIII
83.204 (9)0.42 (8)---

Table A.1. continued.

$\alpha $ Cen (K1V) $\alpha $ Cen (G2V) Line IDa
83.386 (10)0.37 (7)83.342 (30)0.40 (7)83.358Si VI
--83.443 (30)0.41 (7)83.457Fe IX
--83.571 (30)0.52 (9)83.587Mg VII
--83.959 (30)0.44 (8)83.959Mg VII
--84.054 (30)0.60 (9)84.025Mg VII
85.444 (8)0.66 (11)85.448 (12)0.26 (7)85.461Fe XIII
86.758 (8)0.55 (9)86.767 (18)0.30 (7)86.772Fe XI
--88.094 (10)0.19 (5)88.092Ne VIII
88.936 (7)0.60 (9)88.930 (8)0.64 (11)88.952Mg VI
89.170 (10)0.59 (9)89.144 (12)0.25 (8)89.185Fe XI
90.189 (10)0.43 (9)90.201 (10)0.42 (10)-
90.707 (10)0.35 (8)--90.708Mg VII
90.995 (9)0.44 (9)--91.009Fe XIV
91.563 (10)0.30 (7)91.529 (12)0.36 (9)91.527Ni X
91.789 (11)0.60 (10)91.817 (12)0.54 (11)91.790Ni X
92.186 (9)0.48 (9)92.148 (12)0.30 (10)92.123Mg VIII
94.000 (7)1.26 (13)94.012 (7)1.10 (13)94.012Fe X
--95.359 (12)0.37 (10)95.338Fe X
--95.440 (10)0.52 (11)95.421Mg VI
95.856 (11)0.35 (8)---
95.992 (8)0.58 (10)95.997 (8)0.89 (11)96.022Si VI
96.101 (8)0.69 (11)96.100 (9)0.21 (6)96.122Fe X
98.093 (9)0.36 (10)98.120 (10)0.79 (15)98.115Ne VIII
98.242 (48)0.49 (11)98.262 (14)0.40 (11)98.260Ne VIII
--98.495 (12)0.83 (18)-
--100.005 (10)0.40 (10)-
100.567 (6)0.95 (13)100.561 (7)1.06 (15)100.597Mg VIII
--102.765 (13)0.62 (14)-
103.039 (22)0.53 (27)103.063 (10)0.65 (12)103.085Ne VIII
103.262 (43)0.49 (28)103.280 (11)0.41 (12)-
103.567 (19)0.68 (29)103.537 (8)0.78 (12)103.566Fe IX
103.926 (40)0.53 (29)103.904 (12)0.49 (12)-
--104.856 (11)0.72 (14)104.813O VI
105.183 (11)0.56 (10)105.197 (9)1.06 (16)105.208Fe IX
108.420 (46)0.88 (12)---
--116.675 (11)0.38 (9)116.693Ne VII
--122.482 (10)0.71 (13)122.49Ne VI
129.818 (13)1.42 (22)--129.871O VIc
142.378 (11)1.42 (18)---
146.095 (12)1.38 (18)---
148.339 (6)6.05 (44)148.332 (6)6.54 (46)148.402Ni XI
--150.046 (11)2.19 (23)150.089O VI
--150.0991.38150.124O VI
--150.332 (14)1.26 (18)-
152.110 (39)5.40 (44)152.120 (11)3.66 (34)152.153Ni XII
154.131 (10)2.36 (28)154.158 (17)1.03 (15)154.175Ni XII
157.596 (12)1.87 (25)---
157.730 (9)3.24 (35)157.709 (12)1.96 (23)157.730Ni XIII
--157.972 (30)1.31 (30)-
171.089 (4)51.8 (25)171.093 (4)71.7 (29)171.075Fe IX
174.535 (6)50.3 (43)174.537 (5)52.2 (43)174.534Fe X

c Line identification unlikely due to the absence of this line in the spectrum of the G2V star.

Table A.2. Comparison of model and observed fluxes from LETGS for the $\alpha $ Cen K1V and G2V star.

$\alpha $ Cen (K1V) $\alpha $ Cen (G2V) Line IDa
0.410.45 (10)0.560.77 (12)40.268C V
0.030.13 (5)0.040.25 (8)40.731C V
0.370.49 (11)0.510.68 (11)41.472C V
0.11 0.14 41.480Ar IX
0.120.11 (4)0.100.10 (4)28.466C VI
1.251.22 (11)1.231.21 (11)33.736C VI
0.160.23 (6)0.170.24 (6)28.787N VI
0.020.07 (4)0.030.07 (3)29.084N VI
0.120.20 (6)0.140.28 (7)29.534N VI
0.200.20 (6)0.160.10 (4)24.781N VII
0.100.10 (4)0.080.10 (4)18.627O VII
0.921.09 (11)0.780.84 (10)21.602O VII
0.160.15 (5)0.140.18 (5)21.804O VII
0.631.02 (11)0.560.66 (9)22.101O VII
0.050.08 (3)0.030.05 (3)16.007O VIII
0.590.53 (7)0.360.27 (5)18.969O VIII
0.070.09 (4)0.030.06 (3)13.447Ne IX
0.300.55 (10)0.470.76 (10)74.858Mg VIII
0.27 0.25 74.843Fe XIII
0.350.69 (11)0.551.13 (12)75.034Mg VIII
0.180.40 (6)0.210.29 (6)67.135Mg IX
0.550.30 (6)0.720.39 (7)72.027Mg IX
0.400.55 (9)0.510.7172.311Mg IX
0.19 0.21 72.310Fe IX
0.901.24 (16)1.451.92 (25)61.019Si VIII
    61.070Si VIII
0.220.20 (5)0.190.26 (5)44.215Si IX
0.270.55(10)0.350.80 (11)55.305Si IX
1.640.90 (12)2.151.22 (14)55.356Si IX
----55.401Si IX
0.730.89 (12)0.830.99 (10)50.524Si X
0.730.78 (10)0.830.91 (11)50.691Si X
0.400.51 (7)0.400.43 (6)43.763Si XI
0.330.68 (11)0.370.34 (7)52.296Si XI
0.230.31 (6)0.200.19 (5)44.020Si XII
0.22 0.18 44.050Mg X
0.470.52 (7)0.410.41 (5)44.165Si XII
51.151.8 (25)80.671.7 (29)171.075Fe IX
39.850.3 (43)52.752.2 (43)174.534Fe X
0.160.68 (11)0.120.30 (6)76.117Fe XIII
0.12 0.11 76.152Fe XIV
0.451.01 (11)0.400.40 (7)76.022Fe XIV
0.250.14 (5)0.100.15 (4)15.013Fe XVII
0.150.13 (4)0.060.08 (4)16.775Fe XVII
0.180.12 (3)0.070.11 (4)17.051Fe XVII
0.140.19 (4)0.060.06 (3)17.100Fe XVII
6.556.05 (44)5.856.54 (46)148.402Ni XI
2.615.40 (44)2.253.66 (34)152.153Ni XII
1.432.36 (28)1.321.03 (15)154.175Ni XII
3.693.24 (35)2.301.96 (23)157.730Ni XIII
a Line identification from Kelly (1987).
b Model flux in 10-4 photons cm-2 s-1.
c Observed flux at Earth in 10-4 photons cm-2 s-1 with uncertainty
  in parentheses in the last digits.



Copyright ESO 2003
