A&A 398, 1041-1048 (2003)
DOI: 10.1051/0004-6361:20021680
K. Weis 1,2, - W. J. Duschl 1,2 - D. J.
Bomans 3
1 - Institut für Theoretische Astrophysik,
Tiergartenstr. 15, 69121 Heidelberg, Germany
2 -
Max-Planck-Institut für Radioastronomie, Auf dem Hügel 69, 53121 Bonn, Germany
3 -
Astronomisches Institut, Ruhr-Universität Bochum, Universitätsstr. 150, 44780 Bochum, Germany
Received 12 April 2000 / Accepted 8 November 2002
Abstract
We present an analysis of the kinematic and
morphological structure of the nebula around the LMC LBV candidate
S 119. On HST images, we find a predominantly spherical nebula
which, however, seems to be much better confined in its eastern
hemisphere than in the western one. The filamentary western part
of the nebula is indicative of matter flowing out of the nebula's
main body. This outflow is evidenced by our long-slit
echelle spectra. They show that, while most of the nebula has an
expansion velocity of 25.5 km s-1, the outflowing material
reaches velocities of almost 140 km s-1, relative to the
systemic one. A ROSAT HRI image shows no trace of S 119 and thus
no indications of hot or shocked material.
Key words: stars: evolution - stars: individual: S 119 - stars: mass-loss - ISM: bubbles - ISM: jets and outflows
Stars with masses in the range of
and
luminosities of
populate the upper
left end of the Hertzsprung-Russell Diagram (HRD). During
their short lives of
107 yrs they evolve from hot O stars
on the main sequence towards cooler temperatures, first at almost
constant luminosities. They soon enter a phase of very strong
mass loss of up to
.
This
influences their further evolution dramatically: They do not
evolve further towards lower temperatures, i.e., towards the red
supergiant state, but rather turn in the HRD and become hotter
again, albeit later less luminous (e.g., Schaller et al. 1992;
Langer et al. 1994).
The region in the HRD where this turn occurs is known to be the domain of the Luminous Blue Variables (LBVs). There exists an empirical limit that separates a region in the HRD into which the most massive stars do not evolve, the so-called Humphreys-Davidson Limit (Humphreys & Davidson 1979, 1994). Here the stars not only exhibit large continuous mass loss, but at least some of them undergo giant eruptions. Both, the continuous wind and the eruptions lead to a peeling off of the outer parts of the stellar envelope and to the formation of circumstellar LBV nebulae (LBVN; e.g., Nota et al. 1995). Humphreys & Davidson (1994) classify 32 stars as LBVs and an additional 9 as candidates. 9 of the LBVs and candidate stars are located in the Milky Way and 10 in the Large Magellanic Cloud (LMC).
S 119 (
)
is one of
the LBVs in the LMC. It was classified as Ofpe/WN9 star by
Bohannan & Walborn (1989). Since the early eighties, there was
already the suspicion of a close relation between Ofpe/WN9 stars
and LBVs when R127, located again in the LMC and previously
classified as Ofpe/WN9 underwent an LBV outburst (Stahl et al.
1983). The evidence for a connection between the two stellar
classes has become even stronger since then, as longtime
spectroscopic monitoring of LBVs and Ofpe/WN9 stars became
available (see, e.g., Stahl & Wolf 1986; Wolf et al. 1988;
Bohannan & Walborn 1989; Nota et al. 1996; Pasquali et al.
1996).
After discovering a nebula around S 119, Nota et al. (1994)
classified the star as an LBV candidate. Their ESO New
Technology Telescope (NTT) image shows a nebula of
7
9
size (corresponding to
1.9 pc
2.1 pc for an assumed distance of the
LMC of 51.2 kpc), with a
brighter lobe. Their NTT/EMMI spectra indicate an expansion
velocity of the S 119 nebula of
25 km s-1, and a ratio of
H
/N
1, leading to [N II]
6583 Å/H
0.75. They derive a
radial velocity of the star and of the center of expansion in the
range of
100 - 140 km s-1. This casts doubt on S 119 being a
member of the LMC the radial velocity of which as derived from
H I observations (Rohlfs et al. 1984) is typically in the
range of
240 - 300 km s-1.
From the line ratio of [S II]6716/6731 Å Nota et al. (1994)
derived an electron density of
cm-3and - assuming an electron temperature of
K - estimated a nebula mass of
1.7
.
Similar results for the nebula were reported by Smith et al. (1998). They describe the nebula as elliptical of size
7
6, with
K as estimated from
the non-detection of the [N II]5755 Å line, and
cm-3. Little reddening and a radial
velocity of
km s-1 supports S 119 not being a
member of the main body of the LMC. The main stellar parameters
of S 119 have been determined by Crowther & Smith (1997) using
two different models to account for the contamination of the
nebula in the stellar spectrum:
,
,
and
.
In this contribution, we present results of an analysis of the kinematics of the nebula around S 119 and put it for the first time into perspective with the nebula's high-resolution morphology as obtained from Hubble Space Telescope (HST) images. Moreover, we use the non-detection of S 119 and its nebula with the High Resolution Imager (HRI) on board the Röntgensatellit (ROSAT) for determining and discussing upper limits of the X-ray emission.
![]() |
Figure 1:
The F656N HST image of S 119 taken with the PC. The field of view
here is ![]() ![]() |
Open with DEXTER |
![]() |
Figure 2:
A
larger area (30
![]() ![]() ![]() |
Open with DEXTER |
For the morphological analysis we retrieved from the STScI data
archive all images of S 119 taken with the HST Planetary
Camera (PC) of the Wide Field Planetary Camera 2 using
the F656N (H)
filter
. The
exposure times were 500 s for four images, and 5 and 30 s for
two each. The data were reduced with the standard STSDAS/IRAF
routines. In total the four 500 s exposures were combined and
cosmic-ray cleaned. They were not mosaiced since the nebula is
fully covered by the PC field of view. The pixel size in the
Planetary Camera is 0.0455
per pixel, the effective
resolution about 0
1. The images were not rotated or binned
to make sure to maintain the full resolution. The celestial
directions therefore are indicated in the images. The HST system
position angle is 148.5
.
Figure 1 shows a
section of
from the reduced PC
image which we used for the analysis. The almost full field of
view of the PC image is shown in Fig. 2.
![]() |

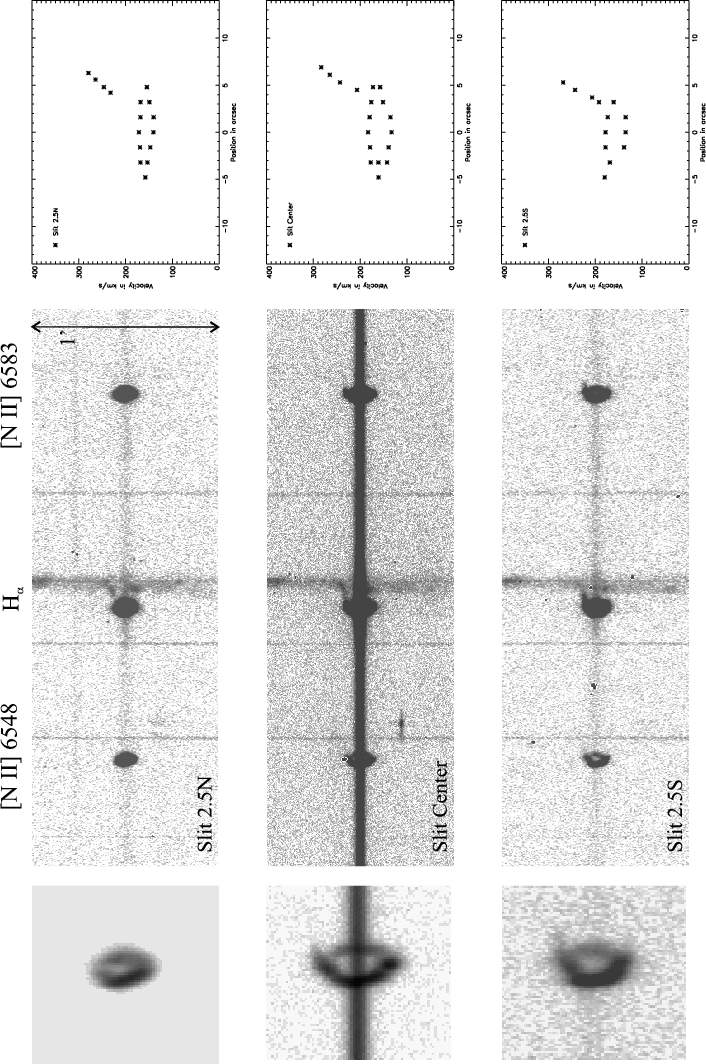

Figure 3:
Echellograms (center column) and corresponding
position-velocity diagrams (right column) for the observed slits.
Velocity measurements are with respect to the heliocentric system.
In the left column an enlargment of the [N
II]![]() |
Open with DEXTER |
![]() |

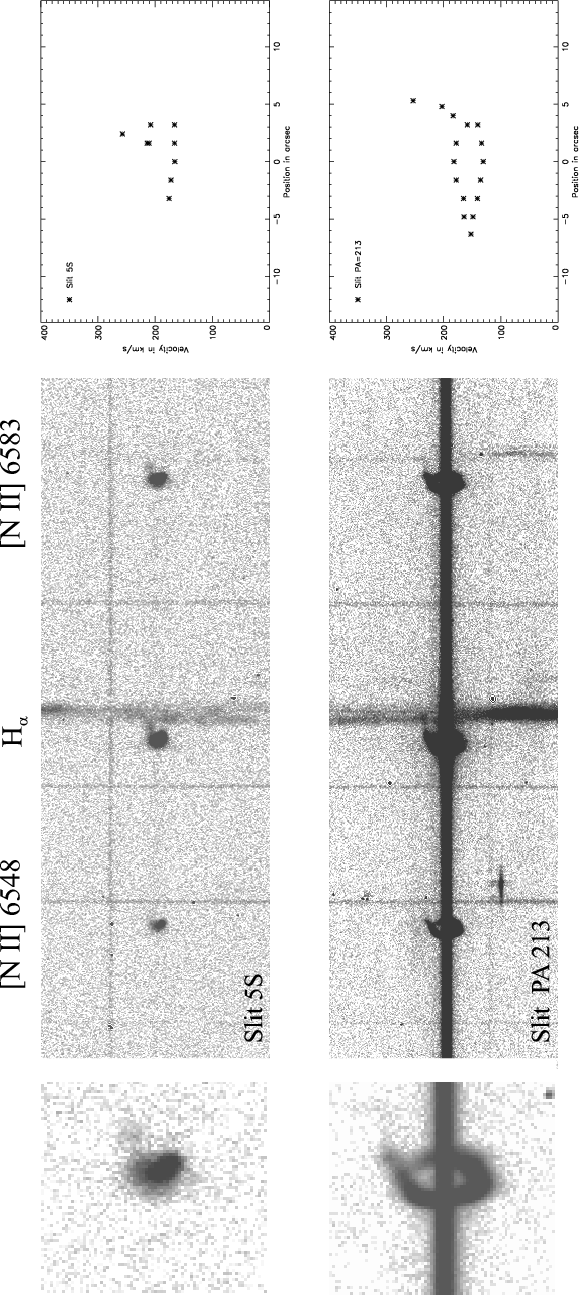

Figure 4:
Echellograms (center column) and corresponding
position-velocity diagrams (right column) for the observed slits.
Velocity measurements are with respect to the heliocentric system.
In the left column an enlargment of the [N
II]![]() |
Open with DEXTER |
For the kinematic analysis of the S 119 nebula we obtained
high-resolution long-slit echelle spectra with the 4 m-telescope
at the Cerro Tololo Inter-American Observatory. For the order
selection we replaced the cross-disperser by a flat mirror and
inserted a post-slit H
filter (6563/75 Å). This setup
left us with a long-slit vignetted to a length of
and a spectral range that contained the H
line and two
[N II] lines at 6548 Å and 6583 Å. We chose the
79 l mm-1 echelle grating and a slit-width of 150
m
(corresponding to 1
), which lead to an instrumental FWHM
at the H
line of 8 km s-1. The data were recorded
with the long focus red camera and a
pixel CCD
with a pixel size of 0.08 Å pixel-1 along the dispersion
and 0
26 pixel-1 on the spatial axis. Seeing was
.
Thorium-argon comparison lamp frames were taken
for wavelength calibration and geometric distortion correction.
Telluric lines visible in the spectra were used to improve the
absolute wavelength calibration of which we estimate an accuracy of
better than 0.08 Å.
We observed at two different position angles (PA) which were
nearly perpendicular to each other. Four slit positions mapped the
nebula with a
,
one centered on the star (Slit Center), one offset 2
5 to the north (Slit
2.5N) as well as one each at 2
5 and 5
to the south
(Slits 2.5S and 5S). One additional observation
was made with the slit oriented to
and
centered on S 119 (Slit PA = 213). Figure 2
shows the slit positions. Figures 3 and 4 summarize our spectroscopic observations. The
center column of Figs. 3 and 4 show
the echellograms of each slit position we observed, the right
column the corresponding position velocity diagrams
(pv-diagrams). The echellograms are 54 Å long and extend
1
in spatial direction, centered on the projected position
of the star. The top of the echellograms points towards north-west
for
and towards south-west for
.
In each echellogram an insert (of
Å) shows the expansion ellipse of the
stronger [N II] line (6583 Å) at a different cut level.
The slits are identified according to the nomenclature as
introduced above. In the pv-diagrams the positions are given as
offsets from the projected location of the star. Offsets to the
north-west (or, in the case of Slit PA = 213, south-west) are
counted positive. The velocity measurements for the pv-diagrams
followed from the H
and the stronger [N II] line
at 6583 Å. We estimate an error of the line fits to determine
the radial velocities between
0.5-1 km s-1, this is well
below the printed symbol size in the pv-diagramms. All
velocities are with respect to the heliocentric system, unless
mentioned otherwise.
In addition to the optical morphology and the kinematic analysis
we looked up ROSAT HRI observations of the S 119 region. The
ROSAT satellite was sensitive to X-ray emission between 0.1 and
2.4 keV and its HRI achieves a spatial resolution of
.
A 21 ks ROSAT pointing
was retrieved from the Max-Planck-Institut für Extraterrestrische Physik (MPE) ROSAT
data center. After reduction and analysis of the X-ray image with
IRAF/PROS
, we found no
traces of S 119 in the data.
Previous images of the nebula around S 119 taken with the NTT
show an axisymmetric shell, with a conspicuously brighter lobe at
the north east (Nota et al. 1994). The HST F656N images resolve
the nebula around S 119 and show that it is approximately
spherically symmetric, with an average diameter of 7
5.
Assuming that S 119 is at the same distance as the LMC (
50 kpc), this corresponds to a size of 1.8 pc. With the help of
the HST especially the small scale structures in and around the
nebula of S 119 are clearly detected, which were not seen in
previous ground-based images. A large number of these filamemtary
structures can be seen in addition to the spherical main body of
nebula. The most prominent ones are four filaments extending out
of the nebula, two next to each other to the north-west (marked
NW-1 and NW-2 in Fig. 1), one to
the south (S-1), and one to the south-east (SE-1).
These filaments extend beyond the nebula's main body by 0
96,
1
81, 0
96, and 0
68, respectively. On the west
side, between filaments NW-2 and S-1, at the rim of the main body,
numerous filaments of comparatively low surface brightness extend
beyond it. Here, no clear border of the spherical main body is
visible. In this region, some of the filaments appear to be even
detached from the main body of the nebula.
In the east, the surface brightness of the nebula is highest, with
an H
surface brightness of
erg cm-2 s
.
This
brighter area marks the region seen in seeing-limited NTT images.
In the inner part of the nebula the surface brightness is quite
low (
erg cm-2 s
on
average, with some of the filaments being weaker by almost another
order of magnitude). There it is far from a homogeneous structure.
On the other hand, there are also knots and filaments distributed
all over the nebula which are as bright as the eastern part of the
nebula. This combination of unevenly high and low surface
brightness features give rise to the nebula's patchy appearance.
Our high-resolution echelle spectra allow us to analyze the kinematic structure of the S 119 nebula in great detail. At a FWHM resolution of 8 km s-1 our observation fully resolve the global structure of the Doppler ellipse of the expansion of the S 119 nebula.
We find a radial velocity of the center of expansion at km s-1. This is in agreement with earlier findings that the
radial velocity of the S 119 system is well below that of the
main part of the LMC. The echellograms show background
H
emission along the entire slit at all positions,
which presumably results from an H II region within the
LMC. The radial velocity of this H II region of
264 km s-1 is consistent with it being located in the LMC. With
respect to this H II region, the S 119 nebula moves with
about 100 km s-1 more along the line of sight.
All spectra passing over the central part of the spherical main
body of the nebula show an expansion ellipse as expected for a
spherical expansion. We derive a maximum expansion velocity of
km s-1 at the central position in both slits that
cross the central star (see pv-diagrams for Slit Center and for
Slit PA = 213 at the position 0
in Figs. 3, 4).
As we move away from the geometric center of the nebula, the
slits (Slit 2.5N and Slit 2.5S) prove the decrease of the
expansion, that reduces to 15.5 km s-1 and 21.4 km s-1 respectively.
We measured sizes of the Doppler ellipses in our echelle data and
get diameters of 6
0 (Slit 2.5N), 9
1 (Slit Center), and
6
8 (Slit 2.5S), respectively. These sizes were determined
from the spectra and not from the binned pv-diagrams. Given the
considerably different spatial resolutions these values agree with
those derived from the HST images (5
7, 8
6, and
6
2, respectively).
For a spherical shell of radius R a spherically symmetric
expansion with velocity
would lead to an observed
radial velocity relative to the systemic velocity
![]() |
(1) |
![]() |

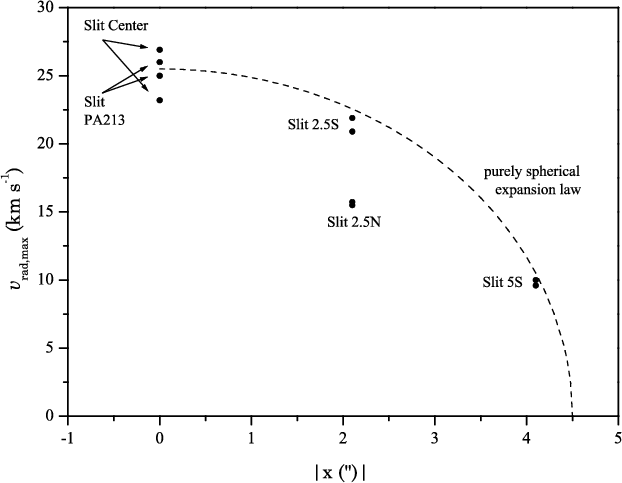

Figure 5:
A
position-velocity diagram to compare the measurements with a model
of a spherically expanding shell (dashed curve). The errors of the
measurement are
![]() |
Open with DEXTER |
Both the red-shifted and the blue-shifted components of the expansion ellipse have a FWHM of 0.3 - 0.5 Å (13 - 23 km s-1), compared to an instrumental FWHM of 8 km s-1. The echellograms in Figs. 3 and 4, in particularly the small inserts of the expansion ellipse reveal a clumpy sub-structure. Most prominent in Slit Center, the blue-shifted wing of the ellipse shows brightness variations (at a roughly constant FWHM). These variations are most likely due to the brighter knots identified in the HST image, which were intercepted by the slits. However, due to the large difference in resolution between our spectra and the HST image, no clear identification of the individual knots is possible.
![]() |

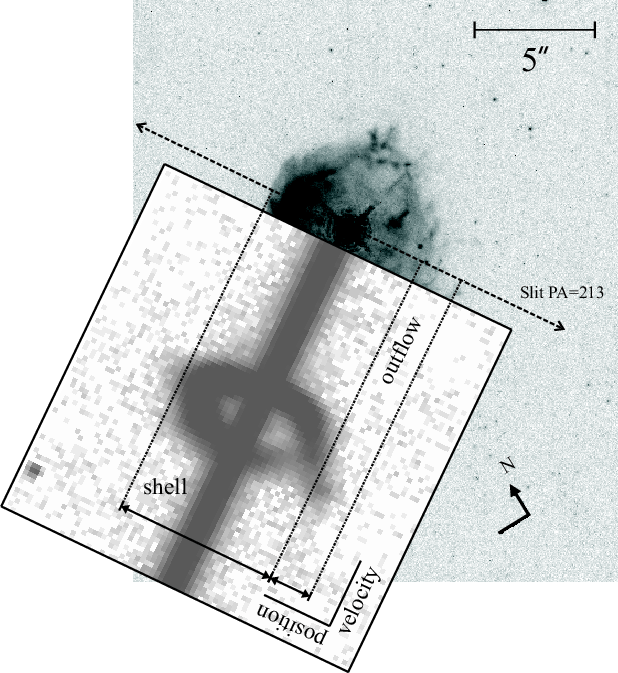

Figure 6:
Overlay of the HST image of S 119 and the spectrum Slit
PA = 213 around the [N II]![]() |
Open with DEXTER |
![]() |

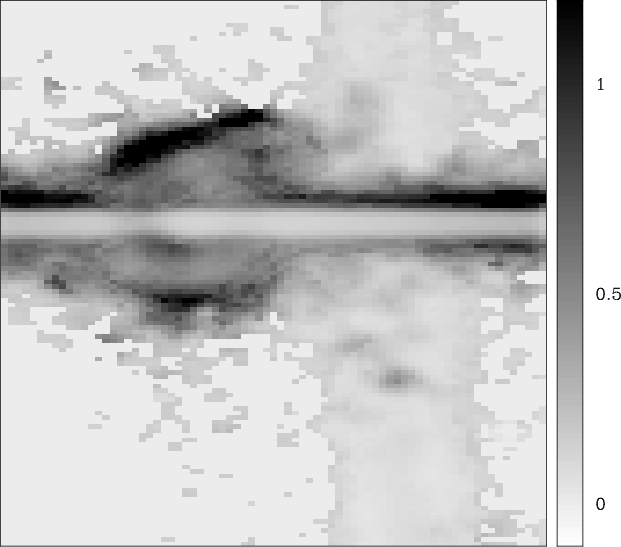

Figure 7:
Ratio map of the [N II] ![]() ![]() ![]() ![]() ![]() |
Open with DEXTER |
In addition to the spherical expansion we find in all spectra
clear indications for a much higher velocity expansion structure
(for an example, see Fig. 6). It extends
spatially from
to
and in
velocity space from the end of the expansion ellipse to more than
280 km s-1 redshifted. Only in Slit 2.5N this emission feature
appears to be detached from the expansion ellipse, and merges with
the background H
emission. To ensure that this high
velocity component is part of the S 119 nebula and not a
structure in the background emission, we determined its [N
II]
6583 Å/H
ratio. If the feature contains CNO
processed material we expect a significantly larger value for an
LBV nebula than for an uncontaminated H II region. Nebulae
around LBVs do have a higher content of nitrogen due to CNO
processed material that is mixed into outer regions of the star,
which will be ejected and forms the nebula. The higher nitrogen
abundance of the nebula can be traced by the [N II]
6583 Å/H
ratio. Typical
examples of this ratio for LBVNs are
0.4 - 0.9 for HR Car
(Hutsemékers & van Drom 1991; Weis et al. 1997), 0.7 for AG
Car (Thackeray 1977; Smith et al. 1997), or even as high as 3 -
7 in
Car (Davidson et al. 1982; Meaburn et al. 1987,
1996; Weis et al. 1999). For the spherical nebula around S 119
we derive a ratio of
,
for the high velocity
component we still find
(Fig. 7).
Both ratios are well within the range found in LBVNs, and are
significantly larger than the ratio of the H II region in
the background of which we observe [N
II]
6583 Å/H
.
While not far from the
limit of our spatial resolution, the combination of spatial and
velocity resolution makes it unlikely that our [N II]
6583 Å/H
determination
is contaminated. The [N II]
6583 Å/H
values derived for the nebula agree
well with earlier measurements of Nota et al. (1994).
The largest velocity of the high-velocity feature was detected in the Slit Center position with 283.1 km s-1, almost 130 km s-1 faster than the center of expansion of the central nebula. The velocity of this component increases approximately linearly with distance from the star's projected position. The echellograms do not show any traces of this feature within the Doppler ellipse of the spherical nebula. All these properties strongly point towards this feature being a component of the nebula around S 119 and not a projection effect.
In Fig. 8 we combine the plots of all
pv-diagrams available to us. A dashed line marks the radial
velocity background H II region. Both, the spherical
expansion of the nebula's main body as well as the high-velocity
component are clearly visible. Due to its larger overall offset
from the star, in Slit 5S (diamond shape symbols) the outflow
seems to set on at a smaller projected offset from the star (
as compared to
for the other slits). This
is caused by the effect that the slit intercepts the outflow
region earlier.
In Slit 2.5S (square shape symbols) at a projected position of
another feature appears which moves slightly faster by
.
This feature most likely can be
assigned to a part of the filament SE-1 identified in Sect. 3.
![]() |

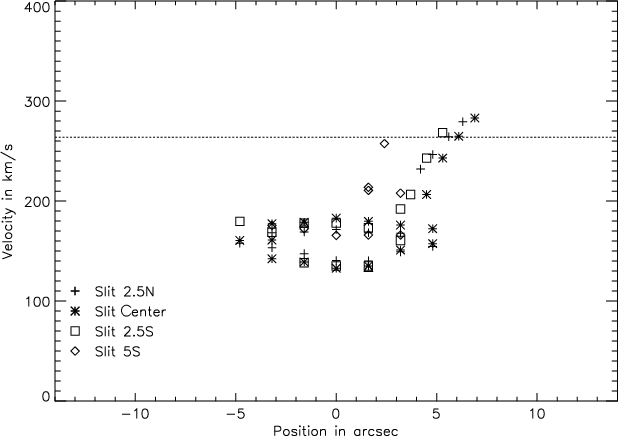

Figure 8:
Combination of all pv-diagrams with a PA = 125![]() |
Open with DEXTER |
A 21 ks integration with the ROSAT HRI shows no X-ray emission of
the nebula. At a distance of 50 kpc and for a Raymond-Smith
plasma this corresponds to an upper flux limit of
,
almost independent of assumed
temperatures between 0.1 and 1 keV (see Technical Appendix to the
ROSAT Call For Proposals, ROSAT Appendix F). Thus we can
only demonstrate that this limit is consistent with the conditions
in the S 119 nebula:
We have analyzed the morphological and kinematic structure of the nebula around the LBV candidate S 119.
We find that S 119 is surrounded by a nebula that represents a spherically expanding shell. On the western rim of this shell, a massive outflow occurs with a much higher velocity than the expanding shell. If one assumes a scenario, in which LBV nebulae are due to wind-wind interactions, the LBVN should be filled with hotter gas, since LBVs-unless in outburst-are hot stars with fast stellar winds. S 119 is a hot star, classified as Ofpe/WN9. The lack of detectable X-rays can therefore be explained by either (a) a relatively old outflow in which the originally hot gas had already sufficient time to cool, or (b) an LBV nebula which was not filled with hot gas in the first place, or (c) a velocity of the outflow which is too small to cause shocks with a sufficiently high post-shock temperature, or - of course - a combination of two of these reasons.
HST images are characterized by the spherical overall appearance of this nebula. The edge of the spherical component is much better defined in the northern and eastern directions where we also find the largest surface brightness. It does not exhibit a smooth distribution of surface brightness, but rather is very patchy and shows many filaments and knots, some of which extend - in particular in the western directions - beyond the nebula's main body and occasionally are detached from the main body. This is the reason for the less well defined edge of the nebula in this direction.
High-resolution long-slit echelle spectra show that the spherical component of the nebula is expanding with about 25 km s-1 and that the center of expansion is at a radial velocity of 156 km s-1. This is remarkable as it is considerably lower than that of the LMC to which-due to its projected position on the sky-the star seems to belong. Both numbers are in good agreement with earlier results (e.g., Nota et al. 1994).
In all spectra a high velocity component is present in addition to
the spherical expansion. It corresponds to a relative radial
motion of up to 100 km s-1 faster than the spherical main
body of the nebula. This high velocity material is concentrated on
the western side of the nebula. It is worth noting that on this
side the nebula also seems to be somewhat frayed between the
filaments NW-2 and S-1 (see Sect. 3). As yet
this makes S 119 the only LBV (candidate) nebula with such an
outflow. The radial velocities in the outflow increase linearly
with distance from the nebula. This Hubble-type velocity law
reminds one of the strings found in and around the Homunculus nebula of
Car (Weis et al. 1999). However,
due to the rather different morphological structure, projection
effects (which were ruled out in the
Car strings) may play
a role in the radial velocity structure in the S 119 outflow. One
may, for instance, think of a conical structure with an opening
angle that increases outwards. Due to our current lack of
understanding of the physical nature of such Hubble type velocity
laws, it is not possible to draw firm conclusions on the relation
between the two phenomena. The largest radial velocity, relative
to the star, amounts to 127 km s-1 at a projected distance of
from the star, corresponding to
1.7 pc. One may
deduce a minimum dynamical age of
yrs. The
dynamical age of the shell assuming a radius of 4
5 and an
expansion velocity of 25.5 km s-1 amounts than to
yrs. One has to be aware, however, that it depends
strongly on the formation mechanism of the outflow how meaningful
a dynamical age is. In addition it was shown that the radial
velocity of the system seems to deviate from that of the LMC so
that the distance to S 119 has to be questioned. This distance on
the other hand severely affects the determination of the dynamical
age. If S 119 were only 30 000 pc away the dynamical age of the
nebula would already go down to
yrs. That would
than be comparable to the lifetime of the star as an LBV. The
dynamical age and the stars position in the HRD, that is being a
hot star makes it quite likely that S 119 is already on its way
to leave the LBV phase as does He 3-519 (Davidson et al. 1993).
The brightness difference between the west side and the east side (Nota et al. 1994, see also Sect. 3) can most likely be accounted for by the outflow. However, one can only speculate whether the outflow is due to a density gradient in the ambient medium or whether it is caused by asymmetric flows in the S 119 system. Given the sphericity of the nebula's main component we are inclined to hold environment effects responsible for the outflow. This is also consistent with the brightest part of the nebula occurring in the same direction in which the HST image shows ionized diffuse gas which may easily indicate a higher density in that direction.
Acknowledgements
We have made use of the ROSAT Data Archive of the Max-Planck-Institut für extraterrestrische Physik (MPE) at Garching, Germany. Part of the work was carried out on a workstation provided by the Alfried Krupp von Bohlen und Halbach-Stiftung to the ITA. This support is gratefully acknowledged.
