A&A 398, 223-228 (2003)
DOI: 10.1051/0004-6361:20021709
V. K. Agrawal1 - S. Bhattacharyya2,3,
1 - ISRO Satellite Centre,
Airport Road, Bangalore 560 017, India
2 -
Joint Astronomy Program, Indian Institute of Science,
Bangalore 560012, India
3 -
Indian Institute of Astrophysics,
Bangalore 560 034, India
Received 27 December 2001 / Accepted 4 November 2002
Abstract
We present a detailed and systematic investigation of correlated spectral and timing properties of the Z source GX 349+2, using extensive data 221 ks) obtained from the Proportional-Counter-Array on-board RXTE satellite, during January 1998 and September-October 1998. For the first time a detailed comparison between the normal-branch-properties and the flaring-branch-properties of GX 349+2 has been possible, since this study showed the presence of a rare, extended normal branch. Peaked noise properties have been analyzed as functions of position along the Z-track and have been compared to those of Cyg X-2.
Key words: accretion, accretion disks - stars: binaries: close - stars: individual: GX 349+2 - stars: neutron - X-rays: stars
The bright low-mass X-ray binary (LMXB) GX 349+2 (also called
Sco X-2) belongs to a class called Z sources (Hasinger & van der Klis 1989).
These are the most luminous X-ray binaries, which are believed
to contain neutron stars as accreting objects,
since two of them, Cyg X-2 (Smale 1998) and GX
17+2 (Kuulkers et al. 2002), have exhibited type I X-ray bursts characteristic of neutron stars.
A Z source traces out a Z-shaped track on a X-ray color-color
diagram (CD) and hardness-intensity diagram (HID).
The Z-track generally consists of three parts, horizontal branch (HB),
normal branch (NB) and flaring branch (FB). It is generally believed
that the inferred mass accretion rate
increases along the Z-track from HB to FB (Hasinger et al. 1990).
So far six Z sources have been discovered, which
are further divided into two subclasses: (1) Cyg-like: Cyg X-2, GX 5-1 &
GX 340+0, and (2) Sco-like: Sco X-1, GX 349+2 & GX
17+2 (Kuulkers et al. 1994, 1997).
Sco-like objects have smaller and slanted HBs (if it exists) and larger FBs,
while HBs for Cyg-like sources
are comparatively larger and horizontal, and their
FBs are generally much smaller.
The long term variations in shape and position of
Z-track (secular motion) have been observed for Cyg-like
sources (Kuulkers et al. 1994, 1996; Kuulkers & van der Klis 1996).
It has been suggested that Cyg-like sources are being
viewed at higher inclination angle compared to
Sco-like sources (Kuulkers et al. 1994)
and contain neutron stars of higher magnetic
field strength (Psaltis et al. 1995).
Quasi-periodic-oscillations (QPOs)
and noise components are found in the power spectra of Z sources.
These features are generally well-correlated with the position of the
source on the Z-track (Hasinger & van der Klis 1989; van der Klis 1995).
There are three types of common noise: very-low-frequency-noise
(VLFN), low-frequency-noise (LFN)
and high-frequency-noise (HFN).
QPOs with frequencies in the range 15-60 Hz are generally observed in the HB and
in the upper parts of NB (van der Klis 1995). These are
called horizontal-branch-oscillations (HBO). A QPO with the frequency in
the range 5-8 Hz is
observed from the middle part of NB to the NB/FB vertex and is
called normal-branch-oscillation (NBO).
A sudden increase in centroid frequency ()
of NBO is
observed at the NB/FB vertex and according to the common
belief, NBO transforms to FBO (flaring-branch-oscillation) at this point
(Dieters & van der Klis 2000).
As the source moves up along FB, both centroid frequency and
full-width-half-maximum (FWHM) of FBO increases. In addition to the low-frequency
QPOs, kHz QPOs (200-1200 Hz) are also observed for all the
Z sources (see van der Klis 2000, for a review).
GX 349+2 is
very similar to Sco X-1 in many respects. For example, both objects exhibit
strong flaring behavior and the orbital periods are also similar
hr for Sco X-1 and
22 hr for GX 349+2).
However, some properties of GX 349+2 are different from those
observed for the other five Z sources. First, it has never exhibited a
horizontal branch, as seen from current and past observational data.
Besides, instead of NBO and FBO (together called N/FBO),
a broad peaked noise with a centroid frequency and FWHM of around 6 Hz
and 10 Hz respectively were observed in its FB (EXOSAT observation;
Ponman
et al. 1988). It was found that the width of the peaked noise component
decreases with increasing intensity.
Ponman et al. (1988) also
noticed that the
strength of the peaked noise is maximum in the intermediate intensity
band, i.e., at the NB/FB vertex. However in their work, the lower part of
FB and NB could not be differentiated clearly, since they divided the
data according to the intensity and not according to the position along the
Z-curve. They also investigated the energy dependence of
peaked noise properties and found that the rms-strength of peaked
noise was higher in the higher energy bands and there was
no time lag between hard and soft photons.
Observations with GINGA Large-Area-Counter indicate that the width
and the centroid frequency of peaked
noise component does not vary significantly as the source moves along
FB (O'Neill et al. 2001). They found that the strength of
the peaked noise is maximum
in the lower part of FB (
10% of the way up the FB) and
it becomes weaker as the source moves up the FB.
Kuulkers & van der Klis (1998) reported the detection of a similar
peaked noise component at the lower part of
FB using
4 hrs of RXTE observation. A broader
and somewhat weaker peaked noise was detected when the source was in NB.
They also showed that rms-strength of peaked noise increases
with increasing photon energy.
Until now, no narrow N/FBO has been detected for GX 349+2.
In spite of being unique (Kuulkers & van der Klis 1998) among the Z sources, GX 349+2 is poorly observed and the least-understood. In this paper, we present the first detailed quantitative study of this source with good quality RXTE-PCA data. In Sect. 2, we describe the observations and analysis procedures. We summarize the results in Sect. 3 and discuss the implications in Sect. 4.
We analyze RXTE-PCA public archival data obtained during January 1998
and September-October 1998. Details of the observations are given in Table 1.
We use the data for which all 5 PCUs were on. The total amount of good
data available for our analysis is 221 ks.
For the data reduction and analysis, we use standard FTOOLS package version 5.0
distributed and maintained by NASA/HEASARC.
The standard-2 mode data with time resolution of 16 s and effective
energy range of 2-60 keV are used for the spectral analysis. The background
subtraction is applied to the data before creating the spectra.
The sky_VLE model of epoch 3
for bright source is used to calculate the PCA
background. X-ray color-color diagram (CD) and hardness-intensity diagram (HID)
are constructed using
256 s averages. The soft color is defined as the ratio of count rates in 3.5-6.4 keV and 2.0-3.5 keV
energy bands and hard color is defined as that in 9.7-16.0 keV and 6.4-9.7 keV energy bands.
The intensity is defined as the count rate in the 2-16 keV energy band.
To define the position of the source along the Z-track, we use the "rank number'' or
"Sz''
parameterization technique, first introduced by Hasinger et al. (1990)
with further modifications by others (Hertz et al. 1992; Kuulkers et al.
1994; Dieters & van der Klis 2000).
We select the normal points in the CD in such a way that they form a smooth curve.
The color-color points in the CD are projected onto
this curve. The Sz-parameter for each projected point was
calculated by measuring their distance
from NB/FB vertex. We choose two reference points: NB/FB vertex
(Sz = 2) and the end point of the FB (Sz = 3).
The rest of the Z-track is normalized using the length of FB.
For the power spectral analysis, we use the data collected in three single bit modes
(2.0-5.1, 5.1-6.5, 6.5-8.7 keV) and one event mode (8.7-60 keV) during January 1998 and
that collected in one single bit mode (2.0-5.1 keV) and one event mode
(5.1-60 keV) during September-October 1998.
The power spectra for all observations are created in the
energy range 5.1-60 keV since peaked noise
feature is more significant in this energy band.
The expected white-noise-level (deadtime effect is not taken into account)
is subtracted from each power spectrum. Afterwards, the white-noise-level subtracted
power spectra are normalized to fractional-rms-squared per Hz.
We create power spectra for 8 s intervals and then average over the time
intervals (we do not average over disconnected time intervals)
that correspond to the change in the mean Sz-parameter by
10%. The average power spectra are rebinned
afterwards. The power spectra are fitted by a
simple power law (representing the VLFN)
and a Lorentzian (denoting the peaked noise).
To study the energy dependence of noise components, we create power
spectra in the energy bands,
2.0-5.1, 5.1-7.0, 7.0-10.0, 10.0-16.0 keV.
Errors on the fitting parameters are
calculated by using
(68% confidence).
![]() |

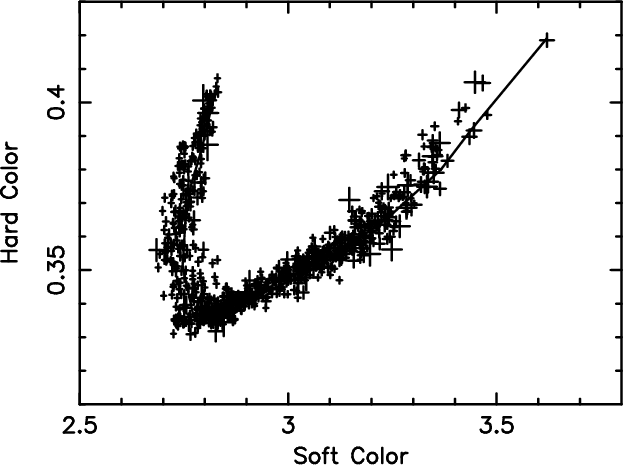

Figure 1: Combined color-color diagram for observations during January 1998 and September-October 1998. Soft color is the ratio of count rates in the energy band 3.5-6.4 keV and 2-3.5 keV and hard color is that in the energy bands 9.7-16 keV and 6.4-9.7 keV. Each point corresponds to a 256 s bin-size. The solid curve represents an approximate Z-track passing through the normal points. |
Open with DEXTER |
![]() |

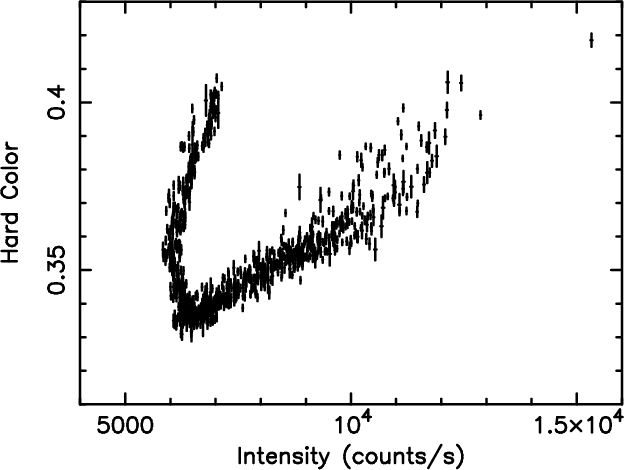

Figure 2: Combined hardness-intensity diagram for observations mentioned in Fig. 1. The intensity is the count rate in the energy band 2-16 keV. The hard color is same as in Fig. 1. |
Open with DEXTER |
![]() |

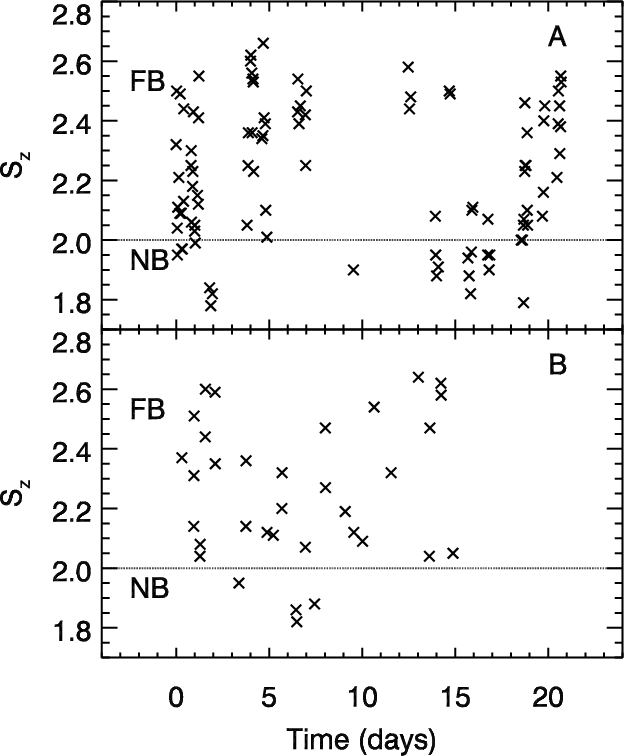

Figure 3: Variation of mean Sz-parameter in the timescale of several days. Starting date and time for the panel A (January data) are 09/01/98 and 03:50:53 UT respectively and those for panel B (September-October data) are 29/09/98 and 07:07:28 UT respectively. The horizontal lines at Sz = 2 represent the NB/FB vertex. It is to be noted that each point here does not correspond to same time-duration. |
Open with DEXTER |
![]() |
Figure 4: Variation of mean Sz-parameter with time for the observation 4 (see Table 1). Starting date and time for this plot are 09/01/98 and 08:38:24 UT. Each point has a bin size 256 s. The horizontal line at Sz = 2 represents the NB/FB vertex. |
Open with DEXTER |
We find two kinds of noise in the power spectra: (1)
very-low-frequency-noise (VLFN) and (2) peaked noise (PN). In Table 2,
we list the variation of their properties with Sz. It can be seen
that in some cases, same (or, nearly same) value of Sz appears more
than once in this table. This is because we have not averaged the power
spectra over disconnected time intervals. It is also to be noted that
due to unavailability of sufficient number of points in upper FB, we
have calculated power spectra for Sz-values upto 2.66 (a typical power
spectrum consisting of VLFN and PN is shown in Fig. 5).
![]() |

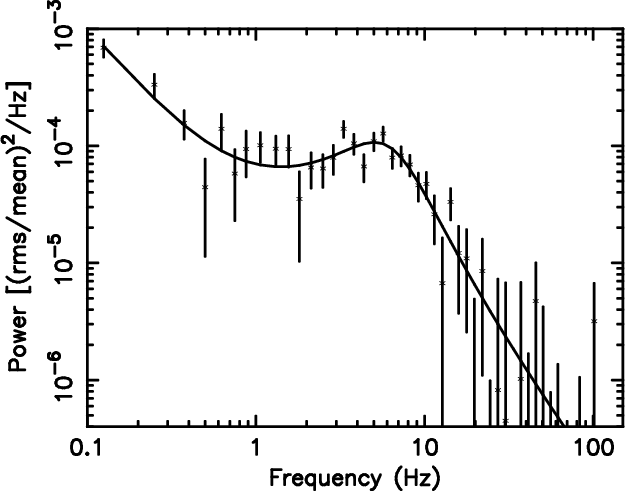

Figure 5:
Power spectrum in the energy band 5.1-60 keV for
![]() |
Open with DEXTER |
Figure 6 shows the VLFN-index and the properties of PN as the functions
of Sz. The VLFN-index does not show any Sz-dependence and its mean
value is
for the whole Z-track.
![]() |

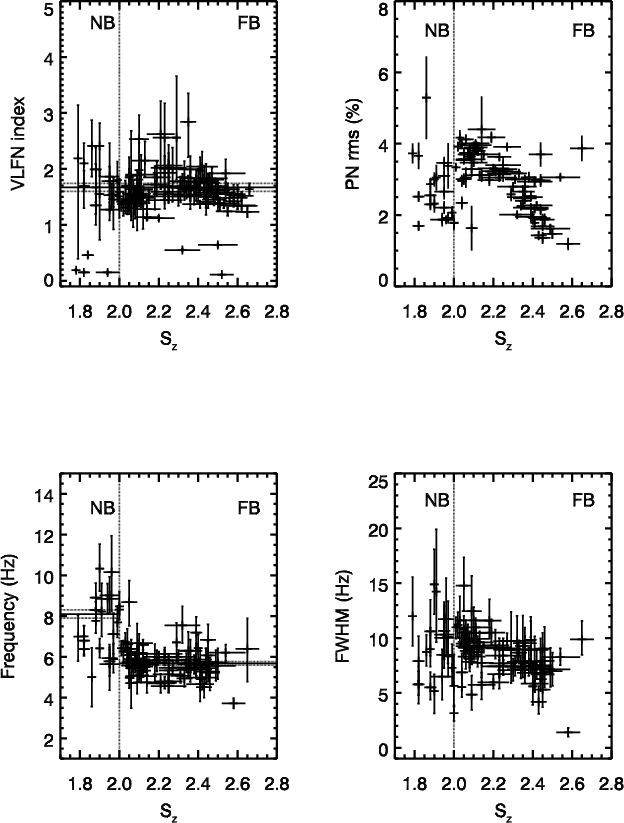

Figure 6:
Properties of VLFN (index) and PN (rms-strength,
centroid frequency and FWHM) as functions of Sz.
Vertical line at Sz = 2 in each panel represents the NB/FB vertex.
A solid horizontal line in a Sz-region gives the average value of the
dependent (i.e., function of Sz) parameter in that region, and
the two adjacent (one above and one below) dotted lines correspond to
the 1-![]() |
Open with DEXTER |
We find that the average value of VLFN-rms-strength,
during the January 1998 observations,
slowly increases from 1% to
1.7%
with the movement of the source along FB from NB/FB vertex (in NB, it
does not show any Sz-dependence; see Fig. 7).
![]() |

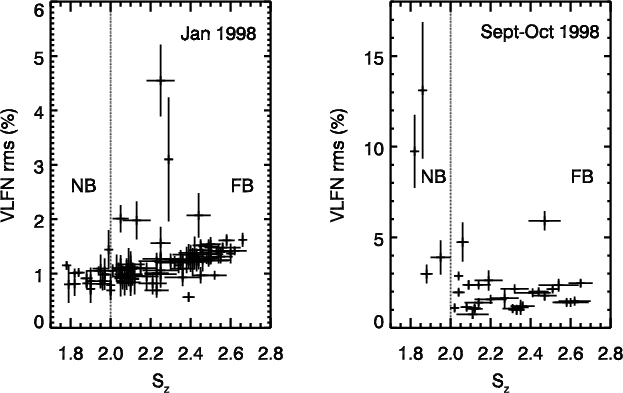

Figure 7: VLFN-rms-strengths (separately for January 1998 and September-Octobar 1998 data-sets) as functions of Sz. Note that the ranges of vertical axis are different for two panels. Vertical line at Sz = 2 in each panel represents the NB/FB vertex. |
Open with DEXTER |
We investigate the photon energy dependence of PN-rms-strength in FB as well
as in NB. We select two Sz ranges from
each of these two branches and construct
power spectra in the
energy bands 2-5.1, 5.1-7, 7-10 and 10-16 keV
ranges and while
fitting the power spectra,
and FWHM of PN are fixed at the
best-fit values for the broad energy range 5.1-60 keV.
We find that the rms-strength of PN shows a
positive correlation with the photon energy (upto 10 keV),
in both NB and FB (Table 3).
Energy | %rms | |||
(keV) |
![]() |
![]() |
![]() |
![]() |
2-5.1 |
![]() |
![]() |
![]() |
![]() |
5.1-7 |
![]() |
![]() |
![]() |
![]() |
7-10 |
![]() |
![]() |
![]() |
![]() |
10-16 |
![]() |
![]() |
![]() |
![]() |
Finally, we compare the CDs of Cyg X-2 at low-overall and high/medium-overall intensity states with that of GX 349+2. We make use of Fig. 1 of Kuulkers et al. (1999) to calculate CDs for Cyg X-2. Both GX 349+2 and Cyg X-2 (at low-overall intensity) show only NB and FB. It is noticed that the transition of Cyg X-2 from high/medium-overall intensity state to low-overall intensity state causes NB/FB vertex to move towards a higher hard color value (Fig. 8).
![]() |
Figure 8: Comparison between the spectral behaviors of Cyg X-2 (in low-overall intensity state) and GX 349+2. The curve with label "1'' is the Z-track for Cyg X-2 in high/medium-overall intensity state and that with label "2'' is for low-overall intensity state. These tracks have been generated using Fig. 1 of Kuulkers et al. (1999). The curve with label "3'' is the Z-track for GX 349+2. Here the definitions of soft color and hard color are slightly different, i.e., they are the logarithms of soft color and hard color (respectively) used in Fig. 1. |
Open with DEXTER |
In this paper, we have carried out the most detailed study to date
of the PN properties of the
LMXB source GX 349+2 using 31 days (total good-time duration is 221 ks) of RXTE-PCA data.
Unlike most of the earlier observations of GX349+2, the data show a rare, extended
normal branch. Therefore, for the
first time, it has been possible to compare the properties of NB and FB
and address the importance of NB/FB vertex.
In our work, color-color diagram (CD) and hardness-intensity diagram (HID) have been computed with 256 s time average. Such a big time average has been taken in order to differentiate between the normal branch (NB) and the flaring branch (FB) in an unambiguous way, and even with it, we get sufficient number of points in CD and HID, as we have a fairly large data-set. From the CD and HID, it can be noted that the overall intensity and the broad spectral behavior of the source remain the same for the two sets (January and September-October) of data.
Our analysis shows that for 74% of the total observation time, the source remained in FB
(see Fig. 3 and Table 1). This is in
accordance with the fact that GX 349+2 was almost always found to be in FB.
We also see (from Table 1) that the
source can move in both the directions along the Z-track.
One of our interesting findings is that the source
can move from upper FB to lower FB or from FB to NB (and vice versa) in the
timescale of 256 s (our bin-size in CD and HID). Therefore, any model that
tries to explain the movement of the source along the Z-track, must take
this timescale (
5 min) into account.
A broad QPO (that is to some extent similar to N/FBO of other Z sources) was reported to be found in the FB of GX 349+2 during all previous observations. By the definition of QPO (quality factor Q > 2), this feature in the power spectrum may not be called a QPO. O'Neill et al. (2001) called it "FBN'', as they found it mostly in the flaring branch (they had only one Sz-point in NB). However we call it "PN'' (following the earlier convention as in Kuulkers & van der Klis 1998), as our analysis shows it in both NB and FB. This is the first quantitative study of the properties of PN in both NB and FB. O'Neill et al. (2001) attempted it with GINGA data, but they did not get an extended normal branch. Our systematic investigation of PN properties with good quality RXTE data reveals that the average value of PN-centroid frequency is slightly higher in NB than in FB. However, PN-FWHM and PN-rms-strength do not show any abrupt changes at NB/FB vertex. The energy dependences (upto 10 keV) of PN-rms-strength are also similar in NB and FB. These indicate that PN may not be strongly correlated with the bending of Z-track at NB/FB vertex and the origin of PN in NB and FB is probably same (i.e., should be explained by same theoretical model). This is supported by the fact that PN is not a property of predominantly one of the branches (observed throughout NB and in most of the length of FB).
It is worth comparing the properties of NBO and FBO (together N/FBO)
seen in other Z-sources (specially in two Sco-like sources: GX 17+2 and Sco X-1)
with those of PN.
Based on a few common properties it can be argued that these two phenomena may
have similar origin.
For example,
for NBO has the value (5-7 Hz) similar to that for PN,
and both N/FBO and PN can be fitted by Lorentzian.
Besides, the rms-strength of each of N/FBO (Sco X-1; Dieters & van der Klis 2000)
and PN (GX 349+2; see Table 3) increases with increasing photon energy (upto
10 keV). In addition, there is no time-lags between high-energy and
low-energy photons for both N/FBO and PN (Kuulkers & van der Klis 1998).
However, there are several important differences. As mentioned earlier,
N/FBO is narrow (Q > 2) while PN is broad
(Q < 1). In addition, while moving from
NB to FB, at NB/FB vertex the centroid frequency of N/FBO jumps to a higher
(about double) value and then increases continuously along FB.
But PN-centroid-frequency decreases slightly at the vertex and then remains
almost the same as the source moves along FB. Besides, while PN-FWHM does not
show any clear dependence on the position along the Z-track, the FWHM of N/FBO
increases at the NB/FB vertex and continues to increase along FB.
The fraction of the track length over which N/FBO and PN appear are also different.
For example, for GX 17+2, NBO appears upto 35% of the length of NB from the
NB/FB vertex and FBO appears upto 20% of the length of FB from the same vertex
(Homan et al. 2002), and these numbers are 50% and 10%
respectively (Dieters & van der Klis 2000) for Sco X-1. But for GX 349+2,
we see that PN is present in the whole length of NB and in 70% of the
length of FB.
The discussion of the previous paragraph clearly shows that a single model for both N/FBO and PN is very difficult to formulate. According to the standard model for N/FBO (Fortner et al. 1989; Lamb 1991; Psaltis et al. 1995), radial oscillations in the optical depth of radial inflow (caused by the radiation pressure at near-Eddington-luminosity) produce a rocking in the X-ray spectrum which gives rise to NBO. Although this model may be able to explain N/FBO of Sco X-1, it can not explain PN, as PN-frequency does not increase with the `inferred accretion rate' in FB. Besides for our case, PN has been observed 70% of the way up the FB. According to the standard model, oscillations are supposed to be suppressed at such a high accretion rate. An alternative model (Titarchuk et al. 2001), that identifies NBO-frequency as the spherical-shell-viscous-frequency, is also not adequate to explain PN.
A peaked noise was observed for the Cyg-like Z source Cyg X-2 (Kuulkers et al. 1999) at low-overall intensities. The noise-component extends from 2 Hz to 20 Hz in the power spectrum, peaking near 6-7 Hz (%rms = 3). These values of centroid frequency and rms-strength are similar to those of PN for GX 349+2. To investigate whether the peaked noise components of GX 349+2 and Cyg X-2 have the same origin, we have computed the CD of GX 349+2 using the same energy ranges as given in Kuulkers et al. (1999). We find (Fig. 8) that at low-overall intensities, the Z-track of Cyg X-2 looks similar (except for a difference in soft color values) to that of GX 349+2 (neither of them shows HB). The hard-color value of the NB/FB vertex for Cyg X-2 increases (i.e., shifts towards that for GX 349+2), when its overall intensity changes from high/medium to low state. This suggests that the nature of the X-ray emitting components of GX 349+2 and that of Cyg X-2 (at low-overall intensities) may be similar to some extent and the intensity in the energy range 6.4-16.0 keV (used to calculate hard color) is an important parameter for more detailed studies. If the origin of peaked noise components of the two sources is similar, then such noise components may be originated in the region, which produces most of the 6.4-16.0 keV luminosity. This is supported by the fact that the rms-strength of PN is higher in this energy range than at lower energies (see Table 3). However, as the CD represents a rough spectral behavior, to establish a connection between the two PN components, it is essential to compare the energy spectra of these two sources in detail.
It is to be noted that Zhang et al. (1998) discovered two kHz QPOs
(centroid
frequency 712 Hz and 978 Hz) analyzing the January 1998 data. However
the September-October 1998 data do not show any kHz QPO.
Subsequent to our analysis, O'Neill et al. (2002) have submitted a paper analyzing the January 1998 RXTE-PCA data (this is a part of the data-set we have analyzed) for GX 349+2. We note that our results broadly tally with theirs. The primary objective of our work has been to study the properties of PN with Sz-values in detail. However, O'Neill et al. (2002) stressed on the study of VLFN and tried to detect power spectral features (like HBO and sub-HBO) seen in other Z sources.
As mentioned in Sect. 1, GX 349+2 is not a well-observed source and certainly is the most poorly understood one among the Z sources. However, it shows interesting phenomena like PN (which is probably also observed from Cyg X-2 for a particular position of Z-track in CD). Therefore, the study of this source may be very important to understand the physics behind the tracks traced by the Z sources in CD and HID. The detailed study of GX 349+2 in this paper will be useful for this purpose, as well as will help one to formulate a correct theoretical model for PN.
Acknowledgements
We deeply acknowledge P. Sreekumar for providing all the facilities and for detailed discussions. We thank A.R. Rao for reading the manuscript and giving valuable suggestions. We also thank Dipankar Bhattacharya for his help and the Director of the Raman Research Institute for the facilities provided. We are grateful to the referee E. Morgan for his constructive comments and suggestions.
Observation | Observation ID | Date of | Start time | Good time | State | <Vz> | % of Z track |
number | observation | UT | duration | (
![]() |
|||
(s) | |||||||
1 | 30042-02-01-000 | 09/01/98 | 03:50:53 | 2561 | mFB
![]() ![]() |
3.48 | 31.5 |
2 | 30042-02-01-000 | 09/01/98 | 05:26:24 | 3839 | lFB
![]() ![]() |
1.56 | 20.9 |
3 | 30042-02-01-000 | 09/01/98 | 07:02:24 | 3585 | mFB
![]() |
0.92 | 14.9 |
4 | 30042-02-01-000 | 09/01/98 | 08:38:24 | 3841 | NB
![]() |
2.25 | 54.2 |
5 | 30042-02-01-000 | 09/01/98 | 10:14:24 | 3582 | lFB
![]() |
1.23 | 12.4 |
6 | 30042-02-01-00 | 09/01/98 | 11:50:54 | 2303 | NB | 0.49 | 4.21 |
7 | 30042-02-01-09 | 09/01/98 | 13:26:54 | 2049 | lFB
![]() |
2.90 | 28.8 |
8 | 30042-02-01-01 | 09/01/98 | 23:04:09 | 3071 | mFB
![]() |
2.22 | 29.2 |
9 | 30042-02-01-01 | 10/01/98 | 00:39:28 | 2303 | mFB
![]() ![]() |
1.42 | 18.4 |
10 | 30042-02-01-01 | 10/01/98 | 02:15:28 | 1023 | mFB | 0.72 | 7.5 |
11 | 30042-02-01-07 | 10/01/98 | 03:51:52 | 3841 | lFB
![]() |
1.05 | 14.5 |
12 | 30042-02-01-07 | 10/01/98 | 05:27:28 | 3841 | NB | 0.95 | 10.6 |
13 | 30042-02-01-07 | 10/01/98 | 07:03:28 | 3843 | mFB
![]() |
1.26 | 20.9 |
14 | 30042-02-01-07 | 10/01/98 | 08:39:28 | 3585 | lFB
![]() |
3.06 | 41.1 |
15 | 30042-02-01-02 | 10/01/98 | 23:05:15 | 3581 | NB | 1.35 | 15.2 |
16 | 30042-02-01-02 | 11/01/98 | 00:40:16 | 3841 | NB | 0.77 | 12.8 |
17 | 30042-02-01-02 | 11/01/98 | 02:16:16 | 3840 | NB | 0.50 | 4.2 |
18 | 30042-02-01-03 | 12/01/98 | 23:06:24 | 3329 | lFB | 0.34 | 7.5 |
19 | 30042-02-01-03 | 13/01/98 | 00:42:24 | 4092 | mFB | 1.63 | 25.3 |
20 | 30042-02-01-08 | 13/01/98 | 03:54:47 | 3328 | uFB
![]() |
2.16 | 22.5 |
21 | 30042-02-01-08 | 13/01/98 | 05:30:24 | 3840 | uFB
![]() |
1.72 | 32.1 |
22 | 30042-02-01-08 | 13/01/98 | 07:06:24 | 3842 | uFB
![]() |
2.32 | 38.9 |
23 | 30042-02-01-04 | 13/01/98 | 18:19:15 | 2047 | mFB | 1.51 | 21.3 |
24 | 30042-02-01-04 | 13/01/98 | 19:54:24 | 2048 | mFB
![]() ![]() |
4.31 | 54.6 |
25 | 30042-02-01-04 | 13/01/98 | 21:30:24 | 769 | mFB | 1.17 | 4.3 |
26 | 30042-02-01-04 | 13/01/98 | 23:06:24 | 3586 | mFB
![]() |
1.99 | 32 |
27 | 30042-02-01-04 | 14/01/98 | 00:42:24 | 3582 | lFB | 0.52 | 1.6 |
28 | 30042-02-01-06 | 15/01/98 | 16:43:28 | 1281 | mFB
![]() |
2.44 | 16.7 |
29 | 30042-02-01-06 | 15/01/98 | 18:19:28 | 2562 | mFB | 1.65 | 14.2 |
30 | 30042-02-01-06 | 15/01/98 | 19:55:28 | 2561 | mFB | 0.78 | 10.1 |
31 | 30042-02-02-04 | 16/01/98 | 02:19:28 | 2303 | mFB | 2.07 | 25.6 |
32 | 30042-02-02-04 | 16/01/98 | 03:55:28 | 767 | uFB | 3.51 | 7.8 |
33 | 30042-02-02-07 | 18/01/98 | 16:44:32 | 2049 | NB | 1.18 | 6.3 |
34 | 30042-02-02-02 | 21/01/98 | 15:09:36 | 1537 | uFB
![]() |
1.42 | 10.2 |
35 | 30042-02-02-02 | 21/01/98 | 16:45:20 | 1021 | mFB | 2.45 | 20.6 |
36 | 30042-02-02-02 | 21/01/98 | 18:21:20 | 1791 | uFB
![]() |
1.86 | 13.5 |
37 | 30042-02-02-00 | 23/01/98 | 02:21:39 | 3587 | lFB
![]() |
0.89 | 19.4 |
38 | 30042-02-02-00 | 23/01/98 | 03:57:20 | 3581 | NB | 0.44 | 7.8 |
39 | 30042-02-02-00 | 23/01/98 | 05:49:20 | 3327 | NB | 0.99 | 8.7 |
40 | 30042-02-02-01 | 23/01/98 | 19:58:32 | 2558 | mFB | 1.17 | 8.7 |
41 | 30042-02-02-01 | 23/01/98 | 21:33:20 | 1021 | uFB | 2.71 | 18.3 |
42 | 30042-02-02-060 | 24/01/98 | 20:21:36 | 1539 | NB | 0.90 | 11.2 |
43 | 30042-02-02-060 | 24/01/98 | 21:34:24 | 3581 | NB | 1.04 | 7.5 |
44 | 30042-02-02-060 | 24/01/98 | 23:10:24 | 3586 | NB | 1.11 | 13.9 |
45 | 30042-02-02-060 | 25/01/98 | 00:46:24 | 3584 | NB
![]() |
1.22 | 23.5 |
46 | 30042-02-02-060 | 25/01/98 | 02:22:24 | 3585 | lFB | 0.86 | 11.1 |
47 | 30042-02-02-08 | 25/01/98 | 21:59:07 | 2049 | NB
![]() |
0.92 | 14.7 |
48 | 30042-02-02-08 | 25/01/98 | 23:10:24 | 3583 | NB | 0.63 | 13.1 |
49 | 30042-02-02-08 | 26/01/98 | 00:46:24 | 1025 | mFB
![]() |
2.26 | 33.4 |
50 | 30042-02-03-000 | 27/01/98 | 16:46:29 | 2305 | NB | 0.60 | 10 |
51 | 30042-02-03-000 | 27/01/98 | 18:22:24 | 2567 | NB | 0.43 | 7.4 |
52 | 30042-02-03-000 | 27/01/98 | 19:58:24 | 3329 | lFB
![]() ![]() |
0.93 | 26.4 |
53 | 30042-02-03-000 | 27/01/98 | 21:34:24 | 3327 | mFB | 2.08 | 28.6 |
Observation |
Observation ID | Date of | Start time | Good time | State | <Vz> | % of Z track |
number | observation | UT | duration | (
![]() |
|||
(s) | |||||||
54 | 30042-02-03-000 | 27/01/98 | 23:10:24 | 3584 | mFB | 1.29 | 1.7 |
55 | 30042-02-03-00 | 28/01/98 | 00:46:29 | 3585 | mFB
![]() |
1.99 | 37.8 |
56 | 30042-02-03-02 | 28/01/98 | 20:27:28 | 1793 | lFB | 1.25 | 10.7 |
57 | 30042-02-03-02 | 28/01/98 | 21:34:24 | 3584 | mFB | 1.60 | 29.1 |
58 | 30042-02-03-02 | 28/01/98 | 23:10:24 | 3329 | mFB
![]() |
1.42 | 25.4 |
59 | 30042-02-03-01 | 29/01/98 | 15:18:31 | 1537 | mFB | 2.98 | 15.1 |
60 | 30042-02-03-01 | 29/01/98 | 16:47:28 | 2817 | mFB
![]() |
2.00 | 24.7 |
61 | 30042-02-03-01 | 29/01/98 | 18:23:28 | 2816 | NBV
![]() ![]() |
5.56 | 44.3 |
62 | 30042-02-03-01 | 29/01/98 | 19:59:28 | 3584 | mFB
![]() ![]() |
2.57 | 46 |
63 | 30043-01-01-00 | 29/09/98 | 07:07:28 | 1938 | mFB | 0.68 | 10.6 |
64 | 30043-01-02-00 | 29/09/98 | 22:40:16 | 1969 | lFB
![]() |
2.53 | 37.8 |
65 | 30043-01-03-00 | 30/09/98 | 06:39:00 | 1924 | NB
![]() |
0.43 | 17.8 |
66 | 30043-01-04-00 | 30/09/98 | 13:23:28 | 1700 | mFB
![]() |
2.02 | 26.5 |
67 | 30043-01-05-00 | 01/10/98 | 01:59:28 | 1762 | uFB
![]() |
2.66 | 31.2 |
68 | 30043-01-07-00 | 02/10/98 | 08:45:20 | 1967 | lFB | 0.85 | 12.2 |
69 | 30043-01-08-00 | 02/10/98 | 17:52:44 | 1750 | lFB
![]() |
3.39 | 46.7 |
70 | 30043-01-10-00 | 03/10/98 | 21:04:16 | 1392 | lFB | 0.66 | 4.1 |
71 | 30043-01-11-00 | 04/10/98 | 05:04:23 | 1962 | mFB
![]() |
0.85 | 12.3 |
72 | 30043-01-12-00 | 04/10/98 | 16:17:02 | 1860 | mFB | 1.28 | 15.6 |
73 | 30043-01-13-00 | 05/10/98 | 10:37:06 | 881 | NB | 0.37 | 3.4 |
74 | 30043-01-13-00 | 05/10/98 | 11:28:32 | 1515 | NB
![]() |
0.42 | 2.5 |
75 | 30043-01-14-00 | 05/10/98 | 22:41:02 | 1477 | lFB | 0.65 | 6.5 |
76 | 30043-01-15-00 | 06/10/98 | 10:21:57 | 1678 | NB | 0.79 | 3.3 |
77 | 30043-01-16-00 | 07/10/98 | 00:17:02 | 1965 | uFB
![]() |
2.37 | 26.2 |
78 | 30043-01-18-00 | 08/10/98 | 01:52:35 | 2287 | mFB | 1.09 | 12.3 |
79 | 30043-01-19-00 | 08/10/98 | 13:04:35 | 879 | lFB | 0.63 | 5.8 |
80 | 30043-01-20-00 | 09/10/98 | 00:16:10 | 2056 | lFB | 0.55 | 5.6 |
81 | 30043-01-21-00 | 09/10/98 | 15:06:34 | 1792 | uFB | 2.22 | 18.3 |
82 | 30043-01-23-00 | 10/10/98 | 13:03:49 | 1933 | mFB | 0.68 | 9.3 |
83 | 30043-01-26-00 | 12/10/98 | 00:15:39 | 1959 | uFB | 1.11 | 9.1 |
84 | 30043-01-27-00 | 12/10/98 | 14:38:24 | 626 | lFB | 0.29 | 2.2 |
85 | 30043-01-27-00 | 12/10/98 | 15:16:32 | 1154 | mFB
![]() |
1.45 | 10.3 |
86 | 30043-01-28-00 | 13/10/98 | 05:29:42 | 1676 | uFB | 1.85 | 18.5 |
87 | 30043-01-29-00 | 13/10/98 | 21:02:24 | 1525 | lFB | 0.89 | 8.2 |
Obs. no. | Sz | VLFN | PN | |||
Index | rms (%) | Frequency (Hz) | FWHM (Hz) | rms (%) | ||
16 |
![]() |
0.19 +0.02-0.02 |
![]() |
8.0a | 8.0a | <0.63c |
52b |
![]() |
2.19 +0.95-1.8 |
![]() |
6.99 +1.05-1.2 | 12.00 +3.55-2.71 |
![]() |
74 |
![]() |
2.10 +0.36-0.46 |
![]() |
7.00 +0.53-0.66 | 5.78 + 1.64-1.75 |
![]() |
17 |
![]() |
0.15 +0.02-0.01 |
![]() |
6.80 +0.71-0.68 | 7.90 +2.28-1.80 |
![]() |
44 |
![]() |
1.69 +0.28-0.39 |
![]() |
6.38 +0.33-0.33 | 5.78 +1.2-0.98 |
![]() |
15 |
![]() |
0.46 +0.05-0.04 |
![]() |
8.0a | 8.0a | <0.44c |
73 |
![]() |
2.41 +0.46-0.55 |
![]() |
5.00 +1.44-1.44 | 8.74 + 1.55-1.2 |
![]() |
76 |
![]() |
1.99 +0.39-0.59 |
![]() |
8.30 +0.40-0.40 | 5.50 +1.40-1.10 |
![]() |
38 |
![]() |
1.67 +0.42-0.67 |
![]() |
7.76 +0.63-0.60 | 8.99 +1.94-1.59 |
![]() |
43 |
![]() |
1.35 +0.21-0.16 |
![]() |
8.91 +0.71-0.67 | 10.61 +2.86-2.24 |
![]() |
33 |
![]() |
1.55 +0.43-0.82 |
![]() |
6.42 +0.47-0.46 | 5.17 +1.51-2.03 |
![]() |
48 |
![]() |
2.41 +0.41-0.54 |
![]() |
10.33 +1.2-1.1 | 14.89 +3.2-2.70 |
![]() |
39 |
![]() |
- | - | 8.22 +1.39-1.22 | 14.22 +5.67-4.6 |
![]() |
42 |
![]() |
0.15 +0.02-0.03 |
![]() |
8.85 +0.74-0.72 | 6.48 +2.49-2.10 |
![]() |
68 |
![]() |
1.86 +0.60-0.60 |
![]() |
5.64 +0.96-1.27 | 10.02 +2.20-1.90 |
![]() |
2b |
![]() |
- | - | 5.78 +0.68-0.73 | 10.65 +2.62-2.18 |
![]() |
47a |
![]() |
1.78 +0.26-0.32 |
![]() |
5.94 +0.41-0.43 | 8.47 +1.41-1.21 |
![]() |
37b |
![]() |
1.27 +0.13-0.19 |
![]() |
9.02 +0.91-0.87 | 10.31 +2.66-2.26 |
![]() |
45a |
![]() |
1.53 +0.21-0.26 |
![]() |
10.16 +1.77-1.94 | 11.73 +3.73-3.30 |
![]() |
5b |
![]() |
1.45 +0.39-0.53 |
![]() |
5.89 +0.76-0.66 | 8.33 +2.03-1.85 |
![]() |
6 |
![]() |
1.54 +0.17-0.22 |
![]() |
7.12 +1.02-0.98 | 10.08 +3.29-2.39 |
![]() |
11c |
![]() |
1.80 +0.33-0.39 |
![]() |
7.69 +0.80-0.73 | 7.29 +2.16-1.67 |
![]() |
50 |
![]() |
1.51 +0.26-0.38 |
![]() |
8.32 +0.28-0.27 | 3.16 +0.75-0.74 |
![]() |
51 |
![]() |
1.59 +0.23-0.32 |
![]() |
8.48 +0.71-0.65 | 5.64 +2.84-1.89 |
![]() |
27 |
![]() |
1.37 +0.10-0.12 |
![]() |
6.43 +0.35-0.37 | 10.97 +0.94-1.02 |
![]() |
75b |
![]() |
1.41 +0.16-0.25 |
![]() |
6.27 +0.52-0.59 | 11.20 +1.16-1.22 |
![]() |
11a |
![]() |
1.40 +0.39-0.20 |
![]() |
6.73 +0.45-0.37 | 11.60 +2.19-2.18 |
![]() |
2a |
![]() |
1.44 +0.12-0.14 |
![]() |
5.73 +0.23-0.24 | 10.00 +0.62-0.58 |
![]() |
65a |
![]() |
1.25 +0.06-0.06 |
![]() |
6.31 +0.36-0.36 | 5.52 +1.1-0.90 |
![]() |
84 |
![]() |
1.44 +0.10-0.11 |
![]() |
6.61 +0.76-1.18 | 6.86 +1.75-1.63 |
![]() |
52a |
![]() |
1.85 +0.36-0.52 |
![]() |
4.98 +0.49-0.52 | 10.81 +1.21-1.10 |
![]() |
11b |
![]() |
1.67 +0.19-0.24 |
![]() |
6.08 +0.32-0.33 | 9.13 +1.03-0.928 |
![]() |
18 |
![]() |
1.31 +0.10-0.12 |
![]() |
6.24 +0.23-0.23 | 9.27 +0.60-0.70 |
![]() |
55c |
![]() |
1.68 +0.19-0.24 |
![]() |
5.57 +0.31-0.34 | 9.48 +0.94-0.86 |
![]() |
87 |
![]() |
1.70 +0.30-0.37 |
![]() |
8.69 +1.05-1.17 | 14.78 +2.58-2.25 |
![]() |
75a |
![]() |
1.88 +0.80-0.80 |
![]() |
4.71 +0.86-1.23 | 8.83 +1.83-1.65 |
![]() |
8c |
![]() |
1.54 +0.28-0.39 |
![]() |
6.39 +0.45-0.46 | 10.47 +1.16-1.04 |
![]() |
52c |
![]() |
1.47 +0.32-0.51 |
![]() |
5.44 +0.49-0.49 | 9.97 +1.27-1.41 |
![]() |
65b |
![]() |
1.51 +0.15-0.20 |
![]() |
5.81 +0.30-0.31 | 8.09 +0.88-0.78 |
![]() |
47b |
![]() |
1.42 +0.17-0.23 |
![]() |
5.76 +0.29-0.31 | 7.82 +0.93-0.85 |
![]() |
37a |
![]() |
1.41 +0.15-0.19 |
![]() |
5.55 +0.31-0.32 | 9.14 +0.76-0.84 |
![]() |
56 |
![]() |
1.42 +0.20-0.31 |
![]() |
5.89 +0.37-0.39 | 9.66 +0.94-0.84 |
![]() |
4a |
![]() |
1.38 +0.25-0.48 |
![]() |
6.20 +1.43-2.00 | 12.44 +3.22-2.70 |
![]() |
80 |
![]() |
1.81 +0.16-0.16 |
![]() |
6.19 +0.36-0.40 | 4.84 +1.73-1.38 |
![]() |
5a |
![]() |
1.56 +0.18-0.24 |
![]() |
5.79 +0.28-0.28 | 8.31 +0.78-0.71 |
![]() |
55b |
![]() |
1.98 +0.49-0.65 | 1
![]() |
6.18 +0.48-0.52 | 9.28 +1.44-1.25 |
![]() |
45b |
![]() |
2.53 +0.43-0.64 |
![]() |
5.09 +0.33-0.33 | 8.97 +0.93-0.84 |
![]() |
26 |
![]() |
1.64 +0.15-0.17 |
![]() |
6.67 +0.46-0.47 | 11.60 +1.21-1.10 |
![]() |
71 |
![]() |
1.90 +0.35-0.59 |
![]() |
5.06 +0.33-0.33 | 10.97 +0.84-0.78 |
![]() |
46 |
![]() |
1.63 +0.17-0.20 |
![]() |
5.52 +0.24-0.25 | 10.45 +0.60-58 |
![]() |
Obs. no. | Sz | VLFN | PN | |||
Index | rms (%) | Frequency (Hz) | FWHM (Hz) | rms (%) | ||
2c |
![]() |
1.48 +0.10-0.13 |
![]() |
5.71 +0.22-0.22 | 9.93 +0.55-0.47 |
![]() |
70 |
![]() |
1.50 +0.15-0.21 |
![]() |
5.32 +0.30-0.31 | 9.29 +0.89 -0.80 |
![]() |
79 |
![]() |
1.53 +0.14-0.19 |
![]() |
6.59 +0.26-0.26 | 8.72 +0.68-0.63 |
![]() |
14a |
![]() |
1.41 +0.28-0.48 |
![]() |
6.13 +0.40-0.39 | 8.49 +1.28-1.12 |
![]() |
7a |
![]() |
2.15 +0.34-0.29 |
![]() |
5.62 +0.36-0.38 | 9.61 +0.99-0.90 |
![]() |
69a |
![]() |
1.14 +0.05-0.06 |
![]() |
5.63 +0.55-0.51 | 7.74 +1.51-1.32 |
![]() |
64a |
![]() |
1.28 +0.18-0.18 |
![]() |
4.75 +0.73-0.52 | 5.73 +1.12-1.32 |
![]() |
13 |
![]() |
1.51 +0.11-0.12 |
![]() |
5.69 +0.19-0.19 | 9.14 +0.48-0.47 |
![]() |
9a |
![]() |
1.72 +0.33-0.45 |
![]() |
5.71 +0.91-0.92 | 11.59 +1.94-1.62 |
![]() |
78 |
![]() |
1.85 +0.28-0.32 |
![]() |
5.82 +0.51-0.53 | 10.49 +1.20-1.09 |
![]() |
72a |
![]() |
1.12 +0.04-0.04 |
![]() |
6.00 +0.26-0.26 | 5.97 +0.64-0.59 |
![]() |
59 |
![]() |
2.62 +0.59-0.98 |
![]() |
4.70 +0.46-0.47 | 9.34 +1.43-1.22 |
![]() |
53a |
![]() |
2.56 +0.61-1.1 |
![]() |
4.72 +0.30-0.28 | 9.15 +0.85-0.78 |
![]() |
9b |
![]() |
1.93 +0.30-0.41 |
![]() |
5.97 +0.36-0.39 | 6.71 +1.3-1.31 |
![]() |
22c |
![]() |
1.44 +0.13-0.15 |
![]() |
6.14 +0.31-0.32 | 7.41 +0.83-0.92 |
![]() |
31b |
![]() |
1.69 +0.47-0.28 |
![]() |
5.33 +0.39-0.43 | 8.93 +1.03-0.93 |
![]() |
53c |
![]() |
2.06 +0.37-0.33 |
![]() |
4.80 +0.48-0.56 | 7.69 +1.23-1.08 |
![]() |
54 |
![]() |
1.55 +0.13-0.16 |
![]() |
5.14 +0.19-0.20 | 7.42 +0.52-0.48 |
![]() |
19a |
![]() |
2.02 +0.26-0.31 |
![]() |
4.56 +0.30-0.30 | 8.39 +0.85-0.77 |
![]() |
8a |
![]() |
1.59 +0.11-0.13 |
![]() |
5.84 +0.22-0.23 | 9.06 +0.64-0.59 |
![]() |
77b |
![]() |
2.00 +0.38-0.59 |
![]() |
5.46 +0.33-0.31 | 9.72 +0.72-0.68 |
![]() |
61b |
![]() |
2.56 +1.1-0.75 |
![]() |
6.71 +0.96-0.95 | 8.89 +3.5-3.0 |
![]() |
8b |
![]() |
1.51 +0.14-0.17 |
![]() |
6.00 +0.33-0.35 | 7.08 +1.05-0.98 |
![]() |
64b |
![]() |
1.66 +0.20-0.26 |
![]() |
5.07 +0.33-0.35 | 7.40 +0.96-0.85 |
![]() |
82 |
![]() |
1.78 +0.13-0.13 |
![]() |
5.8b | 8.0b | <0.31c |
1a |
![]() |
0.55 +0.025-0.025 |
![]() |
7.54 +0.94-0.87 | 9.74 +2.27-1.90 |
![]() |
72b |
![]() |
1.85 +0.29-0.41 |
![]() |
4.94 +0.42-0.41 | 8.66 +1.1-0.99 |
![]() |
23 |
![]() |
1.63 +0.14-0.16 |
![]() |
5.72 +0.46-0.48 | 7.30 +1.13-0.97 |
![]() |
67b |
![]() |
2.84 +0.51-0.63 |
![]() |
6.31 +0.91-1.09 | 9.28 +2.77-2.11 |
![]() |
24a |
![]() |
1.70 +0.18-0.20 |
![]() |
5.36 +0.36-0.37 | 7.40 +1.15-0.99 |
![]() |
55a |
![]() |
1.52 +0.18-0.24 |
![]() |
5.41 +0.58-0.64 | 9.53 +1.43-1.58 |
![]() |
21b |
![]() |
1.54 +0.10-0.11 |
![]() |
5.68 +0.28-0.29 | 7.15 +0.76-0.69 |
![]() |
19b |
![]() |
1.77 +0.18-0.22 |
![]() |
5.48 +0.24-0.24 | 7.82 +0.72-0.67 |
![]() |
69b |
![]() |
1.99 +0.24-0.30 |
![]() |
6.29 +0.56-0.53 | 7.89 +2.3-1.96 |
![]() |
62a |
![]() |
1.62 +0.21-0.26 |
![]() |
5.64 +0.45-0.47 | 7.72 +1.38-1.16 |
![]() |
60a |
![]() |
1.67 +0.20-0.24 |
![]() |
7.19 +0.77-0.87 | 9.83 +2.11-1.79 |
![]() |
26 |
![]() |
1.83 +0.16-0.18 |
![]() |
5.86 +0.80-0.89 | 8.97 +2.56-2.07 |
![]() |
29 |
![]() |
1.63 +0.10-0.12 |
![]() |
5.63 +0.53-0.56 | 8.91 +1.18-1.05 |
![]() |
57 |
![]() |
1.74 +0.26-0.32 |
![]() |
6.43 +0.67-0.62 | 5.60 +2.10-1.69 |
![]() |
63 |
![]() |
1.37 +0.06-0.07 |
![]() |
5.44 +0.49-0.46 | 6.82 +0.75-0.75 |
![]() |
25 |
![]() |
1.97 +0.24-0.28 |
![]() |
4.91 +1.5-1.1 | 7.51 +2.64-2.27 |
![]() |
14b |
![]() |
1.65 +0.13-0.15 |
![]() |
4.66 +0.31-0.32 | 5.85 +0.90-0.78 |
![]() |
31a |
![]() |
2.04 +0.27-0.28 |
![]() |
4.98 +0.55-0.59 | 7.51 +1.42-1.20 |
![]() |
28 |
![]() |
1.83 +0.23-0.28 |
![]() |
3.94 +1.88-2.74 | 9.65 +3.44-2.96 |
![]() |
10 |
![]() |
1.62 +0.12-0.15 |
![]() |
4.51 +0.49-0.51 | 4.18 +1.44-1.08 |
![]() |
66a |
![]() |
1.41 +0.08-0.10 |
![]() |
5.75 +0.67-0.54 | 7.40 +1.31-1.36 |
![]() |
35 |
![]() |
1.37 +0.13-0.19 |
![]() |
5.39 +0.46-0.48 | 6.26 +1.45-0.136 |
![]() |
7b |
![]() |
1.78 +0.31-0.33 |
![]() |
5.67 +0.74-0.96 | 7.25 +2.71-2.09 |
![]() |
58 |
![]() |
1.82 +0.09-0.10 |
![]() |
6.07 +0.68-0.72 | 9.03 +1.44-1.13 |
![]() |
61a |
![]() |
1.50 +0.16-0.20 |
![]() |
6.83 +0.76-0.86 | 5.31 +2.74-1.61 |
![]() |
30 |
![]() |
1.64 +0.07-0.08 |
![]() |
5.27 +0.49-0.49 | 6.68 +1.10-0.95 |
![]() |
53b |
![]() |
1.75 +0.18-0.22 |
![]() |
5.22 +0.76-0.87 | 7.91 +3.1-2.4 |
![]() |
77a |
![]() |
1.83 +0.10-0.10 |
![]() |
5.8b | 8.0b | <0.58c |
85 |
![]() |
1.81 +0.21-0.32 |
![]() |
5.8b | 8.0b | <0.33c |
36 |
![]() |
1.45 +0.09-0.10 |
![]() |
5.8b | 8.0b | <0.44c |
41 |
![]() |
1.61 +0.12-0.13 |
![]() |
5.8b | 8.0b | <0.46c |
4b |
![]() |
1.57 +0.10-0.11 |
![]() |
5.56 +0.77-0.74 | 7.15 +1.95-1.61 |
![]() |
Obs. no. | Sz | VLFN | PN | |||
Index | rms (%) | Frequency (Hz) | FWHM (Hz) | rms (%) | ||
32 |
![]() |
1.38 +0.11-0.13 |
![]() |
5.8b | 8.0b | <0.42c |
40 |
![]() |
1.55 +0.09-0.10 |
![]() |
5.71 +0.71-0.80 | 6.99 +1.69-1.34 |
![]() |
1b |
![]() |
0.64 +0.03-0.03 |
![]() |
5.8b | 8.0b | <0.18c |
60b |
![]() |
1.69 +0.11-0.12 |
![]() |
5.8b | 8.0b | <0.38c |
64c |
![]() |
1.39 +0.10-0.13 |
![]() |
5.8b | 8.0b | <0.55c |
34 |
![]() |
0.11 +0.01-0.01 |
![]() |
5.8b | 8.0b | <0.22c |
22b |
![]() |
1.38 +0.07-0.08 |
![]() |
5.8b | 8.0b | <0.44c |
81 |
![]() |
1.92 +0.25-0.27 |
![]() |
6.21 +0.39-0.41 | 8.27 +0.80-0.74 |
![]() |
22a |
![]() |
1.61 +0.15-0.18 |
![]() |
5.8b | 8.0b | <0.16c |
14c |
![]() |
1.24 +0.07-0.08 |
![]() |
5.8b | 8.0b | <0.45c |
62b |
![]() |
1.64 +0.10-0.11 |
![]() |
5.8b | 8.0b | <0.45c |
21a |
![]() |
1.48 +0.09-0.10 |
![]() |
5.8b | 8.0b | <0.47c |
28 |
![]() |
1.42 +0.09-0.10 |
![]() |
5.8b | 8.0b | <0.41c |
86b |
![]() |
1.55 +0.17-0.14 |
![]() |
3.84 +0.28-0.33 | 1.74 +0.94-0.65 |
![]() |
66b |
![]() |
1.47 +0.09-0.10 |
![]() |
5.8b | 8.0b | <0.36c |
67a |
![]() |
1.35 +0.06-0.07 |
![]() |
5.8b | 8.0b | <0.42c |
20a |
![]() |
1.55 +0.17-0.21 |
![]() |
5.8b | 8.0b | <0.16c |
20b |
![]() |
1.52 +0.07-0.08 |
![]() |
5.8b | 8.0b | <0.39c |
86a |
![]() |
1.34 +0.09-0.11 |
![]() |
5.8b | 8.0b | <0.46c |
83 |
![]() |
1.23 +0.09-0.09 |
![]() |
6.39 +1.5-1.6 | 9.88 +1.68-1.42 |
![]() |
24b |
![]() |
1.64 +0.10-0.11 |
![]() |
5.8b | 8.0b | <0.14c |
a ![]() b ![]() c 90% confidence upper limit. |
