A&A 397, 951-959 (2003)
DOI: 10.1051/0004-6361:20021539
C. Lederle - S. Kimeswenger
Institut für Astrophysik der Leopold-Franzens-Universität Innsbruck, Technikerstr. 25, 6020 Innsbruck, Austria
Received 16 August 2002 / Accepted 30 September 2002
Abstract
We present detailed photometric investigations of the
recurrent nova CI Aql. New data obtained after the 2000 outburst
are used to derive a 3D geometrical model of the system. The
resulting light curves clearly indicate the existence of an
asymmetric spray around the accretion disk, as claimed in the past
e.g. for the super-soft X-ray source CAL87 in the LMC. The
simulated light curves give us the mass transfer rates varying
from
in 1991-1996 to
in 2001/2002. The
distance and the interstellar foreground extinction resulting from
the model are 1.55 kpc and
respectively. During fast photometry sequences in 2002 short
timescale variations (
min) of the mass
loss are found. Moreover a change in the orbital period of the
system is detectable and results in a mass loss of
during the nova explosion.
Key words: stars: individual: CI Aql - stars: novae, cataclysmic variables - accretion, accretion disks - binaries: eclipsing
CI Aql is one of the 9 known members of the class of recurrent
novae: U Sco, V394 CrA, RS Oph, T CrB, V745 Sco, V3890 Sgr, T Pyx,
CI Aql and IM Nor (Webbink et al. 1987;
Sekiguchi 1995; Schmeja et al. 2000; Liller
2002). Webbink et al. (1987) also mention
V1017 Sgr as a possible class member although its status is still
not clear. The first known outburst of CI Aql was discovered on Heidelberg
plates recorded in June 1917 (Reinmuth 1925). Williams
(2000) completed the light curve by using records on
Harvard College Observatory patrol plates. Schaefer (2001a)
found another outburst in 1941, again on Harvard plates. Schaefer
argues, that it might be a recurrent nova with a timescale of 20
years and that the 1960 and 1980 outbursts were missed. As the
timescales of other recurrent novae often change and as there are
no observations available, we assume for our calculations a
quiescence phase of 60 years before the 2000 event. This does not
affect the results of the model presented here but our resulting
pre-outburst accretion rate indicates a long recurrence
timescale. CI Aql was found to be an eclipsing binary system with
a period of 0
618355(9) by Mennickent & Honeycutt (1995).
It is, to our knowledge, the only eclipsing system investigated
photometrically in such detail before and after an outburst.
Following the classification of Sekiguchi (1995), CI Aql
is of the U Sco subclass (slightly evolved main sequence star
and accreting white dwarf). For a detailed discussion of the
outburst data we refer to Matsumoto et al. (2001) and Kiss
et al. (2001).
In this paper we deduce a detailed model of the system based on our optical photometry of 2001 and 2002. Further we follow the final decline to quiescence and find quasi-periodic short timescale variations in this system. Together with pre-outburst data of Honeycutt (2001) we finally determine a period change.
The new data were obtained with the Innsbruck 60cm telescope
(Kimeswenger 2001) and a direct imaging CCD device in the
period from June 21, 2001 to July 9, 2002. In 2001 a CompuScope
Kodak 0400 CCD (
1 field of view) was
attached, in 2002 it was an AP7p SITe 502e (
). 781 images were taken in 34 nights with V, R and
filters. The exposure times varied with filter,
brightness, weather conditions and camera. Flatfield and bias
subtraction were carried out in a standard manner with the help of
MIDAS routines. The source extraction was performed using
SExtractor V2 (Bertin & Arnouts 1996). The rms of the
comparison standards in the field was <
with the Kodak
chip and <
with the SITe CCD typically.
The light curve was obtained by means of differential photometry
of up to 40 stars within about
from the target in this
very crowded field. For the absolute calibration, CCD standards in
the field by Henden & Honeycutt (1995) and Henden
(2001) were applied. We found on that occasion that the
coordinates of the whole set of the Henden & Honeycutt standards
are shifted
east and
south and thus the
finding chart overlay (SIMBAD/ALADIN) is wrong. As we use Johnson
R and the CCD standards of Henden (2001) are taken in
we have to assume color terms in the absolute
calibration. The attempt to derive these terms failed within the
accuracy of the photometric data. We thus did not use the R band
for the final results in extinction and distance (see
Sect. 5).
The pre-outburst data, ranging from June 4, 1991 to September 29, 1996, were provided to us by Honeycutt (2001). The data consist of two sets (changing June 1995) with different zero points. The first set (the one used for Mennickent & Honeycutt 1995) was shifted according to the information given by Honeycutt. This corresponds well to the calibration of Skody & Howell (1992).
First of all we derived the "remnant'' of the outburst in our 2001 data. The object clearly had not returned completely to quiescence as stated by Schaefer (2001b) for August 4, 2001. To verify the real level, the new period (see Sect. 7) was taken and the data points outside the primary eclipse were used to derive the final decline of the nova outburst. We see (Fig. 1) that this decline ended somewhen in February/March 2002.
![]() |
Figure 1:
The final decline phase of the recent nova outburst
(upper: ![]() |
Open with DEXTER |
In contrast to this slowly continuous decline, the plateau phase
in the model of Hachisu & Kato (2001) should stop abruptly
when the super-soft X-ray source phase ends. The date for this
end of the plateau phase depends strongly on the hydrogen content
X. The overall evolution is shown in Fig. 2. We find
that the decline started between JD 2 452 050 and JD 2 452 100.
![]() |

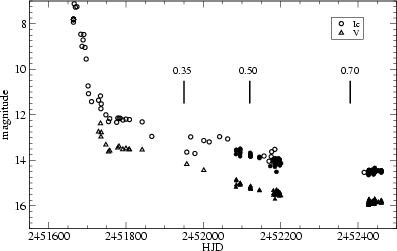

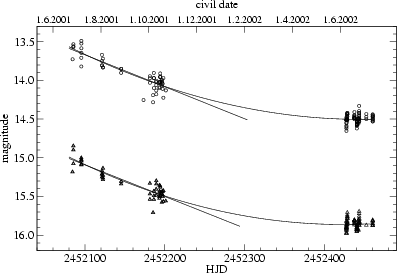

Figure 2: The complete decline phase of the 2000 outburst (open symbols: CCD data from VSNET; closed symbols: our photometry). Due to the orbital modulation the upper boundaries have to be used. The ticks mark the predicted dates for the abrupt decline after the plateau for different hydrogen content X (Hachisu & Kato 2001). |
Open with DEXTER |
![]() |

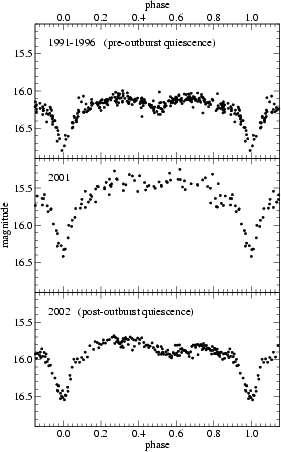

Figure 3: The V light curves for three different epochs: 1991-1996 (upper), 2001 (middle) and 2002 (lower panel). The light curve for 2001 was corrected according to the linear final decline shown above and normalized relative to October 1, 2001. The scatter is dominated by the short timescale variations (see Sect. 6) and not by the errors in the data. |
Open with DEXTER |
The linear decline (Fig. 1) was subtracted to derive the light curve for 2001 which is shown together with those from the pre-outburst and from 2002 in Fig. 3. The periods and epochs used are described in Sect. 7.
The WD mass of 1.2
was derived by Hachisu &
Kato (2001, Fig. 4) by means of the thick-wind model of
the early decline of the 1917 and the 2000 outburst. The mass of
the SE cannot be determined directly. For a range of SE masses we
used the evolutionary tracks and colors for solar abundance stars
of Girardi et al. (2000) and our 2002 photometry at
minimum, when the SE dominates the emission. The point in the
evolutionary track was chosen to fill the Roche lobe. This results
in the extinction free (
)0 color. Together with
our measured (
)
in 2002 and each SE mass we are able
to derive a corresponding range for EB-V. The results are
summarized in Table 1.
![]() ![]() |
![]() ![]() |
![]() |
(
![]() |
EB-V |
1.4 | 1.65 | 6 690 | 0
![]() |
0
![]() |
1.5 | 1.69 | 7 040 | 0
![]() |
0
![]() |
1.6 | 1.74 | 7 380 | 0
![]() |
0
![]() |
1.7 | 1.78 | 7 760 | 0
![]() |
1
![]() |
1.8 | 1.83 | 8 110 | 0
![]() |
1
![]() |
According to van den Heuvel et al. (1992) a 1.4 ZAMS star as SE can already achieve a mass transfer, which leads
to a steady hydrogen shell burning on the WD. A recurrent nova is
not likely anymore below this mass limit. Thus a smaller SE does
not have to be taken into account. On the other hand the
photometry of Schmeja et al. (2000)
shortly after the outburst limits the interstellar extinction. The
(
)0 as well as the (
)0 were
calculated for different interstellar extinctions. They get to a
negative domain at
.
Thus, this is an
upper limit for the extinction, assuming a dominant photosphere.
We conclude that
.
The geometric model was realized with the help of the "MATLAB language of technical computing 5.3R11'' (1999).
This allowed us to easily implement and modify various asymmetric
surfaces, system inclinations and rotation periods. All surfaces
are assumed to radiate like black bodies. The ray tracing for the
irradiation within the system was solved explicitly. The ray
tracings during system rotation for the resulting light curves
were obtained by the internal renderer.
![]() |

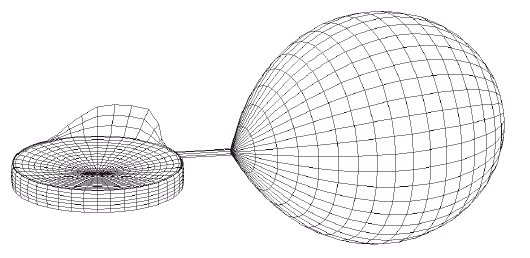

Figure 4: The basic geometric model with the Roche lobe filling SE, the symmetric accretion disk, the accretion stream and the spray of bounced material at the light curve phase of 0.33. The grid mesh density of the surfaces was reduced here for clarity by a factor of three with respect to the one used in the real calculations. |
Open with DEXTER |
![]() |
(1) |
The direct light contribution of the WD is negligibly small in our visual bands. It only contributes by the irradiation on the other components.
The shape of the secondary is calculated numerically. It starts in
the inner critical Lagrange point which is fixed by
![]() |
(2) |
![]() |
(3) |
The star is irradiated by the WD. This increases the undisturbed
temperature T*,0:
![]() |

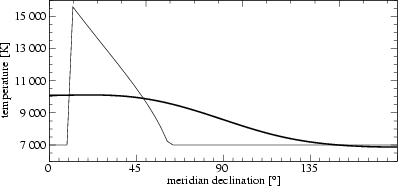

Figure 5:
The effects of the redistribution of the temperature
along the meridian from the inner critical Lagrange point (0![]() ![]() ![]() ![]() |
Open with DEXTER |
![]() |
(5) |
![]() |
(6) |
The disk temperature was adopted from the
frictional heating and the surface irradiation as in Schandl et al. (1997) by
![]() |
(7) |
The spray was first introduced by Schandl et al. (1997) as
convolute of individual blobs bounced after reaching the incident
point of the accretion stream. Schandl et al. (1997) and
Meyer-Hofmeister et al. (1997, 1998) found
that the vertical extension dominates the effect on the light
curve for the high inclination system here. Although they were
able to calculate individual trajectories of undisturbed blobs the
final, optically thick surface was modelled from the effects in
the light curve (see Fig. 6).
![]() |

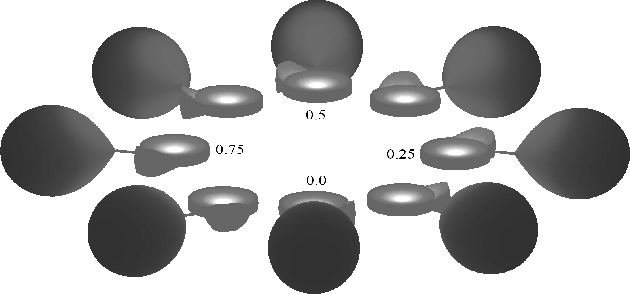

Figure 6: The model for the different phases. The grey scale represents the V flux intensity due to the temperature distribution. |
Open with DEXTER |
In the text
![]() |

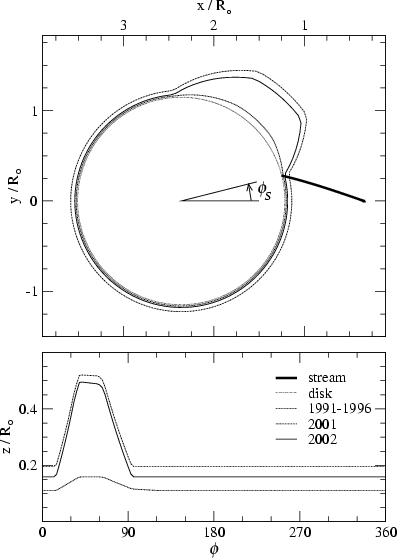

Figure 7: The structure of the spray as seen from above (upper panel, including the circular disk) and its vertical structure projection (lower panel). The shape is symmetric with respect to the equatorial plane. The coordinates originate in the center of gravity (GC). For the stream the real trajectory is shown here. For the calculation a straight approximation was used. |
Open with DEXTER |
The temperature of the irradiated regions of the spray
were deduced according to Eq. (4) with the stream
temperature
as undisturbed value.
Since the material consists of a clumpy medium the overall
efficiency for heating due to irradiation is not comparable to a
stellar photosphere. At short wavelength it is even assumed that
the spray is semi-transparent (Meyer 2002)
causing the observed super soft X-ray effects. In the simulations
we therefore found the plausible value of
.
The end points of the accretion stream are defined on the one hand
by the Lagrange point and on the other hand by the impact point.
The latter is calculated from an undisturbed gravitational
particle trajectory towards the disk and characterized by the
angle
.
As the bend of the
trajectory is small (Fig. 7), a straight line was
assumed. The cross-section of the stream is determined like in
Meyer & Meyer-Hofmeister (1983) but slightly flattened.
Recent hydrodynamic numerical simulations by Oka et al.
(2002) show very similar deflection angles and tube
geometries at
.
The temperature
of the
material is defined by the irradiated and distributed temperature
of the SE at the stream source. The contribution of the stream to
the light curve is rather small.
The individual components dominate different parts of the light curve:
![]() |

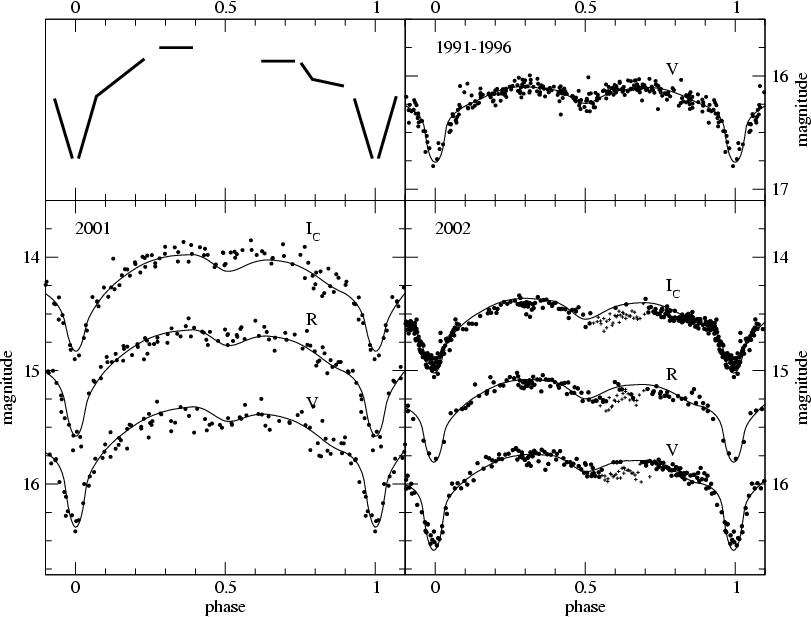

Figure 8: The features used to limit independently different geometrical structures of the model (upper left panel). The data points for the individual epochs and colors together with the simulated curves are shown in the other panels. The crosses in the 2002 data from phase 0.55 to 0.68 correspond to data of two individual nights only. They seem do deviate systematically from the model. As shown later individual nights may vary due to variations in the accretion rate. We assume this sub-sample to be affected in such a way. |
Open with DEXTER |
system: | i = 71
![]() |
|
secondary: |
![]() |
![]() |
white dwarf: |
![]() |
![]() ![]() |
disk: |
![]() |
|
stream: |
![]() |
|
1991-1996 |
![]() |
![]() |
2001 |
![]() |
R1 = 0.75 |
2002 |
![]() |
R1 = 0.72 |
The parameters
,
,
i,
,
,
,
,
and the spray geometry were varied
independently in the beginning. The use of different photometric
bands - namely V, R and
- gives us further
restrictions to the overlapping part of the possible individual
solutions. Finally
,
,
i,
,
and
set limits to the variation ranges between the years. The
pre-outburst parameters are missing other bands than V and thus
are somewhat more flexible. The resulting simulated light curves
are shown together with the data in Fig. 8. In
Fig. 9 the individual contributions of the components
to the total light curve are plotted.
![]() |

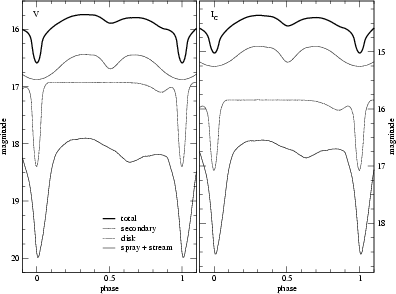

Figure 9:
The contribution of the individual components to the total
light curve in 2001 for V (left) and ![]() |
Open with DEXTER |
The model light curves were derived independently for each band. When shifting those curves to the data we obtain for each band an optimized solution as function of the distance D and the foreground extinction. Having more than two bands allows us to derive EB-V (Fig. 11), using a standard model for the interstellar extinction (Mathis et al. 1977).
Kiss et al. (2001) derive values of
,
and
for the diffuse
interstellar bands (DIB) at 584.9 nm, 661.3 nm and CaII 393.4 nm
respectively. Using the photometries of Hanzl (2000) and
Jesacher et al. (2000) on days +2 and +6 after maximum
and the general tendency for novae around maximum of
(Kiss et al. 2001) we
get
.
But, as Kiss et al.
already pointed out, those colors may be affected strongly by
emission features. From their model of the pre-outburst light
curve, Hachisu & Kato (2001) derive
.
In their revision (Hachisu & Kato 2002), based
on the early final B band decline points of Schaefer
(2001b, 2001c) and thus a low hydrogen content (see
Sect. 3), they move it to EB-V = 1
00.
While the direct spectroscopic methods give similar results, the
photometry suffers from the fact, that an average color for novae
is assumed. The comparison with the models using the B band may
also suffer from the fact that this band is mostly affected by the
non grey opacities. A black body, as used by the models, may not
work properly. We mostly rely on the direct spectroscopic methods
and the models here using the red bands and thus use
.
The total luminosity also results from the simulations. This gives
us a distance of 1.52 kpc to 1.58 kpc. Hachisu &
Kato (2001) get 1.6 kpc from the maximum outburst
brightness and using
,
whereas in
their revision (Hachisu & Kato 2002) they derive
1.1 kpc.
The bandwidth of the photometric variations, as
shown in Fig. 3, gives us information on short
timescale variations of the mass transfer. Meyer-Hofmeister et al.
(1998) found already in RX J0019.8+2156
variations in the timescale of 1
2. To monitor the details of
the mass transfer we carried out fast
photometry in
the nights of June 26, 2002 and July 4, 2002. Both nights were
characterized by a primary minimum. The minima were overlayed and
the lower boundary was used to define the undisturbed minimum
(Fig. 10).
![]() |

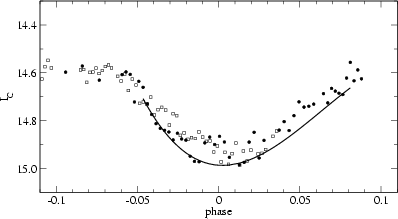

Figure 10:
The ![]() |
Open with DEXTER |
![]() |

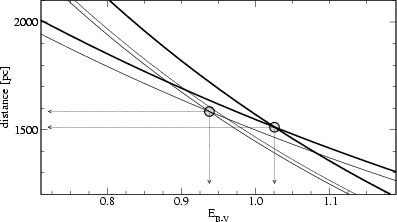

Figure 11:
The distance as function of the interstellar extinction
for different bands individually. The solutions are derived by the
intersection of the pairs of each year. The thick lines are the
solution for 2001 resulting in
![]() ![]() |
Open with DEXTER |
After the subtraction of the undisturbed minima, the residuals
show the typical timescale of
(
).
Meyer-Hofmeister et al. (1998) assume that some of
the individual blobs forming the spray are more violently expelled
due to variations and instabilities of the mass transfer flow.
Consequently, this causes a temporarily extended spray, detectable
as small "outburst''. Meyer-Hofmeister et al. use
,
where
is the
Keplerian orbital period at the edge of the accretion disk. They
assume that the blobs oscillate free around the mean circular
orbit and thus give the timescale for the "outbursts''. In
contrast, we use the angular dimensions of the spray. The spray
will orbit with about the same rotational velocity as the
accretion disk. The geometric models result in a spray, where the
expelled material returns after about one quarter of an orbit to
the accretion disk. This results in
or in our case 7
(0.008 P). As the blobs of the
spray reach out to up to 1.4 times the accretion disk radius the
timescale can be up to 12.5
(0.014 P). The finite
duration of the accretion outbursts extend those times. Thus the
calculated timescales are the lower boundaries. In fact we find
these variations during the minima, when the extended spray
geometry is well visible and at the same time the luminosity
contrast is enhancing the effect in the photometry
(Fig. 12).
![]() |

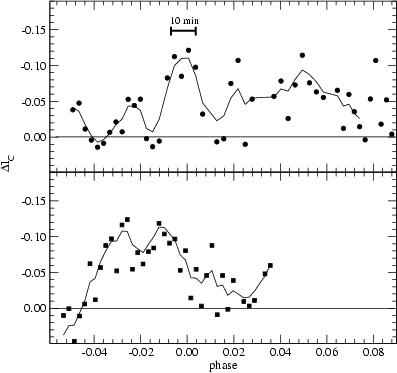

Figure 12:
The residuals of the ![]() ![]() |
Open with DEXTER |
Our data indicated a shift of the period. The
periods were calculated using the PDM method (Stellingwerf
1978). The cores of the
minima (Fig. 13)
were fitted by polynomials to define the exact minima. To obtain
homogeneity, the data by Honeycutt (2001) were used to
recalculate the pre-outburst parameters. To demonstrate the
necessity of this recalculation
Fig. 14 shows the PDM minima,
containing only the first data set by Mennickent & Honeycutt with
the default sampling parameters of Stellingwerf (1978). The
absolutely lowest noise peak leads to the original result.
Recalculation with optimized parameters for PDM shows different
results. We thus propose the following light curve elements:
In the text
![]() |

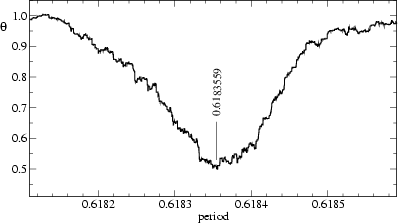

Figure 13:
The PDM ![]() |
Open with DEXTER |
![]() |

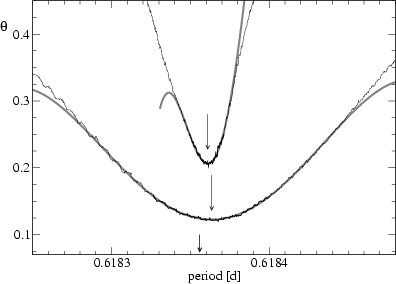

Figure 14: The PDM diagram of the original data set of Mennickent & Honeycutt (1995) covering 1991 to April 1995 only by using the default parameters for the binning by Stellingwerf (1978). The original result is indicated at the position of the lowest noise peak. |
Open with DEXTER |
The period above is supported independently by the
data giving us a period of 0
6183627 (= 0.06 s less). Using the change of the period P
![]() |
(8) |
![]() |
(9) |
The models presented allow us to determine the physical parameters
of the system within a very small range. This is mainly achieved
by the combination of data from different bands and different
epochs, which is the main advantage over the work of Hachisu &
Kato (2001, 2002). The model of the recurrent nova
two years after the outburst, when it reached a mean quiescent
photometric state still differs significantly from the one of the
pre-outburst phase.
Even speculative, one may assume that the energy transferred
during the outburst, when the secondary was completely enclosed by
the WD shell, caused a significant extension over the Roche lobe.
This increased the mass transfer to
in
2001/2002. Thus if the mass transfer rate derived from the
pre-outburst phase is used as average, it does not reach up to
the accreted mass during the 60 years of quiescence. The mass
transfer rate of
derived for 1991-1996 differs from that
given by Hachisu & Kato by a factor of four due to the different
model of the accreting region. The period shift determined in this
paper gives us a good estimate of the expelled mass
.
Within
the errors (the uncertainty due to the angular momentum carried by
the ejected material and the uncertainty of the average mass
transfer throughout the 60 years of quiescence) the expelled mass
as determined corresponds to the accretion. Thus the evolution
towards the critical mass of the WD is rather slow at this
evolutionary stage. Assuming a net mass increase of <10
per
outburst leads to a few 107 years to
reach the critical mass. On the other hand the evolutionary tracks
of the secondary show that its diameter is increasing very rapidly
(about
yr-1). Moreover the
decrease of the orbit is about 10
per outburst.
Thus the mass transfer should increase and may even evolve towards
steady hydrogen burning (van den Heuvel et al. 1992). The
derived distance and interstellar extinction gives us a somewhat
higher luminosity than in the outburst models of Hachisu & Kato
(2001). This affects also the considerations in Oka et al.
(2002). Because of our smaller inclination we also see some
parts of the disk during the primary minimum and thus it is not
necessary to increase the temperature of the SE in 2001 to obtain
a higher flux.
Acknowledgements
We like to thank R. K. Honeycutt and A. A. Henden for providing us with their original measurements from the 1990's and the standards in the field. We also thank F. Meyer (Munich) and P. Hauschild (Georgia) for fruitful discussions. We are grateful to the VSNET members for the data of the early decline.
