A&A 397, 1057-1067 (2003)
DOI: 10.1051/0004-6361:20021463

Correlation between halo coronal mass ejections and solar surface activity

Guiping Zhou^1,2 - Jingxiu Wang¹ - Zhuoliang Cao²

1 - National Astronomical Observatories, Chinese Academy of Sciences, Beijing 100012, PR China
2 - Department of Physics, AnHui University, HeFei 230039, PR China

Received 22 May 2002 / Accepted 17 September 2002

Abstract
We survey all the coronal mass ejections (CMEs) observed by the Large Angle and Spectrometric Coronagraph Experiment (LASCO) aboard the Solar & Heliospheric Observatory (SOHO) in the interval from 1997 to 2001, and select197 frontside halo CMEs whose associated near-surface activity could be clearly identified from SOHO EUV ImagingTelescope (EIT) and other space-borne and ground-based observations. A statistical analysis has been made with the emphasis on the correlation between CMEs and solar surface activity.

We have found in our sample that all the CMEs were accompanied by local brightening in the CME source regions in EIT and/or H${\alpha }$ images. However, if we only classify the events with a brightening increase more than 50% above the quiet background as flares, as measured from EIT data, approximately 88% of the earth-directed CMEs are associated with flares and more than 94% are associated with eruptive filaments. With regard to the locations of CME source regions, there are about 79% CMEs initiating from active regions, while only 21% originate outside active regions. We evaluate the symmetry between CMEs and associated solar surface activity in spatial distributions. We find that in about half the events the surface activity is asymmetric with respect to the CME. For the flares having GOES X-ray records in this study, allowing for the uncertainties specified by the data cadence, 59% of the CME initiations seem to precede the flare onset in the CME source regions, while 41% are preceded by flare onsets. The statistical correlation seems to suggest that CMEs are intrinsically related to surface activity.

Key words: Sun: coronal mass ejections (CMEs) - Sun: flares - Sun: filaments

1 Introduction

CMEs are the most spectacular form of solar activity. They often consist of very large structures containing plasma and magnetic fields that are expelled from the Sun into the heliosphere. Most of the ejected material comes from the low corona, although cooler, denser material, probably of chromospheric origin, can also be ejected (Webb 2000). Compared with solar flares and filaments, CMEs are relatively new to astronomers. In fact, their analogues have just started to be identified in other astrophysical subjects (Bond et al. 2001). Since CMEs were first detected in the early 1970, the solar community has tried to understand whether or not this newly discovered phenomenon is intrinsically related to the other well-known solar activities, such as flares, filament eruptions and specific types of radio bursts. Both case studies and statistical approaches have been made in this direction. The study of the association of CMEs with other forms of solar activity has a multi-fold importance. Firstly, such association will help us to understand the physical links between the very large-scale activity (e.g. CME) and the rather small-scale phenomena (e.g. flares and filament eruptions). Secondly, we need to understand the common physics behind the varied forms of solar activity, to learn how the difference in spatial scale specifies the physical properties. Thirdly, in the narrow sense of CME studies, without knowledge of the associated surface activity, the CME initiation will not be properly understood.

Before the SOHO mission, Munro et al. (1979) carried out the first detailed surveys associating about 75 major Skylab CMEs viewed in the middle corona with near-surface activity from 1973-1974, in combination with reports of associated activity from the Solar Geophysical Data (SGD) archives. They found that 75% of the CMEs observed were associated with other forms of solar activity, 40% of the CMEs observed were associated with flares, 50% with eruptive prominences solely (without flares), and more than 70% of CMEs with eruptive prominences (with and without flares). Webb & Hundhausen (1987) examined Solar Maximum Mission (SMM) data during the activity maximum in 1980 and found that about two thirds of the CMEs observed were associated with other forms of solar activity. Among them, 68% of the observed CMEs were found to be associated with erupting prominences, 37% with H${\alpha }$flares, and 47% with X-ray events. Cyr $\&$ Webb (1991) performed similar studies with SMM data from 1984 to 1986. Slightly less than half of the CMEs were found to have associations with other forms of solar activity. The results were that 76% were associated with erupting prominences, 26% with H${\alpha }$flares, and 74% with X-ray events.

After the SOHO mission, the LASCO coronagraphs and the EUV Imaging Telescope (EIT) aboard SOHO provided the opportunity for CME studies. SOHO allows for solar observations uninterrupted by a day-night cycle. Yohkoh SXT has a higher time cadence and continuity of operation than previous space-borne X-ray telescopes. The combined observations from LASCO with SXT and EIT for imaging the rather hotter and cooler corona, respectively, give us unprecedented opportunities to study CME coronal sources (Sterling 2000). Hudson et al. (1998) and Webb et al. (2000) both examined halo-type CMEs and their associated solar activity observed during the first half of 1997, and found that about half of the halo events were associated with frontside activity, as expected. Gilbert et al. (2000) analyzed 54 H${\alpha }$ events from February 1996 to June 1998 to study the relationship between prominence activity and CMEs. They found that 94% of eruptive prominences (EPs) had an associated CME and 76% of the CMEs were associated with eruptive prominences in their study. Subramanian & Dere (2001) examined 32 CMEs from January 1996 to May 1998. They also investigated the relationship between CMEs and prominence eruptions, and found that 44% of the CME-related transients were associated with eruptions of prominences embedded in active regions, and 15% with eruptions of prominences outside active regions.

There are also some case studies of the association of CMEs and surface activity. Zhang et al. (2001a) studied the temporal relationship between coronal mass ejections and flares. They concluded that the impulsive acceleration phase of CMEs coincided well with the rise phase of the accompanying X-ray flares. While the duration of the rise phase of flares can be a few minutes to tens of minutes, the corresponding CMEs always showed an apparent speed increment along with that of the soft X-ray flux. Recently, Gopalswamy et al. (1999) reported possibly the first observation of a large-scale X-ray enhancement, not dimming, associated with a filament eruption that could be the X-ray counterpart of a CME. Harrison et al. (2000) made a spectroscopic study of coronal dimming associated with a CME. They concluded that the dimming was consistent with the loss of significant mass, which could account for at least 70% of the mass of the CME. It was stressed that the dimming event was most likely the source region of at least a large fraction of associated CME mass.

Though so many studies have been performed, there are still many suppositions about the correlation between CMEs and surface activity. Since the famous paper "The solar flare myth'' was published by Gosling (1993), it would be prudent to search for correlations and avoid sweeping and unwarranted conclusions.

Halo CMEs are those that originate from the disk and appear as expanding, circular brightening that completely surrounds or spans a large angle outside the coronagraph occulter, which blocks the bright solar photospheric light. The observations suggest that these CMEs are spherically symmetric structures moving outward either toward or away from Earth that are detected after expanding to a size exceeding the diameter of the coronagraph's occulter (Webb 2000). The first halo CME was reported by Howard et al. (1982), using observations made with the Solwind coronagraph on the P78-1 spacecraft. Several halo-CME events have been reported by LASCO (Plunkett et al. 1998; Thompson et al. 1998). Halo CMEs are particularly useful for studying CME coronal sources, since most of their source regions are expected to be near the center of the solar disk for those directed toward the Earth (Sterling 2000). The study of halo CMEs would help us to establish a correlation between disk active phenomena and CMEs observed outside the solar limb, to understand their initiation mechanism and, eventually, to forecast when the eruptions will occur (Zhang et al. 2001b). Before the SOHO mission, halo-type CMEs had been rarely reported in coronagraph observations of the Sun (e.g. Howard et al. 1982). However, with the increased field of view and sensitivity of LASCO, such CMEs have been detected at a rate of 1-3 per month, or about 11% the rate of all LASCO CMEs (Cyr et al. 2000; Webb 2000). To date, LASCO has observed from solar minimum well into the maximum phase of the current (the 23rd) solar cycle and has detected CMEs at a rate slightly higher than but comparable to the earlier observations (Howard et al. 1997; Cyr et al. 1997, 2000; Webb 2000).

Thanks to the great success of SOHO and Yohkoh, the disk observations of CME initiation become possible, particularily for the earth-directed halo CMEs. To avoid the ambiguity in locating CME source regions, as argued by Feyman & Martin (1995), only frontside halo CMEs are selected in this statistical study. A CME with span angle greater than 130$^{\circ}$ is referred to as a halo CME in our approach. There were 519 halo CMEs identified from 1997 to 2001, an interval roughly covering the Solar Minimum to Maximum in this solar cycle. The statistics are made with the emphasis on the correlation between CMEs and surface activity in terms of flares and filament eruptions.

In the next section, we introduce the data base and event selection. In Sect. 3, we demonstrate the categories and examples of CME associated surface activity. In Sect. 4, we present our statistical results. Section 5 gives concluding remarks. Finally, we place a table about all the sampling CMEs and associated surface activity in an appendix.

2 Data analysis

2.1 Data base

The primary data bases for this study are SOHO LASCO and EIT time-lapse observations. The advantage of the data base is the complete temporal coverage of the observations. However, both LASCO and EIT have rather poor temporal resolution. To clearly identify the earth-directed halo CMEs and their associated surface activity, other ground-based and space-borne observations are necessary. Among them, the GOES X-ray counts, Big Bear H${\alpha }$filtergrams, Yohkoh SXT images are very useful to identify the CME source regions, as well as flares and filament eruptions.

In the study, we also use observations from Huairou Solar Observing Station (HSOS), Hiraiso Solar Terrestral Research Center (HSTRC), Holloman Air Force Base (HAFB) and others. To learn whether or not the CME source regions are located inside active regions, SOHO MDI daily magnetograms and synoptic charts are also referred to.

2.2 Sampling the frontside CMEs

Since there were few high-cadence EIT 195 Å observations before March 1997 because of telemetry restrictions (Subramanian & Dere 2001), we select our data after March 1997. Firstly, we obtain all the halo CMEs whose angular widths are greater than 130$^{\circ}$ and then record the approximate time, TM, when they initiated from the solar disk according to the linear fit of height-time from SOHO LASCO CME Category (see http://cdaw.gsfc.nasa.gov/CME_list/). At the same time, we record the CME first appearance time in C2 and their directions in C2/C3. We find 519 such halo CMEs.

Secondly, we examine corresponding EIT movies and EIT running difference (RD) movies to check whether these halo CMEs have counterparts on the visible solar disk. Here two criteria are used to identify frontside halo CMEs. The first criterion is that the surface activity starts in the time window $\rm TM\pm30$ min (Wang et al. 2002). The surface activity includes filament eruptions, flaring, dimming, plasma ejecta and so on. We also grid over EIT images to locate the position of solar surface activity termed as PSSA. The second criterion is that the PSSA is under the span of the associating CME. In order to determine the span of the CMEs, the position angle (PA) of the two outer edges of the CME were measured counterclockwise from Solar North in degrees on the sky plane. The PA measurements were generally made using C2 data. If C2 data were not available, C3 data were used. In the case that the apparent width of a CME gradually increased with time, the PA was measured when the width reached maximum. The difference between the two edge PAs, i.e. the apparent angle width fanned out by the CME, determined the CME span (Fig. 1A), which was measured by Yashiro et al. of the SOHO team, and is presented at http://cdaw.gsfc.nasa.gov/CME_list/ (Yashiro et al. 2002). Measured counterclockwise, the angle between the line along the Solar North and the line connecting the center of CME source region and the solar disc center defines the source region position angle (SRPA) (Fig. 1B) for each selected CME. If a CME's SRPA is within the range of the CME's span, the second criterion is satisfied. Since CME front loops were rather clear in C2/C3 images, it is very easy to identify whether the second criterion is satisfied. For a few events, their associated surface activity positions were just outside or on the edge of the CME spans. However, from the EIT and EIT RD movies, we can clearly identify the propagation directions of EIT dimming or plasma ejecta that coincided with that of the CMEs. Those surface events are also clarified as being under the spans of the given CMEs. If a CME is associated with such surface activity which satisfies the above two criteria, we identify the CME as frontside one.

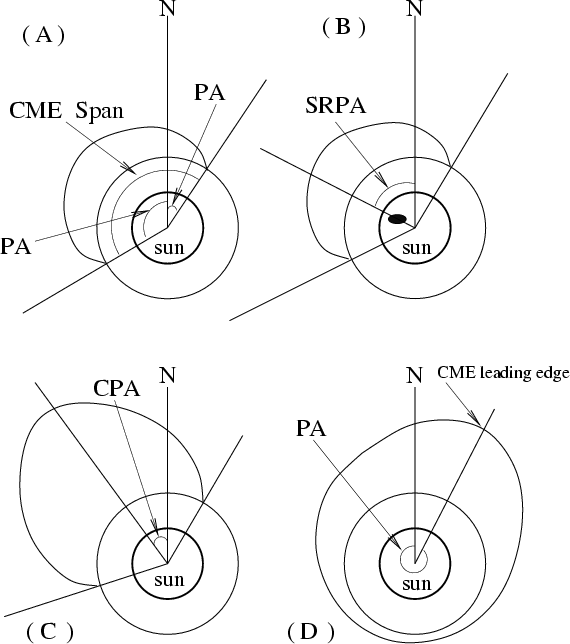

	Figure 1: Definitions of the span, SRPA, CPA and PA of a CME.
Open with DEXTER

During the process, we cut off several data gaps in which there are no records in the SOHO LASCO CME Category, such as July-September 1998 and January 1999, or no EIT data or high-cadence EIT data. As a result, 197 frontside halo CMEs are definitively identified and selected in this study. They are listed in Table A1 of the Appendix

2.3 Grouping the surface activity

In this study, we only take two primary forms of solar activity, the flares and filament eruptions, into account. Some other active manifestations, e.g. EIT wave and/or dimming, are considered as secondary active phenomena of activity.

To identify associated flares, we first scrutinize time-lapse images. After a candidate is selected, we search its corresponding X-ray records from the GOES satellite in the Space Physics Interactive Data Resource (SPIDR, see http://spidr.ngdc.noaa.gov/). We compare the starting time and positions of the flares in EIT 195 Å images with those of X-ray flares recorded in SPIDR. If a flare seen in EIT images takes place within the duration of a X-ray burst and their position difference is within the range of ${\pm}$5$^{\circ}$ in both the latitude and longitude, we regard the two sets of observations as the same event. Because of low-cadence EIT observations and the different methods of measuring flare positions, generally, such errors are tolerable. Then we record the class, starting-maximizing-ending time and duration of the associated flares in SPIDR. Among 197 halo CME-associated solar surface events, 141 events have been classified as flares with GOES X-ray records. Since soft X rays and H${\alpha }$ wavebands each contain only 5-10% of the total radiated energy, it may be not proper to identify a flare with only its soft X-ray light curve, as recorded by GOES (Hudson 1995). With regard to the events not listed in X-ray flare categories, we have measured the increased intensity during the activity. We define the intensity increase as the ratio of brightness increase divided by the background intensity of the same prepared EIT image in a little disturbed area. If the percentage is greater than 50%, we classify it as a flare, otherwise this event is regarded as an activity event without flare.

Compared with flares, CME-associated erupting filaments are more difficult to confirm since not all the filaments have available H${\alpha }$ data in our sample. To ascertain filament eruptions solely from EIT observations is not easy. We adopt two criteria in identifying a filament eruption. They are: a) dark and/or bright plasma ejecta, which is an empirical criterion proposed by Subramanian & Dere (2001); b) appearance of two flaring ribbons and post-flare loops, which is suggested by this paper. If either or both of the two above manifestations can be identified in EIT movies, we would classify the event as having filament eruptions. Considering the limitation of our available data base and the clearness in physics, we only group the solar surface activity into the following three categories:

A(a)-Flares with obvious filament eruptions;

A(b)-Flares which may have been preceded by filament eruptions but cannot be confirmed by the available data base;

B-Filament eruptions with too little brightening to be termed flares.

Now, we evaluate the symmetry between CMEs and associated solar surface activity in spatial distributions. Here there are two types of angles to be applied. One is the central position angle (CPA), which is in accordance with the CMEs whose spans were less than 360$^{\circ}$. The CPA was defined as the the mid angle with respect to the two edges of the CME in the sky plane (Fig. 1C). The other is the PA, an angle between the line along the Solar North and the line connecting the CME's fastest leading edge and the solar disc center (see Fig. 1D). This is in connection with the halo CMEs whose spans were 360$^{\circ}$. Such PA measurements were made in each frame where the CME's leading edge can be identified above the noise level. These PAs and CPAs were measured by Yashiro et al. and are found at http://cdaw.gsfc.nasa.gov/CME_list/ (Yashiro et al. 2002). Also, as there are some uncertainties in SRPA determinations, an uncertainty of 10 degrees is estimated. If the difference between SRPA and CPA or PA (to 360$^{\circ}$ halo CMEs) of a CME is not greater than 20$^{\circ}$, we define the event as symmetric, or else it is asymmetric.

3 Examples

Here we select three well-observed events from the list of 197 events as examples to demonstrate how we identify and classify these events. They are listed in Table 1.



Table 1: Examples.

Time	Category	NOAA	X-ray class	Active region
2001 January 20	A(a)	9313	M1.2	Inside
2001 April 06	A(b)	9415	X5.6	Inside
2000 May 08	B	No	No	Outside

3.1 2001 January 20 CME

This is an example of category A(a), CMEs associated with flares and clearly identified filament eruptions.

At first, the CME appeared in C2 as a bright patch in the east at 19:32 UT, marked by the arrow in Fig. 2A. Its bright leading edge of the halo was starting over the east limb and later had 360$^{\circ}$ emission around the disk. According to the height-time profile curves which were back-extrapolated by LASCO groups, we know that the onset time of the CME was near 18:36 UT. The wide front on the East limb travelled outward at an average linear speed of 839 km s^-1. In general, there would be errors of about 30 min between the extrapolation time and the real starting time when the CME initiated from the solar disk. We consider this error in judging the associated solar surface activity. There was clear extension of this patch above the north and south pole, and apparently extended to surround the full disk later. It is possible that the activity happened in the east hemisphere. This halo CME showed maximum intensity and extension in the east limb.

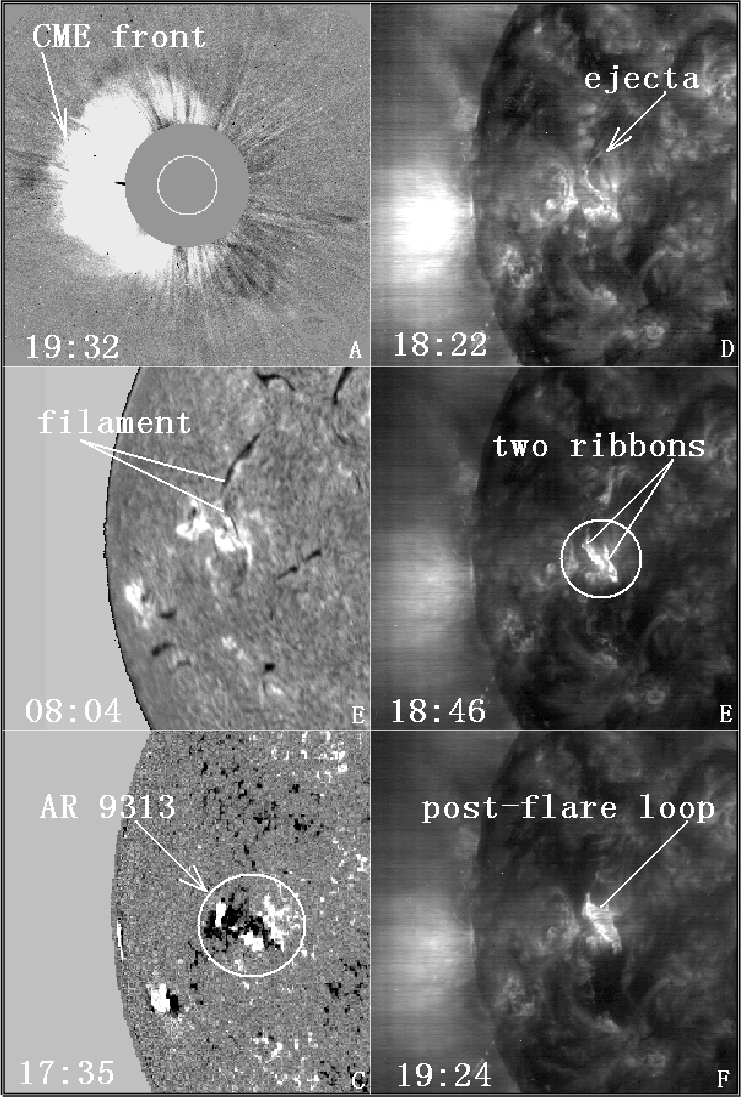

	Figure 2: A) An RD image of the halo CME obtained by LASCO/C2 on January 20, 2001. Its bright front firstly appeared toward the south. B) The H${\alpha }$ image at 08:04 UT. C) The MDI image at 17:35 UT. D), E) and F) are EIT 195 Å images which show the development of the solar surface activity.
Open with DEXTER

Figure 2B is a BBSO H${\alpha }$ image. In this image, a filament lay in the AR9313 at 08:04 UT before the initial CME time. Figure 2C is a MDI image that shows AR9313, where the activity happened.

More detailed information about solar disk magnetic activity is provided by EIT 195 Å images. The right column of Fig. 2 is a time sequence of EIT 195 Å images which show the typical characteristics of Category A(a). From the corresponding EIT movie, we can observe both the bright and dark ejecta (showed in panel D) which indicate filament eruptions. There was bright EIT wave propagating eastward. It was accompanied by a M1.2 flare that started at 18:33 UT, peaked at 18:47 UT and ended at 18:59 UT. The initial time of CME was at 18:36 UT which was close to the flare onset time. Its direction coincided with that of the propagating dimming. Figures 2E and 2F show the typical two ribbons and post-flare loops of the eruptive flare (see arrows in Figs. 2E and 2F). This was an eruptive flare.

In some cases, since there are no available H${\alpha }$ data, and no obvious ejecta could be seen in the rather low-cadence EIT 195 Å images; The signatures with two ribbons and post-flare loops are regarded as another criterion of filament eruptions. Meanwhile, EIT 195 Å RD images can suggest that the propagating depletion initiated from the active region which accompanied by material ejection spreading preferentially toward a certain direction. This also can help us to identify the associated filament eruptions.

Since this CME angular width was 360$^{\circ}$, its PA measured as 64$^{\circ}$ was regarded as the symmetric axis. Its associated solar surface activity was located in S07E40 where the SRPA was 100$^{\circ}$. It is obvious that the position angle difference between the CME and associated solar surface activity was greater than 20$^{\circ}$. Thus, the surface activity was asymmetric in spatial position with regard to the CME span.

3.2 CME of April 6, 2001

Figure 3 shows a CME example on April 6, 2001 off the southeast solar limb. As seen in the C2 coronagraph, the bright loop fronts of the CME filled the southeast quadrant. Its full halo in C2 appeared at 20:06 UT and was faint to the west and much fainter to the north. Unless otherwise stated, this is a RD LASCO image. The first appearance of the CME in C2 was at 19:30 UT. Extrapolation of the height-time plots back to 1 $R_{\odot}$ showed the CME leaving at 18:54 UT, 36 min before the first CME appearance. The average linear velocity was 1270 km s^-1. This was a fast CME.

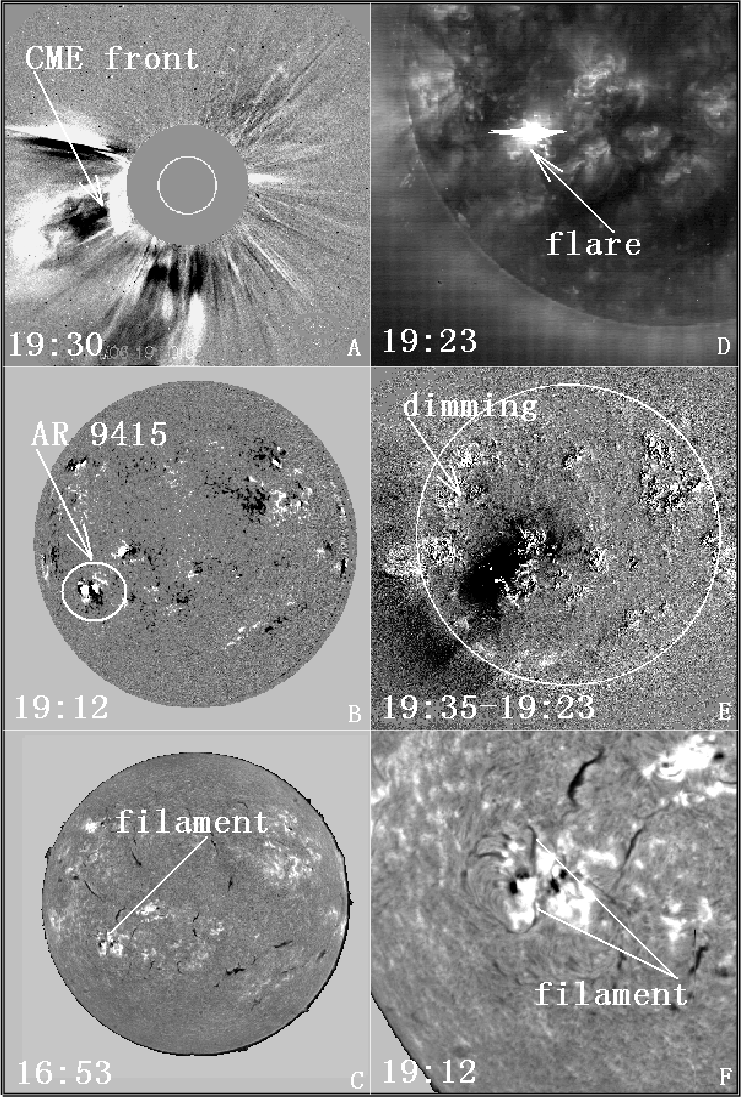

	Figure 3: A) An RD image of the halo CME obtained by LASCO/C2 on April 6, 2001. B) The MDI image at 19:12 UT. C) A filament seen in the AR 9415 in the H${\alpha }$ image at 16:53 UT from BBSO. D) An EIT 195 Å image that show the X5.6 flare. E) An EIT RD image indicates the propagating dimming. F) A part of the enlarged image D) which clearly shows the filament in AR9415.
Open with DEXTER

Figure 3C is a H${\alpha }$ image which shows a filament in the AR 9415. The source region of this CME was in the rather compact AR9415 (Fig. 3B). The EIT 195 Å movie showed the development of the X5.6 flare in AR9415 and the northeast streamer. For simplicity, we only use an EIT image and an EIT RD image (Figs. 3D and 3E) to show the flare and the propagating dimming. This flare started at 19:10 UT, peaked at 19:21 UT and ended at 19:31 UT, while the CME initiation was at 18:54 UT, before the flare onset. Because the cadence of EIT images (approximately 7-15 min) is generally poor and leads to miss a large fraction of short-lived, weak, transient events, a cadence faster than one image per minute is probably required (Biesecker & Thompson 2000). We are uncertain whether this filament erupted to trigger the flare or not since the characteristics of the filament eruption in the EIT 195 Å images are not obvious. Figure 3E is a RD image of EIT 195 Å showing the dimming. The dimming mainly resulted from the flare, as we find that there were propagating dark areas in phase with the flaring, seen in dark in the RD EIT movie. The dimming appeared to be one of the earliest and best-defined signatures in soft X-ray and EUV emission of the mass ejection in the low corona (Webb 2000). However, we cannot ascertain whether the filament erupted to cause such mass ejections. We notice that some dimming areas appeared close to the Sun limb, shown by the arrows in Fig. 3E, and propagated first to the southeast, then passed the disk through active regions, which were associated with a CME observed by LASCO C2 (see Fig. 3A).

This was also a halo CME with 360$^{\circ}$ angular width. Its position angle was 147$^{\circ}$. The associated solar surface activity was located in S19W53 where the SRPA was about 115$^{\circ}$. The difference between the two position angles was greater than 20$^{\circ}$. The event is regarded as an asymmetric one.

This CME associated with a flare and its source region has a filament in corresponding H${\alpha }$ images, but the characteristics of the filament eruption are not obviously observed. We place it in Category A(b). It is likely that there would be filament eruptions in most A(b) events.

3.3 CME of May 8, 2000

The CME of May 8, 2000 was a slower one compared with the two above events. Its front loops were very weak in LASCO C2 and were relatively clear in C3 as shown in Fig. 4A. By 14:26 UT, the edge of the CME moved into the C2 field of view and appeared in the southwest. The linear fit speed of the CME was 465 km s^-1 for the leading edge of the CME. Back-extrapolations of the CME's counterparts on the solar disk happened around 1 $R_{\odot}$ at 12:48 UT.

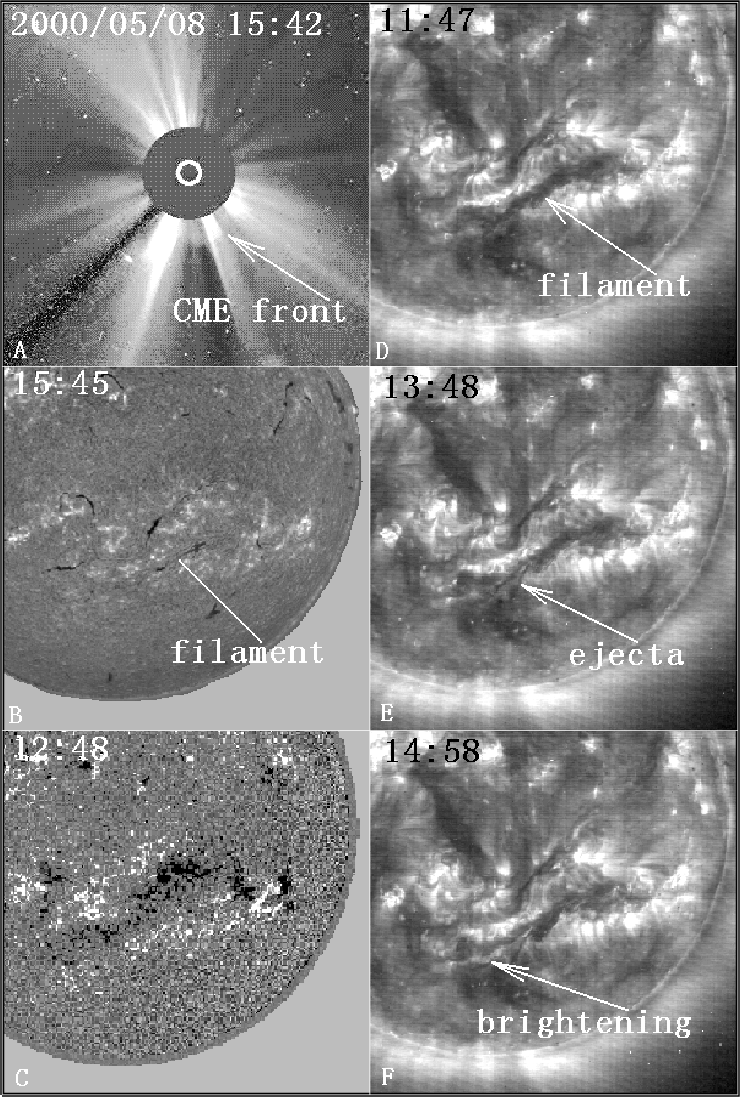

	Figure 4: A) An image of the halo CME obtained by LASCO/C3 on May 8, 2000. B) The H${\alpha }$ image at 15:45 UT. C) The MDI image at 12:48 UT. D), E) and F) are EIT 195 Å images that show the development of the erupting filament.
Open with DEXTER



Table 2: Categories of associated solar surface activity.

Category	Associated Surface Activity	Number	Percentage (%)
A(a)	flares and filament eruptions	162	82.2
A(b)	flares and possible filament eruptions	11	5.6
B	filament eruptions with little brightening	24	12.2
Total		197

Figure 4B is an H${\alpha }$ image from the BBSO. A filament is visible in a plage region. We present the MDI magnetogram at 12:48 UT to show that the source region was in a plage region (Fig. 4C). This activity happened in S29W14. The right panels are a series of EIT images on May 8, 2000 which show the development of the filament eruption indicated by white arrows. We have examined all the EIT images from 12:00 UT to 17:00 UT. There was no corresponding GOES X-ray flare record in this region, but there was a weak brightening accompanying by the filament eruption. The measured intensity increase is 7%, which is not high enough to be classified as a flare. We regard the CME as one which was only associated with filament eruption without flare. However, it is worth emphasizing that if the intensity increase is not small compared with that of the quiet background, the filament eruption and the following brightening have almost the same characteristics as those of an eruptive flare.

The angular width of this CME was 137$^{\circ}$ which was less than 360$^{\circ}$, so the CPA was selected as the symmetric axis. Its CPA was 216$^{\circ}$, while its associated solar surface activity was located in S29W14 where the SRPA was 210$^{\circ}$. Obviously, it was an symmetric event.

4 Statistical results

We use the observations from LASCO, EIT, GOES X-ray, H${\alpha }$and synoptic and daily MDI magnetograms to examine the relationship between halo CMEs and the solar surface activity during 1997 March-2001 December. We have recorded the heliographic coordinate of the CME associated solar surface activity in 195 Å EIT data for each event in our sample. In this study, we find that almost all the CMEs are accompanied by local brightening in the CME source regions. Most of these events except for 32 events in Category A(a) and A(b) have flare records in GOES X ray. Those 32 events whose intensity increase are greater than 50%, as defined in Sect. 2.3, were also regarded as flare events. Judging filament eruptions only from EIT 195 Å images is not adequate. We have employed a variety of source data to ascertain whether a CME is associated with an erupting filament. H${\alpha }$ data from the BBSO, and some other sources like the HAFB and the HSOS, are used to find out whether a filament existed near or in the source region of the CME-related transient. But not all the events have available H${\alpha }$ data. Since eruptive flares suggest that there are often filament eruptions triggering flares, we adopt two further criteria to judge filament eruptions from EIT 195 Å data. The association of CMEs with surface activity is summarized in Table 2.

All the sampling CMEs are associated with solar surface activity. All CMEs are accompanied by local brightening in CME source regions. However, according to our definition, 162(82.2%) CMEs belong to Category A(a), 11(5.6%) belong to Category A(b), and 24 (12.2%) belong to Category B. From the above, we know that category A(a) and A(b) are related to flares, while A(a), most of A(b) and category B are correlated with filament eruptions. That is to say that there are 87.8% halo-CMEs are associated with flares, while at least 94.4% are associated with filament eruptions (with flares or with little brightening). All of these solar activities are accompanied by propagating dimming. Meanwhile, we find that all the CMEs in our sample were accompanied by brightening of CME source regions in the localized areas, although sometimes the intensity increase is so small that we do not regard such brightening as flares.

From these results, we find that halo CMEs and solar surface activity are closely correlated. What is more, more than 90% events in Category A(a) are identified to be eruptive flares which present two obvious ribbons and post-flare loops, while 82.2% of the solar disk magnetic activity belong to Category A(a). This is indicative that eruptive flares are tightly linked to CMEs, which clarify and confirm many previous results about CMEs and their associated solar activity.

It was found that eruptive flares were often preceded by filament activation (Svestka $\&$ Cliver 1991). Unfortunately, there is no clear definition of eruptive flares. Zhang et al (2001b) studied a clear instance of a halo CME initiation which was associated with an eruptive flare. They pointed out that the filament first erupted from the region where the magnetic tension and pressure were weaker. The eruptive filament tore open the pre-existing closed magnetic loop (Kopp & Pneuman 1976). In addition, magnetic reconnection in the upper corona took place, and plasma inside the reconnection region was strongly heated. Hot plasma brightened the magnetic loop region by thermal conduction, shocks, and/or non-thermal particles generated in the reconnection process, and thus produced two-ribbon flares with post-flare loop activity (Choudhary & Gary 1999). According to these characteristics, we suggest to define eruptive flares as a kind of solar disk magnetic activity associated with filament eruptions which lead to flares with the characteristics of two-ribbons and post-flare loops. Eruptive flares are regarded as events of both flare and filament eruptions.

With regard to the locations of CME source regions, the statistics shows that the majority of CMEs initiate from active regions and for about half of the CMEs, the source regions and associated surface activity lie in offsets of CME spans. The detailed statistics are shown in Table 3.



Table 3: Statistic results about the locations of CME source regions.

Category	Number	Percentage (%)
Inside activity regions	155	78.7
Outside active regions	42	21.3
Symmetric to CMEs	96	48.7
Asymmetric to CMEs	101	51.3

In terms of flares and filament eruptions, this study has revealed a rather close correlation between CMEs and surface activity. Although 197 CMEs are selected as frontside ones in a total of 519 events, the other 322 CMEs are not all from the backside. There are two reasons for us to exclude these 322 CMEs. Among them, Some CMEs with high cadence EIT data are excluded because no associated activity was observed on the visible disk. Those CMEs may not include frontside ones, but the others with low cadence or no EIT data that are excluded may include some frontside ones. However, even though we do not include such uncertain frontside events, we can still get a slight higher correlation rate compared to previous studies. In all CMEs, only two conditions exist, frontside and backside, thus half of the CME events should belong to the frontside, that is to say, 259 CMEs are possible. We find 76% (197/259) CMEs to be associated with surface activity, which is higher than that of most previous statistical results.

Although we reveal a very close correlation between CMEs and surface activity in our sample, we cannot assume the relation between CMEs and associated solar magnetic activity is "cause and effect''. In our study, if we ignored the errors in determining the CME initial time which, in fact, could be 20-30 min by the low cadence of LASCO observations, among 141 CMEs associated with GOES X-ray flares, 83 CME initiations are seen to precede flare onset, while the other 58 are the opposite. Filament eruptions often precede the initiation of the associated CMEs. The SMM CME observations indicated that the estimated departure time of flare-associated CMEs typically preceded the flare onsets (Webb 2000). Harrison et al. (1990) summarized that CME onsets preceded any related flare activity and that the associated flare commonly lay to one side of the CME span. The CME launch appeared to be associated with minor X-ray (flare precursor) activity. Our data do not allow us to see the soft X-ray precursor. Either on the temporal relationship or on the spatial correlation between CMEs and surface activity, our statistics indicate two possibilities, i.e., the surface activity could precede or follow the associated CME and it could be symmetric or not to the CME. Roughly, each situation shares an approximate 50% possibility.

5 Concluding remarks

We have selected 197 of 519 halo CMEs during the period from 1997 March to 2001 whose source regions are well observed on the solar disk in EIT 195 Å images. We find that 173(88%) halo CMEs are associated with flares, while more than 187(94%) are related to filament eruptions. Among these halo CMEs, 78% are definitively found to correlate with eruptive flares. There are 79% halo CMEs whose source regions are inside active regions and 21% are outside active regions. About 50% of the CME source regions are symmetric with corresponding CMEs, and about 50% are asymmetric.

In this study, high quality full disk EUV data are used to identify the CME source regions and the surface activity, which are different from previous studies (Munro et al. 1979; Webb $\&$Hundhausen 1987; Cyr $\&$ Webb 1991). We concentrate on the frontside halo CMEs and try to find their on-disk counterparts in EIT and other observations, thus to explore the correlation between CMEs and solar surface activity.

We have found that: (1) All 197 studied CMEs are associated with either flares or filament eruptions or both; (2) All the CMEs are accompanied by localized brightening of different extents in their source regions, although sometimes the brightening is too weak to be called flares. Otherwise, all the CMEs are associated with flares; (3) About 78${\%}$ of the halo CMEs are definitively associated with eruptive flares. (4) Almost four fifths of the halo CMEs have their source regions inside active regions; (5) Asymmetric events are almost equal to symmetric ones. (6) Among these halo CMEs associated with GOES X-ray record flares, there are 59${\%}$ of the CMEs that precede their corresponding flare onsets, while 41${\%}$ follow their disk counterparts;

It should be mentioned that several key factors may bring uncertainties to the statistics. The low cadence of LASCO and EIT observations would not allow us to accurately determine the time of flare or CME onset. Possible errors in classifying the associated surface activity could not be excluded. Moreover, lack of coronal observations in the range of 1.0-2.2 $R_{\odot}$severely constrained us from directly imaging the initiation of CMEs. The identity of filament eruptions for many events in our sample suffers from some ambiguities for the cases when the H${\alpha }$ data were not available. However, since we only choose the frontside halo CMEs that usually are relatively big events, the identity of associated surface activity is easier and will have less ambiguity. On the other hand, our sample covers data almost for 5 years and approximate 200 CMEs are selected for the study. This may make the results statistically meaningful. In addition, in our approach, we have considered the errors in our data base, allow for this in our statistical analysis. Therefore the statistics may shed some light on the physical links between large-scale CMEs and small-scale surface activity.

The current statistics based on a sample of 197 frontside halo CMEs reveals a close correlation of CMEs with surface activity. There are two possible reasons for this. One is that only halo CMEs are selected as the samples whose corresponding surface activity may be comparatively more obviously observed; The other is the rather high-cadence EIT data, provided by the SOHO team, which are made into EIT & EIT RD movies to show surface activity clearly. Thus the close correlation indicates an intrinsic link between large-scale solar activity, seen as CME, and active-region-scale activity, manifested as flares and filament eruptions. We further confirm the close connection between CMEs and eruptive solar flares. This seems to support a unified view of solar magnetic activity (Slibata 2001; Svestka 2001). We would speculate that some large-scale magnetic structures which form CMEs may have, at least, a part lying in a magnetic complex region, i.e. the source region. The surface activity in the source region may represent a part of the whole process which destabilizes the large-scale structure and results in the rather global magnetic eruption in a CME. Therefore, all the CMEs would be accompanied by some activity in the source regions, in the forms of either flares, or filament eruptions, or both. However, the rather small-scale activity, say in an active region, may not necessarily be able to cause the destabilization of large-scale magnetic structure. This is why many flares are not seen to associate with CMEs.

Further efforts are being undertaken to understand the large-scale magnetic structures of the sample CMEs and their correlation with the evolution of the CME source regions.

Acknowledgements

The work is supported by the National Natural Science Foundation of China (G19973009) and the National Key Basic Research Science Foundation (G2000078404). The authors are indebted to the anonymous referee whose suggestions and comments led to improvement of the manuscript. We are grateful to all members of the SOHO EIT, LASCO and MDI teams, as well as BBSO team, Yohkoh team, HSTRC team, HAFB team and for HSOS staff providing the wonderful data. SOHO is a project of international cooperation between the European Space Agency and NASA. We also thank YuMing, Wang and Seiji, Yashiro and K. P. Dere for giving us guidence & valuable suggestions during this study.

References


• Biesecker, D. A., Thompsom, B. J. 2000, J. Atmospher. and Sol.-Terrestri. Phys., 62, 1449 In the text NASA ADS
• Bond, H. E., Mullan, D. J., O'Brien, M. S., & Sion, E. M. 2001, ApJ, 560, 919 In the text NASA ADS
• Choudhary, D. P., & Gary, G. A. 1999, Sol. Phys., 188, 345 In the text NASA ADS
• Feynman, J., & Martin, S. F. 1995, J. Geophys. Res., 100, 3355 NASA ADS
• Gilbert, H. R., Holzer, T. E., Burkepile, J. T., & Hundhausen, A. J. 2000, ApJ, 537, 503 NASA ADS
• Gopalswamy, N., Kaiser, M. L., MacDowell, R. J., et al. 1999, Solar Wind Nine, 471, 641 In the text
• Gosling, J. T. 1993, J. Geophys. Res., 98, 18, 937-18, 949 In the text
• Harrison, R. A., Hildner, E., Hundhausen, A. J., Sime, D. G., & Simnett, G. M. 1990, J. Geophys. Res., 95, 917 In the text NASA ADS
• Harrison, R. A., & Lyons, M. 2000, A&A, 358, 1097 In the text NASA ADS
• Howard, R. A., Michels, D. J., Sheeley, Jr. N. R., & Koomen, M. J. 1982, ApJ, 263, 101 In the text
• Howard, R. A., Bruecker, G. E., St. Cyr, O. C., et al. 1997, GM 99., American Geophys. Union, 17 In the text
• Hudson, H. S., Lemen, J. R., St. Cyr, O. C., Sterling, A. C., & Webb, D. F. 1998, Geophys. Res. Lett., 25, 2481 In the text NASA ADS
• Hudson, H., Haisch, B., & Strong, K. T. 1995, J. Geophys. Res., 100, 3473 In the text NASA ADS
• Kopp, R. A., & Pneuman, G. W. 1976, Sol. Phys., 50, 85 In the text NASA ADS
• Munro, R. H., Gosling, J. T., Hildner, E., et al. 1979, Sol. Phys., 61, 201 In the text NASA ADS
• Plunkett, S. P., Thompson, B. J., Howard, R. A., et al. 1998, Geophys. Res. Lett., 25, 2477 In the text NASA ADS
• Shibata, K., & Tanuma, S. 2001, Earth Planets Space, 53(6), 473
• Sterling, A. C., Hudson, H. S., Thompson, B. J., & Zarro, D. M. 2000, ApJ, 532, 628 In the text NASA ADS
• St. Cyr, O. C., & Webb, D. F. 1991, Sol. Phys., 136, 379 In the text NASA ADS
• St. Cyr, O. C., Howard, R. A., Simnett, G. M., et al. 1997, ESA SP-415, Noordwijk, The Netherlands, ESTECS, 103 In the text
• St. Cyr, O. C., Howard, R. A., Sheeley, N. R. Jr., et al. 2000, J. Geophys. Res., 105(A8), 18169 In the text
• Subramanian, P., & Dere, K. P. 2001, ApJ, 561, 372 In the text NASA ADS
• Svestka, Z., Cliver, E. W. 1991, LNP, 399, 1 In the text
• Svestka, Z. 2001, Space Sci. Rev., 95(1/2), 135 In the text NASA ADS
• Thompson, B. J., Plunkett, S. P., Gurman, J. B., et al. 1998, Geophys. Res. Lett., 25, 2465 In the text NASA ADS
• Wang, Y. M., Ye, P. Z., Wang, S., Zhou, G. P., & Wang, J. X. 2002, J. Geophys. Res., in press In the text
• Webb, D. F. 2000, J. Atmospher. and Sol.-Terrestri. Phys., 62, 1415 In the text NASA ADS
• Webb, D. F., & Hundhausen, A. J. 1987, Sol. Phys., 108, 383 In the text NASA ADS
• Webb, D. F., Cliver, E. W., Crooker, N. U., St. Cyr, O. C., & Thompson, B. J. 2000, J. Geophys. Res., 105, 7491 In the text NASA ADS
• Yashiro, S., Gopalswamy, N., Michalek, G., et al. 2002, J. Geophys. Res., submitted In the text
• Zhang, J., Dere, K. P., Howard, R. A., Kundu, M. R., & White, S. M. 2001a, ApJ, 559, 452 In the text NASA ADS
• Zhang, J., Wang, J. X., & Nitta, N. 2001b, Chinese J. Astron. Astrophys., 1(1), 85 In the text NASA ADS



Online Material

Appendix



Table A.1: List of all the sampling CMEs and associated solar surface activity.

Number	Category	First in	Flare	PSSA	NOAA	PA/CPA	Ejecta/two-	AR	Symmetry
	A(a) date	C2 (UT)	grade				ribbon	Y/N	Y/N
1	97-04-07	14:27	C6.8	S25E16	8027	123(PA)	two-	Y	Y
2	97-08-30	01:30	M1.4	N32E11		67(PA)	both	Y	N
3	97-09-23	22:02	C1.5	S31E26		133	both	Y	Y
4	97-09-28	01:08		N35E10		87(PA)	both	Y	N
5	97-10-21	18:03	C3.3	N17E05	8097	90(PA)	both	Y	N
6	97-11-04	06:10	X2.1	S14W33	8100	243(PA)	both	Y	Y
7	97-11-06	12:10	X9.4	S18W63		262(PA)	both	Y	Y
8	98-01-02	23:28		N24W42		275(PA)	two-	Y	Y
9	98-01-25	15:26	C1.1	N21E25		112(PA)	both	Y	N
10	98-04-20	10:07	M1.4	S47W70		284	both	N	N
11	98-04-27	08:56	X1.0	S18E50	8210	79(PA)	both	Y	N
12	98-04-29	16:58	M6.8	S15E19	8210	336(PA)	both	Y	N
13	98-05-01	23:40	C2.6	S19W05	8210	126(PA)	both	Y	N
14	98-05-02	05:31	C5.4	S19W10	8210	154(PA)	both	Y	N
15	98-05-02	14:06	X1.1	S15W15	8210	331(PA)	both	Y	N
16	98-05-03	22:02	M1.4	S12W33	8214	317	both	Y	N
17	98-05-06	08:29	M2.9	S11W66	8210	309	both	Y	N
18	98-05-27	13:45	C7.5	N17W62		175	both	Y	N
19	98-06-05	07:02		S29W17		205	both	N	Y
20	98-06-05	12:01		S26W27		222(PA)	both	N	Y
21	98-11-02	14:18	C4.4	S25E47		116	both	Y	Y
22	98-11-04	07:54	C1.6	N17W01	8375	349(PA)	ejecta	Y	Y
23	98-11-05	02:02		N19W11	8375	264(PA)	ejecta	Y	N
24	98-11-05	02:41	C7.1	S31E16		155	both	Y	Y
25	98-11-05	20:44	M8.4	N22W18		300(PA)	both	Y	N
26	98-11-09	18:17		N20W02		330	both	Y	N
27	98-12-18	18:09		N30E37	8414	36(PA)	both	Y	Y
28	99-04-04	04:30		N13E65	8507	114(PA)	both	Y	N
29	99-04-13	03:30		N20E02		194(PA)	both	N	N
30	99-04-17	06:36		S21W10		213	both	N	Y
31	99-05-03	06:06	M4.4	N15E32		88(PA)	both	Y	N
32	99-05-10	05:50	M2.5	N16E19	8539	70(PA)	both	Y	Y
33	99-05-11	22:26	C4.7	S19E79		86	both	Y	N
34	99-05-27	14:50		N22E68		66	both	Y	Y
35	99-06-04	07:26	M3.9	N19W75	8552	289	both	Y	Y
36	99-06-10	05:26		N35W06		351	both	N	Y
37	99-06-12	21:36	C4.1	N24W34	8574	337(PA)	both	Y	Y
38	99-06-22	18:54	M1.7	N23E40		40(PA)	both	Y	Y
39	99-06-24	13:31	C4.1	N31W09	8595	335(PA)	both	Y	Y
40	99-06-28	21:30	C3.5	N26W42	8592	329(PA)	both	Y	Y
41	99-06-30	13:31		N20E80		67(PA)	both	Y	Y
42	99-07-16	20:30		N35W60		291	both	N	Y
43	99-07-19	03:06	C4.2	N15W14		312(PA)	both	Y	Y
44	99-08-02	07:26	C3.3	N14E25		99	both	Y	N
45	99-08-02	22:26	X1.4	S18W46	8647	271	both	Y	N
46	99-08-04	06:26	M6.0	S18W62	8647	262	both	Y	Y
47	99-08-07	23:50	C3.9	S28E03	8657	169	both	Y	Y
48	99-08-09	03:26	C4.3	S29W11		197	both	Y	Y
49	99-08-17	13:31	C2.6	N22E34	8668	61	both	Y	Y
50	99-08-28	18:26	X1.1	S26W14	8674	120	both	Y	N
51	99-09-01	02:30	C2.7	N08W08	8677	188	both	Y	N
52	99-09-03	00:06	C2.1	S39W27		184	both	Y	Y
53	99-09-13	09:30	C4.9	N22E10	8699	0	both	Y	Y
54	99-09-13	17:31	C2.6	N16W03	8693	109	both	Y	N
55	99-09-16	16:54		N42W30		6	both	N	N
56	99-09-20	06:06	C2.8	S25E01		14(PA)	both	Y	N



Table A.1: continued.

Number	Category	First in	Flare	PSSA	NOAA	PA/CPA	Ejecta/two-	AR	Symmetry
	A(a) date	C2 (UT)	grade				ribbon	Y/N	Y/N
57	99-10-14	09:26	X1.8	N12E37	8731	61(PA)	ejecta	Y	Y
58	99-10-25	14:26		S38W12		186	both	N	Y
59	99-11-26	17:30	C2.3	S12W10	8778	228	both	Y	Y
60	99-12-22	02:30		N30E30		11(PA)	both	Y	N
61	00-01-18	17:54	M3.9	S19E11	8831	45(PA)	both	Y	N
62	00-01-28	20:12	C4.7	S31W17	8841	195(PA)	both	Y	Y
63	00-02-08	09:30	M1.3	N25E26	8858	50(PA)	both	Y	Y
64	00-02-09	19:54	C7.4	S14W40	8853	223(PA)	both	Y	Y
65	00-02-11	13:31	C2.3	S13W22		151(PA)	both	Y	N
66	00-02-12	04:31	M1.7	N26W23	8858	20(PA)	both	Y	N
67	00-02-17	20:06	M2.5	S25W16	8869	195(PA)	both	Y	Y
68	00-04-04	16:32	C9.7	N16W66	8933	265(PA)	both	Y	N
69	00-04-10	00:30	M3.1	S14E01	8948	225(PA)	both	Y	N
70	00-05-10	20:06	C8.7	N14E20	8990	83	both	Y	N
71	00-05-15	16:26	C7.8	S24W67	8993	257	both	Y	Y
72	00-06-02	10:30	C2.4	M10E23	9028	25(PA)	both	N	N
73	00-06-06	15:54	X2.3	N21E16	9026	47(PA)	both	Y	Y
74	00-06-07	16:30	X1.2	N23E03	9026	309(PA)	both	Y	N
75	00-06-10	17:08	M5.2	N22W38	9026	307(PA)	both	Y	Y
76	00-06-25	07:54	M1.9	N16W55	9046	262	both	Y	Y
77	00-06-27	10:54	C1.3	N42W53		349	both	N	Y
78	00-06-28	19:31	C3.7	N24W85	9051	270	both	Y	Y
79	00-07-10	21:50	M5.7	N18E49	9077	67	both	Y	Y
80	00-07-14	10:54	X5.7	N22W07	9077	273(PA)	both	Y	N
81	00-07-23	05:30		S08E18		161	both	N	N
82	00-07-25	03:30	M8.0	N06W08	9097	168(PA)	ejecta	Y	N
83	00-08-03	08:30	C1.4	N23W70		302	both	Y	Y
84	00-08-09	16:30	C2.3	N11E11	9114	12(PA)	both	Y	N
85	00-08-29	07:54		S58W50		232	both	N	Y
86	00-09-01	06£º30	C1.6	S20W18	9143	261	both	Y	N
87	00-09-04	06:06		M27W30		327	both	N	Y
88	00-09-05	05:54	C3.0	N22E10		3	both	Y	Y
89	00-09-06	16:30	C2.2	S20W19	9145	224	ejecta	Y	Y
90	00-09-07	21:30	C7.2	N06W47	9151	297	both	Y	Y
91	00-09-12	11:54	M1.0	S17W09		220(PA)	both	N	Y
92	00-09-15	15:26	M2.0	N12E07	9165	213(PA)	ejecta	Y	N
93	00-09-16	05:18	M5.9	N14W07	9165	3(PA)	both	Y	N
94	00-10-09	23:50	C6.7	N01W14	9182	318(PA)	both	Y	N
95	00-10-26	16:50	C8.5	S20E64	9209	114	both	Y	Y
96	00-11-01	16:26	C2.2	S14E37		140(PA)	both	N	N
97	00-11-08	23:06	M7.4	N14W63	9313	297(PA)	both	Y	Y
98	00-11-23	06:06	C5.4	S26W40	9238	215(PA)	both	Y	Y
99	00-11-23	20:30	C7.9	S32E62	9239	124	both	Y	Y
100	00-11-24	05:30	X2.0	N23W05	9236	353(PA)	both	Y	Y
101	00-11-24	15:30	X2.3	N22W07	9236	324(PA)	both	Y	N
102	00-11-24	22:06	X1.8	N21W14	9236	313(PA)	both	Y	Y
103	00-11-25	01:31	M8.2	N07E50	9240	82(PA)	both	N	Y
104	00-11-25	09:30	M3.5	N18W24	9236	270(PA)	both	Y	N
105	00-11-25	19:31	X1.9	N20W23	9236	348(PA)	both	Y	N
106	00-11-26	03:30	M2.2	M18W38	9236	259	both	Y	N
107	00-11-26	17:06	X4.0	N18W38	9236	274(PA)	two-	Y	N
108	00-12-18	11:50	C7.0	N15E01	9269	335(PA)	both	Y	N



Table A.1: continued.

Number	Category	First in	Flare	PSSA	NOAA	PA/CPA	Ejecta/two-	AR	Symmetry
	A(a) date	C2 (UT)	grade				ribbon	Y/N	Y/N
109	01-01-10	00:54	C5.9	N13E36	9306	107(PA)	both	N	N
110	01-01-20	19:32	M1.2	S07E40	9313	64(PA)	both	Y	N
111	01-01-20	21:30	M7.0	S07E46	9313	71(PA)	both	Y	N
112	01-01-26	12:06	C1.6	S24W60	9320	276	both	Y	N
113	01-01-28	15:54	M1.5	S04W59	9313	247	both	Y	Y
114	01-01-29	16:06	C5.7	S09E57	9329	149	both	Y	N
115	01-02-03	00:30	M2.4	N09E72	9334	86	both	Y	Y
116	01-02-05	15:54	C8.2	N07E38	9335	74	both	Y	Y
117	01-02-10	05:54		N37W03		13(PA)	ejecta	N	N
118	01-02-11	01:30	C6.5	N24W57	9346	335(PA)	both	Y	N
119	01-02-15	13:54		N08E10		17(PA)	both	N	Y
120	01-03-19	05:26		S20W01		184(PA)	both	N	Y
121	01-03-20	03:26		S15W35		270	both	Y	Y
122	01-03-24	20:50	M1.7	N15E22	9390	24(PA)	both	Y	Y
123	01-03-25	17:06	C9.0	N16E25	9402	19(PA)	both	Y	Y
124	01-03-28	12:50	M4.3	N18E02	9393	186(PA)	both	Y	N
125	01-03-29	10:26	X1.7	N20W19	9393	71(PA)	both	Y	N
126	01-04-05	17:06	M5.1	S24E50	9415	27(PA)	both	Y	N
127	01-04-09	15:54	M7.9	S21W04	9415	211(PA)	both	Y	Y
128	01-04-10	5:30	X2.3	S23W09	9415	166(PA)	both	Y	N
129	01-04-11	13:32	M2.3	S22W27	9415	224(PA)	both	Y	Y
130	01-04-14	17:54	M1.0	S16W71	9415	239	ejecta	Y	Y
131	01-04-15	14:06	X14.4	S20W85	9415	245	both	Y	Y
132	01-04-26	12:30		N23W05		37(PA)	both	Y	Y
133	01-06-05	05:06	M2.5	S18E44	9488	117	both	Y	Y
134	01-06-10	8:30	C4.2	N20W15		23	both	Y	N
135	01-06-22	12:54		S26W51		269	two-	Y	Y
136	01-07-19	10:30	M1.8	S08W62	9537	275	both	Y	Y
137	01-08-25	16:50	X5.3	S17E34	9591	119(PA)	both	Y	Y
138	01-08-28	16:27	C5.7	E70N16	9600	105	ejecta	Y	N
139	01-09-09	14:54		E70S24		98	both	Y	Y
140	01-09-11	14:54	C3.2	N14E34	9615	59(PA)	both	Y	Y
141	01-09-17	8:54	M1.5	S14E04	9616	198	both	Y	Y
142	01-09-22	09:42		N27W08		283	both	Y	N
143	01-09-24	10:31	X2.6	S16E25	9632	142(PA)	both	Y	Y
144	01-09-28	08:55	M3.3	N10E18	9636	140(PA)	both	Y	N
145	01-09-28	10:31	M2.4	S18W36	9628	198	both	Y	N
146	01-09-29	11:54	M1.8	N13E03	9636	114	both	Y	N
147	01-10-03	02:54		E09S19		163	ejecta	Y	Y
148	01-10-19	01:27	X1.6	N16W18	9661	267	both	Y	N
149	01-10-19	16:50	X1.6	N15W29	9661	273(PA)	both	Y	N
150	01-10-22	15:06	M6.7	S20E18	9672	122(PA)	both	Y	Y
151	01-10-24	06:26	C2.6	S15E30		62	both	Y	N
152	01-10-25	15:26	X1.3	S16W21	9672	140	ejecta	Y	N
153	01-11-01	22:30	M1.1	N12W23	9682	305(PA)	both	Y	Y
154	01-11-10	13:27		N35W08		85	ejecta	Y	N
155	01-11-15	20:50	C2.5	N22E0		32	ejecta	Y	N
156	01-11-17	5:30	M2.8	S13E42	9704	58(PA)	both	Y	N
157	01-11-22	20:31	M3.8	S25W67	9698	221(PA)	both	Y	N
158	01-11-22	23:30	M9.9	S17W36	9704	349(PA)	both	Y	N
159	01-11-28	17:30	M6.9	N04E15	9715	46(PA)	ejecta	Y	N
160	01-12-11	08:30	X2.8	N16E41	9733	23	both	Y	N
161	01-12-13	14:54	X6.2	N16E09	9733	37(PA)	both	Y	N
162	01-12-26	05:30	M7.1	N08W54	9742	281	both	Y	N



Table A.1: continued.

Number	Category	First in	Flare	PSSA	NOAA	PA/CPA	Ejecta/two-	AR	Symmetry
	A(b) date	C2 (UT)	grade				ribbon	Y/N	Y/N
1	97-03-09	04:30		N03E75		54		Y	N
2	99-07-28	05:30		S14E05		100(PA)		Y	N
3	99-07-28	09:06	M2.3	S15E03		6(PA)		Y	N
4	99-12-06	09:30	C1.0	N07E44		158(PA)		Y	N
5	00-09-15	12:06	C9.5	N13E08	9165	249		Y	N
6	00-09-25	02:50	M1.8	N10W20		202(PA)		Y	N
7	00-10-02	03:50	C4.1	S09E07	9176	107(PA)		Y	N
8	00-10-02	20:26	C8.4	S10W02		180(PA)		Y	Y
9	01-04-06	19:30	X5.6	S21E31	9415	147(PA)		Y	N
10	01-04-12	10:31	X2.0	S19W43	9415	221(PA)		Y	Y
11	01-11-21	14:06	C4.7	S15W18	9704	185(PA)		Y	N
Number	Category	First in	Bright	PSSA	NOAA	PA/CPA	Ejecta/two-	AR	Symmetry
	B date	C2 (UT)	intensity				ribbon	Y/N	Y/N
1	97-10-06	15:28	22%	S15W47		139	ejecta	N	N
2	98-01-17	04:09	18%	S41E17		82(PA)	ejecta	N	N
3	98-01-21	06:37	45%	S49E10		179(PA)	ejecta	N	Y
4	98-06-08	16:27	21%	N35E51		177	ejecta	N	N
5	99-03-21	15:26	18%	S28W12		208	ejecta	N	N
6	99-06-14	12:50	47%	S85E0		129	ejecta	N	N
7	99-06-29	18:54	22%	N42E44		29(PA)	ejecta	N	Y
8	99-07-27	01:31	36%	N28E80		50	ejecta	Y	Y
9	00-05-08	14:26	10%	S29W14		216	ejecta	N	Y
10	00-12-14	17:06	42%	N18E04		329(PA)	ejecta	Y	N
11	01-01-14	06:30	33%	N60W10		327	ejecta	N	Y
12	01-01-24	08:54	14%	S28W12		249	ejecta	Y	N
13	01-01-26	01:54	25%	N30W69		275	ejecta	N	N
14	01-03-11	05:50	43%	S55W70		230	ejecta	N	Y
15	01-04-03	19:50	50%	N30E20		130	ejecta	N	N
16	01-04-09	00:06	43%	S32E20		159	ejecta	N	Y
17	01-04-14	21:30	7%	S20W06		151	ejecta	N	N
18	01-04-21	13:27	1%	S50E18		190	ejecta	N	N
19	01-05-21	23:06	7%	N05W12		254	ejecta	N	N
20	01-05-25	17:26	20%	S13E90		90	ejecta	N	Y
21	01-07-12	0:06	8%	S45W70		240	ejecta	N	Y
22	01-08-09	10:30	2%	N10W15		285	ejecta	N	Y
23	01-08-19	06:06	7%	N30W75		289(PA)	ejecta	N	Y
24	01-10-28	00:26	26%	N40E80		85	ejecta	Y	N

$^{\rm *}$ First in C2 (UT) - CME first appearance in C2; PSSA - the position of solar surface activity.
