A&A 396, 337-344 (2002)
DOI: 10.1051/0004-6361:20021350
B. Saha^{1} - P. K. Mukherjee^{1} - G. H. F. Diercksen^{2}
1 - Department of Spectroscopy, Indian Association for the Cultivation of Science,
Jadavpur, Kolkata-700 032, India
2 - Max-Planck-Institut für
Astrophysik, Karl-Schwarzschild Strasse 1, 85741 Garching,
Germany
Received 10 June 2002 / Accepted 16 September 2002
Abstract
Time dependent variation perturbation calculations have
been performed for estimating the transition energies, oscillator
strengths and transition probability values for a few dipole
allowed states of compressed hydrogen atom confined in a weakly
coupled plasma. The compression is obtained by embedding the atom
at the centre of an impenetrable spherical box. The dipole
polarizability of the atom is evaluated at each confinement radius
with respect to different plasma screening parameters. The effect
of pressure due to spatial confinement on the dipole
polarizability and other atomic properties is analyzed. Results
obtained are useful for the diagnostic determination of
astrophysical and laboratory plasmas and for the calculation of
collision rate coefficients needed for computing opacity of
stellar envelopes - a quantity of importance in the context of
stellar structure and pulsations.
Key words: atomic data - atomic processes
In recent years the analysis of the spectral properties of confined atomic systems such as those of atoms embedded in liquid helium has gained considerable momentum (Tabbert 1997) firstly, because of the availability of current implantation technique like ion beam method (Gordon 1974, 1983, 1993), laser sputtering and ablation technique (Bauer 1990; Yabuzaki 1992; Arndt 1993; Tabbert 1994; Beijersbergen 1993; Kinoshita 1995) and secondly due to accurate methods available for estimating the spectral line shifts (Günther 1995; Tabbert 1995; Kanorski 1994). Although a host of experimental data for different atoms are currently available, very few methods exist for theoretical estimation of the spectral line shifts and other properties under such confinement. In the so called standard bubble method (SBM), the total Hamiltonian is expressed as the sum of pair interaction between helium atoms, between impurity atom and each of the helium atoms and the Hamiltonian of the free atom itself. The total impurity helium interaction is derived from individual impurity-helium interaction term. First order perturbation theory is being utilized to calculate the energy shift. The method has been applied in a number of cases (Hiroike 1965; Hikman 1975; Bauer 1990; Beau 1996). Basically the problem is similar to that of studying the spectra of compressed atoms like that trapped in zeolite, fullerenes or under high pressure (Jaskolski 1996; Connerade 2000; Gupta 1982). As ab-initio calculations for atoms in such an environment is very complicated, the problem of the impurity atom embedded in liquid helium may alternatively be looked upon using a suitable model in the following manner. Experimental observations indicate that (i) electrons in superfluid helium are highly mobile and (ii) because of the inert nature of helium the atomic charge density has extremely low penetration probability beyond the surrounding liquid helium cage due to strong Pauli repulsion. Hence one can tentatively assume the foreign atom to be embedded in a charge neutral environment which mimics a plasma with a finite cage boundary. With this viewpoint we propose a model of studying atoms inside such an environment which, on one hand assumes screening of the potential due to plasma, and secondly uses an altered boundary condition which suits the physical description. We consider at present the surrounding plasma to be sufficiently weak so as to produce screened coulomb interaction between point charges.The effect of this so called Debye plasma on atomic energy levels and other properties has been analyzed earlier in a limited manner (Winkler 1996; Ray 1998a,1998b). The overall effect of this screened Coulomb potential is to reduce the binding energy and to push the system towards gradual instability with increase of screening. The screening constant is a function of temperature and number density of the plasma and different plasma conditions can be simulated by changing suitably the screening parameters. Study of laser produced and Tokamak plasmas requires an understanding of the electronic spectrum of an ion as a function of electron density and temperature of the plasma. The screening is important in interpreting the disappearance of spectral lines near the series limit in astrophysical observations, in laboratory and astrophysical plasma diagnostics, in calculating partition functions in thermodynamics, in the calculation of collision rate coefficients, all of which require the shifted energy levels and connected properties. Such calculations have also applications in astrophysical phenomena like the mass radius relation in the theory of white dwarfs and in the determination of the rate of escape of stars from galactic and globular clusters, understanding the interior of giant planets (Varshni 1997, 1998) and in estimating stellar opacities (Seaton 1987). The study of the properties of a confined atom in an impenetrable spherical box has, however, a long history. Such studies originated with a model due to Michels et al. (1937) who studied the effect of pressure by enclosing an atom in a spherical box. Sommerfeld & Welker (1938) carried out investigations on the energy levels of hydrogen in a spherical box. Subsequently, a number of calculations (Ley-Koo 1979; Ludena 1977,1978; Marin & Cruz 1991a,1991b,1992; Zicovich-Wilson 1994; Fowler 1984; Aquino 1995; Dineykhan 1999; Singh 1984; Montgomery 2002; Laughlin 2002) have been performed for studying the energy levels of compressed atoms. In the current communication we have performed a systematic analysis of the effect of a plasma screening and that of a finite confining radius on the dipole polarizabilities and 2p, 3p and 4p energy levels for the hydrogen atom, their oscillator strengths and transition probabilities with a view to estimate the order of magnitude of the spectral line shifts under such confinements. Hydrogen atom is chosen as a prototype as it is free from correlation effects and admits of accurate results in a first hand analysis and calculations have already been performed for the hydrogen donor states in spherical quantum dots (Zhu 1990). While studies on the energy levels and other properties of hydrogen using a cutoff radius have been performed by a number of authors (Sommerfeld 1938; Ley-Koo 1979; Zicovich-Wilson 1994; Fowler 1984; Aquino 1995; Varshni 1997,1998; Dineykhan 1999), only a single limited calculation by Singh & Varshni (1984) was performed for the bound states of static screened Coulomb and cut-off Coulomb potentials. Very recently the dynamic dipole polarizability of compressed hydrogen was calculated by Montgomery (2002) for different radii of compression and 1s2p transition energy was determined. The recent calculation of Laughlin et al. (2002) on compressed hydrogen atom using a variety of analytical and algebraic methods yields accurate estimate of the ground and excited state energies and wave functions. A brief description of the current method is described in Sect. 2 followed by a discussion of results in Sect. 3.
The hydrogen atom subjected to a weakly coupled plasma which
admits of a Debye type of screening (Akhiezer 1975) in
the nuclear potential. In addition the charge cloud is assumed
confined in spherical box of radius R which produces an altered
boundary condition such that wave function vanishes at the
boundary. We assume that the potential energy function (atomic
unit is used)

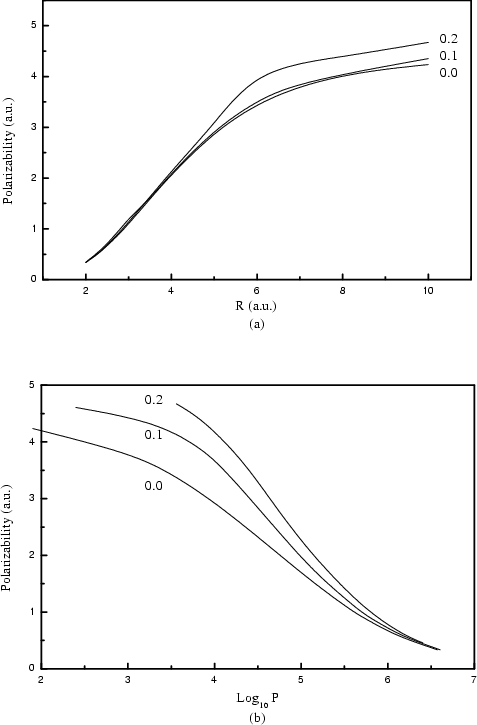

Figure 1: Plot of polarizability against a) confinement radius (R), b) P for different Debye screening (). | |
Open with DEXTER |
R | Dipole | -E_{0} | Transition | Transition | Oscillator | Transition | |
(a.u.) | (a.u.) | polarizability (a.u.) | (a.u.) | energy (a.u.) | strength | probability ) | |
0.00 | 4.4997 | 0.50000 | 0.37500 | 0.4160 | 1.87(+9) | ||
4.5^{a} | 0.5^{b} | 0.37500^{b} | 0.4162^{c} | 1.88(+9)^{c} | |||
0.44444 | 0.0790 | 0.50(+9) | |||||
0.44444^{b} | 0.0791^{c} | 0.50(+9)^{c} | |||||
0.46875 | 0.0290 | 0.20(+9) | |||||
0.46875^{b} | 0.0290^{c} | 0.20(+9)^{c} | |||||
0.01 | 4.5014 | 0.49008 | 0.37482 | 0.4150 | 1.86(+9) | ||
0.44392 | 0.0780 | 0.49(+9) | |||||
0.46776 | 0.0280 | 0.20(+9) | |||||
0.05 | 4.5412 | 0.45182 | 0.37107 | 0.4000 | 1.76(+9) | ||
0.43325 | 0.0660 | 0.39(+9) | |||||
0.44922 | 0.0150 | 0.94(+8) | |||||
0.08 | 4.6026 | 0.42457 | 0.36545 | 0.3766 | 1.61(+9) | ||
0.41823 | 0.0470 | 0.26(+9) | |||||
0.42581 | 0.0062 | 0.38(+8) | |||||
0.10 | 4.6577 | 0.40705 | 0.36051 | 0.3561 | 1.48(+9) | ||
0.40546 | 0.0298 | 0.16(+9) | |||||
0.15 | 4.8423 | 0.36544 | 0.34433 | 0.2854 | 1.08(+9) | ||
0.20 | 5.0936 | 0.32674 | 0.32263 | 0.1773 | 0.59(+9) | ||
0.25 | 5.41 | 0.29076 | 0.29479 | 0.0383 | 0.11(+9) | ||
1.00 | 8.23 | -0.16598 | 0.01907 | 0.0034 | 0.397(+5) | ||
20 | 0.00 | 4.4628 | 0.50000 | 0.37500 | 0.4091 | 1.84(+9) | |
0.44838 | 0.1068 | 0.69(+9) | |||||
0.05 | 4.5005 | 0.45181 | 0.37107 | 0.3925 | 1.73(+9) | ||
0.43908 | 0.1059 | 0.65(+9) | |||||
0.1 | 4.6059 | 0.40703 | 0.36053 | 0.3487 | 1.45(+9) | ||
0.41746 | 0.1095 | 0.61(+9) | |||||
0.15 | 4.7724 | 0.36540 | 0.34448 | 0.2825 | 1.07(+9) | ||
0.20 | 4.9975 | 0.32666 | 0.32360 | 0.2025 | 0.68(+9) | ||
0.25 | 5.2815 | 0.29063 | 0.29890 | 0.1287 | 0.37(+9) | ||
1.00 | 49.3300 | -0.0213 | |||||
10 | 0.00 | 4.2343 | 0.499810 | 0.38094 | 0.4382 | 2.03(+9) | |
3.977^{f} | 0.499999^{d} | 0.38114^{e} | |||||
0.05 | 4.2652 | 0.45160 | 0.37769 | 0.4299 | 1.96(+9) | ||
0.10 | 4.3516 | 0.40676 | 0.36906 | 0.4091 | 1.78(+9) | ||
0.15 | 4.4875 | 0.36303 | 0.35636 | 0.3890 | 1.55(+9) | ||
0.20 | 4.6702 | 0.32627 | 0.34062 | 0.3488 | 1.29(+9) | ||
1.00 | 18.9700 | -0.029178 | |||||
7 | 0.00 | 3.8079 | 0.49871 | 0.41122 | 0.5438 | 2.94(+9) | |
0.05 | 3.8304 | 0.45046 | 0.40889 | 0.5399 | 2.88(+9) | ||
0.10 | 3.8935 | 0.40551 | 0.40261 | 0.5300 | 2.75(+9) | ||
0.15 | 3.9923 | 0.36361 | 0.39329 | 0.5158 | 2.55(+9) | ||
1.00 | 11.26 | -0.04309 | |||||
6 | 0.00 | 3.4652 | 0.49707 | 0.44151 | 0.6063 | 3.78(+9) | |
0.05 | 3.4825 | 0.44878 | 0.43957 | 0.6036 | 3.73(+9) | ||
0.10 | 3.5312 | 0.40375 | 0.43433 | 0.5966 | 3.60(+9) | ||
0.15 | 3.6074 | 0.36170 | 0.42648 | 0.5865 | 3.41(+9) | ||
1.00 | 8.4200 | -0.04907 | |||||
5.50 | 0.00 | 3.2176 | 0.49536 | 0.46581 | 0.6438 | 4.46(+9) | |
0.05 | 3.2319 | 0.44706 | 0.46409 | 0.6416 | 4.42(+9) | ||
1.00 | 7.0000 | -0.05586 | |||||
5.00 | 0.00 | 2.9051 | 0.49240 | 0.49999 | 0.6855 | 5.48(+9) | |
0.50401^{e} | |||||||
0.80 | 4.7600 | -0.00304 | |||||
2.00 | 0.00 | 0.3344 | 0.12210 | 1.69812 | 0.9643 | 8.88(+9) | |
0.338^{f} | 0.125^{g} | 1.70102^{e} | |||||
0.20 | 3.3600 | -0.06197 | |||||
1.00 | 0.00 | 0.0291 | -2.38187 | 5.84138 | 0.9920 | 1.08(+12) | |
5.85915^{e} |
We have chosen confined hydrogen atom to make a detailed analysis
on the ground and excited state energy levels, polarizabilities,
oscillator strength and transition probabilities. The confinement
effect due to (i) Debye screening (ii) finite boundary conditions
by using a cut off potential, is analyzed. The energy levels and
other properties are calculated systematically first by choosing
and
which correspond to free atom case. Then
we decreased R step by step to get the effect of reduced cut off
parameter and for each R, we have chosen different sets of
screening parameter ,
always starting with .
In each
case the ground state energy under confined condition has been
evaluated with a two parameter Slater type representation, the
coefficients are obtained from diagonalisation of the Hamiltonian
matrix in an iterative manner described earlier. For confined
hydrogen atom a two parameter representation is expected to be
sufficient for energy convergence. The polarizabilities and
transition properties in each case are obtained from a time
dependent perturbative calculation. An eight parameter
representation of the perturbed wave function is consistently
chosen to estimate the transition properties. The length of the
basis set and exponents are so chosen as to reproduce the static
limit of dynamic polarizability, ground state energy, transition
energies to different dipole allowed excited states, oscillator
strengths and the transition probabilities for the free hydrogen
atom. Results are listed in Table 1. For
and corresponding to the free atom case, our table shows
(a.u.) corresponding to the exact value 4.5 a.u.
(Miller 1977),
,
,
,
a.u.
respectively which are exact up to the places shown (Moore
1949). The oscillator strengths and transition
probabilities for 2p, 3p and 4p excitations are also the same as
listed by Wiese et al. (1966). Several features of the
different transition properties can be noted from a close look at
the Table 1. The dipole polarizability value increases
continuously with increase of screening parameter
for a
given value of the truncation radius R, whereas for a given ,
the polarizability value decreases with decrease of Rwhich simulates stronger confinement.
Figure 1a shows plots of
against R for three different values of .
With
decrease of R, the system becomes more compressed and hence the
polarizability decreases. For a given R, with increase of ,
both the kinetic energy and potential energy diminish resulting in
an increase of value. When
increases for a given
R or when R diminishes for a given ,
the total energy
monotonically tends towards positive value from bound negative
value indicating instability in the system. The cause is entirely
different. For example for the free atom case ()when
increases from zero value, the kinetic energy as well as the
absolute value of potential energy diminishes but the potential
energy diminishes faster than the kinetic energy resulting in
eventual zero energy configuration. As
increases further the
total energy becomes positive and the system becomes unbound. The
polarizability looses its precise meaning. On the other hand for a
given
(say ),
with decrease of confinement radius R, the atom gets more compressed
and the absolute value of the kinetic and potential energy increases but
the increase of kinetic energy is more than the increase of
potential energy. Eventually at a given value of R, the total
energy becomes zero resulting in pressure ionization. Further
decrease of R results in unbound states, for which
polarizability again looses its meaning. With decrease of
truncation radius R the charge cloud gets pressurized. We have
calculated the pressure on the atom due to truncation of the wave
function at finite radius R by using the relation (Hirschfelder
1954)

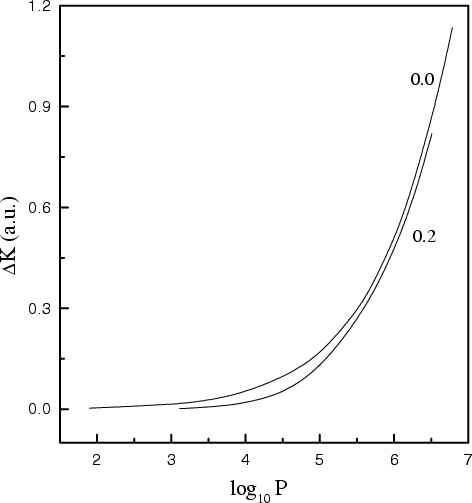

Figure 2: Variation of change in kinetic energy ( in a.u.) with logarithm of pressure at different screening. | |
Open with DEXTER |

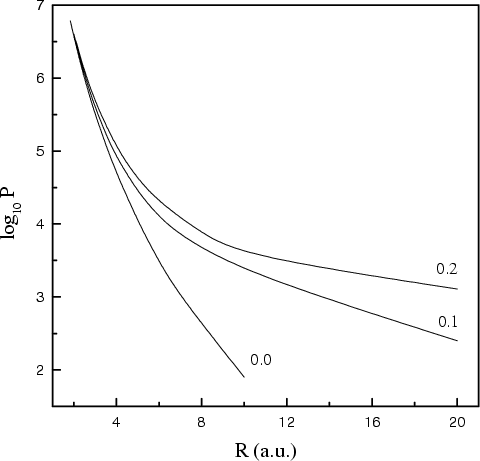

Figure 3: Plot of P against confinement radius Rat different screening. | |
Open with DEXTER |

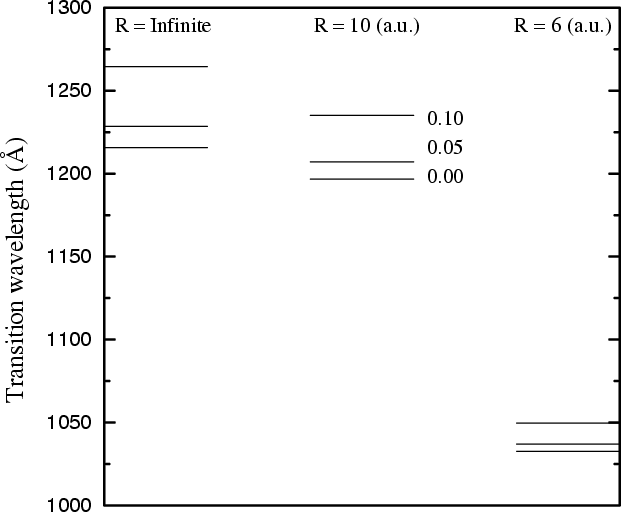

Figure 4: Transition wave length for 2p state of compressed hydrogen atom under different confinement radii and Debye shielding (). | |
Open with DEXTER |

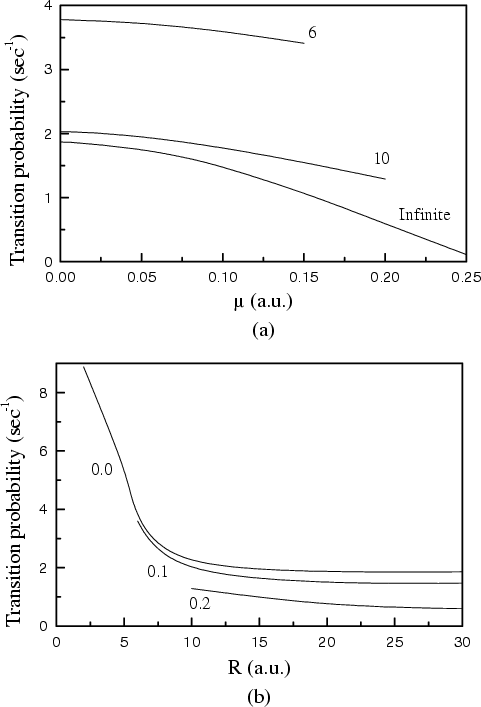

Figure 5: Variation of transition probability (scaled) with a) at different radii (R) of the spherical box, b) the radius of the spherical box at different . | |
Open with DEXTER |
Figure 6: Plot of charge density for 2p state a) under different Debye screening ( in a.u.) with no pressure, i.e., R = Infinite and b) under different compression with no Debye shielding, i.e., . | |
Open with DEXTER |
Figure 7: Plot of charge density at different confinement with a.u. | |
Open with DEXTER |

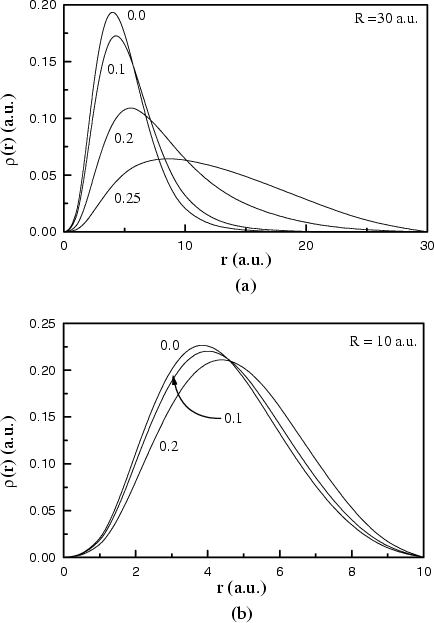

Figure 8: Plot of charge density at different screening with confinement radii a) R=30 and b) R=10 a.u. respectively. | |
Open with DEXTER |
For a given , the transition energy to different excited states increases with decrease of R, i.e., with more and more compression. However, for given R, the transition energy diminishes with increase of value. The wavelength in Å for the 2p transition is schematically shown in Fig. 4 for different R and . The general trend in the change of wave length is clearly observed. A typical example for R= 10 a.u. and a.u. the shift nm. Experiments performed for different atoms in liquid helium show shifts of this order (Tabbert 1995). The oscillator strength and transition probability for dipole allowed transitions have been evaluated using standard formula (Bethe 1954). The oscillator strength and transition probability values diminish along increasing for a given truncation radius R, while they gradually increase with decrease of R values for a given . Figure 5a shows the plot of transition probability for the excitation against for three different confinement radii R, while in Fig. 5b, the same is plotted against R for three different values of screening parameters . Different trend is observed for the two cases. As the energy becomes less negative either when is increased for a given R or when R is decreased for a given the ionization potential gets lowered and the number of excited states becomes finite. To have an idea about the behavior of the excited state wave functions under confinement, we plotted in Fig. 6a the charge density for the 2p wave function calculated by our method against r for sets of Debye parameters for while in Fig. 6b the plots for different confinement radii for the Debye parameter are given. An overall flattening of the charge density is noted for increase of value for while the charge density is squeezed for decrease of truncation radius R for . Similar plots are given in Figs. 7, 8a and 8b for finite R and values. The figures show interesting feature of the charge densities. The trend is similar for charge densities of the excited 3p and 4p states.
Acknowledgements
PKM would like to thank the Max-Planck Institute for Astrophysics, Garching, for financial support of his research visit to the institute where part of the work was performed. He would also like to thank the Council of Scientific and Industrial Research (CSIR), Govt. of India for the research grant No. (03)/(0888)/99/EMR II.
