A&A 395, 761-777 (2002)
DOI: 10.1051/0004-6361:20021325
H. Kuntschner1,4 - B. L. Ziegler2,3 - R. M. Sharples4 - G. Worthey5 - K. J. Fricke3
1 - European Southern Observatory, Karl-Schwarzschild-Str. 2,
85748 Garching bei München, Germany
2 -
Academy of Sciences, Theaterstr. 7, 37073 Göttingen, Germany
3 -
Universitätssternwarte, Geismarlandstrasse
11, 37083 Göttingen, Germany
4 -
Department of Physics, University of Durham, Durham DH1
3LE, UK
5 -
Department of Physics, Washington State University,
1245 Webster Hall, Pullman, WA 99164-2814, USA
Received 17 July 2002 / Accepted 9 September 2002
Abstract
We present results derived from VLT-FORS2 spectra of 24 different globular clusters associated with the lenticular galaxy
NGC 3115. A subsample of 17 globular clusters have sufficiently
high signal-to-noise to allow precision measurements of
absorption line-strengths. Comparing these indices to new stellar
population models by Thomas et al. we determine ages,
metallicities and element abundance ratios. For the first time
these stellar population models explicitly take abundance ratio
biases in the Lick/IDS stellar library into account. Our data are
also compared with the Lick/IDS observations of Milky Way and
M 31 globular clusters. Unpublished higher order Balmer lines
(H
and H
)
from the Lick/IDS
observations are given in the Appendix.
Our best age estimates show that the observed clusters which
sample the bimodal colour distribution of NGC 3115 are coeval
within our observational errors (2-3 Gyr). Our best calibrated
age/metallicity diagnostic diagram (H
vs. [MgFe])
indicates an absolute age of 11-12 Gyr consistent with the
luminosity weighted age for the central part of NGC 3115. We
confirm with our accurate line-strength measurements that the
(V-I) colour is a good metallicity indicator within the probed
metallicity range (
). The abundance
ratios for globular clusters in NGC 3115 give an inhomogeneous
picture. We find a range from solar to super-solar ratios for both
blue and red clusters. This is similar to the data for M 31 while
the Milky Way seems to harbour clusters which are mainly
consistent with
.
From our
accurate recession velocities we detect, independent of
metallicity, clear rotation in the sample of globular clusters.
In order to explain the metallicity and abundance ratio pattern,
particularly the range in abundance ratios for the metal rich
globular clusters in NGC 3115, we favour a formation picture with
more than two distinct formation episodes.
Key words: galaxies: abundances - galaxies: individual: NGC 3115
- galaxies: star clusters - galaxies: stellar content -
globular clusters: general
Lenticular galaxies hold a key position in the Hubble sequence of morphological types, intermediate between pure spheroidal systems like luminous ellipticals and disk-dominated spiral galaxies. Their formation mechanism is still the subject of considerable debate with evidence both for (Dressler et al. 1997) and against (Dressler 1980) their evolution from star-forming spirals via processes of gas stripping and exhaustion. A key question is when and how did such processes occur for S0 galaxies in a wide range of environments from rich clusters to the field. The globular cluster systems of S0 galaxies can provide independent constraints on when the major star formation episodes occurred both in the disk and halo. However, thus far they have been little studied with only NGC 1380 (Kissler-Patig et al. 1997) and NGC 4594 (the Sombrero galaxy, Bridges et al. 1997) having received any detailed attention and only with photometric methods.
NGC 3115 is one of the nearest S0 galaxies ( Mpc,
MB=-20.1; Tonry et al. 2001) and is located in the sparse low-density
environment of the Leo Spur. As such it provides an ideal test case for
studying the formation mechanism of field S0's. A significant globular
cluster system containing
500 clusters was first detected by
Hanes & Harris (1986) using photographic plates. The nature of the cluster
system and its origin were recently thrown into question with the
discovery by Elson (1997) that the red-giant stars in the NGC 3115
halo
40 kpc from the centre showed a bimodal colour
distribution. The inferred presence of two distinct halo populations of
roughly equal size at metallicities of
and
suggests at least two distinct epochs
of formation.
The (V-I) colour distribution of the NGC 3115 globular cluster
system has been the target of two recent independent studies using HST
(Kundu & Whitmore 1998) and CFHT (Kavelaars 1998) data. Both studies find
bimodality in the colour distributions of the GCs, with mean
metallicities at
and
suggesting that the cluster and halo star systems may
have formed coevally. This suggestion has gained further support from
an investigation by Puzia et al. (2002b) who employed optical-IR colours to
probe the globular cluster population close to the centre of NGC 3115.
They also find two peaks in metallicity and an average age around
10 Gyr. However, their age discrimination power is very
limited for metallicities lower than
.
One scenario in which the above observations could be understood is if
the metal-poor component corresponds to a primordial 13 Gyr
old population, whilst the metal-rich component formed a few Gyr later
from enriched gas, possibly as the result of a minor merger
(e.g., Bekki 1998). With only broad-band colours available,
however, the well-known degeneracy between metallicity and age
(Worthey 1994) makes such conclusions very uncertain.
For that reason, we have started a campaign to spectroscopically study the globular cluster system in NGC 3115. Our precision measurements of absorption line-strengths can be used to derive age and metallicity estimates directly from the comparison with new stellar population models. Unlike photometric methods, with spectroscopy we are also able to explore element abundance ratios for the GCs. We compare our results with other very recently obtained spectroscopic samples of GCs in early-type galaxies: in the giant Fornax elliptical NGC 1399 (Forbes et al. 2001), the Sa/Sb galaxy M 81 (Schroder et al. 2002), the SB0 galaxy NGC 1023 (Larsen & Brodie 2002) and the Sombrero galaxy NGC 4594 (Larsen et al. 2002).
The paper is organized as follows. In Sect. 2, the observations and their reduction are discussed. Section 3 presents the colour distribution of our sample while in Sect. 4 the treatment of abundance ratios and new stellar population models are investigated. Our results on abundance ratios, age and metallicity distributions for GCs in NGC 3115, the Milky Way (hereafter MW) and M 31 are presented in Sect. 5 with a general discussion in Sect. 6. We present our conclusions in Sect. 7.
Slitlet ID | Originb | RA J2000.0 Dec | V (HST) | (V-I) (HST) | (V-I) (spec)c | cz | S/N | member | |
1 | - | No object in slit. | |||||||
2 | - | 10![]() ![]() ![]() |
-7![]() ![]() ![]() |
- | - | 1.183 | ![]() |
9 | ![]() |
3 | - | 10![]() ![]() ![]() |
-7![]() ![]() ![]() |
- | - | 1.142 | ![]() |
23 | ![]() |
4 | - | 10![]() ![]() ![]() |
-7![]() ![]() ![]() |
- | - | 0.883 | ![]() |
72 | - |
5 | WHT09 | 10![]() ![]() ![]() |
-7![]() ![]() ![]() |
- | - | 0.980 | ![]() |
32 | ![]() |
6 | - | 10![]() ![]() ![]() |
-7![]() ![]() ![]() |
- | - | - | z=0.39a | - | - |
7 | HST08 | 10![]() ![]() ![]() |
-7![]() ![]() ![]() |
![]() |
![]() |
1.148 | ![]() |
28 | ![]() |
8 | HST03 | 10![]() ![]() ![]() |
-7![]() ![]() ![]() |
![]() |
![]() |
1.029 | ![]() |
61 | ![]() |
9 | HST02 | 10![]() ![]() ![]() |
-7![]() ![]() ![]() |
![]() |
![]() |
1.068 | ![]() |
38 | ![]() |
10 | HST21 | 10![]() ![]() ![]() |
-7![]() ![]() ![]() |
![]() |
![]() |
1.050 | ![]() |
8 | ![]() |
11 | HST39 | 10![]() ![]() ![]() |
-7![]() ![]() ![]() |
![]() |
![]() |
1.218 | ![]() |
8 | ![]() |
12 | HST13 | 10![]() ![]() ![]() |
-7![]() ![]() ![]() |
![]() |
![]() |
0.982 | ![]() |
19 | ![]() |
13 | HST18 | 10![]() ![]() ![]() |
-7![]() ![]() ![]() |
![]() |
![]() |
1.015 | ![]() |
12 | ![]() |
14a | HST27 | 10![]() ![]() ![]() |
-7![]() ![]() ![]() |
![]() |
![]() |
1.117 | ![]() |
11 | ![]() |
14b | HST12 | 10![]() ![]() ![]() |
-7![]() ![]() ![]() |
![]() |
![]() |
1.138 | ![]() |
23 | ![]() |
15 | HST17 | 10![]() ![]() ![]() |
-7![]() ![]() ![]() |
![]() |
![]() |
1.021 | ![]() |
16 | ![]() |
16 | HST32 | 10![]() ![]() ![]() |
-7![]() ![]() ![]() |
![]() |
![]() |
0.878 | ![]() |
12 | ![]() |
17 | HST09 | 10![]() ![]() ![]() |
-7![]() ![]() ![]() |
![]() |
![]() |
1.167 | ![]() |
23 | ![]() |
18 | HST31 | 10![]() ![]() ![]() |
-7![]() ![]() ![]() |
![]() |
![]() |
1.236 | ![]() |
9 | ![]() |
19 | HST57 | 10![]() ![]() ![]() |
-7![]() ![]() ![]() |
![]() |
![]() |
0.983 | ![]() |
5 | ![]() |
20 | HST46 | 10![]() ![]() ![]() |
-7![]() ![]() ![]() |
![]() |
![]() |
0.946 | ![]() |
7 | ![]() |
21 | - | 10![]() ![]() ![]() |
-7![]() ![]() ![]() |
- | - | 0.971 | ![]() |
12 | ![]() |
22 | - | 10![]() ![]() ![]() |
-7![]() ![]() ![]() |
- | - | 0.957 | ![]() |
7 | ![]() |
23 | WHT15 | 10![]() ![]() ![]() |
-7![]() ![]() ![]() |
- | - | 1.140 | ![]() |
34 | ![]() |
24 | WHT16 | 10![]() ![]() ![]() |
-7![]() ![]() ![]() |
- | - | 0.992 | ![]() |
42 | ![]() |
25a | - | 10![]() ![]() ![]() |
-7![]() ![]() ![]() |
- | - | 0.832 | ![]() |
19 | ![]() |
25b | - | 10![]() ![]() ![]() |
-7![]() ![]() ![]() |
- | - | 0.890 | ![]() |
46 | ![]() |
26a | - | 10![]() ![]() ![]() |
-7![]() ![]() ![]() |
- | - | 1.068 | ![]() |
10 | ![]() |
26b | WHT17 | 10![]() ![]() ![]() |
-7![]() ![]() ![]() |
- | - | 0.934 | ![]() |
19 | ![]() |
The observations were carried out 26/27 Feb. 2001 with FORS2 on VLT
using the blue 600 l/mm grism and 1
wide slitlets giving a
resolution of
4.8 Å (FWHM) sampled at 1.2 Å pixel-1.
The seeing was generally
.
The total exposure time
for the first mask was 12 440 s split up in six individual exposures
of varying length. Due to bad weather the second mask was only exposed
for 2700 s which was not long enough to be of use for this study. The
flux standard GD 71 was observed through a long-slit (2
5 width)
to enable us to correct the continuum shape of the spectra.
The standard data reduction procedures (bias subtraction, flat-fielding, wavelength calibration, sky-subtraction and continuum correction to a relative flux scale) were performed with a combination of MIDAS and IRAF tasks. For each slit a 2-dimensional subsection of the CCD was extracted and then treated as a long-slit observation. The extraction region was defined by tracing the globular cluster spectrum along the wavelength direction and extracting the corresponding sections for the flat-field and arc-lamp observations. The cosmic rays were removed with the routine lacos_spec (van Dokkum 2001). The wavelength calibration was accurate to <0.2 Å. After sky-subtraction GCs were extracted from the individual exposures to achieve an optimal S/N (Horne 1986). Finally, the spectra of the individual exposures were combined.
We used the spectroscopic flux standard GD 71 to correct the continuum shape of our spectra to a relative flux scale and applied a reddening correction of E(B-V) = 0.146 (Schlegel et al. 1998). In order to transform our observations onto the Lick/IDS system we convolved our spectra with a wavelength-dependent Gaussian kernel (taking into account small variations of the instrumental resolution with position on the chip) thereby reproducing the Lick/IDS spectral resolution (Worthey & Ottaviani 1997).
As a first analysis step we measured the recession velocity (with fxcor in IRAF) and S/N of the GC candidates. The first slit (Slitlet ID: 1) did not show any object which we ascribe to a field distortion towards the edges of the field-of-view. Basic information for the remaining 28 globular cluster candidates is listed in Table 1. The first column in this table is an object identifier, the second column indicates from which source the object was selected from. The following columns list the J2000.0 coordinates and V, I photometry of Kundu & Whitmore (1998). The seventh column shows pseudo (V-I) colours derived from our spectroscopy (see Sect. 3 for details). Columns eight and nine list the radial velocity and the mean S/N per pixel respectively. Finally, column ten indicates whether the GC candidate is a spectroscopically confirmed member of the NGC 3115 system (see next paragraph).
The radial velocity of NGC 3115 is listed as km s-1 by
Smith et al. (2000). Kavelaars (1998) find a mean velocity of 620 km s-1 and a
velocity dispersion of
km s-1 from low resolution
spectroscopic observations of 22 globular clusters. We consider all
objects with radial velocities between 200 km s-1 and 1300 km s-1 as
members of the NGC 3115 system. Object 6 is a background galaxy with a
redshift of z=0.39, while object 4 is likely to be a galactic star.
In total 26 out of 28 GC candidates (93%) turned out to be objects
which are dynamically associated with NGC 3115. This low contamination
fraction is to be expected for a sample of candidates predominantly
selected by morphological criteria from HST data.
![]() |

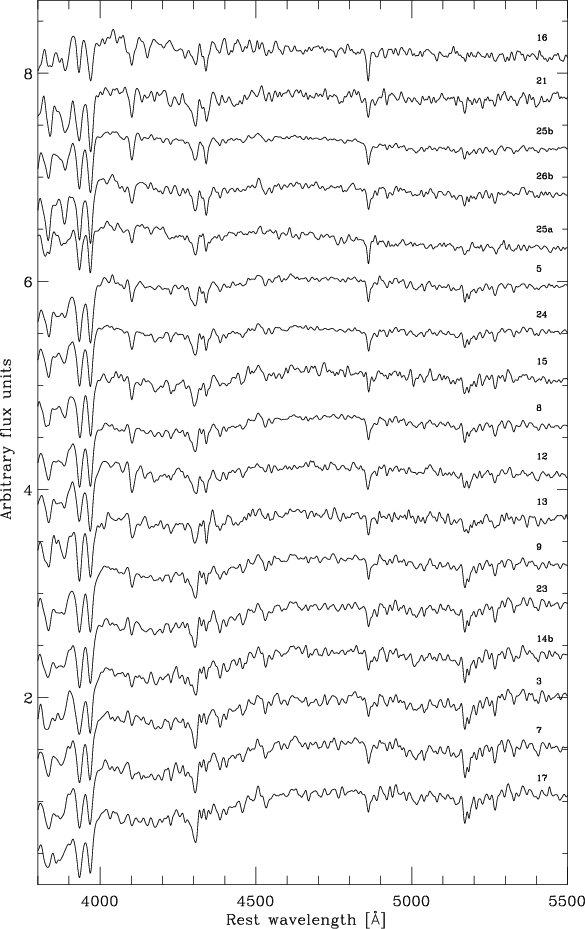

Figure 1:
Rest-frame spectra of globular clusters corrected
to the Lick/IDS resolution and sorted by increasing strength of our
mean metallicity indicator [MgFe] (from top to bottom, see also
Sect. 4). Note the change in overall continuum shape
(metal poorer globular clusters are bluer) and also the change in
absorption strength of the Balmer lines (H![]() ![]() ![]() |
Open with DEXTER |
We note that the globular cluster 14a (HST27, S/N=11) shows clear
[O III]
emission which is however redshifted by
190 km s-1
with respect to the recession velocity of the globular cluster itself.
Therefore the emission cannot be associated with the globular cluster
itself, although the spatial extent of the emission is consistent with
the size of the GC on the sky.
Lick indices (for index definitions see Worthey & Ottaviani 1997; Trager et al. 1998) were
measured from the resolution and continuum corrected spectra covering a
common observed wavelength range of 3670-5500 Å. Uncertainties in
the indices were derived by Monte-Carlo simulations which take into
account the photon noise, read-out noise of the CCD and the errors in
the velocity determination. The Lick system is based on non-flux
calibrated spectra, so one expects small offsets (e.g., Kuntschner 2000)
in the zero-point of the line indices. Since no stars in common with
the Lick stellar library were observed during our observing run we use
the offsets established by Vazdekis (1999) for a large flux-calibrated
sample of stars ("Jones library'') to transform our index measurements
onto the Lick system. Since typical metallicities for GCs are between
,
we calculated the offset by averaging the
values for
and -0.4 given by Vazdekis (1999 see his
Table 2). Note, that some indices (e.g., Mg2) show strong
evidence for a metallicity dependent offset, which can introduce
systematic offsets as a function of line-strength. Here in this paper
we use mainly indices where the former problem is only a second order
effect. The measured index values and their associated errors are
listed in Tables 2 and A.1 in
the Appendix.

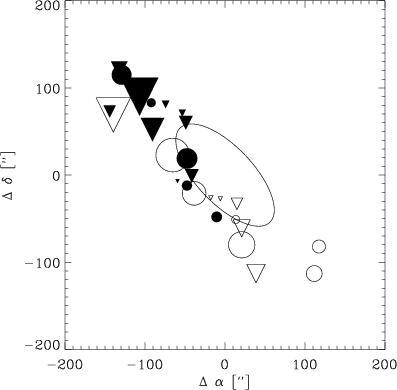

The positions of the GCs with respect to the parent galaxy are shown in
Fig. 2. Due to the optimisation of the target efficiency
and the observational constraints of the FORS2 instrument the GCs lie
in a narrow band 25
eastwards of the galaxy centre
parallel to the major axis of NGC 3115. Both the red and blue
sub-samples were evenly distributed across the CCD.
![]() |
Figure 2: Positions of spectroscopically confirmed globular clusters with respect to the centre of NGC 3115 (triangles represent blue clusters and circles red clusters, see Sect. 3). Approaching and receding globular clusters are indicated by open symbols and filled symbols respectively, while the symbol size indicates the extent of the velocity difference with respect to the mean velocity of the whole sample. The ellipse encloses half of the integrated light and indicates the position and orientation of the main galaxy itself (data from Michard & Marchal 1994). North is up and east to the left. |
Open with DEXTER |
In Fig. 3 we assess the kinematics of all globular
clusters which have recession velocities consistent with being members
of the NGC 3115 system. There is a strong signature of GC rotation
along the major axis of the galaxy. We confirm here the weak signal of
rotation for the red cluster population detected by Kavelaars (1998). In
our sample there is no clear difference between red and blue clusters,
both show an equally strong signal of rotation.
Since our sample of GCs is dominated by clusters close to the location
of the major axis (see Fig. 2) we note that the sample is
probably biased to globular clusters associated with the disk-formation
of NGC 3115.
![]() |

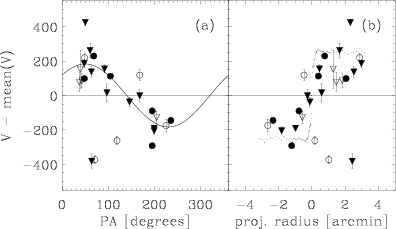

Figure 3: Assessment of rotation for NGC 3115 globular clusters. The triangles and circles represent blue and red clusters, respectively. Filled symbols indicate the high S/N sample of 17 globular clusters for which we present a line-strength analysis in this paper. Panel a): The vertical axis shows the radial velocity of the globular clusters relative to the mean velocity of the sample. The horizontal axis is the position angle between a globular cluster and the galaxy centre, where a PA of 0 degrees represents north and positive is east of north. The sinusoid is a simple least-squares fit to the full sample with one iteration to reject outliers. Panel b): radial velocity is plotted against the projected major axis radius. Positive numbers are towards north-east. The small dots represent the stellar rotation curve of NGC 3115 along the major axis (Capaccioli et al. 1993). |
Open with DEXTER |
![]() |

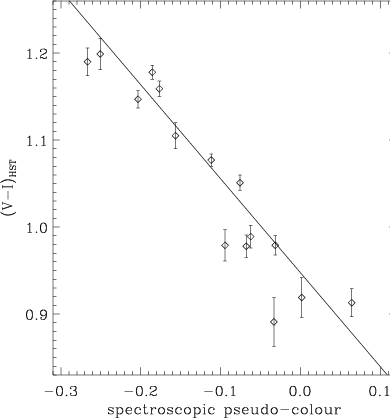

Figure 4:
The pseudo colour derived from the
spectra versus
![]() ![]() |
Open with DEXTER |
The colour distribution of our sample of 17 GCs is shown in Fig. 5 together with the full HST sample by Kundu & Whitmore (1998). The HST sample shows a clear bimodal structure with peaks at (V-I) = 0.96 and (V-I) = 1.17. Taking the mean colour of the HST sample ( (V-I) = 1.06) as the dividing line between the red and blue clusters, our spectroscopic sample features eleven blue clusters and six red ones while spanning the range (V-I) = 0.87-1.18.
![]() |
Figure 5: Histogram of (V-I) colours of the cluster candidates from Kundu & Whitmore (1998). Overplotted as a filled histogram is our spectroscopic sample of 17 confirmed globular clusters in NGC 3115. The vertical dashed line indicates the dividing line between red and blue clusters at (V-I) = 1.06. |
Open with DEXTER |
GCs represent simple stellar populations (hereafter SSP, i.e., a unique
age and chemical composition) since all the stars of one GC are thought
to be created in a single star formation event. But it is not known a
priori whether the stars of a given GC are formed out of Fe-deficient
gas clouds, which have been only enriched by SN II producing little
Fe, or out of an already well mixed interstellar medium harbouring the
products from both SN Ia (main producer of Fe) and SN II. For GC
systems with a bimodal colour distribution like in NGC 3115, all
scenarios that have been proposed to explain the origin of the red
metal-rich GCs start from the principle that the red population is
formed in a separate star formation event (e.g.,
Ashman & Zepf 1992; Forbes et al. 1997). In a naive star-formation scenario, where the red
clusters form from the well-mixed interstellar medium they should show
solar abundance ratios.
![]() |

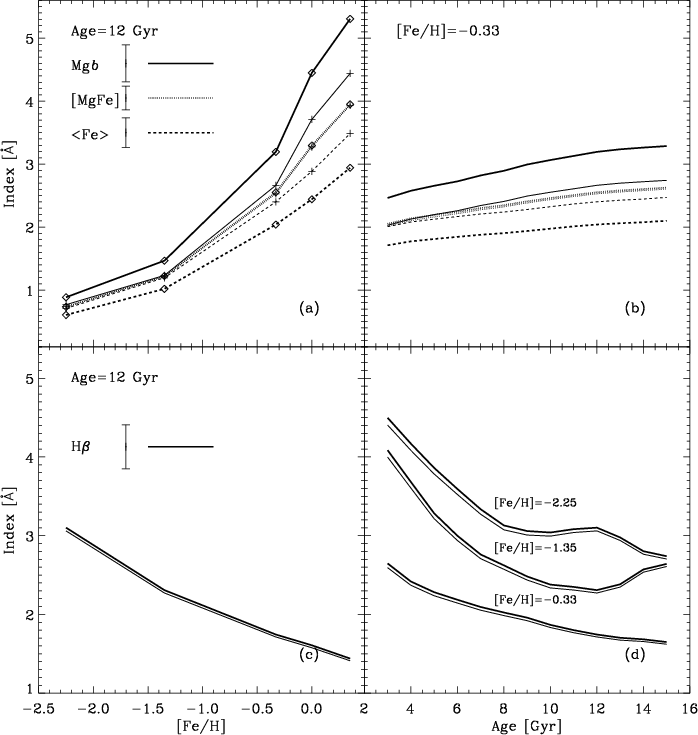

Figure 6:
Dependence of Mg b, [MgFe], ![]() ![]() ![]() ![]() ![]() ![]() |
Open with DEXTER |
Most of the currently available stellar population models which can be
used to investigate the abundance ratios of extragalactic objects are
based on stellar libraries from our own Galaxy. This has the
disadvantage that, particularly at sub-solar metallicities, galactic
disk stars show super-solar abundance ratios for many -elements
(Edvardsson et al. 1993; McWilliam 1997). Therefore, without correction, the model
predictions will be biased towards super-solar abundance ratios
(e.g., Borges et al. 1995; Kuntschner 2000; Thomas et al. 2002a).
Thomas et al. (2002a) (see also Thomas et al. 2002b) provide new models which take
the stellar library biases into account and can predict line-strengths
for solar abundance as well as non-solar abundance ratios over a large
metallicity range (
). Since our
paper is among the first that make use of these new models for studying
GC spectra, we first explore systematically how the three parameters
age, metallicity and abundance ratio ([Mg/Fe]) affect the absorption
line-strengths of SSPs. For this purpose we plot in
Fig. 6 the model predictions for the line-strengths of
the often used metallicity indicators Mg b,
Fe
and
[MgFe]
and the age sensitive
Balmer line H
as a function of metallicity, age and [Mg/Fe].
![]() |

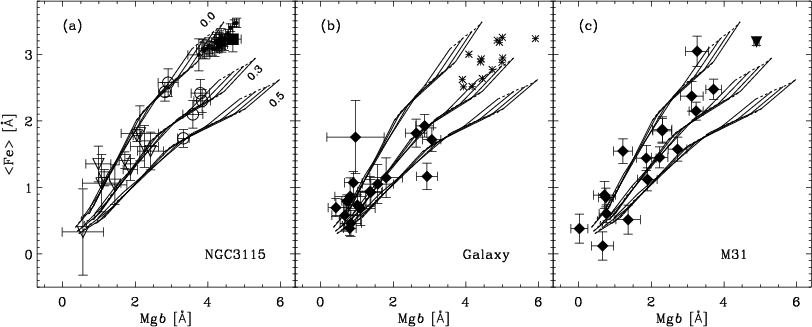

Figure 7:
Probing the [Mg/Fe] ratios of globular
clusters in a Mg b vs. ![]() ![]() ![]() ![]() ![]() ![]() |
Open with DEXTER |
The effects of non-solar abundance ratios (thick lines) with respect to
solar ratio model predictions (thin lines) can be clearly seen for the
metallicity sensitive indices Mg b and Fe
.
At a given age and
all metallicities (Fig. 6a), the Mg b index is
predicted to be stronger for super-solar [Mg/Fe]. The difference
between solar ratio and non-solar ratio models increases with
increasing metallicity. This behaviour is reversed for the
Fe
index (see also Trager et al. 2000). A similar effect can be observed when
we fix [Fe/H] but vary age (Fig. 6b). Remarkably, the
[MgFe] index, the geometric mean of the Mg b and
Fe
indices,
does not show any significant dependence on abundance ratios, at least
not within the current framework of the models. This has the unique
advantage that [MgFe] can be used as an empirical mean metallicity
indicator with negligible dependence on the abundance ratios (see
also Kuntschner et al. 2001). Similarly, H
is hardly affected by [Mg/Fe] with a
small increase in line-strength for larger [Mg/Fe] ratios
(Figs. 6c and d).
However, the H
index shows a noteworthy complication at low
metallicities (
)
and ages >8 Gyrs. Here
the models predict a non-monotonic decrease of the H
index with
increasing age (see Fig. 6d, models for
and -1.35). Therefore, in this age and metallicity range a
given measurement of H
and [MgFe] indices does not correspond to
one unique age but can in fact be consistent with a range of ages. The
ambiguity arises between a genuine measurement of the turn-off
temperature by H
and the appearance of blue horizontal branch stars
in old, metal poor stellar systems which will start to increase the
H
index, mimicking a younger age (Lee et al. 2000; Maraston & Thomas 2000; Beasley et al. 2002b). The
overall result is a "crossing'' of iso-age lines at ages larger than
8 Gyr and low metallicities. In Sect. 5.2 where we
will determine our best age estimates, the above effect will be taken
into account.
The measurements for the centre of NGC 3115 itself (large filled
square, data from Trager et al. 1998) and the radial gradient (small filled
squares, data from Fisher et al. 1996) along the major axis up to 40
is
compatible with a model of
at high
metallicity/age. In Figs. 7b and c we plot the
Lick/IDS observations of GCs in the Milky Way and M 31 respectively
(data from Trager et al. 1998). While virtually all MW GCs are consistent
with
,
similar to large elliptical galaxies, we
find a range in [Mg/Fe] for the GCs in M 31. The overall distribution
of the [Mg/Fe] ratios for GCs in M 31 is similar to the one we find in
NGC 3115. The average value of
we find for
the MW GCs compares well with high resolution studies of individual
stars in MW GCs (e.g., Lee & Carney 2002).
![]() |

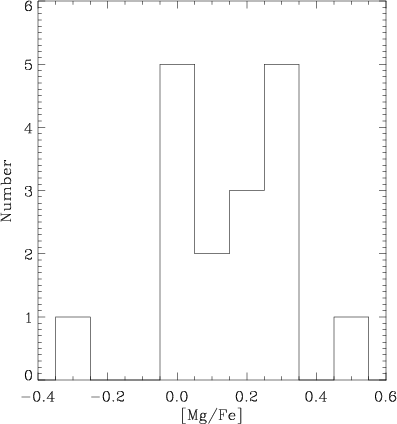

Figure 8: Histogram of abundance ratios [Mg/Fe] for NGC 3115 globular clusters. The abundance ratios were determined from Fig. 7a. |
Open with DEXTER |
GCs with super-solar [Mg/Fe] ratios were previously found in other
nearby galaxies but without our quantitative accuracy. For example,
Forbes et al. (2001) attribute super-solar abundance ratios to 4 out of 10 GCs
in NGC 1399. Using Mg and TiO features, Larsen et al. (2002) find a mean
[/Fe] of +0.4 for both metal-poor and metal-rich GCs in the
Sombrero galaxy.
![]() |

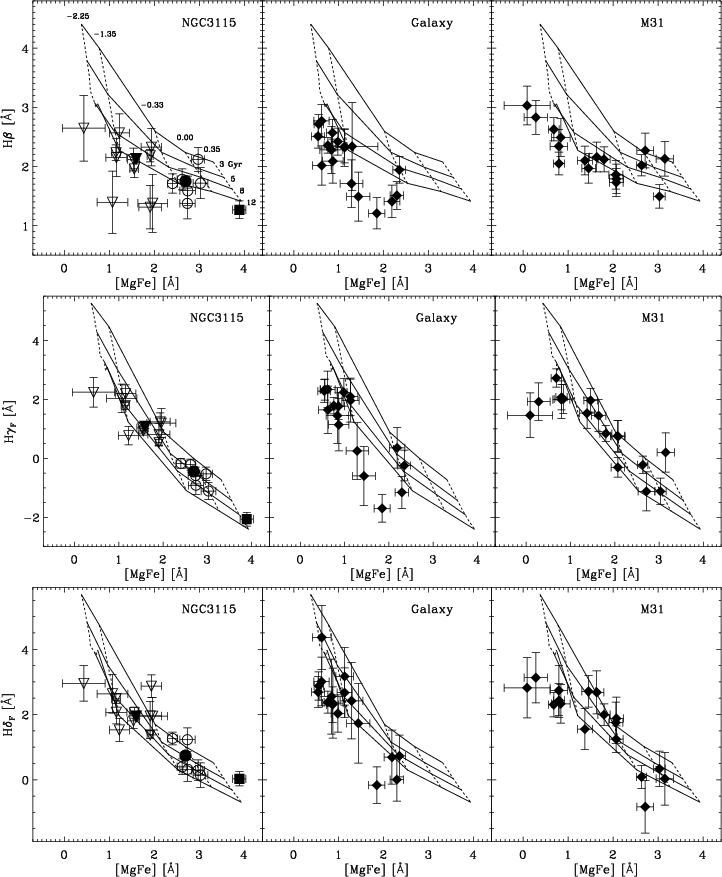

Figure 9:
Age and metallicity diagnostic diagrams using as metallicity
indicator [MgFe] and as age indicator H![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Open with DEXTER |
In the previous section we were able to determine the abundance ratios
of GCs without knowing the age and metallicity since the latter
parameters are almost completely degenerate in a Mg b vs.
Fe
diagnostic diagram. However, our earlier discussion of the
model systematics shows that we need to take the abundance ratios into
account in order to estimate the age and metallicity of the GCs
(see also e.g., Trager et al. 2000; Kuntschner et al. 2001).
Principle age sensitive lines within our observed wavelength range are
the Balmer lines H,
H
,
and H
.
For H
and H
,
the dependence
on
-element to Fe ratio is yet unknown. H
is only
marginally sensitive to abundance ratio variations, at least in
comparison to our average observational error. To further minimise the
influence of abundance ratios, we employ as metallicity indicator
[MgFe], that also shows no significant [Mg/Fe] dependence (see
Fig. 6). Within the accuracy of our data sample, an
H
vs. [MgFe] diagram can therefore be used to estimate the
ages and metallicities of our NGC 3115 GCs without being significantly
affected by abundance ratios.
In Fig. 9 we show diagrams of [MgFe] versus the three
Balmer lines for our sample of NGC 3115 GCs (left panels) and the
respective data for GCs in the Milky Way and M 31 from the Lick/IDS
observations (middle and right panels; the index values for H,
Mg b
and
Fe
were taken from Trager et al. (1998); the higher order Balmer
lines of the Lick/IDS observations are presented in
Tables A.2 and A.3 in the Appendix).
Overplotted in Fig. 9 are solar-abundance ratio models by
Thomas et al. (2002a) and Maraston (2002, in preparation) for metallicities
(dashed lines, left to
right) and ages 3, 5, 8 and 12 Gyr (solid lines, top to bottom).
We first caution that a direct comparison between models and our data to derive absolute ages and metallicities can be dangerous due to possible systematic calibration errors. However, we estimate that systematic observational errors are smaller than 0.1 Å for the indices shown here and emphasize that relative comparisons within one sample will be significant.
The observed H
values for NGC 3115 GCs show a large spread with
respect to the model predictions. However, the data points which are
well below the model predictions are the ones with the largest errors.
Most of the well determined data points are close to the region of a
12 Gyr SSP model. Our [MgFe] measurements show that there is a clear
distinction in metallicity between blue (open triangles) and red
clusters (open circles), with the red clusters being more metal rich (a
more detailed analysis of the metallicity distribution is presented in
Sect. 5.3).
Since only about half of our data points have small enough error bars
to be useful for an individual age/metallicity evaluation we also
calculate the error weighted mean of the blue and red clusters,
respectively. These average values (filled symbols in
Fig. 9, left panels) give for the metal poor (blue)
population an age of 12.0(
+1.5-2.0) Gyr and
,
while the metal rich (red) population has an estimated
age of 10.8(
+1.7-1.8) Gyr and
.
The errors on the age and metallicity are quoted as
1
errors on the mean values.
We note in Sect. 4 that for metallicities
and an age larger than 8 Gyr the strength
of the H
and [MgFe] indices is not uniquely connected to one age
anymore. In fact there is a "crossing'' of iso-age curves. For clarity
we do not plot iso-age lines for ages greater than 12 Gyr in
Fig. 9, but this effect has been taken into account when
deriving the errors on our best age and metallicity estimates.
From the H
vs. [MgFe] diagram we conclude that within our
observational errors the two populations of GCs in NGC 3115 have the
same age of 11-12 Gyr (assuming the calibration of models and data is
accurate). The observed indices for the integrated light in the centre
of NGC 3115 (taken from and shown as filled square in
Fig. 9 Trager et al. 1998) are consistent with a luminosity weighted
age of
12 Gyr.
The Lick/IDS observations of MW GCs also show a significant number of
objects below the model predictions. We note that there are no
systematic observational offsets to be expected since the data was
taken with the original Lick/IDS system. We speculate that observations
of these GCs may be contaminated by fore/back-ground stars. New
spectroscopic observations of MW GCs (Puzia et al. 2002a) support this
hypothesis since the new observations do not show such low H
values. Consistent with recent age estimates from the resolved stellar
populations of MW GCs (e.g., Rosenberg et al. 1999; Salaris & Weiss 2002) we do not find
evidence for clusters younger than
8 Gyr.
The Lick/IDS observations for M 31 GCs show a relatively small scatter
close to a 12 Gyr model prediction, with only three, metal-rich
clusters showing evidence of a younger age. We note however, that for
metallicities
the models seem to
systematically over-estimate the H
absorption strength (or
alternatively over-estimate the [MgFe] absorption strength).
In the next paragraphs we will present our measurements of the higher
order Balmer lines H
and H
.
We emphasize here that while these
indices can be measured with a higher precision than H
,
it is
currently unknown how these indices depend on abundance ratios.
Furthermore the absolute calibration of these indices has not yet been
investigated in as much detail as the H
index.
The distributions of H
and H
vs [MgFe] are narrower
compared to H
vs. [MgFe] and mostly encompassed by the model
grid. The error weighted means for NGC 3115 GCs indicate an age of
7 and
5 Gyr for the blue and red clusters,
respectively. These average ages are substantially lower than what we
inferred from the H
vs. [MgFe] diagram. We note that our
observations of H
and H
for GCs in NGC 3115 agree well with
the Lick/IDS observations of M 31 and therefore we conclude that the
calibration of the models is not consistent between H
and the
higher order Balmer lines. Despite this absolute calibration problem we
find a good agreement in a relative sense between H
,
H
and H
.
Therefore, at least to first order, we can say that the higher Balmer
indices are not significantly affected by abundance ratios in the
metallicity range probed by our data.
Comparing the distributions for MW and M 31 GCs, we find that the MW
one is broader and offset towards smaller H
and H
absorption
consistent with the H
measurements. We ascribe this to contaminated
observations for MW GCs (see above). The Lick/IDS data (particularly
the H
vs. [MgFe] diagram), suggest that perhaps
3 metal rich M 31 GCs have younger ages (3-5 Gyr). Alternatively, one
could account for the strong H
absorption in these metal rich
clusters if the H
index is significantly influenced by an extended
blue horizontal branch in an otherwise old, metal rich stellar
population. Maraston & Thomas (2000) show that this effect can play a role in metal poor stellar populations, however, to date there is scarce
observational evidence for the existence of a populous extended
blue horizontal branch in metal rich clusters. Rich et al. (1997) detected
a blue horizontal branch in two metal rich MW GCs and Ferraro et al. (2001)
detected UV-excess stars in the core of 47 Tuc (see
also Moehler et al. 2000).
Few spectroscopic observations of GCs in early-type galaxies with
sufficient S/N to investigate these effects have been published.
Forbes et al. (2001) find that most of their 10 GCs in the giant elliptical
NGC 1399 are old and compatible with a model age of 11 Gyr (using
models by Maraston 2002, in preparation). Only two GCs display such
large H
values that these have either a very young age of
2 Gyr or are "contaminated'' by a significant blue horizontal
branch population which causes large H
absorption. The authors
prefer the first interpretation. Larsen et al. (2002) present spectra of 14 GCs in the Sombrero Galaxy (NGC 4594). Their analysis of the co-added
spectra of metal-poor and metal-rich GCs leads to age estimates between
10-15 Gyr. The majority (11 out of 14 GCs) of the spectroscopic sample
of Schroder et al. (2002) of M 81 GCs is compatible with old ages
(using models by Worthey 1994). There is only one outlier with a very
high H
line strength.
In summary we conclude from our best calibrated diagram of H
vs. [MgFe] that the majority of our sample of GCs in NGC 3115,
regardless of their metallicity, are consistent with an age of
12 Gyr. Only one, metal rich cluster (Slitlet ID: 7) shows a
combination of H
and [MgFe] absorption strength which indicates an
age lower than 8 Gyr. The higher order Balmer lines indicate a narrow
distribution in age, with a hint of the metal rich clusters being
younger by
2 Gyr. The unknown dependence of the higher order
Balmer lines on abundance ratios makes this age difference highly
speculative. The absolute ages indicated by the higher order Balmer
lines are lower compared to the H
index. We ascribe this age
difference to an inaccurate calibration of the higher order Balmer
lines in the current stellar population models. The Lick/IDS samples of MW and M 31 GCs also show old stellar populations; only
3 GCs in M 31 show tentative evidence of younger stars.
In this section we compare our spectroscopic metallicity estimates with photometric methods and also investigate the general distribution of metallicities. For this purpose we assume an average age of the GCs in NGC 3115 of 12 Gyr which is consistent with our findings in the previous section.
Figure 10a shows the purely empirical relation between (V-I) colour and our mean metallicity indicator [MgFe]. There is a tight relation over the observed parameter space. Overplotted as solid line are model predictions by Maraston (2002, in preparation) and Thomas et al. (2002a) for a constant age of 12 Gyr, which is in excellent agreement with our data. We note that the model predictions for colours do not include the effects of non-solar abundance ratios.
In order to convert the colours into metallicity estimates several
authors have derived linear conversion formulae based on observations
for MW GCs. For example, Kundu & Whitmore (1998) conclude that
is a good linear approximation. One can also use the
predictions of stellar population models (Maraston 2002, in
preparation) to predict the relation between (V-I) colour and
metallicity [Fe/H]. A comparison of the empirical and synthetic
calibration (12 Gyr model) is shown in Fig. 10b.
Overall, the agreement is acceptable, although there are significant differences. Specifically at the low metalicity end the models predict a shallower trend than the empirical relation. In order to stay consistent with the Kundu & Whitmore (1998) paper we use their relation to convert (V-I) colour to metallicity (see also Table 1). Furthermore we determine metallicity estimates from our spectra by using the [MgFe] index in conjunction with the model predictions by Thomas et al. (2002a) and assuming a constant age of 12 Gyr. The comparison between photometric and spectroscopic metallicity estimates is shown in Fig. 10c.
We find a good linear relation between both methods. The best fitting
linear relation including the observational errors is
with a
probability of 0.30. The systematic offset of approximately
in the sense that the spectroscopic metallicity measurements are larger
is consistent with the difference between model predictions and
empirical calibration of the conversion formulae between colour and
[Fe/H] as shown in Fig. 10b. The predicted non-linearity
of (V-I) colour as function of metallicity below
cannot be tested since our data do not really cover this range.
In summary we confirm with our accurate spectroscopic observations that
the bimodal colour distribution seen in NGC 3115 GCs is dominated by a
metallicity effect rather than by an age difference. Furthermore, both
(V-I) colour peaks do show a substantial spread in metallicity. We
conclude that in the metallicity range
and in absence of young GCs, the (V-I) colour is indeed a good
indicator for metallicity. We note that for metallicities below
this may not be the case anymore.
![]() |

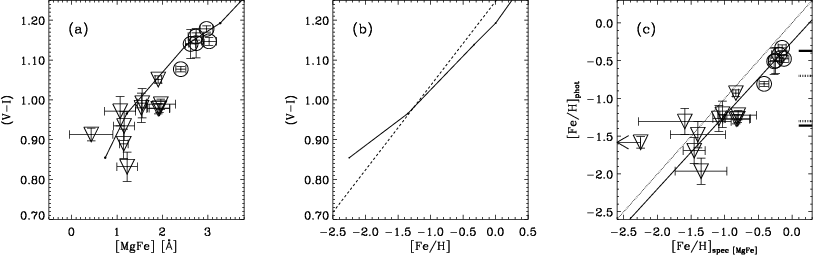

Figure 10:
Comparison of photometric and spectroscopic metallicity
estimates. In the left panel the [MgFe] index is plotted against
(V-I) colours (including the pseudo (V-I) colours derived from
the spectra). Overplotted as solid line is the prediction for a
12 Gyr stellar population model by Maraston (2002, in preparation)
and Thomas et al. (2002a). In the middle panel we show a comparison between
an empirical calibration of (V-I) colour against metallicity
(dashed line; Kundu & Whitmore 1998) and predictions from stellar
population models (solid line, 12 Gyr; Maraston 2002, in
preparation). In the right panel, photometric metallicities are
calculated according to Kundu & Whitmore (1998), while spectroscopic
metallicities are derived from the [MgFe] index in comparison to
models of Thomas et al. (2002a) assuming a constant age of 12 Gyr. The data
point at [Fe/H]
![]() |
Open with DEXTER |
Using their HST V, I photometry Kundu & Whitmore (1998) develop the
following formation scenario for NGC 3115. The blue, metal poor
clusters are formed with the halo/bulge component of the galaxy very
early on. Then about Gyr later an unequal mass, gas-rich merger
event forms the disk component and the associated red, metal rich
clusters. The authors point out that the spatial distribution of the
blue and red clusters are consistent with the halo/bulge and disk
components respectively. Furthermore, there is evidence from optical
imaging (Silva et al. 1989), that the disk is bluer and therefore perhaps
younger than the halo/bulge component, consistent with the above
outlined scenario.
In our spectroscopic study of the GCs in NGC 3115 we find that the
clusters are consistent with being coeval at about 11-12 Gyr. There is
perhaps a weak hint of the red clusters being younger, but by no more
than 2 Gyr. This on its own would not rule out the scenario by
Kundu & Whitmore (1998), however our estimates of the abundance ratios show
that at least the population of red, metal rich clusters is not
homogeneous. For these objects we find a range in abundance ratios from
solar to about
.
In our small sample of
limited spatial extend we do not find any clear trends of the chemical
composition of GCs with the kinematics (see Fig. 3). The
relative velocities of most of the clusters in our sample are
consistent with rotation. A larger sample of more complete spatial
coverage is needed to establish possible trends between abundance
ratios and e.g., age, metallicity, spatial position and kinematics.
What we can however say is that the metal-rich clusters with solar abundance ratios must have been made out of well mixed material which incorporates the products of both SN II (the main producer of alpha elements) and SN Ia (the main producer of Fe-peak elements). Since SN Ia are somewhat delayed compared to SN II the solar abundance ratio clusters must have formed after the initial star burst in NGC 3115. There are many possible scenarios to explain the observed abundance ratio distribution, but it is hard to fit them into a simple picture of only two distinct formation events which create the red and blue globular cluster sub-populations (see Beasley et al. 2002a).
One scenario which we would like to put forward for further discussion
is the following. The metal poor (blue), non-solar abundance ratio
clusters are associated with the halo formation, and the metal-rich
(red), non-solar abundance ratio clusters are formed together with the
bulge as was similarly proposed for the Milky Way by Carney et al. (1990) and
Wyse & Gilmore (1992). The metal rich, solar ratio clusters are then formed
with the disk of this lenticular galaxy 1-2 Gyr after the
initial star-burst perhaps in connection with a merger. This scenario
would then require the disk to have also close to solar abundance
ratios, which can be tested by observations of the integrated light.
Furthermore, if this scenario is correct the spatial distribution and
kinematics of disk GCs will be distinct from the population of halo and
bulge GCs in NGC 3115. Future, larger samples of NGC 3115 GCs will be
very valuable to explore the connection between disk formation and
metal rich globular cluster formation.
More spectroscopic observations of GCs in nearby galaxies of various types will be very valuable to improve our stellar population models and learn more about the early star-formation epochs in early-type galaxies. However, the mismatch of the models and some observed indices demonstrates that we are also in urgent need for a new, high-quality flux-calibrated spectral library in order to exclude simple observational offsets. Only then can we make good progress with improvements on the input physics of stellar population models and their application to extragalactic objects.
We present new, accurate measurements of absorption line-strength indices of 17 globular clusters (hereafter GCs) in the nearby S0 galaxy NGC 3115. Our objects span a range in colour so that the bimodal (V-I) colour distribution is well sampled.
A critical comparison with Lick/IDS data (Trager et al. 1998) of GCs in M 31
and the Milky Way (hereafter MW) is presented. The Lick/IDS
measurements of the H
and H
indices for MW
and M 31 GCs are presented for the first time in this paper. The data
are analysed with new stellar population models (Thomas et al. 2002a) which
are able to predict line-strength not only as a function of age and
metallicity but also as a function of abundance ratio. Specifically,
abundance ratio biases in the stellar library, which is an essential
ingredient to the model predictions, have been taken into account for
the first time.
Our main results are listed in the following:
Acknowledgements
Part of this work was supported by the Volkswagen Foundation (I/76 520). We thank Dr. J. Heidt (Heidelberg) and the ESO Paranal staff for the efficient observations, the resulting data of which were the basis for this Paper. We are also very grateful to D. Thomas, C. Maraston and R. Bender who provided their models prior to publication. We thank the referee B. W. Carney for a quick and helpful referee report.
Slitlet ID | H
![]() |
H
![]() |
CN1 | CN2 | Ca4227 | G4300 | H
![]() |
H
![]() |
Fe4383 | Ca4455 |
[Å] | [Å] | [mag] | [mag] | [Å] | [Å] | [Å] | [Å] | [Å] | [Å] | |
3 | -1.41 | 0.32 | 0.049 | 0.076 | 0.95 | 4.64 | -4.76 | -0.92 | 3.74 | 1.05 |
0.54 | 0.37 | 0.015 | 0.018 | 0.26 | 0.43 | 0.51 | 0.31 | 0.59 | 0.29 | |
5 | 1.44 | 1.81 | -0.014 | 0.022 | 0.54 | 2.84 | -0.92 | 1.04 | 2.03 | 0.40 |
0.34 | 0.23 | 0.010 | 0.012 | 0.18 | 0.30 | 0.32 | 0.18 | 0.44 | 0.21 | |
7 | -1.00 | 0.29 | 0.078 | 0.120 | 1.41 | 4.45 | -4.60 | -0.53 | 3.81 | 0.67 |
0.46 | 0.32 | 0.013 | 0.015 | 0.21 | 0.35 | 0.38 | 0.23 | 0.49 | 0.22 | |
8 | 0.49 | 1.38 | 0.006 | 0.038 | 0.83 | 3.29 | -1.92 | 0.54 | 2.36 | 0.56 |
0.18 | 0.12 | 0.005 | 0.006 | 0.09 | 0.15 | 0.16 | 0.10 | 0.22 | 0.11 | |
9 | 0.68 | 1.27 | 0.015 | 0.054 | 0.79 | 3.91 | -3.15 | -0.17 | 3.09 | 0.73 |
0.28 | 0.20 | 0.008 | 0.009 | 0.14 | 0.23 | 0.27 | 0.17 | 0.35 | 0.17 | |
12 | 2.42 | 2.87 | 0.010 | 0.067 | 0.60 | 2.38 | -0.39 | 1.24 | 2.53 | 0.77 |
0.52 | 0.34 | 0.016 | 0.019 | 0.27 | 0.49 | 0.51 | 0.30 | 0.71 | 0.35 | |
13 | 2.02 | 1.95 | -0.011 | 0.043 | 0.94 | 2.64 | -1.78 | 1.20 | 2.62 | 0.04 |
0.81 | 0.57 | 0.023 | 0.028 | 0.42 | 0.72 | 0.81 | 0.49 | 1.08 | 0.53 | |
14b | 0.75 | 1.23 | 0.012 | 0.035 | 1.01 | 3.93 | -4.56 | -0.58 | 3.89 | 1.26 |
0.50 | 0.36 | 0.015 | 0.018 | 0.25 | 0.40 | 0.46 | 0.28 | 0.60 | 0.28 | |
15 | 2.54 | 1.96 | -0.015 | 0.020 | 1.16 | 3.29 | -1.72 | 0.81 | 3.00 | 0.12 |
0.64 | 0.45 | 0.019 | 0.023 | 0.34 | 0.56 | 0.64 | 0.38 | 0.82 | 0.42 | |
16 | 3.50 | 2.95 | -0.063 | -0.058 | -0.21 | 0.55 | 0.96 | 2.24 | 2.07 | 0.60 |
0.84 | 0.55 | 0.025 | 0.030 | 0.45 | 0.83 | 0.78 | 0.50 | 1.11 | 0.54 | |
17 | -0.27 | 0.14 | 0.056 | 0.080 | 1.07 | 5.02 | -4.59 | -1.11 | 3.53 | 0.47 |
0.54 | 0.37 | 0.014 | 0.018 | 0.24 | 0.40 | 0.48 | 0.29 | 0.57 | 0.28 | |
21 | 2.01 | 2.63 | -0.048 | -0.034 | 0.70 | 3.34 | -0.17 | 2.03 | 1.85 | 0.17 |
0.85 | 0.59 | 0.024 | 0.029 | 0.43 | 0.79 | 0.79 | 0.48 | 1.11 | 0.54 | |
23 | -1.79 | 0.40 | 0.069 | 0.099 | 0.90 | 4.38 | -3.97 | -0.21 | 4.77 | 1.13 |
0.37 | 0.24 | 0.010 | 0.012 | 0.16 | 0.28 | 0.31 | 0.19 | 0.37 | 0.20 | |
24 | 1.99 | 2.06 | -0.008 | 0.012 | 0.83 | 2.87 | -1.23 | 0.93 | 2.45 | 0.32 |
0.24 | 0.17 | 0.008 | 0.009 | 0.12 | 0.22 | 0.24 | 0.14 | 0.32 | 0.15 | |
25a | 1.41 | 1.53 | -0.049 | -0.041 | 0.32 | 2.66 | -0.31 | 0.77 | 0.46 | 0.38 |
0.54 | 0.36 | 0.015 | 0.019 | 0.28 | 0.49 | 0.51 | 0.32 | 0.71 | 0.33 | |
25b | 2.33 | 2.48 | -0.059 | -0.034 | 0.49 | 2.33 | 0.30 | 1.79 | 1.27 | 0.31 |
0.22 | 0.15 | 0.006 | 0.008 | 0.11 | 0.19 | 0.21 | 0.13 | 0.31 | 0.15 | |
26b | 2.46 | 2.07 | -0.064 | -0.047 | 0.54 | 1.99 | 1.35 | 2.19 | 1.33 | 0.03 |
0.53 | 0.35 | 0.016 | 0.019 | 0.28 | 0.49 | 0.49 | 0.30 | 0.71 | 0.34 |
Slitlet ID | Fe4531 | C24668 | H![]() |
Fe5015 | Mg1 | Mg2 | Mg b | Fe5270 | Fe5335 | Fe5406 |
[Å] | [Å] | [Å] | [Å] | [mag] | [mag] | [Å] | [Å] | [Å] | [Å] | |
3 | 2.94 | 3.88 | 1.59 | 5.24 | 0.068 | 0.216 | 3.59 | 2.30 | 1.90 | 1.46 |
0.44 | 0.65 | 0.25 | 0.56 | 0.006 | 0.007 | 0.28 | 0.28 | 0.31 | 0.23 | |
5 | 1.87 | 1.45 | 2.12 | 3.51 | 0.038 | 0.105 | 1.86 | 1.49 | 1.05 | 0.68 |
0.34 | 0.49 | 0.19 | 0.41 | 0.005 | 0.005 | 0.20 | 0.22 | 0.25 | 0.19 | |
7 | 3.20 | 4.07 | 2.12 | 5.90 | 0.064 | 0.196 | 3.84 | 2.03 | 2.57 | 1.74 |
0.35 | 0.53 | 0.20 | 0.43 | 0.005 | 0.006 | 0.22 | 0.24 | 0.25 | 0.20 | |
8 | 2.20 | 1.87 | 2.18 | 3.20 | 0.025 | 0.110 | 2.04 | 1.83 | 1.73 | 0.89 |
0.17 | 0.25 | 0.10 | 0.23 | 0.002 | 0.003 | 0.10 | 0.12 | 0.13 | 0.11 | |
9 | 2.58 | 2.89 | 1.71 | 4.13 | 0.050 | 0.160 | 3.32 | 1.97 | 1.51 | 0.83 |
0.26 | 0.39 | 0.16 | 0.34 | 0.004 | 0.004 | 0.16 | 0.18 | 0.20 | 0.16 | |
12 | 0.70 | -0.29 | 2.33 | 3.53 | 0.025 | 0.118 | 2.42 | 1.88 | 1.21 | 1.21 |
0.61 | 0.86 | 0.32 | 0.69 | 0.008 | 0.010 | 0.35 | 0.37 | 0.43 | 0.34 | |
13 | 1.99 | 1.99 | 1.38 | 2.59 | 0.014 | 0.107 | 2.12 | 2.73 | 0.90 | 0.46 |
0.87 | 1.30 | 0.49 | 1.05 | 0.011 | 0.013 | 0.52 | 0.54 | 0.63 | 0.52 | |
14b | 3.26 | 1.87 | 1.38 | 3.75 | 0.052 | 0.174 | 2.90 | 2.45 | 2.69 | 1.22 |
0.43 | 0.67 | 0.26 | 0.57 | 0.006 | 0.007 | 0.27 | 0.28 | 0.31 | 0.26 | |
15 | 1.68 | -0.36 | 1.31 | 3.85 | 0.035 | 0.125 | 2.25 | 1.36 | 1.87 | 0.47 |
0.66 | 1.00 | 0.37 | 0.80 | 0.009 | 0.010 | 0.39 | 0.41 | 0.48 | 0.41 | |
16 | 1.64 | -1.13 | 2.65 | 1.62 | 0.015 | 0.028 | 0.56 | 0.36 | 0.30a | -0.28 |
0.92 | 1.48 | 0.56 | 1.18 | 0.013 | 0.015 | 0.57 | 0.65 | 1.12 | 0.57 | |
17 | 3.18 | 3.47 | 1.72 | 4.80 | 0.055 | 0.199 | 3.79 | 2.24 | 2.59 | 1.19 |
0.43 | 0.66 | 0.26 | 0.52 | 0.006 | 0.007 | 0.26 | 0.28 | 0.30 | 0.25 | |
21 | 0.66 | 0.26 | 1.39 | 1.48 | 0.009 | 0.070 | 1.07 | 0.99 | 1.13 | 1.11 |
0.92 | 1.37 | 0.53 | 1.11 | 0.012 | 0.013 | 0.53 | 0.58 | 0.63 | 0.53 | |
23 | 3.21 | 2.36 | 1.78 | 4.31 | 0.036 | 0.166 | 2.82 | 2.68 | 2.19 | 1.65 |
0.30 | 0.45 | 0.18 | 0.36 | 0.004 | 0.005 | 0.18 | 0.18 | 0.21 | 0.16 | |
24 | 2.01 | 0.46 | 1.96 | 3.04 | 0.023 | 0.103 | 1.71 | 1.51 | 1.31 | 1.06 |
0.25 | 0.39 | 0.15 | 0.32 | 0.003 | 0.004 | 0.16 | 0.17 | 0.19 | 0.15 | |
25a | 0.12 | -0.86 | 2.57 | 0.97 | -0.004 | 0.037 | 1.44 | 1.29 | 0.78 | -0.33 |
0.58 | 0.87 | 0.32 | 0.81 | 0.008 | 0.009 | 0.33 | 0.38 | 0.46 | 0.36 | |
25b | 1.60 | 0.61 | 2.23 | 2.66 | 0.016 | 0.063 | 1.15 | 1.06 | 1.23 | 0.50 |
0.23 | 0.33 | 0.13 | 0.30 | 0.003 | 0.004 | 0.14 | 0.17 | 0.18 | 0.14 | |
26b | 3.07 | 0.05 | 2.15 | 3.41 | 0.027 | 0.088 | 0.99 | 1.52 | 1.18 | 0.76 |
0.54 | 0.80 | 0.32 | 0.66 | 0.007 | 0.009 | 0.35 | 0.37 | 0.39 | 0.32 |
Name | H
![]() |
H
![]() |
H
![]() |
H
![]() |
[Å] | [Å] | [Å] | [Å] | |
NGC 5024 | 4.56 | 3.01 | ... | 2.34 |
1.20 | 0.75 | 0.62 | ||
NGC 5272 | 2.88 | 2.30 | ... | 1.77 |
0.88 | 0.55 | 0.45 | ||
NGC 5904 | 3.57 | 2.67 | 1.34 | 2.09 |
1.22 | 0.76 | 0.92 | 0.63 | |
NGC 6171 | 2.18 | 1.73 | ... | -0.60 |
1.95 | 1.22 | 1.00 | ||
NGC 6205 | 2.68 | 2.38 | 1.04 | 1.79 |
0.54 | 0.34 | 0.41 | 0.28 | |
NGC 6218 | 3.83 | 3.17 | ... | 1.96 |
1.41 | 0.88 | 0.73 | ||
NGC 6229 | 3.57 | 2.35 | 0.79 | 1.14 |
1.72 | 1.07 | 1.29 | 0.88 | |
NGC 6341 | 3.65 | 2.87 | 1.72 | 2.33 |
0.69 | 0.43 | 0.52 | 0.36 | |
NGC 6356 | ... | 0.01 | ... | -1.16 |
0.66 | 0.55 | |||
NGC 6624 | -1.26 | 0.73 | -4.70 | -0.24 |
1.02 | 0.64 | 0.76 | 0.52 | |
NGC 6637 | -1.37 | -0.17 | -4.23 | -1.70 |
0.90 | 0.56 | 0.68 | 0.47 | |
NGC 6712 | 3.18 | 2.42 | 0.64 | 0.25 |
1.87 | 1.17 | 1.40 | 0.96 | |
NGC 6838 | 0.66 | 0.69 | -1.39 | 0.35 |
1.32 | 0.83 | 0.99 | 0.68 | |
NGC 6981 | 3.24 | 2.55 | ... | 1.45 |
1.84 | 1.15 | 0.95 | ||
NGC 7006 | 3.45 | 4.37 | ... | 1.64 |
1.57 | 0.98 | 0.81 | ||
NGC 7078 | 3.37 | 2.69 | 1.85 | 2.28 |
0.75 | 0.47 | 0.56 | 0.39 | |
NGC 7089 | 2.71 | 2.03 | 1.19 | 2.24 |
0.92 | 0.57 | 0.69 | 0.47 |
Name1 | Name2 | H
![]() |
H
![]() |
H
![]() |
H
![]() |
[Å] | [Å] | [Å] | [Å] | ||
MII | K1 | 1.29 | 1.99 | -1.55 | 0.84 |
0.54 | 0.34 | 0.40 | 0.28 | ||
MIV | K219 | 3.36 | 2.30 | 2.72 | 2.72 |
0.60 | 0.38 | 0.45 | 0.31 | ||
V4 | K33 | 3.86 | 2.82 | 0.68 | 1.46 |
1.47 | 0.92 | 1.10 | 0.76 | ||
V12 | K76 | 1.81 | 1.55 | 0.12 | 1.53 |
1.00 | 0.63 | 0.75 | 0.52 | ||
V23 | K119 | 2.38 | 2.68 | -0.08 | 1.45 |
1.06 | 0.66 | 0.79 | 0.54 | ||
V42 | K78 | -0.19 | 1.24 | ... | -0.30 |
0.65 | 0.41 | 0.34 | |||
V64 | K213 | ... | 1.88 | ... | 0.74 |
0.65 | 0.54 | ||||
V76 | K263 | 2.55 | 3.13 | 0.83 | 1.92 |
1.24 | 0.77 | 0.93 | 0.64 | ||
V87 | K222 | -2.58 | -0.83 | -3.95 | -1.12 |
1.29 | 0.80 | 0.96 | 0.66 | ||
V95 | K229 | 3.39 | 2.71 | 0.93 | 1.97 |
0.77 | 0.48 | 0.58 | 0.40 | ||
V99 | K286 | 3.44 | 2.33 | 0.64 | 2.01 |
0.95 | 0.60 | 0.72 | 0.49 | ||
V100 | K217 | -2.39 | 0.34 | -5.56 | -1.12 |
0.86 | 0.54 | 0.65 | 0.45 | ||
V116 | K244 | -3.69 | 0.03 | - | 0.20 |
1.29 | 0.81 | - | 0.67 | ||
V196 | K302 | 2.26 | 2.43 | 0.79 | 2.07 |
0.83 | 0.52 | 0.62 | 0.43 | ||
V282 | K280 | -1.36 | 0.09 | -4.75 | -0.22 |
0.57 | 0.36 | 0.43 | 0.29 | ||
V301 | K64 | 3.14 | 2.74 | ... | 1.99 |
1.23 | 0.77 | 0.63 | |||
V101 | K272 | ... | 1.75 | ... | 0.76 |
0.63 | 0.52 |
