A&A 395, 587-593 (2002)
DOI: 10.1051/0004-6361:20021317
X. B. Zhang - R. X. Zhang - M. J. Fang
National Astronomical Observatories, Chinese Academy of Sciences, Beijing 100012, PR China
Received 3 June 2002 / Accepted 9 September 2002
Abstract
We present photometric observations of the eclipsing binary GR Tau made in 1985, 1993, 1998,
2000 and 2001. New times of minima and ephemerides are given. Based on a statistical analysis
of the times of minima obtained by photoelectric and CCD photometry, the orbital period of the
system is found to be decreasing with a rate of
during the
past decades. An assumed hot spot on the trailing hemisphere of the secondary
enables us to reconstruct the peculiar asymmetry of the distorted light curves. The photometric
solution with the Wilson-Devinney code reveals that GR Tau is a near-contact detached system
with the two components almost filling their respective critical Roche lobes. The photometric
mass ratio turns out to be q=0.22, and the masses and radii are derived
for the components as
,
,
and
.
The authors discuss the possible
evolutionary status of the component stars
and the probable nature of the assumed hot spot.
Key words: stars: binaries: eclipsing - stars: individual: GR Tau
Lázaro et al. (1995) observed the system with visual and infrared photometry, and obtained B, V, J and K light curves. The near-contact configuration of GR Tau was confirmed by their Roche model photometric solution. From the analysis of the colours of GR Tau, however, they showed that the primary component's spectral type could be about A9V, instead of A5V as classified by Yamasaki et al. (1984). The orbital period was refined to be 0.42985060 days.
The asymmetry of the light curves of GR Tau has been noted by most of the previous studies since Yamasaki et al. (1984). It is also found that the light curve of the system changes frequently with time as it presents always an asymmetry with Max I brighter than Max II. It may be due to the so-called O'Connell effect, as is widely found among the V1010 Oph type binaries. However, no detailed analysis in modeling the asymmetry as well as its variations has yet been made.
Because of the peculiar asymmetric feature of the light curve and the near-contact configuration, GR Tau has been listed as one of the programming targets for our long-term photometric observations. We have observed the system in five runs since 1985. In this paper, we report the long-term photometric observations made in the past 17 years. The light curves are analyzed using the W-D code (Wilson & Devinney 1971; Wilson 1979, 1990). The asymmetry and the changes of the light curves are discussed on the basis of a model with an assumed hot spot possibly caused by mass transfer between the component stars.
The star GR Tau was observed in five runs made in the observing seasons of 1985, 1993, 1998, 2000 and 2001. The observations were all made at the Xinglong station of Beijing Astronomical Observatory. Table 1 gives relevant information on the observations.
The 1985 and 1993 observations were both carried out with the 60 cm reflector. The star BD +200684
was employed as the comparison, and BD +19
0642, as the check star. The differences in magnitude
between the variable and comparison stars were corrected for differential extinction and transformed
into the UBV system. The BV light curves obtained in 1993 have been reported by Fang et al. (1994).
The observations in 1998 were made on the 85 cm Cassegrain telescope. In this run, the comparison
star was BD +190642 and the check star was BD +20
0684.
Data reduction was done in the same way as the 1985 and 1993 observations.
The 2000 observations were carried out on the 85 cm reflector with a red-sensitive Thomson TH7882
576384 CCD photometer (Wei et al. 1990; Zhou et al. 2001) which provides a field of view
of about
.
Five stars in the field around GR Tau were selected as reference stars.
We finally chose the star GSC 1258-171 as the comparison star through a try during the data reduction.
Sky extinction was not taken into account in view of the close proximity of the program stars.
The exposure times were 30 s. A single V filter was employed.
The 2001 observations were made on the 85 cm telescope with a 3-channel photometer. On the first two nights (Oct. 28 and 29, 2001), we obtained a completely covered light curve with V filter. The observations in the B passband made on Oct. 31 and Nov. 1 have not recorded a complete light curve but did cover two primary eclipses. The comparison star was the same as that used for the 2000 CCD observations. The exposure times ranged from 10 to 15 s depending on the weather conditions.
All measurements of the 1985, 1993 and 1998 photoelectric observations are given in the appendix. For the 2000 CCD and 2001 fast photometry observations we list only the normal points in the appendix in the form of phase vs. relative magnitude, as the amount of individual data is too large.
Year | Telescope | Photometer | Filter | Comparison star |
1985 |
60 cm | single channel | B, V | BD +20![]() |
1993 | 60 cm | single channel | B, V | BD +20![]() |
1998 | 85 cm | single channel | B, V | BD +19![]() |
2000 | 85 cm | CCD | V | GSC 1258-171 |
2001 | 85 cm | three channel | B, V | GSC 1258-171 |
By using the K-W method (Kwee & van Woerden 1956), 13 new times of minima were derived from our data.
They are given in Table 2 along with previously published times of photoelectric and CCD minima collected
since Yamasaki et al. (1984). These minimum times with a time-base of about 30 years enable us to discuss
the long-term variations of the orbital period of GR Tau. Analyzing with the least square method, the
following new ephemerides are derived:
Yamasaki et al. (1984) concluded that the orbital period of GR Tau was unlikely to have any obvious long-term variation based on a statistical study of the times of minima observed over 15 years before 1980. The large scattering of their statistical data caused by the uncertainties in visual and photographic observations does not exclude the possibility of long-term changes of the orbital period as indicated by recent photoelectric and CCD photometry.
HJD | E | O-C | source |
2 400 000+ | |||
44544.3075 |
-4352.0 | -.0011 | Yamasaki & Okazaki (1984) |
44573.1074 | -4285.0 | -.0020 | Yamasaki & Okazaki (1984) |
44578.2643 | -4273.0 | -.0013 | Yamasaki & Okazaki (1984) |
44579.1252 | -4271.0 | .0002 | Yamasaki & Okazaki (1984) |
46414.1619 | -2.0 | -.0022 | Present study |
46415.0209 | .0 | -.0025 | Present study |
46438.6622 | 55.0 | -.0019 | Mullis & Faulkner (1991) |
47821.4944 | 3272.0 | -.0056 | Wunder et al. (1992) |
47827.5148 | 3286.0 | -.0008 | Hanzl (1990) |
47849.4363 | 3337.0 | -.0012 | Hanzl (1990) |
47881.6752 | 3412.0 | -.0006 | Mullis & Faulkner (1991) |
47889.4089 | 3430.0 | -.0052 | Hanzl (1990) |
47945.2937 | 3560.0 | -.0032 | Hanzl (1990) |
48288.3122 | 4358.0 | -.0042 | Agerer (1991) |
48619.2973 | 5128.0 | -.0074 | Hanzl (1995) |
48936.5294 | 5866.0 | -.0019 | Lázaro et al. (1995) |
48938.6757 | 5871.0 | -.0040 | Lázaro et al. (1995) |
48952.4314 | 5903.0 | -.0022 | Lázaro et al. (1995) |
48953.2915 | 5905.0 | -.0015 | Lázaro et al. (1995) |
48953.5019 | 5905.5 | -.0059 | Lázaro et al. (1995) |
48954.3659 | 5907.5 | -.0013 | Lázaro et al. (1995) |
49334.1394 | 6791.0 | -.0012 | Present study |
49368.3190 | 6870.5 | .0026 | Agerer (1994) |
49368.3199 | 6870.5 | .0035 | Agerer(1994) |
49734.3334 | 7722.0 | -.0025 | Agerer (1996) |
49760.3440 | 7782.5 | .0042 | Agerer (1996) |
49760.3490 | 7782.5 | .0092 | Agerer (1996) |
50013.5295 | 8371.5 | .0061 | Agerer et al. (1999) |
50422.5188 | 9323.0 | -.0046 | Agerer & Hübscher (1998) |
51139.5145 | 10 991.0 | -.0011 | Agerer et al. (1999) |
51173.0380 | 11 069.0 | -.0050 | Present study |
51176.0496 | 11 076.0 | .0002 | Present study |
51198.4049 | 11 128.0 | -.0014 | Agerer et al. (1999) |
51486.3991 | 11 798.0 | -.0032 | Agerer et al. (2001) |
51571.0834 | 11 995.0 | .0014 | Present study |
51573.0238 | 11 999.5 | .0082 | Present study |
51574.0894 | 12 002.0 | -.0044 | Present study |
52211.1277 | 13 484.0 | -.0051 | Present study |
52211.3454 | 13 484.5 | -.0023 | Present study |
52214.1353 | 13 491.0 | -.0053 | Present study |
52220.1553 | 13 505.0 | -.0049 | Present study |
![]() |

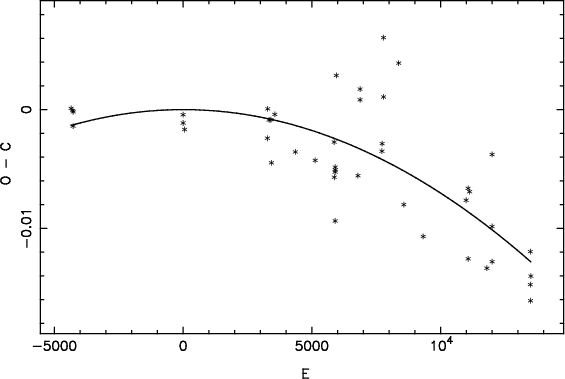

Figure 1: The O-C diagram of the observed times photoelectric and CCD minima. The solid line represents the quadratic fitting curve. |
Open with DEXTER |
Using the above quadratic ephemeris, phases are computed for all the observations and the corresponding light curves are displayed in Figs. 3-7. It is clear that all the light curves obtained in the five observing seasons show marked asymmetry with Max. I brighter than Max. II. The general features are closely similar to those of the light curves previously obtained by Yamasaki et al. (1984). In Table 3 we list the main feature parameters of V-band light curves in the five different epochs. Since the secondary minima are not completely covered in the 1998 light curves, the corresponding values of Max. I-Min. II and Max. II-Min. II remain unknown.
The asymmetry of the light curve of GR Tau seems to be fixed in phase and not to migrate with phase like the photometric waves exhibited by the RS CVn stars. But the amplitude of asymmetry changed with time. From Table 3 we find that the amplitude Max. I-Min. I varied obviously with time, while the value of Max. II-Min. I seems to remain nearly constant. Thus the difference of brightness between Max. I and Max. II appears to depend primarily on the former.
Epoch | 1985 | 1993 | 1998 | 2000 | 2001 |
Max. I-Min. I | -0.51 | -0.50 | -0.53 | -0.53 | -0.50 |
Max. I-Min. II | -0.22 | -0.20 | ... | -0.23 | -0.23 |
Max. II-Min. I | -0.44 | -0.45 | -0.44 | -0.45 | -0.43 |
Max. II-Min. II | -0.15 | -0.15 | ... | -0.15 | -0.16 |
Max. I-Max. II | -0.07 | -0.05 | -0.09 | -0.08 | -0.07 |
The peculiar asymmetry of the light curve seems to be something like the case in the stream-distorted light curves observed frequently in Algol-type systems with diminution of light in the phase interval 0.5-1.0, but for GR Tau there is no evidence of mass transfer from the secondary to the primary and, moreover, the near-contact configuration revealed by Yamasaki et al. (1984) and Lázaro et al. (1995) implies that there will be no space between the stellar surface and Roche lobe to allow the formation of an optically thick stream layer that would affect the brightness of the system.
On the other hand, the photometric asymmetry of GR Tau appears unlikely to be caused by the dark spot activity as is the case in RS CVn systems. The primary component of GR Tau has a spectral type of A, which is much earlier than that of active stars. The secondary component is ascribed to be a late K or M dwarf star, but it contributes only a few percent to the total brightness (Yamasaki et al. 1984; Lázaro et al. 1995). In any dark spot model assumed for the system the photometric analysis will always produce an unrealistically low spot temperature.
In order to model the asymmetric light curves of GR Tau, a natural alternative is to try the hot spot
assumption.
Shaw (1990) found that such asymmetry of light curves with Max. I brighter than Max. II appears to occur
regularly in the V1010 Oph-type near-contact systems. From the IUE satellite observations of V1010 Oph,
Shaw & Guinan (1990) found that there is an additional thermal source responsible for the Lyman
emission from the trailing hemisphere of the secondary component. They suggested further that the
photometric asymmetry of V1010 Oph may also be caused by the additional thermal source, a phenomenon
which could be typical for the V1010 Oph-type stars. For a similar, near-contact binary V361 Lyr, Zhai &
Fang (1995) used a hot-spot model and gave a thorough treatment of its striking asymmetric light curves.
In the case of GR Tau, we find rapid decrease of the system orbital period. This implies there could be
mass transfer from the hot primary onto the hemisphere of the cool secondary component causing extra light emitted from the later type star. Thus a hot-spot model could well be the most preferable one to describe the light-curve asymmetry of GR Tau.
By assuming the existence of a hot spot on the trailing hemisphere of the secondary, the W-D synthetic light-curve program is employed to carry out the photometric analysis of the observed light curves.
![]() |

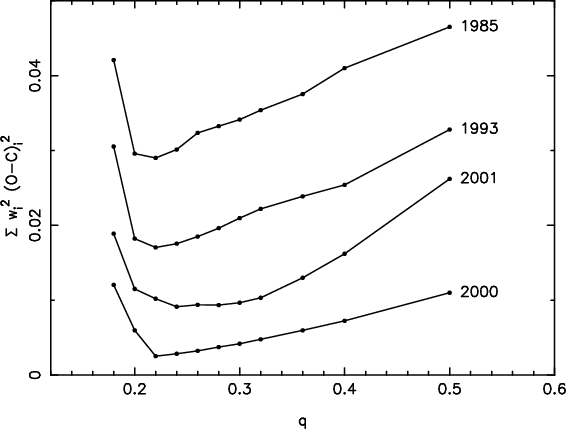

Figure 2:
The diagram of
![]() |
Open with DEXTER |
The 1992 version of the Wilson-Devinney code (Wilson 1990) was employed for our light curve analysis. All the individual light curves were combined into normal points and were used to compute the solutions. In deriving the photometric solution, we made an un-spotted synthesis for the light curves of 1985, 1993, 2000 and 2001 at the first stage. Since 1998 light curves do not completely cover the secondary eclipse, they are not included in the test calculation. The following assumptions are made for the light-curve analysis: temperature of the primary component is set at T1=7500 K according to Lázaro et al. (1995); gravity exponents and albedos are taken to be g1=1.0 and A1=1.0 for the primary (radiative envelope) and g2=0.32 and A2=0.5 for the secondary (convective envelope); the limb darkening coefficients, according to Al-Naimiy (1978), are assigned as x1=0.60, x2=0.73 in V and x1=0.79, x2=0.92 in B, respectively.
The adjustable parameters are the phase shift ,
the orbital inclination i, the temperature T2,
the luminosity L1 and L2, the surface potentials
and
,
and the mass ratio
q=m2/m1. According to the analysis of Lázaro et al. (1995), the mass ratio of GR Tau should be
around 0.22 from its small mass function
.
On the other hand Yamasaki et al. (1984)
derived a mass ratio of 0.32. We just fix the mass ratio at a series of values of 0.18, 0.20, 0.22, 0.24,
0.26, 0.28, 0.30, 0.32, 0.34, 0.36, 0.40 and 0.50. All the test solutions started from Mode 2. In this way,
the initial solutions are carried out at each assumed mass ratio for each light curve.
Parameter | LC 1985 | LC 1993 | LC 1998 | LC 2000 | LC 2001 |
i (degrees) | 87.68![]() |
87.15![]() |
. | 87.42![]() |
87.58![]() |
q=m2/m1 | 0.215![]() |
0.222![]() |
. | 0.219![]() |
0.246![]() |
T1 (K)* | 7500 | 7500 | . | 7500 | 7500 |
T2 (K) | 3682![]() |
3624![]() |
. | 3641![]() |
3650![]() |
g1* | 1.0 | 1.0 | . | 1.0 | 1.0 |
g2* | 0.32 | 0.32 | . | 0.32 | 0.32 |
A1* | 1.0 | 1.0 | . | 1.0 | 1.0 |
A2* | 0.5 | 0.5 | . | 0.5 | 0.5 |
x1B* | 0.73 | 0.73 | . | ||
x1V* | 0.60 | 0.60 | . | 0.60 | 0.60 |
x2B* | 0.92 | 0.92 | . | ||
x2V* | 0.79 | 0.79 | . | 0.79 | 0.79 |
![]() |
2.3050![]() |
2.3132![]() |
. | 2.2912![]() |
2.3555![]() |
![]() |
2.2930![]() |
2.3060![]() |
. | 2.2848![]() |
2.4770![]() |
r1 (pole) | 0.4737![]() |
0.4731![]() |
. | 0.4777![]() |
0.4691![]() |
r1 (point) | 0.5887![]() |
0.5918![]() |
. | 0.6156![]() |
0.6071![]() |
r1 (side) | 0.5116![]() |
0.5108![]() |
. | 0.5173![]() |
0.5062![]() |
r1 (back) | 0.5324![]() |
0.5322![]() |
. | 0.5398![]() |
0.5295![]() |
r2 (pole) | 0.2319![]() |
0.2340![]() |
. | 0.2380![]() |
0.2197![]() |
r2 (point) | 0.2988![]() |
0.3025![]() |
. | 0.3282![]() |
0.2534![]() |
r2 (side) | 0.2405![]() |
0.2428![]() |
. | 0.2475![]() |
0.2258![]() |
r2 (back) | 0.2686![]() |
0.2711![]() |
. | 0.2791![]() |
0.2430![]() |
L1/(L1+L2)B | 0.996![]() |
0.997![]() |
. | ||
L1/(L1+L2)V | 0.992![]() |
0.993![]() |
. | 0.994![]() |
0.994![]() |
![]() |
2.2696 | 2.2866 | . | 2.2793 | 2.3436 |
Spot model | |||||
co-latitude* | 90.00 | 90.00 | 90.00 | 90.00 | 90.00 |
co-longitude | 270.40![]() |
272.10![]() |
272.80![]() |
271.82![]() |
270.95![]() |
![]() |
25.73![]() |
25.64![]() |
27.60![]() |
27.48![]() |
28.60![]() |
![]() |
2.040![]() |
1.928![]() |
2.150![]() |
2.038![]() |
2.100![]() |
![]() |
0.0263 | 0.0167 | . | 0.0024 | 0.0090 |
* Assumed.
![]() |

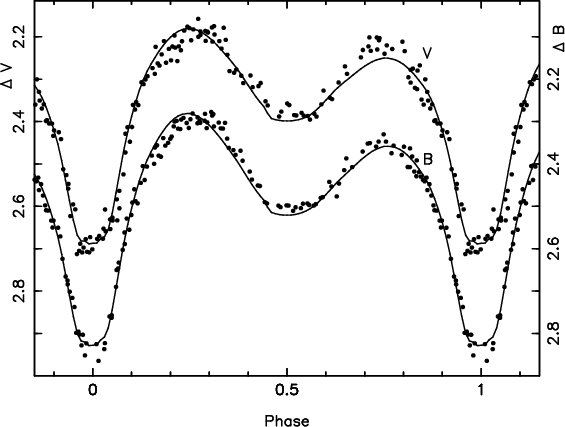

Figure 3: The BV light curves of GR Tau obtained in 1985. Dots present the observations and the solid lines the theoretical light curves. |
Open with DEXTER |
![]() |

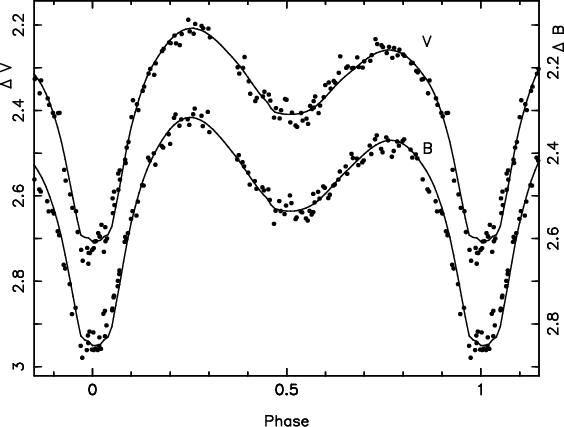

Figure 4: The same as Fig. 3, but for the year 1993. |
Open with DEXTER |
![]() |

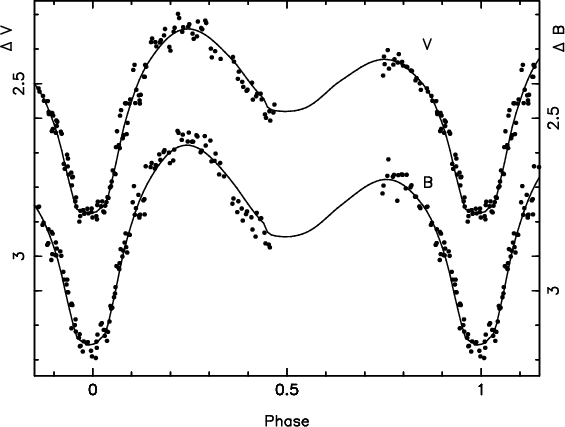

Figure 5: The BV light curves of GR Tau in 1998. |
Open with DEXTER |
We have presented a long-term photometric study of GR Tau. The results of period analysis and light-curve synthesis allow us to draw the following conclusions.
1) GR Tau appears to be a near-contact detached binary with the two components each almost filling its Roche lobe. Such a near-contact configuration has already been reported by Yamasaki et al. (1984), but that is based on the photometric solution of part of their 1980 light curves. The solution of Lázaro et al.'s (1995) resulted in a near-contact semi-detached configuration for the system with the secondary filling its Roche lobe. However, being taken from an average Roche model solution of their 1992 light curves, the distortion of the light curves, albeit slight, has not been taken into account. In our analysis all the observations of the light curves have been used to perform the photometric solution. By adopting a hot-spot model, our theoretical light curves give much better fittings to the observations of all the 1985, 1993, 2000 and 2001 light curves without all-phase systematic deviations. Furthermore, such a near-contact status of GR Tau is supported by the fact of orbital period decrease as evidenced by O-C analysis.
2) The W-D approach in the analysis of light curves with total eclipses can in general yield a reliable mass
ratio for the binary systems under study. If we take the average values of the mass ratio
and
orbital inclination
obtained from the photometric solutions for the four light curves, and
combine them with the spectroscopic mass function
(Yamasaki et al. 1984), we can

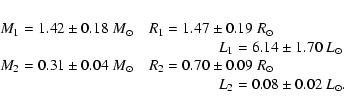

derive the absolute dimensions of GR Tau as:
If the primary component of GR Tau is a normal main sequence star, for a spectral type A9V, its mass and radius
should be about
and
according to the calibration from
Schmidt-Kaler (1982). To match the deduced mass for the primary with its spectral type, an assumed mass ratio
of q=0.206 would be appropriate for the mass function of
,
or else, the mass function
should be taken to be about 0.0120 with our photometric mass ratio q=0.22. Since we know that the mass ratios
derived from all the photometric solutions to date (Yamasaki et al. 1984; Lázaro et al. 1995 and present
work) are all larger than 0.22, we suggest that the discrepancy of the deduced mass in relation to the
spectral type of GR Tau mentioned above might be due to the slight underestimation of the mass function if
the photometric mass ratio is more reliable. A new high-precision radial velocity study based on high S/N spectroscopy is especially desirable to settle the problem.
![]() |

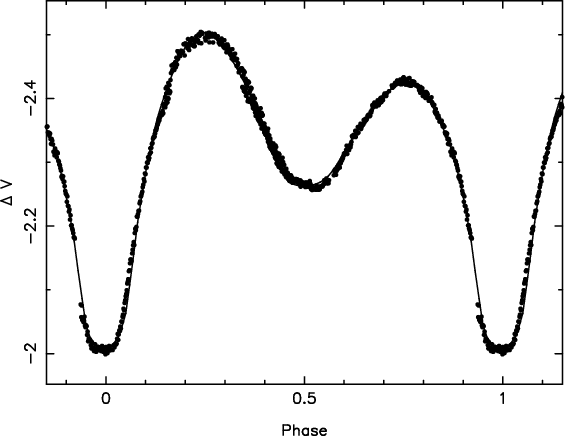

Figure 6: The V light curve of GR Tau observed in 2000. |
Open with DEXTER |
Another possibility is that, in such a near-contact binary system, the primary of GR Tau might be a low-mass and low-luminosity star as suggested by Yamasaki et al. (1984). In our results, the secondary has a temperature of about 3640 K, which corresponds to a spectral type of M1-2 if it is a dwarf star. Taking the values of absolute dimensions deduced for GR Tau, we plot the two components on the mass-radius diagram and find that the primary is still on the main sequence while the secondary is evidently an evolved star far away from the main sequence. The evolutionary status of GR Tau is something like that in other near-contact detached systems with the less massive secondary actually more evolved than the primary. It is suggested that the evolved secondary component should have been the more massive component but is now the less massive one after losing a considerable part of its original mass through Roche lobe overflow. And at present, the secondary could have just shrunken back from its Roche lobe making the system a near-contact detached system. The present massive primary component would have gained additional mass from the secondary. This could explain why it looks strange with respect to its spectral type.
3) The hot spot assumption gives a good description of the asymmetry of the light curves of GR Tau. The photometric
solutions indicate that the hot spot remains at nearly the same position, with almost the same temperature
and size in both epochs of 1985, 1993, 1998, 2000 and 2001. Taking the average value of
and
,
the additional luminosity emitted by the hot spot can be calculated as:
![]() |

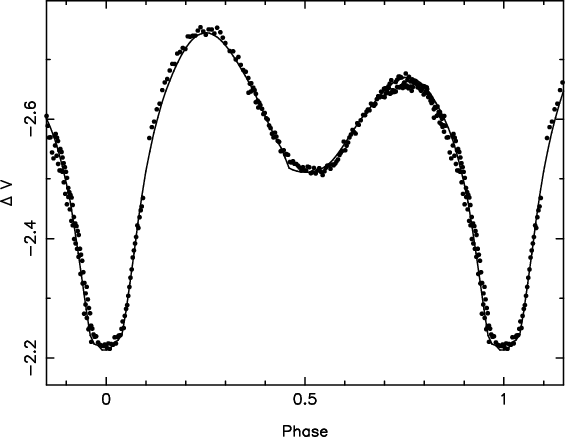

Figure 7: The same as Fig. 6, but observed in 2001. |
Open with DEXTER |
The physical nature of the hot spot is still open for discussion. In view of the probable mass transfer in the
system revealed by the period changes observed, we suggest that the hot spot on the secondary could be caused by
the mass accreted from the primary component. Suppose that the accreting mass falls from the inner Lagrange
point L1 directly onto the surface of the secondary, the luminosity caused by the accreting mass would be
approximately represented by the following expressing according to Zhai & Fang (1995):
The observed period-change rate is about
,
the absolute value of which
is much less
than what we predicted. This implies that the possible mass transfer we infer from our photometry is not strong
enough to create the spot luminosity unless some additional energy, besides the potential energy which we have
taken into account, has also been released by the mass flow. Usually the original velocity of the accreting mass
around the Lagrange point is not equal to zero as we have assumed, thus the original kinetic energy of the mass
flow could probably serve as part of the additional energy released. Another possible energy source might be the
thermal energy brought about directly by the mass flow through the high temperature plasma wind from the primary
component. A satisfactory model should be carefully constructed in order to give an comprehensive description of
the mass accretion and the physical nature of the hot spot, but this goes beyond the scope of the present work.
4) All the light curves of GR Tau obtained by us in the five epochs are asymmetric. They are basically similar to the 1980 light curves published by Yamasaki et al. (1984). On the other hand, Hanzl (1990) and Lázaro et al. (1995) report nearly symmetric light curves of the system. The light curve of GR Tau seems to vary between asymmetric and symmetric forms on a time scale of several years. Comparing the symmetric light curves with the asymmetric ones, we notice that the asymmetric light curves always have deeper primary minima (Max. I-Min. I) than the symmetric light curves. It is suggested that the variation in the light curves of the system could be due to changes of the hot spot in the secondary component. Well-planned observational studies in the future are needed to understand better the true nature and behaviour of the binary system including the hot spot deduced by conventional theory.
Phase | ![]() |
Phase | ![]() |
Phase | ![]() |
Phase | ![]() |
Phase | ![]() |
0.0082 | -2.2208 | 0.2203 | -2.7435 | 0.4172 | -2.5931 | 0.6182 | -2.5919 | 0.8197 | -2.6381 |
0.0200 | -2.2286 | 0.2298 | -2.7478 | 0.4317 | -2.5786 | 0.6336 | -2.6060 | 0.8351 | -2.6165 |
0.0309 | -2.2355 | 0.2436 | -2.7484 | 0.4468 | -2.5597 | 0.6495 | -2.6236 | 0.8484 | -2.5975 |
0.0463 | -2.2675 | 0.2571 | -2.7489 | 0.4621 | -2.5480 | 0.6610 | -2.6329 | 0.8618 | -2.5808 |
0.0606 | -2.3318 | 0.2713 | -2.7469 | 0.4736 | -2.5441 | 0.6723 | -2.6365 | 0.8728 | -2.5612 |
0.0718 | -2.3866 | 0.2877 | -2.7383 | 0.4855 | -2.5354 | 0.6837 | -2.6521 | 0.8865 | -2.5388 |
0.0861 | -2.4440 | 0.2984 | -2.7303 | 0.5009 | -2.5317 | 0.6990 | -2.6605 | 0.9010 | -2.4926 |
0.1117 | -2.5775 | 0.3131 | -2.7149 | 0.5152 | -2.5301 | 0.7133 | -2.6730 | 0.9140 | -2.4509 |
0.1242 | -2.6061 | 0.3280 | -2.7024 | 0.5298 | -2.5287 | 0.7256 | -2.6712 | 0.9272 | -2.4081 |
0.1378 | -2.6373 | 0.3403 | -2.6906 | 0.5406 | -2.5271 | 0.7370 | -2.6845 | 0.9407 | -2.3410 |
0.1506 | -2.6644 | 0.3498 | -2.6804 | 0.5529 | -2.5326 | 0.7518 | -2.6801 | 0.9541 | -2.2866 |
0.1664 | -2.6888 | 0.3648 | -2.6683 | 0.5672 | -2.5375 | 0.7672 | -2.6785 | 0.9644 | -2.2521 |
0.1823 | -2.7112 | 0.3806 | -2.6492 | 0.5819 | -2.5483 | 0.7821 | -2.6742 | 0.9786 | -2.2289 |
0.1961 | -2.7208 | 0.3958 | -2.6278 | 0.5963 | -2.5655 | 0.7935 | -2.6667 | 0.9959 | -2.2205 |
0.2096 | -2.7385 | 0.4067 | -2.6099 | 0.6072 | -2.5758 | 0.8043 | -2.6648 |
Phase | ![]() |
Phase | ![]() |
Phase | ![]() |
Phase | ![]() |
Phase | ![]() |
0.0061 | -2.0066 | 0.2062 | -2.4743 | 0.4064 | -2.3365 | 0.6056 | -2.3070 | 0.8072 | -2.3947 |
0.0214 | -2.0121 | 0.2199 | -2.4774 | 0.4199 | -2.3171 | 0.6199 | -2.3247 | 0.8211 | -2.3843 |
0.0330 | -2.0326 | 0.2344 | -2.4873 | 0.4333 | -2.3010 | 0.6327 | -2.3383 | 0.8330 | -2.3666 |
0.0465 | -2.0754 | 0.2464 | -2.4856 | 0.4468 | -2.2864 | 0.6461 | -2.3495 | 0.8465 | -2.3507 |
0.0599 | -2.1339 | 0.2594 | -2.4872 | 0.4603 | -2.2731 | 0.6596 | -2.3609 | 0.8600 | -2.3288 |
0.0734 | -2.1884 | 0.2728 | -2.4869 | 0.4729 | -2.2677 | 0.6731 | -2.3771 | 0.8733 | -2.3050 |
0.0869 | -2.2400 | 0.2873 | -2.4803 | 0.4878 | -2.2634 | 0.6866 | -2.3844 | 0.8861 | -2.2781 |
0.1004 | -2.2862 | 0.3002 | -2.4724 | 0.4981 | -2.2613 | 0.7000 | -2.3922 | 0.8996 | -2.2404 |
0.1138 | -2.3219 | 0.3134 | -2.4628 | 0.5136 | -2.2537 | 0.7102 | -2.3998 | 0.9130 | -2.1938 |
0.1273 | -2.3526 | 0.3278 | -2.4457 | 0.5279 | -2.2492 | 0.7260 | -2.4109 | 0.9210 | -2.1714 |
0.1401 | -2.3755 | 0.3404 | -2.4274 | 0.5410 | -2.2506 | 0.7400 | -2.4159 | 0.9412 | -2.0598 |
0.1534 | -2.3990 | 0.3535 | -2.4122 | 0.5533 | -2.2591 | 0.7533 | -2.4162 | 0.9533 | -2.0322 |
0.1662 | -2.4235 | 0.3663 | -2.3964 | 0.5613 | -2.2595 | 0.7668 | -2.4147 | 0.9668 | -2.0114 |
0.1793 | -2.4497 | 0.3798 | -2.3754 | 0.5802 | -2.2774 | 0.7802 | -2.4119 | 0.9798 | -2.0075 |
0.1934 | -2.4649 | 0.3932 | -2.3586 | 0.5938 | -2.2926 | 0.7937 | -2.4029 | 0.9933 | -2.0053 |
Acknowledgements
This work is partly supported by the Chinese National Science Foundation (CNNSF) through grant 10173013. The authors are grateful to Prof. Shen Liangzhao for his suggestions and help. Thanks are also given to the refree, Dr. P. Niarchos for his careful reviewal.
