Abstract
Several popular cosmological models predict that most of the baryonic mass
in the local universe is located in filamentary and sheet-like structures
associated with galaxy overdensities.
This gas is expected to be gravitationally heated to 106 K
and therefore emitting in the soft X-rays.
We have detected diffuse soft X-ray structures in a
high Galactic latitude ROSAT field after point source subtraction and
correction for Galactic absorption.
These diffuse structures have an X-ray
energy distribution that is much softer than expected from clusters, groups or
unresolved emission from AGNs, but are consistent with that
expected from a diffuse warm intergalactic medium.
To discriminate between a Galactic or extragalactic nature of the
diffuse gas we have correlated the soft X-map with multiband optical
images in this field. We have found a significant
overdensity of galaxies in correspondence with the strongest diffuse
X-ray structure. The
photometric redshift distribution of the galaxies over the X-ray peak has
an excess over field galaxies at
.
This result
strongly suggests that the diffuse X-ray flux is due to extragalactic
emission by
warm gas associated with an overdense galaxy region at
.
Key words: large-scale structure of Universe - X-rays: diffuse background
The mismatch between the density of baryons observed in the local Universe
and the baryon density observed and predicted at high redshift is currently
one of the most puzzling issues in cosmology. While the
density of baryons,
,
observed in stars and gas (
)
in the local
Universe does not exceed 0.01 (Fukugita et al. 1998), observations of the
Ly
forest at z=2 (Rauch et al. 1997) and Big Bang nucleosynthesis
constraints (Burles & Tytler 1998) both
give
or larger (Pettini & Bowen 2001).
One possibility is that at z<1 the baryonic gas falls onto the cosmic
web pattern and is heated by shock mechanisms forming filamentary and
sheet-like structures
(Cen & Ostriker 1999; Davé et al. 2001).
Such diffuse gas, called Warm-Hot Intergalactic Medium (WHIM),
should be detectable in the soft X-rays as a consequence of having a
temperature in the range
.
A tight connection with the filamentary distribution of galaxies is expected
from N-body simulations (see Bond et al. 1996 for a
theoretical discussion).
![]() |

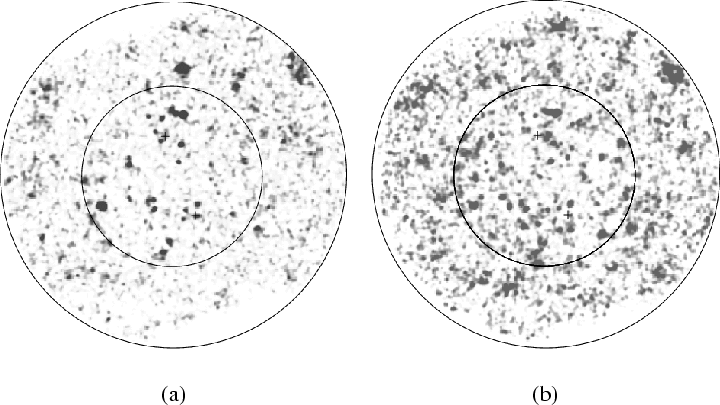

Figure 1:
Panel a) Soft (R2,
![]() ![]() |
Open with DEXTER |
![]() |

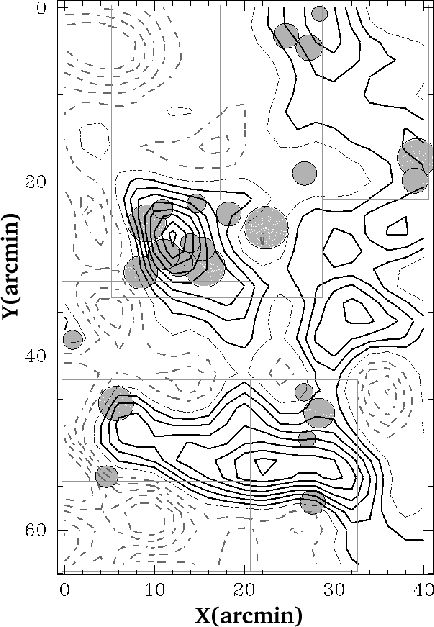

Figure 2:
a) Soft X-ray map smoothed to a resolution of 5.9
arcmin after removing the point sources identified in the
R2 and R6+7 maps;
b) Wavelet map showing extended
structures with high (![]() ![]() ![]() ![]() |
Open with DEXTER |
Various models of diffuse X-ray emission have been proposed by several authors during the past year (Phillips et al. 2001; Kuntz et al. 2001; Bryan & Voit 2001); nonetheless, observational evidence for diffuse/filamentary X-ray emission is still sparse. Wang & McCray (1993) found an excess of emission in some ROSAT fields which they ascribed to a diffuse component of the X-ray background due to WHIM. Soltan et al. (1996) detected a correlation signature between the soft X-ray background and galaxies. Filamentary soft X-ray structures were identified by Warwick et al. (1998) in various overlapping ROSAT pointings near the Lockman Hole. Structures laid among clusters were found by Kull & Böhringer (1999) in the core of the Shapley Supercluster and Tittley & Henriksen (2001) along the line of sight connecting two Abell clusters. Scharf et al. (2000) presented tentative evidence of a soft X-ray filamentary structure which seems to correlate with the density of galaxies measured in the I-band. Recently, Bagchi et al. (2002) pointed out the discovery of a presumably filamentary structure both in radio and soft X-ray traced by a galaxy arc.
We have re-analyzed several ROSAT pointings toward a region close
to the Lockman Hole
with exposure times >
and, after
removal of the point sources and correction for Galactic absorption,
we have detected diffuse X-ray emission. We have started a program of optical
multiband wide field imaging of the regions showing diffuse X-ray emission
with the goal of detecting associated galaxy overdensities, which
would support the extragalactic nature of the large scale soft X-ray
structures.
In this paper we report preliminary results on one of the ROSAT fields
for which we have obtained HI radio data and which has been partially
mapped in five optical bands. We present the discovery of a galaxy
overdensity at a photometric redshift
spatially
coincident with the most prominent diffuse X-ray structure in the
ROSAT field.
The plan of the paper is as follows: in
Sect. 2 we discuss the analysis of the X-ray ROSAT maps, in
Sect. 3 the reduction of the radio data and the HI absorption
correction for X-ray maps are presented, in Sect. 4 we
discuss the optical images analysis. Section 5 contains the
photometric redshift estimate and, finally, in Sect. 6
a summary of the results is presented.
We have retrieved from the ROSAT archive the images of fields
contiguous to the Lockman Hole used by Warwick et al. (1998) to create a large
scale soft X-ray map. These authors noted,
after subtraction of the point sources, large scale diffuse
structures in the
band. We have focused on one of the ROSAT
fields used by Warwick et al. and, more specifically,
on "Field 4", centered at RA(J2000)
and Dec(J2000)
,
obtained
with a PSPC integration of 20 ksec.
We extracted the images in the various ROSAT bands
by means of
the software described in Snowden et al. (1994), which is optimized
for the analysis of extended structures in the ROSAT maps.
In this way accurate maps of the background and of the
effective exposure over the whole field of view can be obtained. We mostly
focused on the soft image obtained in the R2 band (PI channels 21 to
40), which samples
the energy range
.
However, we also
use the harder bands (R4+5,
;
R6+7,
), both for the point sources removal
and to constrain the nature of the diffuse emission.
On the R2 image obtained with Snowden's code
the detection of extended structures has been performed with two different
methods:
Figure 1 shows the images, before the point sources removal and
preliminarily smoothed with a Gaussian kernel of 15 arcsec (i.e. one
PSPC pixel),
in the soft (R2; Fig. 1a) and the hard (R6+7;
Fig. 1b) bands.
The soft image was then smoothed with a Gaussian kernel of 5.9
arcmin FWHM and is shown in Fig. 2a.
The two main structures around the center of the field are
statistically significant to a level of
(assuming
Poisson statistics).
![]() |

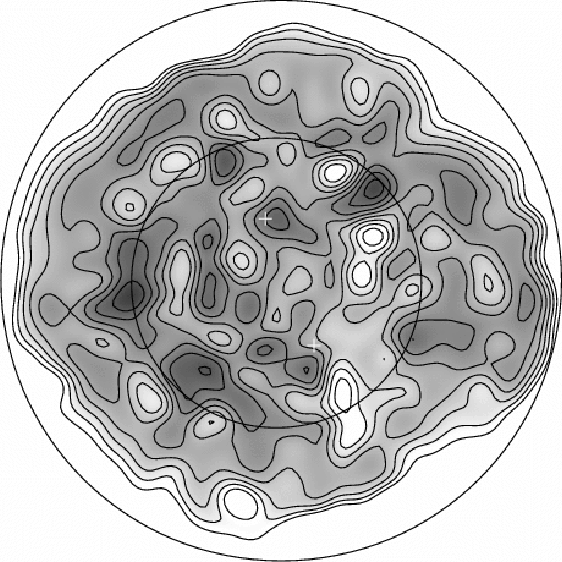

Figure 3: Map of the extended hard emission (R6+7 band) obtained by removing the point sources and smoothing to a resolution of 5.9 arcmin. |
Open with DEXTER |
In Fig. 3 we show the map of the
diffuse emission detected in the hard band (R6+7) obtained by removing
the point sources detected with SExtractor and by smoothing to a
resolution of 5.9 arcmin (this is the hard-band
analogous of Fig. 2a).
With the exception of structure "1'', which shows some faint
hard emission as discussed below,
the diffuse/extended
emission observed in the hard band (R6+7)
is not correlated with the diffuse
emission structures observed in the soft R2 band.
This indicates that the
diffuse features observed in the soft map are related to structures
with a much softer emission than that due to clusters or AGNs and, in
particular, cannot be ascribed to unresolved discrete sources which
make the 0.5-2 keV background.
![]() |

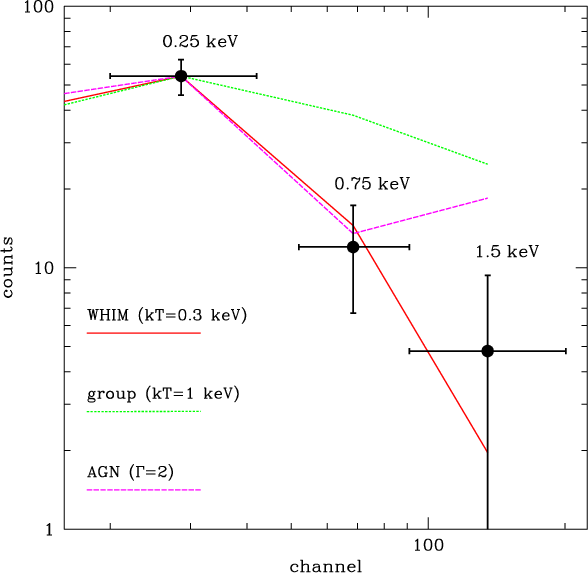

Figure 4: The spectral shape of the strongest filament (marked "1'' in Fig. 1d) compared with that expected from WHIM and groups of galaxies at z = 0.45 and type 1 AGNs (see Sect. 2). The points are the measurements obtained by maps in R2, R4+5 and R6+7 band by extracting the total counts within an aperture of 7 arcmin around the peak. The horizontal errorbars refer to the ROSAT channels, while the bands partly overlap in energy as discussed in Snowden et al. (1994). |
Open with DEXTER |
A comparison between soft and medium (R4+5) maps shows a weak correlation as expected from the hard tail of the diffuse WHIM emission.
In Fig. 4 we plot the
fluxes in three bands (R2, R4+5, R6+7) of the brightest
diffuse structure (marked as "1'' in Fig. 2d), and the
expected spectra of various classes of sources: type 1 AGNs making the
0.5-2 keV background, groups of galaxies at T= 107 K (clusters
would be even hotter), and
thermal emission by the WHIM at
K.
For both the groups and the WHIM we
adopted a 0.3 solar abundance and z=0.45 (see Sect. 5 for the specific choice of this redshift). For
AGNs we assumed a power-law with
.
The choice of
is lower
than the canonical
obtained from shallow ROSAT
surveys (Walter & Fink 1993; Brinkmann et al. 2000), but is typical of deeper surveys
(Mittaz et al. 1999) like ours. Furthermore it is similar to
the mean spectrum of the point sources in our maps
(
for point sources selected in R2 map
and
for those selected in R6+7 map).
Figure 4 shows that the detected emission is
inconsistent with emission by clusters or unresolved AGNs, but
is fully consistent with thermal emission from the WHIM.
It also indicates that the diffuse emission cannot
be ascribed to possible residual wings of the PSF of point
sources (AGNs) after their subtraction.
The one reported here is one of the first detections of WHIM
at intermediate redshift. The diffuse
X-ray emission observed in our ROSAT maps can be compared with the
(projected) emission expected by the cosmological simulations of a WHIM
in the soft X-ray (e.g. Croft et al. 2001).
We used simulated images in the 0.2-0.3 keV band,
kindly provided to us by R. Croft (private communication), and smoothed
them to the angular resolution of our
ROSAT maps (Sect. 2). The average emission in the simulations is
erg cm-2 s-1 deg-2 with 1
fluctuations of about
erg cm-2 s-1 deg-2.
The average diffuse emission in the central region of our ROSAT map
is 10-12 erg cm-2 s-1 deg-2 (extrapolated in the
0.2 - 0.3 keV band), which is in good agreement with the simulations.
Taken in conjunction the results of the analysis described above strongly
imply that the diffuse structures described here represent one of the
first potential detections of a WHIM at intermediate redshift.
At a redshift of 0.45 (Sect. 5) the linear extension of
the brightest diffuse structure (1) corresponds to a physical size
of about 7 Mpc
.
The very soft R2 band (
0.14-0.28 keV), where the diffuse
structures are more prominent, is strongly affected by even a low
amount of absorbing gas along the line of sight. As a consequence,
even though our field is close to the Lockman Hole (Lockman et al. 1986)
where the Galactic
absorption has a minimum (
), a major concern is that the observed
structures might result from inhomogeneous distribution of Galactic HI
clouds along the line of sight. To exclude this possibility we
observed "Field 4'' at 21 cm with the Effelsberg 100 meter radio
telescope during October 2001.
This telescope has a HPBW (half power beam width) of
at 21 cm,
which is close to the resolution of our ROSAT maps.
We used the 18-21 cm HEMT 2 channel receiver (
K) and
the 1024 channel autocorrelator
.
The frequency resolution was set to
per channel
giving a
complete velocity coverage of
to
.
This should
cover the HI emission from all Galactic and most HVC sources.
The target fields were observed in a raster
pattern with spacing
to Nyquist sample the beam.
Frequency switching was used with a 60 s integration
at each raster position (i.e. an effective integration time of 30 s
per raster position).
The weather was exceptionally clear for most of the run.
The raw data were initially calibrated
using the CLASS and SPEC2 software,
converted to
,
and then corrected for stray radiation
using the standard Effelsberg data reduction procedure
(Kalberla et al. 1982, 1980).
Observations of the Galactic reference field S7
(taken every 2 to 2.5 hrs) were then used to set
the flux scale.
Each raster spectrum was first Hanning smoothed to half its resolution and then
the "baseline'', i.e. the shape of the continuum in each spectrum, was subtracted
by using a fourth order polynomial fit.
The HI emission between
and
were
summed to produce the total HI emission in K km s-1 at each raster
point. This value was multiplied by
in order
to obtain the total HI column in cm-2 towards each raster point
(i.e. we assumed the HI emission is optically-thin).
In Fig. 2c we show the resulting
map.
There is no correlation between the soft X-ray emission
and the distribution of
on the scales
of
10-20 arcmin, indicating that the diffuse structures
observed in the former are not due to patchy HI absorption.
Some weak anticorrelation is present on the large scales between the smooth
North-South gradient of
and the very extended X-ray emission
(correlation coefficient
); this anticorrelation is dominated
by the southern
30'' of the field, i.e. outside the central
region which we are investigating, where a significant HI absorption
is present. If this southern part is removed the
anticorrelation disappears (
).
The HI map was used to correct the R2 X-ray map for
absorption; the absorption-corrected map is shown in Fig. 2d.
To map the galaxy distribution we have imaged a subsection of the
ROSAT field in the optical. Indeed,
if the diffuse emission in the ROSAT maps is due to WHIM, then a
spatial correlation with galaxy overdensities is expected.
![]() |

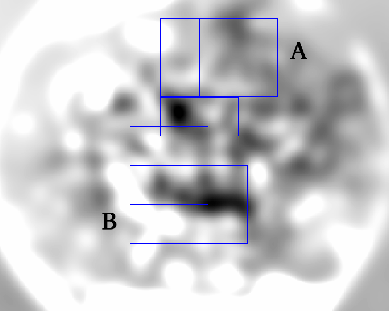

Figure 5: Position of the WFC pointings over the R2 map. |
Open with DEXTER |
The optical data were obtained with the
Wide Field Camera (WFC) at the Isaac Newton Telescope in service
mode on 23 May 2000 and on 15 March 2001. This camera has
4 CCDs covering
a field of
arcmin (with a gap of
arcmin due to the distribution of the CCDs), in five broad band filters:
U (RGO), B (Kitt Peak), V (Harris),
(Sloan) and
(Sloan). Two fields
in the central region of the ROSAT map were observed; the
location of the two WFC pointings is shown in Fig. 5:
the northern
field (field A hereafter) was observed on March-2001,
while
the southern field (field B hereafter) was observed on
May-2000. The seeing
was about 1.3'' and 1.6'' during observations of field A and field B,
respectively.
For each field we have performed standard procedures of de-biasing,
flat fielding, correction of non linearity
and, in the case of ,
correction for fringes.
We used SExtractor to build a preliminary
galaxy catalog. The
algorithm was run on the
images as they are the most sensitive, at least for galaxies in the redshift
range of interest. We have detected 10 877 objects in field A and
8650 in field B.
![]() |

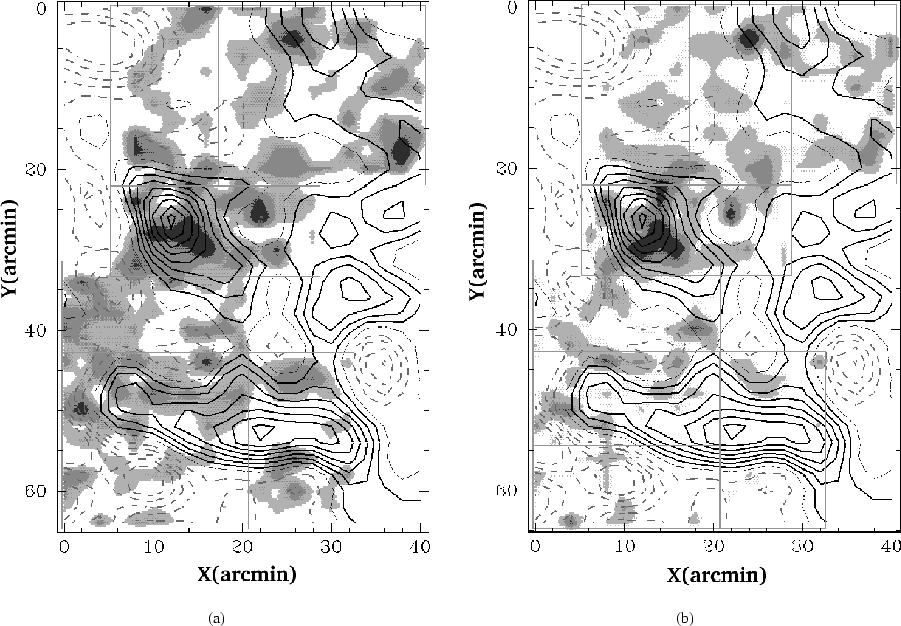

Figure 6:
The projected density of galaxies (grey scale) over the
central region of the R2 ROSAT field (panel a)). The grey scale
delineates regions from just above the mean level of galaxy projected
density (
![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Open with DEXTER |
The zero points were determined by the observation of the standard
Landolt fields sa104 and sa101 (Landolt 1992).
However, to achieve the maximum accuracy in the photometric
calibration we refined the zero points with color-color diagrams. This
method consists of plotting the brightest non-saturated stars (in
our fields those with
and stellarity
class
>0.95)
in color-color diagrams to obtain the best agreement with the
theoretical stellar main sequence. As reference we used the
digital stellar spectra compiled by Pickles (1998).
The required corrections were below 5%.
With the zero points refined in this way we re-ran SExtractor on the
images in all bands, for the objects detected in the
band,
to derive the colors of all galaxies.
The
limiting magnitude for point sources is about 23.6 in
.
Even though counts are
consistent with those of SDSS (Yasuda et al. 2001) and
with Metcalfe et al. (2001) up to
,
analysis of the differential
counts within the two fields shows that the completeness in field A is
different to that in field B. Field A
is up to 80% complete at
while field B reaches this completeness only at
.
The
number of objects are comparable only at magnitude 22.8.
This difference most probably arises from different seeing conditions
prevailing during the observations.
We have quantified any possible galaxy overdensity associated with the diffuse X-ray filaments by using two complementary methods: 1) mapping the projected density of objects and 2) searching for clumps of galaxies.
A map of the projected density of objects was constructed by grouping
all the objects in sub-sections of
.
To avoid stellar contamination
and to take into account the completeness of the galaxy catalog
we have considered only those
objects in magnitude range
= 19-22.8.
The resulting galaxy density map is shown in grayscale
in Fig. 6a,
where the contours
give the distribution of the diffuse soft X-ray emission
(from Fig. 2d).
Interestingly, the maximum galaxy density,
about
(to be compared
with the average of
), coincides
with the maximum of the soft X-ray emission. The probability of random
coincidence of the two maxima is <
(inferred through simulation).
The second brightest filament (structure 2 in Fig. 2d) does not show an obvious associated overdensity of galaxies.
![]() |
Figure 7: Galaxy clumps found by Voronoi algorithm versus extended soft X-ray emission (contours are the same of Fig. 6). Each association of galaxies is represented by a circle (see Ramella et al. 2001). Note the correlation between the galaxy associations and the structure "1''. |
Open with DEXTER |
As an alternative method we have used the Voronoi tessellation (Ramella et al. 2001) to detect overdensities of galaxies or clumps. By using a significance for the detection threshold of 75% and choosing a confidence level for background fluctuations of 90%, we found 24 clumps in the whole field (i.e. A+B). The distribution and extension of these groups is shown in Fig. 7. There is a clear excess of clumps in the region of maximum X-ray emission (structure 1) that confirms the result of the projected density map. Some galaxy clumps are also detected around the southern filament (structure 2) and around the NW (fainter) diffuse emission, but the significance is obviously much lower.
Finally, we should mention that we have checked that the galaxies overdensities
obtained in our optical maps are not due to instrumental effects or to
statistical fluctuations. The former issue was tested by deriving
a map of projected density of stars, and establishing that they showed
no clustering or correlation
with the X-ray emission, nor with the Galactic HI maps, implying that
the association with the soft X-ray emission
is an intrinsic characteristic of the extragalactic objects.
Secondly, we run 1000
simulations of random distributions of galaxies with the
goal of identifying the degree of clustering due to statistical fluctuations.
Within the artificial data we found that "pixels" (
)
with galaxy densities in excess of 7 galaxy arcmin-2(the dark regions in Fig. 6a) are less than
0.44%
of the total distribution (upper limit at 1
), while in the observation
the fraction of "pixels" with densities in excess of
7 galaxy arcmin-2 is 8.4% of the total.
Moreover, the "high density pixels" from the
simulations are distributed randomly and not clustered as observed in our
fields. The results of these simulations clearly indicate that the
overdensities observed by us are not due to statistical fluctuations.
In this section we focus on the overdensity of galaxies corresponding
to structure "1''.
We have derived galaxy photometric redshifts with the final
goal of determining whether the overdensity of galaxies observed in the
projected distribution is also observed in redshift space.
The photometric redshifts were obtained by means of the Hyperz
code (Bolzonella et al. 2000) and by exploiting the photometry
from all five available filters. Within the code we used
all available templates
(namely ellipticals, spirals and irregulars), and we allowed for
a moderate degree of extinction, up to
.
We checked that the
redshift distribution is not very sensitive to these
parameters. As previously stated, we limit our considerations to
galaxies with
magnitudes between 19 and 22.8, which contribute up
to 54% of
the entire catalog. Of these selected objects 59% have redshift fitted with
,
while
73% are fitted with a
;
in our analisys we have rejected
objects with a photometric redshift fitted with a
.
In some cases the photometric redshift
implies an absolute magnitude brighter than
;
these are
mostly objects whose photometric redshifts are fitted with
and the high luminosity is most likely a
consequence of an incorrect redshift determination. We have therefore
discarded all objects with
.
By imposing these constraints we are left with
63% of the objects of the sample for the analysis of the photometric
redshifts.
In the first two panels of Fig. 8
we show the distribution of the photometric redshifts for
galaxies within the isophote at 30% from the X-ray maximum in structure "1"
(Fig. 2), and the average redshift distribution
in the field. The ratio between these two distributions
is shown in the third panel.
A clear excess of objects in the redshift range
0.3< z <0.6 is seen.
The excess has a high significance as shown in the fourth panel,
where the excess
of galaxies in each redshift bin is reported in terms of
(the
latter inferred assuming Poisson statistics).
Given the expected errors in the photometric redshifts (
)
the observed overdensity is consistent with a real structure at
.
By combining the three redshift bins where the overdensity
is observed, the significance of the redshift overdensity is
.
![]() |

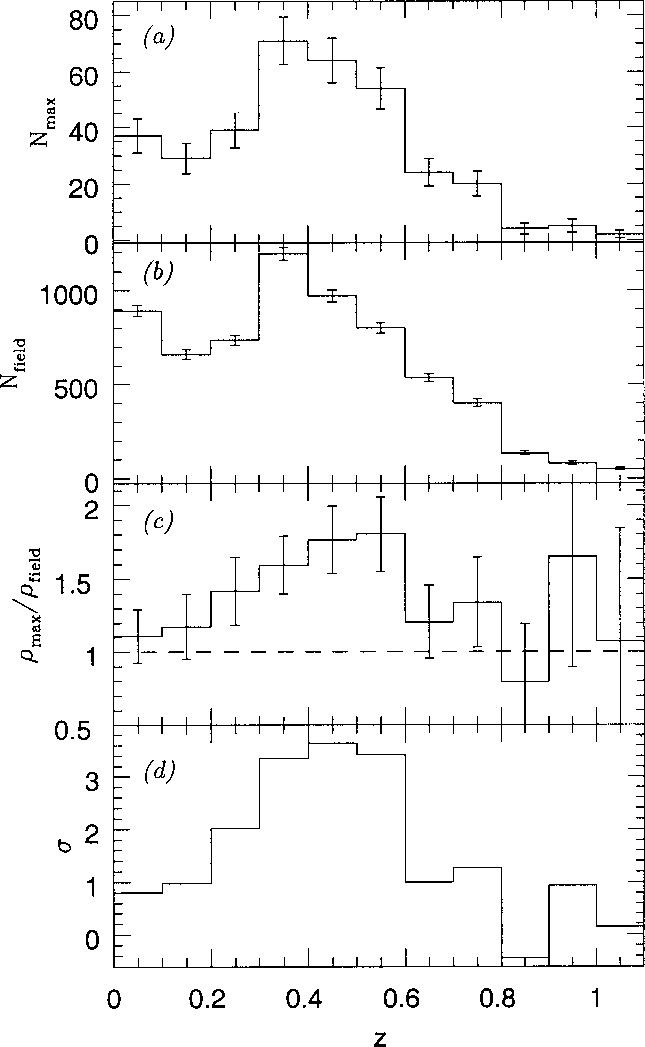

Figure 8:
Panel a) Redshift distribution of the galaxies along the
![]() ![]() |
Open with DEXTER |
In Fig. 6b we show the map of galaxy density, similar
to Fig. 6a, restricted to objects with
measured photometric redshift (
)
and in the redshift
range
.
The contrast between density of galaxies on the
X-ray maximum relative to
the field is clearly higher than in the total projected
density map of Fig. 6a.
The association of the diffuse soft X-ray structure "1'' with a 3-D overdensity of galaxies, as inferred in the last two sections, strongly imply that the former is associated to an extragalactic medium and, more specifically, at a redshift of about 0.45.
We have analyzed a deep ROSAT field in a region of high Galactic latitude
and low Galactic HI absorption. After removal of the point sources and
after correction for absorption, the softest map show evidence for
diffuse/extended structures. These diffuse structures have an X-ray
energy distribution that is much softer than expected from clusters, groups or
unresolved emission from AGNs, but it is consistent with emission from
the diffuse warm intergalactic medium
expected by the cosmological models, both in terms of shape
(plasma at
keV) and of flux (
).
To discriminate between a Galactic or extragalactic nature of the
diffuse gas we have correlated the soft X-map with
multiband optical images in this field. The most
prominent
diffuse X-ray structure in the ROSAT map appears
associated with an overdensity of galaxies at a photometric redshift of
0.45. This association, along with the X-ray
properties of the former (Sect. 2), strongly suggest that
we are observing an extragalactic structure most likely tracing
the warm intergalactic medium predicted by cosmological theories,
in this case at redshift
0.45, which is expected to be the main
reservoir of baryonic matter at low redshifts.
The second most prominent diffuse X-ray structure "2'' is not associated, in our optical maps, with a pronounced galaxy overdensity, although there are some clumps of galaxies surrounding it (Fig. 7). Either this structure is not extragalactic (e.g. associated to our Galactic halo) or it is associated with galaxies at redshift higher than 0.8, where most galaxies escape detection in our optical images. Finally, this may be a case of warm baryonic gas at relatively low redshift, not enclosing galaxy overdensities, but possibly bridging those few galaxy clumps detected in its surrounding.
Multi-object spectroscopy should provide a critical test on the nature of these diffuse structures. Indeed the spectroscopic information would both confirm the galaxy redshift distribution and give an estimate of the involved virial masses to be compared with the temperature inferred for the barionic gas.
Acknowledgements
We are grateful to R. Croft for providing us with the unpublished maps of his simulations and to M. Bolzonella for making available her Hyperz code and for providing additional information and suggestions. We thank G. Hasinger for helpful comments during the early stages of this work. We are also grateful to the staff of Isaac Newton Telescope and of the Effelsberg 100 meter telescope for their support during the observations. We are grateful to Peter Kalberla for giving us access to Effelsberg calibration software and Alison Peck for help with the observations.
