5 ${{\vec T}_{\sf eff}}$ from the 2MASS color indices and comparison with other determinations

In this section we take a number of recent determinations of $T_{\rm eff}$ and compare them with those obtained from colours determined from the 2MASS magnitudes after transformation to the Bessell-Brett system using Eqs. (5)-(7) in Sect. 4. In making comparisons with other determinations of $T_{\rm eff}$  we have chosen cases in which the correction for interstellar extinction is not a major source of uncertainty (in general, E(B-V$\leq$ 0.05 mag).

5.1 $\mathsfsl{ T_{eff}}$ for Hyades dwarfs

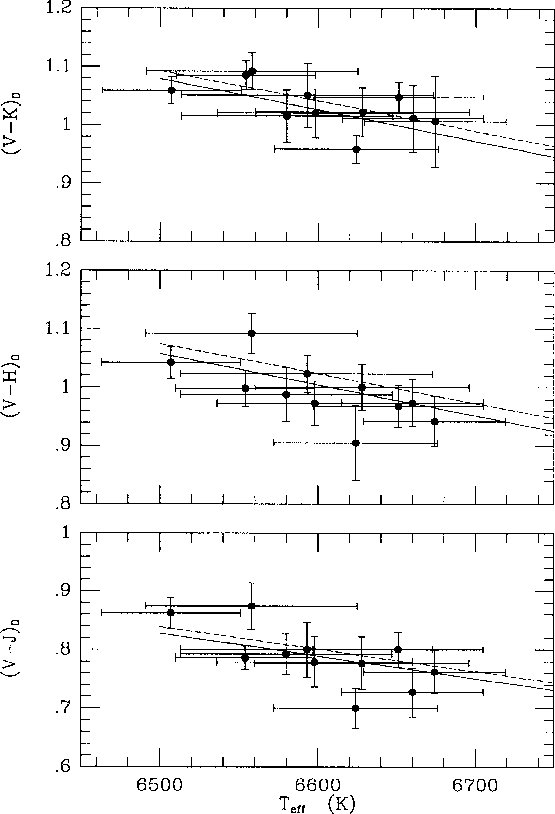

  \begin{figure}
\par\includegraphics[width=8cm,clip]{3596f5.eps} \end{figure} Figure 5: Hyades members whose $T_{\rm eff}$  is taken from de Bruijne et al. (2001). The colours (ordinates) were determined from 2MASS magnitudes using the transformations in Sect. 4. The full and dashed lines show the computed $T_{\rm eff}$ vs. colour relations from Table 3 for $\log g=4.0$ and $\log g=4.5$, respectively.

The Hyades cluster is sufficiently close (mean distance $\sim $45 pc) that we can assume that E(B-V) = 0.0. In their Hipparcos study of this cluster, de Bruijne et al. (2001) have given $T_{\rm eff}$  for main sequence stars ( $4.33\leq\log g\leq4.36$) which are based on two recent calibrations of the $T_{\rm eff}$ versus (B-V) relation: (1) Bessell et al. (1998) in combination with Alonso et al. (1996) and (2) Lejeune et al. (1997, 1998). We have used the eleven hottest of these Hyades stars ( $T_{\rm eff}>6500$ K) for which 2MASS magnitudes are available. Table 6 lists the stars and their $T_{\rm eff}$  and $\log g$  according to de Bruijne et al. (2001). Their V magnitudes were taken from the Hipparcos Input Catalogue (Turon et al. 1992) and the 2MASS magnitudes were transformed to the Bessell-Brett system with Eqs. (5)-(7). The quoted errors of both the V and the 2MASS magnitudes were used to determine the errors of the colours. These data, given in Table 6, are compared in Fig. 5 with the computed $T_{\rm eff}$ vs. colour relations for $\log g$ = 4.0 and 4.5 that are given in Table 3; the agreement is generally satisfactory. The mean difference between the observed and the synthetic colours for the temperatures adopted by de Bruijne et al. are $+0.002\pm0.013$, $-0.009\pm0.014$ and $+0.010\pm0.009$ for $(V-J)_{\rm0}$, $(V-H)_{\rm0}$ and $(V-K)_{\rm0}$ respectively. The mean differences between the $T_{\rm eff}$ given by de Bruijne et al. and those derived from the synthetic and the observed colours are $-5\pm33$ K, $+23\pm36$ K and $-26\pm23$ K for $(V-J)_{\rm0}$, $(V-H)_{\rm0}$ and $(V-K)_{\rm0}$  respectively.

5.2 $\mathsfsl{ T_{eff}}$ for nearby Blue Horizontal Branch stars

2MASS magnitudes are available for thirteen out of the twenty nine nearby BHB stars that were discussed by Kinman et al. (2000) (KCCBHV); these thirteen stars are listed in Table 7.

The observed dereddened colour indices $(V-J)_{\rm BB0}$, $(V-H)_{\rm BB0}$  and $(V-K)_{\rm BB0}$  given in Cols. 7, 9, and 11 were obtained from the observed 2MASS magnitudes (Cols. 3-5) using the the transformation equation given in Sect. 4, the reddening E(B-V)  given in Col. 6 and the following reddening relations obtained from Mathis (1999) for Av = 3.1 E(B-V): E(V-J) = 2.23E(B-V), E(V-H) = 2.55E(B-V) and E(V-K) = 2.76E(B-V).

We used Table 2 to derive $T_{\rm eff}$  from the dereddened colour indices. According to KCCBHV the abundances of the $\alpha $-elements are enhanced by about 0.4 dex over the iron in these stars. Since the red colour-indices of these stars have a weak dependance on their metallicity (Fig. 2), we adopted the synthetic colours of Table 2 which were computed from non-$\alpha $-enhanced models. We also adopted the metallicities listed in Col. 2 of Table 7; these are close to those obtained by KCCBHV.

In Fig. 6 we compare the $T_{\rm eff}$  derived from $(V-J)_{\rm BB0}$, $(V-H)_{\rm BB0}$  and $(V-K)_{\rm BB0}$  (using Table 2) with the $T_{\rm eff}$  from the literature taken from KCCBHV, Adelman & Philip (1990 1994 and 1996) and Gray et al. (1996). All these temperatures are summarized in Table 13 of KCCBHV. If TJ is the effective temperature derived from Table 2 for a BHB star of known $(V-J)_{\rm0}$  and [M/H], then we define the difference $\Delta T_{J}$ as the $T_{\rm eff}$ for the BHB star given in the literature minus TJ. The differences $\Delta T_{H}$  and $\Delta T_{K}$  are defined similarly. These differences are shown plotted against TJHK  in Fig. 6, where TJHK  is the weighted mean of TJ, TH and TK[*]. In the case of the KCCBHV temperatures, these differences are shown by filled circles and the mean values of $\Delta T_{J}$, $\Delta T_{H}$  and $\Delta T_{K}$ are are $+58\pm44$ K, $+110\pm45$ K and $+79\pm40$ K respectively. The corresponding rms deviations are 153 K, 157 K and 137 K. The error bars of $\Delta T_{J}$, $\Delta T_{H}$ and $\Delta T_{K}$ in Fig. 6 take into account the quoted errors of $T_{\rm eff}$ given by KCCBHV and the quoted photometric errors of the 2MASS observations.

The open circles in Fig. 6 are similarly derived from the $T_{\rm eff}$  given by Adelman & Philip (1990, 1994, 1996) and Gray et al. (1996). In this case, the mean values of $\Delta T_{J}$, $\Delta T_{H}$ and $\Delta T_{K}$ are $-122\pm95$ K, $-25\pm119$ K and $-66\pm92$ K respectively and the corresponding rms deviations are 286 K, 356 K and 277 K. When $T_{\rm eff}$ from Castelli & Cacciari (2001, hereafter CC) are considered the mean values of $\Delta T_{J}$, $\Delta T_{H}$ and $\Delta T_{K}$ are $+90\pm50$ K, $+158\pm50$ K and $+129\pm37$ K respectively and the corresponding rms deviations are 167 K, 165 K and 121 K.

Table 8 compares TJHK with the $T_{\rm eff}$  from KCCBHV (which is based mostly on optical data) and those from CC (based on IUE ultraviolet energy distributions). The mean of the differences (Col. 5) between the KCCBHV $T_{\rm eff}$  and the weighted mean TJHK is $+93\pm37$ K with an rms deviation of 127 K. The mean of the differences (Col. 6) between the CC $T_{\rm eff}$  and the weighted mean TJHK is $+138\pm37$ K with an rms deviation of 122 K.

These BHB stars are at distances of several hundred parsecs and at various galactic latitudes, so the uncertainty in their E(B-V)  is at least 0.01 mag. This corresponds to an uncertainty of about 50 K at 7500 K and 180 K at 9000 K in the derived temperatures. Bearing this in mind, the agreement between previously derived values of $T_{\rm eff}$  for BHB stars and those derived from the 2MASS data seems satisfactory.

5.3 $\mathsfsl{ T_{eff}}$ for blue metal-poor stars ( $\mathsfsl{12\leq{V}\leq14}$)

The blue metal-poor (BMP) stars were originally defined by Preston et al. (1994) as having $0.15\leq(B-V)\leq0.36$, $\log g$ $\approx$ 4 and [Fe/H] <-1. They are presumed to be the same as the "Class A'' stars found by Kinman et al. (1994). Preston & Sneden (2000) have obtained echelle spectra of sixty-two of their BMP stars and shown that a high proportion are single-line binaries and likely to be blue stragglers; only 44 of their sample have [Fe/H] <-1. Preston & Sneden derived a preliminary effective temperature from a $T_{\rm eff}$  vs. (B-V), [Fe/H] relation and then adjusted it so as to minimize the variation of the calculated abundance with respect to excitation potential. We picked five of their hottest stars for which 2MASS data are currently available; they are listed in Table 9 and also in Table 10 which gives their $\log g$, [Fe/H] and V from Preston & Sneden (2000). We used the procedure described in Sect. 5.2 to obtain TJ, TH, TK  for each star from the 2MASS data using Table 3 and thus derived TJHK. The colours of these stars were de-reddened using the E(B-V) of SFD (Table 9, Col. 6).




Table 7: Temperatures TJ, TH, and TK for BHB stars derived from Table 2 and 2MASS colours.

HD/BD
Va $J_{\rm 2M}$ $H_{\rm 2M}$ $K_{\rm 2M}$ E(B-V) $(V-J)_{\rm BB0}$ TJ $(V-H)_{\rm BB0}$ TH $(V-K)_{\rm BB0}$ TK
  [M/H]
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11) (12)

2857
9.99 9.495 9.351 9.305 0.022 0.385 7665 0.567 7459 0.580 7467
  -1.5 $\pm$0.030 $\pm$0.025 $\pm$0.033     $\pm$92   $\pm$50   $\pm$70
14829 10.31 10.120 10.044 10.033 0.018 0.088 9001 0.200 8553 0.179 8673
  -2.0 $\pm$0.029 $\pm$0.026 $\pm$0.028     $\pm$190   $\pm$100   $\pm$113
60778 9.10 8.742 8.629 8.651 0.028 0.241 8179 0.387 7908 0.331 8103
  -1.5 $\pm$0.028 $\pm$0.043 $\pm$0.027     $\pm$110   $\pm$115   $\pm$80
74721 8.71 8.537 8.526 8.507 0.012 0.093 8945 0.140 8792 0.129 8876
  -1.5 $\pm$0.044 $\pm$0.034 $\pm$0.029     $\pm$275   $\pm$150   $\pm$138
86986 8.00 7.540 7.515 7.485 0.022 0.354 7777 0.413 7838 0.410 7884
  -1.5 $\pm$0.030 $\pm$0.028 $\pm$0.039     $\pm$95   $\pm$72   $\pm$100
87047 9.72 9.321 9.273 9.229 0.006 0.333 7855 0.421 7828 0.435 7831
  -2.0 $\pm$0.033 $\pm$0.056 $\pm$0.041     $\pm$109   $\pm$140   $\pm$102
109995 7.63 7.295 7.275 7.262 0.010 0.257 8134 0.314 8131 0.296 8222
  -1.5 $\pm$0.028 $\pm$0.022 $\pm$0.021     $\pm$107   $\pm$65   $\pm$62
130095 8.13 7.828 7.856 7.818 0.072 0.084 9002 0.072 9171 0.067 9210
  -1.5 $\pm$0.038 $\pm$0.070 $\pm$0.034     $\pm$250   $\pm$450   $\pm$195
167105 8.97 8.736 8.738 8.725 0.024 0.121 8777 0.151 8741 0.131 8869
  -1.5 $\pm$0.025 $\pm$0.029 $\pm$0.020     $\pm$140   $\pm$130   $\pm$96
202759 9.09 8.431 8.347 8.221 0.072 0.437 7522 0.543 7526 0.626 7390
  -2.0 $\pm$0.036 $\pm$0.063 $\pm$0.050     $\pm$100   $\pm$140   $\pm$101
252940 9.10 8.455 8.370 8.301 0.048 0.476 7401 0.590 7412 0.621 7384
  -1.5 $\pm$0.045 $\pm$0.031 $\pm$0.046     $\pm$122   $\pm$65   $\pm$93
+25 2602 10.12 9.826 9.855 9.829 0.008 0.221 8289 0.229 8428 0.225 8475
  -2.0 $\pm$0.032 $\pm$0.030 $\pm$0.031     $\pm$130   $\pm$110   $\pm$106
+42 2309 10.77 10.554 10.583 10.498 0.013 0.131 8715 0.139 8795 0.193 8594
  -1.5 $\pm$0.034 $\pm$0.036 $\pm$0.022     $\pm$190   $\pm$170   $\pm$90

$\textstyle \parbox{16.7cm}{
$^{a}$\space Data taken from KCCBHV.}$



  \begin{figure}
\par\includegraphics[width=8cm,clip]{3596f6.eps} \end{figure} Figure 6: Differences between the $T_{\rm eff}$ of BHB stars given in the literature and those derived from 2MASS data and the $T_{\rm eff}$-colours relations for BHB stars given in Table 2. For further details see the text in Sect 5.2.

Table 10 compares the TJHK  temperature with those from Preston & Sneden (2000) and with those from Wilhelm et al. (1999) who also observed the same BMP stars using UBV photometry and low resolution spectra.

The mean difference between the Preston and Sneden $T_{\rm eff}$ and our TJHK  is $-63
\pm119$ K and the rms deviation of these differences is 237 K. The mean difference between the $T_{\rm eff}$  of Wilhelm et al. and our TJHK is $+137
\pm157$ K; the rms deviation of these differences is 314 K. The mean difference between the Preston & Sneden $T_{\rm eff}$  and those of Wilhelm et al. is $-200\pm168$ K and the rms deviation of these differences is 335 K.

The agreement between the TJHK  and these previous $T_{\rm eff}$  is satisfactory, if we take into account their binary nature and that they are probably all photometric variables. Their V-amplitudes (when known) are given in the footnotes to Table 10. Our use of non-simultaneous optical and infrared magnitudes will clearly produce errors in our temperatures and we have tried to take these and other photometric errors into account in calculating the errors for our TJHK. We have not taken into account any other errors such as those in our estimated E(B-V). The random errors of both our $T_{\rm eff}$  and those of Preston & Sneden are probably about 150 K, while for Wilhem et al. they are probably $\sim $300 K. The systematic difference between our temperatures and those of Preston & Sneden is not significant.

5.4 $\mathsfsl{ T_{eff}}$ for BMP and BHB stars observed by Wilhelm et al. (1999) in field BS 15621

Wilhelm et al. (1999) have given $T_{\rm eff}$ for large numbers of both BMP and BHB stars. We have chosen one of their fields (BS 15621) for which both E(B-V) is low and 2MASS data are available. We evaluated TJ, TH, TK and the weighted TJHK  for the BMP and BHB stars in this field as described in Sect. 5.2; the results are shown in Table 11. Our adopted $\log g$  and metallicity [M/H] are given in Table 11, Col. 2. The adopted E(B-V)  (Table 11, Col. 6) are taken from SFD and do not differ greatly from those assumed by Wilhelm et al. (Table 12, Col. 5). We interpolated in Table 3 for the BMP stars and in Table 2 for the BHB stars. Wilhelm et al. give an uncertain [Fe/H] of 0.0 for the BHB star BS 15621-0039. We interpolated in Table 3 for this star, since a metallicity ${\rm [M/H]}=0.0$ is not available for BHB stars in Table 2. If we had used Table 2 and ${\rm [M/H]}=-1.0$, the resulting temperature would have been 137 K higher. Our results are given in Table 11 (Cols. 8, 10, 12) and in Table 12 (Col. 6). The errors quoted for TJ, TH and TK  are derived from the errors in the photometry while those quoted for the weighted TJHK are derived from the errors of TJ, TH and TK.

Table 12 compares our TJHK with the $T_{\rm eff}$  from Wilhelm et al. (1999). The difference $\Delta T$ between the $T_{\rm eff}$  of Wilhelm et al. and our TJHK is shown plotted against TJHK in Fig. 7. The errors for $\Delta T$ in this plot assume an error of 300 K for the $T_{\rm eff}$  of Wilhelm et al.. The mean difference $<\Delta T>$ for the BMP stars is $+249\pm74$ (K) which is comparable with the difference found for the other BMP star data of Wilhelm et al. (1999) and which we discussed in Sect. 5.3.

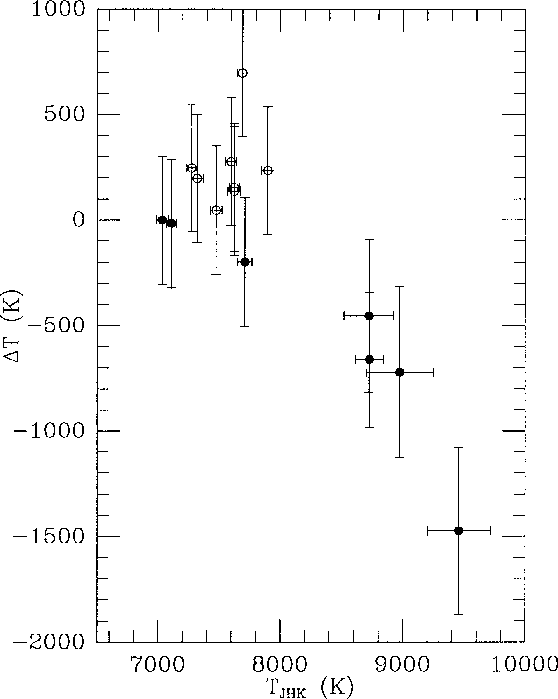

  \begin{figure}
\par\includegraphics[width=8cm,clip]{3596f7.eps}\end{figure} Figure 7: Difference $\Delta $T between Wilhelm et al. $T_{\rm eff}$  and TJHK given in Table 13. Filled circles are BHB stars and open circles are BMP stars.





Table 8: Comparison of $T_{\rm eff}$  from 2MASS colours for BHB stars with the parameters from KCCBHVa  and CCb.

HD/BD
TJHK/$\log g$/[M/H] $T_{\rm eff}$/$\log g$/[Fe/H] $T_{\rm eff}$/$\log g$/[M/H] $\Delta $ $T_{\rm eff}$  from $\Delta $ $T_{\rm eff}$  from
  This paper KCCBHVa CCb KCCBHVa CCb

2857
$7495\pm37$/3.00/-1.5 7550/3.00/-1.73 7600/2.8/-1.75a +55 +105
14829 $8659\pm70$/3.20/-2.0 8900/3.20/-2.39 8900/3.1/-2.5a +241 +241
60778 $8076\pm56$/3.10/-1.5 8050/3.10/-1.49 8250/2.9/-1.50a -26 +174
74721 $8850\pm95$/3.30/-1.5 8900/3.30/-1.42 8800/3.2/-1.50a +50 -50
86986 $7833\pm50$/3.20/-1.5 7950/3.20/-1.81 8100/2.8/-1.75a +117 +267
87047 $7839\pm66$/3.10/-2.0 7850/3.10/-2.47 7900/2.8/-2.50a +11 +61
109995 $8172\pm41$/3.10/-1.5 8500/3.10-1.72 8500/3.0/-1.75a +328 +328
130095 $9135\pm145$/3.30/-1.5 9000/3.30/-1.87 9100/3.2/-1.75a -135 -35
167105 $8813\pm68$/3.30/-1.5 9050/3.30/-1.56 9000/3.1/-1.50a +237 +187
202759 $7471\pm63$/3.05/-2.0 7500/3.05/-2.16 7500/2.8/-2.00a +29 +29
252940 $7403\pm49$/2.95/-1.5 7550/2.95/-1.77 7650/2.7/-1.75a +147 +247
+25 2602 $8410\pm66$/3.20/-2.0 8410/3.17/-1.98 $\cdots$ 0 $\cdots$
+42 2309 $8649\pm73$/3.20/-1.5 8800/3.20/-1.63 8750/3.0/-1.75a +151 +101

$\textstyle \parbox{13.8cm}{
$^{a}$\space Kinman et~al. (\cite{kin00}). \\
$^{b}$\space Castelli \& Cacciari (\cite{cck}). \\ }$






Table 9: Temperatures TJ, TH, and TK for blue metal poor stars derived from Table 3 and 2MASS colours.

ID
$\log g$ $J_{\rm 2M}$ $H_{\rm 2M}$ $K_{\rm 2M}$ E(B-V) $(V-J)_{\rm BB0}$ TJ $(V-H)_{\rm BB0}$ TH $(V-K)_{\rm BB0}$ TK
CS- [M/H]
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11) (12)

22871-040
4.2 12.147 12.041 12.001 0.101 0.289 8185 0.406 8047 0.396 8100
  -1.5 $\pm$0.026 $\pm$0.031 $\pm$0.031   $\pm$0.030 $\pm$105 $\pm$0.034 $\pm$90 $\pm$0.034 $\pm$90
29497-017 4.2 13.571 13.435 13.459 0.016 0.495 7512 0.668 7416 0.613 7558
  -1.0 $\pm$0.032 $\pm$0.037 $\pm$0.044   $\pm$0.035 $\pm$100 $\pm$0.040 $\pm$85 $\pm$0.046 $\pm$100
22966-043 3.7 13.011 12.852 12.825 0.017 0.451 7605 0.649 7425 0.644 7464
  -2.0 $\pm$0.032 $\pm$0.030 $\pm$0.037   $\pm$0.068 $\pm$190 $\pm$0.067 $\pm$140 $\pm$0.070 $\pm$150
29497-030 4.2 11.960 11.760 11.730 0.016 0.592 7291 0.832 7140 0.831 7163
  -2.0 $\pm$0.031 $\pm$0.031 $\pm$0.029   $\pm$0.034 $\pm$95 $\pm$0.034 $\pm$70 $\pm$0.033 $\pm$65
29499-057 4.5 13.356 13.315 13.226 0.023 0.384 7954 0.462 7993 0.517 7882
  -2.0 $\pm$0.033 $\pm$0.030 $\pm$0.041   $\pm$0.045 $\pm$139 $\pm$0.042 $\pm$106 $\pm$0.051 $\pm$118






Table 10: Comparison of $T_{\rm eff}$  for blue metal poor stars from various sources.

ID
Preston & Snedena   Wilhelm et al.b   This paper
CS- V $T_{\rm eff}$ $\log g$ [Fe/H]   $T_{\rm eff}$ $\log g$ [Fe/H]   $T_{\rm JHK}$
    (K)       (K)       (K)
(1) (2) (3) (4) (5)   (6) (7) (8)   (9)

22871-040c
$12.72\pm0.015$ 7880 4.2 -1.66   7722 3.7 -2.1   $8103\pm54$
29497-017d $14.16\pm0.015$ 7500 4.2 -1.19   7768 4.9 -0.5   $7486\pm54$
22966-043e $13.56\pm0.060$ 7300 3.7 -1.96   7577 4.1 -1.4   $7480\pm90$
29497-030 $12.65\pm0.015$ 7500 4.2 -2.16   7426 3.9 -2.5   $7180\pm43$
29499-057f $13.85\pm0.030$ 7700 4.2 -2.33   8386 4.3 -2.9   $7946\pm69$

a Data taken from Preston & Sneden (2000).
b Data taken from Wilhelm et al. (1999).
c Light amplitude $\Delta V\sim0.01$ mag (Preston & Landolt 1999).
d Light amplitude $\Delta V<0.01$ mag (Preston & Landolt 1999).
e Light amplitude $\Delta V= 0.12$ mag (Preston & Landolt 1999).
f Light amplitude $\Delta V= 0.04$ mag (Preston & Landolt 1999).






Table 11: Temperatures TJ, TH, TK for a sample of BMP and BHB stars $^{\dagger }$  in BS 15621 by using Tables 2, 3 and 2MASS colours.

BS 15621
$\log g$a $J_{\rm 2M}$ $H_{\rm 2M}$ $K_{\rm 2M}$ E(B-V) $(V-J)_{\rm BB0}$ TJ $(V-H)_{\rm BB0}$ TH $(V-K)_{\rm BB0}$ TK
Va [M/H]
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11) (12)

-0002
3.8 11.421 11.236 11.207 0.018 0.318 7981 0.542 7620 0.539 7657
11.84 -1.0 $\pm$0.034 $\pm$0.030 $\pm$0.029   $\pm$0.034 $\pm$110 $\pm$0.030 $\pm$67 $\pm$0.029 $\pm$64
-0012 3.8 11.765 11.654 11.628 0.017 0.408 7700. 0.557 7587 0.551 7631
12.27 -1.0 $\pm$0.034 $\pm$0.029 $\pm$0.034   $\pm$0.034 $\pm$100 $\pm$0.029 $\pm$65 $\pm$0.034 $\pm$75
-0022 4.3 12.211 12.087 12.047 0.022 0.560 7295 0.721 7267 0.728 7277
12.88 -0.5 $\pm$0.036 $\pm$0.033 $\pm$0.031   $\pm$0.036 $\pm$103 $\pm$0.033 $\pm$60 $\pm$0.031 $\pm$65
-0037 3.7 11.053 10.973 10.950 0.037 0.447 7569 0.557 7569 0.544 7630
11.64 -1.0 $\pm$0.035 $\pm$0.036 $\pm$0.029   $\pm$0.035 $\pm$100 $\pm$0.036 $\pm$80 $\pm$0.029 $\pm$65
-0040 4.2 13.327 13.159 13.193 0.050 0.313 8071 0.508 7769 0.435 7968
13.81 -1.0 $\pm$0.030 $\pm$0.031 $\pm$0.034   $\pm$0.030 $\pm$112 $\pm$0.031 $\pm$73 $\pm$0.034 $\pm$85
-0041 4.0 12.120 11.937 11.946 0.026 0.362 7835 0.581 7523 0.538 7649
12.60 -0.5 $\pm$0.034 $\pm$0.040 $\pm$0.041   $\pm$0.039 $\pm$122 $\pm$0.034 $\pm$75 $\pm$0.040 $\pm$90
-0048 3.0 11.640 11.531 11.531 0.020 0.457 7470 0.602 7387 0.570 7494
12.20 0.0 $\pm$0.036 $\pm$0.057 $\pm$0.028   $\pm$0.036 $\pm$110 $\pm$0.057 $\pm$123 $\pm$0.028 $\pm$60
-0072 3.8 12.221 12.085 12.046 0.030 0.482 7400 0.653 7277 0.657 7307
12.83 0.0 $\pm$0.031 $\pm$0.033 $\pm$0.047   $\pm$0.031 $\pm$87 $\pm$0.033 $\pm$70 $\pm$0.047 $\pm$100
${\bf -0009}$ 2.9 13.265 13.104 13.069 0.022 0.555 7177 0.754 7072 0.756 7106
13.93 -1.5 $\pm$0.032 $\pm$0.034 $\pm$0.037   $\pm$0.032 $\pm$83 $\pm$0.034 $\pm$65 $\pm$0.037 $\pm$70
${\bf -0015}$ 3.0 11.841 11.715 11.693 0.020 0.325 7856 0.488 7640 0.478 7700
12.27 -2.0 $\pm$0.034 $\pm$0.035 $\pm$0.049   $\pm$0.034 $\pm$114 $\pm$0.035 $\pm$81 $\pm$0.049 $\pm$120
${\bf -0025}$ 3.3 15.031 14.928 14.929 0.023 0.030 9479 0.167 8654 0.134 8839
15.17 -2.0 $\pm$0.047 $\pm$0.071 $\pm$0.110   $\pm$0.047 $\pm$460 $\pm$0.071 $\pm$390 $\pm$0.110 $\pm$710
${\bf -0031}$ 2.9 13.800 13.561 13.517 0.030 0.560 7194 0.837 6951 0.846 6970
14.49 -2.0 $\pm$0.033 $\pm$0.040 $\pm$0.052   $\pm$0.033 $\pm$85 $\pm$0.040 $\pm$73 $\pm$0.052 $\pm$100
${\bf -0032}$ 3.3 14.592 14.713 14.699 0.031 0.147 8603 0.052 9368 0.031 9493
14.86 -2.0 $\pm$0.040 $\pm$0.068 $\pm$0.106   $\pm$0.040 $\pm$220 $\pm$0.068 $\pm$624 $\pm$0.106 $\pm$950
${\bf -0039}$ 3.3 13.369 13.360 13.256 0.049 0.064 8938 0.099 8824 0.165 8509
13.60 0.0 $\pm$0.031 $\pm$0.035 $\pm$0.038   $\pm$0.031 $\pm$220 $\pm$0.035 $\pm$200 $\pm$0.038 $\pm$180
${\bf -0043}$ 3.4 14.251 14.234 14.214 0.039 0.016 9633 0.061 9306 0.044 9404
14.41 -2.0 $\pm$0.040 $\pm$0.050 $\pm$0.068   $\pm$0.040 $\pm$410 $\pm$0.050 $\pm$430 $\pm$0.068 $\pm$500

$^{\dagger }$ The ID of BHB stars are shown in boldface.
a Adopted values for interpolation in Tables 2 and 3.


In the case of the BHB stars the mean difference $<\Delta T>$ is $- 504 \pm211$ (K) and $\Delta T$ becomes increasingly negative as TJHK  increases. We note that in the case of the four BHB stars whose TJHK exceeds 8000 K, the $\log g$ assumed by Wilhelm et al. (1999) are significantly less than those predicted by Eq. (9) for the TJHK.

An inspection of the $T_{\rm eff}$ that Wilhem et al. derive for BHB stars show that they are cooler than might be expected; thus 9% are less than 7000 K, 50% between 7000 and 8000 K, 36% between 8000 and 9000 K and 5% greater than 9000 K. Also, the $(B-V)_{\rm0}$ of a few of the coolest of these stars suggests that they may be RR Lyrae stars or even (e.g. CS 16027-0049 with $(B-V)_{\rm0}$ = 0.54 and $T_{\rm eff}$  = 6200 K) that they belong to to the red horizontal branch. We would expect the BHB stars to have $T_{\rm eff}$ that range from 7600 K corresponding to $(B-V)_{\rm0}$ $\sim+0.20$ at the blue end of the instability strip to temperatures greater than 10 000 K. It therefore seems that systematic errors may be present in the $T_{\rm eff}$  of their whole BHB sample. A further investigation of this is published elsewhere (Kinman & Miller 2002) and shows that the trend shown for the BHB stars in Fig. 7 is present in a much larger sample and is related to the difference between the $\log g$ used by Wilhelm et al. (1999) and that predicted from TJHK and Eq. (2).

5.5 The BHB stars in the globular cluster M 13

Peterson et al. (1995) have determined $T_{\rm eff}$  for BHB stars in the globular cluster M 13. 2MASS data are available for these stars but the errors in the 2MASS $K_{\rm s}$ magnitudes are too large for reliable colours to be derived from them. We used the V magnitudes of Cudworth & Monet (1979) and E(B-V) from SFD and assumed [Fe/H] = -1.5 to derive $T_{\rm eff}$ using Table 2. These $T_{\rm eff}$ are compared with those of Peterson et al. in Table 13. The errors for TJ and TH were derived by assuming an error of 0.03 mag in V and the quoted errors for the 2MASS magnitudes. The difference between the $T_{\rm eff}$  of Peterson et al. and the mean of TJ and TH is given as $\Delta $ $T_{\rm eff}$  in Col. 9. Its mean value $< \Delta T_{\rm eff}>~ = +152\pm154$ and the rms deviation of these differences is 344 K. Considering the faintness of these stars and consequently the relatively large errors in the colours and derived temperatures, this agreement is satisfactory. As Peterson et al. point out, there is significant uncertainty in the V-magnitudes of these stars which could produce a systematic error in the resulting temperatures. There is no indication, however, of differences $\Delta $ $T_{\rm eff}$  as large as those found for the field BHB stars observed by Wilhelm et al.





Table 12: Comparison of $T_{\rm eff}$  from 2MASS colours for BMP and BHB stars in field BS 15621 with $T_{\rm eff}$  from Wilhelm et al. (1999).

ID $^{\dagger }$
Wilhelm et al.   2MASS
15621- $T_{\rm eff}$ (K) $\log g$ [Fe/H] E(B-V)   TJHK (K)
(1) (2) (3) (4) (5)   (6)

0002
8390 3.8 -1.2 0.01   $7691\pm43 $
0012 7778 3.8 -0.9 0.00   $7624\pm44 $
0022 7521 4.3 -0.6 0.01   $7275\pm41 $
0037 7875 3.7 -1.1 0.04   $7598\pm45 $
0040 8131 4.2 -0.9 0.04   $7896\pm50 $
0041 7759 4.0 -0.4 0.01   $7622\pm52 $
0048 7520 3.8   0.0 0.02   $7473\pm48 $
0072 7517 3.8 -0.1 0.01   $7321\pm48 $
0009 7093 2.9 -1.4 0.01   $7110\pm41 $
0015 7511 2.9 -2.2 0.00   $7710\pm58 $
0025 8254 2.9 -2.6: 0.01   $8975\pm274$
0031 7034 3.0 -1.9: 0.01   $7034\pm48 $
0032 8271 2.9 -2.2: 0.01   $8724\pm203$
0039 8066 2.6   0.0: 0.04   $8728\pm114$
0043 7984 2.8 -3.0: 0.03   $9458\pm255$

$\textstyle \parbox{9.1cm}{
$^{\dagger}$ ~The ID of BHB stars are shown in boldface. }$






Table 13: $T_{\rm eff}$  for BHB stars in M 13.

ID
r $^{\ddagger}$ $V_{\rm0}$ $(B-V)_{\rm0}$ E(B-V) TJ TH $T_{\rm eff}$ (Peterson et al. $^{\dagger }$) $\Delta $ $T_{\rm eff}$
  (arcsec)       (K) (K) (K) (K)
(1) (2) (3) (4) (5) (6) (7) (8) (9)

I-64
214 14.94 0.093 0.017 $7720\pm160$ $7800\pm160$ 7970 +210
IV-83 225 15.02 0.114 0.016 $8385\pm250$ $8330\pm310$ 8962 +604
II-68 233 14.93 0.031 0.019 $8680\pm340$ $8605\pm385$ 8595 -48
J 52 395 15.03 0.084 0.016 $8650\pm275$ $8650\pm420$ 8244 -406
J 11 398 14.94 0.054 0.016 $7520\pm150$ $7450\pm135$ 7784 +299
SA 368 414 15.08 0.042 0.018 $8515\pm270$ $8150\pm260$ 8586 +254

% latex2html id marker 9775
$\textstyle \parbox{15cm}{
$^{\ddagger}$ ~Radial di...
...\\
$^{\dagger}$ ~From Table~\ref{tab6} of Peterson et~al. (\cite{pet95}).\\ }$



next previous
Up: The determination of for magnitudes

Copyright ESO 2002
