The initial detection on March 27 is shown in Fig. 1. Assuming a dependence of the 250 GHz flux on heliocentric distance, r, and geocentric distance, $\Delta$ , following $\propto$ $\Delta\!^{-2}~r^{-0.5}$ , we extrapolated the flux measured on March 27 to July 23, to predict a flux density of about 165 mJy near perigee. The signal we actually observed near perigee was much smaller than that (Table 1). On March 27 the proper motion of the comet was low, about 8 $^{\prime\prime}$ during the integration time of 45 min. A background source accidentally passing the beam could have produced the signal, but the probability for this is very small. Another explanation of the observed signal could be a cometary outburst. Weaver et al. (2001) have observed enhanced, transient optical activity of this comet between July 5 and 7; such optical variability is not unusual for comets. But a corresponding brightening in the radio range has not yet been observed.

The 250 GHz flux obtained on July 20 seems higher than those measured a day earlier or after. These data were taken at a low elevation. The uncertainty of the large gain correction factor of 7.3 may be the cause of the large discrepancy of this measurement. To obtain an average signal we computed the weighted average of the flux densities measured in July before the July 23 nuclear disruption and scaled this flux to the cometary position on July 20, when $\Delta=0.39$ AU and r=0.77 AU. For this we again assumed $S_\nu \propto \Delta^{-2}~r^{-0.5}$ . We then find a weighted average $S_{250{\rm ~GHz}} = 2.94 \pm 0.53$ mJy, and a $3\sigma$ upper limit $S_{32{\rm ~GHz}} \le 0.5$ mJy. From these dual frequency measurements we find a limit to the spectral index $\alpha \ge 0.85 (S_\nu \propto \nu^\alpha)$ .

3.1 Nucleus size

Assuming that the comet halo particles are in thermal equilibrium with insolation we can use the thermal emission to calculate the photometric size of the cometary emission, i.e., the equivalent area of a blackbody at the distance and temperature of the comet emitting the observed flux density. Using our weighted average $S_{250}=2.94\pm 0.53$ mJy for July 20, we derive a photometric diameter, $D_{\rm ph} = (4.7 \pm 0.4)~{\rm km}$ . In the absence of a particle halo $D_{\rm ph}$ will be identical with the nuclear diameter, $D_{\rm n}$ . This is the smallest photometric diameter derived for any active comet detected so far at millimeter wavelengths.

In principle, one can derive the nuclear diameter of a comet at large heliocentric distances from the visual magnitude and the geometric albedo (Jewitt 1991). This method worked well, e.g., for Comet 1P/Halley at a heliocentric distance of 11.04 AU (Jewitt et al. 1982), assuming the standard geometric albedo of p = 0.04. However, applied to Comet S4 at the time of its detection at r = 4.4 AU, the signal of the nucleus was strongly blended by cometary activity, i.e., a contribution by its halo, so that even a rough size determination from optical measurements became impossible.

The unusually large non-gravitational parameters derived by Marsden (2000b) indicate a small nuclear size (Marsden et al. 1973), leading Sekanina (2000) to the suggestion that S4 was a trailing fragment of an earlier comet. Marsden et al. (1973) had discussed the relation between nuclear radius, nuclear density, and non-gravitational parameters, but the implied correlations were not yet backed by observations, probably because diameters and densities could not be independently determined with sufficient accuracy. Presently, it is therefore still impossible to obtain a comet size estimate from the effects of non-gravitational forces on its orbit.

In the past, radar observations led to nuclear size determinations for a number of comets (Harmon et al. 1999). Unfortunately, for S4 no such observations were attempted because of the comet's large geocentric distance at perigee.

Since other means to derive a nuclear size are not available, we must rely on the photometric diameter derived from the 250 GHz flux density. In Paper I, photometric and nuclear sizes were determined independently for three comets. On average the nuclear diameter was found to be 20% of the photometric diameter of these active comets. If we assume that this relation also holds for S4, we estimate the nuclear diameter, $D_{\rm n}\approx 0.9$ km.

In fact we know that the underlying relation between photometric and nuclear diameter does not hold as a general rule. Radio observation of Comet C/1983 H1 (IRAS-Araki-Alcock) by Altenhoff et al. (1983), combined with radar observations of Harmon et al. (1989) and Goldstein et al. (1984), have shown that its photometric and nuclear size are nearly equal. A similar conclusion was drawn by Jewitt & Luu (1992) from their photometric observations for Comet C/1989 Q1 (Okazaki-Levi-Rudenko). Both these comets were "new'' objects, but with very little cometary activity.

Another indirect method for estimating the nucleus size was suggested by Keller (1990). He showed that a lower limit to $D_{\rm n}$ can be derived from the water production rate, $Q_{\rm H_2O}$ , if the nucleus is covered by ice. For Comet Halley he thereby derived a plausible minimum diameter of 6.8 km. For S4, Mäkinen et al. (2001) monitored $Q_{\rm H_2O}$ with the SWAN camera on the SOHO spacecraft from the end of May through the nuclear break-up to mid August 2000. They derive an average minimum cross section of $\ge$ 1 km², corresponding to a minimum diameter of 1.1 km. If a significant part of the $Q_{\rm H_2O}$ is originating from icy grains in addition to those from the nuclear surface, the minimum diameter may be overestimated.

A substantially smaller diameter may be inferred from observations of the nuclear fragments after breakup. From reassembling the fragments detected in HST and VLT images into a single spherical object Weaver et al. (2001) obtain a nuclear diameter of $\sim$ 200 m. This number is considered a lower limit since the contribution from fragments smaller than the $\sim$ 50 m detection threshold is not known.

It appears that the latter estimates of $D_{\rm n}$ well bracket the value of 0.9 km derived from our measurement of the 250 GHz photometric diameter. In what follows, we adopt this value, but emphasize that our estimate is very crude.

3.2 Disruption of the nucleus

Between July 23.9 and 24.9 Kidger (2000) observed a highly condensed central optical condensation, whose brightness was decreasing by a factor of about 3 within 24 hours. In the following night the condensation became elongated and the brightness continued to fade. The major axis of this cloud, oriented in tail direction, continued to grow with a velocity of 40 m s^-1. From the low velocity and from the lack of any subnuclei Kidger concluded that the nucleus had completely disintegrated, forming this particulate cloud. Sekanina (2000) estimated that the event began July 23.6 UT and suggested that the cloud contained submillimeter-sized and larger dust particles sensitive to considerable repulsive acceleration. Mäkinen et al. (2001) and Bockelée-Morvan et al. (2001) argue that the "complete fragmentation'' started already with an outburst on July 21, but we take that the final catastrophic event started with the creation of the highly concentrated and expanding dust cloud (in short, "Kidger cloud'').

At this time we were observing the comet at 32 GHz using the 100 m telescope at Effelsberg (Table 1). The disruption did not leave a trace in our recording, neither a flare-up during the disruption nor any signal afterwards. Our upper limits for the 32 GHz flux densities are derived from night time measurements only.

3.3 The Kidger-cloud

In Fig. 2 we sketch the 250 GHz lightcurve of the comet before the disruption and compare the few measurements afterwards with possible models of the disruption. The light curve marked "halo'' was calculated as function of r and $\Delta$ , see above. The emission of the nucleus is assumed to be 4% of the total "halo'' signal. After the disruption the optical brightness of the halo decreased exponentially (Kidger 2000), due probably to the termination of a steady supply of dust particles to the halo. Our 250 GHz observation on July 24 seems to confirm the decay; after the disruption we did not detect any cometary signal.

A decrease in brightness, similar to that of the Kidger cloud, is seen in the water production observed by Mäkinen et al. (2001), which they relate to a "power law distribution of particles, reflecting the internal structure of the former nucleus''.

Kidger (2000) assumed that the nuclear mass was completely dissolved into small particles of unspecified size distribution, which constitute the expanding cloud.

In our model we assume particles of sizes equal to the observing wavelength (1.2 and 9 mm). If the small particles from inside the nucleus were initially much colder, they would have adjusted to the equilibrium temperature with insolation within minutes. In this paper we assume that the ice/dust particles are at equilibrium temperature, even though recently Peschke et al. (2002) reported on infrared observations of comet S4, which indicate a dust temperature about 20 $\%$ below the equilibrium temperature, possibly caused by sublimation of the icy grains. This lower brightness temperature could possibly contribute to our unexpectedly low continuum signal. But for a better comprison with our earlier comet observations we use the equilibrium temperature. Additionally we adopt a mean density of 1 g cm^-3 for the nucleus and the halo particles, within the accepted range of cometary densities between porous ice and refractory (asteroidal type) material.

The velocity reported by Kidger corresponds to an expansion velocity of 20 m s^-1 in the nucleus-tail direction. The orthogonal expansion velocity is not known. Beginning with the initial flux density of the nucleus at breakup, the expected signal of the opaque cloud will increase proportionally to its apparent solid angle, until the cloud becomes transparent. This happens approximately when it reaches the size of the photometric diameter (a cylinder with this diameter and a height of 2 wavelengths, evenly packed with all the nuclear mass). The photometric diameter, 164 and 450 km, of the expanding cloud is then reached after 1.1 and 3.1 hours, for 32 and 250 GHz, respectively. Its signal would then be 60 mJy and 27 Jy, respectively. With further increasing size the cloud is transparent, and its total flux density stays constant (ignoring sublimation). When the cloud size exceeds the beam width, the observed flux density per beam decreases. The predicted flux density per beam is shown as a dashed line in Fig. 2. From the observed upper limit of the flux density at 250 GHz after the nuclear break up we derive that the mass contained in mm-sized dust grains in the Kidger cloud is $\le$ $4\times 10^{10}$ g. Our observations are insensitive to submillimeter sized dust particles; therefore their contribution to the mass of the Kidger cloud cannot be estimated.

Weaver et al. (2001) show the "cloud'' of the re-appearing fragments for August 5; this can be compared to the size of the Kidger cloud, extrapolated to this epoch. Ignoring differential non-gravitational forces on the fragments, which all show very little cometary activity, their expansion velocity is about 30% of the expansion of the Kidger cloud! These high expansion velocities, possibly indicative of high mechanical stresses inside the former nucleus, and the little mass of particulate dust/ice in the Kidger cloud seem to be arguments against a low density in comet S4.

$\begin{figure} \par\includegraphics[width=16.5cm,clip]{H3432f2.eps} \end{figure}$

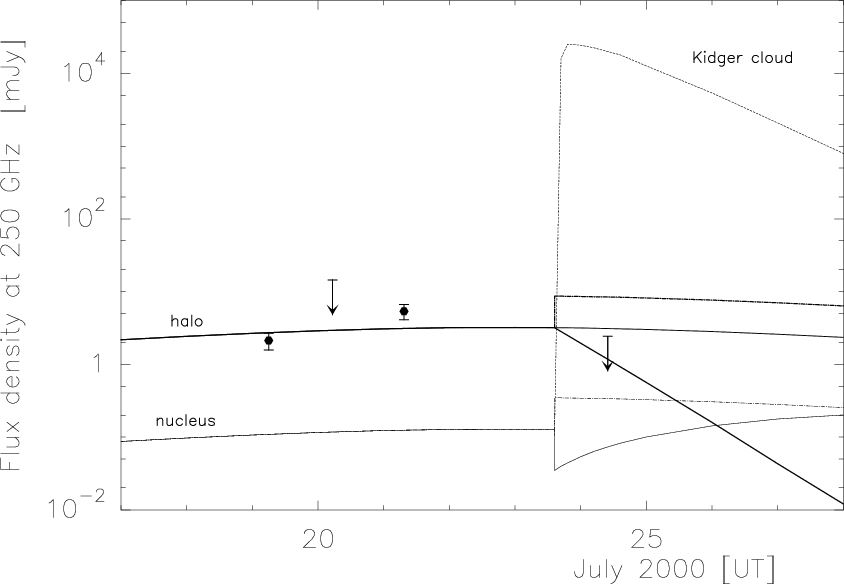

Figure 2: The observed 250 GHz emission of comet C/1999 S4 through nuclear disintegration on July 23.6 compared with schematic model assumptions. A lightcurve (heavy solid line) for the comet emission before break-up is fitted to the MAMBO observations, the significant detections are shown with their 1 $\sigma$ error bars, the insignificant "detections'' as upper limits. The extrapolated lightcurve is shown by a dotted line. After break-up (assumed: 20 equal fragments in thermal equilibrium with insolation) the signals of the sub-nuclei and their halos should increase by a factor 2.7 (thin and heavy dash-dot lines, respectively) according to the postulated emission ratio of halo and nucleus; in reality the creation of the halos will take some time, the low emission is partially compensated by that of the halo remnant. The calculated signal of the expanding particulate Kidger cloud containing all the nuclear mass is labeled "Kidger cloud''. Probably the radio emission per beam decayed exponentially after the break-up (sloping bold line) like the optical signal of the Kidger cloud (Kidger 2000). The non-detection of any radio emission after the beak-up could possibly be explained by (1) a low surface temperature of the fragments (about 30 K inside the former nucleus), rising to equilibrium temperature several days later (schematically shown by a thin solid line) and (2) a small mass fraction of mm sized particles in the Kidger cloud.

3.4 Ice particle halo inferred from molecular spectroscopy

Based on Hubble Space Telescope observations (Weaver et al. 2001) and on observations with the SWAN instrument on board of the SOHO spacecraft Mäkinen et al. (2001) modelled the water production rate of Comet S4 over the period from May to August 2000. They obtain an initial (May 25) mean nuclear diameter of 0.75 km and a daily nuclear erosion rate of 3.3 m. From this high erosion rate, which is nearly two orders of magnitude higher than what is known for other comets, the authors concluded that "material was leaving the surface by fragmentation rather than by sublimation''.

To test this suggestion we used their observed mean daily water mass loss of $4.8\times 10^{10}$ g, and the nuclear diameter of 0.75 km to derive a daily surface erosion of 2.5 cm. This value is within a factor 3 of our measurement (see Sect. 3.6 and Table 2). It is also much closer to the erosion rates of previous comets, and in particular, it does not require continuous fragmentations over months to yield the observed water production rate. We therefore do not see a need to invoke a selective "fragmentation'' by mm-size particles of the nucleus.

Near the comet's perigee Bockelée-Morvan et al. (2001) observed a number of molecular lines from which they deduced equivalent water production rates. Comparing these production rates with the corresponding values given in Table 1 by Mäkinen et al. (2001), we find systematic differences. The production rates observed with the SWAN instrument (spatial resolution 1 deg) showed a constant value within a factor of 2 in the weeks before the disruption on July 23. This is hardly an indication of a fatal decay. But the $Q_{\rm H_2O}$ determinations of Bockelée-Morvan et al. (2001) with the Pico Veleta telescope (spatial resolution for HCN 9 $^{\prime\prime}$ ) in the same period showed bigger deviations from the mean value; this could possibly be explained by the different spatial and time resolutions (production rates, each integrated over the beam). But after the disruption both sets of $Q_{\rm H_2O}$ diverge more strongly. The simplest explanation would be, that the HCN observations are integrations on the cometary position only and the HCN cloud is expanding and the signal is reduced by dilution. We have considered two possibilities: an expansion velocity of 20 m s^-1 (Kidger cloud) and 7 m s^-1 (fragment cloud). In the first case we obtain a good reconciliation of both sets of production rates.

3.5 Expected continuum emission of the fragments

Ten days after the (major) break-up Weaver et al. (2000a,2001) observed that the comet had split into at least 17 massive fragments. At this time the gas and dust production had also partially resumed. For our schematic Fig. 2, showing the expected 250 GHz flux density evolution, we assumed 20 fragments at equilibrium temperature. Geometrically these fragments have a total cross section higher by a factor 2.7 compared with the original nucleus, leading to a corresponding increase of the flux density. If our assumption of a fixed ratio of nuclear and total emission is correct, the total (halo) signal should increase accordingly (allowing for some time delay for generation of the halos). But instead of an increase we see a decrease of the 250 GHz signal on July 24 (and the following observations).

If the fragments contain most of the nuclear mass, the decrease of the 250 GHz emission implies that the brightness temperature of the fragments was much lower than the equilibrium temperature. Indeed, we might expect the inner cometary material, and thereby the initial fragments, to have a temperature comparable to that of outer solar system objects, $\sim$ 30 K. Such a heating has not been observed at radio wavelengths. But one can get an idea about the time scale from the observed radio light curves of the Moon (see Kuzmin & Salomonovich 1966) and Mercury (see Morrison 1970) between 8 and 100 GHz; Near 100 GHz both objects show a radio phase delay of about 20 degrees, corresponding to a time delay of 2.4 days. A rough extrapolation to 250 GHz would yield a delay between 1.0 to 1.5 days. The heating up of the nucleus in Fig. 2 is a schematic plot of this time scale.

This scenario seems to agree with observations. At the initial low temperature the fragments can not form halos, so that the fragments will be invisible optically and at radio wavelengths. After several days some fragments became optically visible (Weaver et al. 2000a) again due to their low level cometary activity. These fragments were at least partially covered with ice (Weaver et al. 2001), others may consist totally out of refractory material (Mäkinen et al. 2001). The low temperature of the fragments and the slow heating may explain also that the water production did not increase after the break-up, but dropped instead, as seen in the works of Mäkinen et al. (2001) and Bockelée-Morvan et al. (2001). The source of the exponentially decreasing water production after July 23 may be the former active dust cover of the nucleus, which may have made up most of the Kidger cloud. This could explain why the Kidger cloud can be used to reconcile the difference between the low and high resolution data of the water production rate (see above).

3.6 Mass of the nucleus and halo

Our estimate of the mass of the dust particle halo is based on a poorly constrained spectral energy distribution at long ( $\lambda\geq300~\mu$ m) wavelengths. A long wavelength spectral index, $\alpha = 2.8$ , measured for comet Hale-Bopp (Paper I; Jewitt et al. 1999) would be compatible with a lower limit of 0.8 we find between 32 GHz and 250 GHz (Sect. 2), and also with the few measurements (Paper I) made for comet Hyakutake.

Following the procedure of Paper I and using the same dust mass absorption coefficient, $\kappa(1.3~{\rm mm}) = 75$ cm² g^-1, and grain size distribution, $\frac{{\rm d}n(a)}{{\rm d}a} \propto a^{-3.9}$ , and assuming the particles to be at the r=0.77 AU equilibrium temperature of 320 K, we obtain a dust mass of $M_{\rm h}=2.3\times 10^9$ g for the S4 inner 11'' diameter particle halo. The halo thus has a mass which is small, $6\times 10^{-6}$ , compared with the mass of the nucleus. It corresponds to a nucleus surface layer that is only 0.5 mm thick. The nucleus continuously replenishes the halo, which expands into interplanetary space. With the adopted particle size spectrum, a large fraction of the halo mass is in large grains which are expected to expand at a constant velocity $v\approx 60$ m s^-1 (Crifo 1987). A large particle then resides 7.4 hours in our 11'' beam. On July 20 the comet's dust production (i.e. ejection) rate, Q, was therefore $\sim$ $9\times 10^{4}$ g s^-1, and the rate by which dust particles were lost from each square meter of nuclear surface, $Z \sim0.03$ g m^-2 s^-1.

The specific dust production rate, Z, is a useful quantity for comparing the activity levels of comets. From the dust production rates and the nuclear diameters given in Paper I, we derive Z = 0.01 for comets Halley (r = 1.12) and Hale-Bopp (r = 0.95), and Z = 0.3 for comet Hyakutake (r=1.02). Normalizing these rates to r = 1 AU assuming $Z\propto r^{-1.1}$ (Paper I), comet S4, for which we derived $Z\approx 0.03$ , shows similar activity as Hale-Bopp and Halley, while Hyakutake is found to be much more active.

The gas production of S4 was monitored during most of July with several telescopes (Mäkinen et al. 2001; Bockelée-Morvan et al. 2001). Biver et al. (2000) report that the derived water production rate, $Q_{\rm H_2O}$ , was strongly variable before the break-up of the nucleus, with values of $3\times 10^{28}$ mol s^-1 during July 6-9 and much lower values during July 12-20, when our observations were made. Shortly after break-up, Schleicher & Woodney (2000) reported $Q_{\rm H_2O}$ $= 4\times 10^{27}$ mol s^-1. Adopting a mean $Q_{\rm H_2O}$ of $1\times 10^{28}$ mol s^-1, i.e. $3\times 10^5$ g s^-1 of water, for the time of our observations, we obtain a pre-breakup water-to-dust mass production ratio of 4, and total (dust and water) nucleus erosion rate of about 1 cm per day.

Table 2: Derived characteristics of comet C/1999 S4.
photometric diameter at 250 GHz $4.7\pm 0.4$ km

Nucleus

diameter $\sim$ 0.9 km

mass, $M_{\rm n}$ $4\times 10^{14}$ g

erosion rate 1.0 cm/day

Halo

mass, $M_{\rm h}$ $2.3\times 10^9$ g

dust production rate, Q $9\times 10^{4}$ g s^-1

water to dust mass ratio 4
