A&A 389, L51-L56 (2002)
DOI: 10.1051/0004-6361:20020715
U. Munari1 - A. Henden2 - S. Kiyota3 - D. Laney4 - F. Marang4 - T. Zwitter5 - R. L. M. Corradi6 - S. Desidera1 - P. M. Marrese1 - E. Giro1 - F. Boschi1 - M. B. Schwartz7
1 - INAF-Osservatorio Astronomico di Padova, Sede di Asiago,
36012 Asiago (VI), Italy
2 -
Univ. Space Research Ass./U. S. Naval Observatory,
PO Box 1149, Flagstaff AZ 86002-1149, USA
3 -
VSOLJ, 1-401-810 Azuma, Tsukuba 305-0031 Japan
4 -
South African Astronomical Observatory, PO Box 9, Observatory 7935,
South Africa
5 -
University of Ljubljana, Department of Physics, Jadranska 19,
1000 Ljubljana, Slovenia
6 -
Isaac Newton Group of Telescopes, Apartado de Correos 321, 38700 Santa
Cruz de La Palma, Canarias, Spain
7 -
Tenagra Observatory, HC2 Box 292 Nogales, AZ 85621, USA
Received 12 April 2002 / Accepted 16 May 2002
Abstract
V838 Mon is marking one of the most mysterious stellar outbursts
on record. The spectral energy distribution of the progenitor resembles an
under-luminous F main sequence star (at V=15.6 mag), that erupted into a
cool supergiant following a complex and multi-maxima lightcurve (peaking at
V=6.7 mag). The outburst spectrum show BaII, LiI and lines of several
s-elements, with wide P-Cyg profiles and a moderate and retracing emission
in the Balmer lines. A light-echo discovered expanding around the object
helped to constrain the distance (
pc), providing MV=+4.45in quiescence and MV=-4.35 at optical maximum (somewhat dependent on the
still uncertain
EB-V=0.5 reddening). The general outburst trend is
toward lower temperatures and larger luminosities, and continuing so at the
time of writing. The object properties conflict with a classification within
already existing categories: the progenitor was not on a post-AGB track and
thus the similarities with the born-again AGB stars FG Sge, V605 Aql and
Sakurai's object are limited to the cool giant spectrum at maximum; the cool
spectrum, the moderate wind velocity (500 km s-1 and progressively
reducing) and the monotonic decreasing of the low ionization condition
argues against a classical nova scenario. The closest similarity is with a
star that erupted into an M-type supergiant discovered in M 31 by Rich et al.
(1989), that became however much brighter by peaking at MV=-9.95, and with
V4332 Sgr that too erupted into an M-type giant (Martini et al. 1999) and that
attained a lower luminosity, closer to that of V838 Mon. M 31-RedVar, V4332 Sgr
and V838 Mon could be all manifestations of a new class of astronomical objects.
Key words: stars: supergiants - stars: novae - stars: individual:
V838 Mon - stars: mass-loss -
ISM: jets
and outflows
The previously unnoticed, highly peculiar object V838 Mon was discovered in
outburst by Brown (2002) on January 6. The complex lightcurve, cool colors
at maximum (in spite of a
mag amplitude), strong mass
loss and a spectrum rich in s-process elements, a peak V=6.7 mag and a
favorable position
on the celestial equator favored massive world-wide
interest and an observational effort that has so far resulted in 23 IAU
Circulars.
In this Letter we present and discuss our astrometric, photometric,
spectroscopic, imaging and polarimetric observations. The basic properties
of V838 Mon in quiescence and outburst are derived, and its nature outlined.
Only a fast and preliminary analysis of the large amount of gathered
information will be possible in this Letter. A more complete data
analysis will be performed elsewhere.
![]() |
Figure 1:
Expansion of the light-echo around V838 Mon, revealing a
previously invisible ring of circumstellar material. U band
![]() |
Open with DEXTER |
HJD | V | B-V | U-B |
![]() |
![]() |
2452285.7231 | 9.977 | 1.756 | 1.917 | 0.959 | 0.942 |
2452287.8159 | 9.881 | 1.687 | 1.760 | 0.925 | 0.889 |
2452288.8061 | 9.896 | 1.681 | 1.771 | 0.938 | 0.873 |
2452309.6288 | 7.473 | 1.130 | 0.261 | 0.717 | 0.804 |
2452312.6482 | 6.926 | 0.981 | 0.239 | ||
2452313.6567 | 7.039 | 1.107 | 0.398 | ||
2452314.7245 | 7.258 | 1.128 | 0.508 | 0.699 | 0.759 |
2452315.6028 | 7.420 | 1.156 | 0.570 | 0.703 | 0.795 |
2452316.6553 | 7.614 | 1.191 | 0.662 | 0.721 | 0.731 |
2452317.6014 | 7.727 | 1.254 | 0.689 | 0.761 | 0.806 |
2452321.6405 | 7.913 | 1.494 | |||
2452322.7572 | 7.896 | 1.654 | 1.025 | 0.942 | 0.862 |
2452330.6609 | 8.124 | 2.016 | 1.503 | 1.079 | 1.037 |
2452332.6254 | 8.186 | 2.137 | 1.726 | 1.169 | 0.987 |
2452333.6359 | 8.140 | 2.148 | 1.764 | 1.150 | 1.002 |
2452337.6832 | 7.624 | 1.811 | 1.324 | 0.997 | 0.962 |
2452338.6850 | 7.506 | 1.753 | 1.301 | 0.976 | 0.901 |
2452342.6248 | 7.205 | 1.781 | 1.539 | 0.996 | 0.906 |
2452343.6502 | 7.195 | 1.790 | 1.631 | 0.974 | 0.935 |
2452344.6465 | 7.164 | 1.785 | 1.661 | 0.978 | 0.900 |
2452360.7085 | 7.622 | 2.366 | 2.295 | ||
2452365.6932 | 7.735 | 2.520 | 2.771 | 1.360 | 1.053 |
2452369.6217 | 7.943 | 2.595 | 2.590 | ||
2452373.6287 | 8.254 | 2.635 | 2.555 | 1.418 | 1.315 |
HJD | B | V | ![]() |
HJD | B | V | ![]() |
283.998 | 12.16 | 10.10 | 8.28 | 312.902 | 8.09 | 6.80 | 5.38 |
285.092 | 11.95 | 9.93 | 8.03 | 316.030 | 8.79 | 7.44 | 5.94 |
286.023 | 11.77 | 9.79 | 7.93 | 317.040 | 8.95 | 7.61 | 6.06 |
287.098 | 11.77 | 9.79 | 7.96 | 317.956 | 9.09 | 7.66 | 6.06 |
290.035 | 11.76 | 9.83 | 7.98 | 324.025 | 9.72 | 7.83 | 5.93 |
292.952 | 11.95 | 9.95 | 8.01 | 324.959 | 9.77 | 7.83 | 5.93 |
293.984 | 12.06 | 10.01 | 8.06 | 325.940 | 9.88 | 7.88 | 5.98 |
297.060 | 12.06 | 10.03 | 8.08 | 337.927 | 9.44 | 7.54 | 5.61 |
298.005 | 12.06 | 10.02 | 8.08 | 341.056 | 9.16 | 7.12 | 5.26 |
299.009 | 12.14 | 10.07 | 8.15 | 341.949 | 9.01 | 6.95 | 5.16 |
300.000 | 12.19 | 10.12 | 8.13 | 343.044 | 8.91 | 7.02 | 5.14 |
301.931 | 12.35 | 10.25 | 8.22 | 343.931 | 8.96 | 6.94 | 5.14 |
304.011 | 12.64 | 10.48 | 8.39 | 344.980 | 9.19 | 6.99 | 5.13 |
304.938 | 12.73 | 10.56 | 8.44 | 346.950 | 9.17 | 7.09 | 5.20 |
306.987 | 12.85 | 10.67 | 8.51 | 349.007 | 9.45 | 7.25 | 5.28 |
309.904 | 8.55 | 7.29 | 5.76 | 350.024 | 9.57 | 7.26 | 5.24 |
311.906 | 7.99 | 6.66 | 5.24 | 354.011 | 9.84 | 7.39 | 5.26 |
We obtained CCD UBVI
photometry of V838 Mon with the USNO 1m
telescope in Flagstaff and a privately operated 25 cm telescope in Tsukuba,
Japan, against a photometric sequence that we calibrated with respect to
Landolt's equatorial standards (sequence and identification chart available
via http://ulisse.pd.astro.it/V838_Mon/). The photometry is reported in
Tables 1 and 2 (with errors a few units of the last decimal figure). U band imaging has also been provided by the 0.81 m telescope of Tanagra Obs.
(Arizona) and the NOT 2.5 m and WHT 4.2 m telescopes in La Palma (Canary
Islands).
JHKL photometry (on the Carter system) of V838 Mon has been secured
with the 0.75-m telescope at SAAO equipped with the IRP Mk II photometer.
The magnitudes are listed in Table 3, with errors around 0.01 mag.
High resolution spectra of V838 Mon have been regularly obtained since
outburst onset with the Echelle+CCD spectrograph of the 1.82 m Asiago
telescope, covering the range 4600-9800 Å at 18 500 resolving power.
Finally, medium resolution spectroscopy (res.power 6000) has been obtained
with AFOSC at the 1.82 m Asiago telescope over the 3900-7700 Å range, as
well as spectropolarimetry (2 and 4 Å/pix) and polarimetric imaging
(
)
on several nights each month since the onset of the outburst.
A nebula around V838 Mon has been discovered and seen to "expand" with time on broad-band monitoring images obtained with the USNO 1 m telescope, a sample of which are shown in Fig. 1. The nebula is best seen in U band and it is progressively less evident at longer wavelengths, a pattern typical of light scattering. We interpret the expanding nebula as a light echo of the outburst produced by circumstellar material lost by the progenitor. The nebula is just reflecting light from the central star and it is not self-emitting, because [OIII] imaging and long slit spectroscopy failed to reveal emission lines from it.
![]() |
Figure 2: A median averaged combination of seven 30-s U-band images obtained with the 4.2 m WHT telescope on March 28, 2002 showing the light-echo (image size 40 arcsec; North to top, East to the left; seeing 0.9 arcsec, U=12.65 mag for central V838 Mon). |
Open with DEXTER |
HJD | J | H | K | L |
2452285.442 | 6.828 | 6.202 | 5.971 | 5.522 |
2452309.284 | 4.947 | 4.369 | 4.041 | 3.654 |
2452309.502 | 4.905 | 4.331 | 4.005 | 3.600 |
2452311.278 | 4.383 | 3.834 | 3.512 | 3.132 |
2452313.288 | 4.495 | 3.963 | 3.645 | 3.242 |
2452314.291 | 4.712 | 4.178 | 3.868 | 3.475 |
2452315.292 | 4.881 | 4.364 | 4.071 | 3.727 |
2452316.412 | 5.007 | 4.475 | 4.190 | 3.875 |
2452317.384 | 5.061 | 4.509 | 4.230 | 3.885 |
2452318.356 | 5.053 | 4.487 | 4.173 | 3.885 |
2452319.349 | 5.037 | 4.408 | 4.116 | 3.825 |
2452320.429 | 4.951 | 4.323 | 4.030 | 3.688 |
2452321.363 | 4.919 | 4.259 | 3.971 | 3.682 |
2452323.356 | 4.803 | 4.136 | 3.837 | 3.572 |
2452324.336 | 4.762 | 4.086 | 3.774 | 3.506 |
The light-echo expansion rate is 0.44
0.017 arcsec day-1 in
diameter, reaching 30 arcsec by early April on the USNO 1 m U images used
to monitor its development. The light producing the echo is from the second,
brighter maximum in the lightcurve (see Sect. 5). Assuming a spherical
symmetric distribution of the circumstellar dust, the expansion rate sets
the distance of V838 Mon to
pc. A higher resolution image in U band obtained with the WHT 4.2 m telescope at La Palma (Canary Islands) for
March 28 is presented in Fig. 2. This much finer image does not support
our first impression (Henden et al. 2002) of a central hole in the nebula
based on the USNO 1 m telescope lower resolution images and the assumption
that the scattered light was from the first maximum in the lightcurve. The
outburst light sweeping through the circumstellar material allows us to read
the recent mass loss history of the AGB progenitor: assuming a typical 15 km s-1 velocity for its wind, the light-echo has reached by early
April material lost
3750 years ago. Some circularly symmetric
brightness enhancements are evident, reminiscent of similar structure seen
in the surface brightness distribution of several planetary nebulae
(cf. Balick et al. 2001, their Fig. 1), usually
interpreted as variations in the progenitor AGB mass loss rate. Their
angular separation indicate a
1200 year recurrence time.
Could the light-echo be originating instead in a slab of interstellar dust?
We believe not for three independent reasons. First, given the perfect round
shape of the echo, the slab should be flat and perpendicular to the line of
sight, i.e. perpendicular to the galactic plane and therefore hardly a
stable dynamical condition. Second, the concentric structures seen in better
detail in Fig. 2 do not expand with the light-echo and instead seem to
remain fixed in space. They are therefore real density structures. The very
low probability that such concentric structures develop in the interstellar
space and that they also lie perfectly aligned with the line of sight to
V838 Mon argue strongly in favor of a circumstellar origin of the
light-echo. Finally, V838 Mon progenitor was detected by IRAS (source
07015-0346) in the 60 and 100 m bands with fluxes of 1.4 and 4.6 Jansky
(
10%), respectively, indicating dust emission at low temperature.
Zwitter & Munari (2002) on high resolution spectra taken in January,
identified narrow components of NaI and KI superimposed on the wider P-Cyg stellar
profiles that if interpreted as interstellar would have consistently
indicated a
reddening when their equivalent width is

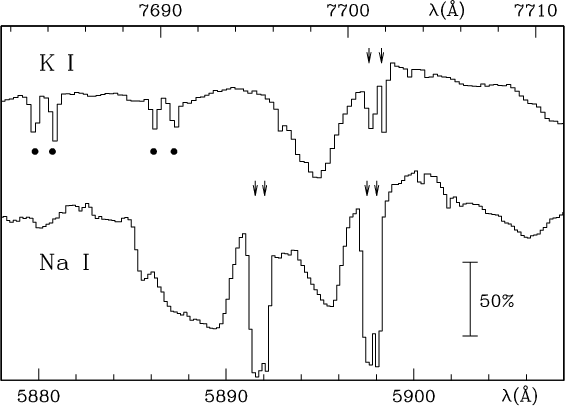

compared with the Munari & Zwitter (1997) calibration. Figure 3 shows the
narrow components as they appeared in late March. On the Neckel & Klare
(1980) extinction maps for the V838 Mon region, an interstellar
is reached at the 790 pc distance to the object, while
EB-V=0.80 pertains to distances larger than 3 kpc. Therefore,
contribution from circumstellar material must be invoked to explain the
intensity of narrow NaI and KI components. How much this circumstellar
material also contributes to the reddening is however unknown because, for
example, the dust-to-gas ratio could largely differ from the typical
interstellar value or the reddening law be different from the standard
RV=3.1 one.
The reddening affecting V838 Mon probably lies between a minimum
implied by the distance and a maximum that could be
identified with the
EB-V=0.80 derived from the intensity of narrow NaI
and KI components. A midpoint
EB-V=0.5 value will be adopted in the rest
of this Letter.
EB-V=0.5 is supported by polarimetry. We have
repeatedly measured during February and March the polarization of V838 Mon
both in
bands and over 4400-7900 Å medium resolution spectra
with AFOSC in polarimetric mode attached to the Asiago 1.82 m telescope. The
data indicate a polarization constant in time, with a wavelength slope
characteristic of an interstellar origin (Serkowski's law), amounting to
2.6% at 5500 Å at a position angle 150
.
Adopting the
average relation
between polarization and reddening
found by Serkowski et al. (1975), the observed p=2.6% corresponds to
EB-V=0.52.
An accurate astrometric position for V838 Mon in outburst has been obtained
from USNO 1m images (linked to the USNO-A2.0 local grid). It allows an
identification of the progenitor with an anonymous
mag star that
has positional measurements in both the USNO A2.0 and 2MASS catalogues:
![]() |
![]() |
epoch | |
07:04:04.81 | -03:50:50.9 | 2002 | ours |
07:04:04.82 | -03:50:50.5 | 1997 | 2MASS |
07:04:04.85 | -03:50:51.1 | 1953 | POSS-I |
The marginal or null proper motion supports a low space velocity of the
progenitor, and thus a probable partnership with galactic disk stars (a
100 km s-1 transverse velocity at 790 pc corresponds to a 1.3 arcsec
displacement during the time elapsed between POSS-I and our observations).
At galactic coordinates l=217.80 b=+1.05, the height over the galactic
plane is just z=13 pc, again supporting a link to Pop I stars. The radial
velocity of the progenitor is unknown, and values derived from absorption
lines in outburst are severely affected by the P-Cyg profiles of the lines
(even using LaII lines that rank among the sharper ones with marginal
emission components, the mean heliocentric velocity for late January was
,
for late February
and for late March
km s-1).
The brightness of the progenitor has been measured on Palomar and SERC plates by comparison with the photometric sequence we have calibrated:
Plate | Date | UT | band | mag | |
so0662 | 1953.0445 | 06.42 | B | 16.00 | POSS-I |
se0662 | 1953.0445 | 07.52 | ![]() |
15.35 | " |
sb0772 | 1983.0431 | 11.90 | B | 16.10 | SERC |
sr0772 | 1989.1732 | 10.65 | ![]() |
15.30 | " |
![]() |
Figure 3: The spectrum of V838 Mon around NaI and KI lines for March 29, 2002. The dots mark telluric absorptions, the arrows the narrow components discussed in the text. The wide absorptions are the stellar NaI and KI profiles. The bar marks the intensity scale with respect to the normalized continuum. |
Open with DEXTER |
![]() |

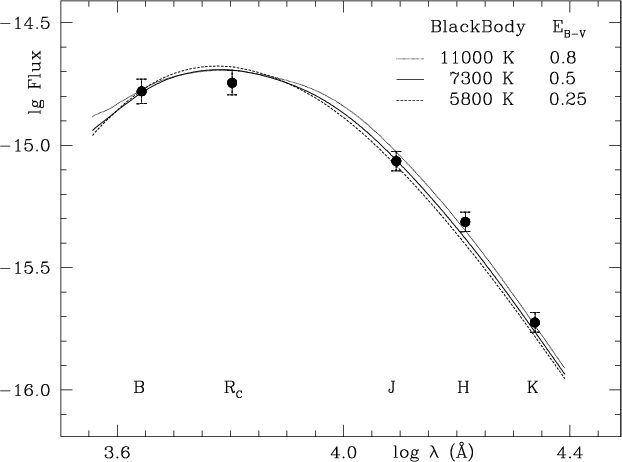

Figure 4: Spectral energy distribution of V838 Mon in quiescence, for the adopted EB-V=0.5, and the extrema of the range of possible values discussed in Sect. 3 |
Open with DEXTER |
At d=790 pc,
EB-V=0.5 and MV=+4.46, the best fitting 7300 K
blackbody corresponds to a progenitor of radius of
and
,
4.5
less luminous (1.63 mag) than a
corresponding F0 V main sequence star (cf. Fig. 8).
![]() |

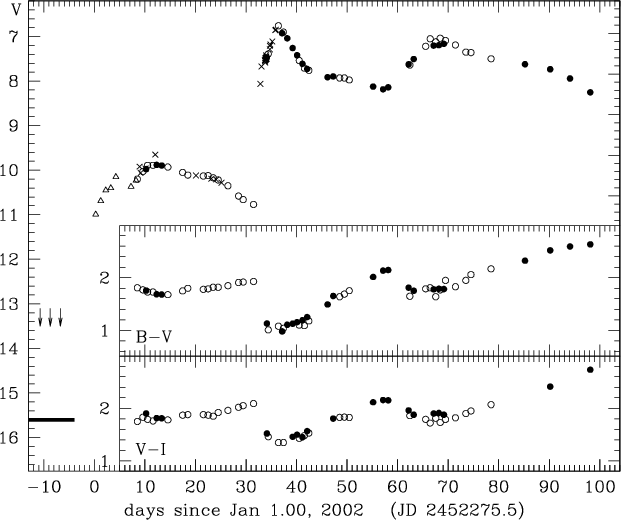

Figure 5:
V, B-V and
![]() |
Open with DEXTER |
![]() |

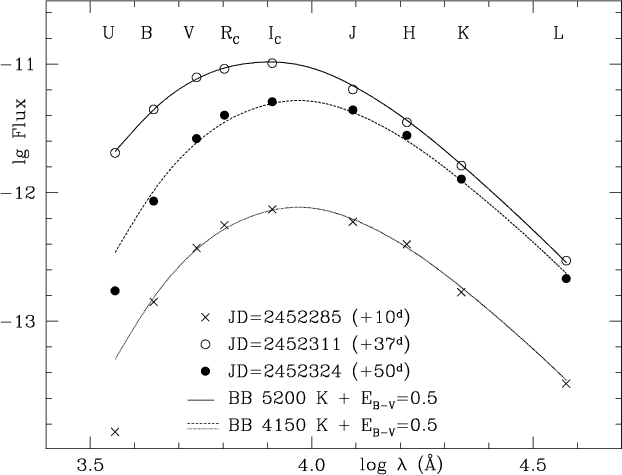

Figure 6:
![]() |
Open with DEXTER |
![]() |

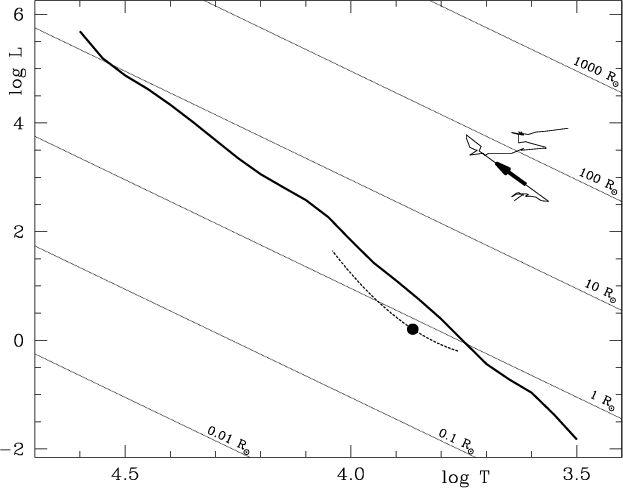

Figure 7:
V838 Mon on the ![]() ![]() |
Open with DEXTER |
V838 Mon went into outburst around the beginning of 2002, with a fast rise
to maximum (a week earlier it was still
mag). The lightcurve up
to early April is presented in Fig. 5. It is characterized by a complex
and rarely seen behavior.
A first maximum was reached by day +10 (see abscissae scale in Fig. 5)
when the continuum energy distribution was characterized by a temperature of
4150 K (see dotted line in Fig. 6), a second maximum at
peaked at
5200 K (solid line in Fig. 6) and a third one at
reached 4600 K.
Decline from maxima are marked by monotonic cooling, with the last one
taking V838 Mon to 3400 K by day
(last point in Fig. 5).
The outburst path on the -
diagram is presented in Fig. 7.
It can be best described as a trend (with interruptions) toward the upper
right corner of the diagram, thus toward progressively cooler surface
temperatures and larger radii and greater luminosities.
The spectral appearance of V838 Mon in outburst matches the cool photospheric temperatures indicated by the UBVRI and JHKL photometry. Portions of high resolution sample spectra obtained with the Asiago Echelle spectrograph are presented in Fig. 8. The photospheric temperature at the time these were taken was pretty similar, the V-I index for the three dates being +2.00, +2.14 and +2.22, respectively. The differences seen in the intensity and profiles of the lines is therefore mainly affected by changing wind structure and velocity, as well as lowering of surface gravity (expanding radius).
Late January spectra (toward the end of the decline from first maximum) are characterized by wide P-Cyg profiles of species with low excitation potential (E.P.). In particular CaII, BaII, NaI and LiI lines show remarkably similar profiles and -500 km s-1 terminal velocities. Higher E.P. lines (like those of hydrogen and some FeI multiplets) show instead almost pure absorptions, with narrow and Gaussian-like profiles resembling those expected in a normal cool giant. In late February spectra the P-Cyg terminal velocities of low E.P. species reduce (to -380 km s-1) and those of higher E.P. widen, with all lines evolving toward more homogeneous widths and shapes. The reduction of P-Cyg terminal velocities for low E.P. species continued in late March spectra (-280 km s-1), with an overall increase in the number and intensity of normal absorption lines. Balmer lines developed an emission component around the second maximum, and have been declining since then.
No chemical abundance analysis will be attempted here, however an eye inspection of the high resolution spectra reveals numerous and strong absorptions from s-elements, with marked BaII and a LiI stronger than in the FG Sge and Sakurai's object spectra presented by Kipper (2001).
![]() |

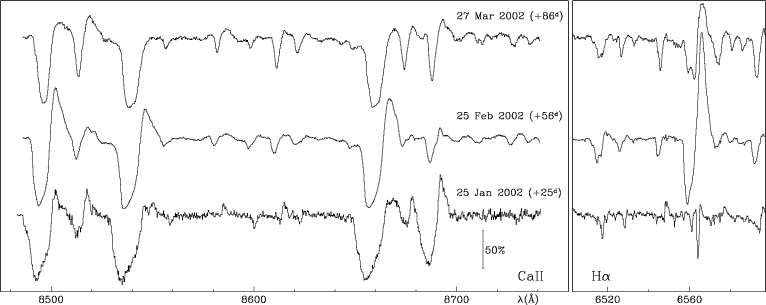

Figure 8:
Small sections of sample Asiago Echelle spectra to
document the evolution around the near-IR Calcium triplet
and H![]() |
Open with DEXTER |
The nature of V838 Mon is best described as a mysterious one. It is standard in such cases to state that "more observations are needed", which is certainly true for V838 Mon. Four key tasks for follow-up investigations seem to be: (a) to better address the nature of the progenitor in quiescence by reconstructing its photometric history from plate archives around the globe (using the deep UBVRI comparison sequence available from http://ulisse.pd.astro.it/V838_Mon/), (b) to firmly prove (or disprove) the origin of the light-echo within a circumstellar nebula, which would accurately set the distance, by coronographic observations at widely different wavelengths and epochs and great spatial resolution, (c) to derive an accurate estimate for the interstellar and the circumstellar amount of reddening and extinction (including accurate reddening estimates for many field stars spread over a great range of distances along the line of sight to V838 Mon), (d) when the spectrum will be less perturbed by the wide P-Cyg profiles now in place and it will better resemble a classical photosphere, to perform an accurate chemical abundance analysis as a clue to the outburst causes (like a born-again-AGB scenario and the dredged-up material it implies).
We conclude this Letter with brief considerations about possible scenario interpretations for V838 Mon and its outburst that will be refined in follow-up investigations.
A classical nova? The main similarity resides in the rapid rise from quiescence to the first maximum, while several counter-arguments hold strong, such as the lack of variability and emission lines from the probable cataclysmic variable precursor. Also the progenitor spectral energy distribution (an under-luminous F main sequence star) is quite strange for a CV, and the ejection velocities (not exceeding 500 km s-1) are low for a classical nova. The very slow evolution could be interpreted within a classical nova framework as an indication for a small mass of the accreting WD, and in turn a small mass of the progenitor, which is however in contrast with the indication of a partnership with the young galactic disk population.
A born-again AGB? Post-AGB stars on their leftward motion on the HR diagram to become the central stars of planetary nebulae can experience a last helium flash that pushes them back toward the region occupied by AGB stars. Known examples are FG Sge, V605 Aql and Sakurai's object. This is an attractive scenario because V838 Mon in outburst looks much like a cool AGB with a surface rich in dredged-up barium, lithium, s-elements, and the circumstellar material producing the light-echo agrees with a recent phase of heavy mass loss at the tip of the AGB (it did not show up as a PN in quiescence - as it was the case for FG Sge, V605 Aql and Sakurai's object - because the precursor was not hot enough to ionize it). However, the progenitor appears severely under-luminous for the standard theoretical tracks of post-AGB stars on the HR diagram (cf. Blöcker & Schönberner 1997), and the rise to maximum is too fast in comparison with the evolution of outburst of known cases.
A M 31-RedVar or V4332 Sgr analogue? In 1989 an erupting star
in the Andromeda Galaxy (M 31) developed a M-type cool supergiant spectrum at
maximum, with pronounced P-Cyg profiles and Balmer lines in emission and
peaked to
MV = -9.95 (Rich et al. 1989; Mould et al. 1990). The
progenitor was too faint to be identified and the event has been modeled by
Iben & Tutukov (1992) in terms of a cool WD accreting at a very low rate
from a companion and under such circumstances the entire WD could experience
a thermonuclear runaway. A similar type of eruption brought V4332 Sgr in
1994 from anonymous quiescence at
to
mag at maximum,
developping an M-giant spectrum that progressed toward later spectral types
along the outburst evolution, with significant emission in the Balmer lines
and [OI], [FeII], FeI, MgI and NaI but without marked P-Cyg type profiles
(Martini et al. 1999). V838 Mon shares common characteristics with both such
events, but some differences remain. First, both M 31-RedVar and
V4332 Sgr had single-peaked and smooth light-curves, while V838 Mon
experienced three maxima of widely different photometric and spectroscopic
characteristics. The emission limited to only the Balmer lines resembles
M 31-RedVar but the
MV = -4.35 peak brightness is much closer to V4332 Sgr.
The presence and variability of P-Cyg profiles in V838 Mon match
what saw in M 31-RedVar, while the
F dwarf progenitor is
similar to the
K dwarf visible progenitor of V4332 Sgr. It could be that these
three events are manifestations of the same and new class of astronomical
objects.
