1 - Sterrewacht Leiden, PO Box 9513, 2300 RA Leiden, The Netherlands
2 - Physics Department, Queen's University, Kingston ON K7L 4P1, Canada

Abstract
This paper is the first in a series presenting a sample of 30 late-type dwarf galaxies, observed with the Westerbork Synthesis Radio Telescope (WSRT) in the 21-cm line of neutral atomic hydrogen (HI). The sample itself, the HI content of and the HI distribution in the sample galaxies are briefly discussed. Four sample galaxies were also detected in the continuum.

Galaxies come in a wide variety of shapes and sizes. The larger galaxies are usually accompanied by a number of smaller (dwarf) galaxies, although dwarf galaxies also occur by themselves. Late-type dwarf galaxies are generally rich in neutral atomic hydrogen (HI) gas, usually more so than much larger late type spiral galaxies. Their optical luminosity can vary considerable. Blue, compact dwarf galaxies (BCGD) which appear subject to intense star formation are relatively easy to observe. More quiescent, redder galaxies are not so easy to find, especially if they have low surface brightnesses (LSB). The ratio of HI-mass to light is higher in dwarf galaxies than in much larger galaxies of high luminosity (e.g. Roberts $\&$ Haynes 1994). The 21-cm HI line is therefore an excellent tool for finding dwarf galaxies many of which otherwise might escape attention. Many HI line surveys exist, for example those by Fisher $\&$ Tully (1975, 1981), Thuan $\&$ Seitzer (1979), Thuan $\&$ Martin (1981), Hoffman et al. (1987). However, only radio interferometers provide sufficient spatial resolution to study the actual HI structure of dwarf galaxies. This is important, because relatively easily observed neutral hydrogen is the major constituent of the interstellar medium in galaxies (cf. Israel 1988).

2 The galaxy sample

In constructing our observing sample, we have based ourselves on the compilation by Melisse $\&$ Israel (1994) of galaxies classified Im and Sm, and limited ourselves to those galaxies that are in the northern hemisphere, i.e. have declinations above 14 $^{\circ}$ (so as to be observable with the WSRT). There is no single unambiguous definition of a dwarf galaxy. Often, a galaxy is considered to be a dwarf if its absolute luminosity corresponds to the light of no more than half a billion suns ( M_B > -16), about one per cent of the luminosity of a spiral galaxy such as the Milky Way or M 31. Although guided by this definition, we have not strictly adhered to it. Rather, we have selected a sample of mostly Im galaxies primarily chosen to cover a range of optical properties, in particular colour. Sample galaxy colours range from (B-V) = 0 to (B-V) = 0.7. No attempt was made to define a complete sample. Basic information on the sample galaxies is given in Table 1.

Table 1: Basic data on sample dwarf galaxies.
Name Fringe Stopping Center dist. $\rm Q_{dist}$ M_B B-V logFIR group Other names

$\alpha(1950)$ $\delta(1950)$ Mpc mag mag W m^-2

[1] [2] [3] [4] [5] [6] [7] [8] [9] [10]

D 22 $\rm02^h29^m36\fs0$ $\rm 38^\circ 27' 30''$ 9.9 2 -14.9 0.09 <-14.49 G7 U 2014

D 43 $\rm07^h24^m48\fs0$ $\rm 40^\circ 52' 00''$ 4.9 3 -13.9 0.20 <-14.23 close to G6 U 3860

D 46 $\rm07^h38^m00\fs0$ $\rm 40^\circ 14' 00''$ 4.9 3 -14.7 0.38 <-14.68 close to G6 U 3966

D 47 $\rm07^h39^m06\fs0$ $\rm 16^\circ 55' 06''$ 2.0 3 -13.4 0.35 -13.96 N 2683 U 3974

D 48 $\rm07^h54^m48\fs0$ $\rm 58^\circ 10' 36''$ 15.7 3 -16.4 0.59 <-14.41 N 2549 U 4121

N 2537 $\rm08^h09^m42\fs0$ $\rm 46^\circ 09' 00''$ 6.4 3 -17.0 0.58 -12.83 ^a U 4274, Mk 86

U 4278 -17.3 ^a U 4274, Mk 86

D 52 $\rm08^h25^m33\fs9$ $\rm 41^\circ 52' 01''$ 5.3 3 -13.8 0.53 <-14.24 close to G6 U 4426

D 63 $\rm09^h36^m00\fs0$ $\rm 71^\circ 24' 54''$ 3.4 1 -15.0 -0.09 <-14.13 M 81; L 176 U 5139, Ho I

N 2976 $\rm09^h47^m15\fs8$ $\rm 68^\circ 55' 00''$ 3.4 1 -17.4 0.58 -12.15 M 81; L 176 U 5221

D 64 $\rm09^h50^m22\fs0$ $\rm 31^\circ 29' 17''$ 6.1 2 -14.7 0.15 -13.90 N 2903^b U 5272

D 68 $\rm09^h53^m52\fs0$ $\rm 29^\circ 03' 47''$ 6.1 2 -14.3 0.23 -13.90 N 2903 U 5340

D 73 $\rm 10^h09^m34\fs0$ $\rm 30^\circ 09' 03''$ 18 2 -16.7 0.62 <-14.25 G42 U 5478

D 83 $\rm 10^h33^m54\fs0$ $\rm 31^\circ 48' 24''$ 9 2 -15.0 0.01 <-14.36 G12 U 5764

D 87 $\rm 10^h46^m18\fs0$ $\rm 65^\circ 47' 36''$ 3.4 3 -12.8 0.26 -14.23 M 81 U 5918, 7Zw347

Mk 178 $\rm 11^h30^m46\fs2$ $\rm 49^\circ 30' 54''$ 5.2 3 -15.0 <-14.20 U 6541

N 3738 $\rm 11^h33^m00\fs0$ $\rm 54^\circ 47' 00''$ 5.2 2 -16.6 0.38: -13.14 U 6565, Arp 234

D 101 $\rm 11^h55^m40\fs8$ $\rm 31^\circ 30' 54''$ 7.2 2 -14.7 0.73 -14.29 CVn II(G10) U 6900

D 123 $\rm 12^h26^m07\fs9$ $\rm 58^\circ 19' 11''$ 11.4 3 -17.5 -0.18 -13.97 close to G10 U 7534

Mk 209 $\rm 12^h23^m51\fs6$ $\rm 48^\circ 46' 12''$ 4.9 3 -14.3 0.11 -13.74 L 290? 1Zw36

D 125 $\rm 12^h25^m18\fs0$ $\rm 43^\circ 46' 18''$ 4.5 2 -15.6 0.40 <-13.98 L 290^c U 7577

D 133 $\rm 12^h30^m25\fs2$ $\rm 31^\circ 48' 54''$ 5.2 2 -15.6 0.44 -14.11 CVn I (G3); L 291 U 7698

D 165 $\rm 13^h04^m30\fs0$ $\rm 67^\circ 58' 00''$ 4.6 2 -15.8 0.23 <-13.57 N 4236 U 8201

D 166 $\rm 13^h11^m00\fs0$ $\rm 36^\circ 28' 36''$ 16 2 -17.6 0.32 -13.50 N 5033^d; L 334 U 8303, Ho VIII

D 168 $\rm 13^h12^m12\fs0$ $\rm 46^\circ 11' 00''$ 3.5 2 -15.2 0.36 -13.74 Uma/M101; L 347 U 8320

D 185 $\rm 13^h52^m55\fs2$ $\rm 54^\circ 09' 00''$ 6.9 1 -15.6 0.43 -14.04 M101 (G5); L 371 U 8837, Ho IV

D 190 $\rm 14^h22^m48\fs0$ $\rm 44^\circ 44' 00''$ 6 2 -15.8 0.24 -14.03 (Uma/M101) U 9240

D 216 $\rm 23^h26^m06\fs0$ $\rm 14^\circ 28' 00''$ 1.0 1 -13.1 0.62 <-14.07 Local Group U 12613^e

D 217 $\rm 23^h27^m33\fs0$ $\rm 40^\circ 43' 07''$ 9.3 3 -17.6 0.58 -13.66 N 7640 U 12632

Column designations: [1] Object name: D = DDO, Mk = Markarian, N = NGC, U = UGC; [2, 3] Adopted position for aperture synthesis fringe-stopping center; [4] Distances compiled from the literature. Stellar distances for DDO 63, NGC 2976, NGC 3738, DDO 165, DDO 168 and DDO 216 (Karachentsev $\&$ Tikhonov 1994; Rozanski $\&$ Rowan-Robinson 1994). Group distances from the larger spiral group members and based on stellar indicators wherever possible (Rowan-Robinson 1988; Rozanski $\&$ Rowan-Robinson 1994) and the blue Tully-Fisher relation (Kraan-Korteweg et al. 1988; data from de Vaucouleurs et al. 1991). For a few galaxies recession velocities were used, corrected for Local Group peculiar motion and H₀ = 75 $~{\rm {km~s^{-1}}}$ Mpc^-1. [5] Distance quality flag: 1 = reliable distance from two or more independent indicators (excluding Hubble expansion); 2 = distance from only one reliable indicator; 3 = tentative distance based on group membership or recession velocity. [6, 7, 8] Absolute B band magnitudes, corrected for Galactic foreground absorption, (B-V) colours and log(FIR) luminosities all taken from Melisse $\&$ Israel (1994); [9] Group membership according to de Vaucouleurs et al. (1983). Objects appearing as a group member in Garcia (1993) are listed as L = LGG. [10] Any other names, mostly UGC.
Notes: a: NGC 2537 and UGC 4278 are a pair of galaxies; the galaxy NGC 2537A ( $\alpha_{1950}=\rm 8^h10^m09\fs0$ , $\delta_{1950}=\rm 46^\circ8'46''$ ) could be associated with this pair, but it is not visible in the HI data. b: DDO 64 has a small companion (see text); c: DDO 125 is a companion of the irregular galaxy NGC 4449; d: DDO 166 is probably a companion of NGC 5033; e: DDO 216 is also called Pegasus dwarf galaxy.

**Table 1:** Basic data on sample dwarf galaxies.
Name	Fringe Stopping Center	dist.	$\rm Q_{dist}$	M_B	B-V	logFIR	group	Other names
	$\alpha(1950)$	$\delta(1950)$	Mpc		mag	mag	W m^-2
[1]	[2]	[3]	[4]	[5]	[6]	[7]	[8]	[9]	[10]
D 22	$\rm02^h29^m36\fs0$	$\rm 38^\circ 27' 30''$	9.9	2	-14.9	0.09	<-14.49	G7	U 2014
D 43	$\rm07^h24^m48\fs0$	$\rm 40^\circ 52' 00''$	4.9	3	-13.9	0.20	<-14.23	close to G6	U 3860
D 46	$\rm07^h38^m00\fs0$	$\rm 40^\circ 14' 00''$	4.9	3	-14.7	0.38	<-14.68	close to G6	U 3966
D 47	$\rm07^h39^m06\fs0$	$\rm 16^\circ 55' 06''$	2.0	3	-13.4	0.35	-13.96	N 2683	U 3974
D 48	$\rm07^h54^m48\fs0$	$\rm 58^\circ 10' 36''$	15.7	3	-16.4	0.59	<-14.41	N 2549	U 4121
N 2537	$\rm08^h09^m42\fs0$	$\rm 46^\circ 09' 00''$	6.4	3	-17.0	0.58	-12.83	^a	U 4274, Mk 86
U 4278					-17.3			^a	U 4274, Mk 86
D 52	$\rm08^h25^m33\fs9$	$\rm 41^\circ 52' 01''$	5.3	3	-13.8	0.53	<-14.24	close to G6	U 4426
D 63	$\rm09^h36^m00\fs0$	$\rm 71^\circ 24' 54''$	3.4	1	-15.0	-0.09	<-14.13	M 81; L 176	U 5139, Ho I
N 2976	$\rm09^h47^m15\fs8$	$\rm 68^\circ 55' 00''$	3.4	1	-17.4	0.58	-12.15	M 81; L 176	U 5221
D 64	$\rm09^h50^m22\fs0$	$\rm 31^\circ 29' 17''$	6.1	2	-14.7	0.15	-13.90	N 2903^b	U 5272
D 68	$\rm09^h53^m52\fs0$	$\rm 29^\circ 03' 47''$	6.1	2	-14.3	0.23	-13.90	N 2903	U 5340
D 73	$\rm 10^h09^m34\fs0$	$\rm 30^\circ 09' 03''$	18	2	-16.7	0.62	<-14.25	G42	U 5478
D 83	$\rm 10^h33^m54\fs0$	$\rm 31^\circ 48' 24''$	9	2	-15.0	0.01	<-14.36	G12	U 5764
D 87	$\rm 10^h46^m18\fs0$	$\rm 65^\circ 47' 36''$	3.4	3	-12.8	0.26	-14.23	M 81	U 5918, 7Zw347
Mk 178	$\rm 11^h30^m46\fs2$	$\rm 49^\circ 30' 54''$	5.2	3	-15.0		<-14.20		U 6541
N 3738	$\rm 11^h33^m00\fs0$	$\rm 54^\circ 47' 00''$	5.2	2	-16.6	0.38:	-13.14		U 6565, Arp 234
D 101	$\rm 11^h55^m40\fs8$	$\rm 31^\circ 30' 54''$	7.2	2	-14.7	0.73	-14.29	CVn II(G10)	U 6900
D 123	$\rm 12^h26^m07\fs9$	$\rm 58^\circ 19' 11''$	11.4	3	-17.5	-0.18	-13.97	close to G10	U 7534
Mk 209	$\rm 12^h23^m51\fs6$	$\rm 48^\circ 46' 12''$	4.9	3	-14.3	0.11	-13.74	L 290?	1Zw36
D 125	$\rm 12^h25^m18\fs0$	$\rm 43^\circ 46' 18''$	4.5	2	-15.6	0.40	<-13.98	L 290^c	U 7577
D 133	$\rm 12^h30^m25\fs2$	$\rm 31^\circ 48' 54''$	5.2	2	-15.6	0.44	-14.11	CVn I (G3); L 291	U 7698
D 165	$\rm 13^h04^m30\fs0$	$\rm 67^\circ 58' 00''$	4.6	2	-15.8	0.23	<-13.57	N 4236	U 8201
D 166	$\rm 13^h11^m00\fs0$	$\rm 36^\circ 28' 36''$	16	2	-17.6	0.32	-13.50	N 5033^d; L 334	U 8303, Ho VIII
D 168	$\rm 13^h12^m12\fs0$	$\rm 46^\circ 11' 00''$	3.5	2	-15.2	0.36	-13.74	Uma/M101; L 347	U 8320
D 185	$\rm 13^h52^m55\fs2$	$\rm 54^\circ 09' 00''$	6.9	1	-15.6	0.43	-14.04	M101 (G5); L 371	U 8837, Ho IV
D 190	$\rm 14^h22^m48\fs0$	$\rm 44^\circ 44' 00''$	6	2	-15.8	0.24	-14.03	(Uma/M101)	U 9240
D 216	$\rm 23^h26^m06\fs0$	$\rm 14^\circ 28' 00''$	1.0	1	-13.1	0.62	<-14.07	Local Group	U 12613^e
D 217	$\rm 23^h27^m33\fs0$	$\rm 40^\circ 43' 07''$	9.3	3	-17.6	0.58	-13.66	N 7640	U 12632

**Table 2:** Galaxies with nearby neighbours.
Name	Neighbours	proj. dist.	$\Delta v$	type	$\Delta m_{B}$
		kpc	$~{\rm {km~s^{-1}}}$
[1]	[2]	[3]	[4]	[5]	[6]
DDO 47	CGCG 087-033	10	10	-	2.1
NGC 2537	NGC 2537A	9	-4	SBc	3.7
	UGC 4278	31	116	SBd	0.75
DDO 64	UGC 5272A
DDO 125	DDO 129	25	342	Im	0.8
	NGC 4449	48	11	IBm	-2.9
	MCG+07-26-012	60	244	-	2.2
	UGC 7690	91	341	Im:	0.3
	MCG+07-26-011	105	212	-	2.2
	NGC 4460	108	332	SB	-0.6
DDO 166	UGC 8314	50	-9	Im:	3.5
	NGC 5014	100	182	Sa?	0.0
	NGC 5033	106	-69	SAc Sy1.9	-2.7
DDO 168	DDO 167	27	-31	Im	(4.3)
	UGC 8215	89	23	Im	(4.3)
	DDO 169	97	65	IAm	1.9

The majority of the galaxies in the sample (21 out of 29 objects) are "true'' dwarfs in the sense that their luminosity does not exceed M_B = -16. Four objects ( UGC 4278, DDO 123, DDO 166 and DDO 217) are brighter than M_B = -17. All but four galaxies are classified Im (Magellanic irregular). Exceptions are DDO 48 (SBm), NGC 2976 (Sd), DDO 185 (SBm) and DDO 217 (Sm). This sample is much larger than the number of dwarf galaxies previously studied in HI at comparable resolutions, such as the VLA-based studies by Lo et al. (1993) and Puche $\&$ Westpfahl (1993), and the individual case studies listed in the inventory given by Salpeter $\&$ Hoffman (1996).

Interactions may have a profound effect on structure and evolution of galaxies, especially dwarf galaxies. We have therefore searched the NED for galaxies within $5^\circ$ of the objects in our sample. This field of view corresponds to a linear size of 900 kpc at 5 Mpc, the median distance of the sample galaxies. Most of the sample dwarf galaxies are in groups, but not necessarily close to massive members. As satellites of the Galaxy or of M 31 are usually found within a radius of 100-200 kpc and with a relative velocity of a few hundred $~{\rm {km~s^{-1}}}$ (Lynden-Bell 1994), we have first listed dwarfs with such relatively nearby neighbours in Table 2. The predominance of positive velocity differences reflects a bias caused by the large velocity window as compared to the typical systemic velocity. The resulting large volume effect introduces more interlopers at higher velocities.

Table 3: Isolated galaxies.
Name Neighbours proj. dist. $\Delta v$ type $\Delta m_{\rm B}$

kpc $~{\rm {km~s^{-1}}}$

[1] [2] [3] [4] [5] [6]

DDO 48 NGC 4241 390 143 Sab -0.3

IC 2209 630 335 GROUP

NGC 2460 640 358 SAa -2.5

DDO 52 PGC 22900 326 353 I? 0.3

UGC 4278 430 166 SBd -1.9

NGC 2537 460 50 SBm pec -2.7

DDO 83 DDO 84 500 43 Im -1.5

NGC 3413 520 59 S0 -2.1

NGC 3274 630 -49 SABd? -2.0

DDO 123^a (NGC 4605) (740) (-580) (SBc pec) (-3.6)

UGC 6931 760 476 SBm -0.2

UGC 6926 790 359 Sdm 1.5

UGC 7544 808 -13 dwarf (2.5)

UGC 8146 940 -53 Scd -0.3

DDO 165^b UGC 7748 240 421 Sdm: 2.5

UGC 7490 370 430 SAm 0.25

NGC 4236 390 -37 SBdm -2.3

Note: columns as in Table 2; a: Only the nearest five objects in the field are listed here.
NGC 4605 is outside the velocity range of 500 $~{\rm {km~s^{-1}}}$ . b: DDO 165 was added to this
list because the high relative velocity of UGC 7748 suggests that this galaxy could be
a background object.

**Table 3:** Isolated galaxies.
Name	Neighbours	proj. dist.	$\Delta v$	type	$\Delta m_{\rm B}$
		kpc	$~{\rm {km~s^{-1}}}$
[1]	[2]	[3]	[4]	[5]	[6]
DDO 48	NGC 4241	390	143	Sab	-0.3
	IC 2209	630	335	GROUP
	NGC 2460	640	358	SAa	-2.5
DDO 52	PGC 22900	326	353	I?	0.3
	UGC 4278	430	166	SBd	-1.9
	NGC 2537	460	50	SBm pec	-2.7
DDO 83	DDO 84	500	43	Im	-1.5
	NGC 3413	520	59	S0	-2.1
	NGC 3274	630	-49	SABd?	-2.0
DDO 123^a	(NGC 4605)	(740)	(-580)	(SBc pec)	(-3.6)
	UGC 6931	760	476	SBm	-0.2
	UGC 6926	790	359	Sdm	1.5
	UGC 7544	808	-13	dwarf	(2.5)
	UGC 8146	940	-53	Scd	-0.3
DDO 165^b	UGC 7748	240	421	Sdm:	2.5
	UGC 7490	370	430	SAm	0.25
	NGC 4236	390	-37	SBdm	-2.3

Six dwarf galaxies have such nearby companions. NGC 2537, and UGC 4278 are close enough in space and velocity to include in a single WSRT field of view. The other companion, NGC 2537A is not visible in the WSRT field. Neither is is CGCG 087-033, a companion of DDO 47, discovered by Walter $\&$ Brinks (2001). The dwarf companion of DDO 64 (= UGC 5272) was first described by Hopp $\&$ Schulte-Ladbeck (1991) and is referred to as UGC 5272B following these authors. It can likewise be included with DDO 64 in a single WSRT field. Although there are no large nearby galaxies, the dwarfs UGC 5209, UGC 5186, DDO 68, UGC 5427 and UGC 5464 occur not far away (projected distance less than 500 kpc and velocites within 40 $~{\rm {km~s^{-1}}}$ ). DDO 125 is located near the edge of the large HI halo of the irregular galaxy NGC 4449 (Bajaja et al. 1994). DDO 166 is a member of the NGC 5033 group. Both NGC 5033 and UGC 8314 can be included in the same WSRT observation. Finally, DDO 168 is not far from the low-luminosity dwarf DDO 167. NGC 5023 is at a projected distance of 117 kpc and a relative velocity 213 $~{\rm {km~s^{-1}}}$ .

The most isolated dwarfs in the sample are DDO 48, DDO 52, DDO 83, DDO 123, DDO 165 and DDO 216 (Table 3). The projected distance between DDO 52 and its nearest known neighbour, PGC 22900, is 326 kpc, and its large velocity difference suggests that PGC 22900 is an unrelated background galaxy. The NGC 2537/ UGC 4278 pair is part of the present sample; this pair is relatively far from DDO 52, but at nearly the same velocity. The nearest neighbour of DDO 83 is DDO 84, at a very similar velocity but at a projected distance of 500 kpc, just as NGC 3413 and NGC 3274. DDO 123 appears to be the most isolated galaxy in the sample. The data in Table 3 suggest that DDO 123 is associated with UGC 7544 and UGC 8146, so that the nearest neighbour is a dwarf galaxy at least 800 kpc distant. Four of the "isolated'' objects in Table 3 are accompanied by late-type galaxies with radial velocities not differing by more than 50 $~{\rm {km~s^{-1}}}$ . As the number density of galaxies along the velocity axis is low, it is highly unlikely that these galaxies are unrelated.

3 Observations and reduction

All observations discussed in this paper were made with the Westerbork Synthesis Radio Telescope (WSRT) between 1984 en 1991. At the observing fequency of 1.4 GHz, the primary beam is 40' (FWHM), and the synthesized beam is $13''\times~13''$ sin $\delta$ . For a galaxy at distance $d_{\rm Mpc}$ , this beamsize corresponds to a linear resolution of $63 \times d_{\rm Mpc}$ pc. For the nearest dwarf galaxies in our sample this is approximately the size of the Orion starforming complex. The largest scales which can be studied are mostly determined by the sensitivity to low-column-density HI in the outer regions; the sensitivity of a 12 hour observation with the WSRT is about 10²⁰ HI atoms $\rm cm^{-2}$ or 0.8 $M_\odot\ {\rm pc}^{-2}$ . Each galaxy was observed for a full 12-hour period, resulting in a map with the first grating response at a radius of 10'. Four galaxies were observed for $2 \times 12$ hours; for NGC 2976 and DDO 123 the first grating response is at a radius of 20'. In general, the shortest baseline sampled was 72 m (341 wavelengths). Five galaxies were observed with a shortest spacing of 36 m (171 wavelengths) and one with a shortest spacing of 54 m. The lack of short spacings causes a depression of the map zerolevel proportional to source strength and a dilution of the interferometer response to extended structures. However, the limited overall extent of the sample galaxies, and the limited extent of emission in any particular velocity channel served to greatly minimize any interferometric dilution. Flux and phase were calibrated by using the strong radio sources 3C48, 3C147 and 3C286. Additional information in Table 4, where we list for each galaxy observation the date, the shortest spacing SP in m, the central velocity v_c in $~{\rm {km~s^{-1}}}$ , the total bandwidth BW in MHz, and the channel separation $\Delta v$ in $~{\rm {km~s^{-1}}}$ . All data were Hanning-tapered, so that the velocity resolution is similar to a Gaussian with a FWHM equal to $2 \times \Delta v$ .

Table 4: WSRT observational parameters.
Name obsdate SP $v_{\rm c}$ BW $\Delta v$

YYMMDD m $~{\rm {km~s^{-1}}}$ MHz $~{\rm {km~s^{-1}}}$

[1] [2] [3] [4] [5] [6]

D 22 911006 72 570 2.50 4.12

D 43 861217 72 355 1.25 4.12

D 46 861222 72 364 1.25 4.12

D 47 911019 72 265 2.50 4.12

D 48 881021 72 1183 2.50 4.12

N 2537 911109 72 450 2.50 4.12

D 52 861228 72, 72 392 1.25 4.12

D 63 911006 72 140 2.50 4.12

N 2976 870702 36, 72 60 2.50 8.24

D 64 840722 36 520 1.25 4.12

D 68 840721 36 504 1.25 4.12

D 73 911108 72, 72 1370 2.50 4.12

D 83 911010 72 585 2.50 4.12

D 87 911011 72 335 2.50 4.12

Mk 178 910831 72 240 1.25 2.06

N 3738 911012 72 225 2.50 4.12

D 101 911013 72 550 2.50 4.12

D 123 900910 36, 72 723 2.50 4.12

Mk 209 910902 72 240 1.25 2.06

D 125 911017 72 195 2.50 4.12

D 133 910906 72 331 1.25 2.06

D 165 870507 54 33 1.25 4.12

D 166 881016 72 1009 2.50 4.12

D 168 911019 72 200 2.50 4.12

D 185 910907 72 141 1.25 2.06

D 190 861228 72 153 1.25 4.12

D 216 911020 72 -180 2.50 4.12

D 217 840716 36 424 1.25 4.12

**Table 4:** WSRT observational parameters.
Name	obsdate	SP	$v_{\rm c}$	BW	$\Delta v$
	YYMMDD	m	$~{\rm {km~s^{-1}}}$	MHz	$~{\rm {km~s^{-1}}}$
[1]	[2]	[3]	[4]	[5]	[6]
D 22	911006	72	570	2.50	4.12
D 43	861217	72	355	1.25	4.12
D 46	861222	72	364	1.25	4.12
D 47	911019	72	265	2.50	4.12
D 48	881021	72	1183	2.50	4.12
N 2537	911109	72	450	2.50	4.12
D 52	861228	72, 72	392	1.25	4.12
D 63	911006	72	140	2.50	4.12
N 2976	870702	36, 72	60	2.50	8.24
D 64	840722	36	520	1.25	4.12
D 68	840721	36	504	1.25	4.12
D 73	911108	72, 72	1370	2.50	4.12
D 83	911010	72	585	2.50	4.12
D 87	911011	72	335	2.50	4.12
Mk 178	910831	72	240	1.25	2.06
N 3738	911012	72	225	2.50	4.12
D 101	911013	72	550	2.50	4.12
D 123	900910	36, 72	723	2.50	4.12
Mk 209	910902	72	240	1.25	2.06
D 125	911017	72	195	2.50	4.12
D 133	910906	72	331	1.25	2.06
D 165	870507	54	33	1.25	4.12
D 166	881016	72	1009	2.50	4.12
D 168	911019	72	200	2.50	4.12
D 185	910907	72	141	1.25	2.06
D 190	861228	72	153	1.25	4.12
D 216	911020	72	-180	2.50	4.12
D 217	840716	36	424	1.25	4.12

Standard gain and phase calibrations were applied by the WSRT reduction group in Dwingeloo (cf. Bos et al. 1981). The UV data were subsequently imported into the NEWSTAR reduction package for inspection and Fourier transformation. Data points of poor quality were excluded from the analysis in all frequency channels, in order to keep identical UV-coverage for all frequency channels. In each channel, maps were constructed with resolutions of $13\farcs5$ , 27'' and, for the larger objects, 60'' (FWHM) resolution. At decreasing resolutions, the circular Gaussian weight functions used progressively circularize the synthesized beams, because the longer projected baselines are suppressed more strongly than the shorter projected baselines. For convenience in defining "clean'' areas at later reduction stages, we produced all output maps with identical pixel sizes of $5'' \times ~ 5''$ , fully sampling the high-resolution beam and oversampling the low-resolution beam by a factor of two. Separately produced continuum maps (see below) were sampled with 5'', 10'' and 20'' pixels respectively. For each datacube, we produced five antenna patterns distributed evenly over the whole frequency band. This was sufficient for the expected 0.18 $\%$ size variation of the synthesized beam over a 2.5 MHz passband at 1420 MHz.

After Fourier transformation, the raw datacubes were imported into the GIPSY package and searched for line emission from the object and the Galaxy foreground. Excluding noisy channel maps at the edges of the frequency band and channels containing line emission, we fitted a first order polynomial to the remaining continuum channels. For each galaxy we took the lowest-resolution datacube, and marked in each continuum-subtracted channel map the area containing line emission. These areas were stored and used for all datacubes as input search areas for the clean algorithm. The clean areas thus manually defined were larger than those defined through clipping, and have smooth boundaries. Within the search areas, the clean algorithm searched for positive as well as negative components to a level of half the rms noise value as determined from empty channels. The components were restored onto the map with Gaussian beams fitted to the antenna pattern at the center of the frequency band.

We added the line-free channels at either side of the passband to make a "broad band'' continuum map. These maps were made in separate runs because they must be bigger in order to allow us to "clean'' bright continuum (background) sources far from the map center.

**Table 5:** Dwarf galaxies 1.4 GHz continuum emission.
Object	$BW_{\rm c}$	$\rm S_{1.4}$	Object	$BW_{\rm c}$	$\rm S_{1.4}$
	MHz	mJy		MHz	mJy
[1]	[2]	[3]	[1]	[2]	[3]
DDO 22	1.58	<3.6	Mk 178	0.81	<21:
DDO 43	0.51	<4.9	NGC 3738	1.31	13 $\pm$ 2
DDO 46	0.41	<4.3	DDO 101	1.66	-
DDO 47	1.29	<4.3	DDO 123	1.31	<4.0
DDO 48	1.23	<6.8	Mk 209	0.59	<5.4
NGC 2537	1.54	12 $\pm$ 2	DDO 125	1.60	<10
DDO 52	0.37	<7.3	DDO 133	0.55	<7.1
DDO 63	1.54	<5.9	DDO 165	0.61	<5.7
NGC 2976	1.17	65 $\pm$ 5	DDO 166	1.60	<7.0
DDO 64	0.41	<8.8	DDO 168	1.27	<5.5
DDO 68	0.39	<15	DDO 185	0.34	<11
DDO 73	1.58	<5.2	DDO 190	0.33	<7.1
DDO 83	1.33	4 $\pm$ 1	DDO 216	1.35	<6.2
DDO 87	1.56	<7.2	DDO 217	0.39	<9.0

4 Results

4.1 Radio continuum emission from dwarf galaxies

Although only a limited bandwidth was available in the continuum, the large collecting area of the WSRT and the long integration times allowed determination of continuum flux-densities of the sample galaxies at sensitivities of a few mJy, comparable to those of published single-dish surveys (Klein et al. 1986; Klein 1986; Altschuler et al. 1984), but unlike these unhampered by background confusion (cf. Hoeppe et al. 1994). The sensitivity of our continuum maps is determined by the effective bandwidth used, i.e. on the line-free part of the original bandwidth. The effective continuum bandwidths are given in Table 5.

We integrated fluxes inside 2' by 2' boxes centered on each galaxy's position, and on at least five map positions judged to be free of continuum emission in order to determine the local noise level. Results are listed in Table 5. Upper limits are three times the rms noise. The high upper limits for Mk 178 and DDO 68 are due to residual sidelobes of unrelated strong continuum sources in the field. For the same reason no value is listed for DDO 101. Only four out of 28 galaxies (15 $\%$ ) were unequivocally detected in the continuum: NGC 2537, NGC 2976, NGC 3738 and DDO 83 of which maps are shown in Fig. 1. This detection rate is similar to those yielded by single dish continuum surveys. It may suffer from a positive bias because blue compact dwarf galaxies, which tend to be more luminous at radio wavelengths (Klein et al. 1984), are overrepresented in our sample.

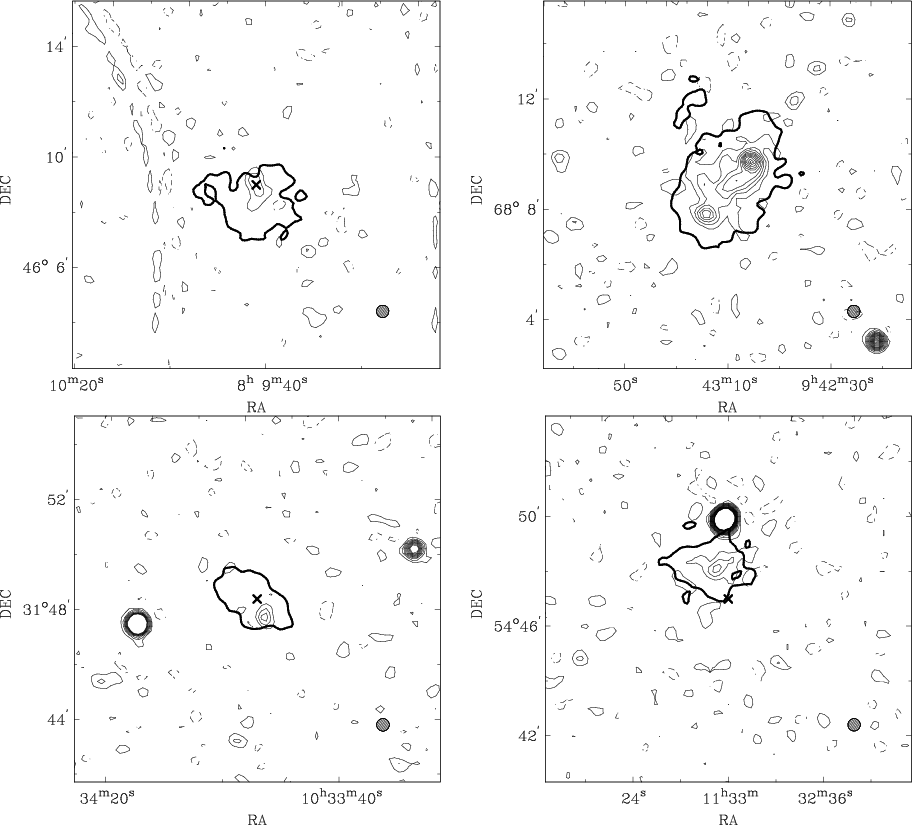

The best continuum detection (13 $\sigma$ ) is that of NGC 2976. Our vale S_1.4 = 64.5 mJy is consistent with Condon's (1987) value S_1.5 = 50.8 mJy. The higher frequency determination S_4.85 = 29 $\pm$ 5 mJy by Gregory $\&$ Condon (1991) suggests an overall nonthermal spectral index $\alpha$ = -0.8 ( $S\propto\nu^{\alpha}$ ). The map shows two bright compact sources, almost coincident with the two regions of highest HI column density (see below) and connected by more diffuse emission. Within a 30'' aperture, these sources have flux densities, uncorrected for underlying extended emission, of S_1.4 = 4 $\pm$ 1 mJy (SE: $\alpha=\rm 9^h43^m18^s$ , $\delta=68^\circ7'50''$ ) and $S_{1.4}= 6 \pm 1.5\ \rm mJy$ (NW: $\alpha=\rm 9^h43^m2^s$ , $\delta= 68^\circ9'50''$ ), where the errors reflect the uncertainty in the definition of the emitting regions. We have verified that these radio continuum sources correspond precisely with major H $\alpha$ emission regions in the galaxy (cf. Stil 1999). Their emission is thus almost certainly thermal. The two objects then have excitation parameters $u \approx$ 500 resp. 700 pc cm^-2, corresponding to the Lyman continuum photon output of 270 resp. 400 O6 stars, i.e. to major star formation regions.

The other three detections are less strong. A just resolved source coincides with strong H $\alpha$ emission in the main body of NGC 2537 (Stil 1999). Higher-frequency flux-densities S_4.8 = 18 $\pm$ 4 mJy at 6.3 cm and S₂₅=11 $\pm$ 4 mJy (Klein et al. 1984) agree well with our value in Table 5 and suggest a flat radio spectrum, i.e. optically thin thermal emission as suggested by the strong H $\alpha$ emission. The greater distance of NGC 2537, and the observed flux-density suggest a total excitation parameter $u \approx$ 1050 pc cm^-2, corresponding to the output of some 2800 O6 stars. This suggests a major burst of star formation within the kiloparsec-sized region. It is tempting to speculate that the companion UGC 4278 bears responsibility for this.

NGC 3738 also has a somewhat extended radio continuum source coincident with the optical galaxy. No other radio continuum information is available, because of confusion with the nearby, relatively strong point source 1132+5450 (whose contribution is, of course, not included in our determination). We have searched for HI in absorption against this source but found none down to a (1 $\sigma$ ) level of $10\%$ ( $\tau < 0.1$ ). However, this upper limit does not provide strong constraints on the HI size of NGC 3738.

Finally, a faint and somewhat marginal source appears in the map of DDO 83. This source was accepted as a detection because it is resolved and occurs within the HI emission boundary. Optically, nothing is evident at its position. An even more marginal detection $S_{4.8}=3.0 \pm 2.2$ (Klein et al. 1992) is at least consistent with our result. The Effelsberg beamsize of 2.5' was small enough to exclude confusion by other sources in the field.

4.2 Serendipitous objects

In a few cases, other galaxies are included in the same WSRT datacube as the target galaxy. This is the case for UGC 4278, companion of NGC 2537, which occurs at a large distance to the field center, causing a primary beam attenuation $\approx$ $50\%$ changing significantly over the galaxy. The other companion, NGC 2537A is not visible in the Westerbork data. Likewise, UGC 5272B is clearly visible in the DDO 64 channel maps at $\alpha=\rm 9^h47^m24^s$ , $\delta=\rm 31^\circ41' 25''$ in the velocity range $528<v_{\rm hel}<541\ ~{\rm {km~s^{-1}}}$ . It can also be seen in the HI column density map of DDO 64 in Fig. 4, but there it is no stronger than the noise feature to the north of DDO 64. An HI line profile of UGC 5272B is included in Fig. 2. HI emission from DDO 166's companion NGC 5033 is discernable only at the noiselevel; although UGC 8314 appears in the same field of view, it cannot be studied with the present data. Although additional uncatalogued dwarf galaxies may occur in the vicinity of the sample galaxies, no previously unknown objects have been found in the present survey.

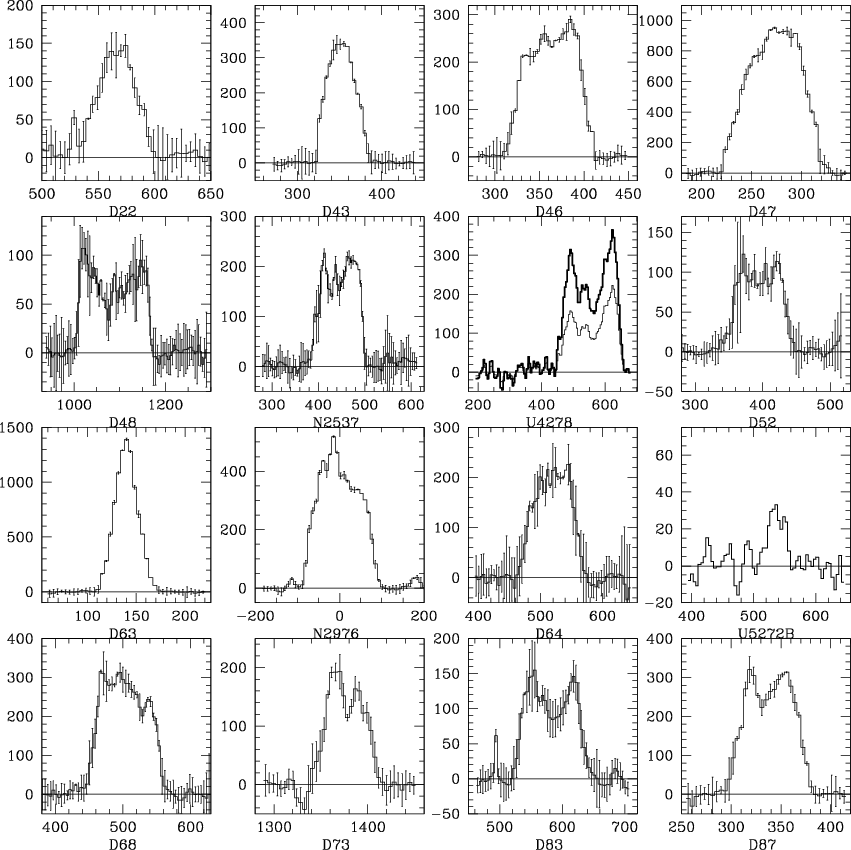

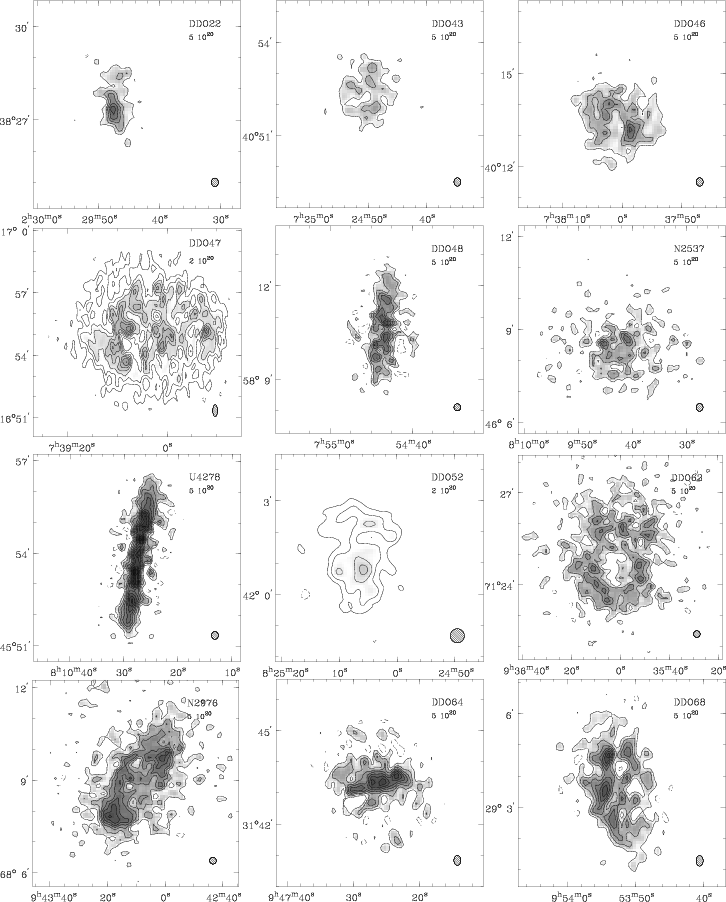

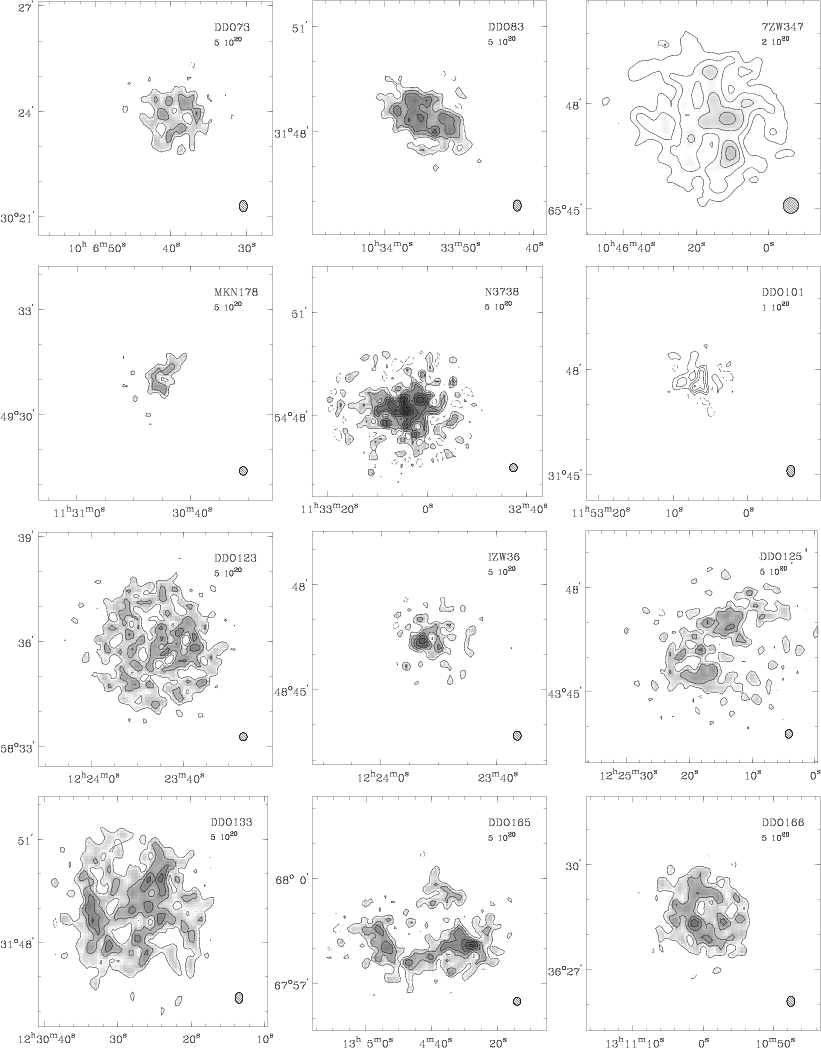

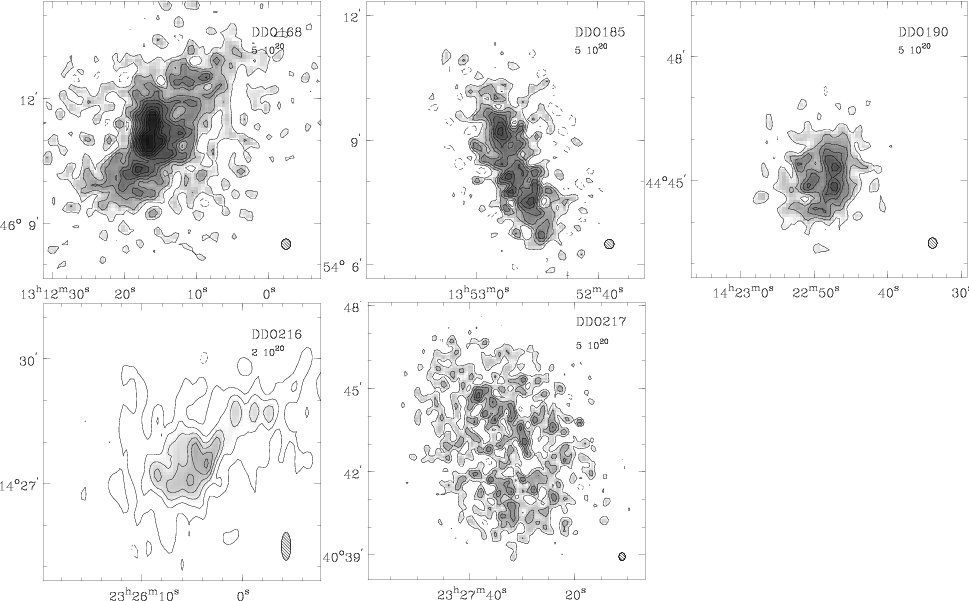

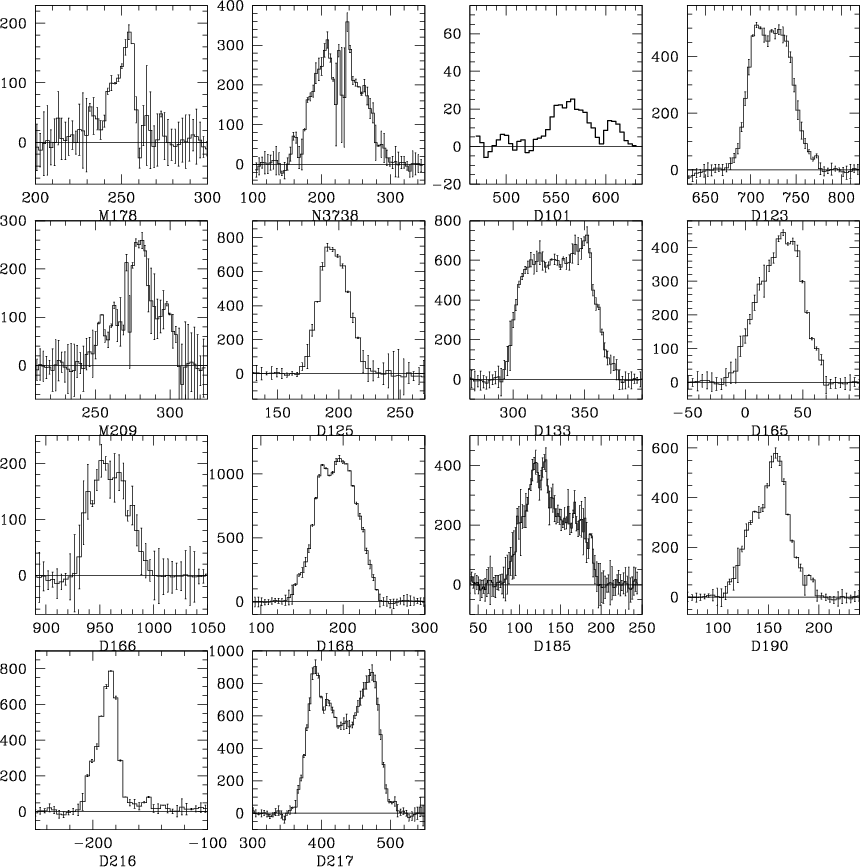

4.3 Integrated HI emission

Table 6: Global HI parameters of dwarf galaxies.
Name $v_{\rm sys}$ $\int$ Sdv $M_{\rm HI}$ $M_{\rm HI}\over{L_{\rm B}}$ $M_{\rm HI}\over{L_{\rm FIR}}$

$~{\rm {km~s^{-1}}}$ $\rm Jy\ ~{\rm {km~s^{-1}}}$ $10^8~M_{\odot}$ $M_{\odot}\over{L_{\odot}}$

[1] [2] [3] [4] [5] [6]

D 22 564 6.1 $\pm$ 0.6 1.41 1.0 >14

D 43 353 14.5 $\pm$ 0.8 0.82 1.4 >19

D 46 364 19.3 $\pm$ 0.6 1.09 0.9 >72

D 47 274 64.3 $\pm$ 1.2 0.61 1.7 47

D 48 1084 11.7 $\pm$ 0.9 6.77 1.2 >23

N 2537 443 18.8 $\pm$ 0.9 1.82 0.2 1.0

U 4278 558 44.9 $\pm$ 2.0 4.33 0.3 ...

D 52 395 8.1 $\pm$ 0.8 0.54 1.0 >10

D 63 139 39.5 $\pm$ 1.0 1.08 0.7 >40

N 2976 3 56.5 $\pm$ 1.2 1.54 0.1 0.6

D 64^a 515 14.9 $\pm$ 1.6 1.30 1.1 9.2

U 5272B 537 1.0 $\pm$ 0.1 0.09 ... ...

D 68 500 26.1 $\pm$ 1.0 2.29 2.8 17

D 73 1376 8.5 $\pm$ 0.7 6.48 0.9 >11

D 83 582 12.0 $\pm$ 1.0 2.29 1.4 >21

D 87 340 18.3 $\pm$ 0.8 0.50 2.4 25

Mk 178 250 2.8 $\pm$ 0.5 0.18 0.1 >3

N 3738 225 22.0 $\pm$ 2.0 1.40 0.2 2.4

D 101 498 1.0 $\pm$ 0.2 0.12 0.1 1.5

D 123 723 29.0 $\pm$ 0.6 8.91 0.6 21

Mk 209 280 7.0 $\pm$ 0.7 0.40 0.5 3.1

D 125 196 22.2 $\pm$ 0.9 1.06 0.4 >16

D 133 331 37.0 $\pm$ 0.8 2.36 0.9 38

D 165 29 20.2 $\pm$ 0.7 1.01 0.3 >5

D 166 961 11.0 $\pm$ 1.3 6.64 0.4 2.8

D 168 191 71.1 $\pm$ 1.3 2.05 1.1 31

D 185 136 25.1 $\pm$ 1.1 2.82 1.0 22

D 190 151 23.6 $\pm$ 0.9 2.00 0.6 20

D 216 -189 16.3 $\pm$ 0.5 0.04 0.2 <13

D 217 433 81.3 $\pm$ 1.3 16.56 1.0 29

Note: a: Flux does not include UGC 5272B.

For each object, we extracted the integrated HI line profile from its low resolution datacube which provided the best signal-to-noise ratio. In each channel map, we determined the cumulative flux as a function of concentric box area over the size range of 1 to 20 arcmin. This procedure yielded for each velocity channel an accurate flux with minimum noise contribution. It also provided a good check on possible systematic errors such as residual zero offsets left by imperfect cleaning. We found such effects to be small compared to the uncertainty in the flux calibration, except for NGC 3738 where we had to apply a relatively large flux correction factor of 1.4.

**Table 6:** Global HI parameters of dwarf galaxies.
Name	$v_{\rm sys}$	$\int$ Sdv	$M_{\rm HI}$	$M_{\rm HI}\over{L_{\rm B}}$	$M_{\rm HI}\over{L_{\rm FIR}}$
	$~{\rm {km~s^{-1}}}$	$\rm Jy\ ~{\rm {km~s^{-1}}}$	$10^8~M_{\odot}$	$M_{\odot}\over{L_{\odot}}$
[1]	[2]	[3]	[4]	[5]	[6]
D 22	564	6.1 $\pm$ 0.6	1.41	1.0	>14
D 43	353	14.5 $\pm$ 0.8	0.82	1.4	>19
D 46	364	19.3 $\pm$ 0.6	1.09	0.9	>72
D 47	274	64.3 $\pm$ 1.2	0.61	1.7	47
D 48	1084	11.7 $\pm$ 0.9	6.77	1.2	>23
N 2537	443	18.8 $\pm$ 0.9	1.82	0.2	1.0
U 4278	558	44.9 $\pm$ 2.0	4.33	0.3	...
D 52	395	8.1 $\pm$ 0.8	0.54	1.0	>10
D 63	139	39.5 $\pm$ 1.0	1.08	0.7	>40
N 2976	3	56.5 $\pm$ 1.2	1.54	0.1	0.6
D 64^a	515	14.9 $\pm$ 1.6	1.30	1.1	9.2
U 5272B	537	1.0 $\pm$ 0.1	0.09	...	...
D 68	500	26.1 $\pm$ 1.0	2.29	2.8	17
D 73	1376	8.5 $\pm$ 0.7	6.48	0.9	>11
D 83	582	12.0 $\pm$ 1.0	2.29	1.4	>21
D 87	340	18.3 $\pm$ 0.8	0.50	2.4	25
Mk 178	250	2.8 $\pm$ 0.5	0.18	0.1	>3
N 3738	225	22.0 $\pm$ 2.0	1.40	0.2	2.4
D 101	498	1.0 $\pm$ 0.2	0.12	0.1	1.5
D 123	723	29.0 $\pm$ 0.6	8.91	0.6	21
Mk 209	280	7.0 $\pm$ 0.7	0.40	0.5	3.1
D 125	196	22.2 $\pm$ 0.9	1.06	0.4	>16
D 133	331	37.0 $\pm$ 0.8	2.36	0.9	38
D 165	29	20.2 $\pm$ 0.7	1.01	0.3	>5
D 166	961	11.0 $\pm$ 1.3	6.64	0.4	2.8
D 168	191	71.1 $\pm$ 1.3	2.05	1.1	31
D 185	136	25.1 $\pm$ 1.1	2.82	1.0	22
D 190	151	23.6 $\pm$ 0.9	2.00	0.6	20
D 216	-189	16.3 $\pm$ 0.5	0.04	0.2	<13
D 217	433	81.3 $\pm$ 1.3	16.56	1.0	29

The line profiles resulting from this procedure are shown in Fig. 2 From these line profiles we calculated the HI flux integral $FI=\sum_{v} S_v \Delta v_{{\rm c}}$ , the flux-density-weighted mean velocity $v_{\rm sys} = { {\sum_{v} v S_v } \over FI }$ and, assuming optically thin emission, the total HI mass $M_{{\rm HI}} = 2.356 \times 10^5 D^2 \sum_{v} S_v \Delta v_{{\rm c}}$ , where D is the distance in Mpc, S_v the flux density in Jy and $\Delta v_{{\rm c}}$ the width of a single channel in $~{\rm {km~s^{-1}}}$ . $M_{\rm HI}$ is in units of solar mass. The resulting values are listed in Table 6. In that table, we have also listed the ratios of the HI mass to the blue luminosity (defined as the ratio of the absolute blue magnitudes of the galaxy and the Sun) and far-infrared luminosity (defined as $4 \pi D^{2} \times FIR$ respectively.

As we have already mentioned, the lack of the shortest spacings may cause us to underestimate the total flux contained in the interferometer map. In order to verify the importance of this effect, we have compared the WSRT flux-integrals just determined with flux-integrals based on single dish measurements. In Fig. 3 we have plotted the values listed in the large compilation by Bottinelli et al. (1990) as a function of the WSRT values. The errorbars do not take into account the (systematic) flux calibration uncertainty, which is about of 10 $\%$ . There is good agreement, but the WSRT fluxes tend to be lower by factors up to 1.25. However, as an anonymous referee has pointed out, the values listed by Bottinelli et al. (1990) represent a very inhomogeneous sample, incorporating corrections for assumed HI extent and corrections for telescope-dependent HI flux scales. The magnitude of and uncertainty in these corrections may easily be comparable to the difference in integral values noted above. In an attempt to further investigate this matter, we have also compared the WSRT integrals to those listed by Tifft $\&$ Huchtmeier (1990) for seven of the eight galaxies in common (excluding the relatively extended DDO 217). The single-dish integrals listed by those authors were determined with the Effelsberg 100 m and NRAO 300 ft telescopes (HPBW 9.3' and 10' respectively) on practically identical flux scales; no correction for extent was applied. We find that the seven WSRT integrals are on average 10 $\%$ higher than the single-dish vales by Tifft $\&$ Huchtmeier 1990). This suggests that at least these seven galaxies (a) are correctly represented by the WSRT maps, not suffering from missing flux problems and (b) should have overall HI sizes of order 3' as indeed shown in Fig. 4, although the flux scale uncertainties are easily of the same magnitude.

The actual shape of an HI line profile depends on both the HI gas distribution and on the HI gas kinematics. For instance, a double-peaked line profile may result from a uniform surface density disk with a flat rotation curve, but it may also be the signature of a rotating ring. Inspection of Figs. 2 and 4 shows that the HI distribution of galaxies having a double-peaked profile is indeed relatively homogeneous. In contrast, the line profiles of galaxies with a distinct central minimum ( DDO 63, DDO 125, DDO 165, Mk 178) are all single-peaked. Galaxies with a double peaked profile are on average more luminous, but the low luminosity objects DDO 52 and DDO 87 ( M_B > -14) also have a double-peaked line profile. These objects have nearly flat rotation curves at the outermost measured point, as we will show later.

4.4 HI distribution in dwarf galaxies

We have produced maps of the HI distribution of the sample galaxies by summation of the individual cleaned channel maps. In order to minimize noise contributions of emission-free positions, we took from each channel map only the region contained within the cleaning mask. As a consequence, the remaining noise is now a function of position in the map. Assuming optically thin emission, we have converted HI line intensities into HI column densities (H atoms per $~{\rm cm^{-2}}$ ), by using:

In comparing HI column density maps, one should take into account the linear resolution of the maps. For example, the small DDO 43 is, in fact, approximately the same linear size as the larger DDO 47. The size of condensations at a particular column density level relative to the overall HI distribution is a useful parameter in comparisons of HI column density maps, because it is relatively insensitive to the linear resolution. The greyscales in Fig. 4 are the same for all objects in order to facilitate such comparisons.

The sample dwarf galaxies can be divided broadly into three classes based on the appearance of the high-column-density HI distribution.

A. Relatively small high-column-density regions are distributed throughout the HI disk. Typical sizes are smaller than 100 pc. The average HI column density is low, and very high HI column density regions ( $N_{\rm HI}>2 \times 10^{21}\ ~{\rm cm^{-2}}$ ) do not occur. On the whole, these objects are rather featureless. The morphology resembles the HI distribution in Sc galaxies. DDO 43, DDO 47, DDO 52, DDO 73, DDO 87, DDO 123, DDO 133 and DDO 217 all belong to this class.

B. A high-column-density region ( $N_{\rm HI}>10^{21}\ ~{\rm cm^{-2}}$ ) in the shape of a (sometimes broken) ring is present, comparable in size to the HI disk. The central parts of the galaxy have relatively low column densities. Objects in this class are DDO 46, NGC 2537, DDO 63, NGC 2976, DDO 68, DDO 83, Mk 178, DDO 125, DDO 165 and DDO 166.

C. The structure is dominated by a single prominent complex of very high column density ( $N_{\rm HI}>3 \times 10^{21}\ ~{\rm cm^{-2}}$ ). Galaxies in this class are NGC 3738, Mk209, DDO 168 and DDO 190.

Some sample galaxies are left unassigned to a class, mainly because they appear to be viewed edge-on: DDO 22 (class B?), DDO 48 (class A?), UGC 4278, DDO 64 (class C?) and DDO 185. DDO 101 is too small. DDO 216 is hard to assign, but may be closest to class B.

DDO 47 is the only object in the sample with some evidence of spiral structure in the HI. Two arms appear on either side of the HI disk in position angle $\pm 90^\circ$ (see also Puche & Westpfahl 1993).

Neutral hydrogen in dwarf galaxies

I. The spatial distribution of HI

1 Introduction
