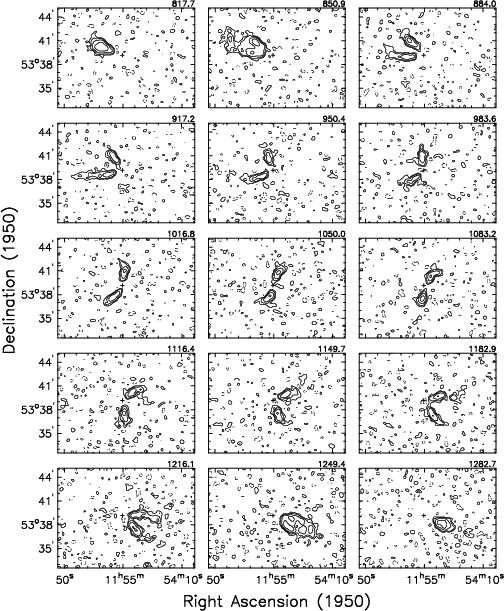

A collection of uncorrelated channel maps smoothed to a resolution
of 30
is displayed in Fig. 3. The smoothed
channels are displayed because only then the gas in the outer regions
becomes visible. When inspecting Fig. 3 one can note the regularity of
the system. At first glance it looks like the rotation in the outer regions
is lower than in the luminous disc region. This is because emission in the
disc region already shows up at velocities further away from the systemic
velocity than the emission of the outer regions.
A total H I map has been constructed at full resolution and at
30
resolution, both by means of the
conditional transfer method. Details of this method will now be described
for both resolutions. First the full resolution map.
At positions in the 30
map where the
intensity level was higher than three times the
noise
level in that map,
the data in the full resolution map were retained. Data not meeting
this criterion were set to zero. In addition, all remaining positive
noise patches in the full resolution maps were inspected, whether
above the five sigma level or whether extended. Unresolved patches
below this five sigma level were deleted. The remaining signal in each
channel was summed to give the flux density as a function of

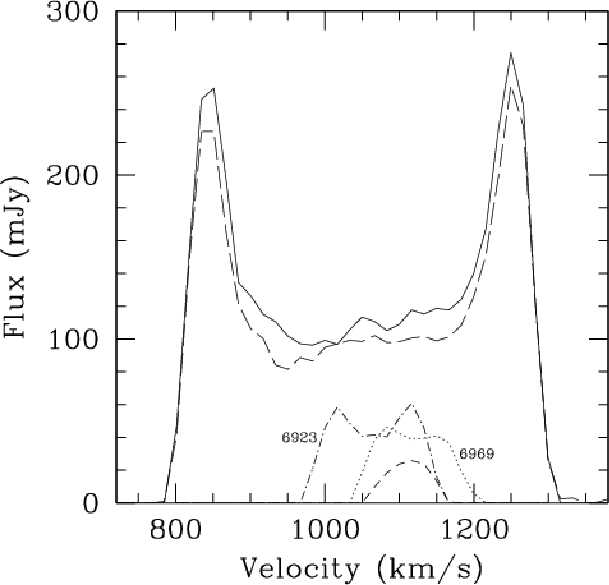

velocity, or the full resolution line profile in Fig. 4. This is
the typical double horned profile as observed for normal spiral galaxies.
Summing the emission in the data cube along the velocity direction

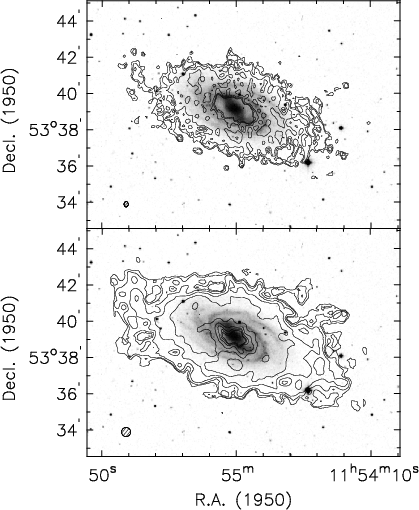

gives the total H I map, shown in Fig. 5, top panel and as a greyscale
already given in Fig. 2.
The H I emission at 30
resolution was
determined as follows: The data cube was smoothed to a resolution of
90
.
Data in the 30
resolution map were
retained there where in the 90
resolution map data were above
the three sigma level (=0.045
pc-2).
As above, unresolved patches
below the five sigma level in the 30
maps were deleted.
The line profile is displayed in Fig. 4, and as can be seen the smoothed
maps all contain slightly more emission than the full resolution maps.
This is caused by some additional low level emission
that has surpassed the
level at 90
resolution.
Adding up all the emission gives
a total H I flux of 72.2 Jy km s-1 resulting in a total H I mass of
.
For the full resolution these numbers are slightly
lower at respectively an H I flux of 62.9 Jy km s-1 and total H I mass of
.
Integration of the data cube along the
velocity direction gives the total H I map at 30
resolution
displayed in Fig. 5, bottom panel.
As can be seen in Fig. 5, at the lower resolution additional low level emission shows up in the outer regions. The gas distribution is symmetric with respect to the luminous structure. Large spiral arm density enhancements can not been seen, nor density features which can be associated with the bar. At the rim the distribution might be more patchy, especially at the North West side where the H I is more concentrated in clouds. One very obvious feature which can be recognized immediately, both in Fig. 2 and in Fig. 5 is the central hole at exactly the region of the bar. But how empty is this hole?
Two qualitative tests have been done to determine this emptyness. First, of the full resolution data cube a position velocity (or x,v) slice has been made through the data cube, along the major axis and with a width of the size of the hole. Any emission would then show up as a narrow filament at the position of the galaxy rotation curve. The x,v diagram was inspected visually and nothing could be detected. As a second test the fact was used that near the centre one expects the rotation curve to be steeply rising. Therefore any emission in the hole should be at nearly the same positions in the relevant channel maps and to increase the signal-to-noise these channels can simply be added. After the rotation curve was determined, 21 channels were selected for this test, 10 on either side of the channel with a velocity of 1050 km s-1. These channels were added and the result inspected. At the central position the level and noise characteristics were equal to regions outside the galaxy, meaning that no emission was detected.
It is not straightforward to give a quantitative value for
the upper limit of the surface density
in the region of the hole. Let's give it a try.
One channel at full resolution has a 1
noise level of
0.473 2. Adding N channels which have been Hanning smoothed,
each having a noise of
gives a total noise of
.
So adding ten channels all with the same noise gives a total noise
level of 2.35 2, which is for one position on the sky.
One expects approximately that, if added, those ten channels would
fill half the hole, which can be covered by
16 beams. Then
a
upper limit for the surface density in the hole is
found of approximately
2.
There are other ways of reasoning
to estimate the upper limit, but all arrive at the same or at a larger number.
To obtain the surface density as a function of radius,
the observed total H I map has been averaged on elliptic annuli.
These annuli were given the same orientation as for the fit of a
collection in tilted rings to the velocity field in order to derive
the rotation curve (see Sect. 6). For radii less than 200
the full resolution map was used with widths at the major axis
of 10
and
for larger radii the smoothed map with widths of 20
.
The average value of each ellipse was deprojected to face-on.

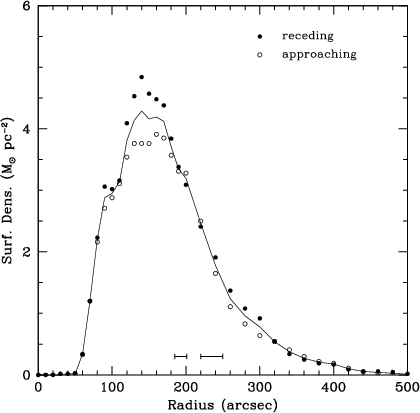

The result for the two
sides separately and averaged is shown in Fig. 6. It can be
seen that the H I emission
for this galaxy is concentrated is a torus with a low level
extension to large radii.
Note that the Holmberg radius is at 250
and at that
radius the transition occurs from a high H I density to the low level
extension.
