A&A 387, 82-97 (2002)
DOI: 10.1051/0004-6361:20020285

Towards a model of full-sky Galactic synchrotron intensity and linear polarisation: A re-analysis of the Parkes data

G. Giardino¹ - A. J. Banday² - K. M. Górski^3,4 - K. Bennett¹ - J. L. Jonas⁵ - J. Tauber¹

1 - Research and Science Support Department of ESA, ESTEC, Postbus 299, 2200 AG Noordwijk, The Netherlands
2 - Max-Planck Institut für Astrophysik, Garching bei München, 85741, Germany
3 - ESO, Garching bei München, 85748, Germany
4 - Warsaw University Observatory, Warsaw, Poland
5 - Department of Physics & Electronics, Rhodes University, PO Box 94, Grahamstown 6140, South Africa

Received 21 December 2001 / Accepted 22 February 2002

Abstract
We have analysed the angular power spectra of the Parkes radio continuum and polarisation survey of the Southern galactic plane at 2.4 GHz. We have found that in the multipole range l=40-250the angular power spectrum of the polarised intensity is well described by a power-law spectrum with fitted spectral index $\alpha_{L} = 2.37 \pm 0.21$. In the same multipole range the angular power spectra of the E and B components of the polarised signal are significantly flatter, with fitted spectral indices respectively of $\alpha_{E} = 1.57 \pm 0.12$ and $\alpha_{B} = 1.45\pm 0.12$. Temperature fluctuations in the E and B components are mostly determined by variations in polarisation angle. We have combined these results with other data from available radio surveys in order to produce a full-sky toy model of Galactic synchrotron intensity and linear polarisation at high frequencies ( $\nu \ga 10$ GHz). This can be used to study the feasibility of measuring the Cosmic Microwave Background polarisation with forthcoming experiments and satellite missions.

Key words: radio continuum: ISM - surveys - polarization - cosmic microwave background


1 Introduction

Current cosmological models predict the level of polarisation of the Cosmic Microwave Background (CMB) to be at 5-10% of the temperature anisotropies at the 20 arcmin angular scale, that is at $\mu$K level (e.g. Bond & Efstathiou 1987). These temperature variations have to be detected over a 3 K continuum with instrumentation whose typical noise temperature is of the order of tens of Kelvin. The detection of the CMB polarisation represents therefore a considerable challenge. To date, only upper limits on the CMB polarisation exist. The most recent results from ground based observations place an upper limit of 10$\mu$K on any polarised signal from the sky at the 7$^{\circ }$ angular scale in the frequency band 26-36 GHz (Keating et al. 2001) and an upper limit of 15 $\mu$K at the 1$^{\circ }$-05 angular scale at 90 GHz (Hedman et al. 2001).

Current cosmological models also predict a shape for the angular power spectra of the polarised component of the CMB, so the measure of these spectra will provide additional information on the properties of the primordial density fluctuations and on the thermal history of the universe (e.g. Kosowsky 1996). The variation of polarised CMB emission is predicted to peak at sub-degree angular scale. The NASA satellite mission MAP will have enough sensitivity to detect the CMB polarisation, if this is present at the $\mu$K level (Kogut & Hinshaw 2000). The future ESA mission Planck will have higher sensitivity and may provide direct imaging of the CMB polarised signal (Mandolesi & Puget 1998). The future SPORT experiment that is planned to be placed on the International Space Station also has the sensitivity to detect $\mu$K-level polarised signal from the CMB if this is present at angular scales $\ga$$7^{\circ}$ (Fabbri et al. 1999).

A fundamental question for any measurement of the polarisation of the CMB is whether the expected signal can be distinguished from the foreground polarised signal from our galaxy. The interstellar magnetic field is illuminated by cosmic-ray electrons which spiral around field lines and thereby emit synchrotron radiation. This radiation is intrinsically highly linearly polarised, 70-75% in a completely regular field (e.g. Rybicki & Lightman 1979). Thermal emission from dust may also be highly polarised, depending on the shape and alignment of the dust particles (Wright 1987; Prunet et al. 1998).

As in the case of the unpolarised emission, knowledge of the angular power spectra of the foreground polarised component is essential when trying to recover the angular power spectra of the CMB. In this paper we use the Parkes 2.4 GHz polarimetric survey of the southern Galactic plane in order to derive the angular power spectra of the polarised component of the Galactic synchrotron emission. The survey has relatively small sky coverage but has 10 arcmin angular resolution, which allows the statistical properties of polarised synchrotron emission to be investigated at the angular scales where the CMB polarised signal is expected to peak.

In order to assess the feasibility of CMB polarisation measurements, study the effect of instrumental systematics and devise the data analysis strategy it is necessary to perform simulations of the satellite missions. For these simulations an input sky with all the known components of the emission is necessary. By exploiting existing observations of the microwave sky, we have to strive to construct a simulated sky which represents our best guess of some of the properties of the real sky in the unexplored regions and frequency channels. This will allow us to perform more realistic simulations of the mission and to be in a better position to interpret the real data when these become available.

We use the results of our analysis of the Parkes survey, combined with other data on synchrotron emission coming from total intensity large sky radio surveys, to produce a full-sky synthetic map of synchrotron polarised emission. The paper is organised as follows. In Sect. 2 the global angular power spectra of the Parkes 2.4 GHz polarimetric survey are derived. The simulations performed to assess the reliability of the spectra are presented in Sect. 3. The results are discussed in Sect. 4. In Sect. 5 the derived spectra are used as basis to construct a toy model of the all-sky polarised synchrotron emission.


2 The Parkes data at 2.4 GHz

The Parkes 2.4 GHz survey is a sensitive, polarimetric survey of the southern Galactic plane carried out by Dancan et al. (1997). The survey covers 127$^{\circ }$  of Galactic longitude ( $238^\circ\le l \le 5^\circ$), with a latitude coverage out to at least $\pm$5$^{\circ }$ (up to b=7$^{\circ }$ and b=8$^{\circ }$ over some longitudes). The angular resolution of the images is 10.4 arcmin. The nominal rms noise of the survey (for the total and polarised intensities) is 5.3 mK. The survey is publicly available and the data come split into 6 rectangular fields sampled at a pixel resolution of 4 arcmin. The linear polarisation signal is given in terms of the two Stokes parameters Qand U.

The Parkes survey has been recently analysed by Baccigalupi et al. (2001) and Tucci et al. (2000). In both of these previous studies, the data were split into twelve square patches, each of size $10^\circ\times 10^\circ$, which were then individually analysed. Our work differs from these in that the power spectra of the different polarisation components are derived from a global analysis of the complete Parkes data.

In order to perform this global statistical analysis of the survey we have resampled the six fields of the original data into HEALPix tessellations. The iso-Latitude property of the HEALPix tessellation of the sphere makes it ideal for fast computation of the angular power spectrum of a field defined on the sphere (Górski et al. 1999). In the HEALPix tessellation the angular size of the pixels is determined by the nside parameter. We used a HEALPix tessellation with nside = 1024 which corresponds to pixels of linear size 3.4 arcmin. When resampling the survey, the pixel value in the HEALPix tessellation was assigned by weighted integration of the values of the original pixels that overlapped with the new pixel, where the weight of each pixel contribution is the fraction of its area intersecting with the new pixel. This approach ensures that no spurious pixel-to-pixel signal correlation is introduced by the resampling.

The three channels of the survey (T, Q and U), resampled into HEALPix are shown in Fig. 1. The derived intensity of linear polaristion, $L = \sqrt {Q^2+U^2}$, is also shown. The maps are in Galactic coordinates.

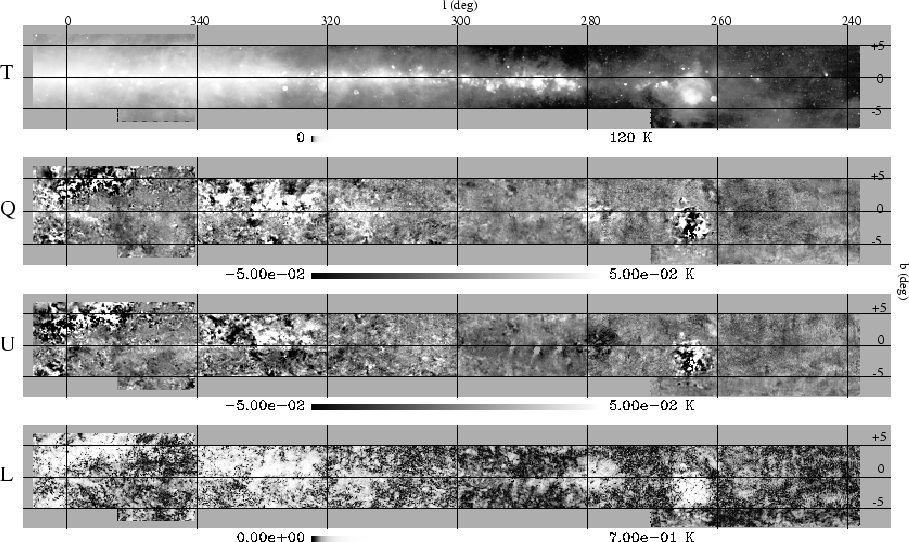

Figure 1: The Parkes survey at 2400 MHz. The six fields of the original data have been resampled into one HEALPix tessellation with a pixel size of 3.4 arcmin. The first three images (from the top) give the three Stokes parameters of the signal: T, Q, U, respectively; the lowest image shows the derived polarised intensity $L = \sqrt {Q^2+U^2}$. The temperature scales for T and L have been histogram equalised.

Open with DEXTER

The most striking difference between the total intensity channel (T) and the polarisation channels (Q, U and L) is that the total intensity signal is dominated by the signal from the Galactic plane while in the polarisation channels the Galactic plane is hardly visible. Moreover many point sources which are clearly visible in the total intensity channel do not exhibit a polarised counterpart.

In the polarised intensity image the most apparent features are the extended areas of polarisation, with sizes of the order of 5$^{\circ }$ or so, which do not appear to be connected with discrete sources of total power emission. Such regions lie around longitudes 265$^{\circ }$, 280$^{\circ }$, 320$^{\circ }$ to 330$^{\circ }$ and 355$^{\circ }$ to 5$^{\circ }$. While one of these structures can be identified with the Vela supernova remnant at l=265$^{\circ }$, the origin and nature of the other features is not yet explained (Duncan et al. 1997).

Five regions that are bright in the T maps have been blanked out to prevent a significant fraction of instrumental polarisation from being introduced. These are Sgr A and the bright H  II complexes G353.2+0.8, G284.14-0.3, G287.5-0.6 and G291.28-0.71.

2.1 Derivation of the power spectra

The three Stokes parameters T, Q and U fully describe any state of linearly polarised light. However, whereas the temperature is a scalar quantity (invariant under rotation of the plane of the sky), Q and U are not. They depend on the direction of observation $\hat n$ and on the Cartesian axes perpendicular to $\hat n$ used to define them. Recent theoretical developments have shown that it is more useful to describe the polarisation field in terms of two quantities that are invariant under rotation (Zaldarriaga & Seljak 1997; Kamionkowski 1997). These two quantities are usually called Eand B and they are obtained by a linear, non-local, transformation of the Q and U map (hereafter we will refer to this transformation as to the E-B transform). The E and B components differ in their behavior under parity transformation: B changes sign while E does not. Four power spectra are needed to characterise the fluctuations in a Gaussian theory: the autocorrelation of each of T, E and Band the cross correlation between E and T.

Current cosmological models predict the CMB intensity and polarisation variations to be a Gaussian field and therefore give predictions for the four power spectra T, E, B and ${E \times T}$. Galactic diffuse emission is not a Gaussian field and so cannot be fully characterised by the four power spectra, however, since we are interested in comparing the statistical properties of this emission with predictions for the CMB power spectra we have derived the four power spectra of T, E, B and ${E \times T}$ of the Parkes data.

The power spectra have been obtained by performing a spin-weighted harmonic analysis of the field in the HEALPix grid with the ANAFAST program (the software is part of the HEALPix package). The results of the analysis for the whole set of data are summarised in the following subsections. The angular power spectra of the polarised intensity was derived by simple spherical harmonic decomposition, also using the ANAFAST program.

From the analysis of large sky surveys, the angular power spectra of the various components of unpolarised Galactic foreground emission appears to be well described by power law spectra with a spectral index between 2 and 3. Below, we model the angular power spectra of the different components of the Parkes data with power-laws of the form:

$$\begin{eqnarray*}C_l^{X} = k l^{-\alpha_X} \end{eqnarray*}$$

where l is the multipole order and X may stand for T, L, E, B, e and b, with e and b indicating the E-B transform of the sinus and cosinus of the polarisation angle.

The limited sky coverage of the survey and the FWHM resolution of 10.4 arcmin limit our spectral analysis to the multipole range l=40-250. Section 3 describes Monte Carlo simulations that were made to assess the effects of reduced sky coverage and finite resolution.

2.1.1 Total and polarised intensity

The angular power spectrum of the T channel of the Parkes survey is shown in Fig. 2. In the multipole range l =40-250 a linear least-squares fit to this spectrum gives: $\alpha_{T} = 1.67 \pm 0.15$. In the figure the angular power spectrum of the intensity of the polarised signal L is also shown. Linear least-squares fit to this spectrum gives $\alpha_{L} = 2.37 \pm 0.21$.

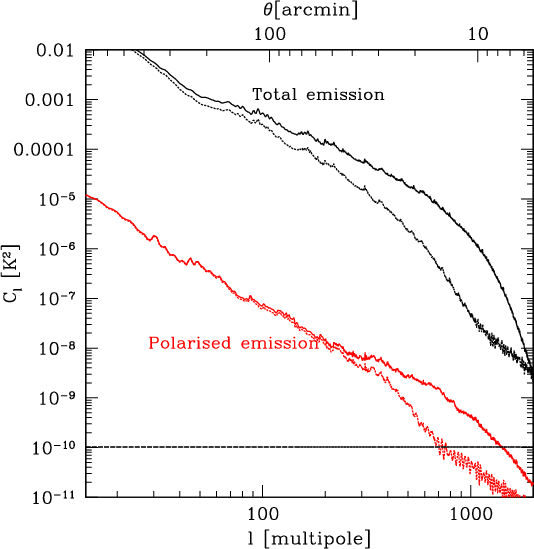

Figure 2: The global angular power spectra of T and $L = \sqrt {Q^2+U^2}$ for the Parkes survey (continuous lines). The power spectra of T and L after median filtering are also shown (dashed lines). Point source suppression by the filtering process is responsible for the steepening of the intensity spectrum. Such steepening is not observed in the spectrum of polarised emission (up to $l\sim 150$). The horizontal line gives the nominal noise level. The multipole order l corresponds to a typical angular scale of $\theta = \pi /l$.

Open with DEXTER

From the images in Fig. 1 point sources are clearly identifiable in the map of total emission while they are not identifiable in the polarised channels. In order to verify whether point sources or noise at pixel scale is affecting the spectra derived from the Parkes survey, we median filtered the intensity map (T) and the derived polarised intensity map (L) by convolving the data with a kernel of 9$\times$9 pixels. We have used this technique to derive the angular power spectrum of diffuse emission from the large sky radio survey of Jonas et al. (1998). We showed that median filtering can be used to effectively remove point sources and derive the angular power spectrum of the diffuse component (Giardino et al. 2001).

The angular power spectrum of a population of point sources randomly distributed in the sky is Poissonian, that is with constant power at all l. Therefore, if point sources contribute significantly to the temperature fluctuation in the field of sky, the power spectrum of that field is expected to steepen when the point sources are removed and only the diffuse components remain. The same happens if the signal is dominated by instrumental random noise. On the other hand if the signal in the field is dominated by the diffuse component, median filtering will not have any effects on the spectrum of the emission up to the multipole order where the high-frequency fluctuations of the emission are averaged out. We estimated by Monte Carlo simulation that, for a beam with a FWHM of 10.4 arcmin and a map with pixel size of 3.4 arcmin, median filtering with a $9\times9$ pixel kernel allows the input angular power spectrum of a diffuse component (with a spectral index of $\alpha = 2$) to be derived up to l=150 with an error lower than 3%.

The results of the analysis of the median filtered T and L maps are also shown in Fig. 2.

From the figure it is apparent that the spectrum of the total emission steepens significantly upon the application of the filtering process. The fitted spectral index values, in the l range 40-150, before and after median filtering are respectively $\alpha_{I} = 1.68\pm 0.03$ and $\alpha_{I}^{\rm mf}=2.05 \pm 0.03$ (only the formal fit errors are given in this case). This indicates that a significant fraction of the power spectrum at intermediate and high l is due to the presence of discrete signals: either a population of point sources or instrumental noise at the pixel scale. In fact instrumental noise at pixel scale is unlikely as the nominal noise level is well below the spectrum derived for the total intensity. We therefore interpret the steepening observed as due to the removal of the point source contribution.

Figure 2 shows no comparable change in the slope (for l<150) of the angular power spectrum of the derived L map after median filtering. The fitted spectral index values before and after median filter are respectively $\alpha_L = 2.34\pm 0.03$ and $\alpha_{L}^{\rm mf}=2.45 \pm 0.03$.

This analysis implies that, up to multipole order l = 150, the fluctuations in the polarised emission are of diffuse nature and they are not due to the presence of discrete signals such us point sources or instrumental noise at pixel scale.

Even though we can exclude contamination of the polarisation spectrum by point sources and instrumental noise at pixel scale only up to multipole l=150, in the following sections we derive the spectral indices for the other components of the Parkes data over the entire multipole range l=40-250 that can be directly probed given the survey's sky coverage and angular resolution. The reader should note from Fig. 2 that the slope of the power spectrum of the unfiltered polarised emission does not obviously change between an l of 150 and 250, and therefore the fits given up to 250 should also be consistent with those made only up to 150. Indeed, we have explicitly established this.

2.1.2 The E and B components

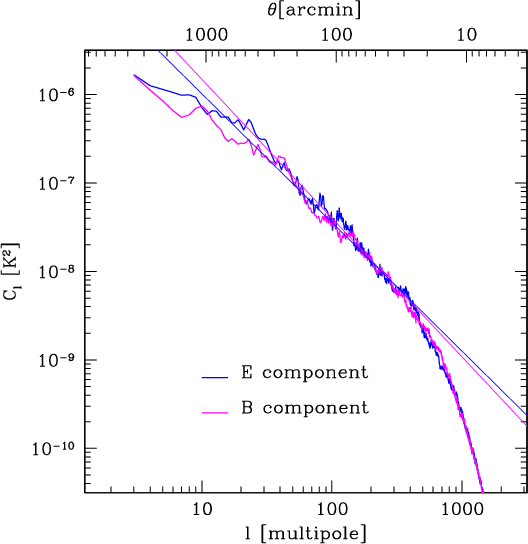

	Figure 3: The power spectra of the E and B components for the Parkes data. The linear least squares fits to the spectra in the multipole range 40-250 are also shown.
Open with DEXTER

The power spectra of the E and B components derived from the Parkes survey are shown in Fig. 3. In the multipole range l =40-250 linear least-squares fits to the spectra give $\alpha_{E} = 1.57 \pm 0.12$ and $\alpha_{B} = 1.45\pm 0.12$respectively for E and B. As can be seen from the figure the power spectra of the E and B components are very similar in slope and amplitude. This is expected if the observed emission field does not show clear patterns or symmetries (Zaldarriaga 2001).

2.1.3 The ${E \times T}$ component

The cross-spectrum of the E and T components is shown in Fig. 4.

In order to assess whether the computed correlation signal corresponds to null correlation between E and T we performed a series of simulations. We generated ten random Gaussian polarised fields using the spectral indices and normalisation derived from the Parkes data to define the power spectra of T, E and B and setting $C_{l}^{E \times T}$ to zero. The same sky coverage and beam FWHM of the Parkes survey were reproduced (see Sect. 3).

The ${E \times T}$ spectra derived from the ten simulations showed a standard deviation around 0 of $\sigma_{l}=1.4\times 10^{-4}/l(l+1)~{\rm K}^2$. The grey shaded region in Fig. 4 shows the area within $\pm 3\sigma_{l}$. The comparison of the data points with this area is consistent with the absence of correlation between E and T. If a level of correlation between E and T exists, this is below the level that can be probed with the Parkes data, given the survey's sky coverage and beam FWHM.

The power spectrum derived from E and the median filtered T is also shown in the figure. The level of correlation is hardly affected by the filtering process (up to the multipole order l = 150 where the two spectra are directly comparable), implying that the lack of correlation between the T and the E component is not due to the presence of unpolarised point sources (which only affect the T map).

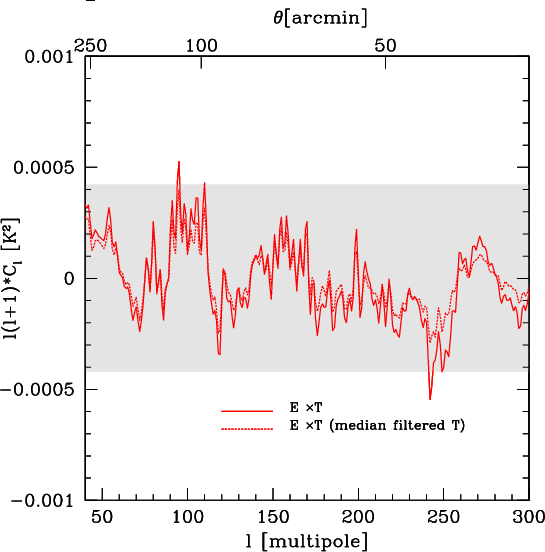

	Figure 4: The cross-correlation ${E \times T}$ for the Parkes data. The grey area gives $\pm 3\sigma$ from zero of the recovered ${E \times T}$ spectra for 10 simulations with input null ${E \times T}$ (see text).
Open with DEXTER

2.1.4 The polarisation angle

In order to quantify the statistical properties of the polarisation angle variations we constructed the maps of $\cos(2\theta)$ and $\sin(2\theta)$, where $\theta$ is the polarisation angle. These maps are simply given by Q/L and U/L respectively. The sinus and cosinus maps were then E-B transformed to obtain the rotationally invariant quantities, e and b. The power spectra of e and bwere also derived by spin-weighted harmonic analysis. The result of the analysis is shown in Fig. 5.

	Figure 5: The power spectrum of the E-B transform of $\cos(2\theta)$ and $\sin(2\theta)$, where $\theta$ is the polarisation angle. The transformed map are here indicated with e and b. The linear least squares fits to the spectra in the multipole range l=40-250 are also shown.
Open with DEXTER

In the multipole range l=40-250, the power spectra of e and bare well described by power law spectra with fitted spectral indices of $\alpha_{e} = 1.74 \pm 0.14$ and $\alpha_{b} = 1.69 \pm 0.13$ respectively. These values are very close to the spectral indices of the power spectra of the E and B components.


3 Error assessment

In order to verify the reliability of the power spectra derived from the Parkes survey we performed a series of Monte Carlo simulations. We generated 10 full-sky realisations of a random Gaussian polarised field defined by four power spectra with shape and normalisation similar to the ones of the Parkes data. For T, E and B we used power-law spectra with spectral indices of $\alpha _T = 1.7$, $\alpha _E = 1.5$, $\alpha _B = 1.5$ respectively, for ${E \times T}$ the spectrum was set to zero. The 10 full-sky random realisations of these spectra were convolved with a Gaussian beam with a FWHM of 10.4 arcmin and sampled using a HEALPix tessellation with nside = 1024. The power spectra for each realisation were then derived by performing spin-weighted harmonic analyses for both full-sky coverage and the limited Parkes sky coverage.

The averaged power spectra from the 10 simulations are shown in Fig. 6. The top panels shows the derived average power spectra of T and the bottom panels the derived average power spectra of E and B. The two different cases of sky coverage are shown. The effect of the incomplete sky coverage is visible in the spectra in the right panels where the average of the derived spectra deviates significantly from the input spectra (the true value) for l < 40. Above multipole order l > 250 the derived power spectra are affected by the beam cut-off.

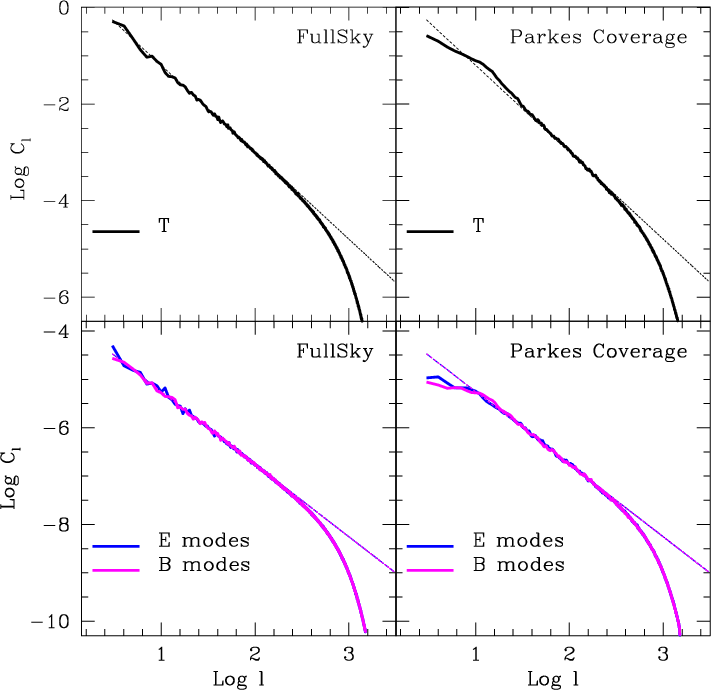

Figure 6: The average spectra of T (top) and of E and B (bottom) obtained from the spin-weighted harmonic analysis of 10 different realisations of a polarised Gaussian radiation field (continuous lines). The dashed lines indicates the input power spectra for T, E and B. These are power law with spectral indices $\alpha _T = 1.7$, $\alpha _E = 1.5$, $\alpha _B = 1.5$ (very similar to the Parkes data). The input spectrum for ${E \times T}$ was set to zero.

Open with DEXTER

In order to quantify the accuracy of the recovery we have computed the best-fit power law of the spectra obtained from the 10 realisations, in the two different cases of sky coverage. The spectral indices of these best-fit power laws can be compared with the true spectral indices of the power spectra used as inputs for the 10 realisations. The standard deviation of the derived spectral indices with respect to the true (input) values provides an estimate of the standard error on the spectral index. The results are summarized in Table 1. In the case of full sky coverage and considering the multipole range l = 3-250, one can recover the input spectral indices of T, E and B with an error of approximately 2% (as can be seen by taking the ratio of the SD over the mean in three columns of the table). The limited sky coverage of the Parkes survey implies that one can only fit a power law to the recovered spectra in the multipole range l = 40-250. By considering the spectrum in this limited multipole range the error on the recovered spectral indices increases significantly even when using spectra derived from full-sky maps (around 5%, as taken from Table 1). The error is around 10% when recovering the indices of the T, E and B spectra from maps with the limited sky coverage of the Parkes survey.





Table 1: Mean and standard deviation of the recovered spectral indices from 10 different sky realisations of a random Gaussian field with input spectra with spectral indices $\alpha _T = 1.7$, $\alpha _E = 1.5$, $\alpha _B = 1.5$ for T, E and B. The spectrum of ${E \times T}$ was set to zero. Two different cases of sky coverage have been considered: full sky coverage and the Parkes survey sky coverage.

		$\alpha_T$		$\alpha_E$		$\alpha_B$
l range	Sky coverage	mean	SD	mean	SD	mean	SD
3-250	Full	1.70	0.02	1.51	0.03	1.51	0.03
40-250	Full	1.76	0.08	1.56	0.08	1.55	0.08
40-250	Parkes	1.78	0.15	1.57	0.12	1.55	0.12


4 Comparison with previous results and discussion

The spectral index of $\alpha_{T} = 1.67 \pm 0.15$ that we derived from the Parkes data for the total intensity (T) is significantly lower than the spectral index values derived from large sky radio survey (Bouchet & Gispert 1999; Giardino et al. 2001). However this value refers to the raw data which beside the diffuse emission contains a significant population of point sources. After point source removal the index steepens to $\alpha_T = 2.05 \pm 0.15$. This value can be compared with the value of $\alpha_T =1.9$ for the spectral index of the same region of the sky of the Rhodes/HartRAO survey after point source removal.

The spectral index of the Rhodes/HartRAO survey steepens with Galactic latitude from $\alpha = 2.4$ when all the data are considered to $\alpha = 2.9$ when only the data at galactic latitude |b| > 20$^{\circ }$ are taken into account (Giardino et al. 2001). Therefore it is not surprising that when a region within Galactic latitude |b| =8$^{\circ }$ is considered the derived spectral index is flatter. The reason for this is probably a combination of the contributions from supernovae remnants and from the high concentration of diffuse H  II emission regions in the Galactic plane.

As earlier noted, the Parkes survey was previously analysed by Baccigalupi et al. (2001) and Tucci et al. (2000). Baccigalupi et al. restricted their analysis to the total intensity and the polarised intensity data (L) while Tucci et al. (2000) present results for the power spectra of T, E and B, but not L.

Baccigalupi et al. (2001) obtained an average value of $\alpha_{L} = 1.7 \pm 0.2$ for the spectral index of the angular power spectrum of the polarised intensity of the twelve patches in the l-range 100-800. This value is significantly lower than the value of $\alpha_{L} = 2.37 \pm 0.21$ that we derived for the multipole range l=40-250. However, there are two issues to consider:

1.

the angular power spectrum of the unfiltered L (Fig. 2) shows a flattening of the slope around l =300.

2.

in order to analyse the Parkes data beyond $l \sim 250$ where the beam suppression becomes appreciable, assumptions about the noise amplitude and distribution are necessary.

If we perform a linear least squares fit to C_l^L in the multipole range l=100-800, assuming purely Gaussian random noise and the nominal noise level given in Duncan et al. (1997), we obtain $\alpha_{L, l=100-800} = 1.75$, in close agreement with the value derived by Baccigalupi et al. On the other hand, if we take into account the presence of the slope break and fit the curve with two power laws, we obtain $\alpha_{L, l=40-250} = 2.35$ and $\alpha_{L, l=250-800} = 1.64$, indicating a flattening of the spectrum at l >250.

Clearly, Baccigalupi et al. derived a flatter spectral index by fitting the spectrum of L in the l-range 100-800 without accounting for the slope break. As to the reason why their analysis did not see evidence for a change in slope of the power spectrum of L, it is likely that by analysing small patches, the derived individual spectra are noisier, thus rendering it more difficult to detect such a change.

Unfortunately, assessing the significance of this flattening is difficult precisely because the analysis for l > 250 is sensitive to assumptions about the noise amplitude and its distribution.

Tucci et al. (2000) derived the average angular power spectra of the Eand B components for the twelve patches and concluded that in the multipole range $36 \le l \la 1000$ they are both well approximated by power laws with spectral index $\alpha \simeq 1.4$. This value is very similar to the values of $\alpha_{E} = 1.57 \pm 0.12$ and $\alpha_{B} = 1.45\pm 0.12$ that we derived for the E and B components respectively.

The angular power spectrum of e and b, the E-B transform of the sinus and cosinus of the polarisation angle, were first derived in the present work. In the multipole range l=40-250 the power spectra of the e and b components of the Parkes data are well described by power laws with fitted spectral indices of $\alpha_{e} = 1.74 \pm 0.14$ and $\alpha_{b} = 1.69 \pm 0.13$. These values are very close to the spectral indices derived for the E and B components. Fluctuations in e and b are only determined by variations in polarisation angle. Therefore this analysis shows that fluctuations in the E and B components are mostly determined by variations in the polarisation angle rather than polarisation intensity, which, over this multipole range, is characterised by a significantly steeper power spectrum.

Finally, we did not find evidence of correlation between E and Tin the Parkes data. This lack of correlation can be interpreted as a direct consequence of the fact that fluctuations in the Ecomponents are mostly determined by changes in the polarisation angle, which T remains unaffected by.

Since we are interested in using these results to construct a toy model of the full-sky synchrotron polarisation at high frequencies (30-100 GHz), there are two fundamental questions that we need to ask.

i) What is the effect of Faraday rotation on the Parkes data?

As a result of propagation through an ionized medium, the direction of linear polarisation is rotated by an angle proportional to the radiation wavelength: $\phi = {RM}\lambda^2$.

Gaensler et al. (2001) have made high resolution (1 arcmin) polarimetric observation of a 28 $~{\rm deg^2}$ region in the Parkes field ( $325\fdg5\le l \le332\fdg5$, $-0\fdg5\le b \le 3\fdg5$) at 1.4 GHz. For this region, they derive a mean RM over the entire region of $-12.9\pm 0.1~{\rm rad~m^{-2}}$. This at 2.4 GHz corresponds to approximately $11^{\circ}$. However, the RM values span from 10 to 1000  ${\rm rad~m^{-2}}$, with typical uncertainties in RM measurements of $\pm 20{-}40~{\rm rad~m^{-2}}$. At a frequency of 2.4 GHz and resolution of 10.4 arcmin, a linear gradient of 5 ${\rm rad~m^{-2}~{arcmin^{-1}}}$ in a foreground screen can significantly depolarise background radiation (Sokoloff et al. 1998) and affect the measured variation of polarisation angle. Beam depolarisation is also significant at this frequency and resolution for a level of dispersion in RM of 30  ${\rm rad~m^{-2}}$ (e.g. Tribble 1991).

Gaensler et al. (2001) conclude that the brightest polarised features seen in this direction of the Galactic plane most likely represent intrinsic structure in the source of emission, but fainter structures are best explained as being imposed by Faraday rotation on a uniformly polarised background by foreground material.

This is likely to be the case also at 2.4 GHz and implies that a significant fraction of the angular variations which determine the power spectra of E and B for the Parkes data are likely to be induced by Faraday rotation. This scenario would predict that the angular power spectra of E, and B of synchrotron emission derived from the Parkes survey may be flatter than if they were derived from observations at frequencies higher than 10 GHz, where Faraday effects are negligible (Beck 2001).

ii) How representative are the results here derived on the angular power spectrum of linearly polarised emission at low Galactic latitudes of what may happen at high Galactic latitudes?

Duncan et al. (1997) show that over much of the longitude range covered by the survey, there exists a background polarised component which appears to be independent of latitude (over the range of latitudes covered by the survey). Besides the Parkes data, Baccigalupi et al. (2001) also analysed five 10$^{\circ }$-patches from the Northern galactic plane survey by Duncan et al. (1999) at 2.7 GHz and three patches of different sizes at medium Galactic latitudes ( $2\fdg 5 \le b \le 17\fdg 5$) from the survey of Uyaniker et al. (1999) at 1.4 GHz. By averaging the derived spectral indices for the polarised emission from all twenty fields they obtain $\alpha_{L, l=100-800} =1.8\pm 0.3$. They concluded that synchrotron polarisation maintains essentially the same statistical properties up to Galactic latitude $b\sim 10$$^{\circ }$.

However, by comparing high Galactic latitude fields with observations of the Galactic plane at 1.4 GHz Gray et al. (1999) find that the magneto-ionic medium which induces the Faraday rotation on polarised emission appears to be concentrated in the disc component of the Galaxy ( $b \la 10^\circ$). This would imply that higher latititude observations of synchrotron polarised emission at low frequencies and for similar angular resolution may yield steeper angular power spectra.

Indeed, if there is a variation of the slope with Galactic latitude one may expect this change to be in line with what is observed for the total emission, for which the angular power spectrum steepens with Galactic latitude. Moreover, as pointed out by Davies & Wilkinson (1999), the magnetic field pattern may be more ordered at high Galactic latitudes, resulting in less small-scale structure.


5 Full-sky synthetic maps of synchrotron polarisation

As a starting point for creating a toy model of Galactic synchrotron polarisation at high frequencies we assume that the polarised component of synchrotron emission in a given direction is proportional to the unpolarised intensity, which in this case is expressed in terms of brightness temperature, T:



$$% Q = f T \cos(2 \theta)$$ (1)

$$U = f T \sin(2 \theta)$$

where f is the fraction of polarised emission (or polarisation degree) and $\theta$ is the polarisation angle. As we have seen, at the frequency of Parkes observations this is clearly not a valid assumption, but it can be an acceptable starting point at frequencies higher than 10 GHz, where Faraday effects (of rotation and depolarisation) may be neglected.

The brightness temperature spectrum of synchrotron emission is well described by a power law,

$$% T(\nu) \propto \nu^{-\beta}$$ (2)

where $\beta$ is referred to as the frequency spectral index. In the absence of non-uniform magnetic fields, the fraction of polarised radiation f is related to the spectral index (Cortiglioni & Spoelstra 1995):

$$% f = \frac{3 \beta -3}{3 \beta -1}\cdot$$ (3)

Therefore in order to generate synthetic full-sky polarisation maps of synchrotron emission at a given frequency, we need at least three basic ingredients: a full-sky map of the total synchrotron emission at a "template'' frequency, a full-sky map of the frequency spectral index and a model for the polarisation angle. The full-sky map of the spectral index will be used to generate f in a given direction and to extrapolate the total emission "template'' to the other frequencies where Q and U are generated according to Eq. (1).

5.1 Synchrotron total intensity (T)

The 408-MHz survey of Haslam et al. (1982) provides, up to date, the best image of the total intensity of the full-sky Galactic synchrotron emission. At this low frequency the synchrotron emission dominates the Galactic diffuse signal (Beuermann et al. 1985; Lawson et al. 1987). We used the 408-MHz survey processed by D. P. Finkbeiner, M. Davis and D. Schlegel (private communication). They have removed the point sources and de-striped the map by applying a Fourier filtering technique. Hereafter we will refer to this processed version of the 408-MHz survey as to the Cleaned 408-MHz map.

The angular resolution of the 408-MHz survey is 0.85$^{\circ }$. The angular resolution of Planck will vary from the 33 arcmin FWHM in the 30 GHz channel to 5 arcmin FWHM in the 857 GHz channel. Since it is conservative to assume that synchrotron emission will present structure also at the smaller angular scale, we have superimposed artificial fluctuations at angular scale $\la$$1^\circ$ on the original map.

The map of artificial fluctuations was obtained from a full-sky realisation of a Gaussian field having a power law spectrum with index $\alpha =3$ for l > 150 and vanishing to zero for l<150. Before being added onto the Cleaned 408 MHz the fluctuation map is weighted by the Cleaned 408 MHz map itself. This operation can be viewed as an extrapolation of the spectrum of the Cleaned 408 MHz map beyond l=150 with a power law spectrum with index $\alpha =3$. A power law spectrum with spectral index $\alpha =3$ is similar to that derived for the total synchrotron emission at high galactic latitude (|b|>20$^{\circ }$) from the analysis of the three large sky radio survey up to $l \sim 100$ (Bouchet & Gispert 1999; Giardino et al. 2001).

The Cleaned 408 MHz map with extrapolated fluctuations provides us with a realistic image of the full-sky total intensity of synchrotron emission at 408 MHz up to the degree angular scale and an estimate of how this emission may look like at the smaller unobserved angular scales. We use this map as the template for the Stokes T channel of the synthetic polarisation maps. The template at 408 MHz is shown in Fig. 7.

	Figure 7: Mollweide projection of the Cleaned 408 MHz map with extrapolated fluctuations (i.e. the template for the Stokes parameter T of the synthetic polarisation maps). The map is in Galactic coordinates. The color scale has been histogram equalised.
Open with DEXTER

5.2 Synchrotron frequency spectral index

Besides the 408-MHz survey the other two high quality, large sky radio surveys available to date are: the northern sky survey of Reich & Reich (1986) at 1420 MHz and the more recent southern sky survey of Jonas et al. (1998). The sky coverage of the 1420-MHz survey and of the 2326-MHz survey are complementary to each other. The two surveys overlap over the Galactic declination range $-20^{\circ}< \delta < 32^{\circ}$ in the right ascension interval $180^{\circ}\le {\rm RA} \le 360^{\circ}$ and over Galactic declination range $-20^{\circ}< \delta < 13^{\circ}$ in the right ascension interval $0^{\circ}< {\rm RA} < 180^{\circ}$. Therefore we can combine the 408-MHz survey and the 1420-MHz survey in order to derive a map of the spectral index of radio emission in the northern sky and the 408 MHz and the 2326 MHz survey in order to derive a map of the spectral index in the southern hemisphere. We obtained three homogeneous maps in the following way: we took the surveys, as they are publicly available, resampled them into a HEALPix tessellation with nside = 256 and then median filtered with a box kernel of $9\times9$ pixels in order to suppress the point source signal.

As we wish to determine the spectral index of the Galactic emission only, the extragalactic emission must first be subtracted. This is made up of two isotropic components, the CMB and the sum of unresolved extragalactic background. The CMB brightness temperature is 2.73 K. A phenomenological expression to estimate the integrated brightness temperature of extra galactic unresolved radio sources at different frequencies is given by Lawson et al. (1987). Lawson uses it to estimate this contribution in the 408 MHz and in the 1420 MHz surveys. We have adopted it to evaluate this contribution at 2326 MHz. The total amount of extragalactic contribution for the three surveys together with basic information about their uncertainties is summarised in Table 2. For the 1420 MHz survey we adopted a baseline correction of -0.13 K (Lawson et al. 1987).





Table 2: Characteristics of the three radio continuum surveys that we used to produce a full-sky map of the radio brightness temperature spectral index.

Survey	Scale	Base level	Extragalactic	Baseline	Reference
Frequency (MHz)	error (per cent)	error (K)	background (K)	correction (K)
408	5	3	5.92	-	Lawson et al. (1987)
1420	10	0.6	2.83	-0.13	Lawson et al. (1987)
2326	5	0.080	2.75	-	Jonas et al. (1998)

After subtraction of the extragalactic contribution, the brightness temperature frequency spectral index $\beta_{\nu1 / \nu2}$ of the Galactic radiation can be calculated. It is simply given by:

$$% \beta_{{\nu_1}/{\nu_2}}= -\frac{T_{\nu_1}/T_{\nu_2}}{\log(\nu_1/\nu_2)}\cdot$$ (4)

Over the whole observed region the average value of the spectral index obtained by combining the 408 MHz and the 1420-MHz survey is $\langle \beta_{408/1420} \rangle = 2.78 \pm 0.17$. By combing the 408 MHz and the 2326-MHz survey one obtains an average value of the spectral index of $\langle {\beta}_{408/2326} \rangle=2.75 \pm 0.12$, over the whole region observed. Here, the error is only the formal rms of the spectral index maps and does not account for the systematic uncertainties. The mean values for $\beta$ agree well with the value found by Platania et al. (1998) of $\langle {\beta}_{408/3800}\rangle = 2.73\pm 0.08$.

All the surveys are affected by scan-to-scan baseline errors. When the ratio of brightness temperatures at two different frequencies is calculated the effect of these residual errors is enhanced. Because of this, the map of $\beta_{408/1420}$ and the map of $\beta_{408/2326}$ do not match in the overlapping region. We tried various techniques to look for a baseline offset for one of the three input maps that would minimise the differences between the two spectral index maps. However discontinuities between the two spectral index maps always remained apparent.

In order to construct the full-sky map of the spectral index, therefore, we used $\beta_{408/1420}$ for regions of the sky at declination $\delta > 13$$^{\circ }$ and $\beta_{408/2326}$ for regions at declination $\delta < -20$$^{\circ }$. In the overlapping region of the 1420 and 2326-MHz surveys ( $-20^{\circ} \le \delta \le 13^{\circ}$) we set the spectral index to:

$$\begin{eqnarray*}\beta_{\rm overlap} = g \beta_{408/1420} + h \beta_{408/2326} \end{eqnarray*}$$

where $g = \exp[-0.5 (\delta - 13^{\circ})^2/(10^{\circ})^2]$ and h=1-g. This choice of the weights g and h ensures that the two $\beta$-maps merge smoothly into each other. The region of sky at declination $\delta < 83$$^{\circ }$  remains un-observed at 2326 MHz. So we "padded'' this region with the spectral index value $\langle {\beta}_{408/2326} \rangle$.

The spectral index map obtained in this way is however still affected by the striation due to the scan-to-scan baseline errors in the input data. It is possible to remove the effect by Fourier filtering the data but, because the scanning direction differs from one survey to the other, one would not then be able to combine like with like. Following Lawson et al. (1987) we adopted the simpler procedure of convolving the data to a lower resolution, so that the baseline errors are averaged sufficiently for the striation on the color-scale to disappear. The final map of the spectral index is at a resolution of 10$^{\circ }$ (at FWHM), as shown in Fig. 8.

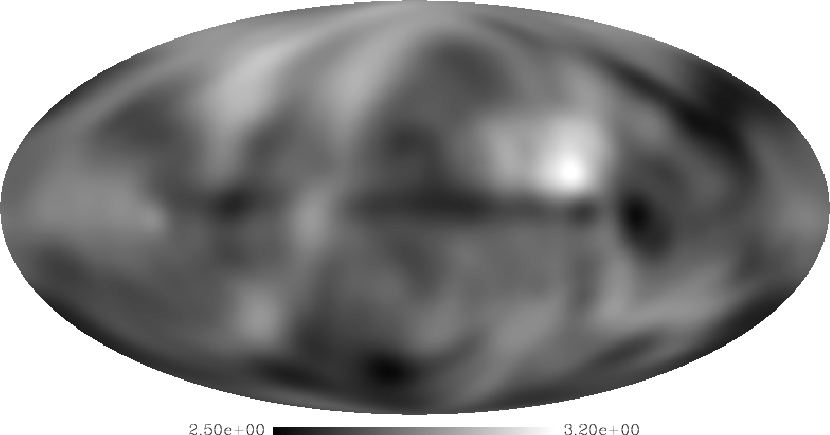

	Figure 8: Mollweide projection of the full-sky map of radio spectral index obtained by combining the 408-MHz survey, the 1420-MHz survey and the 2326-MHz survey (see text). The map is in Galactic coordinates.
Open with DEXTER

5.3 Synthetic polarisation angle

We found that the power spectra of the E-B transform of the sinus and cosinus of the polarisation angle of the Parkes data are described by power laws with spectral indices of $\alpha_{e} = 1.74 \pm 0.14$ and $\alpha_{b} =1.69\pm 0.12$ in the multipole range l=40-250. One can construct a full-sky map of a random angle having E-B transform of its sinus and cosinus with the same spectra of the e and bcomponent of the Parkes data in the following way. Generate two full-sky realisations of a Gaussian field characterised by a power law spectrum with spectral index $\alpha =1.7$. Let us call these maps xand y. Normalise x and y to the interval [-1, 1]. Generate the full-sky map of the random angle by computing $\theta = \frac{1}{2}\arctan(x/n,y/n)$, where $n= \sqrt{x^2+y^2}$. We used the random angle map obtained in this way as the polarisation angle of our toy model of Galactic synchrotron emission.

Figure 9 shows the map of the polarisation angle derived from the Parkes data and the map of the synthetic polarisation angle for the same region of sky. The structure of the angle fluctuations in the two maps looks similar.

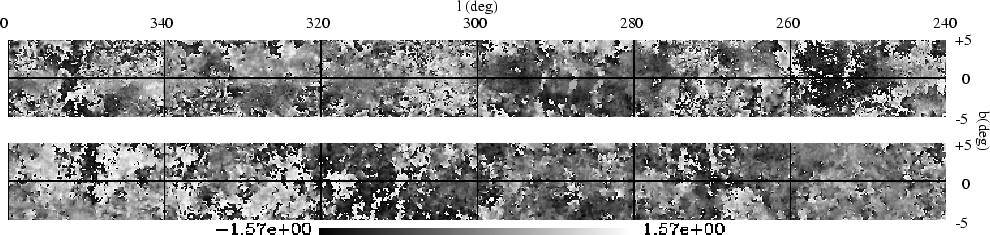

	Figure 9: Polarisation angle from the Parkes survey (top) and from the synthetic map of synchrotron polarisation (bottom). Maps are in Galactic coordinates.
Open with DEXTER

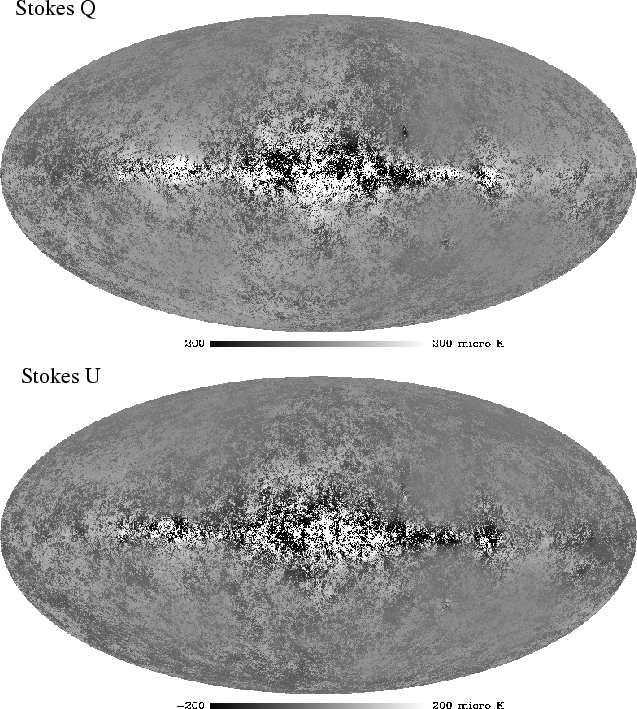

	Figure 10: The Q and U channel of the synthetic map of Galactic synchrotron linear polarisation at 30 GHz. The map is in Galactic coordinates.
Open with DEXTER

5.4 The synthetic maps at 30 and 100 GHz

In order to generate the synthetic maps of synchrotron emission and linear polarisation at higher frequencies the total intensity map at 408 MHz has to be extrapolated. One can use the spectral index map directly, assuming a fixed power law to higher frequencies, or use it in conjunction with the local electron spectrum, as in Bennett et al. (1992), in order to derive maps of $\beta$ between any two given frequencies and to attempt to allow for the observed steepening of $\beta$with increasing frequency (Lawson et al. 1987; Banday & Wolfendale 1990). For the local electron spectrum, we used the polynomial fit to the spectral shape of electron measurements given in Bennett et al. (1992), for energies $0.1< E({\rm GeV}) < 100$, and likewise a power law $E^{-3.312}{\rm d}E$ for E > 100 GeV. By interpreting the spatial variation in $\beta$ (408-1420 MHz and 408-2326 MHz) as due solely to variations in a synchrotron effective Galactic magnetic field, $B_{\rm eff}$, we derived a full-sky map of $B_{\rm eff}$, with $\langle {B}_{\rm eff} \rangle = 2.0 \pm 2.3$ $\mu$G and a median value of 1.4 $\mu$G. This is remarkably close to the values derived by Bennett et al. (1992) who did not have the data from the 2326-MHz survey for the southern hemisphere.

The same expression for the local electron spectrum and the map of synchrotron effective Galactic magnetic field were then used to obtain the maps of the spectral index between 408 MHz and 30 and 100 GHz, necessary for extrapolating the total emission map. The $\beta$ maps mean values are $\langle {\beta}_{0.408/30}\rangle =2.91 \pm 0.09$ and $\langle {\beta}_{0.408/100}\rangle =2.96 \pm 0.08$. The value of $\langle {\beta}_{0.408/30}\rangle$ is consistent with the upper limit of $\beta > 3$ between 408 MHz and 31.5 GHz obtained by Kogut et al. (1996) and the value of $\beta \sim 2.8$ between 1420 MHz and 19 GHz derived by de Oliveira-Costa et al. (1998).

The Q and U channels of the synthetic linear polarisation maps of Galactic synchrotron emission at 30 and 100 GHz were then obtained by combining the intensity map (T) extrapolated at 30 and 100 GHz with the corresponding spectral index map and the random angle map, according to Eqs. (1) and (3). The Q and Uchannels at 30 GHz are shown in Fig. 10. The three input maps are sampled into a HEALPix tessellation with a pixel size of 6.9 arcmin (nside=512). Therefore also the synthetic maps of T, Q and U are at a pixel resolution of 6.9 arcmin.

Because our toy model for f is a very slowly varying function of the position in the sky the maps of Q and U derived according to Eq. (1) have temperature fluctuations mostly determined by the polarisation angle. Therefore, like for the Parkes data, the angular power spectra of the E and B components of the synthetic linear polarisation maps reflect the spectra of e and b. They are power-law spectra with indices $\alpha_E = 1.67\pm 0.09$ and $\alpha_B=1.73 \pm 0.09$ over the l range 40-250 ( $\alpha_E = 1.59\pm 0.03$ and $\alpha_B=1.68 \pm 0.03$ for the lrange 3-250, that can be probed since in this case the power spectra are derived from full sky maps). These values are very close to the values derived for the spectra of the E and B components of the Parkes data.

5.4.1 Comparison of the power spectra with predictions for the CMB

For CMB studies one is particularly interested in the properties of radio emission at high Galactic latitudes because this is where the Galactic signal is weaker and where sensitive CMB measurements can be made. Therefore, we computed the angular power spectra of the T, Eand B components of the extrapolated maps with a Galactic plane cut-off at latitude |b|=20$^{\circ }$. The results are shown in Fig. 11, where they can be compared with the signal expected from the CMB. The CMB spectrum has been computed assuming a flat inflationary model with purely scalar scale-invariant fluctuations, vacuum energy $\Omega_{\Lambda} = 0.70$, cold dark matter density $h^2\Omega_{\rm cdm}=0.12$ and baryon density $h^2\Omega_{\rm b}=0.024$, (where h = 0.7 is the assumed Hubble parameter), as derived by Netterfield et al. (2001) from combining the latest CMB observations with constraints derived from measurements of the large scale structure and results from recent measurements of type Ia supernovae.

The top panel of Fig. 11 shows the angular power spectra of the T components of the two extrapolated maps and of the CMB. Note the absence of a perceivable change in the slope of the power spectra of the T components of the synthetic maps at l=150, the multipole order at which artificial signal was added to the observed signal at 408 MHz.

From the figure, it is apparent that at 100 GHz the contribution to the total sky signal from high latitude synchrotron emission is negligible. At 30 GHz synchrotron emission can be a significant contribution to the sky anisotropy at scales larger than $\sim$ $20^{\circ}$, but it is more than an order of magnitude weaker than the computed cosmological signal at degree angular scales where the first "acoustic'' peak of the CMB is observed. This confirms the results discussed in Giardino et al. (2001) that were obtained with a different approach using the index of the angular power spectra of the survey at 2326 MHz by Jonas et al. (1998) and the COBE DMR upper limit to synchrotron temperature fluctuations at 31.5 GHz at the 7$^{\circ }$ scale. The COBE DMR upper limit (Kogut et al. 1996) is indicated in the figure by a pentagonal point.

The angular power spectra of the E and B components of the synthetic maps are shown in the lower panel of Fig. 11. At small angular scale the power of temperature fluctuations in the E and B components are mostly determined by change in the polarisation angle rather than a change in the degree of polarisation. This is the reason why temperature fluctuations in the E and B components can become more intense than temperature fluctuations in the T channel.

The figure shows that at 30 GHz the high latitude synchrotron signal may dominate the cosmological polarised signal over the entire multipole range. The extrapolated signal at 30 GHz is consistent with the current upper limit on linearly polarised signal of 10  $\mu$K at the 7$^{\circ }$ scale in the 26-36 GHz band (Keating et al. 2001) and with the upper limit of 16 $\mu$K at degree scale in the 26-46 GHz band (Netterfield et al. 1995). These upper limits also refer to regions of the sky at galactic latitudes $\vert b\vert>20^{\circ}$.

At 100 GHz the synchrotron signal can make a significant contribution to the sky polarisation at large angular scale but it is significantly weaker than the CMB E component at sub-degree angular scale. Therefore even using the most conservative assumptions one can conclude that the contribution of synchrotron polarisation to the sky signal will not hinder detection of the CMB E component, if this is present at sub-degree angular scale at the intensity predicted by current cosmological models.

From the diagram the absence of the beam cut off in the spectra of the synthetic maps is noticeable. These are artificial maps and therefore they were generated at full resolution.

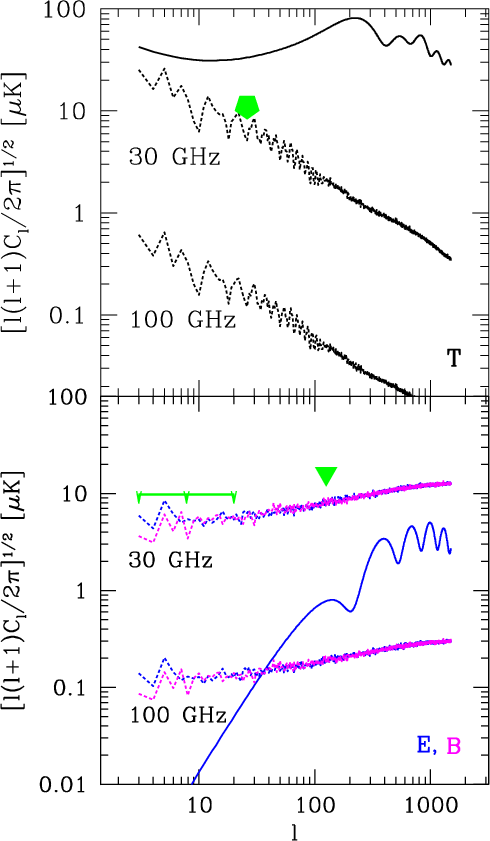

Figure 11: The power spectra of the T, E and B components of the synthetic maps of Galactic synchrotron polarisation at 30 and 100 GHz (dashed lines), for |b|>20$^{\circ }$, compared with the signal expected from the CMB (continuous line). The point with pentagonal shape indicates the COBE DMR upper limit to synchrotron temperature fluctuations at 31.5 GHz. The horizontal line is the upper limit to polarised signal by Keating et al. (2001) in the frequency band 26-36 GHz. The triangular point is the upper limit to polarised signal by Netterfield et al. (1995) in the frequency band 26-46 GHz.

Open with DEXTER


5.5 Scope and limitations of the synthetic maps

The synthetic full-sky maps of the Stokes parameters T, Q and Uof Galactic synchrotron emission at 30 and 100 GHz are a first attempt to model the full-sky synchrotron polarisation at high frequencies. The maps are needed as input for the simulation activity that is carried out in preparation for the Planck missions.

To study the effects of polarised foreground on MAP observations of the CMB, synthetic maps of polarised synchrotron emission have been generated by Kogut & Hinshaw (2000). They also assumed the polarised signal to be proportional to the total intensity T, with the Stokes Q and U components given by Eq. (2). For the polarisation degree, f, they assumed a varying Gaussian field such that $\langle f \rangle = 0.1$. They constructed the polarisation angle starting from Gaussian random fields, x and y, with flat power spectra, which lead to E and B components whose spectra have indices of $\alpha \simeq 0$. The polarisation maps were only generated for a fiducial frequency of 40 GHz.

We have constructed the synthetic maps by combining in a conservative way many of the observational data currently available on synchrotron total emission and polarisation. The maps that can be obtained at higher frequencies by extrapolating the total intensity map with the spectral index map are consistent with available observational upper limits on synchrotron emission and polarisation at frequencies higher than 10 GHz. There remain however some inconsistencies between the synthetic polarisation maps extrapolated at 2.4 GHz and the Parkes data.

The synthetic polarisation maps reproduce the slope of the angular power spectra of the E and B components of the Parkes survey, but not their amplitude at 2.4 GHz. Moreover, the power spectra of T, ${E \times T}$ and L differ both in shape and normalisation to the ones of the Parkes data. This is because of the way that the toy model has been constructed. We derived information on the polarisation angle (and the E and B power spectra) from the Parkes survey, while for the intensity channel T we used the data from the Haslam survey and for the polarisation fraction f we assumed the theoretical value given by the synchrotron spectral index in a uniform magnetic field. The reasons behind these choices are the following.

As already mentioned, the Haslam map provides the best image of the total intensity of the full-sky synchrotron emission, to date. It is natural to adopt it as a template for T as opposed to using the Tchannel of the Parkes survey. This is limited in sky coverage and being at low Galactic latitude and a higher frequency contains a higher fraction of thermal emission from ionised gas.

The Parkes survey provides us with information about the statistical properties of the polarisation angle, so we adopt it for this purpose. Using the statistical properties of the polarisation angle derived from a survey at decimetric frequency is a conservative approach (i.e. it will unlikely lead to an underestimate of the level of fluctuation of polarised synchrotron emission). This is because Faraday rotation of a synchrotron background due to a foreground "screen'' of ionised medium will tend to increase the level of fluctuations in the observed polarisation direction. On the other hand Faraday differential rotation may decrease the polarised fraction of the synchrotron signal at the Parkes frequency. Therefore using the amplitude of the E and B components of the Parkes data may lead to an underestimate of the polarisation fraction at higher frequencies ($\ga$10 GHz).

Calculating the theoretical fraction of synchrotron polarisation by assuming a completely uniform magnetic fields could be considered an overly conservative approach because it is known that the interstellar medium is pervaded by an isotropic random ("turbulent'') field. In the presence of a random magnetic field the observed level of polarisation is given by $f_{\rm obs} = d\cdot f$. Here f is the intrinsic level of polarisation (given by Eq. (3)) and d is a coefficient ($\le$1) which depends on the relative intensity of the random field, $B_{\rm turb}$, and the field which is regular in the whole resolution element, $B_{\rm reg}$ (Burn 1966; Beck 1998).

Synchrotron polarisation observations at decimeter wavelength imply a ratio of regular to total field strengths within about a kpc from the Sun of $\langle B_{\rm reg}/B_{\rm turb}\rangle \simeq 0.6$ (Beck 2001), which, in the popular assumption of energy equipartition between cosmic rays and magnetic fields would imply an average level of depolarisation of $\langle d \rangle = 0.3$. However the actual value varies substantially between points and may depend on the size of the resolution element. These values are derived from decimeter wavelength surveys with degree-scale resolution. The level of depolarisation by the random component of the magnetic field can be expected to decrease as the sky is observed at higher resolution and the projected size of the beam approaches the field coherence length. Indeed convolution of our synthetic maps with a Gaussian beam with a FWHM of 1$^{\circ }$ yields an average level of depolarisation of $\langle d \rangle = 0.5$.


6 Summary and conclusions

In order to obtain information about the statistical properties of synchrotron polarised emission, we have derived the global angular power spectra of the Parkes survey, a radio continuum and polarisation survey of the Southern galactic plane at 2.4 GHz. The angular power spectrum of the polarised intensity (L) is well approximated by a power law with fitted spectral index $\alpha_{L} = 2.37 \pm 0.21$ in the multipole range l=40-250 that can be probed given the Parkes survey sky coverage and angular resolution. We exclude that up to multipole order l = 150, the spectral index value is affected by the presence of discrete signals such us point sources or instrumental noise at pixel scale.

The angular power spectra of the E and B components of the polarised emission is significantly flatter than the spectrum of L. They have fitted spectral indices respectively of $\alpha_{E} = 1.57 \pm 0.12$ and $\alpha_{B} = 1.45\pm 0.12$, in the multipole range l=40-250. This is because temperature variations in the Stokes channels Q and U of the data are mostly determined by variation in polarisation angle rather than polarisation intensity. The E-Btransform of the sinus and cosinus of the polarisation angle, the eand b components, are in fact also well described by power laws with fitted spectral indices of $\alpha_{e} = 1.74 \pm 0.14$ and $\alpha_{b} = 1.69 \pm 0.13$, in the same multipole range l=40-250.

We generated a full-sky map of a random polarisation angle having eand b components with power spectra with the same spectral indices of the e and b components of the Parkes data. We combined this map with a template of synchrotron emission at 408 MHz, derived from the 408-MHz survey, and with a full-sky spectral index map, that we obtained by combining the 408-MHz survey with the 1420-MHz survey and the 2326-MHz survey. The simple recipe on how to combine the three maps in order to derive a map of linear polarisation is given by Eq. (1) and Eq. (3).

In this way we have constructed synthetic maps of the Stokes parameters (T, Q and U) of Galactic synchrotron emission at 30 and 100 GHz. The angular power spectra of the E and Bcomponents of these synthetic maps have slope very similar to the Eand B components of the Parkes data. Their polarisation intensity is proportional to the total intensity T as determined by the frequency spectral index in the conservative hypothesis of a uniform magnetic field.

We have compared the angular power spactra of the synthetic maps with predictions for the CMB and conclude that while direct observations of the CMB E component at 30 GHz may be precluded by synchrotron polarisation, at 100 GHz, this component of Galactic emission will not hinder the observation of cosmological polarisation, if this is present at the predicted levels.

The synthetic maps of the linear polarisation of Galactic synchrotron can be useful as a toy model to study the effect of the polarised foreground on planned observations of the CMB. Moreover they can serve as the basis for the development of more advanced models which incorporate data on the structure of the Galactic magnetic field. In turn these refined models will be of fundamental importance in interpreting the microwave polarisation data that will be provided by the Planck and MAP satellite missions and the SPORT experiment.

The synthetic maps of the Stokes parameters T, Q and U of Galactic synchrotron emission at 30 and 100 GHz together with the full-sky spectral index map are available for down loading at ftp://astro.esa.int/pub/synchrotron.

Acknowledgements

We thank D. P. Finkbeiner, M. Davis and D. Schlegel for providing us with the Cleaned 408 MHz map, E. Hivon for helpful discussions, A. R. Duncan, R. F. Haynes, K. L. Jones and R. T. Stewart for making the Parkes survey publicly available and U. Seljak & M. Zaldarriaga for their CMBFAST software, which was used to generate the CMB angular power spectra. The HEALPix analysis package (http://www.eso.org/science/healpix) was used extensively throughout this paper. We gratefully acknowledge very useful comments from an anonymous referee.

References



• Baccigalupi, C., Burigana, C., Perrotta, F., et al. 2001, A&A, 372, 8 In the text NASA ADS
• Banday, A. J., & Wolfendale, A. W. 1990, MNRAS, 245, 182 In the text NASA ADS
• Beck, R. 1998, Galactic Foreground Polarisation, Proceeding of a Workshop held in Bonn, ed. E. M. Berkhuijsen In the text
• Beck, R. 2001, Galactic and extragalactic magnetic fields, ed. R. Diehl et al., Space Science Reviews (Kluwer, Dordrecht) In the text
• Bennett, C. L., Smoot, G. F., Hinshaw, et al. 1992, ApJ, 396, L7 In the text NASA ADS
• Beuermann, K., Kanbach, G., & Berkhuijsen, E. M. 1985, A&A, 153, 17 In the text NASA ADS
• Bond, J. R., & Efstathiou, G. 1987, MNRAS, 226, 655 In the text NASA ADS
• Bouchet, F. R., & Gispert, R. 1999, New Astron., 4, 443 In the text NASA ADS
• Burn, B. J. 1966, MNRAS, 133, 67 In the text NASA ADS
• Cortiglioni, S., & Spoelstra, T. A. T. 1995, A&A, 302, 1 In the text NASA ADS
• Davies, R. D., & Wilkinson, A. 1999, in Microwave Foregrounds, ASP Conf. Ser., 181, 77 In the text
• de Oliveira-Costa, A., Tegmark, M., Page, L. A., & Boughn, S. P. 1998, ApJ, 509, L9 In the text NASA ADS
• Duncan, A. R., Haynes, R. F., Jones, K. L., & Stewart, R. T. 1997, MNRAS, 291, 279 In the text NASA ADS
• Duncan, A. R., Reich, P., Reich, W., & Fürst, E. 1999, A&A, 350, 447 In the text NASA ADS
• Fabbri, R., Cortiglioni, S., Cecchini, et al. 1999, in 3K cosmology, AIP Conf. Proc., 476, 194 In the text
• Gaensler, B. M., Dickey, J. M., McClure-Griffiths, N. M., et al. 2001, ApJ, 549, 959 In the text NASA ADS
• Giardino, G., Banday, A. J., Fosalba, P., et al. 2001, A&A, 371, 708 In the text NASA ADS
• Górski, K. M., Hivon, E., & Wandelt, B. D. 1999, in Proceedings of the MPA/ESO Cosmology Conference Evolution of Large-Scale Structure, ed. A. J. Banday, R. S. Sheth, & L. Da Costa, 37 In the text
• Gray, A. D., Landecker, T. L., Dewdney, P. E., et al. 1999, ApJ, 514, 221 In the text NASA ADS
• Haslam, C. G. T., Salter, C. J., Stoffel, H., et al. 1982, A&AS, 47, 1 In the text NASA ADS
• Hedman, M. M., Barkats, D., Gundersen, J. O., Staggs, S. T., & Winstein, B. 2001, ApJ, 548, L111 In the text NASA ADS
• Jonas, J. L., Baart, E. E., & Nicolson, G. D. 1998, MNRAS, 297, 977 In the text NASA ADS
• Kamionkowski, M. 1997, Phys. Rev. D, 55, 7368 In the text NASA ADS
• Keating, B. G., O'Dell, C. W., de Oliveira-Costa, A., et al. 2001, ApJ, 560, L1 In the text NASA ADS
• Kogut, A., Banday, A. J., Bennett, C. L., et al. 1996, ApJ, 464, L5 In the text NASA ADS
• Kogut, A., & Hinshaw, G. 2000, ApJ, 543, 530 In the text NASA ADS
• Kosowsky, A. 1996, Ann. Phys., 246, 49 In the text
• Lawson, K. D., Mayer, C. J., Osborne, J. L., et al. 1987, MNRAS, 225, 307 In the text NASA ADS
• Mandolesi, N., & Puget, J.-L. 1998, AAO for Planck HFI and LFI (Paris: ESA) In the text
• Netterfield, C. B., Ade, P. A. R., Bock, J. J., et al. 2001, ApJ, submitted In the text
• Netterfield, C. B., Jarosik, N., Page, L., et al. 1995, ApJ, 445, L69 In the text NASA ADS
• Platania, P., Bensadoun, M., Bersanelli, M., et al. 1998, ApJ, 505, 473 In the text NASA ADS
• Prunet, S., Sethi, S. K., Bouchet, F. R., et al. 1998, A&A, 339, 187 In the text NASA ADS
• Reich, P., & Reich, W. 1986, A&AS, 63, 205 In the text NASA ADS
• Rybicki, G. B., & Lightman, A. P. 1979, Radiative Process in Astrophysics (Cambridge University Press) In the text
• Sokoloff, D. D., Bykov, A. A., Shukurov, A., et al. 1998, MNRAS, 299, 189 In the text NASA ADS
• Tribble, P. C. 1991, MNRAS, 250, 726 In the text NASA ADS
• Tucci, M., Carretti, E., Cecchini, S., et al. 2000, New Astr., 5, 181 In the text NASA ADS
• Uyaniker, B., Fürst, E., Reich, W., Reich, P., & Wielebinski, R. 1999, A&AS, 138, 31 In the text NASA ADS
• Wright, E. L. 1987, ApJ, 320, 818 In the text NASA ADS
• Zaldarriaga, M. 2001, Phys. Rev. D, submitted In the text
• Zaldarriaga, M., & Seljak, U. 1997, Phys. Rev. D, 55, 1830 In the text NASA ADS
