A&A 387, 40-55 (2002)
DOI: 10.1051/0004-6361:20020343
N. I. Merkulova
Crimean Astrophysical Observatory, Crimea, Ukraine; and Isaac Newton Institute of Chile, Crimean Branch, 98409, p/o Nauchny, Crimea, Ukraine
Received 11 May 2000 / Accepted 20 February 2002
Abstract
An ongoing program on photometric and spectral monitoring of some bright
Seyfert galaxies has been carried out at the Crimean Astrophysical
Observatory since 1989. Results of photometric observations of
NGC 5548 obtained with the 1.25 m telescope are reported in this paper; it
focuses on the analysis of intranight variations. During 44 observational
nights in 1993-1999 in each spectral band of the Johnson UBVRI system,
672 measurements have been performed simultaneously through the round aperture
(diameter 15)
using differential photometry techniques. The estimated
accuracy of each measurement is about 0.01 mag. The peak amplitude
for the whole light curve was
observed in the U band, while the minimum amplitude
occurred in the I band
during the full observation period.
UBVRI observations and good sampled data of international monitoring
campaigns of NGC 5548, were used to calculate Structure Functions.
A comparison is made of the characteristics of the long and short time scale
variations of NGC 5548 with those of NGC 4151,
NGC 7469 and NGC 1275. In order to examine the intranight variations of
the nucleus of NGC 5548, standard deviations (SD) of the nightly
averaged flux F, and a measure of intranight variability - SD/F were
calculated for each night. Using this parameter, a probability
characteristics is introduced, and duty cycles (the fraction of time when
the galaxy is variable), characterizing the efficiency of the central energy
source, were evaluated. It is concluded that intranight variability is
really transient in character and manifests itself with different
probabilities for different galaxies.
Key words: galaxies: Seyfert: photometry - galaxies: individual: NGC 5548
Seyfert Galaxy nuclei (Sy) together with quasi-stellar objects (QSO), BL Lac type objects (Lacertides and Blazars) and some others are part of the broad class of objects called Active Galactic Nuclei (AGN). It is probable, that all these objects are different versions of the same phenomenon. Variability on different timescales throughout the entire electromagnetic spectrum is a common property among AGNs. The circumnuclear region cannot be resolved spatially, so a productive way to investigate nuclear phenomena is to study continuum and line variability, especially on short timescales. One can obtain important information on the structure and kinematics of this region by examining how the broad-line profiles change in response to changes in the continuum flux (this is the so-called "reverberation mapping" technique, see Blandford & McKee 1982 and Capriotti et al. 1982). A cross-correlation function (CCF) between the continuum and emission-line light curves is a measure of the variable part of broad-line region (BLR), see Koratkar & Gaskell (1991). To detect accurately a time delay between a change in the ionizing continuum and a corresponding change in the emission-line flux is one of the goals of the International AGN Watch project; closely spaced multiwavelength observations of several bright Seyfert 1 galaxies have been obtained during the past decade (see, for instance, Rodriguez-Pascual et al. 1997).
One of the main targets for AGN Watch campaigns is the low-redshift ( z = 0.0168) Seyfert 1 galaxy NGC 5548 (Clavel et al. 1991). The optical continuum variability of this nucleus was first reported by Deych (1966): an increase of the galaxy brightness of 0.5 mag in the period from 1940 to 1956 was registered using photographic plates. Lyuty (1972) detected U band brightness variations up to 0.7 mag in 250 days.
The results of the ground-based observations obtained during a period of
8 years in the frame of the AGN Watch project showed that the nuclear continuum
in the optical has varied by a factor of more than 7, and the Hemission line has varied by a factor of nearly 6 (Peterson et al.
1999). The time lag between variations of the continuum flux and the
H
line is
10-20 days, varying somewhat in the sense that the
lag is larger when the source is brighter. During the multiwavelength
monitoring campaign, the 1350 Å continuum flux was found to have varied by
a factor of 2; the variability amplitude was larger at shorter wavelengths,
and more short time scale variability was observed (probably) at shorter
wavelengths (Korista et al. 1995). Dumont et al. (1998)
modeled the BLR in NGC 5548 as a 3-zone region where the location
of the various components was determined by the mean values of the
line-to-continuum lag.
The existence of small variations in brightness at different frequencies
("microvariability") is now a well established fact for the most luminous
active nuclei of a BL Lac type and for highly polarized quasars. The most
rapid rate of change detected (
mag/hour) was reported by
Carini et al. (1991) for a BL Lac object, AP Librae. The
clearest detection of microvariability (but not the only one) obtained during
a two year intensive monitoring of a BL Lac object 3C 66A was a
0.2 mag decline in the brightness in 6 hours (Takalo et al. 1996).
The authors did not see microvariability during each night's monitoring,
thus they claimed that the microvariability in 3C 66A (and perhaps
in all blazars) is a randomly occurring event. They suspected that the
mechanisms for different time scale variations are not connected: the flares
and outbursts are caused by shocks in the jet and the microvariability
(perhaps) by instabilities in the accretion disk.
In the case of Seyfert galaxies the existence of microvariability is still
under debate. This is probably connected with the fact that Seyfert galaxies
do not show variability on a detectable level every night. Intranight
variations of the type 1 Seyfert galaxy NGC 4151 are reported by
Lyuty et al. (1989) only on 8 observation nights out of 13. The
accuracy of observations performed in the V band was 1%. Variations
with an amplitude of
0010 and time scale of 15-30 min were detected
on some nights. They also concluded that manifestation of rapid variability
is (perhaps) independent of mean galaxy brightness.
The shortest time scale of variations in the optical was reported by
Dultzin-Hacyan et al. (1992) for the NGC 7469 galaxy
nucleus. Using a Stromgren photometer, they investigated variations with a
duration of 13 min and average amplitude
0040 (at a
4.5 level) within a 20
diaphragm during the first four
out of 5 photometric nights (
29 hr) of the observing run on August
1990. During the fifth night the variability nearly disappeared. A very
thorough analysis of errors was reported.
New results on the multiwavelength variability of AGN obtained over the past decade can be found in the review by Ulrich et al. (1997) together with a discussion of all available models for energy sources producing variable fluxes. They pointed out that the intranight continuum variability in the optical is generally small, with only a weak tendency for larger amplitude variability at shorter wavelength. The best current model for the rapidly variable continuum emission is reprocessed emission from a dense medium irradiated by variable X-rays.
An ongoing program on photometric and spectral monitoring of some bright Seyfert galaxies has been carried out at the Crimean Astrophysical Observatory since 1989. The results of photometric observations of NGC 5548 are reported in this paper; it focuses on the analysis of the intranight variations. A comparison is made of the characteristics of long and short time scale variations of NGC 5548 with those of NGC 4151, NGC 7469 and NGC 1275.
Accurate multicolor UBVRI photometry has been carried out with the 1.25 m telescope at the Crimean Astrophysical Observatory using a five-channel version of the Double Image Chopping Photometer-Polarimeter by Prof. V. Piirola (1973).
The observations were made simultaneously in five colors using dichroic
mirrors to split the light into five spectral bands. The resulting passbands
are close to the standard Johnson's UBVRI photometric system, with
effective wavelengths of 0.36, 0.44, 0.53, 0.69 and 0.83 m,
respectively, corresponding to values of log
,
log
,
log
,
log
,
log
in frequency units (Hz) used throughout the paper.
In the focal plane of the 1.25-meter telescope there is a diaphragm with two
equal apertures (circular apertures 20,
15
or 10
in
diameter are used). The distance between the centers of the apertures is
26
.
The light of the observed galaxy (star) passes through one of the
apertures while the other samples the background. A rotating chopper
alternately closes each of the apertures. Thus the photocathode is
illuminated alternately by the galaxy (or the star) and the sky background.
Because the centers of the apertures are closely spaced, special observations
of the pure background at a distance of about 7
from the galaxy
nucleus are added in order to correct the background observations for a
contribution from the outer regions of the galaxy.
The telescope is fully automated: during observations an autoguider is
employed. As a rule, the galactic nucleus was observed on nights with good
atmospheric conditions (estimated seeing between 1
- 5
). The
object positioning during observation is done by the autoguider with an
accuracy of better than one-fifth of the estimated seeing, i.e. better than
1
in the worst case. The positioning of the galaxy nucleus in the
aperture is done by the autoguider, too, using the guide star, and to within
the same positioning errors.
In order to estimate the influence of errors from possible miscentering
and/or misguiding of the nucleus, a special test observation was made of the
NGC 7469 nucleus (see Fig. 4 in the paper by Merkulova 2000). The
result of this guiding test is very near to the calculations that have been
made by Dultzin-Hacyan et al. (1992): the measured brightness has
an appreciable error (more than 1%) at a distance more than 5
from
the center of a 20
diaphragm.
A conventional technique of differential measurements of variable stars was
used. Two comparison stars (labeled as C1 and C) were taken from the list of
Lyuty (1972). Observations were performed against comparison star
C1; C was used for check purposes. The re-estimated magnitudes of a
comparison star C1 are as follows:
,
,
,
,
and
.
Secondary UBVRI standards by Neckel & Chini
(1980) were used for this purpose.
As a rule, observations are carried out in the following sequence: C-C1 - sky - AGN - sky - C1 - C - sky, etc. The time resolution
was about 3.5 min. During each observation 8 integrations of 10 s each
were made. The data reduction was done using the standard photometry
reduction package.
Photon statistics (corrected for sky background) were
applied to calculate photometric errors, which should be the same as rms
errors obtained by averaging 8 integrations. Taking into account the
variations of the background and comparison star, we derived rms errors of
a single observation in each of the UBVRI bands, of 0016, 0017,
0022, 0012, and 0020, respectively. Therefore, the rms errors of a
mean observation consisting of a series of 8 measurements are equal to
= 0006, 0006, 0008, 0004, and 0007, respectively.
Similar accuracies of about 1 percent are claimed for other Seyfert galaxy nuclei observed in the frame of the photometric monitoring program. This reported level of accuracy needs some comments:
1) As is known, Seyfert galaxies do not show their variability every night. So, the author searched for a long night when a Seyfert galaxy showed a light curve that was constant to within about 1 percent. The observations of the NGC 4151 nucleus are best sampled. During the night of JD 2449432 the fluxes in all bands were almost constant, especially in the B-band (see Fig. 1). From this figure, the brightness in the B-band can be seen to be constant to within about 1 percent.
![]() |
Figure 1:
The light curve
of NGC 4151 obtained with a circular diaphragm 15![]() |
Open with DEXTER |
2) In order to test the observational technique used for the observations of all Seyfert galaxies reported here, a special observation was made using comparison stars from the list by Luytyi (1972) for the galaxy NGC 1275: instead of the galaxy nucleus the author used the star C2, and observations over the night 24/25 December, 2000 (JD 2451903) were made using C1 as a standard star. The background was measured at the same distance as it was during the real observation of this galaxy nucleus. The results of this observation can be seen in Fig. 2.
![]() |

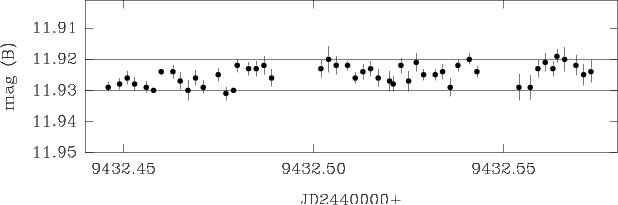

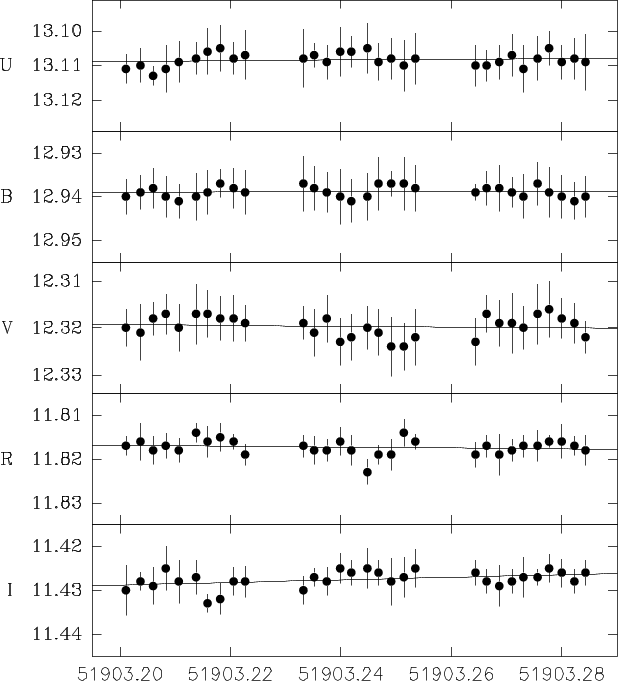

Figure 2:
The light curve
of the comparison star C2 for the galaxy NGC 1275 which was observed as "a
galaxy" in a standard manner using a circular diaphragm 15![]() |
Open with DEXTER |
From this figure, all data are within the error bars, and
nightly mean values for the star C2 are as follow:
,
,
,
,
and
.
In total, 672 observations of the NGC 5548 nuclear region were
obtained over 44 nights on 7 observing runs from 1993, March 22 to 1999, July
10 (JD 2449069-JD 2451370), using a circular aperture 15
in
diameter. The intranight observations lasted from 05 up to 35.
The net on-source integration time was about 47 hours, in total. All dates
with number of observational points
were excluded from the sample
analyzed.
Stellar magnitudes were transformed into fluxes in mJy
(
Hz), using standard
procedures (O'Dell et al. 1978). The observations were averaged by
night; the light curves in the UBVRI bands are shown in Fig. 3. Vertical
bars are rms errors of nightly averaged values.
![]() |

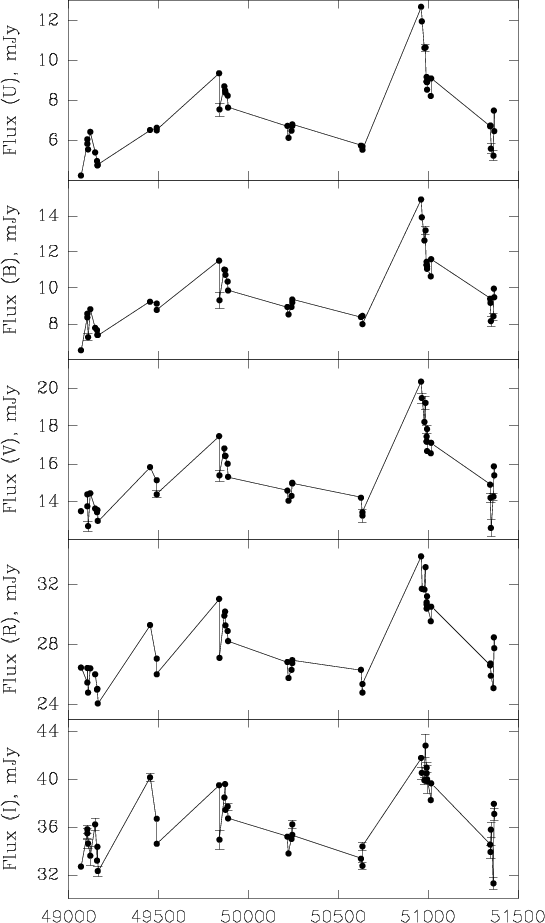

Figure 3:
The light curves
of NGC 5548 obtained with the circular diaphragm 15![]() |
Open with DEXTER |
Unfortunately, these observations are not well sampled. Two parts of the data
reported here were used in two papers written when analyzing two monitoring
campaigns of the NGC 5548 nucleus (Korista et al. 1997; Dietrich et al.
2001). In both cases the data obtained by the author coincided well with the
other data. Figure 4 shows the comparison of our observations with a part of
the best sampled data obtained in the framework of the International AGN
Watch monitoring (Peterson et al. 1999). Unfortunately, these data are not
multiwavelength; only fluxes at
5100 Å in ergs cm-2 s-1 Å-1
are available. These data reduced to their average are shown by
dots in Fig. 4. Fluxes obtained by the author in the V band are expressed
in mJy; they were reduced to their average, too, and are shown by stars in
Fig. 4.
![]() |

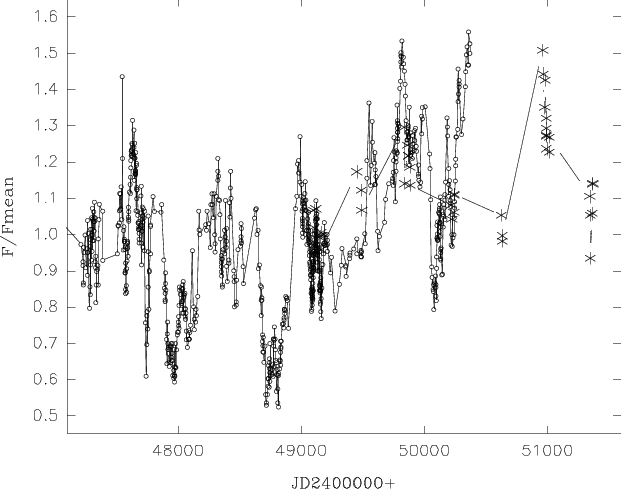

Figure 4: Comparison of two samples of the NGC 5548 nucleus fluxes: a part of the best sampled data obtained during AGN Watch monitoring are shown by open circles, and fluxes obtained by the author in the V band are shown by stars. All data are reduced to their averages. |
Open with DEXTER |
Observations of the nucleus of NGC 5548 were compared with analogous data samples of other Seyfert galaxies NGC 4151, NGC 7469 and NGC 1275. The homogeneity of data obtained with the same telescope using the same technique has made statistical comparisons possible among different galaxies and different wave bands. The following samples were used for the analysis:
1) Observations of the NGC 4151 nucleus obtained over 96 nights in 1989-1996. More than 1500 measurements were done simultaneously in each spectral band using the same technique as described in this paper (Merkulova et al. 1999). The light curve of NGC 4151 in each of UBVRIbands shows a slow increase of intensity during almost the entire observation period, overlapped by rapid outbursts.
2) An analogous sample for NGC 1275 (a BL Lac type object) consisting of 820 measurements performed simultaneously in 5 bands over 37 nights. The data have been published by Pronik et al. (1999a). From the late 70ies the nucleus has been at minimum brightness.
3) Observations of the nuclear region of the Seyfert galaxy NGC 7469 obtained over 64 nights in 1990-1998 consisting of about 1500 measurements (Merkulova 2000). During the observing period the mean luminosity of the nucleus was almost constant; only overlapping brightness fluctuations were observed.
For each sample, the estimated accuracy of a single measurement was about
001, the monitoring over one night lasted from 0.5 to 5.5 hours,
the time resolution was about 3.5 min. Data on the galaxies and the data
samples in question are combined in Table 1; summarized as follows:
Object, | Observing | Duration | No. of | No. of | Redshift | Distance | Aperture, | Aperture |
type | period | in years | nights | runs | z | (H0=75 km s-1/Mpc) | arcsec | dimension |
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
NGC 1275 | 22 Dec. 1989- | 4.7 y | 37 | 5 | 0.0178 | 71 Mpc | 20 | 6.9 kpc |
BL Lac | 29 Dec. 1994 | |||||||
NGC 4151 | 11 Feb. 1989- | 7.5 y | 96 | 8 | 0.0033 | 14 Mpc | 20 | 1.4 kpc |
Sy1 | 14 Jun. 1996 | |||||||
NGC 5548 | 22 Mar. 1993- | 5.8 y | 44 | 7 | 0.0168 | 67 Mpc | 15 | 4.9 kpc |
Sy1 | 10 Jul. 1999 | |||||||
NGC 7469 | 24 Sep. 1990- | 7.9 y | 64 | 9 | 0.017 | 68 Mpc | 20 | 6.6 kpc |
Sy1 | 22 Oct. 1998 |
Column (1) - name and type of the object, (2) - start and end date of the observing period, (3) - duration of the observing period in years, (4) - number of observation nights, (5) - number of observing runs, (6) - redshift z, (7) - galaxy distance (the Hubble constant H0=75 km-1 s-1 Mpc-1 throughout the paper), (8) - aperture used in the observations, (9) - aperture projection onto sky.
A parameter
(ratio of the maximum flux
to the
minimum one
)
was calculated for the whole observation period
of the NGC 5548 nucleus. In Fig. 5, the ratios
are shown for the different wave bands (filled
circles). One can see that the peak amplitude
on the light curve was observed in the U band, while the minimum
amplitude
was in the I band during the
whole observation period.
The variability parameter
of the Sy1 galaxy NGC 7469
is shown in Fig. 5 by open circles. This parameter was obtained from the
UBVRI observations for the period 1990-1998 only (Merkulova 2000).
The photometric behavior of these two galaxies was almost identical. But the
variability amplitudes in the U and B bands are higher for
NGC 5548, and they are almost equal for V, R, I bands. It is clear that the
amplitude of long-term variations is higher in the UV region than in the
near IR, where stellar contamination is higher.
A new cycle of nuclear activity observed in NGC 4151 (filled
triangles) distinguished this Sy1 galaxy from the other two Sy1, especially
in the UV region. It is interesting that NGC 1275 shows long-term
variations on a time scale of years (open triangles), which are almost
identical in all wave bands.
![]() |

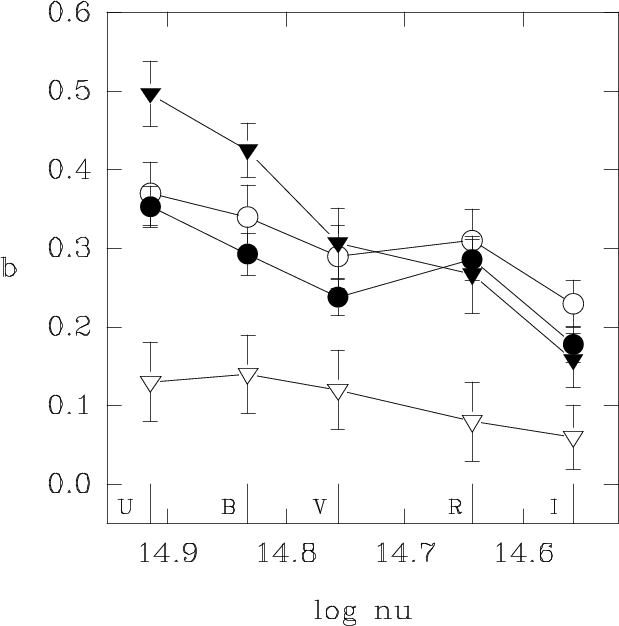

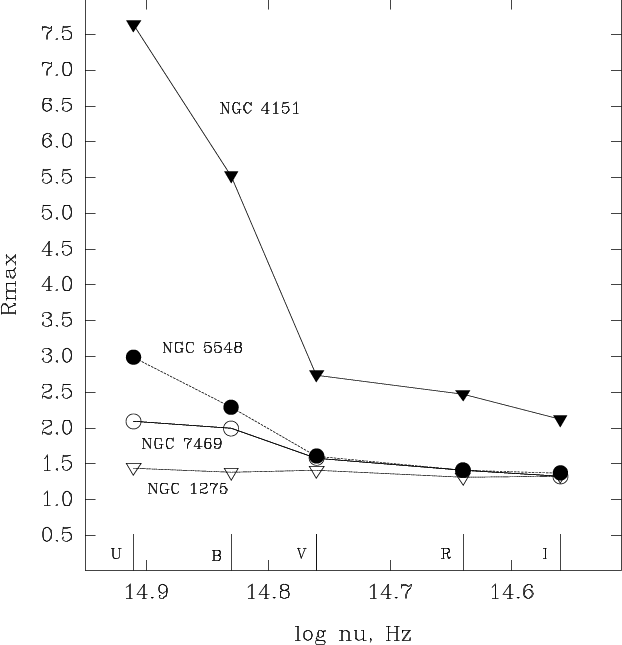

Figure 5:
Variability
amplitude
![]() |
Open with DEXTER |
A formal technique to analyze light curves involves the computation of the
Structure Function (SF) discussed by Simonetti et al. (1985).
The first-order SF is defined as:
![]() |
![]() |
A special program package by S. G. Sergeev has been used for the Structure
Function calculations. The codes were tested using observations of the quasar
3C 273. The results of the test allow us to conclude that the
program package works well (Pronik et al. 1999b). Optical observations
of the quasar 3C 273 during 1887-1967 reduced in a common system by
Kunkel (1967) and given in arbitrary units by Fahlmann & Ulrich (1975)
were averaged over 100 days intervals and used for testing. The SF was
calculated, and the maximum time of correlated variability
was
evaluated equal 3.2 years; this corresponds to a logarithmic slope b=0.98.
The light curve of this quasar was investigated with a correlation method and
power spectra analysis by Kunkel (1967), Terrel & Olsen (1970), Terebizh
(1993) and others. According to these investigations, the power spectrum of
the variable flux of 3C 273 is
.
The average
duration of one flare equals 3.2 years according to Terrel & Olsen (1970),
and 2.7 years according to Terebizh (1993). There is a simple correspondence
between the power spectrum of the Fourier analysis and the SF analysis: if
,
then
;
taking into account
this correspondence, one can obtain the power spectrum using the slope "b"
of the SF in the form
.
This shows that the evaluated
characteristics obtained from the SF analysis are in good agreement with the
data calculated by other authors using different methods.
The Structure Function is calculated by binning time lags; bins are
evenly spaced in time on a logarithmic scale.
The value of the Structure Function was calculated for ni pairs
falling into an ith bin with time lag dt (
).
The errors on the SF calculations are equal to the
errors of the mean value of the SF calculated for the ith bin.
Thus, it is possible to evaluate confidence levels of
the SF for each bin, using the
-test.
For clarification Fig. 6 shows the SF for the variable flux of
NGC 5548 in 1993-1999 for the U band (top panel) only. One can see that there
is no SF of a simple "ideal" one-process form with one slope for all time
lags. The slopes "b" of the SF for the intranight and years variations are
essentially different. Moreover, intranight variability in different bands is
characterized by different slopes and different values of
,
i.e.
there are flares present with different durations. Parameters of SFs for
long-term and intranight variations should be considered separately.
Therefore, a regression line on the SF is indicated only for long-term
variations.
The observations of the nucleus of NGC 5548 by the author are poorly
sampled; it would be interesting to use better sampled data, for example,
data of the International AGN Watch campaigns. These data are badly sampled
on time scales less than 1 day because only 2-3 measurements were obtained
per night, and data obtained by different authors were combined and
intercalibrated. But on time scales of more than 1 day an unprecedented
sampling has been obtained: a typical spacing is a few days between
observations (Peterson et al. 1999). A sample of "pre-AGN Watch"
intercalibrated data from the paper by Sergeev et al. (1997) was
used as well. The whole sample analyzed here contained 1096 measurements
obtained over 19 years in the period from 1977 (JD 2443216) to 1996
(JD 2450373) by different authors; the data were intercalibrated thoroughly,
and were taken from papers by Peterson et al. (1999) and by Sergeev
et al. (1997). Unfortunately, these data are not multiwavelength;
only fluxes at
5100 Å in ergs cm-2 s-1 Å-1 are
available. The Structure Function presented in Fig. 6 (bottom panel) was
calculated using all these data.
![]() |

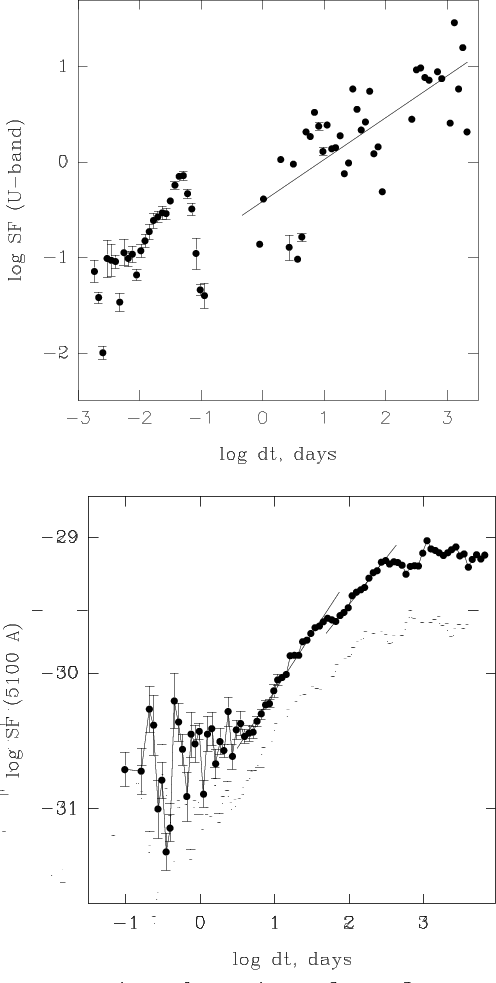

Figure 6:
Structure
Functions of the variable flux of the NGC 5548 nucleus calculated from
UBVRI observations (for clarity, the top panel only shows the SF for the
U band), and from the observations at ![]() |
Open with DEXTER |
Using the Structure Function technique, all results are derived on the assumption that the variability of AGNs can be represented as a random process of a flicker noise or a shot noise type. Therefore, it is possible to do some modeling of the observed light curve using a Monte-Carlo simulation. Such modeling will help us, for instance, to discard events due to the gaps in the data. This is a problem that calls for a separate consideration: a paper on the Structure Function technique with Monte-Carlo simulations of different kinds of light curves is now in preparation by Sergeev & Merkulova (2001). In this section results of Monte-Carlo simulations of the Structure Function of NGC 5548 are presented.
The so-called shot noise represents the random process set by the sum of a large number of short-term pulses (flares). The shape of the flares should be constant, and the amplitude is a random variable with a constant dispersion. The sequence of the moments of flares reflects a Poisson process, i.e., the moments of flares are randomly scattered over time. Let data trains be a superposition of separate flares. We also assume a power law distribution of flares, both of duration and of amplitude. We assume that the amplitude of the flares decreases with decreasing duration.
Data trains were created with the above-mentioned noise characteristics using
flare parameters that do not contradict the observations of the Seyfert
galaxies. The initial noise process was chosen to have a value of "b" very
similar to that calculated from the observed light curve.
![]() |

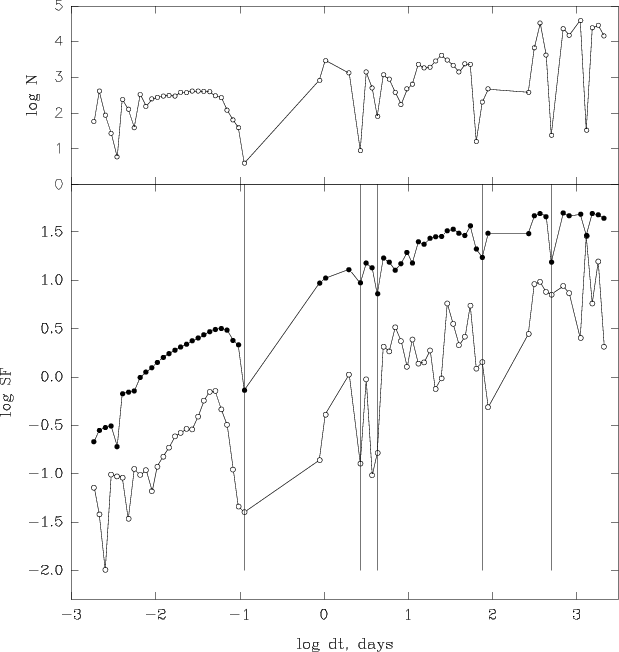

Figure 7: Bottom panel: comparison of the Structure Function for observations of the NGC 5548 nucleus obtained in the U-band (open circles) with the SF for the simulated "light curve" calculated as a mean from 500 simulations (filled circles; see text). Error bars are random noise at a level 1%. Vertical dotted lines indicate minima that are identical on both SFs; they are due to the gaps in the data sampling. The plot in the top panel corroborates this conclusion; these are logarithms of the number of pairs N falling within each bin against log dt. |
Open with DEXTER |
The following model of flares was used for data-train modulation: a minimal
duration of the flare of 0.001 day, and a maximal duration of the flare of 50 days,
a mean duration between two successive flares equal to 0.05 day, i.e.
one flare occurs per 1.2 hour. Let the dependence of the distribution of
number of flares n on their duration
be
,
and let the dependence of distribution of amplitude A on flare
duration be
.
We assume
and
,
which yields "b"= 0.35 for the following range of time lag:
0.001 day
lag
50 days.
500 data trains were calculated using these noise characteristics, and all
simulated "light curves" were sampled with the same patterns as the real
data. Then random noise at a level of 1 percent was added to every simulated
"light curve". Structure Functions were calculated using these 500 simulated
"light curves", and slopes "b" were evaluated. The mean slope "b"
calculated from these 500 SFs and its standard deviation are equal to
.
All 500 Structure Functions were averaged and the mean
simulated SF showed close agreement with the real one (see Fig. 7). This
figure shows a comparison of the SF obtained from the UBVRI observations
(bottom panel: open circles; SF in the U-band) with the simulated SF(bottom panel: filled circles). Vertical lines show minima that are identical
on both SF, and that are due to the gaps in the data sampling. The top panel
shows the logarithms of the number of pairs N falling within a bin
determined by the lag dt (also on a logarithmic scale). It is clear that the
minima indicated by the vertical lines are in fact due to the gaps in the
data.
It is clear that the above assumptions and parameters of noise process fit the real Structure Function well:
1) The SF in the U-band (Fig. 7) may be represented by a regression
line with slope:
(from the first to the final point);
and by a regression line for the intranight part with slope
.
2) The mean simulated SF in Fig. 7 may be analogously represented by
regression lines with slopes
(from the first to the final point) and
(for the intranight part).
Parameters of the Structure Functions are presented in Table 2 for long-term variability in the UBVRI bands, for the whole observing time. Column 1 gives the wave bands, time intervals for possible correlated variability are specified in Col. 2, slopes "b" are shown in Col. 3, correlation coefficients for the corresponding regression lines are given in Col. 4.
Spectral | Time | b | r |
region | interval | ||
1 | 2 | 3 | 4 |
U | 1 d-2100 d |
![]() |
![]() |
B | -''- |
![]() |
![]() |
V | -''- |
![]() |
![]() |
R | -''- |
![]() |
![]() |
I | -''- |
![]() |
![]() |
One can see that the processes of mixed flicker-noise and shot-noise types are observed in different wave bands, and with different slopes.
From Fig. 6 (bottom panel; observations at
5100 Å), a variability
on a time scale of from days to hundreds of days is characterized by flares with
different slopes and different durations. All needed information is shown in
Table 3 as follows: Col. 1: spectral region; Col. 2: time intervals
for the correlated variability shown in Fig. 6 (bottom panel); Col. 3:
values of
characterizing the flares duration; slopes "b" and
correlation coefficients for regression lines in Fig. 6 are in Cols. 4
and 5, respectively. All parameters are shown with their rms errors.
It is clear that well-sampled data make it possible to
derive from the light curve some flares with durations of 14, 52, 98, 163,
and 310 days.
![]() |
Figure 8: Frequency dependencies of slopes "b" for 5 spectral bands obtained from Structure Functions calculated for long-term variability of 4 galaxies: NGC 5548 (filled circles), NGC 7469 (open circles), NGC 4151 (filled triangles), and NGC 1275 (open triangles). Vertical bars are error bars obtained while SF calculations. The locations of UBVRI wave bands are given by vertical lines in the abscissa. |
Open with DEXTER |
Processes causing long-term variability observed during analogous observations of other galaxies from Table 1 are compared in Fig. 8. From this figure, all Seyfert 1 galaxies show processes of a similar type (mixed shot noise and flicker noise). The BL Lac object NGC 1275, is distinguished from these Sy1 galaxies not only by its process type (almost pure flicker-noise), but also by the slope, which is approximately equal for all bands, indicating that identical types of processes occur in all wave bands on long timescales.
Spectral | Time |
![]() |
b | r |
region | interval | |||
1 | 2 | 3 | 4 | 5 |
5100 Å | 4 d-52 d | 14 d, 52 d |
![]() |
![]() |
5100 Å | 67 d-310 d | 98 d, 163 d |
![]() |
![]() |
Structure Functions for intranight variability of NGC 5548 in
UBVRI bands are shown in Fig. 9. From this figure it can be seen that
intranight variability in different bands is characterized by different
slopes and different values of
,
i.e. flares with different
durations are present. Therefore, regression lines on SFs are shown for time
intervals where slopes "b" are well defined. Two
types of flare are derived from these plots for different time intervals
which are indicated in this figure by two different lines. The intranight
part of the simulated SF (see Sect. 4.1) is plotted on the right bottom
panel. As the model does not allow us to create SFs with two slopes on their
intranight parts at a confidence level of 98%, we can conclude that the two
type of flares derived in SFs are real.
![]() |

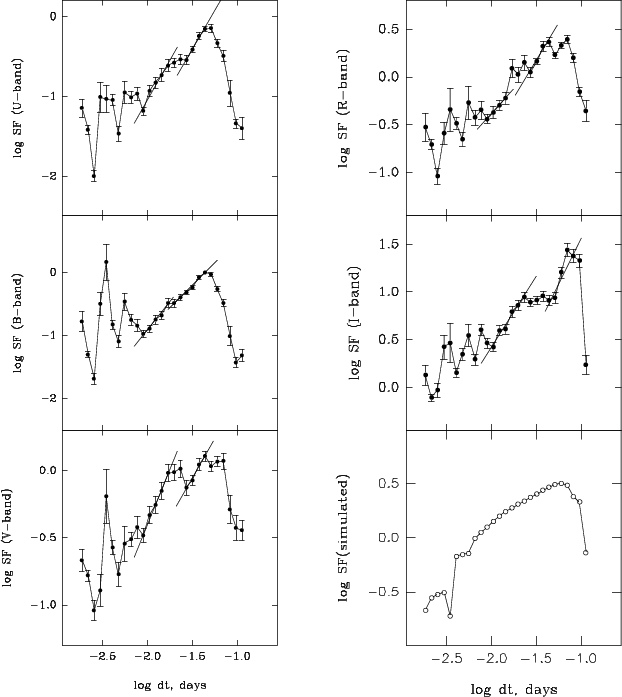

Figure 9: Structure Functions of the nucleus of NGC 5548 in UBVRI bands for intranight variations. Vertical bars are error bars obtained in the SF calculations. Regression lines are indicated for two different time intervals, where a good correlation was found (see text). The simulated SF for intranight variations is plotted on the right bottom panel (open circles). No steps are seen in this SF. |
Open with DEXTER |
The parameters of these SFs for intranight variations of NGC 5548 are presented in Table 4, as follows: Col. (1) - spectral band, Cols. (2) and (5) - time intervals for correlated variability, Cols. (3) and (6) - slopes "b" with rms, Cols. (4) and (7) - correlation coefficients and their rms.
Spectral | Time | b | r | Time | b | r |
region | interval | interval | ||||
1 | 2 | 3 | 4 | 5 | 6 | 7 |
U | 13 m-24 m |
![]() |
![]() |
39 m-63 m |
![]() |
![]() |
B | 13 m-24 m |
![]() |
![]() |
29 m-63 m |
![]() |
![]() |
V | 13 m-24 m |
![]() |
![]() |
39 m-63 m |
![]() |
![]() |
R | 13 m-21 m |
![]() |
![]() |
39 m-63 m |
![]() |
![]() |
I | 15 m-34 m |
![]() |
![]() |
63 m-102 m |
![]() |
![]() |
Date | JD | n | seeing | SD/F(U) | SD/F(B) | SD/F(V) | SD/F(R) | SD/F(I) |
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
01/02 May 1995 | 2449839 | 24 | 20 | 7.7 | 7.7 | 2.6 | 1.1 | 2.6 |
22/23 June 1998 | 2450987 | 18 | 25 | 7.3 | 6.7 | 7.9 | 7.1 | 9.3 |
28/29 June 1998 | 2450993 | 28 | 20 | 1.0 | 0.9 | 1.0 | 0.6 | 1.7 |
Two types of flares are present in the intranight light curves of the NGC 5548 nucleus (see Table 4): the more rapid ones (durations of 21-34 min) are better seen in the UV region, where slopes "b" are equal to 1.94-1.61; those less rapid (durations of 63-102 min) are clearly present both in the U band (b = 1.94) and in the R,I bands (b = 1.61 and 1.99). It is clear that the slopes of the intranight variations of the NGC 5548 nuclear region depend on the spectral band.
The frequency dependencies of slopes b for the four galaxies in question are shown in Fig. 10. Two types of flares are observed in the light curves of the nucleus of each galaxy; they are shown by open and filled symbols: if flares are more pronounced in the UV region, they are shown by open circles (NGC 5548), triangles down (NGC 7469), squares (NGC 4151), or triangles up (NGC 1275); in contrast, if the flares are more pronounced in the red, that is indicated by corresponding filled symbols. From Fig. 10 it can be seen that the nucleus of NGC 5548 shows two above-mentioned flares of shot-noise type in the intranight light curves (open and filled circles, respectively).
Two levels of microvariability were revealed in intranight light curves of
NGC 1275 by Pronik et al. (1999b): high-level variability
with
hr is caused by almost pure shot- noise processes, with
the highest slope in the U band (open triangles up in Fig. 10); low-level
variability with
min is caused by a mixed flicker-noise and
shot-noise process, showing up most clearly in the R, I bands (filled
triangles up in Fig. 10).
In intranight light curves of NGC 7469 there are two types of variability present with different slopes (open and filled triangles down in Fig. 10). The results on the analysis of the intranight variability of NGC 7469 have been published by Merkulova (2000).
NGC 4151 shows intranight processes of a shot-noise type, too, but they are almost identical in all wave bands and have approximately equal slopes (open and filled squares) (Merkulova et al. 2001).
![]() |

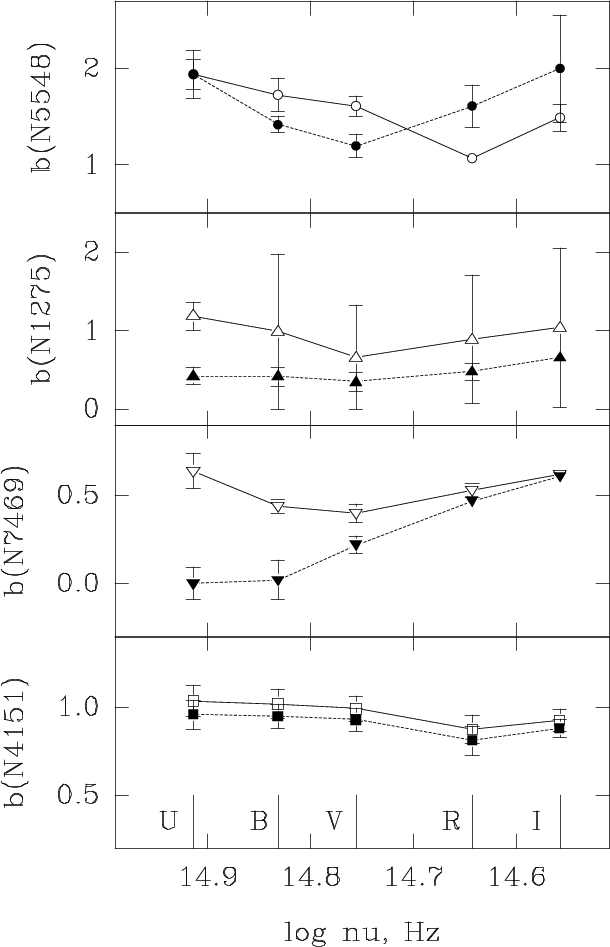

Figure 10: Slopes "b" for 5 spectral bands obtained from Structure Functions for intranight variations of 4 galaxies: NGC 5548 (open and filled circles); NGC 1275 (open and filled triangles up); NGC 7469 (open and filled triangles down); and NGC 4151 (open and filled squares). Open and filled symbols corresponding to two types of flares have been extracted from these SFs: if flares are more pronounced in the UV region, their slopes "b" are shown by open symbols and solid lines; flares more pronounced in the red are shown by filled symbols and dotted lines (see text). Vertical bars are error bars obtained from the SF calculations. The locations of UBVRI wave bands are given by vertical lines in the abscissa. |
Open with DEXTER |
From the Structure Function analysis of the data samples of the nucleus of
NGC 5548, NGC 4151, NGC 7469, and NGC 1275
the following conclusions can be made:
1) all galaxies show a mixture of
flicker noise and shot noise on a time scale of years. NGC 4151,
NGC 5548 and NGC 7469 show similar slopes at all wave bands,
excluding the UV region, where the contribution of shot noise is essentially
higher for NGC 4151, but this parameter is less sensitive to
the amplitude of a new cycle of activity than parameter
(Fig. 5). NGC 1275 shows almost equal slopes "b" (similar to
in Fig. 5), indicating that the flicker-noise process operates
in all wave bands.
2) slopes "b" for intranight variability on a time scale of hours indicated that the contribution of the shot-noise process is essential, particularly for NGC 5548. It is interesting that almost equal slopes "b" are observed in SFs of NGC 4151, indicating similar processes in all spectral bands.
3) two types of flares were deduced from the analysis of intranight variations of the four galaxies, and different slopes "b'' characterizing intranight light curves show different wavelength dependencies for different galaxies, indicating that different sources are probably working in the nuclear regions of NGC 5548, NGC 7469 and NGC 1275, but in the case of NGC 4151 only the one source is responsible for intranight variations.
In order to examine the intranight variations of the nucleus of
NGC 5548, and following the paper by González-Pérez et al. (1996),
the values for the standard deviations (SD) of the nightly averaged flux F,
and of SD/F, which is a measure of the intranight variability, were
calculated for each night of the observations. The ratio SD/F is preferable
as a measure of small variations, as it is calculated statistically. This
parameter is a measure of the variability amplitude over a night, which is
independent of the galaxy's brightness. Values of SD/F are independent of
seeing; for example, if SD/F is plotted versus seeing, the regression
coefficients are equal to 0.148 for the U band, and 0.042 for the I band,
respectively. Most observations were made during the nights with seeing
3
.
Representative light curves displaying the observed microvariability in five spectral bands UBVRI (bottom to top in each panel, respectively) obtained over three nights are given in Fig. 11. Vertical axes give the brightness of the nucleus in mJy, the vertical bars indicate the rms errors about the mean obtained by averaging 8 integrations.
Table 5 lists the variability parameters S
for these nights (Cols. 5-9), together with dates and Julian Dates (Cols. 1, 2), number of
measurements n (Col. 3), and seeing during the night in arcsec (Col. 4).
In Fig. 11b (JD 245987) one can see a rapid flare obtained during a
ground-based optical monitoring campaign on NGC 5548 in June 1998. The
broad-band flux increased by
within
30 min and
decreased within
60 min to the flux level at the beginning of this
event. It was shown that this flux increase could not be due to temporal
variations of a standard star (see Fig. 2 in Dietrich et al. 2001). This
short continuum flare is described in detail in the cited paper.
For OJ 287 (a BL Lac type object) González-Pérez et al. (1996) found a moderately strong anti-correlation in the sense of the fainter the object, the greater the microvariability amplitude. One would expect such a correlation if all microvariability were generated by the same mechanism and typically involved the same level of energy generation (e.g. flickering on the accretion disc with a constant energy output), independent of background level. In Fig. 12, there is hardly any correlation of flux with intranight-variability amplitude; the correlation coefficients are: rU=0.174, rB=0.067, rV=0.146, rR=0.138, rI=0.086. No correlation was found in the case of NGC 7469 (Merkulova 2000) either. Thus, the model of Disc Instability (DI) does not appear to be supported by the occurence of intranight variability.
It is interesting to have a look at the behavior of the amplitude of intranight variability (expressed in SD/F) for the whole observational sample. For clarity, only data in the U and I bands are shown in Fig. 13.
Table 6 contains the mean amplitudes of the intranight variability of
NGC 5548 in each of the UBVRI bands during the whole observing
period (44 nights), as follows: Col. 1: spectral band, Col. 2: SD/Faveraged over 44 nights together with their rms errors. If we remove two
points of greatest amplitude in the U band (Fig. 13), the remaining data
show a mean
%. Similarly, when we remove one point
corresponding to flaring activity in the I band, the
remaining data show a mean amplitude
%. One can conclude,
that the amplitude of intranight variability in the U,B,V,I bands is equal
to
3.36% (i.e. averaging the values in Table 6), and
2%
in the R band, where the stellar contamination is greatest, decreasing
the level of intranight variability at this band.
Intranight variability does not manifest itself every night, therefore the
mean amplitude does not characterize microvariability fully. A probability
characteristic is needed. To this end the ratios
of
number of nights with SD/F
1%,
2%,
3%, and so forth,
(Ni), to all 44 observational nights, (
), were taken to
represent the percentage of the probability of detecting variability at a given
level, these ratios were plotted against the appropriate parameters SD/F in
Fig. 14. The data in the U, B, V, I bands coincided well, so they were
averaged, while the data in the R-band differ from the others. These
curves were fitted well by second-order exponential decay functions (solid
lines in Fig. 14). From this figure, one can deduce, for example, that the
probability of detecting intranight variability with an amplitude
2% in
the
U, B, V, I bands is equal to
55%, while in the R band this
probability is
40%.
Some nights with excessive variability
(amplitudes in the range 5-7%) are marked by open triangles in Fig. 14.
As has been shown in this paper, intranight variability may be a result of random processes. From this it follows that exponential functions should give good approximations of the probability curves, because random processes are fitted well with exponential and Gaussian functions. Thus, probability curves also demonstrate the random character of the short-term variability of Seyfert galaxies.
![]() |

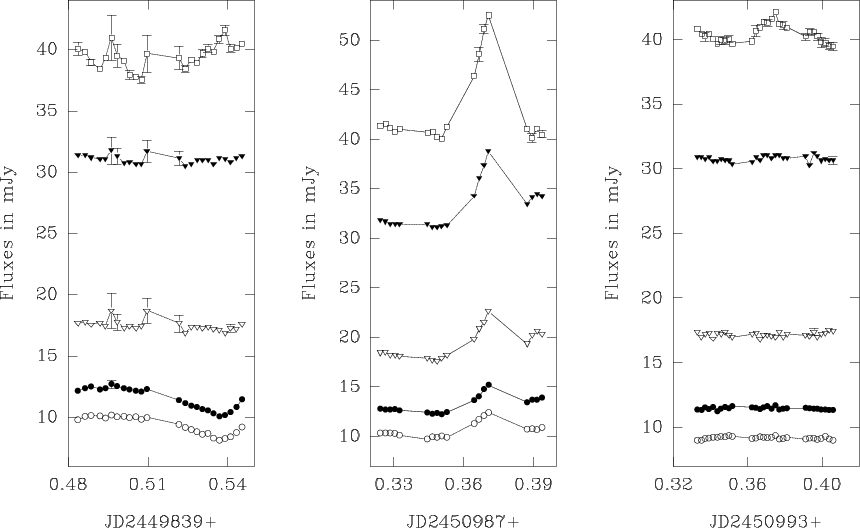

Figure 11: Intranight light curves: a) JD 2449839; b) JD 2450987; c) JD 2450993 (see Table 5 for more information). |
Open with DEXTER |
Spectral | SD/F |
region | %% |
1 | 2 |
U |
![]() |
B |
![]() |
V |
![]() |
R |
![]() |
I |
![]() |
![]() |

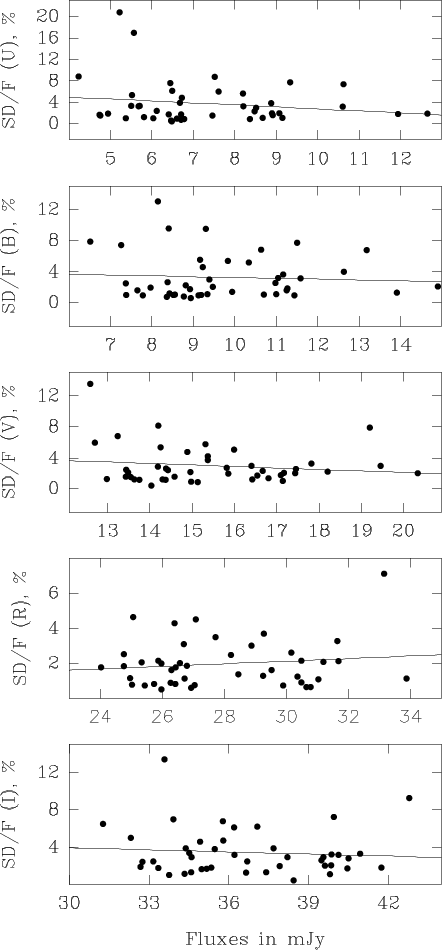

Figure 12: SD/F - flux density for intranight variations of the NGC 5548 nucleus in 1993-1999. The straight lines are regression lines. |
Open with DEXTER |
![]() |

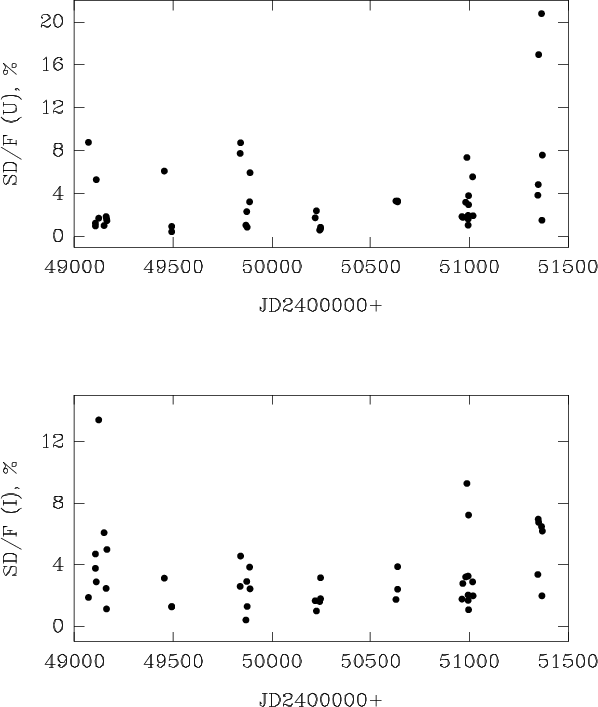

Figure 13: Behavior of the amplitude of intranight variability (in SD/F) for the whole observational sample (44 Julian Dates). For clarity, only data in the U and Ibands are shown. |
Open with DEXTER |
![]() |

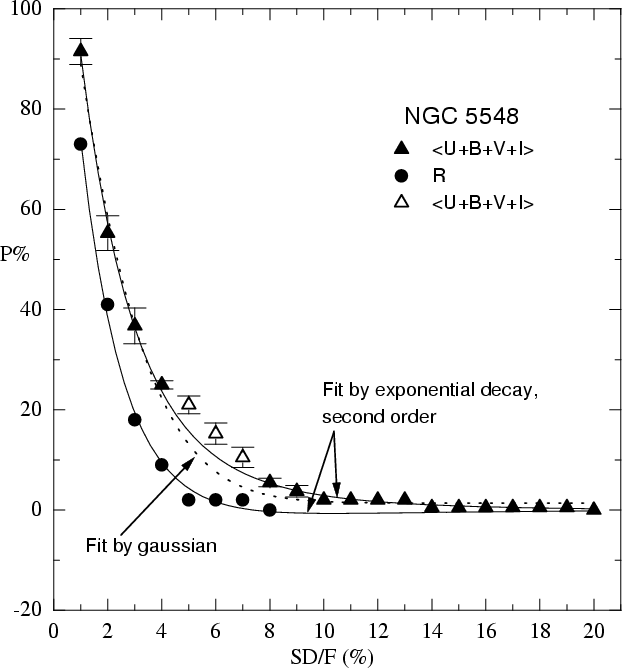

Figure 14:
A "probability
curve'' for NGC 5548: The ratios
![]() ![]() ![]() ![]() ![]() |
Open with DEXTER |
![]() |

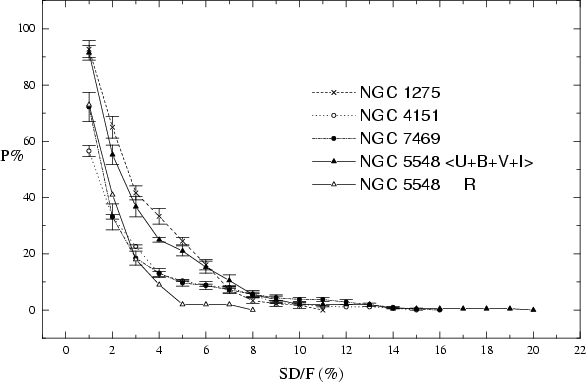

Figure 15: The same curves as in Fig. 14, but for different galaxies: crosses: NGC 1275; open circles: NGC 4151; filled circles: NGC 7469. All these curves are averaged over 5 bands. The probability curves of NGC 5548 are averaged over the UBVI bands (filled triangles); the same curve for the R wave band is shown by open triangles. Vertical bars are error bars. |
Open with DEXTER |
Analogous curves for the galaxies NGC 4151, NGC 7469 and NGC 1275 can be found in Figs. 8-10 in Merkulova (2000). These curves were fitted well by second-order exponential decay functions, too. To compare such curves for all galaxies discussed here, they are plotted in Fig. 15 by different symbols as indicated in the caption. The curves for each galaxy were averaged over all wave bands; bars are rms variations about these averages. Open triangles show the probability curve for data obtained in the R band of NGC 5548. It differs essentially from the other curves, defining the lowest level of variability in the R band. Averaging over the other four bands yields a curve that is near the probability curve of NGC 1275 (a BL Lac object), defining a level of variability, that is higher than those for the two other Sy1 galaxies , NGC 4151 and NGC 7469. Probability curves for these two galaxies coincided well. The mean brightness of NGC 1275 and NGC 5548 is less than that of NGC 4151 and NGC 7469, indicating that the difference in Fig. 15 might be caused by observational errors. However, the separate location of the probability curve for the R band of NGC 5548 contradicts this supposition. As a result, one can conclude that intranight variability is really transient in character and manifests itself with different probabilities for different galaxies.
Assuming that the intranight variability can be detected at a level as low
as
1%, the probability of detecting variability on such a level could
be translated into a duty cycle (the fraction of time when the galaxy is
variable), characterizing the efficiency of the central energy source. Duty
cycles for NGC 5548, NGC 4151, NGC 7469 and
NGC 1275 are shown in Fig. 16 for variability level
.
In general, duty cycles for all galaxies are greater than 0.5. Variability
independent on wavelength is detected in the nuclear region of
NGC 4151. In the case of NGC 5548 and NGC 7469 the efficiency
of their central sources is lower in the R band, probably because of the
influence of stellar contamination. The independent IR source in
NGC 7469 may cause the high duty cycle in the I band (Merkulova
2000).
![]() |

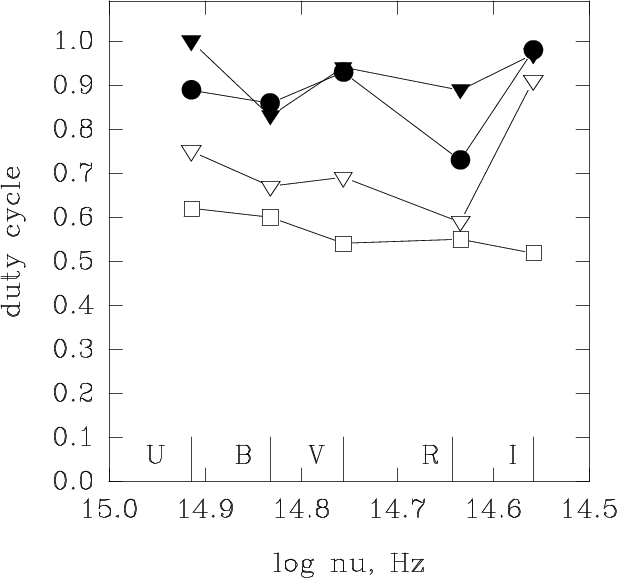

Figure 16: "Duty cycles" for NGC 5548 (filled circles), NGC 7469 (open triangles), NGC 4151 (open squares), and NGC 1275 (filled triangles). See text. The locations of UBVRI wave bands are given by vertical lines in the abscissa. |
Open with DEXTER |
Observations of the nuclear region of the Seyfert galaxy NGC 5548
obtained at the Crimean Astrophysical Observatory with the 1.25 m telescope
are used to examine the continuum variability. Over 44 nights comprising 7
observational runs between 1993 March 22 and 1999 July 10 in each spectral
band of Johnson's UBVRI system 672 measurements have been performed
simultaneously through a circular aperture 15
in diameter.
Observations of the nucleus of NGC 5548 were compared with
analogous data samples of other Sy galaxies: NGC 4151 (Merkulova et al.
1999), NGC 1275 (Pronik et al. 1999a), and
NGC 7469 (Merkulova 2000). The homogeneity of data obtained
with the same telescope, using the same technique has made statistical
comparison possible among different galaxies and different wave bands.
The following conclusions are reached from the analysis of the data:
1) A peak amplitude
for the
whole light curve of the NGC 5548 nucleus was observed in the Uband, while a minimum amplitude
was observed in the
I band during the whole observation period. From a comparison with other
Seyfert galaxies discussed here, it is concluded that the amplitude of
long-term variations is higher in the UV region than in the near IR, where
stellar contamination is higher. Interestingly, for NGC 1275 shows
the amplitude of the long-term variability is practically independent of
wave band.
2) Variability on a time scale of from days to hundreds of days is characterized by flares with different slopes and different durations. Well-sampled data of the International AGN Watch campaigns make it possible to define flares with durations of 14, 52, 98, 163, and 310 days, using SFs.
3) Data samples of UBVRI observations of NGC 5548, were used to calculate Structure Functions; the SF parameters were compared with those calculated for other galaxies discussed. The following conclusions are drawn:
a) All galaxies show a mixture of flicker noise and shot noise on a time scale
of years. NGC 4151, NGC 5548 and NGC 7469 show
similar slopes in all wave bands, excluding the UV region, where the
contribution of shot noise is essentially higher for NGC 4151; the
slope is less sensitive for the amplitude of a new cycle of activity than
the parameter
.
NGC 1275 shows almost equal slopes "b" (similar to the parameter
), indicating that flicker noise is dominant in all wave bands.
b) Slopes "b" for intranight variability on a time scale of hours indicate that shot noise is dominant, particularly for NGC 5548. It is interesting, that almost equal slopes "b" are observed in the SFs of NGC 4151, indicating that on this time scale shot noise dominates in all spectral bands.
c) Two types of rapid flares occur in the SFs of the NGC 5548 nucleus: the more rapid ones (with durations of 21-34 min) are more distinct in the UV region; those less rapid (with durations of 63-102 min) are equally strongly present in the U band as in the R,I bands. It is clear, that the slopes of intranight variations depend on the spectral band. d) Two types of flares were derived from the analysis of intranight variations of the four galaxies in question, and different slopes "b" characterizing the intranight light curves show different wavelength dependencies for different galaxies, indicating that more than one source of variability is at work in the nuclear regions of NGC 5548, NGC 7469 and NGC 1275, but in the case of NGC 4151 only one source is responsible for intranight variations.
4) In order to examine the intranight variations of the nucleus of NGC 5548, standard deviations (SD) of the nightly averaged flux F, and a measure of intranight variability SD/F, were calculated for each night. This parameter is equivalent to the amplitude of variability over a night, and it is independent of the galaxy's brightness.
5) The amplitude of intranight variability of the nucleus of
NGC 5548 in SD/F units in the UBVI bands is equal to 3.36% when
averaged, and
2% in the R-band, where the stellar contamination is
greatest, decreasing the level of intranight variability in this band.
6) Intranight variability does not manifest itself every night, therefore,
the mean amplitude does not characterize microvariability fully. A
probability characteristics is introduced as the percentage of probability
of detecting intranight variability at a given level, resulting in a
"probability curve". For example, in the case of NGC 5548, the
probability of detecting intranight variability with an amplitude 2% in
the
U, B, V, I bands is equal to
55%, while in the R band it is
equal to
40%. There are even some nights on which amplitudes in the
range 5-7% are observed.
7) Assuming that the intranight variability can be detected for SD/F as low as 1%, the probability of detecting variability on such a level could be translated into a duty cycle (this is the fraction of time, where the galaxy is variable), characterizing the efficiency of the central energy source. Duty cycles for NGC 5548, NGC 4151, NGC 7469 and NGC 1275 are more than 0.5. Variability with the same amplitudes in all wave bands is detected in the nuclear region of NGC 4151. In the case of NGC 5548 and NGC 7469 the efficiencies of their central sources are lower in the R band, probably because of the influence of the stellar contamination. The independent IR source in the NGC 7469 may cause high duty cycle values in the I band (Merkulova 2000).
It is generally assumed that the prime energy source of an AGN is a massive
(10
)
black hole with a surrounding accretion disc.
Several recent results support this model of the central engine of AGN
(Stirpe 1996). The accretion disc is considered to be responsible
for part or all of the continuum emission and possibly for part of the line
emission. Intranight microvariability is explained easily in the frame of
this theory as instabilities on the accretion disc (DI). As the variability
of blazars is due to accretion processes, Elliot & Shapiro (1974)
forecast a time scale of the microvariability of the nicleus of
NGC 1275 of the order of 5 min. For this galaxy Edelson & Malkan (1986)
calculated a lower limit of the Schwarzschild radius equal to 3-10 light
minutes. Flux variability may occur on such a time scale. It does not
contradict our data on intranight variability of the optical continuum flux
of all Seyfert galaxies discussed in this paper.
The results may be explained by the standard model where shocks are propagating down a relativistic jet: the shock-in-jet model (SJ). There will be a high degree of microvariability, if jets are bent and turbulent (Marscher & Travis 1991; Wagner 1991). The explanation of the variability is based on the scenario of shocks propagating within the jet entering a turbulent region.
The main alternative theory by Terlevich et al. (1992) is based on multiple supernova explosions. Rapid variations are not easily explained by this theory.
Therefore, DI and SJ theories are preferable in explaining the intranight microvariability in Seyfert galaxies.
A moderately strong correlation in the sense of greater amplitude of microvariability when OJ 287 (a BL Lac type object) is fainter, has been observed by González-Pérez et al. (1996); one would expect such a correlation if all microvariability were generated by the same mechanism and typically involved the same level of energy generation (e.g. flickering on the accretion disc with a constant energy output), independent of background level. No strong dependence of flux on the amplitudes of intranight variability was found. No correlation was found in the case of NGC 7469 (Merkulova 2000), either. Thus, one can conclude that there is a discrepancy between the model of Disc Instability (DI) and the intranight variability manifestation.
Heidt & Wagner (1996) studied the intraday variability behavior of a complete sample of radio-selected BL Lac objects. In 28 out of 34 objects (82%) they detected intraday variability. Assuming that this detection rate could be translated into a duty cycle (the fraction of time, where a BL Lac object is variable), the duty cycle in this sample would be at least 0.8. Using Structure Function analysis, they derived typical timescales for 21 objects that lie in the range between 0.5 and 3 days. The observations can in general be explained with the standard shock-in-jet model, with the exception of the two best sampled BL Lac objects that display a variability behavior that can hardly be explained by this model.
In this paper the comparison of the characteristics of long and short timescale variations of NGC 5548 with those of NGC 4151, NGC 7469 and NGC 1275 is carried out. It was shown, that UBVRI variability may be a result of random processes at different timescales:
a) all galaxies show a mixture of flicker noise and shot noise on timescale of years, excluding NGC 1275, where only flicker noise is observed at all wave bands;
b) the variability on time scales of from days to hundreds of days is characterized by flares with different slopes and different durations;
c) it is supposed that intranight variations, particularly for NGC 5548, are mostly due to shot noise. The intranight variability is transient in character and manifests itself with different probabilities for different galaxies.
Acknowledgements
The author would like to thank Dr. S. G. Sergeev for the software and for stimulating advice; Dr. I. I. Pronik and Dr. S. I. Plachinda for helpful discussions, Dr. L. P. Metik for help during observations, The research described in this publication was made possible in part by Award No. UP1-2116 of the U. S. Civilian Research & Development Foundation for the Independent States of the Former Soviet Union (CRDF).
