Abstract
Mid-infrared spectra and submillimetre maps are investigated for five galaxies covering a range of star forming activity. We find a good spatial coincidence between the 850 $\mu$ m continuum emission and the strength of the PAH 7.7 $\mu$ m line. The PAH 7.7 $\mu$ m peak to 850 $\mu$ m flux ratio lies in the range around 2 with a moderate dispersion across the galaxies. Both PAH and cold dust emission correlate also with the emission from very small grains at 14.3 $\mu$ m, but regions with starbursts show an excess in the very small grain emission. This suggests that the PAH carriers are preferentially related to the regions dominated by cold dust and molecular clouds, where they are excited mainly by the interstellar radiation field. The lack of increased PAH/submm ratio in starburst knots suggests that starbursts play a minor role for powering the PAH emission in galaxies.

Key words: galaxies: NGC891, NGC1569, NGC6946, NGC7331, Arp244 - ISM - infrared: galaxies

1 Introduction

Polycyclic aromatic hydrocarbonates (PAHs, review in Léger & Puget 1989) are thought to be favourably related to star forming activity as traced by the H $_{\alpha}$ emission (Roussel et al. 2001). In this picture, massive young stars provide the UV photons for exciting the PAH carriers which reside at some distance from the HII regions. The PAH carriers are destroyed (or experience chemical transformations) in strong UV radiation fields like HII regions themselves (M17, Cesarsky D. et al. 1996). Hence, a complication of this picture is that the same mechanism, massive star formation, causes two opposite effects: PAH emission and PAH destruction.

With increasing star forming activity some kind of saturation or turn-over in the PAH strength would be expected. E.g. above some threshold in the IRAS F60/F100 ratio, as measure for star forming activity, the PAH strength decreases with respect to the emission of very small grains (VSGs) traced by the mid-infrared continuum (e.g. Helou et al. 1991; Dale et al. 2000; Madden 2000; Hunter et al. 2001). However, as pointed out by Dale et al., this inflection might just be due to increased VSG contribution. Thus, the issue of PAH destruction is not yet solved.

The PAH 7.7 $\mu$ m line to 850 $\mu$ m continuum ratio turns out to be similar for both ultraluminous infrared galaxies (ULIRGs) and normal starforming galaxies (Haas et al. 2001; Klaas et al. 2001). This suggests that per unit dust mass (as measured by the 850 $\mu$ m continuum flux) the extreme starbursts in ULIRGs do neither destroy many of the PAH carriers nor do they power the bulk of the PAH emission.

Resolved observations of the rather quiet edge-on galaxy NGC891 actually show the extensive PAH distribution to be similar to the one of large dust grains and neutral molecular clouds (Mattila et al. 1999). Also in our Galaxy the PAH features are widely distributed (Mattila et al. 1996), and they have been detected even in isolated cirrus clouds and reflection nebulae with low UV photon density (Lemke et al. 1998; Uchida et al. 2000), providing evidence that no extraordinary excitation conditions are required. However, a minimum radiation field is necessary to excite the PAHs; for example in M31 the star forming activity is very low (Xu & Helou 1996; Schmidtobreick et al. 2000), as well as the 7.7 $\mu$ m/11.3 $\mu$ m line ratio, i.e. the PAH 7.7 $\mu$ m strength (Cesarsky D. et al. 1998; Pagani et al. 1999). Nevertheless, PAH emission is found throughout this UV-quiet galaxy (Moshir et al. 1999).

Hence, a picture is desired which combines (1) the global correlation between PAH strength and star forming activity with (2) the relation of the PAHs with the quiet ISM. The following working hypothesis may be formulated: even in galaxies with strong star forming activity the bulk of the PAH emission does not come from the starburst regions, rather the PAH carriers are ubiquitously distributed in the ISM where they are excited by the interstellar radiation field (ISRF). In star forming galaxies the ISRF is sufficiently strong. In addition, an enhanced star forming activity leads to increased VSG emission, but has only moderate effects on the net PAH output. Locally a destruction of the PAHs in the HII regions may partly compensate for a possible enhancement of PAH emission in the surrounding. Finally, we do not expect the dust responsible for the 850 $\mu$ m emission to be as easily destroyed as the PAH carriers in intense radiation fields. In order to test this hypothesis, here we study the spatial distribution and intensity of the PAH features and the 850 $\mu$ m continuum (tracing the ISM) for five resolved galaxies with moderate to strong star forming activity for which appropriate maps are available from ISO and SCUBA. If the PAH 7.7 $\mu$ m peak flux to 850 $\mu$ m ratio does not change in the vicinity of starbursts, this would favour the hypothesis.

2 Data

The galaxies studied are NGC891 (egde-on Sb/c), NGC1569 (Irr with starbursts), NGC6946 (face-on Sc with bright nucleus and star forming complexes in the disk), NGC7331 (Sb with dust ring), and Arp244 (colliding galaxy pair "The Antennae''). The data sets used here have been published in the quoted references, but we focus on the relation between PAH, VSG and 850 $\mu$ m emission.

Maps at 850 $\mu$ m with a beam size of 15 $\hbox {$^{\prime \prime }$ }$ FWHM are available for all five galaxies, obtained with SCUBA at the JCMT: NGC891 (Alton et al. 1998), NGC1569 (Lisenfeld et al. 2002), NGC6946 (Bianchi et al. 2000), NGC7331 (Bianchi et al. 1998), Arp244 (Haas et al. 2000). The maps of NGC891, NGC6946 and NGC7331 were recalibrated. The flux calibration uncertainty lies at about 25%.

Mid-Infrared spectra with the low resolution spectrometer ISOPHOT-S (Lemke et al. 1996) between 5 and 12 $\mu$ m and the imaging spectrometer ISOCAM-CVF (Cesarsky C. et al. 1996) with circular variable filter between 5 and 16 $\mu$ m are available in the ISO Data Archive (Kessler et al. 2000): NGC891 (Mattila et al. 1998; Le Coupanec et al. 1999), NGC1569 (Madden 2000), NGC6946 (Helou 1999), Arp244 (Mirabel et al. 1998). These spectra (Fig.1) exhibit the prominent PAH features at 6.2, 7.7 and 8.6 $\mu$ m. They sit atop a continuum (as estimated for several positions and brightness levels of the spectra from an eyeball-fitted line between 5.5 and 9.5 $\mu$ m) which (at 7.7 $\mu$ m) has a strength of about 10-30% of the PAH 7.7 $\mu$ m peak flux. Shortward of 10 $\mu$ m the shape of the spectra is strikingly similar for nuclear regions, active regions in the disks, as well as quiet regions. Longward of 10 $\mu$ m the continuum increases in NGC1569 and Arp244 for those regions with starbursts. These show also the highest 7.7 $\mu$ m continuum. For NGC7331 the PAH nature of the MIR emission is evident from narrow band photometry (Figs. 4-6 in Smith 2000).

The MIR spectra sample only parts of the galaxies; a full coverage is available by ISOCAM broad band maps in the LW2 filter ( $6.7 \pm 1.5\,\mu$ m), with a photometric uncertainty of 20-30%. For those regions with spectral observations available we find a linear correlation between the PAH 7.7 $\mu$ m line line peak flux and the broad band 6.7 $\mu$ m flux representing line and continuum (see Table1). Thus the LW2 flux comes essentially from the PAH features, and a variation of the continuum strength plays only a minor role (<20%) for this filter.

Highly active starburst regions can be identified on 14.3 $\mu$ m maps. Therefore, we also compare the PAH and 850 $\mu$ m maps with broad band maps in the ISOCAM LW3 filter at 14.3 $\mu$ m which trace the contribution of VSGs.

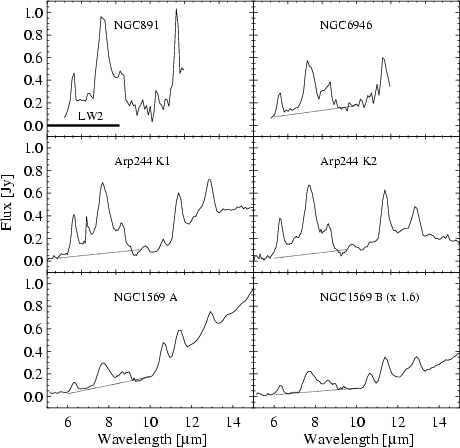

$\begin{figure} \par\resizebox{6.5cm}{!}{\includegraphics{Ea171_f1.ps}} \end{figure}$	Figure 1: MIR spectra at dedicated positions of the galaxies, showing the typical PAH features and the slope of the continuum, in particular longwards of 10 $\mu$ m. The dotted lines indicate the eyeball-fitted continuum around 7.7 $\mu$ m. The horizontal bar indicates the bandpass of the LW2 filter.
Open with DEXTER

3 Results and discussion

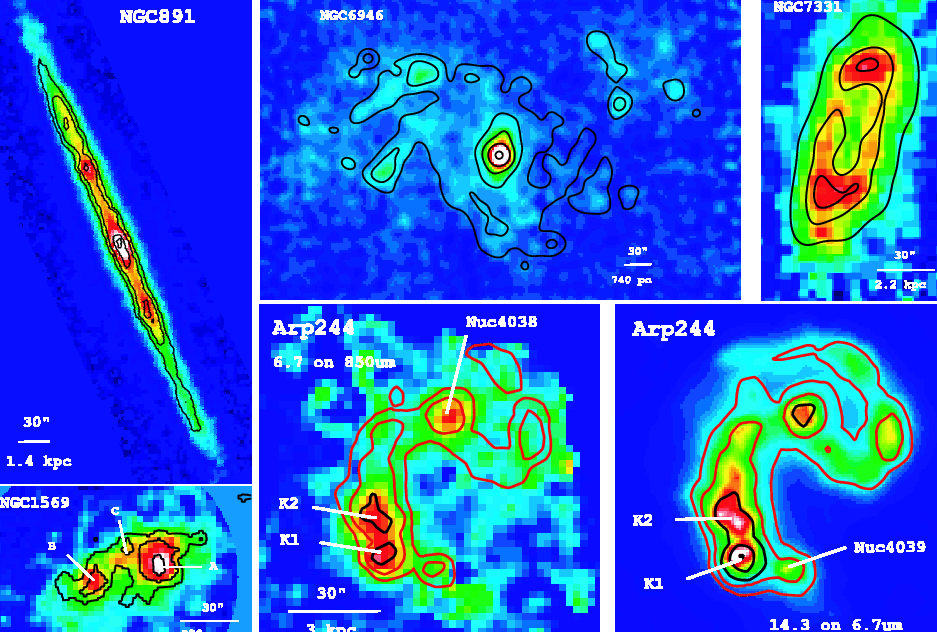

$\begin{figure} \par\includegraphics[width=11cm]{171fig.eps} \end{figure}$	Figure 2: 850 $\mu$ m maps with 6.7 $\mu$ m contour overlays showing the good spatial coincidence. North is up, east is left. Bottom right for Arp244: 14.3 $\mu$ m contours on a 6.7 $\mu$ m map, showing the increase of the 14.3 $\mu$ m emission with respect to that at 6.7 and 850 $\mu$ m in the starburst area K1.
Open with DEXTER

$\begin{figure} \par\resizebox{4.8cm}{!}{\includegraphics{Ea171_f3.ps} } \end{figure}$

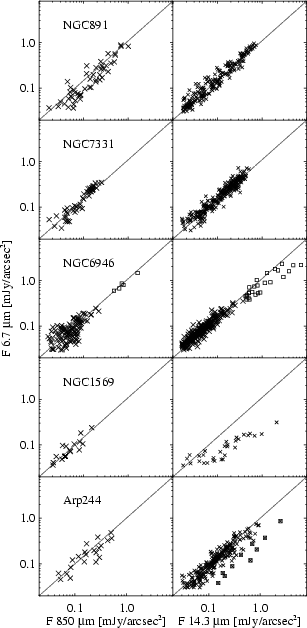

Figure 3: Relation between the fluxes at 6.7 $\mu$ m versus 850 $\mu$ m (left column) and 14.3 $\mu$ m (right column). Each symbol corresponds to an area in a grid covering the galaxies. The area size is 15-25 $\hbox {$^{\prime \prime }$ }$ and 6-10 $\hbox {$^{\prime \prime }$ }$ for the left and right column, respectively. Only those areas with fluxes above the noise threshold ( $\approx$ 0.025 mJy/arcsec $^{\rm 2}$ ) are plotted. The ratio between the fluxes is by chance mostly about unity (indicated by the dotted lines). An exception are the 14.3 $\mu$ m points for the starbursts regions. The nucleus of NGC6946 and the active knot K1 in the overlap region of Arp244 are denoted by different symbols.

Open with DEXTER

Table 1: Average flux ratios for each galaxy.
Obj $F_{\rm 6.7\mu m}$ / $F_{\rm 7.7\mu m peak}$ $F_{\rm 6.7\mu m}$ / $F_{\rm 850\mu m}$ $F_{\rm 7.7\mu m peak}$ / $F_{\rm 850\mu m}$

NGC891 $0.45 \pm 0.05$ $0.83 \pm 0.33$ $1.84 \pm 0.73$

NGC1569 $0.60 \pm 0.18$ $1.08 \pm 0.30$ $1.80 \pm 0.60$

NGC6946 $0.44 \pm 0.08$ $0.98 \pm 0.35$ $2.23 \pm 0.80$

NGC7331 $1.07 \pm 0.25$ $\sim$ $2.20 \pm 0.80$

Arp244 $0.48 \pm 0.07$ $0.93 \pm 0.32$ $1.93 \pm 0.70$

**Table 1:** Average flux ratios for each galaxy.
Obj	$F_{\rm 6.7\mu m}$ / $F_{\rm 7.7\mu m peak}$	$F_{\rm 6.7\mu m}$ / $F_{\rm 850\mu m}$	$F_{\rm 7.7\mu m peak}$ / $F_{\rm 850\mu m}$
NGC891	$0.45 \pm 0.05$	$0.83 \pm 0.33$	$1.84 \pm 0.73$
NGC1569	$0.60 \pm 0.18$	$1.08 \pm 0.30$	$1.80 \pm 0.60$
NGC6946	$0.44 \pm 0.08$	$0.98 \pm 0.35$	$2.23 \pm 0.80$
NGC7331		$1.07 \pm 0.25$	$\sim$ $2.20 \pm 0.80$
Arp244	$0.48 \pm 0.07$	$0.93 \pm 0.32$	$1.93 \pm 0.70$

Figure 2 shows the 850 $\mu$ m maps superimposed with 6.7 $\mu$ m contours (adapted to 15 $\hbox {$^{\prime \prime }$ }$ resolution). For each galaxy, the morphology at both wavelengths is strikingly similar:

In NGC891 the 850 $\mu$ m and 6.7 $\mu$ m contours are prominent for the nucleus, two knots, and the extension towards NE. In NGC6946 the basic flux concentrations are well recognisable above the (noisy) areas with low surface brightness. In NGC7331 the dust ring outshines the nucleus. The starburst activity of NGC1569 is inferred from its well known high H $_{\rm\alpha}$ luminosity. The features resolved at both 850 $\mu$ m and 6.7 $\mu$ m are the bright nucleus (denoted by "A''), a prominent starburst region "B'' southeast of "A'' and a region "C'' between "A'' and "B''. "C'' has a similar MIR spectrum as "B'' (therefore it is not shown in Fig. 1). Much of the gas and dust in Arp244 is concentrated in the overlap region of the two disks. Beside the two nuclei two knots K1 and K2 in the overlap region are prominent and of similar brightness in the PAH and submm emission, although they differ in starburst activity (see 14.3 $\mu$ m map).

The morphological coincidence of PAH and submm emission shows up quantitatively via the tight correlation of the fluxes measured in suitably chosen apertures of 15-25 $\hbox {$^{\prime \prime }$ }$ corresponding to a size of several hundred pc (Fig. 3). For comparison, Fig. 3 also shows the relation with the 14.3 $\mu$ m MIR continuum emission of VSGs.

The PAH 7.7 $\mu$ m line/850 $\mu$ m flux ratios lie in the range around 2 (Table1) and the variations across each of our five galaxies are only moderate, i.e. not of factors of two or more as for the PAH/VSG emission ratio. This range is also comparable to the median ratio of 3.05 found for the nearby ULIRGs (Haas et al. 2001; Klaas et al. 2001). For the five resolved galaxies investigated here the ratio is, with respect to the uncertainties, independent of either a starburst or a more quiet nature.

For NGC891 the PAH 7.7 $\mu$ m line/850 $\mu$ m flux ratio lies at the low end, which may be explained by a disk viewed edge-on and moderately opaque at 7.7 $\mu$ m. Besides extinction some further effects have to be considered: any radio synchrotron contribution at 850 $\mu$ m is clearly below 5% and can be neglected. Also, the amount of cold dust, the temperature of which may be raised by starbursts, is certainly too small to increase the 850 $\mu$ m flux significantly. Possible CO (3-2) line contribution at 870 $\mu$ m could occur for high excitation conditions in starbursts. Its contribution to the dust continuum reaches 10% in NGC1569 (Lisenfeld et al. 2002) and 30% in Arp244 (estimated by Haas et al. 2000). In addition, this effect is partly cancelled out in Fig. 3, since active regions do also show an increased MIR continuum in the LW2 filter (Fig. 1). If the CO (3-2) line contribution would be as high as 50% in K1 (the most active starburst area of Arp244), then the PAH emission would be increased with respect to the cold dust mass, but in any case a lot of PAH emission in Arp244 comes from more quiet regions located far away from K1.

Both PAH and cold dust emission correlate also (to some extent) with that from very small grains at 14.3 $\mu$ m. NGC891 and NGC7331 do not house any prominent starbursts and the correlations look well confined in Fig. 3. But those galaxies with starbursts show an excess in the very small grain emission by factors of 2-7. Such regions are, for example, the nucleus of NGC6946, the starburst area K1 in the overlapping disks of Arp244, or a large part of the active dwarf galaxy NGC1569. Since in these starburst areas the PAH emission is not adequately changed with respect to the 850 $\mu$ m flux, this suggests that the PAH carriers are preferentially related to the regions dominated by cold dust and molecular clouds. There they would be excited mainly by the interstellar radiation field, which in star forming galaxies is sufficiently strong.

Our results refer to a spatial resolution of about several hundred pc in the galaxies studied, thus they average over regions of different activity. Nevertheless, they do not provide any evidence for strong PAH enhancement or destruction in those regions crowded by starbursts. But strong activity clearly increases the VSG emission in the MIR by factors of more than two. In conclusion, the global relation between PAH strength and H $_{\rm\alpha}$ or other star forming tracers found by various researchers might be only indirect in the sense that those galaxies with a lot of molecular clouds (and PAH emission) more likely form more stars and thus shine brighter in H $_{\rm\alpha}$ . Finally, the finding, that the PAH emission is not mainly powered by starbursts, has an impact on the interpretation of cosmological number counts at 15 $\mu$ m, a window the PAH features move into at $z\approx0.5$ (e.g. Fig.1 in Elbaz et al. 1999): the excess of faint sources may not only be due to luminous mergers and starburst galaxies, rather due to more normal (dust and PAH rich) spiral galaxies.
