A&A 385, 900-903 (2002)
DOI: 10.1051/0004-6361:20020188

The identification of SS7371 as a new symbiotic star

C. B. Pereira - C. S. Franco - S. J. C. Landaberry

Observatório Nacional-MCT, Rua José Cristino, 77, CEP 20921-400, São Cristóvão, Rio de Janeiro-RJ, Brazil

Received 3 December 2001 / Accepted 17 January 2002

Abstract
We report spectroscopic observations of a new symbiotic star. This star is located in our Galaxy in the direction of the bulge and was discovered during a southern spectroscopic survey of H$\alpha$emission line objects. The star, SS7371, after Sanduleak & Stephenson (1973), shows characteristics of a symbiotic star: the presence of TiO bands and emission lines of ions of higher ionization such as He II4686 Å and [O III]5007 Å. Here, we present some of the main spectroscopic features, line intensities and, whenever possible, some physical parameters.

Key words: binaries: symbiotic - stars: emission line, Be

1 Introduction

As part of a long-term program to investigate emission-line objects in the southern hemisphere, we recently started a spectroscopic survey at the European Southern Observatory (ESO) of some stars from the Sanduleak & Stephenson (1973) sample. This survey is also part of a program to study emission-line objects whose nature is not well established in the literature. A previous study of one star from the SS73 list led to the analysis of a peculiar emission-line object, SS73 11 (Landaberry et al. 2001).

In this work we present spectroscopic observations of the emission-line star SS7371, first recognized as an H$\alpha$ emission line object after a objective prism survey of Sanduleak & Stephenson (1973), hereafter SS73. SS73 classified this object as a "Very-Steep-Balmer-Decrement'', X symbol in their Col. 7, which might be an indication of symbiotic object or a highly reddened Be star. Allen (1978) classified it as a "Be star with weak Balmer emission and He I emission''. We find that SS7371 displays characteristics of a symbiotic object, e.g., TiO absorption bands and emission lines of ions of higher ionization such as He II4686 Å and [O III]5007 Å. This symbiotic is not given in the recent catalogue of Belczynski et al. (2000). A finding chart of the object is present in Fig. 1. The equatorial coordinates of SS7371 are $\alpha(2000.0)=16^{\rm h}\,59^{\rm m}\,23.4^{\rm s}$ and $\delta(2000.0)=-32^\circ\,14{'}\,43{''}$. The V magnitude was derived convolving the calibrated spectrum with a V filter profile. The result is shown in Table 2.

	Figure 1: Finding chart of the region around SS7371. SS7371 is the faint star at the center of the field. The field has dimensions of $7'\times 7'$. North is at the top and east is to the left.
Open with DEXTER

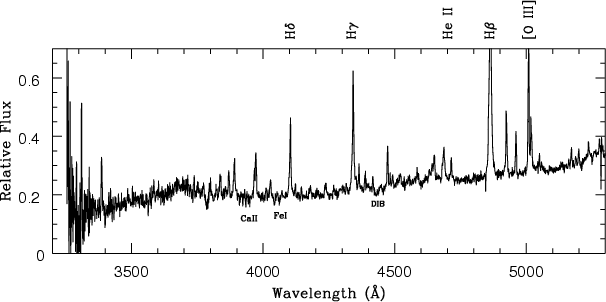

	Figure 2: Blue spectrum of SS7371. Notice the presence of the He II4686 Å line and the [O III] forbidden line at 5007 Å.
Open with DEXTER

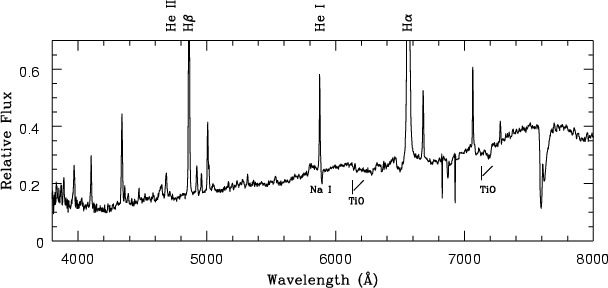

	Figure 3: Optical spectrum of SS7371.
Open with DEXTER

2 Observations and reduction

Spectroscopic observations were performed using a Boller & Chivens spectrograph at the Cassegrain focus of the ESO 1.52 m telescope in La Silla (Chile) at March 24, 2000, June 15, 2001 and September 25, 2001. A UV-flooded thinned Loral Lesser CCD #39 ( $2048 \times 2048$, 15 $\mu$m/pixel) was used as the detector; it gives a high quantum efficiency in the blue and in the UV range. The setup employed is the same as that used to investigate suspected symbiotic objects with the 1.52 m telescope (Pereira et al. 1998). Two different instrumental setups were employed. The first one made use of the grating #23 with 600 l/mm providing a resolution of 4.6 Å in the range $\lambda$$\lambda$3500 Å-8000 Å and the other was the grating #33 with 1200 l/mm, resulting in a resolution of 1.9 Å in the $\lambda$$\lambda$3200 Å-5300 Å range.

The spectra were reduced using standard IRAF tasks, from bias subtraction and flat-field correction, through spectral extraction and wavelength and flux calibration. Spectrophotometric standards from Oke (1974) and Hamuy et al. (1994) were also observed. The slit orientation in the range (3200 Å-5300 Å) was aligned with the parallactic angle in order to minimize the light loss due to atmospheric refraction.

The flux of emission lines have been measured by the conventional method adjusting a Gaussian function to the line profile thereby obtaining the intensity, the central wavelength and the line width at half power level. Uncertainties in the line intensities come mainly from the position of the underlying continuum. We estimate the flux error to be about 20% for the weak lines (line fluxes $\approx$10 on the scale of H$\beta =100$) and about 10% for stronger lines. Figures 2 and 3 show the reduced spectra.





Table 1: Observed emission line fluxes relative to H$\beta =100$.

Wavelength	Identification	$F(\lambda)$
3869	[Ne III]	6.6
3889	He I	9.4
	H8
3968	[Ne III]	18.1
	H$\epsilon$
4009	He I	3.4
4026	He I	6.0
4101	H$\delta$	19.0
4120	He I	2.4
4144	He I	2.5
4340	H$\gamma$	34.0
4363	[O III]	4.0
4385	Fe II	4.5
4415	O II	4.3
4471	He I	5.8
4489	O II	3.2
4583	Fe II	4.5
4633	N III	3.6
4640	N III	6.2
4647	C III	7.8
4686	He II	16.0
4714	[Ne IV]	5.0
4861	H$\beta$	100.0
4922	He I	9.8
4959	[O III]	5.9
5007	[O III]	21.0
5015	He I	6.7
5047	He I	2.3
5198	[N I]	3.6
5233	[Fe VI]	2.8
5316	Fe II	4.1
5876	He I	31.7
6563	H$\alpha$	632.8
6678	He I	23.3
7065	He I	25.0
7281	He I	6.4

3 The spectrum of SS7371

Table 1 shows the observed line flux of the identified lines. The spectrum of SS7371 shows typical features of a symbiotic star with late K-early M component when compared with spectral atlas at same resolution (Jacoby et al. 1984; Turnschek et al. 1985). The spectrum of SS7371 looks similar to the spectrum of Hen 1342 (Medina-Tanco & Steiner 1995) and AS 289 (Gutiérrez-Moreno et al. 1999), which have spectral types, respectively, of K7-M1 and M 3.5 according to Mürset & Schmid (1999). We identify the TiO absorption bands in the spectrum of SS7371 at 6200 Å, 6852 Å and at 7160 Å. The absorption at 6494 Å it is a blend of the absorption features of Ba II, Ca II and Fe I. Around 5890 Å the Na I is present in absorption. In the range 3100 Å-5100 Å some absorption features were identified such as Fe I at 3920 Å, 4045 Å and at 4064 Å; Ca II at 3933 Å and the diffuse absorption band at 4430 Å. The emission spectrum shows the Balmer lines, the major lines of He I, the He II line at 4686 Å and the oxygen forbidden lines at 4363 Å, 4959 Å and 5007 Å the latter of which is partly blended with the He I$\lambda$5015 line in our spectra.

4 Physical parameters of SS7371

In this section we will provide some physical parameters of SS7371 such as reddening, electron density, temperature of the hot component and the infra-red type (S-type or D-type). Based on infrared color, symbiotics can be divided into two groups : S- and D-types (Webster & Allen 1975; Allen 1982). Those that show dust continuum emission between wavelengths 1.0 and 5.0 $\mu$m are classified as D-type, and these systems contain a mass-losing Mira variable as a cool component. Those with a normal stellar spectrum in the infrared are classified as S-types. Table  2 contains the results.



Table 2: Physical parameters of SS7371.

Parameter	Value
V	16.5
E(B-V)	$0.42\pm0.06$
Log $N_{\rm e}^{a}$ cm-3	7.0 -0.05+0.22
$T_{\rm hot}$(ion)	35000b
$T_{\rm hot}$(ion)	54000c
$T_{\rm hot}$(Ijima)	$110\,000\pm17\,000$K
He I $\lambda$6678/5876	$0.6\pm0.4$
Infra-red type	S

^a: From [O III] lines; For $T_{\rm e}=15\,000$K.
^b: From O⁺² ion.
^c: From He⁺² ion.

Reddening estimates were based on Netzer's (1975) curves for H$\beta$/H$\gamma$ versus H$\alpha$/H$\beta$. It was assumed that the reddening law can be represented by the standard interstellar extinction curve $f(\lambda)$(Seaton 1979).

It was not possible to make good plama diagnostics with the emission lines available. In fact we do not have lines for electron temperature determination for densities as high as those involved in these kinds of symbiotic systems. The [O III] lines at 5007 Å, 4959 Å and 4363 Å are not good indicators of temperature but are approriate for electron densities. Using the [O III] line ratios corrected for reddening and assuming $T_{\rm e}=15\,000$K we obtained the electron density.

The temperature of the hot component was determined using the method proposed by Mürset & Nussbaumer (1994) ( $T_{\rm ion}$) (hereafter MN94) and Ijima (1981) ( $T_{\rm Ijima}$). The MN94 method has the advantage that it takes into considaration the observed ion with the highest ionization potential, but may fail for the S-type systems, because some forbidden lines may be absent because of the high density. In the method of Ijima (1981) the temperature derived is an upper limit for the hot component since optical depths may alter the intensity of Balmer lines.

Proga et al. (1994) demonstrated that He I emission line ratio can be used to distinguish between S-type (stellar continuum) and D-type (dust) symbiotic stars, besides their IR-colors. Since the S-type systems have higher electron densities ( $N_{\rm e}\approx10^{9}$ cm³) than the D-type systems ( $N_{\rm e}\approx10^{6}$ cm³), the emission-line ratio, as defined by the ratio I(6678/5876), distinguishes the two types. Those that have $I(6678)/I(5876) \approx 0.25$ are D type and those that have $I(6678)/I(5876) \geq0.50$ are S-types.

5 Summary and conclusions

Based on a spectroscopic survey between 3200 Å-5200 Å and 3500 Å-8000 Å of H$\alpha$ emission-line stars from the SS73 sample we discovered a new symbiotic star (SS7371). Its continuum spectrum seems to indicate the spectral type of late K-early M with Balmer lines, helium lines and forbidden lines of oxygen in emission. We also provide a table with the identified features and some physical parameters.
