A&A 385, 111-130 (2002)
DOI: 10.1051/0004-6361:20020118
The presence of Nd and Pr in HgMn stars
L. Dolk1 - G. M. Wahlgren1 - H. Lundberg2 - Z. S. Li2 - U. Litzén1
- S. Ivarsson1 - I. Ilyin3 - S. Hubrig4
1 - Atomic Astrophysics,
Department of Astronomy,
Lund University,
Box 43, 22100 Lund, Sweden
2 -
Department of Physics,
Lund Institute of Technology,
Box 118, 22100 Lund, Sweden
3 -
Astronomy Division,
PO Box 3000,
90014 University of Oulu,
Finland
4 -
European Southern Observatory,
Casilla 19001,
Santiago 19, Chile
Received 11 July 2001 / Accepted 7 January 2002
Abstract
Optical region spectra for a number of upper main sequence chemically peculiar (CP) stars have been observed to
study singly and doubly ionized praseodymium and neodymium lines. In order to improve existing atomic data of these
elements, laboratory measurements have been carried out with the Lund VUV Fourier Transform Spectrometer (FTS).
From these measurements wavelengths and hyperfine structure (hfs) have been studied for selected Pr II,
Pr III and Nd III lines of astrophysical interest. Radiative lifetimes for some excited states of
Pr II have been determined with the aid of laser spectroscopy at
the Lund Laser Center (LLC) and have been combined with branching fractions measured in the laboratory to calculate gf
values for some of the stronger optical lines of Pr II. With the aid of the derived gf values and laboratory
measurements of the hfs, a praseodymium abundance was derived from selected Pr II lines in the spectrum of the Am
star 32 Aqr. This abundance was used to derive astrophysical gf values for selected Pr III lines in 32 Aqr, and
these gf values were used to get a praseodymium abundance for the HgMn star HR 7775. The praseodymium abundance
in HR 7775 was then utilized to derive astrophysical gf values for all observable Pr III lines in this star.
The neodymium abundance, derived from unblended lines of Nd II in HR 7775, has been utilized to establish
astrophysical gf values for observed Nd III lines in the optical region of this star. Selected Pr III and
Nd III lines have been identified and studied in a number of HgMn stars and three hot Am stars. The praseodymium
and neodymium abundance change rapidly from an approximate 1-1.2 dex enhancement for the hot Am stars to 1.5-3 dex
enhancement for the cool HgMn stars, indicating a well-defined boundary between the hot Am and HgMn stars in the vicinity
of 10500 K. The enhancement of praseodymium and neodymium in Am and HgMn stars may be explained by diffusive processes
active in the stellar atmosphere, while the observed discontinuity might be explained by a thin hydrogen convection zone
thought to be present for the Am stars, but absent in the HgMn stars. The absence of a convection zone would cause the
diffused elements to gather higher in the atmosphere of HgMn stars compared to Am stars,
and explain the observed increase in abundance.
Key words: atomic data - stars: abundances - stars: chemically peculiar
Noticeably strong spectral lines from singly-ionized rare earth elements (REE) (Z = 57-71)![[*]](/icons/foot_motif.gif)
are typically observed in the spectra of the cooler chemically peculiar (CP) stars (Am and Ap).
As a result of the low
ionization potentials of the REE, the hotter CP stars (including the HgMn and the Bp stars) have very weak or non-existent
singly-ionized REE spectral lines. Instead, these stars should have strong doubly-ionized lines for REE,
provided that the elements are enhanced to a similar level as in the cooler CP stars.
In most hot Am and cool HgMn stars the Pr II lines are characteristically weak or absent, even though lines from
both Ce II and Nd II may be readily observable (Cowley 1983). It is therefore thought
that the praseodymium abundance is noticeably less than its even-Z
neighbors, which might reflect the odd-even effect observed for the solar elemental abundance distribution among the
lanthanides. The weakness or absence of the Pr II lines can be attributed to a combination of noticeable
hyperfine structure (hfs) in the optical Pr II lines with the fact that REE lines from the doubly-ionized
stage clearly dominate over singly-ionized lines in the temperature regime of the hot Am and HgMn stars when the abundance
of praseodymium is sufficiently high to make the lines detectable.
The third spectrum REE lines are thus a much better tool for investigating the REE abundances in the Am and HgMn stars.

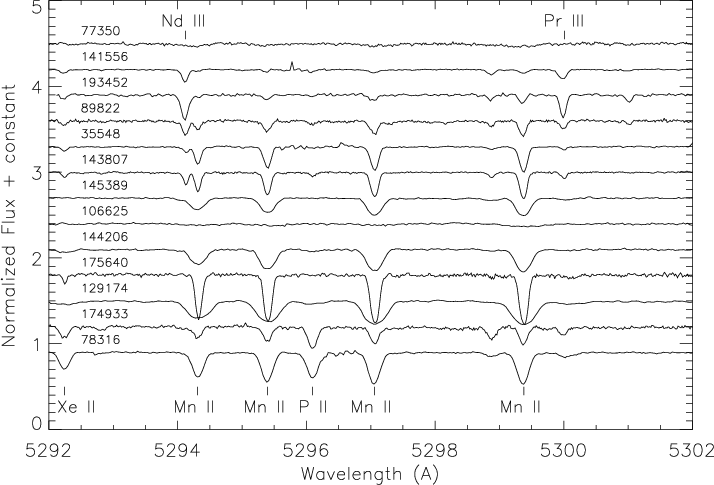

Pr III lines were first observed in the HgMn star
Lupi by Bidelman (1966). Guthrie (1985)
noted the likely presence of Pr III in the HgMn star HR 7775, but did not find any evidence for Pr III lines
in the other seven HgMn stars observed. Strong Pr III lines in HR 7775 were confirmed by Wahlgren et al. (2000) in the region around 5300 Å although an accurate abundance could not be determined due to the lack of
oscillator strength data. In recent years it was
noted that the third spectrum of praseodymium is very strong in some magnetic Ap stars (Mathys & Cowley 1992), even though
the second spectrum is weak or absent.
In the present study, several cool HgMn stars have been observed primarily to search for lines from the third spectra of
praseodymium and neodymium. The investigation was undertaken as part of a larger ongoing project
investigating the presence and abundance of heavy elements in Am and HgMn stars and the presence of isotopic anomalies in
elements with multiple stable isotopes.
By looking for isotope anomalies in different elements, as well as abundance differences between lines originating from
different ionization stages of one element, the study might also serve as a test of the
diffusion hypothesis (Michaud 1970).
In this paper, selected Pr II and Pr III lines have been studied in order to
provide information about wavelengths, atomic structure, and lifetimes for lines of astrophysical interest. Experimental
lifetimes for selected levels of Pr II were obtained utilizing laser spectroscopic techniques, and gf values were
calculated for
lines of astrophysical interest. These experimental gf values were used to determine the
praseodymium abundance in the Am star 32 Aqr. The praseodymium abundance was then used to determine astrophysical gf
values for selected Pr III lines of this star. With the aid of these Pr III gf values the praseodymium
abundance was calculated for the HgMn star HR 7775 (HD 193452). Astrophysical gf values were then determined for all
observable Pr III lines in HR 7775, utilizing a larger spectral coverage (ranging from
3700 to 8000 Å).
Lines of Nd II with experimentally measured gf values have been utilized to derive a neodymium abundance
in HR 7775. Using this abundance, as well as wavelengths of Nd III lines derived from known energy levels
(Martin et al. 1978), several lines of Nd III have been identified and astrophysical gf values determined
in HR 7775. The accuracy of the known Nd III energy levels were rather poor, which resulted in inaccurate
values of the derived Ritz wavelengths. New laboratory measurements of Nd III were carried out with the Lund VUV
FTS for accurate wavelengths.
Ultimately, with the newly determined astrophysical gf-values, the abundance and/or presence of praseodymium and neodymium
are investigated for a number of cool HgMn stars. It is shown that the presence of these two rare earths is best studied
via their third spectra where abundances in HgMn stars rival those determined from the second spectra for the cooler A
type stars.
The stars chosen for this study are mostly cool HgMn stars of
spectral type B8-A0, primarily selected because the third spectrum of praseodymium had previously been observed
in the two cool HgMn stars
Lupi and HR 7775 (Wahlgren et al. 1994, 2000).
The main portion of the spectra were obtained with the 2.56 m Nordic Optical Telescope (NOT), located
at the Roque de los Muchachos Observatory on the island of La Palma. The spectra were taken with the SOviet-FINnish (SOFIN)
echelle spectrograph (Tuominen et al. 1998; Ilyin 1993, 2000) mounted at the Cassegrain focus. The SOFIN spectrograph is
comprised of
two optical trains, one of which provides access to a permanently mounted 1152
770 pixel array detector of camera
focal length f = 1000 mm (camera 2), and
one that provides access to a 1152298 pixel detector for use with one of two interchangeable cameras of focal
lengths f = 2000 mm (camera 1) and f = 350 mm (camera 3). The resulting resolving power for the three different cameras
is wavelength dependent but is approximately
,
and
for cameras 1, 2 and 3, respectively.
The wavelength coverage of camera 1 is approximately 14 Å per order for 10 to 12 orders, depending on the placement
of the detector. Camera 2 provides twice the wavelength coverage per order for eight to 10 orders, while a camera 3
observation covers between 70 and 200 Å per order for approximately 38 orders. The sensitivity of the SOFIN spectrograph decreases towards the blue and
the far red portions of the spectrum. In the present case most of the observations were made in the 5000 to 7000 Å
region where the sensitivity is quite high. As a result the S/N ratios of the observations were mainly above 100:1.
The SOFIN observations were obtained mainly with the camera 2 setting, but several were also taken
with camera 1. The resolving power for camera 2 is
dependent on the placement of a line within an order, with the lines near the edge of an order displaying a
significantly lower resolving power than the lines at the center of an order. To examine this effect the FWHM was measured for a large number of lines in the Th-Ar comparison spectrum, and from these measurements a
resulting resolving power was calculated. From these calculations it could clearly be seen that the resolving power
at the edges of an order lies approximately at 50000, after which it steadily increases towards the center of an order
where it is around 85000. It was subsequently shown that the increase in the resolving power towards the center of an
order could best be described with a second order polynomial. As a further test similar calculations were made for
several different detector placements after which it was found that the resolving power only changes within an
order and not from order to order.
The NOT/SOFIN spectra were obtained at two different grating settings, both placed within the visible
portion of the spectral region between 4700 and 6500 Å (the stars HR 7775 and 32 Aqr were also observed at additional
grating settings). The settings were selected to include unblended strong Pr III and Nd III lines previously
observed in HR 7775. The observations at the two settings were obtained
with camera 1 and camera 2, and many of the stars were observed with either both cameras and/or at both settings. Thus,
the amount of data that were obtained varies from star to star.
Spectra of stars of interest to this program were also incorporated from observing programs run at the ESO 1.4 m CAT
telescope and the CES Very Long Camera equipped with CCD Loral
#38 and at the ESO NTT 3.5 m telescope
and the ESO Multi Mode Instrument (EMMI), both located at La Silla, Chile. Data were obtained at the CAT for the stars
HR 6520, HR 6759 and HR 7245 during the time period 1998 July 25-August 1, and were reduced in a normal manner using
MIDAS software. The CAT spectra were
taken with the CES Long Camera, and were limited in wavelength to the interval 6130-6158 Å. Data quality is quite good,
as defined by both high resolving power (
135000) and signal-to-noise ratio (S/N > 200:1). Since these spectra
were taken for other purposes the instrument setup is not optimal for searching for lines from the Pr III and
Nd III spectra, and only a single Nd III line can be studied from these data. The NTT spectra cover a much
larger wavelength interval (4070-6740 Å) at a resolving power of
70000 at
100:1. Data obtained
for the stars
Lupi,
Cnc and HR 1800 were taken using the EMMI echelle spectrograph.
The odd-Z (Z = 59) lanthanide praseodymium has only one stable isotope
141Pr with a large nuclear spin (
)
and
nuclear magnetic moment (
/
4.136). The low levels of
Pr II belong to the configurations 4f36s and 4f35d, and the
lines that may be observed in stellar spectra are mainly transitions from
these configurations to 4f36p. Due to the unpaired s-electron many of
the 4f36s-4f36p lines exhibit large hyperfine structure, whereas
the structure is considerably smaller in the 4f35d-4f36p lines.
Improved wavelengths for selected Pr II lines in the region 2800-7900 Å that might be of astrophysical interest, as well as magnetic
hyperfine constants for the involved 6s and 6p levels, have recently been
measured by means of a Fourier transform spectrometer by the Lund
University Atomic Astrophysics group (Ivarsson et al. 2001). The
measurements also comprised branching fractions, which in combination
with the lifetimes discussed below in Sect. 3.1.2 were used for deriving
oscillator strengths for Pr II lines.
In Pr III the ground configuration is 4f3, and the lines likely
to be observed in stellar spectra are 4f3-4f25d transitions.
As no unpaired s-electron is involved in the transitions, the hyperfine
structure is small. The work by Ivarsson et al. (2001) also included
accurate wavelength measurements of a number of strong Pr III
lines, and in spite of the high resolution the hyperfine structure was
only observed as a widening and an asymmetry of certain lines. Convolution
of the FTS Pr III
5299.969 line with Gaussian profiles of
various resolution shows that line asymmetry starts to become noticeable
in the line core for resolving powers near R = 200000. The lines
are presented in Table 1, where the FWHM in Col. 3 shows the widening
and the letter "v'' in column one indicates the influence from the hyperfine
structure.
As the FWHM is not an unambiguous measure of the width of an asymmetric
line with a shoulder on one side, another measure of the influence of the
hyperfine structure is shown in column two of the table. The column shows
the ratio between the area of the Pr III line and the
area of a single, unblended Pr II hyperfine component in the same
region with the same peak intensity as the Pr III line.
The wavelengths, which correspond to the centers-of-gravity of the
observed features, have an estimated uncertainty ranging from less
than
Å for the strongest lines to
Å for the
weakest.
Radiative lifetimes were measured for eleven levels in Pr II using
laser spectroscopic techniques. In the experiment ions were created in a
plasma produced by irradiating a praseodymium target with laser pulses.
The measurements were performed close to the target during the plasma
expansion. The ions were selectively photo-excited to the level under
investigation by the light from a laser system in which pulses from a
Nd:YAG laser were shortened in a stimulated Brillouin scattering (SBS)
cell (Li et al. 1999) before pumping by a tuneable dye laser. Conventional
Nd:YAG lasers produce pulses with a duration of about 10 ns and for
precision in lifetime measurements the excitation pulse must be shorter
than the investigated lifetime. The dye laser light could be shifted to
desired wavelengths using frequency-doubling and Raman scattering.
Fluorescence light released at the decay of the excited levels
was captured using a fast detection system. The temporal shape of the
laser pulse was also recorded and the lifetime values were evaluated by
fitting a convolution of the recorded pulse and an exponential to the
fluorescence.
The ground configuration in Pr II is
.
Low lying levels
of this configuration were used as a starting point for the laser
excitation. In Table 2 the lower and upper levels are given
(Martin et al. 1978) along with the excitation wavelengths relevant for
these measurements. The blue wavelengths used for excitation can
conveniently be produced by frequency-tripling an infrared Nd:YAG laser
beam and let the produced UV beam pump a dye laser working with coumarine
dyes. However, the pulse-shortening using SBS is performed in a water cell
with green light, the second harmonic of the infrared. The short green
pulses then pump a red dye, DCM, and the tuneable radiation is then
frequency-doubled and Stokes shifted in a H2 Raman cell. The
conversion method is given in the fifth column of the table.
In every
conversion step pulse power is lost but the transitions are often
saturated anyway and the pulse power then has to be further reduced using
neutral density filters. In the measurements usually the strongest
transition, selected by a monochromator, is used for detection and the
transition starting from the lowest possible metastable level is used for
excitation. The measured levels were chosen by identifying upper levels for
transitions believed to be observable in stellar spectra and thus
suitable for abundance determinations. The lifetime values are given in
Table 2 together with results from previous measurements;
Andersen et al. (1974, 1975) using the beam-foil technique and
Gorshkow & Komarovskii (1985) employing electron beam excitation. For
level and line-rich elements selectivity in both excitation and detection
is especially important. The band width of the laser light utilized in the
present investigations was about 0.1 Å and the flourescent light was
filtered by a monochromator. After setting the laser to the excitation
wavelength for a level and observing fluorescence at an expected
wavelength, a further test of proper level identifications was made in the
measurements. The monochromator wavelengths were scanned in order to
observe all the decay channels given for that level by the work of Corliss
& Bozman (1962). For some levels in the list the agreement was too poor
and lifetime measurements were not performed due to the uncertainty in
level identification.
The advantage with a laser produced plasma as an ion source is the high
ion density, the fairly high populations of metastable levels and the
presence of high ionization stages. A major drawback is the high speed of
the created ions. For Pr III this speed is on the order of 10 km s-1. This puts constraints upon how long a lifetime can be measured.
Attempts were made to measure the lifetimes for some of the lowest lying
levels of Pr III, but the recorded decays in fluorescence were
fitted poorly by the exponentials. During the recording the ions flew too
long a distance which meant that some of them left the detection region
before the de-excitation. The decay times were on the order of several
hundreds of nanoseconds. The Pr III lifetimes could thus not be
measured with any precision utilizing the employed technique. The problem
can be reduced by using narrow band-width interference filters, selected
for the relevant transitions, instead of a monochromator with a narrow
slit.
Neodymium occurs in the form of seven stable isotopes, A = 142, 143, 144,
145, 146, 148, 150 with the relative terrestrial abundances 27%, 12%,
24%, 8%, 17% 6% and 6%. The odd isotopes thus
represent 20% of the total abundance, and both isotope and
hyperfine structure might be present in the spectral lines. The hfs will,
however, generally not be observable, as the hfs patterns will be smeared
out and completely masked by the components of the even isotopes. The
isotopic shift is generally divided into mass shift and volume shift,
where the former effect decreases and the latter increases with increasing
mass through the periodic table. For neodymium the isotope shift is
comprised of both mass and volume shift, but with the volume shift
dominating (King et al. 1973). The volume shift is usually most prominent
for configurations containing s-electrons.
The lowest even levels of Nd II belong to the 4f46s and
4f45d configurations. The odd parity upper levels in the
transitions in the optical region are mainly from three configurations
4f35d2, 4f35d6s and 4f46p.
Investigations have been made of the isotope shift of
Nd II energy levels, the most extensive being that of Blaise
et al. (1984), who measured the shift between the isotopes with masses
A = 144 and A = 150 for over 300 energy levels, and Nakhate
et al. (1997) who measured the 144-150 shift for approximately 300 levels. In
these studies the shift of the 4f45d 6K9/2 levels was defined as
zero. The levels of the Nd II ground
configuration 4f46s show large isotope shifts
due to the presence of the 6s electron, with a typical spacing between the
A = 144 and A = 150 of 0.24 cm-1, whereas the shifts of the
4f45d levels are close to zero. The shifts of the odd levels involved
in transitions in the optical region range from 0.15 to approximately 0.43
cm-1, with the larger shifts being present for levels in the
4f35d6s configuration.
Note should be made of the fact that the separation between the A = 144
and A = 150 isotopes of neodymium perhaps is not a good reflection of the
observable isotope shift since the 150Nd isotope is only responsible
for approximately 6% of the total amount of neodymium in the terrestrial
isotopic mixture, while approximately 88% of the isotopes are
represented by the isotopes between A = 142 and A = 146. King et al.
(1973) have measured isotope shifts between all the even isotopes for six
spectral lines. In all of these the separation between the A = 144 and
A = 150 isotopes is approximately twice as large as the separation between
the A = 142 and A = 146 isotopes. Also, in measurements by Nöldeke
(1955), Blaise (1957) and Ahmad & Saksena (1977), it can be noted that
isotope shifts 144Nd-150Nd are approximately 3.4 times larger
than the isotope shifts 142Nd-144Nd.
To conclude, the largest shift measured between the 144Nd-150Nd
isotopes in a Nd II energy level is less than 0.5 cm-1. A
transition between such an energy level and a level without structure
would result in a spectral line with a wavelength shift of approximately
0.1 Å in the optical region. This, coupled with the fact that the
shift between the most abundant isotopes 142Nd and 144Nd
is much smaller than the 144Nd-150Nd shift, means that the
observed structure in Nd II lines is rather small, even in the most
extreme cases. For these reason we have neglected Nd II line
structure in the line lists used for making the synthetic runs for our
abundance studies.
The gf values adopted for the observed Nd II lines are the
experimental values from Meggers et al. (1975) and Ward et al. (1985).
The lowest levels of Nd III belong to the 4f4 configuration, and
the strongest lines are 4f4-4f35d transitions.
The amount of published laboratory data for Nd III is very scant,
and only a few energy levels are included in the compilation by Martin
et al. (1978). No line lists have been published, and as the
reported energy levels are only given with one decimal, it is not
possible to derive sufficiently accurate wavelengths from the level
values. For this reason laboratory measurements of Nd III have
been carried out with the Lund VUV FTS and new wavelengths have been
determined (Aldénius 2001). Measured wavelengths in the
region 4625-6550 Å from that work are presented in Table 7.
The Nd III lines of Table 7 showed a small influence of the isotope
effect, mainly visible as an unresolved shoulder with an area of 5-6% of
the total line. Comparisons with the known structure of Nd I lines
showed that this shoulder is caused by the 150Nd isotope.

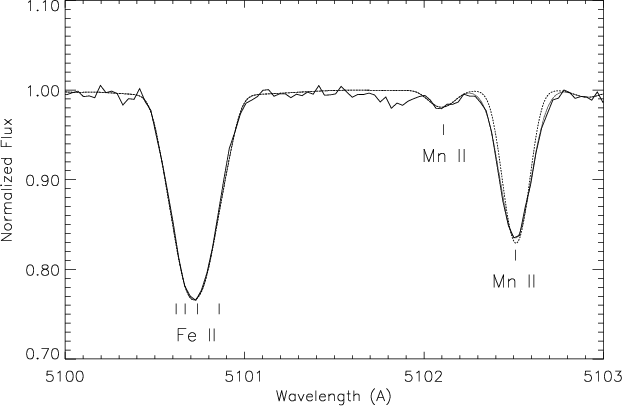

Elemental abundances and astrophysical gf values were determined by comparing the observed spectra to synthetic spectra
generated with the SYNTHE (Kurucz & Avrett 1981; Kurucz 1993a) program. Atomic line data were taken from the lists of
Kurucz (1993a). Several of the lines studied for this paper were not present in the linelists. These lines, as well as
hyperfine structure components, were individually entered into the linelists.
Before being fitted with synthetic spectra, the observational data were flux normalized to the line-free
continuum level. The normalization procedure was accomplished with the use of an Interactive Data Language (IDL)
procedure that allows the user to choose locations in the spectrum that will serve as continuum points (Wahlgren 1996).
The choices of these points are not limited by the flux values and they can therefore be chosen with the aid of synthetic
spectra. The normalization task was made easier by the fact that most of the observations were carried out in the red
portion of the spectrum, where the line density is low and the continuum level is easily identified in the hot stars
observed for this study. The uncertainty
level for abundances resulting from improper continuum placement is dependent upon the observed S/N level. We estimate
that for S/N = 100, the error in continuum placement is approximately 1% which, for example, results in an uncertainty of
dex in the abundance determined from the Pr III
line.
The temperature range of HgMn stars is such that the majority ionization state of the praseodymium and neodymium atoms is
doubly ionized. Until recently no oscillator strength data existed for Pr III or Nd III, making it
impossible to directly determine an abundance from the third spectrum
lines of these elements. Recently theoretical oscillator strength data
have been made available both for Pr III (Palmeri et al. 2000; Bord 2000, private communication,
Biémont et al. 2001) and Nd III (Bord 2000).
The complexity of the Pr III and Nd III spectra coupled with the nature of theoretical
oscillator strengths means that any uncertainties attached to the abundance determinations based upon these values
must be tested. In order to circumvent this problem we have chosen to determine abundances directly from a star where both
singly-ionized praseodymium and neodymium lines with known experimental oscillator strengths, as well as doubly-ionized
praseodymium and neodymium lines, are visible. In this way the singly-ionized lines can be utilized to derive an abundance,
grounded in experimentally determined f-values, that can be used for
determination of astrophysical gf values for Pr III and Nd III lines. The astrophysical gf values can then
be compared with the theoretical gf values to establish the reliability of these values, and be used as an abundance
determining tool for the hotter HgMn stars, where the Pr II and Nd II lines are too weak to be observed.
An implicit assumption of this approach is that statistical equilibrium results in an unique abundance for all ions of
an element. The validity of this assumption can be questioned since ionization anomalies and abundance stratifications
have been reported for certain elements in HgMn stars (i.e. for mercury in Proffitt et al. 1999). So far, however, no note
has been made of a REE ionization anomaly in these stars, although this might reflect errors in
atomic data and difficulties in observing lines from multiple ionization stages.
The metallic-lined (Am) star 32 Aquarii (HD 209625 = HR 8410) is a slowly rotating single-lined spectroscopic binary.
It was chosen as a target because it had been observed to have lanthanide overabundances (Magazzu & Cowley 1986) and
since its
is low compared to those of the HgMn stars observed for this study. It
was therefore expected that lines from both the singly and doubly-ionized stages for praseodymium and neodymium would be
visible in the spectrum.
Several elemental abundance analyses of 32 Aqr exist in the literature. Smith (1971, 1976) and Lane & Lester (1987)
analysed 32 Aqr as part of larger studies of Am stars. The stellar parameters derived
in the latter study were
= 7300 K, log g = 3.3,
sin
= 19 km s-1,
= 2.5 km s-1.
Kocer et al. (1987) derived similar values for the stellar parameters with the exception of the microturbulent
velocity, which was found to be
= 4.5 km s-1.
In a more recent study (Bolcal et al. 1992) the
determination of the temperature and surface gravity was made by comparing the values calculated in three different
studies, two of which being
the studies listed above (Lane & Lester, and Kocer et al.). The third set was determined by using the photometric relations of Moon & Dworetsky (1985) and the
photometry of Hauck & Mermilliod (1980).
The effective temperature and surface gravity determined with this method were
= 7870 K, log g = 3.77.
The rotational velocity was measured to be
sin
= 5 km s-1 by fitting Gaussian profiles to
metal lines. This value is quite different from the value of
sin
= 19 km s-1 listed by
Hoffleit & Jaschek (1982). An elemental abundance analysis for 32 Aqr made by Adelman et al. (1997)
showed that some of the Pr II and Nd II lines were appreciably strong.
Subsequent synthetic spectrum calculation made by us prior to making observations showed that the strongest
Pr III and Nd III lines
should be observable in a star with a temperature and abundances corresponding to that of 32 Aqr, making it a suitable
object to be used in our study.
The strong spectral lines in 32 Aqr are extremely asymmetric with depressed blue line wings, while the weaker lines
appear to be symmetric. The large difference in line shapes between the strong and weak features makes it impossible to
get a consistent fit to all spectral lines with a single atmospheric model. The asymmetry of the strong lines has been
interpreted by Landstreet (1998) as evidence for atmospheric velocity fields in 32 Aqr. According to Landstreet the
standard assumption of a height independent microturbulent velocity field is not valid in at least some of the Am stars
with
around 8000 K. In these type of stars a variation of the microturbulent velocity with height has
to be incorporated in order to improve the agreement between the observed and calculated line profiles.
The asymmetric line profiles of the stronger spectral lines in 32 Aqr make the determination of the atmospheric parameters
more difficult. The values of elemental abundances and the turbulent velocity that we adopted for 32 Aqr in this paper
are to some extent based upon values obtained from previous studies. The effective temperature and gravity were, however,
calculated from the
photometric colours provided by Hauck & Mermilliod (1980). The
rotational velocity was determined from synthetic line profile fitting to weak symetrically shaped spectral lines. The
final values adopted for 32 Aqr were:
= 7700 K, log g = 3.65,
sin
= 5
km s-1 and
= 4.0 km s-1.
HR 7775 (= HD 193452 =
Cap,
mv = 6.10, B9.5 III-IVp Hg) is a slowly rotating
(
sin
= 2 km s-1) HgMn star. It is a visual binary to the bright star HR 7776 (= HD 193495 =
Cap), with a separation of 205 arcsec (Hoffleit & Jascheck 1982). HR 7775 and HR 7776 each have
either confirmed or suspected companions. In the case of HR 7775 a binary component has been detected by the lunar
occultation method, at a separation of 0.28 arcsec
(Radick & Lien 1980). The magnitude difference between the two components is 3.05 magnitudes in the Stromgren b filter. The astrometric satellite Hipparcos detected HR 7775 as a binary with a separation of 0.68 arcsec and magnitude difference of 2.98 mag (Perryman et al. 1997). It is difficult to estimate if the secondary
contributes to our spectrum of HR 7775 since the orbit of the secondary has not yet been determined. The contribution
of the secondary to the spectrum is determined by the separation of the components at the time of the observation, their position relative to the slit, the slit width, and the seeing. Of these factors only the last two
are known with any certainty (the slit width of the SOFIN camera 2 is 0.7 arcsec, and the seeing is typically sub arcsec),
making it impossible to determine the contribution of the secondary to the light from HR 7775.
In a case where both stars appear on the slit at the time of the observation a contribution of 6% is calculated
from the observed magnitude difference for saturated lines. There is, however, no evidence for the presence of spectral
lines from the secondary at the level of the noise, typically at the 1% level. In the present work, as in the work by Wahlgren et al. (2000) which shared the use of some of the spectra presented in this study, a
possible contribution to the spectrum of HR 7775 from the binary component was neglected as synthetic calculations
showed that such a contribution would likely be very small, with a total contribution to the spectral continuum at the
level of 2% altering abundances of the primary star by up to 0.07 dex. Thus, the introduction of a secondary could
introduce larger errors than it would hope to reduce.
HR 7775 has previously been analysed by Adelman (1994) and Wahlgren et al. (2000) in the optical region, and
by Smith & Dworetsky (1993) in the ultraviolet. The atmospheric parameters and elemental abundances for HR 7775 are
derived from the previous works. The stellar parameters adopted in this work were
= 10750 K,
log g = 4.0,
sin
= 2 km s-1, and turbulent velocity = 0 km s-1, as used by Wahlgren et al. (2000).
The factors low-rotational velocity, enhanced line strengths for heavy elements, and its well studied nature made HR 7775,
along with 32 Aqr, a prime target for the determination of astrophysical gf values for lines of Pr III and
Nd III. The neodymium abundance in
HR 7775 turned out to be sufficiently enhanced for lines from both Nd II and Nd III to be visible. Therefore,
the Nd II lines were used for abundance determination, which in turn was used for the determination of
astrophysical gf values for Nd III lines. The astrophysical gf values were determined using the implicit
assumption that no ionization anomaly exists for neodymium (and praseodymium) in HR 7775 and for praseodymium in 32 Aqr,
even though there is no direct evidence against REE ionization anomalies in these stars. Wahlgren et al. (2000) noted
that some elements in HR 7775 have slightly different abundances when derived from lines of different ionization stages.
These differences are generally small enough (0.1-0.2 dex) that they can be explained by errors in gf values,
uncertainties in the line fitting procedure or lineblending.
There are some clues that an anomaly, if present, should be quite small for neodymium in HR 7775 and 32 Aqr. One such clue
is that the astrophysical gf values of selected Nd III lines in 32 Aqr and HR 7775 agree very well. Since both sets
of values were determined from the abundance derived from Nd II lines, this implies that both stars lack an
ionization anomaly for neodymium, or that both stars have a similar anomaly. Since the two stars are different in
temperature and chemical composition, there is no reason to believe that they should have a similar anomaly. For
praseodymium a similar comparison can not be made due to the weakness of the Pr II lines in HR 7775. However,
astrophysical gf values calculated from the upper limit abundance from Pr II lines agree very well with the
astrophysical gf values determined from 32 Aqr. Another indication of a lack of a significant ionization anomaly is that
praseodymium and neodymium abundances derived from lines from the first and second ionization stages were compared for a
sample of magnetic and non-magnetic CP stars in the paper by Ryabchikova et al. (2001), and it was found that all of
the observed pulsating magnetic (roAp) stars and several of the non-pulsating
Ap stars show a large ionization anomaly, while no anomaly was found for several Ap stars, the two Am stars 15 Vul and
32 Aqr, and the HgMn star HR 7775. Since this study utilized theoretical gf values for the observed Nd III and
Pr III lines an ionization anomaly could conceivably be masked by errors in the calculations. However, this would
mean that several very different stars would have a similar ionization anomaly for praseodymium and neodymium, which would
be a remarkable coincidence.
The stars observed for this study were mainly cool and fairly bright HgMn stars with the constraint that the projected
equatorial rotational velocities (
sin
)
were low enough (
30 km s-1) to alleviate
blending problems and problems discerning weak spectral features.
HgMn stars as a group are among the most slowly
rotating stars on the upper main sequence (Wolff & Preston 1978) and they display very low values of microturbulence
(Adelman 1994), which are properties suggesting that their
atmospheres are rather stable. The surface composition of HgMn stars is characterized by profound enhancements of
many elements, as well as the depletion of others.
By utilizing published photometric data, solar abundance LTE models were calculated using the ATLAS9
model atmosphere program (Kurucz 1993b). Synthetic spectra were then created using the model atmospheres and the SYNTHE
program (Kurucz 1993a), from which elemental abundances and
sin
were determined. For most stars
elemental abundances had been determined previously in which case those values were used as starting values in synthesizing
spectra.
Table 3:
Spectral types and photometric parameters.
| HD |
Other identification |
Spectral Type |
binarity |
V |
(b-y) |
m1 |
c1 |
H |
| 35548 |
HR 1800 |
B9HgMn |
SB2 |
6.57 |
-0.009 |
0.119 |
0.894 |
2.792 |
| 48915 |
Sirius A |
A1 |
|
-1.46 |
-0.005 |
0.162 |
0.980 |
2.907 |
| 72660 |
HR 3383 |
A1 |
|
5.81 |
-0.010 |
0.163 |
1.057 |
2.886 |
| 77350 |
Cnc |
B9SrCrHg |
SB1 |
5.45 |
-0.018 |
0.131 |
1.007 |
2.814 |
| 78316 |
Cnc |
B8MnHg |
SB2 |
5.23 |
-0.040 |
0.115 |
0.558 |
2.717 |
| 89822 |
HR 4072 |
A0HgSiSr |
SB2 |
4.93 |
-0.019 |
0.139 |
0.956 |
2.827 |
| 106625 |
Crv |
B8HgMn |
|
2.58 |
-0.044 |
0.108 |
0.756 |
2.717 |
| 129174 |
Boo A |
B9MnHg |
|
5.00 |
-0.008 |
0.073 |
0.625 |
2.745 |
| 141556 |
Lupi |
B9YHg |
SB2 |
3.95 |
-0.020 |
0.129 |
0.948 |
2.841 |
| 143807 |
CrB |
A0MnHg |
SB2 |
4.98 |
-0.020 |
0.132 |
0.875 |
2.818 |
| 144206 |
Her |
B9MnHg |
|
4.76 |
-0.032 |
0.105 |
0.756 |
2.756 |
| 145389 |
Her |
B9MnHg |
SB1 |
4.27 |
-0.019 |
0.129 |
0.783 |
2.787 |
| 149121 |
28 Her |
B9MnHgSr |
|
5.65 |
-0.015 |
0.119 |
0.911 |
2.807 |
| 158704 |
HR 6520 |
B9MnHg |
|
6.05 |
-0.020 |
0.117 |
0.577 |
2.757 |
| 165493 |
HR 6759 |
B8 |
|
6.20 |
-0.014 |
0.092 |
0.498 |
2.703 |
| 174933 |
112 Her |
B9HgMn |
SB2 |
5.48 |
-0.035 |
0.123 |
0.586 |
2.753 |
| 175640 |
HR 7143 |
A0HgMnY |
|
6.21 |
+0.001 |
0.103 |
0.747 |
2.771 |
| 178065 |
HR 7245 |
B9HgMn |
|
6.54 |
+0.073 |
0.077 |
0.729 |
2.718 |
| 186122 |
46 Aql |
B9MnHg |
|
6.30 |
-0.019 |
0.094 |
0.641 |
2.729 |
| 190229 |
HR 7664 |
B9HgMn |
SB1 |
5.67 |
-0.041 |
0.102 |
0.599 |
2.695 |
| 193452 |
HR 7775 |
B9HgPtSr |
SB1 |
6.10 |
-0.007 |
0.138 |
0.909 |
2.845 |
| 209625 |
32 Aqr |
A4m |
SB1 |
5.28 |
+0.118 |
0.252 |
0.917 |
2.820 |
| 214994 |
o Peg |
A1 |
|
4.81 |
-0.005 |
0.151 |
1.108 |
2.854 |
The observed stars are listed in Table 3 together with spectral types from the catalogue of Renson (1991) and photometric
parameters from Hauck & Mermillod (1980). For the cases where the stars are listed in the literature (see for example
Batten et al. 1989) or observed by us as spectroscopic binaries the designations SB1 and SB2 are given for
single-lined and double-lined spectroscopic binaries. Of the 19 HgMn stars observed, 10 are listed as spectroscopic
binaries, which is consistent with the observed frequency of 50% or higher for spectroscopic binaries in
the class as a whole (Aikman 1976; Gerbaldi et al. 1985; Schneider 1986; Hubrig & Mathys 1995).
The three stars
Cnc,
Her and HR 7664, which are considered single-lined
spectroscopic binaries (Batten et al. 1989; Abt & Snowden 1973; Aikman 1976), were treated
as single objects in the synthetic spectrum analysis since no information is available about their
secondaries. Furthermore, none of these stars show any clear signs of a secondary in our data.
HR 1800 has been observed by Hipparcos to be a binary with a V magnitude difference of
0.956 mag and a separation of 0.243 arcsec. At first glance, no clear signs of a secondary can be seen in the
spectrum of HR 1800, even though the small magnitude difference and separation would suggest that light from the
secondary should give a rather large contribution to the spectrum. By observing the H
line and Mg II
4481 doublet the presence of the secondary could clearly be seen as a depression in the continuum around these
lines. The shallowness of the depression suggested that the rotational velocity of the secondary was quite high. With
the aid of the observed magnitude difference, and using the assumption of the secondary as a main sequence star, a model
atmosphere was created for the secondary with solar abundance values,
= 8500 K, log g = 4.0,
sin
= 50 km s-1 and the luminosity ratio
/
= 4.
The remaining five SB2 HgMn binaries in Table 3 are all quite well studied, and for each the atmospheric parameters for
both the primary and the secondary have been established along with the luminosity ratio between the two components.
For all five stars, except
Cnc, lines from the secondary component were observed in our data and a wavelength
separation between lines from the primary and the secondary was
established and used in the synthetic spectra. For
Cnc a wavelength separation of zero angstroms was adopted,
since the rotational velocity of the secondary is quite high, and the synthetic spectrum calculations thus quite
insensitive to the separation.
The three Am stars Sirius, HR 3383 and o Peg with
10000 K were observed in order to
investigate the boundary between the the hot Am stars and the HgMn stars. These stars are well-studied, and the physical
parameters for them were adopted from previous work.
The physical parameters of the observed stars with their secondary components are listed in Table 4. The
temperatures and
gravities for the single stars and the primary components in the binaries were calculated from a computer code provided by
R. Napiwotzki (1999 private communication; Napiwotski et al. 1993), which is based upon the formalism of
Moon & Dworetsky (1985), and the
photometric colours presented by Hauck & Mermillod (1980). For the secondary
components these parameters were either adopted from previous work or calculated
from the observed magnitude difference between the components and by utilizing the assumption that the secondary is a main
sequence star.
The rotational velocities were determined by synthetic spectrum fitting of unblended Fe II
lines. The element iron has four stable isotopes, but only one is dominant for the terrestrial
isotope mixture (54Fe:56Fe:57Fe:58Fe = 5.8:91.7:2.2:0.3). Thus, the line core is dominated by
the 56Fe isotope, and isotopic shift and hyperfine structure play a negligible role in line broadening. Most of the
Fe II lines used have similar sensitivity to a magnetic field, making it impossible to
investigate the possible presence and strength of a magnetic field. For this reason a possible contribution of a magnetic
field to line broadening was neglected in the calculations of
sin
.
We note, however, that
fitted line profiles do not seem distorted by potential Zeeman broadening, effectively limiting the presence of a
noticeable global organized magnetic field.
The determined values of
sin
are listed in Table 4 along with previously determined values.
Table 4:
Physical parameters of the observed stars.
| HD |
|
log g |
sin
(km s-1) |
Ref. |
| |
|
(K) |
|
this work |
other work |
|
| 35548 |
A |
11088 |
3.79 |
2 |
1 |
[1] |
| |
B |
8500 |
4.00 |
50: |
|
|
| 48915 |
|
9850 |
4.30 |
16 |
15 |
[2] |
| 72660 |
|
9750 |
4.00 |
6.5 |
6.5 |
[3] |
| 77350 |
|
10375 |
3.50 |
20 |
13 |
[4] |
| 78316 |
A |
13470 |
3.81 |
6.5 |
6 |
[5] |
| |
B |
8500 |
4.00 |
40 |
40 |
[6] |
| 89822 |
A |
10900 |
4.07 |
3 |
2 |
[6] |
| |
B |
8900 |
4.20 |
5 |
2 |
[6] |
| 106625 |
|
12002 |
3.31 |
36 |
36 |
[7] |
| 129174 |
|
13037 |
3.97 |
14 |
15 |
[8] |
| 141556 |
A |
10608 |
3.98 |
0 |
0 |
[9] |
| |
B |
9200 |
4.20 |
2 |
2 |
[9] |
| 143807 |
A |
11250 |
3.65 |
2.5 |
0.5 |
[6] |
| |
B |
9250 |
4.00 |
3 |
0.5 |
[6] |
| 144206 |
|
12013 |
3.73 |
11 |
11 |
[10] |
| 145389 |
|
11781 |
3.97 |
10 |
10 |
[11] |
| 149121 |
|
10908 |
3.83 |
8 |
8 |
[11] |
| 158704 |
|
13163 |
4.22 |
4 |
3.75 |
[12] |
| 165493 |
|
13890 |
3.90 |
3 |
2.75 |
[12] |
| 174933 |
A |
13294 |
4.15 |
6 |
6 |
[13] |
| |
B |
8500 |
4.20 |
8 |
8 |
[13] |
| 175640 |
|
12077 |
3.92 |
2 |
2 |
[1] |
| 178065 |
|
12193 |
3.54 |
2 |
1.5 |
[12] |
| 186122 |
|
12914 |
3.74 |
2 |
1 |
[1] |
| 190229 |
|
13240 |
3.43 |
9 |
8 |
[11] |
| 193452 |
|
10750 |
4.00 |
2 |
2 |
[14] |
| 209625 |
A |
7700 |
3.65 |
5 |
19 |
[15] |
| 214994 |
|
9590 |
3.60 |
8 |
10 |
[2] |
References to previous
sin
determinations: [1] Smith (
1992);
[2] Abt & Morrell (
1995); [3] Nielsen & Wahlgren (
2000); [4] Adelman (
1989); [5]
Adelman (
1987); [6] Ryabchikova (
1998); [7] Guthrie (
1981);
[8] Adelman (
1992); [9] Wahlgren et al. (
1994); [10] White et al. (
1976); [11] Adelman (
1988); [12] Hubrig et al. (
1999); [13] Ryabchikova et al. (
1996); [14] Wahlgren et al. (
2000); [15] Hoffleit & Jaschek (
1982).
A number of very weak Pr II lines appear in the spectrum of HR 7775. The weakness of the lines renders a direct
abundance determination difficult, and for most lines it is only possible to determine an
upper limit of the abundance. The Am star 32 Aqr was considered a suitable target where temperature and high praseodymium
abundance would combine to make lines of both Pr II and Pr III visible. Unfortunately, the praseodymium abundance stated in previous work (Magazzu & Cowley 1986) was apparently overestimated, which meant that the
strength of the observed Pr II
and Pr III lines was less than anticipated. However, the abundance was high enough so that some of the stronger
lines from both ionization stages were visible, although quite weak. Only for Pr II 4056, 4062,
for which we had determined experimental gf values and hyperfine component intensities, were the line structures relatively
unblended and sufficiently strong. With the aid of synthetic spectra a satisfactory fit to
both lines was obtained at an abundance of log
= 1.60
0.15 dex (on a scale where log
= 12). The uncertainty in the abundance determination was calculated by using synthetic spectra
to determine the change in the abundance value for a plausible variation of each parameter independently. In the error
analysis
was changed by 200 K, log g by 0.3,
sin
by 0.5 km s-1,
by 1 km s-1. The error caused by improper continuum placement was accounted for by
allowing it to change by 1% from its determined placement. The quoted error is a calculated root sum squared (rms)
value based on the individual uncertainties of the five parameters. This rms value was deemed appropriate to use as a
representation error estimate for other abundance determinations as well as for the determination of astrophysical log gf
values. Some error sources are not included in the rms value. The error associated with fitting the
observation by the synthetic spectra is not included, but it is less than 0.05 dex. Similarly, errors arising from
incorrectly determined laboratory gf values and from the inappropriateness of the stellar model in terms of diffusion (for example), have not been incorporated.
After the praseodymium abundance had been determined from Pr II lines with experimental oscillator strength data,
astrophysical gf values were determined for the three Pr III
lines in 32 Aqr for which data had been obtained. The gf values were obtained by adjusting this parameter until the
calculated line profile agreed with the observed line profile. The uncertainty in astrophysical log gf for the three
Pr III lines is estimated to be 0.15 dex, based upon the rms error discussed above. It should be noted that
the three Pr III lines have a small amount of hfs in the
laboratory data as indicated in Table 1. Since the hfs can only be seen as a skewness of the laboratory
Pr III lines observed at a spectral resolving power of R = 106, it is difficult to establish the strength of
the hfs components. Each Pr III line is therefore only represented by a single component.
The extreme asymmetry observed in the line profiles of the stronger spectral lines in 32 Aqr is not evident in
weaker spectral lines. The Pr II and Pr III lines are quite weak in 32 Aqr and no asymmetry (except hfs in
the Pr II lines) can
be seen in the observed features. The uncertainty of the astrophysical log gf values should therefore not be affected by a
disagreement between the synthetic and observed line profiles due to asymmetries in the observed spectral lines.
With the aid of the astrophysically determined gf values for the three Pr III lines in 32 Aqr an abundance
determination was made for praseodymium in HR 7775. The derived abundance was log
= +3.68
dex for each of the three lines, an indication that the derived gf values are consistent. The abundance value
is also consistent with an upper limit value determined from Pr II lines.
The laboratory spectrum of Pr III has been studied extensively by Sugar (1974). From this study it is evident
that the strongest Pr III lines lie between 5000 and 7000 Å and have thus been overlooked by traditional
abundance analysis at blue wavelengths. All of the stronger lines in this region of the laboratory
spectrum, that is lines with an intensity above 1000 on the laboratory scale presented by Sugar, can readily be observed in
the SOFIN spectrum of HR 7775. The intensity scale presented by Sugar is wavelength dependent so that in more sensitive
regions (such as between 5000 and 5500 Å) lines with intensities down to 100 can be observed, while in other regions,
such as above 6000 Å it can be difficult to observe lines with intensities of 1000.
After establishing the praseodymium abundance in HR 7775, astrophysical log gf values were determined for 18 of the
stronger, unblended lines of Pr III. Table 5 presents these data. The log gf accuracy for most lines is
estimated to be less than 0.1 dex, based upon the fitting error of the synthetic line profile to the observed lines. The
correctness of the log gf value for
5208 is somewhat doubtful since it is blended with Cr I 5208, but more importantly, since the
strength of the line should be much weaker according to the laboratory intensity measurements made by Sugar. It is
therefore conceivable that this line is in fact blended with an unknown feature.
The wavelengths presented in Tables 1 and 5 differ somewhat from those determined by Sugar (1974),
typically by 0.02 Å. This difference is larger than the difference in the listed measurement accuracies of the two
projects. In the present paper the center of gravity wavelengths of the Pr III lines are presented.
The results for three sets of theoretical gf values are also presented in Table 5. The three calculations were
all made
utilizing the Cowan code (Cowan 1981), including some relativistic effects in the optimization of the orbitals. It is
interesting to note that the theoretical values by Bord (2000, private communication) and Biémont et al. (2001)
agree very well, while these values differ from those of Palmeri et al. (2000) by about 1 dex. This suggests a
rather large systematic error in the
theoretical gf values by Palmeri et al.. Biémont et al. ascribed this difference to a more realistic
consideration of the core-polarization effect in their calculations as opposed to the earlier
work of Palmeri et al.
[1] Theoretical log
gf values from Bord
2000 (private communication).
[2] Theoretical log
gf values from the website
http://www.umh.ac.be/ astro/dream.shtml following calculations in Biémont et al. (
2001).
[3] Theoretical log
gf values from Palmeri et al. (
2000).
Notes: The designations "w'' and "bl'' denote the spectral line to be weak or blended.
Wavelengths in italics from the work by Sugar (
1974).
For most lines the gf values determined by Bord and Biémont et al. are in good agreement with the
astrophysically determined values. Still, it is difficult to conclusively state that these gf values are correct or to
what extent the
gf values of Palmeri et al. are in error since systematic uncertainties may have been introduced for the
astrophysically calculated gf values. The log gf values for the Pr II lines used for the abundance determination
are, however, experimental, and are highly unlikely
to be inaccurate by 1 dex. According to diffusion theory, the abundance of an element may differ noticeably when derived
from different ionization stages. There are, however, no clear signs of abundance differences on the order of
1 dex in any of the elements observed in HR 7775 for which two ionization stages have been observed, although ionization
anomalies are seen to be as high as 0.5 dex (see Table 3 in Wahlgren et al. 2000).
In the spectrum of HR 7775 a number of Nd II lines are readily observable. The strongest attain a depth of 15% from the
continuum level. Because of this, the determination of the neodymium abundance and the astrophysical gf values for
Nd III lines could be done utilizing a more direct approach than for praseodymium. The appreciable strength of the
Nd II lines in HR 7775 meant that the neodymium abundance could be determined directly for this star without using
32 Aqr as an intermediary object.
The neodymium abundance in HR 7775 was determined from a number of unblended and sufficiently strong Nd II lines,
the gf values of which had been determined from three sources: Ward et al. 1985; Kurucz 1993a, as determined
from lifetimes provided by Ward et al. 1985; and Meggers et al. 1975, corrected with a factor of 0.62 as given in Kurucz 1993a.
In the present study 24 lines were observed and analyzed with synthetic spectra. The lines and the abundance derived
from them are presented in Table 6. From this table it can clearly be seen that an analysis of the different lines provide
a similar abundance value. The one notable exception is the line at 4109.071 Å. The mean abundance value of neodymium
in HR 7775, as derived from 20 unblended Nd II lines, is log
= +4.04
0.12 dex. It might
be argued that this abundance would be too high
since no isotope and hyperfine structure components were used in the linelists of the synthetic calculations. The isotope
structure in a specific line is less than 0.1 Å for the optical lines with the largest
observed isotope structure, as
calculated from the isotope structure of the Nd II energy levels (Blaise et al. 1984). In the laboratory
measurements of neodymium, made with the Lund VUV FTS, a certain amount of structure can be seen in the Nd II lines observed in HR 7775. The structure is, however, very small in all these lines, and the lines can
therefore be represented by a single component without introducing significant errors in the abundance determination.
The spectrum of HR 7775 has a lower S/N (under 100) in the blue spectral region (roughly between 3700-4100 Å), which
increases the uncertainty of the abundances derived from lines in this region.
Table 6:
The abundance of Nd II in HR7775 and 32 Aqr.
 |
log gf |
Ref. |
Classification
 |
log
|
| (Å) |
|
|
|
|
|
32 Aqr |
HR 7775 |
| 3901.845 |
0.310 |
[1] |
4f4(5I)6s 6I17/2 |
- |
4f4(5I)6p 6H15/2 |
|
4.00 |
| 3911.165 |
0.340 |
[1] |
4f4(5I)6s 6I15/2 |
- |
4f4(5I)6p 2936215/2 |
|
3.95 |
| 3951.142 |
0.010 |
[3] |
4f4(5I)6s 6I11/2 |
- |
4f4(5I)6p 6I11/2 |
|
4.00bl |
| 3963.105 |
0.160 |
[3] |
4f4(5I)6s 6I15/2 |
- |
4f4(5I)6p 2902717/2 |
|
4.10 |
| 4012.243 |
0.720 |
[3] |
4f4(5I)6s 6I17/2 |
- |
4f4(5I)6p 6K19/2 |
|
4.25 |
| 4031.784 |
0.330 |
[1] |
4f4(5I)6s 4I15/2 |
- |
4f4(5I)6p 3078117/2 |
|
3.90 |
| 4059.951 |
-0.360 |
[1] |
4f4(5I)6s 4I9/2 |
- |
4f4(5I)6p 2627411/2 |
2.20 |
|
| 4061.080 |
0.550 |
[3] |
4f4(5I)6s 6I15/2 |
- |
4f4(5I)6p 6K17/2 |
2.25 |
4.05 |
| 4109.071 |
0.280 |
[3] |
4f4(5I)6s 6I9/2 |
- |
4f4(5I)6p 2484211/2 |
1.90 |
3.70 |
| 4109.448 |
0.300 |
[3] |
4f4(5I)6s 6I13/2 |
- |
4f4(5I)6p 6K15/2 |
2.40 |
4.10 |
| 4133.351 |
-0.520 |
[2] |
4f4(5I)6s 6I13/2 |
- |
4f4(5I)6p 6I11/2 |
2.40 |
|
| 4156.078 |
0.200 |
[3] |
4f4(5I)6s 6I11/2 |
- |
4f4(5I)6p 6K13/2 |
|
4.20 |
| 4177.320 |
-0.080 |
[3] |
4f4(5I)6s 6I9/2 |
- |
4f4(5I)6p 6K11/2 |
|
4.10 |
| 4211.291 |
-0.720 |
[3] |
4f4(5I)6s 4I9/2 |
- |
4f4(5I)6p 253899/2 |
2.25 |
|
| 4232.374 |
-0.300 |
[3] |
4f4(5I)6s 6I9/2 |
- |
4f4(5I)6p 2413411/2 |
|
4.10 |
| 4284.509 |
-0.200 |
[3] |
4f4(5I)6s 6I17/2 |
- |
4f4(5I)6p 6K17/2 |
2.45 |
|
| 4303.571 |
0.140 |
[3] |
4f4(5I)6s 6I7/2 |
- |
4f4(5I)6p 6K9/2 |
|
4.20 |
| 4358.161 |
-0.280 |
[3] |
4f4(5I)6s 6I13/2 |
- |
4f4(5I)6p 6K13/2 |
2.45 |
4.10 |
| 4462.979 |
0.070 |
[2] |
4f4(5I)6s 4I13/2 |
- |
4f4(5I)6p 6K15/2 |
|
4.10 |
| 5076.580 |
-0.250 |
[1] |
4f4(5I)6s 4I15/2 |
- |
4f4(5I)6p 2567817/2 |
|
4.00bl |
| 5249.576 |
0.210 |
[2] |
4f4(5I)5d 6L17/2 |
- |
4f4(5I)6p 6K15/2 |
|
4.05 |
| 5273.427 |
-0.120 |
[3] |
4f4(5I)5d 6L13/2 |
- |
4f4(5I)6p 6K11/2 |
|
4.10 |
| 5293.163 |
-0.060 |
[2] |
4f4(5I)6s 6L15/2 |
- |
4f4(5I)6p 6K13/2 |
2.50 |
4.15 |
| 5319.815 |
-0.210 |
[2] |
4f4(5I)6s 6L11/2 |
- |
4f4(5I)6p 6K9/2 |
|
4.10 |
| 5688.518 |
-0.250 |
[3] |
4f4(5I)6s 6K13/2 |
- |
4f4(5I)6p 6K13/2 |
2.40 |
|
Wavelengths from Kurucz
1993a, as determined from energy levels by Blaise et al. (
1984)
Classifications from Martin et al. (
1978)
References: [1] Meggers et al. (
1975), corrected with a factor of 0.62 as given in Kurucz (
1993a); [2] Ward et al. (
1985); [3] Kurucz (
1993a), as determined from lifetimes provided by Ward et al. (
1985).
An abundance determination of neodymium was also made for 32 Aqr with the aid of unblended Nd II lines. This
analysis served to check the consistency of the abundance determination for HR 7775 and to discern possible
blends that could be present in HR 7775, while absent in 32 Aqr. The lower effective temperature of 32 Aqr results in
the Nd II lines being stronger compared to the corresponding lines in HR 7775, even though the abundance
enhancement is not nearly as pronounced as in HR 7775. This meant that certain lines which are too weak to be seen in
HR 7775 could be used in the analysis. Nine lines were measured in 32 Aqr and are presented in Table 6. The
neodymium abundance for 32 Aqr derived from these lines is log
= +2.34
0.17 dex.
Astrophysical gf values were determined for 20 Nd III lines and are presented in Table 7. To check the
consistency of these gf values, the lines of Nd III which could be
seen in the spectrum of 32 Aqr were also observed. In all cases, astrophysical wavelengths and gf values from the
two stars were in good agreement with each other.
Theoretical log gf values have been calculated by Bord (2000) and are presented in Table 7. These
values agree well with the astrophysical values for most lines, with some notable exceptions. The
lines with the largest disagreement are weak lines (in HR 7775).
Since only a few energy levels, and thus few lines of Nd III are classified, it is conceivable that many other
unidentified features in stellar spectra with neodymium enhancements could be attributed to Nd III, originating from
unknown levels. This could partly explain the large number of unidentified lines for HR 7775 as noted by Wahlgren et al. (2000). Spectra taken with the Lund FTS confirm this as several lines that could be
attributed to Nd coincide in wavelength with unidentified features in the spectrum of HR 7775.
Table 7:
Atomic data for Nd III.
 (Å) |
Classification |
Astrophysical log gf |
Theoretical log gf
 |
log
 |
| Previous
|
Recent
|
|
|
|
32 Aqr |
HR 7775 |
|
Lupi |
HR 1800 |
| 4624.993 |
4624.9799 |
4f4 5I6 |
- |
4f3(4Io)5d J = 7 |
-2.00 |
-2.05 |
-2.01 |
3.35 |
|
| 4903.260 |
4903.2410 |
4f4 5I4 |
- |
4f3(4Io)5d 5I5 |
|
-2.35 |
-1.86 |
3.30 |
|
| 4921.024 |
4921.0431 |
4f4 5I6 |
- |
4f3(4Io)5d 5I7 |
|
-1.80 |
-1.77 |
3.30 |
|
| 4927.574 |
4927.4877 |
4f4 5I7 |
- |
4f3(4Io)5d J = 7 |
|
-0.90 |
-0.86 |
3.30 |
2.90n |
| 5085.001 |
5084.993
 |
4f4 5I6 |
- |
4f3(4Io)5d 5I6 |
|
-1.80 |
-0.68 |
3.35bl |
|
| 5102.415 |
5102.4555 |
4f4 5I8 |
- |
4f3(4Io)5d 5I8 |
|
-0.30 |
-0.40 |
3.35 |
2.80 |
| 5126.987 |
5127.0441 |
4f4 5I6 |
- |
4f3(4Io)5d 5H5 |
|
-0.85 |
-1.09 |
3.40 |
3.00 |
| 5193.062 |
5193.0397 |
4f4 5I5 |
- |
4f3(4Io)5d 5I5 |
|
-1.20 |
-0.77 |
3.20 |
2.90 |
| 5203.902 |
5203.9236 |
4f4 5I4 |
- |
4f3(4Io)5d 5H3 |
|
-0.80 |
-1.19 |
3.35 |
2.95 |
| 5259.894 |
5259.8757 |
4f4 5I5 |
- |
4f3(4Io)5d 5H4 |
|
-2.35 |
-1.15 |
3.40w |
|
| 5265.019 |
5264.9604 |
4f4 5I7 |
- |
4f3(4Io)5d 5I7 |
|
-0.70 |
-0.67 |
3.30 |
2.90 |
| 5286.764 |
5286.7534 |
4f4 5I8 |
- |
4f3(4Io)5d J = 7 |
|
-2.05 |
-1.60 |
3.40w |
|
| 5294.099 |
5294.1133 |
4f4 5I4 |
- |
4f3(4Io)5d 5I4 |
|
-0.70 |
-0.67 |
3.35 |
2.95 |
| 5633.541 |
5633.5540 |
4f4 5I5 |
- |
4f3(4Io)5d 5I4 |
|
-2.20 |
-2.01 |
3.40w |
|
| 5677.145 |
5677.1788 |
4f4 5I8 |
- |
4f3(4Io)5d 5I7 |
-1.40 |
-1.40bl |
-1.42 |
3.60bl |
|
| 5845.068 |
5845.0201 |
4f4 5I8 |
- |
4f3(4Io)5d 5K9 |
-1.10 |
-1.10 |
-1.16 |
3.35 |
2.85n |
| 5987.800 |
5987.6828 |
4f4 5I7 |
- |
4f3(4Io)5d 5K8 |
-1.25 |
-1.15 |
-1.25 |
3.30 |
2.90n |
| 6145.072 |
6145.0677 |
4f4 5I6 |
- |
4f3(4Io)5d 5K7 |
-1.30bl |
-1.30 |
-1.33 |
3.35 |
2.90n |
| 6327.244 |
6327.2649 |
4f4 5I5 |
- |
4f3(4Io)5d 5K6 |
-1.35 |
-1.35 |
-1.40 |
3.35 |
3.00 |
| 6550.326 |
6550.2314 |
4f4 5I4 |
- |
4f3(4Io)5d 5K5 |
|
-1.30 |
-1.47 |
|
|
Wavelengths calculated from Nd
III energy levels, Martin et al. (
1978).
Wavelengths measured with the Lund VUV FTS, Aldénius (
2001).
Theoretical log
gf values from Bord (
2000).
Abundance determined using astrophysical log
gf values from HR 7775.
Astrophysically determined wavelength.
Notes: The designations "w'', "bl'' and "n'' denote the spectral line to be weak, blended or noise affected.
Table 8:
Equivalent width measurements of Pr and Nd.
| |
(K) |
|
| |
6000 |
7000 |
8000 |
9000 |
10000 |
11000 |
12000 |
13000 |
|
| |
|
|
|
|
|
|
|
|
|
| Pr II |
26.6 |
15.3 |
4.9 |
0.49 |
|
|
|
|
1 dex enhancement |
| Pr III |
4.2 |
9.9 |
10.3 |
4.7 |
1.8 |
1.0 |
0.84 |
0.78 |
|
| Nd II |
40.6 |
28.2 |
12.9 |
1.8 |
0.19 |
|
|
|
|
| Nd III |
8.4 |
17.3 |
19.5 |
11.4 |
5.3 |
3.2 |
2.6 |
2.5 |
|
| |
|
|
|
|
|
|
|
|
|
| Pr II |
39.6 |
27.7 |
12.4 |
1.4 |
0.14 |
|
|
|
1.5 dex enhancement |
| Pr III |
10.6 |
20.9 |
22.4 |
12.2 |
5.3 |
3.1 |
2.5 |
2.3 |
|
| Nd II |
56.2 |
40.7 |
25.6 |
5.0 |
0.57 |
0.09 |
|
|
|
| Nd III |
17.7 |
30.5 |
33.3 |
24.6 |
13.5 |
8.8 |
7.4 |
6.9 |
|
| |
|
|
|
|
|
|
|
|
|
| Pr II |
56.0 |
39.8 |
25.0 |
4.3 |
0.4 |
0.08 |
|
|
2 dex enhancement |
| Pr III |
21.4 |
34.3 |
36.2 |
25.5 |
13.6 |
8.6 |
7.1 |
6.6 |
|
| Nd II |
84.1 |
54.5 |
38.7 |
12.7 |
1.7 |
0.3 |
|
|
|
| Nd III |
30.2 |
43.0 |
48.2 |
38.4 |
27.0 |
19.5 |
17.1 |
15.7 |
|
All equivalent widths measured in units of mÅ.
The neodymium and praseodymium abundance in HgMn stars was determined from
Nd III and Pr III lines for which gf values had been astrophysically obtained. The specific lines that
were observed varies since different stars were observed with
different spectrographs, modes, and wavelength intervals, and since the number of observable lines is dependant on the
abundance of the element in question.
The strength of an individual neodymium or praseodymium line is not only dependant on the gf value and abundance, but
also on the stellar effective temperature, through the Boltzman factor. Equivalent width measurements were made from
synthetically calculated
praseodymium and neodymium lines at different temperatures in order to investigate the
temperature dependence of lines from different ionization stages.
In the synthetic calculations the 5294 line of Nd III and the 5299 line of Pr III were
used for the equivalent width measurements since these are among the strongest praseodymium and neodymium lines observed
in HR 7775. To compare lines from different ionization stages, theoretical singly
and triply-ionized lines were created with the same log gf and energy level values as the doubly-ionized lines. Neutral
lines were not studied since they display negligible strength in the temperature regime of the HgMn
stars. Synthetic spectra
were generated for atmospheric models with effective temperatures ranging from 6000 to 13000 K at 1000 K
intervals. The surface gravity in all models was log g = 4. For each atmospheric model synthetic spectra were generated
for neodymium and praseodymium abundance enhancements of 1.0, 1.5 and 2.0 dex. The
equivalent width measurements for singly and doubly-ionized praseodymium and neodymium are presented in Table 8.
As evident from Table 8, the Pr II and Nd II lines have equivalent
widths that decrease rapidly
with increasing temperature. It is clear that lines from Pr II and Nd II should
be very weak or absent in the
temperature regime of the HgMn stars, even at a 2 dex abundance enhancement. Note should be made
that while the strongest
transitions in Pr II and Nd II have similar lower energy levels as the strongest
Pr III and
Nd III lines, they have substantially larger gf values. The astrophysically determined
log gf value of the 5294 Nd III and the 5299 Pr III line is
-0.7 and -0.2,
respectively, while the strongest optical Pr II and Nd II lines have log gf values larger than +0.5. This
means that measured equivalent widths are not representative of the strongest Pr II and
Nd II lines, the
equivalent widths of which should be noticeably larger. The strongest Pr II and
Nd II lines might thus
appear in the cooler HgMn stars, provided that the elements are sufficiently enhanced.
Table 8 shows that doubly-ionized praseodymium and neodymium becomes the dominant ionization stage, at
an effective temperature below 8000 K. The lines of Pr III and Nd III decrease in strength with increasing
temperature beyond 8000 K, but much less rapidly than the Pr II and Nd II lines. The temperature regime of
the HgMn stars is thus not optimal for observing
the Pr III and Nd III lines, but the slow decrease of the line strengths with temperature does imply
that the lines should be observable in the HgMn stars, provided that the enhancement of the elements is sufficiently large.
The limit beyond which the equivalent width of a line becomes unobservable in a stellar spectrum is affected by the
sin
of the star and the signal-to-noise of the spectrum. In a high S/N, low
sin
spectrum we estimate the limit to be around 1 mÅ. From Table 8 it is seen that
the equivalent width of the Pr III 5299 line lies around 1 mÅ at a 1 dex enhancement of
praseodymium in the temperature range of the HgMn stars. The Pr III line would thus be difficult to observe at this
enhancement level under optimal conditions, and undetectable at low S/N and/or high
sin
.
Similarly, the line would be unobservable at an abundance enhancement less than 1 dex. The Nd III line
has a 2-3 mÅ equivalent width at a 1 dex enhancement of neodymium, and should be observable at this enhancement level
in less than optimum conditions.
The exclusion of equivalent width measurements of the Pr IV and Nd IV lines in Table 8 is motivated by the
absence of any observable feature in the synthetic calculations at stellar effective temperature of 13000 K and 2 dex
enhancement. The ionization potential of Pr IV and Nd IV (38.94 and 40.4 eV) is evidently too large for lines from this
ionization stage to present themselves in stellar spectra at effective temperatures below 13000 K. Calculations
show that the Pr IV and Nd IV lines are still absent in a star with an effective temperature of 25000 K with this enhancement.
In Table 9 the calculated abundance of praseodymium, or the upper limit of the abundance, in the observed
HgMn stars are presented for each of the observed Pr III lines. The uncertainty of the abundance determination
varies from line to
line as well as from star to star. In the cases where a specific line is strong and unblended, the error in the abundance
determinations is estimated to be less than 0.1 dex. In several cases, however, lines are either blended, very weak,
or affected by noise, in which cases the error in the abundance determination can be up to 0.2-0.3 dex.
The solar abundance of praseodymium is quite low, log
= 0.71 (Grevesse et al. 1996), 0.54 (Ivarson et al. 2001), and a praseodymium enhancement of 1-2 dex (depending on
sin
,
S/N and
)
is
needed in order to observe the strongest Pr III lines in the temperature regime of the HgMn stars. For this reason only an upper limit of the abundance can be found for several stars. Upper limits were established by
increasing the abundance from the solar value until the synthetic line profile was outside the observed line profile.
Since the amount and quality of data varies from star to star some notes regarding the determined praseodymium abundance
are presented for specific stars. For the stars
Cnc and
Crv the projected rotational velocity is quite large
(
sin
= 20 and 36, respectively), which makes the determination of the abundance more problematic.
In
Cnc only the 5299 line is useful for a direct
abundance determination, all the other lines are only good for establishing a rather high upper limit. For the stars hotter
than HR 7143 no praseodymium line can be observed with certainty, and only
an upper limit of the praseodymium abundance can be established. The value of the upper limit established is clearly
correlated to the
sin
of the star, with the slowly rotating stars having a much lower upper limit than those rotating more rapidly.
The cooler HgMn stars show greater abundance enhancement of praseodymium than the
hotter ones. This is illustrated in Fig. 2 where the spectra of the Pr III 5299 line is
plotted for all HgMn stars where this line was observed. There is a feature at the same
wavelength as the 5299 Pr III line in 112 Her and Cnc, but the abundance value derived
from this line is inconsistent with the praseodymium abundance derived from other Pr III lines. It is therefore
believed that this feature originates from a transition in another element.
No Pr III lines are observed with certainty in any of the observed HgMn stars with
> 12500 K. The praseodymium abundance might still be enhanced, but not sufficiently for these Pr III lines to be observable.
The solar abundance of neodymium is low, log
= 1.50 (Grevesse et al. 1996), yet
higher than the praseodymium abundance. Since the strongest praseodymium and neodymium lines have
similar log gf values, and originate from low energy levels, they should be equally strong provided that the abundance of
the two elements is the same. We observe the neodymium abundance to be about 0.5 dex
greater than the praseodymium abundance, which means the Nd III lines usually are
stronger than the Pr III lines, and subsequently the neodymium abundance may be more easily determined than the praseodymium abundance.
The Nd III 5102 line presented us with a problem. This line, which is the strongest of the observed Nd III lines in HR 7775, is blended with Mn II 5102. In HR 7775 the manganese abundance is
rather low for a HgMn star, and the Mn II line does not significantly blend with the Nd III line. In other
HgMn stars the manganese abundance can be much higher and the effect of the Mn II line more prominent. It
was noted that the abundance value derived from the 5102 line of Nd III did not agree with the value
derived from other Nd III lines whenever the manganese abundance was high enough (log
7.00) for the blend to be substantial.
For stars with solar-like manganese abundance the abundance derived from the Nd III 5102 line agrees
well with the abundance derived from other Nd III lines. This suggested that there was a problem with the
Mn II line used in the synthetic calculations.
Manganese lines can show quite large hfs since manganese is an odd-Z
element with a large nuclear spin (I =
)
and magnetic moment (/
= 3.444). The J values for the upper and lower energy levels of the Mn II
5102 line are both J=4.0, and the line consists of 16 components. Measurements of hfs have been made for
some Mn II lines (Holt et al. 1999), but not for the 5102 line. To get a first
approximation of the hfs of the 5102 line the relative gf values of the 7110 line measured by
Holt et al., with the same upper and lower J values as the 5102 line, were used. The relative gf values can as a first approximation be considered the
same for the two lines. The wavelength spacing between the components may not be the same for the two lines, since the spacing depends on the magnetic dipole (A) and electric quadrupole (B) constants.
![\begin{figure}
\par\includegraphics[angle=90,width=8.8cm,clip]{MS1665f1.eps}\end{figure}](/articles/aa/full/2002/13/aa1665/Timg61.gif) |
Figure 1:
Mn II 5102 line. The original one component fit, represented by the dashed line, and the 16 component fit, represented by the dotted line, are compared to the observed spectrum (solid line) of
Cnc. Four individual lines of Fe II comprise the anotated feature. |
| Open with DEXTER |
The HgMn star
Cnc was utilized for the investigation of the hfs of the Mn II 5102 line since no clear signs
of a neodymium enhancement can be established from any of the other Nd III lines. The upper limit of the neodymium
abundance in
Cnc, as derived from other Nd III lines, is log
= 2.30, and subsequent
synthetic runs showed that this level of enhancement would affect the Mn II line only slightly. Several synthetic
runs were made, all utilizing the relative gf values derived from the 7110 line, but with different hyperfine splittings, until
a good match was found between the observed and the synthetic line profiles. The resulting fit is presented in
Fig. 1 along with the one component fit.
The 16 component representation of the Mn II line is useful for the purpose of determining the abundance from the blending Nd III line. A good indication of the validity of our approach is that the abundance
derived from the Nd III 5102 line agreed with that derived from other Nd III lines, even for the stars with large enhancement of manganese, after the inclusion of the hfs.
The Nd III 5294 line is also blended with a Mn II line consisting of nine components, but the
latter line is not broadened as much as the Mn II 5102 line. This suggests that this Mn II line has a much smaller hfs splitting than the 5102 line. In
Cnc a one component synthetic fit of the Mn II line agrees well with the observed line profile, and the line has therefore been treated as a single component line.
The log gf value of the Mn II 5294 line presented in the Kurucz database was found to be too small, and was adjusted until the synthetic line profile matched the observed line profile. The Kurucz value of log gf = -0.037
was subsequently increased to +0.563 to achieve a good fit.
![\begin{figure}
\par\includegraphics[angle=90,width=18cm,clip]{MS1665f2.eps}\end{figure}](/articles/aa/full/2002/13/aa1665/Timg62.gif) |
Figure 2:
Spectra of HgMn stars including the Nd III 5294 and Pr III 5299 lines. The stars, identified by their HD numbers, are arranged by effective temperature with the coolest HgMn star on top. |
| Open with DEXTER |
As seen in Table 10, neodymium is, similar to praseodymium, noticeably more enhanced in the cooler HgMn stars than in the
hotter ones. This is also illustrated in Fig. 2, where the spectra of the observed HgMn stars are plotted in a region including the Nd III 5294 line. The strength of the Nd III line is difficult to assess
for the stars with
sin
> 5 km s-1, due to a blend with the aforementioned Mn II line.
Different temperature trends can be seen from the lines of other elements in Fig. 2. The increase in strength of the Mn II lines with effective temperature reflects their
known behaviour in HgMn stars (see for instance Smith & Dworetsky 1993). The increase in strength of the P II line in the hotter HgMn stars of our sample is similarly a reflection of the known increase of the phosphorous abundance
in HgMn stars with
> 13000 K (Guthrie 1984). The Xe II line in
Fig. 2 is noticeably stronger in the two hottest HgMn stars than in the other observed HgMn stars. This may be a reflection of an abundance increase of xenon towards hotter HgMn stars and/or of the high ionization potential of xenon.
Two of the hotter HgMn stars (HR 6520 and HR 6759) seem to have a similar neodymium
enhancement as the cooler stars. These stars have only been observed in a very limited region of the spectrum,
with only one Nd III line, the 6145 line, being observed. The log gf value of this Nd III line is quite low, and in HR 7245 and HR 6520 the feature is quite weak and the spectrum a little noisy.
Therefore it is debatable whether the feature is actually the Nd III line, another
unknown line or a noise feature. Other Nd III lines need to be studied in these stars to verify the abundance.
There is no question that there is a feature in the spectrum of the hottest HgMn star in our study,
HR 6759. If the neodymium abundance in HR 6759 is as high as in
the cooler HgMn stars in our study, it could be a sign that this star is related to the magnetic Bp stars, in which the lanthanides typically are greatly enhanced.
The hot-Am stars Sirius, HR 3383 and o Peg, with effective temperatures of approximately 10000 K, were studied to see if the praseodymium and neodymium abundance enhancement from the Am stars through the cooler HgMn stars is
increasing monotonically with effective temperature. In HR 3383 lines from Nd II,
Nd III and Pr III were observed, while the limited wavelength coverage of the o Peg and Sirius
spectrum made it possible only to observe lines from Nd II. The derived abundance enhancement for praseodymium and neodymium for the three stars were consistent with a 1.0-1.2 dex enhancement (see Table 11), similar to what is observed in cooler Am stars.
The abundance results for praseodymium and neodymium have been summarized in Table 11. From this table it can be seen that the abundance of neodymium is greater than the abundance of praseodymium in all cases where both
abundances have been determined, excluding 28 Her. But since the derived praseodymium abundance was established from one noise affected Pr III line, it is more uncertain in this star. Excluding 28 Her the Nd-Pr abundance difference in the cool HgMn stars varies from 0.3 dex in
Her to 0.7 dex in HR 4072 and
CrB, which
is consistently less than the 0.8 dex difference observed in the Sun (Grevesse et al. 1996) and in our observations of 32 Aqr, Sirius and HR 3383.
It is also noted that for HgMn stars of similar temperature the abundance of neodymium and praseodymium can be
significantly different. The previously mentioned trend of the cooler HgMn
stars having greater enhancements of praseodymium and neodymium is, however, clearly evident. Because of the generally
lower abundance for praseodymium this trend is more readily observable for neodymium.
Table 11:
Abundance of Pr and Nd in the Program stars.
| HD |
star |
|
Abundance |
| |
|
(K) |
Nd |
Pr |
| 209625 |
32 Aqr |
7851 |
2.45 |
1.60 |
| 214994 |
o Peg |
9590 |
2.70 |
|
| 72660 |
HR 3383 |
9750 |
2.65 |
1.85 |
| 48915 |
Sirius |
9850 |
2.65 |
|
| 77350 |
Cnc |
10400 |
2.50 |
2.10 |
| 141556 |
Lupi |
10608 |
3.35 |
2.80 |
| 193452 |
HR 7775 |
10750 |
4.10 |
3.68 |
| 89822 |
HR 4072 |
10900 |
3.55 |
2.85 |
| 149121 |
28 Her |
10908 |
2.65 |
2.70 |
| 35548 |
HR 1800 |
11050 |
2.95 |
2.45 |
| 143807 |
CrB |
11250 |
3.15 |
2.65 |
| 145389 |
Her |
11781 |
2.70 |
2.40 |
| 106625 |
Crv |
12002 |
2.40 |
<2.20 |
| 144206 |
Her |
12013 |
2.50 |
2.25 |
| 175640 |
HR 7143 |
12077 |
<1.90 |
<1.80 |
| 178065 |
HR7245 |
12193 |
2.80 |
|
| 186122 |
46 Aql |
12914 |
<1.90 |
<1.90 |
| 129174 |
Boo A |
13037 |
<2.50 |
<2.70 |
| 158704 |
HR6520 |
13163 |
<3.10 |
|
| 190229 |
HR 7664 |
13240 |
<1.90 |
<2.10 |
| 174933 |
112 Her |
13294 |
<2.40 |
<2.40 |
| 78316 |
Cnc |
13470 |
<2.30 |
<2.30 |
| 165493 |
HR6759 |
13890 |
3.50 |
|
One of the goals of this study was to investigate the relationship between the Am and the HgMn stars and to establish
whether there is evidence that the HgMn and Am star phenomena are really the same but seen from different effective temperatures. If this is correct one might expect to see a smooth change in the elemental abundances
with temperature as, for example, affected by radiative acceleration increasing with temperature. If the abundances observed for the two groups of stars are clearly different, it might be construed as a sign of multiple physical
processes (diffusion, rotation, magnetic fields) at work, or a more complicated dependence on effective temperature (diffusion, convection).
The neodymium abundance in Am stars is typically enhanced 1 dex over the solar abundance (see for
instance Adelman et al. 1997, 1999). For praseodymium a similar enhancement
is usually not sufficient for the optical region Pr II lines to be observable. The solar abundance of praseodymium is 0.8 dex less than the neodymium abundance. Thus the praseodymium abundance has seldom been quoted in abundance
analyses of Am stars mostly due to the low abundance. In the cases where Pr II lines have been observed the derived abundance seems to be consistent with a 1 dex enhancement.
For all the HgMn stars with
< 12000 K in our study the
neodymium and praseodymium abundances are more than 1.2 dex enhanced, with most of the stars showing a 1.5-2.5 dex enhancement. This large an enhancement
clearly distinguishes the cool HgMn stars from the Am stars. The star
Cnc has a similar neodymium enhancement as the
Am stars and its temperature is lower than the HgMn stars studied here. This star has been thought of as an intermediary object between the Am and the HgMn stars (Adelman 1989), and the 1 dex enhancement of neodymium might indicate a closer relation to the Am class of stars.
From the observed abundances of praseodymium and neodymium one can see a temperature regime, roughly between 10500 and 12000 K, within which the enhancement of the two elements is noticeably larger than the enhancement in cooler
(Am) and hotter (HgMn) non-magnetic CP stars. Here, the term non-magnetic refers to the stars for which magnetic fields are not obvious through the observation of magnetic line broadening or intensification. There are no clear signs of a
smooth transition of the praseodymium
and neodymium abundance with temperature to and from this temperature regime where the enhancement is pronounced. Instead, it seems like there is a more abrupt change from an enhancement of approximately 1 dex in stars with
below 10500 K, to a 1.5-2.5 dex enhancement in stars with
between 10500 and 12000 K, and back to an
upper limit enhancement of approximately 1 dex in the hotter stars of our group.
The enhancement of certain elements in Am and HgMn stars as well as the depletions of others is postulated to result from diffusive processes active in stellar atmospheres and envelopes. According to the diffusion hypothesis put
forward by Michaud (1970), the anomalous abundances are the result of the ion being pushed upwards or brought downwards depending upon whether the
radiation pressure is greater or smaller than the gravitational force.
For each ion the diffusion hypothesis can predict abundance anomalies that result from radiation pressure acting through atomic transitions (see for instance Michaud 1975). The calculated radiative force depends on the stellar
effective temperature, the atmospheric conditions as well as on the atomic weight of the element and details regarding its atomic
structure. Calculations of abundance anomalies are complicated and simplifying assumptions and approximations are made. For most elements the calculated abundance is significantly higher than the observed abundance, which can perhaps be interpreted as other processes within the stellar atmospheres (turbulence) inhibiting diffusion.
Calculations to establish the expected abundance enhancement of praseodymium and neodymium have not been made since the atomic physics of these elements and other rare earths is rather poorly known, making the diffusion calculations highly uncertain (Michaud et al. 1976).
Non-magnetic CP stars with
< 10000 K are assumed to arrive on the main sequence with solar-like abundances and their H and He convection zones separated by a radiative zone (Michaud 1986). With time He settles gravitationally which leaves the star with a thin superficial H convection zone above a radiative
zone. In the radiative zone elements supported by radiative acceleration are pushed into the convection zone and their abundances are observed enhanced, while elements with radiative force smaller than the gravitational force settle and are
observed as depleted. In CP stars with
> 10000 K most of the hydrogen is ionized and no superficial convection
zone exists. Instead these stars may have a small He convection zone that dissipates over time as a result of He settling gravitationally. After the He convection zone has disappeared the diffusive separation can go on directly in the stellar atmosphere.
The observed jump in the neodymium and praseodymium abundance at an effective temperature of approximately 10500 K can
perhaps be explained with the disappearance or diminishing of the H convection zone. The
observed 1 dex abundance enhancement of praseodymium and neodymium in the Am stars may result
from ongoing diffusive processes occurring below the H convection zone, bringing the elements closer to the stellar surface (influence from other processes, such as magnetic buoyancy, may also be contributing to enhanced line strengths).
In the cool HgMn stars the lack of a convection zone might cause the elements to rise higher through diffusion than in the Am star atmospheres, with a subsequent increase in the observed abundances.
The apparent discontinuity in the neodymium and praseodymium abundance in the vicinity of the Am-HgMn boundary is similar
in nature to the jump observed for the mercury abundance between the hotter Am and the HgMn stars (see for instance
Wahlgren et al. 1993, 1998 and Rooke 1999), where the Am stars have a moderate 1.5 dex enhancement of mercury, while
the HgMn stars have a pronounced mercury enhancement ranging between 3.5-6 dex. The larger difference in the mercury
abundance between Am and HgMn stars, compared to the difference in praseodymium and neodymium abundance, is possibly
a reflection of diffusion acting more efficiently on mercury than on praseodymium and neodymium, something that may be
explained by the difference in atomic structure and mass of these elements (see for instance Michaud et al. 1976; Michaud 1987).
After additional elements are investigated for their abundance in stars in the vicinity of the HgMn - Am boundary it may become possible to understand and explain the interplay between atomic properties (structure, mass) and atmospheric
processes (diffusion, convection, magnetic fields, mass loss) in these stars. Such investigations would provide tighter
constraints for theoretical investigations of atmospheric processes in CP stars.
Acknowledgements
We wish to thank Maria Aldénius for her laboratory work on the neodymium lines and Dr. Pierre Martin for performing part
of the observations used in this work. Part of the observations were collected at the
European Southern Observatory, La Silla, Chile and another part with the Nordic Optical Telescope. The Nordic Optical
Telescope is operated on the island of La Palma jointly by Denmark, Finland, Iceland, Norway, and Sweden, in the Spanish Observatorio del Roque de los Muchachos of the Instituto de Astroficica de Canarias. This research has made
use of the SIMBAD database, operated at CDS, Strasbourg, France.
- Abt, H. A., & Morrell, N. I. 1995, ApJS, 99, 135
In the text
NASA ADS
- Abt, H. A., & Snowden, M. S. 1973, ApJS, 25, 137
In the text
NASA ADS
- Adelman, S. J. 1987, MNRAS, 228, 573
In the text
NASA ADS
- Adelman, S. J. 1988, MNRAS, 235, 763
In the text
NASA ADS
- Adelman, S. J. 1989, MNRAS, 239, 487
In the text
NASA ADS
- Adelman, S. J. 1992, MNRAS, 258, 167
In the text
NASA ADS
- Adelman, S. J. 1994, MNRAS, 266, 97
In the text
NASA ADS
- Adelman, S. J., Caliskan, H., Kocer, D., & Bolcal, C. 1997, MNRAS, 288, 470
In the text
NASA ADS
- Adelman, S. J., Caliskan, T., Cay, H., et al. 1999, MNRAS, 305, 591
In the text
NASA ADS
- Ahmad, S. A., & Saksena, G. D. 1977, Phys. C, 85, 191
In the text
- Aikman, G. C. L. 1976, Pub. Dom. Astro. Obs., 14, 379
In the text
- Aldénius, M. 2001, Master Thesis, Department of Physics, Univ. of Lund
In the text
- Andersen, T., & Sörensen, G. 1974, Sol. Phys., 38, 343
In the text
- Andersen, T., Poulsen, O., Ramanujam, P. S., & Petrakiev-Petkow 1975, Sol. Phys., 44, 257
In the text
NASA ADS
- Batten, A. H., Fletcher, J. M., & MacCarthy, D. G. 1989, Pub. Dom. Astro. Obs., 17, 1
In the text
- Bidelman, W. P. 1966, Abundance Determinations in Stellar Spectra, ed. H. Hubenet (Academic Press: London), IAU Symp., 26, 63
In the text
- Biémont, E., Garnir, H. P., Palmeri, P., et al. 2001, Phys. Rev. A, in press
In the text
- Blaise, J. 1957, Thesis, Univ. Paris, 112
In the text
- Blaise, J., Wyart, J-F., Djerad, M. T., & Ahmed, Z. B. 1984, Phys. Scr., 29, 119
In the text
- Bolcal, C., Kocer, D., & Adelman, S. J. 1992, MNRAS, 258, 270
In the text
NASA ADS
- Bord, D. J. 2000, A&AS, 144, 517
In the text
NASA ADS
- Brault, J. W., & Abrams, M. C. 1989, OSA Technical Digest Series, vol. 6, Opt. Soc. Am., Washington 110
- Corliss, C., & Bozman, U. 1962, NBS Monograph 53, Washington
In the text
- Cowan, R. D. 1981, The Theory of Atomic Structure and Spectra (Berkeley: Univ. of Californian Press)
In the text
- Cowley, C. R. 1983, Phys. Scripta, vol. T8, 28
In the text
- Gerbaldi, M., Floquet, M., & Hauck, B. 1985, A&A, 146, 341
In the text
NASA ADS
- Gorshkov, V. N., & Komarovskii, V. A. 1985, Opt. Spectrosc. (USSR) 58, 561
In the text
- Grevesse, N., Noels, A., & Sauval, A. J. 1996, Cosmic Abundances, ed. S. S. Holt, & G. Sonneborn (ASP: San Fransisco), ASP Conf. Ser., 99, 117
In the text
- Guthrie, B. N. G. 1981, 23eme colloque inter. d'Astrophys. Liège, 189
In the text
- Guthrie, B. N. G. 1984, MNRAS, 206, 85
In the text
NASA ADS
- Guthrie, B. N. G. 1985, MNRAS, 216, 1
In the text
NASA ADS
- Hauck, B., & Mermilliod, M. 1980, A&AS, 40, 1
In the text
NASA ADS
- Hoffleit, D., & Jascheck, C. 1982, The Bright Star
Catalogue (New Haven:Yale Univ. Obs.)
In the text
- Holt, R. A., Scholl, T. J., & Rosner, S. D. 1999, MNRAS, 306, 107, and website In the text
http://gandalf.physics.uwo.ca/atomic/
- Hubrig, S., Castelli, F., & Wahlgren, G. M. 1999, A&A, 346, 139
In the text
NASA ADS
- Hubrig, S., & Mathys, G. 1994, Workshop on Laboratory and Astronomical High Resolution Spectra, ed. A. J. Sauval, R. Blomme, & N. Grevesse (ASP: Brussels), ASP Conf. Ser., 81, 555
- Ilyin, I. 1993, SOFIN User's manual
In the text
- Ilyin, I. 2000, Ph.D. Thesis, University of Oulu
In the text
- Ivarsson, S., Litzén, U., & Wahlgren G. M. 2001, Phys. Scripta, in press
In the text
- King, W. H., Steudel, A., & Wilson, M. 1973, Z. Phys., 265, 207
In the text
- Kocer, D., Bolcal, C., Inelmen, E., & Adelman, S. J. 1987, A&AS, 70, 49
In the text
NASA ADS
- Kurucz, R. L. 1993a, Synthesis Programs and Line Data, (Kurucz CD-ROM No. 18)
In the text
- Kurucz, R. L. 1993b, ASP Conf. Ser., 44, 87
In the text
- Kurucz, R. L., & Avrett, E. H. 1981, Solar Spectrum Synthesis. I. A Sample Atlas from 224 to 300 nm (Smithsonian Astrophys. Obs. Spec. Rept. 391)
In the text
- Landstreet, J. D. 1998, A&A, 338, 1041
In the text
NASA ADS
- Lane, M. C., & Lester, J. B. 1987, ApJS, 65, 137
In the text
NASA ADS
- Li, Z. S., Norin, J., Persson, A., et al. 1999, Phys. Rev. A, 60, 198
In the text
NASA ADS
- Magazzu, A., & Cowley, C. R. 1986, ApJ, 308, 254
In the text
NASA ADS
- Martin, W. C., Zalubas, R., & Hagan, L. 1978, NSRDS-NBS 60, Washington
In the text
- Mathys, G., & Cowley, C. R. 1992, A&A, 253, 199
In the text
NASA ADS
- Meggers, W. F, Corliss, C. H., & Scribner, B. F. 1975, NBS
Monograph, 145
In the text
- Michaud, G. 1970, ApJ, 160, 641
In the text
NASA ADS
- Michaud, G. 1975, Physics of Ap-stars, ed. W. W. Weiss, H. Jenkner, & H. J. Wood (Finsterle & CO. KG.: Vienna), IAU Coll., 32, 81
In the text
- Michaud, G., Charland, Y., Vauclair, S., & Vauclair, G. 1976, ApJ, 210, 447
In the text
NASA ADS
- Michaud, G. 1987, Phys. Scr., Vol. RS5, 66
In the text
- Moon, T. T., & Dworetsky, M. M. 1985, MNRAS, 217, 305
In the text
NASA ADS
- Nakhate, S. G., Afzal, S. M., & Ahmad, S. A. 1997, Z. Phys. D, 42, 71
In the text
- Napiwotzki, R., Schoenberner, D., & Wenske, N. 1993, A&A, 268, 6T3
- Nielsen, K., & Wahlgren, G. M. 2000, A&A, 356, 146
In the text
NASA ADS
- Nöldeke, G. 1955, Z. Phys., 143, 274
In the text
- Palmeri, P., Quinet, P., Frémat, Y., Wyart, J-F., & Biémont, E. 2000, ApJS, 129, 367
In the text
NASA ADS
- Perryman, M., et al. 1997, The Hipparcos and Tycho
Catalogues, European Space Agency SP-1200 (Noordwijk: ESA)
In the text
- Proffitt, C. R., Brage, T., Leckrone, D. S., et al. 1999, ApJ, 512, 942
In the text
NASA ADS
- Radick, R., & Lien, D. 1980, AJ, 85, 1053
In the text
NASA ADS
- Renson, P. 1991,
Catalogue Général des Étoiles Ap et Am, Institut d'Astrophysique-Université de Liège
In the text
- Rooke, S. 1999, Master Thesis, Department of Physics, Univ. of Lund
In the text
- Ryabchikova, T. A., Zakharova, L. A., & Adelman, S. J. 1996, MNRAS, 283, 1115 In the text
- Ryabchikova, T. A. 1998, Contrib. Astron. Obs. Skalnaté Pleso, 27, 319 In the text
- Ryabchikova, T. A., Savanov, I. S., Malanushenko, V. P., & Kudryavtsev, D. O. 2001, Astronomy Reports, 45, 382
In the text
- Schneider, H. 1986, Upper Main Sequence Stars with Anomalous Abundances, ed. C. R. Cowley, M. M. Dworetsky, & C. Mégessier (Reidel: Dordrecht), IAU Coll., 90, 205
In the text
- Smith, M. A. 1971, A&A, 11, 325
In the text
NASA ADS
- Smith, M. A. 1976, ApJ, 203, 603
In the text
NASA ADS
- Smith, K. C. 1992, Ph.D. Thesis, University of London
In the text
- Smith, K. C, & Dworetsky, M. M. 1993, A&A, 274, 335
In the text
NASA ADS
- Sugar, J. 1974, J. Res. Nat. Bur. Stds., 78A, 555
In the text
- Tuominen, I., Ilyin, I., & Petrov, P. 1998, Astrophysics with the NOT, ed. H. Karttunen, & V. Piirola (University of Turku: Turku), 47
In the text
- Wahlgren, G. M., Leckrone, D. S., Johansson, S., & Rosberg, M. 1993, Peculiar Versus Normal Phenomena in A-Type and Related Stars, ed. M. M. Dworetsky, F. Castelli, & R. Faraggiana (ASP: San Fransisco), ASP Conf. Ser., 44, 121
In the text
- Wahlgren, G. M., Adelman, S. J., & Robinson, R. D. 1994, ApJ, 434, 349
In the text
NASA ADS
- Wahlgren, G. M. 1996, Model Atmospheres and Spectrum Synthesis, ed. S. J. Adelman, F. Kupka, & W. W. Wiese (ASP: San Fransisco), ASP Conf. Ser., 108, 240
In the text
- Wahlgren, G. M., & Dolk, L. 1998, Contrib. Astron. Obs. Skalnaté Pleso, 27, 314
In the text
- Wahlgren, G. M, Dolk, L., Kalus, G., Johansson, S., & Litzén, U. 2000, ApJ, 539, 908
In the text
NASA ADS
- Ward, L., Vogel, O., Arnesen, A., Hallin, R., & Wannstrom, A. 1985, Phys.
Scr., 31, 162
In the text
- White, R. E., Vaughan, (Jr) A. H., Preston, G. W., & Swings, J. P. 1976, ApJ, 204, 131
In the text
NASA ADS
- Wolff, S. C., & Preston, G. W. 1978, ApJS, 37, 371
In the text
NASA ADS
Copyright ESO 2002
Pr III
(nm)
)6p 5K5
+2S![\begin{figure}
\par\includegraphics[angle=90,width=8.8cm,clip]{MS1665f1.eps}\end{figure}](/articles/aa/full/2002/13/aa1665/img61.gif)
![\begin{figure}
\par\includegraphics[angle=90,width=18cm,clip]{MS1665f2.eps}\end{figure}](/articles/aa/full/2002/13/aa1665/img62.gif)
