3 Spectroscopic analysis

Figure 1 shows the data of EROS-BLG-2000-5 (upper spectrum) and NGC 6528: I-2 (lower spectrum), heavily smoothed to show the flux distribution of the two stars. Note the striking similarity of the two spectra, and in particular, the TiO bands near 6150 Å and longer wavelengths. The spectra were flux calibrated using a spectrophotometric standard taken on June 26, corrected for airmass (Geneva coefficients for La Silla), and then normalised arbitrarily to a flux of unity at 5870 Å (V band) in order to compare them.

We do not see any evidence of the lensing M dwarf in the spectrum, such as double lines. We do detect TiO, at the radial velocity of the K giant itself, which suggests that we are dealing with a late K or early M giant star.

A radial velocity of $v_{\rm r} = -191$ kms^-1is obtained for EROS-BLG-2000-5. This is consistent with bulge membership, being at the high velocity tail of the bulge velocity distribution (Minniti 1996; Ibata & Gilmore 1995). This velocity also rules out the possibility of this star belonging to the Sgr dwarf galaxy (Ibata et al. 1995).

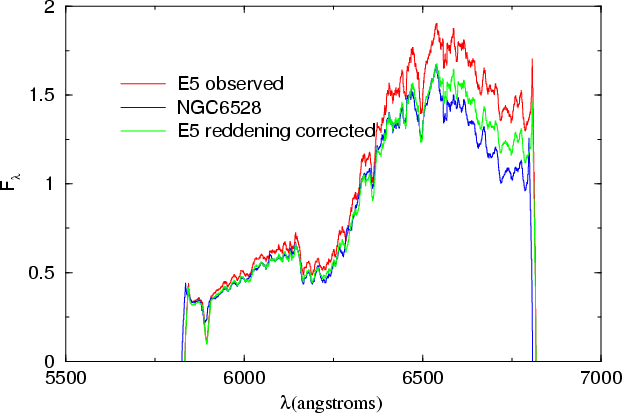

Figure 1: EROS-BLG-2000-5 (upper spectrum) and NGC 6528: I-2 (lower spectrum), heavily smoothed to show the flux distribution of the two stars. The reddening difference between the two stars is $\Delta E(B{-}V)\sim 0.2$, as can be seen in the corrected spectrum, relative to NGC 6528: I-2 (middle dotted spectrum).

In order to derive the flux difference between EROS-BLG-2000-5 and NGC 6528: I-2, we estimated slit losses on the estimated flux difference, plus the difference in exposure time. The flux difference is of a factor $\sim$7.4 at 5870 Å which means that, since NGC 6528: I-2 has V = 15.84 (Ortolani et al. 1995), the observed star should be about 2.17 mag fainter, or $V \approx 18.0$, therefore magnified by 0.4 mag. This agrees with the EROS photometry, which gives: V=18.4, V-R=1.2. Note that at peak magnitude on June 14 it had V=15.6, V-R = 1.2. This shows no blending effect, given that the colour did not change, consistent with the spectrum.



Table 2: List of FeI and Fe II lines.

Species	$\lambda$( Å)	$\chi _{\rm ex}$(eV)	log gf	EW(m Å)
Fe I	5853.161	1.48	-5.13	126.
Fe I	5855.086	4.61	-1.52	89.
Fe I	5859.596	4.55	-0.60	93.
Fe I	5861.111	4.28	-2.45	22.
Fe I	5862.368	4.55	-0.39	84.
Fe I	5927.797	4.65	-1.09	61.
Fe I	5930.191	4.65	-0.23	104.
Fe I	5952.726	3.98	-1.44	74.
Fe I	5956.706	0.86	-4.605	202.
Fe I	5969.578	4.28	-2.73	34.
Fe I	5987.070	4.79	-0.15	93.
Fe I	6003.022	3.88	-1.12	110.
Fe I	6012.77	4.56	-4.2	69.
Fe I	6054.080	4.37	-2.33	39.
Fe I	6056.013	4.73	-0.46	78.
Fe I	6078.499	4.79	-0.40	172.
Fe I	6079.02	4.65	-0.99	24.
Fe I	6082.72	2.22	-3.57	113.
Fe I	6151.62	2.18	-3.30	157.
Fe I	6157.733	4.07	-1.26	148.
Fe I	6159.38	4.61	-1.85	120.
Fe I	6165.363	4.14	-1.47	106.
Fe I	6187.995	3.94	-1.72	73.
Fe I	6200.398	2.61	-2.437	115.
Fe I	6246.327	3.60	-0.88	102.
Fe I	6252.565	2.4	-1.687	180.
Fe I	6270.231	2.86	-2.61	128.
Fe I	6297.799	2.22	-2.74	170.
Fe I	6301.508	3.65	-0.60	140.
Fe I	6303.461	4.32	-2.67	23.
Fe I	6315.314	4.14	-1.2	119.
Fe I	6322.694	2.59	-2.426	160.
Fe I	6355.035	2.84	-2.29	148.
Fe I	6358.687	0.86	-4.47	227.
Fe I	6411.658	3.65	-0.72	153.
Fe I	6419.96	4.73	-0.20	116.
Fe I	6430.856	2.18	-2.01	272.
Fe I	6481.878	2.28	-2.98	158.
Fe I	6498.95	0.96	-4.63	142.
Fe I	6518.37	2.83	-2.40	127.
Fe I	6574.25	0.99	-5.01	171.
Fe I	6597.57	4.77	-0.97	67.
Fe I	6627.56	4.55	-1.68	59.
Fe I	6677.997	2.69	-1.42	228.
Fe I	6699.14	4.59	-2.12	60.
Fe I	6713.044	4.79	-1.48	58.
Fe I	6725.36	4.10	-2.23	29.
Fe II	5425.26	3.20	-3.37	39.
Fe II	5534.85	3.24	-2.93	51.
Fe II	5991.38	3.15	-3.56	60.

3.1 Reddening

The reddening difference between the two stars is also apparent: EROS-BLG-2000-5 seems to be more affected than NGC 6528: I-2. Taking advantage of the long baseline an estimate of the relative reddening between EROS-BLG-2000-5 and NGC6528: I-2 was derived, amounting to $\Delta E(B{-}V)\sim 0.2$, as also shown in Fig. 1, where the flux corrected spectrum of EROS-BLG-2000-5 relative to NGC 6528: I-2 is the middle dotted spectrum (using Howarth 1983 for the interstellar extinction law).

Dust emission reddening maps of Schlegel et al. (1998) provide in the direction of EROS-BLG-2000-5 $E(B-V)_{\rm FIR}= 1.22$, while in the direction of NGC 6528: I-2, $E(B-V)_{\rm FIR} = 0.77$. These values are upper limits for the stars, since they correspond to the total column density of dust in those directions. In particular, Dutra & Bica (2000) have discussed background and foreground reddening in the direction of star clusters, and for NGC 6528 they found evidence of some dust occurring in the background. Owing to the lower Galactic latitude of EROS-BLG-2000-5, more background dust is expected than for NGC 6528. We adopt E(B-V) = 0.52 for NGC 6528 (Barbuy et al. 1998), and as a consequence E(B-V) = 0.72 for EROS-BLG-2000-5.

3.2 Effective temperature

The EROS project colours are not suitable for effective temperature derivations, since the calibrations in well-known systems still require further efforts. A temperature value of $T_{\rm eff} = 3800$ K is adopted for EROS-BLG-2000-5, given the presence of TiO bands, and overall similarity of its spectrum with that of NGC 6528: I-2, for which $T_{\rm eff}\approx$ 3600-3800 K, based on HST VI colours (Coelho et al. 2001).

3.3 Metallicity and abundances

Equivalent widths of lines measured using IRAF are given in Table 2. Curves of growth of Fe I, Fe II and Ti I are shown in Figs. 2a,b and 3. The gravity of log g = 1.0 was obtained from a compromise fit of FeI and FeII curves of growth; we obtain $\rm [Fe/H] = -0.3$ from FeI and $\rm [Fe/H] \sim 0.0$ from FeII, where the latter is more uncertain due to the small number of lines. Final parameters adopted are $T_{\rm eff} = 3800$ K, log g = 1.0, $\rm [Fe/H] = -0.3$, v_t = 1.5 kms^-1. We estimate errors of $\pm$200 in $T_{\rm eff}$, $\pm$0.5 in log g and $\pm$0.3 in [Fe/H].



Table 3: List of V I, Ti I, Y II, Ba II, Eu II, Al I lines.

Species	$\lambda ({\rm\AA})$	$\chi _{\rm ex}$(eV)	log gf	EW(m Å)
V I	6039.74	1.06	-0.65	164.
V I	6081.45	1.05	-0.58	168.
V I	6090.22	1.08	-0.06	188.
V I	6111.65	1.04	-0.72	19.
V I	6119.53	1.06	-0.32	150.
V I	6128.33	1.05	-2.30	96.
V I	6135.07	1.35	-1.79	87.
V I	6150.15	0.30	-1.78	235.
V I	6199.19	0.29	-1.30	171.
V I	6224.51	0.29	-2.01	87.
V I	6233.20	0.28	-2.07	214.
V I	6274.66	0.27	-1.67	148.
V I	6285.17	0.28	-1.51	155.
Ti I	5866.46	1.07	-0.84	358.
Ti I	5918.55	1.07	-1.46	153.
Ti I	5941.76	1.05	-1.51	182.
Ti I	5965.84	1.88	-0.41	198.
Ti I	5978.55	1.87	-0.50	112.
Ti I	6064.63	1.05	-1.94	158.
Ti I	6091.18	2.27	-0.42	127.
Ti I	6092.82	1.89	-1.38	69.
Ti I	6126.22	1.07	-1.43	170.
Ti I	6303.77	1.44	-1.57	121.
Y II	6613.73	1.75	-1.27	143.
Ba II	5853.69	0.60	-1.01	154.
Ba II	6141.73	0.70	-0.08	218.
Ba II	6496.91	0.60	-0.38	211.
Eu II	6645.13	1.38	0.20	35.
Al I	6696.03	3.14	-1.34	152.
Al I	6698.67	3.14	-1.64	122.

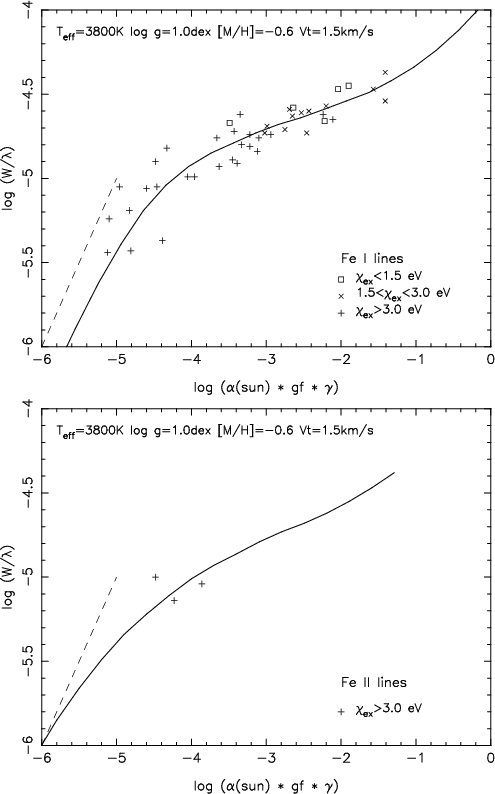

Figure 2: Curves of growth of Fe I and Fe II. Symbols: $\chi _{\rm ex}< 1.5$ eV (open squares), 1.5 < $\chi _{\rm ex}$ < 3.0 eV (x), $\chi _{\rm ex}$ > 3.0 eV (+).

A check on the FeII lines was carried out by means of synthetic spectra calculations, since the lines are weak and possible blends of TiO tend to artificially increase the measured equivalent widths. In Figs. 4 and 5 the spectral region containing the [OI] 6300.311 ${\rm\AA}$ line, blended with strong TiO bands, is shown for EROS-BLG-2000-5. The telluric lines were eliminated by dividing the sample spectra by that of a hot star with high rotation velocity, and observed with the same slit width. In Fig. 4 we also show that TiO bands considerably lower the continuum, where TiO bands are computed with $\rm [O/Fe] = [Ti/Fe] = -0.2$, 0.0 and +0.2.

The oxygen abundances are estimated by taking into account the molecular dissociation equilibrium, since in this cool temperature range CO locks a large fraction of oxygen atoms. Considering the continuum uncertainties, we conclude that the oxygen abundance can be estimated as $\rm [O/Fe] \approx 0.0\pm 0.2$.

3.4 Distance

For NGC 6528 a distance to the Sun of $d_{\rm\odot}\approx 7.8$ kpc (Barbuy et al. 1998) was found. Using the reddening value of E(B-V) = 0.52 for the cluster, and the observed V magnitude of the giant NGC 6528: I-2 of V = 15.84, we derive an absolute magnitude $M_{\rm V} = -0.3$ for this star.

For EROS-BLG-2000-5 the non-lensed magnitude is V = 18.4, and we assume it has the same intrinsic luminosity as NGC 6528: I-2; taking into account E(B-V) = 0.72 (Sect. 3.1), together with a total-to-selective absorption R = 3.2, we obtain a distance modulus of $(m-M)_{\circ} = 16.4$. This would place the star near the solar circle on the far side of the Galaxy. In this case it would be at 600 pc from the plane, compatible with a location of an old disk giant. Nevertheless, it may be more evolved than the star in NGC 6528: I-2 (even with a comparable temperature, it can be more luminous); assuming that such a possible difference would be of 1 mag, this would place the star at about 10 kpc from the Sun and a height of 400 pc from the plane. In this case it would be a bulge star on the far side. It is clear that the uncertainty in the distance is very large. An important constraint is given by the high radial velocity (Sect. 3), which is definitely consistent and supports a bulge membership.

A final calibration of the EROS colours or direct photometry can clarify this issue.
