A&A 383, 540-547 (2002)
DOI: 10.1051/0004-6361:20011772

The outflow activity of the protostars in S140 IRS[*]

T. Preibisch1 - M. D. Smith2

1 - Max-Planck-Institut für Radioastronomie, Auf dem Hügel 69, 53121 Bonn, Germany
2 - Armagh Observatory, College Hill, Armagh BT61 9DG, Northern Ireland

Received 24 October 2001 / Accepted 30 November 2001

The S140/L1204 cloud contains a deeply embedded region of star formation and a powerful molecular outflow. In this paper, we present images of the S140 region obtained in the light of the 2.12 $\mu$m molecular hydrogen emission line and adjacent continuum. Our images reveal several knots of H2 line emission originating from shocked material close to IRS1 as well as further out. Strong H2 shock emission is found north-east of IRS1 (at position angle of $\sim $20$^\circ $-30$^\circ $), as well as to the south-west of IRS1 (at position angles around $\sim $190$^\circ $-220$^\circ $), clearly demonstrating the presence of outflow activity in the north-east/south-west direction. We also find patches of H2 emission several arcminutes away from IRS1 at a position angles of $\sim $150$^\circ $ and $340\hbox{$^\circ$ }$, i.e. in directions consistent with the previously known north-west/south-east molecular outflow. Our results therefore provide evidence for the existence of two distinct bipolar outflow systems originating simultaneously from IRS1. We also discuss general aspects of the star formation process in the S140 region. An inferred high ratio of stellar to gas mass suggests that the outflows have dispersed most of the cloud mass.

Key words: stars: individual: S140 IRS1 - stars: individual: S140 IRS3 - stars: formation - stars: winds, outflows

1 Introduction

S140 is an HII region at the southeast edge of the L1204 dark cloud at a distance of $\sim $900 pc (cf. Crampton & Fisher 1974). It is part of a cloud complex located at the edge of a prominent infrared emission ring, known as the Cepheus ring. This ring is probably the result of supernova explosions and stellar winds from massive stars in the open cluster NGC 7160 at the center of the ring (cf. Kun et al. 1987; de Zeeuw et al. 1999).

The S140 cloud contains a small cluster of highly obscured, optically invisible infrared sources, originally detected by Rouan et al. (1977). The 20 $\mu$m observations by Beichman et al. (1979) revealed three individual infrared sources in this region. The brightest source is called IRS1, and the two other sources IRS2 and IRS3 are located $\sim $17'' north and $\sim $9'' east of IRS1. The infrared spectra of these sources are rising steeply between 10 $\mu$m and 50 $\mu$m (Lester et al. 1986), demonstrating that they are deeply embedded young stellar objects associated with circumstellar material. The luminosities of IRS1, 2, and 3 were estimated at 5, 3, and 2 $\times 10^3\,L_\odot$ respectively (Lester et al. 1986), suggesting stellar masses between $\approx $6$M_\odot$ and $\approx $10$M_\odot$.

S140 IRS is the source of a strong molecular outflow. A bipolar CO outflow was first detected by Blair et al. (1978) and later studied in more detail, e.g. by Hayashi & Murata (1992), Minchin et al. (1993), and Wilner & Welch (1994). S140 IRS1 lies just in the middle between the blue- and red-shifted outflow lobes which have position angles of $160\hbox{$^\circ$ }$ and $340\hbox{$^\circ$ }$, respectively. While the morphology of the molecular line emission in all these observations is consistent with the idea that IRS1 is the driving source of the outflows, the spatial resolution of the maps is far too coarse to exclude the possibility that IRS2 or IRS3 also contribute to the outflow activity.

First high-resolution infrared observations of IRS1 were obtained by Hoare et al. (1996) and revealed diffuse emission extending to the south-east of the source. In recent high-resolution studies of the S140 star forming region we have presented bispectrum speckle interferometric K-band images of IRS1 (Schertl et al. 2000; Weigelt et al. 2002). We found a bright elongated clumpy structure pointing away from IRS1 in a direction ( $160\hbox{$^\circ$ }$) very consistent with that of the blue-shifted CO outflow lobe. We interpreted this feature as the clumpy inner edge of a cavity in the circumstellar envelope around IRS1, which has been excavated by the south-eastern wing of the strong $160\hbox{$^\circ$ }/340\hbox{$^\circ$ }$ molecular outflow. We also found three arc-like structures to the north-east of IRS1 at position angles of $\sim $15$^\circ $-25$^\circ $ and suggested that these structures represent cavities created by material flowing away from IRS1 in north-eastern directions. These high-resolution data revealed unique insights into the detailed morphology of the circumstellar structures around IRS1. However, as they had to be taken in a broad-band K'-filter, they did not allow us to discriminate between continuum emission (e.g. scattered stellar light from IRS1 and thermal dust emission from the inner circumstellar matter) on the one hand and line emission from shocked gas on the other hand. Therefore, the interpretation of the observed structures was not conclusive.

Outflows and jets from young stellar objects strongly interact with the surrounding material. Shocks are generated where the flow, ejected from the protostar, impacts with the dense environment. The 2.12 $\mu$m $\nu=1{-}0$ S(1) ro-vibrational emission line of molecular hydrogen is a convenient tracer of these shocks (e.g. Smith 1993; Eislöffel et al. 2000). Images taken in the light of the molecular hydrogen emission line can therefore reveal the structure and morphology of the outflow, and provide important constraints on the nature of the flow collimation and variability. Motivated by these ideas, we have imaged the S140 IRS region in the molecular hydrogen line emission and adjacent continuum. In Preibisch et al. (2001) we presented a study combining high-resolution speckle images and molecular hydrogen line emission images of S140 IRS3. In this paper we present our H2 results on IRS1 and consider general aspects on the star formation process in the S140 IRS region.

2 Observations

The infrared data presented here were obtained in October 2000 with the Omega Prime wide-field near-IR camera (Bizenberger et al. 1998) on the Calar Alto 3.5 m telescope. The camera uses a $1024\times 1024$ pixel HgCdTe array. At 0.4'' per pixel, the field-of-view is $6.7' \times
6.7'$. Images were taken through the NB2122 filter, a 1% filter centred on the v = 1-0 S(1) line of the H2 molecule at $2.12\,\mu $m, and through a broad-band K' filter ( $1.944-2.292\,\mu$m). We took images at 6 different dither positions with positional shifts of 40''; at each position a series of 10 images with 30 s (1.677 s for the K' filter) exposure time was taken. We also obtained images through a standard J-band filter.

The weather conditions during our observations were good, the seeing (as measured by the FWHM of the PSF in our images) was $\sim $ 1.2'' - 1.6''. Standard data reduction techniques were used to sky subtract, flat field, and mosaic the data (cf. McCaughrean et al. 1994). Then, the NB2122 filter image was carefully aligned with the K' filter image via several point sources in the outer parts of the image. Finally, we subtracted the K' filter image from the NB2122 filter image in order to create the H2 emission line image. The field-of-view of our final mosaic image is $8' \times 8'$.

3 H2 emission in and around S140 IRS

The H2 emission related to S140 IRS3 has already been investigated in a previous paper (Preibisch et al. 2001); here we will therefore focus on the H2 emission related to IRS1.

\par\includegraphics[width=10.6cm]{MS2033f1col.eps} \par\end{figure} Figure 1: The color image shows our K'-band image of the S140 IRS region with a rainbow color-table; the central point source IRS1 is saturated. The black contour lines show the continuum-subtracted $2.12\,\mu $m H2 line emission image. Contour levels are 10, 15, 20,2 5, 30, 35, and 40 $\sigma $ above the median in the H2 image. In the immediate vicinity of IRS1, our H2 emission map is slightly affected by small artifacts due to imperfect continuum subtraction. We therefore will only discuss features more than 4'' away from IRS1. The eight most prominent H2 knots are marked with numbers 1 to 8. The position of the deeply embedded infrared source IRS2, which is invisible in the near-infrared, is marked by the red asterisk. (This figure is available in color in the online version.)
Open with DEXTER

\par\includegraphics[width=10.6cm]{MS2033f2col.eps} \end{figure} Figure 2: Color-composit image of a $3.2' \times 3.2'$ area around S140 IRS. The red color plane represents the K' band image, the blue color plane the continuum-subtracted $2.12\,\mu $m H2 line emission image. The most prominent patches of H2 emission around S140 IRS are marked. The three white asterisks mark the positions of IRS1, IRS2, and IRS3. (This figure is available in color in the online version.)
Open with DEXTER

3.1 Inner part

Our image reveals many patches of H2 line emission in and around the S140 IRS region. The strongest H2 emission knots are found within 15'' of IRS1. Figure 1 shows the central part of our K'-band image of S140 IRS onto which the contours of the continuum-subtracted $2.12\,\mu $m H2 line emission are overlaid. The most prominent knots of H2 line emission are marked with numbers 1 to 8.

3.1.1 H2 emission north-east of IRS1

Knot 1 is an elongated feature of strong H2 emission north-east of IRS1. The emission peak is found 13'' away from IRS1 at a position angle of $\sim $28$^\circ $. The H2 emission is strongly elongated in the north-south direction and very well aligned with the eastern edge of the arc-structure north-east of IRS1 in the K' band image. It is important to note that the peak of the H2 emission does not coincide with the brightest features seen in the K' band continuum, but is offset by about 3''. The weaker extensions of the H2 emission cover the full extent of the arc structure. Another weak peak of H2 emission (knot 2) is found 6'' north-east of IRS1 and is well aligned with the southern part of the arc-structure.

3.1.2 H2 emission south of IRS1

The area south-west of IRS1 contains a ridge of strong H2 emission, roughly oriented in the east-west direction. The two strongest maxima are knot 4, located 6'' south of IRS1 at a position angle of $\sim $185$^\circ $, and knot 5, located 8'' south-west of IRS1 at a position angle of $225\hbox{$^\circ$ }$. These H2 knots coincide very well with the brightest parts of the K' band continuum nebulosity. The detection of these H2 emission knots provides evidence for material flowing from IRS1 to the south-western direction. This can be quite naturally explained as the counterpart of the $20\hbox{$^\circ$ }$ outflow.

Another patch of H2 emission (knot 3) is seen 8'' south-east of IRS1 at position angles in the range $\sim $135-160$^\circ $. This feature is probably related to the well known $160\hbox{$^\circ$ }$ molecular outflow.

3.1.3 H2 emission east and north-east of IRS3
This area contains the two H2 emission knots 6 and 7. A detailed study of the continuum and the H2 line emission in the vicinity of IRS3 has already been presented in Preibisch et al. (2001).

3.2 Outer environment

Figure 2 shows a larger field around S140 IRS. The most prominent structure in the H2 line emission image is the bright rim of the the S140 HII region, crossing the south-western edge of our image. This HII region is powered by the B0 star HD 211880, located $\sim $8' south-west of S140 IRS. The H2 line emission results from fluorescent excitation (cf. Tanaka et al. 1989).

In the northern and eastern part of Fig. 1 we find several patches of H2 line emission at distances between 15'' and 90'' away from IRS1. We have assigned numbers 9 to 14 to those H2 emission knots in which the peak surface brightness exceeds the noise level in the continuum subtracted image by more than $5\sigma$.

Knot 9 is located 70'' north-west of IRS1 at a position angle of $340\hbox{$^\circ$ }$. It is clearly elongated in a direction pointing towards IRS1. Therefore, we conclude that this H2 emission knot is related to the well known $340\hbox{$^\circ$ }$ CO outflow from IRS1. Knot 9 is the first infrared evidence for the receding lobe of the $160\hbox{$^\circ$ }/340\hbox{$^\circ$ }$ outflow.

Knot 10 is found 53'' north-east of IRS1 at a position angle of $20\hbox{$^\circ$ }$. This direction is in very good agreement with the orientation of the arc complex north-east of IRS1 described in the speckle images by Weigelt et al. (2002).

Knots 11 (50'' north-east of IRS1 at a position angle of $40\hbox{$^\circ$ }$) and 12 (30'' north-east of IRS1 at a position angle of $45\hbox{$^\circ$ }$) are probably also related to the north-eastern outflow.

Knot 13 is related to the bow-shock like nebulosity 90'' north-east of IRS3. Its position angle measured from IRS3 is $65\hbox{$^\circ$ }$, exactly the direction of the precessing outflow from IRS3 detected by Preibisch et al. (2001).

Knot 14 is located 90'' south-east of IRS1 at a position angle of $100\hbox{$^\circ$ }$. It is not clear whether this patch is related to IRS1 or IRS3.

4 The outflow activity of S140 IRS1

The combination of our H2 data with previous observational results, allows us to draw a comprehensive picture of the outflow activity of S140 IRS1 on a wide range of spatial and temporal scales:

4.1 The 160$^\circ $/340$^\circ $ outflow

The presence of the large scale $\bf 160\hbox{$^\circ$ }/340\hbox{$^\circ$ }$ outflow was already well established from radio line observations. In the radio maps, outflowing gas can be seen at least up to distances of 1' (54000 AU) from IRS1 (e.g. Minchin et al. 1993). Our high-resolution speckle observations (Schertl et al. 2000; Weigelt et al. 2002) revealed the detailed structure of the cavity through which the material in the $160\hbox{$^\circ$ }$ outflow lobe is flowing on scales of 90-1800 AU. Our molecular hydrogen emission line images show only two relatively weak H2 knots associated with this outflow, knots 3 and 9. This suggests that there are currently not many strong shocks in this outflow, perhaps because the path of the outflow is already well cleared and the material is flowing away without producing strong shocks. However, the detection of H2 shock emission in this outflow is aggravated due to the inclination of the flow and projection effects: In the south-eastern part, where the outflow is directed towards us, H2 emission very close to ( $\mathrel{\mathchoice {\vcenter{\offinterlineskip\halign{\hfil
$\displaystyle ...2'' away from) IRS1 would be projected onto the very bright emission of the cavity. In the north-western part of this outflow, H2 shock emission might be present, but hidden behind the dense circumstellar material around IRS1. The fact that the high resolution radio continuum observations presented by Schwartz (1989) and Hoare & Muxlow (1996) do not show any sign of the $160\hbox{$^\circ$ }/340\hbox{$^\circ$ }$ outflow, supports our assumption that this outflow is probably currently not very active.

A rough estimate of the kinematic age of this outflow can also be made: from the projected distance of knot 9, an assumed velocity of $\sim $100 kms-1, and assuming an inclination angle of $i \mathrel{\mathchoice {\vcenter{\offinterlineskip\halign{\hfil
$\displaystyle ..., we find a lower limit of $\tau \mathrel{\mathchoice {\vcenter{\offinterlineskip\halign{\hfil
...offinterlineskip\halign{\hfil$\scriptscriptstyle ... years.

4.2 The 20$^\circ $/200$^\circ $ outflow

The existence of a $\bf 20\hbox{$^\circ$ }/200\hbox{$^\circ$ }$ outflow has not so far been well established. Radio line observations had shown a relatively weak low-velocity wing in the CO and HCO+ emission that indicated outflowing material in the $20\hbox{$^\circ$ }$ direction, but no reliable evidence for an outflow in the $200\hbox{$^\circ$ }$ direction. The high-resolution radio continuum maps of S140 IRS1 presented by Schwartz (1989) revealed a strongly elongated jet-like appendage extending from IRS1 in the south-west direction (position angle $225\hbox{$^\circ$ }$), and a diffuse radio source (VLA 4) south-west of IRS1 (position angle $217\hbox{$^\circ$ }$) which may be a radio Herbig-Haro object. These features were interpreted as evidence for ejection of material from IRS1 in the south-western direction. The high-resolution radio observations by Hoare & Muxlow (1996) showed a strongly elongated structure oriented in the $44\hbox{$^\circ$ }/224\hbox{$^\circ$ }$ direction. It was interpreted as a highly collimated jet, probably being driven by a disk wind. The 8.4 GHz VLA observations of S140 presented by Tofani et al. (1995) revealed an interesting S-shape for the emission within 1'' of IRS1. While the core of the emission is oriented in the $44\hbox{$^\circ$ }/224\hbox{$^\circ$ }$ direction, the position angle of the north-eastern tip of the 8.4 GHz emission is $20\hbox{$^\circ$ }$, in very good agreement with the position angle of the outflow cavities we found in the speckle images.

Our high-resolution speckle observations (Weigelt et al. 2002) revealed three arc-like structures with position angles of $10\hbox{$^\circ$ }$, $20\hbox{$^\circ$ }$, and $25\hbox{$^\circ$ }$ north-east of IRS1. The shapes of these arcs could be well reproduced by a semi-analytical model of jet-driven flows, in which prompt entrainment occurs at the head of the traveling bow shock. This strongly suggested a flow of material in this direction, but could not be considered as a clear proof. The result that the eastern edge of the supposed cavities is actually associated with strong H2 emission, confirms our previous interpretation that these cavities have been created by outflowing material from IRS1 in the $\sim $20$^\circ $ direction.

Our H2 line emission image reveals numerous knots along the paths of the $\bf 20\hbox{$^\circ$ }/200\hbox{$^\circ$ }$ outflow: knots 1, 2, 10, 11, and 12 are related to the $20\hbox{$^\circ$ }$ flow, knots 4 and 5 to the $200\hbox{$^\circ$ }$ flow. These knots span a range of position angles from $20\hbox{$^\circ$ }$ to $45\hbox{$^\circ$ }$, which is consistent with the orientation of the elongated radio emission immediately around IRS1.

The numerous H2 shocks in these directions indicate that the outflow currently interacts very strongly with its surroundings. Perhaps the outflow is currently in the process of clearing its way through the ambient material. The rather wide range of position angles of the individual H2 knots north-east of IRS1 suggest a pulsed nature for the outflow and directional variability. A wiggling jet in the NE/SW direction is also suggested by the radio continuum and maser emission on the scale of $0.5\hbox{$^{\prime\prime}$ }$ (Tofani et al. 1995), which extends in the 45 $\hbox{$^\circ$ }$ direction i.e. towards H2 knot 2. The temporal variability of the outflow direction may be caused by the precession of the circumstellar disk around the outflow source which is a member of a non-coplanar binary system (see Weigelt et al. 2002 for details; for the theoretical background of this model see e.g. Papaloizou & Terquem 1995; Terquem 1998; Bate et al. 2000).

A rough estimate of the kinematic age of this outflow, based on the distance of knot 10, an assumed inclination angle of $i \sim 0\hbox{$^\circ$ }$ and a velocity $\sim $100 kms-1, yields $\tau \sim 2300$ years for the $\bf 20\hbox{$^\circ$ }/200\hbox{$^\circ$ }$ outflow. This is nearly three times younger than the lower limit to the kinematic age of the $\bf 160\hbox{$^\circ$ }/340\hbox{$^\circ$ }$ outflow.

5 General considerations on the star formation process in the S140 IRS region

5.1 The stellar population of S140 IRS

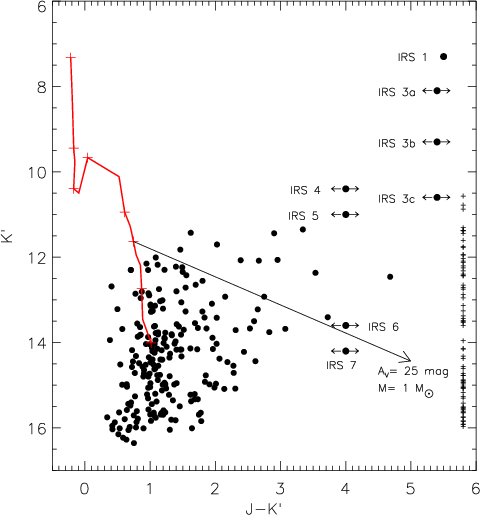

\par\includegraphics[width=8.5cm]{MS2033f3.eps}\end{figure} Figure 3: Color-magnitude diagram of stars in the S140 IRS region (solid dots). We have included the individual objects resolved in our speckle images; for these, no colors can be determined and we assume each component to have the same color as reported for the unresolved systems. All objects for which only K'-band magnitudes could be derived are plotted as small crosses at J-K'= 5.8. The thick solid line in the left part of the diagram shows theoretical colors and magnitudes based on the PMS models of Palla & Stahler (2000) and Bernasconi & Maeder (1996) for an age of $1 \times 10^6$ yr for masses from $0.1\,M_\odot $ to $15\,M_\odot $. Tick marks are shown for masses of 0.1, 0.4, 1, 2, 3, 4, 6, and $15\,M_\odot $. The long arrow shows the reddening path for AV = 25 mag starting at the location for a $1 \times 10^6$ yr old $1\,M_\odot $ star.
Open with DEXTER

Near-infrared images (e.g. Fig. 2; see also Hodapp 1994) show a small cluster of fainter point sources around the nebulosity surrounding IRS1. It seems very likely that most of these objects are associated with the S140 star forming region for two reasons: first, the extinction of the S140 molecular cloud was estimated to be up to $A_V \sim 100$ mag based on the determination of $N({\rm C}^{18}{\rm O})$ by Minchin et al. (1995); it therefore provides an essentially opaque shield for the stellar background, and we can assume that all stars we see in this region are either foreground stars or associated with the S140 cloud. Second, the optical images of the region show only very few stars within a few arcminutes of the position of IRS1, clearly demonstrating that the foreground population cannot be very large.

Our deep J- and K'-band data offer a good opportunity to examine the stellar population of the S140 star-forming region. For this, we used DAOPHOT to locate point sources in our deep J- and K'-band images and performed aperture photometry. The central 20'' region had to be excluded from this analysis because of the extremely strong diffuse emission in the image center. In the circular region with radius 4' around IRS1, photometric data could be determined for 388 stars in the K'-band image and for 272 stars in the J-band image. The magnitudes were calibrated via observations of other regions and comparison with the corresponding magnitudes from the 2MASS catalogue. Due to the strong diffuse emission in the S140 IRS region the accuracy of the photometry is limited to $\sim $0.2 mag. Nevertheless, this is sufficiently accurate to consider the positions of the stars in the color-magnitude diagram.

Our color-magnitude diagram (CMD) is shown in Fig. 3. The comparison with the expected colors and magnitudes for pre-main sequence stars shows that our sample of K'-band sources should be complete for $1\,M_\odot $ stars suffering up to 25 mag of visual extinction (expected magnitude $K' \sim 14.4$). The number of stars for which the NIR data are consistent with being cluster members with $M \ge 1\,M_\odot$ is 39 (this includes 20 stars with K' < 12.5 for which we could only measure K'-band magnitudes.) Four out of these 39 stars, namely IRS1, IRS2, IRS3a, and IRS3b, are probably more massive than $5\,M_\odot$.

We can now compare these numbers with the expectation from the field star IMF. In the IMF representation by Scalo (1998), which has the form

   \begin{displaymath}\frac{{\rm d}N}{{\rm d}M} \propto \left\{ \begin{array}{lcrcr...
...2.7} & \; \mbox{for} \;&1\!&< M/M_\odot <&10\end{array}\right.

the presence of 4 stars in the $[5 \dots 10]\,M_\odot$ range would imply a total number of 83 stars with masses between $1\,M_\odot $ and $10\,M_\odot$. The IMF representation given by Kroupa (2001) which has the form

   \begin{displaymath}\frac{{\rm d}N}{{\rm d}M} \propto \left\{ \begin{array}{lcrcr...
...3} & \; \mbox{for} \;&0.5\!&< M/M_\odot <&10\end{array}\right.

would predict a total number of 48 stars in the $[1{-}10]\,M_\odot$ range. Our detection of 39 stars above $1\,M_\odot $ is lower than both predictions. However, we have to take into account that we certainly miss some fraction of low-mass members, for two main reasons: first, our photometry does not cover the central 20'' area due to extremely strong diffuse emission. Second, our sample can be expected to be complete only up to $A_V \mathrel{\mathchoice {\vcenter{\offinterlineskip\halign{\hfil
...{\offinterlineskip\halign{\hfil$\scriptscriptstyle ... mag, while the total cloud extinction near the center is probably $A_V \approx 100$ mag. This suggests that our images probably reveal only about half of the low mass members in the cloud. Considering this, we conclude that the number of stars we see in our image is not inconsistent with the assumption that the cluster mass function follows the field star IMF.

5.2 Stellar masses versus cloud mass

We can estimate the total mass of the stars in the cluster by assuming that the mass function is the same as the field star IMF (as demonstrated above). In that case, the total mass of all stars ( $0.1 {-} 10\,M_\odot$) in the cloud would be $\sim $340$M_\odot$ based on the Scalo (1998) IMF and $\sim $240$M_\odot$ based on the Kroupa (2001) IMF.

We can estimate the total mass of the stars in the cluster in the following way: For a very conservative lower limit, we consider only the objects IRS1-IRS7. The sum of the estimated masses of these objects is $\sim $40$M_\odot$.

The mass of the gas and dust in the S140 IRS cloud has been determined in various radio and submm studies. For example, Hayashi & Murata (1992) derived a mass of $60\,M_\odot$ within a radius of r = 0.15 pc ( $\mathrel{\mathchoice {\hbox{$\widehat=$ }}{\hbox{$\widehat=$ }}
{\hbox{$\scriptstyle\hat=$ }}
{\hbox{$\scriptscriptstyle\hat=$ }}}$34''). Van der Tak et al. (2000) found $M =46\,M_\odot$ in r = 0.15 pc from submm maps. Bally & Lada (1983) derived a total mass of $\sim $64$M_\odot$ within r = 0.46 pc ( $\mathrel{\mathchoice {\hbox{$\widehat=$ }}{\hbox{$\widehat=$ }}
{\hbox{$\scriptstyle\hat=$ }}
{\hbox{$\scriptscriptstyle\hat=$ }}}$1.7') from CO observations. From these numbers one can see that the mass of the stars is considerably higher than the cloud mass.

A similar result is obtained for the center of the starforming region: Considering only the objects IRS1-IRS7, the sum of their estimated masses is $\sim $40$M_\odot$. On the other hand, the mass of the three submm cores within 25'' of IRS1 is only $\sim $29$M_\odot$ (Minchin et al. 1995).

These considerations make it quite clear that the inferred total mass in young stars exceeds the mass in gas significantly. This implies that a high fraction of the original cloud mass has been converted to stars or that the formation of a protostar leads to the escape of a much larger mass.

5.3 Cloud destruction by outflows?

In S140, there is clear evidence for the ejection of a large fraction of the cloud. Numerous outflows are found here in the warm shocked molecular gas, which reveals that even the present outflows contain sufficient thrust to eject material from the cloud. This is not surprising given that 10-30% of the mass accreting from the dense envelope around a core must be ejected into the jets observed from Class 0 protostars (e.g. Smith 2000) and the jet speed is of order 100kms-1. The jets' thrust is thus sufficient to gravitationally unbind roughly ten times more mass than goes into the protostar. Hence, the total mass of the initial cloud out of which the stars formed may have been much larger than the sum of the star + gas mass presently found.

Given this picture, outflow activity must have influenced the cloud for its full lifetime. We could expect perhaps 100 outflows within a few million years. This would still be detectable in the CO rotational lines which contain a long-term record of outflow activity. And, indeed, the CO high-velocity gas possesses a complex distribution, consisting of numerous widely spread clumps, but bordered in the south and west by high density gas.

A problem with jet/outflow feedback scenarios is that a well collimated outflow only influences its immediate surroundings and not the cloud as a whole. It is not plausible to assert that an outflow can provide turbulent support to a cloud since turbulence decays faster than it could spread laterally, from an outflow, across a cloud given the rapid decay of turbulence found in MHD simulations (e.g. Mac Low 1999). Hence, even though the momentum inherent in the outflows may be sufficient (Yu et al. 2000), they will not be present to support the cloud as it evolves. A large number of outflows, however, distributed over space and the cloud life, may still be effective in dispersing the cloud with the following argument. If each outflow is represented as a cone with a half opening angle of just 10$^\circ $, then 103 outflows would fill the cloud volume. Hence, over the cloud lifetime, and given random outflow directions over the cloud lifetime, a large fraction of the cloud can be ejected.

In contrast, the H2 gas is observed from hot shocks which are driven by the latest energetic outflows. Even so, we have found here evidence for several outflow directions, related to at least three outflows. The kinematic ages of the outflow have been estimated to be just a few thousand years. We suspect that the outflows are much older and penetrate far into the surrounding lower density halo where they are not detectable because of both the low density and possibly a low molecular fraction. Therefore, deep optical H$\alpha$ imaging in the NE region beyond 4' from IRS1 could reveal Herbig-Haro objects.

5.4 Triggered star formation

Triggered star formation by external compression[*] might also lead to an enhancement of the star formation efficiency. This could also contribute to the high ratio of stellar mass versus gas mass we found above for the S140 region.

The S140 region is probably a good example for triggered star formation. A sequence of triggered star formation events in the Cepheus bubble has been suggested by Patel et al. (1998): initially, a cluster containing high-mass stars formed in a molecular cloud. The winds and the ionizing radiation of the massive stars then created an expanding shell around this cluster. Gravitational instabilities in the expanding ring lead to fragmentation, cloud collapse and the formation of a second generation of stars, which now constitute the Cep OB2 association, which has a presumed age of about 5-7 Myr. The massive stars in Cep OB2 now affect the dense gas remaining from the parent shell and seem to trigger the formation of the third generation of stars in the dense cloud cores, including S140, along the edge of the bubble (see also Ábráhám et al. 2000).

The shape of the S140 cloud strongly suggests that the gas is being compressed by external pressure from the south-west direction. One source for this compression is the B0 star HD 211880, the exciting source of the S140 HII region, at a projected distance of 2.5 pc from S140 IRS. Another factor may be the general expansion of the Cepheus bubble, the center of which is located to the south-west of the S140 cloud.

5.5 Spatial distribution of the young stellar objects

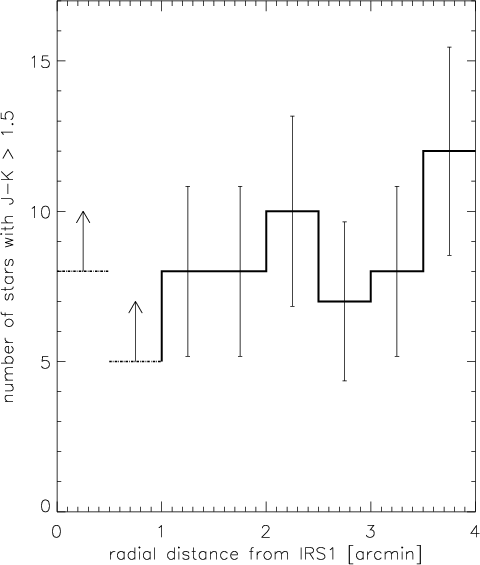

\par\includegraphics[width=8.5cm]{MS2033f4.eps}\end{figure} Figure 4: Radial distance distribution of the stars around IRS1. All objects with J - K' > 1.5 (corresponding to objects with strong infrared excess or suffering from at least $\sim $3 mag of visual extinction) are considered to be cluster members. In the two innermost bins our sample is incomplete due to the very strong diffuse nebulosity, hampering the detection of faint point sources.
Open with DEXTER

It is interesting to consider the spatial distribution of the cluster members. In Fig. 4 we plot the number of objects with J - K' > 1.5, i.e. objects that either show strong infrared excess or suffer strong extinction and therefore can be considered cluster member candidates, in several bins of radial separation from the center. One can see that the radial distribution of these stars is more or less uniform. The interpretation of this uniform radial distribution is not fully conclusive. We could interpret the embedded stars as objects which have formed at a uniform rate within a very dense central core over the star formation lifetime of S140 and which form an expanding spherical distribution. Or, the stars formed in a rapid burst with a linear distribution of escape speeds. Such a burst, followed by dispersal of a large fraction of dense ambient material (reducing the confining gravitational force), would result in the free expansion of the young stars. A third possibility is that the stars formed in situ with an efficiency related to both the local density and the compression of a passing shock wave which would sweep up material into an inner clumpy ring, possibly as now observed in CS with a radius of 30 $^{\prime\prime}$ (Hayashi & Murata 1992). In this case, the stars could be younger. The age of the embedded stars could be tested by searching for excess H-K band emission (the H-band filter failed during the run described here).

6 Summary

The main results of our study are as follows:

We find strong H2 shock emission around the $\sim $10$M_\odot$ protostar S140 IRS1. Some of these shocks are related to the well known $\sim $160$^\circ $/340$^\circ $ CO outflow, but the strongest shocks are found in the $20\hbox{$^\circ$ }/200\hbox{$^\circ$ }$ outflow, which seems to be currently very active. These results provide evidence for the existence of two distinct bipolar outflow systems originating simultaneously from IRS1. The $\sim $8-10$M_\odot$ protostars IRS1-3 are associated with a cluster of fainter sources, presumably lower-mass young stellar objects. The total mass in stars seems to exceed the mass of the remnant gas and dust in the S140 region significantly. This might indicate that the strong outflows of the protostars have expelled most of the gas from the region.

We would like to thank the Calar Alto staff for their support during our observations and Thomas Stanke for assistance in the data reduction. MDS is grateful to G. Weigelt for support and discussions during visits to the MPIfR.
