A&A 383, 171-181 (2002)
DOI: 10.1051/0004-6361:20011711
A. S. Miroshnichenko1,2 - K. S. Bjorkman1 - E. L. Chentsov3,4 - V. G. Klochkova3,4 - O. V. Ezhkova5,6 -
R. O. Gray7 - P. García-Lario8 - J. V. Perea Calderón9 - R. J. Rudy10 - D. K. Lynch10 - S. Mazuk10 - C. C. Venturini10 - R. Puetter11
1 -
Ritter Observatory, Dept. of Physics & Astronomy, University of
Toledo, Toledo, OH 43606-3390, USA
2 - Central Astronomical Observatory of the Russian Academy of Sciences
at Pulkovo,
Saint-Petersburg 196140, Russia
3 - Special Astrophysical Observatory of the Russian Academy of Sciences,
Karachai-Cirkassian Republic,
Nizhnij Arkhyz 369167, Russia
4 - Isaac Newton Institute of Chile, SAO Branch, Russia
5 - Ulugh Beg Astronomical Institute of the Uzbek Academy of Sciences,
Astronomicheskaya 33,
Tashkent 700052, Uzbekistan
6 - Issac Newton Institute of Chile, Uzbekistan Branch, Uzbekistan
7 - Dept. of Physics and Astronomy, Appalachian State University, Boone,
NC 28608, USA
8 - ISO Data Centre, Astrophysics Division, Space Science Department of
ESA, Villafranca del Castillo,
Apartado de Correos 50727, 28080 Madrid,
Spain
9 - INSA S.A., Villafranca del Castillo, Apartado de Correos 50727, 28080
Madrid, Spain
10 - The Aerospace Corp. M2/266, PO Box 92957, Los Angeles, CA 90009, USA
11 - Center for Astrophysics and Space Sciences, University of California,
San Diego, C-0111,
La Jolla, CA 92093, USA
Received 2 November 2001 / Accepted 22 November 2001
Abstract
We present the results of optical and near-IR spectroscopic and broadband
multicolour photometric observations of the emission-line star AS 381.
Its properties were found to be similar to those of Be stars with warm dust,
a group of galactic objects recently defined by Sheikina et al. (2000).
The spectrum of AS 381 indicates the presence of both a hot (early B-type) and
a cool (K-type) star in the system. A high interstellar reddening
(
mag) suggests that it is located at a distance of
3 kpc, and the companions have luminosity types II or higher.
The emission-line profiles indicate that the system is surrounded by a
flattened circumstellar envelope, which is viewed close to pole-on.
The hot companion is found to be
2 mag brighter in the V-band
and more massive (
)
than the cool one (
7
).

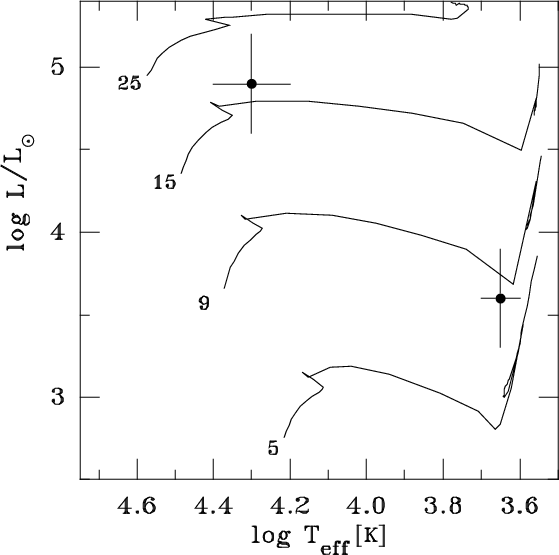

The strong line emission and position of the companions in the
Hertzsprung-Russell diagram indicate that the system is experiencing mass
exchange. We suggest that AS 381 is the first B[e] supergiant binary discovered
in the Milky Way.
Key words: stars: emission-line, Be - stars: individual: AS 381 - techniques: spectroscopic - techniques: photometric
Many early-type emission-line stars were detected in the objective-prism
surveys of the past (e.g., MWC, Merrill & Burwell 1933;
AS, Merrill & Burwell 1950; LS, Stock et al. 1960).
These surveys contain thousands of objects, many of which are listed
in more than one catalog. In order to summarize the previous findings,
Wackerling (1970) compiled a list of 1159 objects found in the
above surveys before 1970. Most of them, especially those with very
strong emission-line spectra, display a noticeable excess radiation in
the infrared (IR) region due to the presence of circumstellar gas and/or
dust. Ground-based IR observations (usually shortward of 10-20 m)
were obtained in the 1970-s for a number of the bright objects,
allowing one to study properties of the circumstellar matter.
However, much progress in these studies was achieved after the IRAS
all-sky survey, which detected about a quarter of a million point-like
objects in the region 12-100
m. IRAS detected a significant number
of Wackerling's objects. Most of those with very strong IR fluxes
(
8 mag) were identified by Dong & Hu (1991).
In 1993 we began a study of a subsample of Dong & Hu's list which mostly
contains B-type stars with a steep decrease of IR fluxes longward of 12 m
(e.g., Sheikina et al. 2000). These objects
seem to form a group with similar properties of both the stars and
circumstellar matter. Some of them were previously identified as B[e] stars
by Allen & Swings (1976). Their spectral energy distribution (SED)
in the IR region suggests the presence of circumstellar dust, most of which
is warmer than
200 K.
This is about an order of magnitude higher than the lowest dust temperature
in the envelopes of Herbig Be stars (e.g., Miroshnichenko et al. 1999).
Because of this property we refer to the entire group as Be stars with
warm dust. These objects display many strong emission lines
in their spectra and a few absorption features, which makes studies of the
illuminating sources difficult and requires high-resolution observations.
They also show noticeable photometric variations in both optical and
near-IR region, investigation of which needs long-term observations
(e.g., Miroshnichenko 1998).
A certain lack of data makes their studies slow and, as a result,
their evolutionary state is still unclear (e.g., Lamers et al. 1998).
Our efforts in the study of Be stars with warm dust resulted in a number of
publications, where we introduced these remarkable objects and attempted to
estimate their physical parameters (see Miroshnichenko 1998 for a
recent review and Sheikina et al. 2000). In most cases, high-resolution
spectroscopy and multicolour photometric observations were reported for the first
time. Since the objects are rather faint (
mag), one needs large
telescopes to obtain spectra with a reasonable resolution and signal-to-noise
ratio. Although they generally share similar overall characteristics, some objects
show unique features which deserve special attention. This is why we present them
individually or in small groups.
Our previous publications dealing with the discussed objects include
Miroshnichenko & Corporon (1999; MWC 342), Miroshnichenko et al.
(2000; AS 78 and MWC 657), and Miroshnichenko et al.
(2001; HD 85567, Hen3-140 and Hen3-1398).
In this paper we present the first results of our observations of AS 381,
another object from Dong & Hu's (1991) list. It was found in the
course of the Mount Wilson survey (Merrill & Burwell 1950)
as an 11.5-mag star with a strong H
emission. We found no observational
results for this object in the literature, except for some IR satellite data
(IRAS and MSX) and two near-IR observations discussed below. Here we summarize
the data accumulated so far, estimate the star's fundamental parameters, and
discuss its evolutionary state.
The photometric UBVR (Johnson system) observations of AS 381 were obtained in
July-September 2000 at Mt. Maidanak (Uzbekistan) using a 48-cm AZT-14 reflector
with a standard pulse-counting photometer
(Shevchenko 1989). The errors of individual observations, which are
presented in Table 1 and in Fig. 1, were as follows:
mag,
mag,
mag, and
mag.
In total 20 observations were obtained. The object's U-band flux was
measured only 2 times as it is close to the photometer sensitivity threshold.
HD 189474 was used as a
comparison star, while the instrumental system stability was controlled
using other standard stars observed during each night.
![]() |

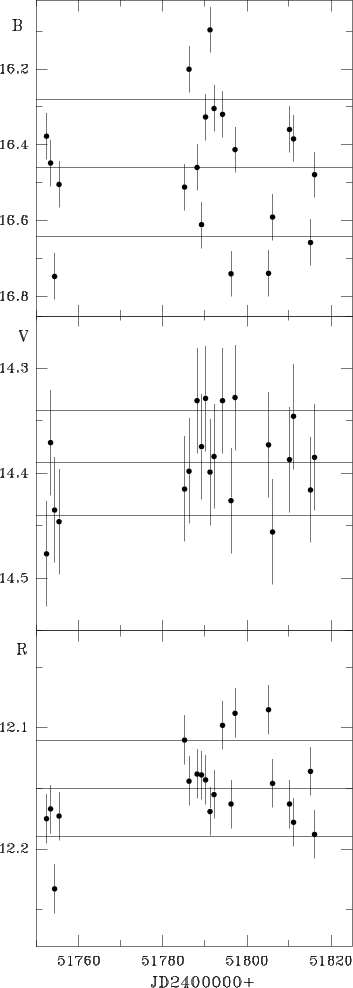

Figure 1:
Optical photometric data for AS 381.
Horizontal lines show the mean brightness levels and
1![]() |
Open with DEXTER |
JD 2 451 000+ | V | U-B | B-V | V-R |
752.307 | 14.48 | 1.90 | 2.30 | |
753.308 | 14.37 | 1.47 | 2.08 | 2.20 |
754.299 | 14.44 | 1.14 | 2.31 | 2.20 |
755.300 | 14.45 | 2.06 | 2.27 | |
785.211 | 14.42 | 2.10 | 2.31 | |
786.200 | 14.40 | 1.80 | 2.25 | |
788.184 | 14.33 | 2.13 | 2.19 | |
789.192 | 14.38 | 2.24 | 2.24 | |
790.187 | 14.33 | 2.00 | 2.19 | |
791.189 | 14.40 | 1.70 | 2.23 | |
792.199 | 14.38 | 1.92 | 2.23 | |
794.190 | 14.33 | 1.99 | 2.23 | |
796.183 | 14.43 | 2.31 | 2.26 | |
797.179 | 14.33 | 2.09 | 2.24 | |
805.156 | 14.37 | 2.37 | 2.29 | |
806.151 | 14.46 | 2.14 | 2.31 | |
810.162 | 14.39 | 1.97 | 2.22 | |
811.162 | 14.35 | 2.04 | 2.17 | |
815.169 | 14.42 | 2.24 | 2.28 | |
816.167 | 14.39 | 2.09 | 2.20 |
On 1999 September 15, 2000 July 24 and 2001 July 27 we obtained JHK photometry
of the star at the 1.55-m Carlos
Sánchez Telescope (CST), operated by the Instituto de Astrofísica de Canarias
at the Spanish Observatorio del Teide (Tenerife, Spain). We used a CVF infrared
spectrophotometer equipped with an InSb photovoltaic detector, operating at the
temperature of liquid nitrogen, with a photometric aperture of 15
and a chopper
throw of 30
in the E-W direction to subtract the contribution from the
background sky. The star was observed 4-5 times in each band.
The Teide photometric system, as well as its relations with other standard photometric systems is described in Arribas & Martínez-Roger
(1987).

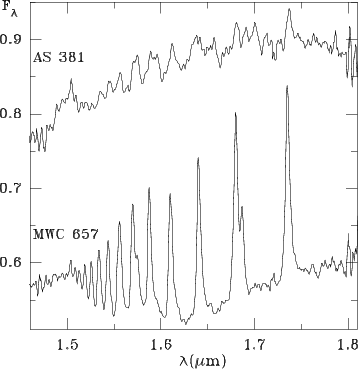

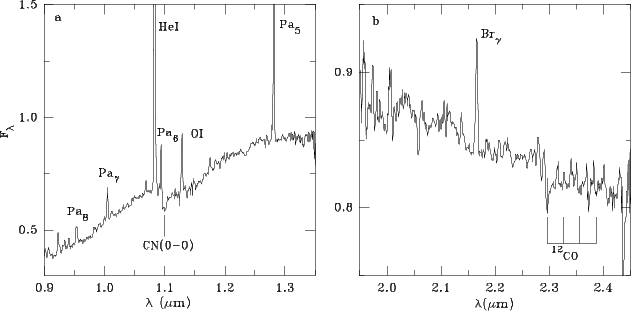

The infrared low-resolution spectroscopic observations of AS 381 were acquired
on 2000 July 18 with the 3-m Shane reflector of Lick Observatory and the Aerospace
near-infrared imaging spectrograph. The spectrograph, which is described by Rudy et al. (1999), uses two channels to provide wavelength coverage
from 0.8 to 2.5 m. The blue (0.8-1.4
m, resolution 14 Å) and red
(1.4-2.5
m, resolution 36 Å) spectra were acquired simultaneously.
A more detailed technical description of this type of observation is given in
Miroshnichenko et al. (2000).
A 2
slit was employed for the observations of AS 381 and its
calibrator star HD 191854, a G5 dwarf (V=7.45 mag).
The instrumental response and
most of the effects of atmospheric absorption were removed by dividing
the spectrum of AS 381 by that of the calibrator. To remove the
intrinsic spectrum of the calibrator from this ratio, a model from
Kurucz (1994) appropriate to a G5 V star was used.
The averaged results of our near-IR observations and of those found in
the literature are presented in Table 2.
JD 2 400 000+ | J | H | K | Ref. |
47435 | 8.68 | 7.48 | 6.39 | ![]() |
50946 |
![]() |
![]() |
![]() |
![]() |
51437.00 |
![]() |
![]() |
![]() |
CST |
51744.81 | 8.98 | 7.89 | 6.82 | Lick |
51750.51 |
![]() |
![]() |
![]() |
CST |
52118.52 |
![]() |
![]() |
![]() |
CST |
Data from Aaronson et al. (1990).
Data from the 2MASS survey (Skrutskie et al. 1997).
A classification-resolution (3.6 Å per 2 pixels) spectrum of AS 381 was obtained
on 1999 October 16/17 using the Gray/Miller Cassegrain spectrograph on the 0.8-m
telescope of the Dark Sky Observatory of the Appalachian State University.
The spectrum was taken with a 600 lines mm-1 grating in the first
order using a
Tektronics thinned, back-illuminated
CCD. The spectral range is 3800-5600 Å. The spectrum was reduced using
standard methods under IRAF
.

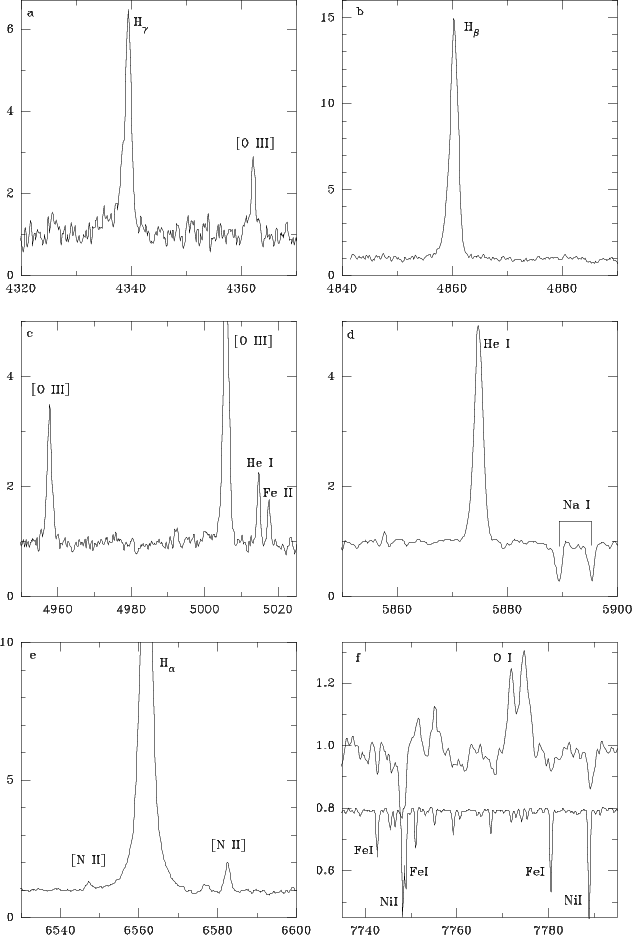

A high-resolution spectrum of AS 381 was obtained on 2000 July 12 at
the 6-m telescope of the Special Astrophysical Observatory (SAO) of the
Russian Academy of Sciences with the échelle-spectrometer PFES (Panchuk et al.
1998) and a
pixel CCD detector. The spectral range was
4577-7820 Å with the mean
.
The spectrum was reduced using
standard methods under MIDAS.
AS 381 is located in the south-western part of Cygnus, very close to the galactic
plane (
). There is only one more object in the 5
vicinity of
AS 381 listed in the SIMBAD database. This is a carbon star, cya 22
(star No. 22 in the Cygnus region "a''), discovered by Aaronson et al.
(1990). These authors
conducted an objective prism survey aiming at finding carbon stars. For most of
the detected candidates they obtained high-resolution spectra near the C2 Swan
band head at 5636 Å and near-IR photometry in the JHK bands. No spectral
information was reported for cya 22 in this paper, while its JHK-magnitudes
turned out to be close to our data for AS 381. According to Aaronson et al.,
cya 22 is located 5
from AS 381, that is within the uncertainties of their
positional measurements. Since the accuracy of the AS 381 position listed in the
AS catalog is low, we used recent determinations from the MSX (Egan et al.
1999) and 2MASS (Skrutskie et al. 1997) surveys
(RA
,
2000.0).
This coincidence raised a question about the classification of cya22 as a carbon star.
Both the MSX and 2MASS survey revealed only one source in a 1
vicinity
of the quoted coordinates. Since there is no spectral confirmation of the carbon
type nature of cya 22, we conclude that Aaronson et al. detected near-IR radiation
of AS 381.
The appearance of AS 381 in Dong & Hu's (1991) list prompted Thé et al.
(1994) to include it in their catalog of the Herbig Ae/Be stellar group objects,
which contained 287 early-type emission-line stars. They are potential candidates to
pre-main-sequence intermediate-mass (
)
stars, although a fraction
of objects at later evolutionary stages, such as LBVs and B[e] supergiants,
has been recognized in this list.
Additionally to the IRAS detection,
,
was also detected by MSX
(MSX5-G070.5812+00.5721). The non colour-corrected IRAS fluxes refined using the ADDSCAN procedure (co-addition of all IRAS
scans; see Weaver & Jones 1992) along with those from the MSX survey are
listed in Table 3. The source was not detected by IRAS in the 100
m band.
Summarizing the literature search for data on AS 381,
we can only say that it was known as an emission-line star
associated with a strong IR source. No information about its nature or evolutionary
state could be obtained from the data available prior 1999.
IRAS | 12 ![]() |
25 ![]() |
60 ![]() |
100 ![]() |
20047+3305 |
![]() |
![]() |
![]() |
|
MSX | 8.28 ![]() |
12.13 ![]() |
14.65 ![]() |
21.34 ![]() |
5C-G070.5812+00.5721 |
![]() |
![]() |
![]() |
![]() |
The fluxes are given in Janskys.
AS 381 was not detected by IRAS at 100 m.
Our optical photometric observations were obtained within a 63-day period
and revealed no significant brightness variations. The mean brightnesses
are as follows:
,
,
,
.
Their uncertainties are within 3
observational errors
in each band.
Our 2 measurements in the U-band turned out to be very close
to each other, which is most likely a coincidence because of a low signal-to-noise
ratio in this band. Therefore, we consider this result as a rough estimate of
the U-band brightness of AS 381, and show it in Fig. 2 only for reference.
One can see that the star is very reddened and is much
fainter than it was reported in the AS catalog (mV=11.5 mag).
This difference might imply that AS 381 was brighter fifty years ago,
although the photometric system of this catalog is uncertain.
![]() |

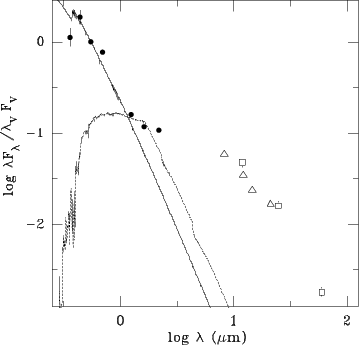

Figure 2:
The SED of AS 381. The solid line represents the synthetic
spectrum for
![]() ![]() |
Open with DEXTER |
The near-IR data collected in Table 2 show that the variations of
AS 381 in this spectral region significantly exceed the observational
accuracy and possible systematic differences of the instrumental systems.
The latter is unlikely to exceed 0.1 mag. The character of
these variations and the connection to the optical changes are not clear yet
and require further observations. However, the data from Table 2
indicate that the color changes are much smaller than the brightness
variations (
,
).
A similar amplitude of the near-IR brightness variations was
detected in some Be stars with warm dust, such as MWC 342 (Miroshnichenko
& Corporon 1999) and MWC 657 (Miroshnichenko et al. 2000).
The IRAS fluxes are about 20 per cent above the MSX fluxes (obtained in 1983
and 1996, respectively) at close wavelengths (12 and 25 m).
This difference may be part of the same process, that is responsible for
the near-IR variability.
Thus, the observations reported here along with other available photometric data
constrained the SED of AS 381 (see Fig. 2) and showed that its optical
brightness is stable on a time scale of months, while it is variable in the IR
region on a time scale of years.
If we assume that a reddened early B-type star dominates the SED in the visual
region (which will be shown in the next section), then the total V-band
extinction (AV) turned out to be about 7.4 mag (
mag).
Even in this extreme case, the IR excess is significant. Overall, the SED of AS 381
is very similar to those of other Be stars with warm dust. The IR excess is too
strong to be explained by free-free radiation of the circumstellar matter and
requires the presence of dust in the immediate vicinity of the star.
The photometric data we collected for stars in a region of
around AS 381
show a smooth increase of AV up to only 2.5 mag within 5-6 kpc from the Sun
(Fig. 3a).
This result implies that either AS 381 is a very distant object or a significant
part of its reddening is circumstellar.
![]() |

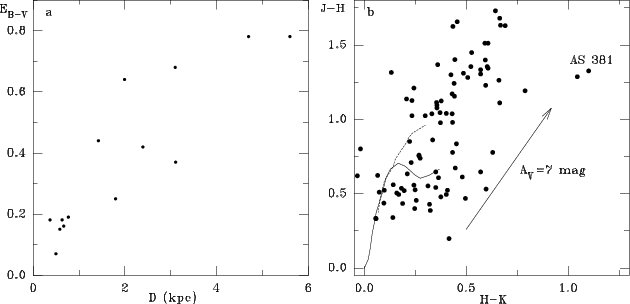

Figure 3:
Photometric properties of stars close to AS 381. a) The interstellar
extinction law derived from UBV photometry of stars from a 1![]() ![]() |
Open with DEXTER |
The high-resolution SAO spectrum of AS 381 contains many emission lines, about a
dozen strong diffuse interstellar bands (DIBs), and nearly 20 absorption features
in its red part. The Balmer lines are extremely strong and narrow (full width at
half maximium,
kms-1; see Fig. 4).
Their profiles contain neither P Cyg-type absorption features nor broad wings.
Other permitted transitions observed (He I, Fe II, Si II)
have similar profiles, which are even narrower (
kms-1).
We also detected 3 strong emission lines
of [O III] at 4363, 4959, and 5007 Å. They have the same average FWHM as
the permitted lines. The forbidden neutral oxygen lines at 6300 and 6363 Å observed in emission are most likely formed in the object's envelope, but can be
telluric in part. The DIBs are strong, which is consistent with the large photometric
reddening. For example, the equivalent width of the strongest DIB at 5780 Å (1.0 Å) corresponds to
mag (Herbig 1993).
![]() |
Figure 4: Parts of the high-resolution SAO spectrum of AS 381. A part of the Arcturus spectrum from Hinkle et al. (2000) is shown in panel f) for comparison (the lower spectrum). Wavelengths are given in Å while the intensities are normalized to the continuum. |
Open with DEXTER |
The sodium D1,2 lines consist of two absorption components. One of them is
deep and has interstellar origin, while the other one is very weak and most
likely circumstellar, showing nearly the same RV as that of the emission lines.
The mean RV of the Na I D interstellar components is -17 kms-1,
while that of the DIBs is kms-1.
The absorption features detected in the red part of the SAO spectrum
(5800-7800 Å) are neither telluric nor expected from an
early-type star. Such lines are usually observed in the spectra of cool
stars. Using this suggestion, we identified 23 absorption lines with central
intensities between 0.7 and 0.9 (in continuum units) as those of neutral metals.
Their RVs vary from -10 and -35 kms-1 with an average value of
3 kms-1.
Figure 4f shows that the absorption part of the AS 381 spectrum is
qualitatively similar to that of Arcturus.
The mean radial velocity (RV) of 44 detected permitted emission lines is
kms-1. At the same time, one can distinguish 3 different groups among the 9 detected forbidden lines. The [O III] lines have an extreme RV of
kms-1. The RV of the [Ni II] and [S II] lines is
kms-1 and is close to that of the permitted lines. The [O I]
lines have a mean RV (
kms-1) close to that of the absorption lines.
This difference is beyond the measurement uncertainties and probably reflects different
line formation regions in the circumstellar envelope.
![]() |
Figure 5:
Parts of the low-resolution Lick near-IR spectrum of AS 381.
Wavelengths are given in microns, while the fluxes are given in units of
10-16 Wcm-2![]() |
Open with DEXTER |
The DSO spectrum, obtained in the bluer range nearly a year before (JD 2451469), shows the same strong and narrow emissions in the overlapping region. Although the spectrum has a low signal-to-noise ratio because of the star's faintness, it demonstrates a relative stability of the line content over the period of the dramatic change in the near-IR.
The near-IR spectrum of AS 381 contains emission lines
of neutral hydrogen, carbon, oxygen, and helium as well as of singly
ionized calcium and iron (Fig. 5).
The strongest emission line identified in this spectrum
is that of He I 1.083 m, although Paschen lines are strong too.
The IR triplet of Ca II has an averaged intensity of
1.2 of the continuum flux. A similar strength is observed in the spectra of
other Be stars with warm dust, such as AS 78 and MWC 657. The Brackett lines
are in emission, but are much weaker than the Paschen lines.
In general, the emission line profiles (not resolved) look
similar to those in the optical region. However, the relative strength of
the optical and infrared lines in the spectrum of AS 381 is much higher
than that in MWC 657 (Fig. 6), which has a similar
optical spectrum (Miroshnichenko et al. 2000).
![]() |
Figure 6:
The H-band Lick spectrum of AS 381.
The wavelengths and flux units are the same as in Fig. 5. The spectrum of
MWC 657, obtained at Lick in July 2000 with the same equipment, is shown for comparison.
It is shifted down by
![]() ![]() |
Open with DEXTER |
The flux ratio of the O I
lines at 8446, 11287, and 13164 Å can be used for an independent
interstellar reddening estimate by means of the method suggested by Rudy
et al. (1991). This method assumes that an equal number of photons
are generated in the 8446 and 11287 Å lines by the Lyfluorescence mechanism, but corrects this ratio, by using the 13164 Å line, for the additional photons generated in the 8446 Å line by continuum
fluorescence. The flux ratio observed in the spectrum of AS 381
gives
mag, which agrees with the above photometric estimate.
There is a continuum jump at 1.1 m (see Fig. 5) which seems to be
real, as it is not present in the spectra of other objects observed during the
same run. This feature is not seen in hot and dwarf stars, but appears in the
spectra of stars later than G5 of luminosity types I- III (Wallace
et al. 2000) and is attributed to the CN 0-0 band. Additionally, we detected
an absorption feature at 2.29
m which is most likely due to the CO 2-0 band
(Fig. 5b). Other CO bands, usually observed in this spectral region, are
not clearly seen.
The list of lines identified in the spectrum of AS 381 with the help of a catalogue by Coluzzi (1993) is presented in Appendices A (optical range) and B (near-IR range).
The photometric and spectral properties of AS 381 described above show that it is
a peculiar and complex object. The presence of the strong hydrogen and He I
lines in emission and the absence of He II lines suggest an early-B (
)
spectral type for the star, illuminating the circumstellar matter. The narrow
emission line profiles as well as the absence of absorption components and broad wings
in them imply two possibilities. First, the circumstellar geometry is
disk-like, and the disk is viewed at a large inclination angle (probably close
to pole-on). Second, an additional source of continuum, veiling the line wings and
absorption components, is present. This source could have either a stellar (radiation
of a companion) or circumstellar (free-free and free-bound radiation) origin.
Both mentioned mechanisms can be present at the same time, too.
Our detection of absorption lines of neutral metals and molecular bands in the red
and near-IR spectrum of AS 381 suggests the presence of a late-type stellar companion.
Since no molecular bands are seen in the optical spectrum, the spectral type of such
a companion should have a spectral type earlier than M0.
A later spectral type is unlikely, because M-stars have prominent absorption bands
at
0.7-1.0
m, which we would detect in our red or near-IR
spectra despite the companions' brightness difference.
As it is seen from Fig. 4f, the spectrum of AS 381 near
7800 Å resembles
that of Arcturus, although the AS 381 lines are weaker probably due to the contributions
from the hot companion and circumstellar matter. This suggests that the cool companion is
most likely a K-type star, because these lines are intrinsically weak in G-type stars and
would be almost undetectable in the described situation. Nevertheless, further
high-resolution spectroscopic observations redward of
5000 Å with higher
signal-to-noise ratios are needed to constrain the cool companion's properties.
Direct comparison with the spectra of standard stars seems to be premature.
The CN 0-0 band and CO bands at 2.0-2.3 m are seen in the spectra of late-G
through M-type stars (Wallace & Hinkle 1997) becoming stronger as the
temperature decreases. Our clear detection of only the CO 2-0 band also suggests
a not very late spectral type for the companion.
The fact that the CO bands are weak in the spectrum of AS 381 (see Fig. 5b)
might be partly explained by the thermal continuum veiling. We estimated a lower
limit for the latter of
50% in the K-band (amount of the thermal flux
over that of the late-type companion) assuming no thermal contribution
in the J- and H-band fluxes, where it cannot be large since we detected the CN
band. This estimate shows that the detected CO band cannot be intrinsically as strong
as that in the M-type spectra (
50% of the continuum). Moreover, our resolution
is enough to detect other CO bands if they were strong (
8 resolution elements
between the 4 bands in the region 2.29-2.38
m). Thus, both our red and near-IR
spectra suggest that the late-type companion is most likely a K-type star.
A K-type spectrum in combination with a B-type spectrum can qualitatively explain
the observed SED between the B- and H-band (see Fig. 2). However, the SED
fitting is complicated by uncertain contributions from both gaseous and dusty
components of the circumstellar envelope. The latter also affects the interstellar
reddening estimate. Nevertheless according to our preliminary calculations (similar
to those described by Waters et al. 1987 for Be stars),
the circumstellar reddening due to free-free and free-bound continuum can be of
the order of
mag. This suggests that the bulk of the observed
reddening is interstellar and the line profile veiling is not strong.
A similar suggestion about the system's stellar components was made for another Be star with warm dust, MWC 623 (Zickgraf & Stahl 1989).
In the spectrum of this object many absorption lines from a late-type companion
are clearly observed at
Å. In AS 381 such lines are only seen
redward of
5800 Å.
This points to a different companions brightness ratio. The hot companion
of AS 381 should be brighter than the cool one in the visual region (see Fig. 2),
while the situation is reversed in MWC 623. If this is the case for AS 381, then the
B-V color-index would not be affected by the cool companion. Hence, most of the
observed reddening would be interstellar, suggesting a large distance to the
object.
We can put some constraints on the distance towards AS 381 using our RV measurements.
Since the system is most likely viewed close to pole-on, the orbital motion does not
noticeably affect its RV. Unfortunately, models for the galactic rotation (e.g., Dubath et al. 1988) do not agree with the observed RV distribution in the
direction of AS 381. The latter just shows that stars with more negative RVs are located
further away from the Sun but does not match the observed values.
Early-type supergiants within 1
from the object at D=1-3 kpc have
RVs ranging from +5 to -30 kms-1, while those belonging to the association
Cyg OB3 (
2.4 kpc) have RVs between -5 and -25 kms-1 (Humphreys
1978). Since closer stars from this region have RVs
kms-1, the
observed RV of AS 381 (in agreement with the large reddening) suggests a large distance. Ignoring possible circumstellar reddening and the gaseous continuum
contribution, one can calculate an upper limit for a distance toward AS 381 (D=6.4 kpc)
assuming that the object's luminosity does not exceed the Humphreys-Davidson limit.
In this case both components need to be supergiants.
A rough estimate of the distance lower limit ( kpc) can be derived under
the assumptions that the hot companion is a B1 V star, it is about 1-2 mag
brighter in the V-band than the cool companion, and the interstellar reddening is
7 mag. However, it is unlikely that the distance toward AS 381 is less than
3 kpc (the distance where the interstellar extinction law changes its slope),
because luminous stars in its vicinity, located closer to the Sun, are not
significantly reddened (see Fig. 3a).
It is also the reddest object in the 2MASS survey of its 3
vicinity
(Fig. 3b). The only other star close to its position in the J-H vs. H-Kdiagram is
8 mag fainter. Furthermore, the CN band at 1.1
m is not
seen in the spectra of dwarf stars, implying that the cool companion is at least a giant.
The pole-on orientation of a disk-like envelope may explain the line profile shapes. If it is optically thick in continuum, such an orientation also produce a much stronger continuum in both the optical and near-IR region than in the edge-on case. This, along with the cool companion contribution, may account for the weakness of the Brackett emission lines in AS 381 in comparison with those in MWC 657 (see Fig. 6), whose double-peaked profiles of the optical emission lines strongly suggest that its envelope is viewed nearly edge-on (see Miroshnichenko et al. 2000).
Let us now estimate the physical parameters of the companions. As seen from Fig. 2,
the short-wavelength part of the observed SED can be fitted by radiation of an early-B
and a K-type star with a brightness ratio of 2 mag in the V-band.
This ratio corresponds to a luminosity difference of
20 (with the
bolometric corrections of -2 and -1 mag for the hot and cool star, respectively,
Miroshnichenko 1997). Therefore, the cool companion is less massive than the hot one.
This makes AS 381 similar to another remarkable B+K binary, AX Mon, which is an
interacting system with a period of 232 days (Elias et al. 1997).
At a reasonable distance
kpc, the companions would have
(B-star) and
(K-star) which correspond to
evolutionary masses of
and
,
respectively (Schaller et al.
1992, see Fig. 7). If the companions evolved as single stars, their ages
would be very different. Hence, the system most likely experienced mass exchange.
Since AS 381 shows a much stronger emission-line spectrum than AX Mon, this might suggest
a stronger ongoing mass transfer between its companions. One might expect an orbital period
for AS 381 to be comparable to or smaller than that of AX Mon with a minimum of
30 days
(based on rough estimates of the companions' masses and radii). However, it might be difficult
to detect RV variations because of a small inclination angle of the system's rotation axis
to the line of sight, as discussed above.
![]() |
Figure 7: H-R diagramme with the locations of the hot and cool companion of AS 381. Evolutionary tracks are from Schaller et al. (1992) with initial masses (in solar units) shown near corresponding tracks. |
Open with DEXTER |
The above consideration allows us to discuss the system's evolutionary state. It is obviously
an evolved object that consists of massive stars. The circumstellar dust may
be formed in the wind of either one or both components. The steep decrease in the far-IR
flux, seen in the IRAS data, suggests a lack of cool and distant dust. This probably implies
that the system is still evolving redward from the main-sequence and is too young to
produce a pronounced SED peak at 25-60 m, which is observed in the IRAS data for
post-AGB stars or LBVs (more arguments against the post-AGB nature of Be stars with warm
dust are considered in Miroshnichenko et al. 2000).
The presence of forbidden lines in the spectrum of AS 381 allows us to classify it as a
B[e] supergiant. The forbidden line velocity stratification is suggestive of a complex
structure of the low density regions of the envelope.
Since the late-type component is brighter than the early-type one in the
near-IR, the observed photometric variations may be due to its pulsational activity.
Density changes in the dusty envelope due to sporadic enhancements of the mass loss
cannot be excluded either. Another possibility is occultations of a part of the
near-IR emitting circumstellar matter by the hot companion, if the stars are close
enough to each other. These suggestions still need to be confirmed by follow-up optical
and near-IR photometry.
Overall, the observed spectral features of the cool star and the companions' brightness
ratio suggest that the system consists of a B-type star and a fainter K-type star, both
of which most likely have luminosity type II or higher. The system is relatively
young, and the fact that the less massive star is located further away from the main
sequence implies mass transfer onto the hot companion. The properties of AS 381 (most of
the spectral features and SED) are similar to those of MWC 623. The late-type companions
of these 2 systems seem to have almost the same fundamental parameters (Zickgraf 2001).
However, the hot companion of AS 381 appears to be more massive than that of MWC 623.
We should also note here that AS 381 is not a unique system. Zickgraf et al.
(1996) found the LMC B[e] supergiant R4 to be a binary system, which consists of
a B- and A-type star. Thus, we can suggest that AS 381 is the first B[e] supergiant binary
discovered in the Milky Way.
Line ID |
![]() |
![]() |
RV, | Rem. | Line ID |
![]() |
![]() |
RV, | Rem. |
kms-1 | kms-1 | ||||||||
H![]() |
4340.47 | 6.5 | -42: | Fe I(207) | 6230.73 | 0.85 | -15 | lt | |
[O III](2F) | 4363.21 | 2.8 | -47: | Fe II(74) | 6238.39 | 1.28: | -50: | ||
He I(51) | 4387.93 | 1.5: | -43: | Fe II(74) | 6239.91 | - | - | ||
He I(14) | 4471.52 | 1.9: | -39: | Fe II(74) | 6247.55 | 1.26: | -50: | ||
Fe II(38) | 4508.28 | 1.3: | -43: | Fe II | 6248.9 | - | - | ||
Fe II(37) | 4515.33 | 1.2: | -30: | DIB | 6283.85 | 0.56: | - | ||
Fe II(37) | 4520.22 | 1.2: | -48: | [O I](1F) | 6300.3 | 1.5 | -21 | ||
Fe II(38) | 4522.63 | 1.2: | -47: | Fe II | 6317.99 | 1.2 | -43: | ||
Fe II(38) | 4549.47 | 1.6: | -43: | Si II(2) | 6347.10 | 1.26 | -41: | ||
Fe II(37) | 4555.89 | 1.4: | -35: | Fe I (13) | 6358.70 | 0.84: | -20: | lt | |
Cr II(44): | 4558.65 | - | -40: | [O I](1F) | 6363.78 | 1.13: | -28: | ||
Fe II(38) | 4583.83 | 1.5: | -38: | Fe II(40) | 6369.46 | 1.19 | -30: | ||
Fe II(37) | 4629.33 | 1.35: | -33: | Si II(2) | 6371.36 | 1.25: | -34: | ||
He I(12) | 4713.33 | 1.66: | -39: | DIB | 6379.29 | 0.85 | - | ||
H![]() |
4861.33 | 15 | -42: | Fe II | 6383.72 | 1.17: | -38: | ||
He I(48) | 4921.93 | 2.5 | -39: | Fe II | 6385.45 | 1.13: | - | ||
Fe II(42) | 4923.92 | 1.8: | - | Fe I(816) | 6400.01 | 0.83: | -18: | lt | |
[O III](1F) | 4958.91 | 3.6 | -48: | Fe II(74) | 6416.92 | 1.25: | -41: | ||
[O III](1F) | 5006.84 | 11 | -50: | Fe II(40) | 6432.68 | 1.38: | -47: | ||
He I(4) | 5015.68 | 2.3 | -41 | Fe II(74) | 6456.39 | 1.2: | -34: | ||
Fe II(42) | 5018.44 | 1.8 | -39 | Fe II(40) | 6516.08 | 1.45 | -33 | ||
He I(47) | 5047.74 | 1.2: | -45: | [N II](1F) | 6548.03 | 1.3: | -32: | ||
Si II(5) | 5056.1: | 1.3: | -39: | H![]() |
6562.81 | - | -41 | satur. | |
Fe II(42) | 5169.03 | 1.66 | -42: | [N II](1F) | 6583.45 | 2.0 | -41 | ||
Fe II(49) | 5197.58 | 1.5 | -42: | DIB | 6613.56 | 0.6: | -22: | ||
Fe II(49) | 5234.62 | 1.49 | -37: | Ni I(43) | 6643.64 | 0.88 | -30: | lt | |
Fe II(49) | 5276.00 | 1.38: | - | Fe I(111) | 6663.4 | 0.9: | -12: | lt | |
Fe II(41) | 5284.10 | 1.5: | -40: | He I(46) | 6678.15 | 3.37 | -42 | ||
Fe II(49,48) | 5316.61 | 1.88 | -38 | [S II](2F) | 6716.47 | 1.1: | - | ||
Fe II(49) | 5325.56 | 1.25: | - | Ca I(32) | 6717.69 | 0.9: | -32: | lt | |
Fe II(48) | 5362.86 | 1.44 | -38: | [S II](2F) | 6730.85 | 1.16: | -33: | ||
DIB | 5487.67 | 0.86 | - | Ti I(48) | 6743.13 | 0.89: | -30: | lt | |
Fe II(55) | 5534.83 | 1.5: | -43: | He I(10) | 7065.32 | 4.0 | -39 | ||
Ca I(21) | 5602.85 | - | -27: | ![]() |
Co I(54) | 7084.98 | 0.88 | -28 | lt |
Fe I(686) | 5602.95 | - | - | He I(45) | 7281.35 | 1.78 | -41: | ||
DIB | 5760.40 | 0.9: | - | Ca I(44) | 7326.16 | 0.87 | -15: | lt | |
DIB | 5762.70 | 0.9: | - | Ni I(109) | 7393.61 | 0.83: | -10: | lt | |
DIB | 5766.16 | 0.89: | - | Fe I(1077) | 7495.08 | 0.85: | -31: | lt | |
DIB | 5780.37 | 0.54 | -18 | Fe I(1077) | 7511.03 | 0.85: | -22: | lt | |
DIB | 5785.05 | 0.89: | -16: | Fe II(73) | 7515.8 | 1.15: | -40: | ||
DIB | 5796.96 | 0.75 | -20: | Ni I(187) | 7555.61 | - | -25: | lt | |
Ti I(72) | 5866.46 | 0.93: | -20: | lt | Fe I(402) | 7583.80 | 0.86: | -18: | lt |
He I(11) | 5875.72 | 5.0 | -39 | Fe I(1137) | 7586.03 | 0.88: | -7: | lt | |
Na I(1) | 5889.95 | 0.25 | -17 | IS, -50:![]() |
K I(1) | 7664.91 | - | - | IS |
Na I(1) | 5895.92 | 0.25 | -17 | IS, -50:![]() |
Ni I(62) | 7714.32 | 0.66: | -30: | lt |
Fe II(46) | 5991.37 | 1.2: | -40: | Fe I(402) | 7748.27 | 0.9: | -40: | lt ![]() |
|
Fe II(74) | 6147.74 | 1.2: | - | ![]() |
Ni I(156) | 7748.90 | - | -33: | lt |
Fe II(74) | 6149.25 | - | - | O I(1) | 7771.94 | 1.3: | -30: | ||
Ni I(45) | 6191.19 | 0.82 | -11 | lt ![]() |
O I(1) | 7774.17 | - | - | |
Fe I(169) | 6191.56 | - | -30: | lt | O I(1) | 7775.39 | - | - | |
DIB | 6195.96 | 0.9: | -25: | Fe I(1154) | 7780.57 | 0.9: | -22: | lt | |
DIB | 6203.08 | 0.86: | -20: | Ni I(62) | 7788.95 | 0.88 | -15: | lt |
Comments to the line list in the optical spectrum of AS 381.
Unreliable identifications and less accurate measurements are denoted by colons.
Intensities at line peaks in units of the underlying continuum are given in Col. 3,
heliocentric RV in kms-1 in Col. 4, and Remarks in Col. 5.
Blend with the following line, RV relates to both lines;
RV of the circumstellar component;
Blend;
"satur.'' - the line top is saturated; "IS'' - interstellar feature;
"lt'' - late-type star feature.
We presented and analysed for the first time the observed properties of the emission-line object AS 381. Its spectrum and SED turned out to be similar to those of Be stars with warm dust, a group of nearly 20 galactic peculiar objects. We found that AS 381 is most likely a binary system that consists of two luminous stars of very different spectral types (early-B and K) and is surrounded by a gas-and-dust envelope. The spectral line profiles imply that the envelope is non-spherical and is viewed close to pole-on. Our 2-month optical photometric observations did not reveal any noticeable variability, while our near-IR observations and other published near-IR data showed that the object is variable on a time scale of years.
Thus, AS 381 is the third member of this group for which convincing evidence of binarity is found. The other two (MWC 623, CI Cam) also seem to contain at least one luminous stellar component. There are a few more Be stars with warm dust for which the presence of a secondary component is suspected (MWC 342, AS 78, MWC 657). These results give growing evidence that such peculiar strong emission-line objects may be products of the binary evolution at certain stages on or after the main-sequence. However, further systematic observations are needed to make more conclusive statements on the nature of this group. Such observations should include high-resolution spectroscopy to search for RV variations (at least in edge-on systems), optical and near-IR photometry to search for brightness variations, and far-IR and submillimetric observations to constrain parameters of the objects' dusty environments.
Acknowledgements
A.M. and K.S.B. acknowledge support from NASA grant NAG5-8054. Karen Bjorkman is a Cottrell Scholar of the Research Corporation, and gratefully acknowledges their support. This work was supported in part by a Civilian Recearch and Development Foundation (CRDF) grant RP1-2264. R. O. Gray acknowledges the partial support of a Research Corporation Grant. P. G.-L. acknowledges support from grant PB97-1435-C02-02 from the Spanish Dirección General de Enseñanza Superior e Investigación Científica (DGESIC). V.K. acknowledges support from grant 99-02-18339 of the Russian Foundation for Basic Research. R.J.R., D.K.L., and S.M. were supported by the Independent Research and Development program at The Aerospace Corporation. This research has made use of the SIMBAD database operated at CDS, Strasbourg, France. This publication makes use of data products from the Two Micron All Sky Survey, which is a joint project of the University of Massachusets and the Infrared Processing and Analysis Center, funded by the National Aeronautic and Space Administration and the National Science Foundation.
![]() |
ID |
![]() |
![]() |
ID |
![]() |
8446.35 | O I (4) | 1.37 | 10459.79 | N II (11): | 1.04 |
8498.018 | Ca II (2) | 1.23 | 10501.00 | Fe II | 1.05 |
8542.089 | Ca II (2) | 1.20 | 10683.08 | C I | 1.09 |
8598.394 | P14 | 1.12 | 10830.34 | He I (1) | 4.42 |
8662.140 | Ca II (2)+P13 | 1.19 | 10938.09 | P6 | 1.30 |
8750.00 | P12 | 1.12 | 11287.0 | O I | 1.38 |
8862.787 | P11 | 1.14 | 11750.0 | C I | 1.08 |
9017.911 | P10 | 1.12 | 12818.05 | P5 | 1.76 |
9061.33 | Fe II (71) | 1.10 | 16109.31 | Br13 | 1.05 |
9229.017 | P9 | 1.26 | 16407.19 | Br12 | 1.03 |
9403.36 | Fe II (71) | 1.11 | 16806.52 | Br11 | 1.04 |
9545.974 | P8 | 1.18 | 17362.11 | Br10 | 1.05 |
9997.58 | Fe II | 1.06 | 21655.29 | Br![]() |
1.10 |
10049.38 | P7 | 1.27 |
