A&A 383, 56-64 (2002)
DOI: 10.1051/0004-6361:20011723

M 82's stellar bar

A. Greve¹ - K. A. Wills² - N. Neininger³ - A. Pedlar^4,5

1 - Institut de Radio Astronomie Millimétrique, 300 rue de la Piscine, 38406 St. Martin d'Hères, France
2 - Department of Physics and Astronomy, University of Sheffield, Hounsfield Road, Sheffield S37RH, UK
3 - Astronomisches Institut der Universität Bonn, Auf dem Hügel 71, 53121 Bonn, Germany
4 - University of Manchester, Jodrell Bank Observatory, Macclesfield, Cheshire SK119DL, UK
5 - Onsala Space Observatory, 43992 Onsala, Sweden

Received 28 September 2001 / Accepted 26 November 2001

Abstract
The fueling of the starburst in M82 may be related to a stellar bar which pushes gas towards the center where it forms stars. The observation by McKeith et al. (1993) of the near-IR CaII photospheric absorption line allows a direct velocity measurement of the stars in M82, and provides by this a confirmation of the predicted x₁ and x₂-orbits of the bar in M82. From this and other observations we find that the mass of the x₂-orbit stars is $\sim$15$\%$ of the mass of the bar, and that the mass of the bar of $2\times 10^{9}\,M_{\odot}$ is 20-40% of M82's mass. This mass concentration of $\sim$1kpc extent at the center of M82 underlines the dynamic importance of the bar.

Key words: galaxies: individual: M82 - galaxies: structure - galaxies: stellar content

1 Introduction

The starburst in M82, of approximately 10-50 Myr age, can possibly be explained by the presence of a stellar bar which pushes gas towards the center of the galaxy where it accumulates, is compressed, shocks, and forms stars. This stellar bar may have formed during the encounter of M81 and M82, several 100 Myr ago. Tidal arms visible in 21cm-H I still connect M81, M82, and NGC3077.

In a bar, the stars move on elliptical orbits along the major axis of the bar, the x₁-orbits, and at the center of the galaxy on perpendicular orbits along the minor axis of the bar, the x₂-orbits. The consequence for the gas distribution is motion of gas from the far ends of the bar towards the center, shocks at the intersection of the x₁ and x₂-orbits, accumulation of gas near and inside the x₂-orbits, and the formation of dust lanes along the leading x₁-orbits (Contopoulos & Mertzanides 1977; Binney et al. 1991; Athanassoula 1992). Morphological evidence for the bar in M82 comes from the box-shaped distribution of stellar light, in particular measured in the 2.2 $\mu$m K-band which emphasizes late-type stars (Telesco et al. 1991; Larkin et al. 1994), and the indication of dust lanes from IR extinction measurements of x₁-orbit stars (Larkin et al. 1994). Kinematic evidence of the x₁-orbits comes from position-velocity (p-v) measurements of neutral and ionized gas (CO, H I, H$_{\alpha }$, etc.; Shen & Lo 1995; Seaquist et al. 1996; Neininger et al. 1998; Wills et al. 2000; McKeith et al. 1993). Kinematic evidence of the x₂-orbits can be seen in the CO and H I data, however it is most clearly present in the p-v diagrams obtained from the 12.8$\mu$m [NeII] emission line (Achtermann & Lacy 1995). In fact the ionized gas traced out by the [NeII] emission appears to be largely confined to the x₂-orbits only. There are no direct velocity measurements of the stars of the bar which may be different from the velocity of the gas, in particular in regions of shocks, dust lanes, and bubbles. Direct information on the stars is important since they contain the dominant mass of the bar and define the gravitational potential in which the material moves.

Here we show that the earlier single long-slit spectroscopic observation by McKeith et al. (1993) of the near-IR CaII photospheric absorption lines (at 8662, 8542, 8498 Å), which are strong in late type stars (Jaschek & Jaschek 1995), provides direct kinematic evidence of the stellar x₁-orbits and x₂-orbits of M82. The observations of near-IR emission lines of H II regions, like [SIII] at 9069 Å and Paschen-10 [Pa(10)] at 9014 Å, however do not immediately reveal the x₂-orbits, at least at the selected slit position discussed here. Evidently, the stellar absorption lines can only be observed where the stellar continuum is strong, which is along the major axis of the bar and along the more extended major axis of the galactic disk. We derive from the p-v diagrams the extent and the mass of the bar.

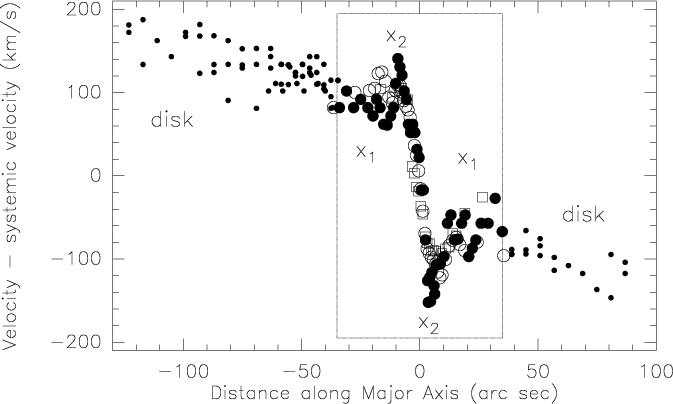

Figure 1: Major axis (PA = 65 $\hbox {$^\circ $ }$) p-v diagram of the stellar bar ( , i.e. r 500pc: heavy symbols in the outlined region) and of the disk component. The extent of $\pm$100'' corresponds to $\pm$1700pc. Near-IR CaII stellar absorption lines: heavy and small dots; near-IR ionized gas emission lines [SIII]: open circles, Pa(10): open squares. The systemic velocity of 200kms-1 is subtracted. ENE is to the left, WSW to the right. 1'' is equivalent to 17.5pc.

Open with DEXTER



Table 1: p-v information derived from the near-IR stellar CaII(8542) absorption line and the [SIII] and Pa(10) emission lines (from McKeith et al. 1993).

Position	Stellar Velocities	Gas Velocities
	CaII IR line	[SIII]	Pa(10)
('')	(kms-1)	(kms-1)	(kms-1)
${\vec x}_{1}$-orbits $^{\rm a)}$
-34.0	82
-31.0	102
-28.0	82	100
-25.0	92
-22.0	82	102
-19.8	72	105
-18.3	92	123
-16.8	82	125	104
-15.3	62	114
-13.8	61	95
-12.3	72
-11.1	82	88	94
${\vec x}_{2}$-orbits
-10.2	111	102
-9.3	$\bullet$141	109
-8.4	$\bullet$131	109	102
-7.5	$\bullet$121	101	105
-6.6	102	90	96
-5.7	92	83	92
-4.8	62	79	91
-3.9	52	70	55
-3.0	62	53	11
-2.1	52	36	3
-1.2	32	25	-13
-0.3	22	6	-18
0.6	-17	-15	-36
1.5	-17	-42	-46
2.4	-77	-69	-73
3.3	$\bullet$-126	-87	-80
3.6	$\bullet$-152
4.2	$\bullet$-122	-93	-81
4.5	$\bullet$-151
5.1	-116	-98	-90
6.0	-132	-101	-89
6.3	-142	-106	-90
${\vec x}_{1}$-orbits $^{\rm b)}$
6.9	-107
7.8	-106	-115	-100
8.7	-106	-122	-100
10.2	-97	-118
11.7	-57	-84	-87
13.2	-47	-77	-69
14.7	-77	-74
16.2	-76	-83
17.7	-57
19.2	-47	-90	-45
20.7	-97
22.2	-87
23.7	-77	-80
25.9	-57
28.9	-57
31.9	-27
34.9	-67	-96

$^{\rm a)}$ ENE side; $^{\rm b)}$ WSW side of center.
$\bullet$ Extreme x₂-orbit velocities.

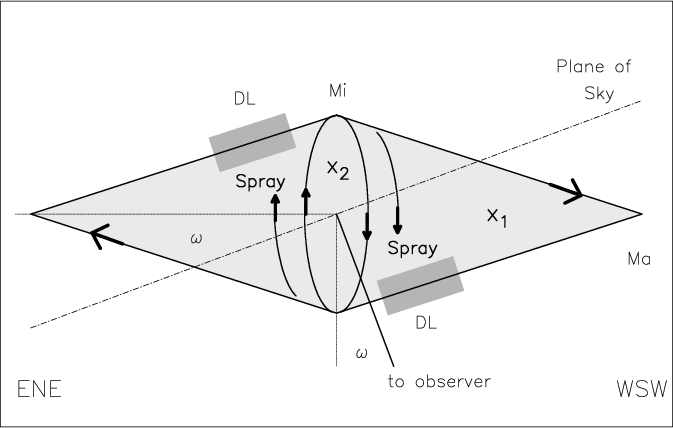

Figure 2: Schematic explanation of ``spraying'' in M82 (not drawn to scale): some gas is pulled off the trailing x1-orbits and is pushed towards the leading x1-orbits, forming dust lanes (DL). Ma is the major axis, Mi the minor axis of the bar. The region of the x1 and x2-orbit stars is indicated. The extent of the bar (x1-orbits) is $\sim$1kpc ($\sim$60''); $\omega \approx 22\hbox {$^\circ $ }$. The western side of M82 moves towards the observer, the eastern side away from the observer. M82 is viewed from the top (North).

Open with DEXTER

2 Observation

The observation used in this publication was described earlier (McKeith et al. 1993) and was made to investigate the rotation of gas and stars in M82, which were previously claimed to be different (Saito et al. 1984). The single long-slit spectroscopic observation, made with the 4.2m WHT (La Palma, Spain) along the major axis of M82 ( $\rm PA = 65\hbox{$^\circ$ }$), covered the wavelengths from [OII] 3729Å to [SIII] 9069Å with a velocity resolution of $\sim$30kms^-1. The seeing was good and of the order of 0.7''. The velocity information of the stellar CaII photospheric absorption line at 8542Å (strongest triplet line) and of the ionized gas emission lines [SIII] and Pa(10), taken from the observation by McKeith et al. (1993), is summarized in Table 1. The extreme velocities (indicated by the dots in Table 1), which reveal the x₂-orbit stars, are confined to narrow regions $\sim$2.5'' ($\sim$45pc) in extent, at approximately 5'' distance on either side of the dynamical center. These extreme velocities are only detectable under good (sub-arcsec) seeing conditions.

The investigation by McKeith et al. (1993) revealed that at the same location in M82 the rotation of the gas and stars is globally the same, and that the apparent rotation curve becomes steeper at longer wavelengths and in smaller regions at the center. McKeith et al. explained these features as an effect of extinction which hides at blue wavelengths the rapidly rotating core. They also found that the velocity measured in the direction of the center from near-IR ionized gas emission lines and near-IR stellar absorption lines is close to the velocity of the 12.8$\mu$m [NeII] emission line (Beck et al. 1978), which is unaffected by extinction and probes the center of M82. They concluded therefore that - despite an average visual extinction of $A_{\rm V}\approx 3$-8mag towards the center region (Telesco et al. 1991; Larkin et al. 1994) - the near-IR lines, and in particular the near-IR CaII stellar absorption lines, probe also the center of the galaxy or regions very close to it. Today we are able to interpret this earlier observation of the near-IR CaII line in the light of the proposed stellar bar.

The major axis p-v diagram of M82, based on the observation by McKeith et al. (1993; including Table 1), of the region extending to $\sim$$\pm$100'' ($\pm$1700pc) on either side of the galactic center and containing the bar is shown in Fig. 1. This figure is mainly constructed from the stellar CaII line and thus shows in essence the motion of stars. The velocities display the rotation of M82.

The equivalent widths of the CaII triplet lines (see McKeith et al. 1993, their Fig. 1) are $W(8498) \approx 1.3$Å, $W(8542) \approx 3.4$Å, and $W(8662) \approx 2.5$Å, indicating primarily G-KIII-V type stars (Jaschek & Jaschek 1995) in agreement with the fact that the bar consists of late-type stars which were spatially reshuffled in the encounter with M81. Similar stellar types are derived by Förster Schreiber et al. (2001).

Distances along M82's major axis are originally measured in angular scale ($\theta$). For a distance of 3.6Mpc (Freedman et al. 1994; Sakai & Madore 1999), 1'' is equivalent to 17.5pc linear scale (r).

3 The orientation of the bar and ``spraying''

3.1 Orientation of the bar

Detailed knowledge of the orientation of the bar, as required to understand the measured p-v diagrams, is not easily available from a single long-slit spectrogram. We use, and summarize, the results obtained by Telesco et al. (1991) and Wills et al. (2000).

The position angle of M82's major axis is $\rm PA \approx 70\hbox{$^\circ$ }$; the western side moves towards the observer, the eastern side away from the observer. In the following we refer to the axis at $\rm PA = 70\hbox {$^\circ $ }$ as the ``galactic plane''. The inclination of M82 is $i \approx 80\hbox{$^\circ$ }$, with the southern side being more distant as for instance suggested by the higher reddening and polarization (Visvanathan & Sandage 1972; Notni & Bronkalla 1983; Chesterman & Pallister 1980), the motion of ionized gas (Götz et al. 1990), and the geometry of the minor axis outflow (McKeith et al. 1995; Shopbell & Bland-Hawthorn 1998). However, from an observed increase towards the north of free-free absorption due to ionized gas, Wills et al. (2000) discuss the possibility of the opposite orientation. Following Telesco et al. (1991, their Fig. 11), the bar is inclined by $\sim$4 $\hbox {$^\circ $ }$ with respect to M82's galactic plane, with the western side of the bar lying above the galactic plane. As schematically shown in Fig. 2, the major axis of the bar is turned out of the plane of the sky by $\sim$22 $\hbox {$^\circ $ }$ ($\omega$), with the eastern side being more distant. We are looking at the major axis of the bar at an angle of $\sim$68 $\hbox {$^\circ $ }$ so that the major axis p-v diagram resembles that shown by Binney et al. (1991, their Fig. 1, left and middle panel; though referring to our Galaxy) and Achtermann & Lacy (1994, their Fig. 15) for M82. The orientation of the bar is inverted when using the orientation of M82 suggested by Wills et al.

The x₂-orbits are perpendicular to the x₁-orbits and their major axis is rotated to the line-of-sight by $\omega \approx 22\hbox {$^\circ $ }$ (Fig. 2). If the southern side of M82 is more distant, the x₂-orbits extend at the eastern side out of the plane of the sky towards the observer. Following Figs. 1 and 3, the x₂-orbit stars on the north-eastern side move away from the observer (red-shifted), at the south-western side towards the observer (blue-shifted).

The following figures and parameters refer to the geometry and velocities of the bar as seen projected onto the plane of the sky.

3.2 ``Spraying''

For the interpretation of optical and radio observations of bar galaxies it is important to consider the effect of spraying as predicted from N-body calculations (Athanassoula 1992) and used, for instance, to explain the observations of NGC1530 (Downes et al. 1996). Altough the bars of bar galaxies are massive and several kpc in extent, the 1kpc-size bar of M82 (see below) may produce the same effect of spraying. The effect is schematically shown in Fig. 2. When passing the gravitational potential of the x₂-orbit stars, some gas (and perhaps also some stars) is pulled off the trailing x₁-orbits and is pushed towards the leading x₁-orbits. The spraying gas may shock with the gas on the leading x₁-orbits, and eventually form dust lanes and stars.

4 The orbits of the bar

Figure 3 shows an overlay of the observation of the near-IR stellar CaII line, the [SIII] and Pa(10) lines (Table 1), and the x₁-orbits, cusped orbits, and x₂-orbits of the bar predicted by Wills et al. (2000). Their model of the bar is based on observations of neutral and ionized gas motions (CO, H I, [NeII]).

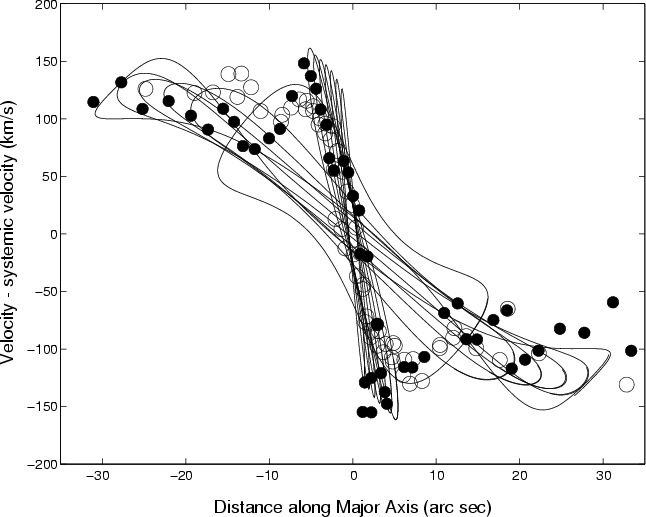

Figure 3: Major axis (PA = 73 $\hbox {$^\circ $ }$) p-v diagram of the stellar bar region (outlined by the dashed line in Fig.1). The contour lines show the stellar x2-orbits, cusped orbits (peanut-shaped), and x1-orbits confined to a region of $\sim$$\pm$30'' ($\sim$$\pm$500pc), predicted by Wills et al. (2000). Solid dots: near-IR CaII stellar absorption line; open circles: near-IR ionized gas emission line of [SIII] and Pa(10) (data of Table 1). ENE is to the left, WSW to the right. 1'' is equivalent to 17.5pc.

Open with DEXTER

4.1 The x $\mathsf{_{2}}$-orbits ( $\mathsf{\theta\leq 5''}$)

As evident from Figs. 1 and 3, the near-IR CaII stellar absorption line clearly traces the x₂-orbits which extend to $\sim$$\pm$5'' ($\sim$$\pm$90pc) from the galactic center where the turn-around velocity is $\sim$$\pm$150kms^-1. The observation of the [SIII] and Pa(10) gas emission lines does not show the extreme turn-around velocity of the stellar x₂-orbits. The gas apparently enters the region of the x₂-orbits at a velocity of $\sim$100kms^-1 and follows the rotation of the stellar bar only at the inner $\sim$$\pm$3''($\sim$$\pm$50pc).

The original kinematic evidence for the x₂-orbits comes from Achtermann & Lacy's (1995) 12.8$\mu$m [NeII] emission line observation, which covers a radial distance of $\pm$20''($\pm$350pc).

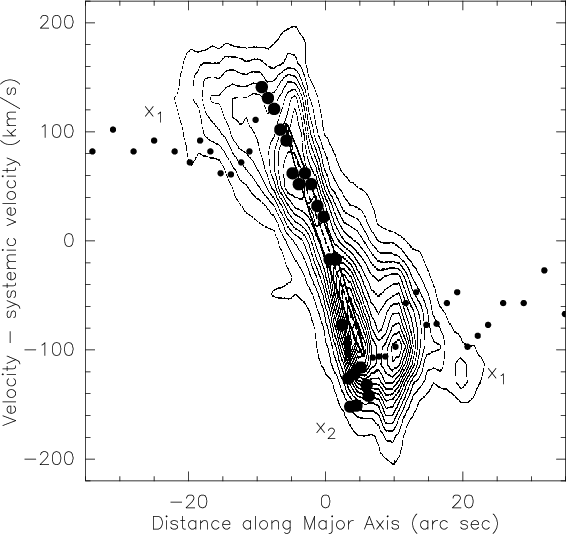

	Figure 4: The contour lines show the velocity of the 12.8$\mu$m [NeII] line measured along M82's major axis ( $\rm PA = 70\hbox {$^\circ $ }$). The solid line and the dashed line indicates an ionized gas ring, with and without expansion (from Achtermann & Lacy 1994). Solid dots: near-IR stellar CaII absorption line (data of Table 1); heavy dots: x2-orbits, small dots: x1-orbits.
Open with DEXTER

In this observation the x₂-orbit gas is seen confined to the central region of $\sim$5'' radius; the gas motion shows the positive and negative velocities of the x₂-orbits, on both sides of the galactic center (shown by Wills et al., their Fig. 9). Figure 4 shows an overlay of Achtermann & Lacy's [NeII] line observation and the CaII line observation of Table 1.

The 21cm-H I observation published by Wills et al. (2000, their Fig. 9) does not clearly show the positive velocities of the x₂-orbits, and the negative velocities mainly on the southern side of the galactic plane. The CO observation by Shen & Lo (1995) (shown by Wills et al., their Fig. 9) shows mainly the negative velocities of the x₂-orbits on the southern side and in the galactic plane, and marginally the positive velocities in and on the northern side of the galactic plane. ¹²CO gas on the western side x₂-orbits is clearly seen in the observation by Weiß et al. (2001). However, they interpret this velocity feature as the eastern part of a super-bubble (see below). ¹²CO gas on the eastern side x₂-orbits is marginally seen in Weiß' et al. observation. The recent determination by Weiß et al. of the H₂distribution in M82 shows a weak central concentration ($\sim$ $2\times10^{22}$cm^-2 column density) of similar extent as the x₂-orbit region.

The observation by Larkin et al. (1994) shows on the major axis enhanced Br$\gamma$ emission at a radial distance of $\sim$4-5'' on either side of the galactic center, i.e. at the edge of the x₂-region, but mainly on the southern side (0'' to -3'') of the galactic plane. The bulk velocity of this material at 4-5'' radial distance is $\sim$$\pm$(50-100)kms^-1 (Larkin et al., their Figs. 5 and 6) while the x₂-orbit stars at this position have a velocity of $\sim$$\pm$150kms^-1. The discrepancy of the Br$\gamma$ material velocity, as compared to the stellar velocity discussed here, may be explained, partially, by the low velocity resolution (90kms^-1) of Larkin's et al. observation. On the other hand, the Br$\gamma$ radiating gas is approximately located at the edge of the x₂-orbits where the gaseous material may ``spray'', shock, and form stars (Fig. 2), so that some of the gas is at a velocity different from that of the x₂-orbit stars. The difference of $\sim$50-100kms^-1 between the stellar velocity and the ionized gas velocity is of the order of the expected shock velocity. This dynamical feature may explain, at least partially, the fact that the ionized gas observed in [SIII] and Pa(10) does not follow the stellar turn-around velocity at the edge of the x₂-orbit region but a velocity modified by a superimposed shock (Fig. 3). Telesco et al. (1991) find 10.8,19.2 and30$\mu$m continuum emission from gas and dust (of a few arcsec extent) concentrated at the far ends of the x₂-orbits. The Br$\gamma$ emitting material and the emission features E₁ and W₁ measured by Larkin et al. (1994) coincide with the continuum emission observed by Telesco et al. and most likely is the same gas. This gas concentration is seen along the tangential line-of-sight of the x₂-orbits and is assumed to form a ring (Achtermann & Lacy 1994; Larkin et al. 1994).

The light of the x₂-orbit stars confined to the radial distance of $\sim$$\pm$5'' is not separately seen in the 2.2$\mu$m major axis profile measured by Telesco et al. (1991, their Fig. 10), but is clearly seen as a central peak in the profile measured by Larkin et al. (1994, their Fig. 2; effective radius $\Theta_{2}\approx 2''$, $R_{2}\approx 35$pc, see footnote c in Table 3).

In summary there exists convincing evidence from stellar continuum, stellar absorption line, and gas emission line observations that M82 has a family of stellar x₂-orbits which extends to $\sim$$\pm$5'' ($\sim$$\pm$90pc) projected radial distance. The turn-around velocity, which is approximately the line-of-sight velocity of the x₂-orbits, is $\sim$$\pm$150kms^-1; the projected velocity gradient is $\sim$150kms^-1/5 $''\approx 30$kms^-1(arcsec) ^-1 = 1.7kms^-1pc^-1.

4.2 The cusped orbits ( $\mathsf{5'' \leq\theta \leq 15''}$)

As evident from Fig. 3, outside the x₂-orbits and between $\sim$5'' ($\sim$100pc) and $\sim$15'' ($\sim$250pc) radial distance, the observation does not show stars and ionized gas which follow the predicted x₁-orbits. In this region (and for this slit position) there occurs on the eastern and western side of the galactic center an apparent transition of stars and gas from a slower rotation on the ``outer'' x₁-orbits (Sect.4.3) to the faster rotation on the x₂-orbits. This transition gives the impression that the region is primarily occupied, though asymmetrically, by stars and gas moving on cusped orbits.

However, in the cusped orbit region the gas (and perhaps also some stars) ``spray'' from the trailing x₁-orbits onto the leading x₁-orbits, usually producing shocks and dust lanes, as seen in other bar galaxies. The cusped orbit region of M82 coincides approximately with the dust lanes proposed by Larkin et al. (1994) and Achtermann & Lacy (1995), and predicted in simulations of gas flow in stellar bars (Athanassoula 1992). Following Larkin et al., and Fig. 2, the western dust lane of M82 lies mainly in front of the stars of the bar which explains the visual stellar extinction of $A_{\rm V}\approx 4{-}6$mag measured in this direction; the eastern dust lane lies mainly behind the stars of the bar which explains the measured lower visual stellar extinction of $A_{\rm V}\approx 1.5{-}3$mag. However, the observed apparent asymmetry in the p-v pattern of the cusped orbit region is only partially due to extinction in the dust lanes. The reason that in the observation of Fig. 3 mainly a western negative-velocity branch and an eastern positive-velocity branch is seen, is probably due to significant spraying of gas (and some stars) which results in a similar p-v pattern as the incomplete cusped orbits. To clarify the situation, a raster of long-slit observations parallel to the major axis is required.

From the observations published by Wills et al. (2000, their Fig.9) we notice that the cusped orbit region contains CO on the western side of the galactic center and primarily on the southern side of the galactic plane. H I and [NeII] is marginally seen on cusped orbits on the western side of the galactic center and on the northern side of the galactic plane. It is important to note that in the cusped orbit region the velocity of H I absorption features (seen against continuum sources) however follows the straight branch of the cusped orits and the x₁-orbits (Wills et al. 2000, their Fig.10).

The prominent (CO) molecular gas lobes are located between 5 (90pc pc) radial distance and thus occupy to a large extent the region of the cusped orbit stars. The effect of spraying may explain the strong accumulation of the molecular gas in this region. The CO gas follows the motion of the ``outer'' x₁-orbit stars (Neininger et al. 1998).

The [NeII] observation by Achtermann & Lacy (1995; Fig. 4) shows a -70 to -185kms^-1 velocity component (called W₂) between approximately -7''(-120pc west) and -13''(-230pc west) radial distance. The W₂-component is also seen in CO and H I (Wills et al. 2000, their Fig.9) at the western side of the unusual ``hole''-feature, in the galactic plane and on the southern side. Wills et al. suggest that the eastern side of this ``hole''-feature is gas moving along the x₂-orbits and that the western side, which corresponds to W₂, is produced by gas moving along the cusped orbits. Since an equivalent component has not convincingly been identified on the eastern side of the galaxy, Wills et al. suggest that the bar in M82 is asymmetric. As an alternative explanation for the asymmetric orbits of the gas, Weiß et al. (1999, 2001) interpret the ``hole''-feature including the W<sub>2</sub>-component as an expanding super-bubble, containing near its center the SNR 41.9+58, and with molecular gas flowing out into the halo. In the observation of the stellar CaII line we find no evidence of the W<sub>2</sub>-component and of the western ``hole''-feature, suggesting that these components are features of the gas only.

In the 2.2$\mu$m major axis profile published by Larkin et al. (1994, their Fig. 2) the cusped orbit region corresponds to the well defined and symmetric ``inner plateau'' (effective radius $\Theta_{\rm c} \approx 10''$, $R_{\rm c}\approx 175$pc) and the sharp transition (30pc wide) to the ``outer plateau''. The light distribution and the major axis velocity distribution do not indicate an asymmetric bar.

4.3 The ``outer'' x $\mathsf{_{1}}$-orbits ( $\mathsf{15''\leq \theta \leq 30''}$)

As evident from Fig. 3, outside the cusped orbit region ( , i.e. r) the stars and gas move on x₁-orbits which extend to a radial distance of $\sim$30'' ($\sim$500pc). The turn-around velocity of the x₁-orbit stars at $\sim$$\pm$30'' ( $r \approx 500$pc) radial distance is $\sim$$\pm$125-150 kms^-1; the projected velocity gradient of the x₁-orbits is 125kms $^{-1}/30'' \approx 6$kms^-1(arcsec) ^-1 = 0.35kms^-1pc^-1.

In the 2.2$\mu$m major axis profile measured by Larkin et al. (1994, their Fig. 2) the region of the ``outer'' x<sub>1</sub>-orbits corresponds to the well defined and symmetric ``outer plateau'' (effective radius $\Theta_{1} \approx 30''$, $R_{1}\approx 500$pc).

4.4 The disk component

As evident from Fig. 1 and Wills' et al. (2000) observations, projected onto the center region of M82, but in particular outside the bar, gas and stars are observed which belong to the galactic disk. Projected onto the center region, this material is seen in 21cm-H I (absorption) with a projected velocity gradient of $\sim$3kms^-1(arcsec) $^{-1}\approx 0.2$kms^-1pc^-1 (Wills et al. 2000, their Figs. 9 and 11). This foreground disk material is also seen with the same velocity gradient in blue wavelength emission lines and the blue stellar CaIIK line at 3933Å (McKeith et al. 1993, their Fig. 3). At blue wavelengths the average extinction towards the center is so high that only the slowly moving material of the outer galactic disk is seen. Outside the bar ( r), the CaII absorption line of the disk stars indicates a projected velocity gradient of $\sim$1kms^-1(arcsec) ^-1 = 0.1kms^-1pc^-1(Fig. 1).

5 The mass of the stellar bar

In the derivation of masses $M(r) \approx r\,v^{2}/G$[with G the gravitation constant] we assume that the turn-around velocity v(r_x2) of the x₂-orbit material determines the mass M(x₂) of the x₂-orbit stars (inside $\theta_{x2}\approx 5''$, i.e. $r_{x2} \approx 90$pc), and that the turn-around velocity v(r_x1) of the ``outer'' x₁-orbit material determines the mass M(x₁) of the stars and gas concentrated along the bar (inside $\Theta_{1} = \theta_{x1}\approx 30''$, i.e. $R_{1} = r_{x1}\approx 500$pc). The corresponding masses are given in Table 2.



Table 2: Mass of M82's stellar bar (inside pc).

Region	Radius	Velocity v at r	Velocity Gradient	Mass	Ref.
	$\theta{-}r$	(kms-1)	(kms-1/'')	($M_{\odot}$)
Stellar Bar Components
x2-region	5''-90pc	150	30	$M(x_{2}) = 2.9\times10^{8}$
x1-region$^{\rm a)}$	30''-500pc	125	6	$M(x_{1}) = 1.75\times10^{9}$
Total ( ${\vec x}_{1}+{\vec x}_{2}$ region)				$M(x_{1}+x_{2}) = 2.0\times10^{9}$
Mass Model (Götz et al.)	30''-500pc			$M = 1.9\times10^{9}$	1
Mass Model (Förster-S. et al.).	30''-500pc			$M = 1.6\times10^{9}$	2
Molecular Gas & Dust
	$\sim$30''-500pc			$M({\rm H}_{2}) = 2.3\times10^{8}$	3
	$\sim$40''-700pc			$M({\rm g+d}) = 8\times10^{8}$	4
	$\sim$40''-700pc			$M({\rm d}) = 8\times10^{6}$	3, 4
Young starburst stars	$\sim$30''-500pc			$M_{\rm stb*}\approx 3\times10^{8}$	5
Galaxy Mass
	$\sim$120''-2kpc			$M_{\rm M\,82}\approx 1\times10^{10}$	6
	$\sim$150''-2.7kpc			$M_{\rm M\,82}\approx 4\times10^{9}$	1

$^{\rm a)}$ Including the cusped orbit stars.
$^{\rm 1)}$ From Götz et al. (1990) mass model.
$^{\rm 2)}$ From Förster Schreiber et al. (2001) mass model.
$^{\rm 3)}$ Weiß et al. (2001): H₂ mass.
$^{\rm 4)}$ 230GHz continuum observations (Krügel et al. 1990) and Thuma et al. (2000): gas and dust mass ( $M_{\rm d}\approx M_{\rm g}/100$).
$^{\rm 5)}$ McLeod et al. (1993).
$^{\rm 6)}$ Sofue et al. (1992).

Figure 5: H$_{\alpha }$ image of M82 taken with the HST. The box shows an idealized stellar bar, aligned roughly along the major axis. The region of the x2-orbit stars, the cusped orbit stars (x1(co)), and the ``outer'' x1-orbit stars is indicated (see Fig. 3). The thickness of the bar is $\sim$$\pm$10'' ($\sim$$\pm$150pc) as evident from the K-image taken by Telesco et al. (1991). For more detail and designation of the objects see the image published by O'Connell et al. (1995). East is to the left, North at the top.

Open with DEXTER

We find that the mass of the x₂-orbit stars is $\sim$15% of the mass of the x₁-orbit stars (including the cusped orbit stars), and that the mass of the bar is $M(x_{1})+M(x_{2}) = M_{\rm bar}\approx 2\times10^{9}\,M_{\odot}$. When adopting for the mass of M82 inside the radius of $\sim$2kpc the value $M_{\rm M\,82}(< 2) \approx 1\times10^{10}\,M_{\odot}$determined by Sofue et al. (1992), we find that the mass concentrated in the bar is $\sim$20% of the galaxy mass. However, if we use the mass distribution of M82 derived by Götz et al. (1990; see also Förster Schreiber 2001), the mass inside the radius of kpc is $M(<2.7) \approx 4\times10^{9}\,M_{\odot}$ and thus only half of the mass given by Sofue. When using the mass of M82 determined by Götz et al., the bar contains $\sim$40% of the galaxy mass. The mass of the gas and dust $M{\rm (g+d)}$ in the region of the bar is $\sim$40% of the stellar mass of the bar.

We get similar mass ratios from an analysis of the 2.2$\mu$m major axis profile measured by Larkin et al. (1994). If the 2.2$\mu$m radiation is primarily due to (late-type) stars, and if the observed brightness of the radiation is proportional to the number of stars, hence the mass along the line-of-sight, the proportionality of the individual stellar mass components is

$$M(x_{i})\propto 10^{0.4{\Delta}{m({\rm o},i)}}\times R_{i}\times M_{\rm o}$$

with i = 1,2,c for the x₁-orbit stars, x₂-orbit stars, and cusped orbit stars. $\Delta m({\rm o},i) = I_{\rm o}- I_{i}$ is the magnitude difference between the stellar component (I_i) and the stellar background ($I_{\rm o}$), measured just outside the bar. R_i is the radial extent of the stellar component; $M_{\rm o}$ is a scaling factor. When using the parameters of Table 3 we obtain $M(x_{2}) \approx 25\times M_{\rm o}$, $M(x_{1}) \approx 75\times M_{\rm o}$, and $M(x_{\rm c}) \approx 90\times M_{\rm o}$. We find again that $\sim$15% of the mass is concentrated in x₂-orbit stars, $\sim$50% of the mass in x₁-orbit stars, and $\sim$30% of the mass in cusped orbit stars.



Table 3: Stellar brightness of the bar (along major axis).

Stellar Component	2.2$\mu$m Profile$^{\rm a)}$	Radius$^{\rm b)}$	Brightness$^{\rm a)}$	10 $^{0.4{\Delta}{m({\rm o},i)}}$
		$\Theta_{i} - R_{i}$	Ii[mag('')-2]
Background (o)	-		14.5	1
x1 stars (1)	Outer Plateau	30''-500pc	13.5	2.5
Cusped orbit stars (c)	Inner Plateau	10''-175pc	12.1	8.7
x2 stars (2)	[Peak]	2''-35pc$^{\rm c)}$	11.7	12.6

$^{\rm a)}$ From Larkin et al. (1994), their Fig. 2.
$^{\rm b)}$ See Sect.4. The full extent of the component is $2\times R_{i}$.
$^{\rm c)}$ Weighted by the exponential spatial light distribution.

We assume in these estimates that the dominant amount of stellar mass is concentrated in the late-type stars of the bar, and not in young massive stars produced in the starburst. When following McLeod et al. (1993), the mass of the stars formed in the starburst is $M_{\rm stb*}\approx 3\times10^{8}\,M_{\odot}$, which is approximately 1/10 of the mass of the bar. The newly formed stars are primarily located near the molecular ring so that the x₂-orbit region contains only a negligible percentage of young massive stars. The mass M(x₂) (Table 2) is therefore primarily due to the late-type stars of the bar.

6 Summary

This paper shows the stellar rotation curve of M82 up to $\pm$1700pc radial distance, fully traced from the near-IR CaII photospheric absorption line of late-type stars. The position-velocity analysis of this line gives direct evidence of the stellar bar in M82, in particular since the observation shows the x₂-orbit stars at the center of the galaxy, hidden behind substantial visual extinction but visible at (near-)IR wavelengths. The observed x₁ and x₂-orbit structure agrees with the stellar light distribution (at 2.2$\mu$m) of the bar and with gas moving on the stellar orbits, although local disturbances of the gas motion do occur. The x₂-orbits extend to pc; the x₁-orbits extend to $r \approx 500$pc; the cusped orbits are located between r pc. The cusped orbits are not clearly visible in our observation probably because in this region there exists significant spraying of gas, and probably also of some stars. The orbital revolution time of the x₂-orbit stars is $\sim$2Myr ( $r \approx 100$pc, $v \approx 150$kms^-1) and of the x₁-orbit stars $\sim$10-15Myr ( $r \approx 500$pc, $v \approx 125$kms^-1).

The mass of the bar is ${\sim}2.0\times10^{9}\,M_{\odot}$. The x₂-orbit stars contain $\sim$15% of the mass of the bar. Dependent of the adopted mass model, i.e. the one determined by Sofue et al. (1992) or Götz et al. (1990), the stellar bar contains approximately 20-40% of M82's mass. This mass has a dominating influence on the kinematics of the stars and the gas, at least in the $\sim$1kpc center region. The stellar bar (at 2.2$\mu$m) defines the kinematic center of M82 rather than the center region gas, which constitutes only $\sim$40% of the stellar mass.

Figure 5 shows, in an idealized way, the location of the stellar bar superimposed on an HST H$_{\alpha }$ image. The bar (long side of the box) is roughly aligned to the galactic plane of M82; the stars move roughly in this plane. The thickness of the bar, in this image, is taken to extent $\sim$$\pm$10'' ($\approx$150pc) above the galactic plane. This value is taken from the K-image published by Telesco et al. (1991); the image shows late-type stars which are the major constituents of the bar. Figure 5 shows the region of the x₂-orbit stars ( ), the region to which the cusped orbit stars extent (x₁(co): 5 ), and the full extent of the x₁-orbit stars ( ). Because of the large visual extinction, the H$_{\alpha }$ image shows mainly the pheripheral parts of M82 and the outflow along the minor axis, especially on the SE side (Shopbell & Bland-Hawthorn 1998). The image shows heavy extinction on the NE side in the region of the x₁-orbits. This is foreground extinction and not the dust lane assumed to be produced by sprays (see Fig. 2); at this side of the center (NE) the dust lane lies on the far side of the galaxy. The minor axis outflow, which breaks out of the galactic disk at a height of $\sim$$\pm$150pc (McKeith et al. 1995), is confined to the inner region of the bar, i.e. approximately the region of the cusped orbits where the molecular ring is located. This is the main area of the starburst.

Acknowledgements

We appreciated the discussions with D. Downes (IRAM) on this subject. We thank the referee D. Elmegreen for her comments. Figure 5 is based on observations made with the NASA/ESA Hubble Space Telescope, obtained from the data archive at the Space Telescope Science Institute. The STScI is operated by the Association of Universities for Research in Astronomy, Inc., under NASA contract NAS 5-26555.
