A&A 383, 125-136 (2002)
DOI: 10.1051/0004-6361:20011741

The M 81 group of galaxies: New distances, kinematics
and structure[*],[*]

I. D. Karachentsev 1 - A. E. Dolphin 2 - D. Geisler 3 - E. K. Grebel 4 - P. Guhathakurta 5,[*] - P. W. Hodge 6 -
V. E. Karachentseva 7 - A. Sarajedini 8 - P. Seitzer 9 - M. E. Sharina 1,10


1 - Special Astrophysical Observatory, Russian Academy of Sciences, N. Arkhyz, KChR, 369167, Russia
2 - Kitt Peak National Observatory, National Optical Astronomy Observatories, PO Box 26732, Tucson,
AZ 85726, USA
3 - Departamento de Física, Grupo de Astronomía, Universidad de Concepción, Casilla 160-C, Concepción, Chile
4 - Max-Planck-Institut für Astronomie, Königstuhl 17, 69117 Heidelberg, Germany
5 - UCO/Lick Observatory, University of California at Santa Cruz, Santa Cruz, CA 95064, USA
6 - Department of Astronomy, University of Washington, Box 351580, Seattle, WA, USA
7 - Astronomical Observatory of Kiev University, 04053, Observatorna 3, Kiev, Ukraine
8 - Department of Astronomy, University of Florida, Gainesville, FL 32611, USA
9 - Department of Astronomy, University of Michigan, 830 Dennison Building, Ann Arbor, MI 48109, USA
10 - Isaac Newton Institute, Chile, SAO Branch

Received 25 September 2001 / Accepted 5 December 2001

Abstract
We present Hubble Space Telescope/WFPC2 images of the galaxies NGC 2366, NGC 2976, NGC 4236, IC 2574, DDO 53, DDO 82, DDO 165, Holmberg I, Holmberg II, Holmberg IX, K52, K73, BK3N, Garland, and A0952+69 in the M 81 complex. Their true distance moduli, derived from the brightness of the tip of the red giant branch, lie in the range of 27 $\hbox{$.\!\!^{\rm m}$ }$52 (NGC 2366) to 28 $\hbox{$.\!\!^{\rm m}$ }$30 (DDO 165), with a median of 27 $\hbox{$.\!\!^{\rm m}$ }$91, which is typical for other known M 81 group members. Using distances and radial velocities of about 50 galaxies in and around the M 81/NGC 2403 complex, we find the radius of the zero-velocity surface of the M 81 group to be $R_0 = (1.05\pm0.07$) Mpc, which yields a total mass $M(R_0) = (1.6\pm0.3)\times 10^{12}~M_{\odot}$ and a total mass-to-luminosity ratio $M(R_0)/L_B = (38\pm7)~M_{\odot}/L_{\odot}$. The total mass within R0 agrees well with the sum of masses estimated via the virial theorem ( $1.2\times 10^{12}~M_{\odot})$ and from orbital motions $(2.0\times 10^{12}~M_{\odot})$ of companions around M 81 and NGC 2403. We suggest that most of the dark matter in the group is concentrated around the luminous matter, allowing us to explain the observed asymmetry of the peculiar motions of the M 81 companions. M 81 itself has a peculiar velocity of about 130 km s-1 with respect to the local Hubble flow, but the centroid of the M 81/NGC 2403 complex is almost at rest with respect to Hubble flow $(v_{\rm pec} < 35$ km s-1).

Key words: galaxies: dwarf - galaxies: distances and redshifts - galaxies: structure - galaxies: kinematics and dynamics


1 Introduction

The association of galaxies around M 81 is one of the nearest prominent groups in the vicinity of the Local Group. Both of the groups have a similar morphological population and binary structure. According to Tammann & Sandage (1968) and de Vaucouleurs (1978), the M 81 group is an extended filament with an angular size of $\sim$ $25\hbox{$^\circ$ }$ around the two bright galaxies NGC 2403 and NGC 4236. The space between the M 81 group and the Local Group is the nearest example of a cosmic mini-void. It has a diameter of $\sim$3 Mpc and is apparently free of any galaxy brighter than $-9^{\rm m}$ in absolute magnitude. Until 1998 accurate distance moduli derived via Cepheid were known only for the two brightest galaxies M 81 (Freedman et al. 1994) and NGC 2403 (Freedman & Madore 1988). The lack of distance estimates to other galaxies in the group makes the analysis of its structure and kinematics difficult. According to Karachentsev (1996) the physical radius of the M 81 group does not exceed $8\hbox{$^\circ$ }$, and all companions to M 81, both dwarf spheroidal (dSph) galaxies and dwarf irregular (dIrr) galaxies, lie within this radius.

Since 1998 many more distance measurements in the M 81 group have become available thanks to observations with the Hubble Space Telescope (HST) and the use of the tip of the red giant branch (TRGB) method. Based on the brightness of the tip of the RGB, Caldwell et al. (1998), Lynds et al. (1998), and Sakai & Madore (1999) determined distances to four dwarf galaxies in the M 81 group: BK5N, F8D1, UGC 6456, and M 82. Many more probable members of the M 81 group were included in the snapshot survey of nearby galaxies (programs SNAP 8192 and 8601, PI: Seitzer) with the Wide Field and Planetary Camera 2 (WFPC2) aboard HST. As a result, we measured the TRGB distances to nine dSph galaxies (Karachentsev et al. 1999, 2000, 2001) and to one dIrr (Dolphin et al. 2001). In this paper we present new distance estimates for 13 late type galaxies observed with the HST. The new availability of accurate distances to most galaxies of the NGC 2403/M 81/NGC 4236 complex allows us to consider the 3D- structure, kinematics, and dynamics of the complex, a map of which is shown in Fig. 1. The stellar populations and star formation history of the observed galaxies will be discussed by us in the next paper.

  \begin{figure}
\mbox{
\includegraphics[angle=-90,width=8.8cm,clip]{1940Fig.1a.ps}\hfill
\includegraphics[angle=-90,width=8.8cm,clip]{1940Fig.1b.ps} }

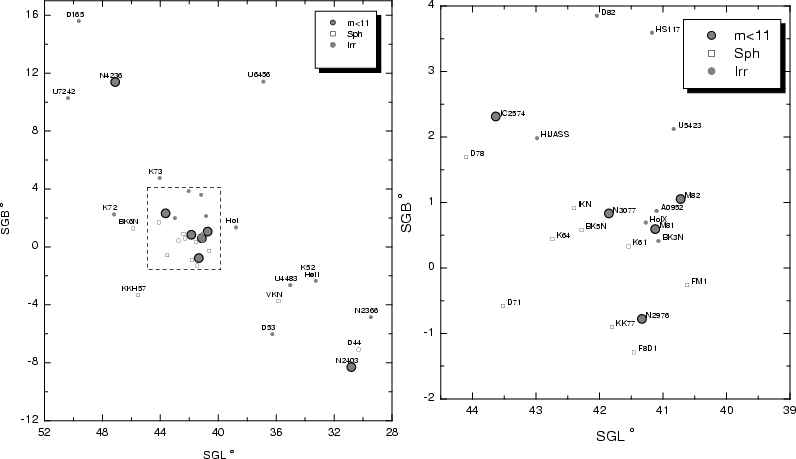

\end{figure} Figure 1: The distribution of galaxies in the NGC 2403/M 81/NGC 4236 complex in supergalactic coordinates. Top: overview of the entire region, bottom: the central part of the M 81 group.
Open with DEXTER

2 HST WFPC2 photometry and color-magnitude diagrams

WFPC2 images of 15 objects in the M 81 group were obtained during 2000 July 11 to 2001 June 27 as part of our snapshot survey of probable nearby galaxies (SNAP 8601; Seitzer et al. 1999). Usually our target galaxies were centered on the WF3 chip, but for some bright targets the WFPC2 position was shifted towards the galaxy periphery to decrease a stellar crowding effect. The 600 s exposures were taken in F606W and F814W for each object. Digital sky survey (DSS) images (POSS-I,E) of the fifteen galaxies are shown in Fig. 2, on which the HST WFPC2 footprints are superimposed. The field size of the DSS images is 10 $\hbox {$^\prime $ }$ by 10 $\hbox {$^\prime $ }$ each.

The photometric reduction was made using the HSTphot stellar photometry package described in detail by Dolphin (2000a). After removing cosmic rays with the HSTphot cleansep routine, simultaneous photometry was performed on the F606W and F814W frames using multiphot, with aperture corrections for an aperture with $0\hbox{$.\!\!^{\prime\prime}$ }5$ radius. Charge-transfer inefficiency corrections and calibrations were then applied based on the Dolphin (2000b) formulae, producing VI photometry for all stars detected in both images. Because of the relatively small field of the Planetary Camera (PC) chip, very few bright stars were available for the computation of an aperture correction. Thus the PC photometry was omitted from further analysis. Additionally, stars with a signal-to-noise ratio <5, $\mid \chi \mid\,\, > 2.0$, or $\mid$ sharpness $\mid\,\, > 0.4$ in each exposure were eliminated from the final photometry list. We estimate the uncertainty of the photometric zeropoint to be within $0\hbox{$.\!\!^{\rm m}$ }05$ (Dolphin 2000b).

Figure 3 shows mosaic images of the galaxies, where both filters were combined. The compass in each field indicates the North and East directions.

3 TRGB distances and integrated properties

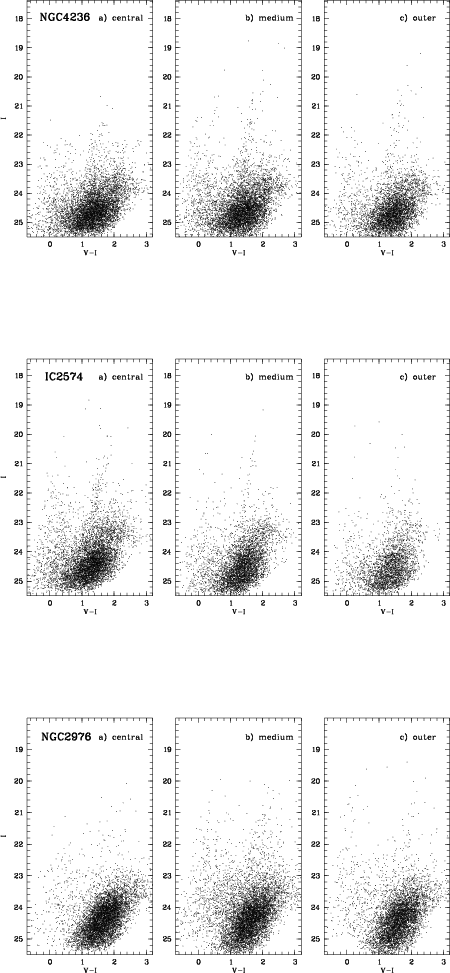

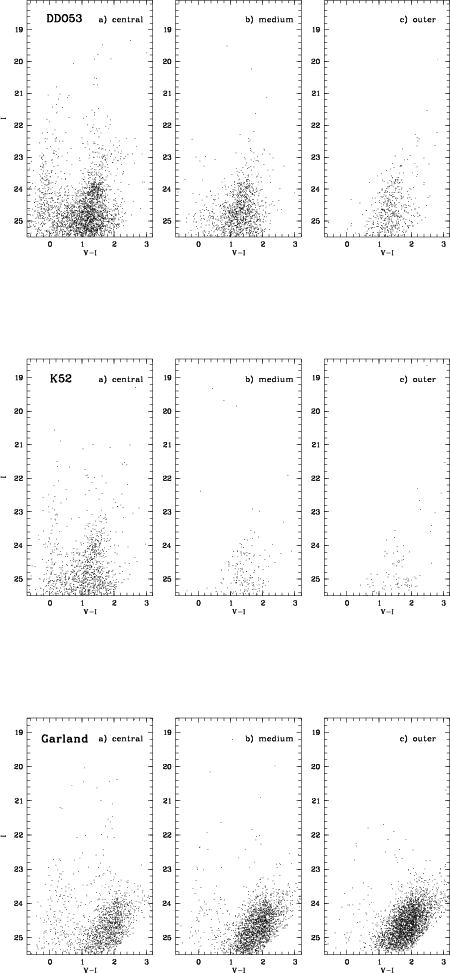

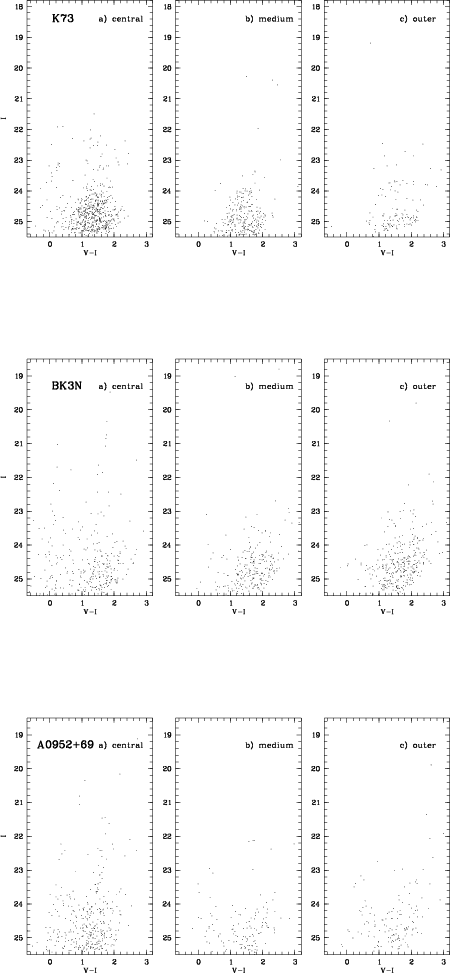

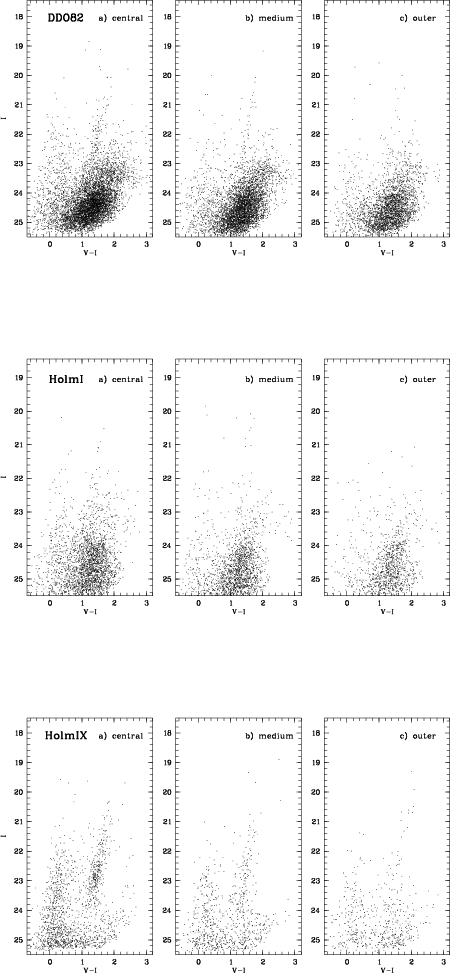

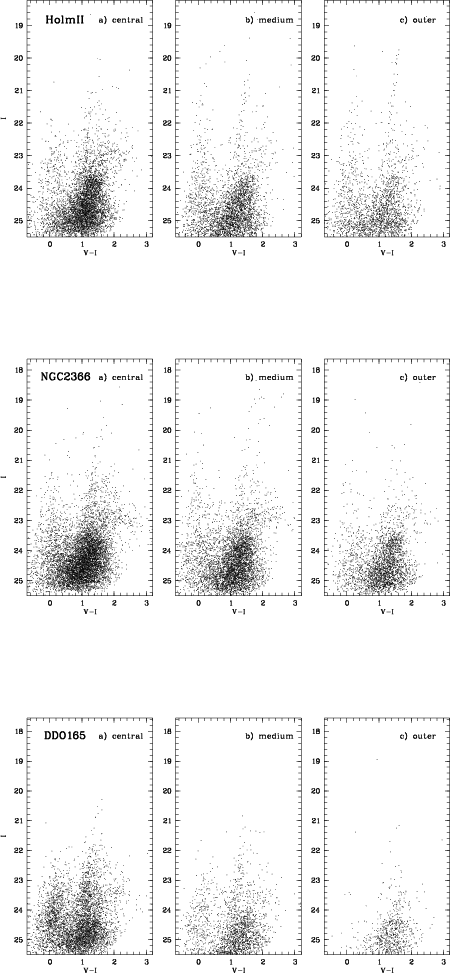

In Fig. 4, I versus (V-I) color magnitude diagrams (CMDs) for fifteen observed galaxies are presented. The total number of stars per image ranges from $\sim$20000 (NGC 2976, NGC 4236) to $\sim$1000 (for the faintest objects). The left panels show the CMDs for the central WFC3 field. The middle panels represent the CMD for the neighbouring halves of WFC2 and WFC4 (x < 425 pixels in WFC2 and y < 425 pixels in WFC4), and the right panels are comprised of stars found in the remaining outer halves of WFC2 and WFC4. Such a representation allows us to show the relative contribution of foreground stars when the galaxy diameter is comparable with the WF3 size.

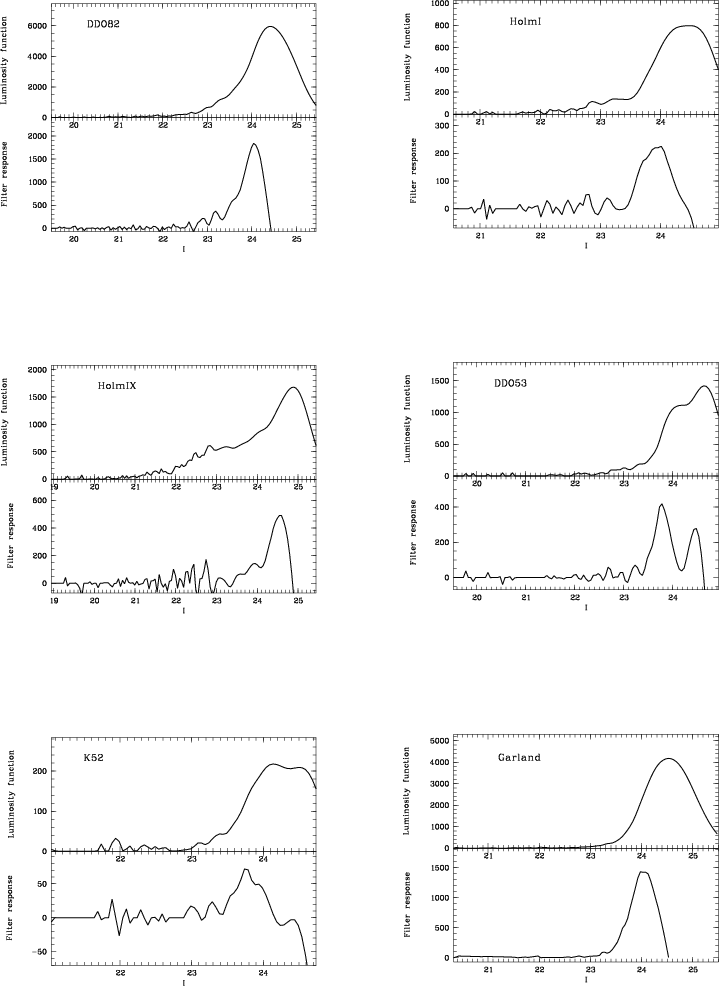

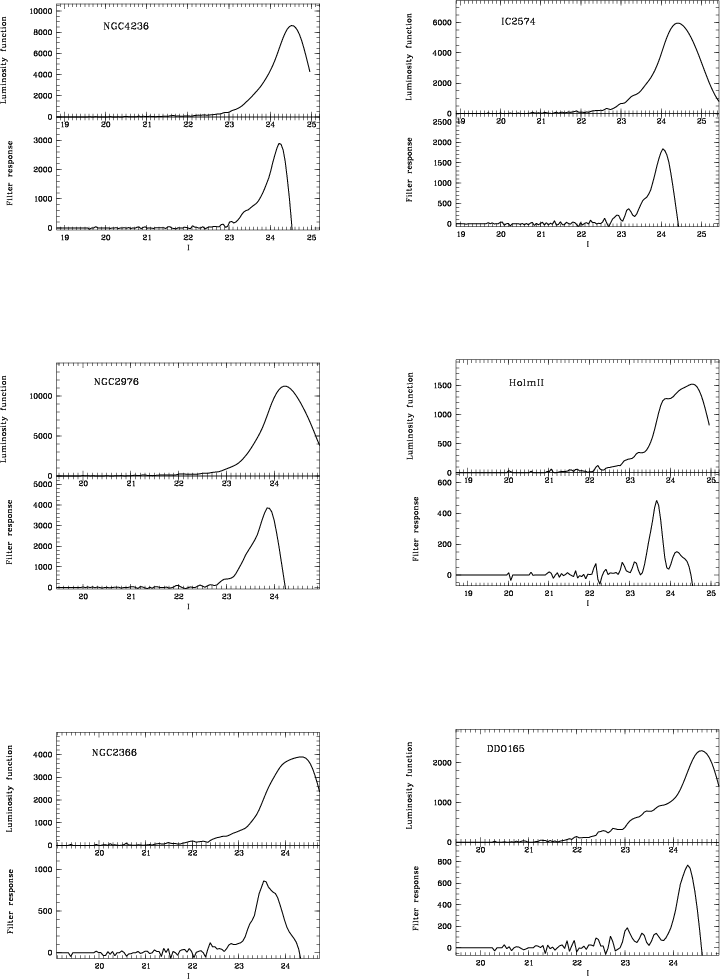

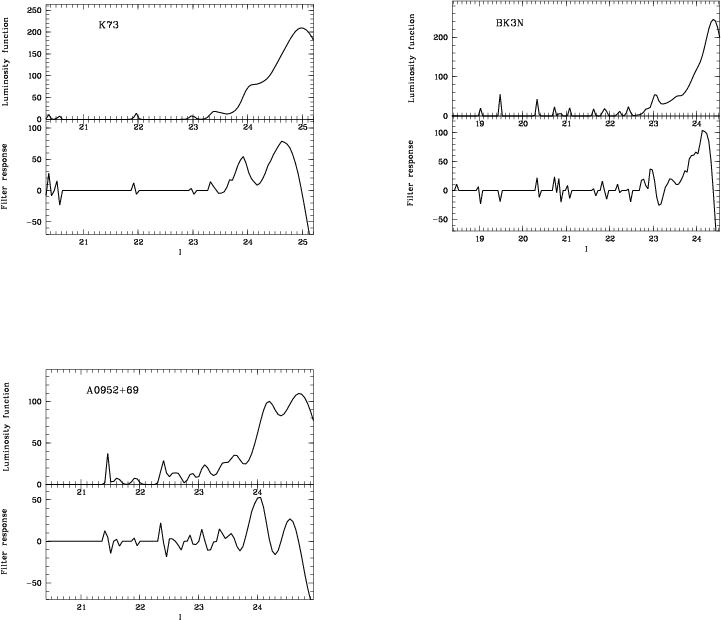

As demonstrated by Lee et al. (1993), the TRGB is a reliable distance indicator that is relatively independent of age and metallicity. For metal-poor systems the TRGB may be assumed to be at MI = -4.05 mag (Da Costa & Armandroff 1990). To determine the TRGB location we obtained the Gaussian-smoothed I-band luminosity function for red stars with colors V-I within $\pm0\hbox{$.\!\!^{\rm m}$ }5$ with respect to the mean <V-I> for expected RGB stars. Following Sakai et al. (1996), we used a Sobel edge-detection filter. The position of the TRGB was identified with the peak in the filter response function. The resulting luminosity functions and the Sobel filtered luminosity functions are shown in the upper and lower panels of Fig. 5, respectively. A summary of the resulting distance moduli for the observed galaxies is given in Table 1. Its columns contain: (1) galaxy name, (2) equatorial coordinates corresponding to the WF3 center, (3) Galactic extinction in the I-band from IRAS/DIRBE data (Schlegel et al. 1998), (4) position of the TRGB derived with the Sobel filter, (5) true distance modulus.




Table 1: Distance moduli for galaxies in the M 81 group.
Galaxy   RA (2000.0) Dec     AI      $I_{\rm TRGB}$   (m-M)0
NGC 4236 12 16 43.2 +69 27 56 0.03 $24.22\pm .22$ 28.24
IC 2574 10 28 22.3 +68 24 58 0.07 $24.04\pm .22$ 28.02
NGC 2976 09 47 15.6 +67 54 49 0.14 $23.85\pm .23$ 27.76
Holm II 08 19 05.8 +70 42 50 0.06 $23.66\pm .13$ 27.65
NGC 2366 07 28 51.9 +69 12 18 0.07 $23.54\pm .28$ 27.52
DDO 165 13 06 26.7 +67 42 14 0.05 $24.30\pm .19$ 28.30
DDO 82 10 30 34.9 +70 37 09 0.08 $24.04\pm .22$ 28.01
Holm I 09 40 28.1 +71 11 10 0.09 $23.96\pm .26$ 27.92
Holm IX 09 57 32.0 +69 02 45 0.15 ?
DDO 53 08 34 06.5 +66 10 44 0.07 $23.78\pm .15$ 27.76
K 52 08 23 56.0 +71 01 45 0.04 $23.74\pm .16$ 27.75
Garland 10 03 42.7 +68 41 27 0.13 $23.99\pm .24$ 27.91
K 73 10 52 57.1 +69 32 58 0.04 $23.90\pm .13$ 27.91
BK3N 09 53 48.5 +68 57 51 0.16 $24.13\pm .14$ 28.02
A0952+69 09 57 32.6 +69 17 00 0.16 $24.05\pm .12$ 27.94


Some additional comments about the galaxy properties are given below. The galaxies are listed in a sequence of decreasing brightness.

NGC 4236. This galaxy of SBdm type has an angular dimension of $22\hbox{$^\prime$ }\times7\hbox{$^\prime$ }$, much larger than the WFPC2 field of view. It is well resolved into stars (Sandage & Bedke 1988). Based on the brightest stars, de Vaucouleurs (1978) and Tikhonov et al. (1991) estimated its true distance modulus to be 27.65 mag and 27.56 mag, respectively. The CMD of NGC 4236 in Fig. 4 shows the presence of RGB and asymptotic giant branch (AGB) stars, as well as bright blue stars on the upper main sequence. We determined the TRGB position to be $I{\rm (TRGB)}= 24.22$ mag, which yields the true distance modulus (m-M)0= 28.24 mag. The error can be estimated as 1/2 of the peak width at 62% of its maximum and turns out to be $0\hbox{$.\!\!^{\rm m}$ }22$. However, the mean-square scatter of TRGB positions derived separately for WF2, WF3, and WF4 is only $0\hbox{$.\!\!^{\rm m}$ }04$.

IC 2574 = DDO 81. This galaxy of SABm type with angular dimensions of $13\hbox{$^\prime$ }\times5\hbox{$^\prime$ }$ has distance modulus estimates of 27.72 mag (de Vaucouleurs 1978) and 27.89 mag (Tikhonov et al. 1991) via the brightest stars. In general its CDM in Fig. 4 looks similar to the NGC 4236 diagram. The derived TRGB position is $24\hbox{$.\!\!^{\rm m}$ }04\pm0\hbox{$.\!\!^{\rm m}$ }22$, but variations of TRGB positions between different chips do not exceed $0\hbox{$.\!\!^{\rm m}$ }06$. From our data the true distance modulus is 28.02 mag.

Holmberg II = DDO 50 = UGC 4305. This irregular galaxy of the Magellanic (Im) type with numerous bright HII regions and blue stellar complexes has a size of $8\hbox{$^\prime$ }\times6\hbox{$^\prime$ }$. From the brightest stars de Vaucouleurs (1978) and Tikhonov et al. (1992) estimated its distance modulus to be 27.79 mag and 27.78 mag, respectively. Our photometry gives $I{\rm (TRGB)} = 23.66\pm0.13$ mag, and (m-M)0 = 27.65 mag.

NGC 2976. Unlike the two previous galaxies, NGC 2976 has a high surface brightness and is classified as Sc peculiar. Its central body of $6\hbox{$^\prime$ }\times3\hbox{$^\prime$ }$is spotted due to a lot of dust clouds and stellar complexes. Based on the luminosity of the brightest stars Karachentsev et al. (1991) estimated its distance modulus to be 28.30 mag. From our data the TRGB position for NGC 2976 corresponds to $23.85\pm0.23$ mag, which (with an AI = 0.14 mag) yields a true distance modulus 27.76 mag.

NGC 2366 = DDO 42. This is an irregular galaxy with an angular size of $8\hbox{$^\prime$ }\times3\hbox{$^\prime$ }$ and with a prominent star formation region on the southern edge (see Sandage & Bedke 1988), which is partially covered by the WF4. Photometry of the brightest stars in the galaxy yielded distance moduli 27.14 mag (de Vaucouleurs 1978) and 27.69 mag (Tikhonov et al. 1991). In our data we find the TRGB position at $23.54\pm0.28$ mag, giving the true distance modulus 27.52 mag. Note that the scatter of the I(TRGB) magnitude between different chips is only  $0\hbox{$.\!\!^{\rm m}$ }14$.

DDO 165 = UGC 8201. This irregular galaxy with an angular size of $3\hbox{$.\mkern-4mu^\prime$ }5\times1\hbox{$.\mkern-4mu^\prime$ }9$ has a very sharp southern boundary. DDO 165 was resolved into stars by Karachentsev et al. (1991), who derived a distance modulus of 28.44 mag. In the HST photometry the TRGB is located at $24\hbox{$.\!\!^{\rm m}$ }30\pm0\hbox{$.\!\!^{\rm m}$ }19$, which corresponds to a true distance modulus of 28.30 mag.

DDO 82 = UGC 5692. This is a compact irregular galaxy with a size of $3\hbox{$.\mkern-4mu^\prime$ }2\times1\hbox{$.\mkern-4mu^\prime$ }8$. A bright red star is projected onto its southeastern side. In the central part of DDO 82 some dusty patches were noted (Karachentseva et al. 1985), which are seen also in the WF3 field (Fig. 3). From the brightest stars Karachentsev et al. (1994) determined (m-M)0 = 28.26 mag. The HST photometry gives $I{\rm (TRGB)} = 24.04\pm0.22$ mag and a corresponding distance modulus of 28.01 mag. The area where DDO 82 is located has been observed repeatedly in the 21-cm line, but DDO 82 was never detected due to confusion with Galactic H I. In its optical spectra strong H${\alpha}$ emission with $V_{\rm hel} = +40$ km s-1 is seen (Karachentsev & Karachentseva 1984).

Holmberg I = DDO 63 = UGC 5139. This is an irregular dwarf galaxy of low surface brightness with an angular size of $3\hbox{$.\mkern-4mu^\prime$ }6\times3\hbox{$.\mkern-4mu^\prime$ }0$. Its distance modulus estimates via the brightest stars are discrepant: 27.68 mag (de Vaucouleurs 1978) and 29.11 mag (Tikhonov et al. 1992). The HST photometry yields $I{\rm (TRGB)} = 23.96\pm0.26$ mag and (m-M)0 = 27.92 mag.

Holmberg IX = DDO 66 = K62 = UGC 5336. This dIrr galaxy has a size of $3\hbox{$.\mkern-4mu^\prime$ }5\times2\hbox{$.\mkern-4mu^\prime$ }8$ and an overall shape reminiscent of Holmberg I. It is situated several arcminutes away from the eastern spiral arm of M 81. On the H I map of Boyce et al. (2001) its location corresponds to a local density maximum with a heliocentric velocity of +50 km s-1. Its distance modulus estimates from photometry of the brightest stars are rather discrepant: 28.8 mag (Sandage 1984), 30.1 mag (Hopp & Schulte-Ladbeck 1987), 27.5 mag (Davidge & Jones 1989), and 27.67 mag (Georgiev et al. 1991). Surface photometry of Holmberg IX carried out by Makarova (1999) yields an integrated magnitude of $B_{\rm T} = 14.53$ mag and an unusually blue integrated color, $(B-V)_{\rm T} = 0.22$ mag. Our attempt to determine the distance to Holmberg IX from the WFPC2 photometry meets with an unexpected problem. The CMD of the galaxy shows a well-populated red supergiant branch, but without clear signs of the RGB. Boyce et al. (2001) suggest Holmberg IX might be a young galaxy, condensing out of the H I tidal material. The apparent absence of an old stellar population looks like direct evidence for the recent formation of Holmberg IX. Obviously, this peculiar system requires further investigation with HST.

DDO 53 = UGC 4459 = VII Zw 238. The blue dwarf galaxy of $1\hbox{$.\mkern-4mu^\prime$ }5\times1\hbox{$.\mkern-4mu^\prime$ }3$size was resolved into stars by Fisher & Tully (1979). Its distance modulus from the brightest stars is 27.44 mag (Karachentsev et al. 1994). Our HST photometry gives for DDO 53 $I{\rm (TRGB)} = 23.78\pm0.15$ mag, yielding a true distance modulus of 27.76 mag.

K 52 = M 81dwA. This low surface brightness dwarf galaxy with an angular size of $1\hbox{$.\mkern-4mu^\prime$ }3\times0\hbox{$.\mkern-4mu^\prime$ }7$ was found by Karachentseva (1968), and re-discovered by Lo & Sargent (1979), who detected it in the H I line. Tikhonov & Karachentsev (1993) estimated for K52 a distance modulus of 27.35 mag from the brightest blue stars. Our photometry gives $I{\rm (TRGB)} =
23.74\pm0.16$ mag, and (m-M)0 = 27.75 mag.

Garland. The peculiar scattered structure with a size of ${\sim}7\hbox{$^\prime$ }\times4\hbox{$^\prime$ }$, consisting of blue stars and H II regions, was found on the southern side of NGC 3077 by Karachentseva et al. (1985) and nicknamed "Garland''. Its small part was noted before by Barbieri et al. (1974) as a probable stellar complex belonging to NGC 3077. Spectral observations by Karachentsev et al. (1985) showed that the Garland has appreciable internal motions ($\pm$35 km s-1). Its mean radial velocity, $V_{\rm h} = +31$ km s-1, is close to the radial velocity of NGC 3077, $V_{\rm h} = +14\pm4$ km s-1. Sharina (1991) carried out photometry of the brightest stars in the Garland and derived a distance modulus of 27.76 mag. A concentration of neutral hydrogen in the Garland position was seen on the H I map of the M 81 group obtained by Appleton et al. (1981). Recently Heithausen & Walter (2000) revealed a giant molecular cloud in the same region with a mass of about $3\times 10^7~M_{\odot}$. The origin of the Garland remains unclear: either it is a young stellar complex in the NGC 3077 periphery, a tidal tail, or a separate dwarf galaxy disturbed by tidal interaction with NGC 3077.

Our HST photometry gives for the Garland field $I{\rm (TRGB)} = 23.99\pm0.24$mag and (m-M)0 = 27.91 mag. Unlike the blue stars, the distribution of RGB stars across the WFPC2 field shows them to be concentrated strongly towards the NGC 3077. Consequently, our estimate of the distance modulus applies in fact to NGC 3077, but not to the Garland. Recently the Garland region has been observed with WFPC2 by Sakai & Madore (2001). The location of their "Field II'' overlaps partially with ours. They find the TRGB position to be at $24\hbox{$.\!\!^{\rm m}$ }0\pm0\hbox{$.\!\!^{\rm m}$ }1$mag in excellent agreement with our estimate.

K 73. This is a small ( $0\hbox{$.\mkern-4mu^\prime$ }6\times0\hbox{$.\mkern-4mu^\prime$ }4$) irregular dwarf galaxy well resolved into stars (Karachentseva et al. 1985). Its H I spectrum contains two emission lines with heliocentric velocities -132 km s-1 (Huchtmeier & Skillman 1998) and +115 km s-1 (van Driel et al. 1998). The recent H I observations by Huchtmeier (private communication) give a preference to the value of +115 km s-1 as belonging to the K73 itself rather than to the Local H I. Based on the luminosity of three the brightest blue stars Tikhonov & Karachentsev (1993) estimated the distance modulus of K73 to be $28.03\pm0.4$ mag. Our HST photometry yields a TRGB position corresponding to the distance modulus $27.91\pm0.13$ mag in good agreement with the previous estimate.

BK3N. This very faint dwarf system with an angular extent of $0\hbox{$.\mkern-4mu^\prime$ }4\times0\hbox{$.\mkern-4mu^\prime$ }3$ is situated 11 $\hbox {$^\prime $ }$ to the southwest from the M 81 center. The galaxy was discovered by Börngen & Karachentseva (1982) on the Tautenburg Schmidt telescope plates. Tikhonov & Karachentsev (1993) resolved BK3N into stars and derived a distance modulus of 27.23 mag via the three brightest blue stars. With $B_{\rm T} = 18.75$ mag (Makarova 1999), BK3N is the galaxy with the faintest absolute magnitude known outside the Local Group. Our HST photometry (Fig. 4) shows that all the detected blue stars are concentrated within BK3N. In addition, a population of faint red stars is seen in the WF2, WF3, and WF4 fields. Assuming that they are RGB stars, we obtain $I{\rm (TRGB)} = 24.13\pm0.14$ mag, which yields a distance modulus of 28.02 mag. Because the red stars do not show any increase in density toward the main body of BK3N, we suggest that they may not actually be associated with BK3N, but could instead be part of the extended halo RGB population of M 81. The TRGB distance modulus agrees within errors with the distance modulus $27.80\pm0.08$ derived for M 81 from Cepheids (Freedman et al. 1994; Ferrarese et al. 2000). Hence BKN3 is very likely more distant than M 81 and observed through M 81's halo.

A0952+69 = Arp's loop. This ring-like structure of extremely low surface brightness was found by Arp (1965) around the northern side of M 81. The brightest part of this structure, A0952+69, situated 17 $\hbox {$^\prime $ }$ NE from the M 81 center, is also seen as overdensity on the H I maps derived by Gottesman & Veliachev (1975) and Yun et al. (1994). On large-scale photographs of this part of Arp's loop Efremov et al. (1986) found a lot of very faint blue stars and diffuse objects, prompting them to suggest that there is ongoing star formation in the loop, probably stimulated by the interaction of M 81 with M 82 and NGC 3077.

The CMD derived with WFPC2 shows the presence of blue stars over the whole field of view. The brightest of them are $V\sim22\hbox{$.\!\!^{\rm m}$ }5$. Apart of them we recognize also red stars, which may belong to Arp's loop itself or to the periphery of the M 81 disk. The TRGB position for stars in the WF3 is $I{\rm (TRGB)} = 24.05\pm0.12$ mag, yielding a distance modulus 27.94 mag, which differs very little from the M 81 distance.




Table 2: Galaxies in and around the NGC 2403/M 81/NGC 4236 complex.
Name SGL SGB $\Theta$ $V_{\rm LG}$ Type $B_{\rm t}$ AB (m-M)0 D Rp R $(V-V_{\rm M~81})_{\rm p}$
        km s-1         Mpc kpc kpc km s-1
M 81 41 $\hbox{$.\!\!^\circ$ }$12 0 $\hbox{$.\!\!^\circ$ }$59 0 $\hbox{$.\!\!^\circ$ }$00 106 Sb 7 $\hbox{$.\!\!^{\rm m}$ }$69 0 $\hbox{$.\!\!^{\rm m}$ }$36 27 $\hbox{$.\!\!^{\rm m}$ }$80 3.63 0 0 0
HoIX 41.27 0.69 0.18 189 Ir 14.53 0.35   3.7: 11 11 82
BK3N 41.07 0.41 0.18 101 Ir 18.78 0.35 28.02 4.02 11 391 -5
A0952 41.10 0.87 0.28 143 Ir 16.8 0.37 27.94 3.87: 18 241 136
K61 41.54 0.33 0.52 23 sph? 15.25 0.30 27.78 3.60 33 44 57
M 82 40.72 1.05 0.62 360 Ir 9.06 0.58 27.74 3.53 39 107 -236
N3077 41.85 0.83 0.77 153 Ir 10.46 0.29 27.91 3.82 49 196 46
FM1 40.62 -0.26 0.98   sph 17.50 0.31 27.67 3.42 62 218
BK5N 42.28 0.58 1.16   sph 17.4 0.25 27.89 3.78 73 168
IKN 42.40 0.91 1.32   sph 17.0: 0.60   3.7: 84 110
N2976 41.33 -0.78 1.38 139 Sm 10.94 0.30 27.76 3.56 87 111 -18
U5423 40.83 2.12 1.55 493 BCG 14.42 0.34   5.3 98 1674 386
K64 42.74 0.44 1.63   sph 15.46 0.25 27.84 3.70 103 126
KK77 41.80 -0.90 1.64   sph 16.3 0.65 27.71 3.48 104 181
F8D1 41.46 -1.29 1.91   sph 15.7 0.38 27.88 3.77 121 187
HIJASS 42.98 1.98 2.32 187 HI   0.09   3.7: 147 164 40
HoI 38.76 1.34 2.47 285 Ir 13.64 0.21 27.92 3.84 156 265 147
DDO 71 43.52 -0.58 2.67 12 sph 15.95 0.37 27.72 3.50 169 211 59
HS117 41.17 3.59 3.00 116 Ir 16.5: 0.49   3.7: 190 204 9
IC2574 43.63 2.31 3.05 186 Sm 10.84 0.16 28.02 4.02 193 440 74
DDO 78 44.10 1.69 3.18 191 sph 15.8 0.12 27.85 3.72 201 223 42
DDO 82 42.04 3.85 3.38 191 Im 13.57 0.19 28.01 4.00 214 433 77
BK6N 45.88 1.27 4.81   sph 16.9 0.05 27.93 3.85 304 383
K73 44.03 4.75 5.07 263 Ir 17.09 0.09 27.91 3.70 321 380 92
KKH57 45.52 -3.34 5.90   sph 17.86 0.09 27.97 3.93 373 491
K72 47.18 2.23 6.28 466 Ir 15.00 0.05   7.4 397 3812 359
VKN 35.84 -3.75 6.83   sph 17.7: 0.34   3.4: 432 478
U4483 35.02 -2.65 6.90 301 BCG 14.95 0.15 27.53 3.21 436 588 -122
K52 33.52 -1.93 8.00 267 Ir 16.35 0.09 27.75 3.55 505 507 0
DDO 53 36.25 -6.04 8.22 150 Ir 14.55 0.16 27.76 3.56 519 520 13
HoII 33.26 -2.36 8.40 312 Im 11.09 0.14 27.65 3.39 530 567 -59
U6456 36.87 11.40 11.60 97 BCD 14.28 0.16 28.23 4.43 730 1139 8
N4236 47.11 11.38 12.32 160 Sd 10.06 0.06 28.24 4.45 775 1190 57
N2366 29.46 -4.86 12.87 254 Im 11.68 0.16 27.52 3.19 809 881 -38
DDO44 30.31 -7.09 13.26   sph 15.64 0.19 27.52 3.19 833 901
U7242 50.37 10.27 13.35 213 Ir 14.60 0.09   4.3 838 1137 92
N2403 30.80 -8.31 13.60 267 Sc 8.82 0.18 27.59 3.30 854 884 -18
KKH79 55.01 9.66 16.59 446 Ir 17.7 0.08   6.4 1036 3099 334
DDO 165 49.62 15.59 17.18 199 Im 12.85 0.10 28.30 4.57 1072 1538 92
N3738 59.56 1.79 18.47 310 Ir 12.13 0.05 28.40 4.75 1150 1741 180
KKH34 22.54 -0.41 18.61 298 Ir 17.1 1.08 28.57 5.18 1158 2090 183
N4605 55.47 12.02 19.67 278 Sm 10.89 0.06   5.2 1222 2160 167
N4068 62.95 4.93 22.26 290 Im 13.19 0.09   5.3 1375 2378 180
U6541 64.19 -0.79 23.12 303 Ir 14.23 0.09 27.99 3.96 1425 1555 122
U7298 63.89 6.63 23.50 253 Ir 15.95 0.10 28.10 4.17 1447 1674 125
N5204 59.40 17.85 24.91 341 Sm 11.73 0.05 28.24 4.45 1529 1918 184
CamA 16.09 1.87 25.06 157 Ir 14.85 0.93 27.89 3.78 1538 1614 62
N1560 16.03 0.79 25.09 169 Sd 12.16 0.81 27.63 3.36 1539 1541 48
N2537 41.42 -25.82 26.41 477 Sm 12.32 0.32   6.9 1615 3990 368
CamB 15.04 -4.21 26.50 264 Ir 16.71 0.94 27.60 3.31 1620 1621 54
N3741 67.96 -2.08 26.97 263 Ir 14.3 0.10 27.48 3.13 1646 1650 37
UA281 67.94 7.06 27.59 350 BCG 15.15 0.06   5.7 1681 2998 240
UA105 14.99 -9.26 27.82 280 Im 13.9 1.35 27.57 3.26 1694 1695 44
U8508 63.09 17.91 27.98 187 Ir 14.12 0.06 27.04 2.56 1703 1821 14
N4144 69.07 3.83 28.14 319 Scd 12.16 0.06   9.8: 1712 6817 231
KK109 70.24 -0.92 29.16 243 Ir 17.5 0.08 28.36 4.70 1769 2339 138
U4426 46.10 -28.52 29.50 399 Im 15.0 0.16   5.7 1787 3106 281
N1569 11.91 -4.92 29.69 105 BCG 11.86 3.02   2.5: 1798 1913 45
KKH87 60.42 23.98 29.95 475 Ir 16.1 0.05   6.8: 1812 4079 367


4 Structure and kinematics of the M 81 complex

The availability of accurate distance estimates and radial velocities for most the galaxies around M 81, NGC 2403, and NGC 4236 allows us to study the 3-D structure and kinematics of the nearest galaxy complex. Basic data on galaxies in the region are presented in Table 2. Its columns contain: (1) galaxy name, (2, 3) supergalactic coordinates, (4) angular separation $\Theta$ from M 81 in degrees, (5) radial velocity in km s-1in the LG rest frame, (6) morphological type, (7) apparent integrated magnitude from NED or from Makarova (1999) and other recent sources, (8) Galactic extinction from Schlegel et al. (1998), (9) distance modulus, (10) linear distance to the galaxy in Mpc, where values with one decimal number correspond to rough distance estimates derived via the brightest stars (Karachentsev & Tikhonov 1994); when an individual distance estimate to a galaxy was absent (for instance, for Holmberg IX or IKN) the average group distance is adopted, (11, 12) projected ($ R_{\rm p}$) and de-projected spatial (R) separation of a galaxy from M 81, calculated as

\begin{eqnarray*}R_{\rm p} &=& D_{\rm M~81}\cdot \sin{\Theta},\;\;\;\; {\rm and}...
...& D^2 + D^2_{\rm M~81} - 2D\cdot D_{\rm M~81}\cdot \cos\Theta .
\end{eqnarray*}


To avoid the loss of possible peripheric members of the complex, we included in Table 2 data on all known galaxies around M 81 with projected angular separations $\Theta < 30\hbox{$^\circ$ }$, and radial velocities $V_{\rm LG} < 500$ km s-1. The distance moduli for some of these (NGC 3738, KKH34, UGC 6541, UGC 7298, NGC 5204, CamA, NGC 1560, CamB, NGC 3741, UGC A105, UGC 8508, and KK109) have been measured using data from our snapshot survey (Seitzer et al. 2002; Dolphin et al. 2002; Grebel et al. 2002). The objects in Table 2 are listed with increasing separation $\Theta$ from M 81. Apart from galaxies with known radial velocities and/or distance estimates, we included into the Table two dSph galaxies of extremely low surface brightness, IKN and VKN, discovered recently by I. D. Karachentsev and V. E. Karachentseva, as well as the object HIJASS J1021+6842 (H I cloud?) found by Boyce et al. (2001) in a blind H I survey of the M 81 group. For the two dSph galaxies DDO 78 and K61 we use the radial velocities measured by Sharina et al. (2002).

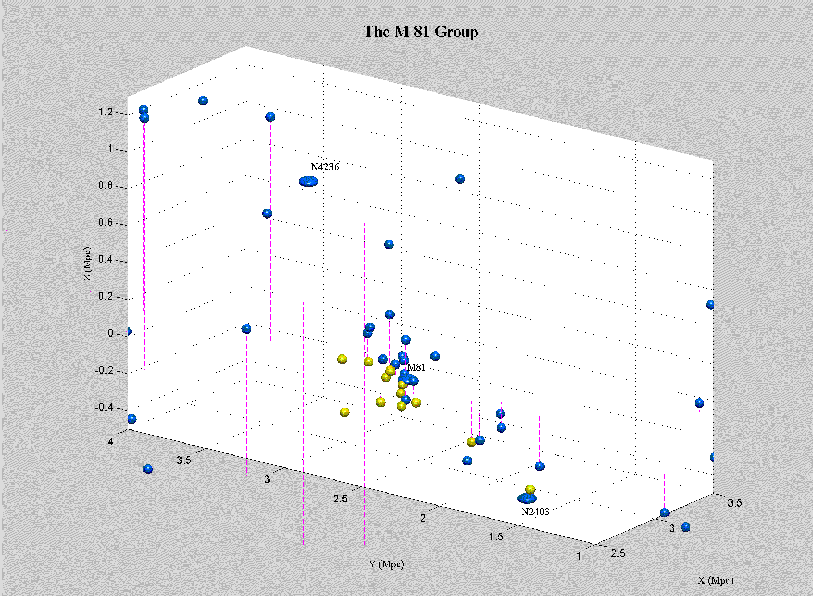

In Fig. 6 we present the resulting 3-D map of the M 81 group and its surroundings in the volume of $3.0\times1.7\times1.0$ Mpc in the supergalactic Cartesian coordinates. The three brightest spiral galaxies: NGC 2403, M 81, and NGC 4236 are shown as ellipsoids, and dIrr and dSph systems are shown as small filled and light circles, respectively. The observed 3-D distribution proves the suggestion of Tammann & Sandage (1968) regarding filamentary structure of the galaxy complex around M 81. However, the observed variation of the mean radial velocity from the nearby end of the filament (NGC 2403) to the far end (NGC 4236) does not fit the case of free expansion of that structure: NGC 4236 and its neighbours move away from the compact subgroup of M 81 companions, and NGC 2403 with its neighbouring dwarf galaxies approach the M 81. The distribution of dwarf spheroidal galaxies demonstrates much stronger concentration towards M 81 than the distribution of dIrrs. Such a morphological segregation is well known in the Local Group, as well as in many clusters of galaxies.

  \begin{figure}
\includegraphics[angle=-90,width=18cm,clip]{1940Fig.6.ps}\end{figure} Figure 6: The 3-dimensional view of the M 81 group and its surroundings in supergalactic Cartesian coordinates. The three brightest spirals NGC 2403, M 81, and NGC 4236 are show as ellipsoids, and dIrr and dSph galaxies are shown as small dark and light dots, respectively.
Open with DEXTER


  \begin{figure}
\par\includegraphics[angle=-90,width=17cm,clip]{1940Fig.7.ps}\end{figure} Figure 7: A schematic disposition of a galaxy with respect to the M 81 and the Local Group.
Open with DEXTER

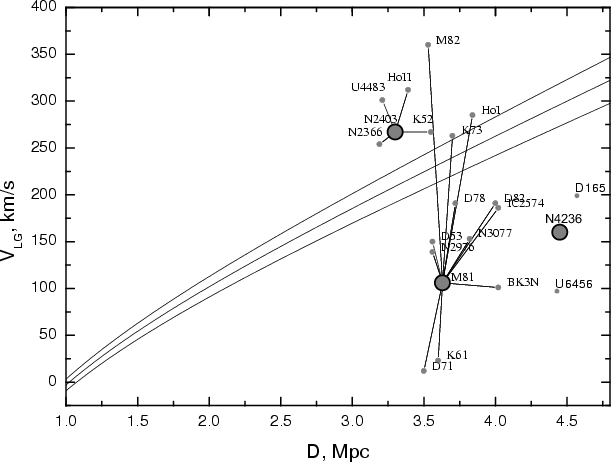

According to Sandage (1986) and Lynden-Bell et al. (1988) any sufficiently dense group or cluster may be characterized by a spherical "zero-velocity surface'', which separates the group as overdensity against the homogeneous cosmic expansion. In case of spherical symmetry, the radius of the sphere, R0, is related to the total mass of the group, M0, and to the Hubble constant, H0, as

$\displaystyle %
M_0 = (\pi^2/8G)\cdot H_0^2 \cdot R_0^3,$     (1)

where G is the gravitation constant. For the Local Group the observed value of R0 is $0.96\pm0.05$ Mpc (Karachentsev & Makarov 2001). The data of Table 2 allow us to estimate the radius of the zero-velocity surface for the M 81 group. As shown in Fig. 7, a galaxy with distance D from the LG, radial velocity  V, and angular separation $\Theta$ from M 81 has the following projected radial velocity with respect to M 81:
$\displaystyle %

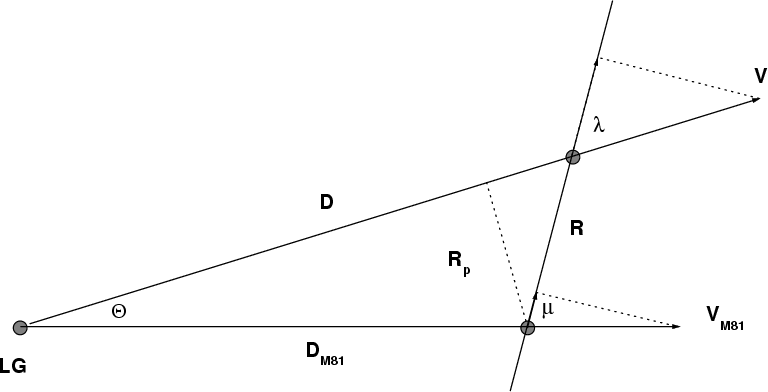

(V - V_{\rm M~81})_{\rm p} = V\cdot\cos\lambda - V_{\rm M~81} \cdot \cos\mu ,$     (2)

where $\mu =\theta+\lambda$, and tg $\lambda = D_{\rm M~81}\cdot\sin\theta/(D - D_{\rm M~81}\cdot\cos\theta).$Here we assumed that the peculiar velocities of the galaxies are small in comparison with velocities of the regular Hubble flow. The calculated values of $(V-V_{\rm M~81})_{\rm p}$ are presented in the last column of Table 2. As a result, Fig. 8 shows the $(V - V_{\rm M~81})_{\rm p} \propto R$ distribution for the galaxies in wide vicinity of M 81. The galaxies with accurate distances, derived from RGB stars or Cepheids, are indicated with filled squares, and the galaxies with rough distances (via the brightest stars) are marked with open squares. The distribution in Fig. 8 reveals several properties. 1) Among sufficiently distant galaxies with R > 1 Mpc there are no galaxies approaching M 81 (the region of cosmological expansion); 2) in the range of distances 0.55-1.0 Mpc we find only galaxies approaching M 81 (the infall zone); 3) within R < 0.55 Mpc there are galaxies both with negative as well as positive velocities with respect to M 81 ("virialized'' zone). The data in Fig. 8 give us a radius for the zero-velocity surface of $R_0 = (1.05\pm0.07$) Mpc, which is very close to the value of ( $0.96\pm0.05$) Mpc derived for the Local Group.
  \begin{figure}
\par\includegraphics[angle=-90,width=14cm,clip]{1940Fig.8.ps} %

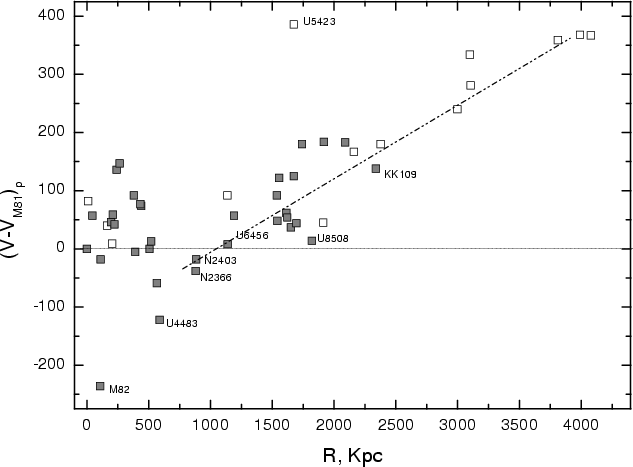

\end{figure} Figure 8: Distribution of the radial velocity difference and the spatial distance of nearby galaxies with respect to M 81. Galaxies with accurate and with rough distance estimates are indicated by filled and open squares, respectively. These data yield a radius of the zero-velocity surface of ( $1.05\pm 0.07$) Mpc.
Open with DEXTER

Note that the number of companions of M 81 with positive and with negative peculiar velocities is rather asymmetric, N+:N- = 13:3. This asymmetry, already found by Arp (1982), may be caused by a selection effect when the H I line emission of galaxies with $V_{\rm h} < 0$ km s-1is blended with strong Galactic emission. This explanation, however, requires a lot of missing galaxies in the M 81 group. Another possible explanation of the Arp paradox may lie in the considerable peculiar velocity of M 81 with respect to the group centroid ($\sim$50 km s-1).

5 Mass estimates for the M 81 group

The galaxy M 81 with its morphological type Sb, absolute magnitude MB =-20.47 mag, and amplitude of rotational velocity $V_{\rm m}\simeq250$ km s-1is very similar to the Milky Way and M 31. In the zone of its predominant gravitational influence, $R\sim500$ kpc, 25 probable companions are known. We distinguished their names in Table 2 with bold print. At the moment, 16 of these objects have measured radial velocities, which allows us to estimate the group mass.

5.1 Virial mass estimate

The total mass of a group can be estimated from the virial balance of kinetic and potential energy of the system (Limber & Mathews 1960)

$\displaystyle %
M_{\rm vir} = 3\pi N \cdot(N-1)^{-1} \cdot G^{-1} \cdot \sigma^2_{\rm v} \cdot R_{\rm H},$     (3)

where N is the number of group members, $\sigma^2_{\rm v}$ is the dispersion of radial velocities with respect to the group centroid, and $R_{\rm H}$ is the mean projected harmonic radius of the group. For the 25 probable companions of M 81 we derive $R_{\rm H} = 57$ kpc, and for the 16 with known velocities we obtain $\sigma_{\rm v} = 84$ km s-1. This yields the virial mass estimate

\begin{eqnarray*}M_{\rm vir}({\rm M~81}) = 0.94\times 10^{12}~M_{\odot}.
\end{eqnarray*}


According to the criterion of group membership (Karachentsev 1996) relying on distances, velocities and luminosities of galaxies, the four irregular dwarf galaxies NGC 2366, Holmberg II, UGC 4483, and K52 may be considered companions of the Sc galaxy NGC 2403. We add to them also the dSph galaxy DDO 44, whose radial velocity is unknown. This subgroup has much lower dispersion of radial velocities, $\sigma_{\rm v} = 22$ km s-1, but larger harmonic radius of $R_{\rm H} = 196$ kpc that leads to the virial mass

\begin{eqnarray*}M_{\rm vir}({\rm NGC~2403}) = 0.26\times 10^{12}~M_{\odot}.
\end{eqnarray*}


5.2 Orbital mass estimate.

Bahcall & Tremaine (1981) and other authors noted that Eq. (3) is an inefficient mass estimator because the variance of the harmonic projected separations is logarithmically infinite. If a group contains a dominant massive galaxy, we may estimate its mass from the orbital motions of its companions, averaging the value $(R_{\rm p}\cdot \Delta V^2_{\rm r}$). In the case of arbitrarily oriented Keplerian orbits with the eccentricity e we have the more robust mass estimator

$\displaystyle %
M_{\rm orb} = (32/3\pi)\cdot G^{-1}\cdot (1- 2e^2/3)^{-1} <R_{\rm p}\cdot \Delta V^2_{\rm r}>\cdot$     (4)

Using an average ellipticity of e = 0.7, we obtain for the 16 companions of M 81 a mass of

\begin{eqnarray*}M_{\rm orb}({\rm M~81}) = 1.63\times 10^{12} M_{\odot}.
\end{eqnarray*}


Note that the two companions K73 and Holmberg I with their large projected separations and high peculiar velocities give an essential input into the orbital mass estimate. Omitting these two objects drops the mass estimate to $ 0.8\times 10^{12}~M_{\odot}$. A similar uncertainty also takes place in the Local Group where including or excluding the dwarf galaxy Leo I can have a strong effect on the derived mass of the Milky Way. For the NGC 2403 subgroup this mass estimator yields

\begin{eqnarray*}M_{\rm orb}({\rm NGC~2403}) = 0.38\times 10^{12}~M_{\odot}.
\end{eqnarray*}


It should be noted, however, that the "crossing time'' of the NGC 2403 subgroup is $\sim$10 Gyr, hence, the subgroup has not yet reached the virialized state.

5.3 Total mass-to-luminosity ratio

From Eq. (1) with $R_0 = 1.05\pm0.07$ Mpc and H0 = 70 km s-1 Mpc-1the total mass M0 of the M 81 group within the sphere of the zero-velocity surface is

\begin{eqnarray*}M_0 = (1.6\pm0.3)\times 10^{12}~M_{\odot},
\end{eqnarray*}


where the error of the mass estimate corresponds formally to the error of $\pm$0.07 Mpc for the radius R0. From Table 2 we find that the total luminosity of M 81 with its companions is $L_B(M~81) = 3.47\times 10^{10} L_{\odot}$. For NGC 2403 with its companions we find LB(NGC 2403) = $0.66\times 10^{10}L_{\odot}$. Therefore, we obtain a ratio of the total mass within R0 to the total luminosity in the same volume of

\begin{eqnarray*}M_0/L_B = (38\pm7)\cdot M_{\odot}/L_{\odot}.
\end{eqnarray*}


Thus the total mass of the two subgroups, M 81+NGC 2403, is $1.2\times 10^{12}~M_{\odot}$ via the virial theorem, and $2.0\times 10^{12}~M_{\odot}$ via the orbital motions. Their average agrees well with the M0 estimate. Since the virial and orbital mass estimates trace the mass of the subgroups on a scale of $\leq$200 kpc, we suggest that the total estimated mass, M0, is concentrated within a compact volume around the two main members of the group, but not spread over the whole 1 Mpc3volume. A similar situation takes place in the Local Group, where the total mass within R0 is also in good agreement with the sum of orbital mass estimates for Milky Way and M 31 subgroups (Karachentsev & Makarov 2001).

The existence of the correlation between the luminosity of spiral galaxies and the amplitude of their rotation (Tully & Fisher 1977) means that the distribution of dark matter (halos) follows closely the distribution of luminous matter. The kinematics of the M 81 subgroup provides us with unique opportunity to test this assumption. The main part ($\sim$90%) of the subgroup luminosity belongs to M 81 and M 82. Their corrected radial velocities are +106 and +360 km s-1, respectively. With regard to the mean velocity of the centroid, $V_{\rm c} =
(164\pm21)$ km s-1, the galaxies have peculiar velocities of -58 km s-1 (M 81) and +196 km s-1 (M 82). To satisfy the law of conservation of motion, the galaxies should have the mass ratio $M_{\rm M~81}/M_{\rm M~82} = 196/58\sim3.4$. In fact, this value is very close to the luminosity ratio of these galaxies, $(L_{\rm M~81}/L_{\rm M~82})_B = 2.9$. This would not be the case if the dark virial mass were distributed over the whole volume of the subgroup.

Note, that the total mass-to-total luminosity ratio ( $38\pm7) M_{\odot}/L_{\odot}$, derived by us for the M 81 group, is considerably lower than the value of $174~M_{\odot}/L_{\odot}$ presented by Tully (1987) in his catalogue. As one can see, the high excess of virial mass in Tully's estimate is caused mainly by two reasons: by including the background galaxy NGC 5423 (D = 5.3 Mpc, Sharina et al. 1999) into the group, and by neglecting the observed dumb-bell structure of the M 81/NGC 2403 group. This considerably increases both the dispersion of radial velocities and the projected harmonic radius. In the Tully catalog the median virial mass-to-luminosity ratio is $94~M_{\odot}/L_{\odot}$. In this respect the Local Group and M 81 group with their low values: 23 and $38~M_{\odot}/L_{\odot}$ appear to be untypical groups. However, the application of a new, improved algorithm for group selection shows that the groups in the Local Supercluster (of number $N \sim 800$) have the median ratio $M_{\rm vir}/L\sim30~M_{\odot}/L_{\odot}$ (Makarov & Karachentsev 2000). Consequently, the dynamical situation in the two best studied nearby groups is not unusual.

  \begin{figure}
\par\includegraphics[angle=-90,width=13.5cm,clip]{1940Fig.9.ps} %
\par\end{figure} Figure 9: Distribution of galaxies in the M 81 complex with accurate distance estimates on the Hubble diagram. The three lines correspond to the Hubble relation with H0 = 65, 70, and 75 km s-1 Mpc-1, and the Local Group mass $1.5\times 10^{12}~M_{\odot}$. The companions of M 81 and NGC 2403 are joined with the principal galaxies by straight lines.
Open with DEXTER

6 Concluding remarks

Impressive recent progress in the measurement of accurate distances to many nearby galaxies (measured independently of their velocities) provides the opportunity to study the local peculiar velocity field. Mapping the velocity field of the known nearby groups, like M 81, Centaurus A, Sculptor etc., allows one to determine the total mass of a group via the radius of the zero-velocity surface (Sandage 1986), and to compare such estimates with mass estimates from internal virial motions. As seen from Table 2, our data on accurate distances to galaxies in the M 81 region are still incomplete. Among the 59 objects listed in the table, 5 galaxies have indirect distance estimates based on assumed membership, and 12 galaxies have distances estimated via their brightest stars. Comparison of the distance moduli measured through different methods for the dozen galaxies discussed in Sect. 3 shows that the method of the brightest stars gives moduli with a mean-square error of 0.52 mag, but essentially without a zero-point error, which amounts to $-0.01\pm0.16$ mag respect to the TRGB method.

Important cosmological information can be extracted also from the peculiar velocity dispersion of the centers of groups and field galaxies with respect to the Hubble flow. For instance, in the vicinity of the Local Group on the scale of (1-3) Mpc the mean-square non-Hubble velocity of galaxies is only $\sim$25 km s-1 (Karachentsev & Makarov 2001), which imposes a strong limitation on the average density of matter, $\Omega_{\rm m}$, in the Local volume (Governato et al. 1997; Klypin et al. 2002).

Figure 9 shows the distribution of the M 81 group galaxies in the Hubble diagram. Here we present only galaxies with well determined distances. The three lines correspond to Hubble constants of H0 = 65, 70, and 75 km s-1 Mpc-1. The effect of deceleration due to the Local Group with a total mass of $M_{\rm LG} = 1.5\times 10^{12}~M_{\odot}$ is taken into account. The companions of M 81 and NGC 2403 are joined with the corresponding principal galaxies by straight lines. As one can see, the M 81 galaxy deviates rather significantly from the Hubble regression lines. However, the M 81 subgroup centroid with $D_{\rm c} = 3.70$ Mpc and $V_{\rm c} = +164$ km s-1has a lower peculiar velocity than M 81 itself. Centroids of the M 81 and NGC 2403 subgroups are situated on opposite sides with respect to the Hubble regression, because they approach each other. As a result, the centroid of the whole M 81/NGC 2403 group has a rather small peculiar velocity, $V_{\rm pec} < 35$ km s-1, when the Hubble parameter H0 is 60-70 km s-1 Mpc-1. The galaxy NGC 4236 and its neighbours DDO 165, UGC 6456 are situated much below the Hubble regression lines. Apparently, being behind the M 81 group, they experience acceleration toward both M 81 and the Local Group.

As was emphasized by Peebles (1989), the knowledge of accurate positions and velocities of all the nearest galaxies enables us to make a choice between competing theories of the origin of small-scale structure of the Universe.

Acknowledgements
Support for this work was provided by NASA through grant GO-08601.01-A from the Space Telescope Science Institute, which is operated by the Association of Universities for Research in Astronomy, Inc., under NASA contract NAS5-26555. D.G. acknowledges financial support for this project received from CONICYT through Fondecyt grant 8000002. This work has also been partially supported by RFBR grant 01-02-16001.

The Digitized Sky Surveys were produced at the Space Telescope Science Institute under U.S. Government grant NAG W-2166. The images of these surveys are based on photographic data obtained using the Oschin Schmidt Telescope on Palomar Mountain and the UK Schmidt Telescope. The plates were processed into the present compressed digital form with the permission of these institutions.

The National Geographic Society - Palomar Observatory Sky Atlas (POSS-I) was made by the California Institute of Technology with grants from the National Geographic Society.

References



Online Material


  \begin{figure}
\par\includegraphics[width=12.0cm,clip]{1940Fig.2.ps}\end{figure} Figure 2: Digital Sky Survey images of 15 dwarf galaxies in the M 81 group. The field size is 10 $\hbox {$^\prime $ }$, North is up, and East is the left. The HST WFPC2 footprints are superimposed.
Open with DEXTER


  \begin{figure}
\includegraphics[width=15.0cm,clip]{1940Fig.3_1.ps}\end{figure} Figure 3: WFPC2 images of 15 galaxies: NGC 4236, IC 2574, NGC 2976, Holmberg II, NGC 2366, DDO 165, DDO 82, Holmberg I, Holmberg IX, DDO 53, K52, Garland, K73, BK3N, and A0952+69 produced by combining the two 600 s exposures obtained through the F606W and F814W filters. The arrows point to the North and the East.
Open with DEXTER


 \begin{figure}\includegraphics[width=16.0cm,clip]{1940Fig.3_2.ps}
\end{figure} Figure 3: continued.
Open with DEXTER


 \begin{figure}\includegraphics[width=6.0cm,clip]{1940Fig.3_3.ps}
\end{figure} Figure 3: continued.
Open with DEXTER


  \begin{figure}\includegraphics[width=10.0cm,clip]{1940Fig.4_1.ps}\end{figure} Figure 4: Color-magnitude diagrams from the WFPC2 data for the 15 galaxies shown in Fig. 3 in the M 81 group. The three panels for each galaxy show diagrams based on stars within the central (WF3) field, the "medium'' field (the neighbouring halves of the WF2 and WF4 chip), and the outer field (remaining halves of the WF2 and WF4 chip). Each of these three field covers an equal area of 800$\times $800 pixels.
Open with DEXTER


 \begin{figure}\includegraphics[width=10.0cm,clip]{1940Fig.4_2.ps}\setcounter{figure}{3}\end{figure} Figure 4: continued.
Open with DEXTER


 \begin{figure}\includegraphics[width=10.0cm,clip]{1940Fig.4_3.ps}\setcounter{figure}{3}\end{figure} Figure 4: continued.
Open with DEXTER


 \begin{figure}\includegraphics[width=10.0cm,clip]{1940Fig.4_4.ps}\setcounter{figure}{3}\end{figure} Figure 4: continued.
Open with DEXTER


 \begin{figure}\includegraphics[width=10.0cm,clip]{1940Fig.4_5.ps}\setcounter{figure}{3}\end{figure} Figure 4: continued.
Open with DEXTER


  \begin{figure}\includegraphics[width=16cm,clip]{1940Fig.5_1.ps}\end{figure} Figure 5: The Gaussian-smoothed I-band luminosity function restricted to red stars (top), and the output of a Sobel edge-detection filter applied to the luminosity function for the 15 galaxies shown in Fig. 3 in the M 81 group.
Open with DEXTER


 \begin{figure}\includegraphics[width=16cm,clip]{1940Fig.5_2.ps}
\end{figure} Figure 5: continued.
Open with DEXTER


 \begin{figure}\includegraphics[width=16cm,clip]{1940Fig.5_3.ps}
\end{figure} Figure 5: continued.
Open with DEXTER


Copyright ESO 2002
