Molecular hydrogen gas at high-velocity associated with the Monoceros Loop SNR

B. Y. Welsh 1 - B. L. Rachford2 - J. Tumlinson2


1 - Experimental Astrophysics Group, Space Sciences Laboratory, UC Berkeley, Berkeley, CA 94720, USA
2 - Center for Astrophysics and Space Astronomy, University of Colorado, Boulder, CO 80309, USA

Received 31 August 2001 / Accepted 15 October 2001

Abstract
We present Far Ultraviolet Spectroscopic Explorer ($\it FUSE$) observations of molecular hydrogen (H2) gas observed at a high-velocity of $V_{\rm LSR} = +66$ kms-1 towards the star HD 47240 which lies just behind the Monoceros Loop Supernova Remnant at a distance of $\sim$1800 pc. These absorption features have been detected in six lines of the J = 3 rotational level, with an equivalent molecular hydrogen column density of log  $N({\rm H}_{2}) = 14.10, \pm\,0.12$ cm-2. The observed data are best fit with a single excitation temperature, $T_{\rm ex}$, of $\sim$1000 K, which when comparised to temperatures generally found for low J-levels is unusually high for interstellar H2. The molecular fraction in this HV cloud has a very low value of log $f = -4.5\pm0.25$, which is similar to that found for HV clouds in the galactic halo.

Key words: ISM: supernova remnants - ISM: molecules


1 Introduction

Although the majority of molecular hydrogen (H2) resides in the vast galactic complexes of dense molecular clouds, much information concerning its formation and destruction mechanisms can be gained from observations of its physical state within the diffuse clouds of the general interstellar medium. The dipole-allowed electronic transitions of the Lyman and Werner bands of the H2 molecule lie in the 912-1100 Å spectral region and are thus ideally suited for absorption studies using the recently launched NASA Far Ultraviolet Spectroscopic Explorer ($\it FUSE$) satellite (Moos et al. 2000). Several studies are currently being undertaken by $\it FUSE$ to understand the physical state of the H2 molecule existing in a wide variety of physical environments. These include studies of H2 absorption in galactic translucent interstellar clouds (Snow et al. 2000), in the Magellanic Clouds (Tumlinson et al. 2002), in diffuse clouds of the galactic disk (Shull et al. 2000) and in clouds in the lower galactic halo (Richter et al. 2001). Even though the H2 molecule has been observed for over 30 years (Shull & Beckwith 1982), many questions still remain concerning its detailed formation, destruction and excitation processes, especially for the higher rotation levels of J > 1 which are generally thought to be formed by non-thermal excitation processes involving pumping by ultraviolet (UV) photons (Jura 1975).

The early-type (B1Ib) star HD 47240 ( Mv = 6.2, E(B-V) = 0.31) lies just behind the Monoceros Loop Supernova Remant (SNR) at a distance of $\sim$1800 pc, and is thus well located for sampling any disturbed interstellar atomic or molecular gas associated with the SNR. Visible, near UV and far UV observations of this line-of-sight have revealed a high-velocity (HV) absorption component at $V_{\rm LSR} = +65$ kms-1 associated with an expanding gas cloud of the SNR (Sfeir 1999; Welsh et al. 2001, hereafter Paper I). For the purpose of this Paper we define an absorption component with a velocity >50 kms-1 as being "high-velocity'', in contrast with the more widely accepted definition used for HV clouds in the halo. This HV feature was detected towards HD 47240 in several UV atomic lines with ionization potentials ranging up to 23.3 eV, and high spectral resolution visible observations reveal a more complex absorption structure (with at least two velocity components at $V_{\rm LSR} = +60$and +71 kms-1), suggesting that it is composed of several ionized and neutral gas shells expanding at slightly different velocities.

In this Paper we report on $\it FUSE$ observations of HV molecular H2 line absorption seen at $V_{\rm LSR} = +66$ kms-1 towards HD47240. High-velocity molecular H2 absorption has been previously observed by $\it FUSE$ towards stars in the outer galactic halo which are associated with the Magellanic Stream (Sembach et al. 2002) and towards an intermediate-velocity halo cloud (Richter et al. 2001). In addition, Gringel et al. (2000) have reported $\it ORFEUS-SPAS-II$detections of HV molecular H2 at a velocity of -62 kms-1 towards the halo star HD93521. However, detections of H2 at similarly high velocities in the galactic disk are very rare and have thus far only been reported towards the star $\zeta$ Orionis by Jenkins and Peimbert (1997). It was found that as the J-level increased from 0 to 5 the width of the velocity profile of the individual molecular absorption lines also increased, together with a small drift of the line profiles' center towards more negative velocities. In order to explain this anomalous behavior, Jenkins and Peimbert proposed that the high velocity H2 molecules were most probably formed in postshock gas undergoing further compression as it recombined and cooled. However, in the $\it Copernicus$ satellite survey of galactic H2, Spitzer & Morton (1976) proposed that the most negative velocity components probably arose in thin, dense sheets in cold compressed regions that followed interstellar shock fronts arising from SN blast waves and/or the expansion of stellar HII regions. We recall that molecular hydrogen is thought to form on interstellar dust grains and is then subsequently ejected from the grain surface into the ISM. Thus, since SNRs (such as the Monoceros Loop) are normally associated with shockwaves that interact with ambient (cold) interstellar material, the HD 47240 line-of-sight is an ideal test-site for probing the formation of cold molecular gas that may be influenced by HV shocks. This is particularly important since it has long been suspected that SNRs can trigger the formation of new molecular clouds and thus initiate the process of star formation.

2 Observations and data processing

Details of the $\it FUSE$ observations and data processing techniques used on the spectral data gained in the LiF channels (990-1187 Å) towards HD 47240 have been detailed in Paper I. Further $\it FUSE$ observations of this object were obtained over the course of 3 orbits on March 4th 2000, in which data in the SiC spectral channels (912-1000 Å) were obtained with the star centered in the $30\times 30$ arcsec focal plane aperture. Both spectral data sets have been individually processed using version 1.8.7 of the $\it FUSE$ science data reduction (CALFUSE) pipeline, details of which can be found in Sahnow et al. (2000).



Table 1: High-velocity molecular H2 lines observed towards HD47240.

Line Identification		 EW of HV component (mÅ ) log N (cm-2)

L5-OR(3) $\lambda$1041.16 Å		 $17.4 \pm5.0$ $14.06 \pm0.15$
L5-OP(3) $\lambda$1043.50 Å $16.6 \pm3.3$ $14.21 \pm0.10$
L4-OR(3) $\lambda$1053.98 Å $10.1 \pm2.6$ $13.89 \pm0.13$
L4-OP(3) $\lambda$1056.47 Å $11.0 \pm3.9$ $14.07 \pm0.19$
L3-OR(3) $\lambda$1067.48 Å $13.4 \pm3.3$ $14.12 \pm0.12$
L3-OP(3) $\lambda$1070.14 Å $12.9 \pm2.2$ $14.23 \pm0.08$

W0-OQ(2) $\lambda$1010.94 Å		 <10 <13.56
L7-OP(2) $\lambda$1016.46 Å <10 <13.56
L5-OP(2) $\lambda$1040.37 Å <10 <13.56
L4-OP(2) $\lambda$1053.28 Å <10 <13.56
L3-OP(2) $\lambda$1066.90 Å <10 <13.56

L7-OP(4) $\lambda$1023.43 Å		 <10 <13.34
L6-OR(4) $\lambda$1032.35 Å <10 <13.34
L6-OP(4) $\lambda$1035.18 Å <10 <13.34
L5-OR(4) $\lambda$1044.54 Å <10 <13.34
L4-OR(4) $\lambda$1057.38 Å <10 <13.34
L4-OP(4) $\lambda$1060.58 Å <10 <13.34
L3-OP(4) $\lambda$1074.31 Å <10 <13.34


The processed far UV spectrum of HD 47240 (912-1187 Å) was then used to search for the presence of individual H2 molecular lines using the wavelengths listed for the Lyman and Werner bands given in Abgrall et al. (1993a, 1993b). The resultant spectral resolution of the data (see Paper I) was 13 kms-1 and the typical S/N of the spectra were $\sim$20:1. All detected H2 line profiles were then inspected for the presence of associated HV components. Unfortunately it was not possible to detect HV components in the J = 0 and J = 1 bands due to the central line profile being strongly damped and thus obscuring any HV features with a velocity <80 kms-1 with respect to the main component.

Inspection of the J = 2-5 lines revealed that a HV component was clearly visible in some of these profiles. In order to proceed further with the detailed extraction of these profiles an accurate wavelength scale needed to be applied since the $\it FUSE$ spectral data has an inherent non-linear wavelength error typically of 10-20 kms-1. We have assumed that all the main components of the H2 lines occur at $V_{\rm LSR} = +3$ kms-1, which is the same velocity as that of the visible CH molecular line at 4232.5 Å as observed by Sfeir (1999).

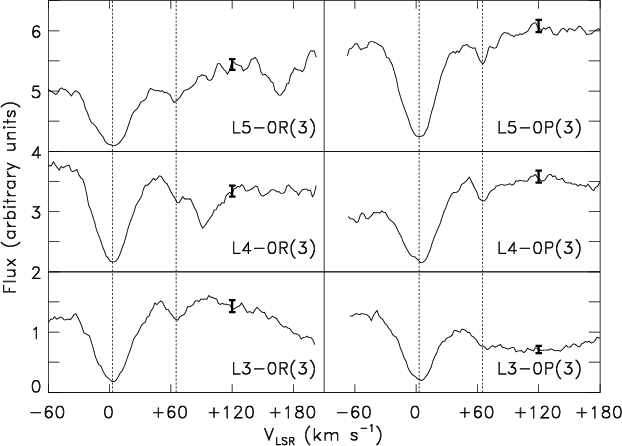

  \begin{figure} \par\includegraphics[width=8.8cm,clip]{H3119F1.eps} \end{figure} Figure 1: Six of the J = 3 molecular H2 absorption lines that exhibit a HV component at $V_{\rm LSR} = +66$ kms-1 (marked with dashed line). The other dashed line marks the strong central absorption at $V_{\rm LSR} = +3$ kms-1. The small solid bar indicates a typical 2-sigma error to the continuum level noise.
Open with DEXTER

2.1 Interstellar analysis

In Fig. 1 we show six lines of the J = 3 level that clearly show an unambiguous detection of a HV component at $V_{\rm LSR} = +66$ kms-1. For each of these six lines we have fitted the local stellar continuum with a multi-order polynomial to produce a residual intensity profile. No individual J = 2 or J = 4 lines showed HV component detections at a level $>1~\sigma$. However, to improve the resultant S/N of each of the J = 2 and J = 4 levels (and even the well-detected J = 3 level) we have co-added five J = 2, six J = 3and seven J = 4 individual line profiles to produce the resultant profile plots for an "average'' J = 2, 3 and 4 molecular H2 line as shown in Fig. 2. As a guide to the eye we have overplotted the expected position of both the V = +3 kms-1 main component and the V = +66 kms-1 HV component with dashed lines. The average separation between the two well detected components for the six, individual J = 3 lines is $\delta V = +63.3 \pm1.4$ kms-1. Note that we also show the magnitude of a 2$\sigma $ error in the flux (dark error bars) and that the co-added J = 4 spectrum now reveals a marginal detection of the HV component that is comparable in strength to the error bar.

Using these data we have proceeded with a detailed analysis of the six J = 3lines listed in Table 1. In this table, for completeness, we also list the J = 2 and J = 4 lines used to produce the co-added spectra discussed previously. We have used the curve-of-growth analysis described in detail by Tumlinson et al. (2002) to derive a column density, N(J), and an associated Doppler $\it b$ value for each of the J = 3HV line components. We have assumed a single-component Maxwellian curve of growth and minimized the residuals about the best-fit curve for the lines within each level. All lines (and HV component upper limits) were assumed to be on the linear part of the curve of growth (i.e. b > 5 kms-1, as suggested by the data). From the values listed in Table 1 we have derived an average column density, log  $N(3) = 14.10 \pm 0.12$ cm-2 for all of the J=3 lines. In addition, we derive upper limits of log  N(2) < 13.56 cm-2and log  N(4) < 13.34 cm-2 for the HV components associated with co-added spectra of the J = 2 and J = 4 levels respectively.

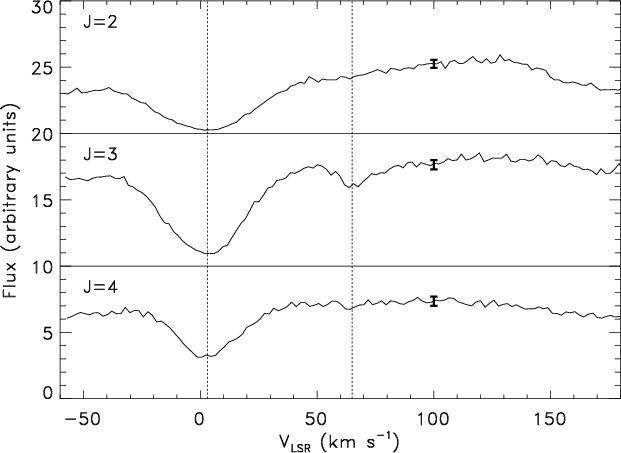

  \begin{figure} \par\includegraphics[width=8.8cm,clip]{H3119F2.eps} \end{figure} Figure 2: Profiles of the co-added J = 2, 3 and 4 individual molecular H2 lines. The HV component is clearly seen at $V_{\rm LSR} = +66$ kms-1 for the case of the (six) co-added J = 3 lines and is marginally detected at the one-$\sigma $ level for the seven co-added J = 4 lines. The solid bar corresponds to a 2-$\sigma $ error.
Open with DEXTER

3 Results and discussion

In Fig. 3 we show an excitation diagram for the HV component based on our measured J = 3 level column density and upper limits for the J = 2 and 4 levels. This figure shows the column density of each level divided by its statistical weight plotted against excitation energy (eV). The slope of a line in this diagram corresponds to a particular excitation temperature via the relationship, $T_{\rm ex} = 5040$/slope (Spitzer et al. 1974). As we only have a detection for a single rotational state we therefore cannot derive a formal value of  $T_{\rm ex}$. However, the upper limits for the J = 2 and 4 HV components provide interesting constraints on this quantity. Figure 3 shows two possibilities for the slope of the best-fit line, corresponding to the 2-$\sigma $ and 4-$\sigma $ upper limits for N(J=2) which result in excitation temperatures of 510 K and 1650 K respectively. The 2-$\sigma $ upper limit gives a fit that is more consistent with the possible detection of a J = 4 HV component in the co-added spectrum. Thus, we favor an excitation temperature of $\sim$1000 K for the HV component. This high value of molecular excitation temperature is comparable to the highest temperature found in the $\it Copernicus$ survey of the galactic disk, but is an order of magnitude higher than the average value of $77 \pm17$ K found for J =0,1 lines in the disk survey (Savage et al. 1977). The (two) lines-of-sight with similarly high $T_{\rm ex}$ values found by $\it Copernicus$ were associated with relatively small H2 column densities, although most lines-of-sight with such low column densities did not show such unusually high excitation temperatures. We also note that elevated excitation temperatures for high-J levels (as opposed to much lower temperatures of $\sim$100 K found for low J-levels) have recently been found by the $\it FUSE$ satellite towards two galactic translucent clouds and in the Large Magellanic Cloud (Snow et al. 2000; Rachford et al. 2001; Friedman et al. 2000). A variety of physical processes that include fluorescent pumping by incident (low level) UV radiation, interstellar shocks and the formation of H2 on dust grains have all been forwarded to explain this elevated temperature effect for high rotational levels of molecular H2 (Shull & Beckwith 1982).

Although we have not been able to determine column densities for the HV components of the J = 0 or 1 states, we can make a rough estimate of the total H2 column density from our excitation analysis. We note that a single excitation temperature for all J-levels was found for all lines-of-sight with small N(H)2 values in the $\it Copernicus$ survey (Spitzer et al. 1974), and for simplicity in our present analysis we assume that rotational states that contribute significantly to the total molecular hydrogen column density can also be described by a single excitation temperature. We note, however, that recent $\it FUSE$ results require multiple temperature fits to the molecular H2 line data and the line-of-sight to this SNR is probably not typical of those found in the general ISM. Thus bearing these caveats in mind, if we sum over all the J = 0,7 lines we obtain a value of log N(H $_{2}) \sim 14.7$ cm-2. This value (which is dominated by the contribution from the J=3 state) is a firm lower limit to N(H2) and can most probably be associated with an error estimate of $\sim$30$\%$ (i.e. log N(H $_{2})_{\rm tot} \sim 14.7\pm0.13$ cm-2 ). We also note that the far larger column densities for the J = 0 and 1 states for the low temperature case are offset by the larger contribution from J > 3 in the high temperature case. When combined with a value of log  $N({\rm HI}) = 19.2\pm0.2$ cm-2for the HV atomic component (derived from the HV component seen in the SII lines, Paper I), we derive a corresponding molecular fraction of log  $f = -4.5\pm0.25$. This value is relatively low for a line-of-sight through the galactic disk, but is very similar to that found for HV gas associated with clouds in the halo (Richter et al. 2001; Gringel et al. 2000). Both of these sight-lines into the halo possess low levels of interstellar dust and have an elemental abundance of log  $[{\rm Fe/HI}] \sim -0.65$ for a HV component with a velocity $\sim$-60 kms-1. We note that almost identical conditions (log  $[{\rm Fe/HI}] = -0.96$ and V = +65 kms-1) are to be found for the Monoceros Loop HV cloud! For the halo HV clouds the influence of nonthermal excitation by fluorescent UV photon pumping has been forwarded to explain the formation of the high-J states of H2. However, the presence of a SNR shock seems a more likely explanation for the HV components of the J > 1 rotational states seen towards the Monoceros Loop. This view is supported in part by the recent discovery of a pervasive warm molecular gas component of the diffuse ISM in which the H2 excitation of the J > 2 levels is best explained by the presence of collisional excitation (Gry et al. 2002). To date, the interaction between SNRs and ambient molecular clouds has been reported for only a few sources using observations of CO emission lines (Koo et al. 2001), and thus our present detection of HV molecular H2 lines in absorption may prove important for testing the predictions of shock/cloud collision models (Klein et al. 1994).

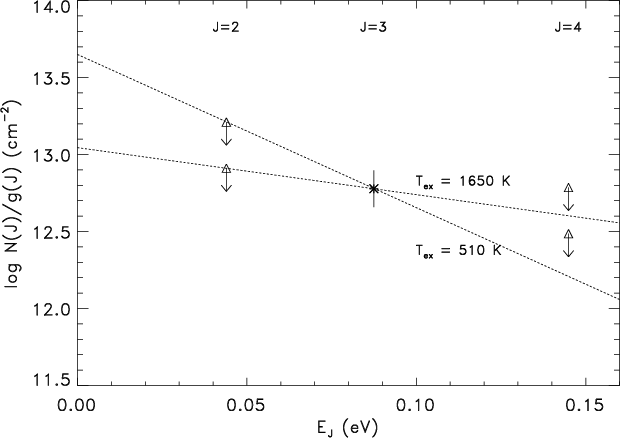

  \begin{figure} \par\includegraphics[width=8.8cm,clip]{H3119F3.eps} \end{figure} Figure 3: Excitation diagram for the HV component of the H2 lines. The derived column density for the J = 3 level is shown, along with 2-$\sigma $ and 4-$\sigma $ upper limits on the J = 2 and 4 levels. The dashed lines give two possible excitation temperatures, as described in the text.
Open with DEXTER

4 Conclusion

Observations with the NASA $\it FUSE$ satellite have revealed high-velocity components at $V_{\rm LSR} = +66$ kms-1in six of the J = 3 rotational states of interstellar molecular hydrogen observed towards the star HD47240 which lies just behind the Monoceros Loop SNR. We have derived a best-fit excitation temperature, $T_{\rm ex}$, of $\sim$1000 K to the data, based on the J = 3 level detections and upper limits to the HV components of the J = 2 and 4 states. The molecular fraction in this HV cloud has a very low value of log  $f = -4.5\pm0.25$, similar to values found for HV clouds in the galactic halo. Production mechanisms such as UV fluorescent pumping and interstellar shocks have been forwarded to explain the formation of the high-J rotational states of the H2molecule. It would be of great interest to observe other SNRs (such as Puppis-A and Shajn 147) to see whether HV molecular gas is similarly detected at high velocities in the high rotational levels, such that the presence of SNR shock collisions can be shown to be an important influence on the formation of H2 throughout the galaxy.

Acknowledgements

This work is based on data obtained for the Guaranteed Time science team by the NASA-CNES-CSA $\it FUSE$ Mission operated by the Johns Hopkins University. Financial support to U.S. particpants has been provided by the NASA contract NAS5-32985. Particular thanks are extended to Prof. Ted Snow for very useful discussions and important suggestions that have greatly improved this paper.
