A&A 381, 168-177 (2002)
DOI: 10.1051/0004-6361:20011506

Cometary molecular clouds around RNO6

On-going star formation near the double cluster h and $\chi$ Persei

R. Bachiller - A. Fuente - M. S. N. Kumar

IGN Observatorio Astronómico Nacional, Apartado 1143, 28800 Alcalá de Henares, Spain

Received 29 August 2001 / Accepted 18 October 2001

Abstract
We present molecular line observations of the star-forming cloud around RNO6 along with a newly discovered nearby molecular cloud that we name RNO6NW. Both clouds display striking similarities in their cometary structures and overall kinematics. By using ¹³CO line observations, we estimate that these clouds have similar sizes ($\sim$4.5 pc) and masses ($\sim$200 $M_{\odot}$). Both molecular clouds RNO6 and RNO6NW are active in star formation. From new high resolution near-IR narrowband images, we confirm that RNO6 hosts an embedded IR cluster that includes a Herbig Be star. A conspicuous H₂ filament is found to delineate the dense cometary head of the globule. RNO6NW hosts at least two IR sources and a bipolar molecular outflow of $\sim$0.9 pc of length and $\sim$0.5 $M_{\odot}$ of mass. We show that the cometary structure of both clouds has been created by the UV radiation from numerous OB stars lying $\sim$1.5$^\circ$ to the north. Such OB stars are associated with the double cluster h and $\chi$Persei, and are probably members of the PerOB1 association. Thus star formation inside these clouds has been very likely triggered by the Radiation Driven Implosion (RDI) mechanism. From comparison to RDI theoretical models, we find that the similar kinematics and morphology of both clouds is well explained if they are at a re-expansion phase. Triggered sequential star formation also explains the observed spatial distribution of the members of the near-IR cluster inside the RNO6 cloud, and the morphology of the H₂ filament. We conclude that the RNO6 and RNO6NW clouds are high-mass counterparts to the cometary globules of smaller masses which have been studied up to now. Thus our observations demonstrate that the RDI mechanism can produce, not only low mass stars in small globules, but also intermediate mass stars and clusters in massive clouds.

Key words: stars: formation - interstellar medium: individual objects: RNO6 - interstellar medium:
jets and outflows - interstellar medium: molecules

1 Introduction

Red Nebulous Object 6 (RNO6, Cohen 1980) is a rather bright nebulosity of $\sim$1$^\prime$ size lying at the eastern border of an optical extinction patch of $\sim$2$^\prime$ and placed $\sim$5 $\hbox {$^\circ $ }$below the galactic plane in the Perseus constellation. The object was first catalogued as GM4 by Gyulbudagyan & Magakyan (1977). It was also included, with the name NS3, in the catalog of bipolar nebulae by Neckel & Staude (1984), because of the peculiar morphology which includes an equatorial lane of obscuration, roughly in the E-W direction, suggestive of a dusty disk. However, polarization measurements by Scarrott et al. (1986) have shown that the dust obscuration in this lane is too low to constitute a dense disk as those which are usually observed around protostars or very young stars.

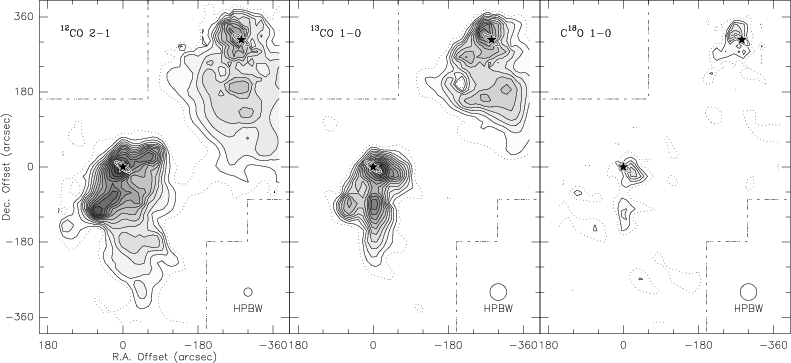

Figure 1: CO $J=2 \rightarrow 1$, 13CO $J=1\rightarrow 0$, and C18O $J=1\rightarrow 0$ integrated intensity maps of the RNO6 area. First contour and step are 3.5, 0.88, and 0.28 K kms-1, for CO, 13CO, and C18O, respectively. The first contour is drawn with dashed lines. The dashed-dotted lines indicate the limits of the mapped area. The star symbols surrounded by small ellipses indicate the nominal position of the two IRAS sources IRAS02130+5509 and IRAS02124+5514 with their position uncertainties. The telescope beam is also indicated at the right-bottom corner of each panel. Position offsets are with respect to the nominal position of the IRAS02130+5509 source at 02:13:03.3, +55:09:12 (1950.0).

Open with DEXTER

RNO6 contains a B star with H$\alpha$ emission (Cohen 1980) which thus fulfills all the criteria that define Herbig AeBe stars as a class, namely (i) its spectral type is A or earlier with emission lines in the spectrum, (ii) its location is in an obscured region, and (iii) it is illuminating a nebulosity. This star has been hence included in some standard lists of HAeBe stars (e.g. Thé et al. 1994). The systematic searches for clustering around HAeBe stars carried out by Testi et al. (1997, 1998, 1999) revealed a clear enhancement in the stellar surface density profile toward the central RNO6 position; it appears that the central B star is accompanied by a small group of less luminous stars.

The distance to RNO6 is poorly determined. The kinematic estimate from a standard galactic curve (e.g. Burton 1974) is $3 \pm 1$ kpc, whereas the polarization measurements of Scarrott et al. (1986) together with photometric considerations indicate a distance in the range 1.6 to 2.2 kpc. So we will assume in this paper a distance of 2 kpc. The spectral type of the main star of the RNO6 group is also poorly known. The IRAS luminosity ($\sim$300$L_{\odot}$) corresponds to a ZAMS B6 star or to a B8III. No radio continuum emission at $\lambda$ 6 cm was detected in the sensitive VLA search by White & Gee (1986).

The environment of RNO6 was essentially unstudied up to now. The region was first observed in the millimeter wave range in the context of a complete survey of HAeBe stars (Fuente et al. 2001), and was found to be interesting on its own. One of the interests of the region resides in its possible relationship with the double cluster h and $\chi$ Persei, which lie at only $\sim$1.5$^\circ$ in the sky from RNO6, and which are at a comparable distance from the Sun (2.2-2.6 kpc, according to Tapia et al. 1984). Thus, as an extension to the surveys by Fuente et al. (2001), we undertook a detailed study of the RNO6 area, and the corresponding results are presented in this paper. The new data provide important information about the mass, kinematics, and evolutionary stage of the region; we have found that the strong UV field from the OB stars associated with the double cluster is creating striking cometary structures and is triggering star formation activity in molecular clouds around RNO6.

2 Observations

We observed the ¹³CO $J=1\rightarrow 0$, C¹⁸O $J=1\rightarrow 0$, and ¹²CO $J=2 \rightarrow 1$ rotational transitions around RNO6 with the IRAM 30 m radiotelescope at Pico Veleta (near Granada, Spain) in June 1998. The three transitions were observed simultaneously using the multireceiver capabilities of the 30 m telescope. The backend was an autocorrelator split in several parts which provided a spectral resolution $\sim$78 kHz. Forward efficiency, main beam efficiency, typical system temperatures and Half Power Beam Width were 0.92, 0.68, 350 K and 24 $\hbox{$^{\prime\prime}$ }$ at the frequency of the ¹³CO $J=1\rightarrow 0$ and C¹⁸O $J=1\rightarrow 0$ lines, and 0.86, 0.39, 1000 K and 12 $\hbox{$^{\prime\prime}$ }$ at that of the ¹²CO $J=2 \rightarrow 1$ line. Some regions of interest around the C¹⁸O maxima and around newly-detected ¹²CO wings (see Sect. 3) were explored in the H¹³CO⁺ $J=1\rightarrow 0$, and SiO $J=2 \rightarrow 1$ lines near $\lambda$ 3 mm. The characteristics of the telescope at these frequencies are similar to those at the C¹⁸O $J=1\rightarrow 0$ frequency. No SiO emission was detected at a level of 0.02 K rms (1.6 kms^-1 velocity resolution). H¹³CO⁺ emission was well detected around the C¹⁸O maxima, but the data quality was not good enough as to produce contour maps. All line intensities in this paper are reported in units of main beam brightness temperature.

Near infrared (IR) observations were carried out with the United Kingdom Infrared Telescope (UKIRT) at Mauna Kea (Hawaii, USA) as part of a service observing program on October 2000. Narrow band ( $\Delta\lambda =0.02~\mu$m) images through H₂( $\lambda=2.122~\mu$m) and continuum ( $\lambda=2.104~\mu$m) filters were obtained using the near-IR camera UKIRT Fast Track Imager (UFTI). UFTI employs a $1~K\times1~K$ HgCdTe array; the optics used provides a pixel scale of 0.0917 $^{\prime\prime}$ and a field of view $\sim$90 $^{\prime\prime}$. Two positions centered on RNO6 and RNO6NW were observed with a 3$\times$3 mosaic to cover a total field of view of 136 $^{\prime\prime}$. As a result of the mosaic technique the signal to noise ratio is higher in the central regions of the final images than at the edges. The average seeing during these observations was less than 0.5 $\hbox{$^{\prime\prime}$ }$.

3 Overall structure

3.1 Molecular clouds

We mapped a region of 10$^\prime$$\times$13$^\prime$ around the central RNO6 position in CO rotational lines. An overall view of the molecular clouds in the area can be obtained from the integrated intensity maps of Fig. 1. Strong CO emission around RNO6 comes from a molecular cloud which extends $\sim$7.5$^\prime$$\times$4$^\prime$. Surprisingly, a second cloud of similar size is observed toward the NW. In the following we will refer to these large-scale clouds as RNO6 and RNO6NW, respectively. The central velocities of the emission peaks in both clouds are very close ($\sim$-36 kms^-1). Such a coincidence in radial velocity, together with the ridge of weak emission extending between both clouds, suggests that these clouds are placed at similar distances from the Sun, and very likely are physically connected.

Figure 2: H2 image contours of RNO6 overlayed on the red Digital Sky Survey (DSS) image. The DSS picture is shown grey-scaled, but note that the grey scale saturates, and starts again from white, around the maxima in the brightest stars and near the center of the image. This scaling is convenient to display near-IR features. Continuum has not been subtracted in the near-IR image in order to display the stars and the relative positioning of both images. Some important features, as the relatively bright H2 filament labeled F, and near-IR stars labeled with numbers are discussed in the text. The ellipse corresponds to the positional uncertainty of IRAS02130+5509. The central map position and offsets are as in Fig. 1.

Open with DEXTER

Both clouds display a striking cometary morphology with sharp boundaries toward the N-NE, and much more diffuse tails extending toward the S-SW. At the assumed distance of 2 kpc, the tails of both clouds extend by about 4.5 pc. This kind of head-tail morphology is typical of molecular clouds placed in the vicinity of massive stars; winds and shocks from the massive stars are expected to compress the nearmost edges of nearby clouds which thus develop the cometary structure.

Both molecular clouds RNO6 and RNO6NW are also well observed in the ¹³CO $J=1\rightarrow 0$ map. Nevertheless, the CO and the ¹³CO maps present important differences which can be attributed to several reasons. Most importantly, the CO $J=2 \rightarrow 1$exhibit deep self-absorption features near the central velocities, at which the ¹³CO profiles present their maxima. The differences in opacities make the CO map very sensitive to variations in kinetic temperature across the cloud, whereas the ¹³CO  $J=1\rightarrow 0$ map is more sensitive to variations in the gas column density and reveals the opaque regions of both clouds. A well defined emission peak is associated with RNO6, and the main peak in the NW cloud is placed near the offset (-270 $^{\prime\prime}$, +310 $^{\prime\prime}$). Finally, the C¹⁸O $J=1\rightarrow 0$ emission is more concentrated than the ¹³CO emission revealing that the most opaque zones are close to offsets (-20 $^{\prime\prime}$, -20 $^{\prime\prime}$), (0, -110 $^{\prime\prime}$), and (-270 $^{\prime\prime}$, +310 $^{\prime\prime}$).

We have estimated the masses of the different clumps by assuming LTE at a temperature of 15 K, which should be adequate for the inner regions of the cloud. We have considered that the boundaries of the clouds are defined by the lowest contours given in Fig. 1 (marked with dashed lines in the maps). From the C¹⁸O data, by assuming a C¹⁸O/H₂ abundance ratio of $1.7 \times 10 ^{-7}$ (Frerking et al. 1982), we estimate that the three clumps near (-20 $^{\prime\prime}$, -20 $^{\prime\prime}$), (0, -110 $^{\prime\prime}$), and (-270 $^{\prime\prime}$, +320 $^{\prime\prime}$) have masses of 55, 34, and 73 $M_{\odot}$, respectively. The masses of the RNO6 and RNO6NW molecular clouds, estimated from the ¹³CO data are 190 and 235 $M_{\odot}$, respectively, where we have assumed a ¹³CO/H₂abundance ratio of $2 \times 10 ^{-6}$ (Frerking et al. 1982; Bachiller & Cernicharo 1986). Thus, assuming that half of the mass is in a halo which is seen in CO but not in ¹³CO (Cernicharo & Guélin 1987), we estimate that the total mass in both molecular clouds amounts to $\sim$850 $M_{\odot}$. We caution that these mass estimates are subject to important sources of uncertainty. In addition to the poorly known distance, uncertainties in the CO isotope abundances and in the excitation temperature make the mass estimates to be uncertain by a factor of $\sim$2.

3.2 Young stars in the region

3.2.1 RNO6

Figure 2 shows the new near-IR image of the RNO6 region overlayed on the Digital Sky Survey red image. The near-IR image, obtained through a narrow-band H₂ filter, is shown here without subtracting the continuum in order to display the stars (which disappear in the continuum-subtracted image). The central region, which is very bright in the optical, contains at least two stars (labeled 1 and 2 in Fig. 2), one of which is the Herbig AeBe star. This double source is accompanied by a small cluster of at least 10 fainter stars which are distributed in a region of $\sim$30 $^{\prime\prime}$, in good agreement with Testi et al. (1998). Only the most prominent stars in the central region have been labeled. In addition to the stellar emission, the near-IR image shows a kind of filament near offset (10 $^{\prime\prime}$, 15 $^{\prime\prime}$), which is labeled F, and another filamentary structure arising in star 3. The continuum-subtracted image of the area shows that the emission from these filaments is purely H₂ line emission. It can also be noted that the filament F appears external to the bipolar nebulosity and situated at the periphery of the optical nebula.

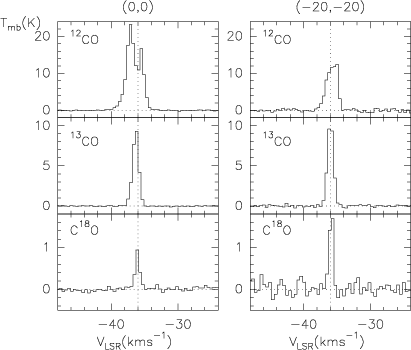

	Figure 3: Spectra of CO $J=2 \rightarrow 1$, 13CO  $J=1\rightarrow 0$, and C18O  $J=1\rightarrow 0$ observed toward position offsets (0,0) and ( $-20{\hbox {$^{\prime \prime }$ }}$, $-20{\hbox {$^{\prime \prime }$ }}$) with respect to the nominal RNO6 central position (see Fig. 1). The differences in the relative intensities of the lines of CO and its isotopomers are discussed in the text.
Open with DEXTER

We have examined the IRAS point source catalog to search for infrared sources in the region. We found that RNO6 is coincident with an IRAS source (IRAS02130+5509) of increasing spectrum from 12 to 100 $\mu$m. The IRAS fluxes (see Weaver & Jones 1992, for corrected co-added values) lead to a luminosity of $\sim$300 $L_{\odot}$.

The spectra of CO and its isotopomers arising from two positions near the cluster are shown in Fig. 3. Note the striking differences in the emission of the CO isotopomers toward the (0, 0) map position, i.e., the position where the B star is located, and the (-20 $^{\prime\prime}$, -20 $^{\prime\prime}$) position where the C¹⁸O is stronger. Clearly the CO and C¹⁸O lines peak at different places, and this is further illustrated in the superposition of the near-IR image on the maps in the lines of CO and its isotopomers shown in Fig. 4. The CO line peaks near the central (0, 0) position, whereas the C¹⁸O maximum is placed near (-20 $^{\prime\prime}$, -20 $^{\prime\prime}$). The strong CO peak (peak line intensity $\sim$25 K) seen at the stellar position clearly indicates the presence of a local temperature maximum, probably owing to the gas heated by the stellar radiation. In contrast, the C¹⁸O maximum near position (-20 $^{\prime\prime}$, -20 $^{\prime\prime}$) marks a maximum in gas column density in which the temperature is significantly lower (peak CO line intensity $\sim$10 K). These displacements of the stellar positions from the dense cores are typical of relatively "evolved'' young stars (Fuente et al. 2001), and indicate that the UV flux from neighbouring stars to the northeast has been able to destroy the molecules and to heat the gas in this region. Finally, note that the filament F seen in H₂ emission delineates the north-east edge of the C¹⁸O clump.

Figure 4: CO $J=2 \rightarrow 1$, 13CO $J=1\rightarrow 0$, and C18O $J=1\rightarrow 0$ integrated intensity maps in the RNO6 vicinity superimposed to the near infrared H2 image. First contour and step are 3 and 1.5 K kms-1, for CO, 1.3 and 0.65 K kms-1 for 13CO, and 0.42 and 0.21 K kms-1 for C18O. The first contour is drawn with dashed lines. The ellipse indicates the position uncertainty of IRAS02130+5509. The central map position and offsets are as in Fig. 1.

Open with DEXTER

3.2.2 RNO6NW

There is another point IRAS source, IRAS02124+5514, associated with the maximum at (-270 $^{\prime\prime}$, +320 $^{\prime\prime}$) in RNO6NW. This source also presents an increasing spectrum from 12 to 100 $\mu$m, but it is much weaker than RNO6. The luminosity of IRAS02124+5514 is estimated to $\geq$27 $L_{\odot}$.

The near-IR images of the region we obtained with UKIRT are relatively featureless. A detailed comparison with the Digital Sky Survey optical images reveals a star with significant 2 $\mu$m excess emission at position 02:12:29.1, 55:14:24 (1950.0), with $\sim$1 $\hbox{$^{\prime\prime}$ }$uncertainty. This object is thus at the edge of the position uncertainty ellipse of the IRAS source, so it is unclear whether the IRAS and the near-IR sources are the same star. On the other hand, in the next section we report the detection of a high-velocity bipolar outflow in this region. As shown in Sect. 4.2, the driving source of the outflow is also predicted to be at the edge of the uncertainty ellipse of the IRAS source, but it is $\sim$27 $\hbox{$^{\prime\prime}$ }$ east of the near-IR source, so we believe that there are at least two young stars in this region.

Figure 5 provides some molecular spectra observed toward RNO6NW. H¹³CO⁺ $J=1\rightarrow 0$ emission was detected around the C¹⁸O maximum, and the peak velocities and linewidths of both lines are found to be similar, confirming that both lines are formed in the same region of the cloud. The detection of H¹³CO⁺implies the presence of rather high-density material (volume density $n \geq$ a few 10⁴ cm^-3) associated with RNO6NW. The presence of a dense molecular core, together with at least two closely associated embedded sources demonstrates that the RNO6NW molecular cloud is an active site of star formation.

4 Kinematics

4.1 Velocity-position diagrams

There are important variations in the CO profiles shapes and in the central velocities of the different molecular lines across the mapped region. This is illustrated in Fig. 6 by means of velocity-position diagrams along the N-S direction for both RNO6 and RNO6NW clouds.

The cuts near RNO6 show very nicely how the ¹³CO emission lines peak at the self-absorption dips or shoulders of the CO profiles. The CO lines are broadened near the position of the IRAS source, where both ¹³CO and C¹⁸O present well pronounced maxima. Moving from this position to the South (i.e. from the head to the tail of the cometary cloud) there is a remarkable continuous velocity gradient. The velocity of the peak emission varies from -36 kms^-1 to -34 kms^-1.

A similar cut near RNO6NW displays a rather similar behavior. Again a systematic velocity gradient is observed from the head to the tail of the cloud, with the velocity changing from -36 kms^-1 near the head position to -37 kms^-1 at the end of the tail. The CO lines are also found to be very broad around the position of the IRAS source. Nevertheless, the broadening around IRAS02124+5514 is much more pronounced than that observed around RNO6 as the CO lines extend over $\sim$10 kms^-1 and exhibit prominent wings typical of high-velocity molecular outflows.

4.2 A bipolar outflow around IRAS02124+5514 (RNO6NW)

The CO spectra around IRAS02124+5514 (see Fig. 5) show that the wings extend from about -41 kms^-1 to -30 kms^-1. Examining the ¹²CO $J=2 \rightarrow 1$ profiles around IRAS02124+5514 we find that there is a systematic behavior in the spatial location of the velocity wings. Blue-shifted wings are observed at the positions north of the IRAS source, whereas redshifted wings are observed at the southern positions. The distribution of the blueshifted wing (integrated from -41 to -37.5 kms^-1) and of the redshifted wing (integrated from -34.5 to -30 kms^-1) is shown in Fig. 7. The distribution of the emission is strongly bipolar with respect to the position offset (-265 $^{\prime\prime}$, +315 $^{\prime\prime}$). We thus predict that the source driving the outflow is at the (corresponding) coordinates: 02:12:32.1, 55:14:27 (1950.0), with a uncertainty of $\pm$5 $\hbox{$^{\prime\prime}$ }$. As discussed in Sect. 3.2.2, this position is at the edge of the error position ellipse of the IRAS source, but it is $\sim$ $27\hbox{$^{\prime\prime}$ }$ east from the near-IR source we detected in the region. The three positions are marked in the outflow map of Fig. 7 with different symbols. If we take into account the resolution of our observations and the IRAS positioning error, we conclude that the IRAS02124+5514 emission could arise in the outflow driving source, in the near-IR star, or in both of them. However, the large position offset from the outflow driving source to the near-IR star suggests that these are different objects.

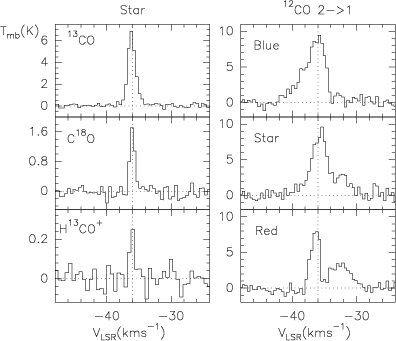

Figure 5: Some spectra observed around RNO6NW. Left 13CO, C18O, and H13CO+ $J=1\rightarrow 0$ spectra observed toward the position of the C18O maximum at ( $-265\hbox {$^{\prime \prime }$ }$, $+315\hbox {$^{\prime \prime }$ }$). Right 12CO  $J=2 \rightarrow 1$ spectra observed toward the C18O peak position (central panel). The two spectra labeled "Blue'' and "Red'' correspond to positions ( $-260\hbox {$^{\prime \prime }$ }$, $+330\hbox {$^{\prime \prime }$ }$) and ( $-260\hbox {$^{\prime \prime }$ }$, $+260\hbox {$^{\prime \prime }$ }$), which are placed north and south from the C18O peak, respectively. These profiles provide evidence for a bipolar outflow in RNO6NW.

Open with DEXTER

The total length of the outflow is 0.9 pc, and it is poorly collimated. Its collimation factor, estimated as the ratio of the outflow length to its width, is $\sim$2. The outflow is very asymmetric; the south (redshifted) lobe is brighter, and twice more extended along the flow axis than the north (blueshifted) lobe. Such an asymmetry is likely related to the location of the IRAS source within the ambient molecular cloud. It is important to note here that molecular outflows are made of accelerated "ambient'' material (e.g. Bachiller & Tafalla 1999). Since IRAS02124+5514 is near the north border of the globule's head, the southern flow lobe is propagating within the cloud, where there is abundant material to be swept up. However the north outflow lobe is propagating out of the cloud into an "empty'' medium which is illuminated by a strong UV field (see Sect. 5). So in this northern area there is less material to be swept up, and moreover the UV field can quickly destroy the CO molecules carried out of the cloud. We thus believe that the cloud morphology, and the location of the YSO within it, can explain the observed asymmetry of this outflow. Indeed there are other known cases of asymmetric outflows at the edges of molecular clouds, examples include HH46-47 (Hartigan et al. 1990) and OrionB (Richer et al. 1992).

The mass of the outflow, M, can be estimated from the CO intensities integrated to the wings. We assumed Local Thermodynamical Equilibrium (LTE) at an excitation temperature of 15 K, optically thin emission along the wings, and a H₂/CO abundance ratio of $1 \times 10 ^{-4}$ (Frerking et al. 1982). We found that the masses of the blue and redshifted lobes are 0.12 and 0.35 $M_{\odot}$, respectively. We however caution that this mass estimate is subject to important uncertainties. In addition to that arising from the poorly known distance, the main uncertainties arise (i) in the placement of the velocity boundary between the high velocity wing and the ambient line and (ii) in the assumed kinetic temperature (note that the mass estimate is nearly proportional to the assumed temperature). We believe that our estimate of the outflow mass ( $M \sim 0.5~M_{\odot}$) is accurate within a factor of 2.

The kinematical time scale of the outflow can be estimated, for each of the lobes, as the ratio $\tau \sim R/V_{\rm mean}$ where R is the distance from the center of mass of the lobe to the driving source, and $V_{\rm mean}$ is the mean velocity of the lobe. We estimate that both outflow lobes have $\tau \sim 10^5$ yr. This estimate considers that the outflow is created from a unique explosive episode, which very likely does not corresponds to reality. As mentioned above, the CO outflow consists of ambient material which is accelerated from the driving agent (the primary wind from the star/disk system) and which is decelerated as it moves into the surrounding molecular cloud. So the estimate given above is obtained from a very crude approximation. Another important source of uncertainty in estimating the kinematic time scale is the inclination angle of the outflow with respect to the line of sight. The estimate above is valid for an inclination angle $i = 45\hbox{$^\circ$ }$, otherwise it has to be multiplied by a factor of tan(i). The small spatial overlap between the blueshifted and redshifted lobes indicates that the inclination angle of the RNO6NW outflow is probably higher than 45 $\hbox {$^\circ $ }$. If the inclination were $i = 75\hbox{$^\circ$ }$, the estimated time scale should be multiplied by a factor 0.27.

The momentum, kinetic energy, and mechanical power of the outflow can be estimated as $M\,V_{\rm mean}$, $M\,V{^2}_{\rm mean}/2$ and $M\,V{^2}_{\rm mean}/(2\,\tau)$, respectively. We obtain 1.4 $M_{\odot}$ kms^-1, $4.2 \times 10 ^{43}$ erg, and $5 \times 10 ^{-3}$ $L_{\odot}$, respectively, without correcting for projection effects. For an inclination angle of $i = 75\hbox{$^\circ$ }$, these estimates become 5.4 $M_{\odot}$ kms^-1, $6.4 \times 10 ^{44}$ erg, and 0.26 $L_{\odot}$, respectively. Thus, compared to other outflows, the parameters of the RNO6NW outflow appear relatively modest and correspond to a driving young star of low mass. The mechanical power of the outflow, in the range $5 \times 10 ^{-3}$ to 0.26 $L_{\odot}$, depending on the outflow inclination, points to a source of 1-20 $L_{\odot}$ (see e.g. Bachiller & Tafalla 1999). By comparing this estimate with the luminosity of the IRAS02124+5514 source ($\geq$27 $L_{\odot}$), we conclude that the IRAS flux could contain some contribution from the near-IR star placed $\sim$27 $^{\prime\prime}$ west from the outflow origin (see Fig. 7).

Since SiO emission is a sign of youth in outflows (Bachiller 1996), we searched for SiO emission in several selected positions of the RNO6NW outflow to assess the evolutionary stage of the system. No SiO emission was detected at a level of 0.02 K rms.

In summary, the rather long kinematic time scale ($\sim$10⁵ yr), poor collimation ($\sim$2), and lack of SiO emission indicate that the IRAS02124+5514 outflow is in a rather evolved stage. These outflow characteristics (see Bachiller & Tafalla 1999) indicate that IRAS02124+5514 could be a relatively evolved Class I source with a luminosity in the range 1-20 $L_{\odot}$.

5 Discussion

The cometary morphology of both RNO6 and RNO6NW molecular clouds, the presence of star formation activity at the dense heads, and the strong velocity gradients observed along the major axes of both clouds, are all attributes of molecular clouds which are subject to the strong influence of neighboring luminous stars.

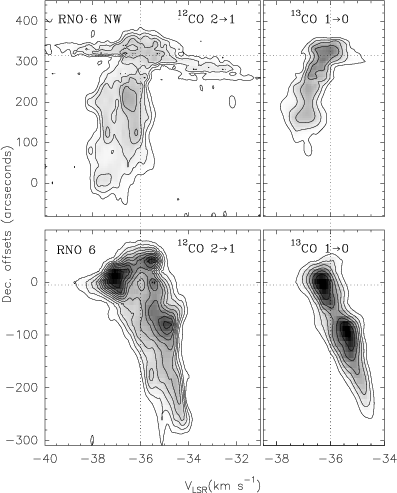

Figure 6: Velocity-position diagrams along lines at constant right ascension for the 12CO $J=2 \rightarrow 1$ and 13CO $J=1\rightarrow 0$ line emission. The diagrams in the bottom panels correspond to the RNO6 cloud, and are made along a line passing on the HAeBe star (right ascension offset = 0, in the maps of Fig. 1). The position of the HAeBe star is indicated with an horizontal dotted line. The diagrams in the upper panels correspond to the RNO6NW cloud, and are made along a line passing on the center of the high velocity outflow. Note the broad wing emission from the outflow at the globule head. The horizontal dotted line indicates the outflow center. First contour levels and steps are 2.5 K for 12CO and 1.5 K for 13CO. In all panels a vertical dotted line at -36 kms-1 (i.e. close to the velocity of the quiescent material at the heads of the globules) is marked for orientation.

Open with DEXTER

Such category of cometary clouds include the bright-rimmed globules as those studied by Hawarden & Brand (1976) and Sugitani et al. (1989). Cometary globules are believed to be formed by the Radiation-Driven-Implosion (RDI) mechanism first described by Reipurth (1983), and later on modeled by Bertoldi & McKee (1990) and Lefloch & Lazareff (1994, 1995). In this mechanism, the incident photons from neighboring bright stars ionize the gas at the globule surface which thus begin to flow out. Moreover, the high pressure at the globule surface drives a shock wave into the globule which compresses the molecular gas. Such compression can lead to the formation of new stars at the globule head, whereas the external layers of the cloud continue being photo-evaporated. As a result of this mechanism, as first noted by Sugitani et al. (1989), the ratio of the stellar luminosity to the mass of the cloud is found to be much higher (0.3-13  $L_{\odot}/M_{\odot}$) in cometary clouds than in nearby isolated dark clouds (0.03-0.3  $L_{\odot}/M_{\odot}$). For the RNO6 and RNO6NW clouds, the ratio is $\sim$3 and >0.3, respectively, which confirms that star formation has been triggered by the action of some external luminous stars in RNO6, and very probably in RNO6NW.

The cometary structures of both RNO6 and RNO6NW clouds are elongated north-south with the heads oriented to the north. Moreover, the northern edge of the RNO6 cloud exhibits bright H₂emission (feature F in Fig. 2), suggesting that a shock wave could be propagating from north to south. We thus explored the region north of these clouds for the presence of massive stars, and we found that the double cluster h and $\chi$ Persei (NGC869 and NGC884) lies $\sim$1.5$^\circ$ away from the clouds. The double cluster is believed to be the core of the large OB association PerOB1 (see e.g. Cappa & Herbstmeier 2000, and the references therein). Figure 8 shows all the known OB stars in a 2 $\hbox {$^\circ $ }$ region to the north of RNO6 clouds. O stars are denoted by big filled stars, B3 or earlier B stars by medium filled stars, and B stars later than B3 by small filled stars. White (unfilled) stars represent B stars for which the exact spectral class is unknown. Clearly these stars can be responsible for an intense UV field at the heads of the RNO6 and RNO6NW clouds.

We estimated the ionizing UV photon flux at the cometary heads of the RNO6 and RNO6NW clouds due to the earliest type stars in the region - including those marked with their names and spectral types in Fig. 8 - by using the stellar properties listed by Panagia (1973), and by assuming that all stars and both molecular clouds are in the same plane perpendicular to the line of sight. We obtain that the Ly-c flux incident on the cloud heads is $\sim$ $6 \times 10 ^{8}$ cm^-2s^-1. But it should be noted that this is a very rough estimate of the actual UV flux because of several reasons. First there are many B stars whose exact sub-classification is unknown, and every B0-B1 type star can contribute up to a few percent of the total flux. Second, very distant stars out from the field covered by Fig. 8 can have a significant contribution if they are of early types. Third, we have assumed all stars in the same plane which is an obvious simplification. In any event, we believe this flux to be accurate within a factor of 5. As we next discuss, this flux of UV photons is large enough to cause the observed cometary structures.

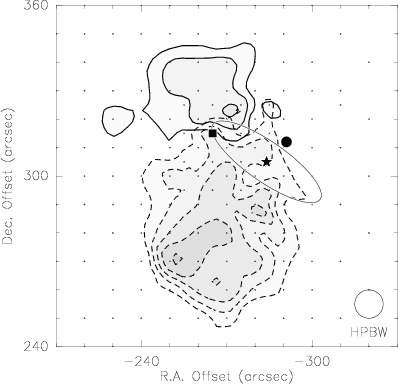

Figure 7: Integrated emission of CO $J=2 \rightarrow 1$ showing the bipolar structure of the outflow around IRAS02124+5514, in the RNO6NW region. Velocity intervals are from -41 to -37.5 kms-1 for the northern (blueshifted) lobe and from -34.5 to -30 kms-1 for the southern (redshifted) lobe. First contour and contour spacing are 6 and 3.5 K kms-1, respectively. Solid contours are for the blueshifted gas, whereas dashed contours are for the redshifted gas. The star and the ellipse mark the nominal position of the IRAS source and its error uncertainty, the filled circle the position of a near-IR star (see text), and the square the expected position for the outflow driving source. Position offsets are with respect to the same central position of Fig. 1.

Open with DEXTER

Since the RDI mechanism is well documented in the literature, we looked for the best RDI model that would match the observed morphology and kinematics of the RNO6 and RNO6NW clouds. We found that model 2 of Lefloch & Lazareff (1994, hereafter LL94) is in striking agreement with our observations. In fact, several aspects of the morphology and kinematics of both RNO6 and RNO6NW clouds are in very good agreement with the structure of a cloud at the re-expansion phase described in model 2 of LL94:

1.- The general appearance of both RNO6 and RNO6NW molecular clouds is very similar to that of the model 2 globule at the re-expansion phase.

2.- There is a clear velocity gradient in the north-south direction of both RNO6 and RNO6NW clouds (as seen in Fig. 6, and described in Sect. 4.1). In model 2 (LL94), such gradients are caused by the acceleration of the gas along the tail of the globules.

3.- Line broadening can be seen at the heads of both molecular clouds (see Fig. 6). In model 2 (LL94), such a broadening is indeed predicted, it results from the expansion of the forward and backward sides of the globule's head.

4.- The position of the CO peak is situated about 60 $\hbox{$^{\prime\prime}$ }$ below the surface of the cometary bright rim of these clouds. This maximum density point is not immediately behind the bright rim (as expected for the quasi-stationary state) but further behind.

Although the model predictions of LL94 are in the context of small cometary globules it has been suggested that the model can be applied to a different case with an appropriate scaling of the parameters. The corresponding scaling factor is denoted by k. The meaning of this factor is such that in order to match the parameters of any cloud with the model, the size and the age of the cloud described in model 2 (LL94) have to be multiplied by a factor of k, the mass by a factor k², and the cloud density and the incident Ly-c flux by a factor k^-1. For the case of the molecular clouds discussed here, the matching of the sizes and masses of the RNO6 and RNO6NW clouds with those of the model leads to a scaling factor $k\sim 4$. Then we find that the required Ly-c flux incident on the clouds surface is $5.5 \times 10^8$ cm^-2s^-1, in general agreement with the estimate made from the fluxes of the neighboring stars. The age resulting from the model, i.e. the duration of the photo-ionization phase, is 1.3 Myr.

Further comparison of the observations and the model provides additional pieces of information. For instance, the sign of the head-tail velocity gradient can be used to infer the position in space of the cometary clouds. The red-shifted gradient in RNO6 indicates that the tail is pointed towards us, whereas the blue-shifted gradient in RNO6NW indicates that it is pointing away from us. The observed magnitude of the velocity gradient $\Delta v$corresponds to a kinematical timescale of $t_{\rm kin} \sim \frac{1}{\Delta v} \sim 1.4$ Myr, in very good agreement with the value of 1.3Myr obtained for the duration of the photo-ionization phase. This timescale is also consistent with the ages of the h and $\chi$ stellar clusters, which are of the order of 6 and 3 Myr respectively, according to Tapia et al. (1984). We thus believe that 1.3 Myr can be considered as a good estimate of the time spent by these clouds under the incidence of strong UV flux.

Additional support for triggered star formation in the RNO6 cloud comes from the distribution of young stars in the cloud's head. In Fig. 4 we can see that the distribution of the stars are elongated or fan out towards the north away from the IRAS source. The only star with H$\alpha$ emission in this cluster is the RNO6 object itself which is the southernmost member of the cluster. The spatial coincidence of the IRAS source with the H$\alpha$ emission star suggests the relative youth of this star with respect to other cluster members. Also, the IRAS source and the two stars with associated nebulous filaments are situated inside the C¹⁸O contours that represent the densest portion of the cloud, which confirms the relative youth of these near-IR sources. The placement of bluer stars closer to the surface of the cloud's head and redder stars away from the cometary head, but closer to the IRAS source and C¹⁸O maximum, is a strong indication of triggered sequential star formation (see also Sugitani et al. 1995).

Figure 8: OB stars to the north of the RNO6 and RNO6NW molecular clouds. Positions and spectral types are from the CDS Simbad database, and completed with the compilation of Cappa & Herbstmeier (2000). O stars are denoted by big filled stars, B3 or earlier B stars by medium filled stars, and B stars later than B3 by small filled stars. Unfilled stars represent B stars for which the exact spectral class is unknown. Some stars of known spectral types that may illuminate the RNO6 clouds with significant UV flux are marked with their names. The large stellar concentration 1.5 $\hbox {$^\circ $ }$ to the north is the double cluster h and $\chi$ Persei, which is believed to be the core of the OB association PerOB1.

Open with DEXTER

Many cometary globules have been observed until now in different evolutionary stages. Cometary globules that also agree with model 2 of LL94 have been found near the Rosette nebula (Patel et al. 1993; White et al. 1997) and near the Gum Nebula (González-Alfonso et al. 1995). Some of these globules harbor stars and some times bipolar outflows (Nielsen et al. 1998; Cernicharo et al. 1992; Codella et al. 2001). However, in all cases mentioned above the globules are low mass objects (up to tens of solar masses) containing stars of masses around 1 $M_{\odot}$. In contrast, the RNO6 and RNO6NW clouds, with $\sim$200 $M_{\odot}$ each (as estimated from ¹³CO), are higher mass counterparts to these cometary globules studied before. A precedent to such high mass objects is the 135 $M_{\odot}$ globule studied by Lefloch et al. (1997) in IC1848. It thus appears that the RDI mechanism is able, not only to form low-mass stars in small globules, but also to form intermediate mass stars and small clusters in massive molecular clouds.

6 Conclusions

We have presented mm-wave line observations of the molecular clouds around RNO6. The main results of this work can be summarized as follows:

• We have mapped the molecular cloud harboring RNO6 along with a newly detected molecular cloud 6' northwest of RNO6 which has been named RNO6NW.

• These clouds RNO6 and RNO6NW display striking similarities in their cometary structures and overall kinematics. By using ¹³CO line observations, we estimate that both clouds have similar sizes ($\sim$4.5 pc) and masses ($\sim$200 $M_{\odot}$).

• Both molecular clouds RNO6 and RNO6NW are active in star formation. From new near-IR narrowband images, we confirm that RNO6 hosts an embedded IR cluster that includes a Herbig Be star. A conspicuous H₂ filament is found to delineate the dense cometary head of the globule.

• RNO6NW hosts at least two IR sources and a bipolar molecular outflow $\sim$0.9 pc of length and $\sim$0.5 $M_{\odot}$ of mass.

• The cometary structure of both clouds RNO6 and RNO6NW has been created by the UV radiation from numerous OB stars lying 1.5$^\circ$ to the north. Such OB stars are associated with the double cluster hand $\chi$ Persei, and are probably members of the PerOB1 association.

• Star formation inside these molecular clouds has been very likely triggered by the Radiation Driven Implosion (RDI) mechanism. From comparison with RDI theoretical models, we find that the similar kinematics and morphology of both clouds is well explained if they are at a re-expansion phase.

• Triggered sequential star formation also explains the observed spatial distribution of the members of the near-IR cluster inside the RNO6 cloud, and the morphology of the H₂ filament.

• The RNO6 and RNO6NW clouds are high-mass counterparts to the cometary globules of smaller masses which have been studied up to now. Thus our observations demonstrate that the RDI mechanism can produce, not only low mass stars in small globules, but also intermediate mass stars and clusters in massive clouds.

Acknowledgements

The authors are grateful to Dr. M. Pérez Gutiérrez for help with the mm-wave observations, to Dr. C. J. Davis for help with the near-IR observations, to Dr. B. Lefloch for useful discussions, and to the referee, Dr. W. H. McCutcheon, for careful reading the manuscript and for valuable comments and suggestions. The SIMBAD database is operated by the CDS, Strasbourg, France. The United Kingdom Infrared Telescope is operated by the Joint Astronomy Centre on behalf of the U.K. Particle Physics and Astronomy Research Council. This research have been partially supported by Spanish DGES grant AYA2000-927.
