A&A 379, 453-460 (2001)
DOI: 10.1051/0004-6361:20011353
A. E. Piatti1 - J. J. Clariá2
1 - Instituto de Astronomía y Física del Espacio, CC 67, Suc. 28, 1428
Buenos Aires, Argentina
2 - Observatorio Astronómico, Universidad Nacional de
Córdoba, Laprida 854, 5000 Córdoba, Argentina
Received 2 August 2001 / Accepted 26 September 2001
Abstract
We present CCD BVI observations obtained for 1759 stars in 4
4
regions around the unstudied southern stellar aggregates Ruprecht 103, 124, 129, 146
and 166, which are described as open clusters in several catalogues. Our analysis shows
that none of these stellar groups are genuine open clusters since no clear main sequences
or other meaningful features can be seen in their colour-magnitude diagrams. Star counts
carried out within and outside the cluster candidate fields not only support these results
but also show that the studied objects do not appear to be candidate late stages of star
cluster dynamical evolution.
Key words: open clusters and associations: individual: Ruprecht 103, 124, 129, 146, and 166 - open clusters
and associations : general
Galactic open clusters have long been considered unrivalled objects not only to undertake structural and evolutionary studies of our own Galaxy's disk but also to enhance our understanding of stellar formation, structure, and evolution. Galactic open clusters owe this privileged status to the relative ease and precision with which their reddenings, distances, and metallicities can be ascertained (see, e.g., Janes et al. 1988; Twarog et al. 1997). CCD photometric surveys of Galactic open star clusters are currently under way with the aim of obtaining good-quality photometric data not only to enlarge the sample of studied clusters, but also to estimate their fundamental parameters reliably (e.g., Phelps 2001). In some cases, however, the main goal is to explore the star formation history and spatial structure in selected regions (e.g., Moitinho 2001), while in others, the primary aim is to catalogue specific types of stars in selected open clusters (e.g., Kalirai et al. 2001). At the same time, systematic surveys to find new star clusters in selected fields (Dutra & Bica 2001), as well as open cluster remnants (Bica et al. 2001; Pavani et al. 2001) are also being undertaken.
As is commonly accepted, the presence of an apparent concentration of stars in the sky does not necessarily lead to the inevitable conclusion that such concentration constitutes a physical cluster. Any of the following factors, or a possible combination of them, could account for differences in the star density in some region: the presence of a genuine open cluster, an accidental distribution of stars along the line of sight, or the inhomogeneous distribution of interstellar material. In the last few years, several CCD photometric studies of open cluster candidates included in the Lyngå (1987) catalogue have been carried out with the main purpose of determining whether they are genuine physical systems (see, e.g., Piatti et al. 2000a, and references therein). Even though in some cases, the studied objects have been confirmed as genuine physical systems (see, e.g. Piatti et al. 1998,2000b), in some others, there exists evidence that the presumed clusters are not real, but rather random fluctuations of stellar density in a given region (e.g., Carraro & Patat 1995; Piatti & Clariá 2001). In some cases, the physical nature of the open cluster candidates is still highly debatable. A typical example is NGC6994, which Bassino et al. (2000) consider a 2-3 Gyr open cluster, but which Carraro (2000) assumes to be simply a random enhancement of four bright stars above the background level rather than an open cluster. Since star clusters are known to evolve dynamically and stellar depletion effects eventually lead to cluster dissolution, it is probable that some unconfirmed clusters are in fact cluster remnants or fossil remains (de la Fuente Marcos 1998; Bica et al. 2001).
We have recently started a systematic survey that consists in obtaining colour-magnitude
diagrams (CMDs) of numerous, mostly unstudied, poorly populated objects described as star
clusters in open cluster catalogues (Alter et al. 1970; Lyngå 1987; Lauberts 1982). The primary purpose of this
survey is to determine whether they are real physical systems or not. In this paper we
present the results obtained for five open cluster candidates projected close to the
Galactic centre, namely: Ruprecht 103 or ESO130-SC11 (OCL-876,
,
;
,
),
Ruprecht 124 (OCL-1005,
,
;
,
), Ruprecht 129 or ESO455-SC40
(OCL-1037,
,
;
,
), Ruprecht 146 or ESO592-SC4 (OCL-39,
,
;
,
)
and Ruprecht 166 or ESO96-SC11 (OCL-899,
,
;
,
). These five objects were discovered by Ruprecht (1960), who described them as
clusters of Trumpler class IV2p, II3p, IV1p, III2p, and III3p, respectively. The ESO
identifications are all from Lauberts (1982). Ruprecht 103 is located in Crux, Ruprecht 124
in Scorpius, Ruprecht 166 in Centaurus, and Ruprecht 129 and 146 in Sagittarius, all
projected close to the Galactic centre. Only Ruprecht 166 has some information available
for it. Moffat & Vogt (1973) observed three comparatively bright stars in the field of Ruprecht 166
using UBV photolectric photometry and concluded that this is a doubtful cluster in view
of the relatively high field star density in the vicinity of the supposed cluster region.
In Sect. 2 we present the observations and describe the reduction procedures briefly. We
analize in Sect. 3 the possible existence of genuine open clusters within the observed
sample, following two different approaches. We discuss the results in Sect. 4, and finally
we present the concluding remarks in Sect. 5.
We carried out CCD observations in the regions of Ruprecht 103, 124, 129, 146 and 166
through the B, V, and I passbands during four photometric nights in September 1994
and June-July 1995. The direct images were obtained with the 24-inch telescope of the
University of Toronto Southern Observatory (Las Campanas Observatory, Chile), equipped
with a Photometric
Metachrome CCD coated to give improved blue response. The scale
on the chip was 0.45
per pixel, yielding an area covered by a frame of
.
Columns 4 and 5 of Table 1 list the exposure sequences
and the typical seeing for each object and filter, while Fig. 1 shows the schematic
finding-charts built with all the measured stars in the V-band. Observations of 12-17
stars in the Selected Area standard fields (Landolt 1992) covering a wide range in colour
(
)
were also taken nightly. Furthermore, a series of 10 bias
exposures and 10 flat-field frames of both the twilight sky and dome were taken for CCD calibration purposes. The airmass values for the observed fields were always smaller than 1.35, just lying within the airmass range of the standard stars.
Object | Date | Filter | Exposures | seeing |
(UT) | (
![]() |
|||
Ruprecht 103 | 1995 June 28 | B |
![]() ![]() |
1.3 |
V |
![]() ![]() |
1.3 | ||
I |
![]() ![]() |
1.3 | ||
Ruprecht 124 | 1995 July 2 | B |
![]() |
1.5 |
V |
![]() |
1.5 | ||
I |
![]() ![]() |
1.5 | ||
Ruprecht 129 | 1994 September 3 | B |
![]() ![]() ![]() |
1.4 |
V |
![]() ![]() |
1.4 | ||
I | ![]() ![]() |
1.4 | ||
Ruprecht 146 | 1994 September 3 | B |
![]() ![]() |
1.4 |
V |
![]() ![]() |
1.4 | ||
I |
![]() ![]() |
1.4 | ||
Ruprecht 166 | 1995 June 30 | B |
![]() ![]() |
1.6 |
V |
![]() ![]() |
1.6 | ||
I |
![]() ![]() |
1.6 |
![]() |

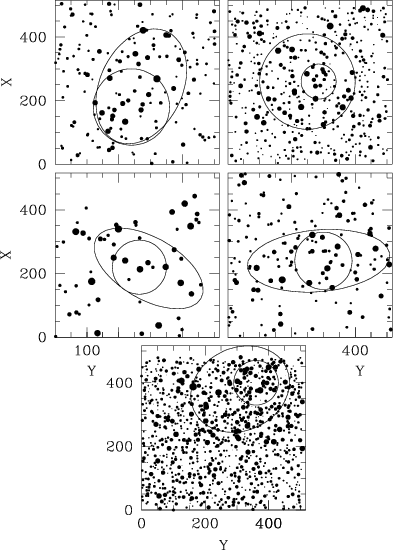

Figure 1: Schematic finding charts for the fields of Ruprecht 103 (top-left), Ruprecht 124 (top-right), Ruprecht 129 (middle-left), Ruprecht 146 (middle-right), and Ruprecht 166 (bottom). Two circular and elliptical extractions are also shown. North is up and East is to the left. The sizes of the filled circles are proportional to the brightness of the stars. |
Open with DEXTER |
The observations were reduced at the Observatorio Astronómico de la Universidad Nacional
de Córdoba (Argentina), using the IRAF routines.
The b, v and i instrumental magnitudes were obtained following the reduction
procedure described by Piatti et al. (1999) and transformed into the standard system using the
following relations:
bj,n = b1 + V + (B-V) + b2 (B-V) + b3 Xj,n, | (1) |
vk,n = v1 + V + v2 (B-V) + v3 Xk,n, | (2) |
il,n = i1 + V -(V-I) + i2 (V-I) + i3 Xl,n, | (3) |
ID |
![]() |
![]() |
V | ![]() |
B-V |
![]() |
V-I |
![]() |
n |
1 | 331.916 | 10.242 | 18.383 | 0.051 | 1.045 | 0.144 | 1.308 | 0.064 | 2 |
2 | 361.558 | 15.393 | 17.552 | 0.032 | 1.314 | 0.089 | 1.398 | 0.034 | 2 |
3 | 504.436 | 20.719 | 16.418 | 0.016 | 0.962 | 0.031 | 1.017 | 0.022 | 1 |
4 | 50.748 | 23.507 | 16.929 | 0.020 | 1.591 | 0.057 | 1.625 | 0.023 | 2 |
5 | 210.538 | 24.632 | 17.651 | 0.032 | 0.933 | 0.072 | 1.137 | 0.037 | 2 |
. | . | . | . | . | . | . | . | . | . |
. | . | . | . | . | . | . | . | . | . |
. | . | . | . | . | . | . | . | . | . |
NOTE: Tables 2 to 6 are available in their entirety in electronic form at the CDS via anonymous ftp to cdsarc.u-strasbg.fr (130.79.128.5) or via http://cdsweb.u-strasbg.fr/cgi-bin/qcat?/A+A/379/453. A portion of Table 2 is shown here for guidance regarding its form and content.
![]() |

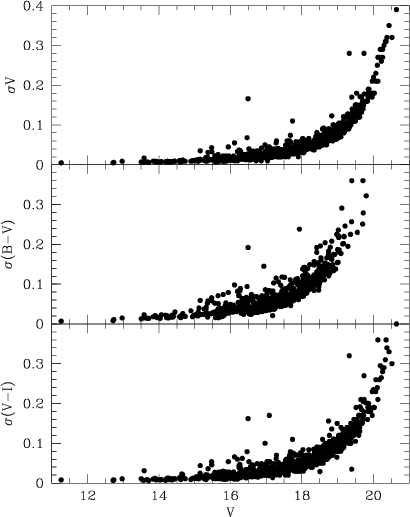

Figure 2: Magnitude and colour photometric errors provided by DAOPHOT as a function of V for the richest cluster of the sample (Ruprecht 166). They are typical in our sample. |
Open with DEXTER |
As shown in Fig. 1, fields differ from each other in terms of the noticeable contrast in their stellar densities: Ruprecht 129 and Ruprecht 166 are the fields with the smallest and largest numbers of stars, respectively, the latter having more than 17 times the number of stars measured for the former. This result corroborates the fact that sky regions close to the direction towards the Galactic centre present strong variations in the stellar density at a fixed limiting magnitude, even though they are separated by few degrees. Taking into account these stellar density variations, an open cluster candidate might be identified by the concentration of a handful of bright stars which stand out from a slightly fainter surrounding field, or by a visible increase in the stellar population in a sky region, or by both criteria combined. Occasionally, apparent concentrations of bright stars located approximately along the same direction, or variations in the number of stars caused by the presence of interstellar clouds can lead to identification of unreal open clusters.
We analysed the possible existence of genuine open clusters within the object sample following two different approaches. On the one hand, we investigated the distribution of stars in the (V, B-V) and (V, V-I) CMDs and, on the other hand, we compared the number of stars counted within and outside the cluster candidate fields. From the complementary analysis of both approaches we will achieve a more robust confirmation of the physical reality of these objects.
Since the size of our field of view (
)
was
considered rather small to outline the boundaries of all the cluster candidates, we used
Digitized Sky Survey (DSS) images of 15
on a side to have a wider view of the
selected fields. The fact that the selected objects cannot be embraced by our CCD images
suggests that cluster candidates can be more extended than the area covered by the
detector and/or that the observed fields do not differ clearly, in terms of stellar
density, from their surrounding fields. A wider FOV thus provides a better framework
for distinguishing the whole group of stars catalogued as a cluster candidate.
Bearing in mind that open clusters commonly have stars distributed following a
non-spherical symmetry, for each object we traced a small circle around what appeared to
be its central region, and an ellipse containing the circle to consider the whole
extension of the cluster candidate. This ellipse resulted in a compromise between
maximizing the object area and minimizing the field star contamination. We overplotted
the chosen circles and ellipses on the schematic finding charts of Fig. 1. Cluster
candidates are mostly centered on and entirely contained in the observed fields.
![]() |

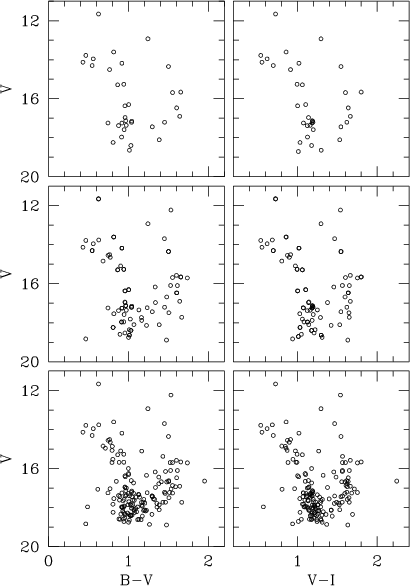

Figure 3: Colour-magnitude diagrams of stars in the field of Ruprecht 103. Stars within the circular (top) and elliptical (middle) extractions, as well as all measured stars (bottom) are shown. |
Open with DEXTER |
![]() |

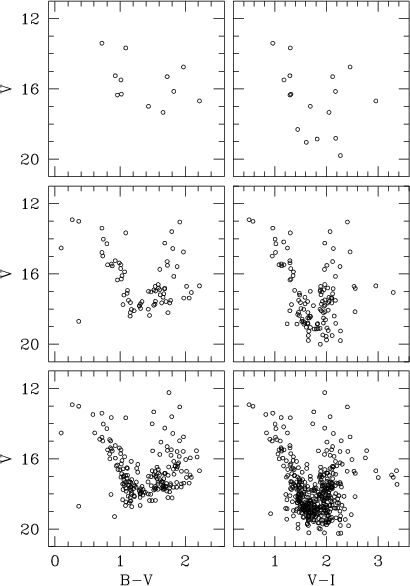

Figure 4: Colour-magnitude diagrams of stars in the field of Ruprecht 124. Stars within the circular (top) and elliptical (middle) extractions, as well as all measured stars (bottom) are shown. |
Open with DEXTER |
![]() |

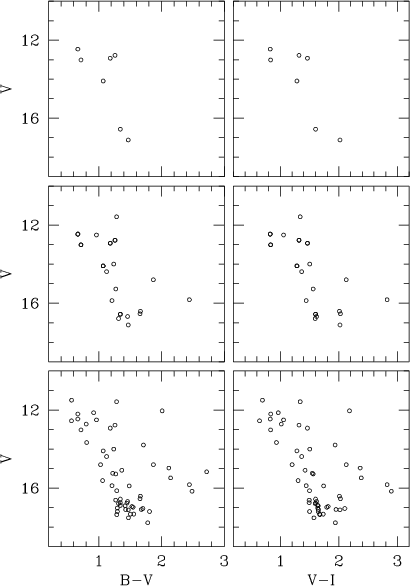

Figure 5: Colour-magnitude diagrams of stars in the field of Ruprecht 129. Stars within the circular (top) and elliptical (middle) extractions, as well as all measured stars (bottom) are shown. |
Open with DEXTER |
![]() |

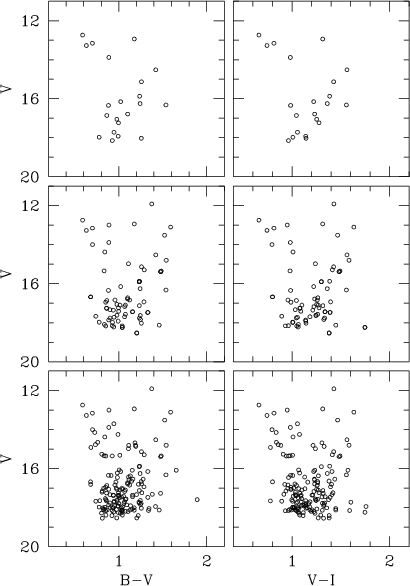

Figure 6: Colour-magnitude diagrams of stars in the field of Ruprecht 146. Stars within the circular (top) and elliptical (middle) extractions, as well as all measured stars (bottom) are shown. |
Open with DEXTER |
We then built (V, B-V) and (V, V-I) CMDs for the circular and elliptical
extractions as well as for all the measured stars. These CMDs are shown in Figs. 3 to 7
for Ruprecht 103, 124, 129, 146 and 166, respectively. The upper panels in the figures
correspond to the small circular extractions, whereas those in the middle and at the
bottom of the figures are from the elliptical and total fields, respectively. If one of
the observed candidates was an open cluster, we would expect to be able to define its
fiducial Main Sequence (MS) from the circular extraction, and recognize all the cluster
features and the unavoidable field star contamination from the elliptical one. Note
that the Zero Age Main Sequence (ZAMS) does have a different curvature than the field
MS, which follows a lower envelope and depends on the interstellar extinction
parameters, namely
(Burki & Maeder 1973). However, none of the extracted CMDs
seems to reveal the presence of an open cluster MS, except possibly in the case of
Ruprecht 166 (see discussion below). The star sequences seen in the distinct CMDs,
specially for Ruprecht 124 and Ruprecht 129, appear to be formed from the
superimposition of field stars of several spectral types affected by different amounts
of interstellar absorption and/or located at different distances from the Sun.
The blue star sequence in the CMDs of Ruprecht 103 extends down to V
16 mag,
where it undergoes a remarkable break and apparently becomes a vertical sequence at
fainter magnitudes. This break is not typical of a cluster MS, thus favouring the
conclusion that Ruprecht 103 is not an open cluster. Moreover, even considering
the tilted sequence defined only by the bright stars, we were not able to find a young
cluster with a main sequence as inclined as the one we observed. Notice that, under the
same assumption, the object could not be of intermediate age or older because of the
lack of fainter stars. On the other hand, the bigger the area of the extraction is, the
more populated the same parts of the CMDs prove to be, which is an indicator that we
are dealing with a uniform field star distribution. Similar characteristics can be
recognized with fewer and more dispersed field MS stars in the CMDs of Ruprecht 146,
which cannot be confirmed as an open cluster either. The CMDs of Ruprecht 124 and
Ruprecht 129 show star sequences that cover a magnitude range of more than 5 mags and
have inclinations similar to those of Ruprecht 103 and Ruprecht 146. These results,
in addition to the increase in the number of stars outside of the tilted sequence with
the extracted area in the field of Ruprecht 124, and the noticeable broadness of the
star sequence in the CMDs of Ruprecht 129, are strong evidence against the physical
reality of these objects as open clusters.
Finally, the case of Ruprecht 166 deserves particular attention. Its CMDs for the
innermost regions appear to show an evolved upper MS, typical of intermediate age open
clusters, which extends towards fainter magnitudes with a very important dispersion.
The two brightest stars located to the upper-left part of the CMDs from the apparent MS
should be considered field stars, if we wanted to keep the category of an intermediate
age open cluster for the object. However, the (V, B-V) CMD for the elliptical
extraction reveals that the apparent cluster MS is composed by a relatively tight star
sequence, extended from mag down to
mag, and by a populous
clump of stars centered at (V, B-V)
(18, 1.1). Both sequence and clump of
stars have their counterparts in the (V, V-I) CMDs masked like a long MS.
Unexpectedly, however, there is not only an abrupt change in the luminosity function
along this apparent star sequence (lower panel of Fig. 7), but also an offset for faint
stars towards redder colours, which suggest a different origin for these stars.
Additionally, it is not possible to fit a ZAMS to the stars in the sequence and in the
clump, simultaneously.
Name |
![]() |
![]() |
(stars/arcmin2) | (stars/arcmin2) | |
Ruprecht 103 | 11 | ![]() |
Ruprecht 124 | 13 | ![]() |
Ruprecht 129 | 6 | ![]() |
Ruprecht 146 | 6 | ![]() |
Ruprecht 166 | 26 | ![]() |
![]() |

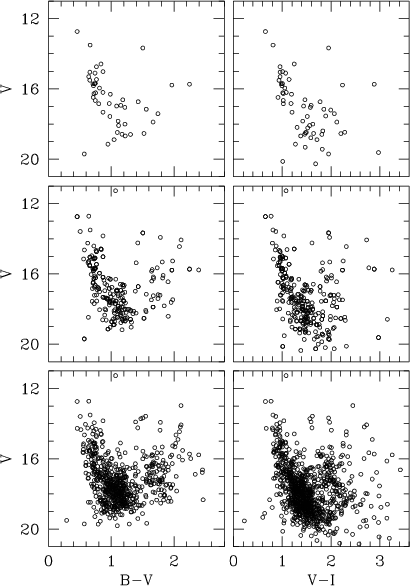

Figure 7: Colour-magnitude diagrams of stars in the field of Ruprecht 166. Stars within the circular (top) and elliptical (middle) extractions, as well as all measured stars (bottom) are shown. |
Open with DEXTER |
![]() |

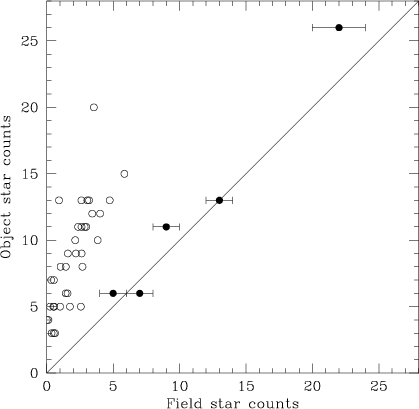

Figure 8: Relationship between the number of stars per square arcmin estimated for the object and its surrounding field. Open circles represent the values obtained by Bica et al. (2001) whereas filled circles correspond to results of Table 7. The solid line corresponds to the same number of stars for object and field, respectively. |
Open with DEXTER |
With the purpose of investigating the origin of stars in the CMDs of the observed fields,
we used the statistical results obtained by Ng et al. (1996) from the decomposition of the
disk populations in CMDs of fields towards the Baade's Window. Based on their findings,
we identified different stellar disk components in the observed CMDs, namely: the very
young disk MS (age
Gyr,
), the old disk MS (age
Gyr,
), the intermediate age and old disk
Horizontal Branches (HBs) and the intermediate age and old disk Red Giants (RGs). The age
and metallicity for the intermediate age disk entered by Ng et al. (1996) are 4.5-7.0 Gyr
and 0.008-0.015 dex, respectively. Thus, in the CMDs of Ruprecht 103 the tilted sequence
is composed by very young MS stars,while the fainter vertical sequence is formed by
intermediate age and old RG stars. HB stars belonging to the intermediate age and old
disks form the redder (
)
and slightly brighter vertical sequence in the
CMDs of Ruprecht 103. The same stellar components can be recognized in the CMDs of
Ruprecht 146, where faint MS and HB stars have a smaller colour difference. HB stars are
also present in the CMDs of Ruprecht 124 and Ruprecht 166, forming a broad vertical
sequence centered at
.
The CMDs of Ruprecht 124 show a more extended MS
composed by very young and young stars and by a remarkable old disk star population at
its fainter portion (
). MS stars dominate the CMDs of Ruprecht 129.
Finally, the rich star concentration of stars fainter than
mag and at
in the CMDs of Ruprecht 166 mainly corresponds to the contribution of old
RG stars.
Several other stellar aggregates included in open cluster catalogues have previously been disproved as genuine physical systems (see, e.g., Carraro & Patat 1995; Carraro 2000; Piatti & Clariá 2001). Thus, the present work implies the potential likelihood of other wrongly classified open clusters.
Acknowledgements
We have used DSS images for the analysis. The DSS was produced at the Space Telescope Science Institute under U.S. Government grant NAG W-2166. The images of these surveys are based on photographic data obtained using the Oschin Schmidt Telescope on Palomar Mountain and the UK Schmidt Telescope. We wish to thank the Director, staff and technicians of Las Campanas Observatory for the allocation of observing time and for their kind assistance and hospitality during the observing runs. We gratefully acknowledge financial support from the Argentinian institutions CONICET, SECYT (Universidad Nacional de Córdoba), and Agencia Córdoba Ciencia.
