A&A 378, 466-476 (2001)
R. Østensen 1,4 - U. Heber 2 - R. Silvotti 3 - J.-E. Solheim 4 - S. Dreizler 5 - H. Edelmann 2
1 - Isaac Newton Group of Telescopes, 37800 Santa Cruz de La Palma, Canary Islands, Spain
2 - Dr. Remeis-Sternwarte, Astronomisches Institut der Universität Erlangen-Nürnberg, 96049 Bamberg, Germany
3 - Osservatorio Astronomico di Capodimonte, via Moiariello 16, 80131 Napoli, Italy
4 - Institutt for Fysikk, Universitetet i Tromsø, 9037 Tromsø, Norway
5 - Institut für Astronomie und Astrophysik, Waldhäuser Straße 64, 72076 Tübingen, Germany
Received 13 June 2001 / Accepted 28 August 2001
We report the detection of short period oscillations in the sdB stars HS0039+4302, HS0444+0408, HS1824+5745 and HS2151+0857 from time-series photometry made at the Nordic Optical Telescope (NOT) of a sample of 55 candidates. Hence these four hot subdwarfs are new members of the EC14026 class of pulsating sdB stars. HS0039+4302 is a multi-mode pulsator with at least four distinct periods in the range between 182 and 234 s, and amplitudes up to 8mma. HS0444+0408 shows one dominant pulsation at 137s ( mma) and a second weaker pulsation at 170s ( mma). For HS1824+5745 we find a single period of 139s with an amplitude of about 5 mma. HS2151+0857 shows four periods in the range 129-151 s with amplitudes between 2 and 5 mma. Our NLTE model atmosphere analysis of the time-averaged optical spectra place all stars well within the theoretical sdBV instability strip.
Key words: subdwarfs - stars: oscillations - stars: individual: HS0039+4302, HS0444+0408, HS1824+5745, HS2151+0857
Subluminous B stars (sdB) dominate the populations of faint blue stars of our own Galaxy and are found in both the old disk (field sdBs) and in halo populations as blue tails to the horizontal branches of globular clusters (Ferraro et al. 1997). Observations of elliptical galaxies with the Ultraviolet Imaging Telescope (Brown et al. 1997) and the HST (Brown et al. 2000) have shown that these stars are sufficiently common to be the dominant source for the "UV upturn phenomenon'' observed in elliptical galaxies and galaxy bulges (see also Greggio & Renzini 1999). However, important questions remain over the exact evolutionary paths and the appropriate timescales.
It is now generally accepted that the sdB stars can be identified with models for extreme Horizontal Branch (EHB) stars burning He in their core, but with a very tiny (<1% by mass) inert hydrogen envelope (Heber 1986; Saffer et al. 1994). An EHB star bears great resemblance to a helium main-sequence star of half a solar mass and its further evolution should proceed similarly (i.e. directly to the white dwarf graveyard), as confirmed by recent calculations (Dorman et al. 1993). Therefore sdB stars are certainly important as the immediate progenitors of low mass white dwarfs.
How they evolve to the EHB configuration is controversial.
The problem is how the mass loss mechanism in the progenitor manages
to remove all but a tiny fraction of the hydrogen envelope at precisely the same time as the He core has attained the mass (
required for the He flash.
Considerable evidence is accumulating that many sdB stars reside in close
binaries (Maxted et al. 2001) and therefore mass transfer in
close binary evolution is important.

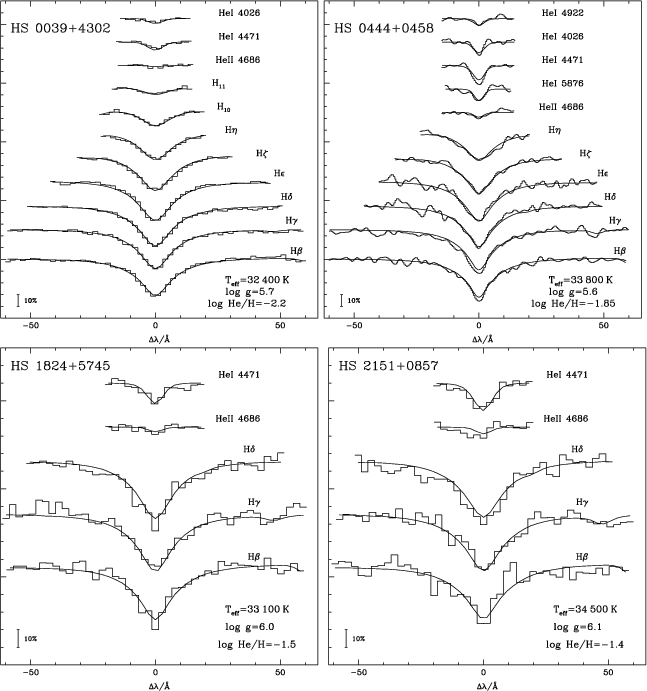

|Figure 1: Model fits to the Balmer and He line profiles in our time-averaged optical spectra of the four programme stars using NLTE model atmospheres (see text).|
|Open with DEXTER|
The discovery of multimode pulsators among the sdB stars
has opened a new attractive possibility of probing their
interiors using seismological methods.
The properties of sdB pulsators (sdB Variables=sdBVs
or EC14026 stars, Kilkenny et al. 1997),
are characterised by relatively short pulsation periods ranging between
and 10 min and low pulsation amplitudes. PG1605+072 has the highest
detected amplitude; the strongest observed peak has been found at 64
milli modulation amplitudes (mma), and more than 50
oscillation frequencies have been detected (Koen et al. 1998;
Kilkenny et al. 1999). Most sdBVs have been found with
a main peak pulsation amplitude of around 10mma, while the lowest level
pulsator discovered up to now is PG1618+563B (Silvotti
et al. 2000), with a main peak at only 2mma.
CA: Calar Alto 2.2 m, Spain, DK: Danish 1.5 m, Chile.
Not flux calibrated.
|Object||log g||log ()||M(V)||Distance|
The pulsations of the sdB stars are driven by an opacity bump associated with iron ionization (Charpinet et al. 1996, 1997). Both radial and nonradial modes are expected to have about the same range of frequencies, corresponding to what is observed (see also Kawaler 1999). The instability is predicted to occur in the temperature range between about 29000K and 37000K. However, most stars in this temperature range do not vary. Our ongoing survey indicates that only one tenth of the sdB stars in this temperature interval is pulsating (Østensen 2000).
Today 19 sdBVs are known in the literature. 13 are summarised in the review by O'Donoghue et al. (1999), and six have recently been published (Piccioni et al. 2000; Billères et al. 2000; Silvotti et al. 2000; Østensen et al. 2001; Ulla et al. 2001). In this paper we present spectroscopy and photometry on another four, increasing the number of class members to 23.
The four new pulsators reported in this paper have been identified
based on a list of candidates drawn from the Hamburg Schmidt
survey (Hagen et al. 1995). Follow-up spectroscopy
(Heber et al. 1999; Edelmann et al. 2001) revealed
that their effective temperatures lie in the domain predicted for the
13 objects were monitored with continuous photoelectric photometry
with the Nordic Optical Telescope (NOT) in July 1999 and one pulsator,
PG1618+563B, was discovered (Silvotti et al. 2000).
In October 1999, in a second run at the NOT, we used a CCD camera with
our own controller software (Østensen & Solheim 2000)
to observe 31 additional candidates, of which three were identified as
pulsators: HS0815+4243, HS2149+0847 and
HS2201+2610 (Østensen et al. 2001).
The third run was completed in July 2000, when
24 candidates were observed during four nights, resulting in two of the
discoveries presented in this paper. During the fourth run, three months later,
31 new candidates were observed and another 8 reobserved, revealing another
two new pulsators.
A more detailed description of the technique used,
and upper limits to the pulsation amplitudes of the sdBs for which we
do not see any pulsations above the
will be reported in a subsequent paper when our search programme
will be completed.
Short period oscillations in the sdB stars HS0039+4302, HS0444+0408, HS1824+5745 and HS2151+0857 have been discovered by time-series photometry at the NOT. We have searced the SIMBAD catalouge for any previous observations and classifications of these stars, and for HS0444+0408 and HS1824+5745 the search comes out empty. For the two other stars, the results are as follows.
The SIMBAD catalogue lists a few registrations that match the coordinates of HS0039+4302. Both the Balloon far-ultraviolet survey (Bixler et al. 1991) and the first Byurakan spectral sky survey (Abrahamian et al. 1990) list this object as a UV-excess object, with catalogue numbers of Balloon84041013 and FBS0039+430 = FBSB210, respectively. No further references have been found in the literature.
A search in the SIMBAD catalogue around the coordinates of
HS2151+0857 reveals that the sdB star PG2151+089
should be less than two arcminutes away. Our images reveal no other
blue stars in this region, so we conclude that the coordinates of
PG2151+089 are wrong and that this is actually the same star.
The PG catalogue B-band magnitude of 16.31 (Green et al. 1986)
is also in accordance with the value B=16.5, estimated from the
Schmidt plates. According to SIMBAD, PG2151+089 is listed
in the Catalogue of spectroscopically identified hot subdwarf stars
(Kilkenny et al. 1988).

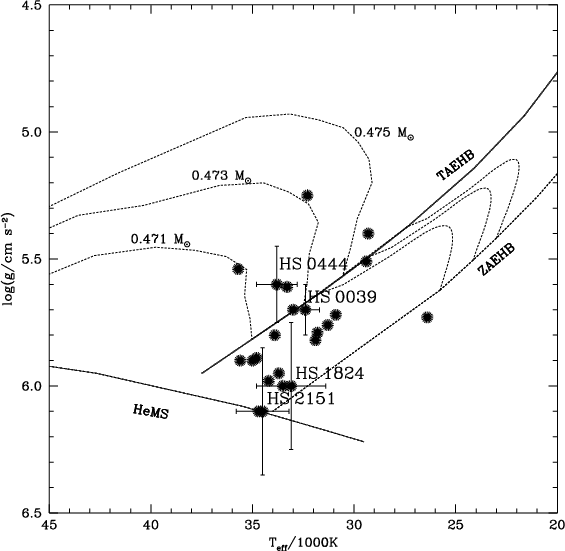

|Figure 2: Comparison of the four newly discovered sdBVs to previously known ones in the ( , log g) plane. The position of the Zero Age Extreme Horizontal Branch (ZAEHB), the Terminal Age Extreme Horizontal Branch (TAEHB), the Helium Main Sequence (HeMS) and evolutionary tracks for EHB stars (Dorman et al. 1993) are also shown.|
|Open with DEXTER|
Medium resolution (4-6 Å) spectra were obtained in 1993 at the Calar Alto 2.2m telescope equipped with the B&C Cassegrain spectrograph, and in 1998 at the same telescope but using the CAFOS spectrograph. Details of the observations are listed in Table 1. Besides the Balmer lines of hydrogen, He I lines and He II 4686Å are detected in all stars. The exposure times are much longer than their oscillation periods (see Table 3) and therefore the spectra are time-averaged. Due to the poor quality of the spectrum of HS0444+0458 we re-observed the star with the DFOSC at the Danish 1.5m telescope at ESO. Spectra with two grisms (#6 and #7) were taken to cover the whole Balmer series.
The available spectra of HS1824+5745 and HS2151+0857 are of lower quality than those of the other two stars, and cover a smaller wavelength range, which allows to use only H to H for the spectral analysis.
A grid of synthetic spectra derived from H-He line blanketed NLTE model
atmospheres (Napiwotzki 1997) was matched to the data to
simultaneously determine effective temperature, gravity and He abundance
(Heber et al. 2000). The line profile fits are displayed in
Fig. 1 and the resulting atmospheric parameters are listed in
Table 2. Statistical fitting errors
are low for HS0039+4302 and HS0444+0458. However,
systematic errors, which can only be estimated quantitatively from repeated
observations, contribute significantly to the error budget.
The error estimates in Table 2 are based on our
previous experience (see Østensen et al. 2001).
Adopting the canonical mass of
for the sdB, we can
estimate their absolute visual magnitudes and distances
(as listed in Table 2).

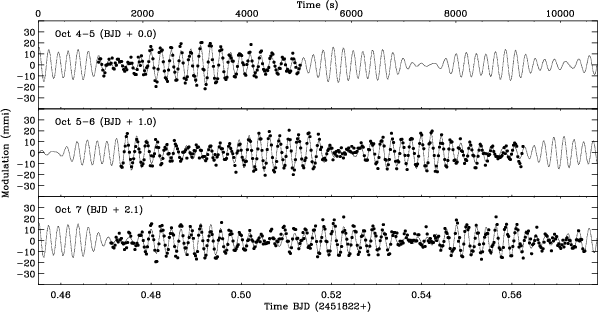

|Figure 3: Observed and synthetic light curves for HS0039+4302. The scale on the x-axis above the plot shows time in seconds with an arbitrary zero point, and the scale on the bottom shows absolute time of observation in BJD when the numbers in parentheses are added.|
|Open with DEXTER|
The determined temperatures, gravities and helium abundances are typical for pulsating sdB stars, as it can be seen when comparing with known sdBVs (Fig. 2). HS0039+4302 is located right in the centre of the sdBV ( , log g) distribution at a position close to PG1336-018 (Kilkenny et al. 1998).
The position of HS0444+0408 is similar to that of KPD1930+2752 (Billères et al. 2000) to within the error bars.
HS1824+5745 has effective temperature and gravity close to that of EC10228-0905 (Stobie et al. 1997).
HS2151+0857 has similar effective temperature and gravity as the class prototype EC14026-2647 (Kilkenny et al. 1997), and forms the high gravity edge of the known sdB stars in the ( , log g) diagram (see Fig. 2).
No indications of any binary companion stars are found in the spectra of
any of these four sdB stars.
Neither absorption lines such as the Mg I triplet, the G band or
Ca I 4226Å can be detected
nor is there any flux excess in the red part of the spectra
which could be caused by late type companions. Any companion therefore
must be considerably fainter than the sdB stars whose absolute visual
magnitudes are in the range MV=4-5 mag (see Table 2).
The spectra are not suitable for radial velocity measurements and therefore
we cannot test whether the star that we have multiple spectra of,
HS0444+0408, is a radial velocity variable or not.
|HS0039+4302||Oct. 4||RØ, JES||23:07||3880|
|Oct. 5||RØ, JES||23:15||7720|
|Oct. 7||RØ, JES||01:35||9100|
|HS0444+0458||Oct. 6||RØ, JES||02:27||3240|
|Oct. 7||RØ, JES||04:55||5560|
|Oct. 8||RØ, JES||02:37||5260|
|HS1824+5745||Jul. 9||RØ, RS||00:52||4100|
|Jul. 10||RØ, RS||00:23||3800|
|Jul. 11||RØ, RS||00:22||2820|
|HS2151+0857||Jul. 9||RØ, RS||03:14||4360|
|Jul. 10||RØ, RS||02:49||5040|
|Jul. 11||RØ, RS||03:18||8400|
The observations were done at the Nordic Optical Telescope (NOT) with the Andalucia Faint Object Spectrograph and Camera (ALFOSC), equipped with a Loral, Lesser thinned, CCD chip, and modified with our own control software to be able to observe in high-speed multi-windowing mode.
The sky area available for locating a reference star is

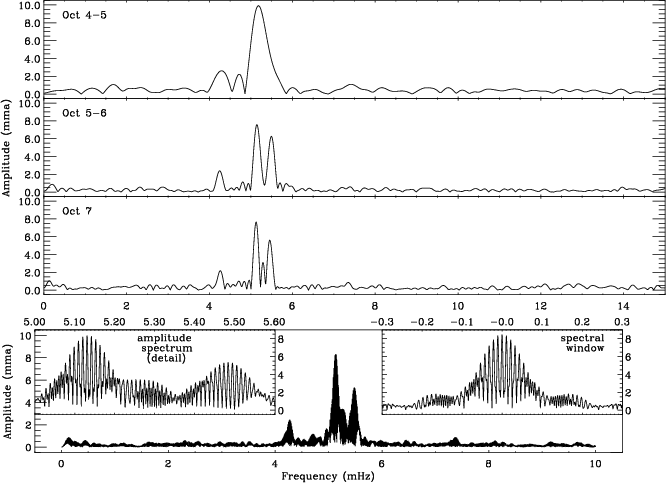

|Figure 4: Amplitude spectra for HS0039+4302. The three upper panels show the individual spectra for the three nights, and the lower panel shows the spectrum of the three consecutive nights taken together. The two inset panels represent a section of the same spectrum with a larger scale (left) and its spectral window (right).|
|Open with DEXTER|
Table 4 contains the information related to the time-series observations. We observed the stars in windowed mode using three or more reference stars for constructing the relative light curve. All the observations were made with a standard Bessell B-band filter (NOT #74, Bessell 1990), except for the last observation run of HS0444+0458, where we experimented with a much wider filter that effectively encompass all bands from B to R with more than 90% transmission (NOT #92). This filter (hereafter referred to as the W filter) has the same center as that of the V-band (5500Å), but is a full 2750Å wide. The cycle time was set to 20s, except for the first run of HS0444+0458, where the cycle time was set to 30s. For the 20s cycles, the actual exposure time varied between 15.6 and 16.4 s, depending on the number of reference stars selected (3 or 4) and the sizes of the readout windows ( to pixels).
The data were reduced on-line using the Real Time Photometry (RTP) program developed by one of us (R. Østensen) as part of his Ph.D-project (Østensen 2000). Some details about this software are given in our previous paper (Østensen et al. 2001).
The processing includes bias level removal, flat fielding,
sky subtraction, extinction correction and aperture photometry
using optimal apertures that track each stars geometrical center. The resulting

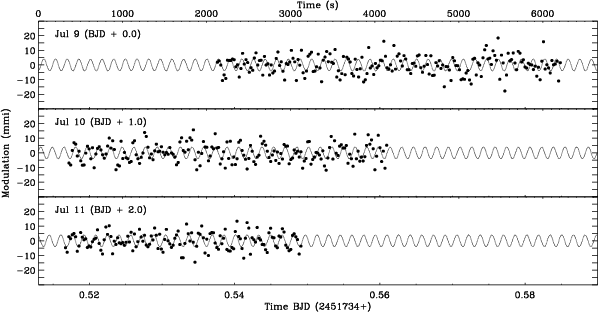

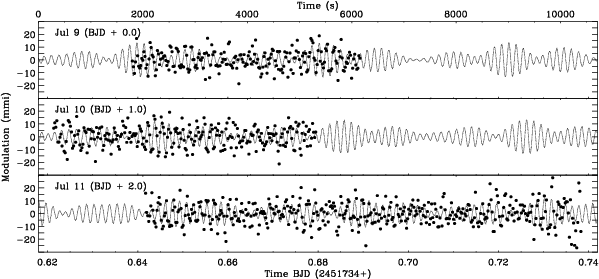

light curves are shown in Figs. 3, 5,
7 and 9, and are discussed below for each
of the four stars. The light curves show differential photometry between
the target and the best combination of the available reference stars.
|Figure 5: Observed and synthetic light curves for HS0444+0408. Note that since the observations on the second night were done 2 hours later in the night, the panel has been shifted by 0.1 JD relative to the bottom scale.|
|Open with DEXTER|
The optimal aperture for each run was selected after processing all data sets with apertures of a wide range of diameters and choosing the one that gave the best signal-to-noise ratio in the Fourier Transform (FT), using the amplitude of the primary peak for the signal and the mean of the amplitude spectrum outside the pulsation range for the noise. The apertures tested ranged between 10 and 40 pixels, which corresponds to 1.9 and 7.6 arcsec on the sky, while the best results stayed within the range 18 to 22 pixels (3.4 to 4.2 arcsec).

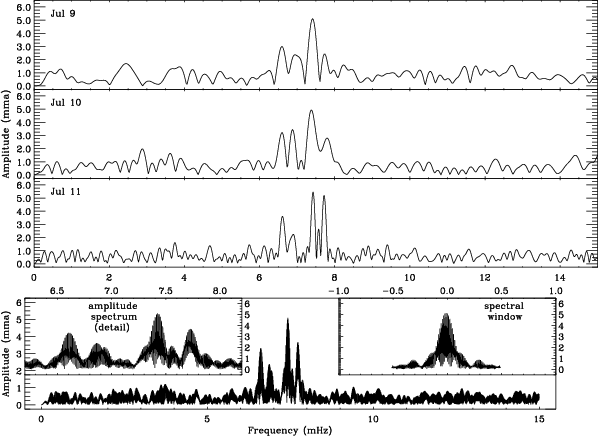

Figures 4, 6, 8 and 10 show the FTs of the light curves. The significant peaks detected in these amplitude spectra are listed in Table 3.
Since the runs from the three nights have progressively longer time spans, the corresponding amplitude spectra reveal increasing detail. The dominant period is seen at 5.14 mHz, with an amplitude of about 8 mma. In the amplitude spectrum of the third night, four significant peaks are revealed (see Table 3 for details). In the bottom panel of Fig. 4, the combined FT of all the three nights taken together is shown. This spectrum agrees with what is seen in the third night alone, but reveals no further significant peaks.
Figure 3 shows the observed data superimposed on a synthetic light curve computed from the four detected pulsation periods. The match between these are quite good, although the amplitude spectra show some remaining power close to the observed oscillation frequencies (Fig. 4). The peak at 4.6mHz in the amplitude spectrum of the first run vanishes completely after prewhitening.
The average noise level in the amplitude spectra after prewhitening of the four detected periods is below 0.5 mma for the first run, below 0.3 mma for the second, and about 0.35 in the third run. The average noise level in the combined spectrum is below 0.25 mma.

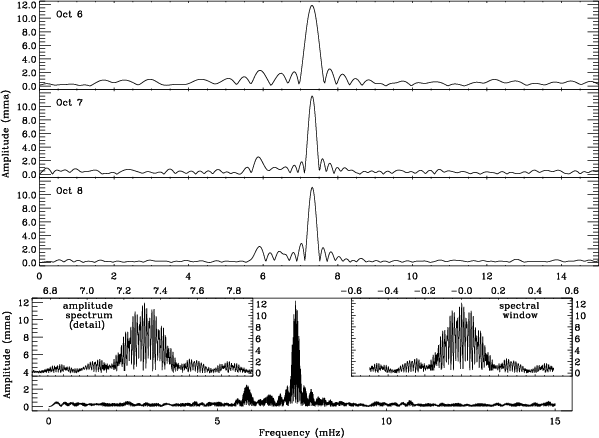

|Figure 6: Amplitude spectra for HS0444+0408. The three upper panels show the individual spectra for the three nights, and the lower panel shows the spectrum of the three consecutive nights taken together. The two inset panels represent the same spectrum with a larger scale (left) and its spectral window (right).|
|Open with DEXTER|
In the first run on HS0444+0408, a sequence interval of 30s was used. After the discovery of the clear pulsation on the first night, we decreased the sampling interval to 20s for the second and third runs, to better sample the light curve. On the third night we observed this target using the W-band filter, in an attempt to improve the signal-to-noise ratio. In this way the white noise in the FT dropped from 0.5 mma in the second run to 0.35 in the third, even when the run length in the third run was slightly shorter than in the second.
Both the significant peaks detected, the dominating one at 7.31 mHz and the secondary one at 5.86 mHz, have a quite stable amplitude over the three nights of 11-12 and 2.3-2.5 mma respectively. In particular, the amplitudes of both peaks in the third night, when we used the W filter, are almost identical to the amplitudes obtained in the first two nights, when the B filter was used. Therefore we could do a combined FT using the data from all the three nights together.
The synthetic light curve based on the two detected periods, and plotted with a dotted line in Fig. 5, reproduces the observed light curve very well.
In the bottom panel of Fig. 6, the combined FT of the three nights is shown. The feature between the two main periods is just above the detection limit, at 1.4 mma. The average noise level in the combined spectrum is below 0.3 mma.
The extinction corrected light curves indicate an average magnitude B = 15.4for both nights with B-band data, in good agreement with the estimates based on the photographic plates.

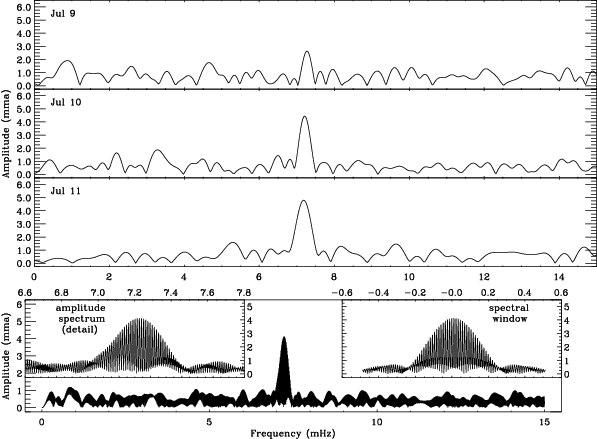

|Figure 8: Amplitude spectra for HS1824+5745. The three upper panels show the individual spectra for the three nights, and the lower panel shows the spectrum of the three consecutive nights taken together. The two inset panels represent the same spectrum with a larger scale (left) and its spectral window (right).|
|Open with DEXTER|
This target and the following show pulsation amplitudes of less than half of the previous two. For this reason the light curves and amplitude spectra have been scaled to show as much detail as possible.
The Fourier transforms of HS1824+5745 show no indications of more than one single period at 7.21 mHz. However, the synthetic light curve produced from the detected period does not reproduce the observed light curve as well as what was found for the two previous sdB pulsators (see Fig. 7). The noise in the data is higher in these observations, due to a combination of poorer weather conditions and a fainter target. Note that since the pulsations are much weaker, the y-axis scale in Fig. 7 has been stretched relative to the light curves in Figs. 3 and 5. Note also that the last third of the first night contains data of poorer quality than the first part, due to an onset of clouds that eventually forced the termination of observations. The second night has some slight cirrus activity throughout the run, while the third night is photometric.
The amplitude appears to be variable, changing from 2.6 to 4.8 mma from the first to the third night, but this is uncertain due to the poor conditions on the first two nights and the short length of the runs. For instance, the amplitude for the first night can be brought in accordance with that of the whole run by taking the FT of only the first (good) two thirds of the sequence.
This object shows a richer period spectrum than HS1824+5745, and clearly reveals four periods at 6.59, 6.86, 7.43 and 7.72 mHz (see Fig. 10), with amplitudes between 2 and 5 mma, as listed in Table 3.
After prewhitening of the four tabulated frequencies, the only significant feature in the combined amplitude spectrum is a 1.4 mma peak at 7.72 mHz, only 6 Hz away from the 3.3 mma peak. This feature may not be real, since the amplitude of this peak in the individual spectra appears to change considerably from the first to the third night. The synthetic light curve trace the obseved data reasonably well, but some discrepancies are seen. Some of this is due to noise, since this target is about one magnitude fainter than the three others, but it is also likely that unresolved periods or changes in period amplitudes over the three nights are significant.
The mean noise level in the prewhitened spectra is below 0.8 mma in the first night, below 0.7 mma in the second, and below 0.6 mma in the third. In the prewhitened spectrum of all three nights together the mean is below 0.4.
The prescision of the observations decreases somewhat in the last quarter of the third run, due to the onset of twilight.
The four new pulsating sdB stars presented here are all located well inside the region of the ( , log g) plane where the sdB pulsators are expected, and have fairly simple temporal spectra, as far as we can judge from our short light curves.
HS0039+4302, with a of 32400 and log g of 5.7, is located right in the centre of the sdBV ( , log g) distribution, comparable to PG1336-018 (Kilkenny et al. 1998). The main peak of PG1336-018 is found at 184s, with a secondary at 141s. For HS0039+4302 most of the power appears to be in a group of peaks between 195 and 182s, and a secondary group is seen at 242s. The rich pulsation spectrum and relatively strong amplitudes of this target makes it our favourite target for a multi-site campaign. HS0039+4302 is also the brightest among these new pulsators (B=15.1).
HS0444+0408, with 800K and log , is similar to KPD1930+2752 (Billères et al. 2000). Campaign observations of KPD1930+2752 have revealed that its pulsation spectrum contains at least 44 periods located in a number of discrete groups between 145 and 332s (Billères et al. 2000). Our three short observing runs on HS0444+0408 reveal one clear pulsation around 137s, and at least one more close to 170s. Higher frequency resolution observations of this star could reveal if further periodicities are present.
HS1824+5745 has 100K and log , which places it in the mid temperature - high gravity part of the sdBV ( , log g) distribution, right next to EC10228-0905 (Stobie et al. 1997). Whereas we only detect a single peak at 139s in the amplitude spectrum of HS1824+5745, EC10228-0905 displays three peaks in the range 139-152s with the most significant peak at 139s. Also, the observations reported by Stobie et al. (1997) indicate that the amplitudes are variable, just as we can see for HS1824+5745. Thus, a comparison between these two stars indicates a link between ( , log g) and pulsational behaviour.
HS2151+0857 has almost identical , log g and pulsation periods as the class prototype EC14026-2647, which has at least two periods where one is stable and the other apparently variable in amplitude (Kilkenny et al. 1997). In the three nights we observed HS2151 the main peak remained stable, while at least one peak (at 7.72 mHz) varied from about 2.6 to 4.6 mma, giving at least some indication of corresponding amplitude variability to that of the prototype. The periods detected for HS2151+0857 (between 129 and 151s) also span nearly the same range as that of EC14026-2647 (134 and 144s).
The new pulsators all follow the log g-P relation
(see Koen et al. 1999), as we see from Fig. 11,
where log g has been plotted against the period of the pulsation
with the strongest amplitude.

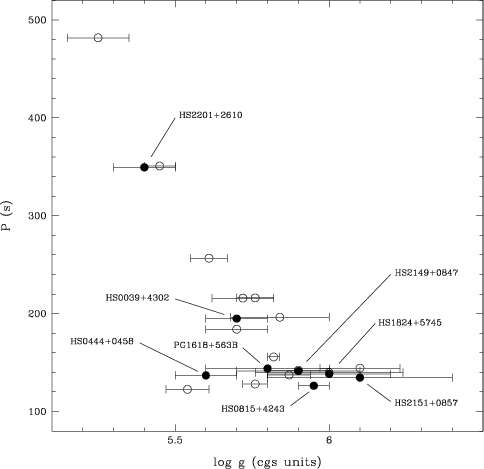

|Figure 11: In this figure log g values are plotted versus the pulsation period with largest detected amplitude. The eight pulsators found during our NOT search-programme are represented with filled circles.|
|Open with DEXTER|
This research was supported by the Norwegian Research Council. R. S. acknowledges support by the italian research foundation MURST under project "Stellar Evolution'' (coordinator V. Castellani). H. E. acknowledges financial support by the german research foundation DFG under grant He 1354/30-1. The authors also wishes to thank the staff at the NOT for good support. S. D. and U. H. thank D. Engels, H. Hagen and D. Reimers (Hamburg) for a fruitful collaboration over many years.
The time-series data presented here have been taken using ALFOSC, which is owned by the Instituto de Astrofisica de Andalucia (IAA) and operated at the Nordic Optical Telescope under agreement between IAA and the NBIfAFG of the Astronomical Observatory of Copenhagen.
This research has made use of the SIMBAD database, operated at CDS, Strasbourg, France.
