3 Imaging results

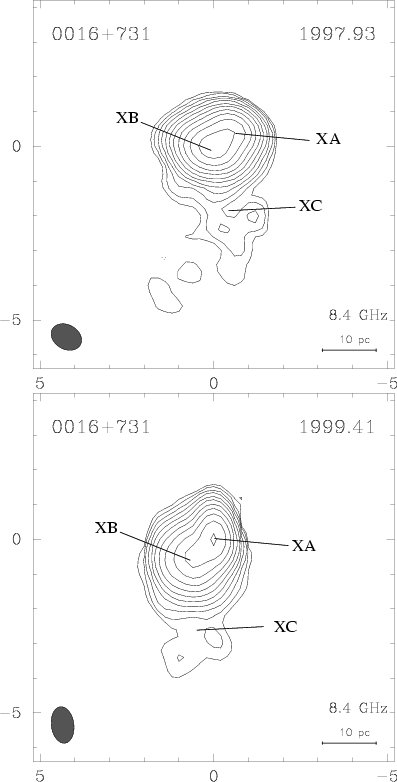

Figure 2: VLBA images of QSO0016+731 from observations on 6 December 1997 (1997.93) and 28 May 1999 (1999.41). Axes are relative $\alpha$ and $\delta$ in mas. See Table 1 for contour levels, beam sizes (bottom left in the maps) and peak flux densities. See Table 2 for component parametrization.

We obtained images of all 13 radio sources using standard hybrid mapping techniques. We found only minor calibration problems for data from the North Liberty antenna at epoch 1997.93; we had to multiply gain by a factor 2.03 - for all IF channels - to get consistent results with the other nine antennas. We show the maps obtained in Figs. 2 through 16. In all figures, east is left, and north is up. We list the main parameters of those maps in Table 1. We use a Hubble constant $H_0=65\,h$ kms^-1 Mpc^-1 and a deceleration parameter q₀=0.5, which results in the linear scales (10 pc) plotted on the bottom right corner of each image.

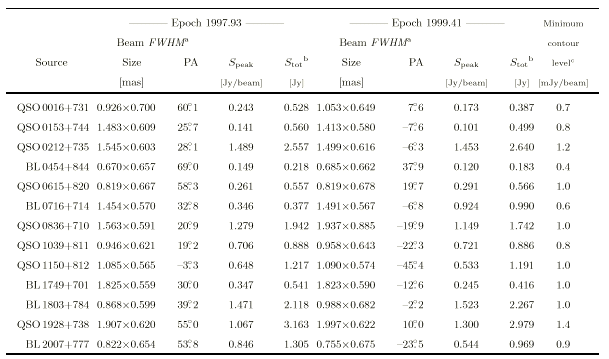

Table 1: Map parameters for sources of the complete S5 polar cap sample.

$${ \begin{tabular}{r@{~~}c@{$\times$}crcc@{~~}c@{$\times$}crcc... ...{$.\!\!^\circ$}5 & 0.544 & 0.969 & 0.9 \\ \hline \end{tabular}}$$

$^{\rm a}$

The restoring beam is an elliptical Gaussian with full-width-half-maximum (FWHM) axes $a\times b$. For each source, the position angle (PA) stands for the direction of the major axis (measured north through east).

$^{\rm b}$

Total flux density recovered in the hybrid mapping process.

$^{\rm c}$

Contours in the maps of the figures shown in Sects. 3.1 to 3.13 are the tabulated value times $(-1,1,\sqrt{3},3,3\sqrt{3},\cdots)$.


3.1 QSO0016+731

The QSO0016+731 has an optical magnitude V=19.0 and a redshift z=1.781 (Stickel & Kühr 1996). Eckart et al. (1987) reported that almost all of its flux density originates in an area smaller than 3 mas and that it does not have extended structure with flux density larger than 0.1 Jy at 5 GHz. Pearson & Readhead (1988) confirmed this result. This source experienced a decrease of the flux density through the nineties, from $\sim$1.5 Jy for the period 1990-1995 to $\sim$0.4 Jy for the second half of the decade.

Our maps (Fig. 2) show a double structure along PA  $\sim130\hbox{$^\circ$ }$ at both epochs. However, an alteration in the morphology of the source is clearly seen between the first and the second epoch. The total mapped flux density decreased from 528 mJy to 387 mJy ($\sim$27%). This decrease in the total flux density of the source is due to a strong decrease in the flux of the westernmost component (XB, the brightest feature in Fig. 2). To quantify those changes, we used the tasks MODELFIT and MODFIT of the Caltech package (Pearson 1991) to fit the visibility data to a model of elliptical components with Gaussian brightness profiles. The models are presented in Table 2. The modeling provides reasonable fits with three components: a compact one (XA), a second, more elongated one (XB) west of XA, and a third, weaker one (XC), the extended emission south of XA. The changes in the maps are likely associated to component XB, whose flux density decreased from 367 mJy to 205 mJy (45%), while the emission of component XA remained more stable.


3.2 QSO0153+744

The QSO0153+744, has V=16.0 and z=2.338 (Stickel & Kühr 1996). At kiloparsec-scales, this source does not display large structures, Hummel et al. (1997). At pc-scales, QSO0153+744 is a compact double radio source embedded in a halo, with a separation of 10 mas between components (Eckart et al. 1987; Hummel et al. 1988; Pearson & Readhead 1988). The jet, as seen in projection, changes its direction by a full 180$^\circ$ between component A and the bright secondary component B, located about 10 mas from the core at PA  $\sim 150\hbox{$^\circ$ }$. No component motion has been detected. The source flux density at 8.4 GHz has been roughly stable at $\sim$0.8 Jy, from 1996 to 1999.

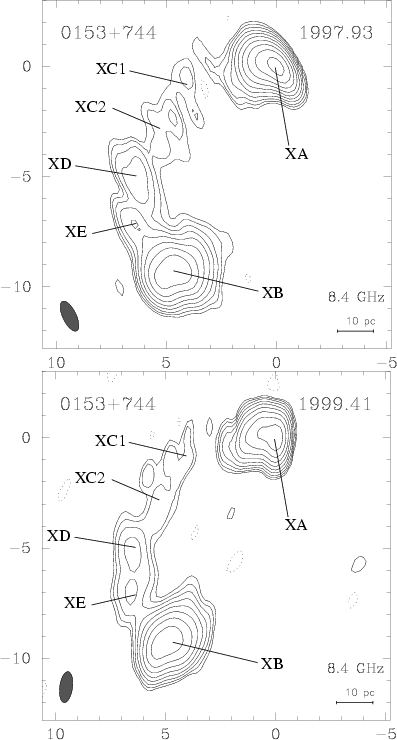

Figure 3: VLBA images of QSO0153+744 from observations on 6 December 1997 (1997.93) and 28 May 1999 (1999.41). Axes are relative $\alpha$ and $\delta$ in mas. See Table 1 for contour levels, synthesized beam size (bottom left in the figure), and peak flux densities. See Table 2 for component parametrization.

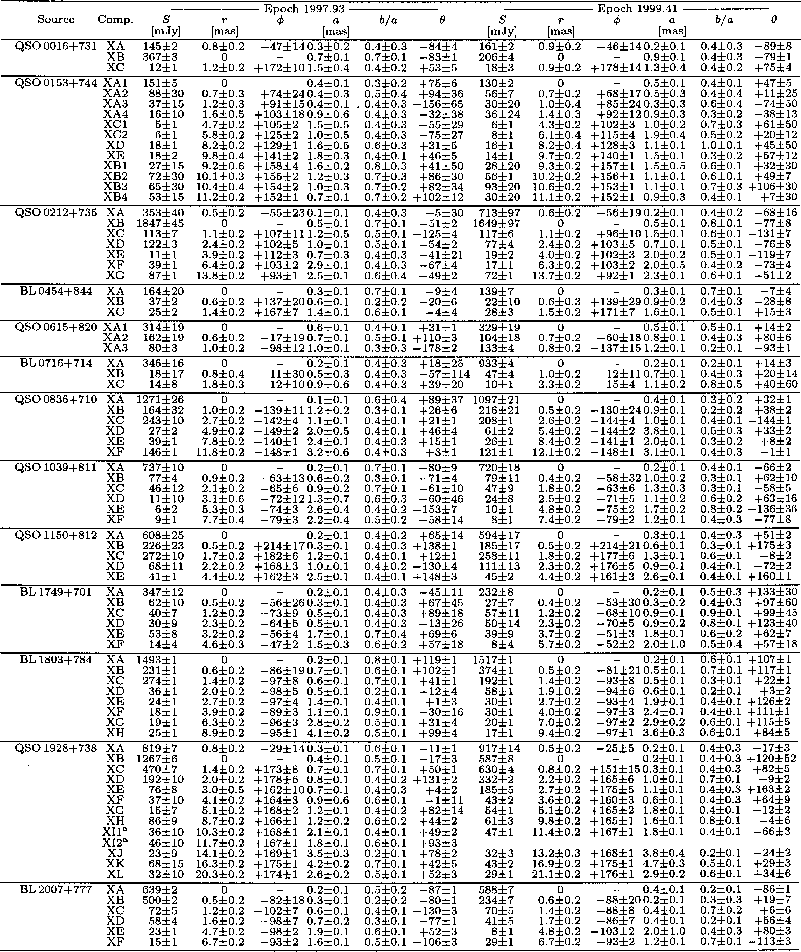

Table 2: Elliptical Gaussian component model parameters for the radio sources of the complete S5 polar cap sample.

Note: For each source whose name is on the first column, the other columns correspond to the component designation (as indicated in Figs. 2 to 16), flux density, separation and position angle relative to the strongest component, major axis, axis ratio, and position angle of the major axis. The given uncertainties have been estimated from the exploration of the parameter space ( $S, r, \Phi, a, b/a$, and $\theta$), and from empirical considerations (e.g., the errors of the component positions are typically smaller than a tenth of a beam width, but to be conservative we have assumed a magnitude of a fifth of beam width for them). $^{\rm a}$This component is model fitted as double only in the first epoch. In the second epoch the model fit algorithm merged both components into a single one.

Figure 3 shows the two components reported by Eckart et al. (1987) (XA and XB in the figure), and emission in an arc joining the two components. Both XA and XB are well modeled at each epoch by four Gaussian individual components (Table 2). The complex structure of this radio source does not show dramatic changes over the years, although some slight changes are readily visible. The overall flux density has been decreasing slowly in the second half of the nineties (Peng et al. 2000). A careful astrometric test of the registration of the maps (Ros et al., in preparation), should shed more light on eventual proper motions in the components of this source.


3.3 QSO0212+735

The QSO0212+735 has V=19.0 and z=2.367 (Stickel & Kühr 1996). This source does not show extended emission at kpc scales in VLA images obtained at 1.49 GHz (Antonucci et al. 1986). Eckart et al. (1987) reported a core-jet structure with a jet extending 12.5 mas away from the core in PA 91$^\circ$ at 1.7 GHz. Pearson & Readhead (1988) reported a very similar structure to that found by Eckart et al. (1987). More recently, Fey et al. (1996) reported maps at 2.3 GHz that show an elongated jet with a strong component at 13 mas (PA 91$^\circ$) of the core and a fainter component at 41 mas (PA 95$^\circ$) from the core. Their 8.4 GHz map shows extended emission up to 14 mas, in PA 42$^\circ$.

Our maps at 8.4 GHz (Fig. 4) display a jet-like structure prolonging eastwards up to 14 mas. We reproduce the emission of the radio source at each epoch with a 7-component model (Table 2). The peak of brightness corresponds to component XB. In the first epoch, XA is at $\sim$0.5 mas northwest of XB, in PA  $\sim 55\hbox{$^\circ$ }.$In the second epoch, some structure is visible west of the brightest region XA/XB.

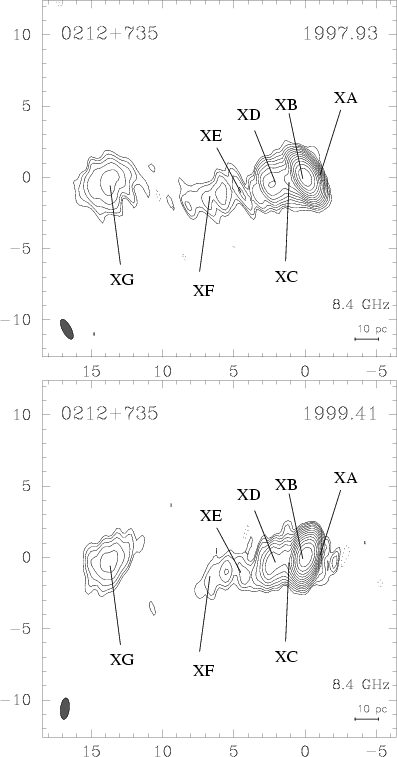

Figure 4: VLBA images of QSO0212+735, observed on 6 December 1997 (1997.93) and 28 May 1999 (1999.41). Axes are relative $\alpha$ and $\delta$ in mas. See Table 1 for contour levels, synthesized beam size (bottom left in the figure), and peak flux densities. See Table 2 for component parametrization.

Lacking an accurate astrometric registration, all components seem to have remained unchanged for the last 20 yrs. Note that component XG, about 13.8mas (PA $\sim$93$^\circ$) east of the peak of brightness, with a 3% of the total mapped flux density, appears unchanged between our two epochs.


3.4 BL0454+844

The BL Lacertae object BL0454+844, with V=16.5 and z=0.112 (Stickel & Kühr 1996) has been reported to contain all the flux density in its milliarcsecond structure (Eckart et al. 1987). Those authors reported a strong core emission and weaker extended emission southwards, which was also confirmed by Pearson & Readhead (1988). Its radio emission shows variability on scales of (several) months. It registered a local maximum in mid 1995, and it has since then been decreasing (by $\sim$40%) through late 1999. Then, its flux density started to increase again (Peng et al. 2000). Our maps (Fig. 5) show a very compact structure. There is no emission outside $\sim$4mas of the core. We reproduce its emission with a three-component model (see Table 2). It is interesting to notice that the most compact source in the sample has also the smallest redshift.

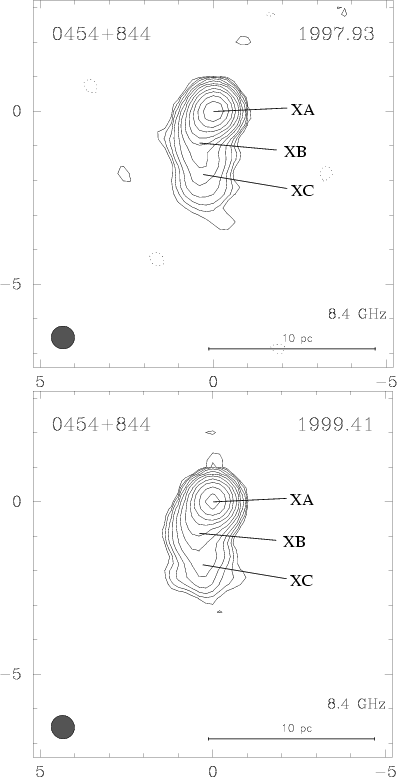

Figure 5: VLBA images of BL0454+844, observed on 6 December 1997 (1997.93) and 28 May 1999 (1999.41). Axes are relative $\alpha$ and $\delta$ in mas. See Table 1 for contour levels, synthesized beam sizes (bottom left in the maps), and peak flux densities. See Table 2 for component parametrization.


3.5 QSO0615+820

The QSO0615+820 is a radio source with V=17.5 and z=0.710 (Stickel & Kühr 1996). Eckart et al. (1987) reported this radio source to be unresolved, and modeled it with a single elliptical Gaussian profile elongated in PA 195$^\circ$ at 5 GHz and in PA 181$^\circ$ at 15 GHz.

Our maps (Fig. 6) show a compact plateau-like structure within 2-3 mas; however, we could not reasonably fit the brightness distribution with a single elliptical Gaussian component. We obtained good Gaussian fits (Table 2) with three close components within 1 mas, with a spatial L-shaped distribution, being the brightest one XA, to the east.

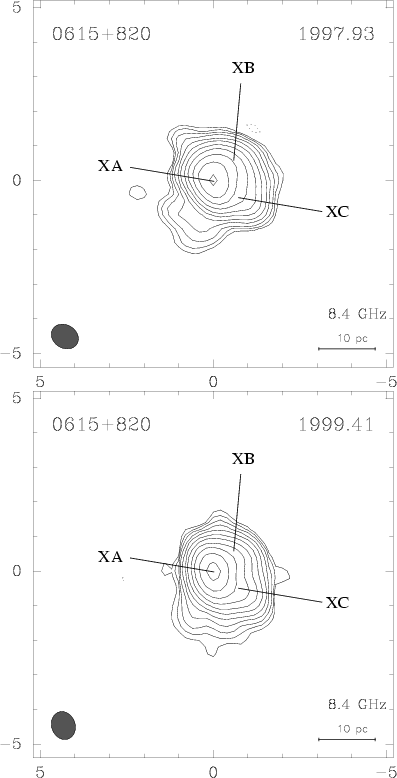

Figure 6: VLBA images of QSO0615+820, observed on 6 December 1997 (1997.93) and 28 May 1999 (1999.41). Axes are relative $\alpha$ and $\delta$ in mas. See Table 1 for contour levels, synthesized beam sizes (bottom left in the maps), and peak flux densities. See Table 2 for component parametrization.


3.6 BL0716+714

The object BL0716+714 (V=14.17) is a rapidly variable source across the electromagnetic spectrum, a paradigm of the intra-day variable (IDV) behavior (Quirrenbach et al. 1991; Wagner et al. 1996). No sign of optical counterpart exists, and thus no redshift is available. This fact prompted several authors (e.g., Eckart et al. 1987) to assume a value of z>0.3. Previous radio maps show a core-halo structure on arcsecond scales (Antonucci et al. 1986). VLBI maps at 5 and 22 GHz show a very compact source on the milliarcsecond-scale with some hints of a core-jet structure oriented along a PA  $\sim10\hbox{$^\circ$ }$ (Eckart et al. 1987).

Our maps (Fig. 7) show a core-jet structure extended northwards. We modeled the structure with three components (see Table 2). In the first epoch the components lie at 0.8 mas (XB) and 1.8 mas (XC) (PA  $\sim11\hbox{$^\circ$ }$) of the main component (XA), and in the second epoch, at 1.0 and 3.3 mas (again PA  $\sim11\hbox{$^\circ$ }$). Taking the association at face value, and for the elapsed period of time between both epochs ($\sim$1.5 yr), XC would have moved with a rate of $\sim$0.7masyr^-1. However, BL0716+714 looks more like a source with "flaming'' features than the "classical'' core-jet structure with components emerging from the core and traveling along the jet. In a classical core-jet source the emergence of components is related to changes in the flux density. For this source, the flux density has changed dramatically from one epoch to the other (University of Michigan Radio Astronomy Observatory data base and Peng et al. 2000). After smooth flux density changes from 1994 to 1997, the flux density began to rise by mid 1997. A decrease followed by late 1997, and a rise of more than 100% by the first half of 1998, remaining stable over the following months until a further decrease took place by mid 1999. We mapped a total flux density of 0.377 Jy in 1997.93, and 0.990 Jy in 1999.41. This source is a case where frequent sampling of the structure and astrometric registration are essential to correctly interpret the source structure changes.

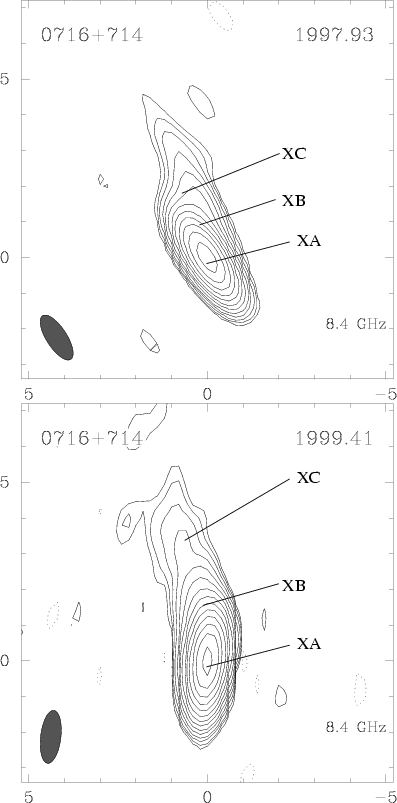

Figure 7: VLBA images of BL0716+714, observed on 6 December 1997 (1997.93) and 28 May 1999 (1999.41). Axes are relative $\alpha$ and $\delta$ in mas. See Table 1 for contour levels, synthesized beam sizes (bottom left in the maps), and peak flux densities. See Table 2 for component parametrization.


3.7 QSO0836+710 (4C71.07)

The QSO0836+710 has V=16.5 and z=2.172 (Stickel & Kühr 1996). At kpc-scales, it displays a highly polarized secondary component 1.3arcsec off the core at PA  $\sim200^\circ$ (Perley 1980; O'Dea et al. 1988). MERLIN-VLBI images at 90 and 18 cm show a jet structure extending up to 150 mas in direction to the outer arcsecond lobe (Hummel et al. 1992b). It shows a complex and wiggled one-sided core-jet structure along PA  $\sim215^\circ$ at pc-scales. The structure of the jet can be characterized by a sequence of kinks among which the jet follows a slightly curved path (Krichbaum et al. 1990). Based on data at 8.4, 15, 22, and 86 GHz, Otterbein et al. (1998) reported the ejection of a new component at mas scales around epoch 1992.65, with an apparent superluminal motion of $\mu=0.26\pm0.03$ masyr^-1. The ejection of this component would be directly related to gamma-, X-ray, and optical activity observed in February 1992 (Otterbein et al. 1998).

Although our maps (Fig. 8) are convolved with differently oriented beams, the features in the maps can be identified unambiguously. We detect emission up to 30 mas away of the core, although we plot the structure only extending 15 mas from the core to see more clearly the main features. We reproduce the emission up to $\sim$12 mas from the core with six components. We convolved our images with a circular beam of 0.6 mas size to better compare the inner structure changes, and show them in Fig. 9. We can neither confirm nor reject the superluminal motion reported by Otterbein et al. (1998), until an astrometric registration between our both images becomes available. Only from our model fitting it is difficult to establish proper motions between components (Table 2).

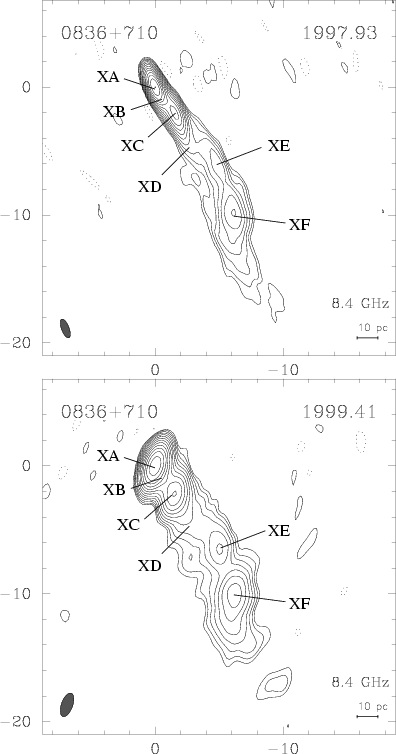

Figure 8: VLBA images of QSO0836+710, observed on 6 December 1997 (1997.93) and 28 May 1999 (1999.41). Axes are relative $\alpha$ and $\delta$ in mas. See Table 1 for contour levels, synthesized beam sizes (bottom left in the maps), and peak flux densities. See Table 2 for component parametrization.

Figure 9: VLBA images of QSO0836+710, convolved with a 0.6 mas circular beam. The map parameters are the same as in Fig. 8. Note the small structural changes in the inner part of the jet. The peak of brightness changes from 1.233 Jy/beam at 1997.93 to 1.050 Jy/beam at 1999.41. The dashed lines draw a tentative association between features from one epoch to another.


3.8 QSO1039+811

The QSO1039+811 has V=16.5 and z=1.264 (Stickel & Kühr 1996). Eckart et al. (1987) reported a pc-scale core-jet structure with a jet oriented with PA  $\sim-70^\circ$at 5 GHz. This radio source displays a misalignment between the pc-scale and the kpc-scale structure (Appl et al. 1996).

Our maps (Fig. 10) show extended jet structure up to 10 mas away of the core component. The multi-frequency flux density monitoring reported by Peng et al. (2000) shows a rise from 1997 to 1999. Our maps, however, have almost the same flux density for both epochs (0.888 and 0.886 Jy at 1997.93 and 1999.41, respectively). The model fitting (Table 2) reports an apparent backwards motion of the components XB (from 0.9 to 0.4 mas from XA), XC (2.1 to 1.8 mas), XD (3.1 to 2.5mas), XE (5.3 to 4.8 mas), and XF (7.7 to 7.4 mas). This apparently contracting motion could be related to changes in the core region. The emergence of a component, in its early stage, can produce apparent backward motions of the rest of the jet components at cm-wavelengths (see, e.g., Guirado et al. 1998; Ros et al. 1999 for QSO1928+738). Those effects should be tested after the astrometric alignment of the images becomes available. Note that the moving components are very weak in comparison with the main feature (which contains more than the 80% of the mapped flux density in both cases), and also that the (u,v)-sampling, and consequently the synthesized beams, differ substantially from the first epoch to the second.

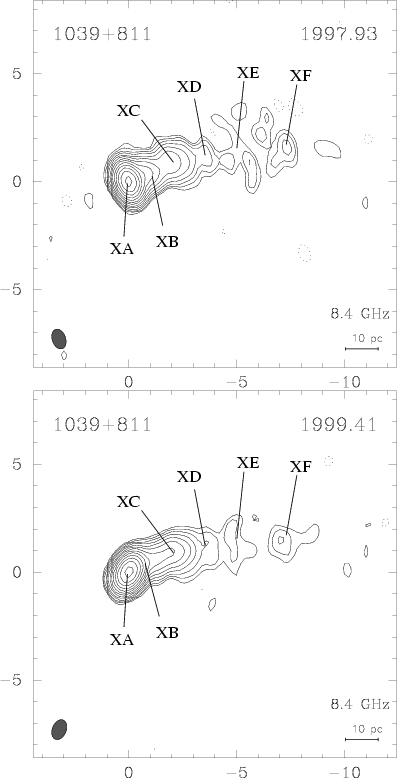

Figure 10: VLBA images of QSO1039+811, observed on 6 December 1997 (1997.93) and 28 May 1999 (1999.41). Axes are relative $\alpha$ and $\delta$ in mas. See Table 1 for contour levels, synthesized beam sizes (bottom left in the figure), and peak flux densities. See Table 2 for component parametrization.


3.9 QSO1150+812

The QSO1150+812 has V=18.5 and z=1.250 (Stickel & Kühr 1996). Its radio structure has been studied at pc and kpc scales by Appl et al. (1996), who reported a misalignment of the jet between both scales. At kpc scales, Murphy et al. (1993) reported a VLA map with a core and a fainter component at 6 arcsec and PA  $\sim -100\hbox{$^\circ$ }$. At pc scales, Eckart et al. (1987) reported a core-jet structure in the VLBI maps, with a faint jet emission oriented at PA  $\sim178^\circ$, and superluminal motion of about 0.12 masyr^-1 of the jet component between 1979.93 and 1983.25 epochs. Fey & Charlot (1997) published VLBI maps from epoch 1995.20 epoch at 8.4 and 2.3 GHz. Extended emission is detected up to 30 mas (PA of 135$^\circ$) in their 2.3 GHz maps. In their 8.4 GHz maps, the emission extends $\sim$7 mas (PA  $\sim135^\circ$). Pérez-Torres et al. (2000) studied this radio source astrometrically referenced to BL1803+784, and thus our observations constitute a second and third astrometric epochs for the pair QSO1150+812/BL1803+784. A comparison of the astrometric results will be published elsewhere.

Our maps (Fig. 11) display a jet oriented southwards, up to 5 mas away from the core component. We model fit the source (Table 2), with 5 components in both cases, up to 4.4 mas south of the radio brightest component XA (PA  $\sim160\hbox{$^\circ$ }$). The source increased its total flux density by less than a 20% from one epoch to the other (Peng et al. 2000), and the VLBA flux densities in our images are very similar. The radio source does not present important structural changes between our epochs, and the modelfitted components do not permit reporting of any significant proper motion.

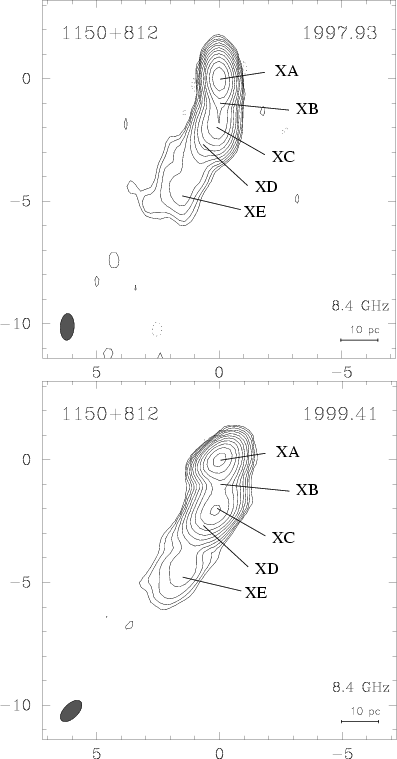

Figure 11: VLBA images of QSO1150+812, observed on 6 December 1997 (1997.93) and 28 May 1999 (1999.41). Axes are relative $\alpha$ and $\delta$ in mas. See Table 1 for contour levels, synthesized beam sizes (bottom left in the maps), and peak flux densities. See Table 2 for component parametrization.


3.10 BL1749+701

The object BL1749+701 has V=16.5 and z=0.770 (Stickel & Kühr 1996). VLA images at 5 GHz (Perley 1982) show a halo of $\sim$0.4 arcsec. O'Dea et al. (1988) reported two components at pc-scales at 15 GHz separated by 0 $\rlap{.}^{\prime \prime}$4 at a PA  $-150^\circ$. Kollgaard et al. (1992) did not report extended emission, although they found evidence of emission to the north. VLBI observations from Eckart et al. (1987) show the core, and a component at $\sim$2.4 mas and PA  $-45\hbox{$^\circ$ }$. Witzel et al. (1988) reported this component to be moving with a rate of 0.1 masyr^-1. Bååth & Zhang (1992) reported a more complicated jet structure, with a position angle of $\sim-65^\circ$, and gave a three-component model for maps from 1980 to 1983. They found a maximum component motion of 0.18 masyr^-1. Gabuzda et al. (1992) reported new results from epoch 1987, and gave a 4-component model, at separations of 0.84, 1.93, and 3.41mas of the core component (PA of $-60.7^\circ$, $-66.5^\circ$, and $-53.0^\circ$, respectively). These authors claimed that the radio source has an unusually low degree of polarization for BL Lacertae objects, and also questioned some of the proper motions reported above.

Our maps (Fig. 12) show a complex jet structure oriented to the northwest, and extended up to 7 mas from the core. We identify in our images more components than the number reported by (Bååth & Zhang 1992). We observe about the same structure for the two epochs, the beam being perpendicular to the jet direction in the first epoch, and (unfortunately) more aligned to it for the second one. A Gaussian model of the visibilities (see Table 2) includes a compact, central component (XA), and 5 components, XB to XF, stretching up $\sim$5 mas from XA, and describing a slightly curved trajectory northwards. This source offers interesting prospects for study: the astrometric analysis will unambiguously prove the proper motions early reported for this source and will also provide insight into the nature of the XA component.

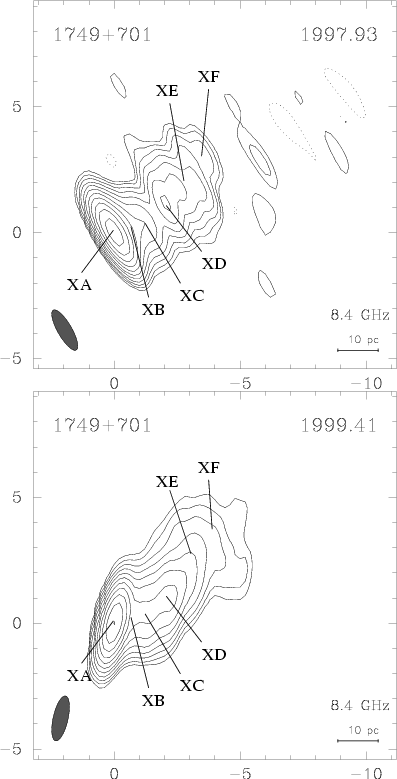

Figure 12: VLBA images of BL1749+701, observed on 6 December 1997 (1997.93) and 28 May 1999 (1999.41). Axes are relative $\alpha$ and $\delta$ in mas. See Table 1 for contour levels, synthesized beam size (bottom left in the maps), and peak flux densities. See Table 2 for component parametrization.


3.11 BL1803+784

The object BL1803+784 has V=16.4 and z=0.864(Stickel & Kühr 1996). It has been extensively studied in the past at different radio wavelengths. At kpc scales, the maps reveal components south of the core at 2, 37, and 45 arcsec (Antonucci et al. 1986; Strom & Biermann 1991; Murphy et al. 1993). Eckart et al. (1987) and Pearson & Readhead (1988) reported a core-jet structure at pc scales with a jet oriented westwards. Schalinski (1990) suggests the stationarity of a component at 1.2 mas of the core. Krichbaum et al. (1993, 1994) with 43 GHz observations reported the existence of some traveling components between the core and such component, now estimated to be at 1.4 mas separation. Steffen (1994) modeled the radio source as an homogeneous plasma jet of helical trajectory in adiabatic expansion. Fey et al. (1996) reported VLBA results at 8.5 and 2.3 GHz. At 8.5 GHz, the radio source displays a 12 mas jet. At 2.3 GHz, the radio source shows a jet up to 40 mas with PA  $\sim-110^\circ$. At this distance, the jet turns northwards, reaching the extended emission a PA up to $-60^\circ$. This radio source has been studied astrometrically by Ros et al. (1999) with reference to QSO1928+738/BL2007+777, and by Pérez-Torres et al. (2000) with reference to QSO1150+812.

Our maps (Fig. 13) show similar features to those obtained by Fey et al. (1996). The component at 1.2-1.4 mas of the strong core is present, as it has been for all VLBI observations during the last 20 years. A model fitting of the visibilities with 8 elliptical Gaussian components (Table 2) reproduces the structure of the radio source. The inner region has three main components: XA (with 1.5 Jy, the "core"), XB (at 0.5-0.6 mas with PA of $\sim-85$$^\circ$), corresponding to the component reported by Krichbaum et al. 1993), and XC (1.2 mas, PA $\sim-95$$^\circ$). Those three components represent $\sim95\%$ of the flux density of the source. Further components range from $\sim$2 to $\sim$9 mas from XA. The jet bends to the south at $\sim$5 mas of the main feature. At lower frequencies, the source has more extended emission at PA $\sim-100$$^\circ$. Such extended emission is also present in our maps, though not shown in Fig. 13. We find no evidence for bona fide proper motions of the components from our two observing epochs.

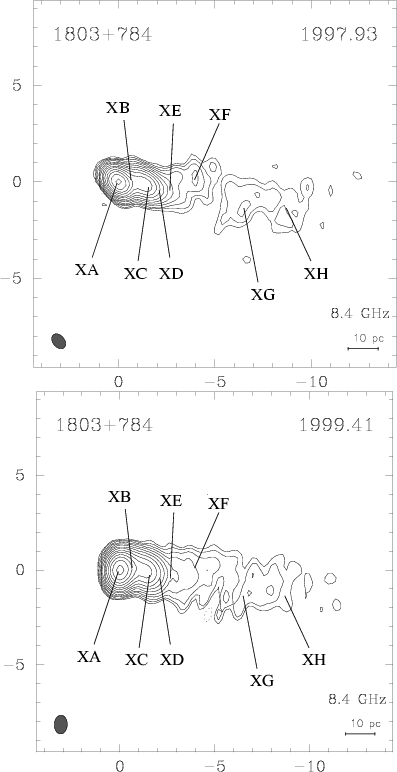

Figure 13: VLBA images of BL1803+784, observed on 6 December 1997 (1997.93) and 28 May 1999 (1999.41). Axes are relative $\alpha$ and $\delta$ in mas. Contours are 0.859mJy/beam $\times$ (1, 2, 4, ..., 1024). See Table 1 for contour levels, synthesized beam sizes (bottom left in the maps), and peak flux densities. See Table 2 for component parametrization.


3.12 QSO1928+738 (4C73.18)

QSO1928+738 has V=15.5 and z=0.3021 (Roos et al. 1993), and displays superluminal motion in a jet oriented westwards. It is the best known and most extensively studied radio source of the complete S5 polar cap sample. At kpc scales, it displays extended emission in the north-south direction, with two lobes separated by 40 arcsec (PA $\sim$0$^\circ$) (Rusk & Rusk 1986). Johnston et al. (1987) and Murphy et al. (1993) detected emission up to 80arcsec from the core. Based on kpc-scale images, Hummel et al. (1992a) modeled the radio source as an object with a helical magnetic field attached to a rotating accretion disk. Eckart et al. (1985) reported a self-absorbed core and a pc-scale jet 17mas long, whose components display superluminal motion. Roos et al. (1993) modeled the radio source as a binary black hole. Guirado et al. (1995,1998) detected a shift in the peak of brightness between different epochs, based on an astrometric analysis. Ros et al. (1999) confirmed the results of Guirado et al., and also studied the proper motions of QSO1928+738 by aligning astrometrically maps of 1985 and 1991.

Our maps (Fig. 14) show very elliptical synthesized beams, which nevertheless allow one to distinguish perfectly different features of its pc-scale. The flux density of QSO1928+738 at 8.4 GHz has not changed much from the first to the second epoch. Hummel et al. (1992a) reported that the core of this radio source ejects a new component every $\sim$1.6 yr (approximately the time elapsed between our two observing epochs). If we convolve the CLEANed components with a 0.6 mas circular beam (Fig. 15), structural changes are evident between the two epochs. The component XA (north of the brightest one in 1997.93), has $\sim$0.8 Jy, and XB (the brightest in 1997.93), has $\sim$1.3Jy. In 1999.41 they have $\sim$0.9 and $\sim$0.6Jy, respectively. Previous astrometric results (Guirado et al. 1998; Ros et al. 1999) show that most likely none of those components corresponds to the true "core'', which should be northwards of them (shown as a question mark in Fig. 15) and whose radiation is probably very self-absorbed. If we take as reference component XB (Table 2), the rest of the components extend southwards in PA 165$^\circ$ to 4-8 mas distance and in 175$^\circ$ to 15-20mas. Though we could try to identify the components seen in 1991.88 by Ros et al. (1999) with those reported for our first epoch ($\sim$7.1 years later), such an attempt would be, at least, adventurous. Indeed, for an emergence rate of one component every 1.6 years, QSO1928+738 should have produced 4 or 5 components, making completely ambiguous any component identification. The comparison of these components with results from previous epochs by us and by other authors will be presented elsewhere.

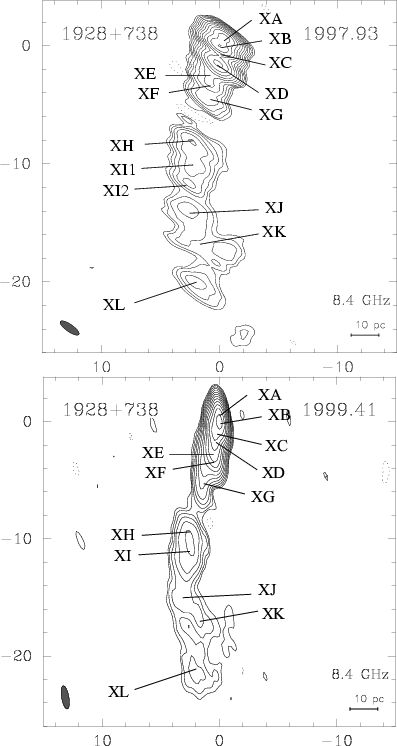

Figure 14: VLBA images of QSO1928+738 (4C73.18), observed on 6 December 1997 (1997.93) and 28 May 1999 (1999.41). Axes are relative $\alpha$ and $\delta$ in mas. See Table 1 for contour levels, synthesized beam sizes (bottom left in the maps), and peak flux densities. See Table 2 for component parametrization.

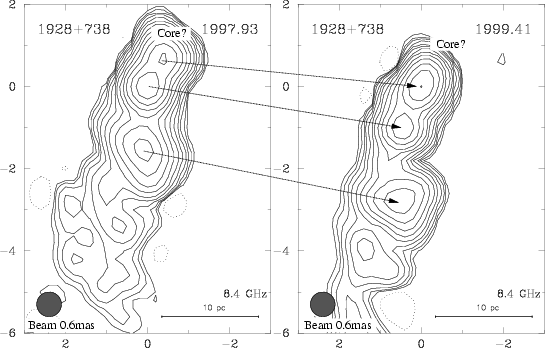

Figure 15: VLBA images of QSO1928+738, convolved with a 0.6mas circular beam. Contours are the same as in Fig. 14. The dashed lines represent a tentative association between jet regions from one epoch to another. Notice the structural changes in the maps, especially in the brighter regions. The images are centered in the brightest feature in both cases, which very probably diverges from a rigorous astrometric registration.


3.13 BL2007+777

The object BL2007+777 has V=16.5 and z=0.342 (Stickel & Kühr 1996). This radio source has been studied with different techniques and at different frequencies in the last 20 years. Its kpc scale has been studied, e.g., by Antonucci et al. (1986), Kollgaard et al. (1992), and Murphy et al. (1993). Those authors presented maps with compact emission, and extended components at 8.5 and 15.8arcsec to the west, and another extended component at 11 arcsec to the east, of the brightest compact component. At pc scales, the radio source is also bright. All VLBI maps (Eckart et al. 1987; Pearson & Readhead 1988; Guirado et al. 1995; Xu et al. 1993; Fey & Charlot 1997; Guirado et al. 1998; Ros et al. 1999) show emission west of the main component with the brightest features about 5-6 mas of the core, and emission extending out to 20 mas at 5 GHz for epoch 1992.47 (Xu et al. 1993) and out to 40 mas at 2.3 GHz for epoch 1995.77 (Fey & Charlot 1997). BL2007+777 displays strong flux variability. Data from UMRAO at 8 GHz show that the source changed the total flux density from $\sim$0.8 Jy at 1996.5 to $\sim$1.8 Jy at 1997.2. Throughout 1997 the source maintained a total flux density of $\sim$1.7 Jy at 8.4 GHz, decreasing to $\sim$1.4 Jy for our second epoch in mid 1999.

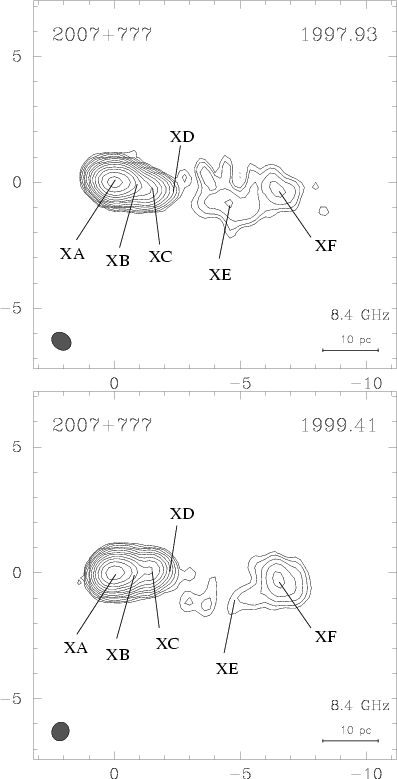

Figure 16: VLBA images of BL2007+777, observed on 6 December 1997 (1997.93) and 28 May 1999 (1999.41). Axes are relative $\alpha$ and $\delta$ in mas. See Table 1 for contour levels, synthesized beam sizes (bottom left in the maps), and peak flux densities. See Table 2 for component parametrization.

Our maps (Fig. 16) recover flux densities of 1.305 and 0.969 Jy for the first and second epochs, respectively. Changes in the structure are evident. A secondary component about 2 mas (labeled XC+XD in Fig. 16) west of the brightest feature (XA) appears at a different PA, having moved northwards from the first to the second epoch. This is confirmed by the 5 GHz VLBI Space Orbiting Programme data from epochs close to ours (Krichbaum et al. 2000). A model fit with Gaussian components (Table 2) shows two components for the $\sim$2mas feature, XC and XD, that change the PA from -102$^\circ$ and -98$^\circ$ in the first epoch to -88$^\circ$ and -86$^\circ$, respectively. Their distances from the brightest feature change from 1.2 and 1.6 mas to 1.4 and 1.7 mas, respectively. Assuming that component XA is stationary, these position changes correspond to northward superluminal motion (not only from the core outwards). The core area is double, with XA with similar flux densities in both epochs, and XB decaying to 30% of its previous flux densities in 1999.41. Guirado et al. (2000) report a changing double structure in this core area at 43GHz, which questions any registration of this region without astrometric information.

There are also structural changes in the components labeled XE and XF. While XE decays strongly in emission, XF becomes more prominent (it doubles its flux density from the first to the second epoch). This is consistent with space VLBI observations from Krichbaum et al. (2000), which report changes in the blobs of BL2007+777 within a month in the region 6-7 mas from the "core''. The forthcoming exact alignment of the features provided by the astrometry should constrain the proper motions of the components of the jet of this radio source.
